Victoria Martucci1,2
- 1 Department of Nuclear Medicine, Centre Hospitalo-Universitaire d’Angers, Angers, France
- 2 Program in Reproductive and Adult Endocrinology, Eunice Kennedy Shriver National Institute of Child Health and Human Development, National Institutes of Health, Bethesda, MD, USA
Paragangliomas are neural crest-derived tumors, arising either from chromaffin sympathetic tissue (in adrenal, abdominal, intra-pelvic, or thoracic paraganglia) or from parasympathetic tissue (in head and neck paraganglia). They have a specific cellular metabolism, with the ability to synthesize, store, and secrete catecholamines (although most head and neck paragangliomas do not secrete any catecholamines). This disease is rare and also very heterogeneous, with various presentations (e.g., in regards to localization, multifocality, potential to metastasize, biochemical phenotype, and genetic background). With growing knowledge, notably about the pathophysiology and genetic background, guidelines are evolving rapidly. In this context, functional imaging is a challenge for the management of paragangliomas. Nuclear imaging has been used for exploring paragangliomas for the last three decades, with MIBG historically as the first-line exam. Tracers used in paragangliomas can be grouped in three different categories. Agents that specifically target catecholamine synthesis, storage, and secretion pathways include: 123 and 131I-metaiodobenzylguanidine (123/131I-MIBG), 18F-fluorodopamine (18F-FDA), and 18F-fluorodihydroxyphenylalanine (18F-FDOPA). Agents that bind somatostatin receptors include 111In-pentetreotide and 68Ga-labeled somatostatin analog peptides (68Ga-DOTA-TOC, 68Ga-DOTA-NOC, 68Ga-DOTA-TATE). The non-specific agent most commonly used in paragangliomas is 18F-fluorodeoxyglucose (18F-FDG). This review will first describe conventional scintigraphic exams that are used for imaging paragangliomas. In the second part we will emphasize the interest in new PET approaches (specific and non-specific), considering the growing knowledge about genetic background and pathophysiology, with the aim of understanding how tumors behave, and optimally adjusting imaging technique for each tumor type.
Pheochromocytoma and Paraganglioma
Paragangliomas are autonomic nervous system tumors, derived from the neural crest. They can be divided in two groups: those that arise from sympathetic-associated chromaffin tissue in adrenal and extra-adrenal abdominal, intra-pelvic, or thoracic locations (when such tumors arise from the adrenal medulla they are called pheochromocytomas), and those that arise from head and neck parasympathetic-associated tissue (most commonly along the cranial and vagus nerves).These two entities have distinctive biochemical and clinical properties. Parasympathetic head and neck paragangliomas rarely produce a significant amount of catecholamines, whereas almost all sympathetic paragangliomas produce and secrete catecholamines or their metabolites (Eisenhofer, 2001). This hormonal excess can induce severe cardiovascular and cerebrovascular complications. For head and neck paragangliomas which do not secrete catecholamines, complications can result from mass effect. Another important factor in determining the prognosis is the malignancy status.
There are currently no validated histological criteria for malignancy (Tischler, 2008). The diagnosis of malignant paraganglioma, often established late, is based only on the occurrence of the first metastasis (defined by presence of tumoral cells at non-neural-crest-derived sites; DeLellis, 2004).Two risk factors have classically been associated with poor prognosis: a tumor size exceeding 5 cm and an extra-adrenal localization. It has been previously estimated that 10% of paragangliomas are malignant, but this estimation is no longer valid. In fact, it has been demonstrated that the prevalence of malignant lesions depends directly on the underlying mutation.
Paragangliomas occur either sporadically or as part of a hereditary syndrome. According to the latest studies, 30% or more of paragangliomas may be due to an inherited origin (Gimenez-Roqueplo et al., 2008). Patients with an inherited predisposition often develop multiple, bilateral, and early onset paragangliomas (as a result of germline mutations in the predisposing genes; Amar et al., 2005). The following hereditary syndromes have been identified so far: multiple endocrine neoplasia type 2 (MEN2), neurofibromatosis type 1 (NF1), von Hippel–Lindau disease (VHL), and hereditary paraganglioma. These syndromes are caused by mutations in the RET, VHL, NF1, and succinate dehydrogenase (SDH) -B, -C, and -D genes, respectively (Bryant et al., 2003). Moreover, newly discovered genes have recently also been linked to hereditary paragangliomas (SDHAF2, also called SDH5, SDHA, TMEM127, and MAX; Hao et al., 2009; Burnichon et al., 2010; Qin et al., 2010; Comino-Méndez et al., 2011).
SDHB gene mutations are known to be associated with extra-adrenal localization, overproduction of norepinephrine and dopamine, and a high risk of malignancy with a poor prognosis (Gimenez-Roqueplo et al., 2003; Neumann et al., 2004; Amar et al., 2007; Timmers et al., 2007a). In contrast to the high malignant potential of tumors related to SDHB germline mutations, patients with NF1,RET, VHL, and SDHD mutations rarely develop metastases (Amar et al., 2005; Gimenez-Roqueplo et al., 2006). All these underlying mutations can lead to various tumor locations (with the possibility of multifocal disease), biochemical phenotypes, and malignant potentials: thus paragangliomas are exemplary for functional imaging.
Moreover, some studies have recently described molecular phenomena and specific pathways that occur in each specific pattern of paraganglioma. In particular, transcriptional profiling studies revealed pseudo-hypoxic signatures in SDHx/VHL tumors, which result in the stabilization of hypoxic-inducible factor (HIF)-1alpha and the overexpression of its target genes (genes regulating angiogenesis, proliferation, apoptosis, invasion, and energy metabolism; Favier and Gimenez-Roqueplo, 2010).
In this context the goal is then to perform imaging studies adapted to each individual patient, according to his syndrome and genetic background. This would allow for earlier detection of lesions, better understanding of how tumors behave, and development of new therapeutic approaches.
Current Functional Imaging
Nuclear imaging has been used for exploring paragangliomas for the last three decades. It has rapidly proved its complementarity with anatomical imaging, thanks to the better specificity and the possibility of performing full-body imaging, which is useful in the presence of various tumor locations and with the possibility of multifocality or metastases.
I131/123 MIBG Scintigraphy
131/123I-MIBG scintigraphy has been, for a long time, the main functional imaging modality for the localization and diagnosis of paragangliomas (Sisson et al., 1981) and is still the most commonly used tracer for this purpose. An analog of norepinephrine, MIBG enters cells through the cell membrane norepinephrine transporter (NET) and is then transported and stored in neurosecretory granules via the vesicular monoamine transporter (VMAT; Eisenhofer, 2001). There are two types of VMAT (VMAT-1 and -2; Fottner et al., 2010).
Although 131I-labeled MIBG was initially used for scintigraphy, the superiority of 123I-labeledMIBG has been demonstrated (Lynn et al., 1985; Shulkin et al., 1986), due to its higher sensitivity, lower radiation exposure, and improved imaging quality with the possibility of SPECT imaging.
123I-MIBG performance in primary sympathetic paragangliomas has been proven in many studies (Timmers et al., 2009a; Wiseman et al., 2009). However, numerous studies emphasize that 123I-MIBG imaging is less effective for metastatic disease. To explain this on a molecular level, it has been suggested that paragangliomas could undergo dedifferentiation, leading to a loss of NET or VMAT, which could then lead to false negatives (Eisenhofer, 2001). Timmers, in a prospective study of 26 patients, found 123I-MIBG sensitivities of 77% for non-metastatic paragangliomas and 57% for metastatic paragangliomas (Timmers et al., 2009a). Consequently, it has been suggested that in the case of metastatic paraganglioma, the use of 123I-MIBG scintigraphy should be limited to the determination of patients’ eligibility for 131I-MIBG treatment.
In contrast to the excellence of 123I-MIBG for the detection of primary sympathetic paragangliomas, its sensitivity is low in head and neck paragangliomas (King et al., 2011). Fottner et al. (2010) suggests that this could result from the under-expression of VMAT-1 in head and neck paragangliomas.
Besides the limitations related to the type of paraganglioma, other drawbacks must be mentioned. First, the timing of the exam is not optimal, with a need for a minimum of 24 h between injection and imaging. Also, physiologic uptake of 131/123I-MIBG in the adrenal glands could be responsible for false positives. To improve the accuracy of 131/123I-MIBG scintigraphy in the adrenals, a scoring system has been proposed, comparing uptake of the adrenals to that of the liver (Cecchin et al., 2006). An additional limitation is that drugs that act on the adrenergic system could interact with MIBG (Solanki et al., 1992).
To summarize, 123I-MIBG has high sensitivity for primary sympathetic paragangliomas, but poor sensitivity for metastases; therefore it is only useful in metastatic patients to evaluate whether they qualify for 131I-MIBG treatment.
111In-Pentetreotide
In addition to 131/123I-MIBG, 111In-Pentetreotide (Octreoscan) scintigraphy, proven to be valuable in imaging neuroendocrine tumors (Lamberts et al., 1993), has also been studied in paragangliomas. 111In-Pentetreotide is a ligand of somatostatin receptors (SSR), which are known to be expressed in paragangliomas (Reubi et al., 1992). Various subtypes of SSRs have been identified, numbered from 1 to 5; 111In-Pentetreotide has the highest affinity to subtypes 2 and 5 (de Herder and Lamberts, 2002).
As shown by Ilias et al. (2008), scintigraphy with 111In-Pentetreotide has a low sensitivity for primary sympathetic paragangliomas. However, it can be very useful for detecting metastatic disease (van der Harst et al., 2001; Ilias et al., 2008) and parasympathetic head and neck paragangliomas (Koopmans et al., 2008). It has been suggested that these differences in sensitivities are related to the expression of specific subtypes of SSRs.
Based on these studies, 111In-Pentetreotide is not recommended as a first-line imaging tool in paragangliomas. It can be useful if PET is not available, for head and neck paragangliomas, or in conjunction with 123I-MIBG in cases of proven or suspected metastases (van der Harst et al., 2001). Novel SSR-based PET scanning has been introduced recently with promising results, and will be discussed in the next section.
To summarize, conventional imaging, despite its improvement as a result of the development of SPECT and hybrid imaging with CT, still lacks sensitivity in comparison with PET. Moreover it requires very long acquisition times. However, 123I-MIBG does have a high sensitivity and must be considered as a useful tracer in cases of adrenal non-metastatic paragangliomas. In other cases, 123I-MIBG should be done only when checking if 131I-MIBG therapy is feasible. 111In-Pentetreotide can be useful if PET is not available (for head and neck paragangliomas, or in conjunction with 123I-MIBG in cases of proven or suspected metastases). This emphasizes the crucial importance of PET in the imaging of paragangliomas.
Future Emerging Molecular Imaging
Following the need for personalized imaging adapted to each pattern of paragangliomas, several PET agents were developed and evaluated, some with very promising results. The aim of this imaging approach is not only to establish the precise localization and diagnosis of paraganglioma, but also to understand how the tumor behaves (aggressiveness, molecular pathways, response to treatment). The advantages of PET imaging compared to monophotonic-emission scintigraphy include rapid imaging, high spatial and temporal resolution, the relatively short half-life of PET radionuclides (compared to those used in conventional imaging), allowing higher dose injection with an acceptable dosimetry, and the ability to acquire quantitative information, which may be useful for follow-up of the disease. PET imaging offers the possibility of 3D and hybrid imaging with a better resolution and shorter acquisition time than with SPECT imaging. The characteristics of radiotracers used in paragangliomas are summarized in Table 1.

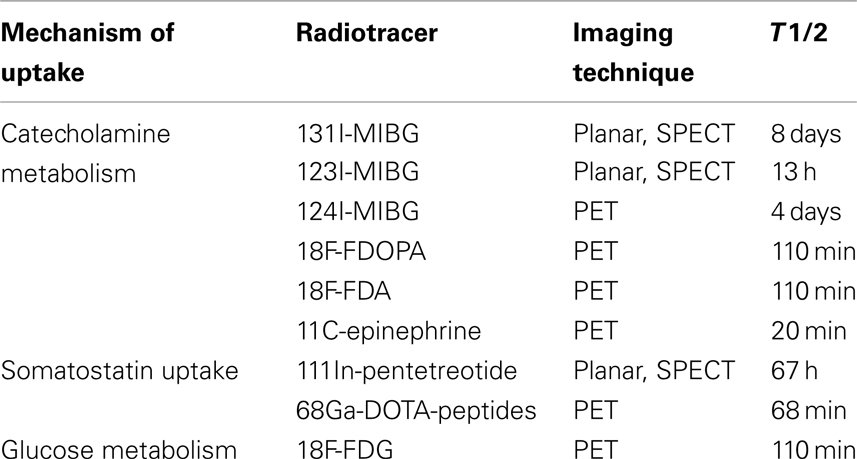

Table 1. Radiotracers used in functional imaging of paragangliomas.
Several PET agents are now available for imaging paragangliomas. Agents labeled with 18-fluorine (18F) are the most popular, since 18F is stable and has an easy labeling process, as well as a suitable half-life. Mechanisms of uptake of several PET tracers are summarized in a schematic display in Figure 1.

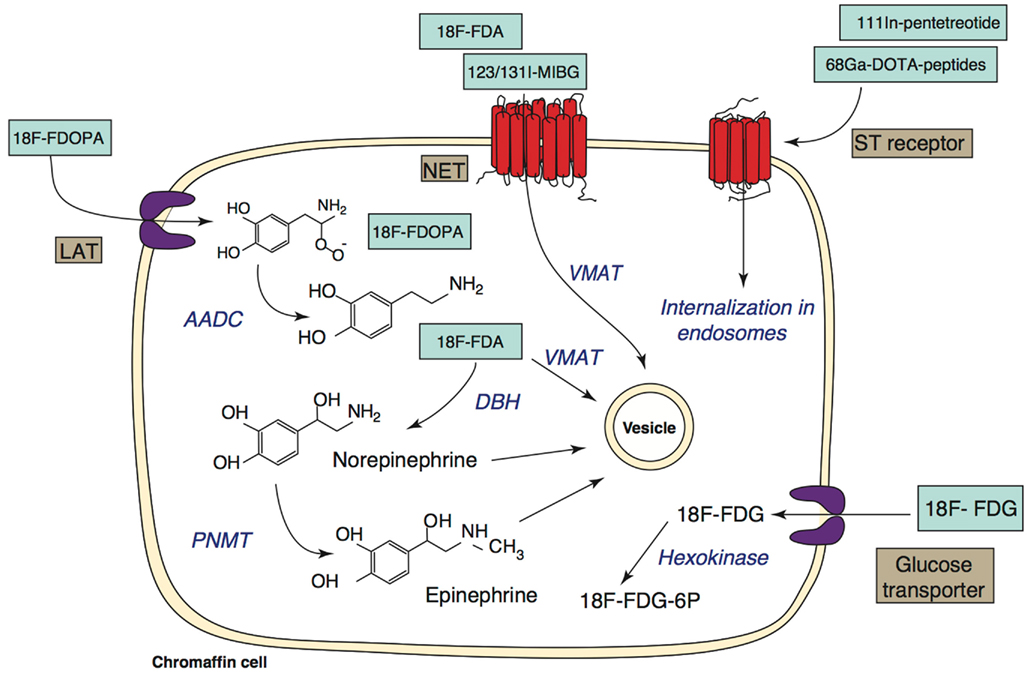

Figure 1. Targets for functional imaging of chromaffin cells. Specific targets involved in the metabolism of catecholamines are shown on the left of the image. Less specific targets are shown on the right. Abbreviations: 18F-FDA, 18F-fluorodopamine; 18F-FDOPA, 18F-fluorodihydroxyphenylalanine; 123/131I-MIBG, 123/131I-metaiodobenzylguanidine; 18F-FDG, 18F-fluorodeoxyglucose; LAT, large amino acid transporter; NET, norepinephrine transporter; ST, somatostatin; AADC, amino acid decarboxylase; DBH, dopamine-beta-hydroxylase; PNMT, phenylethanolamine-N-methyltransferase; VMAT, vesicular monoamine transferase. (Adapted from Ilias et al., 2005 and Havekes et al., 2010).
18F-FDA
Like 123I-MIBG, 18F-FDA uses an agent that specifically targets catecholamine synthesis, storage, and secretion pathways. It is actively transported into neurosecretory granules of catecholamine-producing cells via VMAT, after uptake by NET (Eisenhofer, 2001).
Developed at the National Institutes of Health, 18F-FDA was initially used for sympathetic nervous system functional imaging, and then evaluated as a new imaging tool for paragangliomas (Pacak et al., 2001). First, the superiority of 18F-FDA over 131I-MIBG in paragangliomas was demonstrated (Ilias et al., 2003). Subsequently 18F-FDA has been confirmed as an excellent imaging modality for the diagnosis and localization of both primary and metastatic sympathetic paragangliomas, with two studies demonstrating that in patients with non-metastatic paragangliomas 18F-FDA and 123I-MIBG have equivalent sensitivities for tumor detection, but in patients with metastatic disease 18F-FDA is superior to 123I-MIBG (Ilias et al., 2008; Timmers et al., 2009b). However, a previous study by Mamede et al. (2006) showed a lack of uptake of 18F-FDA in metastatic paragangliomas. It has been suggested that this resulted (as for 131/123I-MIBG) from cellular dedifferentiation, leading to a loss of specific cellular characteristics, like the expression of catecholamine transporters (this hypothesis will be further discussed in the next sub-section).
For parasympathetic head and neck paragangliomas, in contrast, the performance of 18F-FDA was found to be poor, as demonstrated in a prospective study by King et al. (2011) performed on SDHx-related head and neck paragangliomas (with an 18F-FDA sensitivity of 46% by lesion and 40% by patient).
Some other shortfalls need to be mentioned concerning 18F-FDA, some of which have already been mentioned in the section on 131/123I-MIBG. First, it has been suggested that some adrenergic stimulant products (like caffeine) could interfere with 18F-FDA; additional studies are currently evaluating this question. Also, due to the difficulty of production, 18F-FDA has limited availability. To our knowledge, there is only one producer in the world. Finally, physiologic uptake in normal adrenal glands may lead to false-positive results. To address this physiologic uptake, the usefulness of standardized uptake values (SUV) to distinguish adrenal glands with pheochromocytoma from normal adrenal glands has been evaluated (Timmers et al., 2007b). The diagnosis of pheochromocytoma was estimated to be very unlikely if the SUV was under 7.3, whereas an SUV above 10.1 confirmed the presence of pheochromocytoma.
Recent papers studied the sensitivity of 18F-FDA specifically in particular genotypes. In a cohort of VHL mutation carriers, 18F-FDA was demonstrated to be superior to 131/123I-MIBG (Kaji et al., 2007). Timmers et al. (2007c) studied 18F-FDA in a cohort of SDHB carriers and did not find any significant difference between 18F-FDA performance for SDHB-related and non-SDHB-related paragangliomas.
To summarize, 18F-FDA has already proven its excellent sensitivity in sympathetic paragangliomas, although additional study is necessary to determine its specificity in each genetic background. Its advantages compared to 123I-MIBG rely overall on the higher resolution and shorter time of acquisition. Additional studies are necessary to describe the differences on a molecular scale. Preferred 18F-FDA indications would be sympathetic non-head and neck paragangliomas, except those related to the SDHB mutation.
18F-FDOPA
18F-FDOPA enters the cell via an amino acid transporter, the large amino acid transporter 2 (LAT2), undergoes decarboxylation by aromatic L-amino-acid decarboxylase (AADC), and is stored in secretory vesicles (Eisenhofer, 2004; Fiebrich et al., 2009).
After being established as a tool for the localization of neuroendocrine tumors such as gastro-intestinal carcinoid tumors (Hoegerle et al., 2001; Becherer et al., 2004), 18F-FDOPA has been suggested as a good alternative for imaging in paragangliomas. Some studies focused specifically on head and neck paragangliomas and found an excellent sensitivity of 18F-FDOPA (Hoegerle et al., 2003; Charrier et al., 2011; King et al., 2011). In particular, a recent prospective study published by King et al., 2011; on 10 patients carrying SDHx mutation, with a total of 26 head and neck paragangliomas) found a 100% sensitivity of 18F-FDOPA.
In sympathetic paragangliomas, many studies have evaluated the accuracy of 18F-FDOPA (Taïeb et al., 2008; Fiebrich et al., 2009; Imani et al., 2009; Timmers et al., 2009a; Fottner et al., 2010; Rufini et al., 2011). 18F-FDOPA may have a very good sensitivity for primary adrenal pheochromocytomas (Imani et al., 2009). However, for primary extra-adrenal paragangliomas and metastatic paragangliomas, discrepant results are reported. Some studies showed very promising results, whereas others showed the presence of false negatives (Taïeb et al., 2008; Timmers et al., 2009a). Additional studies are necessary to explain these false negative lesions.
As with 18F-FDA, there is a great deal of interest in the sensitivity of 18F-FDOPA in relation to specific genetic mutations. Timmers’ study of patients with and without SDHB mutations found a high sensitivity for non-SDHB-related paragangliomas, but poor sensitivity for SDHB-related paragangliomas, especially for metastatic paragangliomas (Timmers et al., 2009a). Hoegerle’s study on SDHD-related head and neck paragangliomas showed good 18F-FDOPA sensitivity (Hoegerle et al., 2003).
Carbidopa has been shown to enhance the sensitivity of 18F-FDOPA for sympathetic paragangliomas by increasing the tumor-to-background ratio of tracer uptake (Timmers et al., 2007d). However, in that study, the sensitivity of 18F-FDOPA for metastatic paragangliomas was still limited.
To conclude, 18F-FDOPA has excellent sensitivity in parasympathetic head and neck paragangliomas and should be used as first-line exam for these cases. For sympathetic paragangliomas, 18F-FDOPA may also have very good sensitivity in primary adrenal pheochromocytoma, but for metastatic and extra-adrenal paragangliomas, further studies need to be done.
18F-FDG
18F-FDG has been used for years in oncology and has also proved its usefulness in paragangliomas (Shulkin et al., 1999). This non-specific tracer targets the glucose pathway of cells. It enters the cell via glucose transporters, undergoes phosphorylation by hexokinase to become 18F-FDG-6P, and is trapped in the cell. Thus its accumulation is an index of increased glucose metabolism.
Hence, as a marker of tumor viability, the degree of 18F-FDG uptake could reflect tumor aggressiveness. This hypothesis has been well-demonstrated in thyroid cancer, with studies showing an 18F-FDG uptake which is initially low or absent, but increased in the later stages of disease when cells are dedifferentiating (Feine et al., 1996; Grünwald et al., 1999; Helal et al., 2001). This is called a flip–flop phenomenon.
In paragangliomas, some studies have also found such a pattern (Mamede et al., 2006; Timmers et al., 2007c). However, a newer hypothesis has been proposed, that FDG uptake depends on the underlying genetic mutation (and the molecular phenomenon linked to these mutations). Indeed, some results did not fit with a flip–flop phenomenon, showing for example quasi-constant positivity of 18F-FDG in benign paragangliomas, which does not match with a well-differentiated tumor.
In parallel, basic science studies have found that oncogenetic signals resulting from mutations are present in both benign and malignant tumors. In particular, pseudo-hypoxic signatures are found in SDHx/VHL tumors, with upregulation of (HIF)-1alpha target genes involved in angiogenesis, proliferation, apoptosis, invasion, and energy metabolism (Favier and Gimenez-Roqueplo, 2010).
Interesting studies have been done to study 18F-FDG performance specifically in each genetic group. For SDHB-related paragangliomas, 18F-FDG has been shown to have an excellent sensitivity with a particularly high uptake (Timmers et al., 2007c; Zelinka et al., 2008; Taïeb et al., 2009). This has been partially explained by interpreting the molecular mechanism occurring in SDHB-mutated cells. The SDHB gene codes for subunit B of the mitochondrial SDH complex. This complex is involved in two essential energy-producing metabolic processes of the cells: the tricyclic acid (TCA) cycle and the electron transport respiratory chain (oxidative phosphorylation). Mutation of the SDHB gene results in a loss of function of the SDH complex. This could thus impair energy production, causing the cells to switch to a less efficient pathway (glycolysis) for energy production. The consequence is the augmentation of glucose uptake via glucose transporters. This phenomenon is called the Warburg effect (Warburg, 1956).
Additional studies are necessary to explore 18F-FDG performance in other SDHx-related paragangliomas (which also feature a loss of function of the SDH complex), as well as in VHL-related paragangliomas, in which the Warburg effect also seems to occur (Favier et al., 2009). Moreover, the link between the pseudo-hypoxic signature in VHL- and SDHx-related paragangliomas and PET imaging still needs to be studied further.
Besides its role in locating and understanding paragangliomas, 18F-FDG could be useful for monitoring therapeutic response (like in lymphomas). Timmers et al. (2007c) found an excellent sensitivity of 18F-FDG after chemotherapy and 131I-MIBG therapy, and suggested that 18F-FDG could be used for treatment monitoring of malignant paragangliomas. A case report published by He et al. (2009) showed a strong correlation between initial 18F-FDG uptake and the clinical response of a patient undergoing chemotherapy for metastatic paraganglioma, and suggested that it would be interesting to perform studies evaluating the ability of 18F-FDG to select tumors more likely to respond to chemotherapy. On a recent study of 11 patients with malignant paragangliomas who underwent 131I-MIBG therapy, Nakazawa et al. (2011) evaluated the change in SUV from pre- to post-therapy, and showed that 18F-FDG could be a promising tool to monitor the response of malignant paragangliomas to 131I-MIBG therapy.
In summary, 18F-FDG is very useful in imaging paragangliomas, not only for localization, but also for understanding the disease overall. It should be used as first-line exam in SDHB-related paragangliomas. More studies need to be done on other genetic patterns.
Regarding all the PET tracers discussed above, imaging of three different patients from a publication of Timmers et al. (2009a), is shown on Figure 2.
Figure 2. Functional imaging (from left to right, with 18F-FDA, 18F-DOPA, 18F-FDG, and 123I-MIBG) in patients with (A) and (B) metastatic SDHB-related paraganglioma, and (C) metastatic RET-related paraganglioma. Anteriorly reprojected images. (Taken from Timmers et al., 2009a).
68Ga-DOTA-Peptides
111In-pentetreotide has been described earlier as an SSR ligand, and we have pointed out its limitation due to the lack of affinity with some receptor subtypes. Newer somatostatin analogs, 68Ga-DOTA-Tyr3-octreotide (DOTATOC; Buchmann et al., 2007; Kroiss et al., 2011), 68Ga-DOTANOC (Wild et al., 2004), and 68Ga-DOTA-TATE (Win et al., 2007; Naji et al., 2011) have shown favorable characteristics in imaging, with a high affinity for SSRs and a stable and easy process of labeling. They have shown promising results in imaging SSR-positive tumors as compared to non-PET 111In-pentetreotide scintigraphy, highlighting the superior performance of PET imaging over scintigraphy in general. These newer PET imaging modalities still await further evaluation.
11C-Hydroxyephedrine
11C-hydroxyephedrine (11C-HED) is more polar than MIBG and has even greater similarities with norepinephrine. It was the first positron-emitting probe of the sympathoadrenal system used on humans (Shulkin et al., 1992). However the synthesis is complex, and its very short half-life (20 min) makes on-site production a requirement for each patient. Consequently it has not been developed as a routine imaging technique.
124I-MIBG
Iodine 124 (124I) is a positron emitter with promise for clinical PET imaging, especially for imaging and for pretherapy dosimetry of Iodine 131 treatment in thyroid cancer. Few studies have been performed with 124I-labeled MIBG. Ott et al. (1992) used it to predict the absorbed dose of 131I-MIBG in neural crest tumor sites of two patients. The advantage of 124I-MIBG PET over 123I-MIBG scintigraphy relies on the ability to obtain more accurate quantification of tracer distribution. The main problem limiting its use in human is the radiation exposure, since 124I has a half-life of 4 days (which is much longer than 18F and 68Ga).
To assess this problem, Lee performed an estimation of the absorbed radiation dose with 124I-MIBG using preclinical small animal models. He concluded that the use of 124I-MIBG is safe as long as a relatively small amount of radioactivity is used. This tracer should be used only when 131I-MIBG therapy is planned. In this case, the pretherapy imaging dose would be negligible by comparison (Lee et al., 2010). The prospect could then be to use 124I-MIBG for imaging and for pretherapy dosimetry in order to improve the efficacy and safety of 131I-MIBG therapy.
We summarize suggested functional imaging modalities for paragangliomas in Table 2.

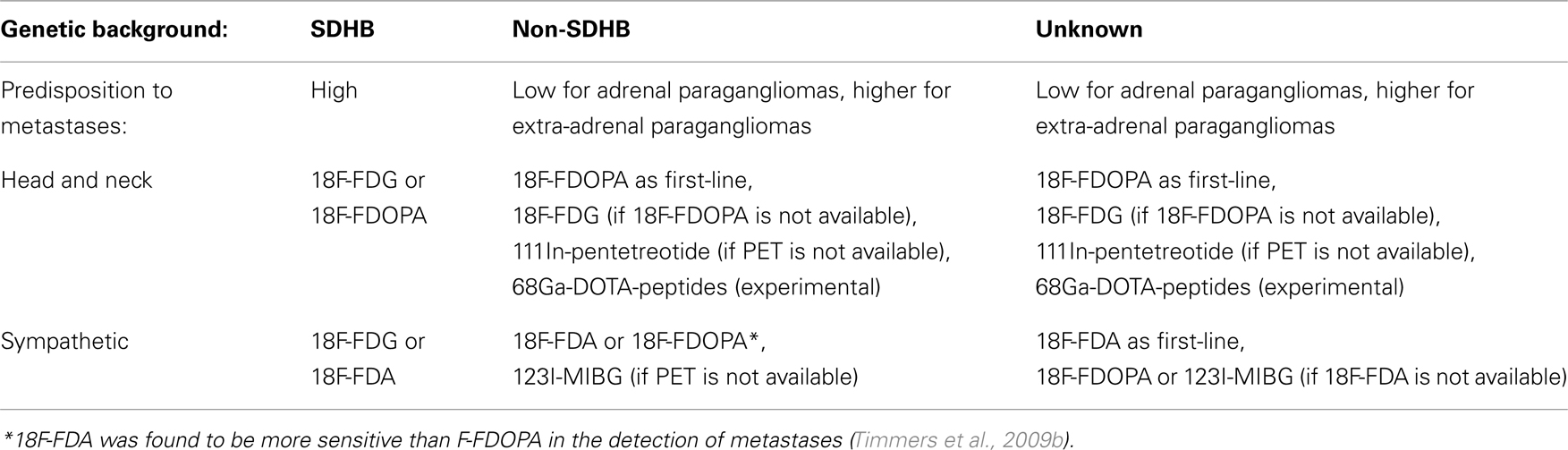

Table 2. Suggested functional imaging modalities for paragangliomas, in relation to genetic background and location of primary tumor.
Conclusion
Because of the specific cellular characteristics of paragangliomas and the rapidly growing knowledge on their genetic background, functional imaging, in addition to its role in diagnosis, localization, and ruling out of metastases, has a crucial place for understanding tumor behavior (aggressiveness, potential to metastasize, pathophysiology, and response to therapy). Thanks to the development of PET imaging, we have the tools to perform it.
To date, probably because of the rarity of this disease, few studies have been done on homogeneous groups. More studies are needed to study the performances of each functional imaging modality in relation to underlying genetic mutations. This would allow each patient to receive an optimal diagnostic and therapeutic approach, adapted to the specific pattern of paraganglioma.
In the meantime, we suggest the first-line exam choice to be as follows: for SDHB-related paragangliomas, 18F-FDG; for non-SDHB sympathetic paragangliomas, 18F-FDA (or 18F-FDOPA in adrenal paragangliomas); and for parasympathetic head and neck paragangliomas, 18F-FDOPA.
Another goal in future imaging studies would be to be able to predict response to therapy, and to follow up disease under treatment. In addition, new non-specific tracers are still awaited, in particular targeting other molecular phenomena such as angiogenesis, proliferation, apoptosis, and hypoxia. This would help to understand molecular oncogenic pathways in paragangliomas, particularly the (HIF)-1alpha pathway.
Conflict of Interest Statement
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Acknowledgments
This research was supported, in part, by the Intramural Research Program of the National Institute of Child Health and Human Development, National Institutes of Health.
