Advances and challenges in immunoPET methodology

Immuno-positron emission tomography (immunoPET) enables imaging of specific targets that play a role in targeted therapy and immunotherapy, such as antigens on cell membranes, targets in the disease microenvironment, or immune cells. The most common immunoPET applications use a monoclonal antibody labeled with a relatively long-lived positron emitter such as ⁸⁹Zr (T_1/2= 78.4 h), but smaller antibody-based constructs labeled with various other positron emitting radionuclides are also being investigated. This molecular imaging technique can thus guide the development of new drugs and may have a pivotal role in selecting patients for a particular therapy. In early phase immunoPET trials, multiple imaging time points are used to examine the time-dependent biodistribution and to determine the optimal imaging time point, which may be several days after tracer injection due to the slow kinetics of larger molecules. Once this has been established, usually only one static scan is performed and semi-quantitative values are reported. However, total PET uptake of a tracer is the sum of specific and nonspecific uptake. In addition, uptake may be affected by other factors such as perfusion, pre-/co-administration of the unlabeled molecule, and the treatment schedule. This article reviews imaging methodologies used in immunoPET studies and is divided into two parts. The first part summarizes the vast majority of clinical immunoPET studies applying semi-quantitative methodologies. The second part focuses on a handful of studies applying pharmacokinetic models and includes preclinical and simulation studies. Finally, the potential and challenges of immunoPET quantification methodologies are discussed within the context of the recent technological advancements provided by long axial field of view PET/CT scanners.

1 Introduction

In a broader sense, immunoPET means imaging of specific targets that play a role in targeted therapy and immunotherapy, such as antigens on cell membranes, targets in the disease microenvironment, or immune cells by using positron emission tomography (PET) (1–7). Most commonly the term “immunoPET” is used for PET imaging with intact monoclonal antibodies (mAbs) or smaller mAb-based constructs labeled with a relatively longer-lived positron-emitting radionuclide such as ⁸⁹Zr (8, 9). There is an increase in the development of mAb drugs (10), which are widely used in oncology but also in infectious and inflammatory diseases. These drugs are very target specific and accomplish their effects by directly acting on their target or indirectly by activating the immune system (11). Similarly, immunoPET has its main applications in oncology, but other clinical applications such as infectious applications, such as for infectious and inflammatory diseases, are also under investigation (12–17).

In general, the non-invasive, whole body in vivo information obtained through immunoPET can provide important information for drug development and has the potential to support patient selection and treatment decisions using a personalized, theragnostic approach (18), e.g., imaging with a radiolabeled mAb followed by treating with an antibody-drug-conjugate (ADC) or using radioimmunotherapy (RIT). In this respect, immunoPET is reminiscent of the term “magic bullet”, an idea first proposed by Paul Ehrlich (19), who envisioned that a diagnostic agent selectively targeting a disease could be combined with a therapeutic agent for treatment, selectively destroying diseased cells while sparing normal, healthy tissue.

The primary goals of immunoPET are to visualize the biodistribution of the radiolabeled tracer and to characterize target tissues with respect to the presence or absence of receptors for the ligand under investigation. Beyond visualization, radiotracer uptake can be expressed quantitatively and thus immunoPET potentially provides a quantitative whole-body image of disease-associated target expression. This would be particularly useful as intra- and interlocal heterogeneity cannot be detected with locally obtained biopsies. Ideally, PET imaging would provide a metric that reflects the amount of specific binding of the molecule to its receptors. However, this is challenging due to various nonspecific factors that affect tracer uptake, high physiological variability within and between tumors (or other diseased tissues) in terms of vascularity, vascular permeability, interstitial pressure, blood flow, and other factors (20, 21). Regarding the potential of immunoPET to predict response to targeted or immunotherapy, there are equivocal results in the literature: some studies demonstrated a correlation between PET uptake and treatment response, while others failed to do so (see section 3.1.1.3).

From a PET methodology perspective, imaging and quantification protocols are an important factor in determining how well immunoPET can assess target engagement and thus how well it can guide therapy and ultimately benefit the patient. Therefore, the main objective of this narrative review is to explore the role of PET imaging and data analysis methodology in the context of immunoPET literature. The first part of this review summarizes the vast majority of studies that apply semi-quantitative methodologies, including study design aspects such as the use of cold dose, imaging time points, and correlation with biopsies and treatment response. In addition, differences in imaging methodologies between intact mAbs and smaller mAb based constructs, as well as the use of different radionuclides are highlighted. The second part focuses on the few studies that went beyond semi-quantitative methodologies and investigated pharmacokinetic modeling approaches, including preclinical and simulation studies. Finally, the review discusses the opportunities and challenges for improving immunoPET quantification methodologies, considering static vs. dynamic PET acquisitions, dual tracer approaches, and the role of the recently introduced high-sensitivity long axial field of view (LAFOV) PET systems.

To find relevant articles, the search engines PubMED, Embase and Web Of Science Core Collection were consulted until January 6, 2024. Despite being a narrative review, the search strategy and further details on all clinical studies included in this review can be found in the Supplementary Materials.

2 Background

2.1 Antibodies as PET probes

The use of mAbs in nuclear imaging started with “radioimmunodetection” (22, 23) using gamma cameras and later SPECT imaging by labeling mAbs with ¹²³I, ¹¹¹In, or ^99mTc (24–27). Subsequently, the interest of the nuclear medicine community shifted towards PET radionuclides like ⁶⁴Cu, ⁸⁹Zr, or ¹²⁴I (28–30), as immunoPET images allow for higher spatial resolution, more accurate quantification, and often better target-to-background ratios (TBR) compared with immunoSPECT (31–33).

Beyond the conventionally used IgG molecules, other categories include multispecific mAbs that bind to more than one target and smaller mAb based constructs (8, 9). These smaller constructs have been used to accelerate the clearance of unbound radiotracer from the circulation and background tissues and can sometimes achieve higher TBR. In addition, small antibody fragments can penetrate tumors more efficiently and homogeneously (34). A second important aspect is whether the ligand binds to only one type of receptor on the tumor cell or a specific receptor in the micro-environment of tumors [e.g., vascular endothelial growth factor receptor (VEGF)] or whether it targets immune cells (e.g., T-cells) or, in the case of multispecific mAbs, both tumor and immune cells. Radiolabeling of these multispecific mAbs is particularly interesting to study their pharmacological behavior in vivo, although quantification of the targets is challenging as the contribution of each target to the PET signal is unknown.

From a PET methodology perspective, it is important to understand that the size of the targeting vectors is critical to their pharmacokinetics. Molecular sizes of immunoPET tracers range from 6 kDa for the smallest constructs (affibodies) up to 150 kDa for intact mAbs with several smaller mAb-based constructs in between. While smaller molecules are rapidly removed via renal filtration, the larger ones are excreted via the hepatobiliary route. In general, an increase in molecular radius leads to a decrease in plasma clearance (35). As a result, the half-life in the bloodstream for these different molecules can range from less than 1 h up to several weeks. An overview of different mAb-based constructs and their size, biological/pharmacokinetic (PK) half-lives, and elimination pathways is provided in Table 1. This table does not claim to be exhaustive, as further engineered antibody fragments are currently being developed. In addition, smaller artificially produced peptides binding to similar targets exist, which are beyond the scope of this overview.

Table 1

Table 1. Antibodies and antibody based constructs used for immunoPET. Adapted from (36).

The half-life of the radionuclide should be compatible with the kinetics of the tracer. Longer-lived radionuclides like ⁸⁹Zr and ¹²⁴I are primarily used for intact mAbs. ⁶⁴Cu has an intermediate half-life and may be used for both intact mAbs and smaller constructs. The shorter lived ¹⁸F or ⁶⁸Ga are more suitable for the smaller mAb-based constructs like single-domain antibodies (sdAbs) or affibodies. Using longer-lived radionuclides limits the amount of activity that can be injected due to the radiation dose, but it enables a later immunoPET imaging time-point, giving the tracer more time to accumulate in the target regions and decreasing non-specific uptake in background tissue, which might lead to better lesion detectability. On the other hand, both the reduced injected activity and delayed imaging also lead to more noisy images compared with conventional PET.

Another important feature of the positron emitter is its behavior upon internalization following binding to the target antigen. For example, after internalization of a ¹²⁴I-labeled mAb-antigen construct, the construct will be degraded in the lysosomes leading to free ¹²⁴I that can rapidly leave the tissue and subsequently gets excreted renally. On the other hand, when radiometal-labeled mAbs (like ⁸⁹Zr-mAbs) are processed, the positron emitters are trapped intracellularly in the lysosomes (37). The radionuclide remains in the cell after internalization and degradation, leading to accumulation of the signal over time. One disadvantage with radiometal-labeled mAb-based constructs is high accumulation of radioactivity in the liver or kidney due to non-specific binding to Fc receptors, which can hinder the detection of metastases in these regions (38). Table 2 shows useful radionuclides for immunoPET imaging with their half-life, positron emission intensity, positron energy, main other emission type, and whether they are radiometals or halogens. The most frequently used radionuclides are ⁸⁹Zr, ¹²⁴I, ⁶⁴Cu mainly for intact mAbs and ¹⁸F and ⁶⁸Ga for small mAb-based constructs, whereas ⁷⁶Br, ⁸⁶Y and ⁴⁴Sc are used less frequently mainly in preclinical research.

Table 2

Table 2. Radionuclides for immunoPET imaging, their half-lives and other characteristics. Adapted from (36).

2.2 Uptake mechanisms of immunoPET tracers

To find an accurate imaging metric for target engagement from immunoPET, it is necessary to understand the nature of PET uptake visible in the images and to validate the image quantification methodology. Uptake mechanisms depend on the individual immunoPET tracer, are relatively complex and not fully known (11). Nevertheless, a general overview is provided here, focusing on intact mAbs.

In line with the term “magic bullet”, an ideal mAb for immunoPET imaging would solely bind to the specific disease-related target, and there would be no uptake in other healthy tissues. However, most mAbs also show considerable uptake in healthy tissues due to several reversible and irreversible uptake components, which are schematically represented in Figure 1 for radiometal and radiohalogen labeled mAbs. After intravenous administration into the blood, mAbs distribute throughout the body and are mostly present in the blood volume and the interstitial space of the tissue. The so-called blood volume fraction refers to the proportion of the volume of interest (VOI) that consists of blood. Radiolabeled mAbs in the blood volume fraction and the interstitial space resemble the main part of the nonspecific uptake of mAbs in tissues, especially during the first period after injection.

Figure 1

Figure 1. Schematic representation of PET uptake components for radiometal and radiohalogen labeled mAbs. Radiolabeled mAbs are injected into the blood and, after initial distribution, are reversibly present inside the blood volume fraction and the interstitial space of the tissue. Subsequently, specific (target engagement) and non-specific binding (Fc receptors) processes can occur, both reversibly and irreversibly. After irreversible binding of the radiolabeled mAb, the mAb-antigen construct gets internalized and degraded, after which free radiometal atoms stay inside the cell and radiohalogen atoms can leave the cell. Redrawn from Wijngarden et al. (39) (CC BY 4.0 License).

Due to their size, mAbs only have a limited ability to distribute from blood to tissue by diffusion, and extravasation occurs mainly by convection or via receptor-mediated endocytosis (11, 40). The role of diffusion may be more significant in “leaky” tumor vessels (41) with increased permeability. Nonetheless, the distribution mechanisms are slow and volumes of distributions are generally low (42). mAb distribution in the tumor center is limited and overall the distribution within tumor tissues is heterogeneous (43). In contrast, smaller antibody-based constructs can cross the blood-tissue barrier more easily, which is desirable for tumor targeting (44).

mAbs in the interstitial space may enter cells via receptor-mediated endocytosis via Fc-γ receptors by fluid phase endocytosis or via the desired target interaction when bound to a membrane antigen (42). After internalization, the radiolabeled mAb-antigen constructs gets degraded in the lysosomes, subsequently the radionuclide either stays in the cells, which is the case for radiometals like ⁸⁹Zr, or can leave the cell, as in the case of a radiohalogen like ¹²⁴I as described before. The nonspecific processes of binding to Fc-γ receptors (45) on immunological cells or neonatal Fc-receptors (FcRn) within endothelial cells also contribute to the PET signal on top of the actual specific antigen engagement. In case of binding to FcRn, FcRn-bound mAbs are brought back into the circulation or the interstitial space. Engineered immunome tracers with a reduced or eliminated Fc region aim to minimize the non-specific interactions with FcRn and Fc-γ receptors.

For mAbs targeting antigens located on cells, the target-mediated elimination after internalization is probably the dominant elimination route. Other reported elimination routes of mAbs include nonspecific endocytosis and proteolysis by the liver and the reticuloendothelial system (11), where the phagocytic cells of the immune system such as macrophages and monocytes play a role in the elimination of mAbs.

Another concept to be introduced here is the so-called “antigen sink”. If binding sites are present in larger amounts in other tissues, such as liver or spleen, than in the actual target tissue, these organs may serve as a sink, leading to the need for a higher cold dose co-injection compared with those of target antigens that are only expressed in very specific regions.

Both linear and nonlinear eliminations have been reported for mAbs, probably caused by target-mediated disposition. Pharmacokinetics can sometimes be described by linear clearance, which may be because the concentration does not saturate the target antigen or that the target-mediated clearance has a less prominent role compared with other elimination pathways. Smaller molecules, like Fab fragments, are eliminated more rapidly than intact mAbs due to the lack of the Fc part and hence protection by FcRn. In addition, they can be excreted to some extent by the kidneys (11).

Apart from the mechanisms mentioned above, several other factors are important; they are, however, beyond the scope of this review, and the interested reader may find more information in (11, 42). It should be noted that in an immunoPET imaging study, the mechanisms described apply to both the labeled and unlabeled mAb, which often accompanies the tracer dose and affects visualization and quantification, as will be described later.

2.3 PET quantification in general

In most cases, PET images are analyzed semi-quantitatively providing a relative measurement in contrast to absolute quantification (46). In semi-quantitative analyses, the Standardized Uptake Value (SUV) is commonly used for measuring the uptake of a tracer (47, 48), which is the decay-corrected measured activity concentration (AC) normalized to the injected activity and the body weight or sometimes the lean body mass (LBM) of the patient. Although the use of SUV as a measure of relative uptake makes a comparison between patients easier, there is no universally accepted threshold value for characterization a region as target-positive or not, partly due to the high degree of variability and sources of error (48, 49).

Other frequently reported parameters are relative uptake ratios, where the activity concentration or SUV of the target tissue is divided by the corresponding value of another region, mostly a blood pool region on the image or a blood sample. In this way, parameters like tumor- or (more generally) target-to-blood ratios can be defined and abbreviated as TBR or, if normalized to plasma activity, TPR. Sometimes the liver or other regions are used as a background region and the same acronym TBR (tumor-to-background) may be used. If not mentioned otherwise, in the present article TBR refers to target-to-blood ratio.

The semi-quantitative metrics can be reported in terms of the maximum, peak or mean value determined in a VOI. SUV_max is the voxel with the maximum uptake in the VOI, and SUV_peak is often defined as a 1 mL spherical VOI that results in the largest mean value, although different definitions are in use (50). SUV_mean is the mean value of a VOI, which highly depends on the VOI definition. All PET measurements and reported parameters are subject to noise and variability due to count statistics of PET measurements. For instance, it has been shown that SUV_max is sensitive to noise while SUV_peak is less so (51, 52), which is particularly important for low count applications like ⁸⁹Zr-immunoPET, especially at later time-points.

The definition of a VOI is performed either manually or automatically using data-driven approaches using VOIs based on PET or CT images in order to improve the reproducibility of PET quantification (53, 54). Common PET data-driven approaches include 3D isocontours at 41% or 50% of the maximum pixel value (49, 55). However, these also are sensitive to noise. Automatic VOIs are not always possible if there is high background or a high uptake area near the region of interest. Therefore, visual inspection of semiautomatic VOIs is necessary. In case of tracer uptake heterogeneity, VOIs may only delineate part of the lesion. Advanced tumor segmentation methods are beyond the scope of this paper. Finally, it should be noted that regions of size similar to the spatial resolution of the scanner suffer from partial volume effects (PVE), which leads to bias in uptake measurements (56).

Another crucial aspect is harmonization of PET measurements between different scanners and in particular in multicenter studies. This can be achieved by developing guidelines on how to acquire and how to interpret and report results of a scan. From a technical point of view, these guidelines include PET and CT acquisition and reconstruction protocols, metrics used for tumor uptake, and quality control and inter-institutional PET/CT system performance harmonization. Makris et al. (57) and Kaleep et al. (58) have investigated the feasibility of quantitative accuracy and harmonized image quality using ⁸⁹Zr PET/CT in multicenter studies and concluded that semi-quantitative accuracy and harmonized image quality can be reached in ⁸⁹Zr PET/CT multicenter studies provided that scanner acquisitions and reconstructions are harmonized. Similar efforts for quality control and harmonization could also be considered for immunoPET studies labeled with other radionuclides like ¹²⁴I or ⁶⁴Cu.

2.4 PET kinetic modeling

The PET signal in a VOI at a certain time post injection (p.i.) does not only reflect specific binding of the tracer but also contains several other components, as described earlier when summarizing uptake mechanisms of immunoPET tracers. Kinetic modeling approaches have the potential to distinguish between the different uptake components and thereby provide a metric that is better representative for specific target engagement than a SUV determined with a static scan.

To apply kinetic modeling, PET uptake needs to be measured at several time points, or for tracers with relatively fast kinetics, a dynamic PET scan needs to be acquired, leading to the measurement of time-activity curves (TACs). In addition, a so-called arterial input function (AIF) is needed, which represents the amount of tracer in plasma that is available for the tissue. The gold standard to obtain the AIF is arterial blood sampling. To avoid blood sampling, information about the AIF can also be derived directly from PET images [so-called image derived input function (IDIF)], by measuring the image TAC in a blood pool region (59–61). This technique needs to be validated against conventional blood sampling, as was recently presented for two ⁸⁹Zr-mAb tracers (62).

The most commonly used tracer kinetic model is the two-tissue compartment model (2TCM) (63, 64), which is illustrated in Figure 2. Including the blood volume fraction $V_B$ in the VOI, the total signal $C_{\mathrm{PET}}(t)$ measured by the PET scanner is described as in Equation 1:

$C_{\mathrm{PET}}(t)=(1-V_B)\cdot C_T(t)+V_B\cdot C_A(t)(1)$

where $C_A(t)$ represents the arterial whole blood concentration and $C_T(t)$ the tissue signal as a result of the plasma concentration, which is given by Equation 2:

$C_T(t)=C_{\mathrm{ND}}(t)+C_S(t)(2)$

where $C_{\mathrm{ND}}(t)$ and $C_S(t)$ represent concentrations in non-displaceable and specific compartments, respectively. The standard two-tissue compartment model contains four rate constants $K_1$ to $k_4$, but for tracers that are trapped in the final compartment, such as radiometal-labeled mAbs, it is reduced to an irreversible two-tissue compartment model ($k_4=0$). From these rate constants, the parameter $K_i$, the net influx rate of the tracer, can be calculated from $K_i=K_1\cdot k_3/(k_2+k_3)$.

Figure 2

Figure 2. Schematic illustration of the two-tissue compartment model. $C_P$, $C_{\mathrm{ND}}$ and $C_S$ represent arterial plasma, non-displaceable tissue and specific tissue concentrations. $K_1$ to $k_4$ are rate constants for the transport between compartments. $V_B$ is the fractional blood volume within the PET region of interest. Its contribution to the total signal $C_{\mathrm{PET}}$ depends on the arterial whole blood concentration. For simplicity, however, only the arterial plasma compartment is shown.

The rate constants are related to physiological/pharmacological parameters, in particular $K_1=E\cdot F$, where E is extraction fraction and $F$ blood flow. E itself depends on F as described by the Renkin-Crone equation: $E=1-e^{-\mathrm{PS}/F}$. Since permeability surface products $PS$ are generally low for intact mAbs, $K_1$ probably is dominated by $PS$ as demonstrated in physiologically based pharmacokinetic (PBPK) models (65, 66). Effects of F become more relevant for smaller mAb based constructs. $k_3$ mainly depends on the available number of receptors, which is the number of total receptors minus the number of blocked receptors, e.g., by cold mAb dose.

In addition to conventional PET kinetic modeling, the PBPK models mentioned previously, often used in non-radiopharmaceutical drug development, can also be applied to improve understanding of biodistribution and kinetics of immunoPET tracers (67). In contrast to PET kinetic models, these models follow a more complex approach based on drug- and system-specific knowledge and are also valid for therapeutic doses. While they allow for more detailed simulation or fitting, they require more prior information and assumptions.

It can be difficult to fit 2TCM and especially PBPK models to immunoPET TACs due to the number of parameters that need to be fitted in combination with the slow kinetics requiring multiple (sparsely sampled) scan time points. On the other hand, the Patlak graphical model (68) is an alternative, simplified analysis method suitable for irreversible tracer kinetics. It is particularly interesting for immunoPET with larger molecules that involves imaging on different days because a few sampling points are enough to fit the linear model given by Equation 3:

${\displaystyle \frac{C_{\mathrm{PET}}(t)}{C_P(t)}=K_i{\displaystyle \frac{{\int }_0^t{C}_P(\tau )\mathrm{d}\tau }{C_P(t)}+V_T}}(3)$

where $C_P(t)$ is the arterial plasma input function, $C_{\mathrm{PET}}(t)$ the tissue TAC in the PET frames, ${\int }_0^t{C}_P(\tau )\mathrm{d}\tau$ the integral of the input function from injection to time t, $K_i$ the slope, which is identical to the influx rate mentioned above, and $V_T$, sometimes called initial volume of distribution, is related to the blood volume fraction and the tracer concentration of reversible compartments. An alternative graphical model for reversible tracers is the Logan plot (69) given by Equation 4:

${\displaystyle \frac{{\int }_0^t{C}_{\mathrm{PET}}(\tau )\mathrm{d}\tau }{C_{\mathrm{PET}}(t)}=K{\displaystyle \frac{{\int }_0^t{C}_P(\tau )\mathrm{d}\tau }{C_{\mathrm{PET}}(t)}+b}}(4)$

which requires the integral of $C_{\mathrm{PET}}(t)$ starting from the time of injection in contrast to the Patlak model, which only requires $C_{\mathrm{PET}}(t)$ at time points after steady-state equilibrium between plasma and the non-displaceable compartment. For reversible tracers, the slope K of the Logan plot is related to $V_T$.

As dynamic PET has predominantly been used in brain PET studies (70), it still is an open question to which extent kinetic modeling of uptake of larger molecules in tumors is feasible. Since the PET signal needs to be measured over time, the slow kinetics of most immunoPET tracers requires multiple imaging time-points on different days to capture their kinetics. Figure 3 shows example plasma and tissue TACs for a ⁸⁹Zr-labeled mAb and a ⁸⁹Zr-labeled minibody to illustrate the slow kinetics of these tracer types. In section 4, the choice of imaging time points and other challenging aspects of capturing and analyzing these slow kinetics are discussed further.

Figure 3

Figure 3. Example plasma concentration $C_P$ and tissue concentration $C_{PET}$ for a ⁸⁹Zr-labeled mAb and a ⁸⁹Zr-labeled minibody. These (typical) curves were simulated based on the work of Huisman et al. (71) (mAb) and Omidvari et al. (17) (minibody). It should be noted that plasma and tissue kinetics are highly dependent on the tracer and the target tissue.

3 Imaging methodology of immunoPET studies

3.1 Semi-quantitative immunoPET studies in humans

Most immunoPET studies have been conducted in a semi-quantitative manner. Depending on the objectives of the study, various study designs have been applied with the main goals of proving safety, determining biodistribution, dosimetry and tumor targeting. Sometimes, biopsies were included in the studies to compare tumor uptake with target expression in biopsies. In addition, a subset of studies attempted to predict response to mAb therapy based on a baseline immunoPET/CT scan or performed a second scan after initiation of therapy. In addition to standard immunotherapy, immunoPET was also investigated regarding applications for RIT and ADCs, where imaging is used for dosimetry calculations or response prediction. An overview of all included studies with semi-quantitative methodologies is provided in Supplementary Table S1 and S2. Exemplary studies are discussed here with respect to the different aspects of immunoPET methodology.

3.1.1 Intact mAbs labeled with ⁸⁹Zr

The majority of published immunoPET studies comprised phase 1 trials of ⁸⁹Zr-labeled intact mAbs, often consisting of two parts. In the first part, the dose escalation phase, different amounts of cold antibody dose were added to the radiotracer and imaging was performed at multiple time-points p.i. In the second part, the dose expansion phase, additional patients were included and usually scans were performed using the optimal dose and imaging time point as determined in the previous part, optimized for visualization of the target, e.g., tumor lesions. Especially the first part of these studies could provide information on how antibody dose affects pharmacokinetics and how tumor uptake changes over time. However, for tumor quantification, only tumor SUVs obtained at later time points were reported predominantly without longitudinal analysis or modeling that takes into account plasma and tissue TACs.

3.1.1.1 The role of cold mAb dose

Often, the radiotracer dose was accompanied by a cold protein dose with the aim of filling a possible antigen-sink and improving lesion visualization. For instance, Dijkers et al. (72) investigated ⁸⁹Zr-trastuzumab in patients with HER2-positive metastatic breast cancer, imaging between D₁ and D₇ p.i. using 37 MBq ⁸⁹Zr-trastuzumab. For optimal visualization of tumor lesions, treatment-naive patients required a dose of 50 mg, whereas a dose of 10 mg was sufficient for patients on trastuzumab treatment. The authors pointed out that when only 10 mg is administered to treatment-naive patients, tracer clearance is too fast to allow sufficient accumulation in the tumor. This need for a relatively high dose is rather specific for trastuzumab and is often lower for other mAb tracers.

Another example is the study by Ulaner et al. (73), who investigated CD38-targeted immunoPET of multiple myeloma using ⁸⁹Zr-DFO-daratumumab with antibody doses of 3, 20 and 50 mg. The authors concluded that 20 and 50 mg were similarly effective for imaging, while using 3 mg resulted in high uptake in spleen and liver but not in lesions. The authors discussed that 3 mg may not have been sufficient to saturate nonspecific binding in the liver.

On the other hand, giving a too high cold protein dose may lead to competitive binding between the cold molecule and the tracer and even saturation of the target antigen by unlabeled mAb (72, 74). For instance, Niemeijer et al. (75) investigated ⁸⁹Zr-pembrolizumab in patients with advanced non-small-cell lung cancer (NSCLC). Two imaging series per patient were performed with two injections of 37 MBq ⁸⁹Zr-pembrolizumab (2 mg), one without and one with a pre-dose of 200 mg unlabeled pembrolizumab. The authors observed slower plasma clearance and lower activity concentration in the spleen for the second scan series, using the cold pre-dose, suggesting the spleen functions as a sink. Interestingly, the authors observed that not all tumor lesions identified in part 1, could be assessed in part 2 (19 lesions compared to 10 lesions) and speculated that the pre-dose could have occupied most available PD-1 receptors causing a loss of PET signal.

To summarize, whether and how much cold protein dose should be added varies greatly between different tracers as reported by several more studies (76–80), making a protein dose finding phase necessary. Multiple studies reported potential blocking of tumor binding sites with a too high cold dose, which also might be a concern for performing an immunoPET scan under treatment with high therapeutic doses. In addition, the optimal dose seems to also depend on the individual patient. In a letter to the editor, Oude Munnink et al. (81) reported that trastuzumab pharmacokinetics may be affected by the extent of HER2-positive tumor load, with increased clearance for high tumor loads. They described the case of one patient with extensive tumor load where 50 mg ⁸⁹Zr-trastuzumab resulted in low blood pool levels 2 days p.i., as well as hardly visible bone metastases, whereas a second ⁸⁹Zr-trastuzumab scan shortly after first administrating trastuzumab treatment (220 mg) resulted in a higher blood pool level, less liver uptake, and more uptake in other tumor lesions.

3.1.1.2 Imaging time points

Several phase 1 ⁸⁹Zr-immunoPET studies have determined the optimal imaging time point by performing 2–5 scans between 0.5 h to 10 days p.i., most commonly 3–4 scans between 1 h and 5 days p.i. For instance, the study by Dijkers et al. (72) with 37 MBq ⁸⁹Zr-trastuzumab concluded that scans on D₄ had an optimal compromise between increased tumor uptake/decreased background uptake and image noise due to too low counting statistics at D₆ and D₇. However, this study was performed on an earlier generation PET system (Siemens Exact HR+).

Since the uptake of ⁸⁹Zr-mAbs is considered irreversible, it is generally expected to increase over time if tracer is still present in the blood pool, and therefore a further delayed imaging time point would be beneficial for visualization and TBR. However, how late imaging can be performed is limited by the counting statistics, which depend on the scan time point, the injected activity, the scan duration, and the sensitivity of the PET scanner. Studies conducted in Europe usually applied 37 MBq radioactivity to limit the radiation dose. For instance, ⁸⁹Zr-trastuzumab delivers an effective dose of approximately 0.47 mSv/MBq (82), resulting in about 17 mSv for 37 MBq ⁸⁹Zr-trastuzumab. Laforest et al. (82) performed imaging with a higher activity of 62 MBq and recommended imaging at D₆, in contrast to D₄ as Dijkers et al. recommended (72).

Another example is the study by Pandit-Taskar et al. (83), who investigated ⁸⁹Zr-huJ591 targeting PSMA using even 185 MBq together with 25 mg protein dose in metastatic prostate cancer patients with multiple scans up to 8 days p.i. Lesion SUV_LBM−max values were highest at the latest imaging time point. Subsequently, the same group performed a phase I/II study for validation of ⁸⁹Zr-huJ591 (84) in fifty patients. Here, the best target-to-background ratios were achieved using the latest imaging time points between D₆ and D₈ p.i. Therefore, for ⁸⁹Zr-labeled mAbs, it can be concluded that SUV uptake and TBRs increase with later imaging time points. Further examples for studies including different imaging time points with ⁸⁹Zr-labeled mAbs can be found in (85–90). It should be noted that the sensitivity of LAFOV PET/CT scanners allows for a further delay of the imaging time-point with acceptable image quality (91).

3.1.1.3 Correlation to biopsies and treatment response

Important questions include whether immunoPET can distinguish between tissues with and without target expression and whether it can distinguish between different levels of target expression. For example, high HER2 expression was correlated with a better response to trastuzumab-based therapies (92) and therefore immunoPET may aid clinical decision-making (93). However, most immunoPET studies only included a small sample size, often between 6 and 12 patients, rarely up to 50–90 patients, making it difficult to find statistically significant correlations between imaging findings and target expression or response to therapy (75). For example, Bahce et al. (94) performed a pilot study using ⁸⁹Zr-bevacizumab in 7 non-small cell lung cancer patients using imaging before start of carboplatin-paclitaxel-bevacizumab chemotherapy. A positive trend but no significant correlation between lesion SUV_peak and overall survival (OS) or progression-free survival (PFS) was observed. Similarly, in a study by Smit et al. (76), who investigated ⁸⁹Zr-durvalumab in 13 NSCLC patients, tumor uptake was higher in patients with treatment response or stable disease compared with patients with disease progression, but these results were not statistically significant (P = 0.06).

A few studies could demonstrate a significant correlation between semi-quantitative PET metrics like SUV_max or SUV_peak and target expression assessed by biopsies. For instance, a study by Dehdashti et al. (95), considering 46 breast cancer patients, suggested that ⁸⁹Zr-trastuzumab SUV_max could differentiate between HER2-positive and HER2-negative tumor lesions. When excluding hepatic lesions, tumor SUV_max was significantly higher in HER2-positive compared with HER2-negative patients (P = 0.003), potentially enabling a SUV_max cutoff. However, when considering all tumor lesions, HER2-positive patients did not show significantly higher SUV_max (P = 0.06), suggesting that semi-quantitative PET metrics for lesions located in the liver may not reflect HER2 status of those lesions. Niemeijer et al. (96) applied ⁸⁹Zr-nivolumab in a study including 13 non-small-cell lung cancer patients and could demonstrate a significant correlation between ⁸⁹Zr-nivolumab lesion SUV_peak and both PD-1 positive tumor-infiltrating immune cells and response to nivolumab treatment at a lesion-level, when excluding lesions with a diameter less than 20 mm to avoid PVE. In the same study, a smaller ¹⁸F-labeled molecule targeting anti-PD-L1 (Adnectin) was investigated with similar promising results and the advantage of same-day imaging. Kok et al. (97) conducted a study on ⁸⁹Zr-pembrolizumab with the goal of assessing clinical response to PD-1 blockade in 18 patients with advanced metastatic melanoma or NSCLC. Tumor uptake correlated with response (P = 0.014), PFS (P = 0.0025) and OS (P = 0.026). However, two tumor biopsies taken after the last PET scan on D7 were negative for PD-1 in immunohistochemistry (IHC), but showed high uptake on PET (SUV_max 17.0 and 21.0).

The previous examples as well as further studies (78, 98–100) found discrepancies between PET uptake and biopsy results, suggesting several reasons for these differences, including possible errors in pathology sampling and processing, lesion heterogeneity, but also nonspecific ⁸⁹Zr-mAb uptake and free ⁸⁹Zr uptake in bone lesions. In addition, PET-negative lesions may have other characteristics than PET-positive lesions leading to lack of tracer permeability and retention. It should be noted that, recently, possible evidence for non-specific, irreversible ⁸⁹Zr-mAb uptake in biopsy proven target-negative tumors was presented (101).

Because of the aforementioned limitations of biopsies, correlation of immunoPET markers with treatment response are of particular interest. Bensch et al. (102) explored ⁸⁹Zr-atezolizumab for response prediction of PD-L1 blockade therapy. The authors compared PD-L1 expression assessed by IHC and RNA sequencing of pre-treatment biopsies with immunoPET uptake. Patients with complete response had a 235% higher ⁸⁹Zr-atezolizumab SUV_max than patients who immediately progressed. The geometric mean SUV_max per patient was strongly related to PFS and OS. At lesion level, uptake was also related to change in size during treatment. PD-L1 IHC or RNA-sequencing-based predictive biomarkers of pre-treatment biopsies did not correlate with PFS and OS.

On the other hand, mixed results were found by Gaykema et al. (103) for ⁸⁹Zr-trastuzumab and ⁸⁹Zr-bevacizumab to evaluate the effects of the HSP90 inhibitor NVP-AUY922 in patients with advanced HER2-positive (trastuzumab) or ER-positive (bevacizumab) breast cancer. Each patient underwent a PET scan on D₂ and D₄, once at baseline and once at day 15 of therapy cycle 1. SUV_max was reported and the immunoPET scans were compared to response on CT and ¹⁸F-FDG PET after 8 weeks. A moderate correlation was found between the mean decrease in SUV_max on ⁸⁹Zr-trastuzumab PET scans after 3 weeks of treatment, and the change in tumor lesion size on CT after 8 weeks of treatment compared with baseline. However, for ⁸⁹Zr-bevacizumab liver lesions could not be visualized in most cases, due to high physiological liver uptake. Furthermore, SUV_max on D₄ was unaffected during treatment, indicating that no correlation between changes in PET uptake and lesion size on CT was found. Another example is the study by van Helden et al. (104) reporting that tumor uptake of ⁸⁹Zr-cetuximab failed to predict treatment benefit in patients with RAS wild-type mCRC receiving cetuximab monotherapy. Interestingly, this study included a ¹⁵O-H₂O PET/CT scan to determine tumor perfusion, which was positively correlated with ⁸⁹Zr-cetuximab SUV_mean on a lesion level.

Further studies, including correlations of ⁸⁹Zr-mAb PET uptake with biopsies or treatment response, can be found in (12, 75, 102, 105–112) as well as in Supplementary Table S1. Other ⁸⁹Zr-mAb immunoPET studies are ongoing such as the IMPACT-MBC study (NCT01957332), which also includes biopsies and is worth mentioning because of the larger patient population of 100 patients.

3.1.2 Intact IgGs labeled with ¹²⁴I

Guo et al. (113) reported on ¹²⁴I-trastuzumab in gastric cancer patients. Imaging was performed in 6 patients between 1 h and 96 h p.i. with, on average, 74 MBq ¹²⁴I-trastuzumab with a co-injection of either 5 mg or 10 mg trastuzumab. The optimal imaging time point was at 24 h p.i. showing the highest lesion SUV_max. At 48 h p.i., image quality was poorer due to low count rates. The authors suggested that, compared with ⁸⁹Zr and ⁶⁴Cu, ¹²⁴I-trastuzumab may achieve higher imaging contrast because of lower nonspecific uptake and better TBR for soft tissues, especially in the liver. In contrast to ⁸⁹Zr and ⁶⁴Cu, ¹²⁴I is not residualizing and thus, after degradation, the radionuclide may diffuse freely from the tissues, resulting in the loss of specific signal in target tissues and increased background signal over time, leading to earlier optimal imaging time points p.i. with respect to the residualizing radiometals.

Carrasquillo et al. (114) investigated an ¹²⁴I-labeled mAb, huA33, in 25 patients with colorectal cancer. Patients received 343 MBq/10 mg of the mAb and imaging was performed ranging from 45 min to 8.9 days p.i. SUV_max of the latest imaging time point was compared with an intermediate time point on D₂. In three tumors, no change or an increase in uptake was seen, but 14 tumors showed a decrease in uptake. This is in contrast to ⁸⁹Zr-immunoPET where ⁸⁹Zr is remains in the cell after degradation, leading to accumulation of the signal over time. In a follow-up study, Donoghue et al. (115) performed only one scan approximately 1 week later, followed by a detailed assay of surgically removed tissue. The spatial distribution of ¹²⁴I-huA33 conformed to that of the A33 antigen, with a linear relationship between the amount of bound antibody and antigen concentration. In a later publication, Zanzonico et al. (116) applied compartmental modeling to ¹²⁴I-huA33 antibody imaging, which will be described in section 3.2.

Carrasquillo et al. (117) also studied ¹²⁴I-codrituzumab imaging in 13 patients with hepatocellular carcinoma using 185 MBq, 10 mg tracer dose. Seven of the patients not only received a scan at baseline but also a second scan after undergoing sorafenib/immunotherapy with 2.5 or 5 mg/kg of cold codrituzumab dose. They chose ¹²⁴I instead of ⁸⁹Zr, primarily because of the concern that ⁸⁹Zr would result in higher liver background uptake, due to the slow internalization rate of the target of codrituzumab (Glypican-3), and lack of access to ⁸⁹Zr. In most patients, tumor uptake concentration peaked at 24 h and slowly decreased afterward, which the authors considered to be uncommon for intact IgG and may be related to the high vascularity of hepatocellular carcinoma or specific for the Glypican-3 target.

3.1.3 Intact IgGs labeled with ⁶⁴Cu

Mortimer et al. (118) investigated ⁶⁴Cu-DOTA-trastuzumab imaging in treatment-naive HER2-positive metastatic breast cancer patients. They applied 50 mg protein dose and 364–512 MBq ⁶⁴Cu-DOTA-trastuzumab, imaging on D₁ and D₂ p.i. They found a detection sensitivity of 77% and 89% for D₁ and D₂ compared with 93% for ¹⁸F-FDG. In a later study, Mortimer et al. (119) investigated tumor uptake of this tracer in patients with both HER2-positive and HER2-negative disease based on IHC of tumor biopsies. Median SUV_max for D₁ and D₂ was 6.6 and 6.8 for HER2 positive patients, respectively, and 3.7 and 4.3 for HER2-negative patients. The distributions of SUV_max overlapped between the 2 groups and interpatient variability was greater for HER2-positive than for HER2-negative disease. Jarret et al. (120) demonstrated with two patients a mathematical model combining ⁶⁴Cu-DOTA-trastuzumab PET/CT with MRI information to predict therapy response at the time of surgery after neoadjuvant therapy with a combination of chemotherapy, trastuzumab and pertuzumab in HER2-positive breast cancer. ⁶⁴Cu-DOTA-trastuzumab was also applied for visualizing HER2-positive brain metastasis by Kurihara et al. (121).

Carrasquillo et al. (122) performed a study with ⁶⁴Cu-trastuzumab (296–370 MBq/5 mg) with 11 patients on trastuzumab treatment of which 8 patients underwent a repeat scan. Since ⁶⁴Cu has a shorter half-life than ⁸⁹Zr, they limited imaging to D₁ (24 h) p.i. The repeated scans showed acceptable reproducibility of biodistribution and pharmacokinetic clearance. However, only in 2 of the 11 patients tumors were visualized. The authors discussed that this could be due to the chronic high-dose treatment of trastuzumab, which was expected to compete with the small dose of ⁶⁴Cu-trastuzumab.

Lockhart et al. (123) performed a phase 1 evaluation of ⁶⁴Cu-DOTA-patritumab (targeting HER3) in patients with advanced solid tumors in two different cohorts. In a dosimetry cohort, patients were scanned at 3 h, D₁ and D₂ p.i. with the tracer (300–555 MBq/0.2 mg), which revealed D₁ as the optimal imaging time point. In the second cohort, patients were administered with the tracer twice (one week apart) followed by a PET/CT at D₁ p.i. For the second scan, each patient who had detectable tumor uptake on the baseline scan received 8.0 mg/kg unlabeled patritumab (3 h before radiotracer injection). The average tumor SUV_max of the three patients with detectable uptake, at baseline and after unlabeled patritumab dosing was 2.90 ± 0.72 and 4.01 ± 1.32, respectively. The corresponding average TBR were 1.00 ± 0.32 and 0.57 ± 0.17, respectively. Receptor occupancy was determined as $(\mathrm{V}{\mathrm{T}}_{d-}-\mathrm{V}{\mathrm{T}}_{d+})/\mathrm{V}{\mathrm{T}}_{d-}$, where $\mathrm{VT}$ was denoted as the volume of distribution defined as the ratio of tumor activity to blood pool activity for each lesion and d- and d+ were baseline and high cold dose scans. This resulted in a receptor occupancy of 42.1 ± 3.9%. The authors acknowledge that the simple analysis used did not account for potential complexities related to rate of blood clearance, changes in organ or tissue uptake, or receptor internalization. They also mentioned that the increased in SUV_max with cold dose was not expected from preclinical studies, and attributed this to the 3 h time delay between cold dose administration and tracer injection and the higher circulating levels of the tracer dose in the blood after pre-dosing.

Krishnan et al. (124) performed a first-in-human imaging study using ⁶⁴Cu-daratumumab in 12 myeloma patients using 555 MBq/5 mg tracer with additional varying amounts of cold doses (0, 10, 45 or 95 mg). Scans were performed on D₀, D₁ and D₂ p.i. Here, 45 mg was found to be favorable in terms of removing background signal without saturating target sites.

The articles reviewed in this section mentioned the advantage of ⁶⁴Cu over ⁸⁹Zr as being able to inject more activity because of the lower radiation dose, especially with radiotracer uptake in bone marrow. ⁸⁹Zr on the other hand would be advantageous for tracers where the disease related signal is difficult to differentiate because of background tissue uptake, since it enables to image at delayed time points with higher (irreversible) tracer uptake combined with more clearance from the background tissues. Indeed, a few studies found lack of sufficient visualization of target regions with ⁶⁴Cu-immunoPET imaging, especially in the liver (125), and discussed using ¹²⁴I or ⁸⁹Zr instead (125, 126).

3.1.4 Smaller mAb based constructs

Pandit-Taskar et al. (127) performed a first in-human imaging study with ⁸⁹Zr-Df-IAB2M, an anti-PSMA-minibody, in metastatic prostate cancer patients. In a phase I dose-escalation study, patients received 185 MBq of ⁸⁹Zr-IAB2m and cold Df-IAB2m at total mass doses of 10, 20 and 50 mg. Each patient underwent 4 PET/CT scans, including one on the day of injection, and additional scans at D₁, D_2/3 and at D_4/5 p.i. With 50 mg, SUV_max in lesions was significantly lower, and with 10 mg the highest uptake was seen. More lesions were detectable at 48 h compared with 24 h p.i. Delayed imaging at 72–120 h p.i. showed additional lesions in a few patients. Lesion uptake and TBR increased in most tumor lesions throughout all imaging time points. However, the authors concluded that imaging 48 h p.i. provides sufficient visualization.

Pandit-Taskar et al. (128) and Farwell et al. (129) reported on the first-in-human imaging with ⁸⁹Zr-Df-IAB22M2C, an anti-CD8 minibody in patients with solid malignancies. Patients with different types of cancer received 111 MBq and variable cold protein dose ranging from 0.2 mg up to 10 mg in part 1 of the trial, and 0.5 mg or 1.5 mg in part 2 of the trial because of improved visualization. Each patient had 4–5 PET scans at 2–4 h, 6–8 h, D₁, D₂ and D₄-D₆ p.i. In general, the results showed that cold minibody mass dose influences the biodistribution and targeting of CD8+ T-cell-rich tissues, with uptake being inversely affected by the cold mass. Multiple-time-point imaging showed variable trends with stable uptake in CD8+ tissues and clearance of blood-pool and background activity. However, nodal uptake varied in time with minibody mass change revealing more lymph nodes at early time points (6–24 h p.i.) at lower masses compared with higher masses (5 or 10 mg), suggesting a strong effect of competitive binding. The variable uptake was also discussed to potentially be caused by the treatment profile or the variable presence of CD8+ T-cells. Tumor uptake quantified as SUV_max,LBM and SUV_peak,LBM was maximal at 24–48 h p.i. Uptake in CD8-rich tissues was saturable with lower uptake in the spleen and bone marrow in the 1.5 mg compared with the 0.5 mg cohort. However, no differences were seen in lymph node uptake, which the authors hypothesized to be due to higher blood flow and availability of target sites in the spleen and bone marrow compared with lymph nodes. The authors acknowledge the limitations of a heterogeneous small patient population with different tumor types, tumor burden and treatment history, as well as lack of correlative biopsy data. A phase 2 trial testing the diagnostic and predictive performance is ongoing (NCT03802123). Schwenck et al. (130) investigated the same tracer, ⁸⁹Zr-Df-IAB22M2C, in 8 patients with metastasized cancers undergoing immune checkpoint inhibitor therapy using PET/MRI at 24 h p.i. In this small cohort, uptake in metastatic tumor lesions was unable to predict treatment response. Interestingly, they discussed that cancer progression was associated with a relatively low spleen-to-liver uptake ratio and also that dual tracer approaches might be required for the identification of efficient CD8+ T-cell function, which may potentially enable the prediction of therapy response.

Moek et al. (131) studied the ⁸⁹Zr-labeled (37 MBq) bispecific T-cell engager AMG 211 directed against carcinoembryonic antigen (CEA) and CD3 on T-cells. The tracer was administered alone or with cold AMG 211 in patients with proven gastrointestinal adenocarcinomas. Imaging was performed before treatment and after the end of the second AMG 211 treatment period. Prior to treatment the optimal dose was 2 mg (0.2 mg tracer plus 1.8 mg cold dose) with a tracer serum half-life of 3.3 h. According to the authors the development of bispecific antibodies is more challenging due to the two arms that differ in binding affinity for targets. Regarding PET image analysis, bi- or multi-specific tracers are an additional challenge since the PET signal cannot differentiate between the signals from individual targets. The authors observed increased uptake even after tracer washout of the blood. High intra- and interpatient heterogeneity in ⁸⁹Zr-AMG 211 tumor accumulation was seen before AMG 211 treatment that might be due to target expression as well as delivery by tumor vasculature, and tissue permeability. In general, smaller antibody constructs result in faster tracer kinetics that lead to earlier imaging time points with respect to the more commonly used imaging time points for intact antibodies. The treatment group showed an altered biodistribution leading to high and sustained ⁸⁹Zr-AMG 211 presence in the blood pool and absence of tumor lesion visualization, which may indicate tumor target saturation.

Kist de Ruijter et al. (132) performed CD8+ T-cell imaging before and during immunotherapy with atezolizumab using the one-armed antibody tracer ⁸⁹ZED88082A in patients with solid tumors. In the dose-finding part A of the study, patients received the tracer consisting of 37 MBq and 1.2–1.5 mg with an additional unlabeled CED88004S until a total protein dose of 4 mg or 10 mg. PET scans were performed at 1 h, D₂, D₄ and D₇ p.i. followed by a biopsy after the last PET scan. After the baseline PET scans, patients received 1,200 mg atezolizumab every three weeks. The average tumor SUV_max was calculated as a geometric mean of tumor uptake values per patient. Imaging with 10 mg cold antibody dose on D₂ p.i. was considered optimal. Higher SUV_max was associated with longer OS. ImmunoPET suggested large heterogeneity in CD8+ T-cell distribution and pharmacodynamics within and among patients.

Thorneloe et al. (133) investigated albumin-binding domain antibodies (AlbudAbs™) as a method to extend the half-life and alter the distribution of biological and small molecule therapeutics in tissues. AlbudAbs bind albumin with high affinity and can be fused or conjugated to therapeutic agents. ⁸⁹Zr-immunoPET was used to study the distribution properties of an AlbudAb with 4 scan time points up to 7 days p.i. using, on average, 14 MBq in healthy males with a radiation exposure below 10 mSv. Due to the size of the AlbudAb-albumin complex, the extravasation was similar to that of antibodies. The authors compared for several organs the observed TPR with a theoretical expected range that was calculated based on (134) to be between a minimum (if tracer concentration would be confined to vasculature only) and a maximum (if tracer concentration in organ interstitial space would be equal to plasma). For example, in lungs, liver, and spleen the highest expected TPR was reached quickly suggesting a rapid distribution, whereas in brain, the TPR stayed at the theoretical minimum suggesting the tracer was confined to the brain vasculature.

Heuveling et al. (135) reported on a pilot immunoPET study using an ¹²⁴I-labeled F16SIP minibody. ¹²⁴I was used because this minibody binds to a non-internalizing extracellular matrix target. Imaging was performed at 30 min and 24 h p.i. in 4 patients following administration of 74 MBq. The study demonstrated biodistribution and tumor targeting, warranting further clinical investigation of this molecule.

A study by Laforest et al. (136) investigated the ¹²⁴I-labeled F(ab')₂ antibody fragment PGN650 targeting phosphatidylserine in the tumor microenvironment. They applied 140 MBq tracer dose and imaging time points at 1 h, 3 h, 24 h, and 48 h with only mildly increased uptake in tumors, which was highest at the latest imaging time point.

Scott et al. (137) investigated an ¹²⁴I-labeled pegylated diabody PEG-AVP0458 in patients with tumor-associated glycoprotein 72 positive cancers in xenografts and in 5 patients. Imaging in patients was performed using 111–185 MBq at a protein dose level of 1.0 or 10 mg/m² on D₀, D₁, D_2/3, D_4/5, and D_6/7 p.i. Imaging showed rapid and highly specific targeting of tumor lesions and minimal normal organ uptake leading to high tumor-to-background ratios. This behavior of the pegylated diabody (138) was discussed to be favorable compared with other mAb based fragments.

Liu et al. (139) performed a comparison of two HER2-targeting ¹⁸F-labeled affibodies in mice and breast cancer patients. Patients were scanned on the uEXPLORER LAFOV PET scanner using 231 MBq tracer with a co-injection of 1 mg cold HER2 affibody at scan time points of 2 h and 4 h p.i. One patient also underwent dynamic PET acquisition from 0 to 45 min p.i., however no kinetic modeling was performed. Besides other aspects, they discussed that the half-life of ¹⁸F suits affibodies well and enables imaging at 4 h p.i. with higher SUV_max and improved contrast compared with the 2 h time point.

Zhou et al. (140) performed HER2 imaging in gastric cancer patients with HER2-positive and HER2-negative primary lesions using a ⁶⁸Ga-labeled affibody. Imaging was performed at 1 h, 2 h, and 3 h p.i. using 3.7 MBq/kg ⁶⁸Ga-HER2 affibody with 0.5 mg cold affibody to help reduce nonspecific organ uptake. SUV_max was used to quantify lesions with optimal lesion visualization contrast at 2 h p.i. Imaging at 4 h p.i. was expected to be insufficient due to poor count statistics and rapid clearance of this tracer. The HER2-positive group had significantly higher uptake than the HER2-negative group and a possible SUV_max cutoff was discussed. However, overall, high variability in SUV_max was found, suggesting heterogeneity in HER2 expression with organ-dependent differences in HER2-positive patients. Patients with high uptake showed longer PFS. Interestingly, they discussed that ongoing HER2 therapy did not influence ⁶⁸Ga-affibody imaging because the affibody would mainly bind to domain III of the extracellular portion of HER2, while trastuzumab and pertuzumab bind to domains IV and II, respectively. The latter would enable monitoring and re-evaluation of the HER2 status during therapy. On the other hand, however, uptake may not directly translate to uptake of anti-HER2 mAb treatment, which may affect response prediction. A study of the same tracer in breast cancer patients with imaging at 2 h p.i. was performed by Miao et al. (141) and one of the first reports on a different ⁶⁸Ga-labeled affibody targeting HER2 can be found in (142).

Beylergil et al. (143) performed a pilot study on ⁶⁸Ga-DOTA-F(ab')₂-trastuzumab in patients with breast cancer. 16 patients were imaged at average time points of 1.1, 1.8 and 2.7 h p.i. using 236 MBq/5 mg tracer on average. Semi-quantitative analysis showed minimal or no tumor uptake in most cases, which was attributed to patient selection, immunoreactivity and suboptimal antibody mass.

Sandström et al. (144) investigated the anti-HER2 affibody ⁶⁸Ga-ABY-025 in breast cancer patients, including a dynamic 45 min acquisition followed by three static scans at 1, 2, and 4 h p.i. using on average 215 MBq. TACs were acquired and used for radiation dosimetry, which was around 6.0 mSv for a low- (78 μg) and 5.6 mSv for a high cold dose (427 μg). Higher detection rate and image contrast were favourable with a higher cold dose and the optimal imaging time point was set at 2 h p.i. In a consequent publication, Sörensen et al. (145) performed a successful test-retest study with a second ⁶⁸Ga-ABY-025 PET/CT scan one week later finding an intraclass correlation of r = 0.996. In addition, biopsies from 16 metastases in 12 patients were collected. Imaging at 4 h p.i. with high cold dose (427 μg) correlated well with biopsy HER2-scores (r = 0.91, p < 0.001) and uptake was five times higher in HER2-positive than in HER2-negative lesions with no overlap (P = 0.005).

Wang et al. (146) performed a pilot study for the nanobody ⁶⁸Ga-NODAGA-SNA006 targeting CD8+ T-cells in mice, monkeys, and in three lung cancer patients. One monkey was scanned with 25 μg/kg and the other with a blocking dose of 150 μg/kg. Imaging was performed at 0.25, 0.5, 1, 1.5, 2, and 4 h p.i. Patients received on average 163.8 MBq, and 100 μg or 800 μg mass dose, and underwent three PET/CT scans at 15–30 min, 60–90 min, and 120 min p.i. Fast washout (t_1/2 < 20 min) was observed in the three patients. A preliminary linear relationship was found between uptake and CD8 expression with IHC. On the higher cold dose, liver uptake was decreased. The results in the primates showed highest uptake in the spleen, which was reduced by more than 90% with the higher cold dose. The uptake in tumors plateaued within 15 min p.i. This is in contrast to the previously mentioned anti CD8 + minibody ⁸⁹Zr-IAB22M2C, which showed highest uptake at D₁ or D₂ p.i.

In a phase 1 study, Gondry et al. (147) evaluated the use of ⁶⁸Ga-Anti-CD206-sdAb for assessing protumorigenic macrophage presence in solid tumors. A total of seven patients were imaged with on average 181 MBq/80 μg of the tracer at 11 min, 90 min and 150 min p.i. The blood clearance was fast with less than 20% of the activity remaining after 80 min. Preliminary data showed higher uptake in the three patients that progressed compared with three without progression, suggesting further investigation of this tracer in phase II clinical trials (NCT04168528, NCT04758650).

Keyaerts et al. (148) investigated a ⁶⁸Ga-HER2-nanobody (trade name of Ablynx) in a phase I study to assess HER2 expression in breast cancer patients. PET/CT scans for dosimetry assessment were obtained at 10, 60, and 90 min p.i. using on average 107 MBq tracer. Fast blood clearance was observed with only 10% of activity remaining in the blood at 1 h p.i. Tumor uptake was evaluated using SUV_mean and a wide range was observed, but no histopathologic correlation was performed in this study. The authors highlighted the advantage of nanobody binding to a different epitope as the therapeutic agent, as it may be less affected by any circulating therapeutic compounds. On the other hand, it should be noted that the potential for predicting response to anti-HER2 therapy still needs to be investigated, especially given this difference between tracer and therapeutic compound.

Recently, Li et al. (149) published an article about a CEA-targeted ⁶⁸Ga-nanobody in both rodents and patients. Patients received on average 151 MBq and underwent PET/CT scans at 1 h and 2 h p.i., whereas the first patients also underwent a dynamic PET scan from 0 to 40 min p.i. Fast blood clearance and low background uptake were observed and the colorectal carcinoma lesions could be visualized as early as 30 min p.i.

3.1.5 ImmunoPET for radioimmunotherapy or immunoconjugates

Rizvi et al. (150) applied ⁸⁹Zr-ibritumomab tiuxetan imaging for radiation dosimetry and scouting of ⁹⁰Y-ibritumomab tiuxetan therapy in patients with relapsed B-cell non-Hodgkin's lymphoma. Imaging was performed in 7 patients after injection of 70 MBq ⁸⁹Zr-ibritumomab at 1, 72 and 144 h p.i. and again 2 weeks later, this time with co-injection of 15 MBq/kg or 30 MBq/kg ⁹⁰Y-ibritumomab tiuxetan. Absorbed doses to healthy organs and tumors were calculated. The correlation between predicted pre-therapy and on-therapy organ absorbed doses was high (Pearson r = 0.97). Correlation between pre-therapy and on-therapy tumor absorbed doses was lower (r = 0.75) but not significantly different.

Muylle et al. (74) studied tumor targeting and radiation dose of RIT with ⁹⁰Y-rituximab in CD20+ B-cell lymphoma after ⁸⁹Zr-rituximab immunoPET and the impact of preloading with unlabeled rituximab. Five patients underwent three study phases: a ⁸⁹Zr-rituximab scan without a cold preload, a ⁸⁹Zr-rituximab scan with 250 g/m² preload, and ⁸⁹Y-rituximab therapeutic phase including unlabeled rituximab. Without the cold rituximab preload, a much higher dose to the spleen was observed, but also higher tumor uptake in patients with B-cell depletion. The authors concluded that administration of the standard preload impairs tumor targeting in patients that were previously treated with rituximab. Other studies exist that show immunoPET imaging may help to predict absorbed doses in RIT by using diagnostic and therapeutic nuclide pairs like ⁸⁹Zr and ¹⁷⁷Lu (106) or ¹²⁴I and ¹³¹I (151, 152). It is worth mentioning that ⁸⁹Zr-labeled immunoPET imaging is also being investigated in preclinical research prior to targeted alpha therapy (153).

Several studies investigated the potential to use immunoPET imaging prior to therapy with an immunoconjugate like an immunocytokine or ADCs. Van Brummelen et al. (154) applied ⁸⁹Zr-immunoPET imaging for targeted immunocytokine cergutuzumab amunaleukin (CEA-IL2v) in different types of CEA-positive and CEA-negative cancer patients. Different treatment dose cohorts were used with imaging time points ranging from D₁ to D₉, analyzed using %ID (injected dose)/mL_peak values. Using imaging data from this study, a PK/PD mathematical model was created (155) with regard to dosing and scheduling for early dose-finding clinical studies.

In a study including 90 patients, Mileva et al. (156) performed ⁸⁹Zr-immunoPET and FDG PET before T-DM1 therapy in advanced HER2-positive breast cancer patients. Lesions were visually classified as HER2-positive and HER2-negative. The authors concluded that ⁸⁹Zr-immunoPET, alone or in combination with FDG PET, can successfully identify breast cancer lesions and patients with a low probability of clinical benefit from T-DM1 therapy.

Smaller mAb-based constructs labeled with other radionuclides can also be used prior to ADC therapy. For instance, Natarajan et al. (157) investigated a ⁶⁴Cu-labeled mAb fragment for measuring CA6 expression in cancer for ADC therapy.

3.2 Quantitative immunoPET studies in humans

Only 10 articles on clinical immunoPET went beyond semi-quantitative PET methodology and are reviewed in detail here. An overview of these articles is provided in Supplementary Table S3.

3.2.1 Time-activity curves and Patlak modeling with intact ⁸⁹Zr-mAbs

Jauw et al. (158) performed a phase I immunoPET study using a ⁸⁹Zr-labeled anti-CD44 tracer (RG7356) focusing on dose-dependent uptake in normal tissues. The study assumed that target antigen-mediated uptake is dose-dependent, while blood volume fraction, catabolism or elimination are dose-independent signal components (see also Figure 4). The tracer ⁸⁹Zr-anti-CD44 was administered using 37 MBq and 1 mg mass dose, after a variable dose of the unlabeled mAb (0–675 mg). The area under the curve (AUC) of tracer uptake in normal tissues was determined and expressed as tissue-to-blood AUC ratios. In the brain a constant tissue-to-blood AUC ratio was observed for all dose cohorts, indicating RG7356 does not cross the blood-brain barrier, whereas for all other normal tissues the tissue-to-blood AUC ratios decreased with increasing cold mAb dose up to 450 mg, indicating target antigen-mediated specific uptake. A constant ratio was reached at 450 mg suggesting target antigen saturation. In the lowest dose cohorts, no focal tumor uptake was visualized, which the authors attributed to the uptake in normal tissues. Tumor uptake of the antibody was observed in all patients receiving 450 mg or more. Tumor-to-blood AUC ratios were on average 0.46 ± 0.15 for 450 mg and 0.65 ± 0.07 for 675 mg. The authors discussed that to exclude differences in tumor characteristics, a different study design would be more informative, e.g., measuring the same tumor after injection of different antibody doses and performing biopsies after immunoPET.

Figure 4

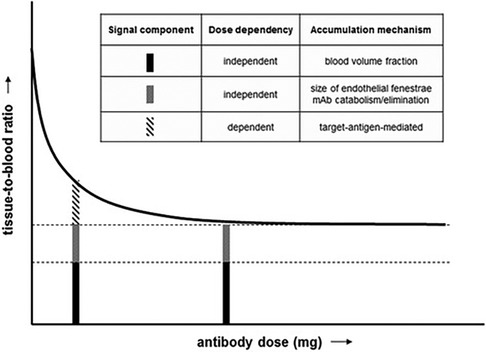

Figure 4. Immuno-PET signal components in a phase 1 dose escalation study. Tissue-to-blood ratio as a function of antibody dose. Figure taken from Jauw et al. (CC BY 4.0 License) (158).

In another study, Jauw et al. (159) performed a retrospective study with data of 4 different ⁸⁹Zr-mAb tracers: obinutuzumab (anti-CD20) (160), cetuximab (anti-EGFR) (108), huJ951 (anti-PSMA) (83), and trastuzumab (anti-HER2) (85). The authors applied Patlak modeling to estimate the reversible and irreversible contributions to the total measured uptake in kidneys, liver, lung and spleen. They compared the measured $K_i$ with literature $K_i$ values based on physiological components for nonbinding intact IgG1 mAb using the antibody biodistribution coefficients for various tissues that were obtained using PBPK modeling validated with experimental data (161). For ⁸⁹Zr-anti-PSMA, a 4-fold higher $K_i$ for the kidneys was observed indicating target engagement. It needs to be noted that perfusion is higher in kidneys than in other organs, which may be a confounding factor for $K_i$. Nonspecific uptake accounted for 66%, 34% and 22% of the total signal in the kidneys at D₁, D_3, and D₇ p.i. The authors concluded that nonspecific uptake of ⁸⁹Zr-labeled mAbs in normal tissues can be quantified using Patlak. However, they also discussed that tumors are more complex than normal tissues, so that nonspecific, reversible uptake in tumors may be more variable between tumors and patients.

Miedema et al. (162) investigated a ⁸⁹Zr-anti-LAG-3 tracer in head and neck, and lung cancer patients. Patients underwent imaging with ⁸⁹Zr-BI854111 (anti-LAG-3) using 4 mg protein mass and 37 MBq tracer dose. PET scans were performed at 2 h, D_4, and D₆ p.i. To investigate target specificity, the authors administered a second tracer dose two weeks later with a pre-dose of 40 or 600 mg unlabeled anti-LAG-3 followed by scans at D₄ and D₆. The authors discussed that a relatively low target expression, as described for LAG-3, as well as a small variation in target expression can be overshadowed by temporal differences in plasma availability of the tracer. They acknowledged that one way to address this would be to perform Patlak analysis, however, in contrast to normal organs, baseline $K_i$ for tumors lacking target expressions would not be available. Therefore they decided to report only $K_i$ values for organ tissues and TPR for lesions. They observed partial saturation of the spleen uptake at 44 mg and full saturation at 604 mg based on Patlak $K_i$ values. TPRs were favorable at the 4 mg mass dose and increased over time while adding cold dose decreased TPR. In another study by Miedema et al. (163), this method of comparing $K_i$ values with baseline $K_i$ values for non-specific organ uptake was applied on data of several other mAb tracers (nivolumab, pembrolizumab, durvalumab, BI 754111, and ipilimumab). For example, all of the tracers mentioned, except ipilimumab, showed $K_i$ values for the spleen that were above the determined baseline value indicating target engagement. In addition, decreasing $K_i$ values were observed with higher mass doses. This suggests that Patlak analysis in combination with baseline $K_i$ values for non-specific organ uptake can detect target engagement in healthy organs.

Menke-van der Houven van Oordt et al. (164) studied an anti-HER3 mAb (GSK2849330) to investigate its biodistribution, tumor uptake, as well as target engagement as function of antibody mass dose. Patients received two administrations of ⁸⁹Zr-anti-HER3; the first imaging time point was performed at baseline after administration of tracer alone (part 1). At the time of the second administration (part 2), two weeks later, dose-dependent inhibition of tracer uptake in tumor tissue was assessed by dose escalation of unlabeled mAb in combination with the tracer. PET scans were performed 2 h p.i. and on D₂ and D₅ p.i. Biodistribution and tumor targeting were assessed using SUV, and Patlak analysis was used to calculate the 50% and 90% inhibitory mass doses ($\mathrm{I}{\mathrm{D}}_{50}$ and $\mathrm{I}{\mathrm{D}}_{90}$) of target-mediated uptake. Pre-dosing with unlabeled mAb reduced tumor uptake rate in a dose-dependent manner. Saturation of tumor uptake was seen at the highest dose (30 mg/kg). Although the study only included six patients and did not cover intermediate doses from 1 mg/kg to 24 mg/kg, an exploratory ID₅₀ of 2 mg/kg and ID₉₀ of 18 mg/kg was determined by fitting a dose inhibition curve to the K_i ratio of part 2 (pre-dosing) to part 1 (tracer only) of the study. In addition, only two late imaging time-points were used, which allowing linear fitting without goodness of fit assessment. No statistical analysis was performed due to the small number of patients.

Wijngaarden et al. (39) aimed to assess the validity of the semi-quantitative parameters SUV, TPR, and TBR against Patlak K_i. The study was based on retrospective data of two ⁸⁹Zr-immunoPET studies: ⁸⁹Zr-anti-EGFR (cetuximab) (108) and ⁸⁹Zr-anti-HER3 mAb (GSK2849330) (164) (see also previous paragraph). In the ⁸⁹Zr-anti-EGFR study patients received 500 mg/m² (range = 870–1,040 mg) of unlabeled mAb followed by 37 MBq ⁸⁹Zr-anti-EGFR (cetuximab) with 10 mg mass dose. Imaging was performed at 1–2 h, D₁, D₂, D_3, and D₆ p.i. Analysis was based on 4 patients with a total of 7 tumors. For ⁸⁹Zr-anti-EGFR, the residuals between SUV at D₆ and Patlak were relatively small and improved when TPR or TBR were used instead of SUV. For the ⁸⁹Zr-anti-HER3 data using different mass doses, the residuals were larger. Here, only TPR and TBR were reliable, whereas SUV was not. The results suggest that for these two mAbs, TPR and TBR of late imaging time points (D₅ or D₆) could provide valid quantification of irreversible ⁸⁹Zr-immunoPET uptake. SUV was particularly unreliable for different mAb doses, as it does not account for patient-specific plasma clearance.

It should be noted that the articles reviewed in this subsection originate from the same research group.

3.2.2 Tracer-kinetic modeling of a ¹²⁴I-labeled mAb

Daghighian et al. (165) published (in 1993!) about kinetic modeling of ¹²⁴I-3F8 in glioma with the aim of improving dosimetry for RIT. This proof of concept study consisted of one glioma patient injected with 96.2 MBq of tracer. Scans were performed immediately p.i. with frames of 8 × 5 and 2 × 25 min as well as at 18 h, 18.5 h, 66 h p.i., on D₁₀ and on D₁₁ p.i., with careful repositioning of the patient using a laser marker system. Plasma samples were obtained as well over the range of 11 days. The 2TCM was applied to estimate $K_1$, $k_2$, $k_3$, $k_4$, and the binding potential $\mathrm{BP}=k_3/k_4$. Tumor radioactivity was highest at 18 h p.i. Kinetic modeling allowed to calculate the amount of tumor-bound radiolabeled antibody, which permits to perform both macro- and microdosimetry using non-invasive imaging and may be applied for RIT.

3.2.3 Non-linear compartmental modeling of ¹²⁴I-A33

Zanzonico et al. (116) applied non-linear compartmental modeling to immunoPET data of ¹²⁴I-labeled A33. Due to the saturability of the antibody-antigen interaction, a non-linear analysis was performed. Serial whole-body PET scans ranging from 3 h to D₉ p.i. and blood samples were acquired. The starting values of the association rate constant, the total A33 concentration in normal bowel and the total A33 concentration in tumor were measured independently in vitro. TACs for each patient were fit to a non-linear compartment model resulting in excellent agreement between fitted and measured parameters of tumor uptake, off-target uptake in bowel mucosa, blood clearance, tumor antigen levels, and percent antigen occupancy.

The authors concluded that this approach should be generally applicable to antibody-antigen systems in human tumors for which masses of both antigen-expressing tumors and normal tissues can be estimated. They state that in this manner, a patient-specific optimum mAb dose may be derived. The authors also discussed the relevance of their methodology for RIT with the rationale that the concentration of A33 in targeted tumors, the total mass of a tumor and tumor-to-normal tissue ratios will vary widely between patients. Therefore, there is no single optimum antibody dose, and the authors suggested using imaging-based measurements to find the patient specific optimum dose for RIT, which yields the maximum tumor-to normal tissue AUC and thus the maximum tumor-to-normal absorbed-dose ratios.

3.2.4 Tracer-kinetic modeling of ⁸⁹Zr-minibody

Omidvari et al. (17) reported dynamic LAFOV PET imaging of the CD8-targeted minibody ⁸⁹Zr-Df-IAB22M2C using tracer-kinetic modeling in healthy subjects and in COVID-19 convalescent patients. Imaging was performed dynamically over the first 90 min p.i. as well as at 6 h and 48 h p.i. for 60 min in the 194-cm-long uEXPLORER scanner, and with a relatively low injected activity dose of on average 18.8 MBq.

Conventional approaches based on one-tissue and two-tissue compartment models successfully fitted TACs in lungs, spleen, bone marrow, tonsils, and lymph nodes. In those organs, the slope of the Patlak plot changed from 90 min to 48 h. TBR (here: tissue-to-blood-ratio) curves and $K_i$ of the bone marrow of COVID-19 patients were elevated during the first 7 h of the study. The authors describe that these changes were not evident in the SUV images since they do not account for the time-varying tracer concentration in blood and tissue. However, they found that TBR from the 6 h time point was highly correlated with $K_i$ obtained from the full 48 h TACs, suggesting that at the right time point TBR might be used as a surrogate for $K_i$.

The authors also described the importance of cell trafficking for imaging of targets such as CD8+ T-cells. In the absence of cell trafficking, the main mechanism of uptake can be simplified by the 2TCM with $k_4=0$, where the ⁸⁹Zr-labeled minibody binds to the receptor and is irreversibly internalized within the cell. However, with non-negligible cell trafficking and imaging over longer time periods, all rate constants need to include components from trafficking and a non-zero k₄. The authors recommend future studies to investigate this aspect and incorporate it in the modeling approach.

Finally, the authors also discussed the effects of blood flow and blood vessel permeability. High blood flow regions with increased permeability allow for fast entrance of the tracer into the tissue, followed by a slower process of binding within the second tissue compartment. Whereas, in case of lower permeability and blood flow, such as in the lungs, a large fraction of the initial signal would be related to the blood volume fraction.

3.2.5 Tracer-kinetic modeling of ⁶⁸Ga-affibody

Alhuseinalkhudhur et al. (166) performed dynamic ⁶⁸Ga-ABY-025 PET imaging of the upper abdomen with a 0–45 min p.i. scan in 16 metastatic breast cancer patients. Parametric images of $K_1$ and K_i were created by employing an irreversible 2TCM and Patlak analysis together with an IDIF extracted from the descending aorta. A VOI-based analysis was performed to validate the parametric images. SUVs derived from the 2 h and 4 h p.i. static acquisitions were determined as well. Parametric imaging improved characterization of HER2 expression in smaller liver metastases. SUVs of metastases at 2 h and 4 h p.i. were highly correlated with $K_i$ values (R²=0.87 for 2TCM and 0.95 for Patlak).

3.3 Quantitative immunoPET in preclinical studies

Kim et al. (167) applied kinetic modeling in their ⁸⁹Zr-CD4R1-F(ab')₂ and ⁸⁹Zr-ibalizumab study to image the CD4 pool (in view of HIV/SIV infection) in nonhuman primates. For the Fab fragment, a 4 h dynamic scan and a static scan at 40 h p.i. were performed. The authors applied full quantitative analysis including arterial sampling, metabolite evaluation, and model fitting to estimate the binding potential of CD4 receptors in the lymph nodes, spleen, and gut using a 2TCM and an IDIF. The authors found splenic SUV in an infected monkey to be higher than in uninfected controls but stress the semi-quantitative nature of SUV measurements that do not consider differential blood flow and clearance of radioligand between animals. When tissue uptake was adjusted for blood SUV, the spleen-to-blood uptake ratio was higher in uninfected than in SIV-infected animals. The authors also pointed out that for small tissues such as lymph nodes, SUV_mean suffered from partial volume effect by up to 40%. As no correction was applied, the binding potential of lymph nodes was assumed to be underestimated. The authors could estimate receptor densities, which, when translated from macaque to human levels, indicated that the relative size of the gut CD4 pool was lower than that of the splenic CD4 pool.

Aweda et al. (168) reported on the in vivo biodistribution and pharmacokinetics of sotrovimab, a SARS-CoV-2 monoclonal antibody, in healthy cynomolgus monkeys. In addition to TBR, they also applied a PBPK model to evaluate tissue biodistribution kinetics. They compared two similar mAbs, where one had a modified Fc region to extend its serum half-life. Results indeed showed an extended half-life of the mAb with a modified Fc region. PBPK modeling provided satisfactory fitting for most regions.

In a preclinical study Cheal et al. (169) compared ⁸⁹Zr- with ¹²⁴I-labeled cG250. Experiments with both tracers using a human clear-cell renal cell carcinoma cell line were performed to characterize binding affinity and internalization kinetics and serial PET imaging was performed in tumor-bearing mice. Equilibrium rates of antibody internalization and turnover in the tumors were derived from the PET images using nonlinear compartmental modeling. Both tracers showed identical tumor cell binding and internalization, but different retention in vivo with longer retention and superior PET images for ⁸⁹Zr-cG250. The mean tumor concentration in mice was fitted using a nonlinear compartmental model and an IDIF obtained from a VOI on the heart region. Starting values for the association rate constant and the antigen concentration in tumor were measured in vitro.

Chevaleyre et al. (170) performed kinetic modeling of brain data in mice, applying focused ultrasound before performing an anti-PD-L1 immunoPET scan with ⁸⁹Zr-DFO-C4 or its FcRn low-affinity mutant ⁸⁹Zr-DFO-C4^Fc−MUT. The latter tracer showed a significantly decreased efflux rate constant from healthy brain tissue to plasma compared with the non-mutated IgG. The authors concluded that this improves the kinetic properties since target engagement can be determined as early as 12 h p.i.

Laffon and Marthan (171) reported a three-time-point method for assessing kinetic parameters of a ⁶⁴Cu-labeled mAb targeting VEGFR-2 positive lung tumors using data of tumor-bearing mice imaged at 3 h, D₁ and D₂ p.i. They fitted three parameters, namely $K_i$, a release rate constant $k_r$, and F, representing the fraction of free tracer in blood and interstitial volume to ACs determined with and without administration of a blocking dose. In another study, Laffon et al. (172) estimated kinetic parameters of ⁶⁴Cu- and ¹⁷⁷Lu-cetuximab using published mice data with regard to dosimetry prediction.

Another approach for determining specific uptake in tumors can be a dual-tracer approach. Cheng et al. (173) performed dual-tracer immunoPET imaging in mice with an ¹¹C labeled EGFR-binding affibody molecule and its size-matched non-binding control. Both molecules showed similar biodistribution except for higher concentration of the non-binding control in liver and blood. The targeting tracer successfully visualized human squamous cell carcinoma with moderate to high EGFR expression levels. However, also non-specific uptake in tumors was high and sometimes equally large. There was no correlation between total EGFR and specific tracer uptake, which would indicate a discordance between available membranous and total EGFR expression levels.

In the preclinical study by Fung et al. (174) on the earlier mentioned tracer ¹²⁴I-J591 the authors applied PBPK modeling and found a nonlinear model to be superior to the conventional linear model. They also compared with a ⁸⁹Zr-labeled version of the tracer and found that the equilibrium constant was twice as high for ¹²⁴I, but there was about a tenfold greater tumor efflux rate for ¹²⁴I compared with ⁸⁹Zr, while surface binding and internalization rates were similar.

Wilks et al. (175) published about improved modeling for kinetics of slowly diffusing radiotracers for tumor imaging using partial differential equations with Bayesian priors to model a radially symmetric reaction-diffusion equation describing immunoPET uptake. The model was applied to ¹²⁴I-labeled A11 anti-prostate stem cell antigen minibody imaging in mice. The results showed estimates of the dissociation constant and receptor density close to in vitro measurements and also large differences with regular compartmental modeling that ignores tracer diffusion limitations.

3.4 Simulation studies

Simulation studies can inform clinical immunoPET protocols and may improve understanding of immunoPET data. Two types of modeling studies, PBPK modeling (134) and the conventional PET modeling, have distinct roles (e.g., 2TCM, Patlak).

Wijngaarden et al. (176) performed a simulation study regarding the optimal imaging time points when applying Patlak to ⁸⁹Zr-immunoPET data. Tissue TACs were simulated based on three different ⁸⁹Zr-mAb input functions and published reference values for reversible (V_T) and irreversible (K_i) uptake. The input functions were extracted from published studies with multiple blood samples on the day of injection and further blood samples with every PET scan. Accuracy and precision of Patlak linearization were evaluated by comparing simulated K_i and V_T with reference values for different imaging time points and noise levels.

For high K_i, accuracy and precision of Patlak results decreased with smaller AUC of the input function (i.e., faster clearance) for the three different mAbs. The authors reasoned that for immunoPET tracers with faster kinetics, the data points will be closer together and the effect of noise would be stronger. Furthermore, they explained that limited sampling of the AIF can lead to an overestimation of the AUC_p and therefore to a negative bias in K_i. They concluded that a blood sample at 24 h p.i. improves accuracy due to a better assessment of the shape of the AIF, but this depends on the kinetics of the tracer as steady-state equilibrium needs to be achieved at the first Patlak time point. In general, sampling at the most curved part of the IF was found to be critical. Further, the authors concluded that the interval of the two additional sampling points is not so critical. Similar principles may apply to other mAb based constructs. For example, in the ⁸⁹Zr-minibody study by Omidvari et al. (17) a second scan on D₀ was performed from 6 to 7 h, where kinetic changes in the blood pool are still high.

Huisman et al. (71) simulated ⁸⁹Zr-trastuzumab immunoPET TACs using a PBPK model together with an input function and several trastuzumab parameter values reported in the literature. The relationship between PET uptake and concentration of HER2 receptors in a tumor was mathematically modelled. The uptake initially increased with the target concentrations, until it reached a constant value, which is determined by the total administered mass dose of trastuzumab. The results indicated that for 50 mg ⁸⁹Zr-Trastuzumab, SUV can discriminate between IHC score 0 vs. 1, 2, and 3 but not among IHC 1, 2, or 3. The authors therefore conclude that although ⁸⁹Zr-trastuzumab immunoPET can be used to assess target expression, there is a risk of false-positive results depending on the cut-off used to define target positivity and the dose administered.

Huisman's model includes the extravasation rate constant, which determines the extravasation rate for a given concentration gradient and combines the vasculature and the degree of vascularization of the tissue. The authors discussed that the extravasation rate constant is the key factor that determines the maximum tumor uptake at a late time point and varies between and within patients. Furthermore, they discussed that higher plasma clearance leads to lower SUV and therefore suggested that different plasma PK curves at different mass doses can be used to investigate this effect. The Huisman model does not include any blood flow parameter. Thurber and Wittrup (65) described that their PBPK model results indicated that in the case of intact mAbs, while vascularization is very important, the velocity of blood flow did not have a major impact due to the extremely slow rate of extravasation and lack of depletion along the length of the vessel. This may be different for smaller mAb based constructs.

Shah et al. (134) and Liu et al. (177) developed a platform PBPK model and validated the model using human ⁸⁹Zr-immunoPET data. Liu et al. used immunoPET data from eight studies, but only two were used to validate the tumor PK model due to limited data in the literature because most studies did not report essential tumor-related parameters. To indirectly validate the tumor PK model, the authors used data from (158) with blood PK for four doses (100, 200, 450, and 675 mg), fitting them together with the PBPK model. Further validation was conducted using tumor PK data from a study in which patients were dosed with ⁸⁹Zr labeled bevacizumab to predict the antibody distribution of tumors without target expression since bevacizumab does not target tumor cell surface antigens but rather VEGF in the tumor environment. The authors concluded that more clinical ⁸⁹Zr immunoPET data in various antigen expression tumor types are needed to validate the tumor model. Once established, these models will significantly aid in quantitatively assessing antigen expression with ⁸⁹Zr immuno-PET, potentially guiding personalized treatment.

4 Discussion

This article reviewed the methodology of immunoPET studies and the role of imaging protocols and quantification methods in determining how well immunoPET can assess target engagement and thus how well it can aid patient selection for a specific therapy and guide drug development. Many early stage immunoPET studies included multi-time point imaging in a small patient population. The most common goals of these studies were to demonstrate that they can provide safely and non-invasively an overview of both biodistribution and tumor targeting of the investigated tracer. While in the first part of these studies, multi-time point imaging was applied to find the best imaging time point for visualization and sometimes for dosimetry purposes, in the second part or follow up studies usually only one static scan was performed. In addition to oncological immunoPET, research is also being conducted into infectious and inflammatory diseases.

Many studies involve co-injecting a non-labeled, also referred to as “cold”, amount of the molecule to saturate non-specific uptake and improve visualization of lesions. As discussed by several articles, this may (partially) occupy receptors in the target regions (e.g., tumors) as well, which will even be more pronounced when patients undergo antibody therapy at the time of imaging the same target. With escalating cold dose, a decrease in target signal can be demonstrated in some cases suggesting target saturation. It needs to be considered that in conventional PET kinetic modeling, tracer amounts are assumed with linear kinetics. However, with larger amounts of cold molecules, there may be saturable binding, which would make it necessary to incorporate more complex non-linear models that will include modeling of the cold molecules. The rate of mAb binding to antigen will decrease as an increasing number of antigenic sites are already occupied.

The wide range of immunoPET tracers will need to apply different approaches in terms of PET quantification methodology. Full mAbs with long-lived radionuclides are likely to require multiple time-point imaging, whereas smaller molecules may use short-lived tracers with imaging on the same day. Small molecules are also expected to be more affected by perfusion effects as discussed by Omidvari et al. (17), whereas full mAbs may be less dependent on perfusion. In addition, T-cell tracers may be affected by T-cell trafficking. For relatively fast tracers, dynamic imaging can help in optimizing the best time window for scanning. Similarly for full mAb immunoPET multiple time-points over days may provide additional information about kinetics and image quality to determine the optimal imaging time-point.

Regarding semi-quantitative analysis, most studies consider manual delineation of organs and lesions combined with reporting SUV_max normalized to bodyweight, body surface area, or LBM. In general, the use of SUV is based on the idea of the distribution volume, where SUV_LBM is a recommended metric for FDG uptake (178), however the use of SUV for any immunoPET tracer is questionable in itself as normalization to body weight is not always a good measure of initial tracer distribution volume. A subset of studies reported TBR values normalizing SUV_max of the tumor to SUV_mean of a blood pool region to reduce the bias induced by different tracer availability. A few studies report SUV_peak when quantifying lesions instead of SUV_max. From a PET methodology perspective, data-driven approaches improve the reliability of quantification measures compared with manual delineations (53). In addition, due to noise, SUV_peak is more appropriate for ⁸⁹Zr-immunoPET imaging (51, 179, 180).

Demonstrating correlations between immunoPET and invasive biopsies is challenging, and only small sample sizes have been published, showing several limitations. Biopsies cannot access all lesions and can only give information about a small part of potentially heterogeneous disease. When correlating immunoPET metrics with biopsy, it is difficult to show whether uptake in target negative lesions is due to effects of heterogeneity or due to nonspecific uptake. In addition, even if there is high target expression, mAb distribution to parts of the target region, distant from functional vessels, is limited. In many cases, the assessment of target expression alone may not be sufficient to predict therapy response (181). This may be an argument in further investigating image-based markers as a predictor for treatment response that can relate to heterogeneity in lesions and longitudinal changes of receptor expression.

4.1 Static vs. dynamic immunoPET

The general controversy of using static or dynamic imaging (46) also comes into play with immunoPET. This is even more challenging due to slow kinetics of the molecules involved, which means that often multiple time-point scanning is necessary, leading to higher demands on scanner-time and additional efforts in image analysis. Static immunoPET offers a simpler approach, primarily focusing on the visualization and semi-quantification of lesions. However, this approach does not capture patient and lesion-dependent kinetics that may give additional information in the drug-development stage or in aiding decision-making or predicting treatment response. Dynamic or multi-time point immunoPET may provide additional information about the biology of the regions investigated. Especially with the small number of patients in phase 1 studies this additional information may be useful to differentiate specific from non-specific uptake and may increase the chance of finding correlations with biopsies or treatment response, and determining optimal imaging and treatment doses.

On the other hand, dynamic immunoPET presents challenges related to its practical implementation and kinetic analysis. It is challenging to select sufficient time points to properly characterize (and model) its kinetics, and in practice usually limited kinetic data are available. The Patlak plot only requires a few data points for the target tissue, but sufficient samples of the input function by using either an IDIF or blood samples. The articles reviewed indicated that the Patlak approach is feasible for VOIs and that it can provide additional information over semi-quantitative SUV. Although, in theory, two imaging time points would be sufficient for this linear approach, three or more may be required for validation, where the first point should be selected after reaching steady-state equilibrium between plasma and the non-displaceable compartment. If the initial distribution and/or an IDIF needs to be measured, a scan at time of injection might be used as well, leading to four scans, which subsequently can be reduced if e.g., initial patient data show that two late time-point images are sufficient to calculate the desired metrics. As discussed in the study by Wijngaarden et al. (175), for ⁸⁹Zr-labeled mAbs, it is important to perform a scan or blood sample at D₁ in order to capture the shape of the AIF. The two additional sampling points were found to be less critical. In case of of smaller mAb based constructs, like minibodies, a second scan at the day of injection, e.g., 6 h p.i., seems to be beneficial for capturing its kinetics [see also Figure 3 and Omidvari et al. (17)]. Finally, to capture kinetics of mAb-based constructs smaller than minibodies, long dynamic acquisitions immediately after injection would be useful.

Given the research gap identified in the present article, it is clear that that simplified metrics, such as SUV, need to be validated carefully against a multi-time point or dynamic approach (46), and therefore improved immunoPET quantification methodology is necessary. If a semi-quantitative metric like TBR turns out to be sufficient when compared to e.g., Patlak K_i, in clinical practice a single time-point can be used (39).

4.2 The role of long axial field of view PET/CT

At present, there are only a few articles available that performed immunoPET on the recently introduced LAFOV scanners. Due to their increased FOV and sensitivity, these scanners lead to substantially higher image quality and can facilitate the use of IDIF and kinetic modeling techniques.

Mohr et al. (180) compared semi-quantitative immunoPET on a short vs. a LAFOV PET/CT system and demonstrated an eight-fold reduction in scan duration compared to a state of the art short axial field of view PET/CT. However, the authors recommend reducing only by a factor of 2–3 in order to maintain high image quality. Acquiring high quality image data is particularly important for dynamic imaging as performed in the previously described study of Omidvari et al. (17). Using LAFOV PET, they could investigate high-quality dynamic imaging of a CD8+-minibody at radiation doses lower than 10 mSv, allowing for longitudinal imaging of non-oncological patients or even healthy subjects.

In addition to shortening scan duration or reducing radiation dose, the higher sensitivity can also be used to perform imaging at delayed time points (91). This is particularly promising because in case of irreversible tracers like ⁸⁹Zr-labeled mAbs, the later the imaging time point, the more accumulation of irreversible signal and decrease of reversible (non-specific) signal can be expected. The reduced scan durations with LAFOV PET make multiple time-point scanning and delayed imaging time points more realistic even in a busy clinic.

4.3 Other aspects of multi-time point image analysis

When comparing uptake values from scans on different days, the quantitative parameters reported should be derived using the same VOI method. ImmunoPET often involves scanning on different days, which in turn requires delineating the same regions on images obtained in different positions. Segmentation of a VOI can either be performed on the CT images or on the PET images themselves. This is, however, associated with several challenges regarding the consistency and accuracy of the segmentations, as a different VOI may be derived at each scan time point. For segmentation performed on PET images, additional challenges include a PET signal that changes over time, potentially heterogeneous lesions and increased image noise in later acquisitions. Therefore, segmentation on CT scans may be preferred, but this in turn may be limited by the fact that voxels will be segmented based on anatomical characteristics (tissue density) rather than on molecular characteristics that are relevant for PET. In addition, potential misalignments may exist between corresponding regions on CT and PET scans. Ultimately, all segmentation techniques may suffer from inter- and/or intraobserver variability.

Another aspect is that multi-time point imaging requires multiple CT scans that increase the overall radiation dose. There are several approaches that avoid CT altogether and still provide an attenuation map for attenuation correction, e.g., using the LSO background of the scanner (182), or using a simultaneous reconstruction of activity and attenuation map from the PET data [MLAA (183, 184)]. Alternatively, it is possible to perform an ultra-low dose CT by using a tin filter (185) and/or adjusting CT settings (186). However, without at least one CT of sufficient quality, segmentation will be difficult. Another important factor is the effect of patient motion, leading to both, a mismatch between CT and PET scan affecting attenuation correction (187) and to blurred structures in the PET images (188). It should be noted that motion correction was not applied in any clinical immunoPET studies published so far.

If registration and motion correction could be solved with high performance, there would be potential for voxel-wise kinetic modeling leading to parametric immunoPET images as used in more conventional dynamic PET scans (189–191). This approach, however, will be more feasible for smaller mAb-based constructs in combination with shorter-lived radionuclides that can make use of a dynamic scan protocol or in mAb studies focusing on areas of the body that can be registered more easily (e.g., rigid motion of the head). In addition, parametric immunoPET images would be easier for $K_i$ than for microparameters due to noise. So far, only one study could be found that performed parametric imaging for an immunoPET application [⁶⁸Ga-ABY-025 affibody (166)].

Beyond SUV_max and SUV_peak, other image features obtained by radiomics (192) may be applied to immunoPET. For instance, a more homogeneous target expression may be related to better treatment response, while heterogeneous signals may correlate with poorer response, as demonstrated in a preclinical study by Rashidian et al. (193) using an anti-CD8 antibody fragment tracer. Therefore, radiomics may have a role in predicting therapy response and may benefit from decreased image noise of LAFOV PET/CT scanners (194).

4.4 Dual-tracer approaches

Dual-tracer approaches are emerging that allow for measuring simultaneously two different radiotracers (and corresponding biological processes) that conventionally are imaged sequentially (195) reducing the burden for the patient. This approach might also be useful to complement the information of an immunoPET scan by combining one of the multiple time point scans with a different tracer. Commonly performed ¹⁸F-FDG scans in patients that will receive an immunoPET scan could be combined and may help to predict treatment response (196). In addition, the information of ¹⁵O-H₂O PET to measure perfusion may be used to understand and correct the confounding effect of perfusion on PET metrics like K_i. A dual immunoPET approach to measure the status of two different immune-related targets might also be helpful and can be achieved by using two different radionuclides like ¹²⁴I and ⁸⁹Zr that can be discriminated via the additional gamma photon emitted by ¹²⁴I (197). By applying one targeted and one untargeted tracer with similar transport kinetics, $BP$ may also be estimated using a dual tracer approach instead of conventional kinetic modeling (198).

5 Conclusions

Most immunoPET studies have been analyzed semi-quantitatively. A subset of these studies have pointed out that SUV cannot capture patient-dependent plasma clearance and that it may be affected by disease-dependent characteristics and treatment-related factors. A handful of studies have demonstrated the potential use of Patlak in immunoPET. Several challenges exist in moving beyond semi-quantitative immunoPET since long dynamic or multiple time-point scans are needed together with more complex analyses. However, dynamic immunoPET imaging is currently the only available non-invasive technology that can provide in vivo insights into highly specific receptor binding or immune cell distribution throughout the body. This is a research gap that may, if resolved, have the potential to increase the power of immunoPET. New or continuing studies with larger patient cohorts, combined with recent advances in PET scanner technology, hold a promise of developing more reliable immunoPET imaging methodology.

Author contributions

PM: Writing – original draft, Writing – review & editing. JS: Writing – original draft, Writing – review & editing. ML: Writing – original draft, Writing – review & editing. AL: Writing – original draft, Writing – review & editing. AB: Writing – original draft, Writing – review & editing. CT: Writing – original draft, Writing – review & editing.

Funding

The author(s) declare that no financial support was received for the research, authorship, and/or publication of this article.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

The author(s) declared that they were an editorial board member of Frontiers, at the time of submission. This had no impact on the peer review process and the final decision.

Publisher's note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Supplementary material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fnume.2024.1360710/full#supplementary-material

Abbreviations

AC, activity concentration; ADC, antibody-drug-conjugate; AIF, arterial input function; AUC, area under the curve; CT, computed tomography; D_n, day n; FcRn, neonatal Fc receptor; ID, injected dose; IDIF, image-derived input function; K_i, influx rate constant; LBM, lean body mass; LAFOV, long axial field of view; mAb, monoclonal antibody; MRI, magnetic resonance imaging; OS, overall survival; PBPK, physiologically based pharmacokinetics; PET, positron emission tomography; PFS, progression-free survival; p.i., post injection; PK, pharmacokinetics; RIT, radioimmunotherapy; SUV, standardized uptake value; TAC, time-activity curve; TBR, target-to-blood ratio; VEGFR, vascular endothelial growth factor receptor; VOI, volume of interest; 2TCM, two-tissue compartment model.

References

1. Van Dongen GA, Huisman MC, Boellaard R, Harry Hendrikse N, Windhorst AD, Visser GW, et al. 89Zr-immuno-PET For imaging of long circulating drugs and disease targets: why, how and when to be applied? Q J Nucl Med Mol Imaging. (2015) 59(1):18–38. https://www.minervamedica.it/en/journals/nuclear-med-molecular-imaging/article.php?cod=R39Y2015N01A001825517081

PubMed Abstract | Google Scholar

2. Jauw YWS, Menke-van der Houven van Oordt CW, Hoekstra OS, Hendrikse NH, Vugts DJ, Zijlstra JM, et al. Immuno-positron emission tomography with zirconium-89-labeled monoclonal antibodies in oncology: what can we learn from initial clinical trials? Front Pharmacol. (2016) 7:131. doi: 10.3389/fphar.2016.00131

PubMed Abstract | Crossref Full Text | Google Scholar

3. McKnight BN, Viola-Villegas NT. 89Zr-ImmunoPET companion diagnostics and their impact in clinical drug development. J Labelled Comp Radiopharm. (2018) 61(9):727–38. doi: 10.1002/jlcr.3605

PubMed Abstract | Crossref Full Text | Google Scholar

4. Yoon J-K, Park B-N, Ryu E-K, An Y-S, Lee S-J. Current perspectives on 89Zr-PET imaging. Int J Mol Sci. (2020) 21(12):4309. doi: 10.3390/ijms21124309

PubMed Abstract | Crossref Full Text | Google Scholar

5. van Dongen GAMS, Beaino W, Windhorst AD, Zwezerijnen GJC, Oprea-Lager DE, Hendrikse NH, et al. The role of (89)Zr-immuno-PET in navigating and derisking the development of biopharmaceuticals. J Nucl Med. (2021) 62(4):438–45. doi: 10.2967/jnumed.119.239558

PubMed Abstract | Crossref Full Text | Google Scholar

6. Wu AM, Pandit-Taskar N. ImmunoPET: harnessing antibodies for imaging immune cells. Mol Imaging Biol. (2022) 24(2):181–97. doi: 10.1007/s11307-021-01652-

PubMed Abstract | Crossref Full Text | Google Scholar

7. De Feo MS, Pontico M, Frantellizzi V, Corica F, De Cristofaro F, De Vincentis G. 89Zr-PET imaging in humans: a systematic review. Clin Transl Imaging. (2022) 10(1):23–36. doi: 10.1007/s40336-021-00462-9

Crossref Full Text | Google Scholar

8. Rodriguez C, Delaney S, Sarrett SM, Keinänen OM, Zeglis BM. Antibody engineering for nuclear imaging and radioimmunotherapy. J Nucl Med. (2022) 63(9):1316–22. doi: 10.2967/jnumed.122.263861

PubMed Abstract | Crossref Full Text | Google Scholar

9. Wei W, Rosenkrans ZT, Liu J, Huang G, Luo Q-Y, Cai W. ImmunoPET: concept, design, and applications. Chem Rev. (2020) 120(8):3787–851. doi: 10.1021/acs.chemrev.9b00738

PubMed Abstract | Crossref Full Text | Google Scholar

10. Kaplon H, Crescioli S, Chenoweth A, Visweswaraiah J, Reichert JM. Antibodies to watch in 2023. MAbs. (2023) 15(1):2153410. doi: 10.1080/19420862.2022.2153410

PubMed Abstract | Crossref Full Text | Google Scholar

11. Keizer RJ, Huitema ADR, Schellens JHM, Beijnen JH. Clinical pharmacokinetics of therapeutic monoclonal antibodies. Clin Pharmacokinet. (2010) 49(8):493–507. doi: 10.2165/11531280-000000000-00000

PubMed Abstract | Crossref Full Text | Google Scholar

12. Bruijnen S, Tsang-A-Sjoe M, Raterman H, Ramwadhdoebe T, Vugts D, van Dongen G, et al. B-cell imaging with zirconium-89 labelled rituximab PET-CT at baseline is associated with therapeutic response 24 weeks after initiation of rituximab treatment in rheumatoid arthritis patients. Arthritis Res Ther. (2016) 18:266. doi: 10.1186/s13075-016-1166-z

PubMed Abstract | Crossref Full Text | Google Scholar

13. Hagens MH, Killestein J, Yaqub MM, van Dongen GA, Lammertsma AA, Barkhof F, et al. Cerebral rituximab uptake in multiple sclerosis: a (89)Zr-immunoPET pilot study. Mult Scler. (2018) 24(4):543–5. doi: 10.1177/1352458517704507

PubMed Abstract | Crossref Full Text | Google Scholar

14. Adams H, van de Garde EM, van Moorsel CH, Vugts DJ, van Dongen GA, Grutters JC, et al. [(89)Zr]zr-rituximab PET/CT activity in patients with therapy refractory interstitial pneumonitis: a feasibility study. Am J Nucl Med Mol Imaging. (2019) 9(6):296–308. PMCID: 6971479

PubMed Abstract | Google Scholar

15. Laban KG, Kalmann R, Leguit RJ, de Keizer B. Zirconium-89-labelled rituximab PET-CT in orbital inflammatory disease. EJNMMI Res. (2019) 9(1):69. doi: 10.1186/s13550-019-0530-9

PubMed Abstract | Crossref Full Text | Google Scholar

16. van der Geest KSM, Sandovici M, Nienhuis PH, Slart RHJA, Heeringa P, Brouwer E, et al. Novel PET imaging of inflammatory targets and cells for the diagnosis and monitoring of giant cell arteritis and polymyalgia rheumatica. Front Med (Lausanne). (2022) 9:902155. doi: 10.3389/fmed.2022.902155

PubMed Abstract | Crossref Full Text | Google Scholar

17. Omidvari N, Jones T, Price PM, Ferre AL, Lu J, Abdelhafez YG, et al. First-in-human immunoPET imaging of COVID-19 convalescent patients using dynamic total-body PET and a CD8-targeted minibody. Sci Adv. (2023) 9(41):eadh7968. doi: 10.1126/sciadv.adh7968

PubMed Abstract | Crossref Full Text | Google Scholar

18. Bailly C, Cléry P-F, Faivre-Chauvet A, Bourgeois M, Guérard F, Haddad F, et al. Immuno-PET for clinical theranostic approaches. Int J Mol Sci. (2017) 18(1):57. doi: 10.3390/ijms18010057

Crossref Full Text | Google Scholar

19. Ehrlich P. Experimental researches on specific therapy: on immunity with special reference to the relationship between distribution and action of antigens: fIRST HARBEN LECTURE. The Collected Papers of Paul Ehrlich: Elsevier. (1960):106–17. doi: 10.1016/B978-0-08-009056-6.50015-4

Crossref Full Text | Google Scholar

20. Tichauer KM, Wang Y, Pogue BW, Liu JT. Quantitative in vivo cell-surface receptor imaging in oncology: kinetic modeling and paired-agent principles from nuclear medicine and optical imaging. Phys Med Biol. (2015) 60(14):R239–69. doi: 10.1088/0031-9155/60/14/R239

PubMed Abstract | Crossref Full Text | Google Scholar

21. Jain RK. Delivery of molecular and cellular medicine to solid tumors. Adv Drug Deliv Rev. (2001) 46(1-3):149–68. doi: 10.1016/S0169-409X(00)00131-9

PubMed Abstract | Crossref Full Text | Google Scholar

22. Baldwin RW, Pimm MV. Antitumor monoclonal antibodies for radioimmunodetection of tumors and drug targeting. Cancer Metastasis Rev. (1983) 2(1):89–106. doi: 10.1007/BF00046907

PubMed Abstract | Crossref Full Text | Google Scholar

23. Larson SM, Carrasquillo JA, Reynolds JC. Radioimmunodetection and radioimmunotherapy. Cancer Invest. (1984) 2(5):363–81. doi: 10.3109/07357908409040313

PubMed Abstract | Crossref Full Text | Google Scholar

24. Perik PJ, Hooge MNL-D, Gietema JA, Graaf W, Korte M, Jonkman S, et al. Indium-111–labeled trastuzumab scintigraphy in patients with human epidermal growth factor receptor 2–positive metastatic breast cancer. J Clin Oncol. (2006) 24(15):2276–82. doi: 10.1200/JCO.2005.03.8448

PubMed Abstract | Crossref Full Text | Google Scholar

25. Delaloye B, Bischof-Delaloye A, Buchegger F, von Fliedner V, Grob JP, Volant JC, et al. Detection of colorectal carcinoma by emission-computerized tomography after injection of 123I-labeled fab or F(ab’)2 fragments from monoclonal anti-carcinoembryonic antigen antibodies. J Clin Invest. (1986) 77(1):301–11. doi: 10.1172/JCI112291

PubMed Abstract | Crossref Full Text | Google Scholar

26. Gmeiner Stopar T, Fettich J, Zver S, Mlinaric-Rascan I, Hojker S, Socan A, et al. 99mTc-labelled Rituximab, a new non-hodgkin’s lymphoma imaging agent: first clinical experience. Nucl Med Commun. (2008) 29(12):1059–65. doi: 10.1097/MNM.0b013e3283134d6e

PubMed Abstract | Crossref Full Text | Google Scholar

27. Torres LA, Perera A, Batista JF, Hernández A, Crombet T, Ramos M, et al. Phase I/II clinical trial of the humanized anti-EGF-r monoclonal antibody h-R3 labelled with 99mTc in patients with tumour of epithelial origin. Nucl Med Commun. (2005) 26(12):1049–57. doi: 10.1097/00006231-200512000-00002

PubMed Abstract | Crossref Full Text | Google Scholar

28. Wilson CB, Snook DE, Dhokia B, Taylor CVJ, Watson IA, Lammertsma AA, et al. Quantitative measurement of monoclonal antibody distribution and blood flow using positron emission tomography and 124iodine in patients with breast cancer. Int J Cancer. (1991) 47(3):344–7. doi: 10.1002/ijc.2910470305

PubMed Abstract | Crossref Full Text | Google Scholar

29. Börjesson PKE, Jauw YWS, Boellaard R, de Bree R, Comans EFI, Roos JC, et al. Performance of immuno-positron emission tomography with zirconium-89-labeled chimeric monoclonal antibody U36 in the detection of lymph node metastases in head and neck cancer patients. Clin Cancer Res. (2006) 12(7 Pt 1):2133–40. doi: 10.1158/1078-0432.CCR-05-2137

Crossref Full Text | Google Scholar

30. Philpott GW, Schwarz SW, Anderson CJ, Dehdashti F, Connett JM, Zinn KR, et al. RadioimmunoPET: detection of colorectal carcinoma with positron-emitting copper-64-labeled monoclonal antibody. J Nucl Med. (1995) 36(10):1818–24. https://jnm.snmjournals.org/content/36/10/1818.long7562049

PubMed Abstract | Google Scholar

31. Gaykema SBM, de Jong JR, Perik PJ, Brouwers AH, Schröder CP, Munnink THO, et al. 111In-Trastuzumab scintigraphy in HER2-positive metastatic breast cancer patients remains feasible during trastuzumab treatment. Mol Imaging. (2014) 13(5):7290.2014.00011. doi: 10.2310/7290.2014.00011

Crossref Full Text | Google Scholar

32. Dijkers ECF, Kosterink JGW, Rademaker AP, Perk LR, Dongen G, Bart J, et al. Development and characterization of clinical-grade 89Zr-trastuzumab for HER2/neu ImmunoPET imaging. J Nucl Med. (2009) 50(6):974–81. doi: 10.2967/jnumed.108.060392

PubMed Abstract | Crossref Full Text | Google Scholar

33. Rahmim A, Zaidi H. PET versus SPECT: strengths, limitations and challenges. Nucl Med Commun. (2008) 29(3):193–207. doi: 10.1097/MNM.0b013e3282f3a515

PubMed Abstract | Crossref Full Text | Google Scholar

34. Orcutt KD, Adams GP, Wu AM, Silva MD, Harwell C, Hoppin J, et al. Molecular simulation of receptor occupancy and tumor penetration of an antibody and smaller scaffolds: application to molecular imaging. Mol Imaging Biol. (2017) 19(5):656–64. doi: 10.1007/s11307-016-1041-y

PubMed Abstract | Crossref Full Text | Google Scholar

35. Schmidt MM, Wittrup KD. A modeling analysis of the effects of molecular size and binding affinity on tumor targeting. Mol Cancer Ther. (2009) 8(10):2861–71. doi: 10.1158/1535-7163.MCT-09-0195

PubMed Abstract | Crossref Full Text | Google Scholar

36. Lugat A, Bailly C, Chérel M, Rousseau C, Kraeber-Bodéré F, Bodet-Milin C, et al. Immuno-PET: design options and clinical proof-of-concept. Front Med (Lausanne). (2022) 9:1026083. doi: 10.3389/fmed.2022.1026083

PubMed Abstract | Crossref Full Text | Google Scholar

37. van Dongen GAMS, Visser GWM, Lub-de Hooge MN, de Vries EG, Perk LR. Immuno-PET: a navigator in monoclonal antibody development and applications. Oncologist. (2007) 12(12):1379–89. doi: 10.1634/theoncologist.12-12-1379

PubMed Abstract | Crossref Full Text | Google Scholar

38. Reddy S, Robinson M. ImmunoPET in cancer models. Semin Nucl Med. (2010) 40(3):182–9. doi: 10.1053/j.semnuclmed.2009.12.004

PubMed Abstract | Crossref Full Text | Google Scholar

39. Wijngaarden JE, Huisman MC, Jauw YWS, van Dongen G, Greuter H, Schuit RC, et al. Validation of simplified uptake measures against dynamic patlak K(i) for quantification of lesional (89)Zr-immuno-PET antibody uptake. EJNMMI. (2023) 50(7):1897–905. doi: 10.1007/s00259-023-06151-1

Crossref Full Text | Google Scholar

40. Baxter LT, Jain RK. Transport of fluid and macromolecules in tumors. IV. A microscopic model of the perivascular distribution. Microvasc Res. (1991) 41(2):252–72. doi: 10.1016/0026-2862(91)90026-8

PubMed Abstract | Crossref Full Text | Google Scholar

41. Thurber GM, Schmidt MM, Wittrup KD. Antibody tumor penetration: transport opposed by systemic and antigen-mediated clearance. Adv Drug Delivery Rev. (2008) 60(12):1421–34. doi: 10.1016/j.addr.2008.04.012

Crossref Full Text | Google Scholar

42. Lobo ED, Hansen RJ, Balthasar JP. Antibody pharmacokinetics and pharmacodynamics. J Pharm Sci. (2004) 93(11):2645–68. doi: 10.1002/jps.20178

PubMed Abstract | Crossref Full Text | Google Scholar

43. Shockley TR, Lin K, Nagy JA, Tompkins RG, Yarmush ML, Dvorak HF. Spatial distribution of tumor-specific monoclonal antibodies in human melanoma xenografts. Cancer Res. (1992) 52(2):367–76. https://aacrjournals.org/cancerres/article/52/2/367/498354/Spatial-Distribution-of-Tumor-specific-Monoclonal1728408

PubMed Abstract | Google Scholar

44. Kang NV, Hamilton S, Sanders R, Wilson GD, Kupsch JM. Efficient in vivo targeting of malignant melanoma by single-chain fv antibody fragments. Melanoma Res. (1999) 9(6):545–56. doi: 10.1097/00008390-199912000-00003

PubMed Abstract | Crossref Full Text | Google Scholar

45. Vivier D, Sharma SK, Adumeau P, Rodriguez C, Fung K, Zeglis BM. The impact of FcγRI binding on immuno-PET. J Nucl Med. (2019) 60(8):1174–82. doi: 10.2967/jnumed.118.223636

PubMed Abstract | Crossref Full Text | Google Scholar

46. Lammertsma AA. Forward to the past: the case for quantitative PET imaging. J Nucl Med. (2017) 58(7):1019–24. doi: 10.2967/jnumed.116.188029

PubMed Abstract | Crossref Full Text | Google Scholar

47. Thie JA. Understanding the standardized uptake value, its methods, and implications for usage. J Nucl Med. (2004) 45(9):1431–4. https://jnm.snmjournals.org/content/45/9/1431.long15347707

PubMed Abstract | Google Scholar

48. Keyes JW. SUV: standard uptake or silly useless value? J Nucl Med. (1995) 36(10):1836–9. https://jnm.snmjournals.org/content/36/10/1836.long7562051

PubMed Abstract | Google Scholar

49. Boellaard R, Krak NC, Hoekstra OS, Lammertsma AA. Effects of noise, image resolution, and ROI definition on the accuracy of standard uptake values: a simulation study. J Nucl Med. (2004) 45(9):1519–27. https://jnm.snmjournals.org/content/45/9/1519.long15347719

PubMed Abstract | Google Scholar

50. Vanderhoek M, Perlman SB, Jeraj R. Impact of the definition of peak standardized uptake value on quantification of treatment response. J Nucl Med. (2012) 53(1):4–11. doi: 10.2967/jnumed.111.093443

PubMed Abstract | Crossref Full Text | Google Scholar

51. Lodge MA, Chaudhry MA, Wahl RL. Noise considerations for PET quantification using Maximum and peak standardized uptake value. J Nucl Med. (2012) 53(7):1041–7. doi: 10.2967/jnumed.111.101733

PubMed Abstract | Crossref Full Text | Google Scholar

52. Jauw YWS, Heijtel DF, Zijlstra JM, Hoekstra OS, de Vet HCW, Vugts DJ, et al. Noise-induced variability of immuno-PET with zirconium-89-labeled antibodies: an analysis based on count-reduced clinical images. Mol Imaging Biol. (2018) 20(6):1025–34. doi: 10.1007/s11307-018-1200-4

PubMed Abstract | Crossref Full Text | Google Scholar

53. Schaefer A, Vermandel M, Baillet C, Dewalle-Vignion AS, Modzelewski R, Vera P, et al. Impact of consensus contours from multiple PET segmentation methods on the accuracy of functional volume delineation. EJNMMI. (2016) 43(5):911–24. doi: 10.1007/s00259-015-3239-7

Crossref Full Text | Google Scholar

54. Pfaehler E, Burggraaff C, Kramer G, Zijlstra J, Hoekstra OS, Jalving M, et al. PET segmentation of bulky tumors: strategies and workflows to improve inter-observer variability. PLoS One. (2020) 15(3):e0230901. doi: 10.1371/journal.pone.0230901

PubMed Abstract | Crossref Full Text | Google Scholar

55. Krak NC, Boellaard R, Hoekstra OS, Twisk JWR, Hoekstra CJ, Lammertsma AA. Effects of ROI definition and reconstruction method on quantitative outcome and applicability in a response monitoring trial. EJNMMI. (2005) 32(3):294–301. doi: 10.1007/s00259-004-1566-1

Crossref Full Text | Google Scholar

56. Soret M, Bacharach SL, Buvat I. Partial-volume effect in PET tumor imaging. J Nucl Med. (2007) 48(6):932–45. doi: 10.2967/jnumed.106.035774

PubMed Abstract | Crossref Full Text | Google Scholar

57. Makris NE, Boellaard R, Visser EP, Jong J, Vanderlinden B, Wierts R, et al. Multicenter harmonization of 89Zr PET/CT performance. J Nucl Med. (2014) 55(2):264–7. doi: 10.2967/jnumed.113.130112

PubMed Abstract | Crossref Full Text | Google Scholar

58. Kaalep A, Huisman M, Sera T, Vugts D, Boellaard R. Feasibility of PET/CT system performance harmonisation for quantitative multicentre 89Zr studies. EJNMMI Phys. (2018) 5:26. doi: 10.1186/s40658-018-0226-7

PubMed Abstract | Crossref Full Text | Google Scholar

59. Galovic M, Erlandsson K, Fryer TD, Hong YT, Manavaki R, Sari H, et al. Validation of a combined image derived input function and venous sampling approach for the quantification of [18F]GE-179 PET binding in the brain. NeuroImage. (2021) 237:118194. doi: 10.1016/j.neuroimage.2021.118194

PubMed Abstract | Crossref Full Text | Google Scholar

60. Henriksen AC, Lonsdale MN, Fuglø D, Kondziella D, Nersesjan V, Marner L. Non-invasive quantification of cerebral glucose metabolism using gjedde-patlak plot and image-derived input function from the aorta. NeuroImage. (2022) 253:119079. doi: 10.1016/j.neuroimage.2022.119079

PubMed Abstract | Crossref Full Text | Google Scholar

61. de Geus-Oei LF, Visser EP, Krabbe PF, van Hoorn BA, Koenders EB, Willemsen AT, et al. Comparison of image-derived and arterial input functions for estimating the rate of glucose metabolism in therapy-monitoring 18F-FDG PET studies. J Nucl Med. (2006) 47(6):945–9. https://jnm.snmjournals.org/content/64/supplement_1/P42316741303

PubMed Abstract | Google Scholar

62. Wijngaarden JE, Amina A, Pouw J, Henri G, Idris B, Gerben Z, et al. Image-derived blood concentration as an alternative for blood sampling in 89Zr-immuno-PET studies. J Nucl Med. (2023) 64(supplement 1):423.36109184

PubMed Abstract | Google Scholar

63. Lammertsma AA. Tracer kinetic modelling. In: Dierckx RAJO, Otte A, de Vries EFJ, van Waarde A, Leenders KL, editors. PET and SPECT in Neurology. Berlin, Heidelberg: Springer Berlin Heidelberg (2014) p. 59–73.

Google Scholar

64. Innis RB, Cunningham VJ, Delforge J, Fujita M, Gjedde A, Gunn RN, et al. Consensus nomenclature for in vivo imaging of reversibly binding radioligands. J Cereb Blood Flow Metab. (2007) 27(9):1533–9. doi: 10.1038/sj.jcbfm.9600493

PubMed Abstract | Crossref Full Text | Google Scholar

65. Thurber GM, Dane Wittrup K. A mechanistic compartmental model for total antibody uptake in tumors. J Theor Biol. (2012) 314:57–68. doi: 10.1016/j.jtbi.2012.08.034

PubMed Abstract | Crossref Full Text | Google Scholar

66. Thurber GM, Weissleder R. A systems approach for tumor pharmacokinetics. PLoS One. (2011) 6(9):e24696. doi: 10.1371/journal.pone.0024696

PubMed Abstract | Crossref Full Text | Google Scholar

67. Siebinga H, de Wit-van der Veen BJ, Stokkel MDM, Huitema ADR, Hendrikx J. Current use and future potential of (physiologically based) pharmacokinetic modelling of radiopharmaceuticals: a review. Theranostics. (2022) 12(18):7804–20. doi: 10.7150/thno.77279

PubMed Abstract | Crossref Full Text | Google Scholar

68. Patlak CS, Blasberg RG, Fenstermacher JD. Graphical evaluation of blood-to-brain transfer constants from multiple-time uptake data. J Cereb Blood Flow Metab. (1983) 3(1):1–7. doi: 10.1038/jcbfm.1983.1

PubMed Abstract | Crossref Full Text | Google Scholar

69. Logan J. Graphical analysis of PET data applied to reversible and irreversible tracers. Nucl Med Biol. (2000) 27(7):661–70. doi: 10.1016/S0969-8051(00)00137-2

PubMed Abstract | Crossref Full Text | Google Scholar

70. Gunn RN, Slifstein M, Searle GE, Price JC. Quantitative imaging of protein targets in the human brain with PET. Phys Med Biol. (2015) 60(22):R363–411. doi: 10.1088/0031-9155/60/22/R363

PubMed Abstract | Crossref Full Text | Google Scholar

71. Huisman MC, Menke-van der Houven van Oordt CW, Zijlstra JM, Hoekstra OS, Boellaard R, van Dongen GAMS, et al. Potential and pitfalls of 89Zr-immuno-PET to assess target status: 89Zr-trastuzumab as an example. EJNMMI Res. (2021) 11(1):74. doi: 10.1186/s13550-021-00813-7

PubMed Abstract | Crossref Full Text | Google Scholar

72. Dijkers EC, Oude Munnink TH, Kosterink JG, Brouwers AH, Jager PL, de Jong JR, et al. Biodistribution of 89Zr-trastuzumab and PET imaging of HER2-positive lesions in patients with metastatic breast cancer. Clin Pharmacol. (2010) 87(5):586–92. doi: 10.1038/clpt.2010.12

Crossref Full Text | Google Scholar

73. Ulaner GA, Sobol NB, O'Donoghue JA, Kirov AS, Riedl CC, Min R, et al. CD38-targeted Immuno-PET of multiple myeloma: from Xenograft models to first-in-human imaging. Radiology. (2020) 295(3):606–15. doi: 10.1148/radiol.2020192621

PubMed Abstract | Crossref Full Text | Google Scholar

74. Muylle K, Flamen P, Vugts DJ, Guiot T, Ghanem G, Meuleman N, et al. Tumour targeting and radiation dose of radioimmunotherapy with (90)Y-rituximab in CD20+ B-cell lymphoma as predicted by (89)Zr-rituximab immuno-PET: impact of preloading with unlabelled rituximab. EJNMMI. (2015) 42(8):1304–14.

Google Scholar

75. Niemeijer A-LN, Oprea-Lager DE, Huisman MC, Hoekstra OS, Boellaard R, de Wit-van der Veen BJ, et al. Study of 89Zr-pembrolizumab PET/CT in patients with advanced-stage non-small cell lung cancer. J Nucl Med. (2022) 63(3):362–7. doi: 10.2967/jnumed.121.261926

PubMed Abstract | Crossref Full Text | Google Scholar

76. Smit J, Borm FJ, Niemeijer A-LN, Huisman MC, Hoekstra OS, Boellaard R, et al. PD-L1 PET/CT imaging with radiolabeled durvalumab in patients with advanced stage non-small cell lung cancer. J Nucl Med. (2022) 63(5):686–693. doi: 10.2967/jnumed.121.262473

PubMed Abstract | Crossref Full Text | Google Scholar

77. Lohrmann C, O'Reilly EM, O'Donoghue JA, Pandit-Taskar N, Carrasquillo JA, Lyashchenko SK, et al. Retooling a blood-based biomarker: phase I assessment of the high-affinity CA19-9 antibody HuMab-5B1 for immuno-PET imaging of pancreatic cancer. Clin Cancer Res. (2019) 25(23):7014–23. doi: 10.1158/1078-0432.ccr-18-3667

PubMed Abstract | Crossref Full Text | Google Scholar

78. Bensch F, Lamberts LE, Smeenk MM, Jorritsma-Smit A, Lub-de Hooge MN, Terwisscha van Scheltinga AGT, et al. 89Zr-Lumretuzumab PET imaging before and during HER3 antibody lumretuzumab treatment in patients with solid tumors. Clin Cancer Res. (2017) 23(20):6128–37. doi: 10.1158/1078-0432.CCR-17-0311

PubMed Abstract | Crossref Full Text | Google Scholar

79. Lindenberg L, Adler S, Turkbey IB, Mertan F, Ton A, Do K, et al. Dosimetry and first human experience with (89)Zr-panitumumab. Am J Nucl Med Mol Imaging. (2017) 7(4):195–203. PMID: 28913158 PMCID: 5596322

PubMed Abstract | Google Scholar

80. Beckford-Vera DR, Flavell RR, Seo Y, Martinez-Ortiz E, Aslam M, Thanh C, et al. First-in-human immunoPET imaging of HIV-1 infection using 89Zr-labeled VRC01 broadly neutralizing antibody. Nat Commun. (2022) 13(1):1219. doi: 10.1038/s41467-022-28727-5

PubMed Abstract | Crossref Full Text | Google Scholar

81. Munnink THO, Dijkers EC, Netters SJ, Hooge M-d, Brouwers AH, Haasjes JG, et al. Trastuzumab pharmacokinetics influenced by extent human epidermal growth factor receptor 2–positive tumor load. J Clin Oncol. (2010) 28(21):e355–e6. doi: 10.1200/JCO.2010.28.4604

PubMed Abstract | Crossref Full Text | Google Scholar

82. Laforest R, Lapi SE, Oyama R, Bose R, Tabchy A, Marquez-Nostra BV, et al. [89zr]trastuzumab: evaluation of radiation dosimetry, safety, and optimal imaging parameters in women with HER2-positive breast cancer. Mol Imaging Biol. (2016) 18(6):952–9. doi: 10.1007/s11307-016-0951-z

PubMed Abstract | Crossref Full Text | Google Scholar

83. Pandit-Taskar N, O’Donoghue JA, Beylergil V, Lyashchenko S, Ruan S, Solomon SB, et al. 89Zr-huJ591 immuno-PET imaging in patients with advanced metastatic prostate cancer. EJNMMI. (2014) 41(11):2093–105. doi: 10.1007/s00259-014-2830-7

Crossref Full Text | Google Scholar

84. Pandit-Taskar N, O'Donoghue JA, Durack JC, Lyashchenko SK, Cheal SM, Beylergil V, et al. A phase I/II study for analytic validation of 89Zr-J591 ImmunoPET as a molecular imaging agent for metastatic prostate cancer. Clin Cancer Res. (2015) 21(23):5277–85. doi: 10.1158/1078-0432.CCR-15-0552

PubMed Abstract | Crossref Full Text | Google Scholar

85. O'Donoghue JA, Lewis JS, Pandit-Taskar N, Fleming SE, Schöder H, Larson SM, et al. Pharmacokinetics, biodistribution, and radiation dosimetry for 89Zr-trastuzumab in patients with esophagogastric cancer. J Nucl Med. (2018) 59(1):161–6. doi: 10.2967/jnumed.117.194555

Crossref Full Text | Google Scholar

86. Ulaner GA, Lyashchenko SK, Riedl C, Ruan S, Zanzonico PB, Lake D, et al. First-in-human human epidermal growth factor receptor 2-targeted imaging using 89Zr-pertuzumab PET/CT: dosimetry and clinical application in patients with breast cancer. J Nucl Med. (2018) 59(6):900–6. doi: 10.2967/jnumed.117.202010

PubMed Abstract | Crossref Full Text | Google Scholar

87. Shujing W, Hua Z, Yingjie L, Jin D, Feng W, Lixin D, et al. First-in-human DR5 PET reveals insufficient DR5 expression in patients with gastrointestinal cancer. J Immunother Cancer. (2021) 9(7):e002926. doi: 10.1136/jitc-2021-002926

PubMed Abstract | Crossref Full Text | Google Scholar

88. Jansen MH, Veldhuijzen van Zanten SEM, van Vuurden DG, Huisman MC, Vugts DJ, Hoekstra OS, et al. Molecular drug imaging: (89)Zr-bevacizumab PET in children with diffuse intrinsic pontine glioma. J Nucl Med. (2017) 58(5):711–6. doi: 10.2967/jnumed.116.180216

PubMed Abstract | Crossref Full Text | Google Scholar

89. O'Donoghue JA, Danila DC, Pandit-Taskar N, Beylergil V, Cheal SM, Fleming SE, et al. Pharmacokinetics and biodistribution of a [89Zr]zr-DFO-MSTP2109A anti-STEAP1 antibody in metastatic castration-resistant prostate cancer patients. Mol Pharm. (2019) 16(7):3083–90. doi: 10.1021/acs.molpharmaceut.9b00326

Crossref Full Text | Google Scholar

90. Kist de Ruijter L, Hooiveld-Noeken JS, Giesen D, Lub-de Hooge MN, Kok IC, Brouwers AH, et al. First-in-human study of the biodistribution and pharmacokinetics of 89Zr-CX-072, a novel immunopet tracer based on an anti-PD-L1 probody. Clin Cancer Res. (2021) 27(19):5325–33. doi: 10.1158/1078-0432.CCR-21-0453

PubMed Abstract | Crossref Full Text | Google Scholar

91. Berg E, Gill H, Marik J, Ogasawara A, Williams S, Gv D, et al. Total-body pet and highly stable chelators together enable meaningful 89zr-antibody pet studies up to 30 days after injection. J Nucl Med. (2020) 61(3):453–60. doi: 10.2967/jnumed.119.230961

PubMed Abstract | Crossref Full Text | Google Scholar

92. Lipton A, Köstler WJ, Leitzel K, Ali SM, Sperinde J, Weidler J, et al. Quantitative HER2 protein levels predict outcome in fluorescence in situ hybridization-positive patients with metastatic breast cancer treated with trastuzumab. Cancer. (2010) 116(22):5168–78. doi: 10.1002/cncr.25430

PubMed Abstract | Crossref Full Text | Google Scholar

93. Bensch F, Brouwers AH, Lub-de Hooge MN, de Jong JR, van der Vegt B, Sleijfer S, et al. 89Zr-trastuzumab PET supports clinical decision making in breast cancer patients, when HER2 status cannot be determined by standard work up. Eur J Nucl Med Mol Imaging. (2018) 45(13):2300–06. doi: 10.1007/s00259-018-4099-8

PubMed Abstract | Crossref Full Text | Google Scholar

94. Bahce I, Huisman MC, Verwer EE, Ooijevaar R, Boutkourt F, Vugts DJ, et al. Pilot study of (89)Zr-bevacizumab positron emission tomography in patients with advanced non-small cell lung cancer. EJNMMI Res. (2014) 4(1):35. doi: 10.1186/s13550-014-0035-5

PubMed Abstract | Crossref Full Text | Google Scholar

95. Dehdashti F, Wu N, Bose R, Naughton MJ, Ma CX, Marquez-Nostra BV, et al. Evaluation of [89Zr]trastuzumab-PET/CT in differentiating HER2-positive from HER2-negative breast cancer. Breast Cancer Res Treat. (2018) 169(3):523–30. doi: 10.1007/s10549-018-4696-z

PubMed Abstract | Crossref Full Text | Google Scholar

96. Niemeijer AN, Leung D, Huisman MC, Bahce I, Hoekstra OS, van Dongen G, et al. Whole body PD-1 and PD-L1 positron emission tomography in patients with non-small-cell lung cancer. Nat Commun. (2018) 9(1):4664. doi: 10.1038/s41467-018-07131-y

PubMed Abstract | Crossref Full Text | Google Scholar

97. Kok IC, Hooiveld JS, van de Donk PP, Giesen D, van der Veen EL, Lub-de Hooge MN, et al. 89Zr-pembrolizumab imaging as a non-invasive approach to assess clinical response to PD-1 blockade in cancer. Ann Oncol. (2022) 33(1):80–8. doi: 10.1016/j.annonc.2021.10.213

PubMed Abstract | Crossref Full Text | Google Scholar

98. Ulaner GA, Hyman DM, Lyashchenko SK, Lewis JS, Carrasquillo JA. 89Zr-Trastuzumab PET/CT for detection of human epidermal growth factor receptor 2-positive metastases in patients with human epidermal growth factor receptor 2-negative primary breast cancer. Clin Nucl Med. (2017) 42(12):912–7. doi: 10.1097/RLU.0000000000001820

PubMed Abstract | Crossref Full Text | Google Scholar

99. Even AJG, Hamming-Vrieze O, van Elmpt W, Winnepenninckx VJL, Heukelom J, Tesselaar MET, et al. Quantitative assessment of zirconium-89 labeled cetuximab using PET/CT imaging in patients with advanced head and neck cancer: a theragnostic approach. Oncotarget. (2017) 8(3):3870–80. doi: 10.18632/oncotarget.13910

PubMed Abstract | Crossref Full Text | Google Scholar

100. Jauw YWS, Zijlstra JM, de Jong D, Vugts DJ, Zweegman S, Hoekstra OS, et al. Performance of 89Zr-labeled-rituximab-PET as an imaging biomarker to assess CD20 targeting: a pilot study in patients with relapsed/refractory diffuse large B cell lymphoma. PLoS One. (2017) 12(1):e0169828. doi: 10.1371/journal.pone.0169828

PubMed Abstract | Crossref Full Text | Google Scholar

101. Wijngaarden JE, Jauw Y, Zwezerijnen G, Linda de Wit - van der V, Guus van D, Ronald B, et al. Evidence for non-specific 89Zr-mAb uptake in biopsy proven target-negative tumours measured with 89Zr-immuno-PET. J Nucl Med. (2023) 64(Supplement 1):427. https://jnm.snmjournals.org/content/64/supplement_1/P427

Google Scholar

102. Bensch F, van der Veen EL, Lub-de Hooge MN, Jorittsma-Smit A, Boellaard R, Kok IC, et al. 89Zr-atezolizumab Imaging as a non-invasive approach to assess clinical response to PD-L1 blockade in cancer. Nat Med. (2018) 24:13. doi: 10.1038/s41591-018-0255-8

Crossref Full Text | Google Scholar

103. Gaykema SBM, Schröder CP, Vitfell-Rasmussen J, Chua S, Oude Munnink TH, Brouwers AH, et al. 89Zr-trastuzumab And 89Zr-bevacizumab PET to evaluate the effect of the HSP90 inhibitor NVP-AUY922 in metastatic breast cancer patients. Clin Cancer Res. (2014) 20(15):3945–54. doi: 10.1158/1078-0432.CCR-14-0491

PubMed Abstract | Crossref Full Text | Google Scholar

104. van Helden EJ, Elias SG, Gerritse SL, van Es SC, Boon E, Huisman MC, et al. [89zr]zr-cetuximab PET/CT as biomarker for cetuximab monotherapy in patients with RAS wild-type advanced colorectal cancer. EJNMMI. (2020) 47(4):849–59. doi: 10.1007/s00259-019-04555-6

Crossref Full Text | Google Scholar

105. Ulaner GA, Carrasquillo JA, Riedl CC, Yeh R, Hatzoglou V, Ross DS, et al. Identification of HER2-positive metastases in patients with HER2-negative primary breast cancer by using HER2-targeted 89Zr-pertuzumab PET/CT. Radiology. (2020) 296(2):370–8. doi: 10.1148/radiol.2020192828

PubMed Abstract | Crossref Full Text | Google Scholar

106. Merkx RIJ, Lobeek D, Konijnenberg M, Jiménez-Franco LD, Kluge A, Oosterwijk E, et al. Phase I study to assess safety, biodistribution and radiation dosimetry for 89Zr-girentuximab in patients with renal cell carcinoma. EJNMMI. (2021) 48(10):3277–85. doi: 10.1007/s00259-021-05271-w

Crossref Full Text | Google Scholar

107. Lamberts LE, Menke-van der Houven van Oordt CW, ter Weele EJ, Bensch F, Smeenk MM, Voortman J, et al. ImmunoPET with anti-mesothelin antibody in patients with pancreatic and ovarian cancer before anti-mesothelin antibody–drug conjugate treatment. Clin Cancer Res. (2016) 22(7):1642–52. doi: 10.1158/1078-0432.CCR-15-1272

PubMed Abstract | Crossref Full Text | Google Scholar

108. Menke-van der Houven van Oordt CW, Gootjes EC, Huisman MC, Vugts DJ, Roth C, Luik AM, et al. 89Zr-cetuximab PET imaging in patients with advanced colorectal cancer. Oncotarget. (2015) 6(30):30384–93. doi: 10.18632/oncotarget.4672

PubMed Abstract | Crossref Full Text | Google Scholar

109. Carrasquillo JA, Fine BM, Pandit-Taskar N, Larson SM, Fleming SE, Fox JJ, et al. Imaging patients with metastatic castration-resistant prostate cancer using 89Zr-DFO-MSTP2109A anti-STEAP1 antibody. J Nucl Med. (2019) 60(11):1517–23. doi: 10.2967/jnumed.118.222844

PubMed Abstract | Crossref Full Text | Google Scholar

110. van Es SC, Brouwers AH, Mahesh SVK, Leliveld-Kors AM, de Jong IJ, Lub-de Hooge MN, et al. (89)Zr-bevacizumab PET: potential early indicator of everolimus efficacy in patients with metastatic renal cell carcinoma. J Nucl Med. (2017) 58(6):905–10. doi: 10.2967/jnumed.116.183475

PubMed Abstract | Crossref Full Text | Google Scholar

111. Verhoeff SR, van de Donk PP, Aarntzen EHJG, Oosting SF, Brouwers AH, Miedema IHC, et al. 89Zr-DFO-Durvalumab PET/CT before durvalumab treatment in patients with recurrent or metastatic head and neck cancer. J Nucl Med. (2022) 63(10):1523–30. doi: 10.2967/jnumed.121.263470

PubMed Abstract | Crossref Full Text | Google Scholar

112. den Hollander MW, Bensch F, Glaudemans AW, Oude Munnink TH, Enting RH, den Dunnen WF, et al. TGF-β antibody uptake in recurrent high-grade glioma imaged with 89Zr-fresolimumab PET. J Nucl Med. (2015) 56(9):1310–4. doi: 10.2967/jnumed.115.154401

PubMed Abstract | Crossref Full Text | Google Scholar

113. Guo X, Zhou N, Chen Z, Liu T, Xu X, Lei X, et al. Construction of (124)I-trastuzumab for noninvasive PET imaging of HER2 expression: from patient-derived xenograft models to gastric cancer patients. Gastric Cancer. (2020) 23(4):614–26. doi: 10.1007/s10120-019-01035-6

PubMed Abstract | Crossref Full Text | Google Scholar

114. Carrasquillo JA, Pandit-Taskar N, O'Donoghue JA, Humm JL, Zanzonico P, Smith-Jones PM, et al. (124)I-huA33 antibody PET of colorectal cancer. J Nucl Med. (2011) 52(8):1173–80. doi: 10.2967/jnumed.110.086165

PubMed Abstract | Crossref Full Text | Google Scholar

115. O'Donoghue JA, Smith-Jones PM, Humm JL, Ruan S, Pryma DA, Jungbluth AA, et al. 124I-huA33 Antibody uptake is driven by A33 antigen concentration in tissues from colorectal cancer patients imaged by immuno-PET. J Nucl Med. (2011) 52(12):1878–85. doi: 10.2967/jnumed.111.095596

Crossref Full Text | Google Scholar

116. Zanzonico P, Carrasquillo JA, Pandit-Taskar N, O'Donoghue JA, Humm JL, Smith-Jones P, et al. PET-based compartmental modeling of (124)I-A33 antibody: quantitative characterization of patient-specific tumor targeting in colorectal cancer. EJNMMI. (2015) 42(11):1700–6. doi: 10.1007/s00259-015-3061-2

Crossref Full Text | Google Scholar

117. Carrasquillo JA, O'Donoghue JA, Beylergil V, Ruan S, Pandit-Taskar N, Larson SM, et al. I-124 codrituzumab imaging and biodistribution in patients with hepatocellular carcinoma. EJNMMI Res. (2018) 8(1):20. doi: 10.1186/s13550-018-0374-8

PubMed Abstract | Crossref Full Text | Google Scholar

118. Mortimer JE, Bading JR, Colcher DM, Conti PS, Frankel PH, Carroll MI, et al. Functional imaging of human epidermal growth factor receptor 2-positive metastatic breast cancer using (64)Cu-DOTA-trastuzumab PET. J Nucl Med. (2014) 55(1):23–9. doi: 10.2967/jnumed.113.122630

PubMed Abstract | Crossref Full Text | Google Scholar

119. Mortimer JE, Bading JR, Park JM, Frankel PH, Carroll MI, Tran TT, et al. Tumor uptake of (64)Cu-DOTA-trastuzumab in patients with metastatic breast cancer. J Nucl Med. (2018) 59(1):38–43. doi: 10.2967/jnumed.117.193888

PubMed Abstract | Crossref Full Text | Google Scholar

120. Jarrett AM, Hormuth DA, Adhikarla V, Sahoo P, Abler D, Tumyan L, et al. Towards integration of (64)Cu-DOTA-trastuzumab PET-CT and MRI with mathematical modeling to predict response to neoadjuvant therapy in HER2 + breast cancer. Sci Rep. (2020) 10(1):20518. doi: 10.1038/s41598-020-77397-0

PubMed Abstract | Crossref Full Text | Google Scholar

121. Kurihara H, Hamada A, Yoshida M, Shimma S, Hashimoto J, Yonemori K, et al. (64)Cu-DOTA-trastuzumab PET imaging and HER2 specificity of brain metastases in HER2-positive breast cancer patients. EJNMMI Res. (2015) 5:8. doi: 10.1186/s13550-015-0082-6

PubMed Abstract | Crossref Full Text | Google Scholar

122. Carrasquillo JA, Morris PG, Humm JL, Smith-Jones PM, Beylergil V, Akhurst T, et al. Copper-64 trastuzumab PET imaging: a reproducibility study. Q J Nucl Med Mol Imaging. (2019) 63(2):191–8. doi: 10.23736/S1824-4785.16.02867-3

PubMed Abstract | Crossref Full Text | Google Scholar

123. Lockhart AC, Liu Y, Dehdashti F, Laforest R, Picus J, Frye J, et al. Phase 1 evaluation of [(64)Cu]DOTA-patritumab to assess dosimetry, apparent receptor occupancy, and safety in subjects with advanced solid tumors. Mol Imaging Biol. (2016) 18(3):446–53. doi: 10.1007/s11307-015-0912-y

PubMed Abstract | Crossref Full Text | Google Scholar

124. Krishnan A, Adhikarla V, Poku EK, Palmer J, Chaudhry A, Biglang-Awa VE, et al. Identifying CD38 + cells in patients with multiple myeloma: first-in-human imaging using copper-64-labeled daratumumab. Blood Adv. (2020) 4(20):5194–202. doi: 10.1182/bloodadvances.2020002603

PubMed Abstract | Crossref Full Text | Google Scholar

125. Wong JYC, Yamauchi DM, Adhikarla V, Simpson J, Frankel PH, Fong Y, et al. First-in-human pilot PET immunoimaging study of (64)Cu-anti-carcinoembryonic antigen monoclonal antibody (hT84.66-M5A) in patients with carcinoembryonic antigen-producing cancers. Cancer Biother Radiopharm. (2023) 38(1):26–37. doi: 10.1089/cbr.2022.0028

PubMed Abstract | Crossref Full Text | Google Scholar

126. McMahon JH, Zerbato JM, Lau JSY, Lange JL, Roche M, Tumpach C, et al. A clinical trial of non-invasive imaging with an anti-HIV antibody labelled with copper-64 in people living with HIV and uninfected controls. EBioMedicine. (2021) 65:103252. doi: 10.1016/j.ebiom.2021.103252

PubMed Abstract | Crossref Full Text | Google Scholar

127. Pandit-Taskar N, O'Donoghue JA, Ruan S, Lyashchenko SK, Carrasquillo JA, Heller G, et al. First-in-human imaging with 89Zr-df-IAB2M anti-PSMA minibody in patients with metastatic prostate cancer: pharmacokinetics, biodistribution, dosimetry, and lesion uptake. J Nucl Med. (2016) 57(12):1858–64. doi: 10.2967/jnumed.116.176206

PubMed Abstract | Crossref Full Text | Google Scholar

128. Pandit-Taskar N, Postow MA, Hellmann MD, Harding JJ, Barker CA, O'Donoghue JA, et al. First-in-humans imaging with 89Zr-df-IAB22M2C anti-CD8 minibody in patients with solid malignancies: preliminary pharmacokinetics, biodistribution, and lesion targeting. J Nucl Med. (2020) 61(4):512–9. doi: 10.2967/jnumed.119.229781

PubMed Abstract | Crossref Full Text | Google Scholar

129. Farwell MD, Gamache RF, Babazada H, Hellmann MD, Harding JJ, Korn R, et al. CD8-targeted PET imaging of tumor-infiltrating T cells in patients with cancer: a phase I first-in-humans study of 89Zr-df-IAB22M2C, a radiolabeled anti-CD8 minibody. J Nucl Med. (2022) 63(5):720–6. doi: 10.2967/jnumed.121.262485

PubMed Abstract | Crossref Full Text | Google Scholar

130. Schwenck J, Sonanini D, Seyfried D, Ehrlichmann W, Kienzle G, Reischl G, et al. In vivo imaging of CD8(+) T cells in metastatic cancer patients: first clinical experience with simultaneous [(89)Zr]zr-df-IAB22M2C PET/MRI. Theranostics. (2023) 13(8):2408–23. doi: 10.7150/thno.79976

PubMed Abstract | Crossref Full Text | Google Scholar

131. Moek KL, Waaijer SJH, Kok IC, Suurs FV, Brouwers AH, Menke-van der Houven van Oordt CW, et al. 89Zr-labeled bispecific T-cell engager AMG 211 PET shows AMG 211 accumulation in CD3-rich tissues and clear, heterogeneous tumor uptake. Clin Cancer Res. (2019) 25(12):3517–27. doi: 10.1158/1078-0432.CCR-18-2918

PubMed Abstract | Crossref Full Text | Google Scholar

132. de Ruijter L K, van de Donk PP, Hooiveld-Noeken JS, Giesen D, Elias SG, Lub-de Hooge MN, et al. Whole-body CD8+ T cell visualization before and during cancer immunotherapy: a phase 1/2 trial. Nat Med. (2022) 28(12):2601–10. doi: 10.1038/s41591-022-02084-8

PubMed Abstract | Crossref Full Text | Google Scholar

133. Thorneloe KS, Sepp A, Zhang S, Galinanes-Garcia L, Galette P, Al-Azzam W, et al. The biodistribution and clearance of AlbudAb, a novel biopharmaceutical medicine platform, assessed via PET imaging in humans. EJNMMI Res. (2019) 9(1):45. doi: 10.1186/s13550-019-0514-9

PubMed Abstract | Crossref Full Text | Google Scholar

134. Shah DK, Betts AM. Towards a platform PBPK model to characterize the plasma and tissue disposition of monoclonal antibodies in preclinical species and human. J Pharmacokinet Pharmacodyn. (2012) 39(1):67–86. doi: 10.1007/s10928-011-9232-2

PubMed Abstract | Crossref Full Text | Google Scholar

135. Heuveling DA, de Bree R, Vugts DJ, Huisman MC, Giovannoni L, Hoekstra OS, et al. Phase 0 microdosing PET study using the human mini antibody F16SIP in head and neck cancer patients. J Nucl Med. (2013) 54(3):397–401. doi: 10.2967/jnumed.112.111310

PubMed Abstract | Crossref Full Text | Google Scholar

136. Laforest R, Dehdashti F, Liu Y, Frye J, Frye S, Luehmann H, et al. First-in-man evaluation of (124)I-PGN650: a PET tracer for detecting phosphatidylserine as a biomarker of the solid tumor microenvironment. Mol Imaging. (2017) 16:1536012117733349. doi: 10.1177/1536012117733349

PubMed Abstract | Crossref Full Text | Google Scholar

137. Scott AM, Akhurst T, Lee FT, Ciprotti M, Davis ID, Weickhardt AJ, et al. First clinical study of a pegylated diabody (124)I-labeled PEG-AVP0458 in patients with tumor-associated glycoprotein 72 positive cancers. Theranostics. (2020) 10(25):11404–15. doi: 10.7150/thno.49422

PubMed Abstract | Crossref Full Text | Google Scholar

138. Li Q, White JB, Peterson NC, Rickert KW, Lloyd CO, Allen KL, et al. Tumor uptake of pegylated diabodies: balancing systemic clearance and vascular transport. J Control Release. (2018) 279:126–35. doi: 10.1016/j.jconrel.2018.04.013

PubMed Abstract | Crossref Full Text | Google Scholar

139. Liu J, Guo X, Wen L, Wang L, Liu F, Song G, et al. Comparison of renal clearance of [(18)F]AlF-RESCA-HER2-BCH and [(18)F]AlF-NOTA-HER2-BCH in mice and breast cancer patients. EJNMMI. (2023) 50(9):2775–86. doi: 10.1007/s00259-023-06232-1

Crossref Full Text | Google Scholar

140. Zhou N, Liu C, Guo X, Xu Y, Gong J, Qi C, et al. Impact of (68)Ga-NOTA-MAL-MZHER2 PET imaging in advanced gastric cancer patients and therapeutic response monitoring. EJNMMI. (2021) 48(1):161–75. doi: 10.1007/s00259-020-04898-5

Crossref Full Text | Google Scholar

141. Miao H, Sun Y, Jin Y, Hu X, Song S, Zhang J. Application of a novel (68)Ga-HER2 affibody PET/CT imaging in breast cancer patients. Front Oncol. (2022) 12:894767. doi: 10.3389/fonc.2022.894767

PubMed Abstract | Crossref Full Text | Google Scholar

142. Baum RP, Prasad V, Müller D, Schuchardt C, Orlova A, Wennborg A, et al. Molecular imaging of HER2-expressing malignant tumors in breast cancer patients using synthetic 111In- or 68Ga-labeled affibody molecules. J Nucl Med. (2010) 51(6):892–7. doi: 10.2967/jnumed.109.073239

PubMed Abstract | Crossref Full Text | Google Scholar

143. Beylergil V, Morris PG, Smith-Jones PM, Modi S, Solit D, Hudis CA, et al. Pilot study of 68Ga-DOTA-F(ab’)2-trastuzumab in patients with breast cancer. Nucl Med Commun. (2013) 34(12):1157–65. doi: 10.1097/MNM.0b013e328365d99b

PubMed Abstract | Crossref Full Text | Google Scholar

144. Sandström M, Lindskog K, Velikyan I, Wennborg A, Feldwisch J, Sandberg D, et al. Biodistribution and radiation dosimetry of the anti-HER2 affibody molecule 68Ga-ABY-025 in breast cancer patients. J Nucl Med. (2016) 57(6):867–71. doi: 10.2967/jnumed.115.169342

Crossref Full Text | Google Scholar

145. Sörensen J, Velikyan I, Sandberg D, Wennborg A, Feldwisch J, Tolmachev V, et al. Measuring HER2-receptor expression in metastatic breast cancer using [68 ga]ABY-025 affibody PET/CT. Theranostics. (2016) 6(2):262–71. doi: 10.7150/thno.13502

Crossref Full Text | Google Scholar

146. Wang Y, Wang C, Huang M, Qin S, Zhao J, Sang S, et al. Pilot study of a novel nanobody (68) ga-NODAGA-SNA006 for instant PET imaging of CD8(+) T cells. EJNMMI. (2022) 49(13):4394–405. doi: 10.1007/s00259-022-05903-9

Crossref Full Text | Google Scholar

147. Gondry O, Xavier C, Raes L, Heemskerk J, Devoogdt N, Everaert H, et al. Phase I study of [(68)Ga]ga-anti-CD206-sdAb for PET/CT assessment of protumorigenic macrophage presence in solid tumors (MMR phase I). J Nucl Med. (2023) 64(9):1378–84. doi: 10.2967/jnumed.122.264853

PubMed Abstract | Crossref Full Text | Google Scholar

148. Keyaerts M, Xavier C, Heemskerk J, Devoogdt N, Everaert H, Ackaert C, et al. Phase I study of 68Ga-HER2-nanobody for PET/CT assessment of HER2 expression in breast carcinoma. J Nucl Med. (2016) 57(1):27–33. doi: 10.2967/jnumed.115.162024

PubMed Abstract | Crossref Full Text | Google Scholar

149. Li L, Lin X, Wang L, Ma X, Zeng Z, Liu F, et al. Immuno-PET of colorectal cancer with a CEA-targeted [68 ga]ga-nanobody: from bench to bedside. EJNMMI. (2023) 50(12):3735–49. doi: 10.1007/s00259-023-06313-1

Crossref Full Text | Google Scholar

150. Rizvi SNF, Visser OJ, Vosjan MJWD, van Lingen A, Hoekstra OS, Zijlstra JM, et al. Biodistribution, radiation dosimetry and scouting of 90Y-ibritumomab tiuxetan therapy in patients with relapsed B-cell non-hodgkin’s lymphoma using 89Zr-ibritumomab tiuxetan and PET. EJNMMI. (2012) 39(3):512–20. doi: 10.1007/s00259-011-2008-5

Crossref Full Text | Google Scholar

151. Pandit-Taskar N, Zanzonico PB, Kramer K, Grkovski M, Fung EK, Shi W, et al. Biodistribution and dosimetry of intraventricularly administered 124I-omburtamab in patients with metastatic leptomeningeal tumors. J Nucl Med. (2019) 60(12):1794–801. doi: 10.2967/jnumed.118.219576

PubMed Abstract | Crossref Full Text | Google Scholar

152. Grkovski M, Modak S, Zanzonico PB, Carrasquillo JA, Larson SM, Humm JL, et al. Biodistribution and radiation dosimetry of intraperitoneally administered (124)I-omburtamab in patients with desmoplastic small round cell tumors. J Nucl Med. (2022) 63(7):1094–100. doi: 10.2967/jnumed.121.262793

PubMed Abstract | Crossref Full Text | Google Scholar

153. Watabe T, Naka S, Serada S, Shimosegawa E, Naka T. Immuno-PET using 89Zr-labeled glypican-1 antibody: a novel theranostic probe for the antibody-drug conjugate treatment in pancreatic cancer. J Nucl Med. (2022) 63(supplement 2):4041. doi: 10.2967/jnumed.123.266313

Crossref Full Text | Google Scholar

154. van Brummelen EMJ, Huisman MC, de Wit-van der Veen LJ, Nayak TK, Stokkel MPM, Mulder ER, et al. (89)Zr-labeled CEA-targeted IL-2 variant immunocytokine in patients with solid tumors: cEA-mediated tumor accumulation and role of IL-2 receptor-binding. Oncotarget. (2018) 9(37):24737–49. doi: 10.18632/oncotarget.25343

PubMed Abstract | Crossref Full Text | Google Scholar

155. Ribba B, Boetsch C, Nayak T, Grimm HP, Charo J, Evers S, et al. Prediction of the optimal dosing regimen using a mathematical model of tumor uptake for immunocytokine-based cancer immunotherapy. Clin Cancer Res. (2018) 24(14):3325–33. doi: 10.1158/1078-0432.CCR-17-2953

PubMed Abstract | Crossref Full Text | Google Scholar

156. Mileva M, de Vries EGE, Guiot T, Wimana Z, Deleu A-L, Schröder CP, et al. Molecular imaging predicts lack of T-DM1 response in advanced HER2-positive breast cancer (final results of ZEPHIR trial). npj Breast Cancer. (2024) 10(1):4. doi: 10.1038/s41523-023-00610-6

PubMed Abstract | Crossref Full Text | Google Scholar

157. Natarajan A, Srinivas SM, Azevedo C, Greene L, Bauchet A-L, Jouannot E, et al. Two patient studies of a companion diagnostic immuno-positron emission tomography (PET) tracer for measuring human CA6 expression in cancer for antibody drug conjugate (ADC) therapy. Mol Imaging. (2020) 19:1536012120939398. doi: 10.1177/1536012120939398

PubMed Abstract | Crossref Full Text | Google Scholar

158. Jauw YWS, Huisman MC, Nayak TK, Vugts DJ, Christen R, Naegelen VM, et al. Assessment of target-mediated uptake with immuno-PET: analysis of a phase I clinical trial with an anti-CD44 antibody. EJNMMI Res. (2018) 8(1):1–9. doi: 10.1186/s13550-017-0352-6

PubMed Abstract | Crossref Full Text | Google Scholar

159. Jauw YWS, O'Donoghue JA, Zijlstra JM, Hoekstra OS, Menke-van der Houven van Oordt CW, Morschhauser F, et al. 89Zr-immuno-PET: toward a noninvasive clinical tool to measure target engagement of therapeutic antibodies in vivo. J Nucl Med. (2019) 60(12):1825–32. doi: 10.2967/jnumed.118.224568

PubMed Abstract | Crossref Full Text | Google Scholar

160. Jauw Y, Ziljstra J, Hoekstra O, Zweegmanm S, Odou P, Vugts D, et al. First-in-human in-vivo biodistribution of a glyco-engineered antibody: ⁸⁹Zirconium-labeled obinutuzumab in patients with non-hodgkin lymphoma. J Nucl Med. (2017) 58(Supplement 1):387. https://jnm.snmjournals.org/content/58/supplement_1/38727754906

PubMed Abstract | Google Scholar

161. Shah DK, Betts AM. Antibody biodistribution coefficients. MAbs. (2013) 5(2):297–305. doi: 10.4161/mabs.23684

PubMed Abstract | Crossref Full Text | Google Scholar

162. Miedema IHC, Huisman MC, Zwezerijnen GJC, Grempler R, Pitarch AP, Thiele A, et al. 89Zr-immuno-PET Using the anti-LAG-3 tracer [89Zr]zr-BI 754111: demonstrating target specific binding in NSCLC and HNSCC. EJNMMI. (2023) 50(7):2068–80. doi: 10.1007/s00259-023-06164-w

Crossref Full Text | Google Scholar

163. Miedema IHC, Wijngaarden JE, Pouw JEE, Zwezerijnen GJC, Sebus HJ, Smit E, et al. 89Zr-immuno-PET With immune checkpoint inhibitors: measuring target engagement in healthy organs. Cancers (Basel). (2023) 15(23):5546. doi: 10.3390/cancers15235546

PubMed Abstract | Crossref Full Text | Google Scholar

164. Menke-van der Houven van Oordt CW, McGeoch A, Bergstrom M, McSherry I, Smith DA, Cleveland M, et al. Immuno-PET imaging to assess target engagement: experience from 89Zr-anti-HER3 mAb (GSK2849330) in patients with solid tumors. J Nucl Med. (2019) 60(7):902–9. doi: 10.2967/jnumed.118.214726

PubMed Abstract | Crossref Full Text | Google Scholar

165. Daghighian F, Pentlow KS, Larson SM, Graham MC, DiResta GR, Yeh SD, et al. Development of a method to measure kinetics of radiolabelled monoclonal antibody in human tumour with applications to microdosimetry: positron emission tomography studies of iodine-124 labelled 3F8 monoclonal antibody in glioma. Eur J Nucl Med. (1993) 20(5):402–9. doi: 10.1007/BF00208998

PubMed Abstract | Crossref Full Text | Google Scholar

166. Alhuseinalkhudhur A, Lubberink M, Lindman H, Tolmachev V, Frejd FY, Feldwisch J, et al. Kinetic analysis of HER2-binding ABY-025 affibody molecule using dynamic PET in patients with metastatic breast cancer. EJNMMI Res. (2020) 10(1):21. doi: 10.1186/s13550-020-0603-9

PubMed Abstract | Crossref Full Text | Google Scholar

167. Kim I, Srinivasula S, DeGrange P, Long B, Jang H, Carrasquillo JA, et al. Quantitative PET imaging of the CD4 pool in nonhuman primates. EJNMMI. (2022) 50(1):14–26. doi: 10.1007/s00259-022-05940-4

Crossref Full Text | Google Scholar

168. Aweda TA, Cheng S-H, Lenhard SC, Sepp A, Skedzielewski T, Hsu C-Y, et al. In vivo biodistribution and pharmacokinetics of sotrovimab, a SARS-CoV-2 monoclonal antibody, in healthy cynomolgus monkeys. EJNMMI. (2023) 50(3):667–678. doi: 10.1007/s00259-022-06012-3

Crossref Full Text | Google Scholar

169. Cheal SM, Punzalan B, Doran MG, Evans MJ, Osborne JR, Lewis JS, et al. Pairwise comparison of 89Zr- and 124I-labeled cG250 based on positron emission tomography imaging and nonlinear immunokinetic modeling: in vivo carbonic anhydrase IX receptor binding and internalization in mouse xenografts of clear-cell renal cell carcinoma. EJNMMI. (2014) 41(5):985–94. doi: 10.1007/s00259-013-2679-1

Crossref Full Text | Google Scholar

170. Chevaleyre C, Novell A, Tournier N, Dauba A, Dubois S, Kereselidze D, et al. Efficient PD-L1 imaging of murine glioblastoma with FUS-aided immunoPET by leveraging FcRn-antibody interaction. Theranostics. (2023) 13(15):5584–96. doi: 10.7150/thno.87168

PubMed Abstract | Crossref Full Text | Google Scholar

171. Laffon E, Marthan R. A three-time-point method for assessing kinetic parameters of 64Cu-labeled ramucirumab trapping in VEGFR-2 positive lung tumors. Phys Med. (2017) 43:1–5. doi: 10.1016/j.ejmp.2017.10.001

PubMed Abstract | Crossref Full Text | Google Scholar

172. Laffon E, Thumerel M, Jougon J, Marthan R. Cumulated activity comparison of 64Cu-/177Lu-labeled anti-epidermal growth factor receptor antibody in esophageal squamous cell carcinoma model. J Nucl Med. (2017) 58(6):888–90. doi: 10.2967/jnumed.116.180521

PubMed Abstract | Crossref Full Text | Google Scholar

173. Cheng Q, Wållberg H, Grafström J, Lu L, Thorell JO, Hägg Olofsson M, et al. Preclinical PET imaging of EGFR levels: pairing a targeting with a non-targeting sel-tagged affibody-based tracer to estimate the specific uptake. EJNMMI Res. (2016) 6(1):58. doi: 10.1186/s13550-016-0213-8

PubMed Abstract | Crossref Full Text | Google Scholar

174. Fung EK, Cheal SM, Fareedy SB, Punzalan B, Beylergil V, Amir J, et al. Targeting of radiolabeled J591 antibody to PSMA-expressing tumors: optimization of imaging and therapy based on non-linear compartmental modeling. EJNMMI Res. (2016) 6(1):7. doi: 10.1186/s13550-016-0164-0

PubMed Abstract | Crossref Full Text | Google Scholar

175. Wilks MQ, Knowles SM, Wu AM, Huang S-C. Improved modeling of in vivo kinetics of slowly diffusing radiotracers for tumor imaging. J Nucl Med. (2014) 55(9):1539–44. doi: 10.2967/jnumed.114.140038

PubMed Abstract | Crossref Full Text | Google Scholar

176. Wijngaarden J, Huisman M, Pouw J, Oordt C-v, Jauw Y, Boellaard R. Optimal imaging time points considering accuracy and precision of patlak linearization for 89Zr-immuno-PET: a simulation study. J Nucl Med. (2022) 63(Supplement 2):4000. doi: 10.1186/s13550-022-00927-6

Crossref Full Text | Google Scholar

177. Liu S, Li Z, Huisman M, Shah DK. Clinical validation of translational antibody PBPK model using tissue distribution data generated with 89Zr-immuno-PET imaging. J Pharmacokinet Pharmacodyn. (2023) 50(5):377–94. doi: 10.1007/s10928-023-09869-5

PubMed Abstract | Crossref Full Text | Google Scholar

178. Wahl RL, Jacene H, Kasamon Y, Lodge MA. From RECIST to PERCIST: evolving considerations for PET response criteria in solid tumors. J Nucl Med. (2009) 50(Suppl 1):122S–50S. doi: 10.2967/jnumed.108.057307

PubMed Abstract | Crossref Full Text | Google Scholar

179. Van Sluis J, Boellaard R, Dierckx RAJO, Van Esch ELM, Croes DA, De Ruijter LK, et al. Optimisation of scan duration and image quality in oncological 89Zr immunoPET imaging using the biograph vision PET/CT. Eur J Nucl Med Mol Imaging. (2023) 50(8):2258–70. doi: 10.1007/s00259-023-06194-4

PubMed Abstract | Crossref Full Text | Google Scholar

180. Mohr P, van Sluis J, Providência L, van Snick JH, Lub-de Hooge MN, Willemsen AT, et al. Long versus short axial field of view immuno-PET/CT: semi-quantitative evaluation for (89)Zr-trastuzumab. J Nucl Med. (2023) 64(11):1815–1820. doi: 10.2967/jnumed.123.265621

PubMed Abstract | Crossref Full Text | Google Scholar

181. Bordeau BM, Balthasar JP. Strategies to enhance monoclonal antibody uptake and distribution in solid tumors. Cancer Biol Med. (2021) 18(3):649–64. doi: 10.20892/j.issn.2095-3941.2020.0704

PubMed Abstract | Crossref Full Text | Google Scholar

182. Sari H, Teimoorisichani M, Mingels C, Alberts I, Panin V, Bharkhada D, et al. Quantitative evaluation of a deep learning-based framework to generate whole-body attenuation maps using LSO background radiation in long axial FOV PET scanners. EJNMMI. (2022) 49(13):4490–502. doi: 10.1007/s00259-022-05909-3

Crossref Full Text | Google Scholar

183. Rezaei A, Defrise M, Bal G, Michel C, Conti M, Watson C, et al. Simultaneous reconstruction of activity and attenuation in time-of-flight PET. IEEE Trans Med Imaging. (2012) 31(12):2224–33. doi: 10.1109/TMI.2012.2212719

PubMed Abstract | Crossref Full Text | Google Scholar

184. Boellaard R, Hofman MB, Hoekstra OS, Lammertsma AA. Accurate PET/MR quantification using time of flight MLAA image reconstruction. Mol Imaging Biol. (2014) 16(4):469–77. doi: 10.1007/s11307-013-0716-x

PubMed Abstract | Crossref Full Text | Google Scholar

185. Mostafapour S, Greuter M, van Snick JH, Brouwers AH, Dierckx RAJO, van Sluis J, et al. Ultra-low dose CT scanning for PET/CT. Med Phys. (2024) 51(1):139–55. doi: 10.1002/mp.16862

PubMed Abstract | Crossref Full Text | Google Scholar

186. Prieto E, García-Velloso MJ, Aquerreta JD, Rosales JJ, Bastidas JF, Soriano I, et al. Ultra-low dose whole-body CT for attenuation correction in a dual tracer PET/CT protocol for multiple myeloma. Phys Med. (2021) 84:1–9. doi: 10.1016/j.ejmp.2021.03.019

PubMed Abstract | Crossref Full Text | Google Scholar

187. Emond EC, Bousse A, Machado M, Porter J, Groves AM, Hutton BF, et al. Effect of attenuation mismatches in time of flight PET reconstruction. Phys Med Biol. (2020) 65(8):085009. doi: 10.1088/1361-6560/ab7a6f

PubMed Abstract | Crossref Full Text | Google Scholar

188. Polycarpou I, Tsoumpas C, Marsden PK. Analysis and comparison of two methods for motion correction in PET imaging. Med Phys. (2012) 39(10):6474–83. doi: 10.1118/1.4754586

PubMed Abstract | Crossref Full Text | Google Scholar

189. Sari H, Mingels C, Alberts I, Hu J, Buesser D, Shah V, et al. First results on kinetic modelling and parametric imaging of dynamic 18F-FDG datasets from a long axial FOV PET scanner in oncological patients. Eur J Nucl Med Mol Imaging. (2022) 49(6):1997–2009. doi: 10.1007/s00259-021-05623-6

PubMed Abstract | Crossref Full Text | Google Scholar

190. Wang G, Rahmim A, Gunn RN. PET parametric imaging: past, present, and future. IEEE Trans Radiat Plasma Med Sci. (2020) 4(6):663–75. doi: 10.1109/TRPMS.2020.3025086

PubMed Abstract | Crossref Full Text | Google Scholar

191. Karakatsanis NA, Lodge MA, Tahari AK, Zhou Y, Wahl RL, Rahmim A. Dynamic whole body PET parametric imaging: i. Concept, acquisition protocol optimization and clinical application. Phys Med Biol. (2013) 58(20):7391–418. doi: 10.1088/0031-9155/58/20/7391

PubMed Abstract | Crossref Full Text | Google Scholar

192. Hatt M, Krizsan AK, Rahmim A, Bradshaw TJ, Costa PF, Forgacs A, et al. Joint EANM/SNMMI guideline on radiomics in nuclear medicine. EJNMMI. (2023) 50(2):352–75. doi: 10.1007/s00259-022-06001-6

Crossref Full Text | Google Scholar

193. Rashidian M, Ingram JR, Dougan M, Dongre A, Whang KA, LeGall C, et al. Predicting the response to CTLA-4 blockade by longitudinal noninvasive monitoring of CD8 T cells. J Exp Med. (2017) 214(8):2243–55. doi: 10.1084/jem.20161950

PubMed Abstract | Crossref Full Text | Google Scholar

194. Somasundaram A, García DV, Pfaehler E, Jauw YWS, Zijlstra JM, van Dongen GAMS, et al. Noise sensitivity of 89Zr-immuno-PET radiomics based on count-reduced clinical images. EJNMMI Phys. (2022) 9(1):16. doi: 10.1186/s40658-022-00444-4

PubMed Abstract | Crossref Full Text | Google Scholar

195. Kadrmas DJ, Hoffman JM. Methodology for quantitative rapid multi-tracer PET tumor characterizations. Theranostics. (2013) 3(10):757–73. doi: 10.7150/thno.5201

PubMed Abstract | Crossref Full Text | Google Scholar

196. Gebhart G, Lamberts LE, Wimana Z, Garcia C, Emonts P, Ameye L, et al. Molecular imaging as a tool to investigate heterogeneity of advanced HER2-positive breast cancer and to predict patient outcome under trastuzumab emtansine (T-DM1): the ZEPHIR trial. Ann Oncol. (2016) 27(4):6. doi: 10.1093/annonc/mdv577

PubMed Abstract | Crossref Full Text | Google Scholar

197. Pratt EC, Lopez-Montes A, Volpe A, Crowley MJ, Carter LM, Mittal V, et al. Simultaneous quantitative imaging of two PET radiotracers via the detection of positron-electron annihilation and prompt gamma emissions. Nat Biomed Eng. (2023) 7(8):1028–39. doi: 10.1038/s41551-023-01060-y

PubMed Abstract | Crossref Full Text | Google Scholar

198. Tichauer KM, Samkoe KS, Klubben WS, Hasan T, Pogue BW. Advantages of a dual-tracer model over reference tissue models for binding potential measurement in tumors. Phys Med Biol. (2012) 57(20):6647–59. doi: 10.1088/0031-9155/57/20/6647

PubMed Abstract | Crossref Full Text | Google Scholar
