EURAD state-of-the-art report: development and improvement of numerical methods and tools for modeling coupled processes in the field of nuclear waste disposal

The Strategic Research Agenda (SRA; https://www.ejp-eurad.eu/publications/eurad-sra) of the European Joint Programme on Radioactive Waste Management (EURAD; https://www.ejp-eurad.eu/) describes the scientific and technical domains and sub-domains and knowledge management needs of common interest between EURAD participant organizations. Theme number 7 is entitled “Performance assessment, safety case development and safety analyses.” A list of research and development priorities and activities of common interest to be addressed within EURAD for theme 7 have been established. Amongst others, the Understanding and modelling of multi-physical Thermo-Hydro-Mechanical-Chemical coupled processes (THMC) occurring in radioactive waste disposal is a major and permanent issue to support optimization of design and safety case abstraction. To tackle this challenge a research work package entitled “DONUT: Development and improvement of numerical methods and tools for modelling coupled processes” has been conducted within the EURAD join programming initiative. The purpose of this work package is to improve/develop methods or numerical tools in order to go a step further in development of (i) relevant, performant and cutting-edge numerical methods that can easily be implemented in existing or new tools, in order to carry out high-performance computing to facilitate the study of highly coupled processes in large systems, (ii) numerical scale transition schemes for coupled processes, (iii) innovative numerical methods to carry out uncertainty and sensitivity analyses. In this paper the work carried out within the DONUT work package is put in perspective regarding the existing concept and literature on the field. It does not pretend to be exhaustive but rather to put emphasis on particular issues tackled during the project.

1 Introduction

Demonstrating safety of a nuclear waste disposal over time comparable to geological timescales relies on a rigorous, complex and iterative scientific approach referred to as “long-term behavior science” that is based upon three pillars: experiments, modeling, and natural/archaeological analogs (see Bildstein et al. (2019) for a review). In that context, improvement of numerical methods and tools for modelling multi-physical Thermo-Hydro-Mechanical-Chemical coupled processes (THMC) occurring in radioactive waste disposal is a major and permanent issue to support its optimization of design. Indeed, numerical simulations are necessary either to make predictive multi-physical assessments, at time frames and space scales larger than experiments can cover,or to model the experiment itself to verify, calibrate and improve numerical models. These numerical simulations require integrating, in a consistent framework, an increasing scientific knowledge acquired for each of the individual components of a system for radioactive waste disposal. As described and detailed in Bildstein et al. (2019) and Claret et al. (2022) components of the so-called “multiple-barrier system” from the waste form to the biosphere include a combination of waste containers, engineered barriers, and natural barriers that will interact during the lifetime of the repository. The thermal, hydraulic-gas, mechanical and chemical processes and their timeline interactions are illustrated on Figure 1. This implies to consider couplings of different and non-linear processes, applied to a wide range of materials with contrasting properties as a function of time and space in ever-larger systems.

Figure 1

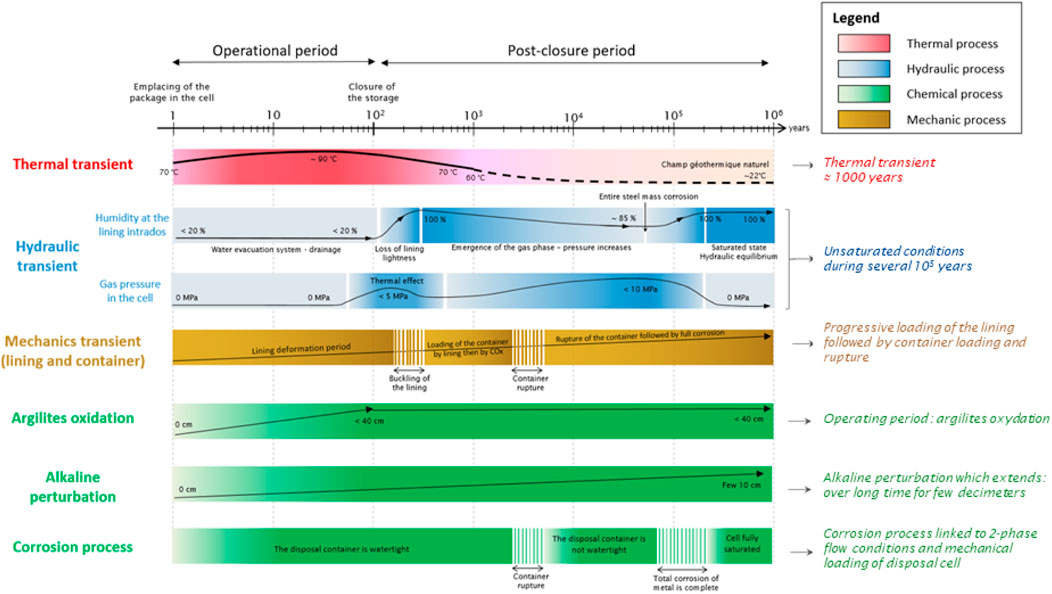

Figure 1. Thermal, hydraulic, mechanical, chemical processes concomitance affecting repository and geological environment during operational and post-closure period.

In this context, the development of cutting-edge and efficient numerical methods is thus necessary, in the scope of development and use of powerful and relevant numerical tools for assessments. In parallel, it is also necessary to manage the uncertainties associated to the input data that feed the models, and to the representation of the processes, in order to assess the range of variability of the results and to identify the main parameters and processes that drive the behaviour of the systems of interest. Managing uncertainties in these complex systems requires the improvement and the development of innovative, appropriate and efficient methods.

Within the EURAD joint programming initiative, the work package DONUT (Development and Improvement Of NUmerical methods and Tools for modelling coupled processes) ambitions to go a step further in the development:

• of relevant, performant and cutting-edge numerical methods that can easily be implemented in existing or new tools, in order to carry out high-performance computing to facilitate the study of highly coupled processes in large systems. These methods and their implementation in tools will be mainly applied to reactive transport, 2-phase flow, and THM modelling in porous and fractured media;

• of numerical scale transition schemes for coupled processes (meso to macro scale), supporting the study of specific multi-scale couplings such as chemo-mechanics;

• of innovative numerical methods to carry out uncertainty and sensitivity analyses;

In this paper the work carried out within the DONUT work package is put in perspective regarding the existing concept and literature existing on the field. It does not pretend to be exhaustive but rather to put emphasis on particular issues tackled during the project. The latter has involved 31 beneficiaries, consisting of Research Institutes, Universities, Technical Support Organization and Waste Management Organizations from 8 EU members countries and Switzerland.

2 Numerical methods for high performance computing of coupled processes

Development of new methods and new tools to efficiently solve numerically highly coupled problems arising in the context of waste repository management depends on the coupled process to be tackled. After, we briefly comment on the coupled processes that have been considered in the project, we present the foundations of the numerical methods that have been developed as well as the existing tools (or codes) that have served as a basis for further developments.

2.1 Coupled processes

This section is devoted to the description of the physical models to be studied.

2.1.1 Spatial coupling of gas free flows and two-phase porous media flows

Flow and transport processes within domains consisting of a porous medium and an adjacent free-flow regions find widespread applications in various industrial and environmental contexts. This is particularly evident in the context of radioactive waste disposal in deep geological repositories, where models of this nature become imperative for predicting mass and energy exchange at the interface between the repository and the excavated ventilation tunnels particularly relevant in the presence of microcracks. Typically, the porous medium, initially saturated with the liquid phase, undergoes drying due to suction (involved by tunnel ventilation) or crack flow in the vicinity of the interface. The microcracking network acting then as a vector for the propagation of diffusive flows. To effectively model such a complex physical process, it is essential to consider the flow of both liquid and gas phases within the porous medium, incorporating phenomena such as vaporization of the water component in the gas phase and dissolution of gaseous components in the liquid phase. Moreover, the model should potentially account for conversion of diffusive into free flow and vice versa throughout the microcracked layers and tunnel. Within the tunnel, a free single-phase gas flow can be considered, assuming instantaneous vaporization of the liquid phase at the interface. This single-phase gas flow needs to be compositional and non-isothermal to accurately reflect changes in relative humidity and temperature within the tunnel, factors that strongly influence the liquid flow rate at the interface.

If many works have been performed to model and discretize the coupling of single phase Darcy and free flows, there is very little work on the coupling of a two phase gas liquid compositional Darcy flow with a single phase compositional free flow. Such a coupled model has been recently proposed in Mosthaf et al. (2011) and Vanderborght et al. (2017) (see also Birgle et al., 2018; Beaude et al., 2019) using proper matching conditions at the interface between the porous medium and the free flow regions. This model is the starting point of our work and has been simplified to take into account the physical characteristics of our problem focusing on the drying processes at the interface between the nuclear waste repository and the ventilation excavated tunnels.

To obtain our simplified model, we assume that the longitudinal dimensions of the tunnels are large compared with their diameters allowing to reduce the model in the tunnel to a 1D free flow as in Brenner et al. (2016). In this work we extend this approach to account for a fracture network embedded in the matrix domain. The model couples the liquid-gas Darcy flow in the 3D matrix and 2D fractures with the 1D free gas flow along the tunnel taking into account the liquid vaporisation and the convective boundary layer at the porous medium–tunnel interface. The discretization is based on a resolved interface with a non-matching 1D mesh along the tunnel centerline. It is applied to simulate the drying process between an operating tunnel and the radioactive waste storage rock with explicit representation of the fractures in the excavated damaged zone (see Brenner et al., 2022).

2.1.2 Capillary gas entry pressure and hysteresis

The study of the performance of the host rock and engineered barriers materials (bentonite plugs, backfill…) is crucial for radioactive waste confinement in a deep geological disposal (e.g., safety case of CIGEO project developed by Andra, France). Reliable models are needed for water and gas transport in a clay host rock formation (e.g., COx: Callovo-Oxfordian), and in any clay-based engineered materials used as barriers in the disposal, as well as their impact on radionuclide transport within the disposal. There is a substantial experimental evidence showing the existence of non-zero capillary gas entry pressure (P_c,ge) and hysteresis in hydraulic properties of these materials Andra (2012) but their modelling by exact mathematical formulations, and their impact on two-phase (water-gas) flow have never been studied. The impact of non-zero capillary gas entry pressure and hysteresis on maximum gas pressure and on desaturation range around the repository during the gas transitory period must be assessed.

In this work, we studied first the effect of capillary gas-entry pressure by implementing a new van Genuchten-Mualem (VGM) model for hydraulic properties in iTOUGH2 Finsterle (2007) and TOUGH2-MP (Zhang et al., 2008), called VGM-PE (Amri, 2021; Amri et al., 2022). This model has been first proposed for unsaturated single liquid water phase flow by Vogel et al. (2001) and Ippisch et al. (2006) and extended here to two-phase liquid-gas flow by incorporating a new function of the relative permeability to gas of any porous material. In addition, two methods for the simultaneous optimization of the parameters of the three hydraulic functions (water retention curve and relative permeability to water and gas curves) have been proposed (single objective and multi-objective minimization functions) and verified through fitting of COx-hydraulic properties data (Amri, 2021; Amri et al., 2022). Implementation of the VGM-PE model in iTOUGH2 and TOUGH2-MP needed some code modifications with numerical verification and experimental validation. Therefore, two new numerical approaches (PC-method and SG-method; Amri (2021); Amri et al. (2022)) have been developed for solving the two-phase flow problem incorporating VGM-PE. Both numerical methods were verified through a numeric experiment of 1D capillary rise of water in a vertical clay column proposed by Vogel et al. (2001). Results of the unsaturated water profiles by using either iTOUGH2/EOS3 or TOUGH2-MP/EOS3 code showed that the uncertainty on waterfront advance in the column is highly underestimated when P_c,ge is neglected (relative error of more than 65%). Moreover, the experimental validation of VGM-PE at the scale of a borehole (dozen of meters), excavated in the Callovo-Oxfordian (COx) clay rock (ANDRA PGZ1 experiment for nitrogen gas injection in the COx - Bure Underground Research Laboratory; de La Vaissière (2011)), showed that both numerical methods based on either iTOUGH2/EOS3 or on TOUGH2-MP/EOS3 simulate fairly well the gas (N₂) pressure measured within the chamber, and that the accumulation of gas within the chamber becomes higher when P_c,ge $\ne$ 0. This leads to the increase of gas pressure and high desaturation of the EDZ and COx around the borehole at later times. After numerical verification and experimental validation of VGM-PE, a study of the contribution of a 3D HLW disposal cell (scale of some hundreds of meters) to the hydrogen transport within the backfilled access drift has been carried out to demonstrate the impact of P_c,ge on the maximum gas pressure simulated within the backfilled drift. The 3D HLW disposal cell model geometry and parametrization are those proposed in EURAD-benchmark WP GAS, Task 4.2 (Levasseur et al., 2021). Simulation of this model by the SG-method fails to reach the maximum simulation time of 100,000 years. The numerical solution diverges earlier at 817 years accompanied by a gas pressure build up to 20 MPa, and a high desaturation of the drift backfill, the EDZ and host rock around the drift. However, simulations with P_c,ge $\ne$ 0 assuming a linear approximation of the water retention curve near full liquid water saturation, as specified in the benchmark (Levasseur et al., 2021), were possible until 100,000 years and showed that the maximum gas pressure within the backfilled drift increases by about 3,5 MPa, i.e., from 9,6 MPa for parametrization P_c,ge = 0 to 13,1 MPa for parametrization P_c,ge $\ne$ 0. This high increase of gas pressure is accompanied by a substantial drainage of water in the backfilled drift leading to a high gas saturation of about 0,623. The same observations have been made by Saâdi (2022) for his simulation of FORGE benchmark Wendling et al. (2019) model of hydrogen migration in a small repository “module” of 100 HLW disposal cells. Notice, however, that this gas pressure value can be higher than the lithostatic pressure of the host rock layer. Notice also that gas “piston effect” on water displacement in the drift network Saâdi et al. (2020) could be significant due to the high gas velocities simulated.

The second part of the study dealt with the problem of the two-phase flow with hysteresis and with P_c,ge = 0 (Amri et al., 2023). It consisted of a comparative study of five different conceptual hysteretic models (with and without gas entrapment) on data of water retention curves of five different materials (3 sands, bentonite, cement) collected from the literature, and on the other, of an application of these models to an intermediate laboratory scale experiment of Soltrol-220 (non-wetting fluid) injection (at a rate of 0,7 mL/s in the time interval 0 $<$ t $<$ 5,5 h) in a sand 40/50 aquifer reservoir saturated by Glycerol-water (wetting fluid). This experiment has been carried out by Trevisan et al. (2014) to mimic supercritical CO₂ (scCO₂) trapping in an aquifer. Simulations of this experiment performed using iTOUGH2/EOS10 module (equivalent to T2VOC code developed by Falta et al. (1995)) with the new five implemented hysteretic models, showed that the conceptual hysteretic model with gas entrapment, Beriozkin and Mualem (2018), enhances better the simulation of scanning curves, and simulates well the distribution of Soltrol-220 plume in the aquifer during the post-injection times with less CPU time. This hysteretic model is promising for simulations of hydrogen migration at the large spatial scale of the repository for radioactive waste.

2.1.3 Thermo-hydro-mechanics for porous media flows

We shall start with the analysis of hydro-mechanical (HM) processes, which occur in rocks as well as in buffer and sealing materials in potential deep underground nuclear waste repositories. The basic model is Biot’s type poroelasticity, which couples the linear elasticity and Darcy’s flow in saturated media. Even this simplest HM model shows that there are important questions about the robustness of the discretization (in space and time) and the efficient solution of the arising linear systems. Those points will be discussed in further detail in Section 2.2. Deep geological repositories of spent nuclear fuels (DGR) in many countries will be constructed in rock masses of the granite type. Such rocks are naturally fractured owing to their brittleness. The fracture network in rocks can create preferential paths for the transport of radionuclides and can be influenced by underground openings and related stress changes in rocks. This motivates us to consider HM models for porous media with fractures where fractures are considered as lower-dimensional objects. The simplest approach arises from the linear Biot model of poroelasticity where a weaker and more permeable material is considered for fracture representation. The corresponding mixed-dimensional model consisting of the rock matrix and the fracture network was derived in Březina and Stebel (2024) by an averaging over the fracture thickness and by prescribing appropriate interface conditions. Such a treatment extends previous work related to porous flow without mechanics, see e.g., Martin et al. (2005), Berre et al. (2019). Advanced HM models with fracture networks can account for nonlinear effects such as the dependence of fracture conductivity on the hydraulic aperture or the non-penetration condition prescribed on fractures. The first example is a model developed in Blaheta et al. (2020). Its flow part arises from Martin et al. (2005) and its mechanical part is based on linear elasticity in the rock matrix and frictionless contact on fractures. The second example is a model from Stebel et al. (2024) which extends the linear approach from Březina and Stebel (2024). Unlike Blaheta et al. (2020), displacements are also defined on fractures and thus a simplified linear friction can be considered there together with non-penetration conditions. A similar model, which incorporates contacts on fractures and a fracture growth model, relies on an alternative approach with degenerated finite elements, commonly known as cohesive zone modeling, as seen in Carrier and Granet (2012) and in R7.01.25 (2019). Other examples of nonlinear HM models on fractures can be found in Ganis et al. (2014), Garipov et al. (2016), Khoei et al. (2018), Settgast et al. (2017).

While cited above theoretical frameworks exist, in our opinion, there is still a lack of extended works dealing comprehensively with the continuum-fracture poroelastic model, particularly incorporating a consistent elasticity model on fractures Fontana (2022). This becomes especially crucial in the context of waste repositories, where the fracture domain is employed to describe larger fracture zones. These zones are nonempty and can be considered as a continuum with diminished strength.

Changes in temperature may also induce important effects that, often, cannot be neglected, requiring the use of thermo-hydro-mechanical (THM) coupled models. The research teams at Charles University and the Czech Technical University have developed and numerically implemented a coupled multiscale THM model suitable for describing the behavior of expansive soils under non-isothermal conditions Mašín (2017). In particular, the model is intended to be applied to bentonite buffers in deep geological nuclear waste repositories. The model uses the theory of soil hypoplasticity and a double-structure approach Alonso et al. (1999) – backed by various micro-mechanical studies–in which soil macrostructure (silt-size aggregates of clay particles) and microstructure (internal structure of the aggregates) are treated separately. Four coupled components are thus described: a mechanical model for the microstructure, a hydraulic model for the microstructure, a mechanical model for the macrostructure, and a hydraulic model for the macrostructure. These models are coupled at each structural level, and the behavior of the two structural levels is linked through the double-structure coupling function Mašín (2013). In particular, the mechanical behaviour of the macrostructure accounts for partial saturation, and its hydraulic response is based on a void ratio-dependent water retention model. The microstructure is considered fully saturated, with its mechanical behavior being reversible volumetric, governed by the Terzaghi effective stress principle. However, this simplification has proven to limit the model performance in some cases, such as during oedometric swelling, and necessitates improvements.

Each of the structural levels responds differently to temperature change, suction change, and mechanical action. The developed model thus considers a temperature dependence for all four model components. As for the mechanical behavior of the macrostructure, temperature influences the position of the normal compression line of a soil. The normal compression line represents the maximum void ratio of the soil at the given mean stress and temperature; therefore, a heating-induced shift in the position of the normal compression line implies heating-induced soil compaction of loosely compacted soil Mašín (2017). This effect is considered in the model by assuming that the asymptotic state boundary surface depends on temperature. Temperature also affects the mechanical response of the microstructure. It influences the basal spacing and, thus, both the amount of crystalline water and the diffuse double-layer thickness. Depending on conditions and clay type, the combinations of these effects can result in either swelling or contraction. This is accounted for in the model by a single parameter, calibrated through experiments.

In the water retention behavior, it is difficult to distinguish experimentally the response of the macrostructure and the microstructure Sun et al. (2022). Because the microstructure may be considered saturated up to large values of suction, temperature-induced microstructural swelling also implies an increase in water retention capacity, and microstructural shrinkage implies a decrease in water retention capacity. Therefore, a simplified approach is chosen, in which the effect of temperature on water retention capacity of the microstructure is considered to depend solely on the change in surface tension of water with temperature, without considering the effect of a variable grain-water interface contact angle Mašín (2017). Global water retention capacity is thus implied both by the retention of the macrostructure and by the specific volume of the (saturated) microstructure, which are linked through the double-structure coupling framework.

The model is included into the balance equations, where a variable number of components can be taken into account, i.e., grains, liquid water, vapour, dry air or their combinations. The grains and liquid water can be assumed compressible or incompressible.

In addition to the expansive behaviour, one of the other specific features of bentonite is the so-called oversaturation effect. It denotes the phenomenon that bentonite can store more water than the amount corresponding to its pore space if the conventional value of the water density is considered (1,000 kg/m3). In Michalec et al. (2021), a THM model capturing this phenomenon has been proposed. It describes the water content within bentonite by the gravimetric water content, not by the usual degree of saturation related to filling the pore volume. This model has been validated on Full-scale Engineered Barriers Experiment (FEBEX) and successfully compared with other approaches, see Gens et al. (2021).

Another problem related to coupled models for bentonite is the thermodynamic consistency. Even though thermodynamic principles form one of the cornerstones of reliable mathematical modelling, they have often been disregarded in modeling of swelling clays. The thermodynamic consistency of HM coupling for the widely used Barcelona Basic Model has been analysed in Ligurský and Michalec (2023), and it has been found very problematic. A more promising conceptual framework for swelling together with its coupling to water retention processes and even chemical effects can be found in Pulkkanen (2019).

The study of geomaterial behavior have always been a significant concern for EDF as a major player in the energy sector. The critical importance of understanding how geomaterials respond in various industrial contexts, was initially driven by their impact on the integrity of infrastructure such as dams and nuclear facilities. More recently with emergence of various projects of underground waste management and consequent concerns about its environmental implications, the research domain was enriched by studies under extreme loading conditions. In this context, since their initial introduction in the finite element software code_aster (www.code-aster.org) approximately 25 years ago, the model for thermo-hydro-mechanical (THM) coupling has undergone continuous improvement in tandem with code evolution. The current open-source version of the code, that became HPC compatible, offers users a range of constitutive relations governing the thermo-hydro-mechanical behavior in both saturated and unsaturated media. The chosen modeling approach is grounded in the presentation of porous environments, particularly as elaborated by Coussy and Ulm (1995). Constitutive equations for the behavioural laws are derived from thermodynamic considerations, where each component of the porous environment—mechanical, hydraulic, and thermal—is treated as a state variable. Subsequently, relations describing hydraulic and thermal quantities are introduced, taking into account the robust couplings between these phenomena along with mechanical deformations through the hypothesis of Bishop effective stress Bishop (1959). The adopted scheme R7.01.10 (2019), R7.01.11 (2019) offers a significant advantage in that the resulting relationships can be coupled with any mechanical behavior law, providing a pathway for describing highly nonlinear phenomena. We highlight further two prominent classes of mechanical constitutive relations available in code_aster designed to represent rock formations and soils: Drucker-Prager R7.01.16 (2019) and Hoek-Brown R7.01.18 (2019) type. The introduction of both has some common background. First, geomaterials exhibit an asymmetric traction-compression curve and deform plastically under lower traction, displaying greater “elasticity” threshold under shear stress induced by hydrostatic compression. Consequently, the yield function is typically formulated with the assistance of the hydrostatic stress invariant, which is asymmetric under stress reversal. Drucker-Prager-type constitutive relation R7.01.16 (2019) features a straightforward linear yield function and are commonly employed to represent rock/soil behavior under significant compression. However, these laws have limitations in situations where stress component values approach the traction loading domain, as observed in tunnel excavation. The LKR constitutive relation R7.01.24 (2019), Kleine (2007), Raude (2015) is a viscoplastic model developed by EDF to characterize the behavior of rocks, particularly callovo-oxfordian for the nuclear waste storage project Cigéo in East France. In the opposition to the Drucker-Prager constitutive relation, here the plasticity criterion is based on the quadratic Hoek-Brown yield function (R7.01.18, 2019; Hoek and Brown, 1980), allowing for a more accurate representation of the traction loading domain. Recent studies Di Pietro et al. (2022) have revealed a direct link between the Drucker-Prager and Hoek-Brown-like yield surfaces, making the introduction of the latter less artificial and more connected to the nonlinear nature of constitutive elastic media. In a similar vein, the reasoning can be extended to derive the cohesive zone constitutive relations for cracked media, preparing the ground for a unified framework describing both cohesive cracks and bulk geomaterials Fontana (2022).

The primary industrial application in the context of nuclear waste disposal management is associated with simulating tunnel excavations. The unique feature of this simulation lies in the complexity of the loading path of vault top of the tunnel which undergo the evolution from high tri-compression to bi-traction during the excavation process. Nuclear waste disposal aims to limit the diffusion of radionuclides, the priority should be given then to considering the physical phenomena of transport in cracked or highly plastified environments. Although the THM models and constitutive relations currently implemented in the code_aster are perfectly able to capture the main phenomena individually or at small scale, the large-scale simulation of fully coupled processes remains outside of scope due to its numerical complexity. These models concurrently face challenges of poor robustness and low numerical efficiency, particularly when dealing with active multi-scaling mechanisms of instationary diffusive front propagation. Addressing this research area should take precedence in future work.

2.1.4 Thermodynamically consistent modeling of corrosion

A mechanistic model of electro-chemical corrosion in deep geological storage of nuclear waste has been proposed in Bataillon et al. (2010). This model named Diffusion Poisson Coupled Model (DPCM) assumes that the carbon steel canister is covered by a dense spinel iron oxyde layer. The oxyde layer is in direct contact with the oxydizing medium or with a layer of corrosion products obtained by a precipitation mechanism, which can be modelled as a saturated porous medium, and with the undamaged steel. A fine description of the anaerobic corrosion process arising at the surface of the steel canister is necessary to predict both the evolution of the canister along time, as well as to predict the evolution of the chemical composition of the fluid in the porous medium (e.g., dihydrogen concentration) to be coupled with reactive transport models. While the corrosion process impacts the chemical composition of the fluid, the evolution of the fluid via reactive transport models impacts the boundary conditions of the corrosion models which depend on the fluid composition, for instance through its pH.

From a mathematical point of view, it consists in a drift-diffusion-Poisson system of equations on a moving domain with strongly coupled boundary conditions. The main difficulty for the mathematical analysis comes from the moving boundaries whose velocity depends on the concentrations of the chemical species and on the electrical potential. Only results on simplified models have been obtained so far. Existence of solutions for some simplified models which do not take into account the moving boundary interfaces have been obtained in Chainais-Hillairet and Lacroix-Violet (2012), Chainais-Hillairet and Lacroix-Violet (2015) The existence of pseudo-stationary states is established in Chainais-Hillairet and Gallouët (2016) under some simplifying assumptions on the model.

In opposition to the simpler case of concrete carbonation (Aiki and Muntean, 2013, Zurek, 2019), no Lyapunov functional has been found so far for the DPCM model despite it is expected that the model fulfils Onsager’s reciprocal relations which ensures that the physical energy decays along time (and is thus a Lyapunov functional). Besides, there has been recent advances in the mathematical description of models with generalized gradient flow structure (roughly speaking, model satisfying Onsager’s reciprocal relation). Otto’s seminal works (Jordan et al., 1998; Otto, 2001) has been a key step to understand the mathematical structure of generalized gradient flows where the evolution of the physical configuration relies on transport of chemical species, as it is the case for corrosion models. The Poisson-Nernst-Planck system has been shown in Kinderlehrer et al. (2017) to have the generalized gradient flow structure highlighted in Jordan et al. (1998). A first extension of this approach on moving domains was performed in Portegies and Peletier (2010) and extended to a toy model for corrosion in Merlet et al. (2022). Finally, a framework was recently proposed in Mielke (2011) and Mielke et al. (2016) allowing to go beyond Onsager’s framework, i.e., when the relation between the forces and the evolution are no longer linear.

In the framework of the EURAD project the DPCM model has been updated to make it consistent with thermodynamics. The dissipation of the electrochemical Helmoltz free energy is guaranteed, first for a simplified two-species model set on a fixed domain (Cancès et al., 2023a), then for the full model on a moving domain (Cancès et al., 2023b). Moreover, the control of the free energy and of its dissipation rate allowed (Cancès et al., 2023a) to rigorously establish the global in time existence of a weak solution to the reduced two-species model. Such a mathematical analysis result for the full model presented in Cancès et al. (2023b) is not yet available so far. Let us further stress that the numerical simulations presented in Cancès et al. (2023a) for the reduced two-species model are better behaved than the methods based on the original DPCM approach as the new model preserves physical bounds on the charge carrier densities that could be violated in some specific configurations by the classical DPCM model.

The second axis where significant contributions have been proposed in on the design of numerical methods for drift-diffusion systems with vacancy diffusion. In such models, the convection due to the electric field is of nonlinear nature. Such a vacancy diffusion process has been adopted for iron and oxygen atoms in the magnetite in the last generation models (Cancès et al., 2023a; Cancès et al., 2023b). The design of fast, accurate and thermodynamically consistent numerical methods for such vacancy diffusion as therefore needed. An extension to this context of the so-called square-root approximation (SQRA) finite volume scheme (Lie et al., 2013) has been proposed in Cancès and Venel (2023) for a single nonlinear Fokker-Planck equation. Extension to the more challenging context of multi-species diffusion accounting for cross-diffusion has been carried out in Cancès et al. (2023c), where a very robust hybridization with the Scharfetter-Gummel scheme was further proposed.

2.2 Numerical methods

This section briefly described the state of the art on the numerical methods for the suitable approximation of the physical processes mentioned above.

2.2.1 Numerical coupling strategies for multi-physics processes

When one aims at simulating coupled multiphysics processes, different strategies can be relevant. One can either solve the full system all at once in what one would call a fully-coupled or fully implicit strategy, or one can solve each physical process apart and sequentially. This second approach should provide similar results as the fully coupled one if one iterates the sequential procedure until convergence, while allowing for a modular approach where each module is devoted to one physics.

Reactive transport modeling (RTM) plays a crucial role in the understanding of coupled thermal, hydraulic and chemical (THC) processes for the performance assessment of geological disposal of radioactive waste (Claret et al., 2018; Bildstein et al., 2019). In some situations of interest this context, such processes are governed by non-isothermal multiphase multicomponent flows with reactive transport in porous media. At the continuum scale, reactive transport models for porous media rely on constitutive equations that make it possible to describe the porous medium with respect to its macroscopically measurable properties such as permeability, dispersivity, diffusibility, and so on Steefel et al. (2015a). The significance of reactive transport constitutive equations and their treatment in saturated or non-saturated conditions have been recently reviewed by Claret et al. (2018). From the numerical point of view, modeling THC phenomena leads to a highly nonlinear coupled system of degenerate partial differential equations (PDEs) governing the compositional multiphase flow to algebraic or ordinary differential equations (ODEs) modeling respectively equilibrium and kinetic reactions. Several approaches can be found in the literature to deal with coupling between flow, transport, chemistry. The first approach is a fully coupled procedure and consists in solving a nonlinear system gathering all equations at each time step (Brunner and Knabner, 2019; Knodel et al., 2022). The alternative method follows a sequential paradigm and is commonly referred to as the Operator Splitting approach. The prevalence of the operator splitting method is evident in numerous numerical codes cited in the literature (Claret et al., 2018; Bildstein et al., 2019). Notably, several sequential codes, including HYTEC (van der Lee et al., 2003), ORCHESTRA (Meeussen, 2003), TOUGHREACT (Xu et al., 2012), CORE2D V4 (Samper et al., 2012), Crunchflow (Steefel et al., 2015a), and OpenGeoSys (Kolditz et al., 2012), have found extensive application in reactive transport modeling for radioactive waste management. In these models, the operator splitting method enables the sequential solution of flow, reactive transport (or possibly, flow, transport, and chemistry) at each time step, potentially within an iterative loop. This approach allows for a modular programming structure in reactive transport modeling, offering significant convenience in integrating various physical and chemical processes. The modular structure facilitates the implementation of dedicated modules for hydrological and chemical aspects, optimizing the use of codes specifically designed for each side of reactive transport. A growing trend in the literature highlights the external coupling of such codes and the development of new reactive transport packages. For example, HYTEC, with its modular structure, incorporates the geochemical module CHESS for chemical processes (van der Lee et al., 2003). Many works employ the external geochemical package PHREEQC (Parkhurst and Appelo, 2013) for coupling with flow and transport codes. Instances include the coupling of PHREEQC with HYDRUS1 by Šimůnek et al. (2006) and its coupling with COMSOL MultiPhysics in a variable saturated and non-isothermal reactive transport problem by Nardi et al. (2014). The flexibility of PHREEQC in recognizing various instantaneous and kinetic reactions through basic scripts is a motivating factor for coupling it with specialized transport codes. Notably, PHREEQC has been successfully coupled with the open-source software OpenFOAM in continuum/pore scale simulations (Soulaine et al., 2022). Developers’ efforts have led to the creation of PhreeqcRM, a C++ class with methods that integrate the full capacity of PHREEQC, making the coupling with object-oriented codes convenient (Parkhurst and Wissmeier, 2015). This class, identified in the code, enables a seamless integration of PHREEQC with transport simulators that use an operator-splitting approach. Within the DONUT project, a C++ version of the ORCHESTRA chemical solver, which has the full functionality of the original Java version, has been made available on GITHUB. No comparative study exists yet to quantify the accuracy loss for sequential approach in comparison with fully implicit approach, but its gain in implementation and saving in computing time are fairly obvious. However, sequential approaches introduce operator splitting errors and restrictions on the time step are mandatory to ensure mass conservation for instance. In the context of the simulator ${\mathrm{D}\mathrm{u}\mathrm{M}\mathrm{u}}^X$ (Koch et al., 2020), a sequential approach was developed and implemented for coupling two-phase flows and reactive transport, in a high performance computing context. More precisely, in Ahusborde et al. (2017), a sequential approach was developed to study the migration of hydrogen produced by the corrosion reaction in deep geological radioactive waste repository. This approach splits the global problem into two sub-problems. The first sub-problem computes a two-phase compositional flow where only species present in both phases are treated implicitly. The second sub-problem calculates a reactive transport problem where flow properties are given by the first step. Both subproblems were solved using a fully implicit manner (Ahusborde et al., 2018) but in a sequential procedure. However, some questions about the coupling between all the physical phenomena described above have also to be studied to assess if sequential approaches are suited to model very coupled phenomena or if fully implicit strategies would be more relevant. For example, when simulating fast kinetics or strong chemical interaction, higher levels of coupling, implicitness may be useful as this can eliminate operator-splitting error and expedite nonlinear convergence. Obtaining solutions to these large systems of equations calls for a massively parallel implementation to reduce both computation time and memory requirements. In this context, in Ahusborde et al. (2019b), a fully implicit approach for a single phase multicomponent flow with reactive transport has been developed and validated via numerous 2D and 3D test cases including high performance computing. In Ahusborde et al. (2019a), the global implicit approach developed in Ahusborde et al. (2019b) was extended to deal with reactive two-phase flow for a one-dimensional test case proposed in Seigneur et al. (2018). This test case deals with porosity and permeability changes due to dissolution/precipitation dissolution/precipitation of minerals that can be linked to a process such as the atmospheric carbonation of partially saturated concrete. In Ahusborde et al. (2021), the fully implicit method has been used in a High Performance Computing context, with simulation using up to 768 processors. In Ahusborde et al. (2023), the sequential and implicit strategies developed in Ahusborde et al. (2018) and Ahusborde et al. (2021), respectively have been extended to non-isothermal flow to solve THC processes, still in a HPC context.

Besides, THM problems are solved in SIFEL (Koudelka et al., 2017; Koudelka et al., 2018) by two approaches: (a) a staggered approach, in which transport and mechanical parts are solved independently and in sequence (an iterative procedure is used to eliminate unbalanced forces); (b) a fully coupled approach, in which a complete thermo-hydro-mechanical stiffness matrix is assembled and solved using a Newton-Raphson iterative scheme in a single step. For both approaches, research is currently devoted to eliminating unwanted pore water pressure oscillations that arise in the model when full saturation is approaching.

Concerning the spatial coupling between free gas flows in the galleries and coupled liquid gas Darcy flows in the surrounding matrix and fracture network, domain decomposition appears to be a natural approach compatible with a modular implementation. A nonlinear domain decomposition algorithm based on the previous works (Masson et al., 2016; Birgle et al., 2018) has been designed in the spirit of Masson et al. (2020).

2.2.2 Linear and nonlinear algebraic solvers

Space and time discretization of HM and THM problems provides time-stepping numerical scheme with linear or nonlinear systems to be solved in each time step. These systems have a block structure corresponding to the selection of basis state variables. In the case of large problems, it can be more efficient to solve such systems iteratively by some Krylov space method with suitable preconditioner (Saad, 2003). A general way for construction of preconditioners begins with exploiting the block structure, keeping some diagonal blocks but replacing others by the corresponding Schur complements (Ferronato et al., 2010; Haga et al., 2010; Axelsson et al., 2012; White et al., 2016). Such preconditioners have to be subsequently modified by simplification of the Schur complements (Luber, 2022; Luber and Sysala, 2024). For implementation, subsystems arising from the diagonal blocks are usually solved by suitable inner iterations. Specific problems are the robustness of such techniques with respect to oscillations and contrast in problem coefficients (Hong and Kraus, 2018; Hong et al., 2023; Luber and Sysala, 2024) when materials are heterogeneous. Similar preconditioners can be used for solving nonlinear system arising e.g., for flow in partly saturated media, when the problems are linearized by various Newton-type techniques (Bergamaschi and Putti, 1999). The stochastic character of the problems arising in many geotechnical applications brings another challenge to be solved, see Blaheta et al. (2020) for more details.

The solvers mentioned in the paragraph above can be interpreted as the so-called monolithical solvers of systems with block structure. As their alternative, one can also use block-splitting procedures separating hydro, mechanical and eventually other processes, see e.g., Mikelic and Wheeler (2013), Both et al. (2017), Březina and Stebel (2024), Almani et al. (2023), Hong et al. (2023). The block-splitting procedures are mostly combined with Uzawa’s algorithms to guarantee the convergence. The splitting techniques are convenient if we solve HM problems with fractures and consider non-penetration contact conditions on the fractures (Stebel et al., 2024). In such a case, the problems do not lead to a block system of equations but to a system containing variational inequalities in mechanics. Therefore, the splitting techniques enable us to use state-of-the-art solvers on contact subproblems. For example, one can use the penalty method (Garipov et al., 2016) or methods based on Lagrange’s multipliers and the corresponding duality analysis, see e.g., Franceschini et al. (2016), Franceschini et al. (2020), Franceschini et al. (2022) or Stebel et al. (2024) where the MPGP (Modified Proportioning with Gradient Projections) algorithm proposed in Dostál (2009) has been used.

In the numerical approximation of the THM problem provided by SIFEL (Koudelka et al., 2017; Koudelka et al., 2018), the construction of the stiffness matrix–to be consistent with the global Newton-Raphson iterative scheme for the adopted Runge-Kutta adaptive model integration–is carried out by two alternative approaches: (a) approximation using the linear part of the thermo-hydro-mechanical hypoplastic model; (b) numerical estimation of the stiffness matrix using perturbation. As neither of the approaches offers quadratic convergence because of various numerical problems, the convergence can be rather slow. Hence efforts are being made to find a reliable way to construct the stiffness matrix to obtain robust and fast converging simulations.

The Newton-Raphson method is used in the staggered as well as in fully coupled formulation. There are two implementations of the method. The classical method, where the system matrix is updated at every iteration, is usually more time consuming because of permanent matrix factorisation. On the other hand, the modified method uses the same system matrix for several steps, and the matrix factorisation is needed only when the matrix is updated. The modified Newton-Raphson method usually requires a shorter computing time. Despite the fact that modifications of the Newton-Raphson method often lose local superlinear convergence, they can be faster and simpler in some cases than Newton-Raphson method if they are combined with appropriate iterative solvers of linearized systems. It was demonstrated in Karátson et al. (2024) where the quasi-Newton method has been successfully combined with the deflated conjugate gradient method and algebraic multigrid.

Reactive transport modeling leads to a highly nonlinear coupled system of degenerate partial differential equations to algebraic or ordinary differential equations. Due to the strong coupling of the flow and reactive transport equations, a specific attention was paid by many author to improve the convergence of the nonlinear and linear solvers, even more when considering fully implicit approaches. For instance, in Fan et al. (2012), after the Jacobian matrix assembly, a series of algebraic reductions (Schur complements), are performed to reduce the number of discrete equations to be solved. This strategy is commonly used in compositional reservoir simulations. In Brunner and Knabner (2019) and Knodel et al. (2022), the reduction technique described in Hoffmann et al. (2012) for reactive single phase flow was extended to the case of two-phase reactive flow. Unlike the classical strategy, their general transformation method does not only eliminate unknown equilibrium reaction rates. It also potentially reduces the nonlinear coupled part of the problem, allowing the use of large time steps and avoiding the potential drawbacks of sequential approaches.

2.2.3 Discretization methods

As concerns the discretization of HM problems, it was even very early observed that two-field (displacement-pressure) P1-P1 finite element (FE) discretization (i.e., both the displacement and the pressure are approximated by piecewise linear fields on simplex meshes) is not robust and can produce spurious oscillations due to a locking (e.g., Lewis and Schrefler, 1998). P2-P1 elements (i.e., the approximate displacement field is now piecewise quadratic) help but they are more expensive in computations. The reason for these effects is nowadays explained by inheriting saddle point structure. Later, three-field (displacement-velocity-pressure) formulation was used with discretization e.g., by P1-RT0-P0 elements (RT0 denotes the lowest order Raviart-Thomas element, and P0 denotes piecewise constant fields). This discretization provides conservativeness for flow, but it was recently shown that a fully stable discretization with the lowest order FE for elasticity requires abandoning conformity and using the stabilized Crouzeix-Raviart elements or the discontinuous Galerkin formulations, see Yi (2013), Frigo et al. (2021), Luber (2022), Luber and Sysala (2024). It is also possible to discretize elasticity by the mixed FE and use four-field formulation, see Bean et al. (2017). For higher-order time discretization of the Radau type and its stability, we refer to Axelsson et al. (2015a, 2015b).

Finite Volume methods are natural to discretize physical balance laws in a locally conservative way. Mathematical analysis tools have been developed in the last decades to assess their robustness and accuracy (see for instance Eymard et al. (2000)). It is now well understood that the Scharfetter-Gummel numerical fluxes (Scharfetter and Gummel, 1969), dedicated to the numerical approximation of convection-diffusion fluxes, allow to capture in an accurate way the long-time behaviour of drift-diffusion systems (Chatard, 2011; Bessemoulin-Chatard and Chainais-Hillairet, 2017). This motivated the choice of Scharfetter-Gummel based fluxes in Bataillon et al. (2012) for the simulation of the DPCM corrosion model (Bataillon et al., 2010). These particular fluxes were also used in the numerical investigations on reduced models (Chainais-Hillairet and Lacroix-Violet, 2015; Chainais-Hillairet and Gallouët, 2016; Zurek, 2019; Cancès et al., 2023a).

In the framework of the DONUT workpackage, the design of numerical methods for drift-diffusion systems with vacancy diffusion has been carried out. In such models, the convection (for instance due to some electric field) is of nonlinear nature. Such a vacancy diffusion process has been adopted for iron and oxygen atoms in the magnetite in the last generation models (Cancès et al., 2023a; Cancès et al., 2023b).

The design of fast, accurate and thermodynamically consistent numerical methods for such vacancy diffusion as therefore needed. An extension to this context of the so-called square-root approximation (SQRA) finite volume scheme (Lie et al., 2013) has been proposed in Cancès and Venel (2023) for a single nonlinear Fokker-Planck equation. Extension to the more challenging context of multi-species diffusion accounting for cross-diffusion has been carried out in Cancès et al. (2023c), where a very robust hybridization with the Scharfetter-Gummel scheme was further proposed.

When a system of partial differential equations is cast under a gradient-flow structure, this gradient-flow structure suggests canonical time-discrete approximations and provides a context for the design of numerical methods which preserve structural properties Minimizing movement schemes (Jordan et al., 1998) provide naturally stable time-discretizations of generalized gradient flows. They can be seen as generalizations of the Backward Euler scheme and are now common for studying generalized gradient flows (Ambrosio et al., 2008). The exploitation of such fully discrete minimizing movement schemes for numerical purpose is quite recent and goes back to Benamou et al. (2016). Then several improvements have been proposed to improve the efficiency of such approaches (Cancès et al., 2020; Li et al., 2020; Carrillo et al., 2022).

Most of the methods that have been designed in order to maintain their thermodynamical consistency require some strong regularity assumptions on the mesh that are not suitable in the context of porous media flows in complex geometries. Such frameworks motivated the development of advanced finite volume methods, among which the nodal Vertex Approximate Gradient (VAG) scheme introduced by Eymard et al. (2012). The discretization of the 3D non-isothermal compositional liquid gas Darcy flow is based on VAG scheme (Xing et al., 2017). The coupling with the 1D free gas flow is based on non-matching meshes between the 3D-2D Darcy flow domain and the 1D domain in order to account for complex geometries of the tunnels (Brenner et al., 2022).

Another type of discretization method, for reactive transport simulations is the lattice Boltzmann method (Higuera et al., 1989; Qian et al., 1992). It is a special discretization of the kinetic Boltzmann equation with applications of LBM range from diffusion dominated reactive transport simulations in porous media to multiphase fluid dynamics of turbulent flow (Succi, 2001; Kang et al., 2002; Chen et al., 2003). Recently, it has been implemented to study the flow properties of a compacted illite digital rock (Pazdniakou and Dymitrowska et al., 2018), as well as for the cross scale modelling of dissolution and precipitation (Fazeli et al., 2020; Lönartz et al., 2023). Implementation of the classical nucleation theory allows to trace the formation of first critical nuclei up to the micrometer scale as was shown for the case of barite and Celestine precipitation (Prasianakis et al., 2017). Models that account for nucleation and growth of particles are very sensitive to microscopic parameters like the surface tension and the size of first critical nuclei (Noguera et al., 2010). An application to radioactive waste disposal and more specific the Radium-bearing barite precipitation has been recently presented (Curti et al., 2019). Upon upscaling the pore-level algorithm can be used to investigate the coupled advection-diffusion-reaction-precipitation processes (Churakov and Prasianakis, 2018). The precipitation and the dissolution of minerals has a direct effect to the mass transport and vice versa (Prasianakis et al., 2018; Poonoosamy et al., 2019). A decrease in the porosity will result to increased resistance to flow, which under a hydraulic gradient could lead to increase in stresses. A direct coupling of lattice Boltzmann simulators for fluid flow with mechanics simulators still remains a challenging task.

Despite the fact that modifications of the Newton-Raphson method often lose local superlinear convergence, they can be faster and simpler in some cases than Newton-Raphson method if they are combined with appropriate iterative solvers of linearized systems. It was demonstrated in Karátson et al. (2024) where the quasi-Newton method has been successfully combined with the deflated conjugate gradient method and algebraic multigrid.

Capillary effects play a crucial role for the migration of multiphase fluids in heterogeneous media (van Duijn et al., 1995; Cancès, 2010; Bourgeat et al., 2013). Discontinuities of the conservative variables caused by spatial heterogeneities make it necessary to design appropriate strategies concerning the discretization (Hoteit and Firoozabadi, 2008; Cancès, 2009; Bastian, 2014; Eymard et al., 2014) and the nonlinear solvers (Wang and Tchelepi, 2013; Brenner et al., 2017). As proposed in Hoteit and Firoozabadi (2008) and Bastian (2014), a natural choice for the primary variable is the capillary pressure rather than the saturation, requiring adaptation of the existing tools like TOUGH2-MP (Pruess et al., 1999). These adaptation are already at the basis of the recent contribution (Amri et al., 2020). Future work will be dedicated to the validation of this new version of TOUGH2-MP on PGZ-experiment by adding an adequate hysteresis model in the compositional two-phase flow and transport equations.

2.2.4 Error control

In scientific investigations where precision is paramount, such as in the study of complex physical processes or the design of engineering structures, error control plays a pivotal role. It provides a means to quantify and manage uncertainties, reinforcing the confidence in the predictive capabilities of numerical simulations. Additionally, the incorporation of error control measures facilitates the optimization of computational efficiency, guaranteeing the computational resources are allocated judiciously to areas where refinement is most warranted. Ensuring the convergence of nonlinear numerical simulations for large-scale structures is typically a challenging task. In practice, when faced with difficulties, one might consider relaxing the convergence criteria while refining the loading steps. This fundamental engineering approach becomes more intricate when dealing with HM (or THM) simulations, cited above. The complexity arises from the multi-physical coupling phenomenon, where relaxing the convergence criteria inevitably results in alterations to the physical outcomes. While it is relatively straightforward to make reasonable guesses about the validity of results in pure mechanical or hydraulic simulations, coupling introduces a nearly impossible mission due to the intricate interplay of all phenomena involved. One might achieve physically relevant results from a mechanical standpoint, such as structural deformations, while simultaneously obtaining inaccurate outputs for pressure or hydraulic flux distribution or vice versa. This discrepancy is primarily attributed to the fact that, in standard finite elements code, sources of convergence errors—be they hydraulic, mechanical, or temporal refinements—are combined to generate a single scalar stopping criterion. The proposed solution involves disentangling these errors to facilitate a more nuanced analysis. Furthermore, a heuristic algorithm could be implemented, automatically halting the code execution once the optimal convergence for the given mesh is achieved, thereby providing a more software agnostic experience for finite elements code users here are two predominant methodologies available for tackling the error estimation problem, presented above. These distinct approaches offer varied strategies and perspectives, each with its own set of advantages and considerations. The first, the classical “a priori” one has a drawback of relying on the problem regularity, which is not known a priori for most of the industrial applications. On a contrary “a posteriori” error analysis (see for example, Ainsworth and Oden, 2000) seems to be more relevant as the solution regularity is “reconstructed” based on the current finite elements solution. In most recent developments, one reconstructs the associated fluxes (stress for displacement, hydraulic flux for pressure) which dispose some important mathematical properties (smooth elements transition, symmetry, see Riedlbeck et al. (2017); Di Pietro et al. (2022)). The principal advantage of the following technique is the easy comparisons of all error’s sources. The last property leading to the possible straight implementation of different stopping algorithms. In the last decade a posteriori error estimation, based on flux reconstruction on patches, has been implemented in the various open-source finite elements software, both in academic, FreeFem++¹ and industrial, code_aster² contexts. In the latter case the ultimate aim is to assess the efficiency of the current technique for industrial applications. Encouraging results have been obtained, particularly in a tunnel excavation-like test case, where the error estimation closely approaches perfect efficiency compared to a reference study conducted on a highly refined mesh (Riedlbeck et al., 2017; Botti and Riedlbeck, 2018). A more recent results were obtained through the extension of a posteriori error estimation techniques to account for contact non-linearity, as described in Di Pietro et al. (2022) and Fontana (2022). During a tunnel excavation process, multiple contact interfaces can emerge, either due to construction geometry or through time evolution caused by crack propagation, progressive material softening, and plastification. It is essential to consider contact and potentially friction between two bodies to provide a more realistic description of the interface zones in civil engineering construction. The combination of both errors estimations approaches cited above should logically lead to the relevant criterion for multi-physical radioactive waste management applications. However, the current obstacle hindering the extension of a posteriori error estimation strategy to large-scale calculations is the notably high computational cost. Two primary reasons contribute to this perceived “poor” numerical performance. The first one is typical software/hardware entanglement bottleneck, which is linked to the initial sequential programming scheme that generated the data-processing architecture incompatibility, specifically with sub-optimal memory usage. The second reason is more profonde and is related to the presence of spurious oscillations (Escoffier and Kazymyrenko, 2023; Kazymyrenko et al., 2023) in the discretized solution within the cohesive zone region. In the case of surface breaking cracks, the geometric singularity on its extremity reduces the regularity of the continuous solution affecting then discretized model quality. The oscillations contribute to the observed issues with the robustness of highly non-linear interface modelling under mixed compressive loading conditions, typical in underground excavation simulations, resulting in erroneous flux reconstruction close to the crack boundaries. While the issue was noted across most common industrially deployed discretization schemes, it could potentially be mitigated by selecting the appropriate finite elements to represent crack interfaces. However, as of now, a definitive solution remains elusive. It is imperative to identify and tackle these challenges in order to surmount current limitations and enhance the effectiveness of error estimation in large-scale industrial simulations.

Finally, we conclude that the convergence of the nonlinear and linear solvers can be improved using a posteriori estimators to achieve computational savings by stopping timely the linear and nonlinear solvers (Vohralík and Wheeler, 2013; Riedlbeck et al., 2017; Ben Gharbia et al., 2019), but some technical locks need to be addresses before these procedures being parallelised in order to meet industrial needs in numerical simulations.

2.2.5 Going parallel

The relevance of parallelization for numerical simulations lies in its capacity to dramatically enhance computational efficiency by distributing tasks across multiple processors units, thereby accelerating the solution of complex physical models and facilitating the analysis of data set variations. The development of more powerful and energy-efficient computer architectures is widening the use of large scale high performance computing techniques. Notable increases in computational power are being achieved by many core systems with powerful accelerators such as general-purpose graphics processing units (GP-GPUs). These systems also feature increasingly intricate hierarchical cache and memory designs, enabling the provision of the necessary data flow essential for computing units. These advanced hardware configurations present challenges for implementing and scaling current simulation algorithms while also presenting opportunities for the creation of new ones. In 2022, the world’s first public exascale computer was announced, it has achieved the long anticipated peak performance of one exaflops $10^{18}$, representing a 100-fold enhancement compared to supercomputers. This advancement stems not from faster processors, but from a significantly larger number of processors/cores. The current breakthrough is poised to significantly impact large-scale computational science and engineering. Parallel algorithms will need to demonstrate significantly higher levels of concurrency while maintaining robust scalability. When addressing transient problems, where information progresses forward in time, sequential exploitation has traditionally been favored. However, the vast potential for parallelism undoubtedly motivates a shift in this paradigm. One of the key drivers behind harnessing greater levels of parallelism will be to reduce time-to-solution.

All alternative approaches to parallelizing numerical simulations involve task decomposition, wherein computational tasks are partitioned into smaller subtasks capable of concurrent execution across multiple processors or cores. Several iterative methods have been investigated extensively to date. Lions et al. (2001) employed time discretization of a partial differential equation (PDE) that lends itself well to parallel implementations. The method, based on an Euler scheme, combines coarse resolutions and independent fine resolutions in time in the same spirit as standard spatial approximations. Emmett and Minion (2012) also applied a parallelization of numerical methods for PDEs in the temporal direction. The method was iterative with each iteration consisting of deferred correction sweeps performed alternately on fine and coarse space-time discretizations. With regard to direct methods, time-parallel methods can be found in Gander (2015). In general these methods can exploit low levels of concurrency. Moreover, Badia and Olm (2018) proposed a parallel-in-time solver for ordinary differential equations that relies on the well-known Schur complement method in linear algebra. Chen et al. (2019) used multipoint flux approximation (MPFA) method to discretize the spatial variables on staggered grid in order to accurately describe the flow behaviour in the porous media whose permeability is anisotropic, in which case the permeability tensor is full. For staggered grid in 2-D space, pressure values were defined at the centre of the cells and velocity components were located on edges. They were considered the permeability fields which contain different anisotropy angles in the simulation and fractures are represented explicitly by volumetric grid cells and the numerical algorithm is parallelized in order to reduce the simulation time. The algorithm is implemented in parallel using FORTRAN and the linear system arising from the pressure equation is solved by the aggregation-based algebraic multigrid solver (Notay, 2010; Napov and Notay, 2012).

As previously discussed in section 2.1.2, the computation of HM or THM models typically employs a time-stepping scheme involving the solution of linear or nonlinear systems at each time step. While the time-stepping process itself is sequential, opportunities for parallelization emerge during the solution of these systems. The first possibility is to use preconditioners based on approximations of the Schur complement systems (Luber, 2022; Luber and Sysala, 2024). It enables us to solve multi-physical processes in parallel. The second possibility is to apply domain decomposition methods and related parallel solution on subproblems arising from the splitting of the multi-physical system. For example, one can use the Schwarz domain decomposition methods (Blaheta et al., 2010; Blaheta et al., 2018b) or the FETI-based domain decomposition methods (Hapla et al., 2016; Kružík et al., 2020a; Dostál et al., 2022). Another domain decomposition method reflecting fracture propagation was suggested in Settgast et al. (2017). In addition preconditioners may incorporate inner iterative solvers, for which efficient parallel solution methods are readily accessible (Ordonez et al., 2023; Ordonez Egas, 2022).

Utilizing the finite element method for solving coupled thermo-hydro-mechanical problems results in a significant quantity of unknowns due to the definition of displacements, pore pressures, and temperature at each node. Consequently, the total number of unknowns in the algebraic equation systems surpasses that of systems corresponding to purely mechanical problems, which only discretize displacement. Additionally, the high number of unknowns in each node result in a very broad bandwidth of the system “rigidity” matrix. These factors necessitate parallel processing, particularly for large engineering structures. Parallelisation of a finite element code can be done efficiently with the help of either domain decomposition methods (DDM) or alternatively splitting method. In both cases the resolved domain is split into smaller subdomains which are treated independently on particular processor. In DDM method each subproblem is solved independently and the continuity of data on the borders of subdomains is enforced during supplementary operation. In splitting method, the decomposition is used mainly in order to reduce memory consumption due to parallelisation of elementary calculation (element by element in finite elements method calculation), the total stiffness matrix is then assembled as a whole and finally the global algebraic equation is then solved using second level parallelisation relied on the other parallelisation schemes.

With respect to highly nonlinear and nonsymmetric systems of algebraic equations, the most suitable DDM is the Schur complement method, which is a variant of the Gaussian elimination. Splitting method may be less efficient then the DDM scheme but it allows more versatile usage while the second level parallelisation of linear algebraic system is completely independent. For the latter task one could rely on external expertise such as know-how of worldwide community of software developers proposing a highly stable and scalable open source solvers as MUMPS MUltifrontal Massively Parallel Sparse direct Solver (Amestoy et al., 2001; Amestoy et al., 2006) or PETSc Portable, Extensible Toolkit for Scientific by Computation (Balay et al., 2019).

Since 2019 all new versions of Code_Aster are distributed as fully parallelizable. The adopted parallelization is the splitting method described above. While all elementary (in the sense of finite elements method) calculations are naturally parallelizable, the parallelization of a posteriori errors necessitates in deep comprehension of Code_Aster architecture. Error estimator that seems to be suitable for hydro-mechanical coupling problems described in the recent works of Riedlbeck et al. (2017) and Botti and Riedlbeck (2018) is based on patch reconstruction scheme. It means that each elementary calculation is not a simple mesh element integral as in the standard finite element procedure, but a patch calculation, patch being an agglomeration of mesh elements connected to the given node. The parallelization scheme adopted in Code_Aster must then be modified in order to allow new kind of elementary calculation be more efficient. Given the usually rigid architecture of industrial finite elements code the full parallelization of a posteriori error estimation is still a rather challenging task. The ORCHESTRA chemical solver is basically a module that operates on cells with a given total chemical composition. Internally this solver module does not make use of parallel processing, and it has no spatial or discretization issues as it operates on single spatial points in a transport domain. However, it was designed to be used in the form of multiple parallel instances that can operate in parallel on large groups of cells/nodes. The ORCHESTRA chemical solver is well suited for this type of parallelization, as it has a very small memory footprint, and is prepared for the existence of multiple instances in a single memory space. Furthermore, the module is designed to make efficient use of the chemical composition calculated in each cell during a previous time step by using this condition as start estimation in the iteration procedure. This greatly reduces the number iterations, and thus calculation time, in transport systems where chemical changes are concentrated in specific spatial zones.

The coupled liquid gas Darcy and free gas flows is implemented in the open source parallel code ComPASS (Xing et al., 2017; Lopez et al., 2018; Beaude et al., 2018). The COMPASS parallelization is based on mesh partitioning and MPI communications. It uses the Petsc and Hypre libraries for the solution of the linear systems. Since the size of the 1D free gas flow model is negligible compared with the size of the 3D Darcy flow model, the domain decomposition approach is adapted to a simple parallel implementation of the coupled model.

Another numerical method which exhibits a significant parallelization advantage is the lattice Boltzmann method. The method operates typically in a regular cartesian grid, and the operations are local at each grid point, requiring information only from the neighboring computational grid points. This allows to decompose the computational domain and split the computational costs in an efficient way among several computing units. Moreover, the algorithm shows significant acceleration when deployed in GP-GPU architectures with a speed up of one to two orders of magnitude compared to a single CPU core. The parallelization efficiency is maintained also in hybrid CPU/GP-GPU supercomputer architectures with the weak scaling being practically linear (Latt et al., 2021; Krause et al., 2021; Safi et al., 2017; Bauer et al., 2021).

2.3 Available tools

Let us describe the available tools that will be at the basis of the developments carried out in the context of the project.

CALIPSO is a Fortran90 code for the simulation of corrosion of iron based alloys relying on the discretization presented in Bataillon et al. (2012) of the DPCM model (Bataillon et al., 2010). Its development was initiated by ANDRA in 2008. A stabilized version has been registered in 2014 at the French Agency for Program Protection³ under reference IDDN. FR.OO 1. I 60009.000.s.P.20 I 5.000.30000. It is currently maintained by Christian Bataillon (CEA) and Laurent Trenty (ANDRA).

COMPASS⁴ is an open source parallel code co-developped by the partners of the ANR CHARMS project BGRM, UCA-CNRS-Inria-LJAD, MdS, Storengy and LJLL (Xing et al., 2017; Beaude et al., 2018; Lopez et al., 2018). It has the following features:

• Physics

• Multiphase compositional thermal Darcy flow model

• 2D discrete fracture or fault network coupled with the surrounding 3D matrix

• Multi-branch well model

• Numerical methods

• Parallel Vertex Approximate Gradient (VAG) scheme on polyhedral meshes accounting for the flow in the 3D matrix and the 2D fault network.

• Fully implicit Coat’s type formulation of multiphase compositional thermal models.

• GMRES or BiCGStab linear solver with CPR-AMG preconditioner

• Computer science

• SPMD Paradigm

• Fortran 2003 + C/C++ + MPI

• Libraries Metis, Petsc + Hypre, vtk, HDF5

• High level python API

ORCHESTRA was originally developed as a Java code that was specifically designed to allow the development new chemical adsorption model types and to make it possible to combine these chemical models with reactive transport processes. It is available from orchestra. meeussen.nl. Its unique property, in contrast wil all other available chemical solver codes, is that all chemical and physical model code is defined in object oriented text files outside the executable code. These text files are read as input during runtime and can be extended or adapted by end users. This implies that users can change the chemical model library without the need to change the solver code, and the other way around that the solver code can be changed without affecting the chemical model capabilities. This approach/structure, that has been described in Meeussen (2003), has resulted in a solver calculation kernel that is relatively small and simple, but also extremely fast. The simplicity of the kernel allowed it to be translated within this project from Java to a C++, which makes the solver much easier to use from other, e.g., transport codes, or from python. Because the C++ version can read the same input files as the Java version, the complete chemical model library (text file) is automatically available for both the Java and the C++ version. So Java and C++ version have the same chemical model capabilities. The (open) source code is available on github: hansmeeussen/orchestra_cpp (github.com).

The chemical model library contains a large set of chemical models, including a large number of state of the art adsorption models, and has proven to be very calculation efficient in reactive transport benchmarks (Steefel et al., 2015b). Modelling of multi-component transport is also implemented in the ORCHESTRA code which is able to calculate multicomponent transport of individual dissolved species taking into account the effect of developing electric potentials. The ORCHESTRA approach additionally allows to combine diffusion and advection, and can take into account multiple pore domains with different diffusion properties (e.g., Donnan and surface (Meeussen, 2023; Jenni et al., 2021). As the framework is written in Java which allows ORCHESTRA to run on different operating systems, and the currently developed C++ version makes it relatively easy to combine the solver module with C++/FORTRAN code. The module is fully prepared for parallel processing, and can be used in a form with multiple independent solver instances. The ORCHESTRA solver module, both in Java and C++ form, has been extensively tested within the Machine Learning Benchmark exercise in which it demonstrated to give results consistent with PHREEQC and GEMS calculations.

DuMu^X: For THC numerical modeling, several sequential (Ahusborde et al., 2017; Ahusborde et al., 2018) and fully implicit (Ahusborde et al., 2019a; Ahusborde et al., 2019b; Ahusborde et al., 2021; Ahusborde et al., 2023) modules have been developed and integrated in DuMu^X framework. DuMu^X (DUNE for Multi-{Phase, Component, Scale, Physics, …} Flow and Transport in Porous Media) is a free and open-source object-oriented software written in C++ (Koch et al., 2020). The environment is equipped with efficient solvers and massively parallel computation capability provided by DUNE (Bastian et al., 2008a; Bastian et al., 2008b).

TRIAX–The coupled thermo-hydro-mechanical model for expansive clays is implemented in an in-house element test driver developed since 2001 at Charles University and elsewhere by David Mašín and co-workers. The driver covers a wide range of constitutive models and testing conditions. Virtually, any element test can be simulated using the procedure generated by Janda and Mašín (2016); the majority of standard and less-standard testing conditions are pre-defined (including complex thermo-hydro-mechanical tests in unsaturated conditions, rate-dependent loading, plotting response envelopes, hypoplastic asymptotic state boundary surfaces, and elasto-plastic yield surfaces). Loading stages can be combined to form complex loading paths. The driver can also run any constitutive model implemented in umat format. The driver can be freely downloaded at https://soilmodels.com/triax/. The download package includes the source code, pre-compiled Windows and Linux executables, and a wide range of input files associated with various publications.

ExCalibre is an online tool (freely accessible at https://soilmodels.com/excalibre/) which enables users to automatically calibrate advanced soil constitutive models (Kadlíček et al., 2018). It adopts a unique model-specific calibration algorithm which remains consistent with the physical meaning of material parameters rather than using a blind parameter optimisation. It thus reproduces the thinking of an experienced engineer calibrating the model, leading to a reliable parameter set to be used in geotechnical simulations. After calibration, the user can manually change the parameters to fine-tune the calibration or to investigate the effect of individual parameters on model predictions. A simple Excel spreadsheet based on the provided template is used as input. In addition to automatic calibration, ExCalibre also acts as an element test driver simulating standard laboratory tests.

SIFEL (SImple Finite ELements) is an open-source finite-element code that has been developed since 2001 at the Department of Mechanics of the Faculty of Civil Engineering of the Czech Technical University. SIFEL comprises several components which can be used as independent computer codes, or can be linked to obtain additional functionalities. All parts are released under a GNU General Public Licence (GPL) and can be downloaded at http://mech.fsv.cvut.cz/˜sifel/. Within the SIFEL package, in particular, MEFEL is the component which deals with mechanical problems, such as linear and non-linear statics, eigen-vibration analysis, forced dynamics, time dependent problems of rheology. The coupled transport of heat, moisture and other species can be modelled in the part TRFEL. Namely, it contains heat transport, moisture transport, coupled heat and moisture transfer, moisture and salt transfer. Coupled thermo-hydro-mechanical models, including models for expansive clays, are implemented in the part METR which interacts with the MEFEL and TRFEL. All parts of the code are equipped with one, two and three-dimensional finite elements and material models. The material models can be isotropic, orthotropic or generally anisotropic.

Code_Aster: Today, all the poro-mechanical models used in EDF are capitalized in Code_Aster (EDF code in Open-Source: www.code_aster.org). Code_Aster is integrated in multifunctional finite elements platform Salome_Meca. Code_Aster offers a full range of multiphysical analysis and modelling methods that go well beyond the standard functions of a thermo-mechanical calculation code: from seismic analysis to porous media via acoustics, fatigue, stochastic dynamics, etc. Its modelling, algorithms and solvers are constantly under construction to improve and complete them (1.200.000 lines of code, 200 operators). Resolutely open, it is linked, coupled and encapsulated innumerous ways. Code_Aster provides full thermo-hydro-mechanical coupling framework for stationary and transient calculations. It relies on highly efficient external linear algebra solvers. It worth to mention that the software is under quality assurance QA (independent validations, reference of 2.000 test cases, 13.000 pages of documentation, source management, qualification of version, etc.).

GEM-Selektor: (http://gems.web.psi.ch/GEMS3/) is a graphical user interface of GEMS3K solver of chemical equilibria (Wagner et al., 2012; Kulik et al., 2013). It greatly facilitates configuring the chemical system, the input of composition recipes, the computation of single equilibria or process simulations, viewing/exporting the results as tabulated data or plots, and managing the thermodynamic data. Chemical system definitions can be exported per mouse click into GEMS3K i/o files for use in coupled codes such as GEMSFITS and reactive-transport simulators Comsol-GEM, OpenGeoSys-GEM and CSMP++GEM. Simplified 1-D reactive transport models can be performed directly in GEMS-Selektor using its GEM2MT module. GEMS is open-source software, available at https://bitbucket.org, with binaries distributed from http://gems.web.psi.ch as freemium together with the built-in PSI-Nagra and SUPCRT98 chemical thermodynamic databases. In addition, third-party thermodynamic databases (e.g., Cemdata’18, HERACLES, Mines’19), maintained by their owners (https://www.empa.ch/cemdata; http://tdb.mines.edu), are available as plugins for GEM-Selektor. The GEMS Development Team currently involves 11 members from 6 institutions, and strives to implement innovative concepts, modern algorithmic frameworks, and tools to improve thermodynamic data, all in order to ensure the state-of-the-art functionality of GEMS for the next decade.

PERMON PERMON (http://permon.vsb.cz/) is a set of solvers combining quadratic programming and domain decomposition methods. It makes use of and extends the PETSc framework (https://www.mcs.anl.gov/petsc/) for numerical computations. The core of PERMON is formed by the PermonQP package which is able to solve large scale quadratic programming (QP) problems. Among the main applications are contact problems of mechanics (Kružík et al., 2020a; Kružík et al., 2020b) and Support Vector Machines (SVM) machine learning (Pecha et al., 2023). Contact problems can be decomposed by means of the TFETI (Total Finite Element Tearing and Interconnecting) non-overlapping domain decomposition method. Within the EURAD project, PERMON was combined with the Flow123d library (see below) in order to solve large-scale HM problems for porous media with fractures where non-penetration contact conditions were considered (Stebel et al., 2024).

Flow123d (https://flow123d.github.io/) is a versatile simulator of transport and mechanical processes in fractured porous media. The novelty of this software stems from its comprehensive support for computations on mixed meshes comprising simplical elements of different dimensions, enabling the integration of continuum models with discrete fracture networks. It handles a spectrum of physical processes, including (un)saturated Darcy flow via mixed-hybrid finite elements, as well as solute transport complemented by sorption, dual porosity, decays, and simple reactions and discretized either by finite volume methods or the discontinuous Galerkin (DG) method. The DG method is similarly employed in the heat transport model. The mechanical model with contacts on the fractures is addresed by finite elements. The software features a preconditioned iterative nonlinear hydro-mechanical coupling with sequentially coupled solute and heat transport processes. On the technical front, Flow123d now features full MPI-aware containerization, supporting both Docker and Singularity, which enhances its portability and deployment efficiency across different computing environments. It is scalable up to hundreds of processors using MPI and PETSc, ensuring high performance in complex simulations. The software also boasts a flexible input interface based on the YAML file format and supports output in GMSH and VTK formats. Recent enhancements include an optimized, vectorized assembly over patches that fit into cache memory, significantly boosting computational efficiency. All these functionalities are implemented in C++ and Python, and the software is distributed under the GNU Public License v3, emphasizing its commitment to open-source development and collaboration.

OpenGeoSys (OGS)⁵ is a scientific open-source initiative for the numerical simulation of thermo-hydro-mechanical/chemical (THMC) processes in porous and fractured media (Kolditz and Bauer, 2004; Kolditz et al., 2012). The basic concept of OGS consist on providing a flexible numerical framework, using primarily the Finite Element Method (FEM) for solving multi-field coupled processes with application in different scientific and technical disciplines (Rink et al., 2012; Bilke et al., 2014; Rink et al., 2014). For example, OGS has been successfully applied in the fields of regional, contaminant and coastal hydrology, technical and geothermal energy systems, geotechnical engineering, energy storage, CO2 sequestration/storage and nuclear waste management and disposal (Kalbacher et al., 2007; Kalbacher et al., 2012; Kolditz et al., 2021). The actual version OGS-6 is providing complete workflows starting from data integration, HPC for coupled process simulation and using virtual reality (VR) concepts for data analytics. OGS-6 is developed and maintained platform-independently using professional software engineering tools such as version management (GitHub) and containerization (e.g., Docker, Singularity). A strict code review is conducted for quality assurance completed by unit testing and comprehensive benchmarking. OGS provides open interfaces for combining with other simulators (e.g., GEMS, iPhreeqc for geochemical processes) including Python bindings (Li et al., 2014; He et al., 2015; Kosakowski and Watanabe, 2014). A recent overview of OGS software engineering can be found in Bilke et al. (2019) and Lehmann et al. (2024).

CORE^2D V5 (Fernández, 2017) is a code for transient saturated and unsaturated water flow, heat transport and multicomponent reactive solute transport under both local chemical equilibrium and kinetic conditions in heterogeneous and anisotropic media. CORE^2D V5 is the 5th version of the code and is available upon request. The flow and transport equations are solved with Galerkin finite elements and an Euler scheme for time discretization. The solute transport equation accounts for advection, molecular diffusion and mechanical dispersion. The chemical formulation is based on the ion association theory and uses an extended version of the Debye-Hückel equation (B-dot) for the activity coefficients of aqueous species. The following chemical reactions are considered: aqueous complexation, acid-base, redox, mineral dissolution/precipitation, cation exchange, surface complexation and gas dissolution/exsolution. CORE^2D V5 relies on the “com” thermodynamic database of EQ3/6 (Wolery, 1992). The code also allows the use of other thermodynamic databases. CORE^2D V5 is based on the sequential iteration approach to solve for chemical reactive solute transport. Iterations are repeated until prescribed convergence criteria are attained (Samper et al., 2009). The Gaines-Thomas convention is used for cation exchange. Surface complexation is modelled by using three types of protonation/deprotonation sites, SS-OH, SW1-OH and SW2-OH, as proposed by Bradbury and Baeyens (1997). CORE^2D V5 takes into account the changes in porosity due to mineral dissolution/precipitation reactions and their feedback effect on the flow and transport parameters under isothermal and nonisothermal conditions (Águila et al., 2020; Samper et al., 2021). CORE^2D V5 has been used to model laboratory tests (Yang et al., 2008; Mon, 2017), in situ experiments (Molinero-Huguet et al., 2004; Zhang et al., 2008) and perform long-term simulations for geological high-level radioactive waste repositories (Lu and Zhou, 2011). It has been extensively benchmarked against other codes (Poonoosamy et al., 2021). CORE^2D V5 results can be postprocessed with public-domain post-processing tools such as ParaView.

INVERSE-FADES-CORE V2 (Mon, 2017) is a finite element code for modelling non-isothermal multiphase flow, heat transport and multicomponent reactive solute transport under both chemical equilibrium and kinetic conditions in deformable media. The code takes into account the mass balance of water, air, solid and enthalpy; the transport of solids and the mechanical equilibrium. The solute transport equation accounts for advection, molecular diffusion and mechanical dispersion. INVERSE-FADES-CORE V2 solves both forward and inverse multiphase flow and multicomponent reactive transport problems in 1-, 2- and 3-D axisymmetric porous and fractured media. The state variables of the forward model include the liquid and the gas pressures and temperature, which are solved with a Newton-Raphson method. The inverse problem is solved by minimizing a generalized least-squares criterion with a Gauss-Newton-Levenberg- Marquardt method (Dai and Samper, 2004). The forward routines of INVERSE-FADES-CORE have been widely verified with analytical solutions and other reactive transport codes. Mon (2017) implemented re-active gas transport in INVERSE-FADES-CORE V2 by including additional mass balance equations for the reactive gaseous species in the gaseous phase. INVERSE-FADES-CORE V2 has been benchmarked with other codes for benchmarking problems dealing with high-level radioactive waste management (Samper et al., 2024).

3 Scale transition schemes for coupled processes

Scale transitions with related, subsequent models are the only way to convey multi-physics, chemical as well as microbiological process information between different scales of interest (Bilke et al., 2019). Due to coupling effects and non-linear phenomena, upscaling methods are a particular challenge for coupled THM/C processes. In general we can distinguish between different directions in multi-scale modeling, e.g., (1) development of inherent upscaling methods (e.g., coarse graining), (2) building connected model chains (see Figure 2), (3) using computational power (i.e., High-Performance-Computing) to increase model domains (Link to previous chapter 2). As there is no perfect way for scale transition, different directions have been followed.

Figure 2

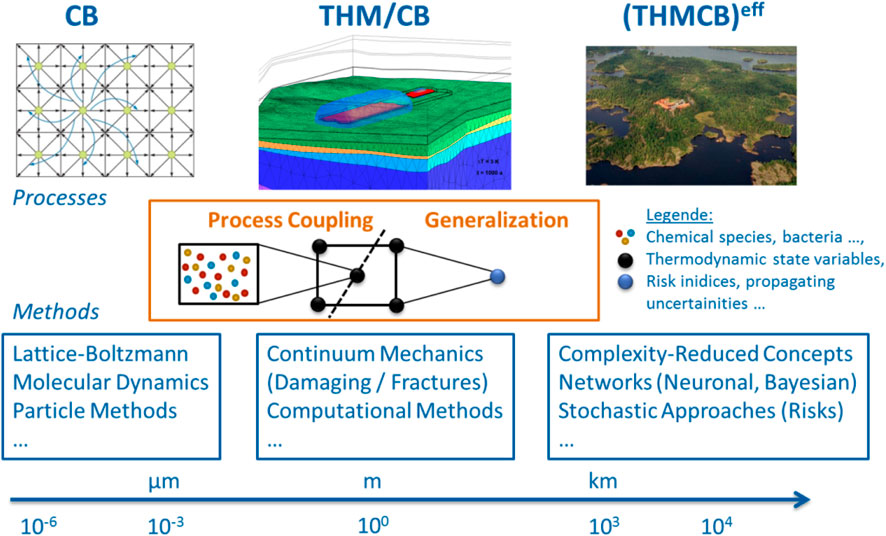

Figure 2. Vision for scale transition schemes: from process to management scales (figure sources: https://developer.nvidia.com, BGR (OGS simulation), Google Earth).

3.1 Multiscale modelling

Figure 2 serves as an explanation for (2) building connected model chains. It starts from modeling at the process scale using methods down to the atomistic, molecular scales such as Lattice-Boltzmann, Lattice-Element approaches, Molecular Dynamics or Particle Methods. These modelling techniques are able to represent fundamental processes at very small (atomistic) scales, but computationally very expensive and difficult to upscale to measurement scales. The opposite end of the scales is represented by so-called complexity-reduced models. At this scale, questions of long-term environmental impacts of radioactive waste repositories have to be addressed. To this purpose data from various sources have to be combined including geological and geographical information as well as socio-economic aspects. For large scale analysis, stochastic approaches and network simulation are being used. Only a small portion from small scale simulations can be used at this scale. However, fundamental process understanding will be a key for more reliable long-term predictions.

A possible link between the small and large scales, in particular for multi-physics problems such as THM/C, is continuum mechanics as it is based on first-order principles (conservation laws of mass, momentum and energy). On the other side continuum mechanics invoke thermodynamic consistent, constitutive laws, which may describe complex material behavior at multiple scales (e.g., micro-mechanics). In addition to fundamental continuum mechanical approaches, numerical methods using significant computational power (HPC) are available for multi-scale purposes. However, it has to be clearly stated that computational mechanics for sure can handle a certain range of process scales but not the whole required scale chain as shown in Figure 2. Therefore, the development of reliable and computational efficient model chains is important to further improve performance and safety assessment tools of radioactive waste management.

In addition to building model chains over scales, as mentioned above, the second challenge for THM/C modeling is the structural complexity of potential host rocks for nuclear waste repositories. A key structural element for geological formations is the presence of discontinuities (e.g., faults, fractures, cracks). Characterizing the state of the stress (i.e., spatial stress directions and magnitudes) in a field is, if not impossible, extremely difficult. Even if the general stress field of a potential site is reasonably estimated, it is nearly impossible to map a precise description of the existing fractures and faults and to predict their potential evolution when temperatures, pore pressures, mechanical stresses are changing. For these reasons, characterization of the earth model is typically combined with stochastic approaches involving multiple realizations in order to bracket the reality. For upscaling, so-called fractured-porous media, different methods have been developed in past (Berre et al., 2019, Figure 3): (1) Discrete-Fracture-Network (DFN) models explicitly take into account the presence of discontinuities, (2) Single and Multi-Continua approaches use effective, statistically representative parameters for describing fracture behavior (REV concept). The main idea of Multi-Continua models is to couple multiple continua via exchange functions, where every continuum is representing a typical part, i.e., fracture systems, rock matrix. (3) Discrete-Fracture-Matrix (DFM) models are combining both discrete and continual behaviors. Discrete approaches (1&3) require very precise numerical methods for accurate representation of exchange processes between fracture and matrix compartments.

Figure 3

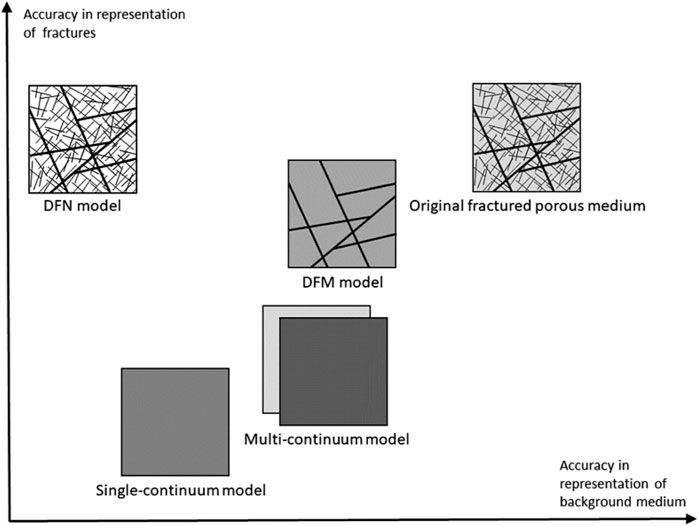

Figure 3. Conceptual approach for fractured porous media (Berre et al., 2019).

3.2 Multi-scale experiments

Dissolution and precipitation of minerals and its impact on the transport of fluids and solutes in porous media is a key factor for the long-term behaviour of natural and engineered systems in the subsurface. The implementation of such coupled processes into numerical reactive transport codes requires a mechanistic process understanding and model validation with quantitative experiments (Tartakovsky et al., 2008; Katz et al., 2011; Poonoosamy et al., 2015; Poonoosamy et al., 2019). These experiments are usually based on a simple chemical setup with well-defined kinetic and initial transport parameters. The discrepancies between experimental observations highlighted the limitations of continuum scale models when it comes to predicting changes in the transport properties in porous media due to mineral precipitation and consequent porosity changes (Chagneau et al., 2015; Poonoosamy et al., 2015; Poonoosamy et al., 2019). The primary cause for these discrepancies is that reactive transport operates at the continuum scale and considers upscaled parameters. Consequently, the interdependencies between porosity and transport parameters for instance, are accounted for in numerical models by using empirical relationships developed on the continuum scale (Hommel et al., 2018). These relationships were either fitted to experimental data or based on theoretical considerations (Poonoosamy et al., 2019; Seigneur et al., 2019). However, solute transport depends on more complicated pore space changes (pore geometry, pore connectivity) than the upscaled parameter “porosity” as accounted for in continuum-scale reactive transport approaches. The averaging process also includes geochemical parameters such as reactive surface area and reaction rates. The heterogeneity in porous media likely controls the mass fluxes and residence time in the reactive media and therefore are known to control the effective rates of mineral dissolution by reducing effective mineral surface areas physically (e.g., in fractures, or at partial saturation) and chemically (Berkowitz et al., 2016; Deng et al., 2018b; Deng et al., 2018a; Steefel et al., 2015a; Jung and Navarre-Sitchler, 2018b; Jung and Navarre-Sitchler, 2018a). Moreover, the reactive surface area of minerals constituting the porous media is not directly experimentally accessible and is often used as a fitting parameter in reactive transport simulations (Noiriel et al., 2009). The development of processes-based relationships rationalizing the effective transport properties of porous media and the reactivity of minerals remains one of the challenges of reactive transport models (Prasianakis et al., 2017; Prasianakis et al., 2018; Noiriel and Soulaine, 2021). The combination of high-quality imaging of evolving porous media and pore scale modelling is one of the key tools to develop these process-based relationships. For instance, Steinwinder and Beckingham used pore scale modeling on X-ray tomography images of an Alberta Basin Sandstone to study the impact of pore and pore throat size distribution variations on porosity and permeability evolution during coupled mineral dissolution and precipitation reactions, deriving a constitutive equation linking porosity and permeability. Various imaging methodologies have also been developed for the visualization of reactive flows in porous media, e.g., the positron emission tomography (PET, Kulenkampff et al., 2018), magnetic resonance imaging (Fridjonsson et al., 2011; Poonoosamy et al., 2020), and neutron tomography (Shafizadeh et al., 2015). However, X-ray tomography is the most widely applied tool (Spanne et al., 1994; Coles et al., 1996; Coles et al., 1998; Lindquist et al., 2000; Noiriel et al., 2004; Blunt et al., 2013; Menke et al., 2021). The principal reason is that besides conferring advantages such as non-invasive, non-destructive, and dynamic assessment of flow paths, it can also assess mineralogical changes. Recently, microfluidics or Lab-on-chip experiments (Harrison et al., 2017; Soulaine et al., 2017; Soulaine et al., 2022; Poonoosamy et al., 2019) have gained a lot of interest to unravel coupled hydro-geochemical processes at the pore scale. Lab on a chip can mimic the pore structure of rocks and enable the monitoring of mineral nucleation, precipitation, and dissolution using optical microscopy and spectroscopic techniques e.g., Raman spectroscopy (Poonoosamy et al., 2020) or synchrotron-based tomography (Deng et al., 2020). Lab-on a chip paired with pore-scale modelling has proven to be a powerful tool for rationalizing coupled processes e.g., evaluate the impact of hydraulic heterogeneity on precipitation processes (Poonoosamy et al., 2020), decode oscillatory zoning exhibited by solid solutions crystallizing in porous media under diffusive transport regime (Poonoosamy et al., 2021), or parameterize porosity-diffusivity relationships with respect to coupled mineral dissolution-precipitation reactions (Poonoosamy et al., 2022; Lönartz et al., 2023). Such experiments can be used to calibrate pore scale models prior to simulations over a wide range of Peclet and Damköhler numbers. The numerical datasets generated by these pore scale models can be further used to train convolutional neural network models, which can then be further applied to derive process-based relationships (Prasianakis et al., 2020).

3.3 Scale transitions schemes for hydro-mechanical processes

In the following section we briefly describe numerical methods which are actively developed by the project partners in order to tackle scale transition problems.

3.3.1 Two common approaches for numerical simulation of fractures generalized/extended finite-element (G/XFEM) and Variational Phase Field (VPF) methods

3.3.1.1 Generalized/extended finite-element-method

In recent years, generalized (Strouboulis et al., 2000) or extended (Belytschko and Black, 1999) finite element methods (G/XFEM) and phase-field models (Bourdin et al., 2000) for the description of existing and developing discontinuities and singularities within continuum mechanical approaches have established (Belytschko et al., 2009) themselves ahead of all others in recent years. Both methods differ fundamentally and have their own strengths and weaknesses. G/XFEM locally extends the approach and test function space by formulations that can map the discontinuous course of the solution and introduces corresponding additional local degrees of freedom. Usually, this approach is combined with so-called level set methods, which help to localize the discontinuity and thus ultimately determine in which elements the solution space has to be extended. This approach allows the approximation of discontinuous solutions on comparatively coarse grids, but requires extensive programming infrastructures for the treatment of flexible additional degrees of freedom, level sets and other aspects, which require a not inconsiderable implementation effort, especially in branched crack systems. In contrast, the phase field method represents a sharp interface such as discrete crack with a smoothly varying scalar field which is regularized by the internal length. Thus the discontinuity is not described as a low-dimensional unit, but by the means of an additional variable defined on the entire solution area, which originates in certain characteristics of an energetically motivated variational formulation in Francfort and Marigo (1998). This approach can be implemented into existing continuum codes without additional algorithmic effort where it is immediately available for solving arbitrary-dimensional problems. Crack formation, propagation, branching and unification also occur without additional effort.

G/XFEM (Belytschko and Black, 1999) was originally developed for crack propagation problems and was also applied in the geotechnical context, e.g., for multiphase flows (Chessa and Belytschko, 2003; Mohammadnejad and Khoei, 2013) and heat transport (Khoei et al., 2012; Shao et al., 2019). Current developments of generalized and extended finite element methods in the context of hydraulic stimulation are mainly concerned with the efficient coupling of solid-state and flow-mechanical problems (Yazid et al., 2009; Watanabe et al., 2012; Meschke and Leonhart, 2015).

3.3.1.2 Variational phase-field models for fractures

The theoretical basis of the so-called phase-field model for fracture was incepted in the work by Francfort and Marigo (1998) that revisted Griffith’s fracture criteria as an energy minimization problem (variational approach), and later on its numerical solution was proposed by regularizing the energy functional with a smoothly varying scalar (phase-field variable) and a regularization length parameter (internal length) by Bourdin et al. (2000). Although their work had gone relatively unnoticed in the mechanics community for a decade or so, its popularity has been surging since a ceremonial publication by Miehe et al. (2010) who coined the method “phase-field model”. Its brief narrative history can be found in a summary article in Bourdin et al. (2000). In recent years, the phase-field model enjoys its wide applicability ranging from brittle and cohesive fracture (Bourdin et al., 2008; Amor et al., 2009; Hakim and Karma, 2009; Kuhn and Müller, 2010; Pham et al., 2011; Verhoosel and de Borst, 2013; Vignollet et al., 2014; Ambati et al., 2015a; Marigo et al., 2016; Wu, 2017; Sargado et al., 2018; Tanné et al., 2018). To ductile fracturing (Ambati et al., 2015b; Miehe et al., 2015; Kuhn et al., 2016; Alessi et al., 2017) fatigue (Alessi et al., 2018), desiccation fracture (Maurini et al., 2013; Cajuhi et al., 2018), dynamic fracturing (Bourdin et al., 2008; Borden et al., 2012; Schlüter et al., 2014; Li et al., 2006), and hydraulic fracturing (Bourdin et al., 2012; Miehe et al., 2015; Yoshioka and Bourdin, 2016; Ehlers and Luo, 2017; Lee et al., 2017; Santillán et al., 2017; Chukwudozie et al., 2019).

A set of crack $(\mathrm{\Gamma })$ in a domain $(\mathrm{\Omega })$ are discontinuities where a jump in quantities such as displacement is observed (Figure 4). Therefore, when represented in a discretized form (e.g., finite element), the discretization must honor the discontinuous geometry of $\mathrm{\Gamma }$, and it can get easily untractable when the crack set evolves with time (Figure 4, left). In phase-field models for fracture, the discontinuity $(\mathrm{\Gamma })$ is represented by a smoothly varying scalar (v as in Figure 4, right) so that the discretization does not need to track the geometry change but the change in the scalar field instead. Naturally a special care must be taken in setting up such a scalar field in order to preserve the energy equivalance in the two systems and the convergence of the phase-field representation to the discrete fracture as the regularization approaches zero (Chambolle, 2004; Bourdin et al., 2008).

Figure 4

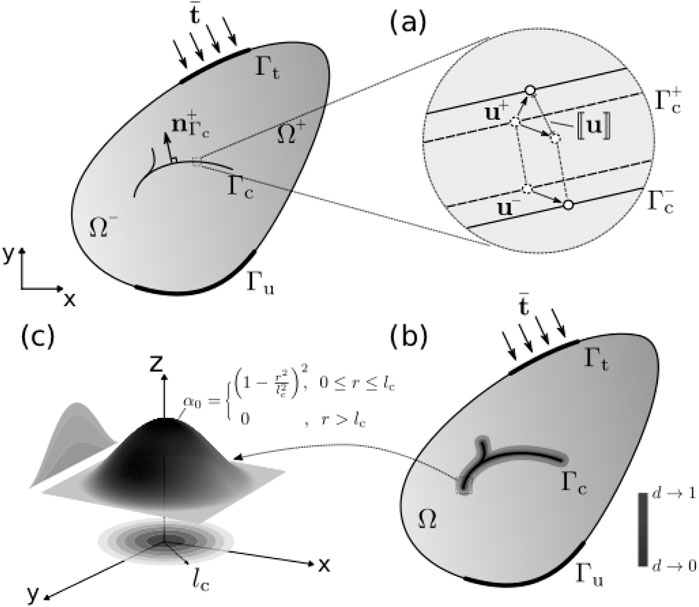

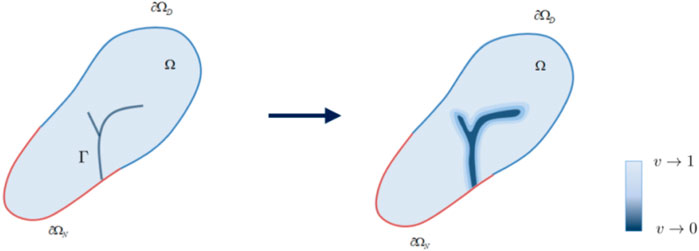

Figure 4. Concept of the Variational Phase Field (VPF method) for handling discontinuities in the context of coupled processes.

First extension of the phase-field model to hydraulic fracturing was proposed in Bourdin et al. (2012) by adding the fluid driven pressure work on the crack lips and Wheeler et al. (2014) further adapted it by adding the poro-elastic effects. In these models, while the pressures in the non-fractured medium $(\mathrm{\Omega }/\mathrm{\Gamma })$ and the fracture $(\mathrm{\Gamma })$ are distinguished, their profiles are considered spatially uniform within the domains. Phase-field fracture models coupled with Darcy-Reynolds flow system were developed in Mikelić et al. (2015a), Miehe et al. (2015), Miehe et al. (2016), Santillán et al. (2017), Xia et al. (2017), Lee et al. (2017) and Darcy-Stokes type in Ehlers and Luo (2017), Heider and Markert (2017). Other “homogenization” approaches include a model that uses the phase-field variable as an indicator in Mikelić et al. (2015b) or as a weight function for permeability averaging in Miehe et al. (2016). Heider and Markert (2017) and Ehlers and Luo (2017) developed the phase-field fracture model within the framework of the Theory of Porous Media (TPM) and considered the phase-field variable as a weight between the Darcy flow in porous media and the Stokes flow in fracture. Alternatively, coupling with fluid flow has been simplify accomplished by linking to an external standalone fluid flow simulator in Wick et al. (2016), Yoshioka and Bourdin (2016) where a phase-field variable was used to differentiate the fracture from the non-fracture domain. Instead of using the phase-field variable as an indicator or a weight, Chukwudozie et al. (2019) applied the phase-field calculus to homogenize the system while conserving the mass.

Another mass conserving approach was proposed by Santillán et al. (2017) where an independent 1D domain is generated dynamically out of the main computational domain based on certain the phase-field threshold and the fluid flows are solved separately and iteratively.

Figure 5 depicts a graphical representation of various numerical methods for the description of evolution of discontinuities, i.e., (a) lower-interface-method (LIE), (b) variational-phase field method (VPF), and non-local-deformation (NLD) methods, which will be also used in the context of various EURAD work packages (e.g., WP-GAS).

Figure 5

Figure 5. Graphical comparison of numerical methods for description of discontinuities (Yoshioka and Bourdin, 2016).

3.3.2 Multi-continua methods for hydro-mechanical processes

3.3.2.1 Modelling approach

So-called multi-continuum models are often used to better determine the heterogeneity of fractured or karstied aquifers. For example, double-continuum models take advantage of the different hydraulic properties of the rock matrix and the fissure system. While fissure systems are characterized by high permeabilities and low storage capacities, the rock matrix has low permeabilities and high storage capacities. Thus, the fissure system and the rock matrix are attributed to separate “overlapping” continua, which are coupled with each other via source-sink terms in the entire model area (see Figure 3).

Similar to the multiphase concept of a porous medium, several state variables are defined at each point in the multi-continuum model. In addition, the individual continua also have different material parameters. If one wanted to use the category of phase for a double-continuum model, it would be an allocation from a macroscopic point of view: thus not in the microscopic sense fluid and solid, but fissure system and matrix. The key point in multi-continuum modelling is the description of the interaction between the individual continua. In a sense, the exchange relationships represent non-equilibrium conditions. The recording of the local dynamics of exchange processes (gradient approaches) is problematic. Compared to the classical single-continuum approaches, multi-continuum models are better able to map heterogeneities. The differentiated continua have to process smaller structural variabilities, which has an advantageous effect on the averaging technique (e.g., size of the REV). Average state variables can be determined separately for the fissure and matrix continuum rather than an average state variable for the entire fissure-matrix system.

The numerical implementation of multi-continuum models can be done on the one hand by coupling separate equations for fissure and matrix media via exchange terms (Bibby, 1981; Huyakorn et al., 1983; Birkhölzer et al., 1993a; Birkhölzer et al., 1993b) or on the other hand by simultaneously solving the equation systems using iterative techniques (Pruess and Narasimhan, 1982; Neretnieks and Rasmuson, 1984).

Multi-continuum models are widely used, for example, in the interpretation of pump tests in solid rock or the delayed hydraulic response to precipitation events in karst aquifers (Sauter et al., 2006), the hazard assessment of groundwater deposits in near-surface solid rock areas and the exploration of oil and gas deposits (Gilman et al., 1983). An advantage for the model calibration is the justifiable exploration effort to adapt the limited number of model parameters. Typical geological formations for which classical single-continuum models may fail and require multi-continuum approaches include porous sandstones, karst aquifers, loose rocks with clay intercalations or silty portions, and fissured bedrock. The application potential of the multi-continuum concept to process simulation in hierarchical fissure or pore systems (e.g., intergranular pores of the grain skeleton and micropores in the rock grains) seems to be interesting. In the process, fracture systems of different scale sizes are to be assigned individual continua (Clemens et al., 1996). More recent efforts in model development also concern the coupling of discrete fissure models with multi-continuum models.

3.3.2.2 Hydromechanical problems

Dual and multiple continua for hydromechanical problems follows from original models for this kind of conceptual representation of individual processes of solute transport with dead-end pores or mechanics of composites. More details of development of the porous/fracture flow and solute transport models is given in the (section 3.3.2.3). Interaction of stress and deformation with fluid flow, the general used theory is by Biot (1941) and the generalisation into the dual porosity concept of poroelasticity is by Aifantis (1977).

The recent work aims to various applications, with shares of reservoir engineering, hydraulic fracturing, and deep geological repository. More frequent are hierarchical porous media than upscaled fractured rock. Ashworth and Doster (2019) compares various formulas of previous authors, especially 3 works in details, including a table form of coefficient formulas list, and evaluates the importance of coupling. Example calculation is with Mandel problem (Nguyen and Abousleiman, 2010, Figure 6).

Figure 6

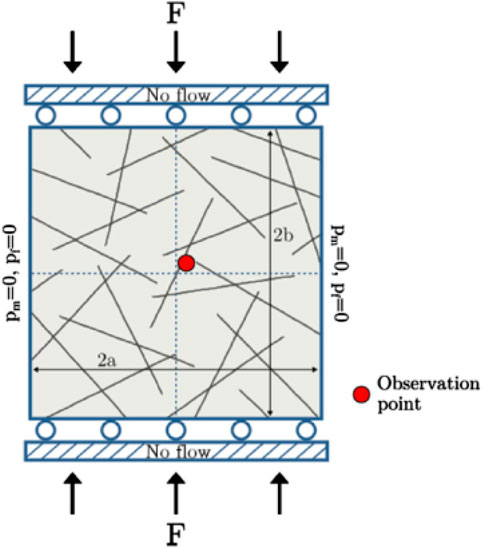

Figure 6. Problem used for benchmarking dual-continuum poroelastic models (Ashworth and Doster, 2019).

Liu et al. (2018) derive theoretical formulation and analytical solutions to the inclined wellbore problem and axisymmetric Mandel-Type problem of dual-porosity, dual-permeability poro-chemo-electro-elasticity. The model is able to explain phenomena which could seem anomalous without consideration of the coupling effects. Kim et al. (2018) simulates hydraulic fracturing process by means of 3D thermo-poro-mechanical model including the dual porosity approach. The movement of water is retarded with respect to the fracture propagation. It also theoretically demonstrates which of the effects can be detected by electromagnetic geophysical methods. Vasilyeva et al. (2019) fits the method to perforated domains, which establish quite active sub-topic within the dual-continuum upscaling. Non-local multi-continuum method (Chung et al., 2018) is used which is specific in construction of local basis functions capturing also the non-local effects. Special attention is to generalisation of the boundary conditions on perforations. Choo et al. (2016) and Sanchez et al. (2016a) deal with unsaturated conditions of the dual-porosity media and model the hydro-mechanical and thermos-hydro-mechanical processes, respectively. Kim et al. (2015) suggest an algorithm for coupling of chemo-thermo-poro-mechanics, for fractured rock. Wang et al. (2014) simulates the fractured rock, with effect of stress on flow and transport, as an issue of the deep geological repository safety. The transport is represented by multiple continua (MINC) and the hydro-mechanics by Oda (1986) crack tensor theory, denoting the method as Ex-MINC (extended) - Figure 7. The benchmark problem was also used to successfully compare this upscaled homogenization concept with several solution on full fracture network (small-scale view).

Figure 7

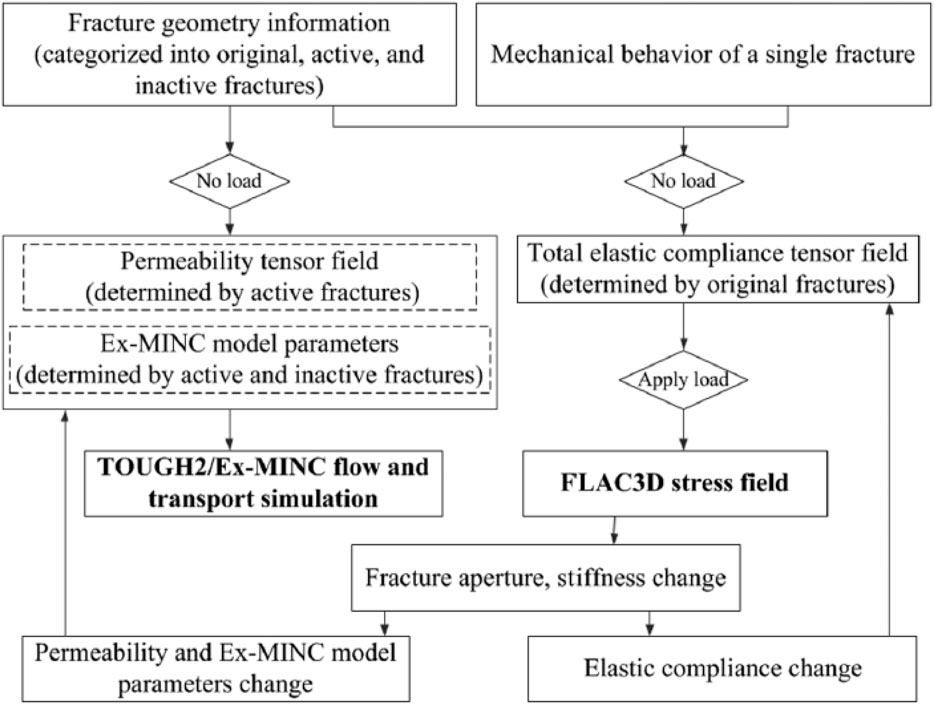

Figure 7. Scheme of the extended multiple interacting continua (Ex-MINC) method (Wang et al., 2014).

3.3.2.3 Lumped Parameter Modeling

The term Lumped Parameter Modeling (LPM) is not commonly used in context of repository models, but many of them are built on these principles. The meaning is that a system is represented by a single value of certain quantity (either a parameter or a state variable) for whole or a component, in an average or integral meaning, contrary to point values representing infinitesimally small volume. The classical use of LPMs is to create the model based on system observation, capturing its behavior as a link between “input” and “output”, or control and response quantities–understanding the system as “black-box”. Alternatively, LPMs can be seen as an upscaling method, using simplified and numerically efficient model with less degrees of freedom whereas the lumped behavior is based on solution of detailed equations controlling the system (physically-based model). The principal ingredient of such approach is then a procedure of integral postprocessing of quantity fields resulting from the controlling equations.

Besides LPM, also a term “compartment model” is used in similar meaning, but including flexibility such that the meaning of a compartment can be either a lumped subsystem, or a discretization element (Figure 8). Such case is the concept in Goldsim software (Golder Associates, 2014), which is also considered as one of the options in Czech performance assessment of spent nuclear fuel repository (Vopálka et al., 2006).

Figure 8

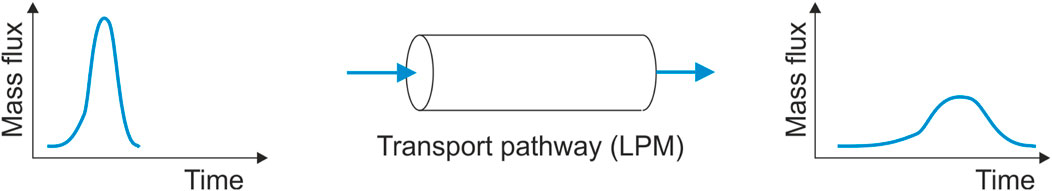

Figure 8. Scheme of a compartment capturing a solute transport process in the lumped-parameter model sense (redrawn after Golder Associates, 2014).

There are not many recent studies using lumped models for flow and solute transport, which are meant also as basis for the performance assessment models. Therefore the references cover a longer period and contain work which was not further developed in the recent 5–10 years. The state of the art report is limited to the partial topics of how the continuous field quantities of 2D/3D models are integrated into the lumped parameter models and how the models with various features related to LPMs are used in performance assessment.

The principle of “integrating” the physics into the compartment block in/out behavior in Goldsim software (Golder Associates, 2014) is the use of analytical solution, which calculates a “breakthrough” of radionuclide controlled by homogeneous fracture and rock parameters for the respective compartment. Similar concept of analytical solution is introduced by Chopra et al. (2015) which improves the referred existing (mostly widely used) solutions with adding the proper hydrodynamic dispersion solution.

The older work of Gylling et al. (1997) represents a reference case of performance assessment model which has features of both distributed and lumped model. The channel network model (CHAN3D) for solute transport in fractured granite uses direct input of data (not as upscaling), but the channels are defined with strong abstraction of physical meaning (regularized geometry with transforming of parameters to the same effective properties).

A lumped model denoted as Tank model for regional groundwater flows is proposed for a case study of the groundwater flow system (Kazumba et al., 2008). The aquifer is divided into Tanks within which the average values of the groundwater levels are assumed to be representative in the Tanks. For each Tank the mass-balance equations are written. The Quasi–Newton optimization technique together with Akaike’s Information Criterion, AIC, are employed in order to balance the model/observation fit and reliability of the parameter estimation. The results suggest disconnection of some regional aquifers as well as inflow of seawater to the deeper layers.

The model representing the groundwater pathway in risk assessment or performance assessment developed by Robinson and Chu (2013) is called the Residence Time Distribution (RTD) Mixing Model (RTDMM), allows for an arbitrary distribution of fluid travel times to be represented, to capture the effects on the breakthrough curve of flow processes such as channelized flow and fast pathways and complex three-dimensional dispersion. Mathematical methods are derived directly from the theory of residence time distributions. A simple mixing model is presented, along with the basic equations required to enable an arbitrary RTD to be reproduced using the model. The advantages include easy incorporation into a multi-realization probabilistic simulation; computational burden similar to 1D model with the same number of grid cells; and straightforward implementation into existing flow and transport modelling codes. Examples include cases of a radioactive decay chain, dual porosity transport and sorption.

The case study (Hagedorn et al., 2018) examines the nitrate pollution vulnerability of groundwater in sedimentary aquifers of California’s South Coast Range using stepwise logistic regression modelling. The study highlights the utility of two parameters, Dissolved Oxygen and Modern Water Proportion, for predicting nitrate contamination vulnerability. Authors conclude a possibility to use the results to guide field investigations in areas with little data but similar hydrogeology and land use.

Overview paper (Rechard et al., 2014) summarizes modelling of radionuclide transport in the unsaturated and saturated zone conducted between 1984 and 2008 to evaluate the performance of Yucca Mountain disposal system. The listed models start at 1-D transport for a single porosity media without lateral dispersion in both the saturated and unsaturated zone for the first assessment in 1984. Gradually the models progressed until 2008 to the 3-D transport model the saturated zone, combined with 1-D transport results, which evaluated decay of radionuclides, in order to evaluate compliance with groundwater protection requirements. Uncertainty in flow within the unsaturated and saturated zone was generally important to explaining the spread in the individual dose performance measure.

For Nuclear fuel cycle and nuclear waste disposal decisions, Huff (2017) developed the Cyder disposal environment and repository module, which implements models of medium likelihood of hydrological radionuclide to support assessment suitable for fuel cycle simulation simulator “Cyclus”. By means of four modules with close-form solution of physics it is possible to reduce the computational need.

The lumped Rapid Saline Groundwater Exfiltration Model (RSGEM) was developed to support operational water management of freshwater resources in coastal lowlands, a need exists for a rapid, well-identifiable model to simulate salinity dynamics of exfiltrating groundwater (Delsman et al., 2017). The RSGEM was applied to a field site in the coastal region of the Netherlands, parameter estimation and uncertainty analysis were performed using generalized likelihood uncertainty estimation. The model showed good correspondence to measured groundwater levels, exfiltration rates and salinity response. Moreover, RSGEM results were very similar to a detailed, complex groundwater flow and transport model previously applied to this field site.

Kawasaki and Ahn (2008) also employs the residence time distribution and includes stochastic methods like random walk. The evaluation can be modularised and so it convenient e.g., for efficient representation of multiple waste packages. It also avoids artificial numerical dispersion for coarse discretisation.

Murakami and Ahn (2011) develops a model with array of compartments, among which a transition probability matrix describes radionuclide transport (Markov-chain process). Transition probabilities are upscaled from finite-element flow and transport solutions. Authors suggest efficiency of the method for modelling effects of parameter changes. Paper of Cadini et al. (2010) brings another example of compartment model with stochastic features, where detailed local-scale modelling results “feed” a global-scale analysis of the repository, at reasonable computational expenses.

The topic was recently revisited in the EURAD project (work package DONUT), where a postprocessing method was developed, which derives the lumped-parameter model inputs from a 3D flow and transport model containing detailed hydrogeological data of a site (Landa and Hokr, 2022). The method was demonstrated on nine repository candidate sites in the Czech Republic, calculating the transport path characteristics for Goldsim software. The acquired data could be also used directly to compare the sites or to narrow their selection.

3.4 Scale transitions schemes for hydro-chemical processes

3.4.1 Lattice Boltzmann method (LBM)

The lattice Boltzmann method (LBM) is a special discretization of the Boltzmann equation operating at the level of velocity probability distribution functions fi, with focus on fluid dynamics and mass and heat transport phenomena. At every distribution function corresponds a discrete velocity vector (Frisch et al., 1986; Succi et al., 1989). Different discretization schemes lead to different number of discrete velocities, there exist different lattice models (Higuera et al., 1989; Qian et al., 1992). For the recovery of Navier-Stokes fluid motion equations, for two-dimensional simulations the standard D2Q9 square lattice with 9 discrete velocities is usually implemented, and for three dimensional simulations the D3Q27 cubic lattice with 27 discrete velocities, due to their simplicity and robustness in complex geometry domains (see Figure 9). The diffusion equation can also be recovered on the same or smaller velocity sets.

Figure 9

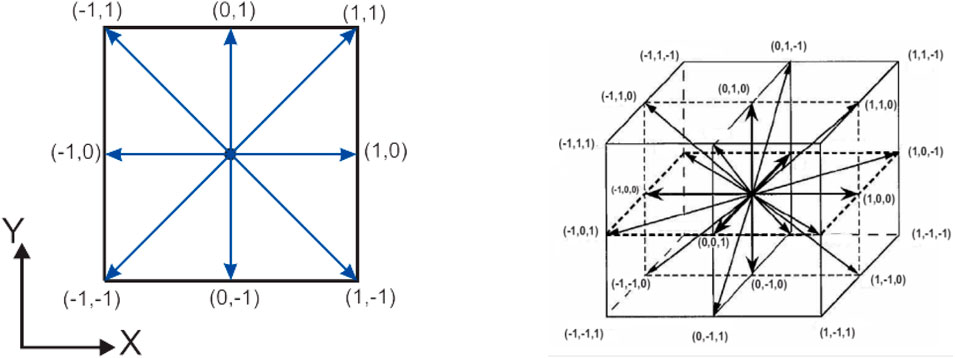

Figure 9. Standard lattices (left) two dimensional 9-velocity lattice (D2Q9), (right) the three dimensional 27-velocity lattice (D3Q27).

For reactive transport simulations in geological relevant flows, the mass is transported via diffusion and advection. For the modelling of the advection-diffusion equation the passive scalar approach is usually implemented. Such a model is composed of a basis fluid medium (a population set which has the dynamics as described by the Navier-Stokes equations, plus a passive scalar coupled population set that simulates the diffusion of ions. The basic lattice Boltzmann discretization approximates the Navier-Stokes equations to a certain accuracy, which for very high flow velocities can become significant and can manifest itself as the loss of Galilean invariance. There are several ways to overcome this issue. For example, the isothermal guided equilibrium nine-velocity model (D2Q9 lattice), can be selected as the basis model for the advective flow field as well as for the field that advect and diffuse (Prasianakis et al., 2009; 2017). This model provides enhanced Galilean invariance and rotational isotropy on the standard lattices.

The discrete velocities of populations f_i for i = 0–8, are c_i = (0, 0) for i = 0, c_i = ($\pm$ 1, 0) and (0, $\pm$ 1) for i = 1–4, and c_i = ($\pm$ 1, $\pm$ 1) for i = 5–8 (Qian et al., 1992). The following population-moments correspond to the density of the solution $\rho$ and the momentum j_a in the direction a = x, y as shown in Equation 1:

${\displaystyle \sum _{i=0}^8}{f}_i=\rho ,{\displaystyle \sum _{i=0}^8}{c}_{ia}{f}_i=j_a(1)$

The guided equilibrium populations $f_i^{\text{eq}}$ are given in a closed form, where T₀ = 1/3 as shown in Equation 2:

$f_i^{eq}=\rho \prod _{a=x,y}\frac{\left(2c_{ia}^2-1\right)}{2^{c_{ia}^2}}\left(c_{ia}^2-1+c_{ia}{u}_a+u_a^2+T_0\right)(2)$

The Boltzmann BGK equation is solved as shown in Equation 3:

${\partial }_t{f}_i+c_{ia}{\partial }_a{f}_i=-\frac{1}{\tau }\left(f_i-f_i^{eq}\right)(3)$

where $\tau$ is the relaxation parameter and $\mu =\tau \rho T_0$ is the resulting macroscopic dynamic viscosity. BGK stands for the Bhatnagar-Gross-Krook collision model as depicted in the right hand side of the aforementioned equation and describes the relaxation of populations f_i to their equilibrium state f_i^eq with relaxation time $\tau$. For the advection-diffusion reaction equations of the reactive species a D2Q9 model can also be implemented. The solutes (primary and secondary species) will advect and diffuse along the streamlines of the flow field. The equilibrium populations ${\xi }_i^{\text{eq}}$ for the reactive species ${\xi }_i$ are given as shown in Equation 4:

${\xi }_i^{eq}=C_i\prod _{\alpha =x,y}\frac{\left(1-2c_{i\alpha }^2\right)}{2^{c_{i\alpha }^2}}\left(c_{i\alpha }^2-1+c_{i\alpha }{u}_{\alpha }+T_0\right),(4)$

where $C_i$ is the concentration of the considered ions and $u_{\alpha }$ is obtained from the basis model. The relevant population moment that corresponds to the concentration is as shown in Equation 5:

${\displaystyle \sum _{i=0}^8}{\xi }_i=C_i(5)$

Advantages of the LBM for reactive transport geochemical applications are the ability to simulate evolving geometries of high complexity (due to dissolution or precipitation), the local mass and momentum conservation, as well as the parallelization efficiency. The high scalability of LBM codes is related to the locality of the mesh based particle-particle interactions, which requires only next neighbor communication between the grid points. To that, it should be added that LB codes are usually simple in terms of coding and they do not depend on external libraries. This allows the incorporation of additional physics (electrochemical, multiphase etc.) in a relatively fast pace, as soon as the theoretical model is expressed in the lattice Boltzmann framework.

3.4.1.1 Classical nucleation theory embedded in a cross scale LB model for precipitation

Mineral dissolution and precipitation is a multiscale process that covers several length and time scales. According to the classical nucleation theory, at the molecular level, when a supersaturation level is exceeded the ions start forming critical nuclei which serve as the bases of crystal formation. The energetic barrier that has to be overcome is different depending on the mechanism of precipitation. Heterogeneous precipitation (HET) proceeds on an existing template, and the formation of critical occurs at lower supersaturations, compared to the homogeneous nucleation (HON). Homogenous nucleation takes place in the bulk solution and requires no substrate, but higher level of supersaturation. In Figure 10 (left) a schematic representation of this mechanism is plotted. The blue curve shows the HET nucleation path and the red curve the HON. In Prasianakis et al. (2017), the classical nucleation theory was implemented within the LBM framework. Once the pore structure is known (e.g., x-ray tomogram), the reactive surface areas for heterogeneous nucleation are resolved at the micrometer level. For the homogeneous nucleation, a sub-lattice model has been implemented. The formation of critical nuclei depends on saturation index. The number of molecules that form the critical nuclei and induction time are modelled by CNT, and the precipitation proceeds on spherical particles which grow until they fill the space. The surface area for precipitation is the sum of the surface of the spheres. A schematic of this process is shown in Figure 10 (right). At the moment only 2D simulations have been conducted, and only for barite and celestite minerals whose precipitation follows the classical nucleation paths. While challenging, this model can be potentially applied for cases where minerals follow non-classical nucleation paths. The parametrization of HET and HON nucleation mechanisms takes into account also the contact angles of different phases and the surface tensions.

Figure 10

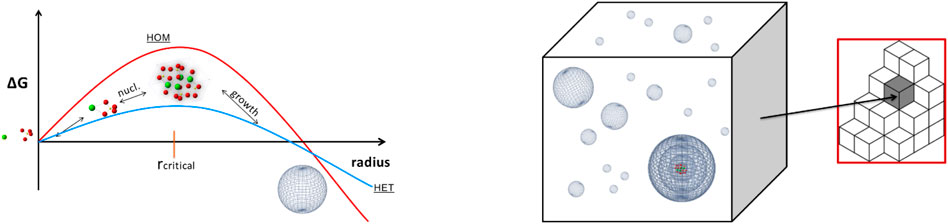

Figure 10. Cross scale precipitation modelling. (left) Classical nucleation Theory and energetic barriers to produce the critical nuclei for homogeneous (HON) and heterogeneous (HET) nucleation mechanisms. The two dimensional 9-velocity lattice (D2Q9), (right) Sub-lattice model for homogeneous nucleation which allows to model the evolution of reactive surface areas.

3.4.1.2 Electrochemical couplings at lattice Boltzmann framework

The dominating pores for ion transport in tight porous media (such as high-performance concrete and compacted clays) are normally at several nanometers size. At this scale, the interface effect, especially the electrical double layer effect, has an important role on ion transport. For example, the relative effective diffusivities of different species in cement paste follow the order $C{L}^{-}\approx HTO/O_2>N{a}^{+}>C{s}^{+}$ (Yang et al., 2019a). However, this is completely different from the order: $C{L}^{-}<HTO/O_2<N{a}^{+}$ obtained by the classical Nernst-Planck equation as shown in Equations 6, 7:

$\frac{\partial C_i}{\partial t}+\nabla \cdot J_i=0(6)$

$J_i=-D_{i,0}\nabla C_i-D_{i,0}\frac{z_{i}e{C}_i}{kT}\nabla \psi (7)$

where $C_i$, $D_{i,0}$, $J_i$, $\psi$ and $z_i$ denote the aqueous concentration (mol/m³), the diffusion coefficient in free water (m²/s), flux (mol/m²/s), local electrical potential (V) and valence of the i^th species, respectively; $t$ is time (s), $e$ the absolute charge of the electron (C), k the Boltzmann constant (J/K) and T the absolute temperature (K). This classical model cannot accurately capture the ionic steric effect and the ion-ion correlation effect (Gillespie, 2014). Therefore in order to consider the steric effect and the ion-ion correlation effect, an excess chemical potential ${\mu }_i^{\text{ex}}$ term is usually added to the classical chemical potential as shown in Equation 8:

$J_i=-D_{i,0}\nabla C_i-D_{i,0}\frac{z_{i}e{C}_i}{kT}\nabla \psi -D_{i,0}\frac{C_i}{kT}\nabla {\mu }_i^{ex}(8)$

This equation is the modified Nernst-Planck equation. However, the estimation of excess chemical potential in the Stern layer is still developing. The model was set up by Bikerman (1942) to correct the ion concentrations in the Stern layer. After Bikerman’s model, numerous continuous-scale theoretical models were developed to calculate the excess chemical potential in the Stern layer, but still each theory has its limitations (Lu and Zhou, 2011; Gillespie, 2014; Qiao et al., 2016). The exact ion distribution in the EDL at an arbitrarily charged surface or ionic strength of the electrolyte solution can be obtained by molecular-scale simulation. Therefore, the statistic information obtained by the molecular-scale simulation can be used to calculate the dimensionless excess chemical potential ${\mu }_i^{\text{ex}}/kT$ as shown in Equation 9:

$\frac{1}{kT}{\mu }_i^{ex}\left(x\right)=-\frac{e{z}_i}{kT}{\psi }^{\mathit{GCMC}}\left(x\right)-\ln \left(\frac{C_i^{\mathit{GCMC}}\left(x\right)}{C_{i,\infty }}\right)(9)$

where the equilibrium ion concentration distribution $C_i^{\text{GCMC}}(x)$ and the electrical potential distribution ${\psi }^{\text{GCMC}}(x)$ away from the solid surface are obtained by the grand canonical Monte Carlo scheme at atomic scale. This dimensionless excess chemical potential ${\mu }_i^{\text{ex}}/kT$ from the grand canonical Monte Carlo simulation is then applied to fitting with the nonlinear functions $F(x,C_{i,\infty })$ to get the relationship of ${\mu }_i^{\text{ex}}/kT$ with respect to the distance x and bulk concentration $C_{i,\infty }$. This upscaling strategy combines pore-scale modeling with atomic-scale modeling by adding the correction term for the excess chemical potential into the classical Nernst Planck equation to account for steric and ion-ion correlation effects. After this, the modified Nernst Planck equation is solved by the Lattice-Boltzmann method to simulate ion transport in tight porous media at pore scale and to calculate the effective diffusion coefficient of each species.

3.4.1.3 Partial saturation

In unsaturated nano porous media, electrical double layer (EDL) effects caused by the charged surface of clays can significantly enhance cation diffusion but reduce anion diffusion (Wu, 2017; Yang et al., 2019b). On the other hand, since the polarizability of anions is normally larger than that of cations, anions are closer to the air/water interface than cations in partially saturated porous media (Olivieri et al., 2018; Jungwirth and Tobias, 2022). As the thickness of the water layer reaches the nanoscale, the air-water and water-solid interfaces may both have a significant influence on ion distribution and further affect ion transport in partially saturated porous media. A novel pore-scale model to solve coupled Poisson-Nernst-Planck equations has been established to simulate solute diffusion in unsaturated compacted clays. Results indicate the critical influence of the electrical double layer effect on ionic radionuclide transport in nanopores of clay-based materials (Yang et al., 2024). By passing we note that the mobility of gases in partially saturated clays has been also evaluated using molecular dynamics modelling in Owusu et al. (2022), Owusu et al. (2023), and the results can be upscaled directly to pore-level methods.

3.4.2 Multi-continua methods for hydro-chemical processes

Similar conceptual models of solute transport are covered by slightly variable terminology–double/dual porosity, double/dual continuum, two-region model. Contrary, the terms describing the configuration can be the same used as related to various physical processes. An exception is often such that dual-permeability and dual-porosity distinguish a relation to either the fluid flow or the solute transport.

Examples of early work are Coats and Smith (1964) with explanation of stagnant water in dead-end pores and, from another application field, Bedford and Stern (1972) developing theory for mechanics of composite material. The common idea for conceptual models is that a heterogeneous material is represented macroscopically by two or more interacting continua, each with separate degrees of freedom for a state physical quantity in a geometric point of space, understood in sense of representative elementary volume. Various terminologies are for denoting the meaning of continua, for solute transport it is typically the mobile and immobile zone.

In the context of upscaling, the multi-continuum models are used as homogenized counterpart of fractured rock, capturing the different behaviour of fracture volume and matrix pores, as introduced e.g., by Barenblatt and Zheltov (1960) and Warren and Root (1963).

One of the further direction of concept development was the “multiple interacting continua” (MINC) by Pruess and Narasimhan (1982). It assumes a nested sequence of continua which represent a virtual distance from the fracture into the matrix, i.e., one degree of freedom for the immobile zone is multiplied to represent the micro-scale heterogeneity more accurately. The models are in quite continuous interest in time and it is a live topic both for application of methods for specific case studies and for further developments and extensions of theory or calculation efficiency. The number of relevant publications in the last 5 year creates a significant share of the total number over the history (up to 30%).

The recent studies are oriented to various types of improvements. A lot of studies is related to the reservoir engineering especially gas/oil in shales, CO₂ enhancing or CO₂ storage, with effort to suit the methods and data for specific type of rocks.

Examples of generic topics (Figure 11):

• Procedures to obtain dual- or multi-continuum parameters from local

• Relevant pore-scale properties which are (controlling) for determination of macro-scale parameters

• Selection of number of continuum levels and their association to the material

• Extension of methods from standard flow and transport equations to mode complex processes (non-linear, coupled problems)

• Numerical efficiency improvement

Figure 11

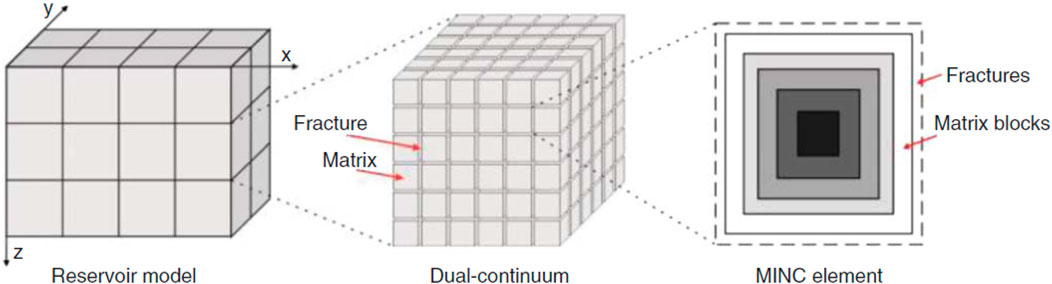

Figure 11. Concept of the multiple interacting continua (MINC) method (Jiang and Younis, 2015) redesigned form of original (Pruess and Narasimhan, 1982).

3.4.2.1 Phenomena capturing, conceptual improvement

Vogler et al. (2018) compares a hierarchy of upscaled dual porosity models and by comparison with tracer experiment they show that the dominant error arises from neglecting of local convection and that the properly upscaled model can explain the experiment without need to consider non-Fickian diffusion (see section 3.3.6). Wang et al. (2016) introduce a transient transfer function which is based on discrete fractures. Wang et al. (2020) derives a new scheme based on the Generalized Multiscale Finite Element Method (Efendiev et al., 2013) and establish a triple-continuum model for fractured-vuggy carbonate reservoirs. The method improves efficiency. This is accomplished by systematically generating an approximation space through solving a series of local snapshot and spectral problems. The resulting eigenfunctions can pass the local features to the global level when acting as basis functions in the global coarse problems.

3.4.2.2 Small scale models/upscaling parameters

Chen et al. (2019) develop a method to measure the dual porosity parameters, in relation to hydrocarbon sources in shales. It is improved with respect to the previous work through different upstream and downstream. Steiner and Mittermeir (2017) evaluate the matrix-fracture transfer rate, from a numerical calculation on a fine scale single matrix block model. They conclude that a general formula it not yet established but the suggested type is perspective for further generalisation. Ceriotti et al. (2019) introduce a technique to obtain two effective parameters of the upscaled dual porosity model through numerical solution of a simplified unit cell (Figure 12). Porta et al. (2015) evaluate experiments in “synthetic” porous media (glass beads) and uses a pore-scale 3D image. They resolves the former limitation that relying solely on information about the geometrical attributes of the pore space obtained through NMR and electric resistivity measurements does not lead to a reliable characterization of the full set of model parameters.

Figure 12

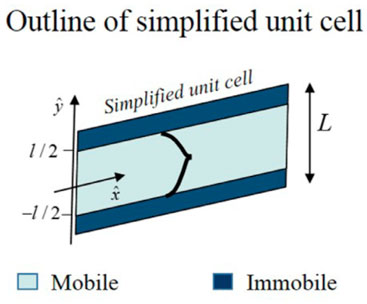

Figure 12. Example of small-scale cell used for calculation of macro-scale dual porosity parameters (Ceriotti et al., 2019).

3.4.2.3 Numerical methods

Ghahfarokhi (2017) shows that a structured mesh orientation has effect on the Oda’s method accuracy even when the known correction is used. Wang et al. (2017) applied the “proper orthogonal decomposition”, which is useful for model reduction and introduced a new version with mass conservation. Next, Wang et al. (2018) improves the solution algorithm to ensure the global mass conservation. Karimi-Fard and Durlofsky (2016) introduced a special technique of fine-grid discretization, upscaling, and coarse-grid discretization, which can be used with “arbitrary” simulator for accurate solution with little computing requirement. Chung et al. (2018) provide rigorous and accurate non-local solution (in the oversampled region).

3.4.3 Hybrid-scale approach

Reactive transport modeling has established itself as a powerful, versatile and essential tool for tackling the complexity of the multi-space and temporal-scale issues engineers and scientists face. Active topics of research dealing with reactive transport modelling include the development of pore scale and hybrid, or multiple continua, models to capture the scale dependence of coupled reactive transport processes. At the continuum scale, the reactive transport constitutive equations rely on the description of the porous medium with respect to its macroscopically measurable properties (e.g., permeability, diffusability). At the pore scale each point of the space is occupied by either a fluid or a solid phase and macroscopically measurable properties do not apply. Coupling the pore scale and the continnum scale is a challenge and recently porousMedia4Foam plateform (Soulaine et al., 2021) has been developped in order to do it in a smart manner using the Darcy-Brinkman-Stokes equation. The developed platform was validated against existing benchmark. At the continuum scale the reference benchmark have been published in Xie et al. (2015) and Poonoosamy et al. (2021). The obtained results have been published in Pavuluri et al. (2022). At the pore scale, the reference benchmark was the one published by Molins et al. (2021) and the result discussed in Soulaine (2021). At the hybrid-scale the ability of porousMedia4Foam modelling framework was demonstrated simulating dissolution and precipitation processes in fractured porous media. Here, the reactive medium consisted of celestite grains that reacted with a barium chloride solution injected into the system, leading to the dissolution of celestite and the growth of barite. Differences in mineral precipitation has been observed in dissolution patterns by varying the injection rates.

3.4.4 Coarse graining

Coarse-grained models, aim at simulating the behavior of complex systems using a simplified (coarse-grained) representation. Coarse-grained approaches are widely used in atomistic/molecular modeling. Simplification is essential, as the large numbers of atoms/molecules cannot be represented. Coarse-grained models are also often used for multiscale modeling. Coarse-grained approaches are attempting to bridge neighbor scales in a consistent continuum-mechanical way.

We provide a few recent examples to elucidate the status quo and potential of the multiscale methodology (Tahmasebi and Kamrava, 2018). Recently, Churakov and Prasianakis (2018) presented a review on a holistic process-based approach for reactive mass transport with an emphasis on mineral reactions in porous media. The paper reports the current status quo of mineral-fluid interface chemistry at molecular level and develops a road map for the general challenge: How to translate atomistic phenomena translate into macroscopic levels for practical model applications?

Gurikov et al. (2016) present a cellular automaton model for large-scale simulations at molecular level. They attempt to describe mass transport processes in porous media, i.e., diffusion, adsorption and directed flow in porous media, with large representative elementary volumes (REV). The framework could be successfully used to model diffusion processes in disordered porous structures with phase separation phenomena. Essential features of the molecular processes could be represented for physically meaningful time scales.

Recently, Schmidt and Steeb (2019) introduced a multiscale approach for hydro-mechanical coupling of fluid-filled fractures using a hybrid-dimensional element formulations with non-conformal meshes. In their hybrid approach they use parabolic velocity profile with the fracture to capture the fluid mechanics behavior at small scale and avoiding an explicit discretization. The fracture dimension is reduced by one order and implemented as interface elements to the modeling domain. The mass and momentum balances are described by modified balance equations, respectively. Different coupling schemes (staggered vs. monolithic) have been implemented and tested for testing the accuracy of the hybrid scheme. A number of test cases have been used for validation of the newly developed approach. Alyaev et al. (2019) using a similar approach for simulating single-phase flows in porous media with inertial effects based on a control volume heterogeneous multiscale method.

Coarse-grained methods are also used in related areas such as sediment transport, when modeling flow over mobile porous media. Biegert et al. (2018) couple particle and fluid phase flow with a coarse-grained approach. They conducted a grain-resolved direct numerical simulation of multiphase flow for the coupled particle-fluid systems. The particle phase is introduced by a boundary method where particle interactions be can taken into account via a discrete element method. The governing equations for fluid flow and stress budgets are derived by double averaging procedures.

3.4.5 Porosity permeability alterations in reacting environments and upscaling approaches

Precipitation and dissolution reactions in porous media dominate and control a large number of geochemical processes and industrial applications. The precipitation and dissolution of minerals from aqueous solutions alters the pore space and its connectivity. This has a strong effect on the mass convection and diffusion through the porous medium. For example, when a mineral precipitates/dissolves on the reactive porous surface, the overall porosity decreases/increases leading to a subsequent decrease/increase in permeability and effective diffusivity. At the same time the connectivity of the pores can also change in a way to block or to facilitate the mass diffusion processes.

It is common that the field scale simulations (continuum scale) use a simplified description of the processes that actually take place at the pore-level scale (microscale). For example, the change in permeability and diffusivity of a porous medium due to reactions is correlated to a global change of the bulk porosity in the medium, using empirical laws. It has been demonstrated, that smooth simplified relations are frequently inadequate to predict accurately the temporal evolution of the system of interest (Steefel et al., 2015a).

The predictability of the models can be greatly improved after resolving experimentally and numerically the physical phenomena and process mechanisms occurring at the microscale, followed by an upscaling procedure to the continuum scale (Noiriel and Daval, 2017; Deng et al., 2018a; Prasianakis et al., 2018; Molins et al., 2019). For example, depending on the conditions, a calcite rock can be dissolved following a face dissolution mechanism or via wormhole mechanism (Hoefner and Fogler, 1988; Portier et al., 2009; Menke et al., 2016). The resulting porosity-permeability correlation for the same rock can be greatly different (Prasianakis et al., 2018). The flow conditions can be described by the Peclet and Damkohler numbers. In Figure 13 such an example is shown, where the LBM framework has been used. Different flow conditions on the same rock have been implemented, which resulted in distinct permeability evolution paths.

Figure 13

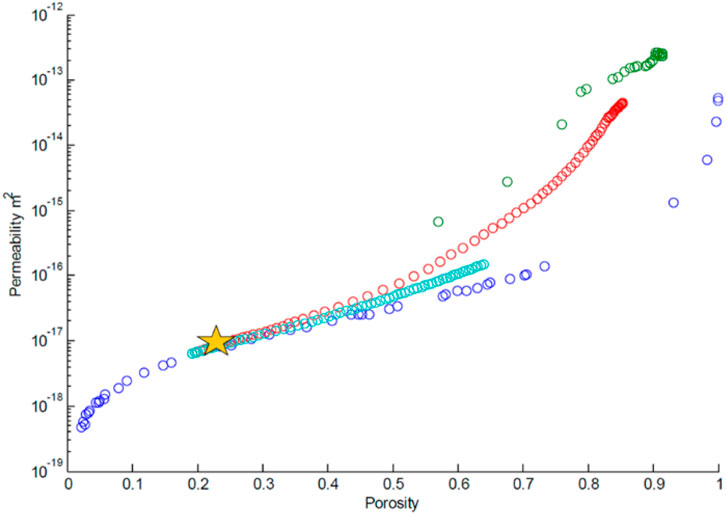

Figure 13. Evolution of permeability for different reactive transport dissolution scenario in a porous medium. Porosity permeability correlations can be extracted via fitting for use with macroscopic codes. Blue points represent the random set of geometries permeabilities that can serve as starting points (star). A geometry with 20% porosity is selected. Temporal evolution of the structure for three different cases were Peclet and Damkohler number vary.

Capturing the dynamic processes of porosity clogging has been the subject of several studies where pore-level simulators have been used in conjunction with computer generated pore and fracture geometries (Fazeli et al., 2019; Fazeli et al., 2020; Wang et al., 2023), or with specialized experiments (Lönartz et al., 2023).

At the moment, it is computationally very challenging to extract such correlations, since three dimensional reactive transport calculations are needed.

Upscaling of mineral precipitation and dissolution processes in porous media affecting the pore structure and subsequently the flow properties in the continuum scale is a challenging task to be considered in mathematical models. To model such processes, one needs conservation laws for mass, momentum and solute in time-dependent domains where the evolution of the sharp interface separating two domains (mobile and immobile) is not known a priori. Therefore, a scheme accounting for moving/free boundary conditions, where the boundaries and hence the domains evolve, needs to be considered.

In modelling such coupled processes, two spatial flow scales are normally considered: pore (Stokes/Reynolds) and macro (Darcy) scale (van Noorden, 2009). Precipitation/dissolution reactions are considered using reactions rates where multiple chemical components could play a role. One of the most promising numerical schemes of recent is to use the phase-field model to represent moving sharp interfaces (Xu and Meakin, 2011) and it has been extended to porous media (Bringedal et al., 2019).

4 Tools and methods to quantify/derive uncertainties induced by coupled processes

4.1 Understanding of uncertainties in disposal systems and quantification of uncertainties

4.1.1 Introduction

Treatment of uncertainties in the performance assessment of geological nuclear waste disposal has been recognized as an important issue since the development of the concept in the late 80’s (Bonano and Cranwell, 1988). Different kind of uncertainties are described such as the one related to the datasets, the modelling approach itself, the conceptual uncertainty, etc. This is why in EURAD a strategic study entitled “Understanding of uncertainty, risk and safety (UMAN)” has been conducted. It has allowed (i) to define and categorize uncertainties (Brendler and Pospiech, 2023), (ii) compile, review, compare and refine strategies, approaches and tools for the management of uncertainties in the safety analysis and the safety case (Plischke and Rohlig, 2023), (iii) develop a common agreed understanding among different actors of national disposal programmes on strategies and approaches for uncertainties management by sharing knowledge and experience (Kaempfer et al., 2023; Haverkate et al., 2024). If uncertainties can be epistemic or aleatory, sources of uncertainty cannot always be clearly assigned to one of the two types of uncertainty (Brendler and Pospiech, 2023) and glossary inside for a clear definition.

The subject of couplings between the thermal, hydrological and mechanical processes in rocks has become an important subject mainly due to the modeling requirements for the design and performance assessment of radioactive waste repositories and other engineering fields such as gas/oil projects, geothermal energy exploitation, and environment impact evaluation in general. Coupled THM (thermo-hydro-mechanical) and coupled THMC (thermo-hydro-mechanical and (geo)chemical) processes are the ones most often required in the numerical models (Hudson et al., 2005; Hudson et al., 2017).

The requirement of coupling the processes in a geological system can be derived from processes that affect each other, which occurs mainly in two ways. The first is direct coupling in which one process induces directly the development of another process, represented by a cross term involving both processes in the governing equations. The other way is indirect coupling in which one process changes the parameters controlling another process.

A key process in the early stage of repository construction is the creation of an excavation damaged zone (EDZ) resulting in increased permeability around the tunnels. Performance assessment requires the knowledge of spatial-temporal evolution of EDZ properties. During the Exploitation Stage, decay heat from radioactive waste may induce large temperature gradients in the buffer zone and in the near-field rock. At the same time, resaturation in the near-field occurs which is a slow process controlled by low rock permeability and buffer characteristics. Heat generation may also lead to water vapor convection near the heat sources. This process induces transient pore pressure build-up resulting from differential thermal expansion. The pressure build-up affects effective stresses in the engineered and natural barrier system. Heating may impact rock strength and may induce chemical reactions with impact on rock properties as well. The Long-Term Post-Closure Stage is the subject of long-term performance and safety assessment. The key process is the likely failure of the engineered barriers that may lead to the release and subsequent transport of radionuclides and any nonradioactive contaminants. The transport characteristics in the tunnel backfill and near-field rock during this period depend on the coupled processes and effects that occurred during the previous stages.

Main sources of uncertainties related to radwaste disposal and their assessment that numerical modelers must consider:

• The extremely long (geological) timescale over which system evolution must be evaluated and predicted. Thus, the long-term evolution of safety functions of the repository cannot be well supported by comparably short-term laboratory, in situ and/or URL investigations.

• The inherent variability of geological features makes the characterization of host rock formations challenging at the required level of detail based on small-scale experiments and laboratory tests.

• One must consider the coupled behavior of thermo-hydraulic-mechanical as well as (geo)chemical processes to be investigated with respect to spatial scale and time frame of investigation.

• The perturbation effect of relatively rapid (geological) changes, e.g., climate change, earthquake as well as heat generation on the long-term evolution of the repository system. From a numerical modelling point of view, this requires either hybrid modelling approaches or the availability to dynamically change the time-stepping algorithms of the models.

• The applicability of the models used for assessing the system evolution. Thus, the risk related to uncertainty regarding the conceptual model used to describe interconnected physical processes must be evaluated.

In this state-of-the-art report, we provide a brief overview of coupled processes and the associated uncertainties with respect to underground nuclear waste repositories. First, we summarize the relevant THM and THMC processes and their general method of resolution. This is followed by characterizing the uncertainties of these phenomena. The report ends with conclusions regarding the status of handling these uncertainties.

4.1.2 Descripon of the coupled processes in the radioactive disposal system

4.1.2.1 Thermal-hydro-mechanically and chemically coupled processes and their resolution

One of the main difficulties in the prediction of the spatial-temporal evolution of a radioactive waste disposal is to consider all relevant processes and their couplings (Millard, 2017). These include mechanical, hydraulic, thermal as well as geochemical processes which may be extended to gaseous and biological phenomena. The THMC-processes and their connections are illustrated in Figure 14.

Figure 14

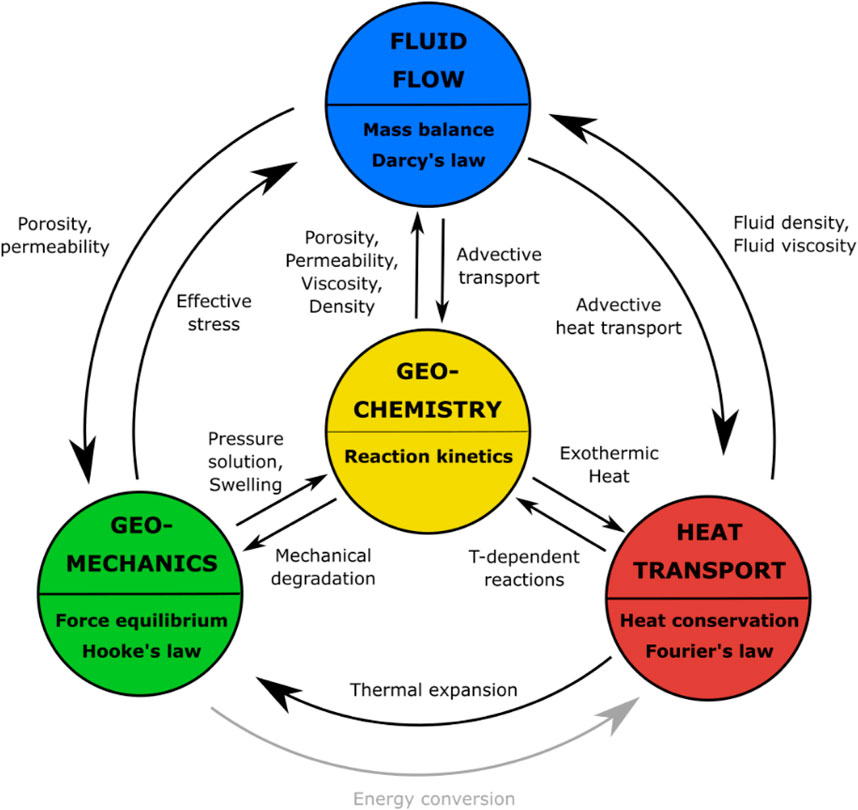

Figure 14. Schematic illustration of the coupled thermal-hydro-mechanical-chemical processes relevant to safety assessment of nuclear waste repositories (modified from Gaucher et al. (2015)).

The basis of mechanical processes is that rock mechanical properties are changed due to repository excavation; and the rock mass may contain water. Thus, under loading, the stresses developing in the rock medium are linked to both solid and fluid components, leading to the concept of effective stresses.

The hydraulic part depends on rock saturation. In the simplified case of a saturated rock, water flow is not only controlled by pore pressure gradient (Darcy flow), but also by pore volume change induced by rock deformation. Water expansion due to temperature change may be considered as well.

The evolution of temperature is governed by heat release from the waste. This is described by heat diffusion due to developing temperature gradients and advection associated with fluid flow. Chemical processes are dominated by dissolution and precipitation enhanced by thermal gradients.

Changes in water pressure and chemical reactions affect water and gas flow paths and contaminant transport characteristics.

Gaseous processes include gas generation, pressure build-up as well as gas lift. Furthermore, extensive pressure build-up may lead to the failure of some parts of the Engineered Barrier System (EBS) further enhancing the release of radionuclides from the repository. Gas (mainly methane) could be generated as a result of biodegradation of organic material, hydrogen gas generation is foreseeable from the corrosion of metallic components and some gas could be generated from hydrolysis.

Consequently, the assessment of radioactive waste disposal evolution requires the knowledge of physical variables controlling thermo-hydro-mechanical-chemical processes at any time. Thus, the resolution of a coupled system of partial differential equations is required. There are two types of approaches to resolve such problems (Ismail-Zadeh, 2010).

In the first type, all variables are solved simultaneously. In simultaneous solution methods, all the equations are considered as part of a single system. However, direct solution of these equations is time consuming, especially when these equations are non-linear, and the problem is three-dimensional, which is the case generally for radioactive waste disposal systems. When the equations are linear and fully coupled, the simultaneous approach is the best.

However, the second method, the iterative approach may be computationally much more efficient. The equations can be so complex and non-linear that coupled methods are too challenging to apply. It may then be preferable to treat each equation as if it has only a single unknown explicitly, temporarily treating the other variables with the currently available values for them. The equations are then solved in turns, repeating the cycle until all equations are satisfied. Since some terms, e.g., the coefficients and source terms that depend on other variables change as the simulation proceeds, iterative solvers are much more efficient and so these are preferred. Iterations performed on each equation are called inner iterations (e.g., explicit integration scheme for solving the equation of motion). In order to obtain a solution that satisfies all the equations, the coefficient matrices and source vector must be updated after each cycle and this process is then repeated. These cycles are called outer iterations.

4.1.2.2 Sources of uncertainty in coupled processes associated with radioactive waste repositories

For the performance assessment of a radioactive waste repository, analyses of the coupled THM(C) phenomena must be considered. However, many of these processes are non-linear and the constitutive relationships between them are not well known. Thus, various constitutive relationships are used that are applicable for different geological settings. What coupled THM or THMC processes should be included in a simulation model depend on site-specific safety criteria and scenarios. Therefore, one should characterize uncertainty arising from conceptual model approaches.

Birkholzer et al. (2019) point out that the various sources of uncertainty associated with numerical modelling of evolution of radioactive waste repositories lead to the realization of validating numerical modelling results against laboratory and field data. For this purpose, several laboratory experiments have been carried out using brendler samples of different sizes ranging at cm and m scale. Field measurements are also conducted at experimental sites, either at locations where repositories are proposed to be situated or at areas with representative geologic conditions. Several subsurface facilities, referred to as underground research laboratories (URL) are designed to conduct such tests. The goal of these tests is to study coupled processes and check modeling results often at the spatial scale envisioned for the waste emplacement. Numerical simulations with different modeling approaches are then performed to test the capability of the model against measured data. The goal of these simulations is to improve modelling approaches, to increase model confidence as well as to estimate uncertainty of various parameters governing coupled processes. However, it must be pointed out that geological settings and site characteristics cannot be known completely due to limitations associated with site observations and field tests. Another source of uncertainty lies in different key processes governing the evolution of the disposal system at different stages of the repository and spatial scales (Figure 14). Birkholzer et al. (2019) and Tsang et al. (2012) summarize key processes and issues for different phases of repository lifetime, such as early repository implementation phases (Construction and Open Drift Stage), the period of thermal disturbance after waste emplacement (Exploitation Stage) and a long-term period where much of the early perturbations are no longer valid and the system is approaching a late time equilibrium (Long-Term Post-Closure Stage).

4.1.3 Uncertainties of coupled THMC models for the EBS and needs for further research

THMC models of the EBS have conceptual model uncertainties, regarding the identification of the relevant processes, parameter uncertainties and uncertainties in the initial and boundary conditions. Usually, these uncertainties are analysed by means of sensitivity analyses. The relevance of physical and chemical processes are analysed by performing simulation runs with and without the consideration of a given physico-chemical process. Similarly, the uncertainty in THMC parameters is commonly ascertained by performing systematic sets of sensitivity runs in which the values of the parameters are increased and decreased one-at-a-time.

Amongst others example of the remaining uncertainties of the coupled THMC models of the EBS that need further research include:

1. Multiphase flow:

a. The complex porosity structure of the bentonite which requires the use of dual and triple continuum models (Sanchez et al., 2005; Sanchez et al., 2012; Sanchez et al., 2016b)

b. The retention curve of the bentonite: hysteresis and temperature dependence

2. Reactive solute transport

a. Relevance of reactive gases such as CO2_(g) and O2_(g)

b. Solute diffusion from the EBS into the host rock

c. Alternative conceptual models of solute diffusion in the EBS:

i. The single interlayer-porosity Donnan equilibrium model (Birgersson, 2017)

ii. The electrochemical model based on the Nernst-Planck equation (Idiart and Pekala, 2016)

iii. The multiple porosity (interlayer, double layer and free) model (Samper et al., 2009; Zheng and Samper, 2015).

iv. The use of different effective diffusion coefficients for each chemical species while preserving charge balance

3. Geochemistry

a. Precipitation of the secondary mineral phases at the canister-bentonite interphase such as Fe-phyllosilicates (chlorite, cronstedtite and berthierine); Fe-rich smectites and zeolites such as phillipsite, chabazite and merlionite;

b. Precipitation of secondary mineral phases at the concrete-bentonite interphase such as CSH, CASH, zeolites such as phillipsite, chabazite and merlionite, and iron silicates

c. Fe reduction in the bentonite

d. The uncertainties in the kinetic rate laws, rate constants, reactive surfaces and catalytic effects of kinetic mineral dissolution/precipitation. The dynamic update of the reactive surface areas of the minerals;

4. Coupled effects

a. Changes in porosity and other transport and chemical parameters caused by mineral precipitation/dissolution reactions

b. Simulating canister corrosion in a more realistic manner by adopting a dynamic corrosion front;

c. The coupling of the evolution of the bentonite microstructure with the changes in the composition of the exchange complex

To date Global sensitivity and uncertainty quantification methods have been widely used in performance assessment studies to quantify the prediction uncertainties caused by uncertainties in flow and transport parameters (Bonano and Cranwell, 1988; Helton et al., 2012). A few studies have analyzed the uncertainties in using reactive transport models. Matsumoto and Neyama (2008) developed a preliminary uncertainty analysis tool for performance assessment calculations considering uncertainties in the groundwater concentrations of Na, Ca, HCO₃ and Cl. Criscenti et al. (1996) and Denison and Garnier-Laplace (2005) applied Monte Carlo methods for geochemical calculations. Their focus were: (a) the significance of uncertainties in predicted pH values for a simple buffer solution and for calcite saturation indices, and (b) the effects of database parameter uncertainty on uranium (IV) equilibrium calculations (i.e., Uranium (IV) speciation), respectively. Ceriotti et al. (2017) presented a model to estimate the uncertainty associated with the amounts of CO₂ generated by carbonate-clays reactions in subsurface systems. Recently, Ayoub et al. (2020) presented a comprehensive uncertainty and sensitivity analysis of Cs sorption reactive transport modeling with 3 cation exchange sites in the near field of a deep geological repository for nuclear waste based on the Morris and Sobol method. Ayoub et al. (2020) analyzed the uncertainties in: 1) Cation exchange selectivities and 2) Clay pore water cation concentrations. They were able to identify the most important uncertain parameters affecting the transport of Cesium and the combination of parameters values leading to the maximum Cesium concentrations at a specified location using classification trees. Finally, they proposed a Cesium isotherm and a $K_d$ uncertainty range based on a large number of numerical simulations.

4.1.4 Approximation of the probability density function

The classical Monte Carlo is an attractive method for uncertainty propagation due to its noninvasive nature. However this flexibility is offset by slow convergence, leading to high computational costs. The Multi-Level Monte Carlo (MLMC) method introduced by Giles (2008) provides an efficient way to estimate the expectation of a variable resulting from an approximation. Basic idea is to do high volume of samples using a less accurate but computationally cheaper approximation, complemented by far fewer samples of the difference between the observable and its approximation. If this difference has a significantly smaller variance, we obtain an estimate of the same accuracy but at the fraction of the computational cost. The MLMC method has been already studied and analyzed in connection with variety of PDE problems: elliptic equations (Barth et al., 2013; Cliffe et al., 2011; Abdulle et al., 2013), parabolic equations (Barth et al., 2013), multiphase flow (Muller et al., 2013; Lu et al., 2016). Recently, an MLMC approach consisting of a neural network metamodel and several PDE levels has been investigated for Darcy flow (Špetlík and Březina, 2021) and solute transport (Špetlík and Březina, 2022) problems, demonstrating decreased cost in certain cases. The MLMC method offers potential as an efficient estimator for variance-based sensitivity analysis methods such as Sobol, discussed in detail in Mycek and De Lozzo (2019). Unlike performance assessment (PA) based on metamodels, PA utilizing multiresolution or multifidelity models is advantageous for its comprehensive characterization of total estimator error, which implicitly includes the approximation error. Multiresolution description of fractured media, is feasible via Discrete Fracture-Matrix approach, as demonstrated in simulators like Flow123d. However, the effective construction of coarse approximation levels relies on fast and robust numerical upscaling methods. The upscaling of Darcy flow using neural networks, as developed by Špetlík et al. (2024), could facilitate the application of MLMC to practical 3D performance assessment problems.

A methodology for addressing uncertainties in a broader context as required in PA will be confronted with (as outlined above) fragmentary information, with heterogeneous spatial (and sometimes also temporal) geochemical composition (minerals, solution, hydrodynamic characteristics), and even with occasional scientific dissent about governing processes and other boundary conditions. This applies (with increasing magnitude) for the parameterization of thermodynamics of solids (and solid solutions), ion-ion interactions, and properties of accessible/reactive surfaces. Strategies to overcome such problems are very diverse and depend to a high degree on the efforts necessary to perform additional lab experiments or field sampling/characterization. Ideally it builds on previous knowledge of phenomenology and processes in the respective geochemical systems. The range of strategies given below is sorted (approximately) from very “cheap” to “expensive” - in the sense of fiscal, temporal and personal resources requested. Starting at the 2^nd alternative, a variety of pdfs is usually considered. For (namely, aqueous) systems with sufficient independent parameter determinations Gaussian (or log Gaussian) distributions or as. more robust alternatives trigonal or uniform pdfs are used, the latter often being the only sensible approach when dealing with bimodal parameter distributions. Moreover, in the not so exotic case of numerical data themselves only being estimations (or even expert guesses), only the first three tiers are applicable at all.

1. “Do nothing” option: ignore the respective uncertainty as the underlying process may hopefully not be essential (should of course be verified) and the harm of ignoring may be smaller than using some estimates not really defensible.

2. “Expert guess” which can be anything between pure assumptions and the application of well-established informal rules based on general geochemical principles.

3. “Estimates” stemming from pure correlations in the sense of empirical fits, over chemical analogs (an often exploited analogy covers Ln (III) vs. An (III)), the usage of structure-based incremental systems, linear free energy relationships, or quantum chemical approximations (to name just the most prominent examples).

4. “Re-computation” of parameters from other (hopefully similar) models (e.g., going from the Pitzer-approach to SIT parameters and vice versa–this direction being the more challenging one).

5. “Re-fitting” of a pool of already existing raw data with uncertainties as by-product.

6. Setting up an experimental program to derive the missing parameters in the lab.

4.1.5 Examination of uncertainties of sorption of radionuclides in rocks

Examination of uncertainties of sorption of radionuclides in rocks.

In the following the international status with respect to the assessment of uncertainties within the field of sorption of radionuclides in rocks is highlighted, sketching also some possible development lines. The first three sub-chapters describe the types of uncertainty usually encountered in conventional geochemistry. Thereafter, consequences with respect to predictive modelling applications are outlined.

4.1.5.1 Aqueous speciation

It is common to encounter uncertainties in thermodynamic data (e.g., in a recent europium data compilation Jordan et al. (2004) illustrate the effect of experimental errors on thermodynamic parameters and activity coefficients), with the majority of studies focusing on the reproducibility of experimental data. However, systematic errors, which are more challenging to quantify, are often overlooked. Furthermore, the formulations of chemical reactions, which describe the reactions from educt to product, are often based on mere postulations. It is possible that a chemical system can be described by two mutually incompatible sets of species that represent experimental findings equally well. This results in an overlap of numerical and conceptual uncertainty. Furthermore, in natural systems, some reactions are strongly kinetically hindered, especially if they involve the restructuring of molecules or ions. This is regularly observed in redox systems, for example, involving Pu, Se, U or Tc species. Finally, the uncertainty related to thermodynamic data at temperatures higher than 25°C is also of major concern. In this context, there is a paucity of data, particularly in the form of calorimetric studies or speciation experiments. Furthermore, the temperature dependence is often described by purely empirical temperature-dependent-functions.

With regard to the parameters required in activity models to describe ion-ion interactions in highly saline solutions, the situation differs between the two major approaches. While in the SIT (Specific Ion Interaction Theory–Ciavatta (1980)) the most comprehensive compilations contain uncertainties Rand et al., the situation in the Pitzer model (Pitzer, 1991) is more complicated. Due to the high connectivity and interdependence of the various types of binary and ternary Pitzer coefficients, it is uncommon for uncertainties to be provided. This is because there is currently no established procedure for determining sensible uncertainties for them. This may be a concern in highly saline environments such as salt rock or certain clay formations, whereas in all other host rock scenarios, the SIT approach is the most appropriate.

4.1.5.2 Solids (minerals)

The situation here is analogous to that described for aqueous species. A further source of uncertainty is the exact stoichiometry of the solid (minerals in nature are rarely “pure”) and their physical properties, such as specific surface area (SSA). This is connected to the problem that dissolution experiments to yield solubility constants usually start from well-crystalline, aged phases. In nature, however, many of these phases do not form at all under hydrothermal conditions or undergo a transition from amorphous intermediates (with much higher solubilities) to eventually well-crystalline ones. Thus, it is helpful to distinguish between those processes that involve the dissolution of “matured” well-crystalline phases and the precipitation (and dissolution) of “fresh” amorphous phases. With regard to the solubilities of a variety of phases, values have been determined for both variants. These values can be used for the purpose of establishing correlations to close respective data gaps.

With regard to temperature-dependent-function, the situation is more favourable than for aqueous solutions (and considerably more favourable than for surface species), given the availability of a wealth of enthalpic and entropic data for solid phases.

In addition to the aforementioned uncertainties regarding mineral phases, spatial heterogeneities (including accessible surfaces) within the rocks may also contribute considerably to the total uncertainty retrieved from the solid phase. While the majority of uncertainties relevant for geochemical processes, especially on the mineral surfaces, are epistemic, a few–specifically those associated with mineralogical heterogeneity–are aleatoric. Other uncertainties where additional experiments may not reduce uncertainties include pore size distributions, accessibility of pore volumes or reactive surface areas. In conclusion, the spatially heterogeneous distribution of minerals, their grain sizes, exact chemical composition, their exposure to voids or fluid pathways within the rocks, and the probability of fluids actually passing along their surfaces, may present significant challenges in even estimating the uncertainty resulting from them.

4.1.5.3 Surface speciation

Regarding surface speciation, the publication of uncertainties is not yet well established in this field. If it were, the same restrictions would apply as already outlined above for aqueous and solid species. Surface reactions are further limited by the existence of a variety of competing models describing sorption via surface complexation models and ion exchange. These include non-electrostatic, diffuse double layer, constant capacitance, triple layer or basic stern models (Stumm et al., 1992). The respective parameters are usually not directly convertible, thus the parameter pool to derive probability density functions (pdfs) is diminished. Another drawback is the relation to mineral characteristics being themselves not well established, e.g., surface protonation or again specific surface area, or surface binding site density. An overview of the data situation can be found in Ochs and Payne (2012) as well as in the mineral-specific sorption database REST (Brendler et al., 2003). Data scatter evidenced as multi-modal distribution patterns is often related to alternative experimental methods. A classical case is the determination of SSA of clay minerals by either BET measurements or via the EGME method.

4.1.5.4 Established uncertainty assessment methodologies

Despite the difficulties encountered in geochemistry, there is at least a well-established procedure for treating parameter uncertainties. The most recent edition of the Thermochemical Database of the Nuclear Energy Agency (NEA TDB), published in 2013 and 2020 (Lemire et al., 2013; 2020), contains in Annex C, entitled “Assigned Uncertainties”, comprehensive procedures for computing uncertainties when combining or averaging several independent sources of parameter values. Finally, the derivation of uncertainties when re-formulating chemical reaction equations (to accommodate, for instance, switches in the master species set required in different speciation codes) must follow the common procedures of error propagation. The uncertainties provided for the thermodynamic values recommended by the NEA TDB are provided in a consistent and traceable manner, thus setting international standards. The same can be said of the values provided by the most recent PSI/Nagra TDB (Thoenen et al., 2014), which to a large extent actually relies on the NEA TDB but follows a different approach with respect to SIT coefficients. Other TDBs that are frequently employed in the context of nuclear waste disposal include ThermoChimie (Giffaut et al., 2014), the Yucca Mountain Project TDB (Gdowski et al., 2002), and the HKL TDB (Helgeson et al., 1981). These TDBs either adhere to the general guidelines established by the NEA TDB or do not report any uncertainties.

4.1.5.5 Predictive modelling

It is also worth noting that, at present, no geochemical speciation or reactive transport code is utilising the available information about uncertainties. In order to do so, separate routines must be written, “enclosing” the appropriate code and adding such functionalities (Stockmann et al., 2017). The transfer of geochemically induced uncertainties to PA is typically accomplished through the use of lookup tables (e.g., for solubilities or distribution coefficients). More recent developments have sought to address the issue of multidimensionality by employing uncertainty and sensitivity analysis, the introduction of surrogate functions, neural networks, or other machine learning approaches. For further details, please refer to section 4.2 and section 4.3.

A particular challenge arises in the treatment of parameters that exhibit a high degree of dependence. In geochemistry, the correlation matrices derived from multiple parameter fits are typically not considered. This may result in the aggregation of uncertainties, which can lead to significant overestimation of combined uncertainties (Meinrath, 1997).

4.1.6 Derivation of procedures for pdf of corresponding parameters for chemical models

Wide set of data for radionuclide transport processes is available for central European crystalline massive conditions. Specific conditions of transport processes specific for Bohemia crystalline rock massive conditions were described in Havlová (2013), defining that Central European crystalline rock massifs are specific by groundwater of lower salinity and rock structures and textures less distorted by orogenic long-term processes in comparison with Swedish and Finish crystalline rock or with Alpine granites as in Grimsel Test Site. Studies of radionuclide transport properties on crystalline rock has been performed in the Czech Republic since late 90’s (Passas et al., 1996; Buňatová, 1998; Havlová, 1999) being focused namely, on radionuclide sorption (Cs^I, Sr^II, Np^III, I^−I) on generic granites under synthetic groundwater conditions. Those studies, mostly using batch sorption experiments on crushed materials, were complemented by studies focused on aerobic/anaerobic behaviour of redox sensitive species (Se, Tc), using more comprehensive methods, like surface scanning and spectroscopic studies for element (Se) specific sorption at the rock surface (Videnská and Havlová, 2012; Videnská et al., 2014b; Videnská et al., 2014a).

Migration of radionuclides in dynamic system is described with the transport parameters such as the retardation and distribution coefficients (R and K_d), Peclet number (Pe) or hydrodynamic dispersion coefficient (D). 2D- or 3D-models deal with longitudinal hydrodynamic dispersion coefficient. These parameters can be determined using dynamic column technique, which has many advantages in comparison with static batch experiments. Namely, it enables: (i) direct determination of contaminant retardation coefficients dissolved in aqueous phase, (ii) closer approximation of the real conditions in the natural system, (iii) study of less disturbed samples, (iv) study of desorption process following immediately after sorption, and so on. Retardation of both non-sorbing species (HTO, Cl^−I, Se^IV/VI) and sorbing species (Sr^II) in dynamic granitic column system has been presented (Palagyi et al., 2013; Videnska et al., 2013; Videnská et al., 2015; Štamberg et al., 2014).

Systematic approach toward potential site selection brought into the focus some of the potential DGR sites since 2015. The most comprehensive approach to the rock condition characterisation under conditions close to the DGR emplacement in the depth of 550 m brought Bukov URF survey, including a wide set of sorption and diffusion experiments for several radionuclides (Cs^I, Sr^II, Se^VI, U^VI, HTO, Cl^−I, I^−I - Bukovská and Verner (2017). The above mentioned study has been complemented with more generic diffusion studies, being performed either in generic Czech massive granite samples (Havlová et al., 2012) or on samples from Grimsel Test Site (Soler et al., 2015).

Direct tool for potential assessment of fracture flow quantification and sensitivity analyses is available in ÚJV laboratory. The physical model of granite block (dimensions: 80$\times$ 50$\times$ 40 cm) was assembled and the generated artificial fracture was characterised by means of 3D laser scanner. The goal of the tracer tests, using different types of tracers (Cl^−I, I^−I, HTO, Pb^II) has been to develop tools for evaluation of migration and retention of potential contaminants in the rock environment as the key input values for the safety assessment of anthropogenic activities and also to enable test mathematical codes and assess the uncertainty of reaction transport processes determination. Subsequently the block was instrumented with on-line measuring devices (conductivity and pressure sensors), allowing performance of migration experiments. Detailed description of the fracture parameters (Figure 15) serves as a key input for modelling purposes (Jankovec et al., 2019; Jankovský et al., 2019a) using both conventional software (MODFLOW, FEFLOW) and in-house code (Flow123d). However, natural fracture flow represents more complex environment, including surface coatings and miscellaneous topographic domains within the surface (Jankovský et al., 2019b; Missana et al., 2008; Huber et al., 2014).

Figure 15

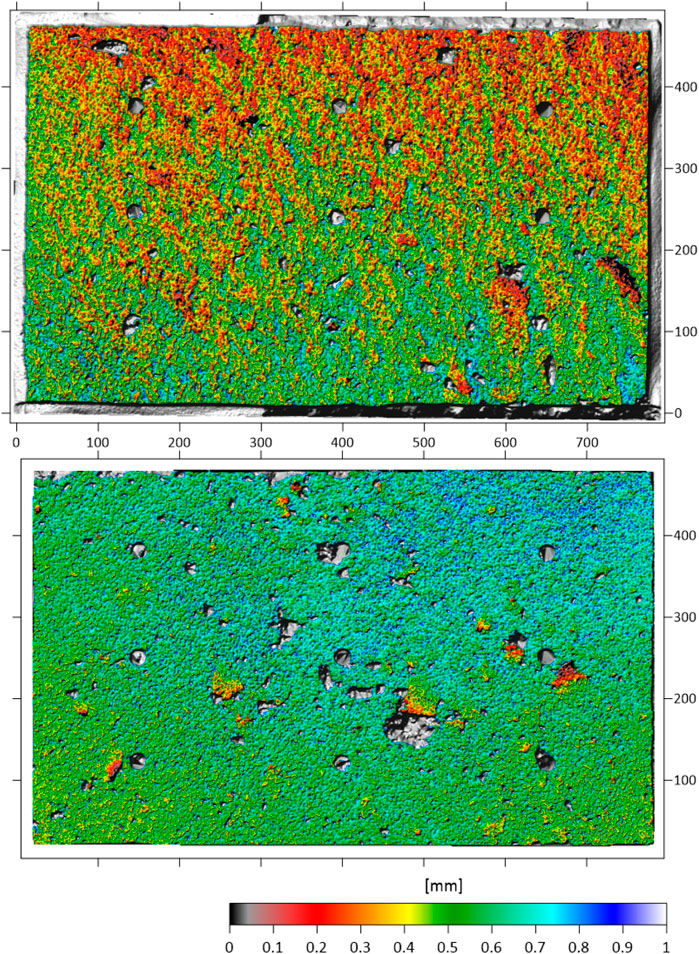

Figure 15. Colored fracture aperture distribution at artificial granite block fracture (Jankovec et al., 2019).

However, laboratory experiments are not able to reflect the real conditions in the rock massif all the time. Therefore, the tracer tests both under static or dynamic conditions in situ are to look into upscaling the transport processes. Such an experiment can be focused both on studying radionuclide diffusion into the rock matrix (Soler et al., 2015) or on advective flow experiments in fracture, including modelling in MODFLOW/MT3D code (Zuna et al., 2017).

4.2 Methods to evaluate uncertainties

4.2.1 Adjoint state methods

Adjoint state (AS) methods have been widely used in optimization and inverse problems in: 1) Groundwater flow models (Townley and Wilson, 1985; Sun, 2013); 2) Conservative solute transport models (Samper, 1986; Ackerer et al., 2014) and 3) Geostatistics (Samper and Neuman, 1989). The adjoint state variables play the role of Lagrange multipliers. The advantages of the AS method include: 1) The calculation of the adjoint state requires a single calculation of the forward problem, regardless of the number or parameters; 2) The method is well suited for computing derivatives or local sensitivities for a large number of parameters; and 3) The AS equations can be derived for the continuous formulation or for the discretized numerical equations. Delay et al. (2017) presented a comparison of discrete and continuous adjoint states for groundwater flow in heterogeneous dual porosity systems. They concluded that both discrete and continuous adjoint states provide similar solutions. They claimed that the continuous adjoint state is the most versatile form as its non-intrusive character allows for plugging an inversion toolbox quasi-independent from the code employed for solving the forward problem.

Samper et al. (2021, 2022) presented the AS formulation for multicomponent solute transport systems involving mineral phases and cation exchange reactions. Contrary to the partial differential equations (PDE) of multicomponent reactive solute transport for mineral phases and cation exchange reactions, which are highly nonlinear, the PDE’s of the adjoint state variables are always linear. The vector of adjoint states, $\bar{\tau }$, for a multicomponent reactive system with kinetically-controlled mineral phases satisfies similar PDE’s and algebraic equations as those of the original problem (formulated in terms of solute and mineral concentrations). Sink/source terms of the adjoint states are zero- and first-order linear terms. The coefficients of the sink/source terms involve the derivatives of the objective function with respect to the concentrations of aqueous primary species and a rectangular matrix containing the first-order derivatives of the precipitation/dissolution kinetic rates with respect to the concentrations of the aqueous primary species (Samper et al., 2021).

The adjoint states, $\bar{\tau }$ and $\overline{ϵ}$ of the concentrations of dissolved species and minerals, respectively for a chemical system at chemical equilibrium have the following properties: 1) The adjoint states $\bar{\tau }$ satisfy a system of coupled linear PDE’s. After solving these equations one can solve for $\overline{ϵ}$; 2) The time derivative of the vector ${\stackrel{̄̄}{S}}_p^T\bar{\tau }$ (where ${\stackrel{̄̄}{S}}_p$ is the stoichiometric matrix of the minerals) is equal to $t$ the derivative of the objective function with respect to mineral concentrations. If such derivative is zero, then ${\stackrel{̄̄}{S}}_p^T\bar{\tau }$ is constant in time and varies only in space.

The adjoint states of dissolved and exchanged concentrations for a multicomponent reactive system with multicomponent cation exchange reactions can be calculated in a decoupled manner. First, the adjoint states of the dissolved concentrations, $\bar{\tau }$, are calculated by solving a linear system of PDE’s with constant sink/source terms. These PDE’s are solved backwards in time starting with zero adjoint state values at the first time. The adjoint states of the exchanged concentrations satisfy linear equations which are solved in terms of known values of the adjoint states of dissolved concentrations, $\bar{\tau }$ (Samper et al., 2021).

Samper et al. (2009) reported a semi-analytical solution for linearized multicomponent cation exchange reactive transport in groundwater. The resulting linearized cation exchange reactions can be solved analytically. Samper et al. (2021) reported also the AS equations for linearized cation exchange reactions. The adjoint states of a reactive system with multicomponent cation exchange transport satisfy similar PDE’s as those of the original problem with constant sink/source terms which depend on the derivatives of the objective function with respect to the dissolved concentrations. The retardation matrix of the adjoint states $\bar{\tau }$ is the transpose of the retardation matrix of the dissolved concentrations.

4.2.2 Statistical metamodeling

4.2.2.1 State of the art compilation of efforts regarding emulation with machine learning techniques for reactive transport modelling

Although the resulting benefits are potentially huge in terms of computational savings, emulation of reactive transport models has been scarcely addressed so far. Jatnieks et al. (2016) presented a short comparison of a range of nonlinear regression methods for the emulation of the geochemical component of a relatively simple RTM. Leal et al. (2020) demonstrated for a simple reactive transport problem how the geochemical calculations can be efficiently replaced by an online first-order Taylor approximation around the closest previously simulated point by the original geochemical solver. In addition, this approach has been further applied on two reactive transport problems with more complex chemical and geologic conditions in the simulations such as dolomitization process or H2S-scavenging process (Kyas et al., 2022). Huang et al. (2018) proposed to use a lookup table to also replace the geochemical solver of an RTM for a 1D reactive transport problem with two parameters. The studies by Jatnieks et al. (2016), Leal et al. (2020), Huang et al. (2018) are thus concerned with replacing the geochemical component of an RTM by a computationally cheap approximation while assuming the geochemical model parameters to be fixed. Since geochemical calculations commonly take most of the running time of an RTM, this can be very useful when the goal is to perform one or more otherwise CPU-intensive simulation(s) with fixed model parameters. Noticeably, the approach by Leal et al. (2020) includes a check on surrogate prediction quality and automatic replacement by a full physics geochemical simulation of those surrogate predictions that are considered to be inaccurate. Guérillot and Bruyelle (2020) replaced the geochemical solver by a trained neural network (NN) for a 3D case study of CO2 storage in geological formation. Prasianakis et al. (2020) used NNs to either replace the porosity-permeability relationship or predict saturation index from the concentration of two chemical components in a reactive transport code. In a similar spirit of Leal et al. (2020), De Lucia and Kühn (2021) presented a strategy in which at runtime, full physics geochemical simulations are performed only if surrogate predictions are deemed implausible.

In the framework of the DONUT project, Laloy and Jacques (2022) further advanced the topic by investigating the replacement of the geochemical solver by a machine learning (or data-driven) surrogate for a series of 2D reactive transport problems involving cement degradation. Laloy and Jacques (2022) considered two types of transport conditions, advection and diffusion, and replaced the PHREEQC-3 geochemical simulator (Parkhurst and Appelo, 2013) in the HPx reactive transport code (Jacques et al., 2018) either by a kNN nearest neighbor algorithm (e.g., Hastie et al., 2009) or by a deep neural network (DNN, see, e.g., Goodfellow et al., 2016) trained beforehand. In terms of geochemistry and associated dimensionality of the surrogate model, Laloy and Jacques (2022) considered non-trivial cement systems with C–S–H solid solutions that involve both a 2-input (Ca, Si) - 4-output (Ca, Si, O, H) setup and a 5-input (Ca, Si, Al, C, S) - 7-output (Ca, Si,Al, C, S, O, H) setup. To overcome the observed drawbacks associated with using a purely random training set to build the considered emulators, an approach was proposed where geochemical knowledge obtained from a small (and thus computationally cheap) physics-based RT simulation is used to guide the construction of the training set. This process ranges from simply extracting lower and upper bounds for the input space to identify which portions of the input space should be preferentially represented in the training set. Overall, Laloy and Jacques (2022) found that after training, both our DNN-based and kNN-based codes, HPx-DNN and HPx-kNN, can make satisfactorily to very accurate predictions while providing either a 3–9 speedup factor compared to HPx with parallelized geochemical calculations over 4 brendlers. Benchmarking against single-threaded HPx, these speedup factors become 8–33. Overall, HPx-DNN and HPx-kNN are found to achieve a close to optimal speedup when DNN regression and kNN search are performed on a GPU. Lastly, within the ACED project, Laloy and coworkers (chapter 5 in Samper et al., 2024) further researched the topic by considering better ways of creating the DNN training sets and considering other complex cement systems.

Nevertheless, the above strategy is not suited to tasks involving varying the model parameter values such as sensitivity analysis (SA), uncertainty quantification (UQ), and model calibration (inversion). To address these situations, Laloy and Jacques (2019) compared different machine learning methods, namely, polynomial chaos expansion (PCE), Gaussian processes (GP) and deep neural networks (DNN), for the emulation of the full RTM response to (some) model parameter and boundary condition changes. Here the considered problem was the 1D reactive transport of Uranium VI through a soil column with 8–13 uncertain model parameters. The strategy of emulating the full RTM response permits emulation-based SA, UQ, and inversion (model calibration), and has the advantage of being non-intrusive: no modifications to the RTM need to be made. Note that in principle, one could plug an emulator of the geochemical solver within an RTM and try to build a new emulator on the fly for each evaluated model parameter set within a SA, UQ, or inversion procedure. The technical feasibility and tractability of such approach remain to be investigated though. Moreover, depending on the ML method used to create the surrogate model, the fine tuning or re-training of the model might require significant computational power, which has to be taken into account. Turunen and Lipping (2023) revisited the Hanford case (Saiers and Hornberger, 1996) to study the feasibility of Convolutional Neural Network (CNN) metamodels in sensitivity analysis of ¹³⁷Cs propagation in sand. The case is based on experimental results and corresponding 1-D advection-dispersion (ADE) model. It was found that in the case of sufficiently large training set (over 40,000 samples in this case) the metamodel was capable of emulating the ADE model and the experimental results with high accuracy. The sensitivity of the model output to four ADE parameters was studied using Monte Carlo analysis and the Sobol method. The sensitivity indices obtained using the first and total order analysis differed significantly indicating the interaction between the parameters. Also, it was found that altering the parameter tolerances in Monte Carlo simulation affected the sensitivity analysis results of the ADE model but did not affect significantly those of the CNN metamodel. The work by Sun et al. (2012) reports on the calibration of 4 first-order reaction rates using a rather simple RTM that does not account for thermodynamic equilibrium, inter-species interactions, and sorption processes. In addition, Sun and coworkers do not mention which emulation method they use exactly. Keating et al. (2016) resort to multivariate adaptive regression splines to emulate a model of the multi-phase transport of CO₂ with non-reactive transport of associated solutes. Keating et al. (2016) use their emulator for an UP application that consists of predicting the ensemble behavior of some given model outputs across the considered parameter space.

4.2.3 Experiences on metamodelling based on machine learning

Uncertainty is a common denominator in modelling real-world phenomena. Uncertainty arises from the variability of the input and internal parameters of the model. Also, there may be uncertainties related to the structure of the model. Various frameworks exist to quantify these uncertainties (see overview by Borgonovo and Plischke (2016), for example,). In the following, some of the most common sensitivity analysis frameworks are briefly presented.

4.2.3.1 FAST and EFAST

Fourier Amplitude Sensitivity Test (FAST) is a variance based sensitivity analysis method by Cukier et al. (1973). Outputs of the model are converted into coefficients using multiple Fourier Transforms that represent conditional variance. After that, the multidimensional Fourier coefficient integral is converted into one-dimensional integral using the theory developed by Weyl (1938). The frequencies are usually irregular non-integer frequencies and to reduce computation, a set of integer frequencies (multiples of base frequency) are selected. Integer frequencies are selected in a way that enables the error to be controlled. By using integers, the resulting function of one-dimensional integral is periodic and only a single period is needed for evaluation. The continuous integral function can be sampled using Nyquist-Shannon sampling theorem and the resulting sampled function is evaluated from the summation of function values. FAST method is so-called “first-order sensitivity index” method.

Extended Fourier Amplitude Sensitivity Test (FAST) is a modification of FAST proposed by Saltelli et al. (1999). The EFAST method estimates total effect indices by computing the variance of a complementary set to that introduced in FAST. Also, more flexible sampling scheme is introduced when compared to the FAST algorithm. EFAST algorithm can produce both “first-order” and “total-order” sensitivity indices.

4.2.3.2 RBD

Random Balance Design (RBD) was first proposed for regression problems by Satterthwaite (1959). Tarantola et al. (2006) modified the RBD method by combining it with the FAST method. While FAST algorithm uses integer multiples of frequencies, RBD uses random permutations of the selected frequencies to generate scrambled set that covers the input space. RBD is a “first-order” sensitivity method.

4.2.3.3 EASI

Effective Algorithm for Sensitivity Indices (EASI) was developed by Plischke (2010). EASI algorithm is basically similar to FAST and RBD but the frequencies are obtained by sorting and shuffling the input samples and not the frequencies of the Fourier transform. Input samples are sorted and output samples are re-arranged based on sorted input samples. Sorted data is then analyzed using power spectrum. EASI is a “first-order” sensitivity method, but it can be extended to higher order method by implementing multidimensional search curve to the search algorithm.

4.2.3.4 SOBOL

In Sobol method, the output variance of the model is decomposed into summands of input parameter variances for increasing dimensionality (Sobol, 1993; Zhang et al., 2015). Sobol sensitivity analysis determines the contribution of each input parameter and their interactions related to the output parameter variance. While the FAST method uses sinusoidal components of the Fourier method for pattern search, Sobol uses Monte Carlo simulation for that purpose. Sobol algorithm can produce both “first-order” and “total-order” sensitivity indices.

We have recently compared the described sensitivity analysis methods for evaluating a radionuclide transport compartment-type model. The model considers a lake-farm scenario at a site of nuclear waste repository. There were altogether 34 probabilistic variables describing distribution coefficients (K_d) of the model compartments, features of the modelled lake (area, volume), nutrient root uptake of plants etc. We found that for ³⁶Cl, for example, when considering the first-order sensitivity, all the methods ranked the same parameter–K_d of the soil–as the feature contributing most to the output variability (i.e., the variability of the dose to humans living in the modelled site). Also, the three next contributing parameters were the same for all methods. However, the contribution of the respective input variables varied significantly for different methods (from 54.8% to 83.8% for K_d of soil). When applying total-order sensitivity analysis (EFAST and SOBOL methods), the difference was even higher (the most contributing variable, K_d of soil, contributed 28.3% in EFAST and 71.1% in SOBOL analysis). Recently SOBOL analysis has been used for the uncertainty and sensitivity analysis of the chemistry of cesium sorption in deep geological repositories (Ayoub et al., 2020).

Sensitivity analysis using the frameworks described above, requires the model to be executed repeatedly with parameter valued drawn from the corresponding distributions (i.e., Monte Carlo simulation). This is often not feasible as the implementation of the physical models may require excessive computational power. The physical model can, however, be replaced by a metamodel, emulating the input-output relationship of the true model. In case the metamodel is capable of approximating the model function sufficiently well, it can be used to further explore the behaviour of the modelled phenomenon. Also, the metamodel can be used for sensitivity analysis through Monte Carlo simulation (Figure 16). Neural Network based metamodel has been used in Chan and Elsheikh (2018), for example, to emulate a geological Multiscale Finite Volume model.

Figure 16

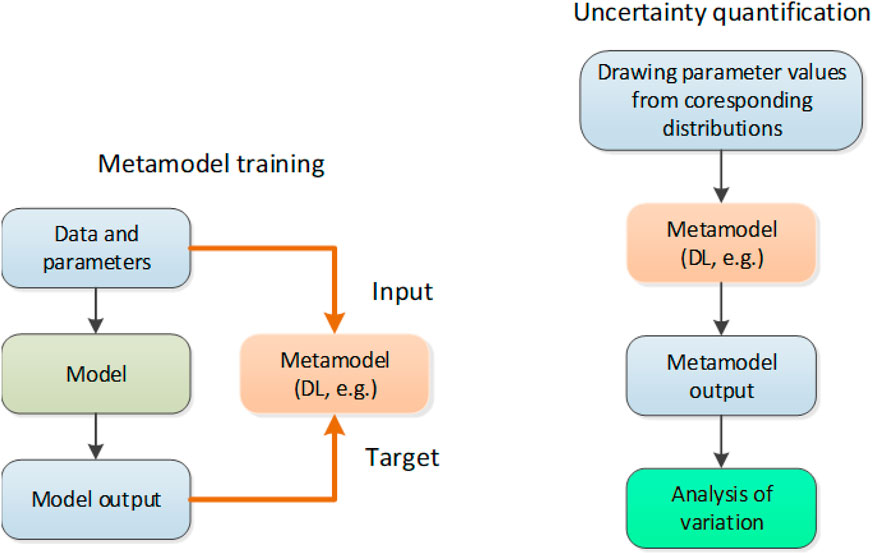

Figure 16. Using metamodeling in sensitivity analysis.

Recently, a methodology has been developed to trace back the input variables contributing most to the output of a trained deep neural network (Montavon et al., 2018). For example, in the case of applying a Convolutional Neural Network to a 2-D input data matrix, the method enables to determine the significance of each input pixel to the network output. The methodology is generally applicable to all neural network type structures.

A step forward is:

• to compare different sensitivity analysis frameworks in the evaluation of THM(C) models used for modelling the phenomena related to geological repositories of nuclear waste

• to develop and evaluate Deep Neural Network based metamodels in emulating physical THM(C) models for sensitivity analysis trough Monte Carlo simulation

• to apply the Relevance Propagation technique proposed by Montavon and Müller (2018) to the sensitivity analysis of THM(C) models using metamodeling.

4.2.3.5 VARS

Sophisticated sensitivity analysis methods have been developed for numerical models based on the analysis of model results. VARS (Variogram Analysis of Response Surfaces) is a variance-based tool to analyse the structure of a response function Y (Razavi and Gupta, 2016). It is linked to the High Dimensional Model Reduction (HDMR) proposed by Sobol and has connections with the Morris elementary effects. Samper et al. (2024) reported the application of VARS and HDMR to the evaluation of the global sensitivities of the predictions of a reactive transport model for a HLW repository in granite. The output geochemical variables Yi considered in the analysis include pH, redox potential and volume of precipitated corrosion products at $t$ = ${10}^4$, 2. ${10}^4$ y 5. ${10}^4$ years. The input parameters considered include: the corrosion rate of the metallic canister, the bentonite porewater diffusion coefficient, the flow of groundwater through the granitic host rock, the cation exchange selectivity of Fe and the solubility of magnetite. The most influential input parameters for pH are the corrosion rate, the flow in the granite and the cationic selectivity of Fe. The sensitivity indexes of the corrosion rate and the Fe selectivity for pH increase with time while that of the log K magnetite decreases. The sensitivity index of the bentonite diffusion coefficient, however, remains constant in time. The main interactions between parameters for pH occur between the corrosion rate and the groundwater flow through granite. Similar to pH, the most influential parameters for Eh are the corrosion rate and the flow in the granite. The sensitivity indexes of the corrosion rate and the log K of magnetite for Eh decrease with time while that of groundwater flow increases with time. Similar to pH and Eh, the most influential parameter for the volume of corrosion products is the corrosion rate while the second is the diffusion coefficient of the bentonite. All the sensitivity indexes for the corrosion products increase with time except for the corrosion rate. Sobol and VARS lead to similar results in terms of rankings and significance. However, they show some differences. Morris indexes tend to reach values larger than those of Sobol and VARS the less influential parameters.

4.2.3.6 Surrogate model construction

Uncertainty quantification (UQ) techniques have been extensively developed in the last decade in order to estimate the uncertainties in a Quantity of interest (QoI) caused by uncertainties in model inputs. A cornerstone in UQ is an accurate estimation of the changes in the uncertain QoI caused by changes in the uncertain inputs. The goal is generally to estimate the statistics of the QoI, such as its mean and its variance, and this can be achieved using Monte Carlo technique (and its variants) whereby an ensemble of simulations is performed with randomly selected input data. The convergence rate of the Monte Carlo method is independent of the dimension of the uncertain space but is rather slow (the error in estimating the mean, for example, decreases as the square root of the number of realizations). As a consequence, the number of ensemble members needed to estimate the statistical moments with high accuracy increases dramatically with the number of uncertain parameters and becomes nearly impractical when the forward model is computationally expensive and can only be run hundreds of times (as opposed to millions of times).

So, for a computationally expensive model, the use of a surrogate can be the only way to do an uncertainty propagation problem. The principle of a surrogate (a.k.a. metamodel, emulator, proxy or response surface) is to build, from a finite (relatively slow) number of samples, an approximation of the original forward model able to estimate the response of the QoI to changes in the input. The main advantages of a surrogate are (i) to efficiently propagate the uncertainties in the model inputs in order to compute the uncertainties in the model output, (ii) to identify the dominant contributors to the output uncertainties through the sensitivity analysis, and (iii) to perform parameter calibrations efficiently (the so-called backward propagation) if observational data is available. From a practical point of view, the surrogate is built unintrusively (i.e., without changes to the forward model that is treated as a “black box”) at the cost of performing ensemble calculations. The input-output relationships of the ensemble members are in fact exploited to obtain a simplified representation of the model output whose computational cost is negligible in comparison with forward model evaluation.

Two of the most popular and commonly used surrogate construction techniques are polynomial chaos (PC) expansions and Gaussian process (GP) regressions. On the one hand, PC expansion (Ghanem and Spanos, 1991; Le Maître and Knio, 2010) represents the QoI by a finite sum of orthogonal polynomials. Many works have been devoted to improve the computation of the PC expansions including for instance (Blatman and Sudret, 2011; Doostan and Owhadi, 2011; Conrad and Marzouk, 2013; Alemazkoor and Meidani, 2017). On the other hand, in GP regression (Rasmussen and Williams, 2005), a.k.a. kriging (Matheron, 1973) in geostatistics, the QoI is modeled as the realization of a stochastic process. As well, an abundant literature exists for the GP (Williams and Seeger, 2001; Lawrence et al., 2003; Conti and O’Hagan, 2010; Hensman et al., 2013; Gramacy and Apley, 2015). Some recent studies (Le Gratiet L, 2016; Owen et al., 2017; Roy et al., 2017; Sochala and Iskandarani, 2019), have showed that the two approaches lead to a similar level of accuracy, the differences being on the computational complexity and flexibility.

Suitable methods for constructing surrogate models include polynomial approximation via the stochastic collocation method (Babuška et al., 2007; Nobile et al., 2008) and radial basis functions interpolation (Powell, 2001; Chen et al., 2005). These methods have proven valuable in the context of Markov chain Monte Carlo (MCMC) methods to accelerate the process, as demonstrated by Bliznyuk et al. (2008), Hwang and Martins (2018). further explored challenges in constructing surrogate models with high-dimensional data, a common situation in advanced computational models. One of the motivations for the development of surrogate models is the acceleration of sampling processes in Bayesian inversion. Blaheta et al. (2018a) utilizes polynomial surrogate models derived from the stochastic Galerkin approach. The works Domesová et al. (2020), Domesová (2020) and Blaheta et al. (2020) present practical applications of surrogate models and show applications of polynomial and radial basis functions surrogate models to complex nonlinear models, where the number of observations is limited due to their computational complexity. Furthermore, Domesová (2020) thoroughly investigates the radial basis function model type. These results, along with further analysis, are detailed in the PhD thesis by Bérešová (2022a), which delves into both surrogate model construction and Bayesian inverse analysis, with applications to geoscience problems. The results of employing the stochastic Galerkin approach for constructing polynomial models are discussed in Béreš (2020) and Béreš (2024). These papers present efficient approaches to solving underlying systems, including the very recent Tensor-Train decomposition, with applications to geoscience problems. All these findings are compiled in the PhD thesis by Béreš (2023). Still related to high dimension problem and coupling of different models sparse polynomial chaos expansion has been used by Sochala et al. (2022, 2024) for uncertainty quantification in both pore water composition calculation and model sorption. Doing so it was possible not only to quantify the uncertainties of the quantities of interest for future performance evaluation calculations, but also to identify the main influential input parameters in the pore water models. This latter plays a minor role into the caesium adsorption process.

4.3 Uncertainty treatment and sensitivity analysis

4.3.1 Compilation of the recent efforts taken for developing sensitivity analysis methods

Sensitivity analysis is a means of treating uncertainties that is generally considered essential in repository performance assessment. By analysing the effects of input variation to the output of performance assessment (PA) models, it allows the identification of the most relevant uncertainties or, from the reverse point of view, the exclusion of practically irrelevant uncertainties from further investigation. It has to be kept in mind, however, that sensitivity analysis is performed on the model, not on the reality. Therefore, its results describe the sensitivities of the model and must not be misinterpreted as statements about the actual sensitivities of the repository system.

Sensitivity analysis can be performed in different ways. While local sensitivity analysis investigates the behaviour of the model system under variation of one specific model condition (typically a parameter value) keeping all others constant, in a global sensitivity analysis one varies all conditions or model parameters that are considered uncertain simultaneously, executing a higher number of model runs, and analyses the outcome using appropriate methods.

Local sensitivity analysis is normally performed by executing a few model runs with deterministically selected conditions. This is often done if these conditions are not describable by a simple parameter but represent more complex situations, such as scenario variants, but also for dedicated investigation of the influence of a specific parameter. Global sensitivity analysis, however, is technically limited to parameter uncertainties. The usual approach to global sensitivity analysis is the probabilistic approach. It is assumed that the uncertainties of the model input parameter values can be represented by statistical distributions. According to these distributions, sample values are drawn and combined in such a way that the total parameter space is covered as well as possible. The model has then to be calculated with each of the sampled parameter combinations. The collected outcome of these calculations can be mathematically analysed in view of model sensitivity to individual parameters.

Coming along with the increase of computer capabilities, probabilistic sensitivity analysis has been a subject of specific interest in mathematical research during the recent two or three decades. A variety of more or less sophisticated mathematical methods have been developed, which produce numerical sensitivity measures or graphically coded information (Saltelli et al., 2008; Borgonovo and Plischke, 2016). Different types of methods act differently to models with different properties. Repository PA models often exhibit a distinctly nonlinear behaviour or even discontinuities and the model output is typically distributed over several orders of magnitude. As a consequence, such models should not just be analysed using some standard method as the results might be misleading or do not reveal the actually interesting details of sensitivity.

The methods of sensitivity analysis applied so far to repository PA models can be grouped in the following categories:

• Correlation or regression methods. Such methods linearize the model input-output relation and calculate the parameter sensitivities from correlation or regression coefficients, which are normalised to a range between −1 and 1, negative values indicating inverse sensitivity (higher input -> lower output). For models with a close-to-linear behaviour, these methods produce clear and unique sensitivity statements. The degree of linearity can be assessed via the coefficient of model determination, rsup2;, which is always between 0 and 1. While 1 means true linearity, a low rsup2; indicates that the model can only poorly be approximated by a linear approach. This does not necessarily mean, however, that the calculated sensitivities are meaningless or of low relevance, as they may represent just the interesting aspects of the model. Application of such methods to nonlinear models can be useful, but requires thorough model understanding.

• Rank-based correlation or regression methods. For these methods, a rank transformation is performed on the model output, replacing each value by its rank in an ordered list. For nonlinear but monotonic models, this normally leads to significant increase of rsup2; and, apparently, to more significant sensitivity results. It should be kept in mind, however, that rank transformation tends to undervalue high and overvalue low model output values, which might influence the sensitivity statements. Moreover, the rank transformation is non-reversible and causes loss of information.

• Non-parametrical sensitivity tests. Such tests work by dividing the input sample into two or more subsamples according to some criteria and comparing the corresponding model out-put. The resulting sensitivity statements are not easy to interpret. These methods should be applied with care and only for specific reasons.

• Variance-based sensitivity analysis. The variance of the model output that occurs under variation of the input parameters can–under certain circumstances–be uniquely decomposed in contributions caused by the individual parameters and their combinations. The relative contributions to the total variance, the Sobol indices, provide a measure for sensitivity that does not require model linearity or monotonicity. 1st-order indices quantify the influences of the individual parameters alone, higher-order indices describe parameter interactions. The sum of all indices of any order that contain a specific parameter is called the total-order index of that parameter and quantifies its total influence on the model output in interaction with all other parameters. A number of computational methods are available for calculating these indices.

• Graphical methods of sensitivity analysis. A number of methods have been invented to represent the sensitivities graphically instead of compressing them to a single numerical value. Such figures provide a clear optical impression of the sensitivities and are often more meaningful than a single value. A typical drawback is that many separate figures are needed to visualise the sensitivities of time-dependent models.

• Density-based sensitivity analysis. This kind of method is based on the idea to compare the conditional and the unconditional probability density of the model output. Such methods work with any model and can improve model understanding but are not easy to apply and interpret.

Since for probabilistic sensitivity analysis with several uncertain parameters it is necessary to perform a rather high number of model runs, such investigations can become very time-consuming and occupy considerable computational resources. This problem can possibly be mitigated by using metamodels. Metamodels are analytical functions of the parameters, such as polynomials, designed to simulate the behaviour of the actual model under investigation, including its sensitivities. Where the original model might run several hours, a metamodel can be evaluated within milliseconds. So, it is possible to perform a high number of metamodel runs for calculating sensitivity measures. In exchange, however, it is necessary to adjust the metamodel accurately by performing a sufficient number of runs of the original model. Experiments showed that defining and adjusting a metamodel and using it for sensitivity analysis with standard methods in separate steps does not provide actual advantages compared to direct sensitivity analysis of the original model. Specific methods, however, have been developed that combine metamodeling with calculation of sensitivity indices. The main strength of such methods seems to be the ability to effectively compute higher-order sensitivity indices, which is a task difficult to perform with direct methods. This is a field of current and future research.

Already in the 1990s, but specifically in the past decade, some research has been done or initiated aiming at applying different sensitivity analysis methods to different repository PA models and investigating their specific strengths and weaknesses under specific consideration of the typical properties of such models (Sinclair, 1993; Becker et al., 2009; Kuhlmann et al., 2013; Spiessl, 2017). Currently, an exercise is being carried out with a number of integrated PA models and one process model from United States, Germany and Belgium. Teams from France, Switzerland, Finland and Russia recently joined the group either for observation or for active contribution (Röhlig et al., 2018).

4.3.2 Uncertainty treatment methods

To sample from the Bayesian posterior distribution, MCMC methods based on the Metropolis-Hastings algorithm are commonly utilized. These methods, while effective, often require numerous evaluations of the underlying numerical model, resulting in substantial computational costs. A strategy to mitigate these costs involves the use of surrogate models in place of the numerical model. However, this substitution can lead to sampling from a modified distribution. To preserve the exact posterior distribution, it is preferable to use the surrogate model within the Delayed Acceptance Metropolis-Hastings (DAMH) algorithm, as highlighted by Christen (2005). Recent literature has introduced DAMH-based sampling processes that iteratively update the surrogate model. For example, Zhang et al. (2013) employed adaptive sparse grid interpolation, while Cui et al. (2011), Cui et al. (2015) developed methods for constructing stochastic models of the error in the approximated posterior distribution and for creating reduced-order models using forward model evaluations.

The papers Blaheta et al. (2018a), Domesová and Béreš (2018) demonstrated that computation costs can be reduced by iterative updating of surrogate models during the sampling process. Recent extensions of this work (Domesová et al. (2020); Blaheta et al. (2020) performed Bayesian inverse analysis on multiple material parameters for complex and costly non-linear models using DAMH and adaptive surrogate refinement. These outcomes have been incorporated into the PhD thesis by Bérešová (2022a). There is also open-source software available, which accompanies the numerical examples in the aforementioned papers. SurrDAMH (Bérešová, 2022b) is a parallel tool for scheduling sampling procedures for multiple chains in DAMH. Its link with Flow123d (Březina et al., 2024), a library for hydromechanical modelling in fractured porous media, also resulted in software ENDORSE (Březina et al., 2022) for UQ in safety calculations for the excavation disturbed zone of a deep repository of radioactive waste.

Additionally, error-controlled polynomial surrogates derived from the stochastic Galerkin approach were used to fully replace the costly forward model. Geo-inspired examples of Bayesian inverse analysis in this setting were presented in the PhD thesis by Béreš (2023).

We also explored inverse problems outside the Bayesian framework as well. Haslinger et al. (2021) addressed uncertainties and sensitivities in optimal control problems with flux cost functionals using Tikhonov regularization. Malík and Kolcun (2021, 2023) treated the uncertainty in measurements for determining the initial stress tensor by employing spectral analysis of the least square matrix.

5 Conclusion and perspectives

DONUT, by providing numerical means for assessment, contributes to: increase the multi-physical description of processes within radioactive waste disposal, and thus, to the ability to manage integrated scientific knowledge in the scope of safety assessment abstraction by being more accurate in quantifying margins, - Understand the consequence of coupled processes and qualify long-term expected safety functions of components, - Improve tools that could be integrated in safety/performance assessment. Moreover, digitalization becomes a pillar of nuclear waste management (Kolditz et al., 2023). While the frontiers between model and digital twin is a debate (Wright and Davidson, 2020), DONUT has contributed to many scientific bricks in the scope of digital twin. Indeed, a digital twin is developed by, as far as possible, reproducing its multi-physical twin’s behavior. As demonstrated the better understanding and modeling of coupled multi-physics phenomena was one of the main goals of DONUT. The digital twin requires the use of high-performance computing, and this was tackled by developing the relevant numerical methods within the project. The digital twin needs model calibration, uncertainty analysis and model reduction, and all these topics have been addressed and advanced. Surrogate models were developed and tested for strong non-linear calculations such as those involving chemistry and reactive transport. At last, but not least digital twin needs to integrate multiscale representation that can be supported by upscaling methods developed within DONUT. The best framework to support the development of digital twins will be investigated in a strategic study entitled “Next-generation Digital Twins to support Optimization, Construction and Operation of surface and subsurface radioactive waste management facilities” within EURAD 2. Still in this latter context, a R&D work package entiled “High fidElity numeRical siMulations of strongly coupled processes for rEpository syStems and design optimisation with physical models and machine learning” will also be launched.

Author contributions

FC: Writing–review and editing, Writing–original draft. NP: Writing–review and editing, Writing–original draft. ABa: Writing–review and editing, Writing–original draft. DL: Writing–review and editing, Writing–original draft. GP: Writing–original draft. EA: Writing–original draft. BA: Writing–original draft. GB: Writing–original draft. DB: Writing–original draft. ABe: Writing–original draft. MB: Writing–original draft. SB: Writing–original draft. ZB: Writing–original draft. VB: Writing–original draft. KB: Writing–original draft. JB: Writing–original draft. FC: Writing–original draft. SC: Writing–original draft. MH: Writing–original draft. DH: Writing–original draft. DJ: Writing–original draft. FJ: Writing–original draft. CK: Writing–original draft. TK: Writing–original draft. TKo: Writing–original draft. TKr: Writing–original draft. JK: Writing–original draft. EL: Writing–original draft. JL: Writing–original draft. TL: Writing–original draft. TLi: Writing–original draft. CL-V: Writing–original draft. RM: Writing–original draft. JM: Writing–original draft. MM: Writing–original draft. AM: Writing–original draft. LM: Writing–original draft. VP: Writing–original draft. JP: Writing–original draft. SP: Writing–original draft. ZS: Writing–original draft. JS: Writing–original draft. A-CS-P: Writing–original draft. GS: Writing–original draft. SS: Writing–original draft. KY: Writing–original draft. YY: Writing–original draft. MZ: Writing–original draft. OK: Writing–review and editing, Writing–original draft.

Funding

The author(s) declare that financial support was received for the research, authorship, and/or publication of this article. The project leading to this application has received funding from the European Union’s Horizon 2020 research and innovation programme under grant agreement No. 847593. The work of UDC was funded by ENRESA and the Galician Regional Government (Grant ED431C2021/54). The work of IGN, TUL, ÚJV, CU, and CTU was partly funded by SÚRAO (contract No. SO2020-017).

Acknowledgments

Conflict of interest

Author ABa was employed by TS Enercon.

The remaining authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Footnotes

¹https://freefem.org/

²www.code-aster.org

³https://www.app.asso.fr/

⁴http://www.anr-charms.org/page/compass-code

⁵www.opengeosys.org

References

Abdulle, A., Barth, A., and Schwab, C. (2013). Multilevel Monte Carlo methods for stochastic elliptic multiscale PDEs. Multiscale Model Simul. 11, 1033–1070. doi:10.1137/120894725

CrossRef Full Text | Google Scholar

Ackerer, P., Trottier, N., and Delay, F. (2014). Flow in double-porosity aquifers: parameter estimation using an adaptive multiscale method. Adv. Water Resour. 73, 108–122. doi:10.1016/j.advwatres.2014.07.001

CrossRef Full Text | Google Scholar

Águila, J. F., Samper, J., Mon, A., and Montenegro, L. (2020). Dynamic update of flow and transport parameters in reactive transport simulations of radioactive waste repositories. Appl. Geochem. 117, 104585. doi:10.1016/j.apgeochem.2020.104585

CrossRef Full Text | Google Scholar

Ahusborde, E., Amaziane, B., Croccolo, F., and Pillardou, N. (2023). Numerical simulation of a thermal-hydraulic-chemical multiphase flow model for CO₂ sequestration in saline aquifers. Math. Geosci. 56, 541–572. doi:10.1007/s11004–023–10093–7

CrossRef Full Text | Google Scholar

Ahusborde, E., Amaziane, B., and El Ossmani, M. (2017). Finite volume scheme for coupling two-phase flow with reactive transport in porous media. in Springer proceedings in mathematics and statistics 200, 71–89. doi:10.1007/978-3-319-57394-6_43

CrossRef Full Text | Google Scholar

Ahusborde, E., Amaziane, B., and El Ossmani, M. (2018). Improvement of numerical approximation of coupled multiphase multicomponent flow with reactive geochemical transport in porous media. Oil Gas Sci. Technol. - Rev. IFP Energies Nouvelles 73, 73. doi:10.2516/ogst/2018033

CrossRef Full Text | Google Scholar

Ahusborde, E., Amaziane, B., and El Ossmani, M. (2021). High performance computing of 3d reactive multiphase flow in porous media: application to geological storage of CO₂. Comput. Geosci. 25, 2131–2147. doi:10.1007/s10596-021-10082-x

CrossRef Full Text | Google Scholar

Ahusborde, E., Amaziane, B., El Ossmani, M., and Id Moulay, M. (2019a). Numerical modeling and simulation of fully coupled processes of reactive multiphase flow in porous media. J. Math. Study 52, 359–377. doi:10.4208/jms.v52n4.19.01

CrossRef Full Text | Google Scholar

Ahusborde, E., El Ossmani, M., and Moulay, I. (2019b). A fully implicit finite volume scheme for single phase flow with reactive transport in porous media. Math. Comput. Simul. 164, 3–23. doi:10.1016/j.matcom.2018.09.001

CrossRef Full Text | Google Scholar

Aifantis, E. (1977). Introducing a multi-porous medium. Dev. Mech. 8, 209–211.

Google Scholar

Aiki, T., and Muntean, A. (2013). A free-boundary problem for concrete carbonation: front nucleation and rigorous justification of the $\sqrt{t}$-law of propagation. Interfaces Free Bound 15, 167–180. doi:10.4171/ifb/299

CrossRef Full Text | Google Scholar

Ainsworth, M., and Oden, J. T. (2000). “A posteriori error estimation in finite element analysis,” in Pure and applied mathematics (New York: John Wiley and Sons).

Google Scholar

Alemazkoor, N., and Meidani, H. (2017). Divide and conquer: an incremental sparsity promoting compressive sampling approach for polynomial chaos expansions. CMAME 318, 937–956. doi:10.1016/j.cma.2017.01.039

CrossRef Full Text | Google Scholar

Alessi, R., Crismale, V., and Orlando, G. (2018). Fatigue effects in elastic materials with variational damage models: a vanishing viscosity approach. J. Nonlinear Sci. 29, 1041–1094. doi:10.1007/s00332-018-9511-9

CrossRef Full Text | Google Scholar

Alessi, R., Marigo, J.-J., Maurini, C., and Vidoli, S. (2017). Coupling damage and plasticity for a phase-field regularisation of brittle, cohesive and ductile fracture: one-dimensional examples. Int. J. Mech. Sci. 149, 559–576. doi:10.1016/j.ijmecsci.2017.05.047

CrossRef Full Text | Google Scholar

Almani, T., Kumar, K., and Wheeler, M. (2023). Convergence analysis of single rate and multirate fixed stress split iterative coupling schemes in heterogeneous poroelastic media. Numer. Methods Partial Differ. Equations 39, 3170–3194. doi:10.1002/num.23004

CrossRef Full Text | Google Scholar

Alonso, E. E., Vaunat, J., and Gens, A. (1999). Modelling the mechanical behaviour of expansive clays. Eng. Geol. 54, 173–183. doi:10.1016/s0013-7952(99)00079-4

CrossRef Full Text | Google Scholar

Alyaev, S., Keilegavlen, E., and Nordbotten, J. (2019). A heterogeneous multiscale mpfa method for single-phase flows in porous media with inertial effects. Comput. Geosci. 23, 107–126. doi:10.1007/s10596-018-9787-8

CrossRef Full Text | Google Scholar

Ambati, M., Gerasimov, T., and De Lorenzis, L. (2015a). Phase-field modeling of ductile fracture. Comput. Mech. 55, 1017–1040. doi:10.1007/s00466-015-1151-4

CrossRef Full Text | Google Scholar

Ambati, M., Gerasimov, T., and Lorenzis, L. (2015b). A review on phase-field models of brittle fracture and a new fast hybrid formulation. Comput. Mech. 55, 383–405. doi:10.1007/s00466-014-1109-y

CrossRef Full Text | Google Scholar

Ambrosio, L., Gigli, N., and Savaré, G. (2008). “Gradient flows in metric spaces and in the space of probability measures,” in Lectures in mathematics ETH Zürich. second edn (Basel: Birkhäuser Verlag).

Google Scholar

Amestoy, P. R., Duff, I. S., Koster, J., and L’Excellent, J.-Y. (2001). A fully asynchronous multifrontal solver using distributed dynamic scheduling. SIAM J. Matrix Analysis Appl. 23, 15–41. doi:10.1137/s0895479899358194

CrossRef Full Text | Google Scholar

Amestoy, P. R., Guermouche, A., L’Excellent, J.-Y., and Pralet, S. (2006). Hybrid scheduling for the parallel solution of linear systems. Parallel Comput. 32, 136–156. doi:10.1016/j.parco.2005.07.004

CrossRef Full Text | Google Scholar

Amor, H., Marigo, J.-J., and Maurini, C. (2009). Regularized formulation of the variational brittle fracture with unilateral contact: numerical experiments. J. Mech. Phys. Solids 57, 1209–1229. doi:10.1016/j.jmps.2009.04.011

CrossRef Full Text | Google Scholar

Amri, A. (2021). “Réévaluation du modèle physique de transfert de l’hydrogène pour l’étude du transitoire hydraulique-gaz dans un stockage profond de déchets radioactifs,”. Ph.D. thesis (Institut National Polytechnique de Toulouse-INPT).

Google Scholar

Amri, A., Saâdi, Z., and Ababou, R. (2022). Parametric sensitivity to capillary entry pressure in two-phase water–gas flow models: deep geologic disposal of radioactive waste. Transp. Porous Media 145, 13–43. doi:10.1007/s11242-022-01780-w

CrossRef Full Text | Google Scholar

Amri, A., Saâdi, Z., and Ababou, R. (2023). Modeling two-phase flow with hysteresis: comparative study of hysteresis models and application. Rock Mech. Rock Eng. 57, 4333–4354. doi:10.1007/s00603-023-03501-1

CrossRef Full Text | Google Scholar

Amri, A., Saâdi, Z., Ababou, R., and Dymitrowska, M. (2020). “Parametric sensitivity to gas-entry pressure in 2-phase flow models in a deep geologic repository for radioactive waste,” in 8th international CLAY conference 2020, Nancy, France, June 2022.

Google Scholar

Andra (2012). Référentiel du comportement THM des formations sur le site de Meuse/Haute-Marne. D.rp.amfs.12.0024. France: Agence Nationale pour la Gestion des Déchets Radioactifs, ANDRA.

Google Scholar

Ashworth, M., and Doster, F. (2019). Foundations and their practical implications for the constitutive coefficients of poromechanical dual-continuum models. Transp. Porous Media 130, 699–730. doi:10.1007/s11242-019-01335-6

CrossRef Full Text | Google Scholar

Axelsson, O., Blaheta, R., and Byczanski, P. (2012). Stable discretization of poroelasticity problems and efficient preconditioners for arising saddle point type matrices. Comput. Vis. Sci. 15, 191–207. doi:10.1007/s00791-013-0209-0

CrossRef Full Text | Google Scholar

Axelsson, O., Blaheta, R., and Kohut, R. (2015a). Preconditioning methods for high-order strongly stable time integration methods with an application for a dae problem: preconditioning high-order strongly stable time integration methods. Numer. Linear Algebra Appl. 22, 930–949. doi:10.1002/nla.2015

CrossRef Full Text | Google Scholar

Axelsson, O., Blaheta, R., and Luber, T. (2015b). “Preconditioners for mixed fem solution of stationary and nonstationary porous media flow problems,” in Large scale scientific computing. Editors I. Lirkov, S. Margenov, and J. Wasniewski (Cham: Springer International Publishing), 3–14.

CrossRef Full Text | Google Scholar

Ayoub, A., Pfingsten, W., Podofillini, L., and Sansavini, G. (2020). Uncertainty and sensitivity analysis of the chemistry of cesium sorption in deep geological repositories. Appl. Geochem. 117, 104607. doi:10.1016/j.apgeochem.2020.104607

CrossRef Full Text | Google Scholar

Babuška, I., Nobile, F., and Tempone, R. (2007). A stochastic collocation method for elliptic partial differential equations with random input data. SIAM J. Numer. Analysis 45, 1005–1034. doi:10.1137/050645142

CrossRef Full Text | Google Scholar

Badia, S., and Olm, M. (2018). Nonlinear parallel-in-time schur complement solvers for ordinary differential equations. J. Comput. Appl. Math. 344, 794–806. doi:10.1016/j.cam.2017.09.033

CrossRef Full Text | Google Scholar

Balay, S., Abhyankar, S., Adams, M. F., Brown, J., Brune, P., Buschelman, K., et al. (2019). PETSc users manual. Tech. Rep. ANL-95/11 - Revision 3.12. Argonne National Laboratory.

Google Scholar

Barenblatt, G., and Zheltov, I. (1960). Fundamental equations for the filtration of homogeneous fluids through fissured rocks. Dokl. Akad. Nauk. SSSR 132, 545–548.

Google Scholar

Barth, A., Lang, A., and Schwab, C. (2013). Multilevel Monte Carlo method for parabolic stochastic partial differential equations. BIT Numer. Math. 53, 3–27. doi:10.1007/s10543-012-0401-5

CrossRef Full Text | Google Scholar

Bastian, P. (2014). A fully-coupled discontinuous galerkin method for two-phase flow in porous media with discontinuous capillary pressure. Comput. Geosci. 18, 779–796. doi:10.1007/s10596-014-9426-y

CrossRef Full Text | Google Scholar

Bastian, P., Blatt, M., Dedner, A., Engwer, C., Klöfkorn, R., Kornhuber, R., et al. (2008a). A generic grid interface for parallel and adaptive scientific computing. Part II: implementation and tests in DUNE. Computing 82, 121–138. doi:10.1007/s00607-008-0004-9

CrossRef Full Text | Google Scholar

Bastian, P., Blatt, M., Dedner, A., Engwer, C., Klöfkorn, R., Ohlberger, M., et al. (2008b). A generic grid interface for parallel and adaptive scientific computing. Part I: abstract framework. Computing 82, 103–119. doi:10.1007/s00607-008-0003-x

CrossRef Full Text | Google Scholar

Bataillon, C., Bouchon, F., Chainais-Hillairet, C., Desgranges, C., Hoarau, E., Martin, F., et al. (2010). Corrosion modelling of iron based alloy in nuclear waste repository. Electrochimica Acta 55, 4451–4467. doi:10.1016/j.electacta.2010.02.087

CrossRef Full Text | Google Scholar

Bataillon, C., Bouchon, F., Chainais-Hillairet, C., Fuhrmann, J., Hoarau, E., and Touzani, R. (2012). Numerical methods for the simulation of a corrosion model with moving oxide layer. J. Comput. Phys. 231, 6213–6231. doi:10.1016/j.jcp.2012.06.005

CrossRef Full Text | Google Scholar

Bauer, M., Eibl, S., Godenschwager, C., Kohl, N., Kuron, M., Rettinger, C., et al. (2021). walberla: a block-structured high-performance framework for multiphysics simulations. Comput. Math. Appl. 81, 478–501. doi:10.1016/j.camwa.2020.01.007

CrossRef Full Text | Google Scholar

Bean, M., Lipnikov, K., and Yi, S.-Y. (2017). A block-diagonal preconditioner for a four-field mixed finite element method for biot’s equations. Appl. Numer. Math. 122, 1–13. doi:10.1016/j.apnum.2017.07.007

CrossRef Full Text | Google Scholar

Beaude, L., Beltzung, T., Brenner, K., Lopez, S., Masson, R., Smai, F., et al. (2018). “Parallel geothermal numerical model with fractures and multi-branch wells,” in Cemracs 2016—numerical challenges in parallel scientific computing, volume 63 of ESAIM Proc. Surveys, 109–134.

CrossRef Full Text | Google Scholar

Beaude, L., Brenner, K., Lopez, S., Masson, R., and Smai, F. (2019). Non-isothermal compositional liquid gas Darcy flow: formulation, soil-atmosphere boundary condition and application to high-energy geothermal simulations. Comput. Geosci. 23, 443–470. doi:10.1007/s10596-018-9794-9

CrossRef Full Text | Google Scholar

Becker, D.-A., Spießl, S., Röhlig, K.-J., Plischke, E., Bolado-Lavin, R., Badea, A., et al. (2009). “Evaluation of approaches to sensitivity analysis,” in PAMINA deliverable (D-N°:2.1.D.1) (European Commission).

Google Scholar

Bedford, A., and Stern, M. (1972). A multi-continuum theory for composite elastic materials. Acta Mech. 14, 85–102. doi:10.1007/bf01184851

CrossRef Full Text | Google Scholar

Belytschko, T., and Black, T. (1999). Elastic crack growth in finite elements with minimal remeshing. Int. J. Numer. Methods Engineering 45, 601–620. doi:10.1002/(sici)1097-0207(19990620)45:5⟨601::aid-nme598⟩3.0.co;2-s

CrossRef Full Text | Google Scholar

Belytschko, T., Gracie, R., and Ventura, G. (2009). A review of extended/generalized finite element methods for material modeling. Model. Simul. Mater. Sci. Eng. 17, 043001. doi:10.1088/0965-0393/17/4/043001

CrossRef Full Text | Google Scholar

Benamou, J.-D., Carlier, G., and Laborde, M. (2016). An augmented Lagrangian approach to wasserstein gradient flows and applications. ESAIM Proc. Surv. 54, 1–17. doi:10.1051/proc/201654001

CrossRef Full Text | Google Scholar

Ben Gharbia, I., Dabaghi, J., Martin, V., and Vohralík, M. (2019). A posteriori error estimates for a compositional two-phase flow with nonlinear complementarity constraints. Comput. Geosci. 24, 1031–1055. doi:10.1007/s10596-019-09909-5

CrossRef Full Text | Google Scholar

Béreš, M. (2020). A comparison of approaches for the construction of reduced basis for stochastic galerkin matrix equations. Appl. Math. 65 (2), 191–225. doi:10.21136/am.2020.0257-19

CrossRef Full Text | Google Scholar

Béreš, M. (2023). “Methods for the solution of differential equations with uncertainties in parameters,”. Ph.d. dissertation (Ostrava: VSB - Technical University of Ostrava).

Google Scholar

Béreš, M. (2024). “Efficient solution of stochastic galerkin matrix equations via reduced basis and tensor train approximation,” in Proceedings of the conference large-scale scientific computing. Editors I. Lirkov, and S. Margenov Springer, 205–214.

Google Scholar

Bérešová, S. (2022a). “Bayesian approach to the identification of parameters of differential equations,”. Ph.d. dissertation (Ostrava: VSB - Technical University of Ostrava).

Google Scholar

Bérešová, S. (2022b). surrDAMH. Available at: https://github.com/dom0015/surrDAMH/releases/tag/v1.0.

Google Scholar

Bergamaschi, L., and Putti, M. (1999). Mixed finite elements and Newton-type linearizations for the solution of richards’ equation. Int. J. Numer. Methods Eng. 45, 1025–1046. doi:10.1002/(sici)1097-0207(19990720)45:8<1025::aid-nme615>3.3.co;2-7

CrossRef Full Text | Google Scholar

Beriozkin, A., and Mualem, Y. (2018). Comparative analysis of the apparent saturation hysteresis approach and the domain theory of hysteresis in respect of prediction of scanning curves and air entrapment. Adv. Water Resour. 115, 253–263. doi:10.1016/j.advwatres.2018.01.016

CrossRef Full Text | Google Scholar

Berkowitz, B., Dror, I., Hansen, S., and Scher, H. (2016). Measurements and models of reactive transport in geological media. Rev. Geophys. 54, 930–986. doi:10.1002/2016RG000524

CrossRef Full Text | Google Scholar

Berre, I., Doster, F., and Keilegavlen, E. (2019). Flow in fractured porous media: a review of conceptual models and discretization approaches. Transp. Porous Media 130, 215–236. doi:10.1007/s11242-018-1171-6

CrossRef Full Text | Google Scholar

Bessemoulin-Chatard, M., and Chainais-Hillairet, C. (2017). Exponential decay of a finite volume scheme to the thermal equilibrium for drift–diffusion systems. J. Numer. Math. 25, 147–168. doi:10.1515/jnma-2016-0007

CrossRef Full Text | Google Scholar

Bibby, R. (1981). Mass transport of solutes in dual-porosity media. Water Resour. Res. 17, 1075–1081. doi:10.1029/WR017i004p01075

CrossRef Full Text | Google Scholar

Biegert, E., Vowinckel, B., Hua, L., and Meiburg, E. (2018). Stress balance for a viscous flow with a single rolling particle. E3S Web Conf. 40, 04003. doi:10.1051/e3sconf/20184004003

CrossRef Full Text | Google Scholar

Bikerman, J. J. (1942). XXXIX. Structure and capacity of electrical double layer. Philos. Mag. 33, 384–397. doi:10.1080/14786444208520813

CrossRef Full Text | Google Scholar

Bildstein, O., Claret, F., and Frugier, P. (2019). RTM for waste repositories. Rev. Mineralogy Geochem. 85, 419–457. doi:10.2138/rmg.2019.85.14

CrossRef Full Text | Google Scholar

Bilke, L., Fischer, T., Helbig, C., Krawczyk, C., Nagel, T., Naumov, D., et al. (2014). Tessin vislab—laboratory for scientific visualization. Environ. Earth Sci. 72, 3881–3899. doi:10.1007/s12665-014-3785-5

CrossRef Full Text | Google Scholar

Bilke, L., Flemisch, B., Kalbacher, T., Kolditz, O., Helmig, R., and Nagel, T. (2019). Development of open-source porous media simulators: principles and experiences. Transp. Porous Media 130, 337–361. doi:10.1007/s11242-019-01310-1

CrossRef Full Text | Google Scholar

Biot, M. A. (1941). General theory of three-dimensional consolidation. J. Appl. Phys. 12, 155–164. doi:10.1063/1.1712886

CrossRef Full Text | Google Scholar

Birgersson, M. (2017). A general framework for ion equilibrium calculations in compacted bentonite. Geochimica Cosmochimica Acta 200, 186–200. doi:10.1016/j.gca.2016.11.010

CrossRef Full Text | Google Scholar

Birgle, N., Masson, R., and Trenty, L. (2018). A domain decomposition method to couple nonisothermal compositional gas liquid Darcy and free gas flows. J. Comput. Phys. 368, 210–235. doi:10.1016/j.jcp.2018.04.035

CrossRef Full Text | Google Scholar

Birkhölzer, J., Rubin, H., Daniels, H., and Rouvé, G. (1993a). Contaminant advection and spreading in a fractured permeable formation: Part 1. parametric evaluation and analytical solution. J. Hydrology 144, 1–33. doi:10.1016/0022-1694(93)90163-4

CrossRef Full Text | Google Scholar

Birkhölzer, J., Rubin, H., Daniels, H., and Rouvé, G. (1993b). Contaminant advection and spreading in a fractured permeable formation: Part 2. numerical simulation. J. Hydrology 144, 35–58. doi:10.1016/0022-1694(93)90164-5

CrossRef Full Text | Google Scholar

Birkholzer, J., Tsang, C.-F., Bond, A., Hudson, J., Jing, L., and Stephansson, O. (2019). 25 years of DECOVALEX - scientific advances and lessons learned from an international research collaboration in coupled subsurface processes. Int. J. Rock Mech. Min. Sci. 122, 103995. doi:10.1016/j.ijrmms.2019.03.015

CrossRef Full Text | Google Scholar

Bishop, A. W. (1959). The principle of effective stress. Tek. Ukebl. 39, 859–863.

Google Scholar

Blaheta, R., Béreš, M., Domesová, S., and Horák, D. (2020). Bayesian inversion for steady flow in fractured porous media with contact on fractures and hydro-mechanical coupling. Comput. Geosci. 24, 1911–1932. doi:10.1007/s10596-020-09935-8

CrossRef Full Text | Google Scholar

Blaheta, R., Béreš, M., Domesová, S., and Pan, P. (2018a). A comparison of deterministic and bayesian inverse with application in micromechanics. Appl. Math. 63, 665–686. doi:10.21136/am.2018.0195-18

CrossRef Full Text | Google Scholar

Blaheta, R., Jakl, O., Kohut, R., and Starỳ, J. (2010). “GEM – a platform for advanced mathematical geosimulations,” in Parallel Processing and Applied Mathematics: 8th International Conference, PPAM 2009, Wroclaw, Poland, September 13-16, 2009 (Springer), 266–275.

CrossRef Full Text | Google Scholar

Blaheta, R., Luber, T., and Kružík, J. (2018b). “Schur complement-schwarz dd preconditioners for non-stationary Darcy flow problems,” in High performance computing science engineering (Cham: Springer International Publishing), 59–72.

CrossRef Full Text | Google Scholar

Blatman, G., and Sudret, B. (2011). Adaptive sparse polynomial chaos expansion based on least angle regression. JCP 230 (6), 2345–2367. doi:10.1016/j.jcp.2010.12.021

CrossRef Full Text | Google Scholar

Bliznyuk, N., Ruppert, D., Shoemaker, C., Regis, R., Wild, S., and Mugunthan, P. (2008). Bayesian calibration and uncertainty analysis for computationally expensive models using optimization and radial basis function approximation. J. Comput. Graph. Statistics 17, 270–294. doi:10.1198/106186008x320681

CrossRef Full Text | Google Scholar

Blunt, M., Bijeljic, B., Dong, H., Gharbi, O., Iglauer, S., Mostaghimi, P., et al. (2013). Pore-scale imaging and modelling. Adv. Water Resour. 51, 197–216. doi:10.1016/j.advwatres.2012.03.003

CrossRef Full Text | Google Scholar

Bonano, E. J., and Cranwell, R. M. (1988). Treatment of uncertainties in the performance assessment of geologic high-level radioactive waste repositories. Math. Geol. 20, 543–565. doi:10.1007/bf00890336

CrossRef Full Text | Google Scholar

Borden, M., Verhoosel, C., Scott, M., Hughes, T., and Landis, C. (2012). A phase-field description of dynamic brittle fracture. Comput. Methods Appl. Mech. Eng. 217-220, 77–95. doi:10.1016/j.cma.2012.01.008

CrossRef Full Text | Google Scholar

Borgonovo, E. P. E., and Plischke, E. (2016). Sensitivity analysis: a review of recent advances. Eur. J. Operational Res. 248 (3), 869–887. doi:10.1016/j.ejor.2015.06.032

CrossRef Full Text | Google Scholar

Both, J. W., Borregales, M., Nordbotten, J. M., Kumar, K., and Radu, F. A. (2017). Robust fixed stress splitting for biot’s equations in heterogeneous media. Appl. Math. Lett. 68, 101–108. doi:10.1016/j.aml.2016.12.019

CrossRef Full Text | Google Scholar

Botti, M., and Riedlbeck, R. (2018). Equilibrated stress tensor reconstruction and a posteriori error estimation for nonlinear elasticity. Comput. Methods Appl. Math. 20, 39–59. doi:10.1515/cmam-2018-0012

CrossRef Full Text | Google Scholar

Bourdin, B., Chukwudozie, C., and Yoshioka, K. (2012). “A variational approach to the numerical simulation of hydraulic fracturing,” in Proceedings - SPE Annual Technical Conference and Exhibition, San Antonio, Texas, 8-10 October 2012, 1442–1452.

CrossRef Full Text | Google Scholar

Bourdin, B., Francfort, G., and Marigo, J.-J. (2000). Numerical experiments in revisited brittle fracture. J. Mech. Phys. Solids 48, 797–826. doi:10.1016/S0022-5096(99)00028-9

CrossRef Full Text | Google Scholar

Bourdin, B., Francfort, G., and Marigo, J.-J. (2008). The variational approach to fracture. Springer. doi:10.1007/978-1-4020-6395-4

CrossRef Full Text | Google Scholar

Bourgeat, A., Smaï, F., and Granet, S. (2013). “Compositional two-phase flow in saturated-unsaturated porous media: benchmarks for phase appearance/disappearance,” in Simulation of flow in porous media (De Gruyter), 81–106. doi:10.1515/9783110282245.81

CrossRef Full Text | Google Scholar

Bradbury, M. H., and Baeyens, B. (1997). A mechanistic description of ni and zn sorption on na-montmorillonite part ii: modelling. J. Contam. Hydrology 27, 223–248. doi:10.1016/S0169-7722(97)00007-7

CrossRef Full Text | Google Scholar

Brendler, V., and Pospiech, S. (2023). Uncertainty identification, classification and quantification. Final version as of 20/02/2024 of deliverable D10.3 of the HORIZON 2020 project EURAD. EC Grant agreement no: 847593.

Google Scholar

Brendler, V., Vahle, A., Arnold, T., Bernhard, G., and Fanghänel, T. (2003). Res3t-rossendorf expert system for surface and sorption thermodynamics. J. Contam. Hydrology 61, 281–291. doi:10.1016/S0169-7722(02)00129-8

PubMed Abstract | CrossRef Full Text | Google Scholar

Brenner, K., Chave, F., and Masson, R. (2022). Gradient discretization of a 3D-2D-1D mixed-dimensional diffusive model with resolved interface, application to the drying of a fractured porous medium. IMA J. Numer. Analysis 43, 3522–3563. doi:10.1093/imanum/drac076

CrossRef Full Text | Google Scholar

Brenner, K., Groza, M., Jeannin, L., Masson, R., and Pellerin, J. (2017). Immiscible two-phase Darcy flow model accounting for vanishing and discontinuous capillary pressures: application to the flow in fractured porous media. Comput. Geosci. 21, 1075–1094. doi:10.1007/s10596-017-9675-7

CrossRef Full Text | Google Scholar

Brenner, K., Masson, R., Trenty, L., and Zhang, Y. (2016). Coupling of a two phase gas liquid compositional 3d Darcy flow with a 1d compositional free gas flow. ESAIM M2AN 50, 1491–1522. doi:10.1051/m2an/2015091

CrossRef Full Text | Google Scholar

Březina, J., and Stebel, J. (2024). Discrete fracture-matrix model of poroelasticity. ZAMM-Journal Appl. Math. Mech. 104, e202200469. doi:10.1002/zamm.202200469

CrossRef Full Text | Google Scholar

Březina, J., Stebel, J., Exner, P., and Hybš, J. (2024). Flow123d. Available at: http://github.com/flow123d/flow123d.

Google Scholar

Březina, J., Stebel, J., Exner, P., Špetlík, M., Sysala, S., Simona, B., et al. (2022). Software endorse 1.0. Available at: https://github.com/GeoMop/Endorse.

Google Scholar

Bringedal, C., von Wolff, L., and Pop, I. S. (2019). Phase field modeling of precipitation and dissolution processes in porous media: upscaling and numerical experiments. UHasselt Computational Mathematics Preprint Nr. UP-19-01.

Google Scholar

Brunner, F., and Knabner, P. (2019). A global implicit solver for miscible reactive multiphase multicomponent flow in porous media. Comput. Geosci. 23, 127–148. doi:10.1007/s10596-018-9788-7

CrossRef Full Text | Google Scholar

Bukovská, Z., and Verner, K. (2017). Complex geological characterisation of Bukov URL. Final report. Tech. Rep. 191/2017/EN/349 s, SURAO.

Google Scholar

Buňatová, V. (1998). “Interactions of radionuclide with hard rock,” in Actinides and the environment (Dordrecht, Boston, London: Kluwer Academic Publishers).

Google Scholar

Cadini, F., De Sanctis, J., Girotti, T., Zio, E., Luce, A., and Taglioni, A. (2010). Monte Carlo estimation of radionuclide release at a repository scale. Ann. Nucl. Energy 37, 861–866. doi:10.1016/j.anucene.2010.02.011

CrossRef Full Text | Google Scholar

Cajuhi, T., Sanavia, L., and De Lorenzis, L. (2018). Phase-field modeling of fracture in variably saturated porous media. Comput. Mech. 61, 299–318. doi:10.1007/s00466-017-1459-3

CrossRef Full Text | Google Scholar

Cancès, C. (2009). Finite volume scheme for two-phase flows in heterogeneous porous media involving capillary pressure discontinuities. M2AN Math. Model. Numer. Anal. 43, 973–1001. doi:10.1051/m2an/2009032

CrossRef Full Text | Google Scholar

Cancès, C. (2010). On the effects of discontinuous capillarities for immiscible two-phase flows in porous media made of several rock-types. Netw. Heterog. Media 5, 635–647. doi:10.3934/nhm.2010.5.635

CrossRef Full Text | Google Scholar

Cancès, C., Chainais-Hillairet, C., Merlet, B., Raimondi, F., and Venel, J. (2023a). Mathematical analysis of a thermodynamically consistent reduced model for iron corrosion. Z. Angew. Math. Phys. 74, 96. doi:10.1007/s00033-023-01970-6

CrossRef Full Text | Google Scholar

Cancès, C., Chainais-Hillairet, C., Merlet, B., Raimondi, F., and Venel, J. (2023b). Thermodynamically consistent modelling of the corrosion of iron in the context of deep subsurface nuclear waste repositories. Tech. rep., EURAD joint program. Available at: https://hal.science/hal-04210782.

Google Scholar

Cancès, C., Gallouët, T. O., and Todeschi, G. (2020). A variational finite volume scheme for Wasserstein gradient flows. Numer. Math. 146, 437–480. doi:10.1007/s00211-020-01153-9

CrossRef Full Text | Google Scholar

Cancès, C., Herda, M., and Massimini, A. (2023c). “Finite volumes for a generalized Poisson-Nernst-Planck system with cross-diffusion and size exclusion,” in Finite volumes for complex applications X, springer proceedings in mathematics and statistics (Strasbourg, France: Springer), 57–73. doi:10.1007/978-3-031-40864-9_4

CrossRef Full Text | Google Scholar

Cancès, C., and Venel, J. (2023). On the square-root approximation finite volume scheme for nonlinear drift-diffusion equations. Comptes Rendus. Mathématique 361, 535–558. doi:10.5802/crmath.421

CrossRef Full Text | Google Scholar

Carrier, B., and Granet, S. (2012). Numerical modeling of hydraulic fracture problem in permeable medium using cohesive zone model. Eng. Fract. Mech. 79, 312–328. doi:10.1016/j.engfracmech.2011.11.012

CrossRef Full Text | Google Scholar

Carrillo, J. A., Craig, K., Wang, L., and Wei, C. (2022). Primal dual methods for Wasserstein gradient flows. Found. Comput. Math. 22, 389–443. doi:10.1007/s10208-021-09503-1

CrossRef Full Text | Google Scholar

Ceriotti, G., Porta, G., Geloni, C., Dalla Rosa, M., and Guadagnini, A. (2017). Quantification of co2 generation in sedimentary basins through carbonate/clays reactions with uncertain thermodynamic parameters. Geochimica Cosmochimica Acta 213, 198–215. doi:10.1016/j.gca.2017.06.015

CrossRef Full Text | Google Scholar

Ceriotti, G., Russian, A., Bolster, D., and Porta, G. (2019). A double-continuum transport model for segregated porous media: derivation and sensitivity analysis-driven calibration. Adv. Water Resour. 128, 206–217. doi:10.1016/j.advwatres.2019.04.003

CrossRef Full Text | Google Scholar

Chagneau, A., Claret, F., Enzmann, F., Kersten, M., Heck, S., Madé, B., et al. (2015). Mineral precipitation-induced porosity reduction and its effect on transport parameters in diffusion-controlled porous media. Geochem. Trans. 16, 13. doi:10.1186/s12932-015-0027-z

PubMed Abstract | CrossRef Full Text | Google Scholar

Chainais-Hillairet, C., and Gallouët, T. O. (2016). Study of a pseudo-stationary state for a corrosion model: existence and numerical approximation. Nonlinear Anal. Real World Appl. 31, 38–56. doi:10.1016/j.nonrwa.2016.01.010

CrossRef Full Text | Google Scholar

Chainais-Hillairet, C., and Lacroix-Violet, I. (2012). The existence of solutions to a corrosion model. Appl. Math. Lett. 25, 1784–1789. doi:10.1016/j.aml.2012.02.012

CrossRef Full Text | Google Scholar

Chainais-Hillairet, C., and Lacroix-Violet, I. (2015). On the existence of solutions for a drift-diffusion system arising in corrosion modeling. Discr. Cont. Dyn. Syst. B 20, 77–92. doi:10.3934/dcdsb.2015.20.77

CrossRef Full Text | Google Scholar

Chambolle, A. (2004). An approximation result for special functions with bounded deformation. J. de Mathématiques Pures Appliquées 83, 929–954. doi:10.1016/j.matpur.2004.02.004

CrossRef Full Text | Google Scholar

Chan, S., and Elsheikh, A. H. (2018). A machine learning approach for efficient uncertainty quantification using multiscale methods. J. Comput. Phys. 354, 493–511. doi:10.1016/j.jcp.2017.10.034

CrossRef Full Text | Google Scholar

Chatard, M. (2011). “Asymptotic behavior of the Scharfetter-Gummel scheme for the drift-diffusion model,” in Finite volumes for complex applications VI. Problems and perspectives (Heidelberg: Springer), 235–243. doi:10.1007/978-3-642-20671-9_25

CrossRef Full Text | Google Scholar

Chen, C., Hon, Y., and Schaback, R. (2005). Scientific computing with radial basis functions. Technical report. Hattiesburg: Department of Mathematics, University of Southern Mississippi.

Google Scholar

Chen, H., Kandasamy, S., Orszag, S., Shock, R., Succi, S., and Yakhot, V. J. S. (2003). Extended Boltzmann kinetic equation for turbulent flows. Science 301, 633–636. doi:10.1126/science.1085048

PubMed Abstract | CrossRef Full Text | Google Scholar

Chen, M.-H., Salama, A., and Sun, S. (2019). The transport of nanoparticles in subsurface with fractured, anisotropic porous media: numerical simulations and parallelization. J. Comput. Appl. Math. 350, 1–18. doi:10.1016/j.cam.2018.09.019

CrossRef Full Text | Google Scholar

Chessa, J., and Belytschko, T. (2003). An extended finite element method for two-phase fluids. J. Appl. Mech. 70, 10–17. doi:10.1115/1.1526599

CrossRef Full Text | Google Scholar

Choo, J., White, J. A., and Borja, R. I. (2016). Hydromechanical modeling of unsaturated flow in double porosity media. Int. J. Geomechanics 16, D4016002. doi:10.1061/(asce)gm.1943-5622.0000558

CrossRef Full Text | Google Scholar

Chopra, M., Nair, R. N., Sunny, F., and Sharma, D. N. (2015). Migration of radionuclides from a high-level radioactive waste repository in deep geological formations. Environ. Earth Sci. 73, 1757–1768. doi:10.1007/s12665-014-3525-x

CrossRef Full Text | Google Scholar

Christen, C., and Fox, J. A. (2005). Markov chain Monte Carlo using an approximation. J. Comput. Graph. statistics 14 (4), 795–810. doi:10.1198/106186005x76983

CrossRef Full Text | Google Scholar

Chukwudozie, C., Bourdin, B., and Yoshioka, K. (2019). A variational phase-field model for hydraulic fracturing in porous media. Comput. Methods Appl. Mech. Eng. 347, 957–982. doi:10.1016/j.cma.2018.12.037

CrossRef Full Text | Google Scholar

Chung, E. T., Efendiev, Y., Leung, W. T., Vasilyeva, M., and Wang, Y. (2018). Non-local multi-continua upscaling for flows in heterogeneous fractured media. J. Comput. Phys. 372, 22–34. doi:10.1016/j.jcp.2018.05.038

CrossRef Full Text | Google Scholar

Churakov, S., and Prasianakis, N. (2018). Review of the current status and challenges for a holistic process-based description of mass transport and mineral reactivity in porous media. Am. J. Sci. 318, 921–948. doi:10.2475/09.2018.03

CrossRef Full Text | Google Scholar

Ciavatta, L. (1980). The specific interaction theory in evaluating ionic equilibria. Ann. Chim. (Rome), 551–567.

Google Scholar

Claret, F., Dauzeres, A., Jacques, D., Sellin, P., Cochepin, B., De Windt, L., et al. (2022). Modelling of the long-term evolution and performance of engineered barrier system. EPJ N-Nuclear Sci. Technol. 8, 41. doi:10.1051/epjn/2022038

CrossRef Full Text | Google Scholar

Claret, F., Marty, N., and Tournassat, C. (2018). Modeling the long-term stability of multi-barrier systems for nuclear waste disposal in geological clay formations. John Wiley and Sons, Ltd, 395–451.

CrossRef Full Text | Google Scholar

Clemens, T., Hückinghaus, D., Sauter, M., Liedl, R., and Teutsch, G. (1996). A combined continuum and discrete network reactive transport model for the simulation of karst development. IAHS-AISH Publ. 237, 309–318.

Google Scholar

Cliffe, K. A., Giles, M. B., Scheichl, R., and Teckentrup, A. L. (2011). Multilevel Monte Carlo methods and applications to elliptic PDEs with random coefficients. Comput. Vis. Sci. 14, 3–15. doi:10.1007/s00791-011-0160-x

CrossRef Full Text | Google Scholar

Coats, K., and Smith, B. (1964). Dead-end pore volume and dispersion in porous media. Soc. Petroleum Eng. J. 4, 73–84. doi:10.2118/647-PA

CrossRef Full Text | Google Scholar

Coles, M., Hazlett, R., Muegge, E., Jones, K., Andrews, B., Dowd, B., et al. (1996). Developments in synchrotron x-ray microtomography with applications to flow in porous media, 413–424.

Google Scholar

Coles, M., Hazlett, R., Muegge, E., Jones, K., Andrews, B., Dowd, B., et al. (1998). Developments in synchrotron X-ray microtomography with applications to flow in porous media. SPE Reserv. Eng. Soc. Petroleum Eng. 1, 288–296. doi:10.2118/50985-pa

CrossRef Full Text | Google Scholar

Conrad, P. R., and Marzouk, Y. M. (2013). Adaptive smolyak pseudospectral approximations. JSISC 35 (6), 2643–2670. doi:10.1137/120890715

CrossRef Full Text | Google Scholar

Conti, S., and O’Hagan, A. (2010). Bayesian emulation of complex multi-output and dynamic computer models. J. Stat. Plan. Infer. 140 (3), 640–651. doi:10.1016/j.jspi.2009.08.006

CrossRef Full Text | Google Scholar

Coussy, O., and Ulm, F. (1995). Mechanics of porous continua. New-York, United States: John Wiley and Sons, Ltd.

Google Scholar

Criscenti, L., Laniak, G., and Erikson, R. (1996). Propagation of uncertainty through geochemical code calculations. Geochimica cosmochimica acta 60, 3551–3568. doi:10.1016/0016-7037(96)00188-3

CrossRef Full Text | Google Scholar

Cui, T., Fox, C., and O’sullivan, M. (2011). Bayesian calibration of a large-scale geothermal reservoir model by a new adaptive delayed acceptance metropolis hastings algorithm. Water Resour. Res. 47. doi:10.1029/2010wr010352

CrossRef Full Text | Google Scholar

Cui, T., Marzouk, Y. M., and Willcox, K. E. (2015). Data-driven model reduction for the bayesian solution of inverse problems. Int. J. Numer. Methods Eng. 102, 966–990. doi:10.1002/nme.4748

CrossRef Full Text | Google Scholar

Cukier, R. I., Fortuin, C. M., Shuler, K. E., Petschek, A. G., and Schaibly, J. H. (1973). Study of the sensitivity of coupled reaction systems to uncertainties in rate coefficients. I Theory. J. Chem. Phys. 59, 3873–3878. doi:10.1063/1.1680571

CrossRef Full Text | Google Scholar

Curti, E., Xto, J., Borca, C., Henzler, K., Huthwelker, T., and Prasianakis, N. (2019). Modelling ra-bearing baryte nucleation/precipitation kinetics at the pore scale: application to radioactive waste disposal. Eur. J. Mineralogy 31, 247–262. doi:10.1127/ejm/2019/0031-2818

CrossRef Full Text | Google Scholar

Dai, Z., and Samper, J. (2004). Inverse problem of multicomponent reactive chemical transport in porous media: formulation and applications. Water Resour. Res. 40. doi:10.1029/2004wr003248

CrossRef Full Text | Google Scholar

de La Vaissière, R. (2011). Interpretation of in-situ gas experiment PGZ1. Forge report d5.9 and d5.12. France: Agence Nationale pour la Gestion des Déchets Radioactifs, ANDRA.

Google Scholar

Delay, F., Badri, H., Fahs, M., and Ackerer, P. (2017). A comparison of discrete versus continuous adjoint states to invert groundwater flow in heterogeneous dual porosity systems. Adv. Water Resour. 110, 1–18. doi:10.1016/j.advwatres.2017.09.022

CrossRef Full Text | Google Scholar

Delsman, J. R., De Louw, P. G., de Lange, W. J., and Essink, G. H. O. (2017). Fast calculation of groundwater exfiltration salinity in a lowland catchment using a lumped celerity/velocity approach. Environ. Model. and Softw. 96, 323–334. doi:10.1016/j.envsoft.2017.07.004

CrossRef Full Text | Google Scholar

De Lucia, M., and Kühn, M. (2021). Dectree v1.0—chemistry speedup in reactive transport simulations: purely datadriven and physics-based surrogates. Geosci. Model Dev. 14, 4713–4730. doi:10.5194/gmd-14-4713-2021

CrossRef Full Text | Google Scholar

Deng, H., Fitts, J. P., Tappero, R. V., Kim, J. J., and Peters, C. A. (2020). Acid erosion of carbonate fractures and accessibility of arsenic-bearing minerals: in operando synchrotron-based microfluidic experiment. Environ. Sci. Technol. 54, 12502–12510. doi:10.1021/acs.est.0c03736

PubMed Abstract | CrossRef Full Text | Google Scholar

Deng, H., Molins, S., Trebotich, D., Steefel, C., and DePaolo, D. (2018a). Pore-scale numerical investigation of the impacts of surface roughness: upscaling of reaction rates in rough fractures. Geochimica Cosmochimica Acta 239, 374–389. doi:10.1016/j.gca.2018.08.005

CrossRef Full Text | Google Scholar

Deng, H., Steefel, C., Molins, S., and DePaolo, D. (2018b). Fracture evolution in multimineral systems: the role of mineral composition, flow rate, and fracture aperture heterogeneity. ACS Earth Space Chem. 2, 112–124. doi:10.1021/acsearthspacechem.7b00130

CrossRef Full Text | Google Scholar

Denison, F. H., and Garnier-Laplace, J. (2005). The effects of database parameter uncertainty on uranium (vi) equilibrium calculations. Geochimica cosmochimica acta 69, 2183–2191. doi:10.1016/j.gca.2004.09.033

CrossRef Full Text | Google Scholar

Di Pietro, D. A., Fontana, I., and Kazymyrenko, K. (2022). A posteriori error estimates via equilibrated stress reconstructions for contact problems approximated by nitsche’s method. Comput. and Math. Appl. 111, 61–80. doi:10.1016/j.camwa.2022.02.008

CrossRef Full Text | Google Scholar

Domesová, S. (2020). “The use of radial basis function surrogate models for sampling process acceleration in bayesian inversion,” in International conference on advanced engineering theory and applications (Cham: Springer), 228–238.

Google Scholar

Domesová, S., and Béreš, M. (2018). “A bayesian approach to the identification problem with given material interfaces in the Darcy flow,” in High Performance Computing in Science and Engineering: Third International Conference, HPCSE 2017, Karolinka, Czech Republic, May 22–25, 2017 (Springer), 203–216.

Google Scholar

Domesová, S., Béreš, M., and Blaheta, R. (2020). “Efficient implementation of the bayesian inversion by mcmc with acceleration of posterior sampling using surrogate models,” in International conference of the international association for computer methods and advances in geomechanics (Cham: Springer), 846–853.

Google Scholar

Doostan, A., and Owhadi, H. (2011). A non-adapted sparse approximation of pdes with stochastic inputs. JCP 230 (8), 3015–3034. doi:10.1016/j.jcp.2011.01.002

CrossRef Full Text | Google Scholar

Dostál, Z. (2009). Optimal quadratic programming algorithms, with applications to variational inequalities, volume 23 of SOIA. New York, US: Springer.

Google Scholar

Dostál, Z., Horák, D., Kružík, J., Brzobohatỳ, T., and Vlach, O. (2022). Highly scalable hybrid domain decomposition method for the solution of huge scalar variational inequalities. Numer. Algorithms 91, 773–801. doi:10.1007/s11075-022-01281-3

CrossRef Full Text | Google Scholar

Efendiev, Y., Galvis, J., and Hou, T. Y. (2013). Generalized multiscale finite element methods (gmsfem). J. Comput. Phys. 251, 116–135. doi:10.1016/j.jcp.2013.04.045

CrossRef Full Text | Google Scholar

Ehlers, W., and Luo, C. (2017). A phase-field approach embedded in the theory of porous media for the description of dynamic hydraulic fracturing. Comput. Methods Appl. Mech. Eng. 315, 348–368. doi:10.1016/j.cma.2016.10.045

CrossRef Full Text | Google Scholar

Emmett, M., and Minion, M. (2012). Toward an efficient parallel in time method for partial differential equations. Commun. Appl. Math. Comput. Sci. 7, 105–132. doi:10.2140/camcos.2012.7.105

CrossRef Full Text | Google Scholar

Escoffier, F., and Kazymyrenko, K. (2023). Robustesse des calculs avec éléments finis de joint. EDF technical report 6125-1723-2023-02169.

Google Scholar

Eymard, R., Gallouët, T., and Herbin, R. (2000). Finite volume methods. in Handbook of numerical analysis. Editor P. G. Ciarlet Elsevier: North-Holland, Amsterdam, 713–1020.

CrossRef Full Text | Google Scholar

Eymard, R., Guichard, C., and Herbin, R. (2012). Small-stencil 3D schemes for diffusive flows in porous media. ESAIM Math. Model. Numer. Anal. 46, 265–290. doi:10.1051/m2an/2011040

CrossRef Full Text | Google Scholar

Eymard, R., Guichard, C., Herbin, R., and Masson, R. (2014). Gradient schemes for two-phase flow in heterogeneous porous media and Richards equation. ZAMM - J. App. Math. Mech. 94, 560–585. doi:10.1002/zamm.201200206

CrossRef Full Text | Google Scholar

Falta, R., Pruess, K., Finsterle, S., and Battistelli, A. (1995). T2VOC user’s guide. Lawrence Berkeley National Laboratory, University of California.

Google Scholar

Fan, Y., Durlofsky, L., and Tchelepi, H. (2012). A fully-coupled flow-reactive-transport formulation based on element conservation, with application to CO₂ storage simulations. Adv. Water Resour. 42, 47–61. doi:10.1016/j.advwatres.2012.03.012

CrossRef Full Text | Google Scholar

Fazeli, H., Masoudi, M., Patel, R. A., Aagaard, P., and Hellevang, H. (2020). Pore-scale modeling of nucleation and growth in porous media. ACS Earth Space Chem. 4, 249–260. doi:10.1021/acsearthspacechem.9b00290

CrossRef Full Text | Google Scholar

Fazeli, H., Patel, R. A., Ellis, B. R., and Hellevang, H. (2019). Three-dimensional pore-scale modeling of fracture evolution in heterogeneous carbonate caprock subjected to co2-enriched brine. Environ. Sci. and Technol. 53, 4630–4639. doi:10.1021/acs.est.8b05653

CrossRef Full Text | Google Scholar

Fernández, J. (2017). “Reactive transport models of low permeability structured porous and fractured media,”. Ph.D. thesis (Spain: University of A Coruña).

Google Scholar

Ferronato, M., Castelletto, N., and Gambolati, G. (2010). A fully coupled 3-d mixed finite element model of biot consolidation. J. Comput. Phys. 229, 4813–4830. doi:10.1016/j.jcp.2010.03.018

CrossRef Full Text | Google Scholar

Finsterle, S. (2007). iTOUGH2 User’s Guide. Lawrence Berkeley National Laboratory, University of California.

Google Scholar

Fontana, I. (2022). “Interface problems for dam modeling,”. Ph.D. thesis (Université de Montpellier, École doctorale Information Structures Systèmes).

Google Scholar

Franceschini, A., Castelletto, N., White, J., and Tchelepi, H. (2020). Algebraically stabilized Lagrange multiplier method for frictional contact mechanics with hydraulically active fractures. Comput. Methods Appl. Mech. Eng. 368, 113161. doi:10.1016/j.cma.2020.113161

CrossRef Full Text | Google Scholar

Franceschini, A., Ferronato, M., Janna, C., and Teatini, P. (2016). A novel Lagrangian approach for the stable numerical simulation of fault and fracture mechanics. J. Comput. Phys. 314, 503–521. doi:10.1016/j.jcp.2016.03.032

CrossRef Full Text | Google Scholar

Franceschini, A., Gazzola, L., and Ferronato, M. (2022). A scalable preconditioning framework for stabilized contact mechanics with hydraulically active fractures. J. Comput. Phys. 463, 111276. doi:10.1016/j.jcp.2022.111276

CrossRef Full Text | Google Scholar

Francfort, G., and Marigo, J.-J. (1998). Revisiting brittle fracture as an energy minimization problem. J. Mech. Phys. Solids 46, 1319–1342. doi:10.1016/S0022-5096(98)00034-9

CrossRef Full Text | Google Scholar

Fridjonsson, E., Seymour, J., Schultz, L., Gerlach, R., Cunningham, A., and Codd, S. (2011). Nmr measurement of hydrodynamic dispersion in porous media subject to biofilm mediated precipitation reactions. J. Contam. Hydrology 120-121, 79–88. doi:10.1016/j.jconhyd.2010.07.009

PubMed Abstract | CrossRef Full Text | Google Scholar

Frigo, M., Castelletto, N., Ferronato, M., and White, J. (2021). Efficient solvers for hybridized three-field mixed finite element coupled poromechanics. Comput. Math. Appl. 91, 36–52. doi:10.1016/j.camwa.2020.07.010

CrossRef Full Text | Google Scholar

Frisch, U., Hasslacher, B., and Pomeau, Y. (1986). Lattice-gas automata for the Navier-Stokes equation. Phys. Rev. Lett. 56, 1505–1508. doi:10.1103/physrevlett.56.1505

PubMed Abstract | CrossRef Full Text | Google Scholar

Gander, M. J. (2015). “50 years of time parallel time integration,” in Multiple shooting and time domain decomposition methods (Springer), 69–113.

CrossRef Full Text | Google Scholar

Ganis, B., Girault, V., Mear, M., Singh, G., and Wheeler, M. (2014). Modeling fractures in a poro-elastic medium. Oil Gas Sci. Technology–Revue d’IFP Energies nouvelles 69, 515–528. doi:10.2516/ogst/2013171

CrossRef Full Text | Google Scholar

Garipov, T., Karimi-Fard, M., and Tchelepi, H. (2016). Discrete fracture model for coupled flow and geomechanics. Comput. Geosci. 20, 149–160. doi:10.1007/s10596-015-9554-z

CrossRef Full Text | Google Scholar

Gaucher, E., Schoenball, M., Heidbach, O., Zang, A., Fokker, P. A., van Wees, J.-D., et al. (2015). Induced seismicity in geothermal reservoirs: a review of forecasting approaches. Renew. Sustain. Energy Rev. 52, 1473–1490. doi:10.1016/j.rser.2015.08.026

CrossRef Full Text | Google Scholar

Gdowski, G., Wolery, T., and Rosenberg, N. (2002). Waste package environment for the yucca mountain site characterization project. MRS Online Proc. Libr. 713, 13. doi:10.1557/PROC-713-JJ1.3

CrossRef Full Text | Google Scholar

Gens, A., Alcoverro, J., Blaheta, R., Hasal, M., Michalec, Z., Takayama, Y., et al. (2021). Hm and thm interactions in bentonite engineered barriers for nuclear waste disposal. Int. J. Rock Mech. Min. Sci. 137, 104572. doi:10.1016/j.ijrmms.2020.104572

CrossRef Full Text | Google Scholar

Ghahfarokhi, P. K. (2017). The structured gridding implications for upscaling model discrete fracture networks (DFN) using corrected Oda’s method. J. Petroleum Sci. Eng. 153, 70–80. doi:10.1016/j.petrol.2017.03.027

CrossRef Full Text | Google Scholar

Ghanem, R. G., and Spanos, P. D. (1991). Stochastic finite elements: a spectral approach. Springer. doi:10.1007/978-1-4612-3094-6

CrossRef Full Text | Google Scholar

Giffaut, E., Grivé, M., Blanc, P., Vieillard, P., Colàs, E., Gailhanou, H., et al. (2014). Andra thermodynamic database for performance assessment: ThermoChimie. Appl. Geochem. 49, 225–236. doi:10.1016/j.apgeochem.2014.05.007

CrossRef Full Text | Google Scholar

Giles, M. B. (2008). Multilevel Monte Carlo path simulation. Operations Res. 56, 607–617. doi:10.1287/opre.1070.0496

CrossRef Full Text | Google Scholar

Gillespie, D. (2014). A review of steric interactions of ions: why some theories succeed and others fail to account for ion size. Microfluid. Nanofluidics 18, 717–738. doi:10.1007/s10404-014-1489-5

CrossRef Full Text | Google Scholar

Gilman, J. R., and Kazemi, H. (1983). Improvements in simulation of naturally fractured reservoirs. Soc. petroleum Eng. J. 23, 695–707. doi:10.2118/10511-pa

CrossRef Full Text | Google Scholar

Golder Associates (2014). GoldSim contaminant transport module user’s guide. Seattle GoldSim Technology Group.

Google Scholar

Goodfellow, I., Bengio, Y., and Courville, A. (2016). Deep learning. MIT Press.

Google Scholar

Gramacy, R., and Apley, D. (2015). Local Gaussian process approximation for large computer experiments. J. Comput. Graph. Stat. 24 (2), 561–578. doi:10.1080/10618600.2014.914442

CrossRef Full Text | Google Scholar

Guérillot, D., and Bruyelle, J. (2020). Geochemical equilibrium determination using an artificial neural network in compositional reservoir flow simulation. Comput. Geosci. 24, 697–707. doi:10.1007/s10596-019-09861-4

CrossRef Full Text | Google Scholar

Gurikov, P., Kolnoochenko, A., Golubchikov, M., Menshutina, N., and Smirnova, I. (2016). A synchronous cellular automaton model of mass transport in porous media. Comput. Chem. Eng. 84, 446–457. doi:10.1016/j.compchemeng.2015.10.001

CrossRef Full Text | Google Scholar

Gylling, B., Romero, L., Moreno, L., and Neretnieks, I. (1997). Transport from the canister to the biosphere: using an integrated near-and far-field model. MRS Online Proc. Libr. 465, 1037–1044. doi:10.1557/proc-465-1037

CrossRef Full Text | Google Scholar

Haga, J., Osnes, H., and Langtangen, H. (2010). Efficient block preconditioners for the coupled equations of pressure and deformation in highly discontinuous media. Int. J. Numer. Anal. Methods Geomechanics 35, 1466–1482. doi:10.1002/nag.973

CrossRef Full Text | Google Scholar

Hagedorn, B., Clarke, N., Ruane, M., and Faulkner, K. (2018). Assessing aquifer vulnerability from lumped parameter modeling of modern water proportions in groundwater mixtures: application to California’s south coast range. Sci. total Environ. 624, 1550–1560. doi:10.1016/j.scitotenv.2017.12.115

PubMed Abstract | CrossRef Full Text | Google Scholar

Hakim, V., and Karma, A. (2009). Laws of crack motion and phase-field models of fracture. J. Mech. Phys. Solids 57, 342–368. doi:10.1016/j.jmps.2008.10.012

CrossRef Full Text | Google Scholar

Hapla, V., Horák, D., Pospíšil, L., Čermák, M., Vašatová, A., and Sojka, R. (2016). “Solving contact mechanics problems with permon,” in High performance computing in science and engineering (Cham: Springer International Publishing), 101–115.

CrossRef Full Text | Google Scholar

Harrison, A., Dipple, G., Song, W., Power, I., Mayer, K., Beinlich, A., et al. (2017). Changes in mineral reactivity driven by pore fluid mobility in partially wetted porous media. Chem. Geol. 463, 1–11. doi:10.1016/j.chemgeo.2017.05.003

CrossRef Full Text | Google Scholar

Haslinger, J., Blaheta, R., and Makinen, R. A. E. (2021). Parameter identification for heterogeneous materials by optimal control approach with flux cost functionals. Math. Comput. Simul. 189, 55–68. doi:10.1016/j.matcom.2020.06.009

CrossRef Full Text | Google Scholar

Hastie, T., Tibshirani, R., and Friedman, J. (2009). The elements of statistical learning: data mining, inference, and prediction. 2nd edn. Springer.

Google Scholar

Haverkate, B., van Gemert, M., Strusinska-Correia, A., Göbel, A., Mertens, J., Detilleux, V., et al. (2024). Uman – preferences of different actors on uncertainty management. European commission. Final version as of 14/05/2024 of deliverable D10.12 of the HORIZON 2020 project EURAD. EC Grant agreement no: 847593.

Google Scholar

Havlová, V. (1999). Interaction of cs, i and np with granite. Acta Univ. Carol. Geol., 571–580.

Google Scholar

Havlová, V. (2013). “Behaviour of radionuclides in the host rock,” in SÚRAO in Far field of the geological repository in the Bohemian Massif (SURAO).

Google Scholar

Havlová, V., Večerník, P., Najser, J., Sosna, K., and Breiter, K. (2012). Radionuclide diffusion into undisturbed and altered crystalline rocks. Mineral. Mag. 76 (8), 3191–3201. doi:10.1180/minmag.2012.076.8.32

CrossRef Full Text | Google Scholar

He, W., Beyer, C., Fleckenstein, J., Jang, E., Kolditz, O., Naumov, D., et al. (2015). A parallelization scheme to simulate reactive transport in the subsurface environment with ogs#iphreeqc 5.5.7-3.1.2. Geosci. Model Dev. 8, 3333–3348. doi:10.5194/gmd-8-3333-2015

CrossRef Full Text | Google Scholar

Heider, Y., and Markert, B. (2017). A phase-field modeling approach of hydraulic fracture in saturated porous media. Mech. Res. Commun. 80, 38–46. doi:10.1016/j.mechrescom.2016.07.002

CrossRef Full Text | Google Scholar

Helgeson, H., Kirkham, D., and Flowers, G. (1981). Theoretical prediction of the thermodynamic behavior of aqueous electrolytes at high pressures and temperatures: iv. calculation of activity coefficients, osmotic coefficients, and apparent molal and standard and relative partial molal properties to 600°c and 5 kb. Am. J. Sci. 281, 1249–1516. doi:10.2475/ajs.281.10.1249

CrossRef Full Text | Google Scholar

Helton, J. C., Hansen, C. W., and Sallaberry, C. J. (2012). Uncertainty and sensitivity analysis in performance assessment for the proposed high-level radioactive waste repository at yucca mountain, Nevada. Reliab. Eng. and Syst. Saf. 107, 44–63. doi:10.1016/j.ress.2011.07.002

CrossRef Full Text | Google Scholar

Hensman, J., Fusi, N., and Lawrence, N. (2013). Gaussian processes for big data. in Computing research repository abs/1309, 6835. 282–290.

Google Scholar

Higuera, F. J., Succi, S., and Benzi, R. (1989). Lattice gas-dynamics with enhanced collisions. Europhys. Lett. 9, 345–349. doi:10.1209/0295-5075/9/4/008

CrossRef Full Text | Google Scholar

Hoefner, M. L., and Fogler, H. S. (1988). Pore evolution and channel formation during flow and reaction in porous media. AIChE J. 34, 45–54. doi:10.1002/aic.690340107

CrossRef Full Text | Google Scholar

Hoek, E., and Brown, E. (1980). Empirical strength criterion for rock masses. J. Geotech. Engng. Div. 106, 1013–1035. doi:10.1061/ajgeb6.0001029

CrossRef Full Text | Google Scholar

Hoffmann, J., Kräutle, S., and Knabner, P. (2012). A general reduction scheme for reactive transport in porous media. Comput. Geosci. 16, 1081–1099. doi:10.1007/s10596-012-9304-4

CrossRef Full Text | Google Scholar

Hommel, J., Coltman, E., and Class, H. (2018). Porosity–permeability relations for evolving pore space: a review with a focus on (bio-)geochemically altered porous media. Transp. Porous Media 124, 589–629. doi:10.1007/s11242-018-1086-2

CrossRef Full Text | Google Scholar

Hong, Q., and Kraus, J. (2018). Parameter-robust stability of classical three-field formulation of biot’s consolidation model. ETNA - Electron. Trans. Numer. Analysis 48, 202–226. doi:10.1553/etna_vol48s202

CrossRef Full Text | Google Scholar

Hong, Q., Kraus, J., Lymbery, M., and Philo, F. (2023). A new practical framework for the stability analysis of perturbed saddle-point problems and applications. Math. Comput. 92, 607–634. doi:10.1090/mcom/3795

CrossRef Full Text | Google Scholar

Hoteit, H., and Firoozabadi, A. (2008). Numerical modeling of two-phase flow in heterogeneous permeable media with different capillarity pressures. Adv. Water Resour. 31, 56–73. doi:10.1016/j.advwatres.2007.06.006

CrossRef Full Text | Google Scholar

Huang, Y., Shao, H., Wieland, E., Kolditz, O., and Kosakowski, G. (2018). A new approach to coupled two-phase reactive transport simulation for long-term degradation of concrete. J. Constr. Build. Mat. 190, 805–829. doi:10.1016/j.conbuildmat.2018.09.114

CrossRef Full Text | Google Scholar

Huber, F., Trinchero, P., Molinero, J., and Schäfer, T. (2014). “Radionuclide migration in a single fracture from Äspö, Sweden: experiments and reactive transport modelling,” in ÄHrsg. Final workshop proceedings of the collaborative project ”crystalline ROCK retention processes”. 7th EC FP CP CROCK KIT scientific reports, KIT-SR 7656. Editor T. Rabung, 175–184.

Google Scholar

Hudson, J., Stephansson, O., and Andersson, J. (2005). Guidance on numerical modelling of thermo-hydro-mechanical coupled processes for performance assessment of radioactive waste repositories. Int. J. Rock Mech. Min. Sci. 42, 850–870. doi:10.1016/j.ijrmms.2005.03.018

CrossRef Full Text | Google Scholar

Hudson, J., Tsang, C.-F., and Jing, L. (2017). “Coupled thmc modeling for safety assessment of geological disposal of radioactive wastes: the decovalex project (1992–2015),” in Rock mechanics and enginnering volume 3. Editor X.-T. Feng 3–44.

Google Scholar

Huff, K. (2017). Rapid methods for radionuclide contaminant transport in nuclear fuel cycle simulation. Adv. Eng. Softw. 114, 268–281. doi:10.1016/j.advengsoft.2017.07.006

CrossRef Full Text | Google Scholar

Huyakorn, P., Lester, B., and Faust, C. (1983). Finite element techniques for modeling groundwater flow in fractured aquifers. Water Resour. Res. 19, 1019–1035. doi:10.1029/WR019i004p01019

CrossRef Full Text | Google Scholar

Hwang, J. T., and Martins, J. R. (2018). A fast-prediction surrogate model for large datasets. Aerosp. Sci. Technol. 75, 74–87. doi:10.1016/j.ast.2017.12.030

CrossRef Full Text | Google Scholar

Idiart, A., and Pekala, M. (2016). Models for diffusion in compacted bentonite. Svensk Kärnbränslehantering AB/Swedish Nuclear Fuel and Waste Management Company.

Google Scholar

Ippisch, O., Vogel, H.-J., and Bastian, P. (2006). Validity limits for the van genuchten–mualem model and implications for parameter estimation and numerical simulation. Adv. Water Resour. 29, 1780–1789. doi:10.1016/j.advwatres.2005.12.011

CrossRef Full Text | Google Scholar

Ismail-Zadeh, T. P. (2010). Computational methods for geodynamics. Cambridge University Press.

Google Scholar

Jacques, D., Šimůnek, J., Mallants, D., and van Genuchten, M. (2018). The hpx software for multicomponent reactive transport during variably-saturated flow: recent developments and applications. J. Hydrol. Hydromech. 66, 211–226. doi:10.1515/johh-2017-0049

CrossRef Full Text | Google Scholar

Janda, T., and Mašín, D. (2016). General method for simulating laboratory tests with constitutive models for geomechanics. Int. J. Numer. Anal. Methods Geomechanics 41, 304–312. doi:10.1002/nag.2558

CrossRef Full Text | Google Scholar

Jankovec, J., Polák, M., Jankovský, F., Zuna, M., Kotowski, J., and Hokr, M. (2019). “Numerical modelling of migration tests through a fracture,” in Book of Abstract. Goldschmidt 2019 conference, Barcelona, Spain, August 16 – 22 2019. The activities were funded by Czech Technological Agency under Project No. TH02030543.

Google Scholar

Jankovský, F., Zuna, M., Havlová, V., Kotowski, J., and Jankovec, J. (2019a). “Contaminant migration experiments in an artificial block-scale granite fracture,” in Book of Abstract. Goldschmidt 2019 conference, Barcelona, Spain, August 16 – 22 2019. The activities were funded by Czech Technological Agency under Project No. TH02030543.

Google Scholar

Jankovský, F., Zuna, M., Havlová, V., Kotowski, J., and Jankovec, J. (2019b). “Migration experiments in naturally fractured crystalline rock samples,” in Book of Abstract. Goldschmidt 2019 conference, Barcelona, Spain, August 16 – 22 2019. The activities were funded by Czech Technological Agency under Project No. TH02030543.

Google Scholar

Jatnieks, J., De Lucia, M., Dransch, D., and Sips, M. (2016). Data-driven surrogate model approach for improving the performance of reactive transport simulations. Energy Proc. 97, 447–453. doi:10.1016/j.egypro.2016.10.047

CrossRef Full Text | Google Scholar

Jenni, A., Meeussen, J. C. L., Pakkanen, T., Hirvi, J. T., Akinwunmi, A., Yustres, B., et al. (2021). Coupling of chemical and hydromechanical properties in bentonite: a new reactive transport model. Appl. Clay Sci. 214, 106274. doi:10.1016/j.clay.2021.106274

CrossRef Full Text | Google Scholar

Jiang, J., and Younis, R. M. (2015). A multimechanistic multicontinuum model for simulating shale gas reservoir with complex fractured system. Fuel 161, 333–344. doi:10.1016/j.fuel.2015.08.069

CrossRef Full Text | Google Scholar

Jordan, N., Thoenen, T., Spahiu, K., Kelling, J., Starke, S., and Brendler, V. (2004). A critical review of the solution chemistry, solubility, and thermodynamics of europium: recent advances on the Eu (III) hydrolysis. Coord. Chem. Rev. 510, 215702. doi:10.1016/j.ccr.2024.215702

CrossRef Full Text | Google Scholar

Jordan, R., Kinderlehrer, D., and Otto, F. (1998). The variational formulation of the Fokker-Planck equation. SIAM J. Math. Anal. 29, 1–17. doi:10.1137/s0036141096303359

CrossRef Full Text | Google Scholar

Jung, H., and Navarre-Sitchler, A. (2018a). Physical heterogeneity control on effective mineral dissolution rates. Geochimica Cosmochimica Acta 227, 246–263. doi:10.1016/j.gca.2018.02.028

CrossRef Full Text | Google Scholar

Jung, H., and Navarre-Sitchler, A. (2018b). Scale effect on the time dependence of mineral dissolution rates in physically heterogeneous porous media. Geochimica Cosmochimica Acta 234, 70–83. doi:10.1016/j.gca.2018.05.009

CrossRef Full Text | Google Scholar

Jungwirth, P., and Tobias, D. J. (2022). Ions at the air/water interface. J. Phys. Chem. B 106, 6361–6373. doi:10.1021/jp020242g

CrossRef Full Text | Google Scholar

Kadlíček, T., Janda, T., and Šejnoha, M. (2018). “Automatic online calibration software EXCALIBRE,” in Engineering Mechanics 2018 (Institute of Theoretical and Applied Mechanics of the Czech Academy of Sciences), May 14 – 17 2018, 353–356.

Google Scholar

Kaempfer, Th. U., Li, X., Dumont, J.-N., Mertens, J., Herm, M., Strusinska-Correia, A., et al. (2023). Study on management options for different types of uncertainties and programme phases. European commission. Final version as of 17.05.2024 of deliverable D10.11 of the HORIZON 2020 project EURAD. EC Grant agreement no: 847593.

Google Scholar

Kalbacher, T., Delfs, J.-O., Shao, H., Wang, W., Walther, M., Samaniego, L., et al. (2012). The iwas-toolbox: software coupling for an integrated water resources management. Environ. Earth Sci. 65, 1367–1380. doi:10.1007/s12665-011-1270-y

CrossRef Full Text | Google Scholar

Kalbacher, T., Mettier, R., McDermott, C., Wang, W., Kosakowski, G., Taniguchi, T., et al. (2007). Geometric modelling and object-oriented software concepts applied to a heterogeneous fractured network from the grimsel rock laboratory. Comput. Geosci. 11, 9–26. doi:10.1007/s10596-006-9032-8

CrossRef Full Text | Google Scholar

Kang, Q., Zhang, D., Chen, S., and He, X. (2002). Lattice Boltzmann simulation of chemical dissolution in porous media. Phys. Rev. E. 65, 036318. doi:10.1103/physreve.65.036318

PubMed Abstract | CrossRef Full Text | Google Scholar

Karátson, J., Sysala, S., and Béreš, M. (2024). Quasi-Newton variable preconditioning for nonlinear elasticity systems in 3d. Numer. Linear Algebra Appl. 31, e2537. doi:10.1002/nla.2537

CrossRef Full Text | Google Scholar

Karimi-Fard, M., and Durlofsky, L. J. (2016). A general gridding, discretization, and coarsening methodology for modeling flow in porous formations with discrete geological features. Adv. Water Resour. 96, 354–372. doi:10.1016/j.advwatres.2016.07.019

CrossRef Full Text | Google Scholar

Katz, G. E., Berkowitz, B., Guadagnini, A., and Saaltink, M. W. (2011). Experimental and modeling investigation of multicomponent reactive transport in porous media. J. Contam. Hydrology 120-121, 27–44. doi:10.1016/j.jconhyd.2009.11.002

PubMed Abstract | CrossRef Full Text | Google Scholar

Kawasaki, D., and Ahn, J. (2008). Formulation of time-domain random-walk compartment model for radionuclide migration from a geologic repository. Nucl. Technol. 163, 137–146. doi:10.13182/NT08-A3977

CrossRef Full Text | Google Scholar

Kazumba, S., Oron, G., Honjo, Y., and Kamiya, K. (2008). Lumped model for regional groundwater flow analysis. J. hydrology 359, 131–140. doi:10.1016/j.jhydrol.2008.06.021

CrossRef Full Text | Google Scholar

Kazymyrenko, C., Fontana, I., Di Pietro, D., and Escoffier, F. (2023). Error control close to the boundary. EURAD technical report.

Google Scholar

Keating, E., Harp, D., Dai, Z., and Pawar, R. (2016). Reduced order models for assessing co2 impacts in shallow unconfined aquifers. Int. J. Greenh. Gas. Control 46, 187–196. doi:10.1016/j.ijggc.2016.01.008

CrossRef Full Text | Google Scholar

Khoei, A., Moallemi, S., and Haghighat, E. (2012). Thermo-hydro-mechanical modeling of impermeable discontinuity in saturated porous media with x-FEM technique. Eng. Fract. Mech. 96, 701–723. doi:10.1016/j.engfracmech.2012.10.003

CrossRef Full Text | Google Scholar

Khoei, A., Vahab, M., and Hirmand, M. (2018). An enriched-fem technique for numerical simulation of interacting discontinuities in naturally fractured porous media. Comput. Methods Appl. Mech. Eng. 331, 197–231. doi:10.1016/j.cma.2017.11.016

CrossRef Full Text | Google Scholar

Kim, J., Sonnenthal, E., and Rutqvist, J. (2015). A sequential implicit algorithm of chemo-thermo-poro-mechanics for fractured geothermal reservoirs. Comput. and geosciences 76, 59–71. doi:10.1016/j.cageo.2014.11.009

CrossRef Full Text | Google Scholar

Kim, J., Um, E. S., and Moridis, G. J. (2018). Integrated simulation of vertical fracture propagation induced by water injection and its borehole electromagnetic responses in shale gas systems. J. Petroleum Sci. Eng. 165, 13–27. doi:10.1016/j.petrol.2018.01.024

CrossRef Full Text | Google Scholar

Kinderlehrer, D., Monsaingeon, L., and Xu, X. (2017). A Wasserstein gradient flow approach to Poisson-Nernst-Planck equations. ESAIM Control Optim. Calc. Var. 23, 137–164. doi:10.1051/cocv/2015043

CrossRef Full Text | Google Scholar

Kleine, A. (2007). “Modélisation numérique du comportement des ouvrages souterrains par une approche viscoplastique,”. Ph.D. thesis (Université de Lorraine).

Google Scholar

Knodel, M., Kräutle, S., and Knabner, P. (2022). Global implicit solver for multiphase multicomponent flow in porous media with multiple gas components and general reactions. Comput. Geosci. 26, 697–724. doi:10.1007/s10596-022-10140-y

CrossRef Full Text | Google Scholar

Koch, T., Gläser, D., Weishaupt, K., Ackermann, S., Beck, M., Becker, B., et al. (2020). DuMux 3 – an open-source simulator for solving flow and transport problems in porous media with a focus on model coupling. Comput. Math. Appl. 81, 423–443. doi:10.1016/j.camwa.2020.02.012

CrossRef Full Text | Google Scholar

Kolditz, O., and Bauer, S. (2004). A process-oriented approach to computing multi-field problems in porous media. J. Hydroinformatics 6, 225–244. doi:10.2166/hydro.2004.0017

CrossRef Full Text | Google Scholar

Kolditz, O., Bauer, S., Bilke, L., Böttcher, N., Delfs, J., Fischer, T., et al. (2012). OpenGeoSys: an open-source initiative for numerical simulation of thermo-hydro-mechanical/chemical (THM/C) processes in porous media. Environ. Earth Sci. 67, 589–599. doi:10.1007/s12665-012-1546-x

CrossRef Full Text | Google Scholar

Kolditz, O., Fischer, T., Frühwirt, T., Görke, U.-J., Helbig, C., Konietzky, H., et al. (2021). Geomint: geomechanical integrity of host and barrier rocks–experiments, models and analysis of discontinuities. Environ. Earth Sci. 80, 509. doi:10.1007/s12665-021-09787-0

CrossRef Full Text | Google Scholar

Kolditz, O., Jacques, D., Claret, F., Bertrand, J., Churakov, S. V., Debayle, C., et al. (2023). Digitalisation for nuclear waste management: predisposal and disposal. Environ. Earth Sci. 82, 42. doi:10.1007/s12665-022-10675-4

CrossRef Full Text | Google Scholar

Kosakowski, G., and Watanabe, N. (2014). Opengeosys-gem: a numerical tool for calculating geochemical and porosity changes in saturated and partially saturated media. Phys. Chem. Earth 70-71, 138–149. doi:10.1016/j.pce.2013.11.008

CrossRef Full Text | Google Scholar

Koudelka, T., Krejčí, T., and Kruis, J. (2017). Coupled hydro-mechanical model for expansive clays. AIP Conf. Proc. 1863, 290008. doi:10.1063/1.4992445

CrossRef Full Text | Google Scholar

Koudelka, T., Krejčí, T., and Kruis, J. (2018). Time integration of hypoplastic model for expansive clays. AIP Conf. Proc. 1978, 080011. doi:10.1063/1.5043736

CrossRef Full Text | Google Scholar

Krause, M. J., Kummerländer, A., Avis, S. J., Kusumaatmaja, H., Dapelo, D., Klemens, F., et al. (2021). Openlb—open source lattice Boltzmann code. Comput. and Math. Appl. 81, 258–288. doi:10.1016/j.camwa.2020.04.033

CrossRef Full Text | Google Scholar

Kružík, J., Horák, D., Čermák, M., Pospíšil, L., and Pecha, M. (2020b). Active set expansion strategies in mprgp algorithm. Adv. Eng. Softw. 149, 102895. doi:10.1016/j.advengsoft.2020.102895

CrossRef Full Text | Google Scholar

Kružík, J., Horák, D., Hapla, V., and Čermák, M. (2020a). Comparison of selected feti coarse space projector implementation strategies. Parallel Comput. 93, 102608. doi:10.1016/j.parco.2020.102608

CrossRef Full Text | Google Scholar

Kuhlmann, S., Plischke, E., Röhlig, K.-J., and Becker, D.-A. (2013). “Sensitivity analysis: theory and practical application in safety cases,” in The Safety Case for Deep Geological Disposal of Radioactive Waste: 2013 State of the Art, Symposium Proceedings, Paris, France, 7-9 October 2013 (OECD), 169–176.

Google Scholar

Kuhn, C., and Müller, R. (2010). A continuum phase field model for fracture. Eng. Fract. Mech. 77, 3625–3634. doi:10.1016/j.engfracmech.2010.08.009

CrossRef Full Text | Google Scholar

Kuhn, C., Noll, T., and Müller, R. (2016). On phase field modeling of ductile fracture. GAMM Mittl. 39, 35–54. doi:10.1002/gamm.201610003

CrossRef Full Text | Google Scholar

Kulenkampff, J., Stoll, M., Gründig, M., Mansel, A., Lippmann-Pipke, J., and Kersten, M. (2018). Time-lapse 3d imaging by positron emission tomography of cu mobilized in a soil column by the herbicide MCPA. Sci. Rep. 8, 7091. doi:10.1038/s41598-018-25413-9

PubMed Abstract | CrossRef Full Text | Google Scholar

Kulik, D. A., Wagner, T., Dmytrieva, S. V., Kosakowski, G., Hingerl, F. F., Chudnenko, K. V., et al. (2013). Gem-selektor geochemical modeling package: revised algorithm and gems3k numerical kernel for coupled simulation codes. Comput. Geosci. 17, 1–24. doi:10.1007/s10596-012-9310-6

CrossRef Full Text | Google Scholar

Kyas, S., Volpatto, D., Saar, M. O., and Allan, M. M. (2022). Accelerated reactive transport simulations in heterogeneous porous media using Reaktoro and Firedrake. Comput. Geosci. 26, 295–327. doi:10.1007/s10596-021-10126-2

CrossRef Full Text | Google Scholar

Laloy, E., and Jacques, D. (2019). Emulation of cpu-demanding reactive transport models: a comparison of Gaussian processes, polynomial chaos expansion, and deep neural networks. Comput. Geosci. 23, 1193–1215. doi:10.1007/s10596-019-09875-y

CrossRef Full Text | Google Scholar

Laloy, E., and Jacques, D. (2022). Speeding up reactive transport simulations in cement systems by surrogate geochemical modeling: deep neural networks and k-nearest neighbors. Transp. Porous Media 143, 433–462. doi:10.1007/s11242-022-01779-3

CrossRef Full Text | Google Scholar

Landa, J., and Hokr, M. (2022). Contaminant transport from a deep geological repository: lumped parameters derived from a 3D hydrogeological model. Energies 15, 6602. doi:10.3390/en15186602

CrossRef Full Text | Google Scholar

Latt, J., Malaspinas, O., Kontaxakis, D., Parmigiani, A., Lagrava, D., Brogi, F., et al. (2021). Palabos: parallel lattice Boltzmann solver. Comput. and Math. Appl. 81, 334–350. doi:10.1016/j.camwa.2020.03.022

CrossRef Full Text | Google Scholar

Lawrence, N., Seeger, M., and Herbrich, R. (2003). “Fast sparse Gaussian process methods: the informative vector machine,” in Advances in Neural Information Processing Systems 15, Vancouver, British Columbia, Canada, December 9-14, 2002 (MIT Press).

Google Scholar

Leal, A. M., Kyas, S., Kulik, D. A., and Saar, M. O. (2020). Accelerating reactive transport modeling: on-demand machine learning algorithm for chemical equilibrium calculations. Transp. Porous Media 133, 161–204. doi:10.1007/s11242-020-01412-1

CrossRef Full Text | Google Scholar

Lee, S., Wheeler, M., and Wick, T. (2017). Iterative coupling of flow, geomechanics and adaptive phase-field fracture including level-set crack width approaches. J. Comput. Appl. Math. 314, 40–60. doi:10.1016/j.cam.2016.10.022

CrossRef Full Text | Google Scholar

Le Gratiet L, S. B., and Marelli, S. (2016). Metamodel-based sensitivity analysis: polynomial chaos expansions and Gaussian processes. Cham: Springer.

Google Scholar

Lehmann, C., Bilke, L., Buchwald, J., Graebling, N., Grunwald, N., Heinze, J., et al. (2024). OpenWorkFlow—development of an open-source synthesis-platform for safety investigations in the site selection process. Grundwasser 29, 31–47. doi:10.1007/s00767-024-00566-9

CrossRef Full Text | Google Scholar

Le Maître, O. P., and Knio, O. M. (2010). Spectral methods for uncertainty quantification. Cham: Springer.

Google Scholar

Lemire, R., Taylor, P., Schlenz, H., and Palmer, D. (2020). Chemical thermodynamics of iron, part 2, 921.

Google Scholar

Lemire, R. J., Berner, U., Musikas, C., Palmer, D., Taylor, P., and Tochiyama, O. (2013). Chemical thermodynamics of iron: Part I. Technical report. Issy-les-Moulineaux, France OECD Nuclear Energy Agency.

Google Scholar

Levasseur, S., Collin, F., Daniels, K., Dymitrowska, M., Harrington, J., Jacops, E., et al. (2021). Initial state of the art on gas transport in clayey materials. Deliverable D6.1 of HORIZON 2020 project EURAD, work package gas. EC grant agreement no: 847593. Tech. Rep. 847593. European Commission.

Google Scholar

Lewis, R., and Schrefler, B. (1998). The finite element method in the static and dynamic deformation and consolidation of porous media. 2nd edn. Chichester, New York: John Wiley.

Google Scholar

Li, D., Bauer, S., Benisch, K., Graupner, B., and Beyer, C. (2014). Opengeosys-chemapp: a coupled simulator for reactive transport in multiphase systems and application to co2 storage formation in northern Germany. Acta Geotech. 9, 67–79. doi:10.1007/s11440-013-0234-7

CrossRef Full Text | Google Scholar

Li, W., Lu, J., and Wang, L. (2020). Fisher information regularization schemes for Wasserstein gradient flows. J. Comput. Phys. 416, 109449. doi:10.1016/j.jcp.2020.109449

CrossRef Full Text | Google Scholar

Li, Z., Dong, M., Li, S., and Huang, S. (2006). Co2 sequestration in depleted oil and gas reservoirs—caprock characterization and storage capacity. Energy Convers. Manag. 47, 1372–1382. doi:10.1016/j.enconman.2005.08.023

CrossRef Full Text | Google Scholar

Lie, H. C., Fackeldey, K., and Weber, M. (2013). A square root approximation of transition rates for a Markov state model. SIAM J. Matrix Anal. Appl. 34, 738–756. doi:10.1137/120899959

CrossRef Full Text | Google Scholar

Ligurský, T., and Michalec, Z. (2023). On thermodynamically consistent coupling of the barcelona basic model with a hydraulic model for unsaturated soils. Comput. Struct. 285, 107082. doi:10.1016/j.compstruc.2023.107082

CrossRef Full Text | Google Scholar

Lindquist, W. B., Venkatarangan, A., Dunsmuir, J., and fong Wong, T. (2000). Pore and throat size distributions measured from synchrotron x-ray tomographic images of fontainebleau sandstones. J. Geophys. Res. Solid Earth 105, 21509–21527. doi:10.1029/2000jb900208

CrossRef Full Text | Google Scholar

Lions, J.-L., Maday, Y., and Turinici, G. (2001). Résolution d’edp par un schéma en temps pararéel. Comptes Rendus l’Académie Sciences-Series I-Mathematics 332, 661–668. doi:10.1016/s0764-4442(00)01793-6

CrossRef Full Text | Google Scholar

Liu, C., Mehrabian, A., and Abousleiman, Y. N. (2018). Theory and analytical solutions to coupled processes of transport and deformation in dual-porosity dual-permeability poro-chemo-electro-elastic media. J. Appl. Mechanics-Transactions Asme 85. doi:10.1115/1.4040890

CrossRef Full Text | Google Scholar

Lönartz, M. I., Yang, Y., Deissmann, G., Bosbach, D., and Poonoosamy, J. (2023). Capturing the dynamic processes of porosity clogging. Water Resour. Res. 59, e2023WR034722. doi:10.1029/2023wr034722

CrossRef Full Text | Google Scholar

Lönartz, M. I., Yang, Y., Deissmann, G., Bosbach, D., and Poonoosamy, J. (2023). Capturing the dynamic processes of porosity clogging. Water Resour. Res. 59. doi:10.1029/2023WR034722

CrossRef Full Text | Google Scholar

Lopez, S., Masson, R., Beaude, L., Birgle, N., Brenner, K., Kern, M., et al. (2018). “Geothermal modeling in complex geological systems with the ComPASS code,” in Stanford Geothermal Workshop 2018 - 43rd Workshop on Geothermal Reservoir Engineering, February 12-14, 2018 (Stanford, United States: Stanford University).

Google Scholar

Lu, B., and Zhou, Y. C. (2011). Poisson-nernst-planck equations for simulating biomolecular diffusion-reaction processes ii: size effects on ionic distributions and diffusion-reaction rates. Biophys. J. 100, 2475–2485. doi:10.1016/j.bpj.2011.03.059

PubMed Abstract | CrossRef Full Text | Google Scholar

Lu, D., Zhang, G., Webster, C., and Barbier, C. (2016). An improved multilevel Monte Carlo method for estimating probability distribution functions in stochastic oil reservoir simulations. Water Resour. Res. 52, 9642–9660. doi:10.1002/2016WR019475

CrossRef Full Text | Google Scholar

Luber, T. (2022). “Efficient iterative methods and solvers for FEM analysis - algebraic block preconditioners for poroelasticity,”. Ph.D. thesis (Ostrava: VSB - Technical University of Ostrava).

Google Scholar

Luber, T., and Sysala, S. (2024). Robust block diagonal preconditioners for poroelastic problems with strongly heterogeneous material. Numer. Linear Algebra Appl. 31, e2537. doi:10.1002/nla.2546

CrossRef Full Text | Google Scholar

Malík, J., and Kolcun, A. (2021). Determination of initial stress tensor from deformation of underground opening in excavation process. Appl. Math. 3, 297–318. doi:10.21136/am.2021.0266-20

CrossRef Full Text | Google Scholar

Malík, J., and Kolcun, A. (2023). “Determination of the initial stress tensor from deformation of underground opening–theoretical background and applications,” in Programs and algorithms of numerical mathematics 21: proceedings of seminar (Praha: Institute of Mathematics CAS Prague), 107–121.

Google Scholar

Marigo, J.-J., Maurini, C., and Pham, K. (2016). An overview of the modelling of fracture by gradient damage models. Meccanica 51, 3107–3128. doi:10.1007/s11012-016-0538-4

CrossRef Full Text | Google Scholar

Martin, V., Jaffré, J., and Roberts, J. (2005). Modeling fractures and barriers as interfaces for flow in porous media. SIAM J. Sci. Comput. 26, 1667–1691. doi:10.1137/s1064827503429363

CrossRef Full Text | Google Scholar

Mašín, D. (2013). Double structure hydromechanical coupling formalism and a model for unsaturated expansive clays. Eng. Geol. 165, 73–88. doi:10.1016/j.enggeo.2013.05.026

CrossRef Full Text | Google Scholar

Mašín, D. (2017). Coupled thermohydromechanical double-structure model for expansive soils. J. Eng. Mech. 143, 04017067. doi:10.1061/(asce)em.1943-7889.0001278

CrossRef Full Text | Google Scholar

Masson, R., Jeannin, L., Louvet, F., and Vuddamalay, A. (2020). Domain decomposition methods to model heat exchanges between a well and a rock mass. Comput. Geosci. 24, 1377–1392. doi:10.1007/s10596-020-09957-2

CrossRef Full Text | Google Scholar

Masson, R., Trenty, L., and Zhang, Y. (2016). Coupling compositional liquid gas Darcy and free gas flows at porous and free-flow domains interface. J. Comput. Phys. 321, 708–728. doi:10.1016/j.jcp.2016.06.003

CrossRef Full Text | Google Scholar

Matheron, G. (1973). The intrinsic random functions and their applications. Adv. Appl. Probab. 5 (3), 439–468. doi:10.1017/s0001867800039379

CrossRef Full Text | Google Scholar

Matsumoto, M., and Neyama, A. (2008). Uncertainty analysis tool for the performance assessment of the high level radioactive waste disposal system. Int. Conf. Nucl. Eng. 48159, 145–152. doi:10.1115/icone16-48765

CrossRef Full Text | Google Scholar

Maurini, C., Bourdin, B., Gauthier, G., and Lazarus, V. (2013). Crack patterns obtained by unidirectional drying of a colloidal suspension in a capillary tube: experiments and numerical simulations using a two-dimensional variational approach. Int. J. Fract. 184, 75–91. doi:10.1007/s10704-013-9824-5

CrossRef Full Text | Google Scholar

Meeussen, J. C. L. (2003). Orchestra: an object-oriented framework for implementing chemical equilibrium models. Environ. Sci. and Technol. 37, 1175–1182. doi:10.1021/es025597s

PubMed Abstract | CrossRef Full Text | Google Scholar

Meeussen, J. C. L. (2023). “A new efficient approach to solve the nernst-planck equation with a finite volume method,” in Book of Abstract. Goldschmidt 2013 Conference, paper 20442, Lyon, France, July 9 – 14 2023.

CrossRef Full Text | Google Scholar

Meinrath, G. (1997). Chemometric and statistical analysis of uranium(vi) hydrolysis at elevated u(vi) concentrations. Radiochim. Acta 77, 221–234. doi:10.1524/ract.1997.77.4.221

CrossRef Full Text | Google Scholar

Menke, H., Andrew, M., Blunt, M., and Bijeljic, B. J. C. G. (2016). Reservoir condition imaging of reactive transport in heterogeneous carbonates using fast synchrotron tomography—effect of initial pore structure and flow conditions. Chem. Geol. 428, 15–26. doi:10.1016/j.chemgeo.2016.02.030

CrossRef Full Text | Google Scholar

Menke, H., Maes, J., and Geiger, S. (2021). Upscaling the porosity–permeability relationship of a microporous carbonate for Darcy-scale flow with machine learning. Sci. Rep. 11, 2625. doi:10.1038/s41598-021-82029-2

PubMed Abstract | CrossRef Full Text | Google Scholar

Merlet, B., Venel, J., and Zurek, A. (2022). Analysis of a one dimensional energy dissipating free boundary model with nonlinear boundary conditions. existence of global weak solutions. ArXiv:2212.03642.

Google Scholar

Meschke, G., and Leonhart, D. (2015). A generalized finite element method for hydro-mechanically coupled analysis of hydraulic fracturing problems using space-time variant enrichment functions. Comput. Methods Appl. Mech. Eng. 290, 438–465. doi:10.1016/j.cma.2015.03.005

CrossRef Full Text | Google Scholar

Michalec, Z., Blaheta, R., Hasal, M., and Ligurský, T. (2021). Fully coupled thermo-hydro-mechanical model with oversaturation and its validation to experimental data from febex experiment. Int. J. Rock Mech. and Min. Sci. 139, 104567. doi:10.1016/j.ijrmms.2020.104567

CrossRef Full Text | Google Scholar

Miehe, C., Aldakheel, F., and Raina, A. (2016). Phase field modeling of ductile fracture at finite strains: a variational gradient-extended plasticity-damage theory. Int. J. Plasticity 84, 1–32. doi:10.1016/j.ijplas.2016.04.011

PubMed Abstract | CrossRef Full Text | Google Scholar

Miehe, C., Mauthe, S., and Teichtmeister, S. (2015). Minimization principles for the coupled problem of Darcy-biot-type fluid transport in porous media linked to phase field modeling of fracture. J. Mech. Phys. Solids 82, 186–217. doi:10.1016/j.jmps.2015.04.006

CrossRef Full Text | Google Scholar

Miehe, C., Welschinger, F., and Hofacker, M. (2010). Thermodynamically consistent phase-field models of fracture: variational principles and multi-field fe implementations. Int. J. Numer. Methods Eng. 83, 1273–1311. doi:10.1002/nme.2861

CrossRef Full Text | Google Scholar

Mielke, A. (2011). A gradient structure for reaction-diffusion systems and for energy-drift-diffusion systems. Nonlinearity 24, 1329–1346. doi:10.1088/0951-7715/24/4/016

CrossRef Full Text | Google Scholar

Mielke, A., Peletier, M. A., and Renger, D. R. M. (2016). A generalization of Onsager’s reciprocity relations to gradient flows with nonlinear mobility. J. Non-Equilibrium Thermodyn. 41, 141–149. doi:10.1515/jnet-2015-0073

CrossRef Full Text | Google Scholar

Mikelic, A., and Wheeler, M. F. (2013). Convergence of iterative coupling for coupled flow and geomechanics. Comput. Geosci. 17, 455–461. doi:10.1007/s10596-012-9318-y

CrossRef Full Text | Google Scholar

Mikelić, A., Wheeler, M. F., and Wick, T. (2015a). A phase-field method for propagating fluid-filled fractures coupled to a surrounding porous medium. Multiscale Model. Sim. 48, 162–186. doi:10.1137/140967118

CrossRef Full Text | Google Scholar

Mikelić, A., Wheeler, M. F., and Wick, T. (2015b). Phase-field modeling of a fluid-driven fracture in a poroelastic medium. Comput. Geosci. 19, 1171–1195. doi:10.1007/s10596-015-9532-5

CrossRef Full Text | Google Scholar

Millard, A. (2017). “Thermo-hydro-mechanical couplings in radioactive waste disposal,” in Rock mechanics and enginnering volume 5. Editor X.-T. Feng (London: CRC Press).

CrossRef Full Text | Google Scholar

Missana, T., Alonso, U., García-Gutiérrez, M., and Mingarro, M. (2008). Role of bentonite colloids on europium and plutonium migration in a granite fracture. Appl. Geochem. 23, 1484–1497. doi:10.1016/j.apgeochem.2008.01.008

CrossRef Full Text | Google Scholar

Mohammadnejad, T., and Khoei, A. (2013). An extended finite element method for fluid flow in partially saturated porous media with weak discontinuities; the convergence analysis of local enrichment strategies. Comput. Mech. 51, 327–345. doi:10.1007/s00466-012-0732-8

CrossRef Full Text | Google Scholar

Molinero-Huguet, J., Samper-Calvete, F. J., Zhang, G., and Yang, C. (2004). Biogeochemical reactive transport model of the redox zone experiment of the äspö hard rock laboratory in Sweden. Nucl. Technol. 148, 151–165. doi:10.13182/nt04-a3555

CrossRef Full Text | Google Scholar

Molins, S., Soulaine, C., Prasianakis, N. I., Abbasi, A., Poncet, P., Ladd, A. J., et al. (2021). Simulation of mineral dissolution at the pore scale with evolving fluid-solid interfaces: review of approaches and benchmark problem set. Comput. Geosci. 25, 1285–1318. doi:10.1007/s10596-019-09903-x

CrossRef Full Text | Google Scholar

Molins, S., Trebotich, D., Arora, B., Steefel, C., and Deng, H. (2019). Multi-scale model of reactive transport in fractured media: diffusion limitations on rates. Transp. Porous Media 128, 701–721. doi:10.1007/s11242-019-01266-2

CrossRef Full Text | Google Scholar

Mon, A. (2017). “Coupled thermo-hydro-chemical-mechanical models for the bentonite barrier in a radioactive waste repository,”. Ph.D. thesis (Coruña: Universidade da Coruña).

Google Scholar

Montavon, G., Samek, W., and Müller, K.-R. (2018). Methods for interpreting and understanding deep neural networks. Digit. Signal Process. 73, 1–15. doi:10.1016/j.dsp.2017.10.011

CrossRef Full Text | Google Scholar

Mosthaf, K., Baber, K., Flemisch, B., Helmig, R., Leijnse, A., Rybak, I., et al. (2011). A coupling concept for two-phase compositional porous-medium and single-phase compositional free flow. Water Resour. Res. 47. doi:10.1029/2011WR010685

CrossRef Full Text | Google Scholar

Muller, F., Jenny, P., and Meyer, D. W. (2013). Multilevel Monte Carlo for two phase flow and Buckley–Leverett transport in random heterogeneous porous media. J. Comput. Phys. 250, 685–702. doi:10.1016/j.jcp.2013.03.023

CrossRef Full Text | Google Scholar

Murakami, H., and Ahn, J. (2011). Development of compartment models with Markov-chain processes for radionuclide transport in repository region. Ann. Nucl. Energy 38, 511–519. doi:10.1016/j.anucene.2010.09.013

CrossRef Full Text | Google Scholar

Mycek, P., and De Lozzo, M. (2019). Multilevel Monte Carlo covariance estimation for the computation of sobol’indices. SIAM/ASA J. Uncertain. Quantification 7, 1323–1348. doi:10.1137/18m1216389

CrossRef Full Text | Google Scholar

Napov, A., and Notay, Y. (2012). An algebraic multigrid method with guaranteed convergence rate. SIAM J. Sci. Comput. 34, A1079–A1109. doi:10.1137/100818509

CrossRef Full Text | Google Scholar

Nardi, A., Idiart, A., Trinchero, P., de Vries, L., and Molinero, J. (2014). Interface comsol-phreeqc (icp), an efficient numerical framework for the solution of coupled multiphysics and geochemistry. Comput. and Geosciences 69, 10–21. doi:10.1016/j.cageo.2014.04.011

CrossRef Full Text | Google Scholar

Neretnieks, I., and Rasmuson, A. (1984). An approach to modelling radionuclide migration in a medium with strongly varying velocity and block sizes along the flow path. Water Resour. Res. 20, 1823–1836. doi:10.1029/WR020i012p01823

CrossRef Full Text | Google Scholar

Nguyen, V. X., and Abousleiman, Y. N. (2010). Poromechanics solutions to plane strain and axisymmetric mandel-type problems in dual-porosity and dual-permeability medium. J. Appl. Mech. 77, 011002. doi:10.1115/1.3172146

CrossRef Full Text | Google Scholar

Nobile, F., Tempone, R., and Webster, C. G. (2008). A sparse grid stochastic collocation method for partial differential equations with random input data. SIAM J. Numer. Analysis 46, 2309–2345. doi:10.1137/060663660

CrossRef Full Text | Google Scholar

Noguera, C., Fritz, B., Clément, A., and Amal, Y. (2010). Simulation of the nucleation and growth of binary solid solutions in aqueous solutions. Chem. Geol. 269, 89–99. doi:10.1016/j.chemgeo.2009.05.025

CrossRef Full Text | Google Scholar

Noiriel, C., and Daval, D. (2017). Pore-scale geochemical reactivity associated with co2 storage: new frontiers at the fluid-solid interface. Accounts Chem. Res. 50, 759–768. doi:10.1021/acs.accounts.7b00019

PubMed Abstract | CrossRef Full Text | Google Scholar

Noiriel, C., Gouze, P., and Bernard, D. (2004). Investigation of porosity and permeability effects from microstructure changes during limestone dissolution. Geophys. Res. Lett. 31, 1–4. doi:10.1029/2004GL021572

CrossRef Full Text | Google Scholar

Noiriel, C., Luquot, L., Madé, B., Raimbault, L., Gouze, P., and van der Lee, J. (2009). Changes in reactive surface area during limestone dissolution: an experimental and modelling study. Chem. Geol. 265, 160–170. doi:10.1016/j.chemgeo.2009.01.032

CrossRef Full Text | Google Scholar

Noiriel, C., and Soulaine, C. (2021). Pore-scale imaging and modelling of reactive flow in evolving porous media: tracking the dynamics of the fluid–rock interface. Transp. Porous Media 140, 181–213. doi:10.1007/s11242-021-01613-2

CrossRef Full Text | Google Scholar

Notay, Y. (2010). An aggregation-based algebraic multigrid method. Electron. Trans. Numer. analysis 37, 123–146.

Google Scholar

Ochs, M. B. V., and Payne, T. E. (2012). NEA Sorption Project Phase III: thermodynamic sorption modeling in support of radioactive waste disposal safety cases. A guideline document. Technical report. Paris: OECD/NEA Publication.

Google Scholar

Oda, M. (1986). An equivalent continuum model for coupled stress and fluid flow analysis in jointed rock masses. Water Resour. Res. 22, 1845–1856. doi:10.1029/WR022i013p01845

CrossRef Full Text | Google Scholar

Olivieri, G., Parry, K. M., D’Auria, R., Tobias, D. J., and Brown, M. A. (2018). Specific anion effects on Na+ adsorption at the aqueous solution–air interface: MD simulations, SESSA calculations, and photoelectron spectroscopy experiments. J. Phys. Chem. B 122, 910–918. doi:10.1021/acs.jpcb.7b06981

PubMed Abstract | CrossRef Full Text | Google Scholar

Ordonez, A. C., Tardieu, N., Kruse, C., Ruiz, D., and Granet, S. (2023). Scalable block preconditioners for saturated thermo-hydro-mechanics problems. Adv. Model. Simul. Eng. Sci. 10, 10. doi:10.1186/s40323-023-00245-z

CrossRef Full Text | Google Scholar

Ordonez Egas, A. (2022). “Solveur linéaire haute-performance pour la thermo-hydro-mécanique avec régularisation par second gradient de dilatation,”. Ph.D. thesis (Toulouse: INPT).

Google Scholar

Otto, F. (2001). The geometry of dissipative evolution equations: the porous medium equation. Comm. Partial Differ. Equations 26, 101–174. doi:10.1081/pde-100002243

CrossRef Full Text | Google Scholar

Owen, N. E., Challenor, P., Menon, P. P., and Bennani, S. (2017). Comparison of surrogate-based uncertainty quantification methods for computationally expensive simulators. SIAM/ASA J. Uncertain. Quant. 5 (1), 403–435. doi:10.1137/15m1046812

CrossRef Full Text | Google Scholar

Owusu, J. P., Karalis, K., Prasianakis, N. I., and Churakov, S. V. (2022). Mobility of dissolved gases in smectites under saturated conditions: effects of pore size, gas types, temperature, and surface interaction. J. Phys. Chem. C 126, 17441–17455. doi:10.1021/acs.jpcc.2c05678

CrossRef Full Text | Google Scholar

Owusu, J. P., Karalis, K., Prasianakis, N. I., and Churakov, S. V. (2023). Diffusion and gas flow dynamics in partially saturated smectites. J. Phys. Chem. C 127, 14425–14438. doi:10.1021/acs.jpcc.3c02264

CrossRef Full Text | Google Scholar

Palágyi, S., Stamberg, K., Havlova, V., and Vodickova, H. (2013). Effect of grain size on the 85Sr2+ sorption and desorption in columns of crushed granite and infill materials from granitic water under dynamic conditions. J. Radioanalytical Nucl. Chem. 297, 33–39. doi:10.1007/s10967-012-2311-z

CrossRef Full Text | Google Scholar

Parkhurst, D., and Appelo, C. (2013). Description of input and examples for PHREEQC version 3: a computer program for speciation, batch-reaction, one-dimensional transport, and inverse geochemical calculations. U.S. Geol. Surv. Techniques and Methods 6-A43. Chapter 43 of Section A: groundwater in Book 6 Modeling Techniques. Technical report. US Geological Survey.

Google Scholar

Parkhurst, D., and Wissmeier, L. (2015). Phreeqcrm: a reaction module for transport simulators based on the geochemical model phreeqc. Adv. Water Resour. 83, 176–189. doi:10.1016/j.advwatres.2015.06.001

CrossRef Full Text | Google Scholar

Passas, N., Butenuth, C., de Freitas, M. H., and Buňatová, V. (1996). Rock porosity determinations using particle densities measured in different fluids. Geotechnical Test. J. 19, 310–315. doi:10.1520/gtj10357j

CrossRef Full Text | Google Scholar

Pavuluri, S., Tournassat, C., Claret, F., and Soulaine, C. (2022). Reactive transport modeling with a coupled OpenFOAM®-PHREEQC platform. Transp. Porous Media 145, 475–504. doi:10.1007/s11242-022-01860-x

CrossRef Full Text | Google Scholar

Pazdniakou, A., and Dymitrowska, M. (2018). Migration of gas in water saturated clays by coupled hydraulic-mechanical model. Geofluids 2018, 1–25. doi:10.1155/2018/6873298

CrossRef Full Text | Google Scholar

Pecha, M., Langford, Z., Horák, D., and Mills, R. (2023). “Wildfires identification: semantic segmentation using support vector machine classifier,” in Programs and algorithms of numerical mathematics, proceedings of seminar. Editors J. Chleboun, K. Segeth, J. Šístek, and T. Vejchodský (Prague: Institute of Mathematics CAS), 173–186.

CrossRef Full Text | Google Scholar

Pham, K., Amor, H., Marigo, J.-J., and Maurini, C. (2011). Gradient damage models and their use to approximate brittle fracture. Int. J. Damage Mech. 20, 618–652. doi:10.1177/1056789510386852

CrossRef Full Text | Google Scholar

Pitzer, K. (1991). “Ion interaction approach: theory and data correlation,” in Activity coefficients in electrolyte solutions. 2nd ed. (Boca Raton: CRC Press).

Google Scholar

Plischke, E. (2010). An effective algorithm for computing global sensitivity indices (easi). Reliab. Eng. Syst. Saf. 95, 354–360. doi:10.1016/j.ress.2009.11.005

CrossRef Full Text | Google Scholar

Plischke, E., and Röhlig, K. J. (2023). Methodological approaches to uncertainty and sensitivity analysis. European commission. Final version as of 07.05.2024 of deliverable D10.4 of the HORIZON 2020 project EURAD. EC Grant agreement no: 847593.

Google Scholar

Poonoosamy, J., Haber-Pohlmeier, S., Deng, H., Deissmann, G., Klinkenberg, M., Gizatullin, B., et al. (2020). Combination of mri and sem to assess changes in the chemical properties and permeability of porous media due to barite precipitation. Minerals 10, 226. doi:10.3390/min10030226

CrossRef Full Text | Google Scholar

Poonoosamy, J., Klinkenberg, M., Deissmann, G., Brandt, F., Bosbach, D., Mäder, U., et al. (2019). Effects of solution supersaturation on barite precipitation in porous media and consequences on permeability: experiments and modelling. Geochimica Cosmochimica Acta 270, 43–60. doi:10.1016/J.GCA.2019.11.018

CrossRef Full Text | Google Scholar

Poonoosamy, J., Kosakowski, G., Van Loon, L. R., and Mäder, U. (2015). Dissolution/precipitation processes in tank experiments for testing numerical models for reactive transport calculations: experiments and modelling. J. Contam. Hydrology 177-178, 1–17. doi:10.1016/j.jconhyd.2015.02.007

PubMed Abstract | CrossRef Full Text | Google Scholar

Poonoosamy, J., Lu, R., Lönartz, M. I., Deissmann, G., Bosbach, D., and Yang, Y. (2022). A lab on a chip experiment for upscaling diffusivity of evolving porous media. Energies 15, 2160. doi:10.3390/en15062160

CrossRef Full Text | Google Scholar

Poonoosamy, J., Mahrous, M., Curti, E., Bosbach, D., Deissmann, G., Churakov, S. V., et al. (2021). A lab-on-a-chip approach integrating in-situ characterization and reactive transport modelling diagnostics to unravel (ba,sr)so4 oscillatory zoning. Sci. Rep. 11, 23678. doi:10.1038/s41598-021-02840-9

PubMed Abstract | CrossRef Full Text | Google Scholar

Porta, G. M., Bijeljic, B., Blunt, M., and Guadagnini, A. (2015). Continuum-scale characterization of solute transport based on pore-scale velocity distributions. Geophys. Res. Lett. 42, 7537–7545. doi:10.1002/2015gl065423

CrossRef Full Text | Google Scholar

Portegies, J. W., and Peletier, M. A. (2010). Well-posedness of a parabolic moving-boundary problem in the setting of Wasserstein gradient flows. Interfaces Free Bound 12, 121–150. doi:10.4171/IFB/229

CrossRef Full Text | Google Scholar

Portier, S., Vuataz, F.-D., Nami, P., Sanjuan, B., and Gérard, A. J. G. (2009). Chemical stimulation techniques for geothermal wells: experiments on the three-well EGS system at Soultz-sous-Forêts, France. france 38, 349–359. doi:10.1016/j.geothermics.2009.07.001

CrossRef Full Text | Google Scholar

Powell, M. (2001). “Radial basis function methods for interpolation to functions of many variables,” in Hercma (Citeseer), Amsterdam, Netherlands: Elsevier Science B.V. 2–24.

Google Scholar

Prasianakis, N., Curti, E., Kosakowski, G., Poonoosamy, J., and Churakov, S. (2017). Deciphering pore-level precipitation mechanisms. Sci. Rep. 7, 13765. doi:10.1038/s41598-017-14142-0

PubMed Abstract | CrossRef Full Text | Google Scholar

Prasianakis, N., Gatschet, M., Abbasi, A., and Churakov, S. (2018). Upscaling strategies of porosity-permeability correlations in reacting environments from pore-scale simulations. Geofluids 2018, 1–8. doi:10.1155/2018/9260603

CrossRef Full Text | Google Scholar

Prasianakis, N., Haller, R., Mahrous, M., Poonoosamy, J., Pfingsten, W., and Churakov, S. (2020). Neural network based process coupling and parameter upscaling in reactive transport simulations. Geochim. Cosmochim. Acta 291, 126–143. doi:10.1016/j.gca.2020.07.019

CrossRef Full Text | Google Scholar

Prasianakis, N. I., Karlin, I. V., Mantzaras, J., and Boulouchos, K. B. (2009). Lattice Boltzmann method with restored galilean invariance. Phys. Rev. E 79, 066702. doi:10.1103/PhysRevE.79.066702

PubMed Abstract | CrossRef Full Text | Google Scholar

Pruess, K., and Narasimhan, T. (1982). A practical method for modeling fluid and heat flow in fractured porous media

Google Scholar

Pruess, K., Oldenburg, C., and Moridis, G. (1999). TOUGH2 user’s guide, version 2.0. Lawrence Berkeley National Laboratory, University of California.

Google Scholar

Pulkkanen, V.-M. (2019). “A large deformation model for chemoelastic porous media – bentonite clay in spent nuclear fuel disposal,”. Ph.D. thesis (Aalto University).

Google Scholar

Qian, Y. H., Dhumieres, D., and Lallemand, P. (1992). Lattice bgk models for Navier-Stokes equation. Europhys. Lett. 17, 479–484. doi:10.1209/0295-5075/17/6/001

CrossRef Full Text | Google Scholar

Qiao, Y., Liu, X., Chen, M., and Lu, B. (2016). A local approximation of fundamental measure theory incorporated into three dimensional Poisson–nernst–planck equations to account for hard sphere repulsion among ions. J. Stat. Phys. 163, 156–174. doi:10.1007/s10955-016-1470-7

CrossRef Full Text | Google Scholar

R7.01.10 (2019). Code_Aster documentation: modelings thhm. general information and algorithms.

Google Scholar

R7.01.11 (2019). Code_Aster documentation: models of behavior thhms.

Google Scholar

R7.01.16 (2019). Code_Aster documentation: Intégration des comportements mécaniques élasto-plastiques de Drucker–Prager, associé (druck_prager) et non-associé (druck_prag_n_a) et post-traitements.

Google Scholar

R7.01.18 (2019). Code_Aster documentation: Loi de comportement de Hoek_Brown modifiée.

Google Scholar

R7.01.24 (2019). Code_Aster documentation: Loi de comportement viscoplastique LETK.

Google Scholar

R7.01.25 (2019). Code_Aster documentation: constitutive relations for dams modelling.

Google Scholar

Rasmussen, C. E., and Williams, C. K. I. (2005). Gaussian processes for machine learning. The MIT Press.

Google Scholar

Raude, S. (2015). “Prise en compte des sollicitations thermiques sur les comportements instantané et différé des géomatériaux,”. Ph.D. thesis (Université de Lorraine).

Google Scholar

Razavi, S., and Gupta, H. V. (2016). A new framework for comprehensive, robust, and efficient global sensitivity analysis: 1. Theory. Water Resour. Res. 52, 423–439. doi:10.1002/2015WR017558

CrossRef Full Text | Google Scholar

Rechard, R. P., Arnold, B. W., Robinson, B. A., and Houseworth, J. E. (2014). Transport modeling in performance assessments for the yucca mountain disposal system for spent nuclear fuel and high-level radioactive waste. Reliab. Eng. and Syst. Saf. 122, 189–206. doi:10.1016/j.ress.2013.06.031

CrossRef Full Text | Google Scholar

Riedlbeck, R., Di Pietro, D. A., Ern, A., Granet, S., and Kazymyrenko, K. (2017). Stress and flux reconstruction in Biot’s poro-elasticity problem with application to a posteriori error analysis. Comput. Math. Appl. 73, 1593–1610. doi:10.1016/j.camwa.2017.02.005

CrossRef Full Text | Google Scholar

Rink, K., Bilke, L., and Kolditz, O. (2014). Visualisation strategies for environmental modelling data. Environ. Earth Sci. 72, 3857–3868. doi:10.1007/s12665-013-2970-2

CrossRef Full Text | Google Scholar

Rink, K., Kalbacher, T., and Kolditz, O. (2012). Visual data exploration for hydrological analysis. Environ. Earth Sci. 65, 1395–1403. doi:10.1007/s12665-011-1230-6

CrossRef Full Text | Google Scholar

Robinson, B. A., and Chu, S. (2013). A residence-time-based transport approach for the groundwater pathway in performance assessment models. Comput. and geosciences 52, 155–163. doi:10.1016/j.cageo.2012.09.001

CrossRef Full Text | Google Scholar

Röhlig, K.-J., Plischke, E., Becker, D.-A., Stein, E. R., Govaerts, J., Debusschere, B. J., et al. (2018). “Sensitivity analysis in performance assessment: towards a joint approach,” in IGSC Safety Case Symposium, Rotterdam, Netherlands, 10-11 October 2018.

Google Scholar

Roy, P. T., El Moçayd, N., Ricci, S., Jouhaud, J. C., Goutal, N., De Lozzo, M., et al. (2017). Comparison of polynomial chaos and Gaussian process surrogates for uncertainty quantification and correlation estimation of spatially distributed open-channel steady flows. Stoch. Env. Res. Risk 32, 1723–1741. doi:10.1007/s00477-017-1470-4

CrossRef Full Text | Google Scholar

Saad, Y. (2003). Finding exact and approximate block structures for ilu preconditioning. SIAM J. Sci. Comput. 24, 1107–1123. doi:10.1137/s1064827501393393

CrossRef Full Text | Google Scholar

Saâdi, Z. (2022). Contribution to model improvement for transient water-gas flow in porous media in natural and anthropogenic environments: radon gas through geosphere-buildings-atmosphere, and hydrogen gas in a geologic repository for radioactive waste. Habilitation à Diriger des Recherches (HDR). Institut de Mécanique des Fluides de Toulouse, Université de Toulouse, Institut Polytechnique de Toulouse, Institut de Radioprotection et de Sûreté Nucléaire.

Google Scholar

Saâdi, Z., Dymitrowska, M., Deleruyelle, F., and Marsal, F. (2020). An evaluation model of the impact of hydrogen “piston effect” on water displacement in a deep geological disposal of radioactive waste. Environ. Earth Sci. 79, 434. doi:10.1007/s12665-020-09166-1

CrossRef Full Text | Google Scholar

Safi, M. A., Prasianakis, N. I., Mantzaras, J., Lamibrac, A., and Büchi, F. N. (2017). Experimental and pore-level numerical investigation of water evaporation in gas diffusion layers of polymer electrolyte fuel cells. Int. J. Heat Mass Transf. 115, 238–249. doi:10.1016/j.ijheatmasstransfer.2017.07.050

CrossRef Full Text | Google Scholar

Saiers, J. E., and Hornberger, G. M. (1996). Migration of 137cs through quartz sand: experimental results and modeling approaches. J. Contam. Hydrology 22, 255–270. doi:10.1016/0169-7722(95)00094-1

CrossRef Full Text | Google Scholar

Saltelli, A., Ratto, M., Andres, T., Campolongo, F., Cariboni, J., Gatelli, D., et al. (2008). Global sensitivity analysis: the primer. Wiley and Sons.

Google Scholar

Saltelli, C. K.-S., Tarantola, S., and Chan, K. P. S. (1999). A quantitative model-independent method for global sensitivity analysis of model output. Technometrics 41, 39–56. doi:10.2307/1270993

CrossRef Full Text | Google Scholar

Samper, A. C., Samper, J., Mon, A., Yang, C., and Lentijo, F. (2021). “Continuous and discrete adjoint state formulations of conservative and reactive solute transport in porous media,” in Estudios en la zona no saturada del suelo. Vol. XV, ZNS'21, A Coruña, 9-10 noviembre 2021 (Leeds, England: Universidade da Coruña), 241–249.

Google Scholar

Samper, F. J. (1986). “Statistical methods of analyzing hydrological, hydrochemical and isotopic data from aquifers,”. PhD Dissertation (Tucson, Arizona: The University of Arizona).

Google Scholar

Samper, F. J., and Neuman, S. P. (1989). Estimation of spatial covariance structures by adjoint state maximum likelihood cross validation: 2. Synthetic experiments. Water Resour. Res. 25, 363–371. doi:10.1029/wr025i003p00363

CrossRef Full Text | Google Scholar

Samper, J., Mon, L., Montenegro, A., De Windt, L., Govaerts, J., Laloy, E., et al. (2024). Report on comparison of model abstraction results. Final version as of xx.02.2024 of D 2.19 of the HORIZON 2020 project EURAD. EC Grant agreement no: 847593. Technical report. Switzerland: EURAD.

Google Scholar

Samper, J., Samper-Pilar, A., Mon, A., Yang, C., and Lentijo, F. (2022). “Adjoint state methods for conservative and reactive solute transport: application to the long-term geochemical evolution of a hlw repository in granite,” in VIII International Conference on Clays in Natural and Engineered Barriers for Radioactive Waste Confinement (Netherlands).

Google Scholar

Samper, J., Xu, T., and Yang, C. (2009). A sequential partly iterative approach for multicomponent reactive transport with CORE 2D. Comput. Geosci. 13, 301–316. doi:10.1007/s10596-008-9119-5

CrossRef Full Text | Google Scholar

Samper, J., Yang, C., Zheng, L., Montenegro, L., Xu, Y., Dai, Z., et al. (2012). CORE2D V4: a code for water flow, heat and solute transport, geochemical reactions, and microbial processes. Netherlands Bentham e-books, 160–185.

Google Scholar

Sanchez, M., Arson, C., Gens, A., and Aponte, F. (2016a). Analysis of unsaturated materials hydration incorporating the effect of thermo-osmotic flow. Geomechanics Energy Environ. 6, 101–115. doi:10.1016/j.gete.2016.05.001

CrossRef Full Text | Google Scholar

Sanchez, M., Gens, A., and Guimaraes, L. (2012). Thermal–hydraulic–mechanical (THM) behaviour of a large-scale in situ heating experiment during cooling and dismantling. Can. Geotechnical J. 49, 1169–1195. doi:10.1139/t2012-076

CrossRef Full Text | Google Scholar

Sanchez, M., Gens, A., Guimaraes, L. N., and Olivella, S. (2005). A double structure generalized plasticity model for expansive materials. Int. J. Numer. Anal. Methods Geomechanics 29, 751–787. doi:10.1002/nag.434

CrossRef Full Text | Google Scholar

Sanchez, M., Gens, A., Victoria Villar, M., and Olivella, S. (2016b). Fully coupled thermo-hydro-mechanical double-porosity formulation for unsaturated soils. Int. J. Geomechanics 16, D4016015. doi:10.1061/(ASCE)GM.1943-5622.0000728

CrossRef Full Text | Google Scholar

Santillán, D., Juanes, R., and Cueto-Felgueroso, L. (2017). Phase field model of fluid-driven fracture in elastic media: immersed-fracture formulation and validation with analytical solutions. J. Geophys. Res. Solid Earth 122, 2565–2589. doi:10.1002/2016JB013572

CrossRef Full Text | Google Scholar

Sargado, J., Keilegavlen, E., Berre, I., and Nordbotten, J. (2018). High-accuracy phase-field models for brittle fracture based on a new family of degradation functions. J. Mech. Phys. Solids 111, 458–489. doi:10.1016/j.jmps.2017.10.015

CrossRef Full Text | Google Scholar

Satterthwaite, F. (1959). Random balance experimentation. Technometrics 1, 111–137. doi:10.2307/1266466

CrossRef Full Text | Google Scholar

Sauter, M., Geyer, T., Kovács, A., and Teutsch, G. (2006). Modellierung der hydraulik von karstgrundwasserleitern - eine Übersicht: Herrn professor gerhard einsele zum 80. geburtstag gewidmet. Grundwasser 11, 143–156. doi:10.1007/s00767-006-0140-0

CrossRef Full Text | Google Scholar

Scharfetter, D. L., and Gummel, H. K. (1969). Large-signal analysis of a silicon read diode oscillator. Electron Devices, IEEE Trans.16, 64–77. doi:10.1109/t-ed.1969.16566

CrossRef Full Text | Google Scholar

Schlüter, A., Willenbücher, A., Kuhn, C., and Müller, R. (2014). Phase field approximation of dynamic brittle fracture. Comput. Mech. 54, 1141–1161. doi:10.1007/s00466-014-1045-x

CrossRef Full Text | Google Scholar

Schmidt, P., and Steeb, H. (2019). Numerical aspects of hydro-mechanical coupling of fluid-filled fractures using hybrid-dimensional element formulations and non-conformal meshes. GEM - Int. J. Geomathematics 10, 14. doi:10.1007/s13137-019-0127-5

CrossRef Full Text | Google Scholar

Seigneur, N., Lagneau, V., Corvisier, J., and Dauzères, A. (2018). Recoupling flow and chemistry in variably saturated reactive transport modelling - an algorithm to accurately couple the feedback of chemistry on water consumption, variable porosity and flow. Adv. Water Resour. 122, 355–366. doi:10.1016/j.advwatres.2018.10.025

CrossRef Full Text | Google Scholar

Seigneur, N., Mayer, K. U., and Steefel, C. I. (2019). Reactive transport in evolving porous media. Rev. Mineralogy Geochem. 85, 197–238. doi:10.2138/rmg.2019.85.7

CrossRef Full Text | Google Scholar

Settgast, R., Fu, P., Walsh, S., White, J., Annavarapu, C., and Ryerson, F. (2017). A fully coupled method for massively parallel simulation of hydraulically driven fractures in 3-dimensions. Int. J. Numer. Anal. Methods Geomechanics 41, 627–653. doi:10.1002/nag.2557

CrossRef Full Text | Google Scholar

Shafizadeh, A., Gimmi, T., Loon, L. V., Kaestner, A., Lehmann, E., Maeder, U., et al. (2015). Quantification of water content across a cement-clay interface using high resolution neutron radiography. Phys. Procedia 69, 516–523. doi:10.1016/j.phpro.2015.07.073

CrossRef Full Text | Google Scholar

Shao, H., Hesser, J., Kolditz, O., and Wang, W. (2019). Hydraulic characterisation of clay rock under consideration of coupled THM properties. Environ. Sci. Eng., 33–40. doi:10.1007/978-981-13-2227-3_4

CrossRef Full Text | Google Scholar

Šimůnek, K., Jacques, D., Van Genuchten, M., and Mallants, D. (2006). Multicomponent geochemical transport modelling using hydrus-1d and hp11. J. Am. Water Resour. Assoc. 42, 1537–1547. doi:10.1111/j.1752-1688.2006.tb06019.x

CrossRef Full Text | Google Scholar

Sinclair, J. (1993). Response to the psacoin level s exercise. psacoin level s intercomparison. organisation for economic cooperation and development. Paris: Nuclear Energy Agency.

Google Scholar

Sobol, I. (1993). Sensitivity estimates for nonlinear mathematical models. Math. Model. Comput. Exp. 1. doi:10.1029/94JC00847

CrossRef Full Text | Google Scholar

Sochala, P., Chiaberge, C., Claret, F., and Tournassat, C. (2022). Uncertainty propagation in pore water chemical composition calculation using surrogate models. Sci. Rep. 12, 15077. doi:10.1038/s41598-022-18411-5

PubMed Abstract | CrossRef Full Text | Google Scholar

Sochala, P., Chiaberge, C., Claret, F., and Tournassat, C. (2024). Dimension reduction for uncertainty propagation and global sensitivity analyses of a cesium adsorption model. J. Comput. Sci. 75, 102197. doi:10.1016/j.jocs.2023.102197

CrossRef Full Text | Google Scholar

Sochala, P., and Iskandarani, M. (2019). On the construction of uncertain time series surrogates using polynomial chaos and Gaussian processes. Math. Geo 52, 285–309. doi:10.1007/s11004-019-09806-8

CrossRef Full Text | Google Scholar

Soler, J. M., Landa, J., Havlova, V., Tachi, Y., Ebina, T., Sardini, P., et al. (2015). Comparative modeling of an in situ diffusion experiment in granite at the Grimsel Test Site. J. Contam. Hydrology 179, 89–101. doi:10.1016/j.jconhyd.2015.06.002

PubMed Abstract | CrossRef Full Text | Google Scholar

Soulaine, C., Pavuluri, C., Claret, F., and Tournassat, C. (2022). Reactive transport modeling with a coupled OpenFOAM®-PHREEQC platform. Transp. Environ. Model. and Softw. 145, 475–504. doi:10.1007/s11242-022-01860-x

CrossRef Full Text | Google Scholar

Soulaine, C., Pavuluri, S., Claret, F., and Tournassat, C. (2021). porousMedia4Foam: multi-scale open-source platform for hydro-geochemical simulations with OpenFOAM®. Environ. Model. and Softw. 145, 105199. doi:10.1016/j.envsoft.2021.105199

CrossRef Full Text | Google Scholar

Soulaine, C., Roman, S., Kovscek, A., and Tchelepi, H. (2017). Mineral dissolution and wormholing from a pore-scale perspective. J. Fluid Mech. 827, 457–483. doi:10.1017/jfm.2017.499

CrossRef Full Text | Google Scholar

Spanne, P., Thovert, J. F., Jacquin, C. J., Lindquist, W. B., Jones, K. W., and Adler, P. M. (1994). Synchrotron computed microtomography of porous media: topology and transports. Phys. Rev. Lett. 73, 2001–2004. doi:10.1103/physrevlett.73.2001

PubMed Abstract | CrossRef Full Text | Google Scholar

Špetlík, M., and Březina, J. (2021). “Groundwater flow meta-model for multilevel Monte Carlo methods,” in Proceedings of the CEUR workshop (Odesa, Ukraine: CEUR-WS).

Google Scholar

Špetlík, M., and Březina, J. (2022). Groundwater contaminant transport solved by Monte Carlo methods accelerated by deep learning meta-model. Appl. Sci. 12, 7382. doi:10.3390/app12157382

CrossRef Full Text | Google Scholar

Špetlík, M., Březina, J., and Laloy, E. (2024). Deep learning surrogate for predicting hydraulic conductivity tensors from stochastic discrete fracture-matrix models.

Google Scholar

Spiessl, D.-A., and Becker, S. M. (2017). Investigation of modern methods of probabilistic sensitivity analysis of final repository performance assessment models (MOSEL). Tech. Rep. GRS-412. Köln/Braunschweig, Germany Gesellschaft fuer Anlagen-und Reaktorsicherheit (GRS) gGmbH.

Google Scholar

Štamberg, K., Palagyi, S., Videnská, K., and Havlová, V. (2014). Interaction of 3H+ (as HTO) and 36Cl− (as Na36Cl) with crushed granite and corresponding fracture infill material investigated in column experiments. J. Radioanalytical Nucl. Chem. 299 (3), 1625–1633. doi:10.1007/s10967-013-2870-7

CrossRef Full Text | Google Scholar

Stebel, J., Kružík, J., Horák, D., Březina, J., and Béreš, M. (2024). On the parallel solution of hydro-mechanical problems with fracture networks and contact conditions. Comput. and Struct. 298, 107339. doi:10.1016/j.compstruc.2024.107339

CrossRef Full Text | Google Scholar

Steefel, C. I., Appelo, C. A. J., Arora, B., Jacques, D., Kalbacher, T., Kolditz, O., et al. (2015a). Reactive transport codes for subsurface environmental simulation. Comput. Geosci. 19, 445–478. doi:10.1007/s10596-014-9443-x

CrossRef Full Text | Google Scholar

Steefel, C. I., Yabusaki, S. B., and Mayer, K. U. (2015b). Reactive transport benchmarks for subsurface environmental simulation. Comput. Geosci. 19, 439–443. doi:10.1007/s10596-015-9499-2

CrossRef Full Text | Google Scholar

Steiner, C. F., and Mittermeir, G. M. (2017). Applicability of the shape-factor concept for naturally fractured reservoirs and an alternative approach. J. Petroleum Sci. Eng. 154, 60–75. doi:10.1016/j.petrol.2017.04.009

CrossRef Full Text | Google Scholar

Stockmann, M., Schikora, J., Becker, D.-A., Flügge, J., Noseck, U., and Brendler, V. (2017). Smart kd values, their uncertainties and sensitivities - applying a new approach for realistic distribution coefficients in geochemical modeling of complex systems. Chemosphere 187, 277–285. doi:10.1016/j.chemosphere.2017.08.115

PubMed Abstract | CrossRef Full Text | Google Scholar

Strouboulis, T., Babuška, I., and Copps, K. (2000). The design and analysis of the generalized finite element method. Comput. Methods Appl. Mech. Eng. 181, 43–69. doi:10.1016/s0045-7825(99)00072-9

CrossRef Full Text | Google Scholar

Stumm, W. (1992). Chemistry of the solid-water interface: processes at the mineral-water and particle-water interface in natural systems. John Wiley and Son Inc.

Google Scholar

Succi, S. (2001). The lattice Boltzmann equation: for fluid dynamics and beyond. Oxford University Press.

Google Scholar

Succi, S., Foti, E., and Higuera, F. (1989). Three-dimensional flows in complex geometries with the lattice Boltzmann method. Europhys. Lett. 10, 433–438. doi:10.1209/0295-5075/10/5/008

CrossRef Full Text | Google Scholar

Sun, H., Scaringi, G., Mašín, D., and Najser, J. (2022). An experimental investigation on the swelling behavior of compacted b75 bentonite. Eng. Geol. 296, 106452. doi:10.1016/j.enggeo.2021.106452

CrossRef Full Text | Google Scholar

Sun, N.-Z. (2013). Inverse problems in groundwater modeling, volume 6. Springer Science and Business Media.

Google Scholar

Sun, Y., Tong, C., Duan, Q., Buscheck, T., and Blink, J. (2012). Combining simulation and emulation for calibrating sequentially reactive transport systems. Transp. Porous Media 92, 509–526. doi:10.1007/s11242-011-9917-4

CrossRef Full Text | Google Scholar

Tahmasebi, P., and Kamrava, S. (2018). Rapid multiscale modeling of flow in porous media. Phys. Rev. E 98, 052901. doi:10.1103/PhysRevE.98.052901

CrossRef Full Text | Google Scholar

Tanné, E., Li, T., Bourdin, B., Marigo, J.-J., and Maurini, C. (2018). Crack nucleation in variational phase-field models of brittle fracture. J. Mech. Phys. Solids 110, 80–99. doi:10.1016/j.jmps.2017.09.006

CrossRef Full Text | Google Scholar

Tarantola, S., Gatelli, D., and Mara, T. (2006). Random balance designs for the estimation of first order global sensitivity indices. Reliab. Eng. Syst. Saf. 91, 717–727doi. doi:10.1016/j.ress.2005.06.003

CrossRef Full Text | Google Scholar

Tartakovsky, A., Redden, G., Lichtner, P., Scheibe, T., and Meakin, P. (2008). Mixing-induced precipitation: experimental study and multiscale numerical analysis. Water Resour. Res. 44. doi:10.1029/2006WR005725

CrossRef Full Text | Google Scholar

Thoenen, T., Hummel, W., Berner, U., and Curti, E. (2014). Nagra chemical thermodynamic database 12/07. Technical report. Villigen, Switzerland: Paul Scherrer Institut.

Google Scholar

Townley, L. R., and Wilson, J. L. (1985). Computationally efficient algorithms for parameter estimation and uncertainty propagation in numerical models of groundwater flow. Water Resour. Res. 21, 1851–1860. doi:10.1029/wr021i012p01851

CrossRef Full Text | Google Scholar

Trevisan, L., Cihan, A., Fagerlund, F., Agartan, E., Mori, H., Birkholzer, J., et al. (2014). Investigation of mechanisms of supercritical co2 trapping in deep saline reservoirs using surrogate fluids at ambient laboratory conditions. Int. J. Greenh. Gas Control 29, 35–49. doi:10.1016/j.ijggc.2014.07.012

CrossRef Full Text | Google Scholar

Tsang, C., Barnichon, J., Birkholzer, J., Li, X., Liu, H., and Sillen, X. (2012). Coupled thermo-hydro-mechanical processes in the near field of a high-level radioactive waste repository in clay formations. Int. J. Rock Mech. Min. Sci. 49, 31–44. doi:10.1016/j.ijrmms.2011.09.015

CrossRef Full Text | Google Scholar

Turunen, J., and Lipping, T. (2023). Feasibility of neural network metamodels for emulation and sensitivity analysis of radionuclide transport models. Sci. Rep. 13, 6985. doi:10.1038/s41598-023-34089-9

PubMed Abstract | CrossRef Full Text | Google Scholar

Vanderborght, J., Fetzer, T., Mosthaf, K., Smits, K., and Helmig, R. (2017). Heat and water transport in soils and across the soil-atmosphere interface: 1. theory and different model concepts. Water Resour. Res. 53, 1057–1079. doi:10.1002/2016wr019982

CrossRef Full Text | Google Scholar

van der Lee, J., De Windt, L., Lagneau, V., and Goblet, P. (2003). Module-oriented modeling of reactive transport with HYTEC. Comput. Geosciences 29, 265–275. doi:10.1016/s0098-3004(03)00004-9

CrossRef Full Text | Google Scholar

van Duijn, C. J., Molenaar, J., and de Neef, M. J. (1995). The effect of capillary forces on immiscible two-phase flow in heterogeneous porous media. Transp. Porous Media 21, 71–93. doi:10.1007/bf00615335

CrossRef Full Text | Google Scholar

van Noorden, T. L. (2009). Crystal precipitation and dissolution in a porous medium: effective equations and numerical experiments. Multiscale Model. and Simul. 7, 1220–1236. doi:10.1137/080722096

CrossRef Full Text | Google Scholar

Vasilyeva, M., Chung, E. T., Efendiev, Y., and Kim, J. (2019). Constrained energy minimization based upscaling for coupled flow and mechanics. J. Comput. Phys. 376, 660–674. doi:10.1016/j.jcp.2018.09.054

CrossRef Full Text | Google Scholar

Verhoosel, C., and de Borst, R. (2013). A phase-field model for cohesive fracture. Int. J. Numer. Methods Eng. 96, 43–62. doi:10.1002/nme.4553

CrossRef Full Text | Google Scholar

Videnská, K., Gondolli, J., Štamberg, K., and Havlová, V. (2015). Retention of selenium and caesium on crystalline rock: the effect of redox conditions and mineralogical composition. J. Radioanalytical Nucl. Chem. 304, 417–423. doi:10.1007/s10967-014-3885-4

CrossRef Full Text | Google Scholar

Videnská, K., and Havlová, V. (2012). “Retention of anionic species on granite: influence of granite composition (12129),” in Waste Management Symposia 2012, Phoenix, Arizona, USA, 26 February - 1 March 2012.

Google Scholar

Videnská, K., Havlová, V., Vašinová Galiová, M., and Sajdl, P. (2014a). Study of selenium sorption on Äspö diorite surface using spectroscopic methods. Final workshop proceeding of the collaborative project ”crystalline ROCK retention processes. Karlsruhe Tech. Rep. KIT Scientific reports 7656. Karlsruhe: KIT.

Google Scholar

Videnská, K., Havlova, V., and Vejsadů, J. (2014b). Study of selenium sorption on Äspö diorite. Final workshop proceeding of the collaborative project ”crystalline ROCK retention processes. Tech. Rep. KIT Scientific reports 7656. Karlsruhe: KIT.

Google Scholar

Videnska, K., Palagyi, S., Stamberg, K., Vodickova, H., and Havlova, V. (2013). Effect of grain size on the sorption and desorption of seo42-and seo32-in columns of crushed granite and fracture infill from granitic water under dynamic conditions. J. Radioanalytical Nucl. Chem. 298, 547–554. doi:10.1007/s10967-013-2429-7

CrossRef Full Text | Google Scholar

Vignollet, J., May, S., de Borst, R., and Verhoosel, C. (2014). Phase-field models for brittle and cohesive fracture. Meccanica 49, 2587–2601. doi:10.1007/s11012-013-9862-0

CrossRef Full Text | Google Scholar

Vogel, T., van Genuchten, M., and Cislerova, M. (2001). Effect of the shape of the soil hydraulic functions near saturation on variably-saturated flow predictions. Adv. Water Resour. 24, 133–144. doi:10.1016/s0309-1708(00)00037-3

CrossRef Full Text | Google Scholar

Vogler, D., Ostvar, S., Paustian, R., and Wood, B. D. (2018). A hierarchy of models for simulating experimental results from a 3D heterogeneous porous medium. Adv. Water Resour. 114, 149–163. doi:10.1016/j.advwatres.2018.02.009

CrossRef Full Text | Google Scholar

Vohralík, M., and Wheeler, M.-F. (2013). A posteriori error estimates, stopping criteria, and adaptivity for two-phase flows. Comput. Geosci. 17, 789–812. doi:10.1007/s10596-013-9356-0

CrossRef Full Text | Google Scholar

Vopálka, D., Lukin, D., and Vokál, A. (2006). Modelling of processes occurring in deep geological repository - development of new modules in the GoldSim environment. Czechoslov. J. Phys. 56, D623–D628. doi:10.1007/s10582-006-1074-6

CrossRef Full Text | Google Scholar

Wagner, T., Kulik, D. A., Hingerl, F. F., and Dmytrieva, S. V. (2012). Gem-Selektor geochemical modeling package: tsolmod library and data interface for multicomponent phase models. Can. Mineralogist 50, 1173–1195. doi:10.3749/canmin.50.5.1173

CrossRef Full Text | Google Scholar

Wang, S., Javadpour, F., and Feng, Q. (2016). Molecular dynamics simulations of oil transport through inorganic nanopores in shale. Fuel 171, 74–86. doi:10.1016/j.fuel.2015.12.071

CrossRef Full Text | Google Scholar

Wang, W., Shao, H., Nagel, T., and Kolditz, O. (2020). Analysis of coupled thermal-hydro-mechanical processes during small scale in-situ heater experiment in Callovo-Oxfordian clay rock introducing a failure-index permeability model. Int. J. Rock Mech. Min. Sci. 142, 104683. doi:10.1016/j.ijrmms.2021.104683

CrossRef Full Text | Google Scholar

Wang, W., Xie, Q., An, S., Bakhshian, S., Kang, Q., Wang, H., et al. (2023). Pore-scale simulation of multiphase flow and reactive transport processes involved in geologic carbon sequestration. Earth-Science Rev. 247, 104602. doi:10.1016/j.earscirev.2023.104602

CrossRef Full Text | Google Scholar

Wang, X., and Tchelepi, H. A. (2013). Trust-region based solver for nonlinear transport in heterogeneous porous media. J. Comput. Phys. 253, 114–137. doi:10.1016/j.jcp.2013.06.041

CrossRef Full Text | Google Scholar

Wang, Y., Sun, S., Gong, L., and Yu, B. (2018). A globally mass-conservative method for dual-continuum gas reservoir simulation. J. Nat. Gas Sci. Eng. 53, 301–316. doi:10.1016/j.jngse.2018.03.009

CrossRef Full Text | Google Scholar

Wang, Y., Sun, S., and Yu, B. (2017). Acceleration of gas flow simulations in dual-continuum porous media based on the mass-conservation pod method. Energies 10, 1380. doi:10.3390/en10091380

CrossRef Full Text | Google Scholar

Wang, Z., Rutqvist, J., Wang, Y., Leung, C., Hoch, A., and Dai, Y. (2014). The effect of stress on flow and transport in fractured rock masses using an extended multiple interacting continua method with crack tensor theory. Nucl. Technol. 187, 158–168. doi:10.13182/nt13-76

CrossRef Full Text | Google Scholar

Warren, J., and Root, P. (1963). The behavior of naturally fractured reservoirs. Soc. Petroleum Eng. J. 3, 245–255. doi:10.2118/426-pa

CrossRef Full Text | Google Scholar

Watanabe, N., Wang, W., Taron, J., Görke, U., and Kolditz, O. (2012). Lower-dimensional interface elements with local enrichment: application to coupled hydro-mechanical problems in discretely fractured porous media. Int. J. Numer. Methods Eng. 90, 1010–1034. doi:10.1002/nme.3353

CrossRef Full Text | Google Scholar

Wendling, J., Justinavicius, D., Sentis, M., Amaziane, B., Bond, A., Calder, N., et al. (2019). Gas transport modelling at different spatial scales of a geological repository in clay host rock. Environ. Earth Sci. 78, 221. doi:10.1007/s12665-019-8230-3

CrossRef Full Text | Google Scholar

Weyl, H. (1938). Mean motion. Am. J. Math. 60, 889–896. doi:10.2307/2371267

CrossRef Full Text | Google Scholar

Wheeler, M., Wick, T., and Wollner, W. (2014). An augmented-Lagrangian method for the phase-field approach for pressurized fractures. Comput. Methods Appl. Mech. Eng. 271, 69–85. doi:10.1016/j.cma.2013.12.005

CrossRef Full Text | Google Scholar

White, J., Castelletto, N., and Tchelepi, H. (2016). Block-partitioned solvers for coupled poromechanics: a unified framework. Comput. Methods Appl. Mech. Eng. 303, 55–74. doi:10.1016/j.cma.2016.01.008

CrossRef Full Text | Google Scholar

Wick, T., Singh, G., and Wheeler, M. F. (2016). Fluid-filled fracture propagation with a phase-field approach and coupling to a reservoir simulator. SPE J. 21, 0981–0999. doi:10.2118/168597-PA

CrossRef Full Text | Google Scholar

Williams, C., and Seeger, M. (2001). Using the nyström method to speed up kernel machines. Adv. Neural Inf. Process. Syst. 13, 682–688.

Google Scholar

Wolery, T. J. (1992). Eq3/6, a software package for geochemical modeling of aqueous systems: package overview and installation guide (version 7.0).

Google Scholar

Wright, L., and Davidson, S. (2020). How to tell the difference between a model and a digital twin. Adv. Model. Simul. Eng. Sci. 7, 13. doi:10.1186/s40323-020-00147-4

CrossRef Full Text | Google Scholar

Wu, J.-Y. (2017). A unified phase-field theory for the mechanics of damage and quasi-brittle failure. J. Mech. Phys. Solids 103, 72–99. doi:10.1016/j.jmps.2017.03.015

CrossRef Full Text | Google Scholar

Xia, L., Yvonnet, J., and Ghabezloo, S. (2017). Phase field modeling of hydraulic fracturing with interfacial damage in highly heterogeneous fluid-saturated porous media. Eng. Fract. Mech. 186, 158–180. doi:10.1016/j.engfracmech.2017.10.005

CrossRef Full Text | Google Scholar

Xie, M., Mayer, K. U., Claret, F., Alt-Epping, P., Jacques, D., Steefel, C., et al. (2015). Implementation and evaluation of permeability-porosity and tortuosity-porosity relationships linked to mineral dissolution-precipitation. Comput. Geosci. 19, 655–671. doi:10.1007/s10596-014-9458-3

CrossRef Full Text | Google Scholar

Xing, F., Masson, R., and Lopez, S. (2017). Parallel numerical modeling of hybrid-dimensional compositional non-isothermal Darcy flows in fractured porous media. J. Comput. Phys. 345, 637–664. doi:10.1016/j.jcp.2017.05.043

CrossRef Full Text | Google Scholar

Xu, T., Sonnenthal, E., Spycher, N., Zhang, G., Zheng, L., and Pruess, K. (2012). TOUGHREACT: a simulation program for subsurface reactive chemical transport under non-isothermal multiphase flow conditions. Bentham e-books, 74–95.

Google Scholar

Xu, Z., and Meakin, P. (2011). Phase-field modeling of two-dimensional solute precipitationdissolution: solid fingers and diffusion-limited precipitation. J. Chem. Phys. 134, 044137. doi:10.1063/1.3537973

PubMed Abstract | CrossRef Full Text | Google Scholar

Yang, C., Samper, J., and Molinero, J. (2008). Inverse microbial and geochemical reactive transport models in porous media. Phys. Chem. Earth, Parts A/B/C 33, 1026–1034. doi:10.1016/j.pce.2008.05.016

CrossRef Full Text | Google Scholar

Yang, Y., Churakov, S. V., Patel, R. A., Prasianakis, N., Deissmann, G., Bosbach, D., et al. (2024). Pore-scale modeling of water and ion diffusion in partially saturated clays. Water Resour. Res. 60, e2023WR035595. doi:10.1029/2023wr035595

CrossRef Full Text | Google Scholar

Yang, Y., Patel, R. A., Churakov, S. V., Prasianakis, N. I., Kosakowski, G., and Wang, M. (2019a). Multiscale modeling of ion diffusion in cement paste: electrical double layer effects. Cem. Concr. Compos. 96, 55–65. doi:10.1016/j.cemconcomp.2018.11.008

CrossRef Full Text | Google Scholar

Yang, Y., Wang, K., Zhang, L., Sun, H., Zhang, K., and Ma, J. (2019b). Pore-scale simulation of shale oil flow based on pore network model. Fuel 251, 683–692. doi:10.1016/j.fuel.2019.03.083

CrossRef Full Text | Google Scholar

Yazid, A., Abdelkader, N., and Abdelmadjid, H. (2009). A state-of-the-art review of the x-fem for computational fracture mechanics. Appl. Math. Model. 33, 4269–4282. doi:10.1016/j.apm.2009.02.010

CrossRef Full Text | Google Scholar

Yi, S.-Y. (2013). A coupling of nonconforming and mixed finite element methods for biot’s consolidation model. Numer. Methods Partial Differ. Equations 29, 1749–1777. doi:10.1002/num.21775

CrossRef Full Text | Google Scholar

Yoshioka, K., and Bourdin, B. (2016). A variational hydraulic fracturing model coupled to a reservoir simulator. Int. J. Rock Mech. Min. 88, 137–150. doi:10.1016/j.ijrmms.2016.07.020

CrossRef Full Text | Google Scholar

Zhang, G., Lu, D., Ye, M., Gunzburger, M., and Webster, C. (2013). An adaptive sparse-grid high-order stochastic collocation method for bayesian inference in groundwater reactive transport modeling. Water Resour. Res. 49, 6871–6892. doi:10.1002/wrcr.20467

CrossRef Full Text | Google Scholar

Zhang, K., Wu, Y.-S., and Pruess, K. (2008). User’s guide for TOUGH2-MP - a massively parallel version of the TOUGH2 code. Lawrence Berkeley National Laboratory, University of California.

Google Scholar

Zhang, X. Y., Trame, M. N., Lesko, L. J., and Schmidt, S. (2015). Sobol sensitivity analysis: a tool to guide the development and evaluation of systems pharmacology models. CPT Pharmacometrics Syst. Pharmacol. 4, 69–79. doi:10.1002/psp4.6

PubMed Abstract | CrossRef Full Text | Google Scholar

Zheng, L., and Samper, J. (2015). Dual-continuum multicomponent reactive transport with nth-order solute transfer terms for structured porous media. Comput. Geosci. 19, 709–726. doi:10.1007/s10596-015-9477-8

CrossRef Full Text | Google Scholar

Zuna, M., Havlová, V., Trpkošová, D., Baratová, D., Gvoždík, L., Sosna, K., et al. (2017). Radionuclide migration from a fracture toward a granite matrix at the josef underground laboratory. Procedia Eng. 191, 1056–1067. doi:10.1016/j.proeng.2017.05.279

CrossRef Full Text | Google Scholar

Zurek, A. (2019). “Problèmes à interface mobile pour la dégradation de matériaux et la croissance de biofilms: analyse numérique et modélisation,”. Ph.D. thesis (Université de Lille).

Google Scholar
