Giacomo Gattoni
Toby G. R. Andrews
Èlia Benito-Gutiérrez- Department of Zoology, University of Cambridge, Cambridge, United Kingdom
The central nervous system of the cephalochordate amphioxus consists of a dorsal neural tube with an anterior brain. Two decades of gene expression analyses in developing amphioxus embryos have shown that, despite apparent morphological simplicity, the amphioxus neural tube is highly regionalised at the molecular level. However, little is known about the morphogenetic mechanisms regulating the spatiotemporal emergence of cell types at distinct sites of the neural axis and how their arrangements contribute to the overall neural architecture. In vertebrates, proliferation is key to provide appropriate cell numbers of specific types to particular areas of the nervous system as development proceeds, but in amphioxus proliferation has never been studied at this level of detail, nor in the specific context of neurogenesis. Here, we describe the dynamics of cell division during the formation of the central nervous system in amphioxus embryos, and identify specific regions of the nervous system that depend on proliferation of neuronal precursors at precise time-points for their maturation. By labelling proliferating cells in vivo at specific time points in development, and inhibiting cell division during neurulation, we demonstrate that localised proliferation in the anterior cerebral vesicle is required to establish the full cell type repertoire of the frontal eye complex and the putative hypothalamic region of the amphioxus brain, while posterior proliferating progenitors, which were found here to derive from the dorsal lip of the blastopore, contribute to elongation of the caudal floor plate. Between these proliferative domains, we find that trunk nervous system differentiation is independent from cell division, in which proliferation decreases during neurulation and resumes at the early larval stage. Taken together, our results highlight the importance of proliferation as a tightly controlled mechanism for shaping and regionalising the amphioxus neural axis during development, by addition of new cells fated to particular types, or by influencing tissue geometry.
Introduction
Vertebrate evolution has led to the origin of nervous systems of striking morphological diversity and functional complexity. Whilst is generally agreed that vertebrate nervous systems are very similar at early developmental stages and probably built up on a same common ground plan, little is known about the mechanisms that makes them architecturally so different later in development (Nieuwenhuys, 2017). Central to this question is understanding the principles governing the establishment of the nervous system “bauplan” (or ground plan), common to all invertebrate and vertebrate chordates, for which amphioxus is ideally placed given its key phylogenetic position, branching at the root of the chordate tree (Garcia-Fernàndez and Benito-Gutiérrez, 2009; Benito-Gutiérrez, 2011; Holland, 2016; Holland and Holland, 2021).
The amphioxus central nervous system (CNS) has a relatively simple morphology compared to that of vertebrates. It consists of a dorsal neural tube, devoid of overt segmentation, with an anteriorly enlarged region that corresponds to the brain and is usually regarded as the “cerebral vesicle.” Despite this apparent simplicity, accumulating gene expression data over the years has revealed a high degree of molecular regionalisation in the amphioxus CNS (Benito-Gutiérrez, 2006; Yu et al., 2007; Holland, 2017), and has identified a diversity of cell types which, albeit in low numbers, collectively represent regions of homology to specific areas of the vertebrate brain and spinal cord (Albuixech-Crespo et al., 2017; Benito-Gutiérrez et al., 2021). Diversity of cell types in the amphioxus brain is also supported by exquisitely detailed descriptions of cell morphologies in late amphioxus larva and adult brains using electron microscopy (EM) (Lacalli et al., 1994; Lacalli, 1996; Wicht and Lacalli, 2005). A great effort is being made to match these cellular morphologies to the reported gene expression patterns (Benito-Gutiérrez et al., 2021; Bozzo et al., 2021; Lacalli, 2021). However, these studies have been performed at very different developmental stages, when there are marked differences in neural tube size and shape, making this exercise very difficult. To fully exploit this knowledge and understand brain regionalisation at a molecular and morphological levels, is therefore necessary to gain insights into the morphogenetic processes regulating the numbers and spatial distribution of individual cells during nervous system development in amphioxus.
In vertebrate embryos, the initially single-layered neuroepithelium is progressively patterned by intrinsic and extrinsic cues that drive its cells into specific cellular behaviours and specialised modes of cell division (Temple and Shen, 2013). These specialised modes of cell division are key to confer tissue shape and to diversify the cell type repertoire. Depending on the division mode, progenitors can either divide to increase cell numbers in specific populations, to augment the progenitor pool, or to produce neuroblasts that differentiate into different types of neurons (Caviness et al., 1995; Götz and Huttner, 2005; Huttner and Kosodo, 2005). In the spinal cord, for example, posterior axial progenitors clonally expand to enlarge the progenitor pool and contribute with new cells to the elongating neural tube (Wilson et al., 2009; Steventon and Martinez Arias, 2017). Here, cell division is required to define form, while in the vertebrate telencephalon asymmetric divisions are key to layer the cortex, as well as to influence neuronal migratory routes and to diversify the neuronal type repertoire (Noctor et al., 2004). A proper balance between proliferation and programmed cell death is key to establish final neuronal numbers, adult brain size, and a proper geometry (Rakic, 1995; Chenn and Walsh, 2002; Ando et al., 2019). Neuronal birth dating studies in vertebrates have also shown that the time at which neurons are born can be predictive of their connectivity and projections, meaning that this temporal control in cell division might be critical to set the right cytoarchitecture (Allaway et al., 2020).
In amphioxus, previous studies have reported spatially restricted proliferation in the anterior tip of the neural tube and the posterior floor plate at the mid-neurula stage (Holland and Holland, 2006). However, the origin, dynamics, and fate of these proliferating cells, and therefore their contributions to the emergence of neural complexity in amphioxus, remain to be investigated. In this work, we present a detailed characterisation of cell division dynamics during early neural development in amphioxus. In doing so, we identify critical roles of proliferation in the diversification of the neural type repertoire, and the regulation of neural tube geometry. We first expand on previous data (Holland and Holland, 2006; Andrews et al., 2021) by constructing a quantitative proliferation landscape during early neural development, which shows that cell division restricts to distinct mitotic niches in the cerebral vesicle and chordoneural hinge at the onset of axial segmentation and elongation. By arresting cell division pharmacologically and using gene expression profiling we birth date and track specific neurons in the anterior cerebral vesicle, demonstrating that cell division is essential to increase the cell type repertoire within the maturing brain. In the posterior neural tube, we show that cell division is necessary to elongate the posterior floor plate and notochord, acting in axial progenitor populations arising from the dorsal blastopore lip of the gastrula. Collectively, our data shows that cell division has multiple roles during amphioxus nervous system development, each reminiscent of vertebrate dynamics. Together, these data suggest that modulation of cell division dynamics might have been a major strategy for the emergence of neural complexity in chordate evolution.
Materials and Methods
Animal Husbandry and Embryo Fixation
Adults of the European amphioxus Branchiostoma lanceolatum were collected in Banyuls-sur-Mer, France, and transported to Cambridge, United Kingdom, where they were maintained and spawned in a custom-made facility as described in Benito-Gutiérrez et al. (2013). After in vitro fertilisation, embryos were raised in filtered artificial salt water (ASW) at 21°C and fixed in ice-cold 3.7% Paraformaldehyde (PFA) + 3-(N-morpholino)propanesulfonic acid (MOPS) buffer for 12 h, then washed in sodium phosphate buffer saline (NPBS), dehydrated and stored in 100% methanol (MeOH) at –20°C. Embryonic stage was determined unbiasedly by counting the number of somites. For early stages where somites are not yet formed, we used hours post-fertilisation (hpf) to determine stages.
EdU Labelling and Detection
For EdU pulse analyses, EdU was applied to live embryos in filtered seawater at a final concentration of 20 μM for 2 h prior to fixation. For EdU pulse-chase analyses, EdU was removed after 2 h of exposure in vivo by transferring embryos to a fine 15 μm filter and washing them in an excess of filtered sea water. They were then transferred to a fresh petri dish and incubated until the desired developmental stage.
Fluorescent detection of incorporated EdU was performed following the manufacturer’s instructions, using a Click-it EdU Alexa Fluor 647 Imaging Kit (Invitrogen, Waltham, MA, United States) prior to primary antibody incubation. As advised for enhanced signal, the copper reagent was replenished after 15 min.
To construct proliferation landscapes, Euclidean distances were calculated between each EdU + and/or PhH3 + nucleus and the anterior tip of the cerebral vesicle. Distance values were then normalised to total neural tube length (defined here defined as the distance between the anterior tip of the cerebral vesicle and the chordoneural hinge of the tailbud), and scaled to mean neural tube length across the population. The frequency of nuclei was then calculated in 20 μm bins of the anteroposterior axis, and normalised to embryo number. Normalised values were then plotted for each somite stage using the ggridges package in R.
Pharmacological Perturbation With Hydroxyurea
Live amphioxus embryos were treated with 2 μM hydroxyurea (Sigma, H8627) or an equal volume of dimethylsulfoxide (DMSO; Sigma, 276855). This was performed either between the cup-shaped gastrula and 14-somite stages (8 hpf to 34 hpf at 21°C), or the six-somite and the 12- and 14-somite stages (18 hpf to either 30 or 34 hpf at 21°C).
Immunohistochemistry
Rehydrated embryos were permeabilised overnight in PBS + 1% DMSO + 1% Triton and incubated in a bleaching solution of 3% H2O2 + 3% formamide in 0.2X SSC. Embryos were then blocked in PBS + 0.1% Triton + 0.1% BSA + 5% NGS for 3 h. The blocking solution was then replaced, including primary antibodies as follows: rabbit anti-laminin (Sigma, L9393) at 1:50, rabbit anti-PhH3 (Abcam, ab5176) at 1:500, mouse anti-acetylated tubulin (Sigma, T6793) at 1:250. Primary antibody incubation was performed overnight at 4°C, followed by washes in PBS + 0.1% Triton + 0.1% BSA and then by a secondary block of PBS + 0.1% Triton + 0.1% BSA + 5% NGS for 3 h. Finally, this was replenished, to also include goat anti-rabbit and/or goat anti-mouse secondary antibodies at 1:250 and DAPI at 1:500 for overnight incubations. Rhodamine phalloidin (Thermofisher, R415) staining was performed overnight during secondary antibody incubation at 1:200 dilution. Embryos were washed thoroughly with PBS + 0.1% Triton. Imaging was performed on an Olympus V3000 inverted confocal microscope at 30X optical magnification.
In situ Hybridization Chain Reaction on Embryos
Hybridization chain reaction (HCR) version 3 was performed on embryos as described in Andrews et al. (2020). Briefly, embryos were rehydrated in NPBS + 0.1% Triton X, incubated for 30 min in bleaching solution and permeabilised in 1% DMSO, 1% Triton for 3 h. They were incubated in Hybridisation Buffer (HB, Molecular Instruments) for 2 h and then probes were added in HB overnight at 37°C. The following day probe excess was removed with Wash Buffer (Molecular Instrument). Embryos were washed in 5X-SSC + 0.1% Triton X, incubated in Amplification Buffer (AB, Molecular Instruments) for 30 min and then left overnight in the dark at room temperature in AB + 0.03 μM of each hairpin (Molecular Instruments). The next day embryos were washed in the dark in 5X-SSC + 0.1% Triton X and incubated overnight with 1 μg/mL DAPI in NPBT, then washed in NPBT and transferred in a glass-bottomed dish in 100% glycerol. Imaging was performed on an Olympus V3000 inverted confocal microscope.
Probes were generated using the following sequences from the B. lanceolatum transcriptome (Marlétaz et al., 2018): Six3/6 (BL08388), SerT (BL96109), VGlut (BL22589), Otp (BL13404), FoxD (BL10518).
Image Processing
To overcome EdU signal saturation from the endoderm, nuclear EdU labelling was masked using a binary mask of the DAPI channel in Fiji. Neurons and axonal projections were manually segmented using the Surface tool of the Imaris software (IMARIS 9.7.2, Bitplane, Oxford Instruments).
Results
Cell Division Restricts to Two Polarised Domains During Neural Tube Morphogenesis
To define the pattern of cell division during amphioxus neural tube formation, we first constructed a spatiotemporal map of cell cycle progression between blastopore closure (0-somite stage; 2 h prior to formation of the first somite) and the early larva stage (14-somite stage) (Figure 1 and Supplementary Figure 1). At each somite-stage across this time course, we labelled embryos with markers for nuclei in two cell cycle phases. We incubated embryos in EdU for 2-h prior to fixation, detecting cells passing through S-phase, and immunostained for phosphorylated histone 3 (PhH3), to mark mitotic nuclei at the time of fixation (Figure 1A). To synthesise data across multiple specimens, we calculated the mean frequency of labelled nuclei in evenly sized bins of the anteroposterior axis at each stage, and plotted these values across stages and mean axial lengths to generate a proliferation “landscape.” This map of cell cycle progression revealed cell division in the neural tube to pass through multiple phases, exhibiting unique spatial dynamics (Figure 1B). At first, cell division occurs specifically in the extreme posterior neural plate, where it interfaces with the posterior axial mesoderm at the dorsal blastopore lip (Figure 1B, 0–4 ss, 1C 0 + 3 ss). Second, between 5 ss and 10 ss, we observed a burst of cell division restricted to the extreme anterior and posterior tips of the neural tube (Figure 1B, 5–10 ss, 1C 7 + 10 ss). At these stages, we identified almost no cell division in the central part of the neural tube, between these polarised mitotic domains. Finally, after 10 ss, cell division resumed at a low level across the entire anteroposterior axis (Figure 1B, 10–14 ss, 1C 12 + 14 ss).

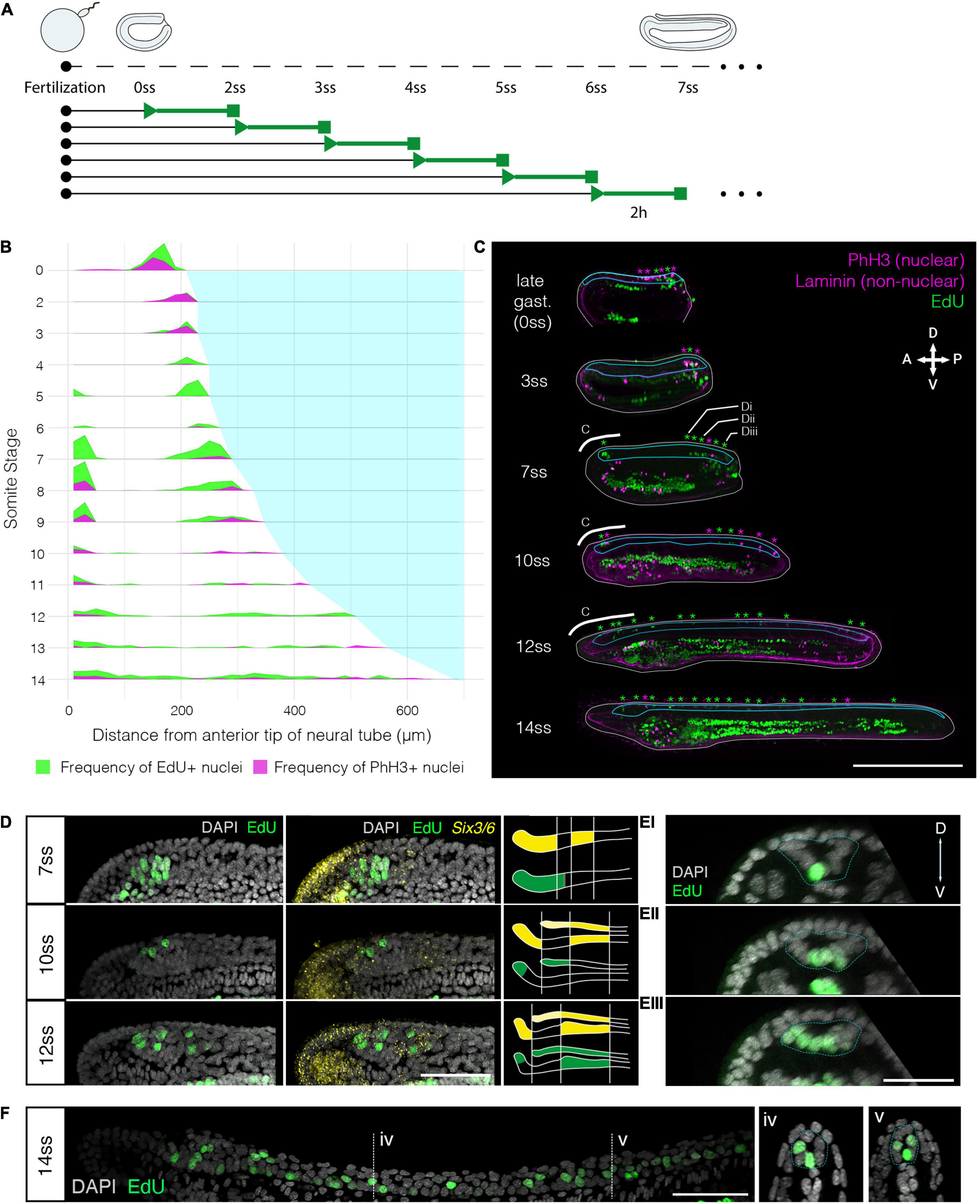

Figure 1. Cell division restricts to two polarised mitotic domains during neural tube morphogenesis. (A) Experimental design of EdU pulses experiments. Two hour EdU pulses are represented in green, while squares indicate time of fixation. The same approach was taken every 2 h for embryos up to the 14 ss stage. (B) Proliferation landscape for the neural tube, showing mean frequency of EdU-positive (EdU exposure for 2-h before fixation) and PhH3-positive nuclei in 20 μm bins of the anteroposterior axis at successive somite stages. “0-somite stage” refers to late gastrula 2-h before onset of somitogenesis. n = 114 embryos. (C) Mid-sagittal sections for representative embryos included in panel (A), showing distribution of EdU-positive and PhH3-positive nuclei in each tissue of the body axis, which are delineated by laminin immunostaining. White lines outline the whole embryo, light blue lines outline the neural tube. Asterisks mark location of EdU/PhH3-positive nuclei using the same colour code. Scale bar is 150 μm. (D) Lateral z-projections of the cerebral vesicle at 7, 10, and 12 somite stages, at the level indicated by thick white lines in panel (C), showing EdU incorporation and co-localisation with Six3/6, using HCR in situ hybridisation. Scale bar is 50 μm. Brain patterns are schematically represented and summarised on the right side of the panel in the same colour code. (E) Serial transverse sections through a 7-somite stage embryo at the posterior positions illustrated in panels (C,Ei–iii), showing the EdU detection profile. Neural tube is outlined with a dashed blue line. Scale bar is 30 μm. (F) Lateral projection of 14-somite stage embryo, with representative transverse sections at the indicated positions: iv and v, where the neural tube is outlined with a light blue dashed line. Scale bar is 50 μm.
Having identified a spatial restriction of cell division to the anterior and posterior poles of the neural tube, we next sought to define the pattern of cell division in each domain in finer detail. For the anterior domain, we combined EdU detection with Six3/6 profiling by HCR in situ. Six3/6 is a known marker of anterior neuroectoderm with well-known boundaries in the amphioxus brain, therefore representing an ideal co-stain to contextualise the distribution of proliferating cells during development within this domain (Kozmik et al., 2007; Steinmetz et al., 2010; Range, 2014). Furthermore, Six3/6 has been shown to regulate cell cycle in the anterior neural plate of vertebrates (Gestri et al., 2005). As previously reported, Six3/6 expression resolves the amphioxus cerebral vesicle into three areas throughout neurulation: anterior and posterior (post-infundibular) Six3/6-positive domains, separated by a small region devoid of Six3/6 expression at pre-infundibular level, what we term here as intercalated Six3/6 negative region (Kozmik et al., 2007; Albuixech-Crespo et al., 2017). Our analysis showed that each of these areas proliferates at different time points during neural tube morphogenesis. At 7 ss, EdU labelled a relatively large group of cells in the anterior Six3/6-positive and intercalated Six3/6 negative region, whereas no EdU-positive cells were found in the posterior Six3/6-positive cluster (Figure 1D). At 10 ss, cell division declined, such that only 3–5 EdU-positive cells were identified in the anterior tip or dorsal region of the developing cerebral vesicle, within the anterior Six3/6-positive cluster (Figure 1D). At 12 ss, the number of EdU-positive cells in the anterior-dorsal cerebral vesicle increased, and proliferating cells became also visible in Figure 1D.
To characterise the spatial distribution of cell division in the posterior body, we analysed the pattern of EdU-positive nuclei in serial transverse sections from whole mount images along the anteroposterior axis. This was performed at 7 ss, when cell division is occurring at its greatest magnitude in the posterior neural tube, and EdU-positive are seen extending anteriorly from the chordoneural hinge (Figure 1E). At 7 ss, the posterior neural plate has not yet folded to form a tube and exhibits a “U” shape in transverse section. The most anterior EdU-positive cells in the neural tube were invariably located ventrally, in the prospective floor plate (Figure 1Ei). However, in more posterior sections, EdU-positive cells were more dispersed across the mediolateral axis of the neural plate, such that multiple EdU-positive cells were observed in each transverse section (Figure 1Eii). In sections immediately anterior to the chordoneural hinge, EdU-positive cells were found throughout the neural plate, with no conspicuous spatial bias across the mediolateral axis (Figure 1Eiii). Considered together, cell division occurs broadly in the posterior neural plate during axial elongation, but restricts to the most medial-ventral cells at more anterior axial positions.
At 14 ss, when cell division has resumed in the area between the two proliferative domains, we found that EdU labelled cells were located only in the floor plate or in medio-lateral cells, clearly visible in cross-sections of the neural tube (Figure 1F). In sum, this analysis reveals that cell division restricts during axial elongation to two polarised mitotic domains; the anterior cerebral vesicle, where different regions of the prospective brain exhibit different proliferative rates, and the posterior neural tube, where proliferative cells extend anteriorly from the chordoneural hinge into the posterior floor plate.
Proliferation Specifically Contributes to Maturation of the Brain and Posterior Floor Plate
We next sought to map the contributions of proliferative cells in the anterior and posterior mitotic domains of the neural tube to tissue morphogenesis. We employed a pulse-chase approach to mark proliferative cells in each domain when the polarised cell division dynamic is conspicuous (5–10 ss) and map the distribution of their clones later in development (Figure 2A). Pulses of EdU at 7–8 ss labelled distinct clusters of cells at the anterior tip of the neural tube (Figures 2B,C), and a single-file row of cells in the posterior neural tube extending anteriorly from the chordoneural hinge of the tailbud (Figures 2B,D). The ventral endoderm was also strongly labelled but was non-overlapping with the two neural proliferative domains. After the EdU pulse, EdU was washed out extensively with fresh sea water, and embryos were left to develop until the 12 ss. At 12 ss (Figure 2A), we found that EdU-positive cells in the anterior CNS remained confined to the cerebral vesicle, and did not spread posteriorly into the rest of the neural tube (Figures 2E,F). Meanwhile, EdU-positive cells in the posterior neural tube contributed to 1/3rd of the floor plate (Figures 2E,G). Furthermore, some EdU-positive cells initially located in the chordoneural hinge at 7–8 ss, were found in the posterior notochord at 12 ss (Figure 2G compare with Figure 2D).

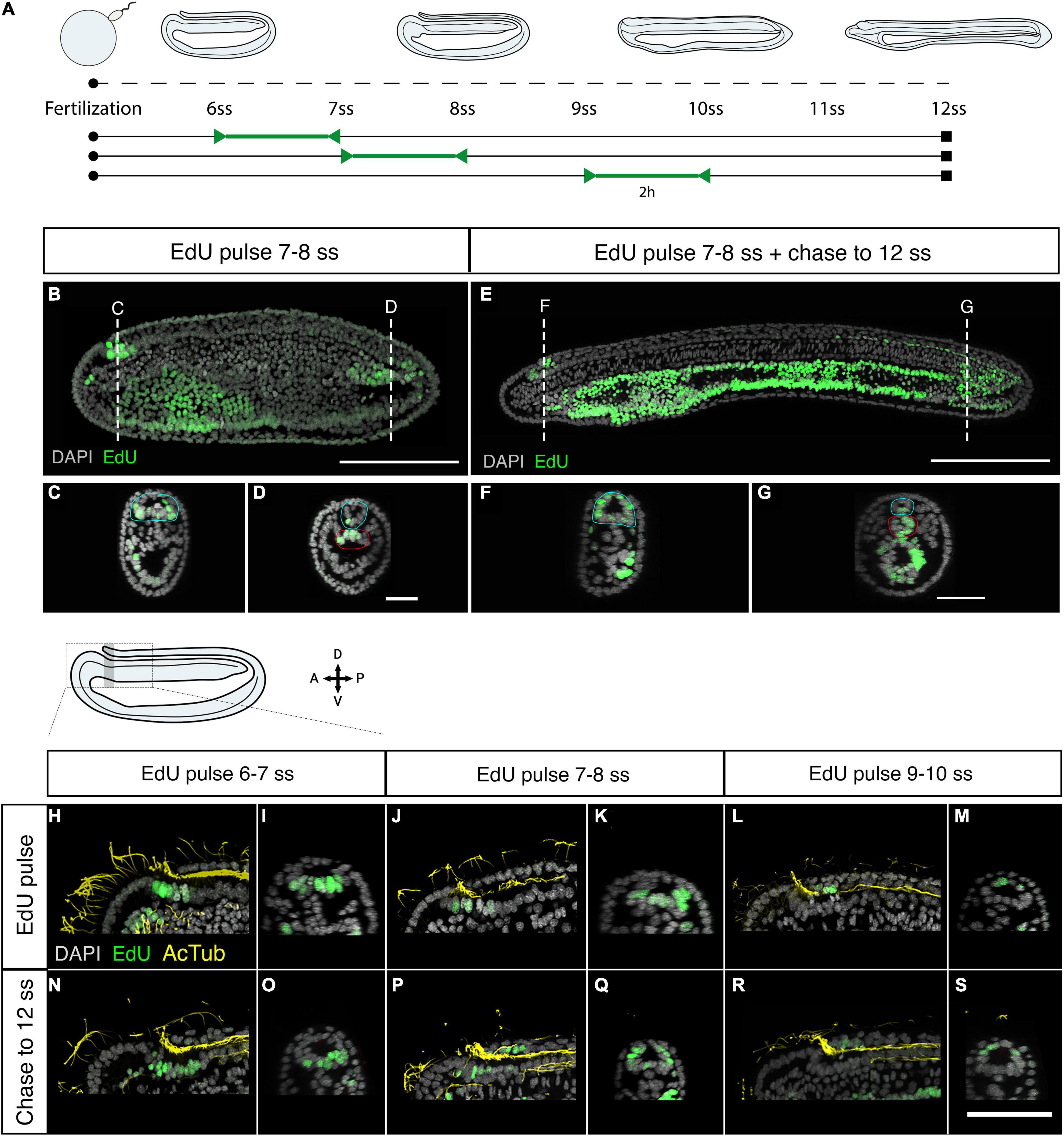

Figure 2. Fate of proliferating cells tracked using EdU-pulse chases. (A) Experimental design of Edu pulse-chase experiments. Two-hour EdU pulses are represented in green, after which embryos were raised (chase) to 12 ss and then fixed (square). (B) Detection of EdU-pulse between 7–8 ss with cross section details shown for the anterior (C), and the posterior (D) neural proliferative domains. (E) Chase of an embryo pulsed at 7–8 ss, as shown in panel (B), to 12 ss revealing that while anterior EdU-positive cells remain in the brain (F) posterior positive cells spread through one-third of the posterior floor plate (G). In cross sections the blue circle highlights the neural tissue while the red circle defines the chordoneural hinge (D) and the notochord (G). Scale bar is 100 μm for lateral views and 30 μm for cross-sections. (H,I) EdU pulses at 6–7 ss marked ventral brain cells, as shown in lateral (H) and sagittal (I) planes, which remained ventral in the cerebral vesicle of 12 ss embryos, as shown in lateral (N) and sagittal (O) planes of the brain. (J–M) At later stages lateral and dorsal proliferating cells in the brain, as shown by Edu pulses between 7–8 ss [Panel (J): lateral plane; (K) sagittal plane] and 9–10 ss [Panel (L): lateral plane; (M) sagittal plane] contributed to progressively dorsal cell populations, as shown in embryos at 12 ss in lateral (P,R) and sagittal (Q,S) planes. EdU in green, acetylated tubulin in yellow. Scale bar is 50 μm.
As we showed above, neural progenitors within the cerebral vesicle proliferate at different time points between 7 and 12 ss. We therefore performed pulse-chase experiments with higher temporal resolution to determine how cell division contributes to the maturation of specific brain areas during development. We combined EdU detection with acetylated tubulin immunostaining, which marks the cilia of the neural canal, to distinguish dorsal and ventral areas within the cerebral vesicle. Clones of cells that incorporated EdU between 6 and 7 ss remained ventral at 12 ss, meaning they contribute broadly to the ventral side of the cerebral vesicle along its anteroposterior axis (Figures 2H,I,N,O). In contrast, EdU-positive cells labelled in the anterior neural plate between 7 and 8 ss were positioned more laterally, and therefore contributed most significantly to the dorso-lateral walls of the cerebral vesicle after neurulation (Figures 2J,K,P,Q). Finally, those labelled between 9 and 10 ss contributed exclusively to the dorsal side of the cerebral vesicle (Figures 2L,M,R,S). Considered together, these data suggest that cell division in the brain is spatially restricted, increasing cell numbers locally in a ventral-to-dorsal temporal sequence. Meanwhile, proliferative cells in the posterior neural tube and chordoneural hinge specifically contribute to elongation of the posterior floor plate and become broadly dispersed across the anteroposterior axis within the posterior body.
Cell Division Is Dispensable for Broad Body Plan Patterning but Necessary for Proper Axial Tissue Geometry
After tracing the distribution and fates of proliferative cells in the amphioxus neural tube, we sought to assess the functional contributions of cell division to neural tube morphogenesis. To this end, we inhibited cell division from mid-gastrulation (8 hpf), when cell division is widespread throughout the embryo (Holland and Holland, 2006), to the early larva stage (14 ss) using hydroxyurea (HU) to arrest DNA synthesis (Figure 3A).

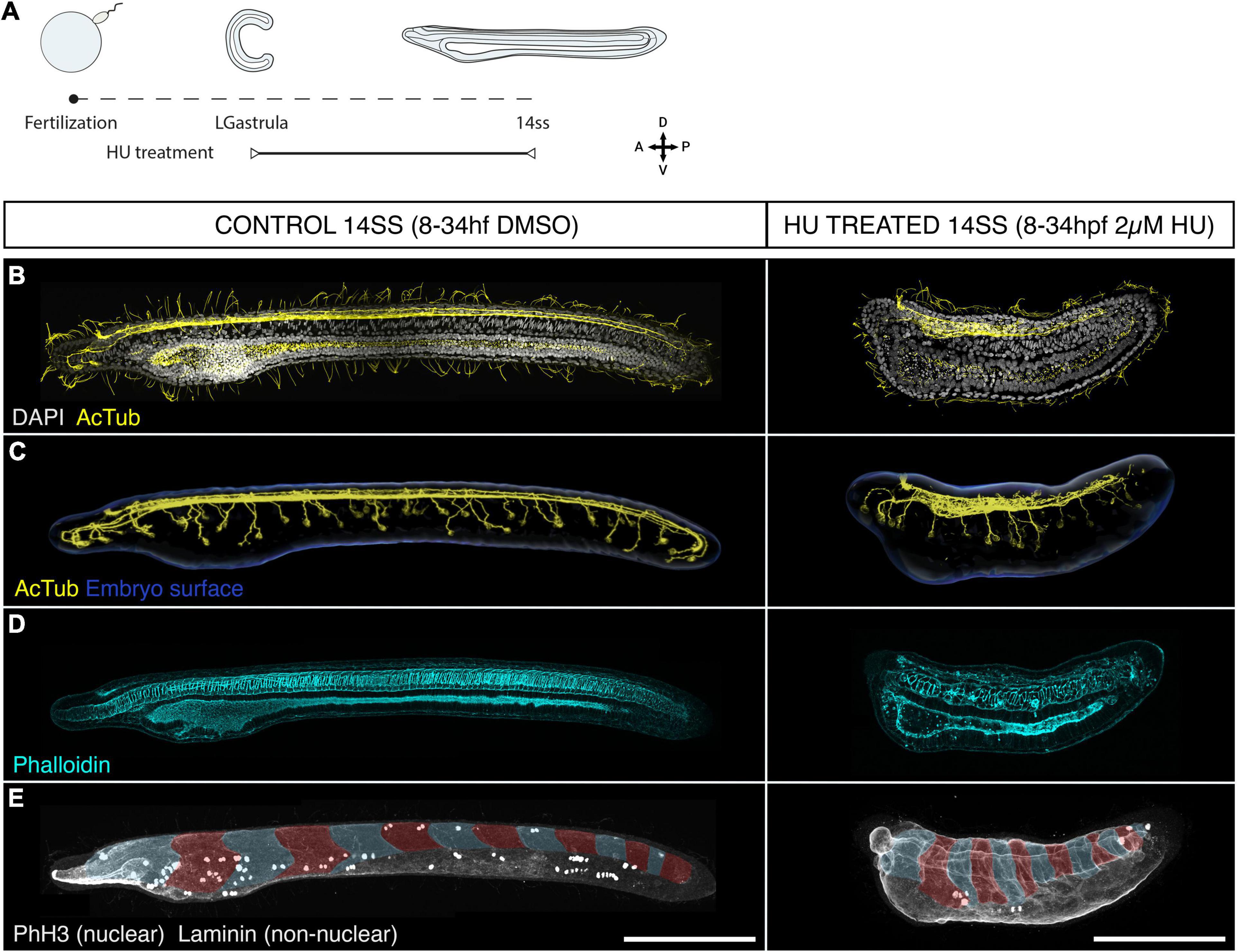

Figure 3. Cell division is dispensable for body plan patterning but required for establishing a normal geometry. (A) Experimental design of hydroxyurea (HU) treatments. (B–E) Control embryos (treated with DMSO) and embryos treated with 2 μM HU are shown side by side in lateral z-projections. (B) The general morphology of these embryos is shown through immunostaining with acetylated tubulin (cilia and axonal scaffold) and DAPI (nuclei). (C) The structure of the axonal scaffold is shown by segmentation of the acetilated tubulin channel from embryos in panel (A). (D) Phalloidin (actin) staining in the same embryos reveals the presence of a notochord and a ventral endoderm. (E) Immunostaining with laminin and PhH3 reveals the presence of an equal number of somites in both control and treated embryos (false-colouredin blue and read overlay), and the efficacy of the treatment to arrest proliferation, which results in a significant loss of PHH3-positive nuclei in HU-treated embryos. Scale bars are 150 μm for both control and treated embryos. HU-treated phenotype representative of n = 13 embryos imaged.
Surprisingly, HU-treated embryos remained viable until the 14 ss stage, hatching and swimming normally (data not shown) despite the lack of cell division (Figure 3). While prolonged exposure to HU resulted in widespread cell death, indicated by pyknotic DAPI-stained nuclei at the 14 ss (Supplementary Figure 2A), we found that the major patterns of the body plan were intact. The neural tube was present and internalised beneath the surface ectoderm (Figures 3B,C). Immunostaining for acetylated-tubulin in both control and treated embryos showed a central neural canal and axonal tracts running on the ventral side of the neural tube (Figures 3B,C). The neural tube of HU-treated embryos showed a clearly defined cerebral vesicle, which opened anteriorly through the neuropore and had rostral axonal projections similar to DMSO-treated control embryos. Furthermore, peripheral epidermal sensory neurons formed normally along the body axis and projected to the neural tube, although the size of each neuron was visibly larger than in control embryos (Figure 3C). These observations demonstrate the developmental robustness of the nervous system anlage in amphioxus, which forms even in the absence of proliferation during early neurogenesis (Figure 3C).
Aside from the nervous system, the notochord was present at the axial midline in HU-treated embryos, with a characteristic stack-of-coins pattern, and a complete pattern of somites was formed within the paraxial mesoderm on the left and right sides of the embryo (Figures 3D,E). While this means that the amphioxus body plan is robust to the loss of cell division, our results also show that the geometry of the embryos is severely distorted. Most conspicuously, HU-treated embryos failed to elongate, reaching less than half the AP length of DMSO-treated siblings by 14 ss. Our results thus indicate that proliferation may be dispensable at the stages treated to form the body plan, in terms of tissue composition and topology, but it is key to confer specific body traits with proper geometry.
Anterior Proliferation Is Required for Cell Type Diversity of the Brain
Having found that cell division is dispensable for the formation of the neural tube, we next investigated its role within each proliferative domain. Given that the amphioxus brain is relatively diverse in cell types (Benito-Gutiérrez, 2006; Albuixech-Crespo et al., 2017), we next focussed on the brain and investigated the role of cell-division in cell type diversification.
To this aim we arrested cell-division for a shorter interval of time, starting at the 6 ss stage, when proliferation is specifically localised in the brain and the chordoneural hinge, and raised these embryos up to the 12 and 14 ss stages (Figure 4A and Supplementary Figure 2B). We then examined the expression of genes known to mark specific cell types in chordate brains: the serotonergic marker SerT, the glutamatergic marker VGlut and the transcription factors Six3/6 and Otp (Figures 4, 5, and Supplementary Figures 2C–E). The treated embryos did not show any changes in Six3/6 expression, which showed the typical tripartite arrangement as in controls, also reported previously by Kozmik et al. (2007) (Figures 4B,C). This observation was consistent with these domains forming prior to axial elongation and before the anterior cerebral vesicle starts proliferating, at stages before HU was administered. By contrast, the treated embryos were devoid of the small cluster of serotonergic (SerT-positive) neurons that form Row2 in the cerebral vesicle of 12 ss embryos and contribute to the frontal eye complex (Candiani et al., 2012; Vopalensky et al., 2012). Our results therefore suggest that localised proliferation is needed to generate this entire row of serotonergic neurons (Figure 4A and Supplementary Figure 2C). On the contrary, we did not see any differences on the expression of the glutamate transporter VGlut, which localised, as in control embryos, in the anterior Six3/6-positive domain, and caudally to the posterior Six3/6-positive cluster in 12 and 14 ss embryos, in similar positions to those previously reported (Candiani et al., 2012; Figure 4B and Supplementary Figure 2D).

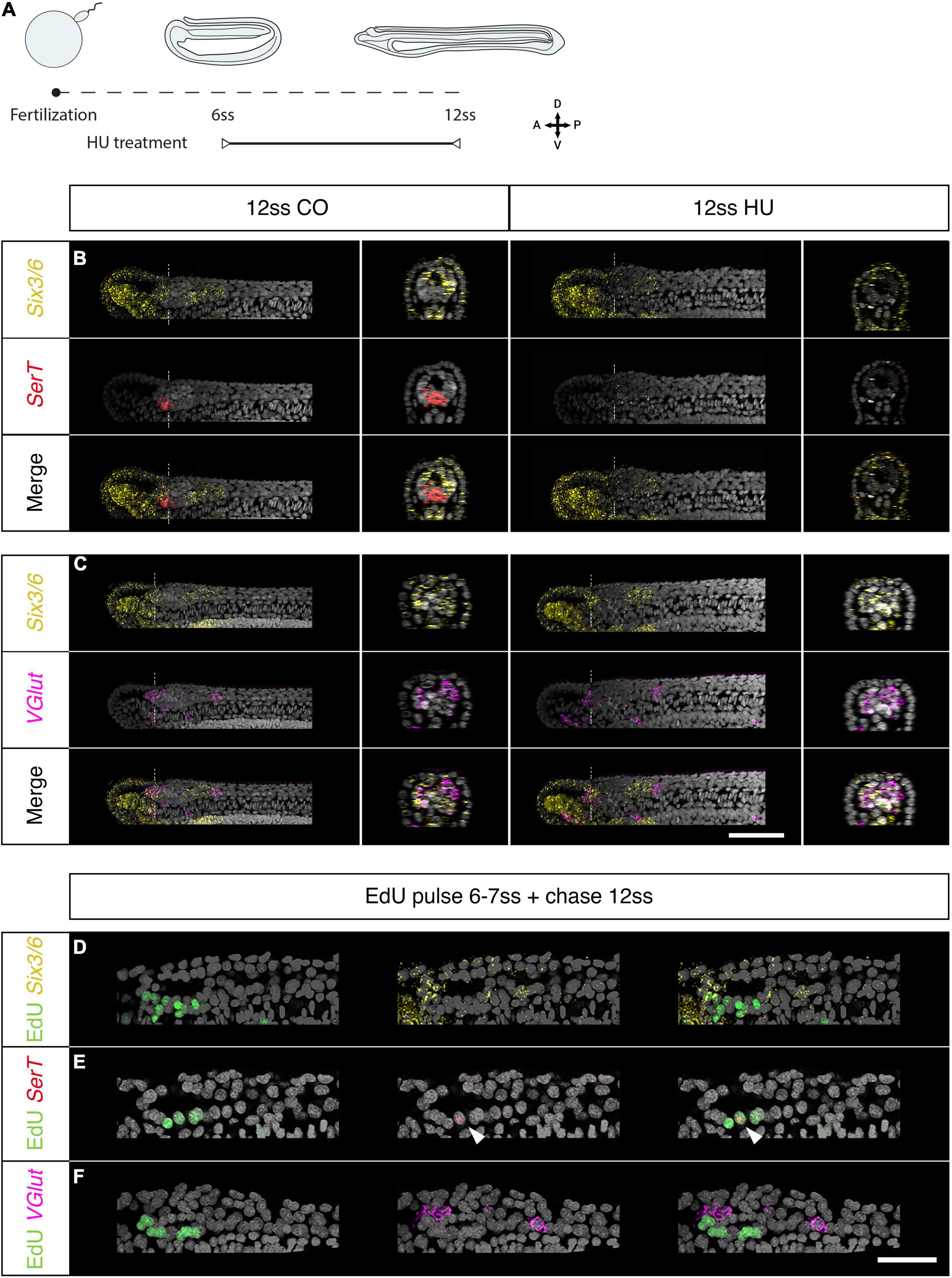

Figure 4. Brain proliferation is required to establish the neuronal type repertoire in the amphioxus larva. (A–C) Expression of neurotransmitter markers in control and Hydroxyurea (HU)-treated embryos at 12 ss through HCR. (A) Experimental design of HU treatments. (B) SerT expression in control embryos is localised at the border of the anterior Six3/6 domain but disappears following HU treatment. (C) In the neural tube, VGlut is expressed in anterior-most cells within the anterior Six3/6 domain and caudal to the posterior Six3/6 domain. This pattern remains the same in HU-treated embryos. Scalebar is 50 μm. (D–F) Brain expression of neurotransmitter markers in embryos pulsed with EdU at 6–7 ss and chased to 12 ss. (D) EdU is detected in a few cells within the anterior Six3/6 domain. (E) SerT-positive neurons are labelled with EdU. (F) VGlut expression is not detected in EdU-positive cells. Scalebar is 30 μm. Six3/6 in yellow, SerT in red, VGlut in magenta, EdU in green.

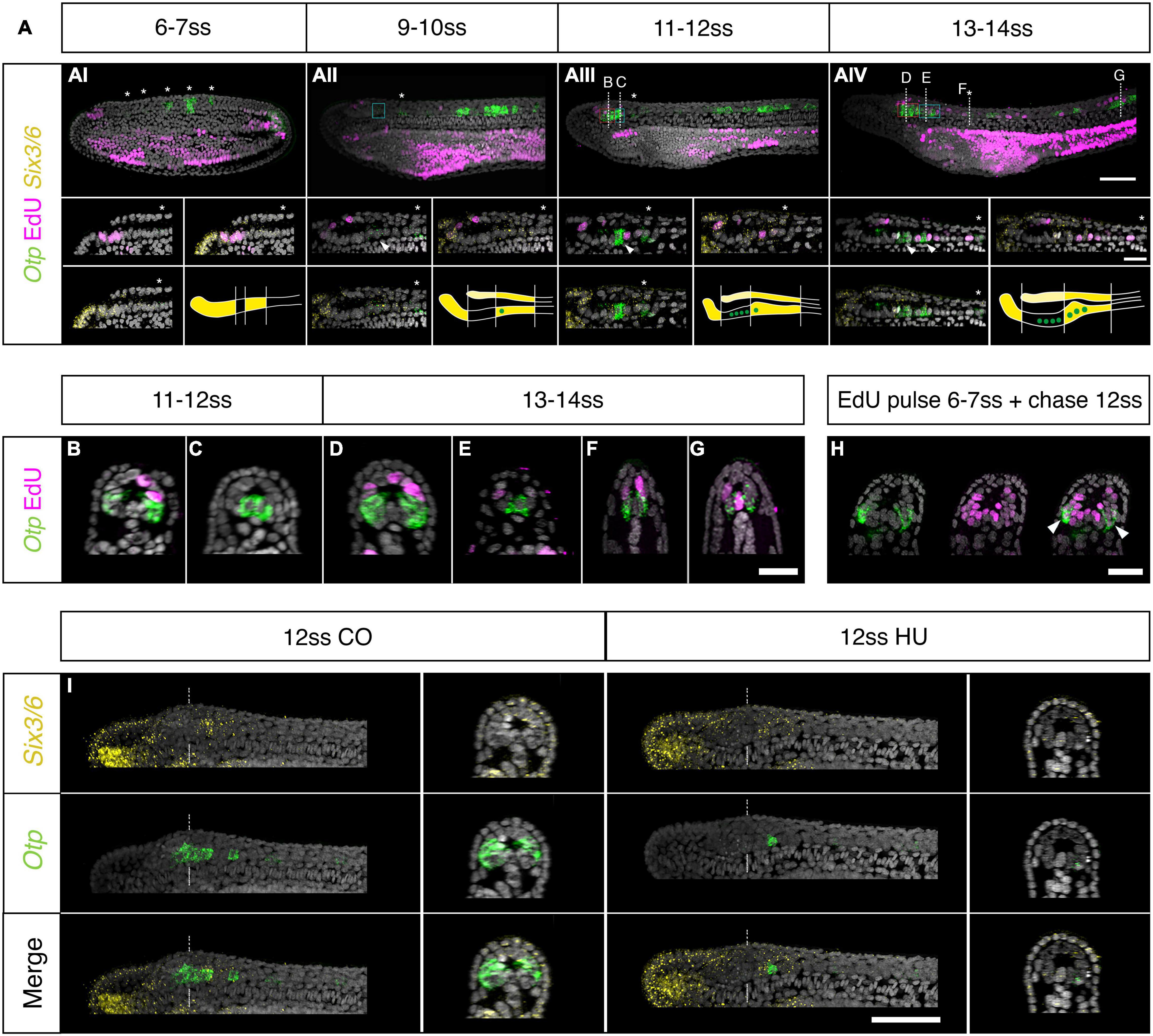

Figure 5. Otp expression and brain proliferation during neurulation. (A) Co-detection of Otp and Six3/6 expression through HCR in situ hybridisation and EdU incorporation. (Ai) At 7 ss Otp is expressed in five clusters of cells in the trunk region (asterisks). Expression is strong in the posterior three clusters but very low in the anterior two clusters (asterisk in insets). (Aii) At 10 ss, a pair of Otp positive neurons appear in the posterior Six3/6 domain of cerebral vesicle (arrowhead in insets), but proliferation is still restricted to the anterior cerebral vesicle. (Aiii) At 12 ss two ventro-lateral clusters of Otp-positive cells are visible in the anterior cerebral vesicle. At this stage, cell division starts in the posterior cerebral vesicle; the posterior Otp-positive pair is not proliferating but cells adjacent to them are labelled by EdU (insets). (Aiv) At 14 ss, the number of posterior Otp-positive neurons increases (arrowhead). Asterisks in all insets show the first Otp cluster in the trunk. Patterns of Six3/6 and Otp co-expression are schematically representated at the bottom of each panel for every developmental stage. Scale bar is 50 μm; 20 μm for insets. (B–G) Cross section of 12 and 14 ss embryos showing the anterior ventro-lateral (B,D), posterior medial (C,E), and trunk (F,G) Otp cells. Scalebar: 20 μm (H) 12 ss embryos EdU-pulsed at 7 ss show co-localization of EdU and Otp (arrowheads) at the level of D in panel (Aiv). (I) Inhibition of cell division with 2 μM hydroxyurea leads to a loss of the ventro-lateral Otp clusters in the Six3/6-negative domain, while the posterior medial Otp cells are not affected. Scale bar is 50 μm. EdU in magenta, Six3/6 in yellow, Otp in green.
Overall, our results suggest that some cell types in the amphioxus brain are dependent on particular progenitors proliferating at specific times. With this hypothesis in mind, we next pulsed embryos with EdU between the 6 and 7 ss stage and raised these embryos up to the 12 ss stage, in order to re-examine the expression of Six3/6, SerT, and VGlut at the same stages above. We found that while the majority of Six3/6 cells are Edu-negative, a few cells double Six3/6-Edu positive located at the most anterior end of the cerebral vesicle (Figure 4D). As we suspected, the few SerT-positive detectable at this stage are all Edu-positive, indicating that they derive from progenitors proliferating at 6 ss (Figure 4E). Conversely, none of the glutamatergic neurons marked by VGlut were EdU-positive, confirming that these cells were born earlier in development, before the 6 ss stage (Figure 4F).
To investigate the possible role of cell-division in brain regionalisation, we additionally investigated the expression of Otp, which in vertebrates is expressed in the hypothalamus, diencephalon and hindbrain, where it contributes to specify a variety of neuronal cell types (Del Giacco et al., 2008; Fernandes et al., 2013). At the 6 ss stage, Otp is expressed in the trunk region of the nervous system, as previously reported (Albuixech-Crespo et al., 2017; Figure 5Ai). However, at later stages, we find that Otp is progressively upregulated in the anterior CNS. First, at 10 ss, in a pair of ventro-medially located cells in the posterior Six3/6-positive region, at a post-infundibular level (Figure 5Aii. See Figures 5D,E for later stages of this population). Second, at 12 ss, in two prominent ventro-lateral clusters located in the brain, at pre-infundibular level, in the intercalated Six3/6-negative region (Figures 5Aiii,B. See Figure 5D for a later stage of this population). Edu co-detection in pulsed embryos before fixation showed no double Otp-Edu positive cells (Figure 5A), indicating that Otp cells are not proliferating at these stages.
As we found here, progenitors proliferating at the 6–7 ss mostly contribute to ventral parts of the cerebral vesicle (See Figure 2). Given this, we set out to investigate whether any of these progenitors could have given rise to the brain Otp clusters first observed in the pre-infundibular regions at 12 ss. We next probed 12 ss embryos that had been treated with HU from the 6–7 ss stage, and found that the ventro-lateral clusters of Otp- neurons in the intercalated Six3/6-negative pre-infundibular region were lost in these embryos (Figure 5I). The post-infundibular ventro-medial Otp clusters, were not affected by the treatment (Figure 5I). However, we noticed, that treated embryos raised up to the 14 ss had less cells in their post-infundibular ventro-medial cluster respect from controls (Supplementary Figure 2E), suggesting that the intermingling Edu-positive cells detected at 12 and 14 ss (See insets in Figures 5Aiii,iv) might be contributing to amplify the post-infundibular Otp cluster, at these stages of development. These results also suggested that the ventro-lateral cluster of Otp cells in the brain might have been originated by a localised burst of proliferation at the 6–7 ss. To test this, we again pulsed embryos with Edu at the 6–7 ss and raised these embryos up to the 12 ss. Co-localisation of Edu and Otp in these embryos demonstrated that cells in the Otp ventro-lateral cluster in the brain were born at the 6–7 ss and differentiated later, at the 12 ss (Figure 5H).
The expression of Otp here reported, highlights that the amphioxus brain continues to regionalise during neurulation via local addition of new cells. To investigate how these new areas of expression fit into the current proposed scheme of brain regionalisation (Albuixech-Crespo et al., 2017), we co-profiled the expression of Six3/6, Otp and FoxD at 7 and 14 ss (Supplementary Figure 3). Taking the 7 ss stage as a reference, and Six3/6 and FoxD to bridge developmental differences in gene expression, we found that at later stages FoxD is downregulated from the rostral Six3/6 domain and instead remains strongly expressed within the intercalated Six3/6 negative region, at pre-infundibular level, in a position fully overlapping with the anterior Otp ventrolateral clusters in the brain (Supplementary Figures 3A–D). These results suggest that the pre-infundibular Otp domain intercalates at the level of the intermediate-caudal HyPth, forming a separated hypothalamic region (indicated as Hyp in Supplementary Figure 3F), posteriorly bordered by the Six3/6-Otp positive post-infundibular domain, which would correspond to the region proposed as DiMes by Albuixech-Crespo and collaborators (Supplementary Figures 3G–H).
Considered together, these data indicate that cell division timely regulates the specification of particular brain cell types at distinct time points, thereby incrementing the neural cell type diversity throughout development and therefore contributing to regionalise the brain.
Posterior Midline Progenitors Have a Common Origin in the Dorsal Blastopore Lip
Having identified a role for cell division in generating cell type diversity in the brain, we next focussed on its contribution in the posterior neural tube, where we found cell division extends the floor plate. Fate mapping studies in vertebrates have revealed axial progenitor cells residing in the chordoneural hinge of the tailbud to derive from the dorsal blastopore lip of the late gastrula, or its equivalent in amniotes, the node-streak border (Selleck and Stern, 1991; Gont et al., 1993; Catala et al., 1996; Cambrey and Wilson, 2007). During axial elongation, a subset of these axial progenitors clonally expands, and contributes new cells to the posterior notochord and floor plate. We have previously shown that proliferation starting at 6 ss is required for full elongation of the amphioxus body axis (Andrews et al., 2021). However, while posterior axial progenitors have been hypothesised in amphioxus, their diversity and dynamics have not yet been defined experimentally (Hatschek, 1893; Lwoff, 1894; Schubert et al., 2001). We therefore sought to achieve this by tracing chordoneural hinge progenitors to their site of origin in the gastrula.
Since direct cell marking and tracking in vivo is technically challenging in amphioxus, we further took advantage of the highly localised proliferation dynamics we identified here to spatially map the origin of chordoneural hinge progenitors in the gastrula, prior to axial elongation. Closer observation of EdU incorporation in the blastopore of the late gastrula revealed a temporal delay in cell cycle progression across the dorsoventral axis: In EdU pulses between 10 and 12 hpf (1–2 ss), EdU was primarily incorporated by cells in the dorsal and upper-lateral lips of the blastopore (Figures 6A–C,G). In contrast, EdU pulses between 12 and 14 hpf (3–4 ss) marked cells in the ventral and lower-lateral lips of the blastopore (Figures 6D–F,J). Based on this observation, we reasoned that we could determine the derivatives of each blastopore subdomain by performing successive pulse-chase experiments, following the sequential enrichment of EdU across the dorsoventral axis of the blastopore.

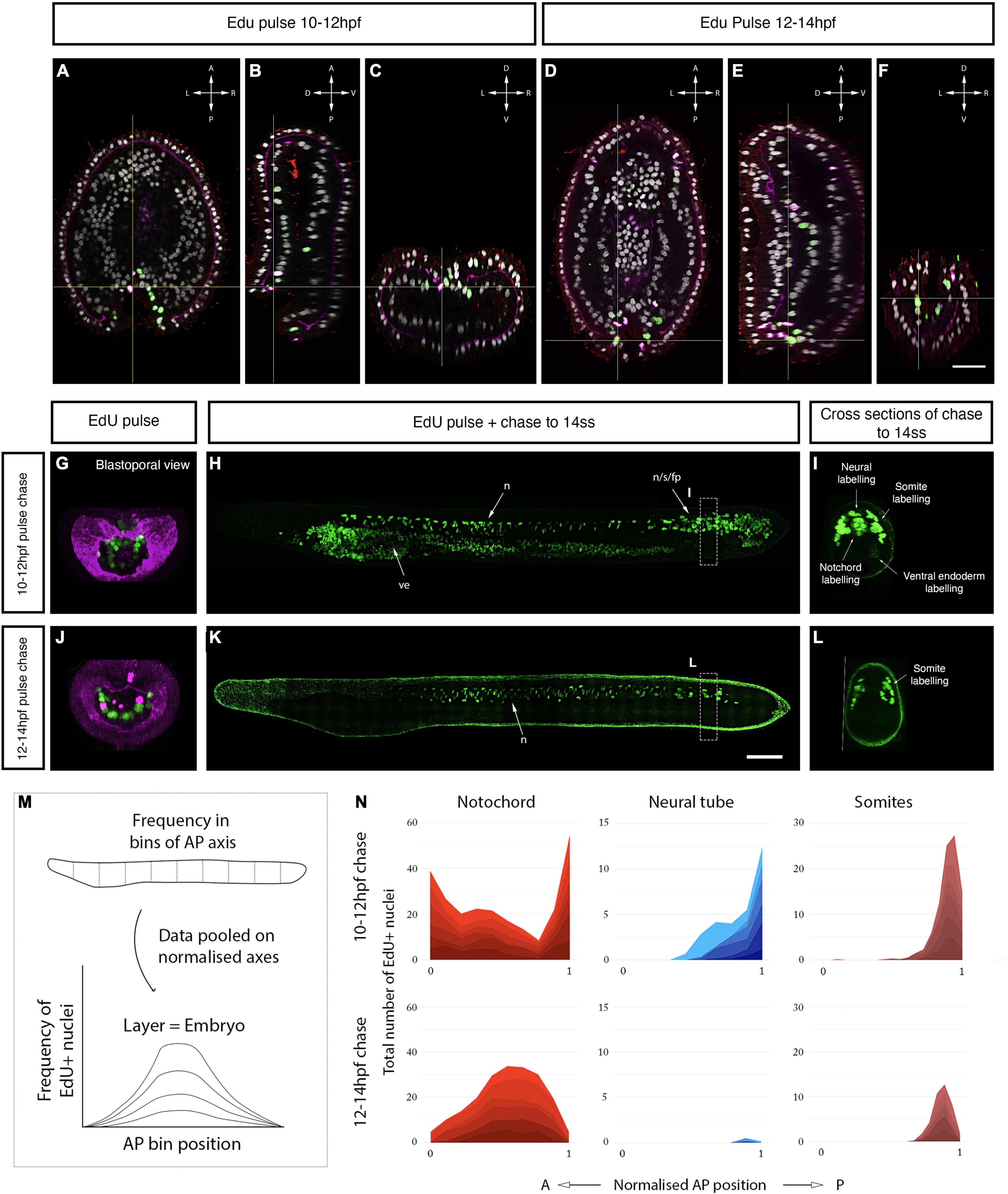

Figure 6. Axial progenitor fates are spatially regionalised across the late blastopore lip. (A–C) Distribution of EdU- and PhH3-positive nuclei after an EdU pulse between 10 and 12 hpf, shown in orthogonal coronal (A), sagittal (B), and transverse sections (C) intersecting at the level of the blastopore (as indicated by the yellow lines). Scale bars are 30 μm. (D–F) Distribution of EdU-positive nuclei after an EdU pulse between 12 and 14 hpf, shown in a coronal (D), sagittal (E), and transverse sections (F) intersecting at the level of the blastopore (as indicated by the yellow lines). Compass shows orientation of each plane in panels (A–F). (G) Maximum projection through the blastopore in an embryo pulsed with EdU between 10 and 12 hpf, as shown in panel (C), marking proliferative cells in the dorsal and upper-lateral lips. (H) Maximum projection through the sagittal midline of an embryo EdU pulsed at 10–12 hpf, as shown in panel (G), showing contribution of EdU-positive cells in the dorsal blastopore lip to neural tube, notochord and somites. (I) Transverse section through posterior body of embryo shown in panel (H), showing tissue-specificity of EdU-positive cells. (J) Maximum projection through the blastopore in an embryo pulsed with EdU 12–14 hpf, as shown in panel (F), showing proliferating cells in the ventral and lower-lateral lips. (K) Maximum projection through the sagittal midline of an embryo EdU pulsed at 12–14 hpf, as shown in panel (J), revealing the contribution of proliferating cells to the posterior somites. (L) Transverse section through posterior body of embryo shown in panel (K), showing tissue-specificity of EdU-positive cells. Scalebars are 50 μm. (M) Schematic of approach used to quantify EdU labelling in pulse-chased specimens as a frequency curve across normalised AP length, following quantification in 10 evenly-sized bins. (N) Stacked area graphs for each pulse-chase condition and tissue. n = 6 embryos per condition. EdU in green, PhH3 (nuclear) and laminin in magenta, acetylated tubulin in red. fp, floor plate; s, somites; n, notochord; ve, ventral endoderm.
In the first of these pulse-chase experiments (EdU pulse 10–12 hpf), we found that cells initially located in the dorsal and upper-lateral blastopore lips at 12 hpf made broad contributions to the posterior body when chased to 14 ss (Figure 6H). At 14 ss, EdU-positive cells were enriched in the chordoneural hinge of the tailbud, and extended anteriorly from it to populate the posterior floor plate, notochord and posterior 4–5 somites (Figures 6H,I). This is shown qualitatively in midline sections of representative 14 ss embryos (Figure 6H), and quantitatively by calculating the frequency of EdU-positive nuclei in evenly-sized bins of the anteroposterior axis in each axial tissue (Figures 6M,N). Labelling of the chordoneural hinge, floor plate and notochord in this experiment recapitulated the distribution we noted previously in a pulse-chase experiment with EdU incorporation at 7–8 ss when the chordoneural hinge is proliferating (Figure 2C). This finding therefore suggested that progenitor cells of the chordoneural hinge have an origin in the blastopore lip of the late gastrula.
In the second pulse-chase experiment (EdU pulse 12–14 hpf), we found that cells initially located in the ventral and lower-lateral blastopore lips of the late gastrula (Figure 6J) gave rise to posterior somites at 14 ss, with almost no EdU-positive cells detected in the posterior notochord or floor plate (Figures 6K,L). In this second pulse-chase experiment, loss of EdU labelling in the dorsal blastopore lip during the EdU pulse (compare Figure 6G and Figure 6J) correlated with a loss of labelling in the posterior notochord and floor plate at 14 ss and reduced density of labelling in the posterior somites (compare Figures 6I,L and Figure 6N). By taking advantage of temporal changes in blastopore proliferation dynamics, this experiment therefore indicated a spatial regionalisation of progenitor subtypes in the late blastopore lip, which includes: (a) a dorsal lip containing progenitors that relocate to the chordoneural hinge of the tailbud and enter a proliferative phase after 6 ss to elongate the posterior floor plate and notochord; and (b) lateral and ventral lips containing progenitors that give rise to cells populating the posterior 4–5 somites, which do not contribute to the chordoneural hinge population.
Discussion
Proliferation is a key contributor to morphological complexity in nervous system development, with demonstrated functions in the regulation of tissue size, geometry, and cellular complexity. As such, the number of cell divisions in neural progenitors and the balance between proliferation and differentiation exhibits striking variation between species (Kriegstein et al., 2006; Fish et al., 2008; Montgomery, 2017; Logan et al., 2018; Briscoe and Ragsdale, 2019). While vertebrate species are characterised by large brains, including anatomically distinct compartments and complex stratification of neural cell types, the two groups of invertebrate chordates–cephalochordates and tunicates–possess simpler central nervous systems, composed of fewer cells and exhibiting limited morphological regionalisation (Sasakura et al., 2012; Holland and Holland, 2021). A key question is what role cell division plays in the morphogenesis of these simple nervous systems, and whether these dynamics may predict the emergence of more complex properties in vertebrates.
Landscapes of Cell Division in Amphioxus Show Developmental Modularity During the Formation of the Central Nervous System
In this study, we provide new insight into the distribution and function of cell division in the embryonic nervous system of amphioxus. We expand on previous studies (Holland and Holland, 2006; Andrews et al., 2021) by constructing a detailed spatiotemporal map of cell cycle progression in the neural tube, which highlights a sudden polarisation of cell division to the anterior and posterior tips of the nascent nervous system at the mid-neurula stage, concomitant with elongation of the anteroposterior axis. This includes discrete mitotic domains in the presumptive cerebral vesicle, and the chordoneural hinge of the tailbud, extending anteriorly into the posterior floor plate. By marking and following these cells in pulse-chase experiments, we demonstrate that anterior proliferative cells locally increase cell number within the cerebral vesicle in a ventral-to-dorsal temporal sequence, and that this wave of cell division is a pre-requisite for the emergence of brain cell type diversity (Figure 7A). In contrast, we show that proliferative cells in the chordoneural hinge and posterior neural plate generate floor plate progenitors that extend across 1/3rd of the anteroposterior axis. We further show that these posterior progenitors can be traced back to the dorsal blastopore lip of the gastrula, where they lie adjacent to posterior somite progenitors (Figure 7B). Finally, we find that the polarised cell division dynamic collapses prior to the onset of larval life, when proliferation resumes throughout the nervous system.

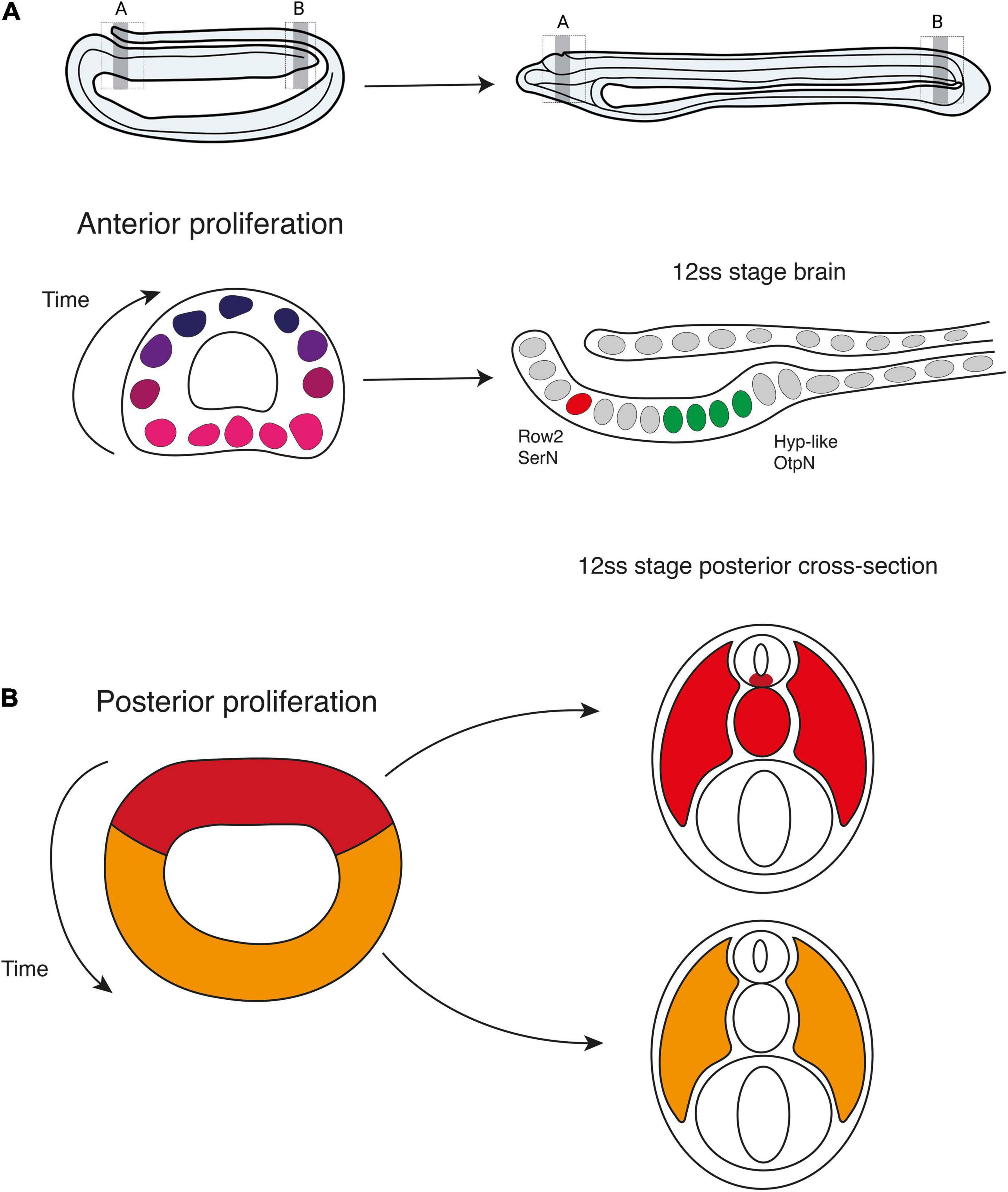

Figure 7. Contributions of cell proliferation to nervous system and axial development. During neurulation, cell division is restricted to the anterior and posterior poles of the neural plate. (A) Anteriorly, the brain develops following a ventral to dorsal proliferative gradient. Ventral proliferation is required to specify Row2 serotonergic neurons of the frontal eye and hypothalamic-like Otp-positive neurons. (B) Posteriorly, early proliferating cells in the dorsal blastoporal region contribute to the floor plate, notochord, and somites, while progenitors in the ventral and lateral regions of the blastopore divide later and are incorporated into the posterior somites.
The pattern of cell division we describe in amphioxus differs from what is seen in the vertebrate CNS in that the neuroectoderm of vertebrates proliferates extensively throughout its development. Early neural progenitors (neuroepithelial and radial glial cells) are known to undergo symmetrical divisions across the anteroposterior length of the neural plate and early neural tube (Qian et al., 2000; Götz and Huttner, 2005; Yingling et al., 2008). These divisions are used to expand the repertoire of stem cells that will later give rise to neurons and glia (Qian et al., 2000; Noctor et al., 2004). In fact, the rate of proliferation of these cells directly affects the size and regionalisation of adult mammalian brains. For example, disruption of early signalling (e.g., FGF and Wnt/Bcatenin) controlling neural tube proliferation in mammals deeply affects the size, thickness and convolution of the brain (Vaccarino et al., 1999; Chenn and Walsh, 2002; Megason and McMahon, 2002). In contrast, in other invertebrate chordates like ascidians, cells have been observed proliferating in the larval sensory vesicle and, to a lesser extent, in the visceral ganglion, thereby resembling more closely the anterior proliferation we observed in amphioxus. However, proliferation is absent posteriorly in the ascidian neural tube, indicating that neural morphology in these animals is primarily driven by cell re-arrangement and cell shape change (Tarallo and Sordino, 2004; Nakayama et al., 2005). This diversity of proliferative strategies in the different chordate subphyla supports the idea that tweaks in the timing and magnitude of cell division have played important roles in the emergence of neural complexity during chordate evolution.
Interestingly, we observed that proliferation in the trunk neural tube at 14 ss occurs specifically in cells of the floor plate and medio-lateral cells. Both cell types have recently been described as having a glial-like molecular signature in the early larva (Bozzo et al., 2021). Bozzo and collaborators speculate that proliferation of medio-lateral cells expressing the glial marker EAAT2 results in the formation of ependymal and ependymoglial cells in late larva stages (Lacalli and Kelly, 2002). Our results here provide experimental support for this hypothesis: while ventro-lateral cells already express neural markers, such as neurotransmitter synthesis and transport proteins (Candiani et al., 2012) and member of the adenosine deaminase acting on RNA (ADAR) family with function in RNA-editing (Zawisza-álvarez et al., 2020), medio-lateral cells are still dividing at the beginning of the larval stage and could therefore represent progenitors that maintain a glial signature and have a supporting role in the larval neural tube. Supporting this idea, we find that the transcription factor Otp is expressed in ventro-lateral cells of the trunk neural tube that are not proliferating at the early larva stage (Figures 5F,G).
Localised Proliferation in the Amphioxus Brain Is Key for the Proper Formation of the Frontal Eye and Hypothalamus
Anterior proliferative cells remain confined to the amphioxus cerebral vesicle, but cell division occurs sequentially in a ventral-to-dorsal direction, thereby contributing to different areas of the brain at distinct time points in development. This pattern suggested that the proliferation dynamics might have a role in regionalising the amphioxus brain, by contributing with new cells at specific times and sites to be fated to particular types. Our targetted cell-division arrest experiments demonstrated this to be the case.
We found that localised proliferation in the amphioxus anterior brain is necessary to generate the anterior serotonergic cells of the frontal eye complex, as we previously proposed (Benito-Gutiérrez et al., 2018). These neurons are born from progenitors proliferating between the 6 and 7 ss stage. Upon pulsing with Edu at this precise stage, we manage to retain the Edu label in the daughter cells, which we found differentiating at the 12 ss into a serotonergic fate. Preventing cell-division at the 6–7 ss stage eliminates the entire population and so these embryos have a frontal eye complex lacking in serotonergic neurons. Having found that not all the cell types of the frontal eye complex are dependent on this localised burst of proliferation at 6–7 ss (e.g., glutamatergic cell), our results indicate that proliferation in the brain does not act homogeneously to extend the brain anteriorly, as previously proposed (Holland and Holland, 2006). Instead, proliferation is intercalated and essential to diversify the cell type repertoire of the frontal eye complex.
Such intercalated growth is also illustrated by the development of the pre-infundibular brain region expressing Otp. Here we show that the entire pre-infundibular Otp domain depends on the localised proliferation of precursors located ventrally at the prime meridian of the cerebral vesicle (half-way between the frontal eye and the infundibular organ) at the 6–7 ss (Figure 5H). We identify these precursors through Edu pulse and chase experiments, and we defined them as fated to become ventrolateral Otp cells by arresting cell division, as in treated embryos this brain region is completely missing. These ventro-lateral Otp cells could correspond to previously described neurons with very small apices that appear unusually crowded in front of the infundibular organ (Lacalli, 2000). Otp cells elsewhere in the neural tube and at the post-infundibular region are born earlier in development, before the 6–7 ss. However, we find that arresting cell division until the 14 ss reduces the number of cells in the ventro-medial Otp cluster located in the post-infundibular region, indicating that some of the intermingled cells that we see proliferating between the 12 and 14 ss might be contributing with new cells to this cluster.
Interestingly, Otp is key to the development of the hypothalamic neuroendocrine system in all vertebrates (Wang and Lufkin, 2000; Del Giacco et al., 2008), and in ascidians, Otp cells have been shown to localise in a region identified as hypothalamic, and surrounded by Six3/6-positive cells (Moret et al., 2005). In amphioxus, we further show that the pre-infundibular population of Otp is expressed in the same region as the hypothalamic marker FoxD (Bedont et al., 2015). Altogether this suggests that the pre-infundibular Six3/6-/FoxD + /Otp + region could correspond to part of the amphioxus hypothalamus, while the post-infundibular Six3/6 + /FoxD-/Otp + region could be contributing to diencephalic structures (for further detail in the context of previously proposed brain regionalisation schemes See Supplementary Note in Supplementary Material). This might indicate that amphioxus posseses a seemingly continuous hypothalamic field uninterrupted with the eye field, as described in fish, axolotl, frogs, and chicken (Staudt and Houart, 2007).
Overall, our results reveal a putative pre-infundibular hypothalamic region within the amphioxus brain that develops through intercalated proliferation and growth from the 6–7 ss, and a post-infundibular area which, albeit gastrulation-derived, augments cell number from the 12 ss stage.
The Amphioxus Tailbud Is a Source of Posterior Floor Plate and Notochord Cells
In the posterior body, we found using EdU pulse-chase analysis that proliferative cells in the chordoneural hinge of the tailbud specifically contribute to the elongation of the floor plate and notochord. This is mediated by a burst of cell division occurring in the mid-neurula after 6 ss, when proliferation restricts to the most posterior and anterior ends of the neural tube. Prior to this developmental stage, cells proliferate in the posterior neural plate throughout axial development, and pass sequentially through S-phase and mitosis. This means that the posterior neural plate is an active proliferative domain from gastrulation to the end of somitogenesis. Given this, we were able to track the progeny of dividing axial progenitors in the blastopore via a series of EdU pulse-chase experiments. With this approach, we demonstrate that midline axial progenitors originate from the dorsal blastopore lip of the late gastrula. There, they lie adjacent to progenitors of the posterior somites, which are located in the lateral and ventral blastopore lips.
As such, the location and fates of these axial progenitor cells in amphioxus bears strong similarity to the dynamics of midline progenitor cells identified in vertebrates. In amniotes, homotopic grafting approaches and direct cell marking have located midline progenitors of the floor plate and notochord that arise in the node-streak border of the gastrula, and undergo clonal expansion within the chordoneural hinge (Catala et al., 1996; Cambray and Wilson, 2002; Mugele et al., 2018). Similarly, fate mapping of the dorsal blastopore lip in Xenopus has located derivatives in the posterior notochord in floor plate (Gont et al., 1993). In all cases, midline progenitor cells further extend the tissue primordia formed during gastrulation and do so to a degree that is species-specific, aligning with variations in nutritional supply (O’Farrell, 2015; Steventon et al., 2016). In externally developing anamniotes, axial progenitors undergo little clonal expansion and make minor contributions to axial length, whereas in amniotes they undergo extensive clonal expansion and growth, thereby driving a significant posterior enlargement of the embryo (Steventon et al., 2016; Attardi et al., 2019). Our results in amphioxus therefore support a model in which midline axial progenitors may be an ancestral trait in chordate embryogenesis, in which evolutionary transitions in the magnitude of cell division, and therefore the sizes of axial progenitor clones, have facilitated divergent contributions to axial length.
Conclusion
Our work provides a spatiotemporal map of cell cycle progression during the early development of amphioxus (up to the early larval stage). Proliferation is widespread in the archenteron throughout the whole period observed. However, by focussing our analysis on cell division within the CNS, we find that the nervous system is spatially segregated in three different developmental modules characterised by distinct cell division dynamics. Anteriorly, within the brain, proliferation is required locally to increase the neural type repertoire at specific time points. We find that cell proliferation is necessary to fully equip the frontal eye with the correct neurotransmitting cells, before the eye spot fully develops into a functional photoreceptor able to integrate sensory information (Vopalensky et al., 2012). In the brain, proliferation is also needed to grow the ventral portion of the brain, which we identify here as hypothalamic based on Otp expression. It is tempting to speculate that this phase of hypothalamic development is preparatory for entering the subsequent feeding phase, when a neuroendocrine system would need to be in place. In parallel, neuronal cells gradually differentiate in the trunk nervous system, independently of cell division, and posteriorly, tailbud progenitors contribute to elongating the posterior neural axis, which at the period analysed remains generally undifferentiated. Unexpectedly, the amphioxus body plan is robust to cell cycle arrest. Embryos develop with fewer cells but they still harbour a dorsal neural tube with an underlying notochord and the correct number of somites, demonstrating that cell division is primarily required to confer a proper geometry and to increase neuronal type complexity.
Data Availability Statement
The original contributions presented in the study are included in the article/Supplementary Material, further inquiries can be directed to the corresponding author.
Author Contributions
GG and TA: acquisition and analysis of data and writing—original draft. ÈB-G: project administration. All authors study design, manuscript review and editing, and read and agreed to the published version of the manuscript.
Funding
This research was funded by a CRUK (C9545/A29580) grant (ÈB-G); by a Wellcome Trust Ph.D. Studentship in Developmental Mechanisms (203806/Z/16/A) (TA), and by the Whitten Studentships (GG).
Conflict of Interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s Note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Acknowledgments
We would like to thank Matt Wayland from the CAIC for assistance during imaging; and to Hector Escrivà and Jordi Garcia-Fernàndez for helping with sourcing amphioxus during the pandemic difficult times.
Supplementary Material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fnins.2022.812223/full#supplementary-material
