Central tetrahydrobiopterin concentration in neurodevelopmental disorders

Tetrahydrobiopterin (BH₄) is a naturally occurring cofactor essential for critical metabolic pathways. Studies suggest that BH₄ supplementation may ameliorate autism symptoms; the biological mechanism for such an effect is unknown. To help understand the relation between central BH₄ concentration and systemic metabolism and to develop a biomarker of central BH₄ concentration, the relationship between cerebrospinal fluid BH₄ concentration and serum amino acids was studied. BH₄ concentration was found to be distributed in two groups, a lower and higher BH₄ concentration group. Two serum amino acids, citrulline and methionine, differentiated these groups, and the ratio of serum citrulline-to-methionine was found to correlate with the cerebrospinal fluid BH₄ concentration (r = −0.67, p < 0.05). Both citrulline and methionine are substrates in inflammation and oxidative stress pathways – two pathways that utilize BH₄ and are abnormally activated in autism. These data suggests that central BH₄ concentration may be related to systemic inflammation and oxidative stress pathways.

Introduction

Tetrahydrobiopterin, sapropterin, or BH₄ is a naturally occurring essential cofactor for several critical metabolic pathways, including the production of monoamine neurotransmitters, the breakdown of phenylalanine, and the production of nitric oxide. Using BH₄ as a cofactor, two aromatic amino acid hydroxylases, tyrosine-3-hydroxylase and tryptophan-5-hydroxylase, catalyze the conversion of tyrosine and tryptophan to L-dopa and 5-hydroxytryptophan, respectively. These products are then further converted into dopamine and serotonin, respectively, and then further metabolized into norepinephrine and melatonin, respectively. BH₄ is used as a cofactor with a third aromatic amino acid hydroxylase, phenylalanine-4-hydroxylase, to convert phenylalanine to tyrosine. Additionally, BH₄ is essential in the production of nitric oxide, an important second messenger molecule used primarily for communication in vascular and neural tissues. In this reaction, nitric oxide synthase converts L-arginine and oxygen to L-citrulline and nitric oxide.

BH₄ is synthesized from guanosine-5′-triphosphate, a purine nucleotide, by three enzymatic reactions (guanosine-5′-triphosphate cyclohydrolase, 6-pyruvoyltetrahydropterin synthase, and sepiapterin reductase; Thony et al., 2000 ). A deficiency in BH₄ production can result in two neurological disorders. Hyperphenylalaninemia, specifically phenylketonuria type IV, presents at birth with elevated phenylalanine in the blood and represents approximately 1–2% of phenylketonuria cases. This condition results from a reduction in phenylalanine-4-hydroxylase activity due to a deficiency in the necessary cofactor for this enzyme, BH₄, and should be differentiated from classic phenylketonuria where phenylalanine-4-hydroxylase itself is defective. If phenylalanine levels are not controlled early in life in phenylketonuria, severe mental retardation will develop. BH₄ deficiency can also result in dopamine-responsive dystonia, a neurological disorder that demonstrates a wide range of symptoms and age of presentations but invariably patients demonstrate dystonia with diurnal variation (Hyland et al., 1993 ).

Less well understood is the role of BH₄ in neurodevelopmental disorders. Unconjugated 6R-5,6,6,8-tetrahyrobiopterin cerebrospinal fluid concentration in autistic children has been reported to be 42% lower than in neurotypical children. Further analysis of the autistic group found that only autistic children younger than 7 years old, but not older autistic children, demonstrated significantly lower 6R-5,6,6,8-tetrahyrobiopterin levels as compared to the control group. This younger group also demonstrated a reduction in total pterins and biopterin (Tani et al., 1994 ).

Several investigators have demonstrated a therapeutic effect of BH₄ supplementation in children with autism. Over a 7-year period from 1984 to 1990, Japanese researchers demonstrated moderate or marked improvement in 41 to 64% in over 300 mildly to severely affected autistic children with 1–3 mg/kg/day of BH₄ in five open-label and one double-blind placebo-controlled studies (Naruse et al., 1984 , 1990a ,b ; Nagahata et al., 1990 ; Nakane et al., 1990 ; Takesada et al., 1992 ). In the double-blind placebo control study, Naruse et al. (1990a) demonstrated that the improvement in autism symptoms was limited to autistic children younger than 5 years of age. While these aforementioned studies treated children with autism without knowing cerebrospinal fluid BH₄ concentrations, both Fernell et al. (1997) and Danfors et al. (2005) measured cerebrospinal fluid BH₄ concentration and treated children with cerebrospinal fluid BH₄ concentrations less than 12 and 30 nM/L, respectively. Treating children with 3 mg/kg/day over a 12-week period in an open-labeled manner, Fernell et al. (1997) found improvements in social responsiveness, communication, and cognitive abilities and demonstrated a decrease in the baseline elevation in D₂ receptor binding found by positron emission tomography. In a 26-week double-blind, randomized, placebo-controlled trial Danfors et al. (2005) demonstrated an improvement in social interactions with a dose of 3 mg/kg of BH₄ given twice a day. This improvement was found to be greater for autistic children with higher intelligence. Lastly, most recently, Frye et al. (2010) reported that five of eight (63%) patients with autism and low pterin levels demonstrated improvement in social interactions and either verbal or non-verbal communication with treatment of 20 mg/kg/day of BH₄ in an open-labeled manner.

Although studies have demonstrated that children with autism, as a group, have a reduced cerebrospinal fluid BH₄ concentration and that some children with autism respond positively to BH₄ supplementation, the biological mechanism for these findings has not been explained. It is clear from clinical studies that not all children with autism benefit from BH₄ supplementation and that some children have side effects of BH₄ supplementation, such as increased irritability and sleep disruption (Frye et al., 2010 ). Thus, understanding the biological mechanisms involved in BH₄ supplementation is essential for determining which children may benefit from treatment with BH₄ supplementation, understanding which underlying biological pathways are being modified with BH₄ supplementation, and understanding which patients may be at risk for side effects of BH₄ supplementation. To this end, this study examines whether biochemical markers of common metabolic pathways sampled from the blood are associated with cerebrospinal fluid BH₄ concentration. Developing a biomarker of cerebrospinal fluid BH₄ concentration would allow individuals with low central BH₄ levels to be selected for supplementation without undergoing a lumbar puncture and would allow the effect of BH₄ supplementation to be monitored during the treatment period in order to verify an adequate metabolic response to BH₄ supplementation and optimize dosing of BH₄ supplementation.

In order to consider what biochemical markers might respond to BH₄ supplementation, the metabolic pathways that may benefit from BH₄ supplementation in autism are considered. Here the focus is on children with autism since this is the population of individuals that has been found to have a positive response to BH₄ (Frye et al., 2010 ). Examination of the metabolism characteristics unique to autism demonstrates that pathways that consume and recycle BH₄ may be particularly dysfunctional in autism. For example, several lines of evidence suggest that children with autism manifest excessive inflammation and over activation of the immune system (Pardo et al., 2005 ; Dietert and Dietert, 2008 ; Castellani et al., 2009 ). Nitric oxide, a key mediator of inflammation and immune response, is produced by a BH₄ dependent reaction. It is possible that a prolonged over activation of the immune system can result in excessive nitric oxide production and can, over time, deplete BH₄. Children with autism might also have an underlying reduction in BH₄ recycling for several reasons. Children with autism have been shown to have an impaired methylation capacity and markers of increased oxidative stress (James et al., 2004 ; Kern and Jones, 2006 ; Pardo and Eberhart, 2007 ; Deth et al., 2008 ). Folate is a key metabolite used to reduce oxidative stress. It is possible that a depletion of folate can result in reduced BH₄ recycling through an over activation of the oxidative stress pathway. In addition, BH₄ itself can act as an antioxidant, thus being depleted in the setting of high oxidative stress. Empirical evidence exists to support the notion that excess inflammation and oxidative stress can result in an acquired BH₄ deficiency. Willoughby et al. (2009) demonstrated that BH₄ levels were reduced below normal in three patients with subacute and chronic rabies infection. These investigators suggested that this acquired BH₄ deficit was secondary to excess oxidation of BH₄ and demonstrated significant neurological improvement in one of the two patients treated with 20 mg/kg of BH₄.

Here it is suggested that prolonged excessive consumption and poor recycling of BH₄ by non-central nervous system metabolic pathways deplete the available BH₄, thereby preventing adequate BH₄ levels in the central nervous system. To provide support for this notion, the relation between cerebrospinal fluid BH₄ concentrations from a range of children with developmental and neurological disorders, and serum markers of oxidative stress and nitric oxide is examined. In this study serum amino acids are used as serum markers. It is hypothesized that these markers will be associated with cerebrospinal fluid BH₄ concentration. Specifically it is hypothesized that a lower cerebrospinal fluid BH₄ concentration will be associated with a reduction in methionine due to a reduced availability of folate and activation of the oxidative stress pathway (James et al., 2004 ), a reduction in arginine and an increase in citrulline due to an increase in the production of nitric oxide from inflammatory processes, and an increase in phenylalanine, tyrosine and tryptophan due to reduced aromatic amino acid hydroxylase activity.

Materials and Methods

The goal of this study was to examine the association of amino acid biochemical markers with cerebrospinal fluid BH₄ concentration. This required a population with a wide range of cerebrospinal fluid BH₄ concentrations, and the patients reviewed in this study provided a wide range of cerebrospinal fluid BH₄ concentrations. Including controls in the current study would not be appropriate due to ethical considerations. Specifically, the risk-benefit ratio of the lumbar puncture procedure is prohibitively high for healthy typically developing individuals who would not otherwise require such a procedure. A chart review found twenty patients who underwent a diagnostic lumbar puncture with measurement of cerebrospinal fluid BH₄ concentration. All patients had a neurological diagnosis. Children with autism were diagnosed with developmental delays and encephalopathy and were distinguished from individuals with global developmental delay without autistic features.

Patients provided permission for review of their medical records through an Institutional Review Board approved protocol. Patient characteristics, including positive family history of neurologic or psychiatric disorder, findings from electroencephalogram and magnetic resonance imaging were abstracted from the charts. Cerebrospinal fluid was obtained through a lumbar puncture under general sedation to rule out metabolic and/or infectious disorders. The cerebrospinal fluid of all patients demonstrated a normal number of white and red blood cells, protein, glucose, 5-methyltetrahydrofolate and succinyladenosine concentrations. Cerebrospinal fluid was collected with standardized reagent tubes and frozen at −80°C until BH₄ analysis. BH₄ content was measured by reversed-phase high performance liquid chromatography with electrochemical detection (Howells and Hyland, 1987 ). Eleven patients also had plasma amino acids measured within 4 months of the cerebrospinal fluid collection. Since plasma amino acids measured several times for most patients, the average values were calculated and used in further analysis.

Cluster analysis using the Ward technique as implemented by the “CLUSTER” procedure of SAS was used to determine if there were groups with different cerebrospinal fluid BH₄ concentrations, and if there were different groups, how many. Groups were analyzed with respect to differences in age, positive family history, spikes or slowing on electroencephalogram, abnormal magnetic resonance imaging and 5-hydroxyindoleacetic acid, homovanillic acid and 3-O-methyldopa concentrations. Defining these groups also allowed the assignment of prior probabilities for each group. These prior probabilities were important for examining the performance of the discriminant functions defined in the next step.

To determine which plasma amino acids were related to cerebrospinal fluid BH₄ and could be used to predict the groups identified, a stepwise discriminant analysis as implemented by the “STEPDISC” procedure of SAS was used to select the plasma amino acids that, in combination, could differentiate the BH₄ groups found. The specific plasma amino acids entered into the discriminant analysis included tyrosine, tryptophan, phenylalanine, citrulline, arginine, and methionine. In a separate analysis, age was also added to the model since cerebrospinal fluid BH₄ concentrations may be age dependent. Once the stepwise discriminant analysis selected the significant plasma amino acids, the selected variables were entered into the “DISCMIN” procedure in SAS, with and without prior probabilities, to determine the performance of the discriminant function.

Results

High and Low BH₄ Groups and Their Characteristics

Cluster analysis was used to determine if there were distinct groups of patients with a common range of BH₄ values. The cluster analysis identified two groups based on BH₄ values: a cluster with 14 values with a cerebrospinal fluid BH₄ concentration of 31 nM/L and below (mean = 20.14, SE = 0.160) and another cluster with 7 values with a cerebrospinal fluid BH₄ concentration of 35 nM/L and above (mean = 39.43, SE = 1.24; see Table 1 ). From these clusters we formed low and high cerebrospinal fluid BH₄ groups. The low BH₄ group was significantly older (mean = 66.0 months, SE = 15.10) than the high BH₄ group [mean = 24.6, SE = 4.3; t(20) = 2.66, p < 0.05] and age was found to correlate negatively with cerebrospinal fluid BH₄ level [r(19) = −0.44, p < 0.05]. There was a significantly greater percentage of patients in the high BH₄ group (60%) with discharges on electroencephalogram as compared to the low BH₄ group [9%, χ² (1) = 4.75, p < 0.05]. The two groups were not different in the proportion of patients with a positive family history, slowing on electroencephalogram or abnormal magnetic resonance imaging findings. 5-Hydroxyindoleacetic acid, homovanillic acid and 3-O-methyldopa were not significantly different between groups. The majority of the children with autism were in the low BH₄ group (80%) as compared to the high BH₄ group. Defining these groups also enabled us to assign prior probabilities of 0.70 for the low group and 0.30 for the high group.

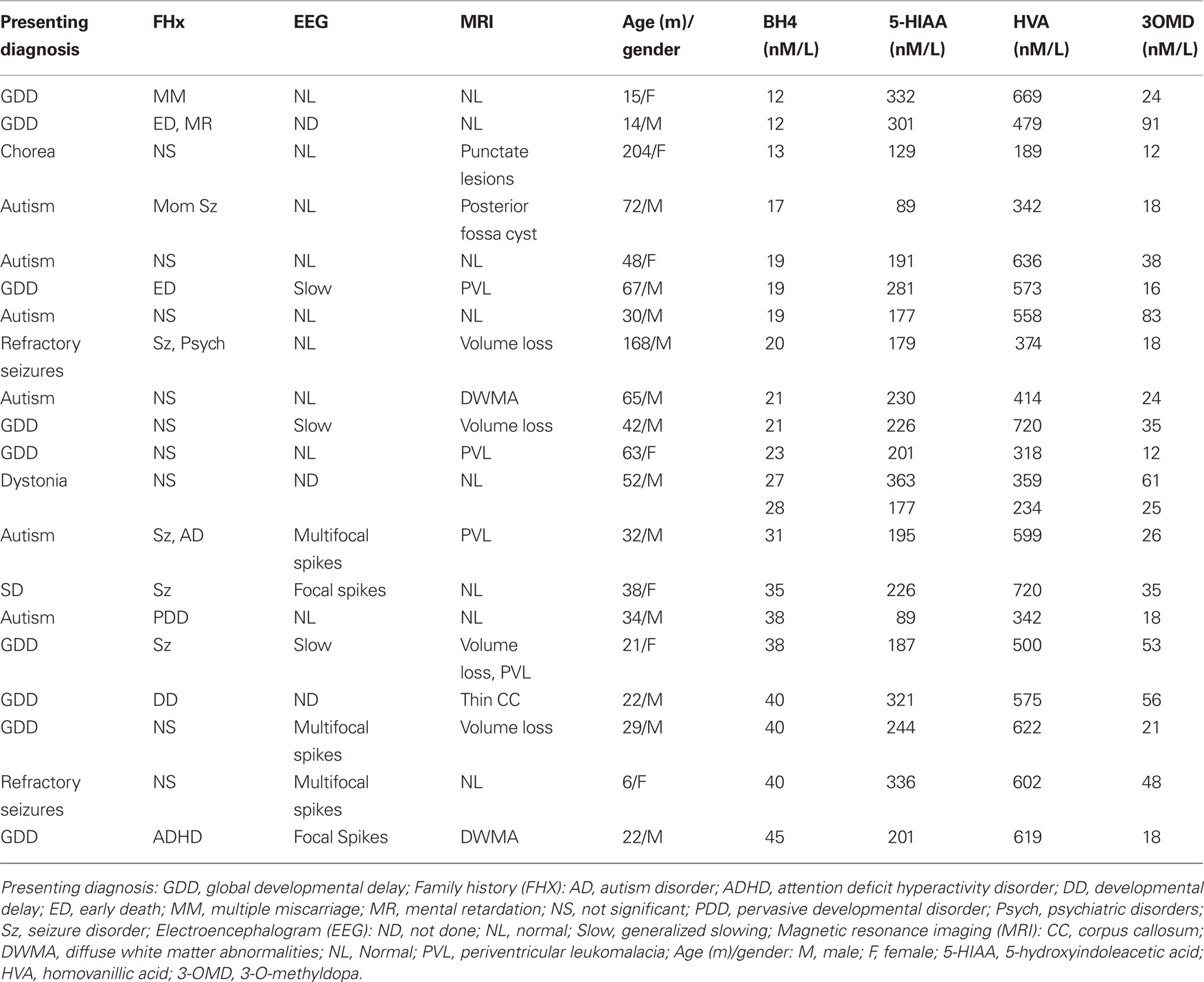

TABLE 1

Table 1. Participant characteristics.

Serum Citrulline and Methionine Concentrations Differentiate the High and Low BH₄ Groups

As discussed above, amino acids believed to be related to BH₄ metabolism were entered into a discriminant analysis to determine if concentrations of specific amino acids could differentiate individuals in the high and low BH₄ groups. The amino acids, citrulline and methionine, significantly contributed to the discriminant function [Wilks’ lambda F(2,8) = 6.66, p < 0.05]. As can be seen in Figure 1 A, citrulline was significantly elevated in the low BH₄ group [t(10) = 2.34, p < 0.05] while methionine was non-significantly depressed in the low BH₄ group [t(10) = 1.32, p > 0.05]. Assuming equal prior group probabilities, the discriminant function did not make any errors, resulting in perfect sensitivity, specificity, and positive and negative predictive values (Table 2 ). The scatter plot of all citrulline-to-methionine values, along with the criteria that divided the two groups assuming an equal prior group probability, is displayed in Figure 1 B. The discriminant function produced using the observed prior group probabilities misclassified one patient from the high BH₄ group but none of the patients from the low BH₄ group, resulting in a perfect sensitivity and negative predictive value. Since we found an age difference between the two BH₄ groups, we added age and interactions of age with amino acid markers into the initial stepwise discriminant analysis. This analysis selected citrulline and the interaction between citrulline and age [Wilks’ lambda F(2,8) = 8.69, p < 0.01]. Assuming equal prior group probabilities, the discriminant function classified one observation in the low BH₄ group incorrectly resulting in high sensitivity, specificity, and positive and negative predictive values. Assuming the observed prior group probabilities, the discriminant function classified all observations correctly, resulting in perfect sensitivity, specificity, and positive and negative predictive values.

FIGURE 1

Figure 1. The relationship between central tetrahydrobiopterin (BH₄) concentration and serum citrulline and methionine concentration. (A) Citrulline was found to be higher and methionine was found to be lower in individuals in the low BH₄ group as compared to individuals in the high BH₄ group. (B) Scatter plot of citrulline and methionine values illustrating the separation between the low and high BH₄ groups. The diagonal line illustrates the group separate. (C) The ratio of citrulline-to-methionine is significantly different between the low and high BH₄ groups and (D) correlated with the central BH₄ concentration.

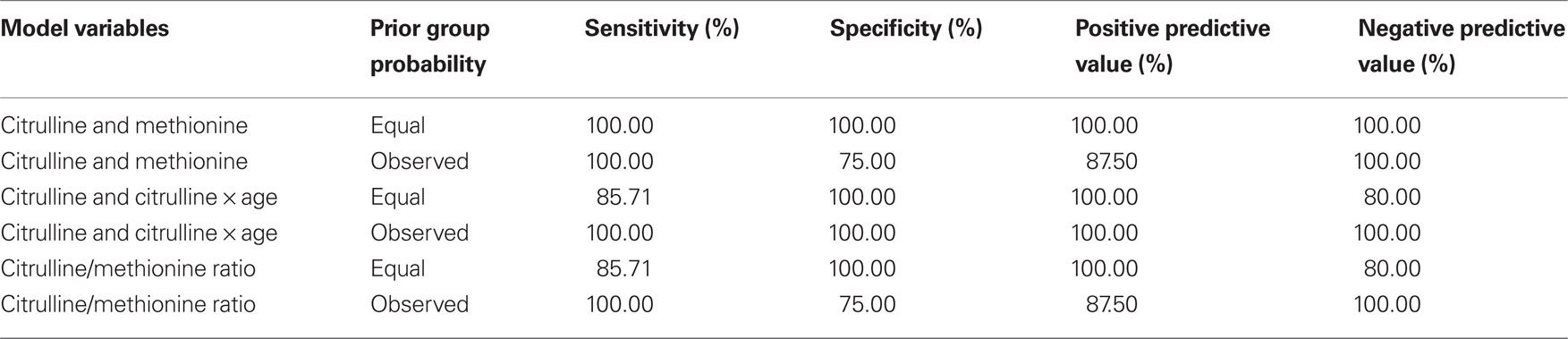

TABLE 2

Table 2. Performance statistics for discriminant functions.

The Citrulline-to-Methionine Ratio: A Simple Index that Differentiates High and Low BH₄ groups

To produce a simple, easy to calculate index of cerebrospinal fluid BH₄, the ratio of citrulline-to-methionine was calculated. Figure 1 C demonstrates that the citrulline-to-methionine ratio was significantly higher in the low BH₄ group as compared to the high BH₄ group [t(10) = 3.44, p < 0.01]. In addition, the citrulline-to-methionine ratio was found to significantly correlate with cerebrospinal fluid BH₄ levels [r(9) = −0.67, p < 0.05; see Figure 1 D]. The discriminant function with the citrulline-to-methionine ratio was statistically significantly [Wilks’ lambda F(1,9) = 11.35, p < 0.01]. The discriminant function with equal prior group probabilities classified one observation in the low BH₄ group incorrectly but no observations in the high BH₄ group incorrectly, resulting in a perfect specificity and positive predictive value but a lower sensitivity and negative predictive value. The discriminant function produced using the observed prior group probabilities misclassified one observation in the high BH₄ group and no patients in the low BH₄ group, resulting in a perfect sensitivity and negative predictive value. Including age and the interaction of age with the citrulline-to-methionine ratio as predictors in the stepwise analysis did not improve the model.

A Practical Method for Applying the Discriminant Function Results

In order to make the discriminant functions clinically useful, a simple method for calculating group membership is discussed. Since the discriminant function that included methionine and citrulline did not make assumptions about prior group probabilities and provided perfect discrimination between groups, it was used to calculate group membership. Group membership can be calculated by using Eq. 1 with a patient’s methionine and citrulline values. If the resulting quantity is greater than 0, then the patient would be considered to be in the low BH₄ group. If the quantity resulting from Eq. 1 is less than 0, then the patient would be classified in the high BH₄ group.

Alternatively, the citrulline-to-methionine ratio could be used with the caveat that the value does not appear to discriminate among groups as well as the quantity derived from Eq. 1. The dividing point for this ratio, as calculated by the discriminant function, is 1.05 assuming equal group probabilities and 0.98 assuming observed group probabilities.

Discussion

This report examined cerebrospinal fluid BH₄ concentrations in 20 children and adolescents with neurological disorders. First, cluster analysis was used to determine if, and how many, BH₄ groups were in the patient population. Two groups of patients were found: 70% of the patients had cerebrospinal fluid BH₄ concentrations of 31 nM/L and below and 30% had concentrations of 35 nM/L and above. Significantly more patients in the group with higher BH₄ concentrations demonstrated epileptiform activity on electroencephalogram, and the majority of the children with the diagnosis of autism were in the low BH₄ group. The discriminant analysis revealed that the serum concentration of two amino acids, citrulline and methionine, could discriminate the high and low BH₄ groups and that the ratio of citrulline-to-methionine correlated with the cerebrospinal fluid BH₄ concentration. The relevance of these specific amino acids to BH₄ metabolism is discussed below. The relation identified in the analysis above is significant in that it implies that measurement of these peripheral markers of metabolism may be useful for identifying individuals with low central BH₄ levels who might benefit from BH₄ supplementation.

The low and high BH₄ groups appear to correspond to patients with low-to-normal and normal-to-high cerebrospinal fluid BH₄ concentrations, respectively. It is somewhat surprising that a group with markedly low cerebrospinal fluid BH₄ levels was not found since some research suggests that cerebrospinal fluid BH₄ concentrations in autism might be depressed; however, only a subset of individuals within our population had features of autism. Two studies that measured BH₄ concentrations in children with autism have found concentrations, for the most part, below the lowest cerebrospinal fluid BH₄ concentration of our patient population (Tani et al., 1994 ; Fernell et al., 1997 ). However, another study found cerebrospinal fluid BH₄ concentrations in a group of autistic children more comparable with our findings (Danfors et al., 2005 ). In addition, Danfors et al. (2005) also excluded about one-third of the children they evaluated due to cerebrospinal fluid BH₄ concentration greater than 30 μmol/mL, a proportion very close to the proportion of patients in the high BH₄ group reported in this study. The great majority of studies that have shown an improvement in autism symptomatology with BH₄ supplementation did not measure blood, urine or cerebrospinal fluid BH₄ concentrations. Thus, it is difficult to know whether BH₄ supplementation affected children with low, normal or high BH₄ levels or children with a mixture of these levels. In fact it may be better to think of patient populations that might have over activation of metabolic systems associated with BH₄ utilization, such as autism, as having a relative insufficiency in BH₄, rather than a BH₄ deficiency. In such a case, the central BH₄ concentration could be low normal and still be insufficient to meet the metabolic demands of the individual.

One of the important insights that this report highlights, regardless of the exact cerebrospinal fluid BH₄ concentrations of our patients, is that central nervous system BH₄ levels may very well be associated with peripheral metabolic pathways. As discussed above, we believe that this relationship is a result of consumption and recycling of BH₄ by non-central metabolic pathways. Additionally, polymorphisms in one of the several genes that code for BH₄ production could be associated with reduced or inefficient BH₄ production or recycling. Such a notion would be consistent with the significant nominal association between the 6-pyruvoyl-tetrahydropterin synthase gene and autism (Schnetz-Boutaud et al., 2009 ). Of course, the population studied does not represent typically developing individuals, and many of the children we examined may be expected to have activation of metabolic pathways that consume BH₄. This limits the application of the relationship observed to those children and adolescents with neurodevelopmental disorders. However, this population may be one of the most important populations to which to apply the findings of this study since they may be high consumers of BH₄ and have a high need for BH₄ supplementation. Indeed, several studies have demonstrated improvement in development and behavior with supplementation of BH₄ in children with autism (Naruse et al., 1984 , 1990a ,b ; Nagahata et al., 1990 ; Nakane et al., 1990 ; Takesada et al., 1992 ; Fernell et al., 1997 ; Danfors et al., 2005 ; Frye et al., 2010 ).

Children with autism have symptoms consistent with a central BH₄ deficiency. For example, BH₄ deficiency can result in low production of monoamine neurotransmitters, including serotonin, dopamine, and norepinephrine. There is a significant amount of evidence that deficits in these monoamine neurotransmitters are present in some children with autism. Dysfunction in the serotonin system in autism has been documented by several investigators (Pardo and Eberhart, 2007 ). Children with autism have clinical symptoms, such as obsessive-compulsive disorder and anxiety, seen in other disorders where serotonin deficiency has been implicated (McDougle et al., 1995 ), and there are many studies that suggest that selective-serotonin reuptake inhibitors may be efficacious in the treatment of autistic symptoms (Kolevzon et al., 2006 ; Posey et al., 2006a ). Children with autism have a high incidence of sleep initiation and maintenance disorders, suggesting a deficit in melatonin, a metabolite of serotonin (Richdale and Schreck, 2009 ). Children with autism have a high rate of executive function, attention regulation and hyperactivity, all symptoms suggesting dopamine and norepinephrine deficits (Bramham et al., 2009 ; Corbett et al., 2009 ; Jahromi et al., 2009 ). Such behaviors are mitigated by psychopharmaceuticals designed to increase levels of dopamine and norepinephrine in children with autism (Posey et al., 2006b ; Troost et al., 2006 ). In addition, positron emission tomography has demonstrated a reduction in the baseline increase in dopamine D₂ receptor binding after 12 weeks of BH₄ supplementation (Fernell et al., 1997 ). It is important to state that it is highly likely that not all children with autism have low monoamine neurotransmitters, as the support for this idea across studies in mixed (Kolevzon et al., 2006 ; Posey et al., 2006b ; Soorya et al., 2008 ). This is most likely the result of the heterogeneity in the biological mechanisms underlying autism and supports the need to develop biochemical markers of central metabolic processes in children with autism and other neurodevelopmental disorders, and might explain why not all children with autism respond to BH₄ supplementation.

Low central nervous system BH₄ levels can result in several secondary central nervous system consequences. First, BH₄ is necessary for the production of nitric oxide, a soluble signaling molecule that appears to be important for cell proliferation, neuronal motility, and synaptic maturation during development (Tegenge and Bicker, 2009 ) and communication between neurons and both neuronal and non-neuronal cells (Garthwaite, 2008 ). Second, BH₄ is associated with growth factors, including nerve growth factors, in animal models (Anastasiadis et al., 1997 ). Third, BH₄ has been shown to be a protective factor for nitric oxide toxicity and a superoxide radical scavenger (Kojima et al., 1995 ; Koshimura et al., 1998 ). Fourth, reduced levels of monoamine neurotransmitters could result in dysfunction of important neural pathways, leading to underdevelopment of such important pathways. Fifth, BH₄ is an enhancer of the synaptic release of a wide range of neurotransmitters including the catecholamines, serotonin, acetylcholine, glutamate, and gamma aminobutyric acid (Koshimura et al., 1990 ; Mataga et al., 1992 ). Thus, a reduction in BH₄ could result in a reduction in neurotransmitter release during a critical time in development. Clearly BH₄ is involved in several metabolic and neurotransmitter pathways critical for brain function, and development and low BH₄ levels during development could have devastating consequences on brain development.

Two serum amino acids, citrulline and methionine, were found to differentiate high and low cerebrospinal fluid BH₄ concentration in individuals with neurological disorders. In addition, the ratio of these two amino acids was correlated with the cerebrospinal fluid BH₄ concentration. Since these amino acids are an integral part of metabolic pathway that uses BH₄ both systemically and centrally, it is suggested that dysfunction of such metabolic pathways is linked to changes in BH₄ levels. Specifically, a reduction in serum methionine is proposed to be linked to a reduction in folate availability and activation of the oxidative stress pathway, and an increase in serum citrulline is proposed to be linked to an increase in nitric oxide production from overactive inflammatory pathways. This notion is supported by the fact that some children with autism demonstrate these metabolic abnormalities and respond to BH₄ supplementation.

Several aspects of the hypothesized relation between cerebrospinal fluid BH₄ concentration and serum amino acids were not verified by our analysis. For example, arginine was not found to be reduced. This is most likely due to the fact that changes in metabolism, including BH₄ metabolism, are due to long-standing chronic effects of disease. In such states, enzymes are regulated to compensate for the abnormal metabolic state. For example, down regulation of arginase, the enzyme that catalyzes the breakdown of arginine to urea and ornithine in the urea cycle results in an increase in citrulline (Rabier and Kamoun, 1995 ; Tenu et al., 1999 ). Inhibition of arginase would prevent the decrease in arginine and would result in an increase in citrulline as seen in this study.

Clearly, future studies will need to examine other biomarkers of oxidative stress, nitric oxide, and inflammation to understand whether they correlate with the serum amino acid markers identified in this study and systemic and/or cerebrospinal fluid BH₄ concentration. Such information will further our understanding of the biological basis of autism and help validate the ratio of citrulline-to-methionine as a biomarker for central BH₄ concentration in other disorders.

Conflict of Interest Statement

Dr Richard Frye has received honoraria from BioMarin, the manufacture of Kuvan (a formulation of tetrahydrobiopterin), for speaking at a workshop on tetrahydrobiopterin in neurodevelopmental disorders.

Acknowledgments

This study was supported by NS046565 to Dr. Richard Frye. The author would like to thank Laura deSouza and Christine Younan for their technical help with this study.
