Robotics Dexterous Grasping: The Methods Based on Point Cloud and Deep Learning

Dexterous manipulation, especially dexterous grasping, is a primitive and crucial ability of robots that allows the implementation of performing human-like behaviors. Deploying the ability on robots enables them to assist and substitute human to accomplish more complex tasks in daily life and industrial production. A comprehensive review of the methods based on point cloud and deep learning for robotics dexterous grasping from three perspectives is given in this paper. As a new category schemes of the mainstream methods, the proposed generation-evaluation framework is the core concept of the classification. The other two classifications based on learning modes and applications are also briefly described afterwards. This review aims to afford a guideline for robotics dexterous grasping researchers and developers.

Introduction

In the last decades, there has been an enormous proliferation in robotic community, both at in terms of research and attracting boundless varieties of imagination of general public, due to its diverse possibilities. The vast majority of robots in operation today consist of 6 degree of freedom (6-DOF) which are either rotary (articulated) or sliding (prismatic), with a simple end effector for interacting with the workpieces (Murray et al., 1994). Robot manipulation means it can use and control different objects according to certain specifications and essentials through the end effector to achieve the effect of making the best use of playing the role of object itself (Okamura et al., 2000; Saut et al., 2007). Grasping, as one of the most primitive manipulations, almost all high-level operations and complex tasks that people expect robots to complete are inseparable from the assistance of it. With the in-depth development of robotics, researchers begin to facilitate the transition from simple or even crude grasping of robots with less discrimination of objects to object-oriented dexterous grasping. Unlike simple grasping, dexterous grasping is able to determine which posture to be employed to grasp where of the object to ensure a higher grasping success rate (Ciocarlie et al., 2007; Prattichizzo et al., 2008; Ciocarlie and Allen, 2009).

The research on dexterous manipulation and grasping can be traced back to the 1980s. In the era when deep learning methods were not yet established, researchers came up with ideas for dexterous manipulations from the perspective of physics and geometry. Through the kinematic modeling of robots, plenty of research results that attracted widespread attention at the time were born (Moreno et al., 2011; Fischinger et al., 2015; Chen et al., 2016; Zhou Z. et al., 2018; Zito et al., 2019; Monica and Aleotti, 2020). However, robot grasping algorithms based on physics and geometry presuppose many assumptions, making these methods hard to generalize. With the substantial increase in computing power from hardware, the artificial intelligence surge represented by deep learning methods has quickly penetrated into various research fields. Free from the limitation of manually extracting features, the grasping algorithms based on deep learning have achieved insurmountable effects in all aspects by traditional approaches, taking the robot's intelligence to a higher level. Specifically, with RGB images or depth images as input, robotic grasping based on convolutional neural network (CNN) which is a dominant deep learning framework in the field of computer vision, has obtained high grasping success rates in many tasks (Lenz et al., 2015; Varley et al., 2015; Johns et al., 2016; Finn and Levine, 2017; James et al., 2017; Kumra and Kanan, 2017; Zhang et al., 2017; Dyrstad et al., 2018; Levine et al., 2018; Schmidt et al., 2018; Schwarz et al., 2018). As shown in Figure 1, nowadays, based on visual information, robot dexterous grasp learning can be roughly divided into two categories based on whether the learning process is based on trial and error. Dexterous grasping learning that is not based on trial and error will determine the best grasp posture based on the visual information of the scene, and then execute it. On the contrary, the dexterous grasping learning based on trial and error is to accumulate the experience of grasping from failure through the interaction between the robot and the environment to improve grasping dexterity.

FIGURE 1

Figure 1. Recent dexterous grasp pipeline.

As a commonly used 3D visual data form, point cloud can be generated by 3D laser scanner (LIDAR), depth sensors or RGB-D images (Liu W. et al., 2019; Guo Y. et al., 2020; Lu and Shi, 2020). Compared with RGB or depth images, 3D point clouds can store more spatial information as their higher dimensions. With the improvement of point cloud processing methods (Fischler and Bolles, 1981; Rusu et al., 2010; Rusu and Cousins, 2011; Aldoma et al., 2012; Chen et al., 2016) and the introduction of CNN based on point cloud as input (Wu et al., 2015; Qi et al., 2017a,b), point clouds have become increasingly common for those tasks based on visual perception. Meanwhile, as more and more contributions on datasets of grasping based on point cloud (Goldfeder et al., 2009; Calli et al., 2015a,b, 2017; Kappler et al., 2015; Mahler et al., 2016, 2017; Depierre et al., 2018; Bauza et al., 2019; Bottarel et al., 2020; Fang H.-S. et al., 2020), robotic dexterous grasping based on point cloud and deep learning set off a tremendous wave of research in the field of robotics.

Based on the current work of robot dexterous grasping combining with point cloud and deep learning, this paper summarizes relevant important work from 2015 to present. As the earliest state-of-the-art work in related research, grasp pose detection (GPD) (Pas and Platt, 2015; Gualtieri et al., 2016; Pas et al., 2017) samples various grasp poses (candidate generation) in the point cloud and employ a deep learning method to assess these grasps (candidate evaluation) to obtain the optimal grasp pose. Inspired by this efficient pipeline, most subsequent works followed this framework to ameliorate generation or evaluation stages. From this perspective, this survey proposes a more generalized framework and summarizes relevant work as one or both of these two stages, that is, in which step the work contributes more. The articles reviewed in this paper are all based on deep learning framework. If deep learning strategy is not utilized in the generation stage, it will appear in evaluation stage, and vice versa. Remaining uncategorized models are provided in a separate section afterwards. The taxonomies from different perspectives of learning modes and applications are also briefly described. This paper aims to provide valuable insights and inspirations through the proposed taxonomy.

The remainder of the paper is organized as follows. Section Proposed Taxonomy presents related surveys and proposed category scheme. Section Grasping Candidate Generation and Grasp Candidate Evaluation are about the methodologies of grasp candidate generation and evaluation respectively. The uncategorized papers out of proposed framework are described in section End-to-End and Others. Section Learning Modes summarizes the methods from learning modes. In section Applications, it mainly introduces the applications of related approaches from perspectives of end effectors and operating scenarios. Section Challenges and Future Directions provides the challenges and future direction of this field. Section Conclusion is the conclusion of the paper.

Proposed Taxonomy

As listed in Table 1, there are already numerous surveys in the field of robotics learning. Some surveys elaborate the perception techniques of robotics, and some others introduce approaches of robot manipulation. Ruiz-del-Solar et al. (2018) and Du et al. (2020) pay attention to the vision methods for robot manipulations. With the exception of visual perception approaches, Luo et al. (2017) and Wang C. et al. (2020) exhibit there are many other perception methods can help improve robot performance. Caldera et al. (2018), Kroemer et al. (2019), Li and Qiao (2019), and Kleeberger et al. (2020) focus on the overview of robot manipulation methods based on deep learning. Mohammed et al. (2020) and Zhao W. et al. (2020) introduce the techniques in robot learning on the basis of reinforcement learning. Billard and Kragic (2019) describes the trends and challenges in robot manipulation.

TABLE 1

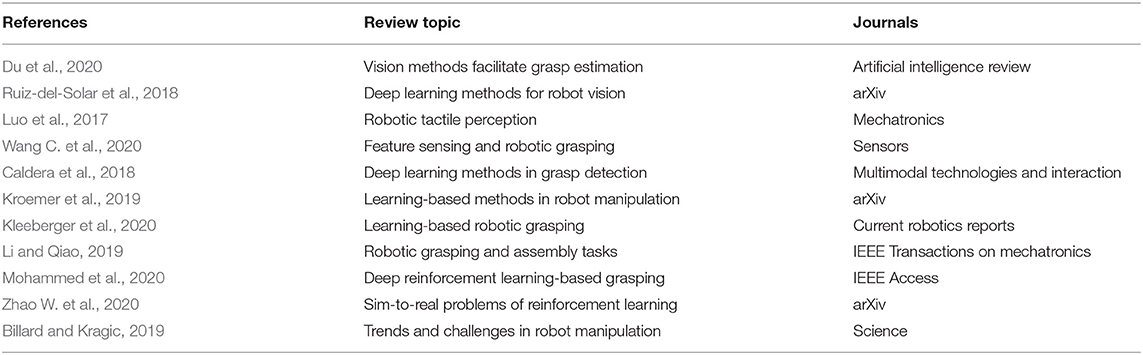

Table 1. The related surveys and corresponding topics.

Unlike the works mentioned above, this paper focuses on the methods of robotic dexterous grasping based on point cloud and deep learning. Compared with previous related reviews, this paper narrows the reviewed works scope through the limitation of inputs and methods, aiming to provide a more detailed description in a specific direction. For the robotic grasping algorithms, the following four classifications have appeared in past researches but not entirely suitable for the topic in this paper. (1) Analytic-based and empirical-based: because this survey pays attention to the use of deep learning, traditional analytic methods are not within the scope of the review, so this classification is not applicable. (2) Task-agnostic and task-specific: this will complicate the classification of reviewed approaches mainly focus on grasping in this paper. Some task-specific papers will outperform under some specific circumstances, but don't have generalization ability, which cannot support a category. (3) Vision-based and vision-free: since this paper is specifically aimed at point cloud-based robotic grasping, most of the networks used are CNN-based, even numerous methods don't explicitly perform object recognition, segmentation, or pose estimation. In other word, the reviewed articles in this paper can be said use visual information explicitly or implicitly. Therefore, this classification is not appropriate. (4) Learning-based and learning-free: this classification is similar to (1). If each stage in the proposed pipeline is not based on learning, this method will not be taken into account in this survey.

In order to elaborate the subject more comprehensively, instead of adopting the existing classification methods, this survey classifies related work from three perspectives: generation-evaluation, learning modes, and applications as shown in Figure 2. The proposed generation-evaluation framework is the core part of this paper. In the stage of grasp candidate generation, the methods can be divided into geometry-based sampling and learning-based sampling. In geometry-based sampling, methods are categorized into object-agnostic sampling and object-aware sampling. In object-aware sampling, object detection and segmentation are the most basic methods, object affordance detection and object shape complement are the further improvements. The learning-based sampling can also be divided into object-agnostic sampling and object-aware sampling. Unlike the methods in geometry-based object-aware sampling, there is no more classifications in the branch of learning-based object-aware sampling. In the grasp candidate evaluation stage, methods are split into learning-free and learning-based. This paper will use two separate sections to elaborate the methods of grasp candidate generation and evaluation. The following section will introduce some work that cannot be classified as this framework. They fall into end-to-end learning-based, reinforcement learning-based and others. Two remaining classifications will be briefly explained afterwards.

FIGURE 2

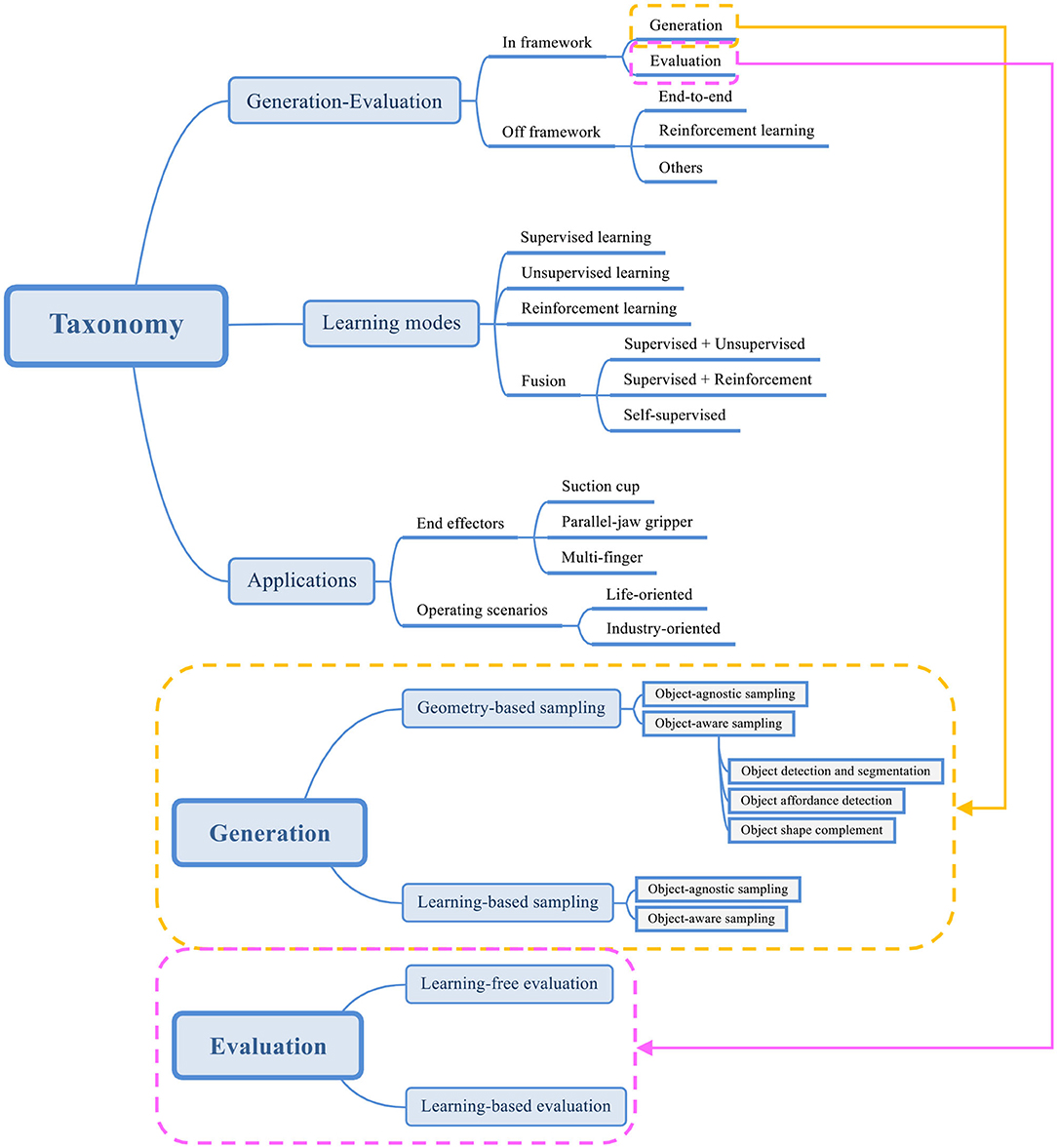

Figure 2. Robotics dexterous grasping methods based on point cloud and deep learning.

Grasping Candidate Generation

Grasp candidate generation, also called grasp pose sampling, refers to randomly sampling the parameters (the approaching direction of the end effector, opening size, joint angle, etc.) of the end effector on the target object within a specific range to obtain a large number of possible grasp gestures as shown in Figure 3. In order to ensure the optimal or suboptimal grasp posture can be found, the final executed grasp pose is commonly not directly calculated, but a large number of grasp candidates are sampled on numerous points in point cloud with random grasp configurations, so as to promise the reliability of results on the basis of quantitative advantages (Eppner et al., 2019). In general, sampling can be roughly divided into geometry-based sampling and learning-based sampling. In these two categories, approaches can be deeply split into object-agnostic sampling and object-aware sampling. The papers mainly contribute to generation stage are provided in this section.

FIGURE 3

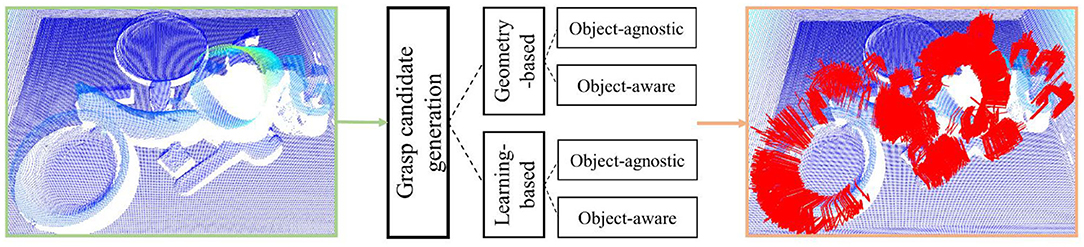

Figure 3. The general pipeline of grasp candidate generation.

Geometry-Based Sampling

In the early work, researchers try to apply random sampling to gain grasp candidates, the feasibility of sampling method to generate reliable and reasonable grasping candidates is discovered and verified afterwards (Boularias et al., 2014, 2015). Based on this, with superior interpretability and intuitiveness, the geometry-based grasp pose sampling came into being (Pas and Platt, 2015; Wang and Ling, 2016; Pas et al., 2017). These methods add geometric restrictions to the sampling process, such as the grasp position as close as possible to the center of gravity of the object, or the size of the object in the grasp approaching direction cannot exceed the maximum width of the end effector, so that make the random generation more reasonable. The idea behind this method is to introduce manually calculated features into the hypothesis space of grasping candidates, improves the possibility of finding the optimal or suboptimal grasp posture. Thanks to its generation process is based on the modeling of the grasping model from the real world (Murray et al., 1994), although it is an earlier branch of the generation method, geometry-based sampling is still being adopted by a lot of work.

In general, the current work using geometry-based grasping pose sampling can be divided into two categories based on whether it has the specific information of the object to be grasped, namely, object-agnostic sampling and object-aware sampling. Since the point cloud describes the spatial information of the scene, for the object-agnostic sampling methods, even if there is no specific information of the object, they can also obtain suitable sampling points for generating grasping poses by the spatial information. For the methods of object-aware sampling, they will first extract the specific information of the object through the methods of computer vision, relying on pure point cloud or combining the information of RGB images and depth images, and then perform sampling on these higher-level information.

Object-Agnostic Sampling

Sampling based on physical and geometric constraints could have an impressive performance on robotic grasping, especially in the two parallel-jaw grippers community since mathematical models of robotic grasping was well-defined in the past few years (Murray et al., 1994; Okamura et al., 2000; Prattichizzo et al., 2008; Prattichizzo and Trinkle, 2016). Researchers propose numerous sampling methods by combining the established mathematical theories and task-specific conditions. Since the specific information of the object is not used to help the sampling, this kind of object-agnostic grasping pose sampling must rely on complete grasping mathematical modeling and a large number of physical and geometric constraints in specific tasks to achieve grasping candidate generation. For example, only points higher than the operating plane calculated through the point cloud may be belonging to the object, and then it is possible to result in some feasible grasping poses by sampling at these points. Although the calculation steps are relatively cumbersome and plenty of limitations are based on experience and modeling, in the age when deep learning has not yet been developed, there are still many attempts at this sampling method.

Pas and Platt (2015) and Wang and Ling (2016) define hypotheses contain position and orientation information of the graspable point, as well as its neighborhood points calculated by Taubin quadric fitting (Taubin, 1991; Pas and Platt, 2013). To make the sampling process more flexible, GPD (Pas et al., 2017) selects N points uniformly at random from the region of interest (ROI) of point cloud and then perform grid search on picked points to extract grasp configurations that satisfy the geometric reasoning. Several research works obtain impressive experimental results by adopting this idea (Mahler and Goldberg, 2017; Mahler et al., 2017, 2018; Viereck et al., 2017; Liang et al., 2019). Lou et al. (2020) takes a further step by randomly associate a pose with each sampled point. There are also some methods not using uniformly sampling strategy. Gualtieri et al. (2016) and Kiatos and Malassiotis (2019) calculate a surface normal and an axis of major principal curvature of the object surface in the neighborhood of the sampled point. Grasp candidates are then generated at regular orientations orthogonal to the curvature axis. Zhou et al. (2019) samples the grasping candidates based on the depth descriptor Depth Likelihood Volume (Zhou Z. et al., 2018).

Since the specific information of the target object is not required, the advantages of the object-agnostic sampling method in some aspects are very obvious. These methods do not require object segmentation, thereby avoiding errors caused in the segmentation stage that will affect the accuracy of subsequent grasp candidate generation. At the same time, these methods do not need to know the identity, class and shape of the target object, which also makes it possible to apply the grasp poses sampling algorithms on unknown objects in an open environment. Finally, these methods do not try to register a CAD model of the object to the point cloud, which could be very challenging. However, the strategy of not combining the specific information of the object will also bring inevitable shortcomings to these methods. First of all, these methods have high requirements for input. The quality of the point cloud will immediately affect the reliability of the candidate sampling results. This also indirectly causes the result of sampling on the point cloud extracted by the monocular camera to be much worse than that of the multi-view camera. Since the algorithm does not segment the objects, it can detect “grasps” that treat multiple objects as a single atomic object. This type of error is unusual with small-aperture hands, but one would expect it to become a more significant problem when the hand is physically capable of grasping larger objects. This also makes it reasonable for the algorithm's sampling results to perform poorly in cluttered scenes and collision detection. Moreover, these methods are going to become infeasible for the multi-finger robots. Almost all of techniques mentioned above focus on robots with a vacuum cup or parallel-jaw gripper for their end-effectors. Multi-finger end-effectors will introduce a rich-contact points problem which is more difficult for these methods to handle.

Object-Aware Sampling

Even object-agnostic sampling is able to find numerous grasp candidates, it doesn't use the complete information in point cloud. The drawback causes the low sampling accuracy and time-consuming sampling process. To avoid these defects, researchers propose object-aware sampling which aims to combine the specific information of the object to enhance the reasonability of search space in point cloud (Boularias et al., 2015; Zapata-Impata et al., 2017; Lopes et al., 2018). The search space refers to the points that need to be considered in the point cloud space for the grasping pose sampling algorithm. Since the object-agnostic sampling does not have the pose information of the object, those methods have to calculate all the points in the scene point cloud one by one. This is undoubtedly a brute force search method, and the efficiency of the algorithm itself cannot be ideal. The object-aware sampling method combined with the object pose information will eliminate the points that are impossible to generate grasp candidate from the point cloud based on the corresponding extracted features, that is, reduce the sampling space from the entire point cloud space to a specific space, cut down the number of invalid sampling and searching, improves the efficiency of the algorithm. According to the different acquisition of object pose information, the object-aware sampling method can be divided into three branches: object detection and segmentation, object affordance, and object shape complement. The three methods not only outperform object-agnostic sampling method in general scenarios, but can generate highly reliable pose candidates in their respective applicable environments. The pipelines of the relevant methods are provided in Figure 4.

FIGURE 4

Figure 4. Entire pipelines of three classifications in object-aware sampling. Object detection and segmentation is the most basic method. Inputs are commonly RGB images, which are detected or segmented by networks to extract the object point clouds. Extracted point cloud can either be utilized to sample the grasp candidates immediately or fed into object affordance or shape complementation methods. Object affordance methods take extracted point cloud as inputs to obtain the affordance of object to reduce the sampling search space. On the contrary, object shape complementation aims to acquire the entire object point cloud to improve the grasp candidate generation confidence (The hammer point cloud is from YCB datasets).

Object Detection and Segmentation

The method based on object detection and segmentation is the earliest one of the three branches. This method first extracts the pose features of the object in the scene by taking the RGB images or the depth images of the scene or directly using the point cloud as input, and then segment the point cloud space to obtain a smaller and more reliable search space based on these features. Due to the introduction of the specific information of the object, this type of sampling algorithm has a significant improvement in the performance of the cluttered environment and collision detection. At the same time, with the rapid development of object detection and segmentation algorithms, YOLO (Redmon et al., 2016) and other efficient and easy-to-deploy backbone networks are widely used in this sampling method, and there is still a lot of work around its ideas.

By adopting sampling method in GPD proposed by Pas et al. (2017), Lopes et al. (2018), Schnaubelt et al. (2019), Bui et al. (2020), Chen et al. (2020), and Deng et al. (2020) sample the grasp points in point cloud for candidates generation. Lopes et al. (2018) find the largest planar surfaces which is infeasible for grasping by using RANSAC (Fischler and Bolles, 1981) and isolates the closest object to the camera from the rest of the scene to obtain object segmentation based on min-cut (Golovinskiy and Funkhouser, 2009). This work compares the experiments before and after reducing the point cloud search space, and proves that the grasping success rate has increased from 45 to 90%. Although the object's pose information is extracted with the help of object segmentation methods that are not based on deep learning, the impressive results show that the improvement is considerable. This shows that reducing the point cloud search space is a very reasonable and correct direction. Subsequently, more grasp candidate sampling methods integrated with object segmentation based on deep learning have been used in the development of this branch. Schnaubelt et al. (2019) segments the depth image by using Maskfusion (Runz et al., 2018) combined with increased noise robustness (Ückermann et al., 2012) and Bui et al. (2020) extracts object segmentation from point cloud with region of interest (ROI) obtained from YOLOv3 (Redmon and Farhadi, 2018). Deng et al. (2020) detects and segments the object from RGB-D images based on PoseCNN (Xiang et al., 2017), then a sampling method in Eppner et al. (2019) is adopted to generate 100 candidates for assessment and execution. Chen et al. (2020) utilizes object segmentation for mask-guide to improve the precision of sampling. Lin and Cong (2019), Lin et al. (2019), Sun and Lin (2020), and Yu S. et al. (2020) follow the same idea in GPD with additional physical or geometric constraints. Lin and Cong (2019) and Yu S. et al. (2020) adopt variant of PointNet (Qi et al., 2017a) and RANSAC for object segmentation respectively, then sample the grasp candidates with integrating physical and geometric constraints. In specific, the former work mainly considers the mechanical constraints in physics other than paying more attention to spatial constraints in the latter work. Lin et al. (2019) and Sun and Lin (2020) achieve object estimation via PPR-net (Dong et al., 2019) and Mask R-CNN (He et al., 2017) correspondingly followed by sampling the candidates based on using the closest ring of the centroid of the object. The main contribution and grasping accuracy are provided in Table 2.

TABLE 2

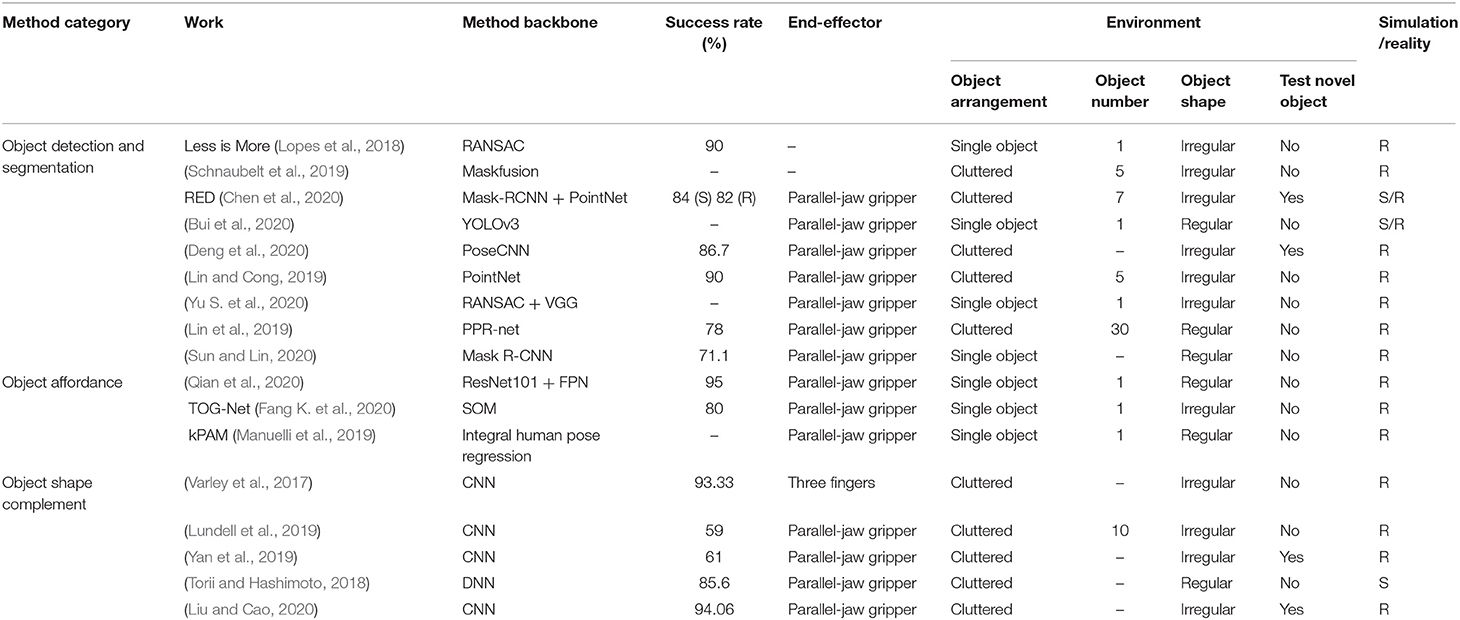

Table 2. The summary of geometry-base object-aware grasp candidate generation.

Object Affordance

Affordance is introduced by Gibson (2014), which describes how likely the agent is capable to execute an action based on its surrounding environment. In robotics community, affordance, as a new physical and geometric property of objects, refers to the part of the objects with high probability to be operable. Specifically, affordance refers to the most likely part of the objects to make the grasping successful determined based on the knowledge of human grasping habits. Image that, people will always hold the handle of the hammer instead of the hammerhead when picking up a hammer, or hold the apple in the hand instead of grasping the apple stem when picking up an apple. Grasping pose sampling based on object affordance is an advanced method developed from object detection and segmentation methods. This method will determine the operable part with high possibility on the detected object. Since the search space in the point cloud is further reduced, the sampling results are more reasonable than that of grasp candidate sampling on the entire object. Concretely, if the target is a knife, if grasp sampling is performed on the entire object, those candidate grasps located on the blade will inevitably cause damage to the end effector of robots or other objects in the environment. Based on several methods to learn and understand object affordance proposed by prior art (Varadarajan and Vincze, 2012; Koppula et al., 2013; Katz et al., 2014; Zhu et al., 2014, 2015; Do et al., 2018), there has also been a lot of work in the grasp candidate generation based on the direction of object affordance.

Inspired by sampling integrated with traditional affordance detection methods (Pas and Platt, 2016; Kanoulas et al., 2017; Liu C. et al., 2019), diverse deep learning-based affordance-based sampling techniques are proposed. Qian et al. (2020) employs ResNet101 (He et al., 2017) with feature pyramid network (FPN) (Lin et al., 2017) to perform affordance detection and applies the sampling method proposed in Pas et al. (2017) with refined local reference frame computation. Instead, Fang K. et al. (2020) finds object affordance implicitly based on Mar et al. (2017) with a multi-dimensional continuous action space and uniformly samples grasps from the object surface using antipodality constraints (Mahler et al., 2017). Manuelli et al. (2019) detects keypoints of object affordance together with local dense geometric information instead of segmenting entire affordance, the reduced search space is able to guarantee a high-quality grasp candidates sampling (Gualtieri et al., 2016; Mahler et al., 2016, 2019).

Affordance learning is an advanced variant of basic segmentation method. Different forms of affordance such as semantic labels (Zhu et al., 2014), spatial maps (Jiang et al., 2012), and motion trajectories (Zhu et al., 2015) are suitable to diverse tasks, which is in a position to further reduce the search space and improve the confidence of candidates generation.

Object Shape Complement

Shape complementation is another improved variant of segmentation method. Unlike affordance learning attempts to understand the graspable components from detected objects, shape complement pays more efforts on “looking” the entire target object more completely. As another advanced branch developed from object detection and segmentation methods, shape complement and object affordance have completely different thoughts. Grasp candidate sampling based on object affordance is to reduce the sampling space to the area where the grasp is most likely to succeed, while shape completion is to try to minimize the occurrence of unreasonable sampling by obtaining more information about the shape of the object. In particular, for the point cloud captured by a monocular camera, it is impossible to outline the shape of the object where the light cannot reach. For symmetric objects, the effect of shape complement may not be so obvious, but for asymmetric objects, this type of methods is particularly conducive.

Varley et al. (2017) proposes a convolutional neural network which takes voxelized partial mesh of object as input and output the complemented shape. After a few post-preprocessing, GraspIt! (Miller and Allen, 2004) is used to generate grasp candidates. Lundell et al. (2019) improves the network architecture based on the method in Dai et al. (2017) by adding Monte-Carlo (MC)-Dropout (Gal and Ghahramani, 2016), an advanced dropout layer (Srivastava et al., 2014), into both training and run-time step to generate a set of shape samples. Grasp candidates sampling by GraspIt! is employed on the mean of shape samples. Yan et al. (2019) reconstructs object point cloud by integrating the segmentation via Mask R-CNN and several encoder-decoder modules (Fan et al., 2017) inspired by single-view 3D-object reconstruction (Jiang et al., 2018). Differ from complementing point cloud of object, Liu and Cao (2020) and Torii and Hashimoto (2018) leverage object primitives to simplify object shape under the detection output of convolutional neural network. Compared with GPD, their experiment results increased by 10.56 and 18%, respectively.

Although existing shape complement methods commonly accompany with high uncertainty, being aware of object shape is capable of incredibly facilitating the accuracy, robustness, and confidence of grasp proposals generation.

Object-aware methods aim to reduce the search space by being aware of the specific object, which improve the sampling performance. As shown in Table 2, the summary of geometry-based object-aware sampling method is listed.

Learning-Based Sampling

Geometry-based sampling methods generate candidate grasp poses by changing the grasp configuration randomly under physical and geometric constraints in specific task, however, sampling a number of grasps poses proposals is computationally expensive. Furthermore, sampling the rotational or translational dimension possibly produce some unstable and unreasonable grasp configurations since the conditions in the grasp modeling are only artificially extracted. More recently, deep learning techniques improve performances in many traditional analytic tasks greatly based on more powerful feature extraction abilities compared to human handcraft. On the strength of deep learning, some researchers move from physical and geometric reasoning-based sampling to deep learning-based sampling as example in Figure 5. Different from the geometry-based sampling method, the learning-based sampling method will complete the learning based on a dataset during training. The learning-based methods can be divided into supervised learning or unsupervised learning according to the learning model. For sampling methods based on supervised learning, it takes scene point clouds or RGB images as input to obtain sampling results directly or extract appropriate grasp points first and then place the grasp posture on these points. It compares the prediction result with the ground truth to calculate the difference in sampling point determination, the difference in hand posture prediction. The sampling method based on unsupervised learning learns the distribution of sampling from the training data by the generative model, reducing the KL divergence or JS divergence to reduce the distribution difference between the data generated by the model and the training data. The trained model will be used for sample the grasp poses. Similar to geometry-based sampling, learning-based sampling methods fall into object-agnostic and object-aware group.

FIGURE 5

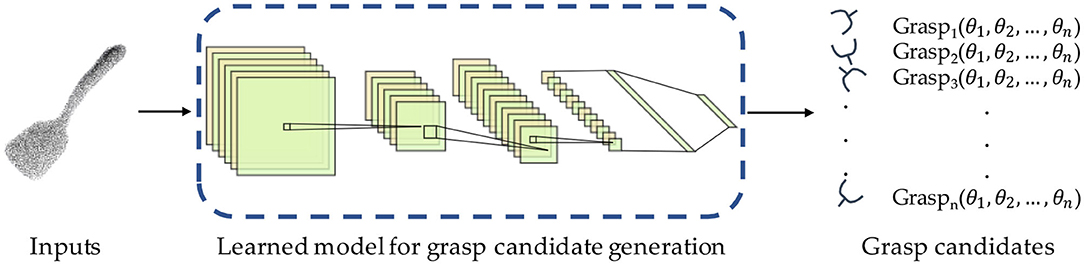

Figure 5. Learning-based sampling (The spatula point cloud is from YCB datasets).

Object-Agnostic Sampling

Object-agnostic methods take the point cloud as input and generate the proposals by learned models without detecting the object in the point cloud. Compared with geometry-based object-agnostic sampling, although the learning-based object-agnostic sampling method also searches in the entire scene point cloud, it has the following improvements on the thoughts: (1) Geometry-based sampling determines whether the point is feasible to generate grasp pose only based on the spatial information in the point cloud (three coordinate values of x, y, z), while learning-based sampling can learn more high-level information through the models or networks to help improve accuracy. (2) the generalization of geometry-based sampling is not strong, especially for cluttered scenes, it often regards two very close objects as one, which leads to unreasonable results of grasp sampling. The learning-based sampling method is able to significantly improve this problem through the benefits of more extracted features. (3) Geometry-based sampling is essentially a simple random combination of various parameters. Although it has an advantages in amount, it also caused a sharp increase in the number of negative samples. In contrast, the sampling process of learning-based generation method is actually obtained by the prediction of the model, and the sampling result will contain more information about the effect of high-level features. With the development of deep learning, some researchers try in the direction of learning-based object-agnostic sampling methods using neural networks.

Jiang et al. (2020) proposes a deep convolutional neural network (DCNN) to predict the set of grasp points from the input depth-image. Inspired by Varley et al. (2015) that obtains grasps on pixels, Morrison et al. (2018a) presents a Generative Grasping CNN (GG-CNN) which generates candidates immediately on pixelwise. GG-CNN treats each pixel of image liberally without any hypothetical searching space, which may assure a higher probability of finding a global optimal grasp pose. Guan et al. (2019) adopt Fully Convolutional Neural Network (FCNN) (Long et al., 2015) to take four channels images synthesized by an RGB image and depth image as input and output three maps contain all information of potential grasp poses.

Theoretically, the learning-based object-agnostic sampling method should be better than the geometry-based grasp candidate generation method, but there is not much work in this direction. Moreover, in addition to some advantages in the efficiency of algorithm operation, there is no remarkable improvement in other aspects. This is mainly due to the limitations of this method: (1) The training dataset is difficult to generate. Since the grasping pose needs to be sampled by the prediction of the model, the ground truth label of the sample is difficult to represent. This results in the difficulty of model training. Although the careful design of the loss function and network structure can slightly improve this shortcoming, it may also cause a decrease in efficiency during training and testing. And some work is done by simplifying the objects in the dataset to complete the training, but this causes the generalization of the model to be very poor. (2) Although the model is used to complete the sampling process, due to the lack of specific information of the object, the essence of the algorithm is to perform a brute force search in the entire point cloud space. (3) The neural network-based model can indeed extract higher-level features, but because of the difficulty of ground truth representation and the lack of object specific information, the extracted features may not be too satisfactory, which leads to the performance of the algorithm is not outstanding.

Object-Aware Sampling

Geometry-based object-aware sampling first utilizes computer vision techniques to localize and segment object, then samples the candidates based on the reduced searching space. This method has shown the reliability and reasonability of generated candidates is improved observably, however, adopting handcraft constraints in sampling step may cause generating some unstable grasp poses and computationally expensive. To further address these issues, learning-based object-aware generation modes are proposed by researchers. These methods acquire several grasp candidates with the help of trained model after localizing and segmenting object.

Mousavian et al. (2019) and Murali et al. (2020) employ a sampler ground on variational autoencoders (VAE) (Kingma and Welling, 2013). The sampler's architecture is similar to GANs (Goodfellow et al., 2014), which takes in PointNet++ (Qi et al., 2017b) as encoder and decoder, aiming to generate several grasp candidates and determine how likely they are successful. Yu H. et al. (2019) doesn't localize and segment the object explicitly. The author presents regression network and refine network to regress an optimal grasp region, and sample and sort grasp candidates correspondingly. Zhao B. et al. (2020) uses two neural networks to segment the point cloud and generate grasp proposals correspondingly. Fang H.-S. et al. (2020) presents an end-to-end grasp pose prediction network given N point coordinates as input. Inspired by anchor-based progress in 2D object detection (Ren et al., 2015; Liu et al., 2016), Wu et al. (2020) adopts PointNet++ as backbone to build up a Grasp Proposal Network (GPNet) to generate a set of grasps. The generated proposals are pruned via two physical schemes which are removing grid corners not locate on the object surface and the contact points antipodal constraint (Chen and Burdick, 1993). Li Y. et al. (2020) proposes a Deep Residual U-Nets on the basis of residual modules (He et al., 2016) to predict the graspable region of object, which is followed by a K-means (Lloyd, 1982) model clusters the graspable point cloud and the center of each cluster is leveraged as a grasp point. Ardón et al. (2019) employs Markov logic networks (MLN) (Richardson and Domingos, 2006) for knowing the relationship between diverse objects and a pre-trained Res-Net (He et al., 2016) is utilized to accomplish object perception and feature extraction for querying grasp affordances by Gibbs sampling (Kim and Nelson, 1999). The main thought back Ardón et al. (2019) is sampling several grasp affordances and evaluate them, the affordance with highest possibility will be selected and corresponding grasp configuration is calculated. Inspired by leveraging rectangle represent grasp part (Jiang et al., 2011; Lenz et al., 2015), Vohra et al. (2019) and Yu Q. et al. (2020) sample numerous rectangles to characterize candidate graspable parts and gain the optimal grasp pose by filtering and scoring candidates. After catching sight of high efficiency and easy implementability of pixelwise sampling (Morrison et al., 2018a), Yu Y. et al. (2020) first detects the object via SSD (Liu et al., 2016), the detection results will be checked if the target object is occluded through clustered point cloud from K-means and an image inpainting and recognition network (IRNet) which is inspired by Yu et al. (2018) combined with light-weighted recognition network MobileNet (Howard et al., 2017). The detection and confirmation output are feed into a deep grasping guidance network (DgGNet) to generate and qualify the grasp in each pixel.

As shown in the table, the table compares the learning-based object-aware methods with GPD and GG-CNN, which are representative work of the geometry-based object-agnostic and learning-based object-agnostic sampling method. Although there is no universally applicable benchmark, based on the comparison of the success rate in the same grasp operating environment, it can be seen that the learning-based object-aware sampling methods have a significant improvement in the final grasp success rate in a cluttered environment. At the same time, the grasp success rate will be further improved for the single object.

Benefitting from the progress of several data-driven methodologies, learning-based object-aware models have the highest potential to fulfill grasp proposals selection. However, this type of method also has some drawbacks. One is that the sampling results obtained through prediction usually only consider the pre-shape of the end effector, which probably leads to unavoidable collisions during the motion planning process. The other is for multi-finger end effectors (excluding suction cups and parallel-jaw gripper), it is usually difficult for the model to predict the contact point of each finger, which will make the model perform satisfactorily in a cluttered environment tougher.

Applicable Scene

Generally speaking, these grasp candidate generation methods can be tried on all tasks. But because the ideas of these methods are not the same, for some specific tasks, some methods will theoretically perform better than others.

Geometry Based or Learning Based?

Geometry-based grasp candidate generation is to extract the constraints in the mathematical modeling of the grasp to sample the possible feasible grasp poses in the point cloud. For scenes that are not very cluttered, this method is sufficient to sample a lot of reasonable grasp pose candidates, but if the operating environment is too cluttered, this type of method will be easy to wrongly judge two close objects as an object for sampling. Moreover, geometry-based grasp sampling requires additional conditions for collision detection. Although poor results may not necessarily occur, the efficiency of the algorithm will be greatly reduced.

The learning-based grasp candidate generation is based on a trained model, especially a neural network, which takes point cloud as input, and obtains the sampling result of the grasp pose according to the prediction of its output. Although this method is less interpretable and intuitive than the geomery-based method, the neural network is able to extract richer features in the hidden layer to help sampling, thereby reducing the computational difficulty of collision detection. However, the common problem of the learning-based sampling model is it often requires a lot of data to train a robust model. Collecting data and fabricate a dataset is expensive, which leads to the preparation process of the method time-consuming.

As shown in the Table 3, according to some experimental conditions, the recommendation of which grasp generation method to use is listed. This table only makes recommendations for the specific stage of grasp candidate generation. If combined with the evaluation stage, which is detailed in section Grasp Candidate Evaluation, there is no guarantee that geometry-based sampling will perform worse than learning-based sampling.

TABLE 3

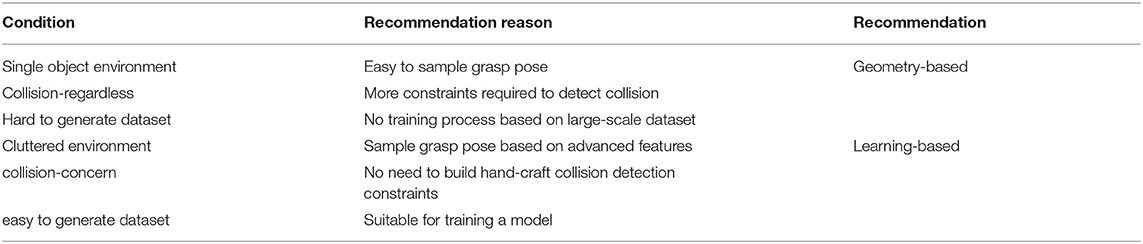

Table 3. Geometry-based and learning-based recommendation under different conditions.

Object Agnostic or Object Aware?

As far as the current development in the field of robotic grasp is concerned, the object-agnostic sampling method is highly unrecommended. Object-agnostic sampling was proposed in the age when visual detection methods were not effective, but the lack of object information has a great influence on the generation of reliable grasp poses. Therefore, no matter what the task is, it is indispensable to add object information to the algorithm.

In the method of object-aware sampling, it can be subdivided into three branches: object detection and segmentation, object affordance, and shape complement. If it is only for a single object and its shape is regular, then the difference between these three methods will not be too obvious. But in reality, the operating environment of robots is not so ideal and simple. As the earliest developed branch, the method based on object detection and segmentation has a high degree of applicability. Regardless of the operation scenario, the pose information of the object can be extracted through the detection and segmentation of the grasped object, thereby helping the generation of grasping candidates. This kind of method is highly adaptable and can be used as a preliminary attempt in various tasks. Object affordance is to reduce the entire object in the sampling space to a more reliable local area. For simple regular objects, this type of method may not make much sense. However, this method is particularly important for objects that have a large deviation of the center of gravity or damage to the end effector of the robot. The shape complement method can be used as a solution to the poor quality of the input point cloud. The generation of the point cloud depends largely on the light conditions in the experimental scene. Sometimes the point cloud of some objects is very sparse due to poor lighting or the scene is too cluttered. In this case, direct sampling is not advisable. The shape complement is to restore the original shape of the object, so as to improve the information of the object and help the generation of the grasp candidate.

As shown in the Table 4, according to the experimental conditions, the recommendation of which grasp generation method to use is listed.

TABLE 4

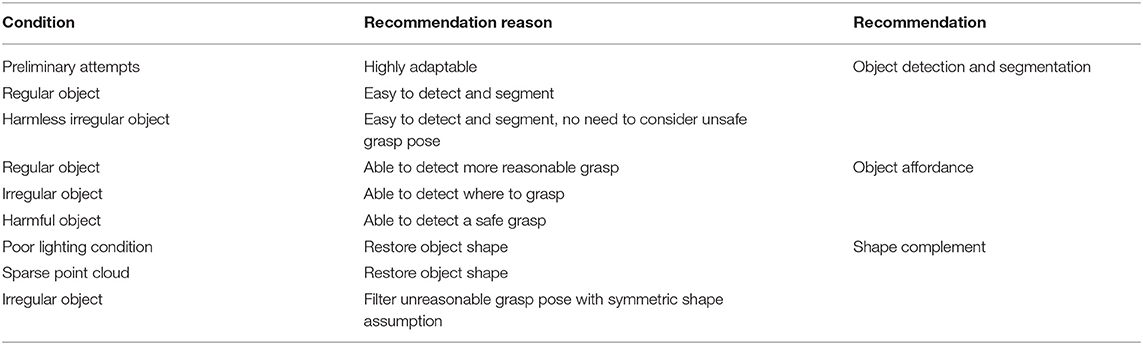

Table 4. Object-aware sampling branches recommendation.

Grasp Candidate Evaluation

To execute the optimal grasp, a necessary step is to evaluate the generated grasp candidates previously. Evaluation is a latter portion aims to score grasp success probability or classify graspability of grasp proposals. By considering whether the approach is data-driven or not, evaluation methods can be divided into learning-free and learning-based. Learning-free determine each grasp a good or bad one based on geometry information or control system flow. On the other hand, learning-based attempts to acquire a model to perform as an evaluator trained from datasets.

Learning-Free Candidate Evaluation

Learning-free candidate evaluation determine each grasp a good or bad one mainly based on geometry information. Since approaches in this group don't utilize learned models to carry out the assessment, they put efforts into converting proposals evaluation to an optimization problem. The thoughts behind this transformation is inspired by the optimal control theory in control system or reinforcement learning fields.

Zapata-Impata et al. (2017) presents a function to assess grasp configurations stability by considering the distance, direction and geometric shape of the grasp. On the contrary, Mahler et al. (2016) prefers to rank each grasp candidate based on physical conditions, especially force closure (Weisz and Allen, 2012; Kim et al., 2013; Laskey et al., 2015; Mahler et al., 2015). Following previous works solved the problem via Monte-Carlo integration (Kehoe et al., 2012; Weisz and Allen, 2012) or Multi-Armed Bandits (MAB) (Laskey et al., 2015), Mahler et al. (2016) takes in latter method to find the best grasp. Adopting the thoughts back of reinforcement learning, Manuelli et al. (2019) transforms the evaluation to an optimization problem which is used to find the desired robot action. The constraints of the optimization are established based on geometry, especially the distance of it.

Since learning-free approach normally perform the grasp selection under several assumptions and constraints which are simulated by geometry, causing the lack of flexibility and generality. There are only few works in mainstream take in this evaluation technique. In contrast, learning-based assessment has a wider variety.

Learning-Based Candidate Evaluation

Learning-based are widely used in evaluation step among numerous works. Due to assessing the grasp quality based on trained model from large datasets, learning-based methods are more robust and generalized than learning-free one with prior knowledge instead of complex analysis. Learning-based candidate evaluation pipeline example is provided in Figure 6. The learning-based grasp evaluation method is essentially a model that completes the binary classification task. The general pipeline at this stage is to first extract representation of grasp pose and grasp part, then use the learned model to finish evaluation. Whether it is based on SVM in the early days and later based on CNN, the essence of model training has not changed, which is to reduce the classification loss. From hinge loss to cross-entropy or other classification loss, the difficulty at this stage is not how to design the loss function, but how to effectively represent the grasp and use it as the input of the model for evaluation.

FIGURE 6

Figure 6. Learning-based candidate evaluation (The scissors point cloud is from YCB datasets).

At early of the first, Le et al. (2010), Jiang et al. (2011), and Pas and Platt (2015) evaluate the grasp points by utilizing support vector machine (SVM) (Boser et al., 1992). SVM-based approaches are able to classify the suitable grasps with a good result in some simple cases or trivial problems. With the complexity growth of grasp scenarios, SVM, or other traditional data-driven techniques are decreasingly robust. To ensure the evaluation methods' capability of determining or scoring grasp candidates with noisy inputs, more researchers move their attention to deep learning-based evaluation methods.

Compared with traditional data-driven techniques, deep learning-based evaluation is more precise and robust. Kappler et al. (2016) first indicates the feasibility of evaluating based on CNN. Inspired by this, Gualtieri et al. (2016), Wang and Ling (2016), and Pas et al. (2017) use LeNet (LeCun et al., 1998) to classify the grasp proposals and achieve an impressive performance. Even LeNet architecture is shallow and are not robust to noisy grasp proposals, CNN-based classifier's potentials of evaluating grasps attracts large amounts of interests in robotic community. Following prior arts (Lenz et al., 2015; Gualtieri et al., 2016; Mahler et al., 2016), Mahler et al. (2017) and Mahler et al. (2018) propose a Grasp Quality Convolutional Neural Network (GQ-CNN) to evaluate grasp and suction task respectively. Depending on flexibility of modification, comprehensibility of architecture and simplicity of implementation, GQ-CNN becomes a wide preference among several works. Jaśkowski et al. (2018) utilizes a new CNN architecture and add batch normalization (Ioffe and Szegedy, 2015) to refine GQ-CNN. Mahler and Goldberg (2017) models bin picking on the basis of Partially Observable Markov Decision Process (POMDP) (Astrom, 1965) and fine-tunes GQ-CNN with a new dataset to evaluate actions instead of grasp configurations, which improves the generalization of GQ-CNN. Satish et al. (2019) further enhances GQ-CNN by designing a FC-GQ-CNN through fully convolutional network. Fang K. et al. (2020) proposes a Task-Oriented Grasping Network (TOG-Net) by making progress on GQ-CNN via residual network layers (He et al., 2016) to obtain task-agnostic grasp quality, conditioned task-oriented grasp quality and manipulation action. Although GQ-CNN achieve an impressive performance, it currently requests high-quality depth sensors to obtain desirable point cloud, which limits the deployment in many cases.

Except from GQ-CNN, other works also propose some novel evaluators to figure out grasp candidate assessment. Following 3D CNN predictor designed in Choi et al. (2018), Lou et al. (2020) passes voxelized point cloud of each grasp candidate into networks and fortify a reachability predictor to strengthen selected grasp robustness. Inspired by the work in Varley et al. (2015) and Lu et al. (2020) utilizes a patches-CNN to gain the information from different patches in images to calculate a suitable grasp. Van der Merwe et al. (2020) takes a further step by way of signed distance functions (SDF) to earn object reconstruction. The extracted point cloud embedding is set as the input to the success probability predictor (Lu et al., 2020) extended by collision-free strategy (Zhou and Hauser, 2017; Lu and Hermans, 2019; Lu et al., 2020). Qian et al. (2020) modifies fully connected layer by a novel pooling layer in R-FCN (Dai et al., 2016) which is able to perceive object localization change precisely. Yu Q. et al. (2020) classifies grasp rectangles via a 7-layer CNN. Although these variants of 2D CNN achieve impressive performances, a common drawback is it's hard for them to handle imperfect observed point cloud and extract sufficient and stable information.

Profiting from studies on point cloud (Rusu and Cousins, 2011; Guo Y. et al., 2020; Lu and Shi, 2020), PointNet and PointNet++ are two extraordinary and widespread models which make a further promotion on evaluation networks. Liang et al. (2019), Mousavian et al. (2019), and Yan et al. (2019) use PointNet to directly take point cloud as input and output the grasp candidate evaluation. The points within the closing area of the gripper are utilized to represent the grasp. Immediately transform grasp to the points in corresponding area addresses unstable prediction results from imperfect local observed point cloud and carries out an acceleration of evaluation process. Stimulated by PointNetGPD (Liang et al., 2019), Singh et al. (2018) tries to replace PointNet with PointNet++, KD-Networks (Klokov and Lempitsky, 2017) and Dynamic Graph Convolutional Neural Networks (DGCNN) (Wang Y. et al., 2019) to obtain a better result. By considering parallel structure utilized in some works ignores grasp candidate generation errors result in unreliable evaluation, Grasp Proposal Networks (GPNet) (Wu et al., 2020) adopts GraspNet (Mousavian et al., 2019) and designs a structure which is able to allow generator and evaluator to be trained jointly. Fang H.-S. et al. (2020) utilizes PointNet++ as their ApproachNet to obtain suitable grasps. In contrast with traditional 2D-input CNN, methods based on PointNet or PointNet++ are capable to handle noisy inputs and assess grasp candidate probability and stability with higher confidence.

Approaches presented by other arts are not in line with CNN-based methods but still achieve good performance. Enlightened by wide & deep model in recommender system (Cheng et al., 2016), Context-Aware Grasping Engine (CAGE) (Liu et al., 2020) treats discovering a feasible grasp configuration as a recommendation problem. Based on the prior knowledge, the model predicts suitable grasp by finding grasp configuration in the similar situation. On the contrary, Wu et al. (2019) utilizes a reinforcement learning pipeline, which assesses and refines the action taken in each time stamp based on reward function via policy gradient (Sutton et al., 1999).

End-to-End and Others

Except from those works can be categorized into grasp generation or evaluation part, there still has numerous arts out of this framework. By adopting the advantages of end-to-end learning, some researchers attempt to concatenate two parts to enable training the network jointly. Instead of using supervised learning, some works empower grasping ability of robots through interacting with environments on the basis of reinforcement learning. Other proposed models are based on approaches not in mainstream.

End-to-End Learning

With the development of deep learning, end-to-end learning gradually becomes one of the most outstanding learning mode, which is seemingly natural consequence of deep neural architectures blurring the classic boundaries between learning machine and other processing components by casting a possibly complex processing pipeline into the coherent and flexible modeling language of neural networks (Glasmachers, 2017). Deep learning based on end-to-end mode is capable of training and generating a more powerful model via a holistic object function.

S⁴G (Qin et al., 2020) proposes a single-shot grasp proposal network based on PointNet++ which assigns each point in point cloud a grasp configuration and its quality score. Non-maximum suppression (NMS) and weighted random sampling are applied to the output to select a grasp to be executed. Based on the network in (Choi et al., 2018), Liu M. et al. (2019) improves its performance through introducing a new combined loss which is composed of consistency loss and collision loss. These two losses aim to resolve grasp pose ambiguity and penalizes the penetrations respectively. Yu Y. et al. (2019) preprocesses the input via utilizing FPN with ResNet50 and K-means by taking RGB images and point cloud as inputs correspondingly to extract the multi-scale masks of target object. Then a DrGNet takes masks as inputs to perform depthwise separable convolution. The encoded results from DrGNet are refined by RefineNet (Nekrasov et al., 2018) and sSE (Roy et al., 2018) to obtain a desirable grasp. Provided by object mask, grayscale and depth images as input, Tosun et al. (2020) trains grasp proposal network (GPNet) (Tosun et al., 2019) and shape reconstruction network (SRNet) (Mitchell et al., 2019) parallelly to acquire grasp proposal and reconstructed point cloud. The embeddings from GPNet and SRNet are combined to refine the detected grasp. PointNetRGPE (Wang Z. et al., 2020) first predicts the corresponded class number from object point cloud data, which is used to fuse with point coordinates to pass into grasping pose estimation network. The network has three sub-networks based on PointNet to acquire the translation, rotation and rotation sign of grasp pose. Other than generate the grasp configuration parameters, GraspCNN (Xu et al., 2019) treats the grasp estimation as an object detection problem. It takes RGB images as input and outputs an oriented diameter circle. The circle and oriented diameter indicate the grasp area and gripper open width and closing orientation respectively. Obtained circle on RGB image is calculated to project into the point cloud.

Instead of designing end-to-end framework based on supervised learning, some arts propose their end-to-end models through the methodologies of reinforcement learning. Zeng et al. (2018a) attempts to jointly train two FCNs in Q-learning framework to extract the visual state representations and obtain the push and grasp from the policy. Compared with the demands of a large amounts of manually labeled data in supervised learning, approach presented in Zeng et al. (2018a) is totally self-supervised. Wu et al. (2019) takes depth images as input and obtain 10 2D maps after flowing in an FPN. Ten maps represent current state of end-effector and objects and are utilized to sample the action. Policy is learned based on policy gradient during the action execution. Manuelli et al. (2019) segments and detects the keypoints of object via Mask R-CNN and pose estimation network (Sun et al., 2018). The grasp planner (Gualtieri et al., 2016; Zeng et al., 2018b; Mahler et al., 2019) is selected to generate a pose and refined by proposed optimization method.

End-to-end models are capable of learning a complete function maps from visual inputs to grasp poses. Although there is not much work based on an end-to-end approach, this direction has great potential for development. Since it takes the point cloud as input, and then directly outputs the grasp pose, this omits the consideration of the features extracted from the connection in the multi-step method. At the same time, the efficiency of the end-to-end algorithm is usually better than that of the multi-stage model, which makes it possible for the robot to operate in real time in a dynamic environment.

Reinforcement Learning

Reinforcement learning is another interesting solution of grasp pose detection. Although the work on reinforcement learning has been mentioned in the end-to-end method, what mentioned earlier is end-to-end learning based on the reinforcement learning framework. Generally speaking, reinforcement learning methods do not necessarily adopt end-to-end thinking, and vice versa. As shown in Figure 7, RL approaches enable robot to interact with environments to study the policy maps from visual inputs to actions. In contrast with supervised learning, trial and error thoughts back of RL capacitate robots to learn self-exploration ability, which makes robots have higher dexterity. The reason why reinforcement learning makes robots more dexterous than supervised learning is because the training ideas of the two are completely different. Supervised learning is to update the model parameters through sample and label pairs until the loss function is minimized. But the biggest drawback of this training method is that its dataset usually has only one label per sample. That is, for a grasp point, it can only correspond to one grasp pose, which actually adds a lot of restrictions to the model. Image that a robot wants to grasp a block or a ball, the same scene can have hundreds of thousands of grasp poses for humans because the deviation of the hand and joint angle has no effect on the successful grasp of such objects. However, there is only one correct answer in supervised dataset. On the contrary, reinforcement learning is to obtain the policy of grasping objects through trial and error. Since the robot may have explored many grasping possibilities during training, and the reward function value of each grasp pose is not bad, the algorithm will add these possibilities to the policy function, so that the possible answers for the operation become more.

FIGURE 7

Figure 7. The deep reinforcement learning framework of robotic grasp learning based on point cloud. In order to reduce the cost of trial and error, the current robot grasping based on reinforcement learning is to first train the model in a simulation environment and then migrate to the real robot (Sim to real).

Ficuciello et al. (2019) first take point cloud as input, an object recognition module is utilized to accomplish object detection and pose estimation. Acquired features are feed into a pretrained neural network to obtain the robot grasp initial configuration. Then a RL loop is used to refine the initialized parameters by assigning the executed grasp a cost to update the policy. Inspired by Deep Q-learning network (DQN) (Mnih et al., 2015), Gualtieri and Platt (2018) trains a CNN to learn Q-function and utilizes gradient Monte Carlo (Sutton and Barto, 2018) to update the rule. At each time stamp, it generate several grasp candidates based on hierarchical sampling and then one pose will be chosen by the learned policy. Chen et al. (2020) adopts RL to obtain an appropriate viewpoint based on the mask-guided award to perform GPD module. Rather than deploying RL strategy on grasp planner, this model focuses on acquire a better view sight to improve the grasp accuracy.

RL-based approaches empower robot ability of self-exploration from trial and error, successfully trained models are capable of planning grasping dexterously. However, methods based on reinforcement learning, especially when used for robot operations, will have a serious problem – the exploration space of the algorithm will become extremely large, or the grasp poses that require trial and error are innumerable. This will make the learning efficiency become very slow, and because the exploration space is too large, the positive and negative samples will be extremely imbalanced. The robot may not be able to increase the reward function value after many trial and error, and the policy cannot be updated. Besides, due to the necessity of a mass of sampling during training, the data collection process is also time-consuming. In addition, it still needs more time to transfer the model in simulation to real world since the cost of each trial may be extremely high.

Others

Aside from end-to-end learning and reinforcement learning, some other works achieve the goal through some unique and creative methods.

Zhu et al. (2019) first obtains the graspable area via performing ellipse fitting method on segmented mask from Mask R-CNN. Then RANSAC is utilized to acquire the orientation of the grasp from the pixel mask and point cloud. Instead of generating the grasp pose parameters, Shao et al. (2020) attempts to predict the grasp contact points. It not only extracts the feature of object point cloud, but also pays attention to gripper properties. An unsupervised autoencoder adopts the structure of PointNet to learn a low-dimensional latent space of gripper representation and construct robotic hand representation from URDF file. Then the gripper representation and object point cloud features extracted by PointNet++ are combined to feed into a proposed Point Set Selection Network (PSSN) to generate correspond number of contact points based on beam search. Kokic et al. (2017) employs two CNNs, one for affordance detection and another one for classification and orientation estimation. Extracted parameters are used to compute a grasp by Haustein et al. (2017).

Approaches proposed in this group can achieve an impressive performance in some special cases, however, generalization of these methods are not approving.

Learning Modes

There are numerous types of machine learning algorithms, which aim to solve problems in different situations or under diverse demands. In the robot grasp learning field, learning modes can be mainly divided into supervised learning, unsupervised learning and reinforcement learning even some arts may be outside of these three categories. Nowadays, due to the challenge of grasp pose detection with high dexterity, it facilitates the fusion of different learning modes to integrate the merits of each other to improve the model performance. The descriptions of three main modes are provided first, and then the fusion models are discussed based on three primitive modes.

Supervised Learning

Supervised learning is the machine learning task of learning a function that maps an input to an output based on example input-output pairs (Russell and Norvig, 2002). The most prominent property of supervised learning is the datasets used to train the models have the labels for each sample. Supervised learning models are the most widely used since they are simple to implement, easy to train and suitable for most tasks. In robot grasp learning task, supervised learning methods can be used for candidate either generation or evaluation. Many end-to-end learning approaches are also based on the thoughts back of supervised learning.

Initially, supervised learning models without deep learning techniques are only used for grasp candidate evaluation since extensive demands of handcraft feature preprocessing cause low performance of candidate generation. Pas and Platt (2015) uses SVM to assess the quality of grasp proposals and acquires an incredible performance. With the development of deep learning, supervised learning models based on neural networks outperform and replace traditional techniques in many tasks. Gualtieri et al. (2016), Wang and Ling (2016), and Pas et al. (2017) try to evaluate the grasp pose candidates based on LeNet for the first time. Astonished by the power of neural network, deep learning models attract dramatically substantial interests from researchers. Mahler and Goldberg (2017) and Mahler et al. (2017, 2018) propose CNN-based evaluators with more complex architecture.

Inspired by several state-of-arts works in computer vision (Ren et al., 2015; He et al., 2016, 2017; Liu et al., 2016; Redmon et al., 2016), researchers begin to move the attention to grasp candidate generation. Some works attempt to use object detection and instance segmentation approaches to reduce the search space in the point cloud (Lopes et al., 2018; Schnaubelt et al., 2019; Bui et al., 2020) or regress the grasp part using rectangle bounding boxes directly (Vohra et al., 2019; Yu Q. et al., 2020). Specifically, models designed to process point cloud furtherly accelerate the progress of candidate generation (Lin and Cong, 2019; Yu S. et al., 2020) and evaluation (Singh et al., 2018; Mousavian et al., 2019; Yan et al., 2019; Fang H.-S. et al., 2020; Qian et al., 2020). Moreover, end-to-end learning models mentioned in section End-to-End Learning follow the supervised learning framework as well.

By adopting supervised learning methods, especially those in deep learning field, feature extraction of robot grasp learning has transformed from handcraft to learning-based. Supervised learning methods is capable of learning the models to accomplish specific tasks with only needs of regarding datasets. However, training an efficient supervised learning model requires a large amount of data. Data collection is very expensive and time-consuming in many cases which cause the model not able to learn enough knowledge to perform as expect, which is known as underfitting. In addition, incomplete training set also probably result in overfitting of models due to samples cannot represent the entire rules to be learned. For end-to-end learning, incorrect-design architecture has higher potentials to be overfitting. Besides, generalization of grasp learning is still a challenge. Model trained on one case is commonly hard to be transferred to other cases.

Unsupervised Learning

In contrast with supervised learning, unsupervised learning takes unlabeled data as input aims to find the internal relationship of samples which allows for modeling of probability densities over inputs (Hinton et al., 1999). Two of the main techniques in unsupervised learning are dimensionality reduction and clustering. Clustering is used to group or segment the datasets to numerous clusters, which is adequate for processing the point cloud. Some works adopt K-means as clustering method to segment the point cloud as their desirable features for downstream.

Different from classical unsupervised learning approaches, VAE and GAN are the product of the growth of deep learning. Both VAE and GAN are generative models, which are to model the real data distribution from the training data, and then use the learned model and distribution to generate and model new data in turn. They are similar in two respects. One is that random noise is used in the data generation mode (such as Gaussian distribution is commonly used), and the other is that when modeling the distribution, it is necessary to measure the difference between the distribution of noise and training data. The difference between the two is essentially that the distribution measurement criteria are different (that is, the loss is different). VAE uses a more explicit measurement method, assuming that the training data is generated by another distribution, and directly measures the KL divergence of the training data and noise. From this, the ELBO theory, reparameterization trick and so on have been developed. The GAN cleverly avoids the direct measurement of the distribution difference, but lets the neural network learn this distance through confrontation. When the discriminator cannot distinguish between the two distributions, it is considered that the two distributions are consistent. The emergence of VAE and GAN makes neural networks also usable in tasks based on random sampling. Some works have adopted this strategy in the stage of grasp candidate generation. Inspired by GAN, Mousavian et al. (2019) and Murali et al. (2020) utilize VAE to sample multiple grasp proposals to speed up candidate generation.

Robot grasp learning is hard to be accomplished only based on unsupervised learning methods since study on unlabeled data is not trivial to acquire sufficient knowledge to drive robots perform dexterous grasp poses as human. However, unsupervised learning can efficiently segment point cloud or sample grasp candidates with satisfying results even using fairly simple models.

Reinforcement Learning

Differs from demands of labeled and unlabeled data for supervised and unsupervised learning respectively, reinforcement learning (RL) aims to learn a policy maps from agent's states to actions and maximizes reward by interacting with environment. The core problem of RL is to find a balance between exploration and exploitation. The motivation of RL is letting the agent cumulate knowledge by trial and error. As mentioned in section Reinforcement Learning, there are few RL works achieve robot grasp goal based on point cloud and deep learning. The reason is the difficulty of transferring point cloud to visual state representation during robot exploration.

Fusion

More recently, increasingly number of researchers begin to fuse different modes to adopt and integrate their advantages. Fused models enable employing the most appropriate learning types in each part of architecture, which allows a great promotion of grasp learning. It is very tough to model and accomplish a task only based on single learning modes. In addition, sometimes single mode perhaps complicates the problem and reduces the solving efficiency.

As mentioned in section Unsupervised Learning, it is hard to design a pipeline only based on unsupervised learning. K-means (Yu Y. et al., 2019, 2020; Li Y. et al., 2020) or GAN-analogous (Mousavian et al., 2019; Murali et al., 2020) methods only serves one functional part in entire architecture. On the other hand, like the discussion in section Reinforcement Learning, it is significant to acquire valid state representation to obtain a powerful reinforcement learning model. By integrating the visual perception, it is intuitive to utilize the input RGB images or point cloud to extract state information. Object localization and segmentation are almost achieved by numerous supervised learning-based CNN. Therefore, reinforcement learning techniques are naturally fused with supervised learning. However, large-scale datasets are commonly demanded in supervised learning to obtain a high-performance model, which request time-consuming data collection and annotation.

Self-supervised learning is a new mode in machine learning. Instead of paying expensive cost of gathering and labeling data, as a subset of unsupervised learning, self-supervised learning aims to study the labels represented by features based on provided unlabeled data. In robot learning, it's pretty costly to collect datasets and annotate each sample manually. In addition, defining, labeling and representing ground-truth for each sample may be challenging and wrong annotation can cause the model hard to train. Self-supervised learning is able to extract the feature-based labels during studying to avoid inaccuracy of handcraft. Zeng et al. (2018a), Deng et al. (2020) and Fang K. et al. (2020) adopt self-supervised framework to learn the model with a few data to pretrain or without any data to train from scratch. The results are surprisingly good and exhibit the great potential to employ self-supervised learning into robot learning research. Moreover, since training process is on the basis of unannotated data, the model performance can become cumulatively better with growth of learning time. Self-supervision is looked forward to promoting the continual learning of robotics.

Applications

There are numerous applications of robot grasping based on point cloud and deep learning. Generally, as shown in Figure 8, these methods can be categorized from two different concepts. From the perspective of end effector, approaches can be divided into suction cup, two fingers (parallel-jaw gripper) and multi fingers. In terms of operating scenarios, approaches fall into life-oriented and industry-oriented.

FIGURE 8

Figure 8. End effector, system and applications for robotics dexterous grasping. End effector is divided into simple end-effectors and advanced end-effectors. The former group contains suction cup and parallel-jaw gripper, the latter class indicates those multi-finger hands. Grasping system is first designed, deployed, and matured on simple end-effectors, then transferred and improved on advanced end-effectors. Developed systems are applied in different scenarios, life-oriented, or industry-oriented.

End Effector

Due to grasping mechanisms and DOFs vary from single suction cup (one finger) to five-finger hand, end effector plays an important role in grasp learning algorithm design. With more fingers assembled on end effector, the dexterity of grasp increases dramatically to allow robot to accomplish more complicated tasks.

Suction Cup

The suction manipulation based on vacuum cup has an unparalleled advantage over other multi-finger operation, which just request detect one feasible contact point to perform object picking. Single contact operation is not only convenient, and there is no need to worry too much about the collision between the end effector and other objects, especially in cluttered environment. Jiang et al. (2020), Mahler et al. (2018), and Mahler et al. (2019) pay efforts to pick the object through suction and obtain 98, 95, and 97.5% success rate respectively.

Parallel-Jaw Gripper

Robots equipped with parallel-jaw gripper are more favored in research and real life than humans grasp an object using movable joints index finger and thumb. Compared with suction manipulation, parallel-jaw gripper is able to perform more dexterous operations even if it demands more consideration of collision. The main reasons are grippers are easy to model in physical simulation environment and sample the grasp poses in point cloud. By knowing the grasp configuration and location in operating space, it is straightforward to calculate the contact points via geometrically symmetric shape to detect the collision. Pas and Platt (2015), Gualtieri et al. (2016), Mahler et al. (2017), Pas et al. (2017), and Liang et al. (2019) are fairly representative arts in the field of two-finger grasping.

Multi Fingers

There are merely few works focus on multi-finger grasp learning, not only is it difficult to model in the simulation environment, but also because of its overhigh DOFs and contact points make the sampling-based candidate generation strategy more sophisticated. Despite this, there are still some works focus on multi-finger grasping have achieved satisfactory results. Guan et al. (2019), Lin and Cong (2019), Liu C. et al. (2019), Wu et al. (2019), Shao et al. (2020), and Yu Y. et al. (2019), Yu Y. et al. (2020) utilize three-finger hand as their end effectors and Ficuciello et al. (2019) and Yu Q. et al. (2020) adopt five-finger to design grasp learning algorithm.

Operating Scenarios

To categorize approaches in terms of operating scenarios, they can generally be divided into life-oriented and industry-oriented groups. Life-oriented methods aim to design a robot system can serve or help people to accomplish tasks in their daily life. Industry-oriented methods are designed to complete those dangerous and arduous tasks in industry.

Life-Oriented

Grasp is one of the most primitive and core manipulations of robot, many advanced operations are variant of grasping. With the growth of robot grasp learning, more and more tasks can be finished by robot in people's daily life, which improves quality of people's life. Gualtieri et al. (2017) and Zhang and Demiris (2020) propose robot systems to assist disabled people grab objects and dress cloths. Llopart et al. (2017), Zhou et al. (2019), Yang et al. (2020) and Zeng et al. (2020) aim to learn grasping capability to accomplish opening doors, grabbing glasses, picking objects from human's hands and throwing arbitrary objects. More interestingly, Parhar et al. (2018), Guo N. et al. (2020), and Kang et al. (2020) utilizes robot grasp ability to help completing crops harvesting in the farm. Zhang et al. (2020) enables robot grasping to be controlled by a smartphone. Hu et al. (2019) creatively integrates robotic grasp with surgery, which may help doctors during surgical operation. Nishikawa et al. (2019) and Schnaubelt et al. (2019) let the robot learn the knowledge to aid rescuers clean up disaster scene.

Industry-Oriented

Some works are aimed at industrial scenarios and propose algorithms for robot grasping learning to further promote productivity. Tian et al. (2017), Antonova et al. (2018), Li et al. (2018), Li H. et al. (2020), Song et al. (2019), Bui et al. (2020), and Liu et al. (2020) present some system design idea based on robot grasping that can be used in industrial production. Amazon Picking Challenge (APC) is a competition to provide a challenge problem to robotics community (Wurman and Romano, 2015) that spawns numerous excellent works based on the combination of point cloud and deep learning. Hernandez et al. (2016), Zeng et al. (2017), Morrison et al. (2018b), and Matsumoto et al. (2020) are some typical picking systems designed in top teams.

Challenges and Future Directions

Robot grasp learning based on 3D point cloud provides more potentials to estimate and execute more precise grasp pose on the target objects. Deep learning growth also brings more promising strategies on grasping system design. Applications mentioned in section Applications exhibit the great probability of dexterous-grasping ability can be closely integrated with tasks in a variety of industries. However, due to sparse and unstructured properties of point cloud, training difficulty and low generalization of deep learning and ambiguity of dexterous grasping definition, the challenges of robot grasp learning are provided. Some future directions are also discussed based on these unresolved problems. Challenges and directions can mainly be divided into three groups, improving perception and manipulation abilities of robots, promoting the intelligence of robots and enabling abilities of transferring.

Easy-Vision and Complicated-Dexterity

To achieve successful grasp goal, proposed methods heretofore commonly utilize multi viewpoints input and simplified grasp definition. Suppose deploying floor mopping robots, it is difficult to install a camera in each room. Instead, the camera will be equipped on robot which is able to barely provide partial observation of many objects. Hence, easy vision becomes increasingly useful. “Easy” means robots only take partial observation of objects from single viewpoint to detect the grasp pose. Concerning the grasp definition, lots of works are on ground of multiple hypothesizes and posture restrictions, which are not the true sense of 6-DOF grasping. Moreover, as mentioned in section End Effector, most arts focus on grasp learning with parallel-jaw gripper, which cannot be said as genuine dexterous grasping.

Single-View Grasping

Considering training a formidable grasping models, numerous works capacitate robot's visual perception ability by offering visual training data collected from multi-viewpoints. In spite of this can achieve a high grasping accuracy in special cases, these approaches have an important assumption which is robot has a complete knowledge of the environments to perform grasp poses. As a result of impossibility and hardness of providing entire object observation in diverse task scenarios, single-view grasp learning plays an increasingly important role. Shape complementation (Watkins-Valls et al., 2019; Van der Merwe et al., 2020) or taking partial observation as input immediately (Yan et al., 2019; Qian et al., 2020; Qin et al., 2020) are tried by researchers. Even sophisticating the model design and training, single-view grasp learning enhances algorithm robustness and reduces data collection cost.

6-DOF Grasping

To accomplish grasping task in a simple way, many works stipulate the end effector can only grasp objects along the axis perpendicular to workspace. However, these restrictions make performed grasps lose the so-called 6-DOF. In addition, these analogous 6-DOF grasps are hard to achieve a satisfying accuracy in cluttered environment. 6-DOF grasping should be flexible that is capable of approaching the detected grasp point from any directions. With the progress of grasping learning models and robot hardware, the problem of quasi-6-DOF grasping has been gradually improved (Gualtieri and Platt, 2018; Lin and Cong, 2019; Mousavian et al., 2019; Lou et al., 2020; Murali et al., 2020).

Multi-Finger Grasping

The ultimate goal of robot grasp learning is to give the robot an anthropomorphic grasping ability, and it is a particularly important step to evolve the end effector from parallel-jaw gripper to five fingers. Thanks to the simple characteristics of modeling and physical analysis of parallel-jaw gripper, many works have achieved incredible results on the problem of two-finger grasping. However, as for multi-finger robots, especially five-finger robots, effective work is still lacking (Ficuciello et al., 2019; Yu Q. et al., 2020). High hands DOF and computational complexity caused by multi-contact points and multi-joints remain to the difficult enhancement of five-finger grasping.

Fusion, Self-Exploration, and Continual Learning

Promoting the intelligence of robots is an appealing and core field in the future directions. Learning algorithms give robot intelligence, and the quality of the algorithms is the most prominent dependent factor for accurately and dexterously grasping objects. In order to design more complementary algorithms, fusion has become the current general trend. Fusion not only includes the integration of multiple learning modes, but also the integration between multiple modalities. Furthermore, enabling robots to have the ability of self-exploration and continual learning with a few prior knowledges has also become a hot Research Topic.

Fusion

As mentioned in section Fusion, the fusion of learning modes adopts the most appropriate learning modes at each part of the method architecture to improve model performance and reduce learning costs. In the contrast with multi-mode fusion, multimodal fusion not only relies on point cloud itself to improve the ability of grasp learning, it also utilizes language or tactile sense to enrich the features extracted in the learning process so that the robot has more grasping knowledge (Sung et al., 2017; Zhou Y. et al., 2018; Abi-Farraj et al., 2019; Kumar et al., 2019; Ottenhaus et al., 2019; Wang T. et al., 2019; Watkins-Valls et al., 2019).

Self-Exploration

Self-exploration refers to the method in which the robot learns to grasp through interacting with environments. Self-exploration breaks away from traditional approaches of relying on supervision but turns the problem into learning a policy maps from states to actions via trial and error. Reinforcement learning is currently the most powerful tool for self-exploration. As mentioned in section Reinforcement Learning, some works have been carried out around RL and achieved impressive results. Nevertheless, because the reward function is difficult to design, the deep reinforcement learning training requires a large-scale dataset support and the generalization performance is poor, there is still a lot of room for development of robot self-exploration based on RL.

Continual Learning

Continual learning (CL) is a machine learning paradigm where the data distribution and learning objective change through time, or where all the training data and objective criteria are never available at once (Hadsell et al., 2020; Lesort et al., 2020). Even for a grasping task, it is currently tough to grasp different types of objects in different scenes by a single robot. Continual learning allows the robot to learn new manipulation knowledge while not forgetting what has learned before. This ability makes it possible for a robot to complete multiple tasks. However, due to the demands for a large amount of memory to store the learned knowledge, and to adapt to the changes in the data distribution at any time, there is not much work in related fields as present. Moreover, continual learning and self-exploration complement each other. As the number of trial and error increases, robots will learn more and more knowledge. How to ensure that new knowledge doesn't overlap, conflict and cover the previous knowledge will require continual learning strategy.

Sim-to-Real and Generalization

Designing, training, and deploying a grasp learning model is often time-consuming and laborious. Researchers expect to apply transfer learning strategies (Pan and Yang, 2009) to the learned model, so that similar grasping tasks don't need to be restarted from scratch. At present, there are three crucial problems in robot learning have not been well-solved. First is the problem of sample efficiency. Because the data for training robots is difficult to collect and a lot of collected data will not be helpful to the promotion of model learning due to unrepresentative. The other is the generalization ability of the model. Since the robot's end effectors are diverse and grasp learning is for specific tasks, the generalization ability is mostly poor. Finally, sim-to-real is also a challenge. Unlike traditional artificial intelligence tasks, robot learning commonly involves training and testing algorithms in a physical simulation environment and then transplanting to real robots. However, because the simulation environments are based on the ideal physical situation, it is quite different from the reality. Moreover, the migration of visual algorithms obtained in the simulation environments to reality will have cross-domain problems, which will cause the performance of the algorithms drop significantly after migration.

Sample Efficiency

In robot learning, especially those methods based on reinforcement learning, sample efficiency is particularly significant due to the particularity of the data. The low sample efficiency will not only increase the cost of data collecting and model training, but also cause the model to easily underfit. For the off-policy reinforcement learning approaches, since the policy is improved based on training samples, models with high sample efficiency can quickly learn appropriate policy from the data (Gualtieri and Platt, 2018; Zeng et al., 2018a; Zeng, 2019).

Model Generalization and Transfer

The methods mentioned in sections Grasping Candidate Generation and Grasp Candidate Evaluation based on CNN to generate and evaluate grasp candidates show the potentials of generalization (Mahler et al., 2017, 2018; Yan et al., 2019; Chen et al., 2020; Shao et al., 2020). However, for the proposed approaches based on reinforcement learning are hard to be transferred to other tasks. Even if there are already some works on the integration of transfer learning and reinforcement learning (Tirinzoni et al., 2018; Ammanabrolu and Riedl, 2019; Gamrian and Goldberg, 2019; Liu Y. et al., 2019; Xu and Topcu, 2019), the work related to the robot grasping is lacking. The essence of transfer learning is the registration problem at the task level, including not only the task itself, but also its input and output. If robot grasping can be defined from a higher level, if will make transfer learning possible.

Sim-to-Real

Simulation-based training provides data at low-cost, but involves inherent mismatches with real-world settings (Zhao W. et al., 2020). At present, domain randomization and domain adaptation are widely used in sim-to-real problems. In order to not degrading the performance, these methods attempt to make the data distribution from the simulation environments and real-world environments more similar to each other. Nonetheless, the low interpretability of domain randomization approaches and non-real hypothesis of domain adaption still make the sim-to-real hard to solve. Imitation learning, meta-learning and knowledge distillation are also supposed to have probability to facilitate the solution, however, more time is requested to achieve the goals.

Conclusion

The current researches on robot dexterous grasp learning based on point cloud and deep learning can be divided into grasp candidate generation and grasp candidate evaluation. On the basis of this effective and reliable two-stage algorithm model, this survey proposes a more generalized learning framework. Most of the work can be summarized as a substantial contribution to one of these two stages. For work that does not belong to this framework, aside from the end-to-end model, the most prominent part is reinforcement learning framework. Although reinforcement learning is not summarized in the main framework of this review, sampling grasping actions from policy and assessing grasping actions from reward function can actually be regarded as the idea of proposed framework. But in order to respect the original motivation of the authors, RL-based approaches are not categorized. This survey aims to provide valuable insights and inspiration ground of sufficient bibliographical contents. Although there are still numerous challenges and limitations, methods with point cloud and deep learning have proven their potentials in promoting the improvement of robot dexterous grasping.

Author Contributions

HD and PW brought up the core concept and architecture of this manuscript. HD and YH collected the majority of references. HD wrote the paper. GX and WW processed the objects point clouds of figures in the paper. XS refines some details of expression in section Object-Aware Sampling. All authors contributed to the article and approved the submitted version.

Funding

This work was supported in part by the Strategic Priority Research Program of Chinese Academy of Science under Grant XDB32050100 and in part by the National Natural Science Foundation of China under Grants 91748131, 62006229, and 61771471.

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

References

Abi-Farraj, F., Pacchierotti, C., Arenz, O., Neumann, G., and Giordano, P. R. (2019). A haptic shared-control architecture for guided multi-target robotic grasping. IEEE Trans. Haptics 13, 270–285. doi: 10.1109/TOH.2019.2913643

PubMed Abstract | CrossRef Full Text | Google Scholar

Aldoma, A., Marton, Z.-C., Tombari, F., Wohlkinger, W., Potthast, C., Zeisl, B., et al. (2012). Tutorial: Point cloud library: Three-dimensional object recognition and 6 dof pose estimation. IEEE Robot. Autom. Magaz. 19, 80–91. doi: 10.1109/MRA.2012.2206675

CrossRef Full Text | Google Scholar

Ammanabrolu, P., and Riedl, M. O. (2019). Transfer in deep reinforcement learning using knowledge graphs. arXiv [Preprint]. arXiv:1908.06556. doi: 10.18653/v1/D19-5301

CrossRef Full Text | Google Scholar

Antonova, R., Kokic, M., Stork, J. A., and Kragic, D. (2018). Global search with bernoulli alternation kernel for task-oriented grasping informed by simulation. arXiv [Preprint]. arXiv:1810.04438.

Google Scholar

Ardón, P., Pairet, È., Petrick, R. P., Ramamoorthy, S., and Lohan, K. S. (2019). Learning grasp affordance reasoning through semantic relations. IEEE Robot. Autom. Lett. 4, 4571–4578. doi: 10.1109/LRA.2019.2933815

CrossRef Full Text | Google Scholar

Astrom, K. J. (1965). Optimal control of Markov processes with incomplete state information. J. Math. Anal. Appl. 10, 174–205. doi: 10.1016/0022-247X(65)90154-X

CrossRef Full Text | Google Scholar

Bauza, M., Alet, F., Lin, Y.-C., Lozano-Pérez, T., Kaelbling, L. P., Isola, P., et al. (2019). Omnipush: accurate, diverse, real-world dataset of pushing dynamics with rgb-d video. arXiv [Preprint]. arXiv:1910.00618. doi: 10.1109/IROS40897.2019.8967920

CrossRef Full Text | Google Scholar

Billard, A., and Kragic, D. (2019). Trends and challenges in robot manipulation. Science 364:eaat8414. doi: 10.1126/science.aat8414

CrossRef Full Text | Google Scholar

Boser, B. E., Guyon, I. M., and Vapnik, V. N. (1992). “A training algorithm for optimal margin classifiers,” in Proceedings of the Fifth Annual Workshop on Computational Learning Theory (Pittsburgh, PA), 144–152. doi: 10.1145/130385.130401

CrossRef Full Text | Google Scholar

Bottarel, F., Vezzani, G., Pattacini, U., and Natale, L. (2020). GRASPA 1.0: GRASPA is a robot arm grasping performance benchmark. IEEE Robot. Autom. Lett. 5, 836–843. doi: 10.1109/LRA.2020.2965865

CrossRef Full Text | Google Scholar

Boularias, A., Bagnell, J. A., and Stentz, A. (2014). “Efficient optimization for autonomous robotic manipulation of natural objects,” in AAAI (Quebec City, QC), 2520–2526.

Google Scholar

Boularias, A., Bagnell, J. A., and Stentz, A. (2015). “Learning to manipulate unknown objects in clutter by reinforcement,” in Twenty-Ninth AAAI Conference on Artificial Intelligence (Austin, TX).

Google Scholar

Bui, H.-D., Nguyen, H., La, H. M., and Li, S. (2020). A deep learning-based autonomous robot manipulator for sorting application. arXiv [Preprint]. arXiv:2009.03565. doi: 10.1109/IRC.2020.00055

CrossRef Full Text | Google Scholar

Caldera, S., Rassau, A., and Chai, D. (2018). Review of deep learning methods in robotic grasp detection. Multimodal Technol. Interact. 2:57. doi: 10.3390/mti2030057

CrossRef Full Text | Google Scholar

Calli, B., Singh, A., Bruce, J., Walsman, A., Konolige, K., Srinivasa, S., et al. (2017). Yale-CMU-Berkeley dataset for robotic manipulation research. Int. J. Robot. Res. 36, 261–268. doi: 10.1177/0278364917700714

CrossRef Full Text | Google Scholar

Calli, B., Singh, A., Walsman, A., Srinivasa, S., Abbeel, P., and Dollar, A. M. (2015a). “The ycb object and model set: Towards common benchmarks for manipulation research,” in 2015 International Conference on Advanced Robotics (ICAR) (Istanbul: IEEE), 510–517. doi: 10.1109/ICAR.2015.7251504

CrossRef Full Text | Google Scholar

Calli, B., Walsman, A., Singh, A., Srinivasa, S., Abbeel, P., and Dollar, A. M. (2015b). Benchmarking in manipulation research: the YCB object and model set and benchmarking protocols. IEEE Robot. Autom. Mag. 22, 36–52. doi: 10.1109/MRA.2015.2448951

CrossRef Full Text | Google Scholar

Chen, C.-S., Chen, P.-C., and Hsu, C.-M. (2016). Three-dimensional object recognition and registration for robotic grasping systems using a modified viewpoint feature histogram. Sensors 16:1969. doi: 10.3390/s16111969

PubMed Abstract | CrossRef Full Text | Google Scholar

Chen, I.-M., and Burdick, J. W. (1993). Finding antipodal point grasps on irregularly shaped objects. IEEE Trans. Robot. Autom. 9, 507–512. doi: 10.1109/70.246063

CrossRef Full Text | Google Scholar

Chen, X., Ye, Z., Sun, J., Fan, Y., Hu, F., Wang, C., et al. (2020). Transferable active grasping and real embodied dataset. arXiv [Preprint]. arXiv:2004.13358. doi: 10.1109/ICRA40945.2020.9197185

CrossRef Full Text | Google Scholar

Cheng, H.-T., Koc, L., Harmsen, J., Shaked, T., Chandra, T., Aradhye, H., et al. (2016). “Wide and deep learning for recommender systems,” in Proceedings of the 1st Workshop on Deep Learning for Recommender Systems (Boston, MA), 7–10. doi: 10.1145/2988450.2988454

CrossRef Full Text | Google Scholar

Choi, C., Schwarting, W., DelPreto, J., and Rus, D. (2018). Learning object grasping for soft robot hands. IEEE Robot. Autom. Lett. 3, 2370–2377. doi: 10.1109/LRA.2018.2810544

CrossRef Full Text | Google Scholar

Ciocarlie, M., Goldfeder, C., and Allen, P. (2007). “Dexterous grasping via eigengrasps: a low-dimensional approach to a high-complexity problem,” in Robotics: Science and Systems Manipulation Workshop-Sensing and Adapting to the Real World (Atlanta, GA: Georgia Tech).

Google Scholar

Ciocarlie, M. T., and Allen, P. K. (2009). Hand posture subspaces for dexterous robotic grasping. Int. J. Robot. Res. 28, 851–867. doi: 10.1177/0278364909105606

CrossRef Full Text | Google Scholar

Dai, A., Ruizhongtai Qi, C., and Nießner, M. (2017). “Shape completion using 3d-encoder-predictor cnns and shape synthesis,” in Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition (Honolulu, HI), 5868–5877. doi: 10.1109/CVPR.2017.693

CrossRef Full Text | Google Scholar

Dai, J., Li, Y., He, K., and Sun, J. (2016). “R-fcn: Object detection via region-based fully convolutional networks,” in Advances in Neural Information Processing Systems (Barcelona), 379–387.

Google Scholar

Deng, X., Xiang, Y., Mousavian, A., Eppner, C., Bretl, T., and Fox, D. (2020). “Self-supervised 6d object pose estimation for robot manipulation,” in 2020 IEEE International Conference on Robotics and Automation (ICRA) (Paris: IEEE), 3665–3671. doi: 10.1109/ICRA40945.2020.9196714

CrossRef Full Text | Google Scholar

Depierre, A., Dellandréa, E., and Chen, L. (2018). “Jacquard: a large scale dataset for robotic grasp detection,” in 2018 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS) (Madrid: IEEE), 3511–3516. doi: 10.1109/IROS.2018.8593950

CrossRef Full Text | Google Scholar

Do, T.-T., Nguyen, A., and Reid, I. (2018). “Affordancenet: an end-to-end deep learning approach for object affordance detection,” in 2018 IEEE International Conference on Robotics and Automation (ICRA) (Brisbane, QLD: IEEE), 1–5. doi: 10.1109/ICRA.2018.8460902

CrossRef Full Text | Google Scholar

Dong, Z., Liu, S., Zhou, T., Cheng, H., Zeng, L., Yu, X., et al. (2019). “PPR-Net: point-wise pose regression network for instance segmentation and 6d pose estimation in bin-picking scenarios,” in 2019 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS) (Macau: IEEE), 1773–1780. doi: 10.1109/IROS40897.2019.8967895

CrossRef Full Text | Google Scholar

Du, G., Wang, K., Lian, S., and Zhao, K. (2020). Vision-based robotic grasping from object localization, object pose estimation to grasp estimation for parallel grippers: a review. Artif. Intellig. Rev. 54, 1677–1734. doi: 10.1007/s10462-020-09888-5

CrossRef Full Text | Google Scholar

Dyrstad, J. S., Bakken, M., Grøtli, E. I., Schulerud, H., and Mathiassen, J. R. (2018). “Bin picking of reflective steel parts using a dual-resolution convolutional neural network trained in a simulated environment,” in 2018 IEEE International Conference on Robotics and Biomimetics (ROBIO) (Kuala Lumpur: IEEE), 530–537. doi: 10.1109/ROBIO.2018.8664766

CrossRef Full Text | Google Scholar

Eppner, C., Mousavian, A., and Fox, D. (2019). A billion ways to grasp: an evaluation of grasp sampling schemes on a dense, physics-based grasp data set. arXiv [Preprint]. arXiv:1912.05604.

Google Scholar

Fan, H., Su, H., and Guibas, L. J. (2017). “A point set generation network for 3d object reconstruction from a single image,” in Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition (Honolulu, HI), 605–613. doi: 10.1109/CVPR.2017.264

CrossRef Full Text | Google Scholar

Fang, H.-S., Wang, C., Gou, M., and Lu, C. (2020). “GraspNet-1Billion: a large-scale benchmark for general object grasping,” in Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition (Seattle, WA: IEEE), 11444–11453. doi: 10.1109/CVPR42600.2020.01146

CrossRef Full Text | Google Scholar

Fang, K., Zhu, Y., Garg, A., Kurenkov, A., Mehta, V., Fei-Fei, L., et al. (2020). Learning task-oriented grasping for tool manipulation from simulated self-supervision. Int. J. Robot. Res. 39, 202–216. doi: 10.1177/0278364919872545

CrossRef Full Text | Google Scholar

Ficuciello, F., Migliozzi, A., Laudante, G., Falco, P., and Siciliano, B. (2019). Vision-based grasp learning of an anthropomorphic hand-arm system in a synergy-based control framework. Sci. Robot. 4:eaao4900. doi: 10.1126/scirobotics.aao4900

PubMed Abstract | CrossRef Full Text | Google Scholar

Finn, C., and Levine, S. (2017). “Deep visual foresight for planning robot motion,” in 2017 IEEE International Conference on Robotics and Automation (ICRA) (Singapore: IEEE), 2786–2793. doi: 10.1109/ICRA.2017.7989324

CrossRef Full Text | Google Scholar

Fischinger, D., Weiss, A., and Vincze, M. (2015). Learning grasps with topographic features. Int. J. Robot. Res. 34, 1167–1194. doi: 10.1177/0278364915577105

CrossRef Full Text | Google Scholar

Fischler, M. A., and Bolles, R. C. (1981). Random sample consensus: a paradigm for model fitting with applications to image analysis and automated cartography. Commun. ACM 24, 381–395. doi: 10.1145/358669.358692

CrossRef Full Text | Google Scholar

Gal, Y., and Ghahramani, Z. (2016). “Dropout as a bayesian approximation: representing model uncertainty in deep learning,” in International Conference on Machine Learning (New York, NY), 1050–1059.

Google Scholar

Gamrian, S., and Goldberg, Y. (2019). “Transfer learning for related reinforcement learning tasks via image-to-image translation,” in International Conference on Machine Learning (Long Beach, CA: PMLR), 2063–2072.

Google Scholar

Gibson, J. J. (2014). The Ecological Approach to Visual Perception: Classic Edition. New York, NY; London: Psychology Press. doi: 10.4324/9781315740218

CrossRef Full Text | Google Scholar

Glasmachers, T. (2017). Limits of end-to-end learning. arXiv [Preprint]. arXiv:1704.08305.

Google Scholar

Goldfeder, C., Ciocarlie, M., Dang, H., and Allen, P. K. (2009). “The columbia grasp database,” in 2009 IEEE International Conference on Robotics and Automation (Kobe: IEEE), 1710–1716. doi: 10.1109/ROBOT.2009.5152709

CrossRef Full Text | Google Scholar

Golovinskiy, A., and Funkhouser, T. (2009). “Min-cut based segmentation of point clouds,” in 2009 IEEE 12th International Conference on Computer Vision Workshops, ICCV Workshops (Kyoto: IEEE), 39–46. doi: 10.1109/ICCVW.2009.5457721

CrossRef Full Text | Google Scholar

Goodfellow, I., Pouget-Abadie, J., Mirza, M., Xu, B., Warde-Farley, D., Ozair, S., et al. (2014). “Generative adversarial nets,” in Advances in Neural Information Processing Systems (Montreal, QC), 2672–2680.

Google Scholar

Gualtieri, M., Kuczynski, J., Shultz, A. M., Ten Pas, A., Platt, R., and Yanco, H. (2017). “Open world assistive grasping using laser selection,” in 2017 IEEE International Conference on Robotics and Automation (ICRA) (Singapore: IEEE), 4052–4057. doi: 10.1109/ICRA.2017.7989465

CrossRef Full Text | Google Scholar

Gualtieri, M., and Platt, R. (2018). Learning 6-dof grasping and pick-place using attention focus. arXiv [Preprint]. arXiv:1806.06134.

Google Scholar

Gualtieri, M., Ten Pas, A., Saenko, K., and Platt, R. (2016). “High precision grasp pose detection in dense clutter,” in 2016 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS) (Daejeon: IEEE), 598–605. doi: 10.1109/IROS.2016.7759114

CrossRef Full Text | Google Scholar

Guan, H., Li, J., and Yan, R. (2019). “An efficient robotic grasping pipeline base on fully convolutional neural network,” in 2019 5th International Conference on Control, Automation and Robotics (ICCAR) (Beijing: IEEE), 172–176. doi: 10.1109/ICCAR.2019.8813502

CrossRef Full Text | Google Scholar

Guo, N., Zhang, B., Zhou, J., Zhan, K., and Lai, S. (2020). Pose estimation and adaptable grasp configuration with point cloud registration and geometry understanding for fruit grasp planning. Comput. Electron. Agric. 179:105818. doi: 10.1016/j.compag.2020.105818

CrossRef Full Text | Google Scholar

Guo, Y., Wang, H., Hu, Q., Liu, H., Liu, L., and Bennamoun, M. (2020). Deep learning for 3d point clouds: a survey. IEEE Trans. Pattern Anal. Mach. Intell. doi: 10.1109/TPAMI.2020.3005434

PubMed Abstract | CrossRef Full Text | Google Scholar

Hadsell, R., Rao, D., Rusu, A. A., and Pascanu, R. (2020). Embracing change: continual learning in deep neural networks. Trends Cogn. Sci. 24, P1028–P1040. doi: 10.1016/j.tics.2020.09.004

PubMed Abstract | CrossRef Full Text | Google Scholar

Haustein, J. A., Hang, K., and Kragic, D. (2017). “Integrating motion and hierarchical fingertip grasp planning,” in 2017 IEEE International Conference on Robotics and Automation (ICRA) (Singapore: IEEE), 3439–3446. doi: 10.1109/ICRA.2017.7989392

CrossRef Full Text | Google Scholar

He, K., Gkioxari, G., Dollár, P., and Girshick, R. (2017). “Mask r-cnn,” in Proceedings of the IEEE International Conference on Computer Vision (Venice), 2961–2969. doi: 10.1109/ICCV.2017.322

CrossRef Full Text | Google Scholar

He, K., Zhang, X., Ren, S., and Sun, J. (2016). “Deep residual learning for image recognition,” in Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition (Las Vegas, NV), 770–778. doi: 10.1109/CVPR.2016.90

PubMed Abstract | CrossRef Full Text | Google Scholar

Hernandez, C., Bharatheesha, M., Ko, W., Gaiser, H., Tan, J., van Deurzen, K., et al. (2016). “Team delft's robot winner of the amazon picking challenge 2016,” in Robot World Cup (Leipzig: Springer), 613–624. doi: 10.1007/978-3-319-68792-6_51

CrossRef Full Text | Google Scholar

Hinton, G. E., Sejnowski, T. J., and Poggio, T. A. (1999). Unsupervised Learning: Foundations of Neural Computation. Cambridge; London: MIT Press. doi: 10.7551/mitpress/7011.001.0001

CrossRef Full Text | Google Scholar

Howard, A. G., Zhu, M., Chen, B., Kalenichenko, D., Wang, W., Weyand, T., et al. (2017). Mobilenets: Efficient convolutional neural networks for mobile vision applications. arXiv [Preprint]. arXiv:1704.04861.

Google Scholar

Hu, J., Sun, Y., Li, G., Jiang, G., and Tao, B. (2019). Probability analysis for grasp planning facing the field of medical robotics. Measurement 141, 227–234. doi: 10.1016/j.measurement.2019.03.010

CrossRef Full Text | Google Scholar

Ioffe, S., and Szegedy, C. (2015). Batch normalization: accelerating deep network training by reducing internal covariate shift. arXiv [Preprint]. arXiv:1502.03167.

Google Scholar

James, S., Davison, A. J., and Johns, E. (2017). Transferring end-to-end visuomotor control from simulation to real world for a multi-stage task. arXiv [Preprint]. arXiv:1707.02267.

Google Scholar

Jaśkowski, M., Swiatkowski, J., Zajac, M., Klimek, M., Potiuk, J., Rybicki, P., et al. (2018). Improved GQ-CNN: deep learning model for planning robust grasps. arXiv [Preprint]. arXiv:1802.05992.

Google Scholar

Jiang, L., Shi, S., Qi, X., and Jia, J. (2018). “Gal: Geometric adversarial loss for single-view 3d-object reconstruction,” in Proceedings of the European Conference on Computer Vision (ECCV) (Munich), 802–816. doi: 10.1007/978-3-030-01237-3_49

CrossRef Full Text | Google Scholar

Jiang, P., Ishihara, Y., Sugiyama, N., Oaki, J., Tokura, S., Sugahara, A., et al. (2020). Depth image–based deep learning of grasp planning for textureless planar-faced objects in vision-guided robotic bin-picking. Sensors 20:706. doi: 10.3390/s20030706

PubMed Abstract | CrossRef Full Text | Google Scholar

Jiang, Y., Lim, M., and Saxena, A. (2012). Learning object arrangements in 3d scenes using human context. arXiv [Preprint]. arXiv:1206.6462.

Google Scholar

Jiang, Y., Moseson, S., and Saxena, A. (2011). “Efficient grasping from rgbd images: Learning using a new rectangle representation,” in 2011 IEEE International Conference on Robotics and Automation (Shanghai: IEEE), 3304–3311. doi: 10.1109/ICRA.2011.5980145

CrossRef Full Text | Google Scholar

Johns, E., Leutenegger, S., and Davison, A. J. (2016). “Deep learning a grasp function for grasping under gripper pose uncertainty,” in 2016 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS) (Daejeon: IEEE), 4461–4468. doi: 10.1109/IROS.2016.7759657

CrossRef Full Text | Google Scholar

Kang, H., Zhou, H., Wang, X., and Chen, C. (2020). Real-time fruit recognition and grasping estimation for robotic apple harvesting. Sensors 20:5670. doi: 10.3390/s20195670

PubMed Abstract | CrossRef Full Text | Google Scholar

Kanoulas, D., Lee, J., Caldwell, D. G., and Tsagarakis, N. G. (2017). Visual grasp affordance localization in point clouds using curved contact patches. Int. J. Humanoid Robot. 14:1650028. doi: 10.1142/S0219843616500286

CrossRef Full Text | Google Scholar

Kappler, D., Bohg, J., and Schaal, S. (2015). “Leveraging big data for grasp planning,” in 2015 IEEE International Conference on Robotics and Automation (ICRA) (Seattle, WA: IEEE), 4304–4311. doi: 10.1109/ICRA.2015.7139793

CrossRef Full Text | Google Scholar

Kappler, D., Schaal, S., and Bohg, J. (2016). “Optimizing for what matters: the top grasp hypothesis,” in 2016 IEEE International Conference on Robotics and Automation (ICRA) (Stockholm: IEEE), 2167–2174. doi: 10.1109/ICRA.2016.7487367

CrossRef Full Text | Google Scholar

Katz, D., Venkatraman, A., Kazemi, M., Bagnell, J. A., and Stentz, A. (2014). Perceiving, learning, and exploiting object affordances for autonomous pile manipulation. Auton. Robots 37, 369–382. doi: 10.1007/s10514-014-9407-y

CrossRef Full Text | Google Scholar

Kehoe, B., Berenson, D., and Goldberg, K. (2012). “Toward cloud-based grasping with uncertainty in shape: estimating lower bounds on achieving force closure with zero-slip push grasps,” in 2012 IEEE International Conference on Robotics and Automation (St Paul, MN: IEEE), 576–583. doi: 10.1109/ICRA.2012.6224781

CrossRef Full Text | Google Scholar

Kiatos, M., and Malassiotis, S. (2019). “Grasping unknown objects by exploiting complementarity with robot hand geometry,” in International Conference on Computer Vision Systems (Thessaloniki: Springer), 88–97. doi: 10.1007/978-3-030-34995-0_8

CrossRef Full Text | Google Scholar

Kim, C.-J., and Nelson, C. R. (1999). State-Space Models With Regime Switching: Classical and Gibbs-Sampling Approaches With Applications. Cambridge; London: MIT Press Books 1.

Google Scholar

Kim, J., Iwamoto, K., Kuffner, J. J., Ota, Y., and Pollard, N. S. (2013). Physically based grasp quality evaluation under pose uncertainty. IEEE Trans. Robot. 29, 1424–1439. doi: 10.1109/TRO.2013.2273846

CrossRef Full Text | Google Scholar

Kingma, D. P., and Welling, M. (2013). Auto-encoding variational bayes. arXiv [Preprint]. arXiv:1312.6114.

Google Scholar

Kleeberger, K., Bormann, R., Kraus, W., and Huber, M. F. (2020). A survey on learning-based robotic grasping. Curr. Robot. Rep. 1, 239–249. doi: 10.1007/s43154-020-00021-6

CrossRef Full Text | Google Scholar

Klokov, R., and Lempitsky, V. (2017). “Escape from cells: deep kd-networks for the recognition of 3d point cloud models,” in Proceedings of the IEEE International Conference on Computer Vision (Venice), 863–872. doi: 10.1109/ICCV.2017.99

CrossRef Full Text | Google Scholar

Kokic, M., Stork, J. A., Haustein, J. A., and Kragic, D. (2017). “Affordance detection for task-specific grasping using deep learning,” in 2017 IEEE-RAS 17th International Conference on Humanoid Robotics (Humanoids) (Birmingham: IEEE), 91–98. doi: 10.1109/HUMANOIDS.2017.8239542

CrossRef Full Text | Google Scholar

Koppula, H. S., Gupta, R., and Saxena, A. (2013). Learning human activities and object affordances from rgb-d videos. Int. J. Robot. Res. 32, 951–970. doi: 10.1177/0278364913478446

CrossRef Full Text | Google Scholar

Kroemer, O., Niekum, S., and Konidaris, G. (2019). A review of robot learning for manipulation: challenges, representations, and algorithms. arXiv [Preprint]. arXiv:1907.03146.

Google Scholar

Kumar, V., Herman, T., Fox, D., Birchfield, S., and Tremblay, J. (2019). Contextual reinforcement learning of visuo-tactile multi-fingered grasping policies. arXiv [Preprint]. arXiv:1911.09233.

Google Scholar

Kumra, S., and Kanan, C. (2017). “Robotic grasp detection using deep convolutional neural networks,” in 2017 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS) (Vancouver, BC: IEEE), 769–776. doi: 10.1109/IROS.2017.8202237

CrossRef Full Text | Google Scholar

Laskey, M., Mahler, J., McCarthy, Z., Pokorny, F. T., Patil, S., Van Den Berg, J., et al. (2015). “Multi-armed bandit models for 2d grasp planning with uncertainty,” in 2015 IEEE International Conference on Automation Science and Engineering (CASE) (Gothenburg: IEEE), 572–579. doi: 10.1109/CoASE.2015.7294140

CrossRef Full Text | Google Scholar

Le, Q. V., Kamm, D., Kara, A. F., and Ng, A. Y. (2010). “Learning to grasp objects with multiple contact points,” in 2010 IEEE International Conference on Robotics and Automation (Anchorage, AK: IEEE), 5062–5069. doi: 10.1109/ROBOT.2010.5509508

CrossRef Full Text | Google Scholar

LeCun, Y., Bottou, L., Bengio, Y., and Haffner, P. (1998). Gradient-based learning applied to document recognition. Proc. IEEE 86, 2278–2324. doi: 10.1109/5.726791

CrossRef Full Text | Google Scholar

Lenz, I., Lee, H., and Saxena, A. (2015). Deep learning for detecting robotic grasps. Int. J. Robot. Res. 34, 705–724. doi: 10.1177/0278364914549607

CrossRef Full Text | Google Scholar

Lesort, T., Lomonaco, V., Stoian, A., Maltoni, D., Filliat, D., and Díaz-Rodríguez, N. (2020). Continual learning for robotics: definition, framework, learning strategies, opportunities and challenges. Inform. Fusion 58, 52–68. doi: 10.1016/j.inffus.2019.12.004

CrossRef Full Text | Google Scholar

Levine, S., Pastor, P., Krizhevsky, A., Ibarz, J., and Quillen, D. (2018). Learning hand-eye coordination for robotic grasping with deep learning and large-scale data collection. Int. J. Robot. Res. 37, 421–436. doi: 10.1177/0278364917710318

CrossRef Full Text | Google Scholar

Li, H., Tan, J., and He, H. (2020). MagicHand: Context-Aware Dexterous Grasping Using an Anthropomorphic Robotic Hand. Paris: IEEE. doi: 10.1109/ICRA40945.2020.9196538

CrossRef Full Text | Google Scholar

Li, P., DeRose, B., Mahler, J., Ojea, J. A., Tanwani, A. K., and Goldberg, K. (2018). “Dex-net as a service (dnaas): a cloud-based robust robot grasp planning system,” in 2018 IEEE 14th International Conference on Automation Science and Engineering (CASE) (Munich: IEEE), 1420–1427. doi: 10.1109/COASE.2018.8560447

CrossRef Full Text | Google Scholar

Li, R., and Qiao, H. (2019). A survey of methods and strategies for high-precision robotic grasping and assembly tasks—some new trends. IEEE ASME Trans. Mechatron. 24, 2718–2732. doi: 10.1109/TMECH.2019.2945135

CrossRef Full Text | Google Scholar

Li, Y., Schomaker, L., and Kasaei, S. H. (2020). Learning to grasp 3D objects using deep residual U-nets. arXiv [Preprint]. arXiv:2002.03892. doi: 10.1109/RO-MAN47096.2020.9223541

CrossRef Full Text | Google Scholar

Liang, H., Ma, X., Li, S., Görner, M., Tang, S., Fang, B., et al. (2019). “Pointnetgpd: detecting grasp configurations from point sets,” in 2019 International Conference on Robotics and Automation (ICRA) (Montreal, QC: IEEE), 3629–3635. doi: 10.1109/ICRA.2019.8794435

CrossRef Full Text | Google Scholar

Lin, H.-I., and Cong, M. N. (2019). “Inference of 6-DOF robot grasps using point cloud data,” in 2019 19th International Conference on Control, Automation and Systems (ICCAS) (Chongqing: IEEE), 944–948. doi: 10.23919/ICCAS47443.2019.8971464

CrossRef Full Text | Google Scholar

Lin, T.-Y., Dollár, P., Girshick, R., He, K., Hariharan, B., and Belongie, S. (2017). “Feature pyramid networks for object detection,” in Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition (Honolulu, HI), 2117–2125. doi: 10.1109/CVPR.2017.106

CrossRef Full Text | Google Scholar

Lin, Y., Zeng, L., Dong, Z., and Fu, X. (2019). “A vision-guided robotic grasping method for stacking scenes based on deep learning,” in 2019 IEEE 3rd Advanced Information Management, Communicates, Electronic and Automation Control Conference (IMCEC) (Chongqing: IEEE), 91–96. doi: 10.1109/IMCEC46724.2019.8983819

CrossRef Full Text | Google Scholar

Liu, C., Fang, B., Sun, F., Li, X., and Huang, W. (2019). Learning to grasp familiar objects based on experience and objects' shape affordance. IEEE Trans. Syst. Man Cybern. Syst. 49, 2710–2723. doi: 10.1109/TSMC.2019.2901955

CrossRef Full Text | Google Scholar

Liu, H., and Cao, C. (2020). “Grasp pose detection based on point cloud shape simplification,” in IOP Conference Series: Materials Science and Engineering (Wuhan: IOP Publishing), 012007. doi: 10.1088/1757-899X/717/1/012007

CrossRef Full Text | Google Scholar

Liu, M., Pan, Z., Xu, K., Ganguly, K., and Manocha, D. (2019). Generating grasp poses for a high-dof gripper using neural networks. arXiv [Preprint]. arXiv:1903.00425. doi: 10.1109/IROS40897.2019.8968115

CrossRef Full Text | Google Scholar

Liu, W., Anguelov, D., Erhan, D., Szegedy, C., Reed, S., Fu, C.-Y., et al. (2016). “Ssd: single shot multibox detector,” in European Conference on Computer Vision (Amsterdam: Springer), 21–37. doi: 10.1007/978-3-319-46448-0_2

CrossRef Full Text | Google Scholar

Liu, W., Daruna, A., and Chernova, S. (2020). CAGE: Context-Aware Grasping Engine. (Paris: IEEE). doi: 10.1109/ICRA40945.2020.9197289

CrossRef Full Text | Google Scholar

Liu, W., Sun, J., Li, W., Hu, T., and Wang, P. (2019). Deep learning on point clouds and its application: a survey. Sensors 19:4188. doi: 10.3390/s19194188

PubMed Abstract | CrossRef Full Text | Google Scholar

Liu, Y., Hu, Y., Gao, Y., Chen, Y., and Fan, C. (2019). Value function transfer for deep multi-agent reinforcement learning based on N-step returns in IJCAI (Macao), 457–463. doi: 10.24963/ijcai.2019/65

CrossRef Full Text | Google Scholar

Llopart, A., Ravn, O., and Andersen, N. A. (2017). “Door and cabinet recognition using convolutional neural nets and real-time method fusion for handle detection and grasping,” in 2017 3rd International Conference on Control, Automation and Robotics (ICCAR) (Nagoya: IEEE), 144–149. doi: 10.1109/ICCAR.2017.7942676

CrossRef Full Text | Google Scholar

Lloyd, S. (1982). Least squares quantization in PCM. IEEE Trans. Inform. Theory 28, 129–137. doi: 10.1109/TIT.1982.1056489

CrossRef Full Text | Google Scholar

Long, J., Shelhamer, E., and Darrell, T. (2015). “Fully convolutional networks for semantic segmentation,” in Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition (Boston, MA), 3431–3440. doi: 10.1109/CVPR.2015.7298965

CrossRef Full Text | Google Scholar

Lopes, V., Alexandre, L. A., and Fernandes, M. (2018). ““Less is more”: Simplifying point clouds to improve grasping performance”, in 2018 IEEE International Conference on Autonomous Robot Systems and Competitions (ICARSC) (Torres Vedras: IEEE), 256–260. doi: 10.1109/ICARSC.2018.8374192

CrossRef Full Text | Google Scholar

Lou, X., Yang, Y., and Choi, C. (2020). Learning to Generate 6-DoF Grasp Poses With Reachability Awareness. Paris: IEEE. doi: 10.1109/ICRA40945.2020.9197413

CrossRef Full Text | Google Scholar

Lu, H., and Shi, H. (2020). Deep learning for 3D point cloud understanding: a survey. arXiv [Preprint]. arXiv:2009.08920.

Google Scholar

Lu, Q., Chenna, K., Sundaralingam, B., and Hermans, T. (2020). “Planning multi-fingered grasps as probabilistic inference in a learned deep network,” in Robotics Research, eds N. M. Amato, G. Hager, S. Thomas, and M. Torres-Torriti (Puerto Varas: Springer), 455–472. doi: 10.1007/978-3-030-28619-4_35

CrossRef Full Text | Google Scholar

Lu, Q., and Hermans, T. (2019). Modeling grasp type improves learning-based grasp planning. IEEE Robot. Autom. Lett. 4, 784–791. doi: 10.1109/LRA.2019.2893410

CrossRef Full Text | Google Scholar

Lundell, J., Verdoja, F., and Kyrki, V. (2019). Robust grasp planning over uncertain shape completions. arXiv [Preprint]. arXiv:1903.00645. doi: 10.1109/IROS40897.2019.8967816

CrossRef Full Text | Google Scholar

Luo, S., Bimbo, J., Dahiya, R., and Liu, H. (2017). Robotic tactile perception of object properties: a review. Mechatronics 48, 54–67. doi: 10.1016/j.mechatronics.2017.11.002

CrossRef Full Text | Google Scholar

Mahler, J., and Goldberg, K. (2017). “Learning deep policies for robot bin picking by simulating robust grasping sequences,” in Conference on Robot Learning (Mountain View, CA), 515–524.

Google Scholar

Mahler, J., Liang, J., Niyaz, S., Laskey, M., Doan, R., Liu, X., et al. (2017). Dex-net 2.0: deep learning to plan robust grasps with synthetic point clouds and analytic grasp metrics. arXiv [Preprint]. arXiv:1703.09312. doi: 10.15607/RSS.2017.XIII.058

CrossRef Full Text | Google Scholar

Mahler, J., Matl, M., Liu, X., Li, A., Gealy, D., and Goldberg, K. (2018). “Dex-Net 3.0: computing robust vacuum suction grasp targets in point clouds using a new analytic model and deep learning,” in 2018 IEEE International Conference on Robotics and Automation (ICRA) (Brisbane, QLD: IEEE), 1–8. doi: 10.1109/ICRA.2018.8460887

CrossRef Full Text | Google Scholar

Mahler, J., Matl, M., Satish, V., Danielczuk, M., DeRose, B., McKinley, S., et al. (2019). Learning ambidextrous robot grasping policies. Sci. Robot. 4:eaau4984. doi: 10.1126/scirobotics.aau4984

PubMed Abstract | CrossRef Full Text | Google Scholar

Mahler, J., Patil, S., Kehoe, B., Van Den Berg, J., Ciocarlie, M., Abbeel, P., et al. (2015). “Gp-gpis-opt: Grasp planning with shape uncertainty using gaussian process implicit surfaces and sequential convex programming,” in 2015 IEEE International Conference on Robotics and Automation (ICRA) (Seattle, WA: IEEE), 4919–4926. doi: 10.1109/ICRA.2015.7139882

CrossRef Full Text | Google Scholar

Mahler, J., Pokorny, F. T., Hou, B., Roderick, M., Laskey, M., Aubry, M., et al. (2016). “Dex-net 1.0: a cloud-based network of 3d objects for robust grasp planning using a multi-armed bandit model with correlated rewards,” in 2016 IEEE International Conference on Robotics and Automation (ICRA) (Stockholm: IEEE), 1957–1964. doi: 10.1109/ICRA.2016.7487342

CrossRef Full Text | Google Scholar

Manuelli, L., Gao, W., Florence, P., and Tedrake, R. (2019). kpam: Keypoint affordances for category-level robotic manipulation. arXiv [Preprint]. arXiv:1903.06684.

Google Scholar

Mar, T., Tikhanoff, V., Metta, G., and Natale, L. (2017). “Self-supervised learning of tool affordances from 3D tool representation through parallel SOM mapping,” in 2017 IEEE International Conference on Robotics and Automation (ICRA) (Singapore: IEEE), 894–901. doi: 10.1109/ICRA.2017.7989110

CrossRef Full Text | Google Scholar

Matsumoto, E., Saito, M., Kume, A., and Tan, J. (2020). “End-to-end learning of object grasp poses in the Amazon Robotics Challenge,” in Advances on Robotic Item Picking, eds A. Causo, J. Durham, K. Hauser, K. Okada, and A. Rodriguez (Berlin; Heidelberg: Springer), 63–72. doi: 10.1007/978-3-030-35679-8_6

CrossRef Full Text | Google Scholar

Miller, A. T., and Allen, P. K. (2004). Graspit! a versatile simulator for robotic grasping. IEEE Robot. Autom. Magaz. 11, 110–122. doi: 10.1109/MRA.2004.1371616

CrossRef Full Text | Google Scholar

Mitchell, E., Engin, S., Isler, V., and Lee, D. D. (2019). Higher-order function networks for learning composable 3D object representations. arXiv [Preprint]. arXiv:1907.10388.

Google Scholar

Mnih, V., Kavukcuoglu, K., Silver, D., Rusu, A. A., Veness, J., Bellemare, M. G., et al. (2015). Human-level control through deep reinforcement learning. Nature 518, 529–533. doi: 10.1038/nature14236

PubMed Abstract | CrossRef Full Text | Google Scholar

Mohammed, M. Q., Chung, K. L., and Chyi, C. S. (2020). Review of deep reinforcement learning-based object grasping: techniques, open challenges and recommendations. IEEE Access 8, 178450–178481. doi: 10.1109/ACCESS.2020.3027923

CrossRef Full Text | Google Scholar

Monica, R., and Aleotti, J. (2020). Point cloud projective analysis for part-based grasp planning. IEEE Robot. Autom. Lett. 5, 4695–4702. doi: 10.1109/LRA.2020.3003883

CrossRef Full Text | Google Scholar

Moreno, P., Hornstein, J., and Santos-Victor, J. (2011). Learning to Grasp From Point Clouds. Lisboa: Instituto Superior Tecnico and Instituto de Sistemas e Robotica.

Google Scholar

Morrison, D., Corke, P., and Leitner, J. (2018a). Closing the loop for robotic grasping: a real-time, generative grasp synthesis approach. arXiv [Preprint]. arXiv:1804.05172. doi: 10.15607/RSS.2018.XIV.021

CrossRef Full Text | Google Scholar

Morrison, D., Tow, A. W., Mctaggart, M., Smith, R., Kelly-Boxall, N., Wade-Mccue, S., et al. (2018b). “Cartman: the low-cost cartesian manipulator that won the amazon robotics challenge,” in 2018 IEEE International Conference on Robotics and Automation (ICRA) (Brisbane, QLD: IEEE), 7757–7764. doi: 10.1109/ICRA.2018.8463191

CrossRef Full Text | Google Scholar

Mousavian, A., Eppner, C., and Fox, D. (2019). “6-dof graspnet: variational grasp generation for object manipulation,” in Proceedings of the IEEE International Conference on Computer Vision (Seoul), 2901–2910. doi: 10.1109/ICCV.2019.00299

CrossRef Full Text | Google Scholar

Murali, A., Mousavian, A., Eppner, C., Paxton, C., and Fox, D. (2020). “6-dof grasping for target-driven object manipulation in clutter,” in 2020 IEEE International Conference on Robotics and Automation (ICRA) (Paris: IEEE), 6232–6238. doi: 10.1109/ICRA40945.2020.9197318

CrossRef Full Text | Google Scholar

Murray, R. M., Li, Z., Sastry, S. S., and Sastry, S. S. (1994). A Mathematical Introduction to Robotic Manipulation. Boca Raton, FL: CRC Press.

Google Scholar

Nekrasov, V., Shen, C., and Reid, I. (2018). Light-weight refinenet for real-time semantic segmentation. arXiv [Preprint]. arXiv:1810.03272.

Google Scholar

Nishikawa, K., Ohya, J., Ogata, H., Hashimoto, K., Matsuzawa, T., Imai, A., et al. (2019). Automatic estimation of the position and orientation of the drill to be grasped and manipulated by the disaster response robot based on analyzing depth camera information. Electron. Imaging 2019, 452–457. doi: 10.2352/ISSN.2470-1173.2019.7.IRIACV-452

CrossRef Full Text | Google Scholar

Okamura, A. M., Smaby, N., and Cutkosky, M. R. (2000). “An overview of dexterous manipulation,” in Proceedings 2000 ICRA. Millennium Conference. IEEE International Conference on Robotics and Automation. Symposia Proceedings (Cat. No. 00CH37065) (San Francisco, CA: IEEE), 255–262.

Google Scholar

Ottenhaus, S., Renninghoff, D., Grimm, R., Ferreira, F., and Asfour, T. (2019). “Visuo-haptic grasping of unknown objects based on gaussian process implicit surfaces and deep learning,” in 2019 IEEE-RAS 19th International Conference on Humanoid Robots (Humanoids) (Toronto, ON: IEEE), 402–409. doi: 10.1109/Humanoids43949.2019.9035002

CrossRef Full Text | Google Scholar

Pan, S. J., and Yang, Q. (2009). A survey on transfer learning. IEEE Trans. Knowl. Data Eng. 22, 1345–1359. doi: 10.1109/TKDE.2009.191

CrossRef Full Text | Google Scholar

Parhar, T., Baweja, H., Jenkins, M., and Kantor, G. (2018). “A deep learning-based stalk grasping pipeline,” in 2018 IEEE International Conference on Robotics and Automation (ICRA) (Brisbane, QLD: IEEE), 1–5. doi: 10.1109/ICRA.2018.8460597

CrossRef Full Text | Google Scholar

Pas, A. T., Gualtieri, M., Saenko, K., and Platt, R. (2017). Grasp pose detection in point clouds. Int. J. Rob. Res. 36, 1455–1473. doi: 10.1177/0278364917735594

CrossRef Full Text | Google Scholar

Pas, A. T., and Platt, R. (2013). Localizing grasp affordances in 3-D points clouds using taubin quadric fitting. arXiv [Preprint]. arXiv:1311.3192.

Google Scholar

Pas, A. T., and Platt, R. (2015). Using geometry to detect grasps in 3d point clouds. arXiv [Preprint]. arXiv:1501.03100.

Google Scholar

Pas, A. T., and Platt, R. (2016). “Localizing handle-like grasp affordances in 3d point clouds,” in Experimental Robotics, eds M. A. Hsieh, O. Khatib, and V. Kumar (Marrakech; Essaouira: Springer), 623–638. doi: 10.1007/978-3-319-23778-7_41

CrossRef Full Text | Google Scholar

Prattichizzo, D., and Trinkle, J. C. (2016). “Grasping,” in Springer Handbook of Robotics, eds B. Siciliano and O. Khatib (Berlin; Heidelberg: Springer), 955–988. doi: 10.1007/978-3-319-32552-1_38

CrossRef Full Text | Google Scholar

Prattichizzo, D., Trinkle, J. C., Siciliano, B., and Khatib, O. (2008). “Springer handbook of robotics,” in Grasping, eds B. Siciliano and O. Khatib (Berlin; Heidelberg: Springer), 671–700. doi: 10.1007/978-3-540-30301-5_29

CrossRef Full Text

Qi, C. R., Su, H., Mo, K., and Guibas, L. J. (2017a). “Pointnet: deep learning on point sets for 3d classification and segmentation,” in Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition (Honolulu, HI), 652–660.

Google Scholar

Qi, C. R., Yi, L., Su, H., and Guibas, L. J. (2017b). “Pointnet++: Deep hierarchical feature learning on point sets in a metric space,” in Advances in Neural Information Processing Systems (Long Beach, CA), 5099–5108.

Google Scholar

Qian, K., Jing, X., Duan, Y., Zhou, B., Fang, F., Xia, J., et al. (2020). Grasp pose detection with affordance-based task constraint learning in single-view point clouds. J. Intellig. Robot. Syst. 100, 145–163. doi: 10.1007/s10846-020-01202-3

CrossRef Full Text | Google Scholar

Qin, Y., Chen, R., Zhu, H., Song, M., Xu, J., and Su, H. (2020). “S4g: amodal single-view single-shot se (3) grasp detection in cluttered scenes,” in Conference on Robot Learning (Osaka: PMLR), 53–65.

Google Scholar

Redmon, J., Divvala, S., Girshick, R., and Farhadi, A. (2016). “You only look once: unified, real-time object detection,” in Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition (Las Vegas, NV), 779–788. doi: 10.1109/CVPR.2016.91

CrossRef Full Text | Google Scholar

Redmon, J., and Farhadi, A. (2018). Yolov3: an incremental improvement. arXiv [Preprint]. arXiv:1804.02767.

Google Scholar

Ren, S., He, K., Girshick, R., and Sun, J. (2015). “Faster r-cnn: towards real-time object detection with region proposal networks,” in Advances in Neural Information Processing Systems (Montreal, QC), 91–99.

PubMed Abstract | Google Scholar

Richardson, M., and Domingos, P. (2006). Markov logic networks. Mach. Learn. 62, 107–136. doi: 10.1007/s10994-006-5833-1

CrossRef Full Text | Google Scholar

Roy, A. G., Navab, N., and Wachinger, C. (2018). “Concurrent spatial and channel ‘squeeze and excitation’in fully convolutional networks,” in International Conference on Medical Image Computing and Computer-Assisted Intervention (Granada: Springer), 421–429. doi: 10.1007/978-3-030-00928-1_48

CrossRef Full Text | Google Scholar

Ruiz-del-Solar, J., Loncomilla, P., and Soto, N. (2018). A survey on deep learning methods for robot vision. arXiv [Preprint]. arXiv:1803.10862.

Google Scholar

Runz, M., Buffier, M., and Agapito, L. (2018). “Maskfusion: Real-time recognition, tracking and reconstruction of multiple moving objects,” in 2018 IEEE International Symposium on Mixed and Augmented Reality (ISMAR) (Munich: IEEE), 10–20. doi: 10.1109/ISMAR.2018.00024

CrossRef Full Text | Google Scholar

Russell, S., and Norvig, P. (2002). Artificial Intelligence: A Modern Approach, 2nd Edn. Prentice Hall

Google Scholar

Rusu, R. B., Bradski, G., Thibaux, R., and Hsu, J. (2010). “Fast 3d recognition and pose using the viewpoint feature histogram,” in 2010 IEEE/RSJ International Conference on Intelligent Robots and Systems (Taipei: IEEE), 2155–2162. doi: 10.1109/IROS.2010.5651280

CrossRef Full Text | Google Scholar

Rusu, R. B., and Cousins, S. (2011). “3d is here: Point cloud library (pcl),” in 2011 IEEE International Conference on Robotics and Automation (Shanghai: IEEE), 1–4. doi: 10.1109/ICRA.2011.5980567

CrossRef Full Text | Google Scholar

Satish, V., Mahler, J., and Goldberg, K. (2019). On-policy dataset synthesis for learning robot grasping policies using fully convolutional deep networks. IEEE Robot. Autom. Lett. 4, 1357–1364. doi: 10.1109/LRA.2019.2895878

CrossRef Full Text | Google Scholar

Saut, J.-P., Sahbani, A., El-Khoury, S., and Perdereau, V. (2007). “Dexterous manipulation planning using probabilistic roadmaps in continuous grasp subspaces,” in 2007 IEEE/RSJ International Conference on Intelligent Robots and Systems (San Diego, CA: IEEE), 2907–2912. doi: 10.1109/IROS.2007.4399090

CrossRef Full Text | Google Scholar

Schmidt, P., Vahrenkamp, N., Wächter, M., and Asfour, T. (2018). “Grasping of unknown objects using deep convolutional neural networks based on depth images,” in 2018 IEEE International Conference on Robotics and Automation (ICRA) (Brisbane, QLD: IEEE), 6831–6838. doi: 10.1109/ICRA.2018.8463204

CrossRef Full Text | Google Scholar

Schnaubelt, M., Kohlbrecher, S., and von Stryk, O. (2019). “Autonomous assistance for versatile grasping with rescue robots,” in 2019 IEEE International Symposium on Safety, Security, and Rescue Robotics (SSRR) (Würzburg: IEEE), 210–215. doi: 10.1109/SSRR.2019.8848947

CrossRef Full Text | Google Scholar

Schwarz, M., Lenz, C., García, G. M., Koo, S., Periyasamy, A. S., Schreiber, M., et al. (2018). “Fast object learning and dual-arm coordination for cluttered stowing, picking, and packing,” in 2018 IEEE International Conference on Robotics and Automation (ICRA) (Brisbane, QLD: IEEE), 3347–3354. doi: 10.1109/ICRA.2018.8461195

CrossRef Full Text | Google Scholar

Shao, L., Ferreira, F., Jorda, M., Nambiar, V., Luo, J., Solowjow, E., et al. (2020). UniGrasp: learning a unified model to grasp with multifingered robotic hands. IEEE Robot. Autom. Lett. 5, 2286–2293. doi: 10.1109/LRA.2020.2969946

CrossRef Full Text | Google Scholar

Singh, N., Blum, Z., and Renjith, N. (2018). Point Cloud Grasp Classification for Robot Grasping. Stanford, CA: Stanford University.

Google Scholar

Song, K.-T., Chang, Y.-H., and Chen, J.-H. (2019). “3D vision for object grasp and obstacle avoidance of a collaborative robot,” in 2019 IEEE/ASME International Conference on Advanced Intelligent Mechatronics (AIM) (Hong Kong: IEEE), 254–258. doi: 10.1109/AIM.2019.8868694

CrossRef Full Text | Google Scholar

Srivastava, N., Hinton, G., Krizhevsky, A., Sutskever, I., and Salakhutdinov, R. (2014). Dropout: a simple way to prevent neural networks from overfitting. J. Mach. Learn. Res. 15, 1929–1958.

Google Scholar

Sun, G.-J., and Lin, H.-Y. (2020). “Robotic grasping using semantic segmentation and primitive geometric model based 3D pose estimation,” in 2020 IEEE/SICE International Symposium on System Integration (SII) (Honolulu, HI: IEEE), 337–342. doi: 10.1109/SII46433.2020.9026297

CrossRef Full Text | Google Scholar

Sun, X., Xiao, B., Wei, F., Liang, S., and Wei, Y. (2018). “Integral human pose regression,” in Proceedings of the European Conference on Computer Vision (ECCV) (Munich), 529–545. doi: 10.1007/978-3-030-01231-1_33

CrossRef Full Text | Google Scholar

Sung, J., Lenz, I., and Saxena, A. (2017). “Deep multimodal embedding: Manipulating novel objects with point-clouds, language and trajectories,” in 2017 IEEE International Conference on Robotics and Automation (ICRA) (Singapore: IEEE), 2794–2801. doi: 10.1109/ICRA.2017.7989325

CrossRef Full Text | Google Scholar

Sutton, R. S., and Barto, A. G. (2018). Reinforcement Learning: An Introduction. Cambridge; London: MIT Press.

Google Scholar

Sutton, R. S., McAllester, D., Singh, S., and Mansour, Y. (1999). Policy gradient methods for reinforcement learning with function approximation. Adv. Neural Inform. Process. Syst. 12, 1057–1063.

PubMed Abstract

Taubin, G. (1991). Estimation of planar curves, surfaces, and nonplanar space curves defined by implicit equations with applications to edge and range image segmentation. IEEE Trans. Pattern Anal. Mach. Intellig. 11, 1115–1138. doi: 10.1109/34.103273

CrossRef Full Text

Tian, N., Matl, M., Mahler, J., Zhou, Y. X., Staszak, S., Correa, C., et al. (2017). “A cloud robot system using the dexterity network and berkeley robotics and automation as a service (brass),” in 2017 IEEE International Conference on Robotics and Automation (ICRA) (Singapore: IEEE), 1615–1622. doi: 10.1109/ICRA.2017.7989192

CrossRef Full Text | Google Scholar

Tirinzoni, A., Sessa, A., Pirotta, M., and Restelli, M. (2018). Importance weighted transfer of samples in reinforcement learning. arXiv [Preprint]. arXiv:1805.10886.

Google Scholar

Torii, T., and Hashimoto, M. (2018). “Model-less estimation method for robot grasping parameters using 3D shape primitive approximation,” in 2018 IEEE 14th International Conference on Automation Science and Engineering (CASE) (Munich: IEEE), 580–585. doi: 10.1109/COASE.2018.8560417

CrossRef Full Text | Google Scholar

Tosun, T., Mitchell, E., Eisner, B., Huh, J., Lee, B., Lee, D., et al. (2019). Pixels to plans: learning non-prehensile manipulation by imitating a planner. arXiv [Preprint]. arXiv:1904.03260. doi: 10.1109/IROS40897.2019.8968224

CrossRef Full Text | Google Scholar

Tosun, T., Yang, D., Eisner, B., Isler, V., and Lee, D. (2020). Robotic grasping through combined image-based grasp proposal and 3D reconstruction. arXiv [Preprint]. arXiv:2003.01649.

Google Scholar

Ückermann, A., Elbrechter, C., Haschke, R., and Ritter, H. (2012). “3D scene segmentation for autonomous robot grasping,” in 2012 IEEE/RSJ International Conference on Intelligent Robots and Systems (Vilamoura-Algarve: IEEE), 1734–1740. doi: 10.1109/IROS.2012.6385692

CrossRef Full Text | Google Scholar

Van der Merwe, M., Lu, Q., Sundaralingam, B., Matak, M., and Hermans, T. (2020). “Learning continuous 3d reconstructions for geometrically aware grasping,” in 2020 IEEE International Conference on Robotics and Automation (ICRA) (Paris: IEEE), 11516–11522. doi: 10.1109/ICRA40945.2020.9196981

CrossRef Full Text | Google Scholar

Varadarajan, K. M., and Vincze, M. (2012). “Afrob: The affordance network ontology for robots,” in 2012 IEEE/RSJ International Conference on Intelligent Robots and Systems (Vilamoura-Algarve: IEEE), 1343–1350. doi: 10.1109/IROS.2012.6386232

CrossRef Full Text | Google Scholar

Varley, J., DeChant, C., Richardson, A., Ruales, J., and Allen, P. (2017). “Shape completion enabled robotic grasping,” in 2017 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS) (Vancouver, BC: IEEE), 2442–2447. doi: 10.1109/IROS.2017.8206060

CrossRef Full Text | Google Scholar

Varley, J., Weisz, J., Weiss, J., and Allen, P. (2015). “Generating multi-fingered robotic grasps via deep learning,” in 2015 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS) (Hamburg: IEEE), 4415–4420. doi: 10.1109/IROS.2015.7354004

CrossRef Full Text | Google Scholar

Viereck, U., Pas, A. T., Saenko, K., and Platt, R. (2017). Learning a visuomotor controller for real world robotic grasping using simulated depth images. arXiv [Preprint]. arXiv:1706.04652.

Google Scholar

Vohra, M., Prakash, R., and Behera, L. (2019). “Real-time grasp pose estimation for novel objects in densely cluttered environment,” in 2019 28th IEEE International Conference on Robot and Human Interactive Communication (RO-MAN) (New Delhi: IEEE), 1–6. doi: 10.1109/RO-MAN46459.2019.8956438

CrossRef Full Text | Google Scholar

Wang, C., Zhang, X., Zang, X., Liu, Y., Ding, G., Yin, W., et al. (2020). Feature sensing and robotic grasping of objects with uncertain information: a review. Sensors 20:3707. doi: 10.3390/s20133707

PubMed Abstract | CrossRef Full Text | Google Scholar

Wang, H.-Y., and Ling, W.-K. (2016). “Robotic grasp detection using deep learning and geometry model of soft hand,” in 2016 IEEE International Conference on Consumer Electronics-China (ICCE-China) (Guangzhou: IEEE), 1–6. doi: 10.1109/ICCE-China.2016.7849757

CrossRef Full Text | Google Scholar

Wang, T., Yang, C., Kirchner, F., Du, P., Sun, F., and Fang, B. (2019). Multimodal grasp data set: a novel visual–tactile data set for robotic manipulation. Int. J. Adv. Robot. Syst. 16:1729881418821571. doi: 10.1177/1729881418821571

CrossRef Full Text | Google Scholar

Wang, Y., Sun, Y., Liu, Z., Sarma, S. E., Bronstein, M. M., and Solomon, J. M. (2019). Dynamic graph cnn for learning on point clouds. ACM Trans. Graph. 38, 1–12. doi: 10.1145/3326362

CrossRef Full Text | Google Scholar

Wang, Z., Xu, Y., He, Q., Fang, Z., Xu, G., and Fu, J. (2020). Grasping pose estimation for SCARA robot based on deep learning of point cloud. Int. J. Adv. Manuf. Technol. 108, 1217–1231. doi: 10.1007/s00170-020-05257-2

CrossRef Full Text | Google Scholar

Watkins-Valls, D., Varley, J., and Allen, P. (2019). “Multi-modal geometric learning for grasping and manipulation,” in 2019 International Conference on Robotics and Automation (ICRA) (Montreal, QC: IEEE), 7339–7345. doi: 10.1109/ICRA.2019.8794233

CrossRef Full Text | Google Scholar

Weisz, J., and Allen, P. K. (2012). “Pose error robust grasping from contact wrench space metrics,” in 2012 IEEE International Conference on Robotics and Automation (St Paul, MN: IEEE), 557–562. doi: 10.1109/ICRA.2012.6224697

CrossRef Full Text | Google Scholar

Wu, B., Akinola, I., and Allen, P. K. (2019). Pixel-attentive policy gradient for multi-fingered grasping in cluttered scenes. arXiv [Preprint]. arXiv:1903.03227.

Google Scholar

Wu, C., Chen, J., Cao, Q., Zhang, J., Tai, Y., Sun, L., et al. (2020). Grasp proposal networks: an end-to-end solution for visual learning of robotic grasps. arXiv [Preprint]. arXiv:2009.12606.

Google Scholar

Wu, Z., Song, S., Khosla, A., Yu, F., Zhang, L., Tang, X., et al. (2015). “3d shapenets: a deep representation for volumetric shapes,” in Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition (Boston, MA), 1912–1920.

Google Scholar

Wurman, P. R., and Romano, J. M. (2015). The amazon picking challenge 2015. IEEE Robot. Autom. Magaz. 22, 10–12. doi: 10.1109/MRA.2015.2452071

CrossRef Full Text | Google Scholar

Xiang, Y., Schmidt, T., Narayanan, V., and Fox, D. (2017). Posecnn: a convolutional neural network for 6d object pose estimation in cluttered scenes. arXiv [Preprint]. arXiv:1711.00199. doi: 10.15607/RSS.2018.XIV.019

CrossRef Full Text | Google Scholar

Xu, Y., Wang, L., Yang, A., and Chen, L. (2019). GraspCNN: real-time grasp detection using a new oriented diameter circle representation. IEEE Access 7, 159322–159331. doi: 10.1109/ACCESS.2019.2950535

CrossRef Full Text | Google Scholar

Xu, Z., and Topcu, U. (2019). Transfer of temporal logic formulas in reinforcement learning. arXiv [Preprint]. arXiv:1909.04256.

PubMed Abstract | Google Scholar

Yan, X., Khansari, M., Hsu, J., Gong, Y., Bai, Y., Pirk, S., et al. (2019). Data-efficient learning for sim-to-real robotic grasping using deep point cloud prediction networks. arXiv [Preprint]. arXiv:1906.08989.

Google Scholar

Yang, W., Paxton, C., Cakmak, M., and Fox, D. (2020). Human grasp classification for reactive human-to-robot handovers. arXiv [Preprint]. arXiv:2003.06000. doi: 10.1109/IROS45743.2020.9341004

CrossRef Full Text | Google Scholar

Yu, H., Lai, Q., Liang, Y., Wang, Y., and Xiong, R. (2019). “A cascaded deep learning framework for real-time and robust grasp planning,” in 2019 IEEE International Conference on Robotics and Biomimetics (ROBIO) (Dali: IEEE), 1380–1386.

Google Scholar

Yu, J., Lin, Z., Yang, J., Shen, X., Lu, X., and Huang, T. S. (2018). “Generative image inpainting with contextual attention,” in Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition (Salt Lake City, UT), 5505–5514. doi: 10.1109/CVPR.2018.00577

CrossRef Full Text | Google Scholar

Yu, Q., Shang, W., Zhao, Z., Cong, S., and Li, Z. (2020). “Robotic grasping of unknown objects using novel multilevel convolutional neural networks: from parallel gripper to dexterous hand,” in IEEE Transactions on Automation Science and Engineering (New York, NY).

Google Scholar

Yu, S., Zhai, D.-H., Wu, H., Yang, H., and Xia, Y. (2020). “Object recognition and robot grasping technology based on RGB-D data,” in 2020 39th Chinese Control Conference (CCC) (Shenyang: IEEE), 3869–3874.

Google Scholar

Yu, Y., Cao, Z., Liang, S., Geng, W., and Yu, J. (2020). A novel vision-based grasping method under occlusion for manipulating robotic system. IEEE Sensors J. 20, 10996–11006. doi: 10.1109/JSEN.2020.2995395

CrossRef Full Text | Google Scholar

Yu, Y., Cao, Z., Liang, S., Liu, Z., Yu, J., and Chen, X. (2019). “A grasping CNN with image segmentation for mobile manipulating robot,” in 2019 IEEE International Conference on Robotics and Biomimetics (ROBIO) (Dali: IEEE), 1688–1692.

Google Scholar

Zapata-Impata, B. S., Mateo Agulló, C., Gil, P., and Pomares, J. (2017). “Using geometry to detect grasping points on 3D unknown point cloud,” in Proceedings of the 14th International Conference on Informatics in Control, Automation and Robotics (Madrid), 154–161. doi: 10.5220/0006470701540161

CrossRef Full Text | Google Scholar

Zeng, A. (2019). Learning Visual Affordances for Robotic Manipulation (doctoral dissertation). Princeton University.

Google Scholar

Zeng, A., Song, S., Lee, J., Rodriguez, A., and Funkhouser, T. (2020). Tossingbot: Learning to throw arbitrary objects with residual physics. IEEE Trans. Robot. 36, 1307–1319. doi: 10.15607/RSS.2019.XV.004

CrossRef Full Text | Google Scholar

Zeng, A., Song, S., Welker, S., Lee, J., Rodriguez, A., and Funkhouser, T. (2018a). “Learning synergies between pushing and grasping with self-supervised deep reinforcement learning,” in 2018 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS) (Madrid: IEEE), 4238–4245. doi: 10.1109/IROS.2018.8593986

CrossRef Full Text | Google Scholar

Zeng, A., Song, S., Yu, K.-T., Donlon, E., Hogan, F. R., Bauza, M., et al. (2018b). “Robotic pick-and-place of novel objects in clutter with multi-affordance grasping and cross-domain image matching,” in 2018 IEEE International Conference on Robotics and Automation (ICRA) (Brisbane, QLD: IEEE), 1–8. doi: 10.1109/ICRA.2018.8461044

CrossRef Full Text | Google Scholar

Zeng, A., Yu, K.-T., Song, S., Suo, D., Walker, E., Rodriguez, A., et al. (2017). “Multi-view self-supervised deep learning for 6d pose estimation in the amazon picking challenge,” in 2017 IEEE International Conference on Robotics and Automation (ICRA) (Singapore: IEEE), 1386–1383. doi: 10.1109/ICRA.2017.7989165

CrossRef Full Text | Google Scholar

Zhang, F., and Demiris, Y. (2020). “Learning grasping points for garment manipulation in robot-assisted dressing,” in 2020 IEEE International Conference on Robotics and Automation (ICRA) (Paris: IEEE), 9114–9120. doi: 10.1109/ICRA40945.2020.9196994

CrossRef Full Text | Google Scholar

Zhang, H., Ichnowski, J., Avigal, Y., Gonzales, J., Stoica, I., and Goldberg, K. (2020). “Dex-Net AR: distributed deep grasp planning using an augmented reality application and a smartphone camera,” in IEEE International Conference on Robotics and Automation (ICRA) (Paris: IEEE). doi: 10.1109/ICRA40945.2020.9197247

CrossRef Full Text | Google Scholar

Zhang, Q., Qu, D., Xu, F., and Zou, F. (2017). “Robust robot grasp detection in multimodal fusion,” in MATEC Web of Conferences: EDP Sciences (Chengdu), 00060. doi: 10.1051/matecconf/201713900060

CrossRef Full Text | Google Scholar

Zhao, B., Zhang, H., Lan, X., Wang, H., Tian, Z., and Zheng, N. (2020). REGNet: REgion-based grasp network for single-shot grasp detection in point clouds. arXiv [Preprint]. arXiv:2002.12647.

Google Scholar

Zhao, W., Queralta, J. P., and Westerlund, T. (2020). Sim-to-real transfer in deep reinforcement learning for robotics: a survey. arXiv [Preprint]. arXiv:2009.13303. doi: 10.1109/SSCI47803.2020.9308468

CrossRef Full Text | Google Scholar

Zhou, Y., Chen, M., Du, G., Zhang, P., and Liu, X. (2018). Intelligent grasping with natural human-robot interaction. Indus. Robot 45, 44–53. doi: 10.1108/IR-05-2017-0089

CrossRef Full Text | Google Scholar

Zhou, Y., and Hauser, K. (2017). “6dof grasp planning by optimizing a deep learning scoring function,” in Robotics: Science and Systems (RSS) Workshop on Revisiting Contact-Turning a Problem into a Solution (Cambridge, MA), 6.

Google Scholar

Zhou, Z., Pan, T., Wu, S., Chang, H., and Jenkins, O. C. (2019). Glassloc: plenoptic grasp pose detection in transparent clutter. arXiv [Preprint]. arXiv:1909.04269. doi: 10.1109/IROS40897.2019.8967685

CrossRef Full Text | Google Scholar

Zhou, Z., Sui, Z., and Jenkins, O. C. (2018). “Plenoptic monte carlo object localization for robot grasping under layered translucency,” in 2018 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS) (Madrid: IEEE), 1–8. doi: 10.1109/IROS.2018.8593629

CrossRef Full Text | Google Scholar

Zhu, S., Zheng, X., Xu, M., Zeng, Z., and Zhang, H. (2019). “A robotic semantic grasping method for pick-and-place tasks,” in 2019 Chinese Automation Congress (CAC) (Hangzhou: IEEE), 4130–4136. doi: 10.1109/CAC48633.2019.8996328

CrossRef Full Text | Google Scholar

Zhu, Y., Fathi, A., and Fei-Fei, L. (2014). “Reasoning about object affordances in a knowledge base representation,” in European Conference on Computer Vision, eds D. Fleet, T. Pajdla, B. Schiele, and T. Tuytelaars (Zurich: Springer), 408–424. doi: 10.1007/978-3-319-10605-2_27

CrossRef Full Text | Google Scholar

Zhu, Y., Zhao, Y., and Chun Zhu, S. (2015). “Understanding tools: task-oriented object modeling, learning and recognition,” in Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition (Boston, MA), 2855–2864. doi: 10.1109/CVPR.2015.7298903

CrossRef Full Text | Google Scholar

Zito, C., Ortenzi, V., Adjigble, M., Kopicki, M., Stolkin, R., and Wyatt, J. L. (2019). Hypothesis-based belief planning for dexterous grasping. arXiv [Preprint]. arXiv:1903.05517.

Google Scholar
