Effects of transient, persistent, and resurgent sodium currents on excitability and spike regularity in vestibular ganglion neurons

Vestibular afferent neurons occur as two populations with differences in spike timing regularity that are independent of rate. The more excitable regular afferents have lower current thresholds and sustained spiking responses to injected currents, while irregular afferent neurons have higher thresholds and transient responses. Differences in expression of low-voltage-activated potassium (K_LV) channels are emphasized in models of spiking regularity and excitability in these neurons, leaving open the potential contributions of the voltage-gated sodium (Na_V) channels responsible for the spike upstroke. We investigated the impact of different Na_V current modes (transient, persistent, and resurgent) with whole-cell patch clamp experiments in mouse vestibular ganglion neurons (VGNs), the cultured and dissociated cell bodies of afferents. All VGNs had transient Na_V current, many had a small persistent (non-inactivating) Na_V current, and a few had resurgent current, which flows after the spike when Na_V channels that were blocked are unblocked. A known Na_V1.6 channel blocker decreased spike rate and altered spike waveforms in both sustained and transient VGNs and affected all three modes of Na_V current. A Na_V channel agonist enhanced persistent current and increased spike rate and regularity. We hypothesized that persistent and resurgent currents have different effects on sustained (regular) VGNs vs. transient (irregular) VGNs. Lacking blockers specific for the different current modes, we used modeling to isolate their effects on spiking of simulated transient and sustained VGNs, driven by simulated current steps and noisy trains of simulated EPSCs. In all simulated neurons, increasing transient Na_V current increased spike rate and rate-independent regularity. In simulated sustained VGNs, adding persistent current increased both rate and rate-independent regularity, while adding resurgent current had limited impact. In transient VGNs, adding persistent current had little impact, while adding resurgent current increased both rate and rate-independent irregularity by enhancing sensitivity to synaptic noise. These experiments show that the small Na_V current modes may enhance the differentiation of afferent populations, with persistent currents selectively making regular afferents more regular and resurgent currents selectively making irregular afferents more irregular.

1 Introduction

Vestibular hair cells transmit information about head motions and tilt to the peripheral terminals of bipolar vestibular ganglion neurons (VGNs, Figure 1A). VGNs in amniotes are well-known for their differences in regularity of spike timing in vivo: regular and irregular VGNs synapse on hair cells in peripheral and central zones of vestibular inner ear epithelia and have tonic and phasic response dynamics, respectively [reviewed in Eatock and Songer (1) and Goldberg (2)]. The difference in regularity is rate-independent, such that it holds even when afferents have similar average rates. Evidence from in vivo neuronal responses to head motions links regularity to encoding strategy: more “rate-based” in regular afferents and more “temporal” in irregular afferents, with each strategy favoring different kinds of sensory information [reviewed in Cullen (3)]. The cellular mechanisms that give rise to the difference in regularity are therefore significant for vestibular information processing. Here we examine whether the existence of different modes—transient, persistent, and resurgent—of voltage-gated sodium current (I-Na_V) contributes to differences in afferent excitability (tendency to spike) and rate-independent regularity.

Figure 1

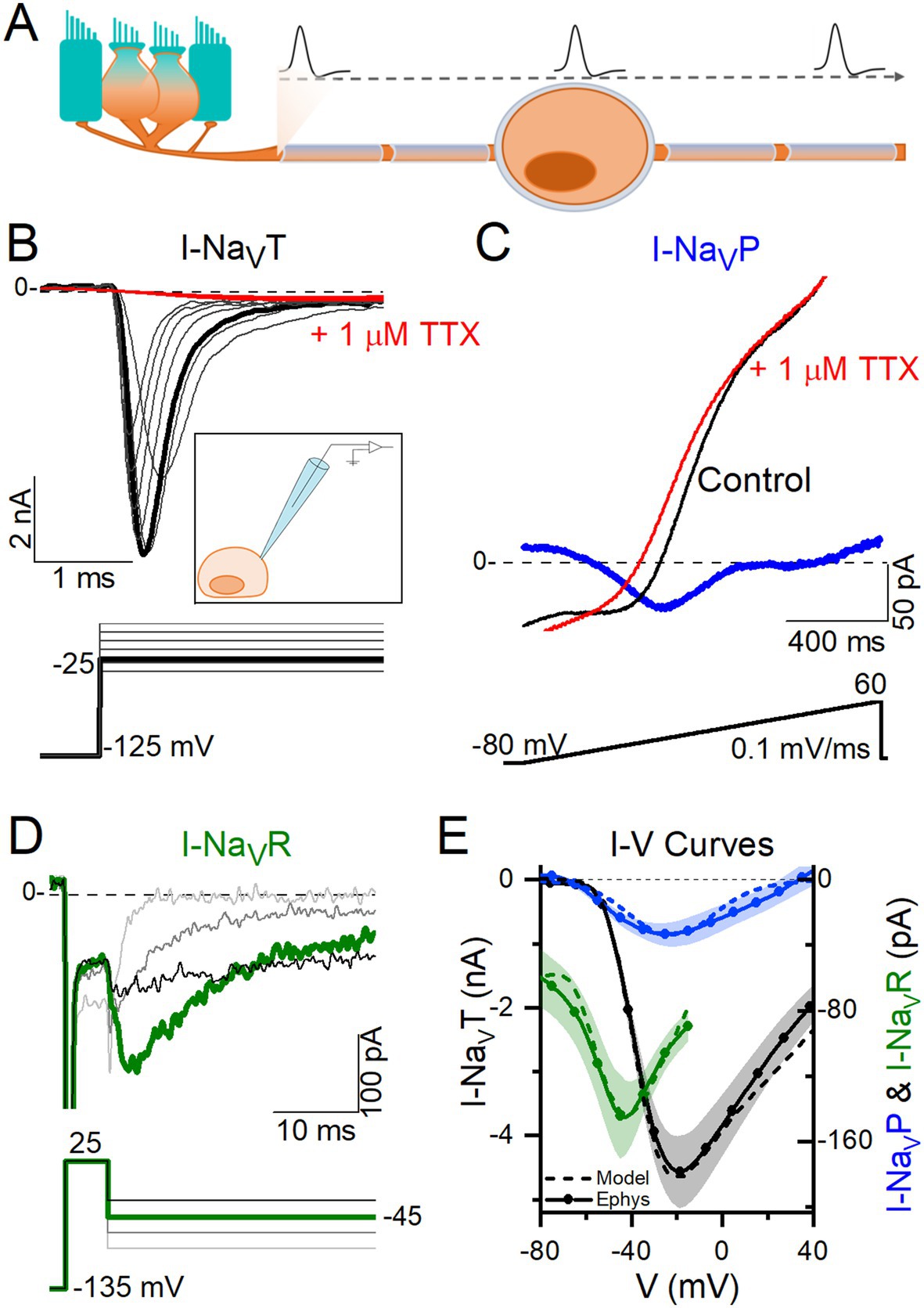

Figure 1. VGNs expressed Na_VT current, many expressed Na_VP current, and a few expressed Na_VR currents. (A) VGNs are the isolated cell bodies of bipolar vestibular afferents (orange) synapsing on a hair cell (blue). In vivo, APs initiate at a heminode close to the synapse and adjacent to the first myelinated internode and propagate through the myelinated cell body, toward the brain. (B) Transient sodium current (I-Na_VT) in a P13 VGN, evoked by stepping up from a prepulse of −125 mV in 5 mV increments. I-Na_VT was always fully blocked by 1 μM TTX. Inset: Diagram of patching an isolated, demyelinated VGN. (C) A small, non-inactivating (persistent) current (I-Na_VP) was isolated from a P3 VGN by applying a 0.1 mV/ms voltage ramp (−80 mV to +60 mV) and subtracting current in 1 μM TTX from control current. (D) Resurgent sodium current (I-Na_VR) in a P18 VGN, evoked by applying a + 25 mV prepulse followed by repolarizing steps to −25 to −85 mV, and subtracting current in 1 μM TTX from control current. (E) I-V curves compared for Na_VT, Na_VP and Na_VR currents. Solid lines (means) plus shading (±SEM) are averaged from a subset of recordings (n = 9 Na_VT, 13 Na_VP, 6 Na_VR); dashed lines show modeling of Na_VT, Na_VP and Na_VR currents (see Methods).

Depolarizing current steps evoke a spectrum of firing patterns in isolated VGN cell bodies (4), from transient (1–2 spikes at step onset, independent of current level) to fully sustained spiking (continuous firing throughout the step, hundreds of milliseconds in duration), with intermediate (less sustained) forms of sustained firing for which the duration of the spiking depends on the level and duration of the current step. In vivo, spikes initiate in the peripheral neurite at the heminode near its hair cell synapse and travel through the cell body into the central neurite (Figure 1A). Over the first postnatal week, the afferent nerve fibers, including the cell body, become myelinated. We investigated the Na_V currents that give rise to firing patterns in dissociated VGN cell bodies. Their compact form allows the high-quality voltage clamp necessary for recording very fast Na_V currents. To gain access for the patch electrode to the VGN membrane beyond the first postnatal week, we cultured dissociated cell bodies overnight, which loosens or eliminates the myelin covering.

Several lines of evidence indicate that VGNs with sustained and transient firing patterns correspond, respectively, to regular and irregular afferents in vivo (4–6). Work on isolated rat VGNs in the first two postnatal weeks established that, relative to sustained VGNs, transient VGNs are less excitable, with higher current thresholds for spiking, reflecting their more negative resting potentials and lower input resistances (4, 5). A major factor in these differences is the greater expression of low-voltage-activated potassium (K_LV) channels from the K_V1 and K_V7 channel families in transient VGNs. To test the relationship in VGNs between step-evoked firing pattern and spontaneous spike regularity, Kalluri et al. (4) stimulated them with trains of simulated excitatory postsynaptic currents (EPSCs) with pseudo-random timing. The firing produced was more irregular in transient VGNs and was sensitive to the amount of K_LV current present.

Whether diversity in Na_V currents contributes to afferent differences in regularity and excitability has not been established. Na_V currents drive the rising phase of most neuronal action potentials [reviewed in Bean (7)]. In rat vestibular ganglia (8), we showed diverse expression of Na_V channel subunits and characterized multiple transient Na_V currents (I-Na_VT) in immature VGNs. Here we investigated a different aspect of Na_V current expression in VGNs that becomes a factor as the inner ear matures: the expression of persistent (Na_VP) or resurgent (Na_VR) Na_V modes of current, which flow through the same channel subunits that produce larger Na_VT currents (9–11).

Most Na_V channels strongly inactivate within milliseconds after depolarization, producing I-Na_VT. In some cases, however, a small fraction do not inactivate even after seconds, creating I-Na_VP. I-Na_VP activates more negatively than I-Na_VT and therefore enhances Na_V channel availability near resting potential, contributing to excitability and repetitive firing (11–13). In another type of Na_V current, Na_V channels opened by a strong depolarization (like a large spike) are blocked by an intracellular molecule before they inactivate; upon repolarization, the channels rapidly unblock and carry I-Na_VR until they deactivate (11, 14). These channels enhance depolarizing current on the downstroke of a spike and during the interspike interval.

Na_VP and Na_VR current modes have been recorded from gerbil calyces, the large terminals formed by vestibular afferents on type I hair cells, and are attributed to tetrodotoxin (TTX)-sensitive Na_V1.6 channels (10). We speculated that diversity in Na_V current modes contributes to differences in excitability and/or regularity in VGNs, as suggested for certain brain neurons (15). Our experiments and simulations together suggest that increasing I-Na_VT drives increases in spike rate and regularity in all VGNs, but that persistent and resurgent currents may enhance differentiation of spike regularity between sustained (regular) and transient (irregular) vestibular afferent neurons.

2 Methods

2.1 Electrophysiology

2.1.1 Animals

For all electrophysiology experiments, wildtype CD-1 mice were obtained from Charles River Laboratories (Wilmington, MA). Mice were housed at the University of Chicago Animal Care Facility and were handled in accordance with the National Research Council Guide for the Care and Use of Laboratory Animals. All procedures were approved by the animal care committee at the University of Chicago.

2.1.2 Preparation

Whole-cell currents and voltages were recorded from VGNs isolated from mice on postnatal day 3 (P3) to P25 [11 ± 0.5 (SEM) days old, median = 8, n = 146]. VGNs from mice of both sexes were pooled into cell cultures; in the few cases where cells were from cultures made of a single sex (n = 7 female, 8 male cells), there were no significant differences in Na_V current voltage dependence of activation (p = 0.99, power = 0.05) or conductance density (p = 0.18, power = 0.27) between sexes.

Mice were anesthetized via isoflurane inhalation and decapitated. Temporal bones were dissected in chilled Liebovitz-15 (L-15) medium supplemented with 10 mM HEPES to pH 7.4, ~320 mmol/kg. Chemicals were purchased from ThermoFisher (Waltham, MA) unless otherwise stated.

Each otic capsule was exposed, and the superior compartment of the vestibular ganglion was dissected out. The superior ganglion houses the cell bodies of VGNs that synapse on hair cells in the utricle, part of the saccule, and the lateral and anterior semicircular canals, and project centrally to the vestibular nuclei in brain stem and cerebellum. We followed a dissociation protocol as described in Limón et al. (16), with small changes. The tissue was placed in L-15 supplemented with 0.12% collagenase and 0.12% trypsin for 15–20 min at 37°C. The ganglion was then dissociated by gentle trituration into Minimal Essential Medium with Glutamax supplemented with 10 mM HEPES, 5% fetal bovine serum, and 1% penicillin (Sigma-Aldrich, St. Louis, MO, USA). Cells were allowed to settle in glass-bottomed culture dishes (MatTek, Ashland, MA, USA) pre-coated with poly-D-lysine. In most experiments, recordings were made after cells were incubated 10–20 h in 5% CO₂–95% air at 37°C. Overnight incubation reduced myelin and satellite cell coverage from cell bodies. Age of cells does not include time in culture: e.g., data from a P17 VGN indicates the pup was 17 days old when neurons were harvested, and the cells were P17 + ~1 day in vitro. The number of surviving cells decreased with age of animal.

2.1.3 Recording solutions

During experiments, cells were bathed in either one of two external solutions, summarized in Table 1. For voltage clamp experiments, we used a “Na⁺-Reduced” external solution and a “Cs⁺” -based internal solution, designed to minimize K⁺ currents and Ca²⁺ currents and reduce Na⁺ currents. K⁺ currents were minimized and Na⁺ currents reduced by substituting Cs⁺ for K⁺ (in both external and internal solutions, Table 1) and replacing about half of the external Na + with equivalent tetraethylammonium chloride (TEACl, a K channel blocker). By reducing K⁺ and Na_V current, these solutions improved voltage clamp quality by reducing voltage errors and the impact of the clamp time constant. To minimize Ca²⁺ current, only trace Ca²⁺ was present and Mg²⁺ was added to block voltage-gated calcium (Ca_V) channels. For current clamp experiments to gather spiking data, we used more physiological external and internal solutions (“standard” solutions, Table 1).

Table 1

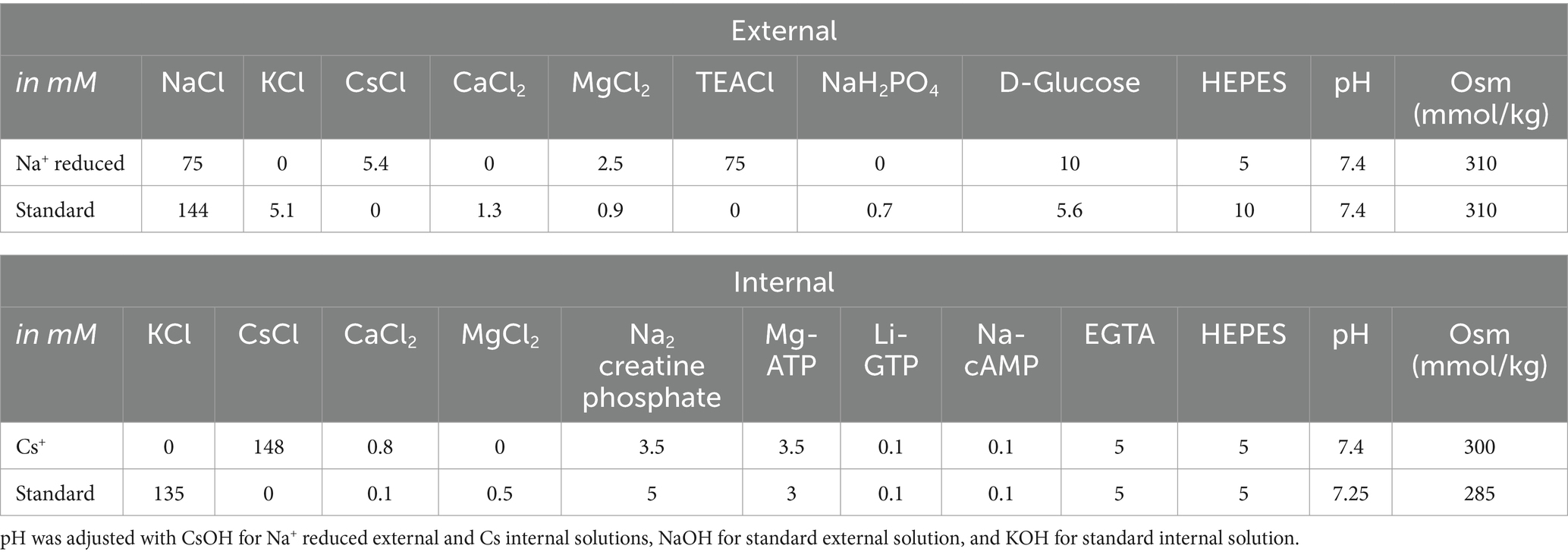

Table 1. Whole-cell recording solutions.

2.1.4 Whole cell recordings

Cells were visualized at 600X on an inverted microscope equipped with Nomarski optics (IMT-2; Olympus, Lake Success, NY, USA). We chose round cells with diameters >5 μm (range 8–25 μm). Mean membrane capacitance measured by the amplifier was 15 ± 0.5 pF (median = 16, n = 135). No correlation between age and cell size was observed. Neurons were distinguished from glia by their shape and the presence of Na_V currents and/or spikes.

Stimuli were delivered, and responses recorded and amplified, with a Multiclamp 700B amplifier, Digidata 1440A digitizer, and pClamp 11 software (Axon Instruments, Molecular Devices, Sunnyvale, CA, USA), with low-pass Bessel filtering set at 10 kHz and sampling interval set at 5 μs. Stimuli include voltage steps and ramps, current steps, and synthetically generated frozen trains of excitatory postsynaptic currents (EPSCs) with pseudo-random timing based on recordings from vestibular terminals, as in Kalluri et al. (4). Electrodes were pulled from soda glass (King Precision Glass, Claremont, CA, USA) to resistances of 3–4 MΩ in our solutions and wrapped with parafilm to reduce pipette capacitance. All membrane voltages were corrected offline for a liquid junction potential of either 4.7 (standard solution) or 5.2 mV (reduced solution), calculated with JPCalc software (17) in pClamp 11.

The series resistance (R_S) ranged between 3 and 10 MΩ and was compensated by 73 ± 0.9% (n = 134). Recordings were analyzed only when the seal exceeded 1 GΩ and, if standard solutions were used, the cell maintained a stable resting membrane potential more negative than −60 mV. After compensation for junction potentials, holding potential in voltage-clamp mode was −65 mV (−64.7 mV in standard solutions, −65.2 mV in Na⁺ Reduced/Cs⁺ solutions). Input resistance measured at holding potential was 712 ± 56 MΩ. Fast Na_V currents are difficult to voltage clamp at body temperature, so we recorded at room temperature (23–25°C). For our average cell capacitance (15 pF) and after R_S compensation, the voltage clamp time constant ranged from ~15–50 μs, adequate for recording fast Na_V currents at room temperature, at which time-to-peak and inactivation time constants are ~1 ms, and activation and deactivation time constants are shorter (18, 19).

2.1.5 Pharmacology

On the day of experiments, we thawed stock solutions of pharmacological agents: Na_V channel blockers tetrodotoxin (TTX; Enzo Life Sciences, Farmingdale, NY, USA; 2 mM in distilled water) and 4,9-anhydro-tetrodotoxin (4,9-ah-TTX; Alomone Labs, Jerusalem, Israel; 500 μM in methanol), or Na_V channel agonist Anemonia viridis toxin 2 (ATX-II; Alomone Labs, Jerusalem, Israel; 100 μM in distilled water). Aliquots were added to 5 mL of external solution for final concentrations of 1 μM TTX, 100 nM 4,9-ah-TTX, and 100 nM ATX-II, chosen to maximize blocking or agonizing effects (20, 21). 1 mg/mL of bovine serum albumin was added to the ATX-II solution to reduce adhesion to the plastic delivery tubing. Toxin-containing solutions were applied via local perfusion (Perfusion Fast-Step, Warner Instruments, Holliston, MA) delivered with a Bee Hive Controller (BASI, West Lafayette, IN, USA). Control and drug solutions flowed through adjacent delivery tubes and a stepper mechanism selected the tube directed at the patched cell. This system allows for no dead volume. Perfusion of control solution at the beginning of each drug series provided additional control for flow effects.

2.1.6 Analysis and statistical treatments

Analysis was performed in Clampfit (pClamp 10 or 11, Molecular Devices) and MATLAB 2023b (The MathWorks, Natick, MA, USA). Statistical analyses, curve fitting, and figures were done in Origin Pro 2018 or 2024 (OriginLab, Northampton, MA, USA). Means ± SEM are presented. In box plots, box indicates SEM, middle line indicates median, open squares indicate the mean, and whiskers mark 5–95% confidence intervals. For comparisons between 2 groups, we tested for normal distributions and homogeneity of variance (Levene’s test), and estimated statistical significance with Student’s t-test or, if variances were unequal, Welch’s t-test. We used paired t-tests for drug effects on individual cells and an alpha level of 0.05 for all statistical tests. For significant results, we calculated effect size with bias-corrected Hedges’ g [small effect = 0.2, medium = 0.5, large = 0.8 (22)]. To compare >2 groups, we used one-way ANOVA followed by the Bonferroni test for multiple comparisons.

The voltage dependencies of current activation and inactivation were analyzed for currents collected with R_S voltage error < 10 mV at peak current. Activation curves of conductance (G) vs. voltage (V) were generated by dividing peak current ( $I$ ) by the driving force ( $V-$ E_rev) to obtain G. E_rev was approximated by the equilibrium potential for Na⁺ (E_Na) for the specified Na⁺ concentrations (Table 1). The resulting G-V curves were generally well described by fitting a simple Boltzmann function using the Levenberg–Marquardt fitting algorithm as implemented in OriginPro (Equation 1):

$\begin{array}{ll}G\left(V\right)=\frac{G_{\text{max}}}{1+exp\left(\frac{V_{\mathit{act}}-V}{s}\right)}& (1)\end{array}$

where G_max is the maximum conductance, V_act is the voltage of half-maximal activation, and s is the slope factor.

Inactivation G-V curves were generated by measuring how iterated prepulse voltages affect the conductance evoked by a test pulse (step) in the activation range (−35 or −15 mV). Peak current evoked by the test pulse was divided by driving force, plotted against the iterated prepulse voltage, and fit by a Boltzmann function (Equation 2):

$\begin{array}{ll}G\left(V\right)=\frac{G_{\text{max}}}{1+exp\left(\frac{V-V_{\mathit{inact}}}{s}\right)}& (2)\end{array}$

with V_inact equaling the voltage of half-maximal inactivation.

Coefficient of variation (CV) was used to measure regularity of spike trains and was calculated for a given spike train from the mean and standard deviation of interspike interval (ISI) (Equation 3):

$\begin{array}{ll}CV=\frac{\sigma \left(ISI\right)}{\mu \left(ISI\right)}& (3)\end{array}$

To compare intrinsic, rate-independent, regularity, we wished to compare CV at similar rates. Because CV varies inversely with spike rate, we manipulated the input current amplitude to hold spike rate approximately constant between control and experimental conditions. Events were counted as spikes when they crossed a voltage threshold, between −20 and 0 mV, which was set for each neuron to exclude subthreshold excitatory postsynaptic potentials (EPSPs). We confirmed that APs and not EPSPs were counted by comparing the waveforms: APs had higher peak values, faster rise times and decays, and, often, afterhyperpolarizations (AHPs, measured as the difference between the resting potential and the most negative potential following a spike). AP voltage threshold was taken as the voltage corresponding to dV/dt = 10 mV/ms.

2.2 Modeling

A Hodgkin-Huxley model of neuronal firing was used to assess the individual impacts of I-Na_VT, I-Na_VR and I-Na_VP on spiking. The single-compartment model was implemented in MATLAB 2023b as a differential equation in which the net current across the neuronal membrane was taken as the sum of various individual currents (23) (Equation 4):

$\begin{array}{ll}{I}_{inj}=C_{m}S\frac{dV}{dt}+I_{Na}+I_{KLV}+I_{KH}+I_H+I_{\mathit{leak}}+I_{\mathit{EPSC}}& (4)\end{array}$

This model is an extension of the single-compartment VGN model developed by Hight and Kalluri (24) and Ventura and Kalluri (25) to fit rat VGN data. Membrane voltage V(t) was solved numerically using a backwards difference method. The specific membrane capacitance (C_m) was fixed at 0.9 μF/cm² (26). Cell surface area (S) was fixed to yield a net capacitance of 15 pF, the average for our recorded mouse VGNs. The 5 ionic currents represent key current types in vestibular ganglion neurons: voltage-gated sodium (I_Na), low-voltage-activated potassium (I_KLV), high-voltage-activated potassium (I_KH), hyperpolarization-activated cyclic nucleotide-gated (I_H), and leak (I_leak). The model VGN was stimulated either by injected current steps ( $I_{inj}$ ) with $I_{\mathit{EPSC}}$ set to 0, or with trains of simulated vestibular excitatory postsynaptic currents (pseudo-EPSCs $,I_{\mathit{EPSC}})$ $\mathrm{with}{I}_{inj}$set to 0. A holding period of 500 ms preceded any current injection to allow the resting membrane potential to equilibrate.

To ensure that the combinations of parameters for currents reproduced APs and firing patterns of different VGNs observed in whole-cell recordings (see Figures 5A,C), we fit the model output to recorded data using a local search optimization algorithm. This algorithm compared the phase plane plots of model APs, produced by different combinations of ionic, leak, and injected currents, against the phase plane plots of averaged recorded APs (Supplementary Figure S1 and Table 2). We constrained the Na_V conductance parameter range to the specific range recorded for each neuron type in this study (e.g., Figure 5B) and, for the other ionic conductances, determined the ranges based on previously published work (see Table 2 for citations). For each firing pattern, the combination of parameters yielding a simulated AP with the lowest mean squared error relative to the average recorded AP was accepted; the resulting simulations are shown in Supplementary Figure S1: panel D (AP waveforms), E (phase plane plots) and F (firing patterns). The model parameter combinations for the 4 identified VGN firing patterns (Supplementary Figures S1C,F) are summarized in Table 2.

Table 2

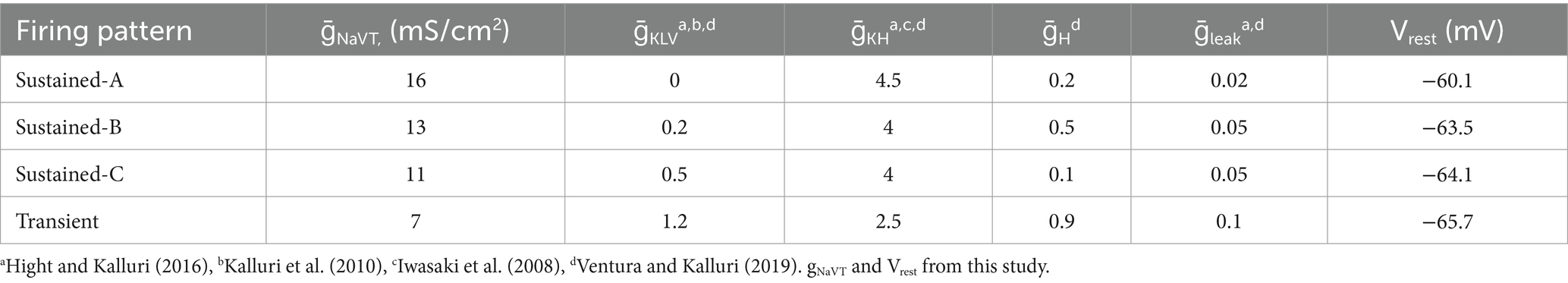

Table 2. Conductance parameters used for spiking by model VGNs.

In previous versions of the model (24, 25), I_Na was entirely transient (I-Na_VT) and based on the formulation in Rothman and Manis (27). Here, we adapted I_Na to include persistent (I-Na_VP) and resurgent (I-Na_VR) Na_V currents. We used I-Na_VT equations from Hight and Kalluri (24) and I-Na_VR and I-Na_VP equations from Venugopal et al. (28) and Wu et al. (29), substituting in our mouse VGN values for conductance density and voltage dependence. Figure 1E shows the I-V relations of both recorded (continuous lines) and modeled (dashed lines) Na_V current components.

The equation for total Na_V current was based on the computational model by Venugopal et al. (28) and can be written as (Equation 5):

$\begin{array}{ll}{I}_{Na}=I_{\mathit{NaVT}}+I_{\mathit{NaVP}}+I_{\mathit{NaVR}}& (5)\end{array}$

where $I_{\mathit{NaVT}}$ , $I_{\mathit{NaVP}}$ , and $I_{\mathit{NaVR}}$ are modeled as Equations 6–8:

$\begin{array}{ll}{I}_{\mathit{NaVT}}={\overline{g}}_{\mathit{NaVT}}\left({m_T}^3{h}_T\right)\left(V-E_{Na}\right)& (6)\end{array}$

$\begin{array}{ll}{I}_{\mathit{NaVP}}={\overline{g}}_{\mathit{NaVP}}\left(m_{P_{\infty }}{h}_P\right)\left(V-E_{Na}\right)& (7)\end{array}$

$\begin{array}{ll}{I}_{\mathit{NaVR}}={\overline{g}}_{\mathit{NaVT}}\left({\left(1-b_R\right)}^3{h_R}^5\right)\left(V-E_{Na}\right)& (8)\end{array}$

Model parameters for Na_V current modes are summarized in Table 3. Conductance densities (ḡ) cover the range of experimentally derived values from this study on VGN cell bodies and the data of Meredith and Rennie (10) on Na_V currents in VGN calyx terminals on hair cells: maximal persistent conductance (ḡ_NaVP) was set to 3% of the transient conductance (ḡ_NaVT) and the maximum resurgent conductance (ḡ_NaVR) was set to 10% of ḡ_NaVT, as recorded from cell bodies in this study and as recorded in vestibular afferent (calyceal) terminals (10).

Table 3

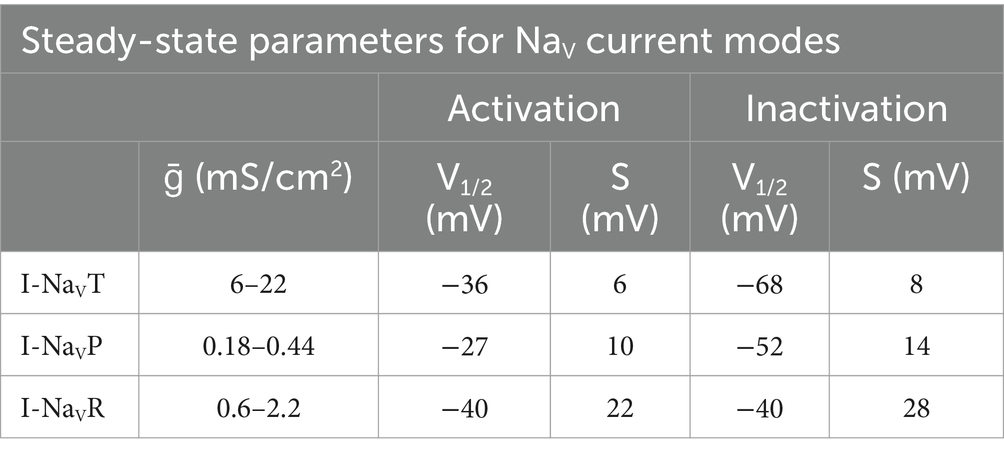

Table 3. Steady-state activation and inactivation parameters used in modeling Na_V current modes.

2.2.1 Transient sodium current

The steady-state voltage-dependent activation (m_T) and inactivation (h_T) of Na_VT currents are modeled as in Rothman and Manis (27), with voltage of half-activation (V_1/2) and slope factor (s) set equal to the mean values from this study (Equations 9–12).

$\begin{array}{ll}{m}_T^{\prime }=\frac{m_{T_{\infty }}-m_T}{{\tau }_{m_T}}& (9)\end{array}$

$\begin{array}{ll}h{\prime }_T=\frac{h_{T_{\infty }}-h_T}{{\tau }_{h_T}}& (10)\end{array}$

$\begin{array}{ll}{m}_{T_{\infty }}={\left[1+exp\left(\frac{-\left(V-V_{1/2}\right)}{s}\right)\right]}^{-1}& (11)\end{array}$

$\begin{array}{ll}{h}_{T_{\infty }}={\left[1+exp\left(\frac{V-V_{1/2}}{s}\right)\right]}^{-1}& (12)\end{array}$

Steady state voltage-dependent time constants of activation and inactivation functions for Na_VT currents, originally from Rothman and Manis (27), remained mostly unchanged (Equations 13, 14):

$\begin{array}{ll}{\tau }_{m_T}=10{\left\{5exp\left[\frac{V+60}{18}\right]+36exp\left[-\frac{V+60}{25}\right]\right\}}^{-1}+0.04& (13)\end{array}$

$\begin{array}{ll}{\tau }_{h_T}=100{\left\{7exp\left[\frac{V+60}{11}\right]+10exp\left[-\frac{V+60}{25}\right]\right\}}^{-1}+0.6& (14)\end{array}$

2.2.2 Persistent and resurgent sodium currents

Steady-state activation (h_P), inactivation (m_P), and voltage-dependent time constant of inactivation (τ_hP) for Na_VP current are based on Venugopal et al. (28) and Wu et al. (29) and are modeled as (Equations 15–18):

$\begin{array}{ll}{m}_{P_{\infty }}={\left[1+exp\left(\frac{-\left(V-V_{1/2}\right)}{s}\right)\right]}^{-10}& (15)\end{array}$

$\begin{array}{ll}h{\prime }_P=\frac{h_{P_{\infty }}-h_P}{{\tau }_{h_P}}& (16)\end{array}$

$\begin{array}{ll}{h}_{P_{\infty }}={\left[1+exp\left(\frac{V-V_{1/2}}{s}\right)\right]}^{-1}& (17)\end{array}$

$\begin{array}{ll}{\tau }_{h_P}=100+\frac{10000}{1+exp\left(\frac{V+60}{10}\right)}& (18)\end{array}$

The formulation for I-Na_VR is from Venugopal et al. (28). It alters the Hodgkin-Huxley conductance-based formulation to incorporate state-dependent Na⁺ resurgence due to unblocking of a channel that was blocked upon opening. The equations that govern voltage-dependent blocking/unblocking (b_R) kinetics are as follows (Equations 19–21):

$\begin{array}{ll}{b}_R^{\prime }={\alpha }_b\left(1-b_R\right)b_{R_{\infty }}-k_b{\beta }_{b_R}{b}_R& (19)\end{array}$

$\begin{array}{ll}{b}_{R_{\infty }}={\left(1+exp\left(\frac{V-V_{1/2}}{s}\right)\right)}^{-1}& (20)\end{array}$

$\begin{array}{ll}{\beta }_{b_R}={\left(1+exp\left(\frac{-\left(V-40\right)}{8}\right)\right)}^{-2}& (21)\end{array}$

where constants α_b (0.08) and k_b (0.9) control the rate of unblocking. The voltage-dependent inactivation of I-Na_VR (h_R) functions include (Equations 22–25):

$\begin{array}{ll}{h}_R^{\prime }={\alpha }_{h_R}{h}_{R_{\infty }}-0.8{\beta }_{h_R}{h}_R& (22)\end{array}$

$\begin{array}{ll}{h}_{R_{\infty }}={\left(1+exp\left(\frac{V-V_{1/2}}{s}\right)\right)}^{-1}& (23)\end{array}$

$\begin{array}{ll}{\alpha }_{h_R}=\frac{1}{1+exp\left(\frac{-\left(V+45\right)}{8}\right)}& (24)\end{array}$

$\begin{array}{ll}{\beta }_{h_R}=\frac{0.5}{1+exp\left(\frac{-\left(V+45\right)}{15}\right)}& (25)\end{array}$

2.2.3 Synaptic conductance and EPSC shape

Synaptic input was generated and modeled as described in Hight and Kalluri (24). Briefly, modeled synaptic events were randomly drawn from Gaussian distributions of size and timing based on EPSC amplitudes and rates. For our model simulations, we simulated EPSCs with a shape based on EPSCs of a vestibular afferent from an excised P8 CD-1 mouse utricular epithelium (striolar zone) at room temperature. These have a longer onset and decay times than the S1 EPSC shape used in Hight and Kalluri (24) (Supplementary Figure S2). An exponential function was fitted to an averaged synaptic event (Equation 26):

$\begin{array}{ll}s\left(t\right)=3.112\ast exp\left(-0.4545t\right)-3.112\ast exp\left(-1.121t\right)& (26)\end{array}$

3 Results

Whole-cell ruptured-patch recordings were taken from somata of vestibular ganglion neurons (VGNs; n = 146) dissociated from CD-1 mice of both sexes between P3 and P25 (median = P8) and cultured overnight. VGN cell bodies allow better space clamp than afferents recorded in vivo. Because Na_VP and Na_VR current modes upregulate with development (10, 30, 31), we needed to record beyond the first postnatal week, by which time myelin is extensive. With overnight culture, VGN cell bodies lose their myelin wrapping, allowing access for recording, but have not yet acquired long neurites that occur with long term culture.

First, we show Na_VT, Na_VP, and Na_VR current modes recorded from VGNs, and their contributions to voltage dependence and time course of the overall Na_V current (I-Na_V). We describe experiments investigating contributions of a channel subunit, Na_V1.6, that carries all three current modes. We then assess the roles of Na_V currents in AP waveforms and spiking during current clamp. Finally, we examine the roles of each current mode in a computational model of VGN spiking.

3.1 Properties of Na_V currents in VGNs

To collect and characterize Na_V currents, we used solutions that lowered R_S voltage errors by decreasing Na_V currents: “Cs⁺” internal solution and “Na⁺ Reduced” external solution (Table 1), which had Cs⁺ instead of K⁺ and no added Ca²⁺ to minimize contamination with K⁺ or Ca²⁺ current. We recorded at room temperature (~24°C) to slow activation speed of fast Na_V currents into the range for which our voltage clamp time constant is adequate (~15–50 μs, see Methods).

3.1.1 All VGNs had I-Na_VT, some had I-Na_VP, and few had I-Na_VR

Figure 1 shows exemplar Na_V currents recorded from VGNs in response to voltage protocols previously designed to reveal Na_VT, Na_VP, and Na_VR current components (11, 32). Depolarizing steps following a hyperpolarizing prepulse revealed fast-inactivating I-Na_VT in all VGNs (Figure 1B), as previously reported (8, 33, 34). Table 4 summarizes I-Na_VT properties.

Table 4

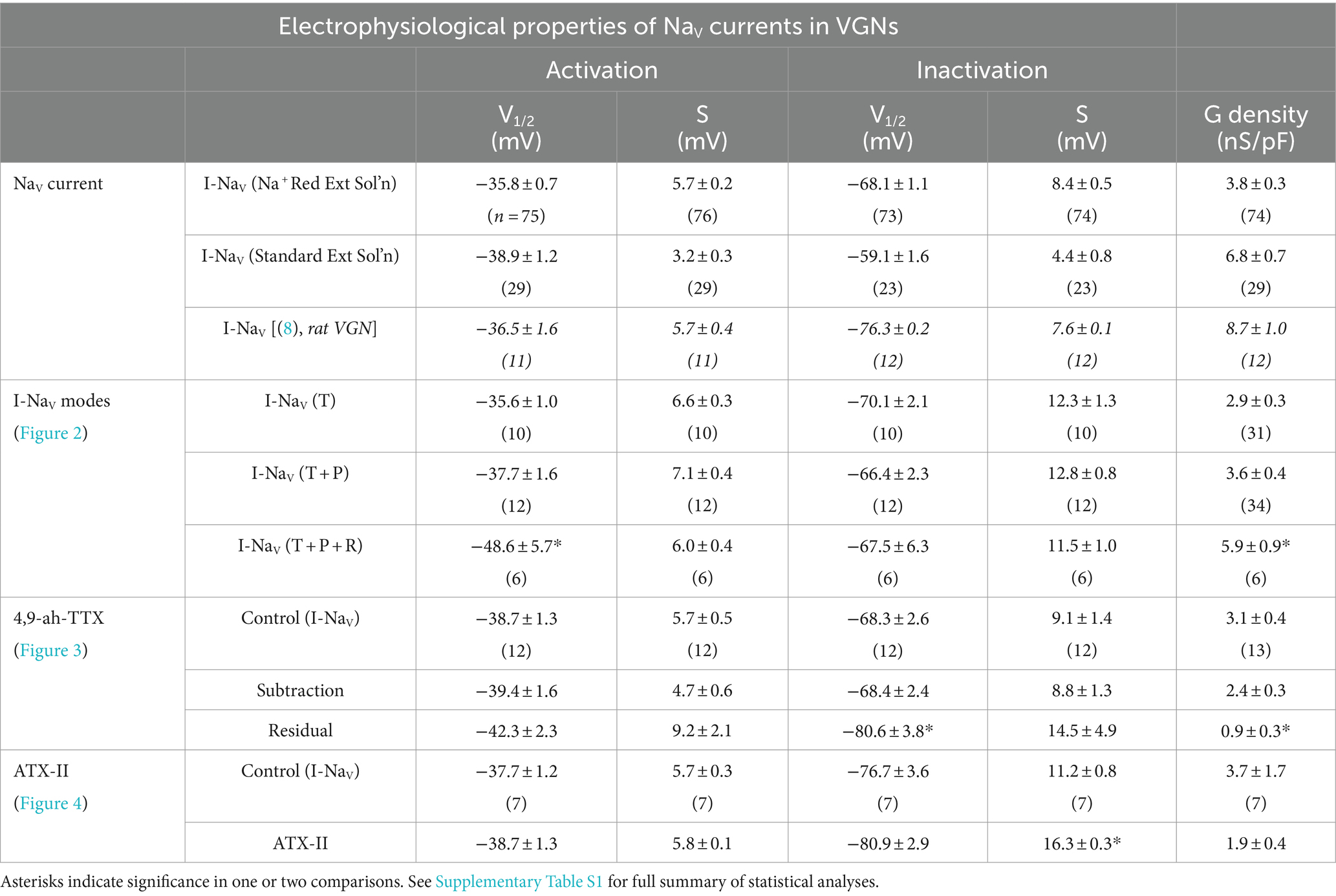

Table 4. Electrophysiological properties of Na_V currents in VGNs.

To reveal Na_VP current, we eliminated rapidly inactivating I-Na_VT by applying a slow depolarizing ramp (0.1 mV/ms from −80 to +60 mV) and obtained the TTX-sensitive non-inactivating component by subtracting the ramp current remaining in 1 μM TTX (Figure 1C). This method often revealed I-Na_VP as a small TTX-sensitive inward current activating above −70 mV. I-Na_VP was evident in 42 of 78 (54%) VGNs, P3-25, always in combination with I-Na_VT and in 4 cases with I-Na_VR as well.

I-Na_VR was revealed by stepping briefly from −125 mV to +25 mV for 5 ms to open Na_V channels, then repolarizing to iterated negative voltages, as previously designed to yield non-inactivating Na_V current (Figure 1D) (11, 35). It is thought that a blocking particle enters the channel as it opens at the activating voltage and prevents inactivation; with repolarization the channel unblocks, yielding I-Na_VR, which then inactivates (36, 37). Overall, I-Na_VR was much less common than I-Na_VP, occurring in just 6 of 78 VGNs (8%) tested in voltage clamp. All the cells with I-Na_VR were older than P10; for this age group, the incidence was 6/49 or 12%. Two of the 6 VGNs had I-Na_VT and I-Na_VR but no I-Na_VP. Developmental upregulation of I-Na_VR has been described in vestibular afferent endings, where I-Na_VR was found in 34/67 (51%) calyces >P30 (10).

Relative to I-Na_VT, which for iterated voltage steps peaked at −20 mV, I-Na_VR and I-Na_VP reached maximal amplitude at −45 mV repolarization voltage and − 25 mV ramp voltage, respectively (Figure 1E). Although, on average, peak I-Na_VP and peak I-Na_VR were just 1 and 3% of peak total I-Na_V, the small Na_VP and Na_VR currents can be relatively more substantial at subthreshold voltages; for example, from −60 to −50 mV, average I-Na_VP is 13% and I-Na_VR is 124% of the peak I-Na_VT over the same voltage range. Note that I-Na_VR is present only following a depolarizing prepulse or, in vivo, an AP.

I-Na_VT, I-Na_VP, and I-Na_VR were all completely blocked by 1 μM TTX. In contrast, in “acute” recordings from immature rat VGNs (p < 8) on the day of dissociation, Liu et al. (8) recorded multiple kinds of I-Na_VT with different TTX sensitivities and kinetics: TTX-insensitive Na_V1.5 current (IC₅₀ ~ 300 nM TTX) and TTX-resistant Na_V1.8 current (no block at 5 μM TTX), in addition to TTX-sensitive current. As in other studies of overnight-cultured VGNs (8, 33, 34), we did not detect TTX-insensitive or -resistant currents, even with 300 nM TTX to block the large TTX-sensitive currents (n = 5, not shown).

3.1.2 The addition of I-Na_VP and I-Na_VR affects overall activation voltage

Cells with I-Na_VR had larger average peak current density relative to VGNs with both Na_VT and Na_VP currents [I-Na_V(T + P)] or just I-Na_VT (Figure 2A; collected with protocol shown in Figure 1A). The 2 VGNs with I-Na_V(T + R) are shown separately in Figures 2A,B and had unusually large current densities (Figure 2C, green) and negative midpoints of activation and inactivation (Figure 2B).

Figure 2

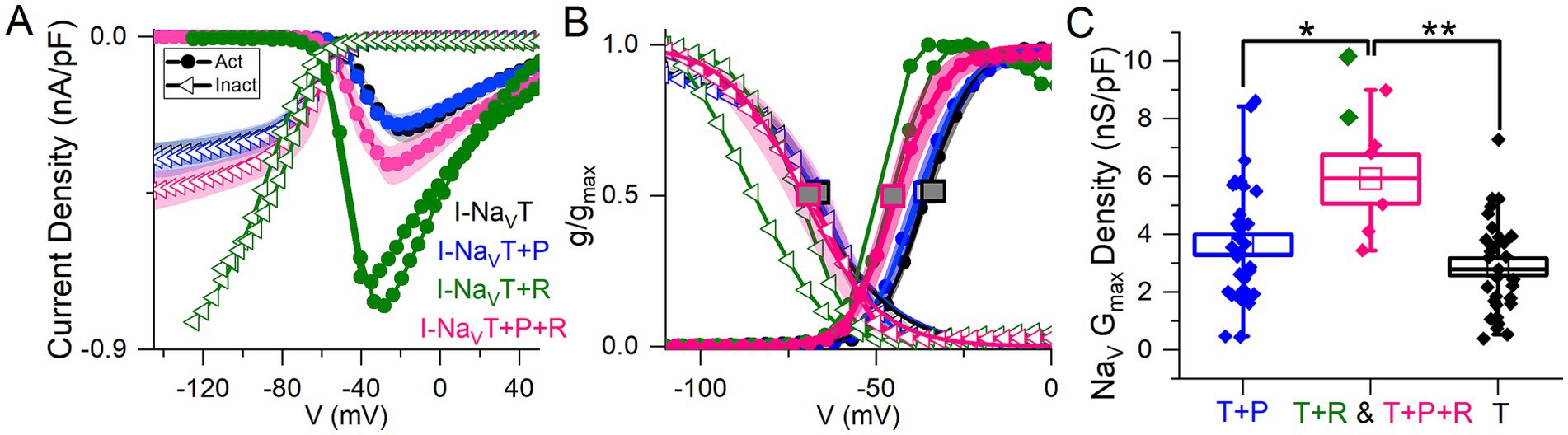

Figure 2. Voltage dependence of total Na_V current varied with different combinations of Na_VT, Na_VP and/or Na_VR current modes. (A) I-V curves averaged for cells with different current modes. 2 VGNs with I-Na_VT plus I-Na_VR (green) had large current densities and are shown individually. (B) G-V activation curves show that voltage dependence differed in cells with different combinations of Na_V current modes. V_1/2 of activation and inactivation are marked with square symbols. Voltage dependence of activation was more negative in VGNs with I-Na_VR (I-Na_V(T + R) and I-Na_V(T + P + R); green and pink lines) than I-Na_V(T + P) (p = 0.02, blue) and I-Na_VT (p = 0.007, black). V_1/2 of inactivation did not differ (one-way 3-factor ANOVA, p = 0.7). (C) VGNs with I-Na_VR, I-Na_V(T + P + R) (pink) and I-Na_V(T + R) (green), had larger (pooled) conductance densities than VGNs without I-Na_VR: I-Na_V(T + P) (blue; one-way 3-factor ANOVA, *p = 0.02) and I-Na_VT (black; **p = 0.002).

To measure how Na_VP and Na_VR currents influenced the voltage dependence of the total Na_V current, we fit activation and inactivation (peak G-V) curves with Boltzmann functions (Equations 1, 2; Figure 2B) and compared fit parameters (Table 4; statistical tests in Supplementary Table S1). There was no difference detected in half-maximal activation potential (V_{1/2, Act}) values between VGNs with I-Na_VT and I-Na_V(T + P) (Figure 2B); although the statistical power is low, the lack of clear difference is not surprising given the small size of I-Na_VP. Cells with I-Na_VR (n = 6), however, had V_{1/2, Act} values shifted significantly negative to cells with I-Na_V(T + P) or just I-Na_VT (pink square vs black or blue square, Figure 2B). The negative shift of activation voltage suggests that I-Na_VR may decrease the current threshold for spiking, possibly by reducing overall rates of inactivation. Half-maximal inactivation potential (V_{1/2, Inact}) did not differ significantly across groups (Figure 2B).

In Figure 2C, peak current density values have been converted to maximum Na_V conductance density (Na_V G_Max density). To assess the effect of I-Na_VR, we pooled all VGNs with I-Na_VR [(T + P + R) and (T + R)]. VGNs with I-Na_V(T + P + R) had greater total Na_V G_Max density relative to I-Na_VT and I-Na_V(T + P) (Table 4). This indicates that VGNs with resurgent current have a greater I-Na_V conductance. Later (see Figure 8), we use the computational model to compare the effects of increasing total conductance with just I-Na_VT current vs. I-Na_VT plus P and/or R modes.

3.1.3 Major fractions of Na_VT, Na_VP, and Na_VR currents are sensitive to 4,9-ah-TTX

In neurons with resurgent currents, such as cerebellar Purkinje cells, Na_V1.6 channels can carry all three current modes (38). Purkinje neurons in Na_V1.6-null mice have reduced Na_VT and Na_VP current, and almost no Na_VR current (11, 13, 38, 39). We tested for Na_V1.6 contributions to the Na_VT, Na_VP, and Na_VR current components using the Na_V1.6 blocker, 4,9-ah-TTX, at a dose (100 nM) that is ~10-fold higher than the IC₅₀ [IC₅₀ = 8 nM; (21)]. A recent study indicated 4,9-ah-TTX may also partially block Na_V1.1 in mouse brain slices (40), so Na_V1.1 channel contributions to these current modes in VGNs is also possible.

In Na⁺-reduced external solution, 100 nM 4,9-ah-TTX blocked approximately 70% of I-Na_VT in VGNs (Figures 3A,B). Control and blocked (i.e., 4,9-ah-TTX sensitive currents) currents had similar V_{1/2, Act} and V_{1/2, Inact} values (Table 4). This is not surprising, given that the blocked current makes up most of the total current. V_1/2,Inact was, however, more negative for the unblocked (residual, 4,9-ah-TTX insensitive) current than for control current (red square vs black or blue square, Figure 3B); V_1/2,Act was not significantly different (Supplementary Table S1). This suggests the possibility of a second TTX-sensitive current that is not carried by Na_V1.6 (or possibly Na_V1.1) channels and has a more negative inactivation voltage dependence. The voltage dependencies of inactivation and activation of the two TTX-sensitive, transient conductances (4,9-ah-TTX-sensitive and residual current) are consistent with observations on isolated rat VGNs (8).

Figure 3

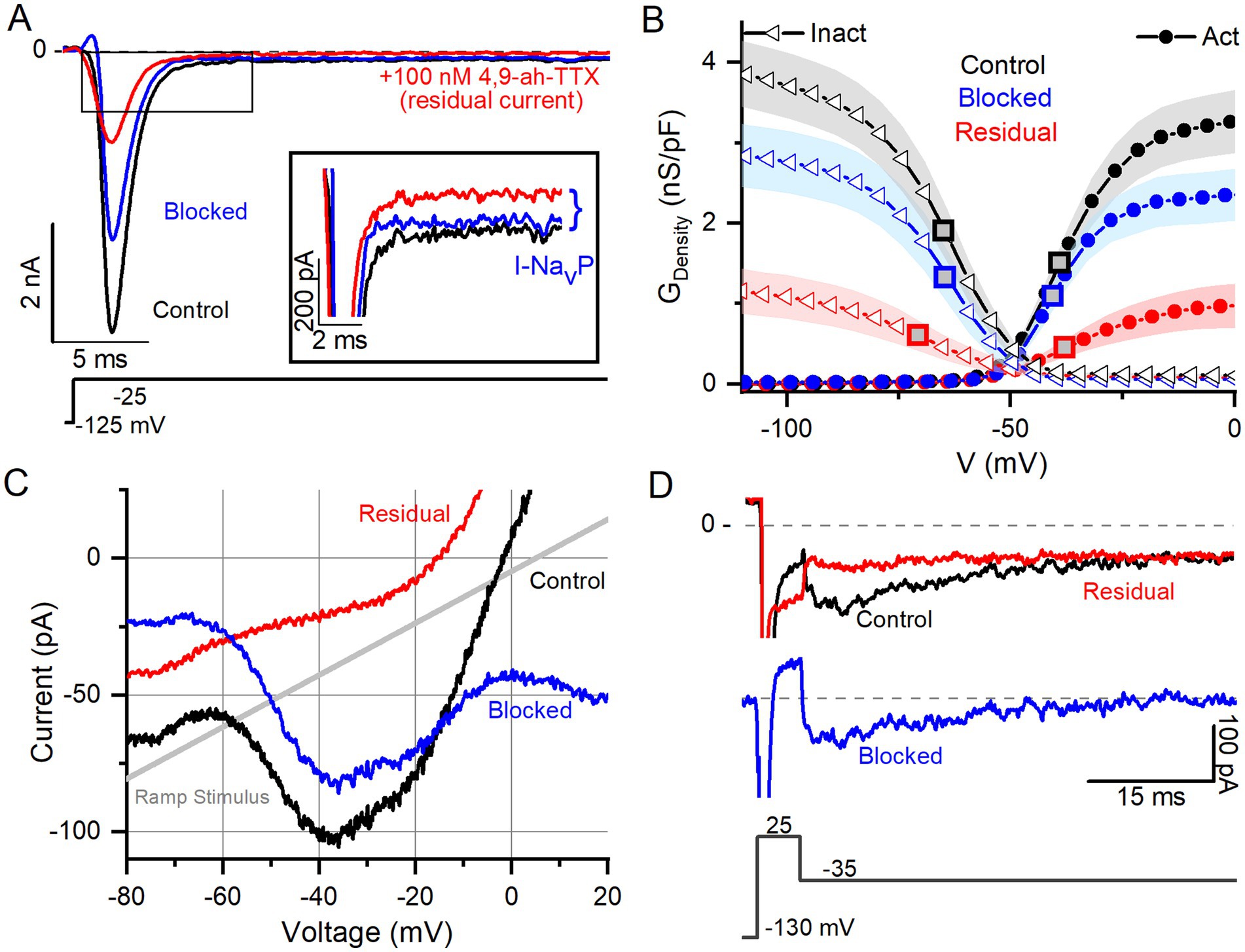

Figure 3. Na_V1.6 channel blocker (4,9-ah-TTX) strongly blocks Na_VT, Na_VP, and Na_VR current modes. (A) 100 nM 4,9-ah-TTX blocks ~70% of I-Na_VT in a P6 VGN. Inset highlights block of Na_VP current during voltage step. Control current is in black, red is the current measured during the drug (i.e., the “residual” current), and the blue is the blocked current (red current subtracted from the black). (B) Boltzmann fits of G-V activation and inactivation curves for data from (A). Square symbols indicate V_1/2 values. 4,9-ah-TTX-insensitive current (red) had more negative inactivation V_1/2 (n = 12, p = 0.02, Table 4). (C,D) Na_VP (C, P17 VGN) and Na_VR (D, P18 VGN) currents are also blocked (~90%) by 100 nM 4,9-ah-TTX.

Na_VP and Na_VR currents were also blocked by 100 nM 4,9-ah-TTX. Block of I-Na_VP was seen in responses to voltage steps (Figure 3A inset) or to the slow voltage ramp (Figure 3C) (n = 13). We were able to test 4,9-ah-TTX on just 1 of the 6 VGNs with Na_VR; it produced a strong block of I-Na_VR (Figure 3D). These results with a Na_V1.6 blocker suggest that Na_V1.6 channels may carry the majority of I-Na_V in cultured VGNs, with possible contributions from Na_V1.1 (40), including ~50–70% I-Na_VT and > 90% of I-Na_VP and most of I-Na_VR. Similar results were obtained in calyx terminals (10).

3.1.4 I-Na_VT and I-Na_VP were enhanced by Na_V channel agonist ATX-II

The sea anemone toxin ATX-II interacts with Na_V channel gating, slowing down or preventing inactivation and thereby increasing Na_V current (20). ATX-II enhances Na_VP current in vestibular afferent calyces (10) and Na_VR and Na_VP currents in spiral ganglion neurons (30) and dorsal root ganglion neurons (41). We tested the impact of ATX-II on I-Na_V modes in mouse VGN cell bodies.

100 nM ATX-II increased maximum I-Na_VT in 3 of 7 VGNs tested (Figure 4A). In all VGNs, inactivation of I-Na_VT was slowed, resulting in increased I-Na_VP at the end of depolarizing steps (Figure 4A) and during voltage ramps (Figure 4B). On average, I-Na_VP increased more than 5-fold (Figure 4C); the example in Figure 4B was the largest effect seen. We detected no significant difference with ATX-II in V_{1/2, Act} and V_{1/2, Inact} values for I-Na_VP and I-Na_VT (Table 4 and Supplementary Table S1). For I-Na_VT, ATX-II increased the slope factor (decreased the steepness of voltage dependence) of inactivation (p = 0.009, Hedges’ g = 0.85, large effect) but not activation (p = 0.85, power = 0.05) (not shown). We were not able to test ATX-II on resurgent current due to its low incidence.

Figure 4

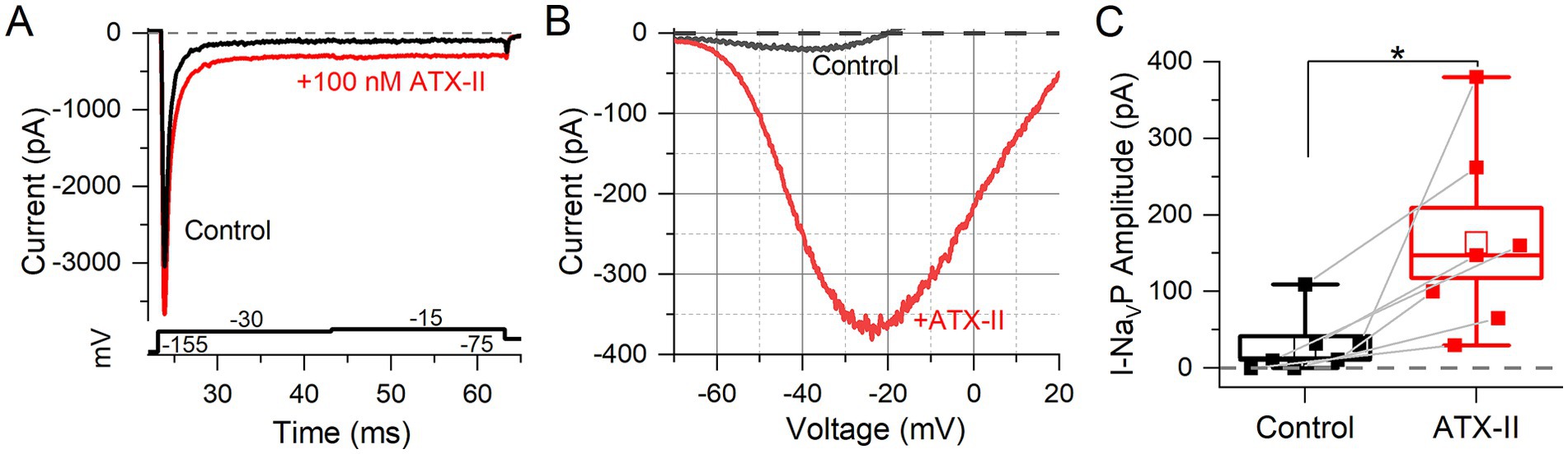

Figure 4. Na_V channel agonist (ATX-II) strongly enhanced Na_VT and Na_VP currents. (A) An example of enhanced Na_VT and Na_VP current by 100 nM ATX-II (red trace) (top panel) as elicited by depolarizing voltage steps (bottom panel). (B) I-V relation of Na_VP current in a P7 VGN, before (gray) and in 100 nM ATX-II (red). Voltage dependence of I-Na_VP was not significantly altered by ATX-II: V_1/2 of G-V curves −38.8 ± 4.2 mV (n = 7) vs. –30.6 ± 2.9 mV, p = 0.12, power = 0.33 (not shown). (C) Na_VP currents, evoked by the ramp stimulus, grew in ATX-II from 27.4 ± 14.4 pA to 163.5 ± 45.9 pA (n = 7, paired t-test; *p = 0.01; Hedges’ g = 0.93, large effect). Na_VR currents were not tested.

Figure 5

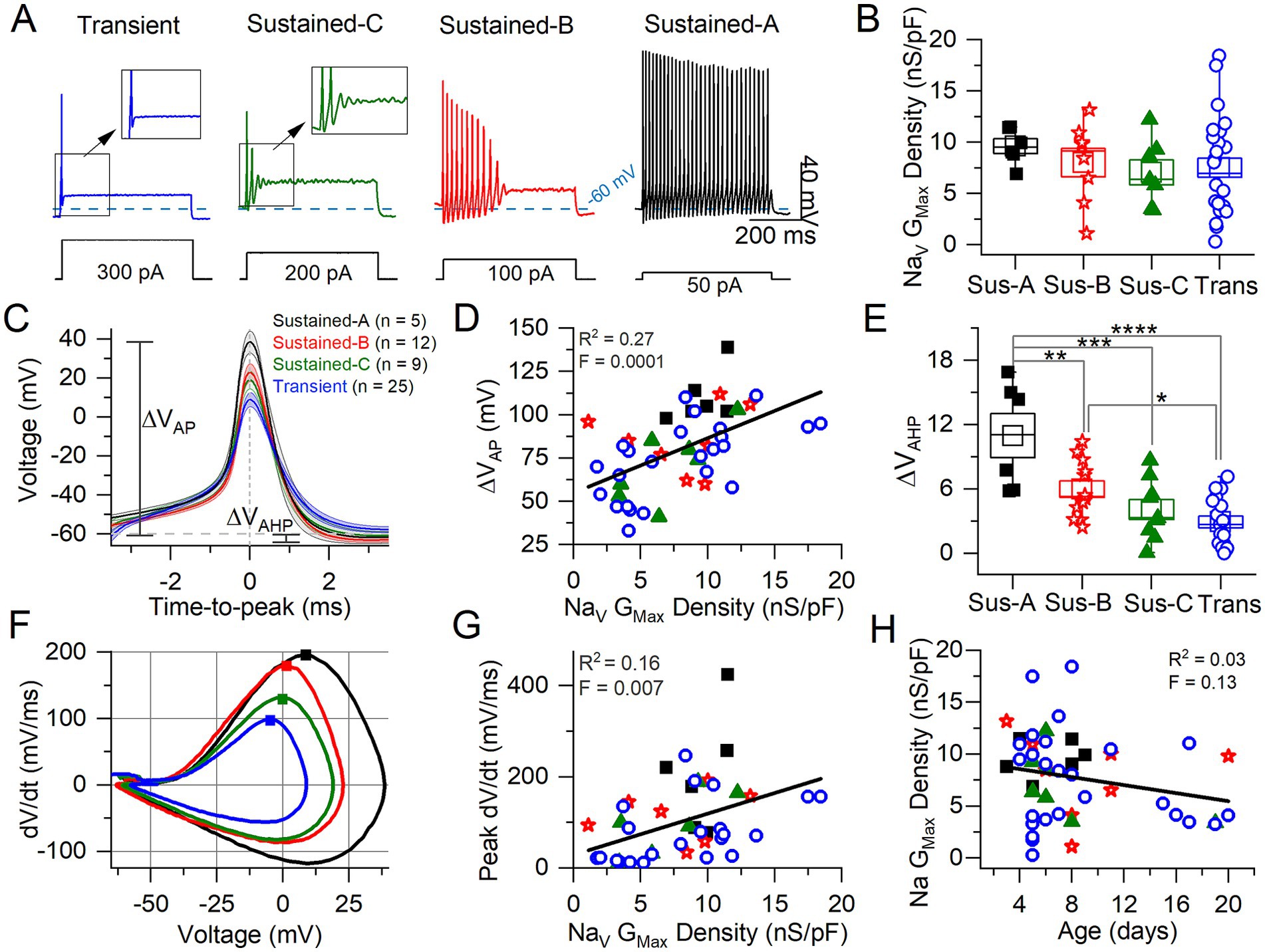

Figure 5. Correlating VGN firing patterns with spike waveforms and maximum Na_V conductance density. (A) Exemplar firing patterns in VGNs evoked by 500-ms current steps of different size reflecting different current thresholds. (B) Variation in maximum Na_V conductance density with firing pattern is not significant (homogeneous variance, Levene’s Test) (n = 6 sus-A, 8 sus-B, 7 sus-c, 26 transient; note that in some VGNs Na_V current could be properly clamped). (C) Average spikes for each firing pattern, aligned to peak; spike height (ΔV_AP) and afterhyperpolarization (AHP) are measured from V_rest. (D) AP height correlated weakly with Na_V G_max density. (E) AHP depth varied with firing pattern (n = 6, 12, 9, 17; in some VGNs the AHP did not fall below V_rest and was therefore excluded from analysis) (****p = 0.00007; ***p = 0.0005; **p = 0.009; *p = 0.04). (F) Phase plane plots of averaged APs from (C). Squares denote peak dV/dt (rate of spike rise) values. (G) Peak dV/dt (see squares in F) correlated weakly with Na_V G_Max density. (H) No relationship between Na Gmax Density and age.

3.2 Roles of Na_V currents during action potentials and spike trains

To characterize AP waveforms and evoked firing patterns, we recorded in current clamp mode from 62 VGNs in K⁺ based standard extracellular and intracellular solutions (Table 1). Without reduced extracellular Na⁺, voltage clamp was less satisfactory: the large fast I-Na_V often escaped voltage clamp, obscuring the small, non-inactivating Na_VP and Na_VR currents. Although we could not identify I-Na_VP or I-Na_VR in whole-cell voltage clamp recordings, we characterized some features of I-Na_VT and tested for effects of the Na_V channel blocker and agonist on spike waveform and firing pattern.

3.2.1 Na_V conductance correlated with features of the action potential waveform

We classified VGNs into four groups based on firing patterns evoked by depolarizing current steps just above current threshold (as measured with 50-pA resolution), following the scheme of Ventura and Kalluri (25) (Figure 5A). Transient neurons fired 1 or 2 spikes at step onset independent of step size. Sustained-firing neurons ranged from sustained-A type, with spike trains lasting the 500-ms depolarizing step, to sustained-B type, with shorter trains, to sustained-C type, with 2 or more small spikes that devolve into voltage oscillations. Increased current injections increase firing rates in sustained-A and -B neurons; in sustained-C VGNs, however, voltage oscillations increase as more current is injected [see Figure 1 in Kalluri et al. (4)].

Transient VGNs had significantly higher current thresholds for spiking relative to sustained-A and sustained-B VGNs (Supplementary Table S2). We detected no significant differences across firing patterns in resting potential (V_rest), input resistance (R_in), voltage threshold for spiking, or cell size as measured by membrane capacitance (C_m) (Supplementary Table S2). While the incidence of the transient firing pattern was stable with age, at ~50%, the distribution of sustained firing patterns changed from an approximate balance across sustained-A, -B, and -C subtypes for ages below P10 (n = 21) to mostly sustained-B above P10 (6/7) (Supplementary Figure S3). A similar maturational change away from fully sustained firing was seen in rat VGNs (25).

We assessed the AP waveform of the first spike of each firing pattern, calculating metrics as described in Bean (7) from either the waveform or the phase-plane plot of dV/dt vs. V_m (Figures 5C,F; summarized in Table 5; details in Supplementary Table S3). APs from transient VGNs were smaller than APs from sustained-A VGNs (ΔV_AP, Figure 5C) and had slower peak rates of depolarization (peak dV/dt) than APs from sustained-A and sustained-B VGNs (Figure 5F). No differences across firing patterns were detected for AP time-to-peak or AP voltage threshold, taken as the voltage corresponding to dV/dt = 10 mV/ms (Figures 5C,D and Table 5).

Table 5

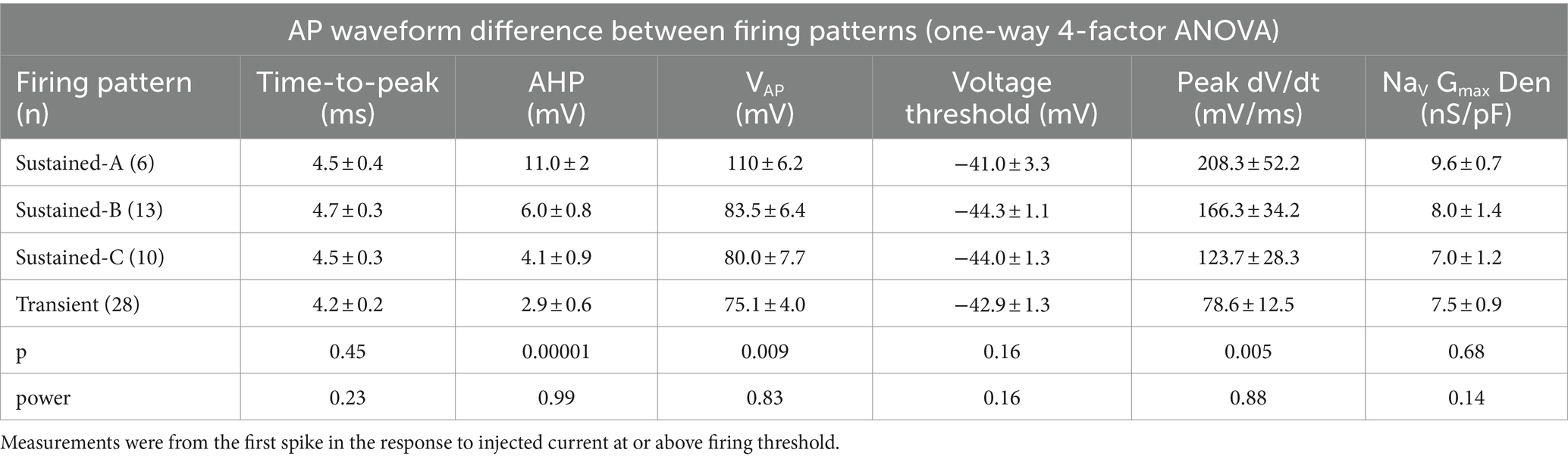

Table 5. AP waveform differences between firing patterns from Figure 5.

For 56 cells, we also collected Na_V currents in voltage clamp and fit activation (peak G-V) curves (Equation 1) to measure maximum Na_V conductance density (Na_V G_Max density) (Figure 5B). We had hypothesized that Na_V G_Max density would be highest for sustained-A VGNs and lowest for transient VGNs but actually did not detect a significant difference in Na_V G_Max density across firing pattern populations, although this was a low-powered observation (Figure 5B and Table 5). Spike height (Figure 5C) and peak dV/dt from phase plane plots [Figure 5F; (7)] both correlated with Na_V G_Max density (Figures 5D,G), as expected given that Na_V currents drive the rising phase of the AP. We saw no relationship between Na_V G_Max density and age (Figure 5H).

The spike afterhyperpolarization (AHP), measured as the difference between the resting potential and the most negative potential following a spike, was significantly greater in sustained-A neurons than any other firing groups (Figure 5E, Table 5, Supplementary Table S3). The AHP preserves sodium channel availability by relieving inactivation, shortening the refractory period, and allowing sustained and regular firing at high rates (42). Differences in AHP have previously been attributed to differences in K_LV conductance that affect resting potential, current threshold, and membrane recovery time (4, 5, 24). In particular, the low K_LV conductance of immature sustained-A VGNs can contribute by making V_rest less negative.

In summary, maximum Na_V conductance density did not clearly vary with firing pattern but correlated with features of the spike waveform. We had hypothesized that sustained-A VGNs would have the highest Na_V G_Max densities and transient VGNs the lowest densities but did not detect a significant difference in average Na_V G_Max density across firing pattern populations, except that the range of G_Max densities was much higher for the transient VGNs. Key features of the AP waveform—spike amplitude, AHP, and peak rate of depolarization—did positively correlate with Na_V G_Max density (Figure 5).

3.2.2 Blocking 4,9-ah-TTX-sensitive currents reduced excitability and altered AP waveform

We probed the effects of the blocker 4,9-ah-TTX on spiking (Figure 6), which greatly reduced Na_VT, Na_VP, and Na_VR currents recorded in Na⁺ Reduced/Cs⁺ solutions (Figure 3). In standard recording conditions, 100 nM 4,9-ah-TTX showed a similar percent block of I-Na_VT for transient VGNs (50.1 ± 11.3%) and sustained VGNs (52.0 ± 5.2%). We saw a similar 4,9-ah-TTX sensitivity between our cultured VGNs and Na_V1.6 channels expressed in HEK cells (40).

Figure 6

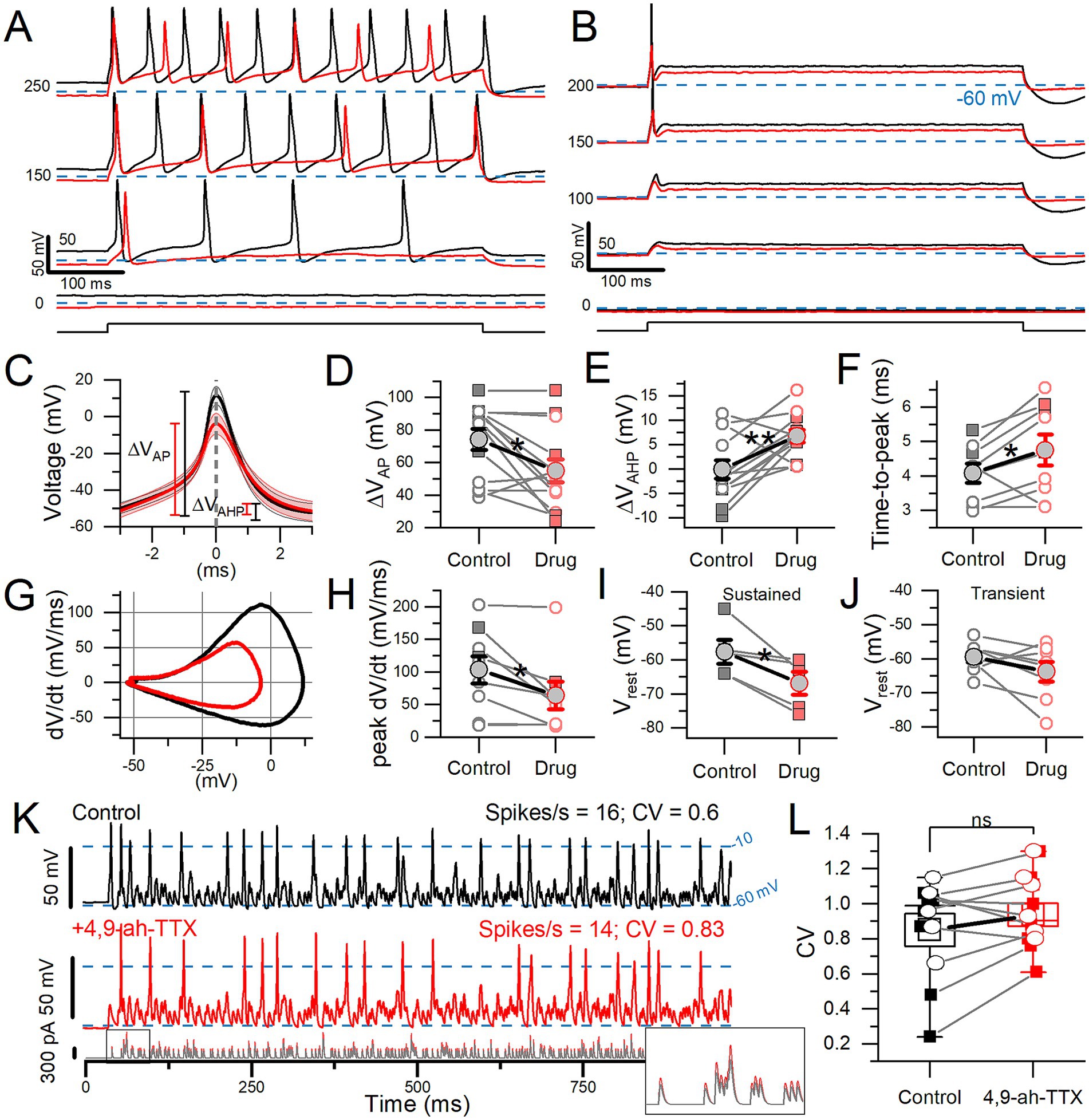

Figure 6. 4,9-ah-TTX reduced step-evoked spiking excitability and altered the AP waveform. In 100 nM 4,9-ah-TTX, the 50% block of I-Na_VT was similar in transient VGNs (n = 8) and sustained VGNs (n = 5: 1 sustained-A, 1 sustained-B, 3 sustained-C) (Welch’s t-test, p = 0.94, power = 0.05). (A,B) In 100 nM 4,9-ah-TTX (red), current threshold increased in a sustained VGN (A) and a transient VGN (B). In 7 cells, threshold increased from 92.3 ± 14.8 pA to 165.4 ± 23.6 pA (paired t-test, p = 0.002, Hedges’ g = 0.63; medium effect). (C) First AP from firing patterns such as (A,B), averaged (n = 7). (D) In 4,9-ah-TTX, for sustained (squares) and transient (circles) neurons, spike height decreased (*p = 0.01), (E) afterhyperpolarization depth increased (**p = 0.006), (F) and spike latency (i.e., time-to-peak) increased (*p = 0.05). In some cases, AHP was depolarized relative to (V_rest) by the current step. (G) Phase plane plots of mean AP waveforms in (C) highlight the change in peak dV/dt and V_AP. (H) Peak dV/dt, from (E), was decreased by 4,9-ah-TTX (*p = 0.03, Hedges’ g = 0.14, small effect). (I,J) Sustained VGNs (I) were significantly hyperpolarized (*p = 0.03, Hedges’ g = 0.67, medium-large effect) but not transient VGNs (J) (p = 0.16). (K) 100 nM 4,9-ah-TTX (red middle panel) did not significantly reduce CV in spike trains evoked by pseudo-EPSCs (bottom panel) relative to control conditions (black top panel) in a P5 transient VGN. Dashed lines at −10 mV indicate event threshold for spike count; dashed lines at −60 mV indicate V_rest. Inset: first 50 ms of EPSC train. (L) CV was not significantly altered in 4,9-ah-TX (paired t-test, 0.85 ± 0.09 vs. 0.94 ± 0.07, p = 0.15, power = 0.29). Sustained VGNs (n = 4, squares); transient VGNs (n = 6, circles).

100 nM 4,9-ah-TTX affected step-evoked firing quantitatively, as shown in Figure 6. For all 13 VGNs tested, the Na_V1.6 blocker increased current threshold for 500-ms steps. For sustained VGNs, 4,9-ah-TTX reduced the number of APs (spike rate) at s piking threshold and throughout the family of current steps (Figure 6A). For transient VGNs, 100 nM 4,9-ah-TTX increased current threshold for spiking and decreased spike amplitude (Figure 6B).

To assess changes in the AP waveform, we temporally aligned the peaks of the first APs evoked by long current steps (Figure 6C, detailed in Supplementary Table S4). 4,9-ah-TTX reduced spike height by ~20 mV (~25%) on average (Figure 6D). AHP depth was also reduced, possibly because hyperpolarizing K⁺ currents were less activated during the smaller spike (Figure 6E) and AP time-to-peak increased (Figure 6F). No change was detected in spike width at half-height, although control spikes are narrower at their peaks, reflecting their higher rates of depolarization and repolarization (Figures 6G,H).

4,9-ah-TTX substantially hyperpolarized V_rest in sustained VGNs (Figure 6I) but not transient VGNs (Figure 6J). These data suggest that in sustained VGNs, 4,9-ah-TTX blocks depolarizing channels that are open at rest, such as I-Na_VT and I-Na_VP. The larger impact of the blocker on sustained VGNs may reflect a different balance of channels open at rest: they have smaller K_LV conductances (4) and may also have larger Na_V conductances open at rest, leading to a relatively more depolarized V_rest.

To test the impact of 4,9-ah-TTX-sensitive current on spike regularity (CV), we stimulated firing with frozen trains of synthetic (“pseudo”) EPSCs. The pseudo-EPSCs had pseudo-random timing to represent noisy quantal input from hair cells to afferent terminals where spiking normally initiates (4). In 4 of 14 VGNs tested, a partial block of Na_V current with 4,9-ah-TTX eliminated EPSC-induced spiking entirely. In the remaining 10 VGNs (6 transient and 4 sustained), we measured regularity as coefficient of variation (CV). To avoid rate effects on CV, we held spike rates to control levels (15.1 ± 1.3 vs. 15.3 ± 1.7 spikes/s) by controlling EPSC size [Figure 6K; (see 4)]. However, blocking 4,9-ah-TTX sensitive current did not significantly affect CV (Figure 6L).

In summary, in all firing pattern groups, blocking Na_V current with 4,9-ah-TTX altered spike wave form, decreasing spike amplitude, AHP, time-to-peak, and rate of depolarization. In sustained VGNs alone, 4,9-ah-TTX also made resting potential appreciably more negative, showing that Na_V1.6 conductance is a significant factor in setting resting potential. Later (see Supplementary Figure S4), we use the computational model to assess the effects of individual current modes on V_rest. In a sample of transient and sustained neurons, blocking 4,9-ah-TTX-sensitive current had no consistent effect on spike regularity when overall rate was held constant by increasing EPSC size.

3.2.3 ATX-II increased excitability and spiking regularity

In voltage clamp, 100 nM ATX-II, which reduces Na_V channel inactivation, increased Na_VP and Na_VT currents (Figure 4). We tested its impact on step-evoked firing patterns and pseudo-EPSC-evoked spike trains (Figure 7).

Figure 7

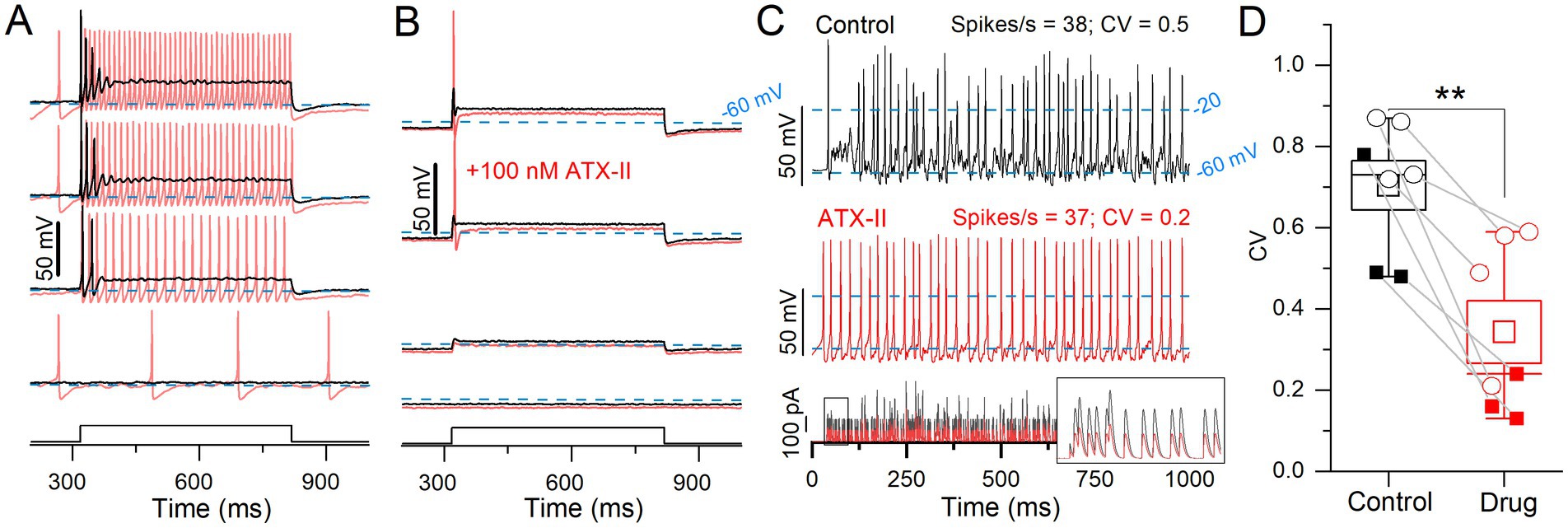

Figure 7. ATX-II increased spike rate and rate-independent regularity for current steps and EPSC-train stimuli. (A) 100 nM ATX-II (red) increased excitability relative to control (black) in a P12 sustained-C VGN: increasing the number of APs per step and inducing spontaneous spiking at rest (step current threshold = 0). (B) In a P12 transient VGN, current threshold was reduced, but the number of APs remained unchanged. (C) Pseudo-EPSC trains (bottom panel) evoked spikes in the sustained-C VGN from (A). ATX-II increased spike timing regularity in all VGNs. Inset: the first 50 ms of EPSC train. To keep spike rate constant between conditions at ~38 spikes/s, smaller EPSCs were applied during ATX-II (bottom panel). (D) ATX-II decreased CV in every VGN tested (transient = open circles, sustained = filled squares) (0.70 ± 0.06 to 0.34 ± 0.08, paired t-test; n = 7; **p = 0.003).

Figure 8

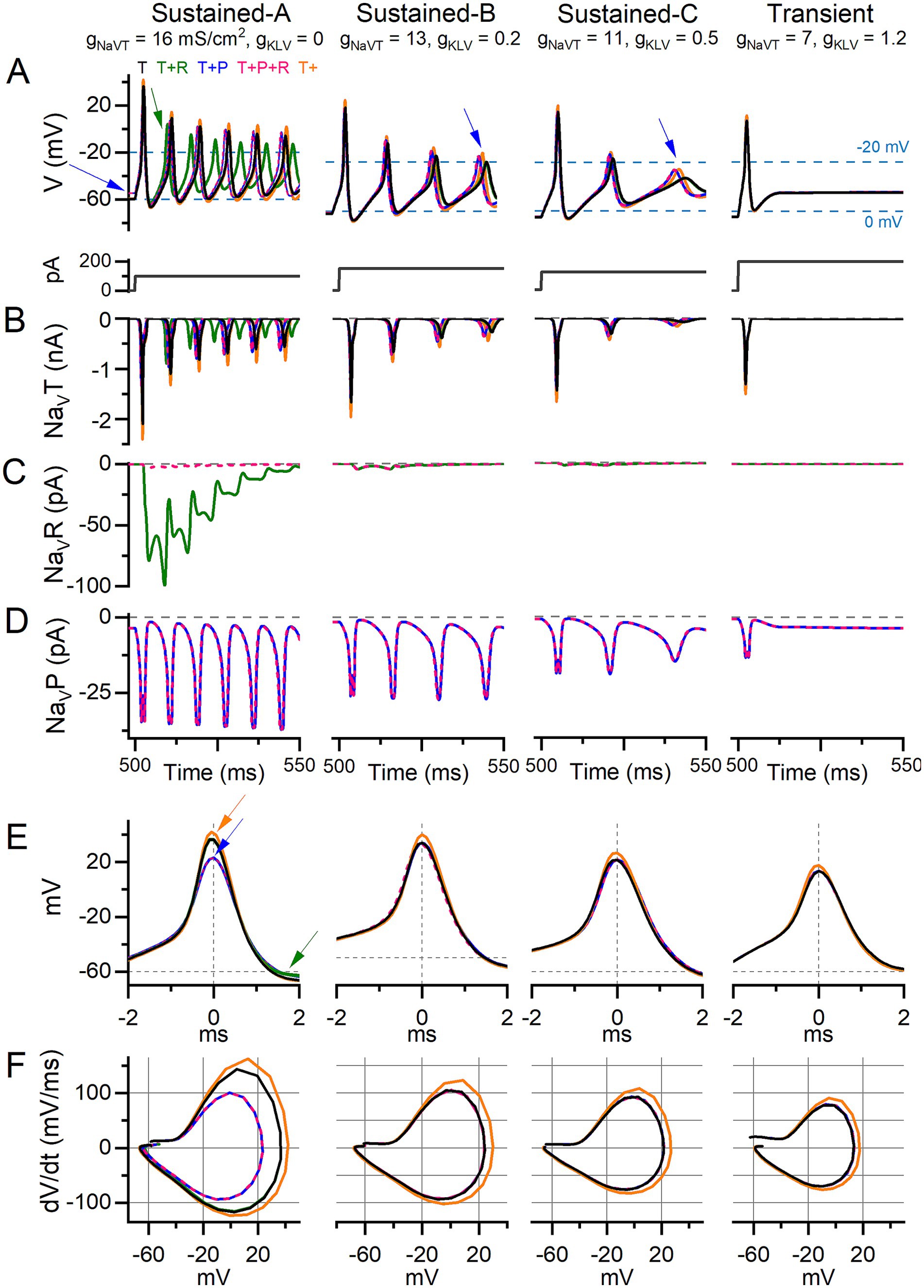

Figure 8. Adding I-Na_VP altered AP waveform and ISI in current-step responses of model VGNs. Step-evoked firing in model VGNs with only I-Na_VT (T); added I-Na_VR (T + R) (10% of I-Na_VT); added I-Na_VP (T + P) (3% of I-Na_VT); both added (T + P + R); and increased I-Na_VT (T+). 1st 50 ms of responses to current step. Current steps, below, were increased (left to right) to account for increased current thresholds for spiking as firing patterns progressed from sustained-A to transient. Rows (B–D) show currents corresponding to the above firing pattern and isolated for each current mode (T, R, P). (A) In sustained-A, -B, and -C models, adding I-Na_VP had variable effects on refractory periods and therefore AP time-to-peak in sustained-A, -B, -C mVGNs, and increased the size of post-spike voltage oscillations in sustained-B and sustained-C mVGNs (blue arrows). Adding I-Na_VP depolarized V_rest in sustained-A mVGN (blue arrow), and slightly decreased refractory periods (time-to-peak) in all sustained mVGNs. (B) I-Na_VT current flow during AP train. To control for increased Na_V conductance with added P and/or R conductance, we also ran a simulation with Na_VT conductance density increased by the same amount [18.1, 14.7, 12.4, 7.9 mS/cm² in sustained-A, -B, -C, transient simulations, respectively; T+ (orange) traces]. (C) I-Na_VR current flow during APs; note that I-Na_VR flows during repolarization of each AP and decreases in amplitude with each successive AP in sustained-A model neuron. (D) I-Na_VP current flow during AP train; note the increase in amplitude with each AP in sustained mVGNs. (E) Temporally aligning the first APs from trains in (A) shows I-Na_VP decreased spike height and I-Na_VR decreases AHP (green arrows) in sustained-A, and increased I-Na_VT increases spike height (orange arrows) in all mVGNs. (F) Phase plane plots show that increasing I-Na_VT also increases peak dV/dt in all mVGNs and I-Na_VP decreases peak dV/dt in sustained-A mVGN.

In a sample of 9 VGNs, ATX-II reduced current threshold to zero and changed step-evoked firing patterns toward more sustained categories in 7 VGNs (3 sustained-A, 2 sustained-C, 2 transient); e.g., sustained-C VGNs became sustained-A (Figure 7A). ATX-II also increased spike rate and decreased CV in responses to trains of pseudo-EPSCs. To control for rate effects on CV, we decreased EPSC amplitude in ATX-II to match spike rate (35 ± 3.4 sp/s) to the control value (31 ± 2.8, Figure 7C) and still found a consistent, if modest, decrease in CV in ATX-II (Figures 7C,D). Figure 7B shows one of 2 of 9 VGNs, both transient, that remained transient, irregular, and relatively inexcitable in ATX-II. There was no significant effect on AP waveform (Supplementary Table S4).

In summary, reducing Na_V channel inactivation with ATX-II lowered current thresholds for both step-and pseudo-EPSC-evoked firing, in most cases to zero current (spontaneous firing). ATX-II also slightly increased spike regularity independent of rate. These results are consistent with increased Na_V channel availability near resting potential, presumably through reduced proportion of inactivated channels, effectively increasing the persistent current.

3.3 Modeling the effects of transient, persistent, and resurgent Na_V currents on VGN firing

We hypothesized that I-Na_VP and I-Na_VR increase excitability in VGNs by increasing channel availability near spike threshold, and thus enhance the likelihood of firing. Because excitability has been associated with regularity in VGNs, we further hypothesized that I-Na_VP and I-Na_VR enhance spike timing regularity. Lacking pharmacological tools to disentangle the impacts of Na_VT, Na_VP and Na_VR currents in vitro, we adapted existing models of neuronal firing to create model VGNs (“mVGNs”) for which each current mode could be adjusted. Below we show that, while I-Na_VT affected rate and regularity in all mVGNs, I-Na_VP significantly increased rate and rate-independent regularity in the sustained mVGNs and I-Na_VR increased rate but decreased rate-independent regularity in the transient mVGNs.

We combined a single-compartment conductance-based VGN spiking model (24, 25) with equations for I-Na_VP and I-Na_VR (28, 29). Our recorded range of Na_V conductance density (g_NaVT) values was 0.2–18.4 nS/pF or 0.3–20.5 mS/cm². We refined the spiking parameters for each mVGN by fitting the phase plane plot of each mVGN to the phase plane plot of the average recorded AP (Figure 5F, see Methods). Based on the fitting results, we used 16 mS/cm² for sustained-A, 13 mS/cm² for sustained-B, 11 mS/cm² for sustained-C and, and 7 mS/cm² for transient model neurons (Table 3). These values neatly replicated AP waveforms, firing patterns, spike rates, and regularity ranges of each VGN type.

To test the impact of Na_V current components, we separately simulated four combinations of Na_VT, Na_VP and Na_VR current modes of I-Na_V to assess differential effects on firing: (1) “T,” (2) “T + P,” (3) “T + R,” and (4) “T + P + R.” I-Na_VP and I-Na_VR were simulated with conductance density values as a percentage of I-Na_VT; I-Na_VP at 3% I-Na_VT and for I-Na_VR at 10% I-Na_VT. These proportions are based on our mouse VGN data and values from calyx afferent terminal recordings in semi-intact vestibular organs (10) (Methods and Table 3). Current–voltage relations of the simulated currents reproduce the voltage dependence of experimental data (dashed curves in Figure 1D).

Another set of simulations explored whether any changes with adding I- Na_VP and I-Na_VR were simply the effect of increasing Na_VT conductance (g_NaVT). We increased g_NaVT (“T+”) to match total conductances achieved in other simulations by adding Na_VP and/or Na_VR conductances, and to explore the range of g_NaVT recorded (Figure 5B).

3.3.1 Adding I-Na_VR or I-Na_VP increased instantaneous firing rates and altered spike waveforms evoked by current steps

We tested responses of mVGNs to 500-ms current steps for comparison with step-evoked spike patterns (illustrated for real VGNs in Figure 5A). In Figure 8A, we show, for the 5 I-Na_V combinations, the first 50 ms of the response to a current injected after a 500-ms holding period (0 injected current). Individual Na_V current modes during spiking are shown in Figures 8B–D. To highlight any effects on spike waveform, Figures 8E,F shows the waveforms and phase-plane plots of aligned first spikes of each mVGN firing pattern shown above. These simulations show that adding I-Na_VR and I-Na_VP increased excitability in sustained mVGNs.

Adding I-Na_VP produced a small inward current at 0 injected current, before spiking onset (Figure 8D), in all mVGNs. This was largest in the sustained-A mVGN (Figure 8A, left), where adding I-Na_VP depolarized V_rest (blue arrow), reduced spike height (Figure 8E, blue arrow) and rate of rise (Figure 8F), thus altering the AP waveform (Figure 8F). In both T + P and T + P + R conditions, the added I-Na_VP affected the first spike in the train by decreasing time-to-peak by 11%, spike height by 19%, spike width by 20% and peak dV/dt by 30% (Supplementary Table S5); adding I-Na_VR (i.e., T + P + R) had no additional effect. I-Na_VP also increased AHP by 36%, reducing I-Na_VT inactivation and so leading to larger Na_VT and P currents and driving larger spikes later in the train. I-Na_VP had much smaller effects on AP waveforms of other mVGNs. In sustained-B and -C mVGNs, I-Na_VP enhanced the number/rate and size of spikes and oscillations after the first spike (1–4% decrease in ISI; blue arrows, middle columns, Figure 8A).

Effects of I-Na_VR on spike waveform were first evident after a spike had occurred, as expected from Na_VR current’s requirement for a large activating depolarization (AP upstroke) to block the channels, followed by relief of block by the AP downstroke (Figure 8C; also Figure 1D). In sustained-A mVGNs, adding I-Na_VR to I-Na_VT (i.e., T + R) decreased ISI, shortening AHP duration by 52% and reducing ISI by 16%, therefore changing instantaneous spike rate and changing the timing of individual spikes in the train (green arrow; Figure 8A). I-Na_VR had smaller or negligible effects in sustained-B, -C and transient mVGNs, likely because their smaller APs fail to reach the voltage range of “blocking” for I-Na_VR [>+25 mV; (35)]. This may also account for the dominance of I-Na_VP current, such that T + P + R simulations resembled T + P simulations: depolarization of V_rest by I-Na_VP yielded smaller APs, effectively eliminating the impact of I-Na_VR (Figure 8C, pink traces).

We compared the effects of adding Na_VR and Na_VP currents to the effect of increasing the Na_VT conductance alone (i.e., T+; Figure 8A, orange traces). The effects on step-evoked firing of sustained mVGNs were not the same. Increasing I-Na_VT decreased ISI after the first spike (by <1 ms, Supplementary Table S5) less than either I-Na_VP or I-Na_VR (~3%) (Figures 8A,B). Increasing I-Na_VT affected first-spike waveforms more than I-Na_VR or I-Na_VP, substantially increasing spike height and peak rate of rise of first-spike AP waveforms for all firing patterns (compare orange curves with all others, Figures 8E,F).

In summary, adding I-Na_VR and/or I-Na_VP slightly increased instantaneous spike rate in step-evoked firing of sustained mVGNs. Increasing I-Na_VT to the same total conductance affected spike height and rate of rise more than I-Na_VR and/or I-Na_VP.

3.3.2 Na_VP current affected resting potential more than Na_VT or Na_VR currents

Adding I-Na_VP depolarized the resting membrane potential in sustained-A mVGNs (Figure 8A, blue arrow). To simulate the 4,9-ah-TTX block in real VGNs (Figure 7), we simulated step-evoked firing in the sustained-A mVGN and transient mVGN with I-Na_VT reduced by 70% and I-Na_VP and I-Na_VR by 90% (Supplementary Figure S4). Again, we set I-Na_VP at 3% and I-Na_VR at 10% I-Na_VT. The simulated block replicated observations in real VGNs. Current thresholds increased and spike heights fell in both mVGNs. The diminution of the spike was most pronounced in the sustained-A mVGN, which also showed reduced spike rate and clearly hyperpolarized V_rest. V_rest was negligibly affected in the transient mVGN.

We analyzed the influence of each Na_V current mode on the change in V_rest in sustained mVGN by varying P, R, and T combinations (Supplementary Figure S4C). Blocking I-Na_VR had no effect on V_rest in any mVGN because resurgent current requires activity to activate. Blocking I-Na_VT had at most a small effect on V_rest and then only in sustained mVGN (~1 mV). Virtually all the effect on V_rest was through I-Na_VP: 6 mV for sustained mVGN and 0.5 mV for the transient mVGN.

Therefore, reduction in Na_VT, Na_VP, and Na_VR currents in mVGNs reproduced key effects of a Na_V1.6 channel blocker and show I-Na_VP driving 5–10 mV depolarization of V_rest in sustained-A mVGNs. This simulation indicates that even if Na_VP currents are equally present in sustained and transient VGNs (as we have modeled them), the effect of Na_VP current is substantially stronger in sustained VGNs.

3.3.3 Adding I-Na_VT, I-Na_VP, and/or I-Na_VR increased spike rate evoked by pseudo-EPSC trains and differentially affected regularity

To examine the roles of Na_V current modes in spike rate and regularity, we drove sustained-A and transient mVGNs with 1-s trains of simulated synaptic events (pseudo-EPSCs, first 500 ms shown in Figures 9A,B), modeled after EPSCs recorded from vestibular afferent calyx events and quasi-randomly distributed in time (see Methods). We generated a set of 5 different pseudo-EPSC trains and applied the same set to each simulation condition shown in Figure 9. Therefore, the input noise is similar across each g_NaVT value in Figure 9. Each measurement in panels C-H is the mean and SEM for the 5 pseudo-EPSC trains at the specified g_NaVT and combinations of Na_VR and Na_VP conductances. Figure 9B (bottom trace) shows one of the pseudo-EPSC trains, with an inset highlighting a short onset segment at high gain. Again, we held Na_VP and Na_VR conductance at 3 and 10% of g_NaVT, respectively. Larger % values of Na_VP are explored in Supplementary Figure S5.

Figure 9

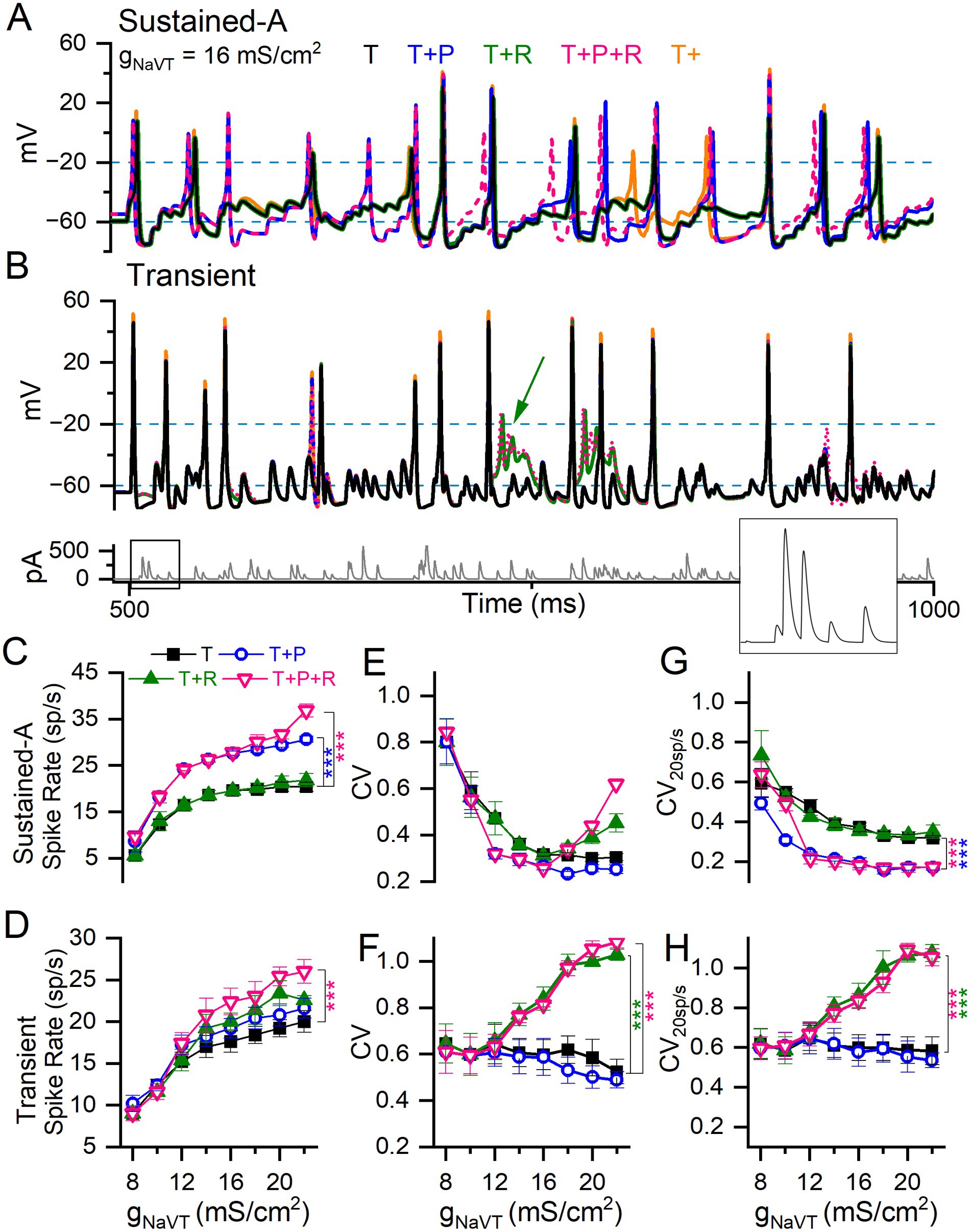

Figure 9. Adding I-Na_VP and/or I-Na_VR to I-Na_VT differentially affected spike rate and regularity in model VGNs. (A) Sustained-A mVGN under different Na_V current combinations: adding I-Na_VP increased spike rate, whether I-Na_VR was also added or not. (B) Transient mVGN under different Na_V current combinations: adding I-Na_VR increased spike rate, but sometimes caused depolarization block (green arrow). Bottom panel, pseudo-EPSC train used to evoke spike trains shown. (C,D) Summary of spike rates for each combination of Na_V current modes at each level of g_NaVT. Increasing I-Na_VT increased spike rate in both sustained-A and transient mVGNs. (C) Adding I-Na_VP (T + P and T + P + R) increased spike rate relative to I-Na_VT in sustained-A mVGN, while adding R has little effect on spike rate except at the highest value of (T + P + R). (D) I-Na_VR (T + R and T + P + R) increased spike rate in transient mVGN, while I-Na_VP had no effect. (E,F) Spike train regularity (CV) for spike trains in (C,D). I-Na_VP had little effect on CV in either mVGN. I-Na_VR increased CV especially in the transient mVGN, but also in sustained-A mVGN for g_NaVT > 14 mS/cm². Two-way ANOVAs confirmed interactions between effects of g_NaVT and Na_V current modes on spike rate and CV in sustained-A and on CV in transient mVGNs (Spike rate: F_(8,24) = 3 and 0.8, p < 0.0001 and 0.67. CV: F_(8,24) = 2 and 3.6 and p = 0.009 and < 0.001). (G,H) CVs with spike rate held at ~20 spikes/s (CV_20sp/s) across conditions, used to assess the effects of Na_V currents on CV independent of spike rate. (G) Adding I-Na_VP to sustained-A mVGN significantly decreased CV_20sp/s in sustained-A mVGN, with or without I-Na_VR. (H) Adding I-Na_VR to transient mVGN significantly increased CV_20sp/s in sustained-A mVGN for g_NaVT > 12 mS/cm², with or without I-Na_VP.

First, we assessed the effects of I-Na_VT alone on spike rate and spike regularity at 12 values of g_NaVT density chosen to cover the range we encountered in VGN recordings (6–22 mS/cm² in intervals of 2; orange traces in Figures 9A,B). To study spike rate effects, we generated EPSC trains with average inter-event interval fixed at 5 ms (200 EPSCs/s) and an amplitude that produced ~20 spikes/s at 14 mS/cm², then varied g_NaVT density. This firing rate corresponds approximately to the measured background rate for mouse vestibular afferents (~50 spikes/s, (58)) after compensation for the ~15°C lower temperature of our room temperature VGN recordings. For all mVGNs, spike rate increased and CV decreased with increasing g_NaVT density (Figures 9C–F), as previously demonstrated by Hight and Kalluri (24). For transient neurons, spike rate increased with g_NaVT density, again especially at the low end (Figure 9D). But CV showed much less variation with g_NaVT density (Figure 9F). Note that the sustained mVGN in the ‘T’ condition is no more regular than the transient mVGN for g_NaVT densities <12 mS/cm² (compare panels E and F).

In a second set of simulations, we assessed CV at a constant spike rate of 20 spikes/s (CV_20sp/s) to eliminate the confounding effect of spike rate on regularity. Rate was controlled by titrating the size of pseudo-EPSCs in each train, while not interfering with the pseudo-randomly distributed inter-event intervals. For the sustained-A mVGN (Figure 9G), increasing g_NaVT density decreased CV_20sp/s up to about 12 mS/cms², above which CV plateaued. For the transient mVGN (Figure 9H), in contrast, there was no obvious change in CV over the entire range of g_NaVT tested. The addition of I-Na_VR and/or I-Na_VP to I-Na_VT affected rate, CV and CV_20sp/s differently for the sustained-A mVGN vs. the transient mVGN (Figures 9C–H).

3.3.4 Na_VP and Na_VR currents increase spike rate in sustained and transient mVGNs, respectively

For the sustained-A mVGN, rate increased substantially when Na_VP current was added (p < 0.0001; Figure 9C and Supplementary Table S6) but was not affected by adding Na_VR current except for the (T + P + R) condition at the highest level of g_NaVT density tested. For the transient mVGN, adding both I-Na_VP and I-Na_VR increased rate for g_NaVT density > 12 mS/cm², reaching significance at the highest level. The effects of the two components appeared to be additive (Figure 9D). In simulations of all three components (T + P + R), the increase in spike rate is compounded: sustained mVGNs showed a medium to large effect (Hedge’s g = 0.6) and transient mVGNs a small effect (Hedge’s g = 0.2) (Figures 9C,D and Supplementary Table S6).

In Supplementary Figure S5, we show the effect of increasing Na_VP current to the highest values recorded at afferent terminals on hair cells, near the spike initiation zone: 5–10% of g_NaVT (10). Spike rate increased further as I-Na_VP increased. For the sustained-A mVGN, spike rate doubled as I-Na_VP increased from 0 to 10% (p < 0.0001, Hedges’ g = 1.5). For the transient mVGN, the impact on rate was smaller (~25% increase; p < 0.001, Hedges’ g = 0.7).

3.3.5 I-Na_VP decreases regularity in sustained mVGNs whereas I-Na_VR increases regularity in transient mVGNs

Adding Na_VP and Na_VR conductances had complementary effects on the regularity (CV and CV_20sp/s) of sustained-A and transient mVGNs. For the sustained-A mVGN (Figure 9G), adding Na_VP (at 3%) halved CV_20sp/s for all g_NaVT density > 8 mS/cm², whether Na_VR conductance was present or not. For the transient mVGN, in contrast, Na_VP current had no detectable effect, but Na_VR current increasingly enhanced irregularity (both CV and CV_20sp/s) for g_NaVT density > 12 mS/cm² (Figures 9F,H). One factor in the enhanced irregularity is likely to be depolarization block at high total Na_V conductance (e.g., green arrow, Figure 9B): instead of returning to V_rest, the increased proportion of unblocked channels held V_m depolarized, leading to profound inactivation of Na_VT current.

In summary, simulations suggest that I-Na_VP and I-Na_VR differentially affect spike rate and reinforce the difference in regularity at constant rate of sustained-A and transient VGNs. Adding P current made the sustained-A mVGN more regular, and adding R current made the transient mVGN more irregular, in both cases by factors of ~2.

4 Discussion

4.1 VGN as a model preparation for firing patterns in the vestibular nerve

VGNs are cell bodies that, when mature and in vivo, are bipolar, inter-nodal and myelinated. Research from multiple groups (5, 16, 33) has shown that isolated VGNs express voltage-gated currents and firing patterns that resemble currents and firing at spike initiation zones just below the hair cell-afferent terminal synapses in the vestibular epithelium, as illustrated by immunohistochemistry and direct recordings from calyx terminals [(e.g., 10, 43, 44)]. It is not clear whether the presence of these channels in the dissociated cell bodies represents true somatic expression, or whether nodal Na_V channels and paranodal K_V channels on either side of the soma come along during dissociation. In most cases, investigators have cultured the dissociated VGNs overnight, causing the VGNs to shed their myelin and expose the neuronal membrane for whole-cell patch recording.

In rat VGNs, there is some evidence that overnight culturing eliminates expression of some types of pore-forming Na_V channels. Dissociated young rat VGNs that were studied acutely had multiple transient Na_V currents with distinct voltage dependence and TTX sensitivity (8), including Na_V1.5 current (negatively shifted voltage range, TTX-insensitive) and Na_V1.8 current (positively shifted voltage range, TTX-resistant). These non-TTX-sensitive forms were not detected in overnight-cultured rat VGNs (8). Age differences across studies may also matter. Na_V1.5 expression in ganglion cell bodies may be an immature feature, as suggested by its time course of expression in small rat DRG neurons (54) and some decline in current expression over the first postnatal week in rat VGNs (8). Meredith and Rennie (45) recorded TTX-insensitive currents (consistent with Na_V1.5) from gerbil afferent calyceal terminals, and but only in afferents younger than P12.

In summary, isolated and cultured VGNs are compact cell bodies that allow high-quality voltage clamp recordings and reproduce some but not all naturally occurring ion channel expression. Importantly for our purposes, they show a range of firing patterns consistent with a role for intrinsic neuronal properties in setting up the different encoding strategies (temporal vs. rate) characteristic of irregular and regular afferent populations (3, 58). Previous work has documented the difference in firing patterns of VGNs and probed their relationship to specific ion channels: low-voltage-activated K_V1 (5) and K_V7 channels (4), Ca²⁺-dependent K channels (16), HCN channels (46) and Na_V channels (8). By going beyond correlation and developing a method to interrogate regularity in these synapse-less somata, a particularly strong case was made for K_LV channels (4). We took this approach with Na_V channel modes and provide support for a substantial role of relatively small persistent and resurgent currents in excitability, regularity, and related properties such as resting potential.

4.2 Na_V1.6 contributes to resting potential and excitability in VGNs

All VGNs in our sample expressed I-Na_VT and about half also expressed I-Na_VP with no clear change in incidence with age (range P3-28), in contrast to mouse cochlear ganglion neurons where both persistent and resurgent forms increased with maturation (30). We saw no I-Na_VR before P10. Beyond P10, the incidence was 12% (6/49 tested). VGNs also have voltage-dependent Ca²⁺ (Ca_V) currents (L-, N-, P/Q-, R-, and T-type) (47, 48) which drive Ca²⁺-dependent K⁺ currents that reduce sustained firing (16). Here we suppressed both Ca_V and Ca²⁺-dependent K⁺ currents by eliminating all but trace Ca²⁺ from the external medium. Our experiments do not indicate whether sustained VGNs have more Na_VP or Na_VR current than transient neurons, because the conditions for studying firing pattern did not allow isolation of the small P and R currents. However, our modeling suggests that for transient neurons, Na_VP and Na_VR currents, if present, would have little effect on regularity and resting potential.

RT-PCR of whole rat vestibular ganglia indicated expression of most Na_V pore-forming (α) subunits and all auxiliary (β) subunits (8). Transient, resurgent and persistent current modes were blocked 50–90% by 100 nM 4,9-ah-TTX, in the same range as data from calyx terminals in gerbil cristae (10). Denomme et al. (40) found that 100 nM 4,9-ah-TTX (as we used) blocked ~50% of current through human Na_V1.6 and Na_V1.1 channels expressed heterologously in HEK cells. Thus, the block we saw is consistent with Na_V1.6 channels but does not rule out contributions from other Na_V channels.

The residual Na_V current in 4,9-ah-TTX had significantly more negative inactivation than the control and blocked currents, but not nearly as negative as the TTX-insensitive current carried by Na_V1.5 in acutely cultured, immature rat VGNs (8). RT-PCR data suggest Na_V1.1, 1.2, 1.3, and 1.7 as candidates.

Cochlear spiral ganglion neurons also express 4,9-ah-TTX-sensitive transient, persistent, and resurgent currents (30), and are immunoreactive for Na_V1.6 at spike initiation zones next to their terminals on hair cells (49). I-Na_VR is theorized to arise from the internal block of Na_V channels, canonically Na_V1.6, by a positively charged molecule such as Na_V auxiliary subunit β4 [present in RT-PCR data of the ganglia (8)] or fibroblast growth factor homologous factor 14 (11, 14, 37).

The 4,9-ah-TTX-sensitive currents were critical to excitability in both firing types. In both sustained and transient neurons, spikes were substantially smaller in 4,9-ah-TTX, as expected from the strong block of the dominant transient mode. A large decrease in AHP size presumably reflected both the small spike height (reducing activation of K⁺ currents that cause AHPs) and the more negative V_rest (reducing the driving force, i.e., voltage difference from E_K). 4,9-ah-TTX blocking experiments showed that 4,9-ah-TTX-sensitive channels contribute to resting potential in sustained neurons (Figure 6I and Supplementary Table S4).

Our modeling also suggests that Na_VP and, to a lesser extent, Na_VT current modes may significantly contribute to resting conductance in sustained VGNs (Supplementary Figure S4). Although I-Na_VP contributed just 3% of maximum Na_V current density in VGNs, Na_VP current at resting potential may be closer to 10% of total current, based on its relative voltage dependence and the substantial (~30%) steady-state inactivation of Na_VT current even at resting potential (Figure 2B). The small to negligible effect of blocking Na_V1.6/1.1 channels on resting potential in transient VGNs (Figures 6J,I) is consistent with resting conductance being dominated by their greater density of K_LV channels. HCN conductances may also contribute to resting membrane potential in VGNs, depending on the balance of resting conductances (25).

4.3 Effects of Na_V current modes on AP waveforms, firing patterns, rate, and regularity

AP height and rate of rise varied across firing pattern (Figures 5C,F) and correlated modestly with maximum Na_V conductance density (Figure 5D), both for all VGNs and for transient VGNs alone, which showed the greatest variance in maximum Na_V conductance density. Firing pattern, in contrast, did not correlate closely with Na_V G_max density. G_max density is dominated by the Na_VT current mode, so these correlations do not reveal roles for I-Na_VP, which has a more significant effect near resting potential, and I-Na_VR, which acts during spike repolarization. To isolate their effects, we used simulations.

Our simulations support previous work on isolated VGNs indicating a dominant role for K_LV currents in differentiating spike rate and regularity of sustained (presumed regular) and transient (presumed irregular) VGNs (4, 25). K_LV currents increase irregularity independent of rate by enhancing the afferent’s sensitivity to high-frequency noise (4). We found that the large K_LV currents of transient VGNs limited the influence of Na_V current modes on rate and regularity, but when K_LV currents are small, as in sustained VGNs, augmenting transient and/or persistent Na_V currents increased excitability, spike rate, and rate-dependent regularity.

In sustained model VGNs, I-Na_VP had a stronger effect than other modes on resting potential, depolarizing V_rest by ~6 mV. The effect on V_rest, in turn, shapes many AP metrics by affecting resting (input) conductance, inactivation state of I-Na_VT, and current and voltage thresholds for spikes (Figure 8F). I-Na_VP also changed AP waveform by reducing time-to-peak and spike height in sustained-A mVGN APs. Primarily, however, I-Na_VP strongly increased firing rate and rate-independent regularity in sustained-A mVGNs. Regularly firing neurons, like sustained-A VGNs, use firing rate to preferentially encode low frequency information (3, 58). A mechanism that increases firing at or near V_rest without inactivating will enhance ability to encode small excitatory and inhibitory inputs, increasing response linearity, and contribute to spontaneous spiking (50).

In sustained mVGN current step simulations (Figures 8A,B), adding I-Na_VR altered instantaneous spike rate by truncating the AHP, decreasing the current threshold for spiking, and shortening ISI between the first two spikes. However, when tested with trains of pseudo-EPSCs, I-Na_VR had no effect on average spike rate across multiple spike trains (Supplementary Table S6), suggesting that long term effects of resurgent current reduce the impact of short-term changes in rate (50). In transient mVGN, resurgent current affected spike rate and regularity (CV) during pseudo-EPSC trains, independent of spike rate. We attribute these effects to sensitization during the inter-spike interval of transient mVGNs to the pseudo-randomly timed EPSCs.

The isolated VGN patch preparation and model provide an opportunity to isolate the impact of the afferents’ diverse voltage-gated channels, but incorporation into a fuller model of the inner ear may yield more insight into their impact on shaping the vestibular afferent signal. In vivo, many features differ across the peripheral and central epithelial zones that give rise to regular and irregular afferents, including the macromechanical input to hair cells, numbers and types of synaptic inputs, relative contributions of non-quantal and quantal transmission, size of dendritic arbors, and complements of expressed ion channels, all of which might shape voltage noise at spike initiation zones. Our analyses suggest that diverse Na_V currents flowing through one kind of pore-forming subunit can play significant roles in differentiating regular and irregular firing in the vestibular nerve.

Data availability statement

The datasets presented in this study can be found in online repositories. The name of the repository and accession number can be found below: https://datadryad.org/stash/share/sbukzLlDkLPlsuTAISqONfWVmLOuSwvnNNXr5LKdD6c; DOI: https://doi.org/10.5061/dryad.k3j9kd5f7.

Ethics statement

The animal study was approved by the University of Chicago Institutional Animal Care and Use Committee. The study was conducted in accordance with the local legislation and institutional requirements.

Author contributions

SBL: Writing – review & editing, Writing – original draft, Visualization, Software, Methodology, Investigation, Formal analysis, Conceptualization. RAE: Writing – review & editing, Writing – original draft, Visualization, Supervision, Resources, Project administration, Methodology, Funding acquisition, Conceptualization.

Funding

The author(s) declare financial support was received for the research, authorship, and/or publication of this article. This study was supported by the National Institutes of Health (R01 DC012347) awarded to RAE, and the Howard Hughes Medical Institute Gilliam Fellowship for Advanced Study, awarded to SBL.

Acknowledgments

We are grateful to Dr. Omar López-Ramírez for sharing excitatory postsynaptic current data from vestibular afferent terminals and to Dr. Radha Kalluri for access to the original VGN spiking model. We thank Dr. Hannah Martin, Dr. Aravind Govindaraju, Dr. Kalluri, Dr. Daniel Bronson, Dr. Nathaniel Nowak, and Katherine Regalado for comments on early versions of the manuscript.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Supplementary material

The Supplementary material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fneur.2024.1471118/full#supplementary-material

References

1. Eatock, RA, and Songer, JE. “Vestibular hair cells and afferents: two channels for head motion signals.” Annual review of neuroscience. 34. (2011): 501–534. doi: 10.1146/annurev-neuro-061010-113710

Crossref Full Text | Google Scholar

2. Goldberg, JM. Afferent diversity and the organization of central vestibular pathways. Exp Brain Res. (2000) 130:277–97. doi: 10.1007/s002210050033

PubMed Abstract | Crossref Full Text | Google Scholar

3. Cullen, KE. Vestibular processing during natural self-motion: implications for perception and action. Nat Rev Neurosci. (2019) 20:346–63. doi: 10.1038/s41583-019-0153-1

PubMed Abstract | Crossref Full Text | Google Scholar

4. Kalluri, R, Xue, J, and Eatock, RA. Ion channels set spike timing regularity of mammalian vestibular afferent neurons. J Neurophysiol. (2010) 104:2034–51. doi: 10.1152/jn.00396.2010

PubMed Abstract | Crossref Full Text | Google Scholar

5. Iwasaki, S, Chihara, Y, Komuta, Y, Ito, K, and Sahara, Y. Low-voltage-activated potassium channels underlie the regulation of intrinsic firing properties of rat vestibular ganglion cells. J Neurophysiol. (2008) 100:2192–204. doi: 10.1152/jn.01240.2007

PubMed Abstract | Crossref Full Text | Google Scholar

6. Ono, K, Keller, J, López Ramírez, O, González Garrido, A, Zobeiri, OA, Chang, HHV, et al. Retinoic acid degradation shapes zonal development of vestibular organs and sensitivity to transient linear accelerations. Nat Commun. (2020) 11:63. doi: 10.1038/s41467-019-13710-4

PubMed Abstract | Crossref Full Text | Google Scholar

7. Bean, BP. The action potential in mammalian central neurons. Nat Rev Neurosci. (2007) 8:451–65. doi: 10.1038/nrn2148

Crossref Full Text | Google Scholar

8. Liu, X-P, Wooltorton, JRA, Gaboyard-Niay, S, Yang, F-C, Lysakowski, A, and Eatock, RA. Sodium channel diversity in the vestibular ganglion: NaV1.5, NaV1.8, and tetrodotoxin-sensitive currents. J Neurophysiol. (2016) 115:2536–55. doi: 10.1152/jn.00902.2015

PubMed Abstract | Crossref Full Text | Google Scholar

9. Brown, AM, Schwindt, PC, and Crill, WE. Different voltage dependence of transient and persistent Na+ currents is compatible with modal-gating hypothesis for sodium channels. J Neurophysiol. (1994) 71:2562–5. doi: 10.1152/jn.1994.71.6.2562

PubMed Abstract | Crossref Full Text | Google Scholar

10. Meredith, FL, and Rennie, KJ. Persistent and resurgent Na+ currents in vestibular calyx afferents. J Neurophysiol. (2020) 124:510–24. doi: 10.1152/jn.00124.2020

Crossref Full Text | Google Scholar

11. Raman, IM, and Bean, BP. Resurgent sodium current and action potential formation in dissociated cerebellar Purkinje neurons. J Neurosci. (1997) 17:4517–26. doi: 10.1523/JNEUROSCI.17-12-04517.1997

PubMed Abstract | Crossref Full Text | Google Scholar

12. Crill, WE. Persistent sodium current in mammalian central neurons. Annu Rev Physiol. (1996) 58:349–62. doi: 10.1146/annurev.ph.58.030196.002025

Crossref Full Text | Google Scholar

13. Do, MTH, and Bean, BP. Sodium currents in subthalamic nucleus neurons from Nav1.6-null mice. J Neurophysiol. (2004) 92:726–33. doi: 10.1152/jn.00186.2004

PubMed Abstract | Crossref Full Text | Google Scholar

14. Aman, TK, and Raman, IM. Resurgent current in context: insights from the structure and function of Na and K channels. Biophys J. (2023) 123:1924–41. doi: 10.1016/j.bpj.2023.12.016

PubMed Abstract | Crossref Full Text | Google Scholar

15. Lewis, AH, and Raman, IM. Resurgent current of voltage-gated Na+ channels. J Physiol. (2014) 592:4825–38. doi: 10.1113/jphysiol.2014.277582

PubMed Abstract | Crossref Full Text | Google Scholar

16. Limón, A, Pérez, C, Vega, R, and Soto, E. Ca2+-activated K+-current density is correlated with Soma size in rat vestibular-afferent neurons in culture. J Neurophysiol. (2005) 94:3751–61. doi: 10.1152/jn.00177.2005

PubMed Abstract | Crossref Full Text | Google Scholar

17. Barry, PH. JPCalc, a software package for calculating liquid junction potential corrections in patch-clamp, intracellular, epithelial and bilayer measurements and for correcting junction potential measurements. J Neurosci Methods. (1994) 51:107–16. doi: 10.1016/0165-0270(94)90031-0

PubMed Abstract | Crossref Full Text | Google Scholar

18. Alexander, SPH, Mathie, A, Peters, JA, Veale, EL, Striessnig, J, Kelly, E, et al. The concise guide to pharmacology 2021/22: ion channels. Br J Pharmacol. (2021) 178:S157–245. doi: 10.1111/bph.15539

PubMed Abstract | Crossref Full Text | Google Scholar

19. Patel, RR, Barbosa, C, Xiao, Y, and Cummins, TR. Human Nav1.6 channels generate larger resurgent currents than human Nav1.1 channels, but the Navβ4 peptide does not protect either isoform from use-dependent reduction. PLoS One. (2015) 10:e0133485. doi: 10.1371/journal.pone.0133485

PubMed Abstract | Crossref Full Text | Google Scholar

20. Oliveira, JS, Redaelli, E, Zaharenko, AJ, Cassulini, RR, Konno, K, Pimenta, DC, et al. Binding specificity of sea anemone toxins to Nav 1.1-1.6 sodium channels: unexpected contributions from differences in the IV/S3-S4 outer loop *. J Biol Chem. (2004) 279:33323–35. doi: 10.1074/jbc.M404344200

PubMed Abstract | Crossref Full Text | Google Scholar

21. Rosker, C, Lohberger, B, Hofer, D, Steinecker, B, Quasthoff, S, and Schreibmayer, W. The TTX metabolite 4,9-anhydro-TTX is a highly specific blocker of the Nav1.6 voltage-dependent sodium channel. Am J Phys Cell Phys. (2007) 293:C783–9. doi: 10.1152/ajpcell.00070.2007

PubMed Abstract | Crossref Full Text | Google Scholar

22. Durlak, JA. How to select, calculate, and interpret effect sizes. J Pediatr Psychol. (2009) 34:917–28. doi: 10.1093/jpepsy/jsp004

Crossref Full Text | Google Scholar

23. Hodgkin, AL, and Huxley, AF. A quantitative description of membrane current and its application to conduction and excitation in nerve. J Physiol. (1952) 117:500–44. doi: 10.1113/jphysiol.1952.sp004764

PubMed Abstract | Crossref Full Text | Google Scholar

24. Hight, AE, and Kalluri, R. A biophysical model examining the role of low-voltage-activated potassium currents in shaping the responses of vestibular ganglion neurons. J Neurophysiol. (2016) 116:503–21. doi: 10.1152/jn.00107.2016

PubMed Abstract | Crossref Full Text | Google Scholar

25. Ventura, CM, and Kalluri, R. Enhanced activation of HCN channels reduces excitability and spike-timing regularity in maturing vestibular afferent neurons. J Neurosci. (2019) 39:2860–76. doi: 10.1523/JNEUROSCI.1811-18.2019

PubMed Abstract | Crossref Full Text | Google Scholar

26. Gentet, LJ, Stuart, GJ, and Clements, JD. Direct measurement of specific membrane capacitance in neurons. Biophys J. (2000) 79:314–20. doi: 10.1016/S0006-3495(00)76293-X

Crossref Full Text | Google Scholar

27. Rothman, JS, and Manis, PB. The roles potassium currents play in regulating the electrical activity of ventral Cochlear nucleus neurons. J Neurophysiol. (2003) 89:3097–113. doi: 10.1152/jn.00127.2002

Crossref Full Text | Google Scholar

28. Venugopal, S, Seki, S, Terman, DH, Pantazis, A, Olcese, R, Wiedau-Pazos, M, et al. Resurgent Na+ current offers noise modulation in bursting neurons. PLoS Comput Biol. (2019) 15:e1007154. doi: 10.1371/journal.pcbi.1007154

PubMed Abstract | Crossref Full Text | Google Scholar

29. Wu, N, Enomoto, A, Tanaka, S, Hsiao, C-F, Nykamp, DQ, Izhikevich, E, et al. Persistent sodium currents in mesencephalic V neurons participate in burst generation and control of membrane excitability. J Neurophysiol. (2005) 93:2710–22. doi: 10.1152/jn.00636.2004

Crossref Full Text | Google Scholar

30. Browne, L, Smith, KE, and Jagger, DJ. Identification of persistent and resurgent sodium currents in spiral ganglion neurons cultured from the mouse cochlea. eNeuro. (2017) 4:ENEURO.0303-17.2017. doi: 10.1523/ENEURO.0303-17.2017

PubMed Abstract | Crossref Full Text | Google Scholar

31. Hong, H, Lu, T, Wang, X, Wang, Y, and Sanchez, JT. Resurgent sodium current promotes action potential firing in the avian auditory brainstem. J Physiol. (2018) 596:423–43. doi: 10.1113/JP275083

PubMed Abstract | Crossref Full Text | Google Scholar

32. Stafstrom, CE, Schwindt, PC, and Crill, WE. Negative slope conductance due to a persistent subthreshold sodium current in cat neocortical neurons in vitro. Brain Res. (1982) 236:221–6. doi: 10.1016/0006-8993(82)90050-6

PubMed Abstract | Crossref Full Text | Google Scholar

33. Chabbert, C, Chambard, J-M, Valmier, J, Sans, A, and Desmadryl, G. Voltage-activated sodium currents in acutely isolated mouse vestibular ganglion neurones. Neuroreport. (1997) 8:1253–6. doi: 10.1097/00001756-199703240-00039

PubMed Abstract | Crossref Full Text | Google Scholar

34. Risner, JR, and Holt, JR. Heterogeneous potassium Conductances contribute to the diverse firing properties of postnatal mouse vestibular ganglion neurons. J Neurophysiol. (2006) 96:2364–76. doi: 10.1152/jn.00523.2006

PubMed Abstract | Crossref Full Text | Google Scholar

35. Raman, IM, and Bean, BP. Inactivation and recovery of sodium currents in cerebellar Purkinje neurons: evidence for two mechanisms. Biophys J. (2001) 80:729–37. doi: 10.1016/S0006-3495(01)76052-3

PubMed Abstract | Crossref Full Text | Google Scholar

36. Bant, JS, and Raman, IM. Control of transient, resurgent, and persistent current by open-channel block by Na channel β4 in cultured cerebellar granule neurons. Proc Natl Acad Sci. (2010) 107:12357–62. doi: 10.1073/pnas.1005633107

PubMed Abstract | Crossref Full Text | Google Scholar

37. White, HV, Brown, ST, Bozza, TC, and Raman, IM. Effects of FGF14 and NaVβ4 deletion on transient and resurgent Na current in cerebellar Purkinje neurons. J Gen Physiol. (2019) 151:1300–18. doi: 10.1085/jgp.201912390

PubMed Abstract | Crossref Full Text | Google Scholar

38. Raman, IM, Sprunger, LK, Meisler, MH, and Bean, BP. Altered subthreshold sodium currents and disrupted firing patterns in Purkinje neurons of Scn8a mutant mice. Neuron. (1997) 19:881–91. doi: 10.1016/s0896-6273(00)80969-1

PubMed Abstract | Crossref Full Text | Google Scholar

39. Khaliq, ZM, Gouwens, NW, and Raman, IM. The contribution of resurgent sodium current to high-frequency firing in Purkinje neurons: an experimental and modeling study. J Neurosci. (2003) 23:4899–912. doi: 10.1523/JNEUROSCI.23-12-04899.2003

PubMed Abstract | Crossref Full Text | Google Scholar

40. Denomme, N, Lukowski, AL, Hull, JM, Jameson, MB, Bouza, AA, Narayan, ARH, et al. The voltage-gated sodium channel inhibitor, 4,9-anhydrotetrodotoxin, blocks human Nav1.1 in addition to Nav1.6. Neurosci Lett. (2020) 724:134853. doi: 10.1016/j.neulet.2020.134853

PubMed Abstract | Crossref Full Text | Google Scholar

41. Klinger, AB, Eberhardt, M, Link, AS, Namer, B, Kutsche, LK, Schuy, ET, et al. Sea-Anemone toxin ATX-II elicits A-Fiber-dependent pain and enhances resurgent and persistent sodium currents in large sensory neurons. Mol Pain. (2012) 8:69. doi: 10.1186/1744-8069-8-69

PubMed Abstract | Crossref Full Text | Google Scholar

42. Gittis, AH, Moghadam, SH, and du Lac, S. Mechanisms of sustained high firing rates in two classes of vestibular nucleus neurons: differential contributions of resurgent Na, Kv3, and BK currents. J Neurophysiol. (2010) 104:1625–34. doi: 10.1152/jn.00378.2010

Crossref Full Text | Google Scholar

43. Lysakowski, A, Gaboyard-Niay, S, Calin-Jageman, I, Chatlani, S, Price, SD, and Eatock, RA. Molecular microdomains in a sensory terminal, the vestibular Calyx ending. J Neurosci. (2011) 31:10101–14. doi: 10.1523/JNEUROSCI.0521-11.2011

PubMed Abstract | Crossref Full Text | Google Scholar

44. Songer, JE, and Eatock, RA. Tuning and timing in mammalian type I hair cells and Calyceal synapses. J Neurosci. (2013) 33:3706–24. doi: 10.1523/JNEUROSCI.4067-12.2013

PubMed Abstract | Crossref Full Text | Google Scholar

45. Meredith, FL, and Rennie, KJ. Regional and developmental differences in Na+ currents in vestibular primary afferent neurons. Front Cell Neurosci. (2018) 12:423. doi: 10.3389/fncel.2018.00423

PubMed Abstract | Crossref Full Text | Google Scholar

46. Horwitz, GC, Risner-Janiczek, JR, and Holt, JR. Mechanotransduction and hyperpolarization-activated currents contribute to spontaneous activity in mouse vestibular ganglion neurons. J Gen Physiol. (2014) 143:481–97. doi: 10.1085/jgp.201311126

PubMed Abstract | Crossref Full Text | Google Scholar

47. Chambard, JM, Chabbert, C, Sans, A, and Desmadryl, G. Developmental changes in low and high voltage-activated calcium currents in acutely isolated mouse vestibular neurons. J Physiol. (1999) 518:141–9. doi: 10.1111/j.1469-7793.1999.0141r.x

Crossref Full Text | Google Scholar

48. Desmadryl, G, Chambard, J-M, Valmier, J, and Sans, A. Multiple voltage-dependent calcium currents in acutely isolated mouse vestibular neurons. Neuroscience. (1997) 78:511–22. doi: 10.1016/S0306-4522(96)00595-7

PubMed Abstract | Crossref Full Text | Google Scholar

49. Kim, KX, and Rutherford, MA. Maturation of NaV and KV Channel topographies in the auditory nerve spike initiator before and after developmental onset of hearing function. J Neurosci. (2016) 36:2111–8. doi: 10.1523/JNEUROSCI.3437-15.2016

PubMed Abstract | Crossref Full Text | Google Scholar

50. Brown, SP, Lawson, RJ, Moreno, JD, and Ransdell, JL. A reinterpretation of the relationship between persistent and resurgent sodium currents. J Neurosci. (2024) 44:e2396232024. doi: 10.1523/JNEUROSCI.2396-23.2024

PubMed Abstract | Crossref Full Text | Google Scholar

51. Holmes, WR, Huwe, JA, Rowe, MH, and Peterson, EH. Afferent-hair cell connectivity as a possible source of spike train irregularity in turtle vestibular Bouton afferents. BMC Neurosci. (2014) 15:P69. doi: 10.1186/1471-2202-15-S1-P69

Crossref Full Text | Google Scholar

52. Kay, AR, Sugimori, M, and Llinás, R. Kinetic and stochastic properties of a persistent sodium current in mature Guinea pig cerebellar Purkinje cells. J Neurophysiol. (1998) 80:1167–79. doi: 10.1152/jn.1998.80.3.1167

PubMed Abstract | Crossref Full Text | Google Scholar

53. Meredith, FL, and Rennie, KJ. Zonal variations in K+ currents in vestibular crista calyx terminals. J Neurophysiol. (2015) 113:264–76. doi: 10.1152/jn.00399.2014

PubMed Abstract | Crossref Full Text | Google Scholar

54. Renganathan, M, Dib-Hajj, S, and Waxman, SG. Nav1.5 underlies the ‘third TTX-R sodium current’ in rat small DRG neurons. Mol Brain Res. (2002) 106:70–82. doi: 10.1016/S0169-328X(02)00411-4

Crossref Full Text | Google Scholar

55. Taddese, A, and Bean, BP. Subthreshold sodium current from rapidly inactivating sodium channels drives spontaneous firing of Tuberomammillary neurons. Neuron. (2002) 33:587–600. doi: 10.1016/S0896-6273(02)00574-3

Crossref Full Text | Google Scholar

56. Wanke, E, Zaharenko, AJ, Redaelli, E, and Schiavon, E. Actions of sea anemone type 1 neurotoxins on voltage-gated sodium channel isoforms. Toxicon. (2009) 54:1102–11. doi: 10.1016/j.toxicon.2009.04.018

PubMed Abstract | Crossref Full Text | Google Scholar

57. Lasker, DM, Han, GC, Park, HJ, and Minor, LB. Rotational Responses of Vestibular–Nerve Afferents Innervating the Semicircular Canals in the C57BL/6 Mous. JARO. (2008) 9:334–348. doi: 10.1007/s10162-008-0120-4

PubMed Abstract | Crossref Full Text | Google Scholar

58. Jamali, M, Chacron, MJ, and Cullen, KE. Self-motion evokes precise spike timing in the primate vestibular system. Nature Communications. (2016) 7:13229. doi: 10.1038/ncomms13229

PubMed Abstract | Crossref Full Text | Google Scholar
