Greta Asadauskaitė
Ramunė Vilimienė
Vytautas Augustinavičius3
Birutė Burnytė- 1Faculty of Medicine, Vilnius University, Vilnius, Lithuania
- 2Faculty of Medicine, Institute of Clinical Medicine, Vilnius University, Vilnius, Lithuania
- 3Center of Radiology and Nuclear Medicine, Vilnius University Hospital Santaros Klinikos, Vilnius, Lithuania
- 4Faculty of Medicine, Institute of Biomedical Sciences, Vilnius University, Vilnius, Lithuania
Background: Missense VCP gene variants lead to a disruption in protein homeostasis causing a spectrum of progressive degenerative diseases. Myopathy is the most frequent manifestation characterized by slowly progressing weakness of proximal and distal limb muscles. We present a family with myopathy due to c.277C > T variant in VCP gene.
Case presentation: The patient‘s phenotype includes symmetrical muscle wasting and weakness in the proximal parts of the limbs and axial muscles, a wide based gait, lordotic posture, positive Gowers’ sign, mild calf enlargement, impaired mobility, elevated CK, and myopathy in proximal limb muscles. Whole body MRI revealed fatty replacement, predominantly affecting right vastus intermedius and medialis, gastrocnemius and soleus in calf, abdomen wall and lumbar muscles. Next-generation sequencing analysis revealed a pathogenic heterozygous variant c.277C > T (p.(Arg93Cys)) in exon 3 of the VCP gene. Segregation analysis showed that the detected variant is inherited from the affected father who developed symptoms at 60.
Conclusion: The patients described experienced muscle wasting and weakness in the proximal and distal parts of the limbs which is a common finding in VCP related disease. Nevertheless, the patient has distinguishing features, such as high CK levels, early onset of the disease, and rapid mobility decline.
1 Introduction
Valosin-containing protein (VCP) related disease is a rare, autosomal dominant, multisystem proteinopathy characterized by inclusion body myopathy (IBM), Paget disease of bone (PDB) and frontotemporal dementia (FTD), affecting around 90%, 28–42%, and 14–30% of patients accordingly (1, 2). Other manifestations include amyotrophic lateral sclerosis (ALS), Alzheimer’s disease, Parkinson’s disease, Charcot–Marie-Tooth type 2 disease and complex hereditary spastic paraplegia (3–6).
VCP related disease has been associated with heterozygous missense variants in VCP gene. VCP belongs to the ATPases associated with diverse cellular Activities (AAA+) family, which uses ATP for protein remodeling. Each subunit contains N-terminal binding domain and two ATPase domains, D1 and D2 (7, 8). VCP is involved in a variety of cellular activities such as cell cycle control, organelle biogenesis and elimination, cellular signaling, membrane fusion, transcription, regulation of autophagy and protein degradation (8, 9). Missense variants at the NTD-D1 interface of the VCP are thought to cause a disruption in protein homeostasis causing a spectrum of progressive degenerative diseases (7, 10, 11).
In this paper we report patient and his father with c.277C > T [p.(Arg93Cys)] variant in VCP gene, presenting with IBM. Patient‘s and his father’s phenotype is compared with phenotypes reported in literature.
2 Case description
Proband is a 49-year-old male. At the age of 38, the patient reported difficulties in standing-up from a sitting position. Symptoms showed a slow but progressive worsening. He noticed upper and lower limb weakness and difficulty in daily activities such as carrying a child and stumbling. At the age of 49, the patient had difficulties in walking unaided, climbing up the stairs, and standing up from sitting and lying positions (Table 1).
Table 1. Patients’ timelines.
Neurological examination at the age of 46 revealed symmetric atrophy and weakness of limb proximal muscle. Shoulder abduction and adduction were 4/5 grades (MRC-scale) on both sides. Elbow flexion and extension 4/5 bilaterally. Wrist and fingers flexion and extension were normal. Hip flexion was 3/5, hip extension - 4/5 bilaterally. Knee flexion and extension were 3/5 grades bilaterally. Ankle plantar flexion was 4/5 and dorsiflexion - 4/5 on both sides. We observed weakness of axial muscles predominantly affecting the paraspinal and abdominal muscles. The patient showed a wide based gait with a lordotic posture. Positive Gowers’ sign and mild enlargement of the calves was also noted. Tendon reflexes, sensory examination, and cranial nerve examination were normal. Cognitive testing did not reveal any frontal lobe and other cognitive abnormalities. During 4 years of follow up the muscle weakness slowly progressed. We noticed the muscle strength deterioration in the distal parts of the upper limbs. A slight asymmetry of muscle strength appeared with the right limbs being more affected. The patient can walk unaided a few meters and uses walking sticks most of the time. We did not find any cognitive deterioration. A nerve conduction study at the age of 46 did not show any abnormalities. Needle electromyography revealed myopathic changes without spontaneous activity. The myopathic pattern was more prominent in the proximal parts of the limbs. His creatine kinase (CK) level at the age of 46 was 1,237 U/L (reference range: 25–195 U/L), it increased to 1,309 U/L after a year. Whole body bone scintigraphy showed no abnormalities characteristic of Paget’s disease.
Whole body MRI showed fatty replacement, predominantly affecting right vastus intermedius and medialis, gastrocnemius and soleus in calf, abdomen wall and lumbar muscles (Figure 1).
Figure 1. (A) T2W axial image at level of L1 showing fatty replacement of abdominal wall and lumbar muscles. Axial at level of middle third of femur T2W (B), T2 DIXON WATER (C) and FAT (D) images showing mm. vastus intermedius and medialis edema with fatty replacement. Coronal T2W (E), axial at level of proximal third of calf T2W (F), T2 DIXON WATER (G) and FAT (H) images showing fatty replacement of muscle in mm. soleus and gastrocnemius (more prominent on left side).
Family history revealed a similar phenotype of the patient’s father and paternal uncle. The uncle had difficulty walking and experienced muscle weakness from the age of 40, however he died at 59.
The patient’s father is a 73-year-old male. At the age of 60, he started to struggle climbing stairs, and he suffered from frequent falls. At the age of 68, he had difficulty walking and started using crutches. He also has difficulty standing up from sitting and lying positions. ENMG examination revealed signs of partial axonal degeneration of the motor nerves in the lower limbs. Myopathic patterns were recorded in all muscles of the lower limbs (especially the quadriceps femoris) and the proximal muscles of the upper limbs. His CK level was 119 U/L.
Next-generation sequencing analysis of the proband revealed a previously reported pathogenic heterozygous variant NM_007126.5:c.277C > T (NP_009057.1:p.(Arg93Cys)) in exon 3 of the VCP gene. Based on the guidelines of ACMG/AMP for interpretation of sequence variants, it is classified as pathogenic (categories: PP5, PP3, PM1, PM5, and PM2) (12). Segregation analysis showed that the detected variant is inherited from the affected father. The detailed sequencing and analysis methods have previously been described (13).
3 Discussion
Myopathy is the most frequent manifestation of VCP related disease affecting around 90% of patients with pathogenic variants in VCP gene (1, 2). It is characterized by slowly progressing weakness and atrophy of proximal and distal upper and lower limb muscles, initially involving shoulder and pelvic muscles (1, 2, 14). Some of the other symptoms include axial muscle weakness, scapular winging, respiratory impairment, lower motor neuron sings, dysautonomia, dysphagia (1). Patients often have abnormal gait, lordotic stance, experience difficulty climbing stairs, raising arms (14, 15). Our patient presented with typical symptoms: weakness of proximal and distal limbs, atrophied shoulder and pelvic girdle muscles, wide based gait, lordotic posture. Both the patient and his father experienced difficulties in daily activities such as climbing up the stairs, standing up from a sitting position. However, the patient’s father is unable to move around without the crutches showing the progression of the disease.
An electromyographic (EMG) examination showed a myopathic pattern mainly in patient’s proximal limb muscles and in all leg muscles and proximal arm muscles in patient’s father. Myopathic pattern in EMG is characteristic of IBM. Purely myopathic pattern is observed in 31–47% of patients in literature. 11–21% of patients have neurogenic and 14–20% mixed myopathic and neurogenic pattern (1, 3). The patient‘s father showed signs of partial axonal degeneration of the motor nerves in the legs. Motor neuron involvement was reported in 25% of patients in Schiava et al. cohort. Of those, almost a half showed exclusively lower motor neuron signs (1).
It is worth mentioning that while patients with VCP related myopathy usually exhibit normal or slightly increased CK levels (2–4), the CK levels of our proband are higher than what is typically observed. However, there have been some reported cases of elevated CK levels in individuals with certain VCP gene variants, such as homozygous p.Arg159His variant with early disease onset at 29 years (16), or the newly described case of a heterozygous variant of c.760A > T with CK levels >2,378 (17). The patient’s relatively early age of disease onset and the aggressive progression of their symptoms are also noteworthy. While the mean age of symptoms onset for VCP related disease is around 43 years (2, 3), there can be a significant variation depending on the specific variant and other factors. Patients with heterozygous c.277C > T variant experience first symptoms later than our patient (1). Similarly, patient’s uncle had difficulty walking at the age of 40. In comparison, patient’s father experienced the onset of symptoms at the age of 60, which has been observed in several cases with c.277C > T variant (18, 19). As a result, the combination of early onset and high CK levels might suggest a more severe form of the disease in this patient.
Human Gene Mutation Database (HGMD) reports 71 variants of VCP gene, 66 of those are missense/nonsense (20). In Varsome database 89 of the reported VCP gene variants were identified as pathogenic or likely pathogenic (21). Although genotype–phenotype correlations are not yet well defined a few studies have identified some correlations between phenotype and specific variants (2, 3). In Schiava et al. study variant c.277C > T was associated with older age of disease onset compared to c.464G > A. Median age for c.277C > T variant was 52.3 ± 5.6 years (1). Table 2 summarizes clinical findings of reported patients with c.277C > T. Of the reported cases in literature with c.277C > T variant, the lowest age of symptom manifestation was 42 years (23). In the reported cases with c.277C > T variant, most patients have myopathy together with FTD or PDB. In comparison, only one case was reported with all 3 manifestations of the disease and only one case where FTD was the only manifestation of the disease (19). CK in most of the reported cases was slightly above normal. Most reported patients did not lose ambulation, but some have difficulty moving (25, 26). Both proximal and distal muscles were affected in reported cases with c.277C > T variant (1).

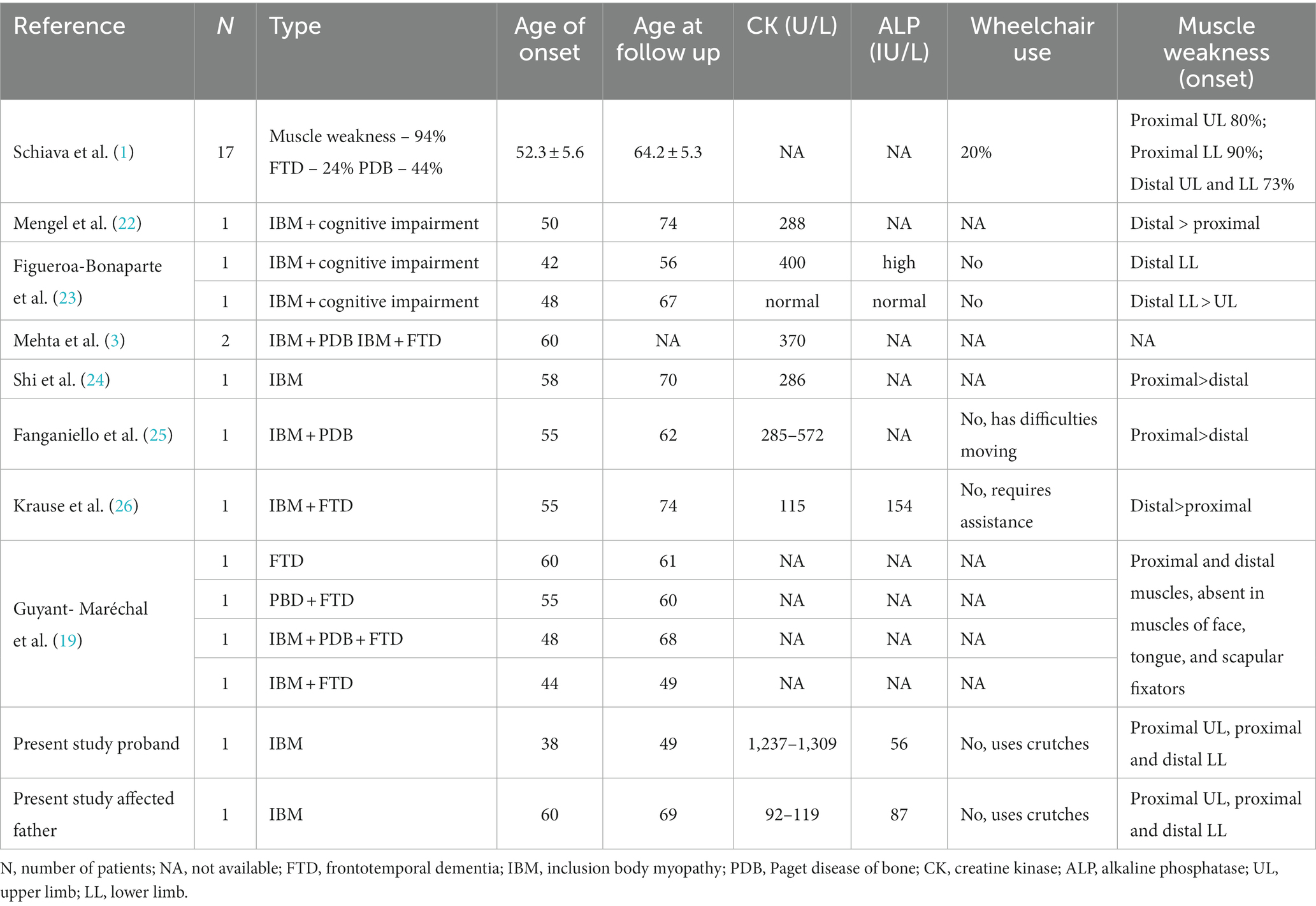

Table 2. Clinical findings of patients with c.277C > T variant of VCP gene found in literature.
As muscle weakness progresses, especially in the lower limbs, patients eventually lose ambulation. In Schiava et al. study after 8.5 years 23% of the patients were no longer ambulant (1). In Figueroa-Bonaparte et al. study mean time to lose ambulation was 13.37 ± 6.6 years (23). Over time muscle weakness involves respiratory and cardiac muscles leading to death from respiratory or cardiac failure (1, 3). Schiava et al. identified forced vital capacity (FCV) below 50% as the major risk factor associated with loss of ambulation and FCV below 70% with higher risk of death (1). Patients usually die in their 60s 15–20 years after the onset of the disease (1, 3).
This study adds to previous evidence demonstrating a summary of clinical findings of reported patients with c.277C > T variant in VCP gene.
Data availability statement
The original contributions presented in the study are included in the article/supplementary material, further inquiries can be directed to the corresponding author.
Ethics statement
Written informed consent to participate in this study was not required from the participants or the participants’ legal guardians/next of kin in accordance with the national legislation and the institutional requirements. Written informed consent was obtained from the individual(s) for the publication of any potentially identifiable images or data included in this article.
Author contributions
GA: Conceptualization, Writing – original draft. RV: Data curation, Writing – review & editing. VA: Data curation, Writing – review & editing. BB: Conceptualization, Data curation, Supervision, Writing – review & editing.
Funding
The author(s) declare that no financial support was received for the research, authorship, and/or publication of this article.
Acknowledgments
The authors would like to thank the patients for their collaboration.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
References
1. Schiava, M, Ikenaga, C, Villar-Quiles, RN, Caballero-Ávila, M, Topf, A, Nishino, I, et al. Genotype–phenotype correlations in valosin-containing protein disease: a retrospective multicenter study. Neurol Neurosurg Psychiatry. (2022) 93:1099–111. doi: 10.1136/jnnp-2022-328921
2. Al-Obeidi, E, Al-Tahan, S, Surampalli, A, Goyal, N, Wang, AK, Hermann, A, et al. Genotype-phenotype study in patients with valosin-containing protein mutations associated with multisystem proteinopathy. Clin Genet. (2018) 93:119–25. doi: 10.1111/cge.13095
3. Mehta, SG, Khare, M, Ramani, R, Watts, GDJ, Simon, M, Osann, KE, et al. Genotype-phenotype studies of VCP-associated inclusion body myopathy with paget disease of bone and/or frontotemporal dementia. Clin Genet. (2013) 83:422–31. doi: 10.1111/cge.12000
4. Wang, SC, Smith, CD, Lombardo, DM, and Kimonis, V. Characteristics of VCP mutation-associated cardiomyopathy. Neuromuscul Disord. (2021) 31:701–5. doi: 10.1016/j.nmd.2021.06.005
5. Gonzalez, MA, Feely, SM, Speziani, F, Strickland, AV, Danzi, M, Bacon, C, et al. A novel mutation in VCP causes Charcot-Marie-tooth type 2 disease. Brain. (2014) 137:2897–902. doi: 10.1093/brain/awu224
6. Souza, PVS, Bortholin, T, Dias, RB, Chieia, MAT, Burlin, S, Naylor, FGM, et al. New genetic causes for complex hereditary spastic paraplegia. J Neurol Sci. (2017) 379:283–92. doi: 10.1016/j.jns.2017.06.019
7. Meyer, H, and Weihl, CC. The VCP/p97 system at a glance: connecting cellular function to disease pathogenesis. J Cell Sci. (2014) 127:3877–83. doi: 10.1242/jcs.093831
8. van den Boom, J, and Meyer, H. VCP/p97-mediated unfolding as a principle in protein homeostasis and signaling. Mol Cell. (2018) 69:182–94. doi: 10.1016/j.molcel.2017.10.028
9. Ferrari, V, Cristofani, R, Tedesco, B, Crippa, V, Chierichetti, M, Casarotto, E, et al. Valosin containing protein (VCP): a multistep regulator of autophagy. Int J Mol Sci. (2022) 23:1939. doi: 10.3390/ijms23041939
10. Poksay, KS, Madden, DT, Peter, AK, Niazi, K, Banwait, S, Crippen, D, et al. Valosin-containing protein gene mutations: cellular phenotypes relevant to neurodegeneration. J Mol Neurosci. (2011) 44:91–102. doi: 10.1007/s12031-010-9489-8
11. Watts, GDJ, Wymer, J, Kovach, MJ, Mehta, SG, Mumm, S, Darvish, D, et al. Inclusion body myopathy associated with Paget disease of bone and frontotemporal dementia is caused by mutant valosin-containing protein. Nat Genet. (2004) 36:377–81. doi: 10.1038/ng1332
12. Richards, S, Aziz, N, Bale, S, Bick, D, Das, S, Gastier-Foster, J, et al. Standards and guidelines for the interpretation of sequence variants: a joint consensus recommendation of the American College of Medical Genetics and Genomics and the Association for Molecular Pathology. Genet Med. (2015) 17:405–24. doi: 10.1038/gim.2015.30
13. Siavrienė, E, Petraitytė, G, Burnytė, B, Morkūnienė, A, Mikštienė, V, Rančelis, T, et al. Compound heterozygous c.598_612del and c.1746-20C > G CAPN3 genotype cause autosomal recessive limb-girdle muscular dystrophy-1: a case report. BMC Musculoskelet Disord. (2021) 22:1020. doi: 10.1186/s12891-021-04920-3
14. Kimonis, V. Inclusion body myopathy with Paget disease of bone and/or frontotemporal dementia In: MP Adam, GM Mirzaa, and RA Pagon, editors. GeneReviews®. Seattle: University of Washington (1993)
15. Kimonis, VE, Fulchiero, E, Vesa, J, and Watts, G. VCP disease associated with myopathy, Paget disease of bone and frontotemporal dementia: review of a unique disorder. Biochim Biophys Acta Mol basis Dis. (2008) 1782:744–8. doi: 10.1016/j.bbadis.2008.09.003
16. De Ridder, W, Azmi, A, Clemen, CS, Eichinger, L, Hofmann, A, Schröder, R, et al. Multisystem proteinopathy due to a homozygous p.Arg159His VCP mutation: a tale of the unexpected. Neurology. (2020) 94:e785–96. doi: 10.1212/WNL.0000000000008763
17. Columbres, RCA, Chin, Y, Pratti, S, Quinn, C, Gonzalez-Cuyar, LF, Weiss, M, et al. Novel variants in the VCP gene causing multisystem Proteinopathy 1. Genes. (2023) 14:676. doi: 10.3390/genes14030676
18. Al-Tahan, S, Al-Obeidi, E, Yoshioka, H, Lakatos, A, Weiss, L, Grafe, M, et al. Novel valosin-containing protein mutations associated with multisystem proteinopathy. Neuromuscul Disord. (2018) 28:491–501. doi: 10.1016/j.nmd.2018.04.007
19. Guyant-Maréchal, L, Laquerrière, A, Duyckaerts, C, Dumanchin, C, Bou, J, Dugny, F, et al. Valosin-containing protein gene mutations. Neurology. (2006) 67:644–51. doi: 10.1212/01.wnl.0000225184.14578.d3
20. Stenson, PD, Mort, M, Ball, EV, Chapman, M, Evans, K, Azevedo, L, et al. The human gene mutation database (HGMD®): optimizing its use in a clinical diagnostic or research setting. Hum Genet. (2020) 139:1197–207. doi: 10.1007/s00439-020-02199-3
21. Kopanos, C, Tsiolkas, V, Kouris, A, Chapple, CE, Albarca Aguilera, M, Meyer, R, et al. VarSome: the human genomic variant search engine. Bioinformatics. (2019) 35:1978–80. doi: 10.1093/bioinformatics/bty897
22. Mengel, D, Librizzi, D, Schoser, B, Gläser, D, Clemen, CS, Dodel, R, et al. Inclusion body myopathy, paget’s disease, and Fronto-temporal dementia: a VCP-related multi-systemic proteinopathy. Fortschr Neurol Psychiatr. (2018) 86:434–8. doi: 10.1055/s-0044-101033
23. Figueroa-Bonaparte, S, Hudson, J, Barresi, R, Polvikoski, T, Williams, T, Töpf, A, et al. Letter: mutational spectrum and phenotypic variability of VCP-related neurological disease in the UK. J Neurol Neurosurg Psychiatry. (2016) 87:680–1. doi: 10.1136/jnnp-2015-310362
24. Shi, Z, Hayashi, YK, Mitsuhashi, S, Goto, K, Kaneda, D, Choi, YC, et al. Characterization of the Asian myopathy patients with VCP mutations. Eur J Neurol. (2012) 19:501–9. doi: 10.1111/j.1468-1331.2011.03575.x
25. Fanganiello, RD, Kimonis, VE, Côrte, CC, Nitrini, R, and Passos-Bueno, MR. A Brazilian family with hereditary inclusion body myopathy associated with paget disease of bone and frontotemporal dementia. Braz J Med Biol Res. (2011) 44:374–80. doi: 10.1590/S0100-879X2011007500028
Keywords: VCP gene, VCP related disease, inclusion body myopathy, multisystem proteinopathy, degenerative disease
Citation: Asadauskaitė G, Vilimienė R, Augustinavičius V and Burnytė B (2023) Case report of a family with hereditary inclusion body myopathy with VCP gene variant and literature review. Front. Neurol. 14:1290960. doi: 10.3389/fneur.2023.1290960
