Visualizing Research Trends and Identifying Hotspots of Traditional Chinese Medicine (TCM) Nursing Technology for Insomnia: A 18-Years Bibliometric Analysis of Web of Science Core Collection

Objective: To explore the research hotspot and frontier direction of TCM nursing of insomnia and provide reference for the follow-up study of the optimal scheme of TCM nursing of insomnia.

Background: Insomnia is a common sleep-wake disorder, affects 6–10% of adults and was associated with independent higher risks of cardiovascular disease and diabetes. TCM Nursing Techniques of insomnia has a long history and has shown a definite impact. However, it's still lack of analysis in the field of the most commonly used and effective techniques, as well as the co-morbidities associated with insomnia. Therefore, the database was searched and analyzed to find effective TCM Nursing Techniques for insomnia and related diseases related to insomnia.

Method: Randomized controlled trials on the intervention of TCM Nursing Techniques in insomnia were retrieved from Web of Science Core Collection and imported into CiteSpace 5.6.R5 visualization software. The works of literature were co-cited by keywords authors and institutions for visual analysis, and the co-morbidities associated with insomnia of TCM Nursing Techniques in literature was extracted manually. The symptoms of co-morbidities associated with insomnia were imported into Cytoscape 3.9.0 software and clustered by CytoHubba.

Result: As of October 20, 2021, the literature published in the last 20 years from Web of Science Core Collection was screened, and the publication period of the included literature was from 2004 to 2021. From 2016 to now, the total number of articles has been increasing. A total of 146 articles were included, and the highest production year was 2020. There is little cooperation between states, institutions, and authors. China (including Hong Kong and Taiwan) and Hong Kong Polytech University are leading countries and institutions in this area. MYUNGHAENG HUR is the most cited author, and J ALTERN COMPLEM MED is the most cited journal. According to cluster analysis and keyword frequency, auricular therapy, aromatherapy, and acupressure are the three most commonly used techniques. While the top five co-morbidities are fatigue, anxiety, depression, pain and hemodialysis. The three frontier topics and the main research directions are sleep quality, comorbid insomnia and clinical trial design.

Conclusion: We found that acupressure, aromatherapy, and auricular acupoint therapy are the most commonly used nursing methods of TCM to intervene in insomnia. However, these studies have limitations such as small sample size, lack of objectivity in evaluating sleep quality, and high heterogeneity of intervention measures, which are not conducive to forming TCM clinical nursing guidelines. Therefore, it is necessary to adopt objectified sleep quality evaluation methods, select suitable acupoints according to TCM theories, and design multi-center large-sample clinical trials based on the safety principle of randomized blind control. This study provides an in-depth perspective for insomnia research on TCM Nursing Techniques and includes information for follow-up research on TCM Nursing Techniques of insomnia.

Introduction

In clinical practice, insomnia is one of the most common sleep disorders. The treatment of insomnia was originally mentioned in ancient Chinese medical books in “Nanjing” (Yellow Emperor's Classic of Eighty-one Difficult Issues). Chinese medicine calls it “Bu Mei,” “Bu De Mian,” “Bu De Wo” and so on. According to epidemiological surveys conducted around the world, the population diagnosed with insomnia accounts for 6 to 10% of the total population (1). Insomnia is becoming more common as social stress levels rise (2). According to subjective evaluation criteria, the percentage of individuals who fit the diagnostic criteria for insomnia ranges from 10 to 15%, and current research indicates that insomnia is linked to mental problems and physical ailments in a variety of ways (3). Insomnia reduces patients' learning and work efficiency, increases error rates, harms patients' quality of life, and significantly burdens society. As a result, their quality of life suffers greatly, and develops distressing and frustrating feelings. In recent years, there has been the concept of comorbid insomnia (4), insomnia combined with endocrine diseases, cardiovascular diseases and other diseases of patients began to increase. Therefore, we hope to explore the field of comorbid insomnia (5, 6).

There are numerous studies of insomnia in recent years, however owing to the subjective nature of insomnia, there are still limits in definitions, quantitative standards, epidemiological investigations, and other elements of insomnia (7–9). International specialists are still actively seeking effective treatments for insomnia. Many nations' guidelines (10–12) separate adult chronic insomnia treatment into two categories: Pharmacotherapy and non-pharmacotherapy. Pharmacotherapy is usually administered with sedative-hypnotics such as benzodiazepines. However, these therapies have various drawbacks, such as side effects, patients' dissatisfied attitudes, and contraindications (13–15). Non-pharmacological treatments include cognitive behavioral therapy for insomnia (CBT-I). Although CBT-I is currently considered the most effective non-pharmacological treatment for insomnia, CBT-I has sleep restriction and other demanding treatments (16). The treatment may be the factor in the stress experienced by patients during CBT-I, directly or indirectly leading to increased anxiety and depressive symptoms during treatment (17). Because the need for western therapy to control insomnia has not been met, medical staffs began to consider the possible role of TCM in preventing and treating insomnia, and a number of clinical studies in this field are attracting more and more attention in the sleep field.

TCM nursing is a subject which is old yet young. Guided by theories of TCM, it adopts the concept of holism and nursing determination based on pattern differentiation. TCM nursing has rich connotation and unique theories, approaches and techniques. It is a practical science, which combines prevention, health care, rehabilitation and medicine to take care of the sick, the old, the weak, the young and the handicapped, and implements specific nursing techniques to safeguard the health of people (18). Meanwhile, TCM Nursing Techniques is also an essential part of Chinese medicine, is the application of Chinese medicine therapy in clinical nursing work and expands the scope of care. TCM Nursing Techniques has the advantages of being simple, convenient, effective, and low cost sincerely welcomed and favored by the people (19). TCM Nursing Techniques gives play to the holistic concept of traditional Chinese medicine and the characteristics of comprehensive dialectical regulation in treatment to overcome the single blocking sedation treatment phenomenon. More and more clinical trials as evidence support the effectiveness of TCM Nursing Techniques in the treatment of insomnia (20–23). TCM Nursing Techniques are widely used in the clinic and are highly accepted by patients. In 2016, China published its first TCM clinical practice guidelines for insomnia—Guidelines for clinical practice of Chinese medicine in insomnia (WHO/WPO) (24), and the TCM Diagnosis and Treatment Program of Insomnia (25) were updated in the same year. The holistic concept of Traditional Chinese Medicine has made outstanding contributions to the research of life sciences. The use of Traditional Chinese Medicine to treat insomnia has improved the prevention and treatment level of insomnia in the world and played an essential role in reducing the economic burden of health. The above two guidelines combine the internationally recognized diagnostic standards and treatment norms of insomnia and summarize the current evidence-based medical evidence of TCM (including TCM Nursing Techniques) in preventing and treating insomnia. Compared with traditional Chinese medicine formula, TCM Nursing Techniques avoids the side effects such as liver and kidney damage that may be caused by oral administration. However, both guidelines point out that TCM treatment of insomnia still needs further improvement. In recent years, researchers have conducted many studies on TCM Nursing Techniques in treating insomnia, and many research results have been published worldwide. The field of TCM nursing is undergoing a period of rapid development. However, no comprehensive analysis has been undertaken to describe the distribution and contribution of the research output of global institutions. Therefore, we conducted a bibliometric analysis to comprehensively understand the research trend of TCM nursing techniques in insomnia intervention from multiple aspects. Our research objective is to provide a valuable reference for clinical researchers and practitioners.

Materials and Methods

Data Collection

Data for this article were collected from the Web of Science Core Collection Database, October 20, 2021. The search strategy consists of three parts. First, we have listed the indexes of various TCM Nursing Techniques. The Scope of TCM techniques were refered to the National Administration of Traditional Chinese Medicine (SATCM), which is a national standard, including 18 TCM techniques (26). The leading 21 retrieval words were #1 TCM nursing technology, #2 moxibustion, #3 auricular therapy, #4 cupping, #5 Acupoint Application, #6 acupoint injection, #7 Acupressure, #8 Scraping Therapy, #9 Medical Wax Therapy, #10 Foot Bath Therapy, #11 cold compress therapy, #12 Wet Compress Therapy, #13 Drug Smearing Therapy, #14 Fumigating and Steaming Therapy, #15 Chinese medicine hot pressing compress, #16 Chinese Medicine Ion Introduction Therapy, #17 Retention Enema with Chinese Herb. These words are translation The search comprises keywords and extensions, covering any time, English languages and all document types.

Second, subject searches focus on index terms related to insomnia. Search strategy = (insomnia) OR (sleeplessness) OR (sleep initiation) OR (maintenance disorders) OR (disorders of initiating and maintaining sleep) OR (primary insomnia) OR (transient insomnia) OR (secondary insomnia) OR (insomnia disorder) OR (sleep initiation dysfunction) OR (quality of sleep) OR (sleep complaint) OR (sleep problem) OR (sleep disturbance) OR (sleep disorder). The language document type and period were the same as the first query, which produced 134,978 records.

Third, because there are more than 100 words in the search strategy, the Web of Science database cannot recognize it, so we split the search strategy into five parts, respectively combined with the insomnia search strategy.

Finally, we screened out literature on TCM Nursing Techniques for insomnia from the retrieval results of five parts, selected clinical trials, included and excluded the scientific achievements of conference reports, newspapers, and expert experience, and obtained 146 records in total. The exported file is in the download_^***. TXT format that CiteSpace can recognize. The imported data is complete records and referenced references. The subject search query is shown in Appendix 1, 2 in Supplementary Material.

Analysis Tool

Data Management Bibliometric Analysis

CiteSpace 5.6.R5 used a visual knowledge graph to discover the research frontiers and emerging trends in TCM Nursing Techniques for insomnia. The following parameters were set: (1) Time period (2001–2021), 1 year per slice; (2) Pruning pick pathfinder and pruning sliced networks, Top N = 25. Aside from that, all other settings are set to default; (3) Cluster analysis was performed using “K” and “LLR.” Modularity Q and Mean Silhouette were employed in the investigation and assessment of the cluster map. Generally, clustering is substantial and feasible when Q > 0.3 and S > 0.5. Meanwhile, S > 0.7 indicates that the grouping is convincing. The development trend and research hotspots in the field of TCM nursing of insomnia can be intuitively presented by drawing the multi-time-sharing dynamic visualization knowledge map and the change of publication quantity over time (27).

Cluster Analysis Based on Article Content

Two researchers extracted the information of 146 articles, and the TCM Nursing Techniques, co-morbidities associated with insomnia, and symptoms of co-morbidities associated with insomnia were extract from the articles, respectively and sorted by Excel (Microsoft Office Home and Student 2019). Finally, we obtained 14 TCM Nursing Techniques, 69 co-morbidities associated with insomnia, and 6 main symptoms of co-morbidities associated with insomnia. The sorted Excel table was imported into Cytoscape 3.9.0 for mapping. CytoHubba plug-in was used for clustering with Degree algorithm (the higher Degree value is, the more connections the node has).

Results

Trends in Research Publications

According to the retrieval, the clinical study on TCM Nursing Techniques for insomnia was first published in 2004, so we conducted a comprehensive analysis of the global situation of the research results from 2004 to 2021. The included literature were plotted into a bar chart, and the results showed that the overall number of articles presented a steady upward trend. According to Figure 1, we can find the research trends in several stages. The first stage was 2004 and 2012, which was the trough period of clinical research of TCM Nursing Techniques to intervene insomnia. The overall number of articles published fluctuated in a small range and presented a stable trend, with about three articles published every year, but the number of articles published in 2006 was 0. In the second stage, 2013 saw a rapid growth in the number of articles published. A total of 11 articles were published, which was the year with the largest number of articles published in the first decade. The third stage, from 2014 to 2021, saw rapid growth in the number of publications. Although the number of articles published in 2014 and 2015 decreased slightly compared with 2013, it began to recover and proliferate in 2016, especially in 2020, the number of articles published reached 25.

FIGURE 1

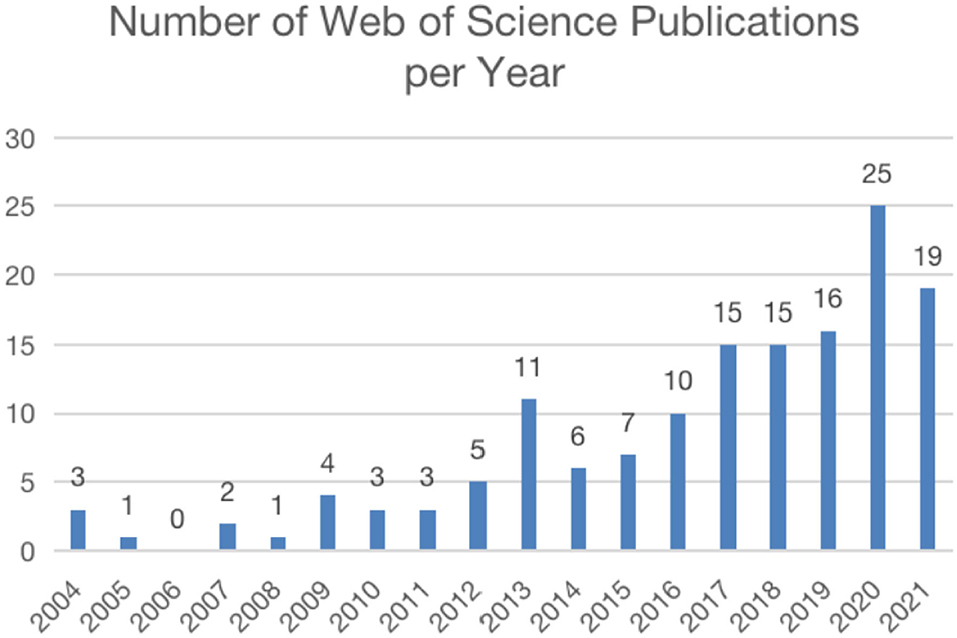

Figure 1. Number of publications per year. The annual number of publication on acupuncture in insomnia.

Analysis of Countries and Institutes

Twenty-eight different countries or regions have contributed to this literature. Table 1 lists the top five countries in terms of the number of publications and centrality. The national network map is represented by 28 nodes and 30 links (Figure 2A). China (including Taiwan), as the origin of TCM Nursing Techniques, published 49 out of 146 articles, accounting for 33.56% of the included articles. Meanwhile, the United States and Iran ranked third and fourth in terms of the number of publications, respectively, with frequency of 20, indicating that TCM Nursing Techniques in treating insomnia have attracted much attention in these two countries. The top five countries were China (0.57), USA (0.45), Australia (0.12), Iran (0.11), and England (0.1), all of which centrality were more than 0.1, indicating that these five countries had sound mediating effects (Table 1).

TABLE 1

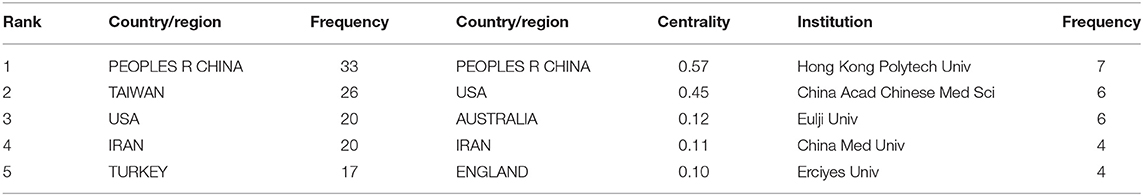

Table 1. Top 5 country/region and institute.

FIGURE 2

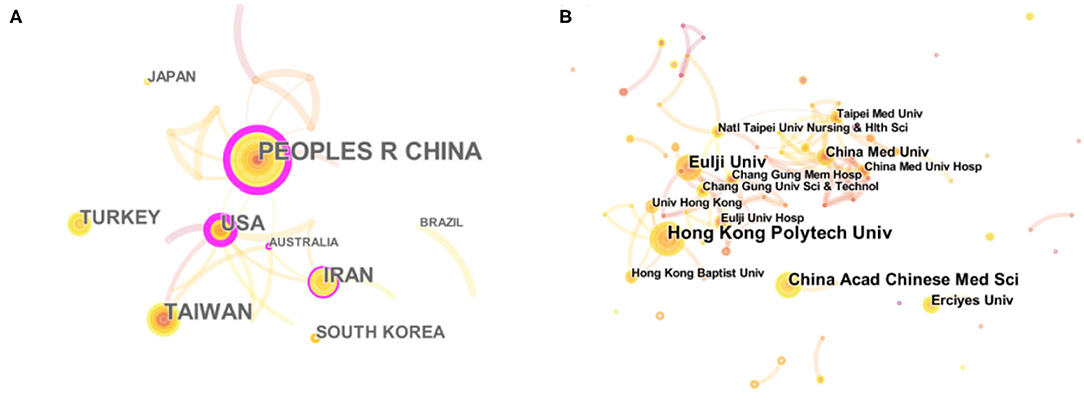

Figure 2. Network map showing the relations between various countries (A) and the Institutions (B).

The Hong Kong Polytechnic University (PolyU) tops the list of research institutes studying TCM Nursing Techniques for insomnia (Figure 2B), followed by the China Academy of Chinese Medical Sciences. In addition, Eulji University in South Korea, China Medical University and Erciyes University in Turkey have carried out many studies in the field (Table 1). However, auricular therapy is the most studied TCM Nursing Techniques in the Hong Kong Polytechnic University (28, 29), China Academy of Chinese Medical Sciences (30, 31), and China Medical University (32, 33), followed by acupressure. Aromatherapy is the primary TCM Nursing Techniques studied by institutions from Korea (34, 35) and Turkey (36, 37).

Journal Distribution

This study uses the CiteSpace system to generate a cited journal map with node 408 and line 1829 (Figure 3). J ALTERN COMPLEM MED (IF 2020 = 2.582) is the most-cited journal in the research field of TCM Nursing Techniques for insomnia, and the second cited journal is EVID-BASED COMPL ALT (IF 2020 = 2.63) (Table 2). Interestingly, the top five journals in citation frequency and centrality were all different. The journal with the highest centrality was AM J CHINESE MED (IF 2020 = 4.667), and the most frequently cited article on sleep in the journal was a randomized controlled trial published by Italian researchers, which was cited 77 times in total. Studies have shown that at the end of 6 months of acupressure treatment for adolescent insomnia, the intervention group's sleep efficiency and sleep duration were significantly improved. This study concluded that acupressure treatment for adolescent insomnia is a non-invasive, safe, and effective treatment with good compliance and less adverse reactions (38).

FIGURE 3

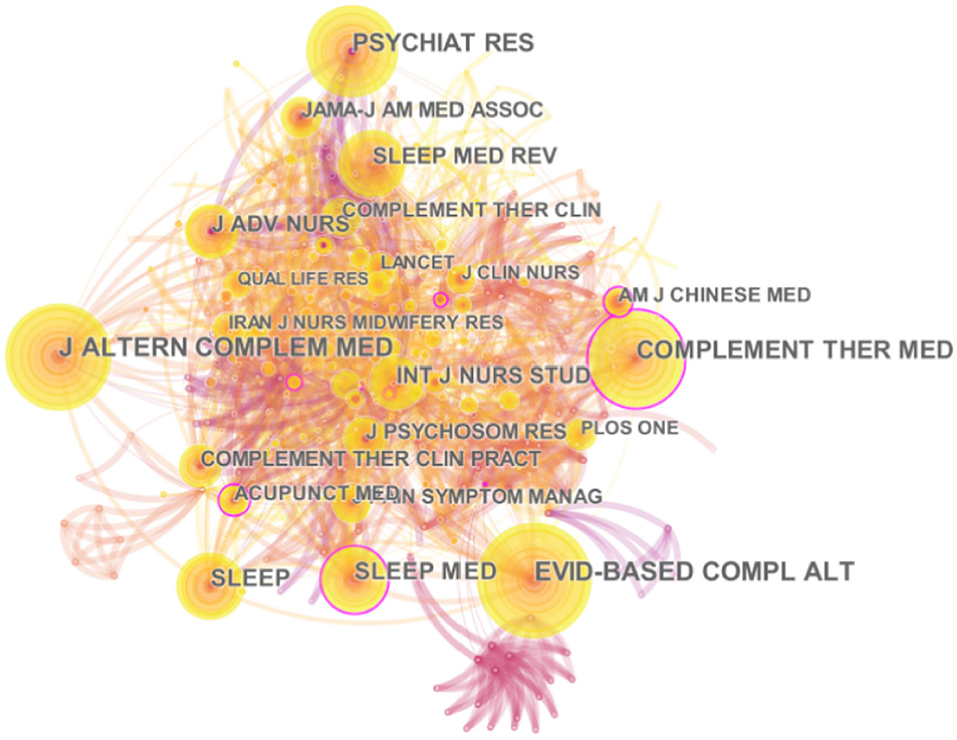

Figure 3. Network map of cited journal.

TABLE 2

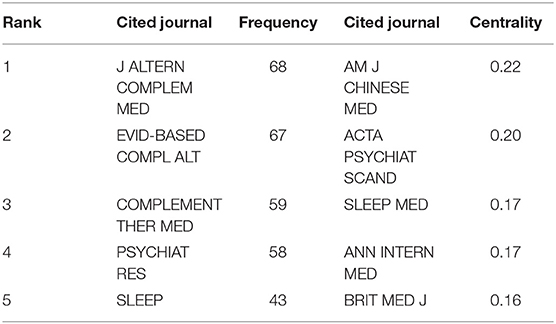

Table 2. Top 5 cited journal.

Figure 4 shows the double map coverage of journals similar to the cited and cited journal maps on the left and right, respectively. Each covered journal field type is represented by a label indicating the citation status of each journal. From left to right, green and blue lines show the double map overlay showing the three main citation paths for this topic.

FIGURE 4

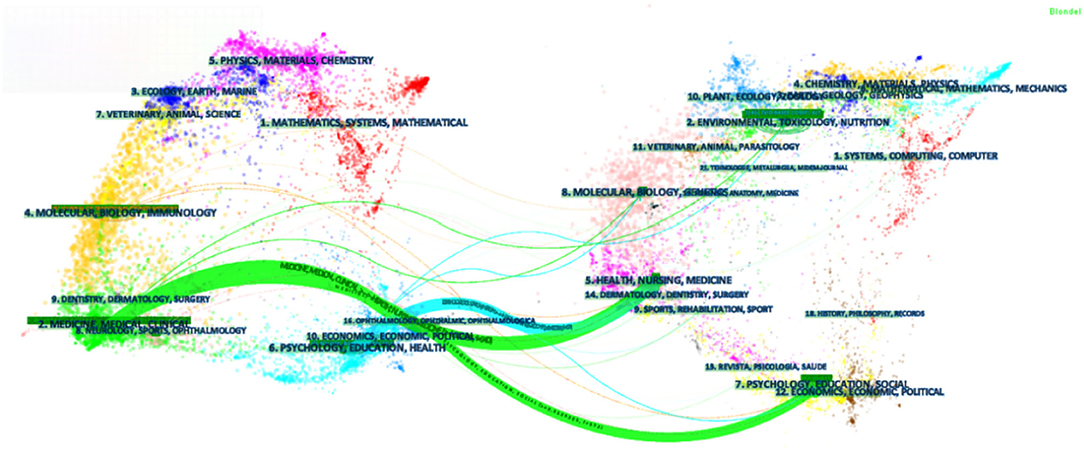

Figure 4. The dual-map overlay of journals related to PE research. [The Dual-map Overlay of Journals Related to the treatment of Insomnia by TCM Nursing Techniques research. There were three citation paths. The top green path, articles published in medicine/medical/clinical journals mostly cited journals in health/nursing/medicine area; the bottom green path, articles published in medicine/medical/clinical journals partially cited journals in psychology/education/social area. The blue path, articles published in psychology/education/health journals partially cited journals in health/nursing/medicine area. (Color figure online)].

Analysis of Authors

Among the top five authors cited frequently (Figure 5A; Table 3), MYUNGHAENG HUR from South Korea ranked the first (34, 39–41), published four articles in total, mainly studying aromatherapy and the combination of aromatherapy and massage. The other four authors are Kuo et al. (42), Yeh et al. (43), Zhao et al. (44), and Bergdahl et al. (45). However, these authors are from different countries/regions and institutions (Hong Kong, Taiwan, and the United States) China). They are both active in researching the effects of auricular therapy, a TCM Nursing Techniques on insomnia. Although the authors ranked 2–4 have similar research fields, it can be seen from the author's co-occurrence network map that there is almost no cooperation among these authors.

FIGURE 5

Figure 5. Network map of author (A), cited author (B) and cluster map of cited author (C).

TABLE 3

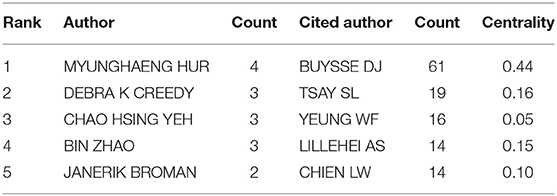

Table 3. Top 5 authors and cited authors.

Author co-citation data was analyzed by CiteSpace and visualized by co-citation network diagram, forming a network diagram of cited authors with 330 nodes and 509 connections (Figure 5B). In the co-cited author atlas cluster, the main TCM Nursing Techniques for insomnia are acupressure, aromatherapy, and auricular therapy (Figure 5C). BUYSSE DJ topped the cited authors list (Table 3), followed by TSAY SL, YEUNG WF, LILLEHEI AS and CHIEN LW. BUYSSE DJ ranked first in co-citation frequency and centrality, with a co-citation frequency of 61 times. He is a sleep expert and developed the Pittsburgh Sleep Quality Index, which is still used today to assess sleep quality (46).

Analysis of References and Cocitations

The co-cited literature network map consists of 419 nodes and 1,140 connections (Figures 6A,B). Based on the clustering of citation keywords, the clustering module value (Modularity, Q value) is 0.9271 (>0.3), the community structure in the cluster is significant, with an average Silhouette (S value) of 0.6722 (>0.7), the clustering can be convincing.

FIGURE 6

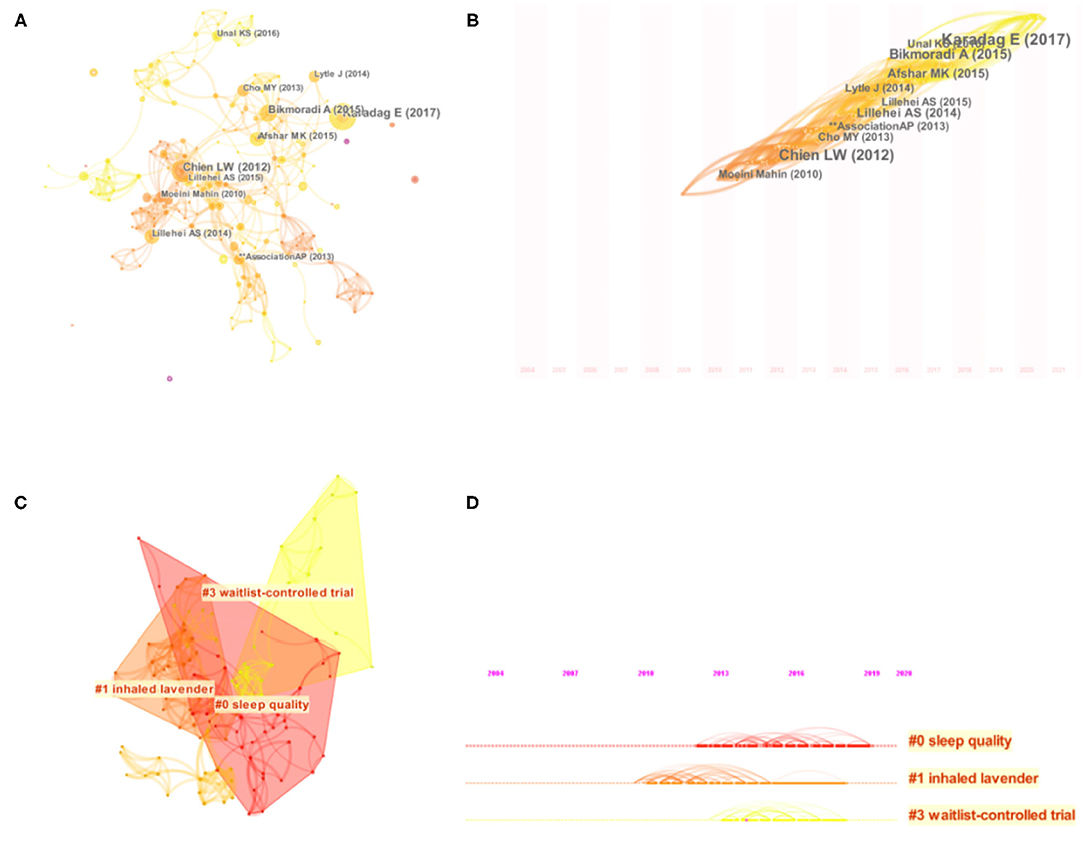

Figure 6. Network map (A), timezone view (B), cluster map (C) and timeline (D) of the cocitation reference.

Table 4 lists the top five most-cited articles from 2004 to 2021. In terms of citation frequency, Karadag (56) article published in 2017 ranks the first, which is still actively cited up to now. A randomized controlled study using aromatherapy (lavender essential oil) in 60 patients in a southeastern Turkish province improved sleep quality in the intensive care unit (ICU). It recommended the use of cost-effective independent nursing interventions for cardiac patients in the ICU. The top five articles were all studies on aromatherapy for insomnia. One was a systematic review and the rest were clinical trials.

TABLE 4

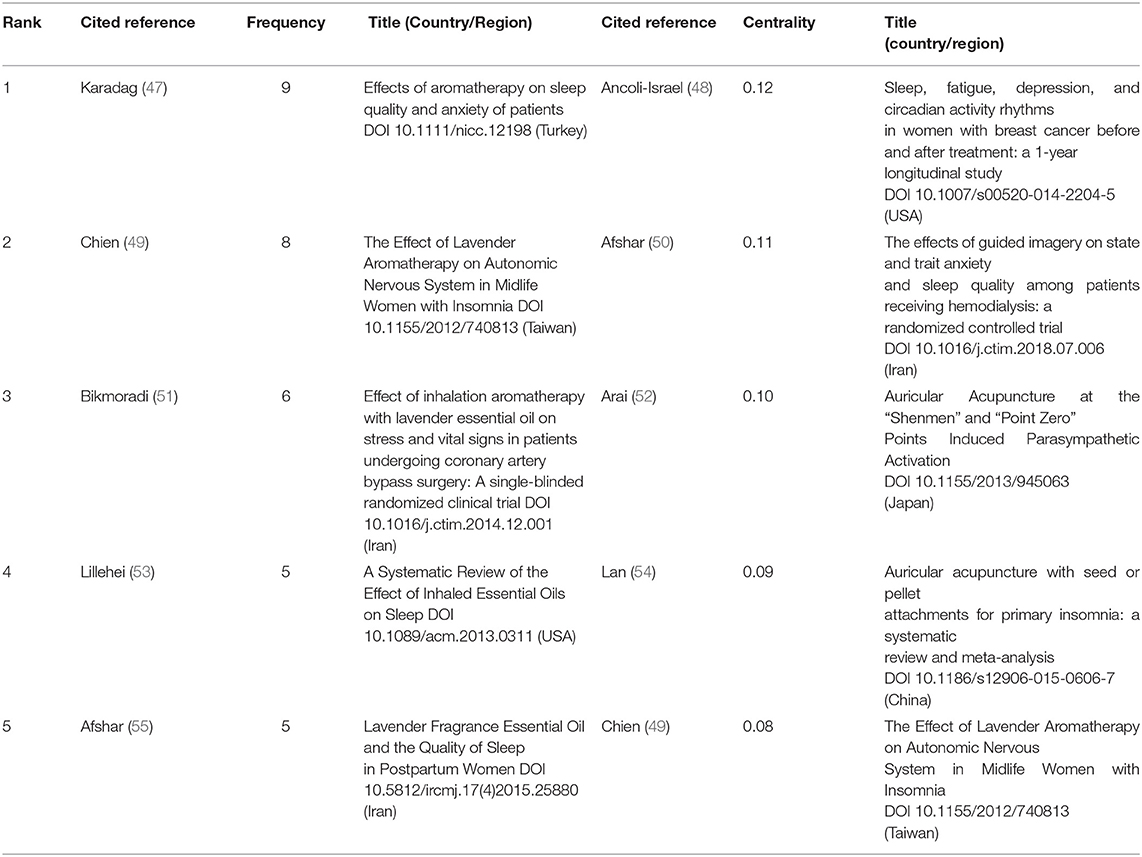

Table 4. Top 5 cited references.

Ancoli-israel Sonia's article (48) was not only the most co-cited in mediating centrality, with a centrality of 0.12(>0.1) (Table 4), and cited 97 times, so this article has a high impact. The results of this controlled longitudinal study showed that breast cancer patients still had poorer sleep quality than non-cancer patients even one year after treatment. However, further research is needed to determine whether treatment of sleep disorders prior to initiation of chemotherapy minimizes the severity of symptoms over time, and the timing entry points for various interventions are tentatively explored.

In order to obtain critical clusters for citation, representative clusters are selected from clusters generated on the network atlas to reflect research patterns and emerging trends (Figure 6C; Table 5). The largest cluster is Sleep Quality, with a Silhouette value of 0.848, indicating that the results are meaningful. The second cluster is inhaled lavender, with a Silhouette value of 0.919. The third cluster, WaitList-Controlled trial, has a Silhouette value of 0.927. As can be seen from the timeline (Figure 6D), the Waitlist-Controlled trial has a high centrality. Randomized controlled trials (RCTs), the most commonly used method to study clinical efficacy, must be carefully designed. The establishment of the waiting group, to some extent, avoids the placebo effect, meets the ethical requirements, and increases the credibility of research results.

TABLE 5

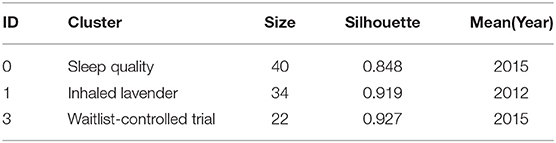

Table 5. Clusters in the reference cooccurrence network.

Analysis of Keyword

Keywords co-occurrence can effectively reflect research hotspots and cutting-edge topics and provide research support. Insomnia can occur not only alone but in combination with other conditions. From 286 notes and 1069 links through keyword co-occurrence graph (Figure 7A), the top five of co-morbidities associated with insomnia is fatigue, anxiety, depression, pain, and hemodialysis. The frequency and centrality of anxiety were relatively high. The top five TCM Nursing Techniques for insomnia is aromatherapy, acupressure, massage, auricular acupressure and aromatherapy massage. The frequency and centrality are relatively high TCM Nursing Techniques is aromatherapy (Tables 6, 7). As can be seen from the timezone view (Figure 7B), in recent years, more and more researchers have begun to pay attention to auricular therapy to treat sleep disorders associated with various diseases, such as hemodialysis and hypertension (57, 58). In particular, hemodialysis became the most significant cluster and has been active since 2012 (Figures 7C,D).

FIGURE 7

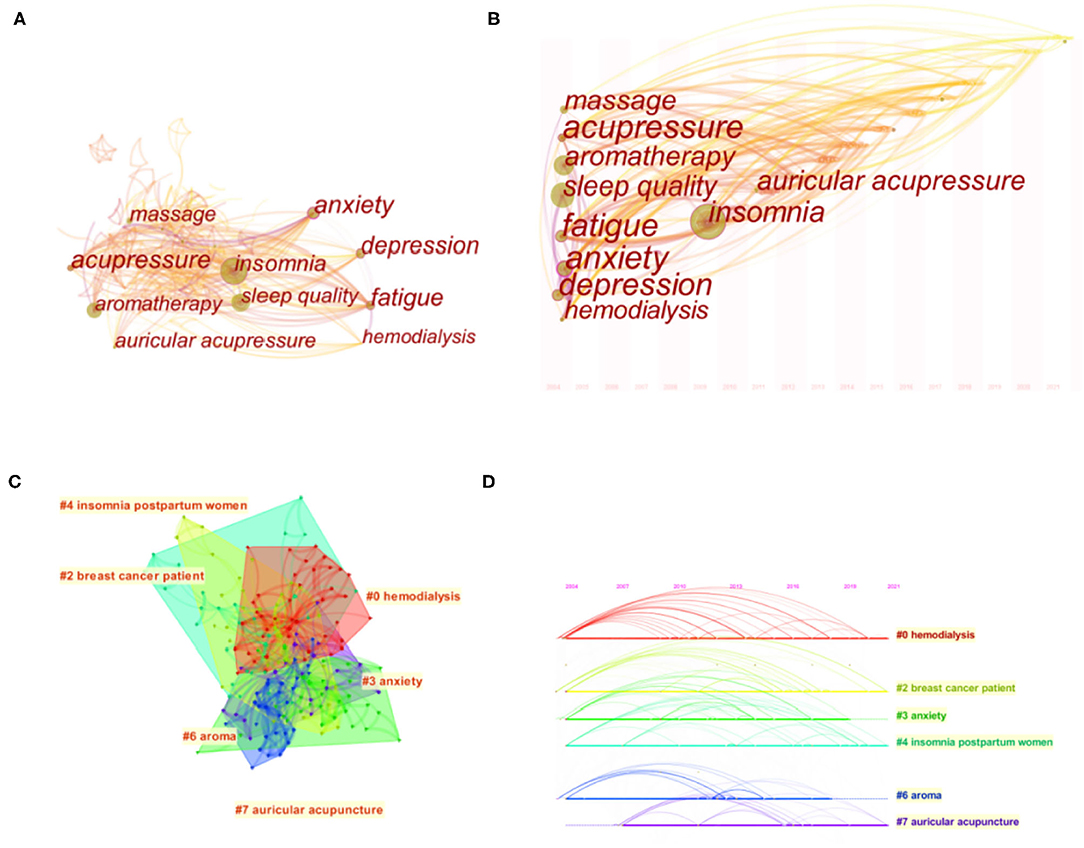

Figure 7. Network map (A), timezone view (B), cluster map (C) and timeline (D) of the keywords.

TABLE 6

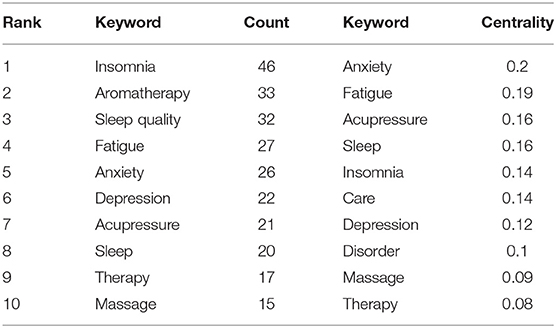

Table 6. Top 10 key words in terms of frequency and centrality.

TABLE 7

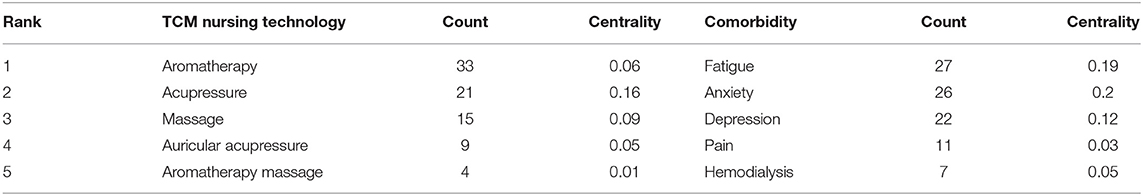

Table 7. Top 5 TCM nursing technology treatment and insomnia comorbidity in terms of frequency and centrality.

Clustering Based on Article Content

Using Cytoscape3.9.0, the clustering diagram based on Degree value is obtained. The results show that the top 10 content are auricular acupressure, aromatherapy, acupressure, fatigue, INSOMNIA, anxiety, non (insomnia without co-morbidities), foot reflexology, hemodialysis, aromatherapy massage. With these several contents as the center, formed several main modules (Figure 8).

FIGURE 8

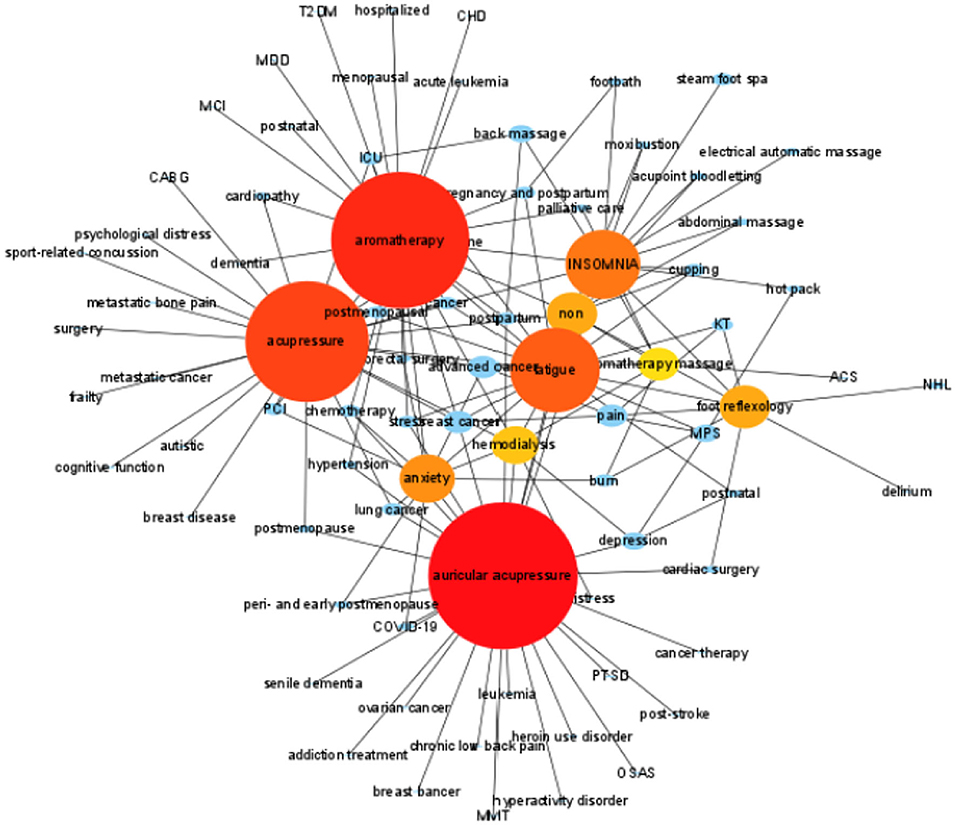

Figure 8. Clustering graph based on article content.

Discussion

General Overview

The mechanism of insomnia is very complex, including the central and peripheral nervous systems and the endocrine system. So far, there is still no clear consensus on the pathogenesis of insomnia in modern medicine. Still, it is generally believed that pathogenesis weakens inhibitory function or enhances awakening function during the sleep-wake cycle (59). The understanding of TCM about the pathogenesis of insomnia is the imbalance of Yin and Yang, involving the disharmony of zang-fu and the disharmony between Ying and Wei, which is similar to the general understanding of Western medicine (60). In the theory of TCM, the meridians and collaterals run qi and blood to connect the zang-fu organs with the body surface and all parts of the body. Qi is divided into Yin and Yang. The movement of qi rising and falling in and out promotes and regulates human life activities, and qi impassability leads to the occurrence and development of diseases. Insomnia is associated with many aspects of mental disorders and physical diseases. Comorbid insomnia has received extensive attention from researchers.

Complementary and alternative medicine (CAM) has been used in insomnia worldwide, and although TCM Nursing Techniques are now included in the recommendations of sleep guidelines, there is still a lack of high-quality research and evidence-based evidence to support this treatment. There is limited evidence that TCM Nursing Techniques can improve insomnia symptoms. A systematic review of 40 randomized controlled trials concluded that acupressure, reflexology, or auricular massage, which places physical pressure on acupoints or reflex areas, performed significantly better alone or in combination with conventional care than with or without conventional care (61). As a widely used, relatively safe, and widely accepted intervention, TCM Nursing Techniques can improve sleep quality and have no adverse effects on insomnia.

In this study, Cite Space 5.6.R5 was used to conduct statistical analysis of relevant literature published in 2004 and 2021 on TCM Nursing Techniques in the treatment of insomnia, including 146 articles. As can be seen from the publications about insomnia research on TCM Nursing Techniques, it has been presented a fluctuating upward trend, and the number of publications has increased significantly in the last few years. This phenomenon may be related to the development of Complementary and Alternative Medicine. It indicates that there is a great potential in the future.

Analysis of Countries, Research Institutions and Published Journals

The output countries are mainly from the China and USA (Table 2). China published the most articles, suggesting that TCM Nursing Techniques is widely accepted in China. Moreover, since the centrality of China is the highest, it is also the central collaborator of other countries. The output institutions are mainly from the University of Hong Kong, Beijing, Korea, Shenyang and Turkey. In addition, China and its three institutions occupy a central position and maintain a high degree of cooperation with countries and institutions. Collaboration helps researchers who investigated insomnia research on TCM Nursing Techniques share resources and exchange knowledge and ideas, which is crucial for further development of the insomnia research on TCM Nursing Techniques. Thus, stronger collaboration networks should be established among more countries, institutes, and authors, especially in China. However, there is not yet an excellent cooperative relationship between countries and institutions. Although there are more than 20 TCM universities in China, the research on TCM Nursing Techniques for insomnia intervention is still in its infancy, which may be related to the late establishment of TCM nursing disciplines and the more emphasis on clinical efficacy. The top five authors are from CAM or insomnia backgrounds. Although fewer authors were at individual nodes in the Web of Science database, there was little collaboration between the teams, indicating that no research team has been established to study auricular therapy for insomnia. It indicates poor communication and cooperation awareness among scholars worldwide in studying TCM appropriate technology intervention in insomnia. The academic exchange and collaboration between scholars need to be strengthened urgently. It is more important to enhance cooperation with experts with other professional backgrounds.

The top three journals are Journal of Alternative and Complementary Medicine, Evidence-based Complementary and Alternative Medicine and Complementary Therapies in Medicine. This indicated that TCM Nursing Techniques is regarded as complementary and alternative medicine. Although it is challenging to publish articles related to TCM Nursing Techniques in high-impact factor journals, it can be seen from the trend of publication volume that more research on TCM Nursing Techniques in the treatment of insomnia has been in progress in recent years. Current bibliometric analysis shows that more and more experts from different disciplines (such as hemodialysis, anxiety, etc.) are studying this area, and many clinical studies have been published so far. Research with good design and quality control should be published in high-quality journals gradually, which is conducive to exchange of research findings on insomnia research on TCM Nursing Techniques.

Research Hot Spots and Trends

Keywords show the researchers' research results and help to understand the research progress. We combined keywords and cluster graph analysis to reveal the research hot spots and development trends in TCM Nursing Techniques of insomnia. From the keyword network graph, anxiety has a high frequency and ranks first in the centrality. Among the symptoms of co-morbidities associated with insomnia, 73% of anxiety occurs before insomnia, and 69% of the comorbidity cases of insomnia and depression occur before insomnia (62). In addition, anxiety levels were 17.35 times higher in insomniacs than in non-insomniacs, and increased insomnia frequency was associated with increased depression and anxiety (63). Our results reaffirm the close relationship between insomnia and anxiety and highlight the clinical predictive role of insomnia in future anxiety and/or depressive episodes (64).

Our cluster analysis of keywords reveals two critical research areas on the use of TCM Nursing Techniques to treat insomnia. This article mainly deals with the diseases currently studied, such as hemodialysis, breast cancer, anxiety, and postpartum women; and the commonly used TCM Nursing Techniques, such as Aromatherapy and Auricular therapy. And hemodialysis is the largest cluster. In our study, we deeply analyzed the articles of 5 authors with the most published literature and the most cited articles and found that the most common topics in the study mainly revolve around auricular therapy, acupressure, and aromatherapy. In a word, the trend of insomnia research on TCM Nursing Techniques mainly focuses on TCM Nursing Techniques can improve the sleep quality of insomnia complicated with diseases, especially hemodialysis complicated with insomnia.

Among the cocitation reference, waitlist-controlled trials formed the third-largest cluster. Due to ethical limitations, it is impossible to select a physiologically similar placebo for comparison in clinical studies of TCM Nursing Techniques. The wait-list control group, as a baseline, gives researchers a good idea of how the subjects who got the intervention were different from the subjects who didn't get the intervention at the same time. There's always a debate about how to choose the proper control group.

The Most Studied TCM Nursing Technique for Insomnia Intervention

Acupressure

In different types of insomnia, acupressure can significantly improve the quality of sleep loss with high safety (65). Since there is still no conclusion on the acupuncture points stimulated by acupressure in current studies, and HT7 acupoint of heart meridian as an important acupoint for insomnia has not been supported by sufficient high-quality evidence, more attention needs to be paid to this therapy (66).

Aromatherapy

It can be seen from the frequency and contribution chart of cited journals and researchers that aromatherapy for insomnia has been studied and applied more in countries outside China, which may be related to the deep TCM theory in TCM Nursing Techniques. As far as aromatherapy is concerned, it is a safe, inexpensive, and effective tool for improving insomnia symptoms in patients with very little training (67). Several meta-analyses of random-effect models have shown that the use of aromatherapy can alleviate sleep problems in patients with insomnia, especially early sleep problems (53, 56, 68, 69). Meta analysis shows that essential oil massage is more effective than essential oil inhalation in improving sleep quality (56). However, due to the high heterogeneity between studies, inferences from the results need to be applied with caution. More in-depth and detailed studies on the pharmacological activities of various essential oils used in aromatherapy are needed in the future. More scientific, rigorous, and strong trials are needed to analyze the actual effects of inhalation aromatherapy on sleep. Because of the clinical significance of sleep-affected wakefulness, measurements of wakefulness outcomes should also be considered. For people with mild sleep disorders, aromatherapy can be considered. Further studies with a larger sample will be needed to build on these findings. Therefore, it is essential to develop specific guidelines for effective inhalation aromatherapy.

Auricular Therapy Is the Most Potential Used TCM Nursing Technique to Intervene Insomnia

From the research of national institutions and the cluster and time zone view of keyword formation, we can infer that auricular acupoint therapy may be a better TCM Nursing Techniques for insomnia. Auricular therapy is the core discipline of traditional Chinese Medicine (TCM), which has been practiced for hundreds of years in China. Huangdi Neijing mentioned the ear is closely related to the five Zang-organs and six Fu-organs, and twelve regular channels all reach the ear directly or indirectly. So ancient Chinese medicine has noticed that people can use the auricle to diagnose diseases, especially the kidney disease.

First, the mechanism of auricular acupoint therapy is relatively clear. French doctor P Nogier first proposed the embryonic inverted auricular diagram, and carried out extensive practice and verification in clinical practice. In recent years, many studies have shown that part of the efficacy of auricular therapy is due to its stimulation of the vagus nerve in the ear. Local cutaneous electrical changes reflect skin motor activity controlled by the autonomic nervous system (ANS). Usichenko et al. summarized relevant clinical and experimental results and found that the anatomical structure of the external auricular nerve pathway is similar to the mechanism of action of percutaneous vagal nerve stimulation (70). Not only that, but transcutaneous vagal nerve stimulation also affects melatonin production. The study of transcutaneous vagus nerve stimulation (tVNS) is beneficial to enrich the evidence support of auricular therapy, thus contributing to the further development of auricular therapy (71). Moreover, the effect of Shenmen acupoint has been recognized. A systematic review published by Chen et al. (23). In 2009 concluded that Shenmen point is the most commonly used acupoint for auricular therapy for insomnia. The auricular acupoint MA-TF1 (Shen Men) is located in the triangular fossa and receives nerve supply through the cranium (vagus nerve) (72). However, no researcher updated and summarized this field in recent years.

Secondly, auricular acupoint therapy has the advantages of relatively simple operation, short operation time, and high feasibility, which significantly reduces the work burden of clinical nurses. And the side effect of auricular therapy is rare. However, two systematic reviews suggested that auricular acupuncture may cause bleeding or infectious diseases, and the adverse events of auricular therapy were local skin irritation, discomfort, tenderness at the sticking site, irritation or pain of adhesive tape, dizziness, etc., which were primarily mild, short-term and welltolerated. At present, no study has shown that the efficacy of auricular acupuncture has a more significant advantage over auricular pressing (73, 74). More studies are needed to determine the optimal plan of auricular therapy for treating diseases. As the highest level of evidence, the systematic evaluation concluded that auricular therapy might be beneficial for insomnia (75), but the evidence was plagued by significant limitations (76).

It is worth noting that there is considerable heterogeneity in the intervention measures of different TCM Nursing Techniques for insomnia, especially in the selection of acupoints and stimulation frequency, which makes it difficult to compare and integrate the intervention methods of various RCTs. Therefore, to ensure the repeatability and reliability of research results, study design and quality control need to be further strengthened. In addition, no high-quality systematic review or meta-analysis has been conducted in the recent five years to systematically report the intervention time and follow-up time of acupoint selection stimulation frequency. The purpose of the systematic evaluation is primarily to verify effectiveness and safety (57, 58). There is an urgent need for more high-quality, rigorously designed large-scale randomized controlled clinical trials with longer duration to confirm the efficacy of TCM Nursing Techniques in the treatment of insomnia (77). In particular, it is necessary to study further to select the acupoint frequency better and intervention time stimulated by TCM Nursing Techniques in the treatment of insomnia, analyze and select the most effective TCM nursing program and operation procedures for the intervention of insomnia, in order to meet the needs of evidence-based practice and high-level clinical research, and promote the international trend of TCM. In addition, large-scale prospective studies are expected to clarify the efficacy of TCM Nursing Techniques in comorbid insomnia, and the mechanisms of action of these techniques will depend on the future animal and large-scale clinical trials.

Limitations and Strengths

First, the database used in this study was Web of Science Core Collection, which included articles of randomized controlled trials published in English. The major reason we were not choosing Chinese literature from databases in China such as CNKI/WanFang is the quality of publications from these databases are uneven parameters. 57 of the 146 articles we included were published by Chinese scholars, accounting for 39 percent, and some high quality literatures from Chinese were publicated in WOS. According to that, we thought the results we searched from WOS could reflect Chinese research in TCM nursing techniques for insomnia. Therefore, articles not published in this database and those not published in English are excluded, especially those published in Chinese. Second, in terms of citation, authors may tend to cite articles from the journals they wish to post, so there may be selection bias. Thirdly, there are only 146 articles published in English in the past 20 years, and the Web of Science database is constantly updated. Therefore, newly published articles may have an impact on this research. Make full use of the limited evidence and our research using CiteSpace software visualization analysis. Our results indicate that not only can highlight by far the most influential in TCM Nursing Techniques to treat insomnia of literature, but also help guide the research target, provide more reference information and basis for future research, and support to promote nursing research to the clinical practice of TCM the transition of the course.

Conclusion

This study comprehensively and objectively analyzed the clinical studies of TCM Nursing Techniques for insomnia published in the Web of Science database and explored and analyzed the overall development trend of significant national and institutional cooperation in the past 18 years. The current research status shows that this field has excellent development prospects, but China and scholars still need to strengthen cooperative relationships. Hot issues and research frontiers are sleep quality, comorbid insomnia, and clinical trial design. By observing the different TCM Nursing Techniques for a variety of the cause of insomnia sleep quality improvement, further refine the evaluation index of sleep, and determine the most effective insomnia of TCM nursing plan and intervention operation rules, to explore the mechanism of action of insomnia of TCM nursing intervention technology, actively apply various new methods and new ideas will be insomnia treatment the important developing direction in the future.

Data Availability Statement

The original contributions presented in the study are included in the article/Supplementary Material, further inquiries can be directed to the corresponding author/s.

Author Contributions

JW contributed to organize the study, prepared datasets, conducted statistical analysis, and drafted the manuscript. YChe verified the overall reproducibility of results and other research outputs and critical review, and commentary or revision of the manuscript in the pre-publication stage. YChu implemented presentation of the published work and specifically visualization presentation. XZ oversight and leadership responsibility for the research activity planning and execution. XM contributed to the study design, prepared the data set, and revised the manuscript. XL involved in management and coordination responsibility for the research activity planning and execution. All authors read and approved the final manuscript.

Funding

This study was supported by the National Natural Science Foundation of China (No. 81503382), the Key project of Beijing University of Chinese Medicine (2020-JYB-ZDGG-078), and the Vertical Science Development Foundation of BUCM (2019-ZXFZJJ-039).

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher's Note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Supplementary Material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fneur.2022.816031/full#supplementary-material

Abbreviations

TCM nursing, Traditional Chinese Medicine Nursing; RCTs, Randomized Controlled Trials.
