Eppur Si Muove: Evidence for an External Granular Layer and Possibly Transit Amplification in the Teleostean Cerebellum

Biechl, Daniela; Dorigo, Alessandro; Köster, Reinhard W.; Grothe, Benedikt; Wullimann, Mario F.

doi:10.3389/fnana.2016.00049

ORIGINAL RESEARCH article

Front. Neuroanat., 02 May 2016

Volume 10 - 2016 | https://doi.org/10.3389/fnana.2016.00049

Eppur Si Muove: Evidence for an External Granular Layer and Possibly Transit Amplification in the Teleostean Cerebellum

$\r\nDaniela Biechl$ Daniela Biechl¹

Alessandro Dorigo²

Reinhard W. Köster²

Benedikt Grothe¹

Mario F. Wullimann^1*

¹Division of Neurobiology, Department Biology II, Ludwig-Maximilians-Universität München, Munich, Germany
²Institute of Zoology, Cellular and Molecular Neurobiology, Technische Universität Braunschweig, Braunschweig, Germany

The secreted signaling factor Sonic Hedgehog (Shh) acts in the floor plate of the developing vertebrate CNS to promote motoneuron development. In addition, shh has dorsal expression domains in the amniote alar plate (i.e., in isocortex, superior colliculus, and cerebellum). For example, shh expressing Purkinje cells act in transit amplification of external granular layer (EGL) cells of the developing cerebellum. Our previous studies had indicated the presence of an EGL in anamniote zebrafish, but a possible role of shh in the zebrafish cerebellar plate remained elusive. Therefore, we used an existing zebrafish transgenic line Tg(2.4shha-ABC-GFP)sb15; Shkumatava et al., 2004) to show this gene activity and its cellular localization in the larval zebrafish brain. Clearly, GFP expressing cells occur in larval alar zebrafish brain domains, i.e., optic tectum and cerebellum. Analysis of critical cerebellar cell markers on this transgenic background and a PH3 assay for mitotic cells reveals that Purkinje cells and eurydendroid cells are completely non-overlapping postmitotic cell populations. Furthermore, shh-GFP cells never express Zebrin II or parvalbumin, nor calretinin. They are thus neither Purkinje cells nor calretinin positive migrating rhombic lip derived cells. The shh-GFP cells also never correspond to PH3 positive cells of the ventral cerebellar proliferative zone or the upper rhombic lip-derived EGL. From this marker analysis and the location of shh-GFP cells sandwiched between calretinin positive rhombic lip derived cells and parvalbumin positive Purkinje cells, we conclude that shh-GFP expressing cells qualify as previously reported olig2 positive eurydendroid cells, which are homologous to the amniote deep cerebellar nuclei. We confirm this using double transgenic progeny of shh-GFP and olig2-dsRed zebrafish. Thus, these zebrafish eurydendroid cells may have the same role in transit amplification as Purkinje cells do in amniotes.

Introduction

During amniote cerebellar development, early Purkinje cells have been reported to secrete Sonic Hedgehog (Shh) via their dendritic tree which signals to external granular layer (EGL) cells to maintain proliferation (transit amplification; Dahmane and Ruiz i Altaba, 1999; Dahmane et al., 2001; Ruiz i Altaba et al., 2002; Kriegstein and Alvarez-Buylla, 2009). Although in teleosts, a superficial EGL in the larval cerebellar plate has been reported in addition to a ventral cerebellar proliferation zone (Mueller and Wullimann, 2002, 2003, 2005; Wullimann and Mueller, 2002; Wullimann et al., 2011), a similar role of shh remains elusive in the anamniote cerebellum, because shh expression has neither been reported or characterized in this brain part. For the present paper, we used an existing transgenic shh-GFP zebrafish line (Shkumatava et al., 2004) and analyzed many cerebellar cell type markers together with the highly specific mitotic cell marker phospho-histone H3 (PH3) on this transgenic background in order to confirm and clarify (1) the location of cerebellar mitotic cells (and hence proliferation zones) and of differentiated cerebellar cell types, (2) the existence of early cerebellar shh expressing cells and (3) the eventual identity of cerebellar shh-GFP cells.

The cerebellum is an evolutionary novelty for gnathostome vertebrates because agnathans lack this brain structure (Nieuwenhuys and Nicholson, 1998; Wicht and Nieuwenhuys, 1998). The characteristic cerebellar three-layered histology in teleosts is highly reminiscent of the amniote situation. An inner granular, an intermediate Purkinje cell and a superficial molecular layer (Meek, 1992; Meek and Nieuwenhuys, 1998) are clearly present in the teleostean corpus cerebelli. In the zebrafish cerebellum, Purkinje cells form a continuous sheet from the (caudal) vestibulolateral lobe through corpus and into the (anterior) valvula cerebelli. This sheet at the interface of molecular and granular layer is folded into a mirror imaged S-shape (Miyamura and Nakayasu, 2001). However, in the vestibulolateral lobe and valvula cerebelli of other teleost species, Purkinje cells may be dislocated toward the molecular layer (Pouwels, 1978; Meek, 1992). The valvula cerebelli is a phylogenetically derived cerebellar subdivision for ray-finned fishes. Also cartilaginous fish have these three cerebellar histological compartments (molecular, Purkinje, granular layer), but their granular layer mostly aggregates in the medial cerebellum (Fiebig, 1988; Smeets, 1998; Rodríguez-Moldes et al., 2008).

The teleostean three-layered cerebellar cortex results from its characteristic cytoarchitectonics. The deeply lying inner granule cells emit a parallel fiber that ascends to and bifurcates in the superficial molecular layer. Inhibitory Golgi interneurons are interspersed among the granule cell bodies. The inhibitory Purkinje cells at the interface of these two layers extend a large dendritic tree into the molecular layer, which runs perpendicular to the bifurcating parallel fibers and the molecular layer contains inhibitory stellate cells. Different from amniotes, teleosts lack excitatory deep cerebellar output nuclei. Large excitatory neurons with this efferent role, so-called eurydendroid cells, are present within or slightly below the teleostean Purkinje cell layer (which is therefore alternatively called ganglionic cell layer). A further cytoarchitectonic difference to amniotes is that inhibitory basket cells in the lower molecular layer are absent in teleosts (Villani et al., 1982; Meek and Nieuwenhuys, 1991; Ikenaga et al., 2005; Meek et al., 2008).

Regarding transmitters and neurochemistry, teleostean Purkinje cells, Golgi and stellate cells are GABAergic, whereas granule cells are glutamatergic and eurydendroid cells glutamatergic or aspartatergic (Anzelius et al., 1995: GABA_A receptor ß2/ß3 subunits, Mikami et al., 2004: glutamate receptor δ2, and GluRδ2; Martyniuk et al., 2007: GAD 65/67; Ikenaga et al., 2005: GABA, aspartate; Meek et al., 2008: glutamate, GABA, GAD, GABA transporter 1, metabotropic glutamate receptors1α and 2/3; Delgado and Schmachtenberg, 2008: GABA, GAD65, GABA_Aα1, and GABA_B1 subunits; Bae et al., 2009: gad1/2, vglut2a). Further, neurotoxic effects of kainic acid only affect inhibitory Purkinje and Golgi cells, but not granule and eurydendroid cells (the “insensitive Purkinje cells” of Villani et al., 1982). Moreover, retrograde backlabel from cerebellar projection target areas reveals goldfish eurydendroid cells as the efferent cerebellar cells, which in double-label assays are never immunopositive for GABA or for aldolase C (Zebrin II, a specific Purkinje cell marker; Ahn et al., 1994), but about half of them are aspartate (Ikenaga et al., 2005, 2006) positive, whereas others are glutamate immunopositive (Meek et al., 2008). There are no cerebellar glycinergic neurons in teleosts, because there are neither cerebellar transgenically GFP-labeled glycine transporter 2 cells (Barreiro-Iglesias et al., 2013) nor is any cerebellar glycin receptor expression observed (Imboden et al., 2001). Additionally, the calcium-binding protein parvalbumin is selectively found in teleostean Purkinje cells, while calbindin characterizes granular cells in the cerebellar caudal lobe (Alonso et al., 1992; Porteros et al., 1998; Crespo et al., 1999; Bae et al., 2009). In contrast, calretinin stains a minor fraction of eurydendroid cells (Díaz-Requeira and Anadón, 2000; Castro et al., 2006; Meek et al., 2008) and many more migrating upper rhombic lip cells on their way to the isthmic medulla oblongata to form there the secondary gustatory nucleus (Volkmann et al., 2010). As mentioned above, Zebrin II reliably stains teleostean Purkinje cells (Lannoo et al., 1991a,b; Meek et al., 1992) including their axons. These reveal fine punctate terminals around intracerebellar eurydendroid cell somata plus a few axons originating from caudal Purkinje cells which form the cerebello-octavolateralis tract and exit the cerebellum to enter octavolateral nuclei (Lannoo et al., 1991a; Ikenaga et al., 2006). The eurydendroid cells are thus the excitatory cerebellar projection cells relaying Purkinje cell input to the extracerebellar brain and are interpreted as the homolog of the amniote deep cerebellar nuclei. Thus, cerebellar internal microcircuitry of teleostean granule cells, Golgi cells, stellate cells and Purkinje cells in teleosts is principally similar to amniotes, except for the intracerebellar location of efferent eurydendroid cells and the absence of basket cells (Mikami et al., 2004; Ikenaga et al., 2005; Han et al., 2006; Meek et al., 2008). Furthermore, eurydendroid cells have an extensive dendritic tree into the molecular layer, which is absent in amniote deep cerebellar nuclear cells.

Cerebellar afferent connections in teleosts (for example mossy fiber input from precerebellar, pretectal, accessory optic, and some primary sensory octavolateral nuclei as well as from the spinal cord) and efferent connections (to ventral thalamus, pretectum, nucleus ruber, nucleus oculomotorius) are highly comparable to amniotes (Finger, 1978a,b; Murakami and Morita, 1987; Wullimann and Northcutt, 1988, 1989; Torres et al., 1992; Ikenaga et al., 2002; Ito et al., 2003; Yang et al., 2004; Folgueira et al., 2006; Xue et al., 2007, 2008; Matsui et al., 2014). In addition, a large nucleus in the dorsal tegmentum (n. lateralis valvulae) forms a major input structure unique to the teleostean cerebellum (Yang et al., 2004). However, a pons and, thus, pontocerebellar input, is absent in teleosts, but different telencephalo-cerebellar relays have evolved independently in various teleost clades (Wullimann and Meyer, 1993; Imura et al., 2003). Further, climbing fibers arising from the inferior olive do exist in teleosts, but their terminals are somewhat restricted to Purkinje cell somata and their proximal dendrite (Castejon and Sims, 2000; Meek et al., 2008; Xue et al., 2008). Thus, distal dendrites of both Purkinje cells and eurydendroid cells in the molecular layer receive massive parallel fiber input, but no climbing fiber input (Meek et al., 2008).

Turning now to cerebellar development, the vertebrate rhombic lip comes into play. It is a unique embryonic proliferative zone of the dorsalmost alar plate hindbrain bordering the early rhombic groove. The amniote rhombic lip gives rise to various cell masses that partially undergo long tangential migrations before settling in their remote adult locations (see review by Wullimann et al., 2011). The so-called lower rhombic lip lines the rhombic groove bilaterally and fuses anteriorly to form a transverse ridge, the upper rhombic lip, which develops mostly into the cerebellum (see Section “Discussion”). The lower rhombic lip is longitudinally and dorsoventrally regionalized into various generative zones, which differ in transcription factor gene expression. Generally, a dorsal rhombic lip zone expressing math1 (atoh1) is complemented by a ventral one expressing ptf1a. In the mammalian anterior part of the lower rhombic lip these two zones give rise to the excitatory and inhibitory cochlear nuclear cells, respectively. In the posterior part of the lower rhombic lip, the math1 expressing zone generates precerebellar (for example the pontine) cell masses, whereas the ptf1a expressing zone generates the inferior olive (see above).

Similarly, the amniote upper rhombic lip very early differentiates into a ventral cerebellar ptf1a expressing proliferation zone which forms all inhibitory cerebellar cell types (including the inhibitory fraction of deep cerebellar nuclear cells) whereas the remaining proliferative upper rhombic lip gives rise to an EGL and an early ventrally migrating population destined to form the excitatory deep cerebellar nuclear cells. All those dorsal cell masses are math1 (atoh1) positive and are sometimes referred to as upper rhombic lip (excluding the cerebellar ptf1a zone, see discussion in Wullimann et al., 2011). Even predating the establishment of the EGL such math1 expressing upper rhombic lip cells migrate anteroventrally in order to populate the tegmental zone of the first rhombomere and to form cholinergic cell groups, i.e., the parabigeminal nucleus, the pedunculo-pontine/laterodorsal-tegmental groups and the cholinergic cells of the parabrachial nucleus (Machold and Fishell, 2005; Wang et al., 2005; Nichols and Bruce, 2006).

Regarding anamniotes, recent developmental studies in the zebrafish have revealed that similar dorsal atoh1 and ventral ptf1a expressing progenitor zones do exist in the upper rhombic lip (Volkmann et al., 2008; Kani et al., 2010; Hashimoto and Hibi, 2012; Hibi and Shimizu, 2012; Kaslin et al., 2013). However, a distinct qualitative difference to the amniote situation is that the teleostean efferent eurydendroid neurons originate overwhelmingly from ptf1a expressing progenitors and only a small fraction from atoh1 expressing ones (Kani et al., 2010; Hibi and Shimizu, 2012). This correlates with the truncated migratory behavior of these cells, since they remain within the cerebellum instead of migrating below it as in amniotes (see above). In a previous paper, we have studied the dynamics of wnt1/atoh1a expressing zebrafish upper rhombic lip derived cell migration and found that such very early migrating cells are cholinergic and show connections known for the adult nucleus isthmi, secondary gustatory nucleus and superior reticular nucleus (Volkmann et al., 2010), the homologs of the mammalian parabigeminal nucleus, parabrachial nucleus, and the pedunculo-pontine/laterodorsal-tegmental groups (Mueller et al., 2004). Somewhat later, upper rhombic lip/EGL cells at the subpial periphery of the cerebellar plate which express atoh1 genes continue extendedly to migrate ventrally to populate the internal granule cell layer (Köster and Fraser, 2001, 2004, 2006; Rieger et al., 2008; Kani et al., 2010). In contrast, ptfa1 expressing cells in the ventral cerebellar proliferation zone are fated to become Purkinje and other inhibitory cerebellar cells (Kani et al., 2010). Overall, this is an impressively similar spatiotemporal sequence of upper rhombic lip differentiation events when compared to amniotes (see review in Wullimann et al., 2011).

However, it has been questioned whether or not there is a true EGL in ray-finned fishes (Chaplin et al., 2010; Butts et al., 2014). In amniotes, early Purkinje cells have been reported to secrete Shh via their dendritic tree signaling to EGL cells to maintain proliferation (transit amplification; Dahmane and Ruiz i Altaba, 1999; Dahmane et al., 2001; Ruiz i Altaba et al., 2002; Kriegstein and Alvarez-Buylla, 2009; see Section “Discussion”). Various papers reported on the existence of a ventral cerebellar proliferation zone and a superficial EGL in the larval cerebellar plate (Mueller and Wullimann, 2002, 2003, 2005) and while support by gene expression studies followed suit (Wullimann and Mueller, 2002; Wullimann et al., 2011; see Section “Discussion” there), the expression of shh in the early cerebellum during rhombic lip proliferation remained elusive. Hence, for the present paper, we availed ourselves of existing transgenic shh-GFP zebrafish line (Shkumatava et al., 2004) and studied larval cerebellar development using various specific cerebellar cell type markers and the highly specific mitotic cell marker phospho-histone H3 (PH3) on this transgenic background in order to confirm and clarify (1) the location of cerebellar mitotic cells, and hence proliferation zones, and how they relate to differentiated cerebellar cell types, (2) the existence of early alar plate (e.g., cerebellar) shh expressing cells and (3) the eventual identity of cerebellar shh-GFP cells. To this end, we furthermore used progeny of transgenic shh-GFP fish mated with transgenic olig2-dsRed fish (see: “Transgenic Zebrafish Strains” in Section “Materials and Methods”). We found that a cerebellar ventral proliferation zone in addition to an EGL is confirmed with phospho-histone H3 and that the cerebellar plate shh-GFP cells correspond to the olig2 expressing cerebellar eurydendroid cells.

Materials and Methods

Animal Maintenance

Wild-type zebrafish were kept in a zebrafish housing system (ZebTEC, stand-alone-unit, Tecniplast©) at a temperature of 28°C and a 12/12 light/dark cycle at the Ludwig Maximilians University Munich (LMU). Animals used in this study were treated according to the German regulations on Animal Protection (Deutsches Tierschutzgesetz). Experiments conducted in this paper involved no animal experiments in the sense of the German Animal Protection law. We used dead animals and fixed brain tissue to conduct the immunohistochemical procedures. Transgenic fish lines used (see below) were generated previously in other laboratories. Maintenance and breeding of transgenic fish were approved by local government authorities. All experiments involving zebrafish embryos and larvae were conducted in accordance with legal regulations (EU Directive 2010_63).

Transgenic Zebrafish Strains

The transgenic line Tg(2.4shha-ABC-GFP)sb15 was originally published as Tg(2.2shh:gfpABC#15) by Shkumatava et al. (2004; see there for details on its generation) and will be referred to in the following as shh-GFP line. Transgenic specimens were bred and raised by Dr. Thomas Mueller (Albert Ludwigs-University, Freiburg i. Br., Germany) up to 2, 3, 4, and 5 days post fertilization (dpf) and then fixed in 4% paraformaldehyde in PB (see below). Heterozygous carriers of the Tg(olig2:dsred2)vu19 (Kucenas et al., 2008) were bred to heterozygous Tg(2.4shha-ABC-GFP)sb15 carriers and double transgenic embryos were sorted according to their green and red fluorescence (at TU Braunschweig, Germany). After 12 h the medium was replaced with 0.003% PTU (N-Phenylthiourea, Sigma–Aldrich) in 30% Danieau and changed daily. The former line will be referred to as olig2-dsRed in the following. Similarly, heterozygous carriers of Tg(PC:FyntagRFP-T) zebrafish (see Matsui et al., 2014) were crossed with corresponding Tg(olig2:EGFP)vu12 (Shin et al., 2003) zebrafish and their double-transgenic offspring selected accordingly (as described above). The former line will be referred to as PC-tagRFP below. The line visualizes the cell membrane of Purkinje cells, because a regulatory element derived from the zebrafish carbonic anhydrase 8 gene, specifically expressed in Purkinje cells, is involved (Matsui et al., 2014; see also Bae et al., 2009). Histological processing of certain transgenic specimens took place at the LMU. It should be noted that transgenic larvae were kept as far as possible in darkness during histological processing due to the photosensitive GFP-protein.

Animal Preparation and Cutting Procedure

Adult wild-type zebrafish (4) were sacrified by decapitation after anesthesia with an overdose of MS-222 (ethyl 3-aminobenzoate, Sigma–Aldrich). Brains were exposed dorsally by removing the skull and fixed with freshly prepared cold 4 % paraformaldehyde (PFA) in Sörensen phosphate buffer (PB, pH 7.4) at 4°C overnight before being removed from the skull.

Zebrafish larvae (98) wild-type and transgenic animals; see above) were killed with an overdose of tricaine methanesulfonate (MS-222) and fixed in paraformaldehyde (4% PFA in PB) at 4°C overnight. Following cryoprotection in sucrose solution (30% sucrose solution at 4°C overnight, adult brains and larvae embedded in TissueTek (tissue freezing medium, A. Hartenstein GmbH) and cryosectioned (Leica, CM 3050 S) at 14 μm (larvae) or 30 μm (adult) before thaw mounted onto Superfrost Plus glass slides (Thermo) and coverslipped.

Immunohistochemical Processing

Immunohistochemical incubations were done in a humid chamber. After washing off TissueTek in cryosections in phosphate buffered saline (PBS), endogenous peroxidase activity was first blocked with 0.3% H₂O₂ in PBS for 30 min at room temperature (RT), washed in PBT (PBS + 0.1% Tween 20) and blocked with blocking buffer (2% normal goat serum, 2% bovine serum albumin, 0.2% Tween 20, 0.2% Triton X-100 in PBS) for 1 h at RT before exposition to a primary antibody diluted in blocking buffer at 4°C for 1–3 days (dilution see Table 1). After washing in PBT, the sections were incubated with the secondary antibody (see Table 2) diluted in blocking solution overnight at 4°C. In case of double- or triple- immunofluorescence, a second and third primary antibody was sequentially applied after intermittent washing in PBT and blocking. Subsequently, one or two corresponding secondary antibodies diluted in blocking buffer were applied overnight, after intermittent washing in PBT and blocking (see above for details). Finally, sections were washed in PBT and counterstained with DAPI (40-6-diamidino-2-phenylindole; Carl Roth, 1:1000) or in case of triple immunostains with TO-PRO (Molecular probes, 1:1000; not shown) and washed in PBS. A few stains were performed with Neurotrace (a fluorescent Nissl stain; Molecular Probes; 1:100) as an additional counterstain to DAPI. Slides were then mounted with Vectashield (Vectorlabs) and coverslipped. Regarding antibodies against calcium-binding proteins (parvalbumin, calretinin), we have previously performed various controls and Western blot analysis (see Kress et al., 2014) and the same is true for the antibody against tyrosine hydroxylase (Yamamoto et al., 2010, 2011). We furthermore checked for differences between the intrinsic GFP signal with the one enhanced through use of the anti-GFP antibody and found no qualitative difference.

TABLE 1

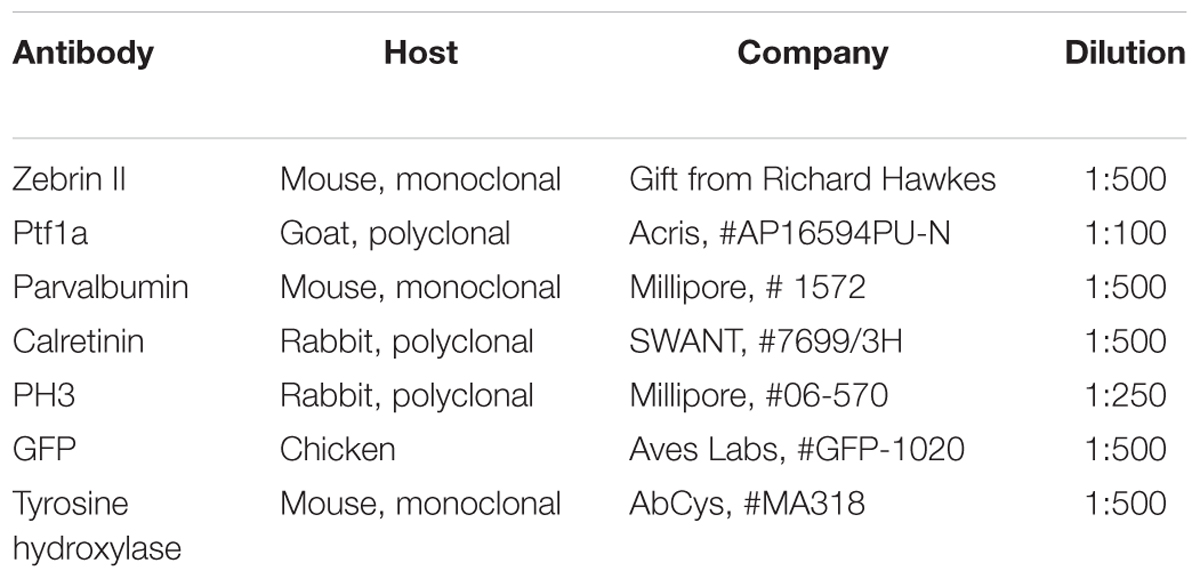

TABLE 1. Primary antibodies.

TABLE 2

TABLE 2. Secondary antibodies.

Confocal Microscopy

Sectioned material: Optical sections were acquired with a Leica TCS SP-5 confocal laser-scanning microscope (Leica Microsystems, Mannheim, Germany). All microscopic images used in this study were processed to RGB stacks and projections by using ImageJ and slightly adapted for brightness and contrast with either ImageJ or Corel PHOTO-PAINT. Photographic plates were mounted and further processed into figures with CorelDRAW 9.0 (Corel Corporation).

Larvae selected for confocal microscopy analysis were anesthetized in 0.016% Tricaine (Ethyl 3-aminobenzoate methanesulfonate, Sigma–Aldrich) dissolved in 30% Danieau. Anesthetized larvae were embedded in 1.5% low melting agarose (Type IX-A, Sigma–Aldrich) in a 0.13–0.16 mm cover glass bottom Petri dish (Menzel–Gläser) and overlaid with 30% Danieau.

Imaging of zebrafish larvae (shh:EGFP/olig2:dsRed and olig2:EGFP/PC:tagRFP double-transgenic fish) was performed using an inverse Leica TCS SP8 laser scanning confocal microscope using either a 20X (0.75 NA) oil immersion objective or a 40X (1.1 NA) water immersion objective. For live imaging, 5 dpf zebrafish larvae were anesthetized in Tricaine methanesulfonate (Sigma–Aldrich) and mounted in 1.5% low melting agarose (Type IX-A, Sigma–Aldrich). To record EGFP fluorescence, the excitation wavelength was set to 488 nm and the emission bandpass filters to 495–545 nm. To record dsRed fluorescence, the excitation wavelength was set to 561 nm and the emission bandpass filters to 595 – 650 nm. Z-stacks images were collected with the confocal pinhole set to 1.0 airy unit (AU; 20x z-section of: 3.12 μm, 40x z-section of: 1.27 μm)). After imaging, larvae were fixed in 4% PFA as described above.

Results

Shh-GFP Line Visualizes Conventionally Known Ventral Central Nervous Expression Domains As Well As Dorsal Alar Plate Domains

A detailed comparison of our data on the retina with those of the original description of the zebrafish shh-GFP line (Shkumatava et al., 2004) is given in the “Supplementary Materials” Section. Furthermore, we investigated serial cross-sections of shh-GFP zebrafish larvae at 2, 3, 4, and 5 dpf. At all ages, previously well established shh expression domains, such as the zona limitans intrathalamica, the hypothalamus, the posterior tuberculum and the floor plate extending from the tegmental midbrain into spinal cord as well as the pharynx exhibit strong GFP expression (Figures 1 and 2). Some more weakly GFP-stained cells are additionally seen somewhat laterally to the floor plate, in particular in the mesencephalic tegmentum (see Section “Discussion”). Interestingly, the posterior hypothalamus remains negative for a GFP signal in its ventral part. In the notochord, GFP expression is already weaker in these larval stages (and was presumably stronger in the embryonic larva). At 3 dpf, dorsal alar plate cells appear at tectal, but not yet at cerebellar levels. Also, considerable numbers of such dorsal cells are seen more caudally in the medulla oblongata (not shown). At 4 and 5 dpf, the alar GFP expressing cells are increasingly more numerous in the tectum and appear now clearly in the cerebellar plate in growing numbers (arrows in Figures 1 and 2). These conventionally recognized shh-expressing domains as well as the dorsal alar cells in midbrain and cerebellum show a corresponding signal in sections of wild-type zebrafish in situ hybridized for shha-mRNA (see “Supplementary Materials” Section, Figure 2). A fortuitous fact is that the axonal arborizations of retinal ganglion cells (which are GFP expressing, see above) are seen in the visual layers of the optic tectum (arrowheads in Figure 1) starting with 3 dpf and, thus, define the latter’s anteroposterior extent. GFP labeled retinal projections are also seen to reach the pretectum, in particular the developing parvocellular superficial pretectal nucleus (M1, Figure 1G). Another interesting detail is that GFP expressing fibers are seen in the lateral forebrain bundle (Figure 1F) which presumably represent ascending fibers from the posterior tuberculum (see Section “Discussion”). Within the optic tectum, the GFP expressing cell somatas are always basal to the GFP expressing retinal layers. Also, cerebellar GFP cells are in a basal position. Medullary GFP expressing dorsal cells appear to be gone at these later larval stages. Thus, our survey of transgenic shh-GFP zebrafish line reveals the time course and developmental profile of shh expressing cells via GFP fluorescence/expression along the entire anteroposterior central nervous system axis and demonstrates that dorsal alar shh expressing populations known from embryonic amniotes in midbrain and cerebellum do exist in addition to well established basal and floor plate domains also in larval zebrafish. Of note, in situ hybridized sectioned material produced in transgenic shh-GFP larvae (5 dpf) shows the presence of dorsal alar cerebellar GFP expressing cells which at the same time express shha (see “Supplementary Materials” Section, Figure 3).

FIGURE 1

FIGURE 1. Confocal photomicrographs (maximum projections) of transverse sections of a shh-GFP zebrafish larva at 5 dpf immunostained for GFP (with DAPI as counterstain) show levels from telencephalon to medulla oblongata (A–O). Note in particular basal expression in floor plate (J–O), hypothalamus (I–M), and dorsal (alar plate) tectal (G–I) and cerebellar (J–M) GFP-expressing cells (arrows). Arrowheads indicate primary visual projections in optic tectum. See text for more details. Scale bar in (A): 100 μm (applies to all panels). CeP, cerebellar plate; dT, dorsal thalamus; FP, floor plate; GCL, ganglion cell layer; H, hypothalamus; Ha, habenula; INL, inner nuclear layer; IPL, inner plexiform layer; MO, medulla oblongata; oc, optic chiasma; OC, otic capsule; ONL, outer nuclear layer; P, pallium; poc, postoptic commissure; PTd, dorsal part of posterior tuberculum; S, subpallium; T, midbrain tegmentum; TeO, optic tectum; TeVe, tectal ventricle; vT, ventral thalamus (prethalamus); ZLI, zona limitans intrathalamica.

FIGURE 2

FIGURE 2. Confocal photomicrographs (maximum projections) of transverse sections from tectal (A) to hindbrain (I) levels of a shh-GFP zebrafish larva at 4 dpf immunostained for GFP (with DAPI as counterstain) reveals extent of cerebellum through additional immunostain with Zebrin II. Arrows: dorsal GFP expressing cells. Arrowheads point out GFP-expressing dendritic arborizations. Scale bar in (A): 100 μm (applies to all panels). CeP, cerebellar plate; Ch, notochord; FP, floor plate; H, hypothalamus; MO, medulla oblongata; Ph, pharynx; TeO, optic tectum.

FIGURE 3

FIGURE 3. Confocal photomicrographs (optical sections) of transverse sections of shh-GFP zebrafish cerebellum immunostained for Zebrin II at 4 dpf (A–C) and 5 dpf (D,E) showing that Zebrin II is not seen in shh-GFP expressing cells at 4 and 5 dpf. Arrows point to GFP expressing cells. Arrowhead points out GFP-expressing dendritic arborizations. Scale bars: 10 μm, that in (A) also applies to (B,C).

Zebrin II Confirms Presence of Dorsal (Alar) shh-GFP Cells in the Cerebellum

Next, we looked at Zebrin II, a selective marker for Purkinje cells (Brochu et al., 1990) in order to reveal the extent of cerebellar shh-GFP expressing cells in 4 and 5 dfp larvae (Figure 2). Zebrin II very reliably and effectively labels Purkinje cell bodies, dendritic trees and axons throughout the zebrafish cerebellar plate, i.e., the future corpus cerebelli. There is a considerable increase of Zebrin II expression in the 5 dpf larva compared to 4 dpf. We did neither observe Purkinje cells in the yet small larval valvula cerebelli, nor in the eminentia granularis. These data clearly reveal that shh-GFP cells (indicated with arrows in Figure 2) are present within the larval zebrafish cerebellar plate because the latter’s anteroposterior extent is delineated by Zebrin II immunopositivity. With regard to the identity of cerebellar shh-GFP cells, it can be clearly stated from confocal microscopical analysis that Zebrin II positive Purkinje cells are never double-labeled with GFP (see arrows in Figure 3), indicating that these cerebellar zebrafish shh-GFP cells are not Purkinje cells. Furthermore, punctate GFP staining in the most superficial molecular layer of the larval cerebellar plate (arrowheads in Figures 2 and 3) demonstrate that shh-GFP cells have processes extending into the molecular layer reminiscent of eurydendroid cells.

Zebrin II Visualizes Cerebello-octavolateralis Tract

In 5 dpf zebrafish larvae, some Purkinje cells in the caudal cerebellar plate, close to the larval eminentia granularis, are observed to emit Zebrin II positive axons which project ventrally (arrow in Figure 4B’) and terminate with profuse arborization in the vestibular primary sensory area (Figures 4A–C). We went on to visualize Zebrin II positive Purkinje cells in the adult zebrafish brain (Figures 4D–G). Purkinje cell somata are present throughout the corpus cerebelli around the edge of the granular cells masses (Figure 4D). The axons of the adult cerebello-octavolateralis tract arise from a set of Purkinje cells in a position where granular masses of corpus cerebelli, lobus caudalis cerebelli and eminentia granularis meet (Figure 4D’) and possibly from some Purkinje cells along the medial edge of the eminentia granularis (arrowhead in Figure 4E’). These axons exit the cerebellum via the posterior cerebellar tract to form the cerebello-octavolateralis tract. Some Zebrin II positive Purkinje cell somata are also present at the edge of the most posterior granular masses of the lobus caudalis where they extend their dendrites into the molecular layer (Figures 4F,F’). The axons of the cerebello-octavolateralis tract can be followed into the medulla oblongata issuing terminals to the medial octavolateralis nucleus (Figures 4E–E”) and to the descending octaval nucleus (Figures 4G,G’), but not to the anterior, tangential, magnocellular or posterior octaval nuclei. Interestingly, within the descending octaval nucleus the terminal field is in the ventrolateral area, which is presumably vestibular and not acoustic in nature, if data from other cypriniforms are considered (Echteler, 1984, 1985; McCormick and Braford, 1994; McCormick and Hernandez, 1996; Yamamoto and Ito, 2005). Similar to the larval situation (Figure 4C’), the synaptic terminals appear to surround the vestibular neuronal somata in a calyx-like fashion. However, the vast majority of Purkinje cells do not issue ventrally directed axons, but tangentially oriented ones which sometimes reveal punctate terminals around unstained large cell bodies located in the Purkinje cell or upper granule cell layers, presumably representing postsynaptic eurydendroid cells (asterisks in Figures 3C,C’). At least in mormyrids, Purkinje cells might also synapse on other Purkinje cells (Meek et al., 1992).

FIGURE 4

FIGURE 4. Confocal photomicrographs (maximum projections) of transverse sections of a shh-GFP zebrafish cerebellum at 5 dpf (A–C) and sections of a wild-type adult brain immunostained for Zebrin II with DAPI and Neurotrace (NT) as counterstains (D–G). (A) Right side of larval cerebellum shows location of Purkinje cell layer. Note large cell bodies and typical dendritic trees into molecular layer. (A’) Monochromatic picture visualizes Purkinje cell morphology. (B,C) This shows more caudal cerebellar levels including eminentia granularis. (B’) Enlargement of caudal Purkinje cells with one exhibiting an axon directed ventrally and exiting the cerebellum. (C’) Enlargement of terminal field in larval vestibular primary nuclear area formed by axon shown in (B’). Four transverse sections [levels indicated in drawing shown in (H)] from rostral (D) to caudal (G) show adult Purkinje cell bodies and dendrites in corpus cerebelli (D,E) and lobus caudalis cerebelli (F,F’), plus some Purkinje cells along the medial edge of eminentia granularis (arrowhead in E’). The cerebello-octavolateralis tract is highlighted by arrows in (E–E”,F) and forms a terminal field in the medial octavolateralis nucleus (E–E”) and in the descending octaval nucleus (G,G’). (D’) Enlargement of Purkinje cells giving rise to cerebello-octavolateralis tract (left brain side). See text for more details. Scale bars: 10 μm, that in (B) also applies to (C), in (D, also applies to E–G): 200 μm. CC, crista cerebellaris; CCe, corpus cerebelli; DV, descending trigeminal tract; CON, caudal octavolateralis nucleus; DON, descending octaval nucleus; EG, granular eminence; FLo, facial lobe; LCa, lobus caudalis cerebelli; LI, inferior lobe; LL, lateral line nerves; MO, medulla oblongata; MON, medial octavolateralis nucleus; MLF, medial longitudinal fascicle; OB, olfactory bulb; PG, preglomerular area; Pit, pituitary; RV, rhombencephalic ventricle; SC, spinal cord; SGT, secondary gustatory tract; Tel, telencephalon; TeO, optic tectum; TH, tuberal hypothalamus; TLa, torus lateralis; VLo, vagal lobe; I, olfactory nerve; II, optic nerve; IV, trochlear nerve; V, trigeminal nerve; VII, facial nerve; VIII, octaval nerve; X, vagal nerve.

Identity of shh-GFP Cells

We furthermore used immunohistochemistry for two calcium binding proteins, calretinin, and parvalbumin, to characterize the zebrafish larval cerebellar plate in shh-GFP transgenic larvae (Figure 5). These two proteins were previously established to label migrating rhombic lip cells destined for the secondary gustatory nucleus and some eurydendroid cells (calretinin) or Purkinje cells (parvalbumin), respectively (Bae et al., 2009; Volkmann et al., 2010). Our immunostains revealed clearly that neither calretinin nor parvalbumin co-localizes with cerebellar shh-GFP expressing cells. Furthermore, the location of calretinin positive cell bodies is ventrolateral to the more dorsally lying parvalbumin positive Purkinje cells (Figures 5B,B’), which is indicative of the migrating calretinin rhombic lip cells described previously (Volkmann et al., 2010). Moreover, co-stainings for Zebrin II and calretinin in shh-GFP larvae reveal an identical picture of cell soma distribution and non-overlap of marker expression as in comparable co-stains with parvalbumin instead of Zebrin II (Figures 5C,C’). Thus, these immunostains reveal that shh-GFP expressing zebrafish cerebellar cells are not calretinin-positive cells and confirm that they are not Purkinje cells because of a lack of parvalbumin expression.

FIGURE 5

FIGURE 5. Confocal photomicrographs (optical sections) of transverse sections of shh-GFP zebrafish cerebellum at 4 and 5 dpf immunostained for calretinin/parvalbumin (A,B) or calretinin/Zebrin II (C) with corresponding enlargements to show cellular details (A’–C’). Arrows point out GFP-expressing cells. Scale bar: 100 μm (applies to B and C). FP, floor plate; Ph, pharynx.

In order to exclude the possibility that the shh-GFP cells are GABAergic cells other than Purkinje cells, such as stellate or Golgi cells, which might be present at this developmental time, an anti-GABA immunostain was performed in transgenic shh-GFP zebrafish larvae (Figure 6). These data show that the shh-GFP expressing cells are never co-localized with GABA positive cells, but form a completely separate population somewhat lateroventrally from the GABA immunopositive cells (Figures 6A–A”’). This eliminates the possibility that stellate or basket cells are expressing shh-GFP. As expected, GABA positive cells were more numerous than the Zebrin II or Parvalbumin populations because the latter only represent Purkinje cells, whereas the GABA positive cells also include cerebellar inhibitory interneurons.

FIGURE 6

FIGURE 6. Confocal photomicrographs (optical sections) of transverse sections of 5 dpf larval shh-GFP zebrafish cerebellum immunostained for GABA (A–A”’) or Zebrin II and Calretinin (B,B’,D). (C) Shows a drawing of data published by McFarland et al. (2008) to show correspondences of cerebellar cell populations shown in the present paper. Note stained axons of shh-GFP cells in (D; arrow). See text for details. Abbreviations: cec, cerebellar commissure; FP, floor plate; ML, molecular layer. Scale bars in (A): 100 μm, in (B,D): 50 μm, in (A’): 20 μm.

Of particular interest is that the shh-GFP expressing cells lie in a position where olig2 expressing eurydendroid cells had been reported previously (McFarland et al., 2008; Figure 6C). These olig 2 expressing cells were found dorsomedially to the above mentioned calretinin positive cells in a position, which we describe here for cerebellar shh-GFP cells (Figure 6D). Furthermore, these cerebellar shh-GFP cells are not labeled with all other markers used here (Zebrin II, calretinin, Parvalbumin, GABA, as demonstrated above with confocal microscopy), and also not with PH3 (see next section). Moreover, the shh-GFP cell bodies extend a dendritic tree into the molecular layer (just as Purkinje cells do) which can be nicely seen in Figures 6B,B’ and which is expected of eurydendroid cells as well as of Purkinje cells in teleosts (see Section “Introduction”). This renders the Ptf1a/olig2 positive zebrafish cerebellar eurydendroid cells as the only candidates for the shh-GFP expressing cells and they may thus perform a signaling function at the pial periphery where the proliferative EGL cells lie (see Section “Discussion”).

Finally, mating of shh-GFP fish with olig2-dsRed fish produced progeny that is double transgenically labeled for shh and olig2 expressing cells and confocal live imaging was performed on such larvae between 3 and 5 dpf (Figures 7A–F). These experiments confirmed the conclusion of the detailed cellular marker analysis above and demonstrated that the shh-GFP cerebellar plate cells – in contrast to the midbrain cells – are always double-labeled for the olig2-dsRed as well, as exemplified in an optical section overlay from a fixed cerebellum of zebrafish as old as 14 dpf (Figures 7G,G’). Furthermore, larval (5 dpf) progeny of olig2-EGFP fish mated to PC-tagRFP fish demonstrates that olig2 positive eurydendroid cells never co-localize with carbonic anhydrase 8 expressing Purkinje cells (Figures 7H,H’; see explanation of transgene in Section “Materials and Methods,” and Bae et al., 2009). Furthermore, the eurydendroid cell dendritic tree, nicely visualized with EGFP, is seen to extend between Purkinje cell bodies and to enter the cerebellar molecular layer (arrows in Figure 7H). Altogether, this is definite proof that the shh-GFP cells correspond to the olig2 positive cerebellar eurydendroid cells.

FIGURE 7

FIGURE 7. Confocal live imaging of double-transgenic zebrafish larvae, i.e., Tg(olig2:dsred2)vu19/Tg(2.4shha-ABC-GFP)sb15 specimen, shows temporal development of shh-GFP and olig2-dsRed marked cells from 3 to 14 dpf (A–G). (A–F) Each panel shows two single label and one merged picture, (G) shows two single label pictures, with G’ showing an enlarged overlay (optical section). Note that double labeled cells are restricted to the cerebellar plate and are absent from the midbrain. (H) is taken from a double-transgenic Tg(olig2:EGFP)/Tg(PC:FyntagRFP-T) larval zebrafish specimen at 5 dpf and shows a lateral region in the cerebellar plate. Note that olig2-EGFP expressing eurydendroid cells (green) lie close to PC-tagRFP positive Purkinje cells (red), but are never co-labeled. Note that green eurydendroid cells show dendrites extending into the molecular layer (arrows). (H’) shows an overlay. CeP, cerebellar plate; D, dendritic tree; FP, floor plate; Mes, mesencephalon (midbrain); PC, Purkinje cell body.

Presence of Mitotic Cells in External Granular Layer and Relationship to shh-GFP Cells

Finally, in order to see whether or not the shh-GFP expressing cells are mitotic cells, we used antibodies against phospho-histone H3 (PH3), a most specific mitotic cell marker, in combination with either parvalbumin (Figure 8) or Zebrin II (Figure 9) in 3 and 4 dpf transgenic shh-GFP zebrafish larvae. In both assays, proliferative (mitotic) cells were seen in the ventral proliferative zone as well as toward the pial surface of the cerebellar plate in a position of an EGL, sandwiching the parvalbumin or Zebrin II positive Purkinje cells. The latter themselves were never PH3 positive (arrows in Figures 8 and 9). Also, PH3 was never co-localized in cells with the shh-GFP signal. The existence of the two proliferative zones had been evidenced previously with other markers (see Section “Discussion”), but the present combinatorial approach using PH3 is the most rigorous demonstration that both proliferation zones do exist in the larval zebrafish cerebellum. Because an EGL is characteristic of the cerebellum only, the optic tectum serves as an internal control here and, as expected, similar superficial proliferative cells are not seen in the optic tectum, but only basal, ventricular ones.

FIGURE 8

FIGURE 8. Confocal photomicrographs (optical sections) of transverse sections of shh-GFP zebrafish cerebellum at 3 dpf (A,C) and 4 dpf (B,D) immunostained for parvalbumin and PH3. Arrows point out mitotic PH3 positive cells which are neither GFP nor parvalbumin positive. Scale bar in (A): 10 μm (applies to all panels).

FIGURE 9

FIGURE 9. Photomicrographs (optical sections) of transverse sections of shh-GFP zebrafish cerebellum at 3 and 4 dpf immunostained for Zebrin II and PH3. Arrows point to mitotic PH3 positive cells which are never Zebrin II positive and lay basal or superficial to them. Scale bar in (A): 10 μm (also applies to A’, A”) and in (B): 100 μm (also applies to B’, B”). CeP, cerebellar plate; EGL, external granular layer; FP, floor plate; H, hypothalamus; VCP, ventral (ventricular) cerebellar proliferation zone.

Discussion

The Transgenic shh-GFP Zebrafish Line Reveals Valuable Cytoarchitectonic Details Beyond Location of shh Expressing Cell Somata

The present analysis offers an overall description of shh-GFP expressing cell somata throughout the early larval zebrafish brain (2–5 dpf) and, thus, reveals conventionally established embryonic shh expressing structures in zebrafish (Krauss et al., 1993; Ekker et al., 1995; Holzschuh et al., 2003; Ertzer et al., 2007; Hagemann and Scholpp, 2012) and amniote vertebrates (Ericson et al., 1995; Shimamura et al., 1995) such as the retina, hypothalamus, zona limitans intrathalamica, and floor plate (see results, Figures 1 and 2, and Supplementary Figure 1). In addition, lesser known dorsal alar plate shh expressing cells later described in the embryonic mammalian isocortex, superior colliculus, and cerebellum (Dahmane and Ruiz i Altaba, 1999; Dahmane et al., 2001; Ruiz i Altaba et al., 2002) are partly visualized nicely in our combinatorial marker analysis. While no such cells are present in the zebrafish telencephalon, shh-GFP cells do show up in the optic tectum and cerebellum (see results). In contrast to a previous study which only reported shh-expressing cells in the zebrafish midbrain (Feijóo et al., 2011), we could clearly delineate such midbrain from cerebellar shh expressing cells by determination of cerebellar location using Zebrin II as an unambiguous marker of Purkinje cells (Figure 2).

Additionally, since GFP also enters axons and dendrites of shh-GFP cells, certain cytoarchitectonic details are revealed, some of which shall be discussed shortly. For example, axons of shh-GFP cells visualize nicely retinal projections to optic tectum and superficial pretectum (see Section “Results”). This further allows to differentiate between shh-GFP expressing cell somata in midbrain and cerebellum and confirmed additionally the presence of both populations. The GFP expressing axons seen in the lateral forebrain bundles likely represent ascending axons of GFP expressing posterior tubercular cells and not descending telencephalic axons, because no GFP expressing somatas were seen in the telencephalon. One of the main sources of telencephalic pallial input comes from the posterior tuberculum, likely including dopaminergic ones (Wullimann and Meyer, 1993; Rink and Wullimann, 2001, 2002, 2004; Northcutt, 2006).

Similar to the zebrafish shh-GFP expressing cells lateral to the floor plate, shh expressing cells have been described in rodents. Thus, Blaess et al. (2011) reported the presence of shh expressing cells increasingly more lateral to the floor plate between 8.5 and 12.5 embryonic days in the mouse midbrain. These cells are fated to become (dopaminergic) ventral tegmental area/substantia nigra compacta and nucleus ruber neurons, as well as astrocytes. It is therefore likely that also in the zebrafish, these lateral shh-GFP expressing cells develop into tegmental cell groups and astrocytes. However, in this location they will unlikely develop into dopaminergic neurons, since these are absent in the teleost midbrain (see Wullimann, 2014).

Zebrin II Based Analysis of Zebrafish Purkinje Cell Distribution, Incl. Development, and Adult Configuration of the Cerebello-Octavolateralis Projection

Zebrin II positive Purkinje cells are present in the larval zebrafish cerebellar plate exhibiting nicely the extensively branching dendritic tree in the molecular layer emerging from the more basally located somata (Figures 2–6). There are no Zebrin II positive cells in the still small larval valvula cerebelli. The adult zebrafish cerebellum exhibits a monolayer of Zebrin II positive cell somata around the edge of the granular masses of the adult zebrafish corpus cerebelli (Figure 4D) with dendritic trees ascending into the molecular layer. Zebrin II positive Purkinje cells have also been reported in the adult zebrafish valvula cerebelli, in particular in the lateral division (Lannoo et al., 1991b). In the vestibulolateral lobe, an aggregate of Zebrin II positive cells is seen at the meeting point of corpus, eminentia granularis and caudal cerebellar lobe (Figure 4D). Some Zebrin II positive cells furthermore extend ventrally along the medial border of the eminentia granularis (arrowhead in Figure 4E’). A few cell bodies are also seen dorsal to the very caudal granular masses of the caudal lobe (Figure 4F).

Using Zebrin II immunohistochemistry, direct Purkinje cell projections to primary vestibular and mechanosensory lateral line areas (i.e., descending octaval nucleus and medial octavolateralis nucleus) have previously been described in two species of larval and adult S-American knifefishes and a catfish (Brochu et al., 1990; Lannoo et al., 1991a,b). However, beyond the presence of a larval tract (Lannoo et al., 1991a,b), its vestibular projection target and exact time point of origin (i.e., 5 dpf) have only recently been established in the zebrafish (Bae et al., 2009; Matsui et al., 2014; Tacheuki et al., 2015). We confirm here with Zebrin II immunohistochemistry the earliest occurrence of the cerebello-octavolateralis tract in the zebrafish larvae at 5 dpf, the position of larval Purkinje cells from which the tract originates in the caudal cerebellar plate and the exact course of these axons and their termination fields in the larval zebrafish vestibular brainstem area. What is more, we show that the adult location of the Purkinje cells, from which the cerebello-octavolateralis tract arises in the mature zebrafish, is in the vestibulolateral lobe (see Section “Results” and Figure 4) in a position where corpus cerebelli, eminentia granularis, and cerebellar caudal lobe meet. This confirms the identification of the vestibulolateral lobe as the homolog of the mammalian flocculo-nodular lobe, which also contains Purkinje cells projecting to vestibular nuclei (Walberg and Dietrichs, 1988; Nagao et al., 1997; Balaban et al., 2000; Barmack, 2003). Neurophysiological and neuroanatomical work in the goldfish and zebrafish has shown a function of vestibulolateral lobe circuits involving Purkinje cells and descending octaval nucleus in oculomotor performance (Pastor et al., 1994; Straka et al., 2006; Matsui et al., 2014). Additionally, the teleostean cerebello-octavolateralis tract also has terminations in the primary sensory lateral line nucleus, the medial octavolateralis nucleus (Figures 4E–E”), and the functional role of this projection has yet to be defined.

Combinatorial Cellular Marker Analysis on the shh-GFP Background Reveals Identity of shh Expressing Alar Plate Cerebellar Cells

As reported above, we establish the existence of shh-GFP cells in the developing larval zebrafish cerebellar plate using Zebrin II, an ubiquitous Purkinje cell marker in teleosts, which allowed to differentiate midbrain from cerebellar shh-GFP cells (Figures 2 and 3). Furthermore, confocal microscopical analysis was used to delineate reliably cellular localization in this and all other multiple immunostains. This work demonstrated that the shh-GFP cells never co-localize with Zebrin II (Figure 3) and are therefore not Purkinje cells. Therefore, we started the search for the cellular identity of the shh-GFP cells. The calcium-binding proteins calretinin and parvalbumin characterize a rhombic lip derived migrating cell population (incl. mostly secondary gustatory nucleus cells) and Purkinje cells, respectively, in the zebrafish cerebellum (Bae et al., 2009; Volkmann et al., 2010). Double-immunostains in transgenic shh-GFP larvae for calretinin/parvalbumin or calretinin/Zebrin II allow us to conclude that shh-GFP cells are never co-labeled with any of those markers. They are therefore also in this assay confirmed neither to represent (parvalbumin-positive) Purkinje cells, nor to correspond to calretinin-positive eurydendroid cells. As expected, these immunostainings also show that parvalbumin and calretinin do not co-localize in cerebellar cells, confirming that different cerebellar cell types are visualized. Since additional inhibitory GABAergic cells can be expected to develop at these larval stages, anti-GABA immunostains were done in shh-GFP larvae. This showed a complete disjunct distribution with GABA-positive cells located dorsomedially to the ventrolateral shh-GFP cells, ruling out that shh-GFP cells represent inhibitory cerebellar cells (i.e., stellate cells, Golgi cells). In order to also exclude that shh-GFP cells are mitotic cells, parvalbumin-PH3 (Figure 8) and Zebrin II-PH3 immunostains (Figure 9) were performed in transgenic larvae. This shows that Purkinje cells (parvalbumin or Zebrin II positive ones) never co-localize with mitotic PH3 cells or with shh-GFP cells. The mitotic PH3 cells occur in the basal ventral cerebellar proliferation zone or in the cerebellar periphery, arguably in a position of an EGL. These two layers of PH3 cells “sandwich” differentiated, postmitotic cells.

Thus, if all the discussed cerebellar cells types can be ruled out as shh-GFP cells what is the identity of the latter? One remaining population are the eurydendroid cells which express the transcription factor olig2 and which were demonstrated in a transgenic GFP-line to lie in a position ventrolateral to Zebrin II-positive cells within the zebrafish cerebellar plate, but dorsal to the calretinin-positive cell population that lies even more ventrolaterally (see Figure 6C after data from McFarland et al., 2008). The position of their olig2 positive cells corresponds closely to our shh-GFP population (see Figure 6D in comparison). What is more, our shh-GFP cells have an extensive dendritic tree into the molecular layer where it interdigitates with a similar dendritic tree formed by Purkinje cells (compare the red and green cell bodies and their fine arborizations in Figures 6B,B’). This is exactly what one would except of the morphology of eurydendroid and Purkinje cells in teleosts. Finally, our own live imaging experiments using double transgenic larval shh-GFP/Olig2-dsRed fish confirm this analysis because these specimens showed double labeled cells in the cerebellar plate, but not in the mesencephalon (Figure 7). Furthermore, in Olig2-EGFP/PC-tagRFP fish, the eurydendroid cell dendritic tree is clearly seen to extend beyond Purkinje cells into the cerebellar molecular layer. The various cellular markers investigated here, including some known from the literature are summarized in a sketch of the larval zebrafish cerebellar plate in Figure 10.

FIGURE 10

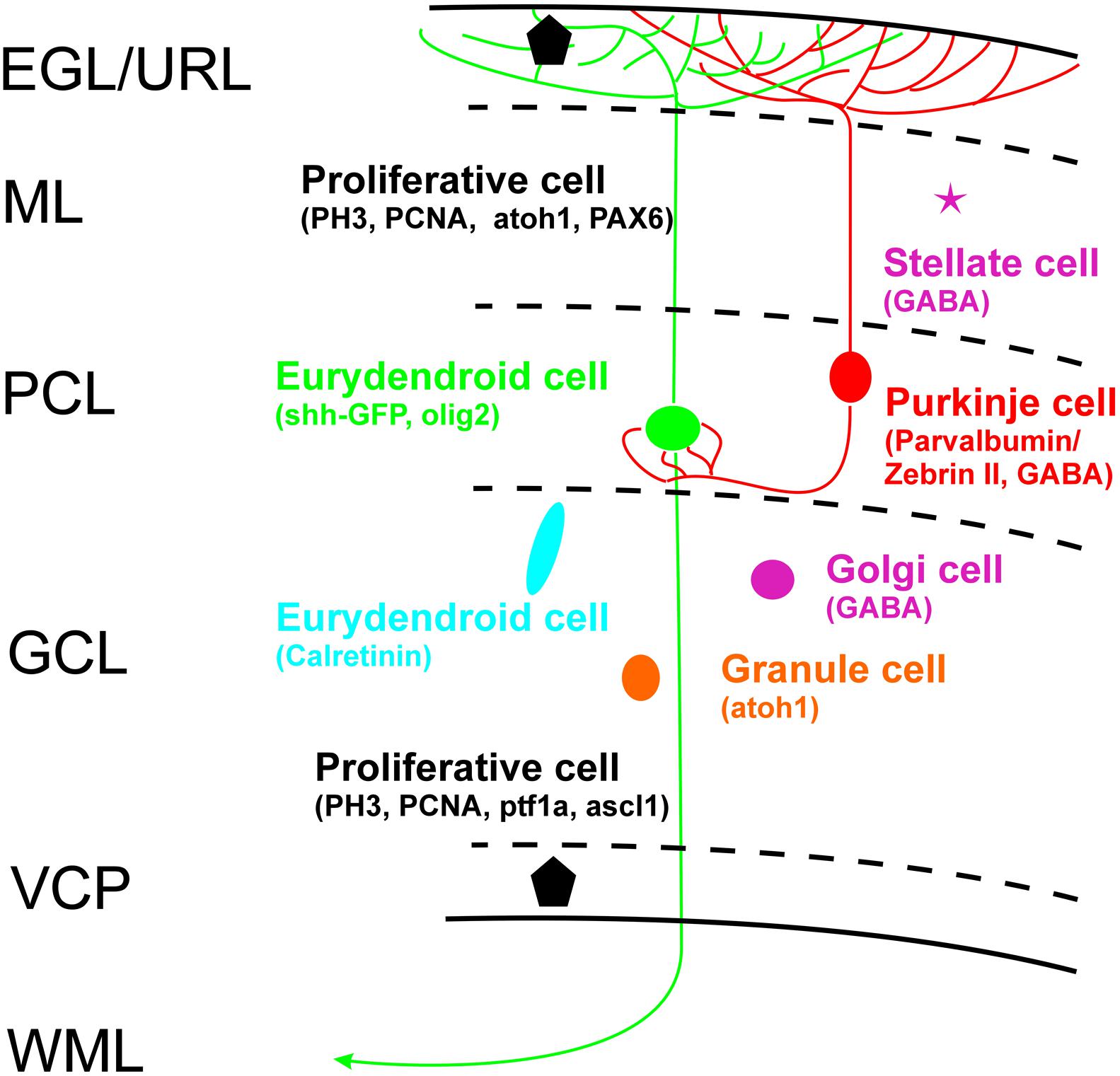

FIGURE 10. Schema of zebrafish larval cerebellar plate organization summarizes cell types with characteristic cellular markers shown in the present study, with some additional data from Wullimann and Knipp (2000: PCNA), Wullimann and Rink (2001: PAX6), Mueller and Wullimann (2002: BrDU), Wullimann and Mueller (2002: ascl1a), Mueller et al. (2006: GABA), Kani et al. (2010: ptf1a/atoh1a-c), Wullimann et al. (2011: atoh1a-c). EGL, external granular layer; GCL, granule cell layer; ML, molecular layer; PCL Purkinje cell layer; VCP, ventral (ventricular) cerebellar proliferation zone; WML, white matter layer.

Development of Upper Rhombic Lip Follows Largely Similar Ontogenetic Pattern As Seen in Amniotes Including the Presence of an External Granular Layer and Maybe Transit Amplification

On a broader scope, rhombic lip development in the zebrafish generally reveals to be highly comparable to the amniote condition outlined in the Section “Introduction.” We have reviewed these developmental similarities in detail previously (Wullimann et al., 2011). Briefly, there is a proliferative lower rhombic lip along the lateral edges of the rhombic groove as well as an anterior transversely oriented proliferative upper rhombic lip in the larval zebrafish brain (Figure 11B). While the neurogenic transcription factors atoh1a and ptf1a are segregated into adjacent dorsal and ventral domains, respectively, in the lower rhombic lip (Köster and Babaryka, personal observation), these two expression domains in the upper rhombic lip separate into a ventral ptf1a expressing one, seemingly associated with the ventral (ventricular) cerebellar proliferation zone (VCP), whereas a dorsal subpial atoh1a (and later atoh1c) expression domain is seen in a dorsal subpial location (Figure 11A). In both basal (VCP) and subpial (that is, an EGL) locations, proliferative cells are found with various assays, such as BrdU incorporation and PCNA or PH3 immunoassays (Mueller and Wullimann, 2002, 2003, 2005; Wullimann and Mueller, 2002; Volkmann et al., 2010; Wullimann et al., 2011; present contribution). Proliferation and neurogenesis in a subpial position is highly unusual to occur in the vertebrate neuroepithelium, but it is characteristic for the embryonic cerebellum in amniotes (Hatten, 1990; Hatten and Heintz, 1995). Thus, the mere existence of proliferative cells in the periphery of the zebrafish cerebellar plate is indicative of an EGL. Moreover, support comes from respective gene expression (pax6, atoh1 genes subpially versus ascl1a and ptf1a ventrally; Figure 11A; after Kani et al., 2010). Since teleosts underwent an additional whole genome duplication in comparison to other vertebrates, often more than two paralogs are present, as it the case for atoh1 (i.e., atoh1a, b, c) which are expressed in a temporal sequence. While atoh1a/b are expressed early, atoh1c continues to be expressed in a subpial cerebellar plate position at least up to 9 dpf (Wullimann et al., 2011) and PH3 positive cells are still seen there at this age, indicating that atoh1c progenitors are still produced. Opposed migratory paths of dorsally migrating ptf1a and ventrally migrating atoh1a derived cells and their fate as inhibitory (e.g., Purkinje) versus excitatory (granule) cells have been described (Kani et al., 2010). In line with this observation, differentiated (for example GABAergic) cells were described between the two proliferation zones of the zebrafish cerebellar plate (Mueller and Wullimann, 2002, 2005). However, unlike the atoh1 dependent excitatory deep cerebellar nuclear cells in amniotes, zebrafish eurydendroid cells are in their overwhelming majority derived from ptf1a expressing progenitors (Kani et al., 2010). Moreover, an early ventral migration of wnt1/atoh1 dependent upper rhombic lip cells into the rostral medulla oblongata was documented to occur in similar fashion as in amniotes (Volkmann et al., 2010). Such cells were shown to be cholinergic and to have an early differential profile of connections with diencephalon and mesencephalon known in adult teleosts for the nucleus isthmi, secondary gustatory and superior reticular nucleus (Figure 11C) and, thus, represent the homologs of the parabigeminal, parabrachial and laterodorsal tegmental nuclei in mammals sharing an identical developmental upper rhombic lip origin. Furthermore, adult expression studies using an atoh1a-GFP transgenic line showed GFP expression in various precerebellar nuclei (lateral reticular, medial funicular nuclei, rostral dorsal horn), the primary sensory lateral line medial octavolateralis nucleus and octaval primary sensory nuclei as well as in a few eurydendroid cells consistent with an origin of these nuclei/cells from atoh1a expressing upper rhombic lip cells (Kani et al., 2010; Wullimann et al., 2011; 11C). Overall these data document an impressively close correspondence of temporal events in rhombic lip development between amniotes and teleosts, including the occurrence of a subpial proliferative, atoh1 expressing domain, that is, an EGL.

FIGURE 11

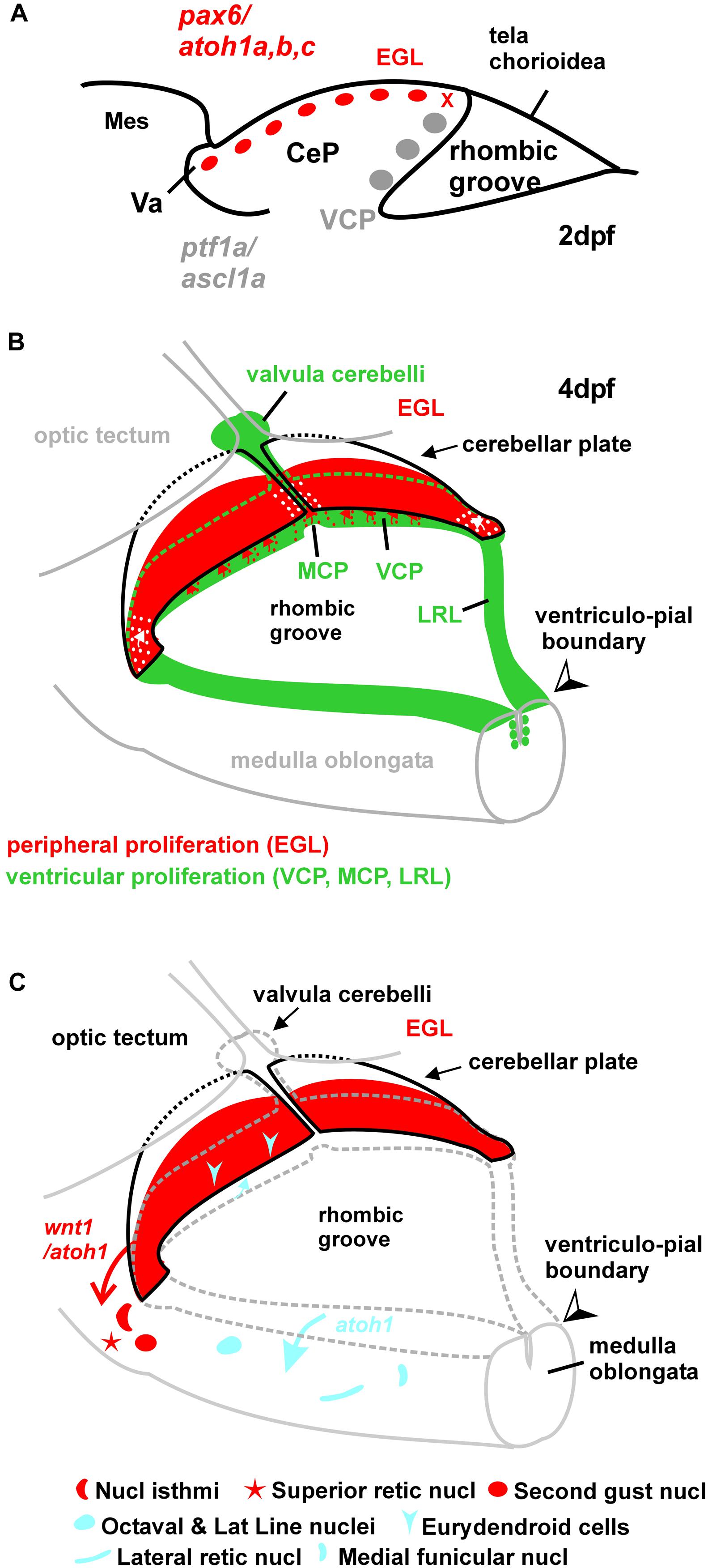

FIGURE 11. Schematic drawings of zebrafish rhombic lip and cerebellar plate development. (A) Sagittal section showing early larval zebrafish cerebellum (redrawn after Kani et al., 2010). The x indicates site of ventricular upper rhombic lip origin of subpial atoh1 positive cells (see Wullimann et al., 2011). (B) Larval zebrafish rhombic lip (incl. cerebellar) proliferation zones. (C) Migration dynamics involving rhombic lip and external granular layer. The wnt1 derived cholinergic nuclei in the isthmic region were demonstrated in zebrafish larvae (Volkmann et al., 2010). The atoh1a derived structures were observed in adult zebrafish transgenic atoh1a-GFP line (Wullimann et al., 2011). Note that the eurydendroid cells represent only the small atoh1a derived fraction. See text for details. CeP, cerebellar plate; EGL, external granular (or germinative) layer; LRL, lower rhombic lip; MCP, medial cerebellar proliferation zone; Mes, mesencephalon; MO, medulla oblongata; VCP, ventral cerebellar proliferation zone (ventricular germinal matrix); Va, valvula cerebelli.

In the present paper, we show that postmitotic, differentiated eurydendroid cells express the signaling molecule Shh analogous to what embryonic Purkinje cells do in mammals. The different developmental genetics of eurydendroid cells (mostly ptf1a dependent, instead of atoh1a dependent like amniote deep cerebellar nuclei neurons) may be causal to their altered migration behavior and the resulting location of these cells within the cerebellar plate (and not at the base of the cerebellum as in amniotes). This location is accompanied by the development of a cellular morphology different from mammalian deep cerebellar nuclei neurons, that is, eurydendroid cells establish an extensive dendritic tree into the molecular layer.

Altogether, this represents the precondition for such teleostean eurydendroid cells to potentially function in Shh signaling to EGL cells in transit amplification which is suggested by their being those cells with shh-GFP expression as shown in this paper. Interestingly, in the early embryo the number of these cerebellar olig2 dependent eurydendroid cells is apparently regulated by the well known antagonistic activity of shh and wnt1 across the dorsoventral neural tube axis (McFarland et al., 2008) by way of their floor plate and roof plate expression. Based on our findings, the actual occurrence of transit amplification in the teleostean cerebellar plate has to be investigated more rigorously now with knock-in and knock-out experiments. The secreted Shh protein binds to its receptor Patched, a 12-pass transmembrane receptor which acts by suppressing the activity of Smoothened, a G-protein coupled receptor. Activation of Smoothened results from some conformational change allowing activation of intracellular targets associated with the cytoskeleton. These include three zinc-finger transcription factors coding for Gli proteins (Gli1, Gli2, and Gli3) that in consequence regulate the transcription of target genes in hedgehog signaling in a combinatorial fashion (Traiffort et al., 1998). These and other players in the hedgehog pathway need further investigation in the zebrafish cerebellum.

Conclusion

We have been asking the larval zebrafish over more than a decade whether there is a cerebellar external granular layer using various assays for proliferation, gene expression, migration, and differentiation. The answer has recurrently and consistently been that there are proliferating cells at the dorsal pial periphery of the larval cerebellar plate in addition to proliferating cells in the ventral cerebellar ventricular zone and that differentiating and migrating cerebellar cells are sandwiched between them (Mueller and Wullimann, 2002, 2003, 2005; Wullimann and Mueller, 2002; Volkmann et al., 2010; Wullimann et al., 2011). In the present contribution we can restate that the most rigorous assay for mitotic cells, PH3, gives us the same answer again for the zebrafish larval cerebellum. Moreover, the use of the shh-GFP transgenic line reveals not only the presence of shh expressing cells in the alar plate of mesencephalon (tectum) and cerebellum, as is the case in amniotes, but our analysis of critical cerebellar markers suggests furthermore that larval zebrafish eurydendroid cells represent this shh-GFP cerebellar cell type. Because they develop from ptf1a progenitors, do not migrate out of the cerebellum, and have a dendritic tree into the molecular layer similar to Purkinje cells, they qualify for a function in transit amplification as known for embryonic Purkinje cells in amniotes.

Author Contributions

DB and MFW wrote the first draft, RWK, BG, and AD contributed to the final version of the article. The data were generated by DB/MFW except for those shown in Figure 7 which were generated by RWK/AD. All authors listed, have made substantial, direct and intellectual contribution to the work, and approved it for publication.

Funding

Gratefully acknowledged for financial support are the Munich Graduate School of Systemic Neurosciences (MFW), and the Deutsche Forschungsgemeinschaft (DFG, project Wu 211/2-1 and 211/2-2 to MFW, project KO1949/7-1 to RWK).

Conflict of Interest Statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Acknowledgments

We thank Bea Stiening for technical help in the laboratory and Olga Alexandrova for advice with confocal photography. Furthermore, we thank Alena Shkumatava, Sabine Fischer, Ferenc Müller, Uwe Strähle, and Carl J. Neumann for sharing their shh-GFP line, as well as Victoria Connaugthon and Herwig Baier for advice regarding retinal layers. We also thank Thomas Mueller for providing most of the transgenic shh-GFP zebrafish larvae.
