Current and future prospects of “all-organic” nanoinsecticides for agricultural insect pest management

With the popularity of nanotechnology, the use of nanoparticles in pest management has become widespread. Nanoformulated pesticides have several advantages over conventional pesticide formulations, including improved environmental stability, controlled release of active ingredients, increased permeability, targeted delivery, etc. Despite these advantages, recent research shows that several nanoparticles used in conventional nanopesticide formulations can be toxic to crops and beneficial organisms due to bioaccumulation and trophic transfer. Therefore, traditional nanopesticides are thought to be non-advantageous for “green agriculture”. In assessing the current situation, developing “all-organic” nanopesticides could be the next-generation weapon for reducing the adverse impact of traditional nanopesticides. However, their formulation and application knowledge is remarkably limited. The green synthesis of “all-organic” nanoparticles makes them more environmentally friendly than conventional nanopesticides due to their minimal residual and hazardous effects. This review focuses on the current development scenario of “all-organic” nanopesticides, their advantages, and potential effects on target organisms compared to traditional nanopesticides.

GRAPHICAL ABSTRACT

GRAPHICAL ABSTRACT |

Introduction

Agricultural insect pest management has been a challenging job for a long time. At the same time, as it is necessary to kill harmful insects, it is also essential to take care of the environment. Various synthetic chemicals have been used to eradicate the notorious pests at various times, but none have been effective. Over time, the misuse, uncontrolled use, and insensitive use of pesticides have always been controversial. Environmental health protection has always been neglected on the pretext of food security. The use of broad-spectrum conventional insecticides, like organochlorines, organophosphates, carbamates, and pyrethroids, has been widespread in agricultural croplands over the past five decades for their immediate effects (Sparks, 2013). However, the indiscriminate and excessive use of these chemicals resulted in a wide range of negative consequences, including eco-framework irregularity (Schäfer et al., 2019; Vašíčková et al., 2019), toxicity to non-target organisms (Singh and Leppanen, 2020; Teng et al., 2020), and the development of insecticide-resistant pests (Kariyanna et al., 2020; Sparks et al., 2020). In addition to synthetic-chemical pesticides, some organic insecticides have also been recommended to combat insect pests (Lengai et al., 2020; Stankovic et al., 2020). However, such organic’s efficacy for environmental sustainability remains questionable (Pavela, 2014). Under these circumstances, “precision agricultural crop protection” approaches are essential for crop management and environmental health protection (Stankovic et al., 2020).

In the last two decades, the expansion of nanotechnology has resulted in the development of nanopesticides as a new and promising armament to encounter pests in agriculture. These nanopesticides can diminish the undiscriminating use of chemical pesticides and are assumed to be an environmentally safer option (Djiwanti and Kaushik, 2019). In nanopesticides, the nanoparticles (NPs) can be used directly as an active ingredient (AI) (the principal component present in pesticides), or they can be used as a delivery agent for AI (as a carrier molecule). The carrier molecule facilitates the uniform spread of AI over the foliar surfaces of the targeted crop plants. As a result, they are quickly taken up by chewing insects (Rai and Ingle, 2012). Several unique properties of nanoparticles, such as small size (1–100 nm), high surface-to-volume ratio, a strong affinity for the target organism, permeability, crystallinity, and thermal stability, enable nanopesticides to be used for increased pesticidal effect, targeted delivery, environmental stability, and controlled release (Perlatti et al., 2013; Kah, 2015). In general, nanopesticides are divided into two categories. Firstly, the pesticides with nanoscale active components, which are often a nano dispersant emulsion of active pesticides. Secondly, a formulation where the regular pesticides are, encapsulated, doped, or coated with nanomaterials (Shekhar et al., 2021). Most of the typical commercial nanoinsecticides are composed of an appropriate combination of chemical and organic nanoparticles. Among these, organophosphorus (chlorpyrifos, malathion, parathion), carbamates (carbofuran), pyrethrin and pyrethroid derivatives (bifenthrin, deltamethrin, cypermethrin, gamma/delta/lambda-cyhalothrin, pyrethrin) are predominately used during commercial formulation. However, in recent times, the production of organic-pesticide derived nanoinsecticides instead of synthetic chemicals has gained momentum. Among these, the development of abamectin, avermectin, azadirachtin, and rotenone-based nanoinsecticide formulations is prominent (Hwang et al., 2011; Cui et al., 2015; Kilani-Morakchi et al., 2021).

Several reviews have summarised the classification and prospect of nanopesticides in agriculture (Kah et al., 2018; 2013; Kah and Hofmann, 2014). Even if there are some promising applications of nanopesticides in agriculture, the possible adverse effects of nanomaterials on the environment, living organisms, and humans are unknown comprehensively. Several studies reveal that nanomaterials can generate toxicological effects on lettuce, tomatoes, wheat, and cucumbers when used in high concentrations (Wang C et al., 2019; Paramo et al., 2020; Pelegrino et al., 2020). Therefore, environmental and non-target toxicity due to existing nanopesticides is also under screening (Grillo et al., 2021). Furthermore, concerns are being raised about using existing nanoparticles for their safety, reliability, and health insecurity (Sarkar et al., 2012; Kah et al., 2021). Deka et al. (2021) mentioned that these nanoparticles can enter human or animal body via dermal contact or inhalation and the chronic exposure can cause sub-acute toxicity and sometimes can lead to severe health risk (Deka et al., 2021).

After considering the facts and realities, the concept of “all-green” nanopesticides has been proposed to overcome the shortcomings that could arise from the use of conventional chemical based nanopesticides. The concept of “all-green” nanopesticides is a view where both components of nanopesticides come from biological sources (Ball, 2018; Liang et al., 2018; Wang et al., 2018). In last two decades multiple independent research area has been developed and strengthened such as nanotechnology, green synthesis of biogenic nanoparticles, natural products research, material biology, biopolymer synthesis and characterization, which can converge together to develop a new class of nanopesticide where both the A and the carrier molecule are biological in origin, which we mentioned in this literature as “all-green” nanopesticide. As the concept and idea of “all-green” nanopesticides are novel, much information is not available on their sustainable formulation and future development. However, few literatures have been published in last decade and we have attempted to explore the available information of recent advancements in “all-green” nanopesticides and summarize the idea in this comprehensive review. More specifically, in this present review we have concentrated our focus on nanoinsecticides, present advancement of nanoinsecticides in insect pest management and the future prospects of nanoinsecticide as “all-green” nanoinsecticide.

Nanoinsecticides: An overview

An ideal insecticide should fulfil specific toxicity criteria, including the ability to remain active without physical degradation in the face of environmental calamities. It should be taken up by the target organism effectively; it should have the ability to invade the pest’s defensive barriers and remain benign to plants, humans, and other mammals. An ideal insecticide should provide economic security to agrarians through its unparalleled mode of action. Nanoinsecticides almost cover all of the criteria fulfilled, and henceforth, they are regarded as the epitome of emerging scientific development. Furthermore, in addition to insecticidal applications, nanoinsecticides may provide a variety of additional benefits such as increased target efficacy (Kah et al., 2018; Kaziem et al., 2018; Ahmed, 2019; Gao et al., 2019; Sun et al., 2020), durability and environmental half-life (Liu et al., 2008; Shakil et al., 2010; Kaziem et al., 2018; Gao et al., 2019), and a required minimum amount of active ingredient (AI) (Vašíčková et al., 2019; Wang Y et al., 2019). For these reasons, conventional chemical insecticides are being reformulated as nanoinsecticides to become more efficient and effective (Kah et al., 2018; Pires-Oliveira et al., 2020). Physically, nanoinsecticides are small-sized particles at the nanoscale of AIs or other engineered nanoparticles with potential insecticidal properties (Bergeson, 2010). Several commercial nanoinsecticides have been developed to date, including Banner MAXX, Subdue MAXX, Bifender FC, AZeroid, and Fenstro (Kah et al., 2013; Walker et al., 2018), but none can be considered truly environmentally friendly. These nanoinsecticides are formulated as nanocarriers combined with registered AIs having insecticidal properties (Walker et al., 2018). Nevertheless, the most frequently used AIs are chemical or inorganic compounds. However, there is some evidence that plant-derived botanicals are also used as AIs.

Compared to regularly applied pesticides, nanopesticides display valuable characteristics such as stiffness, permeability, crystallinity, thermal stability, and biodegradability (Lade, 2017). In particular, these nanoformulations allow a slower release of AI into the environment, resulting in the retention of pest control efficacy over a more extended period than conventional insecticides (Liu et al., 2008; Ishaque et al., 2013). In addition, nano-formulated insecticides provide enhanced apparent solubility and enhanced uptake efficacy of AI, which ultimately leads to a lower requirement of insecticides for pest control (Anjali et al., 2010; Kookana et al., 2014; Cui et al., 2020). Reports also suggest that nanoinsecticides are less toxic than conventional chemical pesticides (Wan-Jun et al., 2010).

Advantages of nanoinsecticides

Using various techniques, reforming conventional insecticides into different nanoforms (Figure 1) brings an array of favourable advantages for agricultural pest management programs (Kookana et al., 2014; Camara et al., 2019; Kumar et al., 2019). In general, these nanoinsecticides are formulated either through manipulations of nanocapsules, nanospheres, nanomicelles, nanoemulsion, nanosuspension, liposomes, or solid or lipid nanoparticles (Nuruzzaman et al., 2016). Nanoencapsulation is possibly the most popular nanoinsecticide formulation technique. In this technique, active ingredients or the insecticides are enclosed within a polymer or matrix of nanoscale range. The encapsulation protects the AI from environmental degradation, rapid environmental loss and allows accurate targeting. Nanoemulsion is the kinetically stable colloidal dispersion of nano sized AIs (1–100 nm), which have enhanced functional property and enhanced bioavailability in compared to conventional AIs. Nanosuspensions can be defined as a colloidal, biphasic dispersions of AIs of submicron size that are stabilized by surfactants. Nanosphere is a nanoscale homogenous sphere that either carry AIs on their surface or entrap the AI within the polymeric matrix. Solid lipid nanoparticles are nothing but nanosized sold lipid suspensions which are attracting wide attentions from researchers nowadays as an alternative carrier for lipophilic AIs.

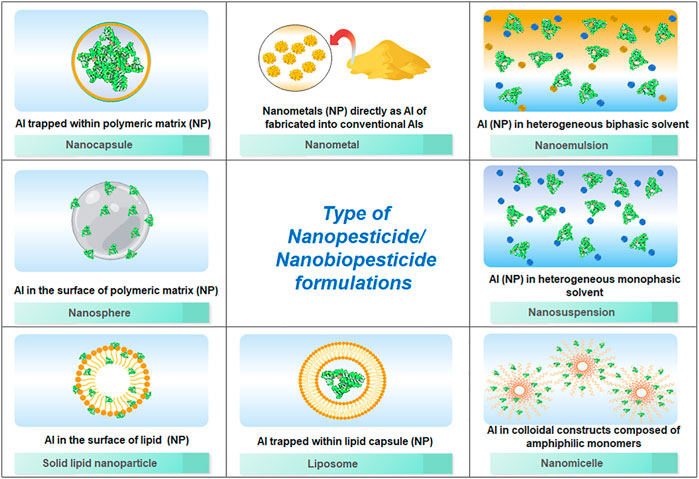

FIGURE 1

FIGURE 1. Illustration on different ways of nanopesticide formulations (active ingredients with carrier molecule and/or matrix).

Each of these types of nanoformulation has its unique advantages regarding pest control efficacy and sustained release. It is claimed that nanocapsules deliver the best pest control efficiency due to their nanoguard property in their external shells. Nanoparticle loading of active substances permits the controlled release of AIs into the environment, leading to extended pest control efficacy compared to commercially available formulations (Liu et al., 2008; Ishaque et al., 2013). Nanoemulsions are another good form of nanoinsecticide formulation that enables enhanced apparent solubility, bioavailability, and AI uptake efficacy of AIs (Anjali et al., 2010; Kookana et al., 2014). In addition, nanoemulsions are considered a prospecting insecticide delivery system with better kinetic stability, smaller size, low viscosity, and optical transparency (Mustafa and Hussein, 2020; Sabry et al., 2021). Nanodispersion and nanosuspension are kinds of nanoformulations that may enhance the toxicity of AIs to the target organism, even at a suboptimal lower dose (Frederiksen et al., 2003; Chen et al., 2018; Wang C et al., 2019; Wang Y et al., 2019). For example, aqueous nanodispersions of triclosan (an antibacterial and antifungal agent) display greater efficacy than organic or aqueous solutions of triclosan (Zhang et al., 2008). In addition, nanometals or metal-oxide nanoparticles are also reported to be used in pest management directly as AIs or as delivery vehicles or adjuvants indirectly. Thus, the active constituents of nanoinsecticide provide advantages for pest management in different ways (Figure 2), and these are as follows:

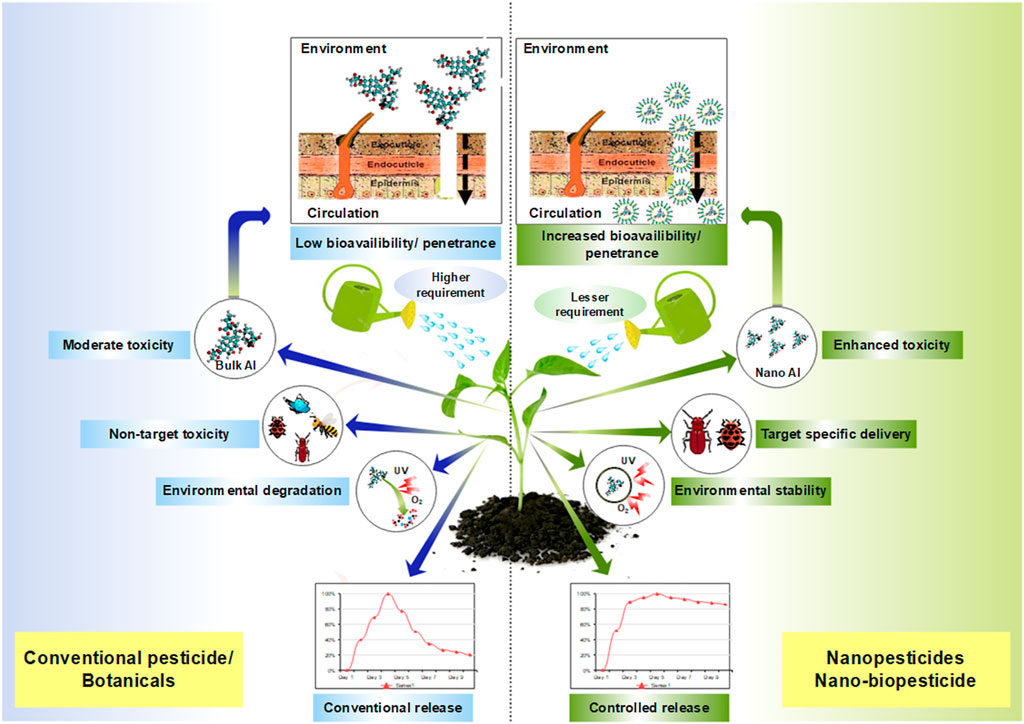

FIGURE 2

FIGURE 2. An outline depicting superiority of nanopesticides over traditionally used chemical pesticides.

Active ingredient

Some investigations reveal that metal nanoparticles can directly act as AIs for nanoinsecticides. For example, ZnO is used as a fungicide against multiple pathogenic fungi (Alternaria mali, Botryosphaeria dothidea, Diplodia seriata) in fruit orchards to defend against fruit blotches, plant cankers, and bot cankers (I. Ahmad I et al., 2020; Jameel et al., 2020). ZnO nanoparticles enhance thiamethoxam’s (a systemic insecticide) insecticidal activity against the tobacco cutworm, Spodoptera litura larvae (Jameel et al., 2020). Likewise, SiO₂ also has a broad spectrum of insecticidal properties against a bunch of notorious insect pests like cotton leafworm (Spodoptera littoralis), rice weevil (Sitophilus oryzae), wheat weevil (Rhizopertha dominica), red flour beetle (Tribolium castaneum), and grain beetle (Orizaephilus surinamenisis) (Debnath et al., 2011; Ayoub et al., 2017; El-Naggar et al., 2020). Similarly, the effect of nanostructured alumina on the leaf-cutting ant Acromyrmex lobicornis, which is a major pest of agricultural and forest plants, has been studied. According to the report, adult mortality increases with increasing exposure time and dosage. Furthermore, it was discovered that nano-formulated alumina has increased cuticular attachment, which increases the probability of cytotoxicity (Buteler et al., 2018). Some other metallic nanoparticles such as MnO, TiO₂, Ag, and Fe₃O₄ have also shown a variety of antifungal activities on a diverse group of fungal pathogens from crops (Chen J et al., 2020; Panova et al., 2019; Paramo et al., 2020; Wang et al., 2017). Besides metallic AIs, some non-metallic AIs like graphene oxide (C₁₄0H₄₂O₂₀) (Wang et al., 2017; Wang C et al., 2019) and silicon (Rastogi et al., 2019) are also reported to have an insecticidal response to several pathogens.

Enhanced toxicity

Nanoformulations of conventional insecticides can potentially improve the toxicity levels of their target insect pests by up to 10-fold (Kah et al., 2018). Triclosan nanopesticides, formulated as aqueous nanodispersions, show more significant activity than organic or aqueous solutions of Triclosan (Zhang et al., 2008). The larvicidal effects of nano-permethrins (C₂₁H₂₀C_l2O₃) (an atopic antidermatitis for mosquitoes, scabies, and lice) on Culex quinquefasciatus were recorded almost six times higher than bulk permethrin (Anjali et al., 2010). Similarly, nano-formulated chlorantraniliprole and thiocyclam were 3.86-fold and 2.06-fold more effective on black cutworms (Agrotis ipsilon) than their conventional forms. These insecticide’s nanoformulations can successfully reduce egg-hatching rates and alter larval growth periods (Awad et al., 2022). Similarly, the insecticidal activity of pyridalyl (C₁₈H₁₄C_l4F₃NO₃) nanosuspension (a selectively cytotoxic compound for Lepidoptera and thrips) is more effective (LC50: 40 μg/L) than its bulk use for the treatment (LC50: 90 μg/L) of cotton bollworm, Helicoverpa armigera (Saini et al., 2014). Sabry et al. (2021) demonstrated that nanoparticles from oxadiazine larvicide, indoxacarb (C₂₂H₁₇CIF₃N₃O₇) (a neurotoxic insecticide for lepidopteran larvae), and the neonicotinoid insecticide, imidacloprid (C₉H₁₀ClN₅O₂) (a neurotoxic substance that arrests insect CNS) are respectively 12 to 4 times more effective than their conventional formulations against the cotton leafworm, S. littoralis. Rahwanudin et al., 2022 found that Spinetoram nano-suspension (a neurotoxic constituent from Saccharopolyspora spinosa) had a greater efficiency (33%) in controlling diamondback moth, Plutella xylostella than the commercial form. Metallic oxides, such as CuO and ZnO, when used as nanocarriers, can facilitate the uptake of bifenthrin (C₂₃H₂₂ClF₃O₂) (a pyrethroid neurotoxic) in the earthworm, Eisenia fetida. ZnO nanoparticles could augment the insecticidal action of thiamethoxam (C₈H₁₀ClN₅O₃S) against S. litura larvae (Jameel et al., 2020; Sabry et al., 2021).

Enhanced solubility and uptake efficiency

Enhanced apparent solubility is the phenomenon where the solubility of conventional pesticides is drastically increased, which are in general less soluble in water or organic solvents. In addition to increased solubility, nano-formulated pesticides allow increased transfer of AI from the treated surface to the target pest. The toxicity of insecticides can be enhanced on target organisms even at suboptimal lower doses by reformulating the bulk molecule into nanoinsecticides (Kookana et al., 2014). For example, aqueous nano-dispersions of antibacterial/fungal Triclosan (C₁₂H₇C_l3O₂) showed more significant activity than organic or aqueous solutions of an equivalent amount of Triclosan (Zhang et al., 2013). Similarly, nanoencapsulation of nicotine-mimicking commercial systemic insecticide imidacloprid (C₉H₁₀ClN₅O₂) is equally effective as bulk imidacloprid, even at a lower dose (Memarizadeh et al., 2014). Therefore, it is assumed that the exceptional properties of nanoinsecticides permit a uniform spread of AI over the foliar and soil surfaces, and thus, they are easily taken up by chewing insects. Additionally, nanocarrier-based AIs are absorbed by the cuticular wax (lipid) layers of insects and break down the water protection barrier (Nuruzzaman et al., 2016; Rastogi et al., 2019). Therefore, in short, the large surface area of nano insecticides favours increased affinity for the target pest and, therefore, reduces the amount of insecticide required for controlling the enemy (Boehm et al., 2003).

Targeted delivery and controlled release

In the 21st century, several nanoinsecticide formulations have been conceptualized and designed to efficiently deliver optimum amounts of AIs. Porous materials have shown great potential for targeted delivery and controlled release of AIs in practical applications. Materials like mesoporous silica nanoparticles have become a great choice of interest as they showed multiple benefits such as improved efficacy, efficient delivery and reduced requirement of AI than conventional dose (Sharma et al., 2021a). For example, abamectin loaded in mesoporous silica nanoparticles showed release rate of 30 μg/h for 25 h which eventually dropped to 10 μg/h for next 200 h (Wang et al., 2014). In last decade, with advancement of nanotechnology, a smart insecticide delivery system has been developed to minimize the usages of AIs, which is known as “stimuli-responsive-nanoinsecticides”. In such nanoinsecticide formulation, the AI releases from the formulation only after the onset of pest infestation. Alternation of pH, temperature, redox system, light irradiation and even some specific enzymes could serve as stimulus (Kumar et al., 2015; Kaziem et al., 2018; Wang et al., 2018; Xiang et al., 2018; Gao et al., 2019; Zhang et al., 2019).

A number of pH responsive nanoinsecticide formulations have been developed experimentally to control insect pests that are optimized to release AI in presence of a wide range of pH conditions (acidic or alkaline) present in the insect intestine (Kaziem et al., 2018; Wang et al., 2018). One such example is the nanoformulation of cypermethrin with alginate nanocarrier. The pH of the nanoformulation system is maintained towards acidic side where alginate forms crosslinking polymer mesh and make the interior of the nanoparticle hydrophobic, resulting into reduced release of AIs from the system. After triggering with alkaline pH, the crosslinking polymer starts to disintegrate owing to the loss of electrostatic interactions and resulting into release of insecticide (Patel et al., 2018). The pH of the system not always interferes with the electrostatic interaction or polymer crosslinking. Wang et al. (2018) reported that enhanced release of avermectin from poly-(succinate) nanocarrier system at higher pH was due to collapse of nanoparticles in presence of alkaline condition. Some other nanoinsecticide formulations also exhibit the same kind of pH-dependent active ingredient’s release prototype. Abamectin-silica, coated with polystyrene and trimethoxysilyl-propyl methacrylate nanoinsecticide formulation released around 15% of insecticide at pH 5 after 15 days of application but at pH 10 the loss of abamectin reached up to 87% (Gao et al., 2019). Few other nanoformulations, for example, cyclodextrin-SiO2 NP containing avermectin (Kaziem et al., 2018), alginate-chitosan nanocarrier system containing acetamiprid (Kumar et al., 2015) have been developed which are activated in presence of alkaline pH. Photo-responsive nanoinsecticide formulations are another example of nanotechnological advancement. Formulation of fipronil—a broad spectrum phenylpyrazole insecticide, and coumarin—a phytochemical belonging to flavonoid group, is one of the well-recognized evidence of photo-responsive insecticide (Gao et al., 2019). It was found that in dark, the insecticide exhibits low insecticidal activity in Aedes mosquitoes, but in presence of sunlight their insecticidal activity significantly amplified. A similar observation was later found by Xu et al. (2018) in case of spirotetramat enol-coumarin insecticide formulation.

As an example of further technological advancement Sharma et al. (2017) have developed graphene oxide (modified with copper and selenium NP) nanocomposite to deliver chlorpyrifos to cabbage white butterfly, Pieris rapae. The nanoformulation showed both pH sensitive and photo-sensitive release of AI. The composite showed 25%–30% release of AI in presence of extreme PH, which is typical of insect digestive tract, in compare to ‘release’ (17%) at neutral pH. Furthermore, the release rate of AI from the formulation was calculated to be four times higher in presence of light irradiation in compared to control. These specific release pattern of AI could be appropriate specifically for the diurnal insects and could reduce the usage of AIs.

Enzyme responsive nanoinsecticide formulations have also been thoroughly investigated. Enzymes found in herbivorous insect’s salivary glands or in mid-gut, such as alkaline phosphatases, alpha-amylase, carboxylases, and others, promote specific reactions during feeding and therefter trigger the process of AI-release from nano-based insecticides (Kaziem et al., 2018; Camara et al., 2019). Guo et al. (2015) have developed epichlorohydrin-modified carboxymethylcellulose microcapsule containing emmamectin benzoate insecticide, crosslinked with silica nanoparticles. In absence of insect feeding the carboxy-methylcellulose capsule remains intact, hence restrict the release of emmamectin benzoate (20% loss in 30 h). However, in presence of cellulase in insect saliva, the cellulose wall of the capsule cleaved into smaller fragments causing the release of AIs from the formulation (80% loss in 30 h) (Guo et al., 2015). Similarly, α-amylase-responsive α-cyclodextrin anchored insecticide formulation has been developed containing silica loaded avermectin. In absence and presence of larval feeding, around 95% and 60% of AIs retained within the formulation after 17 days of application, indicating the stimulus responsive insecticide release pattern of the nanoformulation (Kaziem et al., 2018).

Furthermore, change in ambient temperature acts as a stimulus for temperature responsive nanoinsecticides. In most cases high temperature causes enhanced release rate of AIs from the formulations, which is due to the enhanced thermodynamic movement of the active molecules that facilitate the diffusion of the insecticides through the carrier material (Liang et al., 2018). SiO2 nanoparticle-coated temperature-responsive chitosan containing avermectin (Liang et al., 2018), and mixed micelle nanomycetes loaded with pyrethrin (Zhang et al., 2019) are some examples of smart thermal responsive nanoformulation that have been developed for experimental purposes.

Environmental stability

Most of the AI commonly used in insect pest management is vulnerable to environmental degradation due to oxidation, UV exposure, leaching, etc. At the same time, it is also suggested that AIs can be sustained in the environment for a longer duration in presence of nanocarriers without losing their insecticidal ability (Kumar et al., 2019). Researchers showed that the neurotoxic nano-bifenthrin slowly degrades the environment following a first-order model (Kah et al., 2016). Similarly, compared to bulk counterparts, the organophosphate pesticide, chlorpyrifos (C₉H₁₁C_l3NO₃PS) with lipid nanocarrier and the fungicide, tebuconazole (C₁₆H₂₂ClN₃O) with polymeric nanocarrier had longer soil half-lives (Fojtová et al., 2019). Clay and LDHs (layered double hydroxides) containing nanoformulations prevent volatilization and photodegradation of pesticides (Chaud et al., 2021). Using the co-solvent approach, nanoliposomes were synthesized by encapsulating emamectin benzoate with 1,2-distearoyl-sn-glycero-3-phosphoethanolamine-N-[amino(polyethylene glycol)-2000]. The resulting nanoformulation not only has considerable larvicidal activity against the fall armyworm, Spodoptera frugiperda (LC50: 0.046 mg/L) but also has improved leaf adherence and outstanding sustained release properties (Chen et al., 2022). Sharma et al. (2021b) have developed nanoformulations using copper and selenium modified graphene oxide nanocomposite containing captan. The 2D morphology of graphene oxide enhanced the charge-assisted-binding of nanoformulation with the foliar surface and it was found that leaching of AI is significantly less (26%–35%) from the nanoformulation in compared to bulk captan emulsion (70%). Patil and Bendre (2022) used in situ polymerization to synthesize a phenol-urea-formaldehyde (PUF) terpolymer, which was then used to encapsulate a ‘neem’ oil-based bioinsecticide. Because of their stability, the resulting microcapsules (30 um) worked remarkably well even at higher ambient temperatures (up to 45°C). The microcapsules demonstrated first-order release kinetics, indicating a slow environmental release feature (Patil and Bendre, 2022).

Reduced toxicity

One such experiment is being carried out in a human model. Powered nanostructured alumina, which is being studied as an alternative to chemical insecticides, is less harmful in humans than commercially available chemical pesticides. Experimental evidence suggests that nanostructured alumina causes considerably less DNA damage, chromosomal breakage, and cell viability in human peripheral blood lymphocytes than routinely used organophosphates (Vineela et al., 2017).

Disadvantages of nanoinsecticides

As stated before, the application of nano-formulated insecticides increases the effectiveness of typical insecticides, though commercially available nanoparticles are not always safe (Kah, 2015). Hence, there is a need to assess the possible undesired outcomes of applying nanoparticles in agriculture. While, on the one hand, these nanomaterials can provide nutrients to plants and protection against pests, on the other hand, they can induce stress on other non-pest species of the ecosystem, causing ecological risks (Bourguet and Guillemaud, 2016). Thus, during the last few years, a new genre of toxicology has been developed called “nanotoxicology,” where the toxic effects of nanomaterials are under the scanner. Nanomaterials seem to exhibit toxic effects that are uncommon and not seen with larger particles, and these smaller particles can pose more of a threat to living organisms due to their ability to move with a much higher level of freedom (Sukhanova et al., 2018). There remains much evidence of the harmful impacts of nanoparticles becoming an obstacle to existing nanoinsecticides in recent times (Côa et al., 2020; Paramo et al., 2020). Therefore, along with their good merits, the nanoinsecticides also have some shortcomings in functionality, as follows:

Cellular stress

Oxidative stress is a phenomenon caused by an unevenness between the production and accumulation of reactive oxygen species (ROS) in cells and tissues and the capacity of a biological system to detoxify ROS (Betteridge, 2000). Upon treatment, the interactions between cells and nanomaterials are evident due to fabricated and engineered nanomaterials designed with unique features to attain specific targets (Kovacic and Somanathan, 2013). However, the scientific basis for the cytotoxicity and genotoxicity of most manufactured nanomaterials is not well understood. Excessive synthesis of ROS can induce oxidative stress, resulting in cell’s failing to maintain normal physiological redox-regulated functions, which results in DNA damage, unregulated cell signalling, changes in cell motility, and cytotoxicity (Rajeshwari et al., 2016; Samhadaneh et al., 2019). Copper [Cu(OH)₂] nanopesticides, for example, have been shown to harm spinach by lowering antioxidant molecules such as ascorbic acid, alpha-tocopherol, threonic acid, 4-hydroxybutyric acid, ferulic acid, and total phenolic compounds by 29%–85% (Zhao et al., 2017). Another study found that Cu(OH)₂ based nanopesticides cause significant oxidative stress in lettuce by lowering antioxidant levels (cis-caffeic acid, chlorogenic acid, 3,4-dihydroxycinnamic acid, and dehydroascorbic acid) in comparison to the control (Zhao et al., 2016). In the onion, Allium cepa, gold nanoparticle-dependent generation of reactive oxygen species (ROS) was observed along with enhanced lipid-peroxidation and chromosome aberrations in root hair cells (Rajeshwari et al., 2016).

Reduction of plant growth and seed germination

Nanoinsecticides are known to hinder plant growth and thereby reduce agricultural yield. Literature suggests that nanoparticles present in nanoformulation interfere with plant growth by disturbing water homeostasis and disrupting concentrations of other small molecules in plants (Qian et al., 2013). Moreover, nanoinsecticides can manipulate plasma membrane K+ efflux and Ca2+ influx, which eventually cause membrane breakdown (Sosan et al., 2016). For example, ZnO and CuO nanoparticles affect crop yield by interfering with root and shoot growth (Wang C et al., 2019; Paramo et al., 2020; Pelegrino et al., 2020). Nanoparticles may further interfere with plant growth by disrupting the thylakoid membrane, which eventually decreases chlorophyll content and the photosynthetic rate of the plants (Qian et al., 2013; Fayez et al., 2017). Other metallic nanoparticles like TiO2 and Ag are known to reduce host plant’s early growth and chlorophyll content (Qian et al., 2013; Gao et al., 2019; Wang Y et al., 2019; Paramo et al., 2020). Lee et al., 2008 demonstrated that Cu-nanoparticles have the potential to reduce the growth rate of mung bean (Phaseolus radiates) and wheat (Triticum aestivum). Seed germination is also affected by exposure to nanoparticles (Lee et al., 2008). For example, Ag-based nanoparticles can reduce carrot seed germination by 20% (Park and Ahn, 2016). Inhibition in lettuce seed germination and radicle growth is reported on exposure of CuO-nanoparticles due to ROS or RNS (reactive oxygen or nitrogen species) accumulations in the seed (Pelegrino et al., 2020).

Ecological impact

Apart from toxic costs, there is evidence that nanopesticides can be accumulated and transferred through the food chain, causing long-term effects on the ecosystem (Dang et al., 2019; Xiao et al., 2019; Côa et al., 2020). However, only a few reports have focused on the toxicity and bioaccumulation of nanomaterials in agricultural lands. The majority of research has been conducted on planktons (algae and daphnids), where metal oxides are primarily tested as nanoparticles (Tangaa et al., 2016). Trophic transfer of bio-accumulated silver nanoparticles is demonstrated in different algae-daphnids (McTeer et al., 2014; Chen et al., 2015), algae-fish (Skjolding et al., 2014), algae-bivalve (Renault et al., 2008), algae-amphipod (Jackson et al., 2012), and algae-daphnids-fish (Chae and An, 2016). Kalman et al (2015) show the bioaccumulation and trophic transfer of silver nanoparticles in the green alga, Chlorella vulgaris, and in the crustacean, Daphnia magna, resulting from the Ag-nanoparticle assimilations (Kalman et al., 2015).

Nanoparticles can suffer environmental physical and chemical modifications such as changes in aggregation and oxidation state, colloidal behaviour, dissolution, sulfidation, and sorption of inorganic and organic species that result in a transient pattern of dissolution or stability of nanoparticles (Santaella and Plancot, 2020). All of these can alter the toxicological profiles of nanopesticides (Côa et al., 2020). In addition, the physiochemical transformation of nanoparticles favours the sedimentation rate, which eventually extends their persistence in the environment and thus prolongs the toxicity period (Deng et al., 2017; Côa et al., 2020). Deng et al. (2017) suggest that nanoparticles can change the bioavailability of existing environmental contaminants and heavy metal ions, enhancing their accumulation and, thereby, distribution within biota. Bio-accumulation of contaminants depends primarily on the organism’s ability to accrue the sorptive nano-contaminant complexes. The readily accumulated nanoparticles can act as carriers for the transport and bioaccumulation of co-contaminants (Deng et al., 2017).

Global scenario of bio-nanoinsecticides

Scientific laboratories and leading agrochemical manufacturing companies (Novartis AG, Bayers, Monsanto, Indigo, DOW agro-sciences, BASF, Symrise, and Syngenta) have repeatedly attempted to develop nanoinsecticides, and many of these formulations have been patented. More than 3,600 nano-encapsulated insecticides have been patented during the last 20 years (Pires-Oliveira et al., 2020). However, most of these nanoinsecticides have been developed through nanoparticles from commercially available chemical insecticides like carbamate, organophosphate, chlorinated cyclodiene, etc. (Table 1). Therefore, considering the adverse effects of chemicals, the utilization of biological molecules is now being considered to formulate nanoinsecticides termed “bio-nanoinsecticides” (Jampílek and Kráľová, 2019; Medina-Pérez et al., 2019). In formulating such bio-nanoinsecticides, biological molecules are often obtained from microbial, botanical, or animal origins and are usually used as carriers or/and AI (Choi et al., 2011; Riyajan, 2011; Feng and Peng, 2012; Chen et al., 2013; Jia et al., 2014; Pacheco-Aguirre et al., 2016; Ball, 2018; Liang et al., 2018). Upon considering several advantages of bio-nanoinsecticides, they are now becoming popular worldwide to boost organic farming. The growing demand for organic nanoencapsulated bioinsecticides increases from agricultural croplands to fruit orchards and vegetable grounds to tea plantations (Rastogi et al., 2019). In the formulation and development of bio-nanoinsecticides, the organics that are being utilized are as follows:

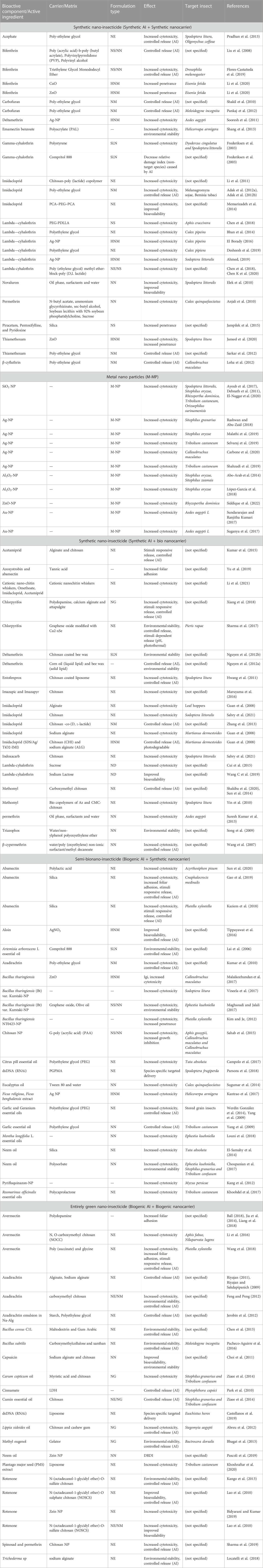

TABLE 1

TABLE 1. List of experimentally successful nanoinsecticide formulations (active ingredients and carriers) and their functional superiority to conventional chemical insecticides (Abbreviations; HNM, Hybrid nano metal; NE, Nano encapsulation; NG, Nano gel; NM, Nano micelle; NN, Nano emulsion; NS, Nano suspension; SLN, Solid lipid nanoparticle; M-NP, Metal nanoparticle).

Botanicals as active ingredients

Azadirachtin (C₃₅H₄₄O₁₆), the neem (source: Azadirachta indica, Meliaceae) alkaloid, is the biological AI typically used to develop nanoinsecticides. The biological AI can be loaded with nanoparticles from organic and inorganic sources (Feng and Peng, 2012). Rotenone (C₂₃H₂₂O₆) is another organic AI (source: Derris elliptica, Fabaceae) widely used in the formulation of nanoinsecticides and has a strong paralysis effect (knockdown) on poikilotherms (Othman et al., 2016). Likewise, allicin (C₆H₁₀OS₂)—an organosulfur compound obtained from garlic (Allium sativum, Alliaceae) and garlicin—the product of garlic (Yang et al., 2009; Ali et al., 2014), and aloin (C₂₁H₂₂O₉)—the dried latex from the leaves of several Aloe sp (Asphodelaceae) have also been explored for the development of various nanoinsecticides (Lade, 2017). In addition to these, capsaicin (C₁₈H₂₇NO₃) from capsicum (Capsicum sp; Solanaceae), abamectin [C₄₈H₇₂O₁₄ (B1a); C₄₇H₇₀O₁₄ (B1b)] from the soil-dwelling actinomycete, Streptomyces avermitilis, act as highly efficient AI against insect pests (Table 1).

Microbes as the active ingredient

The concept of nanoencapsulation of living organisms like bacteria and fungi is a recent trend in research. In this process, such biological microorganisms that are commonly used for the biological control of pests are encapsulated in a specialized matrix to provide a suitable microenvironment (Chen et al., 2013; Pacheco-Aguirre et al., 2016; Locatelli et al., 2018; Pires-Oliveira et al., 2020). This concept of nanoinsecticide formulation is novel for agricultural pest management and could be very promising for the upcoming years (Pires-Oliveira et al., 2020). Additionally, co-encapsulating microorganisms with botanicals or chemical AIs can increase the effectiveness of the formulation constituents even at a reduced dose (Shang et al., 2019). Besides using whole organisms, some nanoinsecticides have been developed by milling microbial toxins into the nanoscale. The best example of this method is the Bt-based nanoinsecticides. Nanoscale derivatives of Bt (2–5 um), made by top-down processes, are now being investigated for insect pest management efficiency (Murthy et al., 2014; Vineela et al., 2017).

“Biologicals” as carrier or matrix

Besides the role of biological molecules (“biologicals”) as AIs in nanoinsecticide formulations, the use of “biologicals” as a carrier of AI for nanoinsecticides has also been observed. It has been demonstrated that tannic acid (as a carrier)-based nanoinsecticides have a far better foliar adhesive property and, thus, can be retained on the leaf surface for a more extended period (Yu et al., 2019). Chitosan, the linear N-acetyl derivative of chitin (C₈H₁₃O₅N)n obtained from the arthropod exoskeleton, serves best in this category. Chitosan nanoparticles have been tested as an efficient carrier for several commercial insecticides (Maruyama et al., 2016; Sharma et al., 2019) and have been found to have no adverse effects on living organisms. As a result, it has been approved as a non-toxic biogenic nanomaterial (Wang et al., 2011). Besides chitosan, alginates (C₆H₈O₆)n—a multifunctional anionic biopolymer that occurs naturally in the brown algae cell wall (Phaeophyceae), and its derivatives, have gradually drawn attention as attractive carrier compounds for AIs (Szekalska et al., 2016). Polydopamine (PDA) is another bio-adhesive nanoparticle derived from mussels (Lynge et al., 2011) that exhibits exceptional adhesive performance on crop foliage and thus enhances the retention time of insecticides (Jia et al., 2014; Ball, 2018; Liang et al., 2018). PDA is the final oxidation product of dopamine or other catecholamines that coat the “biological element” at an adjustable thickness ranging from a few to about 100 nm. These PDA layers can be modified with molecules carrying nucleophilic groups or metallic nanoparticles from solutions containing metallic cations. However, during deposition of PDA on the surface, reaction products obtained from the oxidation of catecholamines precipitate on the foliage (Ball, 2018).

Scope and limitation

Though nanoinsecticides are the promising future of modern agronomy, some scientists have already raised questions regarding the biosafety of nanoinsecticides. Therefore, the short-to long-term toxicological effects on the environment have become alarming (Chaud et al., 2021). Moreover, conventional chemical or metallic-nanoparticle production techniques mentioned in Figure 3A involve volatile organic solvents and hazardous chemicals, which sometimes become noxious for human and environmental health (Küünal et al., 2018). In addition, these techniques sometimes are very complex and require more financial aid. Therefore, to overcome the adverse health effects and complexity associated with conventional nanoparticle synthesis process, the development and formulation of biogenic nanomaterials have been conceptualized (Figure 3A) (Ahmad I et al., 2020; Jadoun et al., 2021). Though the exploration of biogenic nanoparticles is quite old (Lippert and Zachos, 2007), the development of microscopic and sub-microscopic nanomaterials using living organisms has gained pace in recent times towards its commercialization for agricultural pest management (Gour and Jain, 2019). It is substantially acknowledged that applying biologically derived nanomaterials, otherwise called “green pesticides,” would be environmentally friendly and, therefore, sustainable (Gour and Jain, 2019).

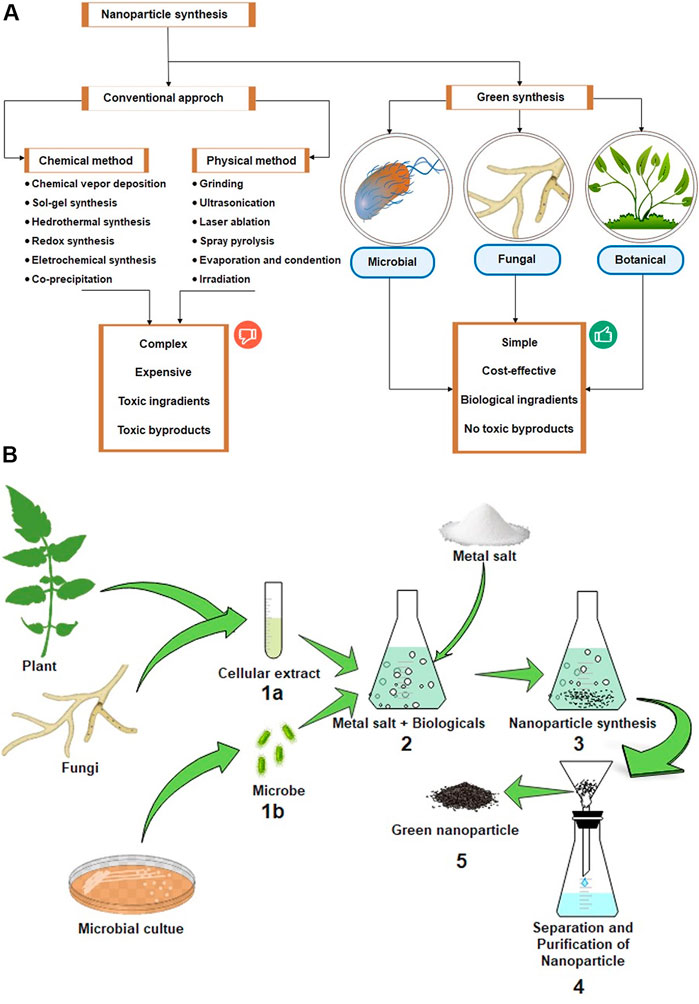

FIGURE 3

FIGURE 3. (A) Schematic representation of different approaches (conventional and green synthesis) of nanoparticle synthesis and advantages of green synthesis of nanoparticles. (B) Schematic representation of green biogenic nanoparticle synthesis, separation and purification process.

Biogenic nanoparticles can be assorted according to different functional groups with specific functionalities. They may be classified as either intracellular or extracellular performances or organic or inorganic arrangements (Stanley, 2014; Kaushal, 2018). For example, the membranous intracellular organelles like the magnetosome (present in magnetotactic bacteria) and the extracellular assemblies such as lipoproteins (droplets of fat surrounded by a single layer of phospholipid molecules) are significant (Stanley, 2014; Kaushal, 2018). Though the natural sources of such biogenic nanomaterials are plants, bacteria, fungi, or insects, they can be transformed into “green pesticides” to minimize environmental risks (Jadoun et al., 2021). However, one of the significant barriers to developing such nanoinsecticides is the availability of functional ingredients for nanoinsecticide formulation. Most common nanoinsecticides are synthetic products derived from chemicals, though some are hybrids. Hybrid nanoinsecticides are developed with combinations of biological and synthetic chemical nanoparticles. It is seemingly due to the limited choice of biologically active substances or biologically compatible AI-conveyance materials employed during formulation. Exact bio-originated nanoinsecticides where both the AI and nanocarrier come from biological sources are extremely rare. However, research has gained momentum recently, considering its immense prospects for environmental safety and insecticidal efficacy. It could help overcome the hazardous effects of chemical insecticides and inorganic nanoparticles. Some attempts have already been made to develop fully bio-origin nanoinsecticides (Table 1), though there remain many opportunities to explore more. While agreeing with the advantages of bio-nanoinsecticides, it is essential to discover diverse “biologicals” with insecticidal properties to enrich the available biological inventory. At the same time, it is equally important to explore biological sources to screen out “biologicals” that can be manufactured as nanoparticles with AI conveyance properties. In the last few years, many biopolymers like alendronate functionalized gelatin, dipalmitoylphosphatidylcholine, fucoidan, carrageenan, and porphyrin have been used in nanoformulations, and their potential as bio-nanocarriers has been investigated (Mekhail et al., 2016; Manivasagan et al., 2017; Etman et al., 2020). Nevertheless, the application of these potential bio nanocarriers has been restricted to pharmaceutical, drug delivery, and gene therapy purposes.

Green synthesis of biogenic nanoparticles

Since nanoparticles used in agriculture are primarily synthesized through chemical routes, they often cause toxicity (Nath and Banerjee, 2013). However, green synthesis of nanoparticles using living organisms is more helpful in producing highly stable, well-characterized, and safer nanoparticles than chemical methods, which are usually not environmentally friendly, less stable, and not easy to scale up (Pacheco-Aguirre et al., 2016). As biocompatible green synthesis involves living organisms, the use of bio-nanoinsecticides ensures the excellent potential for sustainable practice for pest management (Clark and Macquarrie, 2008). The three leading conditions for the green development of nanoparticles are the choice of a green or environmentally less harmful solvent, an efficient reducing agent, and an eco-friendly stabilization material (Jadoun et al., 2021). All living organism-mediated nanoparticle biosynthesis follows the principle of bottom-up biosynthesis, in which atoms of a specific metal assemble in the presence of reducing agents and ultimately develop nanoscale compounds (Gour and Jain, 2019). It involves using diverse living organisms like bacteria, fungi, actinomycetes, yeast, algae, and plant materials, which have metal-tolerant abilities and flourishes under the utmost environmental conditions (Figure 3A) (Kuppusamy et al., 2016; Phanjom and Ahmed, 2017; Patil and Chandrasekaran, 2020; Jadoun et al., 2021).

Green synthesis using botanicals

Plants are regarded as the chemical factories of nature. Phytochemicals in plant extracts such as polyols, terpenoids, and polyphenols are responsible for metallic ion bioreduction (Kuppusamy et al., 2016; Ovais et al., 2018). Plant-derived metabolites such as phenolics (Moulton et al., 2010), proteins (Sanghi and Verma, 2009), polysaccharides (Wei and Qian, 2008), flavonoids, and tannins (Nam et al., 2008) are synthesized into nanoparticles through eco-friendly methods. Polyphenolic compounds such as rutin, curcumin, ellagic acid and gallic acid have been used to synthesize Ag-NPs (Swilam and Nematallah 2020). Like polyphenols, another secondary metabolite of plants, i.e., flavonoids, a group polyhydroxylated secondary metabolites, are also successfully investigated for the purpose of green synthesis of nanoparticles. Hesperidin, naringin and diosmin like flavonoids that are found in citrus plants have been reported in bio-reduction of silver salts to Ag-NPs of varying sizes (5–80 nm). It is claimed that the hydroxyl groups present in the molecule play the pivotal role in the conversion process (Sahu et al., 2016). In another trial Jain and Mehata (2017) used another flavonoid, quercetin (found in Ocimum sanctum) to develop silver nanoparticles of 11–14 nm size (Jain and Mehata 2017). Tannic acid, which is a representative of tannins, has been well explored for their potential to convert metallic salts into Ag-NPs and Au-NPs (Ahmad, 2014). Polysaccharides are also documented to produce nano metallic compounds from respective salts. Transparent nanoporous gels produced from cellulose, a major component of plant cell wall, is reported to synthesize Ag-NPs and Au-NPs from AgNO3 and HAuCl4.3H2O respectively (Cai et al., 2009). Similarly, another abundant plant polysaccharide, like starch, which is a fusion of a-amylose and amylopectin, can synthesize Ag-NPs of 5.3 nm size from silver salt in presence of glucose (Raveendran et al., 2003).

The reduction of metallic salts to nanoparticles using phytochemicals or plant extracts is considered as an eco-friendly and cost-effective method. In addition, the use of universal solvent, water, as a reducing medium enhances its biocompatibility and reduces the usage or toxic organic solvents. For the synthesis process, specific plant parts that have high phytochemical contents such as dried barks, leaves or roots are also used for extraction, which are then purified by filtration steps. In the succeeding step, various quantities of plant extracts are mixed with the solution of metal salts in water and the mixture is incubated to convert the metal salts into metallic nanoparticles (Figure 3B). The conversion is usually monitored either by visual colour change or by using UV-Vis spectrophotometry.

Plants responsible for accumulating, detoxifying, and phytoremediating toxic metals are mostly used as reducing agents during bottom-up synthesis (Carolin et al., 2017). Medicinal plants are also extensively used in the process because of the high phytochemical contents. There are plenty of evidences that extracts from different plant parts can be used for the biological synthesis of nanoparticles (Kuppusamy et al., 2016). Botanicals are sometimes more advantageous than microorganism-mediated green synthesis, as microbes can only be propagated through complex actions of preserving culture (Hulkoti and Taranath, 2014). Thus, plant-based nanoparticle synthesis has proven to be a better method due to its slower kinetics and better manipulative control over crystal growth and stabilization (Prasad, 2014). Using green technology, Prosopis juliflora (Fabaceae) leaf extract was utilised to synthesize Cu/Zn-bimetallic nanoparticles ranging in size from 74.33 nm to 59.46 nm. Using Cu/Zn solution (100 ppm) and aqueous P. juliflora extracts as controls, this bimetallic nanoparticle was applied to the cotton mealy bug, Phenacoccus solenopsis, and found near about 30% mortality for the pest (Mendez-Trujillo et al., 2019).

Metallic nanomaterials such as gold, copper, silver, zinc oxide, etc., are commonly used as nano insecticidal ingredients through green synthesis (H. Ahmad H et al., 2020; Jadoun et al., 2021; Santhosh et al., 2020; Sharma et al., 2019; Solgi and Taghizadeh, 2020). The insecticidal ability of a phyto-nanoparticle made from zinc oxide and Zingiber officinale rhizome extract was tested on tobacco cutworm, Spodoptera litura and potato aphids, Macrosiphum euphorbiae. This green nanoparticle offers more potential in terms of insecticidal action and environment-friendly nature. At 500 ppm concentration, particular stages of relevant pests revealed nearly 100% death after being exposed for 144 h (Thakur et al., 2022).

Green synthesis using microbes

During the microbe-based synthesis method, microbial culture filtrates (extracellular and intracellular) are used as reducing agents for the green synthesis of nanoparticles (Bahrulolum et al., 2021). The ability of microbes to tolerate, accumulate, and convert metallic mass into individual nanoparticles is studied first in the Gram-positive catalase bacterium Bacillus subtilis (Southam and Beveridge, 1994). Metals are reduced into metallic nanoparticles by bacterial intracellular or extracellular redox reactions.

Bacterial cells contain specific polysaccharide on their cell wall surface known as exopolymeric substances (EPS) which play some crucial role in the formation of nanoparticles. The bacterial EPS is a polyanionic structural component with high abundance of negatively charged hydroxyl and carboxyl group that can reduce metallic salts into respective nanoparticles in a metabolism-independent manner (Sathiyanarayanan et al., 2017; Saha et al., 2022). The EPS of certain species of electroactive bacteria like Shewanella oneidensis, Aeromonas hydrophila, and Pseudomonas putida have been used to synthesize nano silver. Further investigation revealed that the Cytochrome-C present in the EPS is the key contributing component behind the reduction of silver salt to silver nanoparticle (Li et al., 2016). Besides, multiple lactic acid bacteria like Lactobacillus sp., Pediococcus pentosaceus and Enterococcus faecium also have the potential to reduce silver ions to Ag-NPs. Researchers demonstrated that the EPS aids in the process by promoting redox reaction (Saravanan et al., 2017). Additionally, enzymatic conversion of metal salts to metal nanoparticles is also a common bacterial physiology. Plenty of extracellular microbial enzymes that rely on NADP or NADPH can effectively reduce metal ions by transferring electrons (Bose and Chatterjee, 2016). For example, Rhodopseudomonas capsulate secrets extracellular NADH dependent enzymes that catalyses electron transfer to Au³⁺, which in turn eventually become Au-NP (He et al., 2007). In addition to enzymes, other components of electron transport chain like anthraquinone, hydroquinone and naphthoquinones are also reported to transfer electron to metal salts (Patra et al., 2014). Nanoparticles can also be synthesized intracellularly with the help of multiple reducing enzymes and accumulated in the periplasmic space, cell membrane and wall (Ovais et al., 2018). Extremophiles are the mostly investigated bacterial group that has been studied for nanoparticle biosynthesis. The potential of extremophiles like Rhodococcus sp. (Ahmad et al., 2003a) and Thermomonospora sp. (Ahmad et al., 2003b) have been investigated and it was found that these organisms can promote intracellular gold nanoparticle synthesis of 8–12 nm and 8–40 nm respectively. Few species of Gram-negative bacteria, such as Pseudomonas stutzeri (Klaus et al., 1999) and Shewanella algae (Konishi et al., 2007) can bio-reduce salts to Ag-NP (200 nm) and Au-NP (10–20 nm) respectively and accumulate at periplasmic place.

Using microorganisms, nanoparticles can be synthesized in two ways like, extracellular and intracellular approaches. Firstly, the desired microorganisms are cultured under optimum temperature, media ingredients and pH. In the subsequent steps, the culture is centrifuged to obtain the supernatant which is required to synthesize nanoparticles from sterilized metal salt solution. The supernatant and metal salt solution is incubated together for the bio-reduction of metal salts and the synthesis of nanoparticles is monitored by the appearance of specific coloration of the culturing media like deep brown for Ag-NPs or red to deep purple for Au-NPs. Finally, the media-content is centrifuged with density-gradient to obtain the nanoparticles from the bottom pellet. In intracellular approach, the microbial biomass is collected instead of supernatant in the first step, which is then dissolved in filter sterilized solution of desired metallic salts. After sufficient incubation, the microbial biomass is collected by centrifugation and subject to repeated steps of ultrasonication which eventually breaks the cell wall of the organism. The cell wall rupture causes the release of nanoparticles from the biomass, which is then collected following centrifugation (Figure 3B).

Examples of microbe-containing green synthesis of nanoparticles are generous; in most studies, silver nanoparticles are frequently used. During the last two decades, researchers have synthesized silver nanoparticles using several bacterial strains like Bacillus licheniformis, Bacillus cereus, Pseudomonas proteolytica, Bacillus cecembensis, Lactobacillus casei, Klebsiella pneumonia, Escherichia coli, Enterobacter cloacae, and Bacillus indicus (Kalishwaralal et al., 2008; Shivaji et al., 2011; Korbekandi et al., 2012; Sunkar and Nachiyar, 2012). However, besides silver-based nanoparticles, gold (Au) and iron (Fe₂O₃) nanoparticles have also been produced from other bacterial strains like Plectonema boryanum 485, Bacillus subtilis 168, Shewanella alga, Bacillus megaterium D01, and Magnetospirillum magnetotacticum (Southam and Beveridge, 1994; Philipse and Maas, 2002; Lengke et al., 2006; Konishi et al., 2007).

Green synthesis using fungi

Nanoparticle biosynthesis using different fungi has been documented so far, suggesting a competent fungal role as a biological agent for producing metallic nanoparticles. Fungi can produce larger quantities of nanoparticles than bacteria (Singh et al., 2018), and diverse groups of intracellular fungal enzymes, proteins, and reducing components facilitate the reduction of metal salts into metal nanoparticles (Chen et al., 2009; Singh et al., 2018). According to some authors mycosynthesis is more straightforward approach than bacterial synthesis as fungal cells have more bioaccumulation capacity and higher tolerance to metals (Gade et al., 2008). Alghuthaymi et al. (2015), mentioned that the reducing enzymes like α-NADPH-dependent reductases, nitrate-dependent reductases are the major cellular constituents that aid in bio-reduction processes. In addition, few extracellular electron transporters like quinone play equally important role in the process.

Similar to bacterial extracts, fungal extracts are used in the mycosynthesis process and the mostly investigated fungal group is filamentous fungi. Different species of filamentous fungi like Aureobasidium pullulans and Fusarium oxysporum has been used to synthesize gold nanoparticles of 29 nm and 128 nm respectively (Zhang et al., 2011). Silver nanoparticle crystal has been synthesised extracellularly using the extracts of black mold (Aspergillus niger), kozi mold (A. oryzae), soil mold (Fusarium solani, F. oxysporum), fibre mold (Phoma glomerata), and cotton mold (Pleurotus Sajor Caju) and yeasts (Ahmad et al., 2003a; Gade et al., 2008; Ingle et al., 2008; Birla et al., 2009; Binupriya et al., 2010; Thakkar et al., 2010; Singh et al., 2018). Apart from these, gold and zinc oxide nanoparticles have also been developed from ascomycete species like filamentous mitosporic fungus (Trichothecium sp) and soil fungus (F. oxysporum or A. terreus) (Ahmad et al., 2005; Senapati et al., 2005; Raliya and Tarafdar, 2014).

Exploration of new “biologicals”

A total of 496 active substances, irrespective of chemical or organic origin, have been registered in the European Commission database to date. Almost 450 of them have insecticidal properties (https://ec.europa.eu/food/plants/pesticides/eu-pesticides-database_en). On the other hand, more than 600 insect pests have developed resistance against conventionally used chemical insecticides (Hawkins et al., 2019) (www.pesticidestewardship.org/resistance). According to EPA United States of America, the use of “biologicals” is the only way to combat the growing tendency of insecticidal resistance for agricultural pests (https://www.epa.gov/pesticides/biopesticides), and hence, in organic farming, the use of bioinsecticides is being popularized instead of synthetic chemicals (Röös et al., 2018; Awasthi, 2021). Unfortunately, only a few of the registered active substances are of biological origin, and therefore, it is imperative to discover more “biologicals” with insecticidal properties to enrich the available biological inventory.

Currently, some biological AIs are used for nano-bioinsecticides. Some of the notable ones are Bt toxins (source: Bacillus thuringiensis), azadirachtin (source: Azadirachta indica), pyrethrin (source: Chrysanthemum cinerariaefolium), rotenone (source: Derris sp, Lonchocarpussp, Tephrosia sp.), curcumin (source: Curcuma longa), allicin (source: Allium cepa), garlicin (source: Allium sativa) and aloin (source: Aloe vera). Nevertheless, numerous microbes, fungi, and plants remain rich in phytochemicals with insecticidal properties. Plants from different families, including Apiaceae, Apocynaceae, Asteraceae, Caesalpinaceae, Cupressaceae, Lamiaceae, Lauraceae, Liliaceae, Myrtaceae, Piperaceae, Poaceae, Rutaceae, Sapotaceae, Solanaceae, Zingiberaceae, have been reported to have bioactive compounds with biocidal activities against agricultural crop pests (Okwute, 2012; Baskar et al., 2017; Khan et al., 2017; Lengai et al., 2020).

Among phytochemicals, the most common bioactive compounds are primarily secondary metabolites such as alkaloids, terpenes, phenolics, flavonoids, etc., that possess multiple biocidal properties, including insecticidal effects (Oskoueian et al., 2011; Singh et al., 2017). For example, Ryanodine (C₂₅H₃₅NO₉)—a toxic diterpenoid produced by the South American plant Ryania speciosa (Salicaceae), exhibits species-specific insecticidal activity. The molecule affects muscles by binding to the sarcoplasmic reticulum calcium channels (Feher and Lipford, 1985). This molecule also acts on mitochondria and peroxisomes and eventually interferes with the respiratory chain (Hamilton et al., 2018). Nicotine (C10H14N2) is an anxiolytic chiral alkaloid obtained from the tobacco plant Nicotiana tabacum (Solanaceae) that causes continuous uncontrolled nerve firing by binding with acetylcholine receptors at nerve synapses and executes insecticidal effects on selected insects (Kimura-Kuroda et al., 2012). Further, plant-derived essential oils, such as limonene (C₁₀H₁₆) (a cyclic monoterpene found in citrus fruit peels), eugenol (C₁₀H₁₂O₂) (an allyl chain-substituted guaiacol obtained from clove, nutmeg, cinnamon, basil, and bay leaf), eucalyptol (C₁₀H₁₈O) (a bicyclic monoterpenoid ether produced from blue gum, Eucalyptus globules, Myrtaceae) also have potential insecticidal activities (Campolo et al., 2017; Ainane et al., 2019; Ahmed et al., 2021). Annonin (C₃₇H₆₆O₇), a complex acetogenin derived from the sugar apple Annona sp. (Annonaceae), is neurotoxic to insects and inhibits NADH cytochrome C-reductase and complex-I of insect mitochondria (Londershausen et al., 1991; Lümmen, 1998). Besides these bioactive substances, several plant species with insecticidal qualities have not yet been explored to identify bioactive substances (Campolo et al., 2018; Ebadollahi et al., 2020). For example, crude extracts of the pantropical nicker bean Caesalpinia bonduc (Caesalpinieae) were tested for their larvicidal and pupicidal activities against the cotton bollworm Dicladispa armigera (Baskar et al., 2017). Similarly, crude essential oil from rock-samphire, Crithmum maritimum (Apiaceae), has been tested on beet armyworm larva, Spodoptera exigua, and stored grain pests like Sitophilus granarius, Sitophilus oryzae, Tribolium castaneum, Tribolium confusum, Rhyzopertha dominica, and Oryzaephilus surinamensis (Polatoğlu et al., 2016). Crude secondary metabolites isolated from Indian birthwort, Aristolochia tagala (Aristolochiaceae) (Baskar et al., 2011), Patagonian slipperwort, Calceolaria talcana (Calceolariaceae) (Muñoz et al., 2013), foetid herb, Cassia tora (Fabaceae) (Baskar and Ignacimuthu, 2012), lesser round weed, Hyptis brevipes (Lamiaceae) (Hamed Sakr et al., 2013), orange climber, Toddalia asiatica (Rutaceae) (Duraipandiyan et al., 2015), African mahogany, Trichilia americana (Meliaceae) (Wheeler and Isman, 2001) have antifeedant, larvicidal, pupicidal, or growth-interrupting roles against different species of lepidopteran pests, including cotton bollworm and fall armyworm.

Concerning other botanicals tested against different lepidopteran pests, solvent extracts from Mexican fireweed, Kochia scoparia (Chenopodiaceae); pokeweed, Phytolacca Americana (Phytolaccaceae); golden larch, Pseudolarix kaempferi (Pinaceae) and black false hellebore, Veratrum nigrum (Melanthiaceae) showed larvicidal activity against P. xyllostella. Plant extracts, like chaste berry, Vitex agnus-castus (Lamiaceae); common rue, Ruta graveolens (Rutaceae); pomegranate, Punica granatum (Lythraceae); olibanum, Boswellia carterii (Burseraceae); wild rue, Peganum harmala (Rutaceae); common myrtle, Myrtus communis (Myrtaceae); squaw mint, Mentha pulegium (Lamiaceae); colocynth, Citrullus colocynthis (Cucurbitaceae); asafoetida, Ferula asafetida (Apiaceae); common wormwood, Artemisia absinthium (Asteraceae); bae laurel, Laurus nobilis (Lauraceae); marjoram, Origanum majorana (Lamiaceae); basil, Ocimum basilicum (Lamiaceae); and oleander, Nerium oleander (Apocynaceae) have also documented to have insecticidal properties (Cheraghi Niroumand et al., 2016; Khan et al., 2017). Out of various floral resources, solanaceous plants mainly produce an array of alkaloids that causes gut injury, metabolic arrest, growth disruption, and reproductive abnormality to a wide range of lepidopteran pests (Chowański et al., 2016); hence, comprehensive explorations of AIs could provide sustenance for expansion of nanoinsecticides. Apart from these, some experimental evidence unfolding possibilities of new botanicals in the formulation of insecticides have been proposed in recent times (Ahmed et al., 2020; Lengai et al., 2020).

Molecular administrations for nanoinsecticide development

Double-stranded RNA (dsRNA) is a new approach to nanoinsecticide development. Biological administration of dsRNA delays specific gene expression of crop pests and restricts pests from infestation (Katoch et al., 2013; Castellanos et al., 2019; Christiaens et al., 2020; Liu et al., 2020; Yan et al., 2020). RNA interference (RNAi) is a gene silencing method caused by double-stranded RNA (dsRNA) that, when ingested by insects, results in the death of the target pest. The RNAi mechanism in a sequence-dependent mode has high target specificity, allowing agrarians to target insects more precisely than conventional agrochemicals and “biologicals”. Despite having substantial advantages, the RNAi-mediated pest management strategy has its limitations when researchers opt for the SIGS (spray-induced gene silencing) approach to trigger RNAi in targeted pests. Firstly, externally applied dsRNA is unstable, and secondly, dsRNA has a feeble penetration ability across the insect cuticle. However, developing nanoinsecticides by encapsulating the desired dsRNA with compatible nanocarriers seems to be a superior alternative to the usually practised nanoinsecticides, as dsDNA’s nanoencapsulation increases penetration efficiency and environmental stability (Ghormade et al., 2011; Liu et al., 2020); however, available literature in this regard is still inadequate.

This idea emerged after Zhang and others (2010) attempted to silence the chitin synthase genes AgCHS₁ and AgCHS₂ in the African malaria mosquito (Anopheles gambiae) using chitosan/AgCHS dsRNA-based nanoparticles. A 30%–60% reduction of chitin biosynthesis was observed, and as a consequence, susceptibility towards diflubenzuron, calcofluor white (CF), and dithiothreitol had taken place (Zhang et al., 2010). Since then, many researchers have shown interest in this route and have tried different approaches to interfere with insect’s genetic expression. Researchers have optimized the approach of the SIGS-based strategy using different conveyance materials like chitosan and chitosan derivatives, nanoliposomes, cationic dendrimers, quantum dots (QDs), and branch amphiphilic peptide capsules (BAPC) (Yan et al., 2020). After finding initial success with chitosan-encapsulated dsDNA delivery, Zhang et al. (2010) modified the strategy and delivered chitin synthase in A. gambiae using chitosan with smaller particle sizes. The mortality of A. gambiae was increased compared to the previous study due to the smaller-sized chitosan. Later on, delivery approaches were modified using several cross-linking agents like sodium tripolyphosphate, folate, polyethylene glycol, polyethylenimine, and dextran sulfate to increase the transfection and gene silencing efficiency of dsRNA-nanoformulations. Another convenient vehicle to deliver dsRNA to target pests is dendrimers, an artificial polymer with a branched peripheral side chain and a nanoscale internal core. He et al. (2013) developed a CHT₁₀ dsRNA containing dendrimer with a cationic core-shell, which upon application, efficiently diminished the body mass and interfered with the moulting of Ostrinia furnacalis (He et al., 2013). Similarly, spraying a 555 bp double-stranded hemocytin RNA-dendrimer nanoformulation has competently interfered with the target gene expression of Aphis glycines (95%) and effectively suppressed population growth (80%) of the species (Zheng et al., 2019). The use of quantum dots (QDs), which discharge narrow symmetric bands under a broad excitation range, is another exciting approach to dsRNA delivery. Carbon QD-mediated SNF₇ and G₃PDH gene silencing has been verified as a practical approach to insect pest management (Neng et al., 2019). Other nanoformulations like dsDNA encapsulated in nanoliposomes and branched amphiphilic peptide capsules are also considered practical and convenient. Nano-pGPMA (guanidinium-functionalized inter polyelectrolyte complexes)—an analog of arginine-rich cell-penetrating peptides, can enable RNAi in resistant insect pests. This biomimetic pGMPA encapsulated sequence-specific dsRNA, synthesized by reversible addition-fragmentation chain transfer (α-RAFT) polymerization, and was found to trigger target gene knockdown and subsequent larval mortality in Spodoptera frugiperda (Parsons et al., 2018). Biogenic nanocarrier-like liposome-encapsulated dsRNA formulation with essential gene targeting increases oral RNAi-caused mortality in the neotropical stink bug, Euschistus heros (Castellanos et al., 2019). Thairu et al. (2017) attempted to aerosolize siRNA-nano formulations, which can travel through the spiracular routes of Acyrthosiphon pisum, Aphis glycines, and Schizaphis graminum and target carotene dehydrogenase (tor) and branched-chain amino acid transaminase (b-cat) genes. In this experiment, the efficacy differed based on the target species, but the outcome was satisfactory (Thairu et al., 2017).

In the execution of RNAi manipulations, most of the carriers and matrices used in nanoinsecticides are synthetic polymers or polyester, but there is space for using natural polymers and biomolecules like chitosan alginate or their derivatives as green alternatives. It is expected that biopolymers could have better compatibility with biological AIs, and with this understanding, many biopolymers are under screening for inventories (Sun et al., 2020). For example, non-conventional biomolecules, like tannic acid (polyphenol) (Yu et al., 2019), catecholamines (polydopamine) (Jia et al., 2014), myristic acid (saturated fatty acid) (Ziaee et al., 2014), and cashew gum (cellulose) (Kalia et al., 2011; Abreu et al., 2012), Gelator (Bhagat et al., 2013) are used for AI delivery. Likewise, solid lipids (beeswax) and essential natural oils (corn) are also successfully examined as biological matrixes for formulating nanosuspensions (Nguyen et al., 2012a; H. M; Nguyen et al., 2012b). Zein is a water-insoluble maize-derived prolamine protein and has shown the potential to formulate AI’s nanosuspension (Bidyarani and Kumar, 2019). Non-etheless, bio-nano-cellulose polymers (Kalia et al., 2011), citric acid-glycerol nanopolymers, and citric acid-glycerol-oleic acid nanopolymers (Shiri et al., 2019) have also been developed on different occasions, but their applications are restricted to medicinal purposes only. As the concept of RNAi-mediated dsRNA technology for nanoinsecticide formulation is utterly novel for plant protection, the choice of target sequences and sequence-specific dsRNAs is limited, and further investigation and improvisation are needed to expand the knowledge of the subject.

Biogenic nanoinsecticides: New directions

Fully biogenic or all-green nanoinsecticide formulations have been given attention recently to address environmental issues and combat currently used non-green nanoinsecticides. The exploration of new biological AIs, biogenic nanoparticles, green synthesis technology development, compatible “biologicals”, and bio-nanocarriers has been hypothesized (Figure 4). Although researchers have attempted to develop such bio-nanoinsecticides in the last decade, there remains ample opportunity to go further. For example, Lao et al. (2010) formulated rotenone with an amphiphilic chitosan derivative [N-(octadecanol-1-glycidyl ether)-O-sulfate chitosan (NOSCS)] to increase rotenone’s controlled release ability (Lao et al., 2010). Similarly, nano-micelle formulations from azadirachtin and carboxymethyl chitosan have been developed to increase AI’s bioavailability (Feng and Peng, 2012). Plant essential oils infused in cashew gum (Abreu et al., 2012) or myristic acids (Ziaee et al., 2014) in developing nanogel-based nanoinsecticides were also experimentally proven. Entomopathogenic microbes have also been encapsulated to intensify their efficacy and environmental stability (Chen et al., 2013; Pacheco-Aguirre et al., 2016; Maghsoudi and Jalali, 2017). Furthermore, RNA interference technology has recently been incorporated to develop efficient target-specific activity (Castellanos et al., 2019). Other pieces of evidence are listed in Table 1.

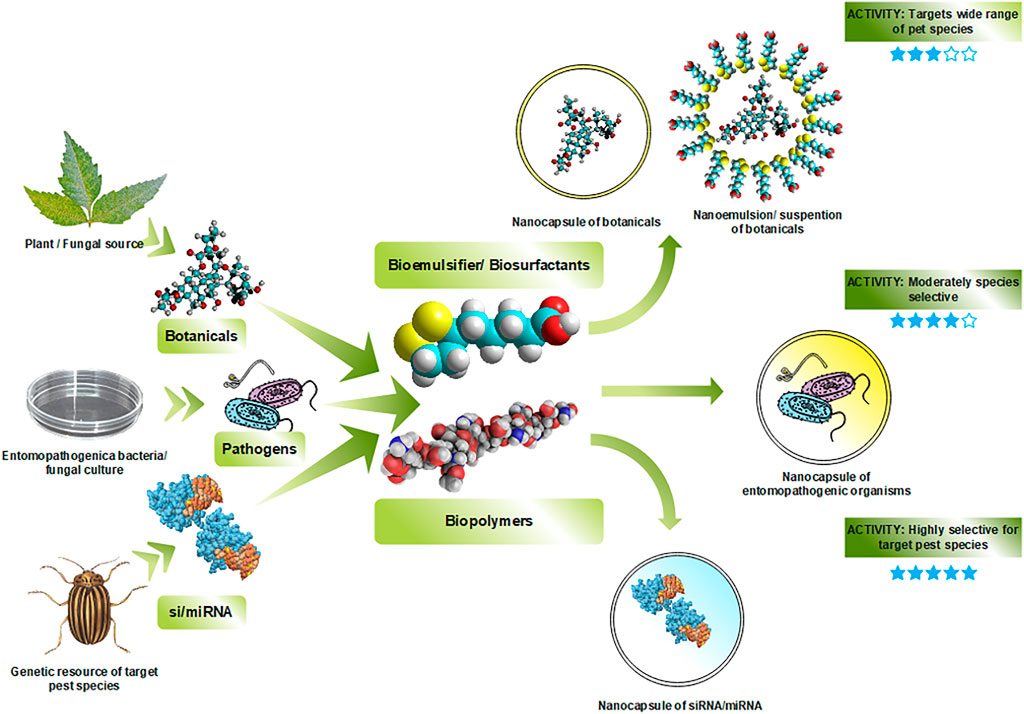

FIGURE 4

FIGURE 4. Schematic representation of synthesizing fully bio-nanoinsecticides employing both bioactive components/active ingredients (plant-based AI, microorganisms, and siRNA) and carrier/matrix materials (biopolymer) derived from natural sources.

Besides environmental benefits, a fully bio-based nanoinsecticides is efficient for other rewards. They are environmentally stable, have controlled release properties, and are equally effective as conventional nanoinsecticides (Riyajan and Sakdapipanich, 2009; Riyajan, 2011; Choupanian et al., 2017; Khoobdel et al., 2017). For example, R-CM-chitosan/Aza-nanomicelles have demonstrated environmental stability, controlled release properties, and efficacy comparable to many conventional nanoinsecticides (Feng and Peng, 2012). Azadirachtin was also reported to be stable for 11 days during an experimental trial (Riyajan, 2011). In another experiment, azadirachtin formulated in a sodium alginate matrix cross-linked by glutaraldehyde and coated with natural rubber reported 50% remaining AI even after 41 days of experimental trial (Riyajan and Sakdapipanich, 2009). These experimental results can be compared with the usual conventional nanoformulations like PEG-Aza, which have approximately 24 days of environmental sustainability (Kumar et al., 2010). On the question of efficacy, the fully bio-nanoinsecticides have shown challenging insecticidal activity compared with conventional nanoinsecticides. For example, traditionally used bio-nanoinsecticides have more or less >80% insecticidal activity on stored grain pests (Yang et al., 2009; Werdin González et al., 2014; Choupanian et al., 2017; Khoobdel et al., 2017). Similarly, complete natural bio-nanoinsecticides like PMS (Plantago major seed extract) loaded nanoliposomes also showed approximately 70% insecticidal activity on stored grain pests upon application (Khoshraftar et al., 2020). Natural nanogel formulations of cumin essential oil (Cuminum cyminum) and ajwain oil (Carum copticum) have also shown 80%–100% insecticidal activity against the target stored grain pests (Ziaee et al., 2014). Exclusive biogenic nanoformulated avermectin obtained from a soil-dwelling actinomycete, Streptomyces avermitilis, and semi-bio-nanoformulation have also shown more than 80% insecticidal effects on the cabbage moth, Plutella xylostella (Wang et al., 2018).

Another entirely organic nanoinsecticide is tried against cotton leafworm, Spodoptera littoralis, by encapsulating citronella essential oil with chitosan nanoparticle-cellulose nanofiber systems (CSNPs/CNF). By encapsulating the bioactive ingredient, it is protected from environmental degradation. However, in absence of encapsulations, the active compounds were completely lost on or after 6 hours, but in presence of encapsulation, its functionality lasts for 2 weeks. Furthermore, both nanoformulations, particularly the CSNPs/CNF encapsulated formulation, are more effective and delay larval and pupal development, adult longevity, and fecundity (Ibrahim et al., 2022)

Therefore, it can be presumed that an entirely natural bio-nanoinsecticide can be as effective as conventional hybrid bio-nanoinsecticides in terms of their controlled release ability, environmental stability, and insecticidal efficacy. Moreover, the entirely natural bio-nanoinsecticide is more target-specific and thereby causes the least negligible residual effect and environmental toxicity. Though there are only a few reports on fully bio-nanoinsecticides at present, the increase in their number is just a matter of time.

Conclusion

Analyzing the described publications and considering the facts and figures, it can be concluded that the fully organic bio-nanoinsecticides in which the ingredients of nanoinsecticides (AI and carrier molecule) come from biological sources are the most effective nanoinsecticides for pest management. It is environmentally friendly and hence more sustainable than others. Nevertheless, as of now, our choices of “biologicals” and bio-nanocarriers are restricted due to the available known resources, which, in turn, confine the number of compatible combinations of prolific bio-bio-nanoinsecticide formulations. Therefore, it is essential to amplify our exploration of “biologicals”, biogenic nanoparticles, and biopolymers and inventory them. Appropriate identification and characterization of these compounds are needed to assess the potential of these compounds to be a future contributor to bio-nanoinsecticides. Further research and investigation into the biogenic nanoparticles in agricultural croplands is also relatively new and thus demands further research and investigation.

Comprehensive exploration is therefore needed in the next few years and should incorporate:

1. Identification and characterization of “biologicals” and bioactivity screening,

2. Identification of new biogenic nanoparticles of natural origin

3. Technological advancement for the quantitative generation of biogenic nanoparticles

4. Fine optimal compatibility screening for active “biologicals” and greenly synthesized nanoparticles/biogenic nanoparticles/bio-nanopolymers, and

5. Toxicity evaluation of plants and human health

6. Sustainable environmental risk assessment.
