KLHL1 Controls CaV3.2 Expression in DRG Neurons and Mechanical Sensitivity to Pain

Dorsal root ganglion (DRG) neurons process pain signaling through specialized nociceptors located in their peripheral endings. It has long been established low voltage-activated (LVA) Ca_V3.2 calcium channels control neuronal excitability during sensory perception in these neurons. Silencing Ca_V3.2 activity with antisense RNA or genetic ablation results in anti-nociceptive, anti-hyperalgesic and anti-allodynic effects. Ca_V3.2 channels are regulated by many proteins (Weiss and Zamponi, 2017), including KLHL1, a neuronal actin-binding protein that stabilizes channel activity by recycling it back to the plasma membrane through the recycling endosome. We explored whether manipulation of KLHL1 levels and thereby function as a Ca_V3.2 modifier can modulate DRG excitability and mechanical pain transmission or sensitivity to pain. We first assessed the mechanical sensitivity threshold and DRG properties in the KLHL1 KO mouse model. KO DRG neurons exhibited smaller T-type current density compared to WT without significant changes in voltage dependence, as expected in the absence of its modulator. Western blot analysis confirmed Ca_V3.2 but not Ca_V3.1, Ca_V3.3, Ca_V2.1, or Ca_V2.2 protein levels were significantly decreased; and reduced neuron excitability and decreased pain sensitivity were also found in the KLHL1 KO model. Analogously, transient down-regulation of KLHL1 levels in WT mice with viral delivery of anti-KLHL1 shRNA also resulted in decreased pain sensitivity. These two experimental approaches confirm KLHL1 as a physiological modulator of excitability and pain sensitivity, providing a novel target to control peripheral pain.

Introduction

Nociceptive pathways are generally activated in response to noxious stimuli as protection from injury, yet chronic pain induces allodynia and hyperalgesia due to primary dysfunction, usually caused by nerve injury. Long-term changes triggered by nerve injury include altered gene expression in Dorsal root ganglion (DRG) and the spinal cord (Choi et al., 2007; Basbaum et al., 2009; Bourinet et al., 2016). The role of low voltage-activated (LVA) calcium Ca_V3.2 channels in pain sensation is well established; they contribute to nociception by lowering the threshold for action potential (AP) in DRG neurons (White et al., 1989; Cain and Snutch, 2010; Todorovic and Jevtovic-Todorovic, 2011). LVA channels (also called T-type) are comprised of Ca_V3.1, Ca_V3.2, and Ca_V3.3 channels; their biophysical properties such as the relatively small depolarization required for their activation, and window currents confer them the capability to act as burst firing modulators (Cribbs et al., 1998; Perez-Reyes et al., 1998; Bourinet et al., 2016).

T-type currents are up-regulated in various models of chronic pain, such as chronic constriction injury, spinal nerve ligation, STZ-diabetes, the carregin pain model, and drug-induced diabetic neuropathy (Jagodic et al., 2007, 2008; Melrose et al., 2007; Takahashi et al., 2010; Marger et al., 2011; Watanabe et al., 2015; Li et al., 2017; Bellampalli et al., 2019). Ca_V3.2 can be upregulated by increased expression of USP5, which interacts with and de-ubiquitinates these channels thereby decreasing their degradation (Garcia-Caballero et al., 2014; Stemkowski et al., 2016). Moreover, treatment with T-type channel blockers results in reduced mechanical hyperalgesia in the spinal nerve ligation model (Dogrul et al., 2003; Chen et al., 2015). Similarly, manipulation of the expression levels of Ca_V3.2, as in the KO mouse model (Choi et al., 2007) or by selective knockdown in DRG neurons using antisense (Bourinet et al., 2005) results in attenuated pain responses, confirming the critical role of Ca_V3.2 in pain transmission.

Ca_V3.2 are therefore viable pharmacological targets to control pain (Dogrul et al., 2003; Flatters and Bennett, 2004; Okubo et al., 2011; Chen et al., 2015). An alternative strategy to modulate channel function is to target auxiliary or modulatory subunits to indirectly affect channel activity or trafficking to the plasma membrane (Weiss and Zamponi, 2019). This approach has been highly successful in the modulation of high-voltage-activated (HVA) channels by targeting of the α₂δ subunit. This auxiliary subunit enhances Ca²⁺ currents in part by modulating Ca_V trafficking, altering their density and kinetics (Davies et al., 2007; Hendrich et al., 2008) and is one of the molecular targets of the antiepileptic and analgesic drug Gabapentin (GBP; Gee et al., 1996; Suárez et al., 2005; Martins et al., 2015). Consequently, treatment with GBP results in a significant decrease of N-type Ca_V2.2 currents due to a reduction of functional channels at the plasma membrane (Vega-Hernández and Felix, 2002; Hendrich et al., 2008).

Here, we targeted a protein that affects Ca_V3.2 trafficking to modulate its function and excitability in DRG neurons. Our target is Kelch-like 1 (KLHL1), a structural protein that binds to Ca_V3.2 and actin and alters Ca_V3.2 function. KLHL1’s primary effect on Ca_V3.2 recycle it back to the plasma membrane via direct association with the channel and actin filaments, thus preventing its degradation; this process is mediated through increased recycling endosome-mediated channel insertion in the plasma membrane and results in an increased number of functional channels and ultimately increased Ca_V3.2-mediated T-type current density. KLHL1 also remains bound to Cav3.2 and F-actin at the plasma membrane, altering the channel kinetics of deactivation (Aromolaran et al., 2009, 2010, 2012). Here, we show that the expression levels of the structural protein KLHL1 can be altered to manipulate DRG neuron excitability and mechanical sensitivity in mice.

Materials and Methods

Cell Culture

DRG cultures were obtained as described (Gandini et al., 2014). In brief, DRG were dissected from C57BL/6 mice (P6-P10) in Advanced DMEM Medium (Gibco) supplemented with 20% of Fetal Bovine Serum (Gibco), washed, and digested for 40 min at 37°C with a mixture of trypsin type XI (1.25 mg/ml, Sigma) and collagenase IV (1.25 mg/ml, Sigma), followed by mechanical dissociation. Cells were spun down at 1,000 g for 5 min at 10°C and re-suspended in Advanced DMEM medium supplemented with 10% FBS. Cells were plated onto L-lysine-covered coverslips (12 mm, Carolina Biological Supply, Burlington, NC, USA) and kept in a 5% CO₂ humidified atmosphere at 37°C. The Patch-clamp recordings were made 24 h after dissociation (1 day in vitro, 1 DIV).

Biochemistry

Western blots. Crude protein was extracted from at least three WT or KLHL1 KO DRG ganglia pooled together and separated by SDS-PAGE electrophoresis (8%, at 100 V for 90 min) for transfer to a PVDF membrane (BioRad). Membranes were washed in Tris-buffered saline (TBS) supplemented with 0.05% Tween 20 (TBST) and blocked for 1 h in TBST-5% milk at room temperature (Florio et al., 1992). Membranes were incubated at 4°C overnight with primary antibodies against Ca_V3.1 (1:1,000, Millipore, CA, USA), Ca_V3.2 (1:2,000, Santa Cruz Biotechnology, Inc., Santa Cruz, CA, USA), Ca_V3.3 (1:1,000, Alomone), Ca_V2.1 (1:1,000, Alomone) or Ca_V2.2 (1:1,000, Alomone). GAPDH (Santa Cruz Biotechnology, Inc., Santa Cruz, CA, USA; 1:1,000) was used as an internal reference to normalize for protein loading. Horseradish peroxidase (HRP)-conjugated secondary antibodies were used for detection (1:2,000; Pierce) with Supersignal Femto (Pierce, IL, USA) using a ChemiDoc MP System (BioRad).

Immunoprecipitation. Crude membrane preparations were obtained using standard protocols (Aromolaran et al., 2010); a fraction of the sample was reserved prior to immunoprecipitation (input, 30× less concentrated than the IP samples) and the remaining volume was divided up for all experiments. Samples were processed by addition of primary antibodies (Ca_V3.2, 1:40 and KLHL1, 1:40, Santa Cruz Biotechnology, or IgG, 1:40, Alpha Diagnostic Intl. Inc., San Antonio, TX, USA) and incubated for 1–3 h at 4°C followed by overnight incubation with protein A/G agarose beads (Biovision, Mountain View, CA, USA) on a shaking plate at 4°C. Samples were washed and processed for western blot analysis as described.

Electrophysiology

Whole-cell patch-clamp recordings were obtained at 1DIV using an Axopatch 200B amplifier (Axon Instruments, Union City, CA, USA) at room temperature. Data were acquired at 1 kHz and digitized at 20 kHz. Calcium currents were recorded using an external solution containing (in mM) 5 CaCl₂, 140 TEA-Cl, 10 HEPES and 10 glucose (pH 7.4, 300 mosmol/kgH₂O). The intracellular solution contained (in mM): 108 CsMeSO₃, 4 MgCl₂, 10 Cs-EGTA, 9 HEPES, 5 ATP-Mg, 1 GTP-Li and 15 phosphocreatine-Tris. Pipette resistances were 3.0–4.0 MΩ. Series resistance (Rs) was compensated online (>80%), only cells with Rs <15 MΩ were used. Data were acquired and analyzed using pClamp10 software (Molecular Devices).

Total currents were elicited using depolarizing steps (test potentials, V_T) from −60 to +60 mV (ΔV = 10 mV) from a holding potential (V_H) of −90 mV. HVA currents were obtained from V_H = −50 mV to V_T = −60 to +60 mV (ΔV = 10 mV). HVA currents traces were subtracted from the total current traces at each V_H to obtain the LVA current component.

APs were measured using an external solution containing (in mM): 135 NaCl, 5 KCl, 2 CaCl₂, 1 MgCl₂, 10 HEPES, 10 glucose; the intracellular solution composition was (in mM) 110 K-gluconate, 20 KCl, 2 MgCl₂, 1 EGTA, 10 HEPES, 2 ATP-Mg, 0.25 GTP-Li and 10 phosphocreatine-Tris. The APs were triggered by four consecutive 1.5-s-long current depolarizing ramps at 20, 40, 60, or 80 pA/s. Rheobase was determined as the minimum current necessary to elicit an AP from a membrane potential of −75 mV.

Viral Production

Adeno-associated viral constructs containing small hairpin RNAs (shRNA) targeting KLHL1 were designed; shKLHL1-AAV contained two sequences from the mouse gene (NM_053105.2) spanning nucleotides (nt) 1,812–1,830 and 2,121–2,139 (GGCCAGTGATGATGTAAAT and GGGAATGGATAATAACAAA, respectively); these segments were synthesized and cloned into an AAV shuttle vector pZacf-U6-Luc-Zsgreen (U Penn Gene Therapy Core) as described before (Zolotukhin et al., 1999; Sarkey et al., 2011). These shuttle plasmids, along with pHelper and pAAV2/8 were transfected into AAV-293 cells using the Virapack transfection kit (Stratagene) and purified by an iodixanol step gradient as described before (Pradhan et al., 2010). Titer was assessed by serial dilutions of virus and infection of HT1080 cells. AAV particle titer was quantified by SDS-PAGE (Zolotukhin et al., 1999; Kohlbrenner et al., 2012). EGFP-AAV was generated in house by the same method.

AAV Injections

All animal protocols used in this study were reviewed and approved by an independent Institutional Animal Care and Use Committee (IACUC). Hind paws of 13- weeks old WT male mice were injected with a control virus (EGFP-AAV, shCtrl,) or shKLHL1-AAV under blind conditions. The summary of the experimental conditions used is depicted in Figure 6A. The initial trial (n = 7) received 4.2 × 10¹⁰ shKLHL1-AAV or 5.5 × 10¹⁰ EGP-AAV vector genomes. The second trial (n = 11) received a high titer, 9.0 × 10¹⁰ shKLHL1-AAV or EGFP-AAV vector genomes over 2 days. Viruses were diluted such that each individual injection volume was 5 μl total. Mice were given pain medication (Buprenorphine, 0.05 mg/kg, s.c.) for the first 2 days following the last injection and were allowed to recover in observation for 4–5 days while checked for any limp or lameness; all mice were confirmed healthy after injections.

FIGURE 1

Figure 1. Ca_V3.2 and KLHL1 interact in mice dorsal root ganglion (DRG) ganglia. Co-immunoprecipitation of Ca_V3.2 and KLHL1 using antibodies against Ca_V3.2 (top) and KLHL1 (bottom).

FIGURE 2

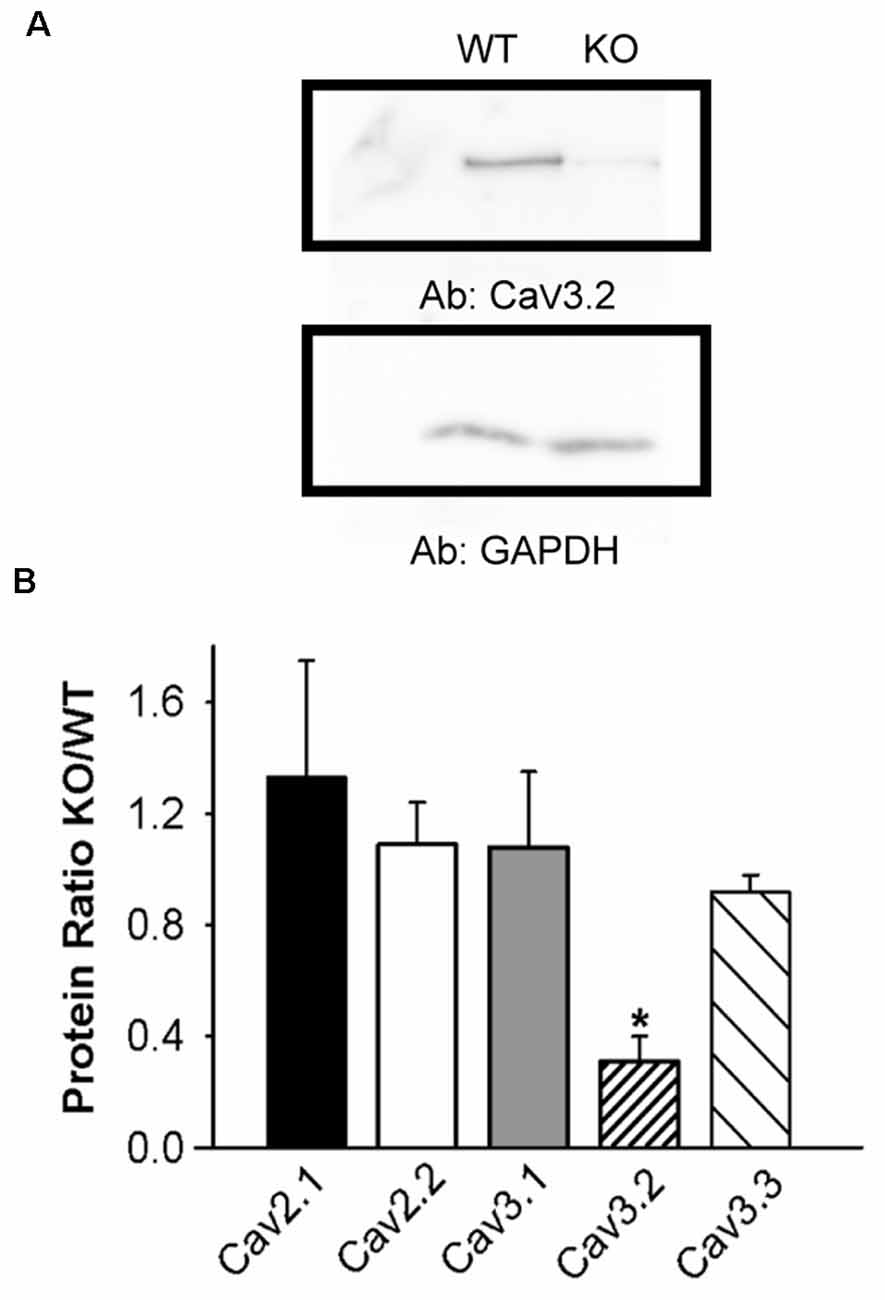

Figure 2. Lower Ca_V3.2 expression in KLHL1 KO DRG. (A) Western Blot example of Ca_V3.2 expression. GAPDH was used as loading control. (B) Densitometric quantification of voltage-gated calcium channel protein levels by Western Blot analysis of high-voltage-activated (HVA; Ca_V2.1 and Ca_V2.2) and low voltage-activated (LVA; T-type; Ca_V3.1, Ca_V3.2, and Ca_V3.3) α subunits. Protein levels are expressed as KO/WT ratio ± SEM (n = 3; Ca_V2.1 and Ca_V3.2, n = 4; *p < 0.05, student’s t-test).

FIGURE 3

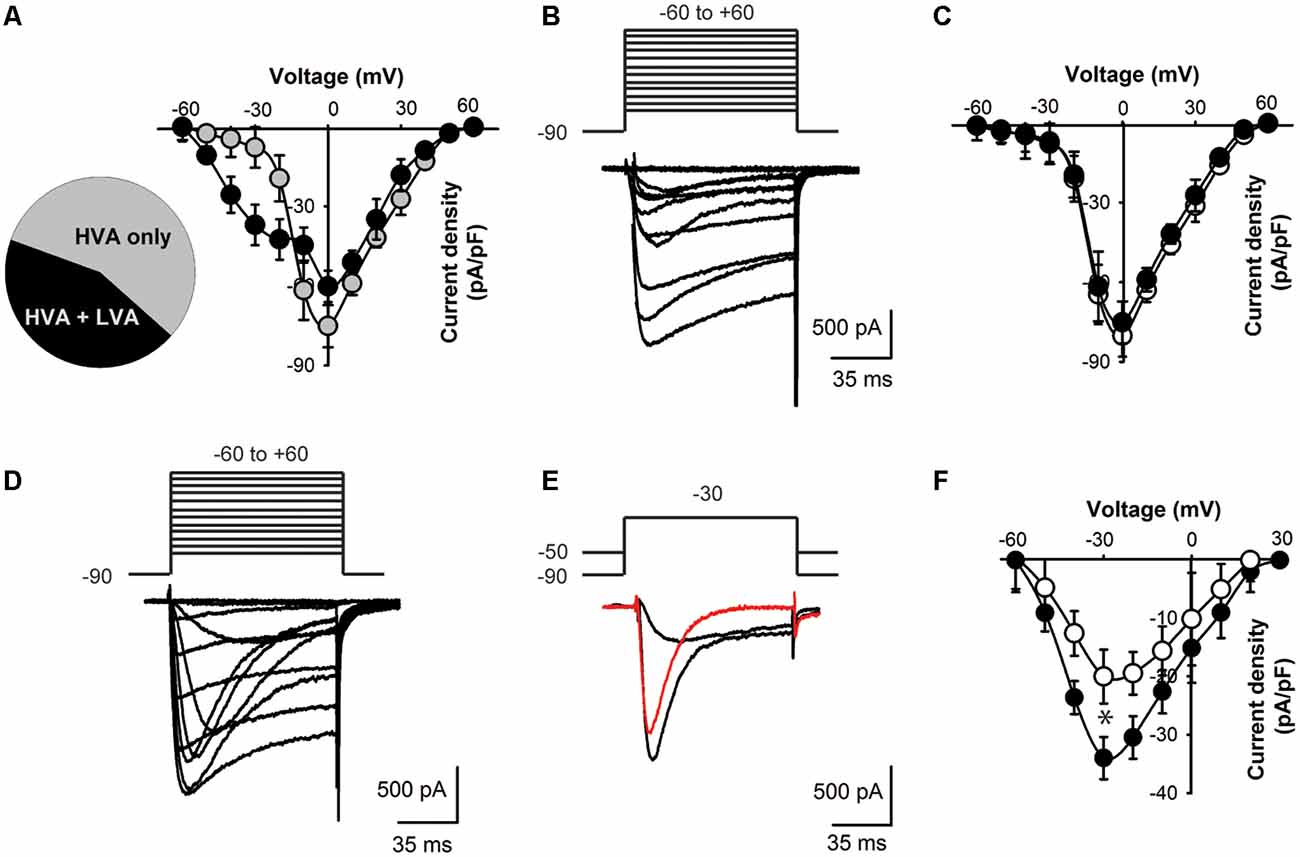

Figure 3. Lower T-type current density in KLHL1 KO DRG neurons. (A) Distribution of current profiles found in WT DRG neurons and their I–V relationships: 56% neurons expressed only HVA currents (black symbols) and 44% expressed a mixture of LVA + HVA currents (gray symbols). (B) Representative Ca²⁺ currents recorded from a small DRG neuron (23 pF) expressing HVA currents only; the voltage protocol is shown above the traces (mV). (C) I–V curves for HVA-only currents recorded from WT (black) and KO neurons (white), V_H = −90 mV. (D) Representative traces of a neuron displaying both LVA and HVA Ca²⁺ currents. (E) Representative LVA current trace (red) obtained by current subtraction. (F) I-V curves of the subtracted LVA component for WT (black) and KO (white; n = 10, 11; *p < 0.004).

FIGURE 4

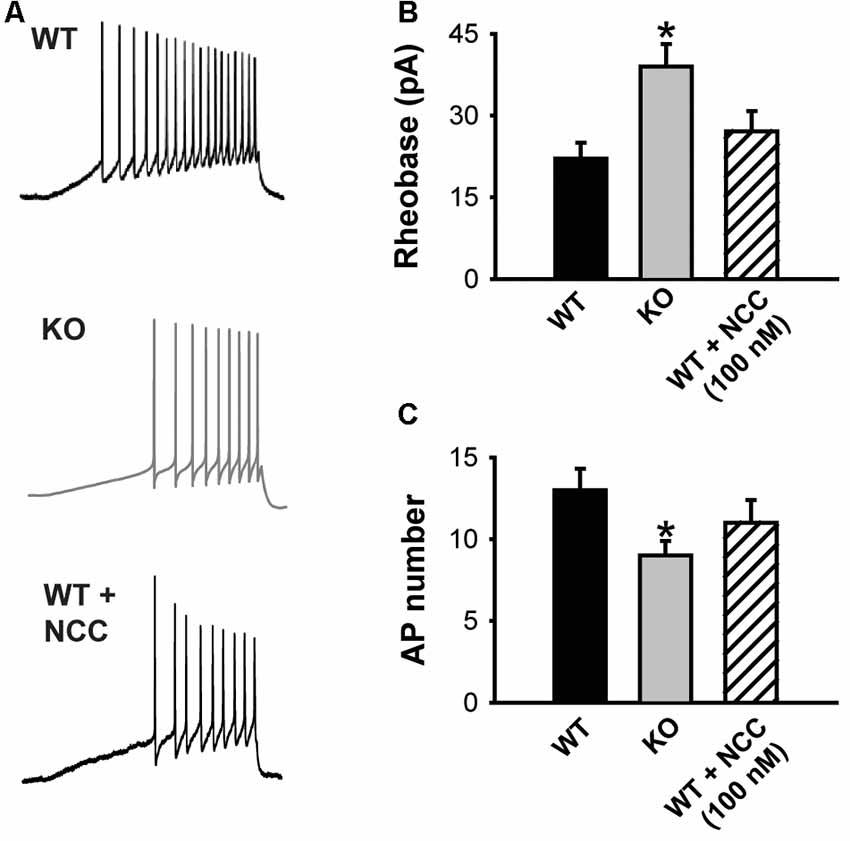

Figure 4. The absence of KLHL1 alters DRG neuron excitability. (A) Examples of action potential (AP) trains generated by a depolarizing ramp rate of 60 pA/s in WT, KLHL1-KO and WT + 100 nM of NCC 55–0396 DRG neurons. (B) Rheobase values. (C) Average number of APs (WT, n = 10, KO, n = 11, WT + NCC, n = 7; *p = 0.003).

FIGURE 5

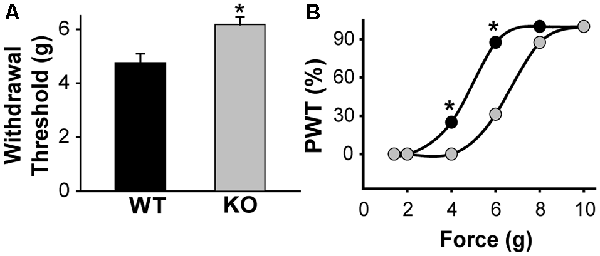

Figure 5. KLHL1 KO mice are less sensitive to mechanical stimulation. (A) Paw withdrawal threshold in response to mechanical stimulation, expressed as g of force (n = 20, WT and KO; *p < 0.05). (B) Data expressed as cumulative % of the population of mice responding at a given force; PWT, paw withdrawal threshold (*p < 0.05, non-parametrical Kolmogorov–Smirnov test).

FIGURE 6

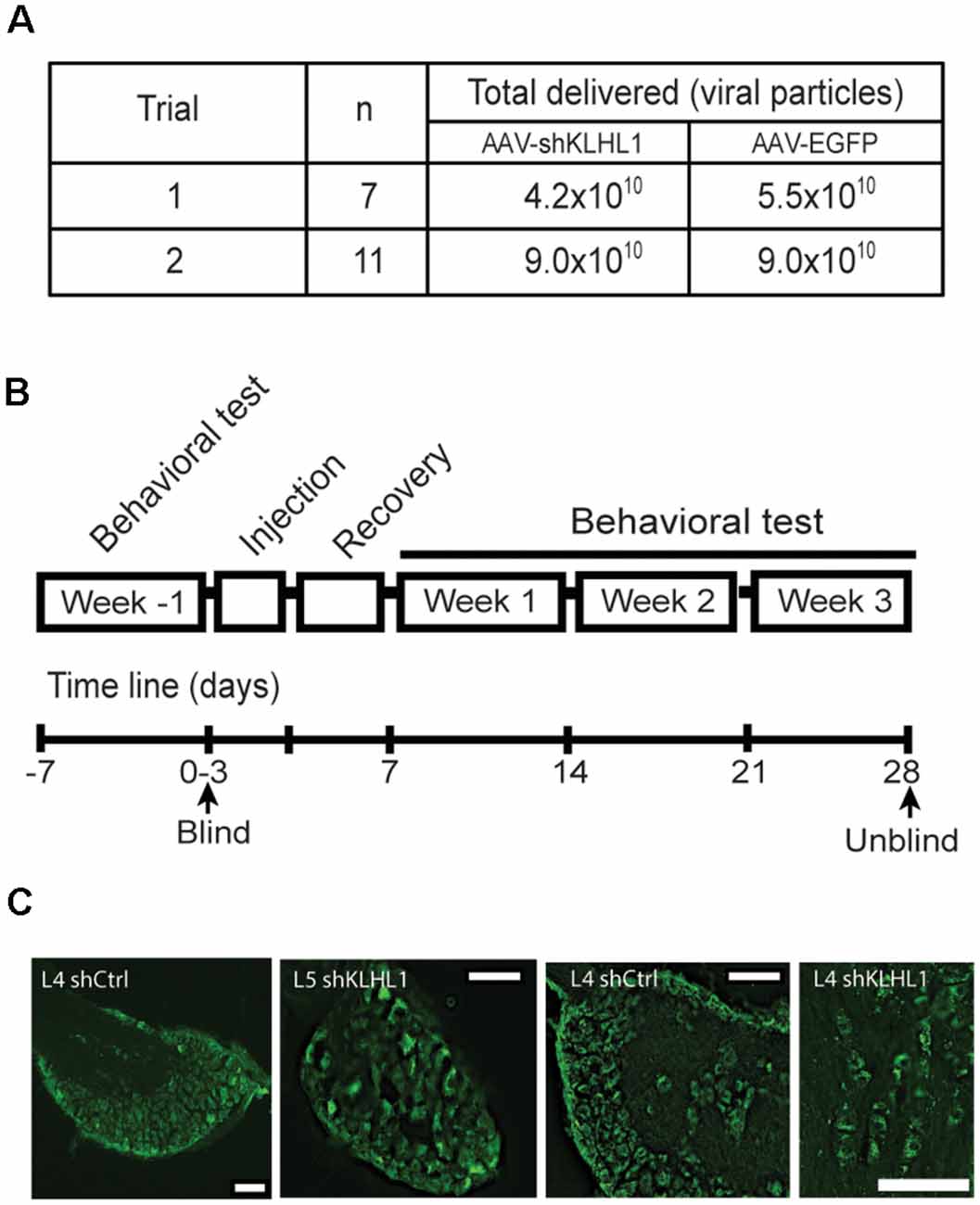

Figure 6. KLHL1 knockdown with shKLHL1-AAV leads to Ca_V3.2 down-regulation. (A) Experimental conditions used. (B) Timeline of behavioral experiments. (C) Example of DRG slices from mouse injected with control EGFP-AAV and shKLHL1-EGFP AAV; size bar, 100 μM.

Behavioral tests were performed twice a week (and averaged) for a total of 3 weeks after injections. Baseline withdrawal threshold responses were determined for 1 week before injections.

% Paw-withdrawal threshold was reported as the % of mice in the total population displaying withdrawal thresholds at all forces tested.

Von Frey Filament Tests

Hind paw withdrawal experiments were carried out in male mice ~16 weeks old; animals had access to food and water ad libitum, all experiments followed IACUC-approved standard procedures. Only males were used in the first study because our preliminary data show male KLHL1 KO mice display a clear phenotype in contrast with females, where differences are more difficult to establish if present. Mice were placed on a wire mesh-bottom testing apparatus and allowed to acclimate for 15 min before assessing mechanical allodynia. Measurements were recorded by applying von Frey filaments (North Coast, Morgan Hill, CA, USA) ranging from 1.4 to 10 g to the plantar surface of the mouse hind paw; each filament was assessed for a total of five consecutive times. Hind paw withdrawal response times of less than 2 s were considered positive. The withdrawal threshold was calculated as the filament force at which each mouse had a positive response more than three times out of five (Chaplan et al., 1994; Bonin et al., 2014).

DRG Slices

Mice were anesthetized with isoflurane before euthanasia; DRG were excised and fixed with 4% paraformaldehyde for 4 h, cryoprotected overnight (30% sucrose in PBS), embedded in OCT (Tissue Tek, Fisher Scientific, Hampton, NH, USA), and frozen with dry ice. 30 μm-thick sections were cut using a cryostat and mounted onto Superfrost Plus slides (Fisher Scientific, Hampton, NH, USA). Slides were washed three times with PBS-glycine, dried and protected with coverslips. Fluorescence images were captured using IX80 Olympus inverted epifluorescence microscope using a 10× objective and analyzed using deconvolution.

Statistical Analysis

Statistical analysis was performed with SigmaPlot 11 Software. Statistical significance was determined as P < 0.05, using student’s t-test or Kolmogorov–Smirnov non-parametric analysis (Kolmogorov–Smirnov test). Results are presented as mean ± SEM.

Results

KLHL1 Is Expressed and Interacts With Ca_V3.2 in DRG Neurons

Co-immunoprecipitation of Ca_V3.2 and KLHL1 is detected in overexpression experiments in HEK-293 cells and in whole brain samples, demonstrating direct interaction between these two proteins (Aromolaran et al., 2009, 2010, 2012). Figure 1 shows an example of pull-down experiments from DRG protein extracts using Ca_V3.2 (top) or KLHL1 antibodies (bottom, IgG was used as negative control). These data confirm the presence of KLHL1 in DRG neurons and its interaction with Ca_V3.2 T-type channels.

KLHL1 KO DRG Neurons Exhibit Low Ca_V3.2 Channel Expression and Reduced Excitability

We next assessed the effect of KLHL1 deletion on Ca_V expression in DRG neurons. HVA channel expression was statistically similar in both KLHL1 KO and WT mice, as seen in Figure 2, which shows the KO/WT protein ratio for Ca_V2.1 (1.3 ± 0.4, n = 4) and Ca_V2.2 (1.0 ± 0.1, n = 3). In contrast, Ca_V3.2 expression was statistically lower among LVA channels (0.3 ± 0.09, n = 4) in the KLHL1 KO tissue (p = 0.04) whereas Ca_V3.1 and Ca_V3.3 expression remained constant (1.0 ± 0.2, n = 3; and 0.9 ± 0.06, n = 4 respectively). Thus, the absence of KLHL1 results in decreased Ca_V3.2 protein expression, which remains uncompensated for in the adult KLHL1 KO mice DRG.

To assess the physiological impact of lower Ca_V3.2 expression in the absence of KLHL1 we analyzed Ca²⁺ current densities in DRG neurons. We found two neuronal populations according to the Ca²⁺ currents they expressed (Figure 3A): 56% of all WT neurons elicited only HVA currents (capacitance = 23.0 ± 3.1 pF, n = 14; gray symbols); the remaining cells (44%) expressed both HVA and LVA currents. The latter group had an average capacitance of 18 pF ± 2.4 pF (black symbols, n = 11); this value was not statistically different from HVA-only neurons (p = 0.1).

Overall the HVA-only population was identical between WT and KLHL1 KO neurons (56% and 53% of the total population, respectively), with current densities of 45.1 ± 5.9 and 50.1 ± 7.9 pA/pF (n = 10 and 13 (WT, KO); p = 0.1). Figure 3B depicts an example of a recording from a neuron displaying HVA currents-only. Figure 3C shows the I-V curves for WT (black circles) and KO HVA-only neurons (white circles; n = 10, 13; p = 0.2).

Neurons expressing LVA+HVA currents represented 44% of the total population in WT vs. 47% in KO neurons (p = 0.1). Figure 3D depicts an example of HVA+LVA currents; the rapidly inactivating LVA current component is noticeable at lower voltages. Figure 3E shows an example of current traces recorded at V_T = −30 mV from V_H = −90 and from −50 mV, respectively, which when subtracted yield the LVA current component (red trace). Figure 3F shows the LVA-only current I–V curves from WT and KO DRGs. The peak LVA current was −37.0 ± 3.6 pA/pF (n = 11) in WT compared to −23.0 ± 4.6 pA/pF (n = 10) in the KO (at −30 mV; p = 0.004). We studied small neurons with capacitances ranging from 18 to 28 pF to ensure only nociceptor neurons were analyzed (Andrade et al., 2010), given that D-Hair cells also display a high density of T-type currents (Dubreuil et al., 2004; Coste et al., 2007; Bernal Sierra et al., 2017), but their capacitance ranges from ~39 to 65 pA (Coste et al., 2007).

The impact of decreased Ca_V3.2 channel expression on DRG neuron excitability was assessed using current clamp experiments. Figure 4A shows representative traces of the APs elicited by a depolarizing current ramp delivered at 60 pA/s. The KLHL1 KO neuron rheobase was significantly larger (39.0 ± 4.1 pA) than WT (22.1 ± 2.9 pA; n = 9, 11, p = 0.03; Figure 4B), in line with a reduction in LVA calcium channel expression. This increase was accompanied by a concomitant reduction in action potential number (AP; 9.2 ± 1.1, n = 9) compared to WT (13.1 ± 1.4, n = 11, p = 0.03; Figure 4C). This rheobase difference was abolished by application of a low dose (100 nM) of NCC 55–0396 (NCC) to partially block T-type channels in WT neurons (27.2 ± 3.7 pA, n = 8, p = 0.003).

KLHL1 Mice Display Increased Mechanical Sensitivity Threshold

Our data shows that Ca_V3.2 expression is down-regulated in the absence of KLHL1; KO DRG neurons display significantly lower neuronal excitability, which may, in turn, alter pain sensation. We assessed the responses to mechanical stimulation by measuring paw withdrawal thresholds in WT and KLHL1 KO mice using von Frey filaments. KLHL1 KO mice displayed significantly higher withdrawal threshold (6.1 ± 0.2 g, n = 20) compared to WT mice (4.7 ± 0.3 g, n = 20; p = 0.009; Figure 5A). Non-parametric analysis of paw withdrawal threshold responses within the mice population demonstrates statistical differences at 4 and 6 g of force (p < 0.05; Figure 5B). Thus, decreased Ca_V3.2 expression in KLHL1 KO DRG neurons results in decreased excitability and altered pain sensitivity, confirming KLHL1 is a physiological modulator of Ca_V3.2 in sensory neurons.

Modulation of KLHL1 Expression Levels Alters Mechanical Sensitivity in WT Mice

Induction of excitability changes by the manipulation of KLHL1 levels could represent a novel method in the regulation of Cav3.2 expression. Therefore, we tested whether knockdown of KLHL1 expression alters mechanical sensitivity in WT mice by injecting adeno-associated viral particles (AAV) containing shRNA designed against KLHL1 into the mice hind paws (US Patent 10,047,377).

Preliminary data from neuronal cultures indicated that titers ~5.0 × 10¹⁰ shRNA-containing viral particles appeared to be less efficient in vitro. Therefore, we carried out two blind trials assessing the effect of two titer viral loads (4.2 × 10¹⁰ vs. 9.0 × 10¹⁰ viral particles; Figure 6A). All trials were performed following the timeline showed in Figure 6B and described in “Materials and Methods” section.

Figure 6C shows representative images of DRG slices obtained from WT mice injected with EGFP-AAV or shKLHL1-AAV, confirming successful delivery and uptake of the AAV. Ca_V3.2 and KLHL1 levels from protein samples pooled from three L4 DRGs ipsilateral to the shKLHL1-AAV-injected paw were analyzed by western blot (sh). L4 DRG ipsilateral to the EGFP-AAV injection were also collected as a negative control (Ctrl; Liu et al., 2019).

Baseline behavioral tests were performed a week prior to injection in all mice (untreated). Blinded experimental measurements started 4–5 days after AAV injection and were performed 2–3 times weekly for 3 weeks thereafter (Figure 7). As seen in all figures, baseline withdrawal threshold values were indistinguishable in mice injected with either EGFP-AAV or shKLHL1-AAV at both titers, trial 1: EGFP-AAV, 5.2 g vs. 5.0 g for shKLHL1-AAV2; n = 7, p = 0.2; trial 2: EGFP-AAV, 5.2 g vs. 5.5 g in shKLHL1-AAV; n = 11, p = 0.2).

FIGURE 7

Figure 7. KLHL1 knockdown decreases mechanical sensitivity. (A) Average withdrawal threshold response to mechanical stimulation after injection with EGFP-AAV (black) or shKLHL1-AAV (red) at low titer of shKLHL1 or EGFP-AAV. (B) The average response from delivery of high titer shKLHL1-AAV or EGFP-AAV virus, *p ≤ 0.006.

AAV injections caused some pain and inflammation, as expected (Ishihara et al., 2012), resulting in lower threshold values after injection compared with untreated values, as seen after injection in trial 1 at weeks 1–3 compared to untreated. Overall, the doses of shKLHL1 delivered in trial 1 exerted no effect on mechanical sensitivity, as seen in Figure 7A; the individual weekly averages were: week 1: EGFP-AAV, 4.4 ± 0.4 g vs. 4.1 ± 0.3 g for shKLHL1-AAV-2 (n = 7, p = 0.2); week 2: EGFP-AAV, 4.0 ± 0.2 g vs. 4.2 ± 0.2 g for shKLHL1-AAV-2 (n = 7, p = 0.3); and week 3: EGFP-AAV = 4.2 ± 0.2 g vs. 4.7 ± 0.1 g in shKLHL1-AAV-2 (n = 7, p = 0.056).

The dose delivered in trial 2 (~9.0 × 10¹⁰ viral particles, Figure 7B) induced significant differences in mechanical threshold values in shKLHL1-injected mice after 1 week. Unlike trial 1 and trial 2 control conditions, mechanical thresholds in shKLHL1-injected mice did not decrease compared to untreated conditions and they were significantly higher than their corresponding controls at all times tested. Week 1: EGFP-AAV, 3.6 ± 0.3 g vs. 4.6 ± 0.5 g for shKLHL1-AAV-1 (n = 11, p = 0.006); week 2: EGFP-AAV, 3.8 ± 0.5 g vs. 5.8 ± 0.3 g for shKLHL1-AAV-1 (n = 11, p = 0.006); and week 3: EGFP-AAV, 3.5 ± 0.4 g vs. 5.6 ± 0.5 g for shKLHL1-AAV-1 (n = 11, p = 0.001).

Further analysis is shown in Figure 8 where trial 2 data is shown as the percentage of the mice population displaying paw withdrawal threshold (PWT %) at a given Von Frey filament force value. There are no significant differences in baseline values (A) or after the first week after injection (B) between the experimental and control-treated mice populations (Kolmogorov–Smirnov test). However, 69% of EGFP-AAV injected mice responded to the 4 g von Frey filament stimulus 2 weeks after injection (C) in comparison with only 34% in the shKLHL1-AAV injected population (p < 0.05). This difference was more pronounced after 3 weeks of injection (D), with changes between the two populations at 4 g (35% shKLHL1-AAV vs. 64% EGFP-AAV) and 2 g (0% shKLHL1-AAV vs. 24% EGFP-AAV). Note that all mice were more sensitive after injections as a result of the AAV injections (compare to untreated).

FIGURE 8

Figure 8. Cumulative response in the high dose trial. Data from trial 2 expressed as the cumulative response in the mice population after a given stimulus. (A) Untreated mice. (B–D) Responses after 1, 2 and 3 weeks of EGFP-AAV (black symbols) and shKLHL1-AAV (red symbols) injection, *p < 0.05.

Discussion

T-type Ca_V3.2 channel up-regulation is associated with diabetic neuropathy (Jagodic et al., 2007), neuropathic pain (Choi et al., 2016) and irritable bowel syndrome (Marger et al., 2011). Similarly, increased Ca_V3.2 function is found in chemotherapy-induced toxic neuropathies, and their inhibition with T-type calcium channels blockers decreases pain sensitivity (Flatters and Bennett, 2004; Okubo et al., 2011; Li et al., 2017). Also, paracetamol fails to induce analgesic effects in Ca_V3.2 knockout mice, suggesting these channels are necessary for analgesic actions (Kerckhove et al., 2014).

KLHL1 protein is a constitutive modulator of Ca_V3.2 channels, and here we show that in its absence, KLHL1 KO mice elicit increased mechanical sensitivity threshold (decreased sensitivity to pain). Thus, KLHL1 could have significant potential as a molecular target to modulate neuropathic pain, akin to the effect of the auxiliary subunit α₂δ’s role on HVA channels (Field et al., 2006; Nguyen et al., 2009). KLHL1 functions in an analogous manner as the α₂δ subunit, which is targeted by GBP and similar drugs resulting in a significant decrease of Ca_V2.2 currents in part by a reduction of functional channels at the plasma membrane (Vega-Hernández and Felix, 2002; Field et al., 2006; Hendrich et al., 2008; Aromolaran et al., 2009, 2010, 2012; Martínez-Hernández et al., 2011).

KLHL1 KO neurons displayed decreased T-type calcium current density due to the down-regulation of Ca_V3.2, they also displayed decreased DRG neuron excitability, in line with the absence of KLHL1. Partial blockade of T-type channels with 100 nM NCC 55–0396 in WT neurons reduced their excitability to a comparable level to that of the KO DRGs, suggesting T-type channel down-regulation is solely responsible for the decrease in excitability.

Similar to other studies (Shin et al., 2003; Wang et al., 2015), we found Ca_V3.1 expression is detectable in DRG neurons from mice (in contrast to studies performed in rats, which report Ca_V3.1 is absent in DRG neurons from that species (Talley et al., 1999; Wen et al., 2006), however, it is well established that Ca_V3.1 does not have a functional role in DRGs, and accordingly, RNAseq data, Allen Atlas data and our own ICC data (not shown) demonstrate Ca_V3.1 expression in DRG is much lower in mice (if present) compared to Ca_V3.2. The fact that Ca_V3.1 is not physiologically relevant in DRG neurons possibly explains our observation that this channel type was not upregulated in KLHL1 KO DRG neurons, in contrast with our observations in hippocampal neurons from KLHL1 KO (Perissinotti et al., 2014). Similarly, KLHL1 also interacts with Ca_V2.1, and their levels were also unaffected in this system (in contrast to KLHL1 KO hippocampal neurons). The cause of this differential regulation is not known yet but may again be because Ca_V2.1 is not physiologically relevant in DRG neurons, thus suggesting tissue-specific modulatory mechanisms are tuned to control the expression of functionally relevant channels and their isoforms differently in central nervous system (CNS) vs. DRG- neurons (Zamponi and Snutch, 2013).

Administration of T-type calcium channels blockers such as mibefradil or ethosuximide via intraperitoneal or paw injection, or chronic intrathecal infusion show reversal of neuropathic pain in rats (Dogrul et al., 2003; Chen et al., 2015); similarly, knockdown of Ca_V3.2 resulted in decreased analgesic effect (Bourinet et al., 2005, 2016). Here, we were able to alter mechanical sensitivity in WT mice by knocking down KLHL1 levels in DRG neurons using anti-KLHL1 shRNA AAV injected into the hind paws of WT mice. We were able to sample the decreased expression of KLHL1 and Ca_V3.2 T-type channels by Western Blot analysis in a sample of three pooled L4 DRGs injected with shKLHL1 AAV compared to an EGFP AAV- injected DRGs sample. von Frey filament tests confirmed that mice whose hind paws were injected with shKLHL1 were less sensitive to pain than those injected with control EGFP-AAV (5.6 ± 0.5 g threshold compared to 3.5 ± 0.4 g, respectively at week 3 of treatment). These values are in line with the majority of data in the literature (Watanabe et al., 2015; Garcia-Caballero et al., 2016; M’Dahoma et al., 2016; Stemkowski et al., 2016; Ogawa et al., 2018); however, two groups have reported withdrawal threshold values around 1 g (Costigan et al., 2009; Chiu et al., 2013; Vicuna et al., 2015; Choi et al., 2016). It is no clear the reason for these differences, given that most studies were done using C57B/6 mice (6–14 weeks old).

In vitro data from neuronal cultures indicated that viral titers of less than 5.0 × 10¹⁰ particles would be less efficient, here we found we found that in vivo delivery of 5.1 × 10¹⁰ shKLHL1-AAV vector genomes was the minimal titer that exerted an effect, although it was only attained after 3 weeks post-treatment. In contrast, delivery of 9.0 × 10¹⁰ vector genomes of virus-containing shKLHL1 sequences was efficacious at increasing the mice’s withdrawal threshold, demonstrating reduced sensitivity to pain. Alternative delivery routes such as subcutaneous or intramuscular injections are also known as viable options, and can be assessed in the future (Towne et al., 2009).

In summary, our study shows that KLHL1 is a physiological modulator Ca_V3.2 expression and function in DRG neurons and that KLHL1 may be a viable molecular target to reduce pain transmission by lowering Ca_V3.2 expression. Modulation of neuronal excitability by alteration of KLHL1 levels and/or function may represent a novel method of treatment for neuropathic disorders and may help facilitate the development of novel therapeutic alternatives.

Data Availability Statement

The raw data supporting the conclusions of this article will be made available by the authors, without undue reservation, to any qualified researcher.

Ethics Statement

All animal studies presented in this study were reviewed and approved by an independent Institutional Animal Care and Use Committee (IACUC) at Loyola University Chicago Stritch School of Medicine.

Author Contributions

EM-H performed electrophysiology, biochemistry and behavioral pain experiments and wrote the article. AZ and EA performed behavioral pain experiments. PP performed electrophysiology experiments. YH and MK generated the KLHL1 KO mouse. JM designed and produced all viral constructs and AAVs. EP-R performed biochemistry and ICC experiments, designed experiments, directed the research, and revised the manuscript.

Funding

This article is based upon work supported by Consejo Nacional de Ciencia y Tecnología (Conacyt) from Mexico Grant no. 238839 (EM-H), the National Science Foundation under Grant no. 1022075 (EP-R), and a James DePauw intramural grant from the Cardiovascular Research Institute at Loyola University Chicago (EP-R). AZ was supported by a STAR fellowship from the Stritch School of Medicine at Loyola University Chicago.

Conflict of Interest

EP-R and JM are authors of the US Patent 10,047,377.

The remaining authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Acknowledgments

We thank Drs. Sarah Burris and Quan Cao for conducting the mouse injections. We thank Dr. Chaitanya Gavini and the Pak laboratory for help with DRG slice experiments. We are grateful to all members of the Piedras laboratory for their suggestions and comments.
