Shuai Lu1,2†
Huaishuang Shen3†
Minjuan Li1Yiming Luo4Hao Sun1†Xian Zhao1Jianming Chen5
Ruifeng Bai6Pengli Han7
Yejun Zha1*
Xieyuan Jiang1,2*- 1Department of Orthopedic Trauma, Beijing Jishuitan Hospital, Capital Medical University, Beijing, China
- 2Beijing Research Institute of Traumatology and Orthopaedics, Beijing, China
- 3Department of Orthopaedic Surgery, First Affiliated Hospital of Soochow University, Suzhou, China
- 4Geriatric Orthopedic, Shenzhen Pingle Orthopedic Hospital (Shenzhen Pingshan Traditional Chinese Medicine Hospital), Shenzhen, China
- 5Department of orthopedic, People’s Hospital of Lingcheng District, Dezhou, China
- 6Department of Clinical Laboratory, Beijing Jishuitan Hospital, Capital Medical University, Beijing, China
- 7Pharmaceutical Department, Zhengzhou Central Hospital Affiliated to Zhengzhou University, Zhengzhou, China
Background: Receptor activator of nuclear factor kappa-B ligand (RANKL) plays a critical role in bone metabolism and the pathogenesis of osteoporotic fractures. This study aims to conduct a bibliometric analysis of global research pertaining to RANKL and osteoporotic fractures to identify key trends, influential studies, and collaborative networks.
Methods: A literature search was conducted to identify articles found in the Web of Science Core Collection database regarding RANKL and osteoporotic fractures from 2001 to 2024. A bibliometric analysis was performed using VOSviewer, CiteSpace, and R 4.3.3 for the publication volume, country and institution contributions, journal impact, author influence, and research hotspots.
Results: A total of 214 articles were analyzed. Publication rates have steadily increased, with a peak of 21 papers in 2020. The U.S., China, and South Korea were the top contributing countries, and leading institutions included Harvard University and Dankook University. The Journal of Bone and Mineral Research, Osteoporosis International, and Bone were the journals of highest impact. At the level of authors, Heiss–Christian published the highest number and Christiansen–Claus had the strongest citation impact (1,368 citations). Research evolved from basic biological mechanisms (2001–2010) through clinical applications (2011–2017) to recent renewed interest in fundamental RANKL biology (2018–2024). Key research hotspots included postmenopausal osteoporosis, bone mineral density, and osteoclast differentiation, with emerging focus on RANKL’s role beyond skeletal metabolism.
Conclusion: This bibliometric analysis provides a comprehensive overview of RANKL research in osteoporotic fractures, highlighting key priorities for future investigation. Future studies should prioritize understanding RANKL’s broader physiological roles, developing better predictive markers, and optimizing personalized treatment strategies.
Introduction
Osteoporotic fractures are acknowledged as a significant public health issue and represent one of the primary causes of morbidity and mortality on a global scale (Shen et al., 2022). They impose a substantial burden on healthcare systems and adversely affect the quality of life for affected individuals (Kumar et al., 2021). Projections indicate that by 2050, the global incidence of these fractures is expected to increase by 310% for men and 240% for women when compared to levels observed in 1990, a trend primarily attributable to aging populations (Wu et al., 2021). The underlying pathogenesis is characterized by an imbalance in bone remodeling, which is marked by excessive bone resorption that surpasses bone formation, ultimately leading to a reduction in bone mass and the deterioration of bone microarchitecture (Armas and Recker, 2012). This dysregulation is governed by intricate cellular and molecular pathways, with osteoclasts playing a crucial role in heightened bone resorption (Chen et al., 2018). At the molecular level, various signaling molecules and cytokines modulate this process, with the RANKL/RANK/OPG axis emerging as a central mediator (Zhang et al., 2022). The development of fragility fractures in osteoporosis is further influenced by a range of risk factors, including age, hormonal status, mechanical loading, and inflammatory mediators, all of which can affect the expression and activity of these molecular regulators (Khosla and Monroe, 2018). A comprehensive understanding of these pathogenic mechanisms is increasingly essential for early diagnosis and intervention, as timely treatment can impede disease progression and mitigate the risk of fractures (LeBoff et al., 2022).
Receptor Activator of Nuclear Factor Kappa-B Ligand (RANKL) is integral to the pathophysiology of osteoporosis and its related fractures (Sakai, 2023). It belongs to the tumor necrosis factor family. RANKL controls how osteoclasts develop and function (Yao et al., 2021). The dysregulation of the RANKL/RANK/osteoprotegerin (OPG) axis, which regulates the balance between osteoclastogenesis and osteoblastogenesis, represents a significant mechanism underlying bone remodeling. An imbalance within this axis results in increased osteoclastic bone resorption and diminished osteoblastic bone formation, both of which are hallmark characteristics of osteoporosis (Zhang et al., 2022). Over the past 2 decades, considerable efforts have been directed toward elucidating the complex interplay between RANKL and osteoporotic fractures (Matsumoto and Endo, 2021; Kim B.-J. et al., 2020). This research has significantly advanced the understanding of bone metabolism and has facilitated the development of novel therapeutic strategies.
Bibliometric analysis serves as a significant methodological approach for evaluating the impact and trends within the existing body of scientific literature, offering a quantitative overview of research developments. (Ball, 2017). This analysis elucidates the evolution of specific research domains, identifies key contributors and collaborative efforts, and indicates potential emerging research topics. While several bibliometric studies have examined osteoporosis research broadly (Li et al., 2023; Kim and Lee, 2024; Rong et al., 2024), they have focused primarily on general treatment approaches, clinical aspects in specific populations, or particular cellular mechanisms. Despite RANKL’s central role in osteoporosis pathophysiology and its emergence as a therapeutic target, there has not been a comprehensive bibliometric analysis specifically examining the intersection of RANKL and osteoporotic fractures. This gap is particularly notable given the rapid evolution of RANKL research over the past 2 decades, from initial molecular characterization to therapeutic applications. Therefore, this study aims to conduct a comprehensive bibliometric analysis of global research pertaining to RANKL and osteoporotic fractures. Conducting such an analysis would be highly advantageous for understanding the current landscape of this critical field, particularly in identifying knowledge gaps and delineating future research needs.
Materials and methods
Data source and search strategy
A bibliometric analysis of publications associated with RANKL and osteoporotic fractures was performed through the Web of Science Core Collection (WoSCC). We searched using the following query: TS=((“Osteoporotic Fracture*”) AND (“Receptor Activator of Nuclear Factor κB Ligand” OR “RANKL”)). The literature search conducted on 29 May 2024 was based on a period of 2001–2024. The data that we retrieved for each publication included the title, author, institution, country/region, number of publications and citations, keywords and journal name.
Inclusion and exclusion criteria
We applied the following inclusion criteria (Shen et al., 2022): original research articles focusing on RANKL in the context of osteoporotic fractures (Kumar et al., 2021); articles with available abstracts and citations (Wu et al., 2021); articles with complete bibliometric information. Exclusion criteria encompassed (Shen et al., 2022): articles mentioned RANKL and osteoporotic fractures but with irrelevant topics.
Data analysis and visualization
From the retrieved literature records, we extracted relevant data and calculated bibliometric indicators using Microsoft Excel. We employed three powerful bibliometric analysis tools for comprehensive analysis of the academic data. VOSviewer (version 1.6.20) (Van Eck and Waltman, 2010) was used for spatial analysis of relationships between institutions, authors, and citations. This tool allowed us to visualize collaboration networks and co-citation patterns; CiteSpace (version 6.3. R1) (Chen, 2006) was utilized for keyword burst detection and revealing emerging trends in the field. We used pathfinder network scaling and pruning to simplify the network structure. Set the parameters to time slicing: January 2001 - September 2024, node types: keywords. When the node is a keyword: threshold (top N per segment) = 5, pruning = pathfinder + pruning merge network. Based on the parameter settings for each node, perform a visual analysis to generate a keyword timeline graph; The R 4.3.3 (Aria and Cuccurullo, 2017) was employed for additional visualizations and analyses, including country collaboration networks and journal impact evaluations.
We evaluated the academic influence of individual researchers and journals based on the H-index (Bertoli-Barsotti and Lando, 2017; Hirsch, 2005). It is defined as the maximum number of papers with number of citations that each have at least h citations. The G-index and M-index were also computed for a more comprehensive assessment of impact (Schreiber, 2010; Novak et al., 2011). While the G-index (one of the variants of H-index) gives preferential weight to the highly cited articles, the M-index is similar to H-index, but it is further divided by the number of years since the first published paper, accounts for the duration of a research career. The journal impact factors and quartile rankings were obtained from the 2023 Journal Citation Reports (JCR) (Gould, 2023). A journal’s IF represents the yearly average number of citations to recent articles published in that journal, while the quartile ranking (Q1-Q4) indicates its relative standing within its subject category, with Q1 representing the top 25% of journals (Salisbury, 2020).
Results
Overview of publication output
The systematic literature search initially identified 262 potentially relevant publications addressing RANKL in the context of osteoporotic fractures spanning from 1 January 2001 to 2 September 2024. After applying exclusion criteria, we removed 48 records that did not meet the inclusion criteria: 42 review articles, 5 proceeding papers, 3 meeting abstracts, 2 early access publications, 1 retracted publication, and 3 non-English articles. The remaining 214 original research articles were included in the final analysis (Figure 1). These articles represent the collective efforts of 1,773 authors. The depth of commitment to this research area is shown through the 7,953 references cited as part of these publications, attesting to the robust knowledge base underpinning this field (Figure 2A). The annual publications growth rate from 2001 to 2024 was determined, yielding a 10.53% compound annual growth rate (CAGR), which highlights the excellent growth of research output over the last 2 decades. This growth rate indicates a rising scientific interest in RANKL as a target for osteoporotic fractures. The overall publication output presented an upward trend per year with some fluctuations over the years in the study period. It started with only 2 articles published in the year 2001 for this area of research. The numbers subsequently increased every year, peaking in 2019 with 18 publications (Figure 2B).
Figure 1

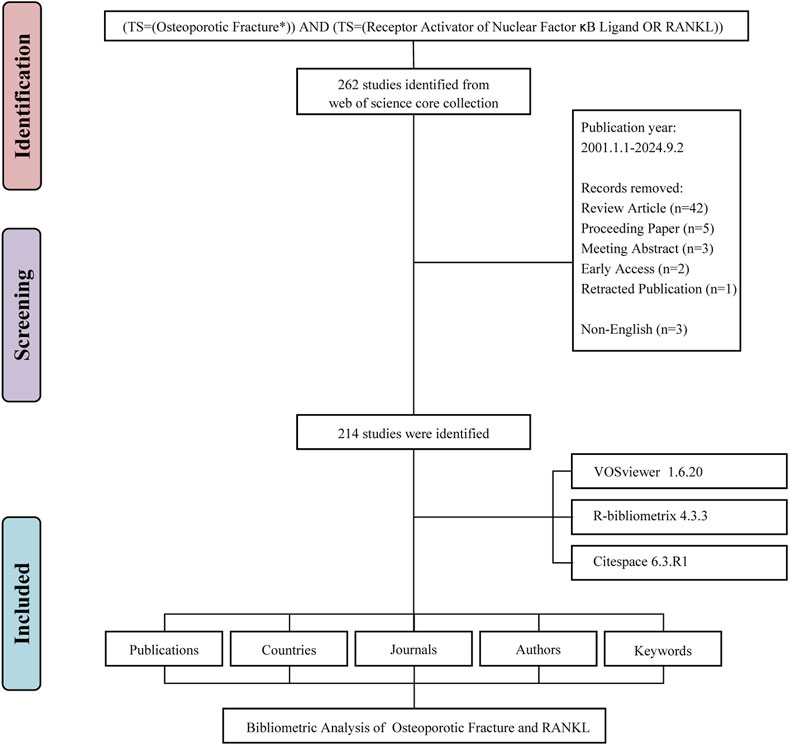

Figure 1. Flowchart of the literature screening process.
Figure 2
Figure 2. Analysis of general information. (A) Summary information of the included studies. (B) Annual number of publications.
Geographical distribution of research
The identified publications came from 115 countries, with China leading in the number of studies (60 publications), constituting 28% of all documents. Other top contributors included the United States (26 publications), Korea (21 publications), Italy (13 publications), and Germany (11 publications) (Figure 3A; Supplementary Table S1). A detailed analysis of country-specific contributions and their citation impacts can be found in Supplementary Table S1, which shows that despite China having the highest number of articles, Denmark, Canada, and the United States demonstrated the highest average citations per paper, at 84.3, 72.0, and 69.5, respectively.
Figure 3
Figure 3. Analysis of countries. (A) Distribution of corresponding author’s publications by country. (B) Visualization map depicting the collaboration among different countries.
The collaboration among countries was visualized using VOSviewer (Figure 3B). The visualization map of international collaboration networks revealed varying degrees of connection strength among 47 countries. Analysis of total link strength showed that the United States maintained the strongest collaborative ties with a total link strength of 66, indicating the intensity and frequency of its research partnerships. The United Kingdom followed with a link strength of 48, while Italy demonstrated robust international research connections with a link strength of 47.
Journal analysis and publication patterns
The bibliometric indicators of high-impact journals in the field are shown in Table S2. The dataset comprised of 214 articles published in 132 journals conveying a wider spread of research findings. As detailed in Table S2, 10 articles (4.67% of total publications) with 741 citations (9.51% of total citations) were published in the Journal of Bone and Mineral Research, making it by far the dominant journal in the field. Osteoporosis International was next with 9 papers and 394 citations, while Bone had 8 papers with 491 citations.
When considering the impact factor of journals, as reported in Supplementary Table S2 from the 2023 Journal Citation Reports, Bone Research led with an impact factor of 14.3, followed by Biomaterials (IF: 12.8) and Cell Death & Disease (IF: 8.1). However, it is worth noting that these high-impact journals published fewer articles in the dataset compared to the specialized bone and mineral journals.
The co-occurrence networks of journals contain 132 with at least 1 occurrence (Figure 4A). The three key journals with the highest total link strength in co-occurrence networks were Journal of bone and mineral research (Novak et al., 2011), Osteoporosis international (Novak et al., 2011), and New England journal of medicine (Van Eck and Waltman, 2010). The network visualization of journal co-citation patterns appears in Figure 4B. The coupling network analysis of these same journals revealed substantially stronger connections, with the Journal of Bone and Mineral Research showing a dominant link strength of 1,024, followed by Osteoporosis International (592) and Bone (436), indicating robust citation relationships among these key publications.
Figure 4
Figure 4. Analysis of journals. (A) Co-occurrence Network of Journals. (B) Coupling Network of Journals.
Author productivity and collaboration
Our analysis found 1,773 authors across 214 publications. Each paper had an average of 9.07 authors. This high number suggests strong research collaboration. Supplementary Table S3 provides the publication and citation profiles of high-impact authors within the area.
The most productive author in terms of publication count was Heiss, Christian, with 6 publications, closely followed by Alt, Volker and El Khassawna, Thaqif, each with 5 publications. However, when considering citation impact, a different picture emerged. As shown in Supplementary Table S3, Christiansen, Claus, despite having only 3 publications in the dataset, received the highest number of citations (1,368), resulting in an average of 456 citations per paper.
The author co-citation analysis revealed several distinct clusters of researchers, suggesting the existence of different sub-fields or research focuses within the broader area of RANKL and osteoporotic fractures. One prominent cluster centered around researchers focusing on genetic aspects of osteoporosis, including Estrada, K. and Richards, J.B. Another cluster comprised researchers primarily investigating the clinical applications of RANKL inhibitors, including Cummings, S.R. and McClung, M.R.
The collaboration network analysis showed a complex web of co-authorships, with several key researchers acting as bridges between different research groups (Figure 5). The author collaboration network, comprising 106 researchers with at minimum two articles, identified Heiss, Christian as the most well-connected researcher with a link strength of 53. Alt, Volker and El Khassawna, Thaqif followed closely with link strengths of 47 and 46, respectively, indicating strong collaborative relationships among these key researchers in the field.
Figure 5

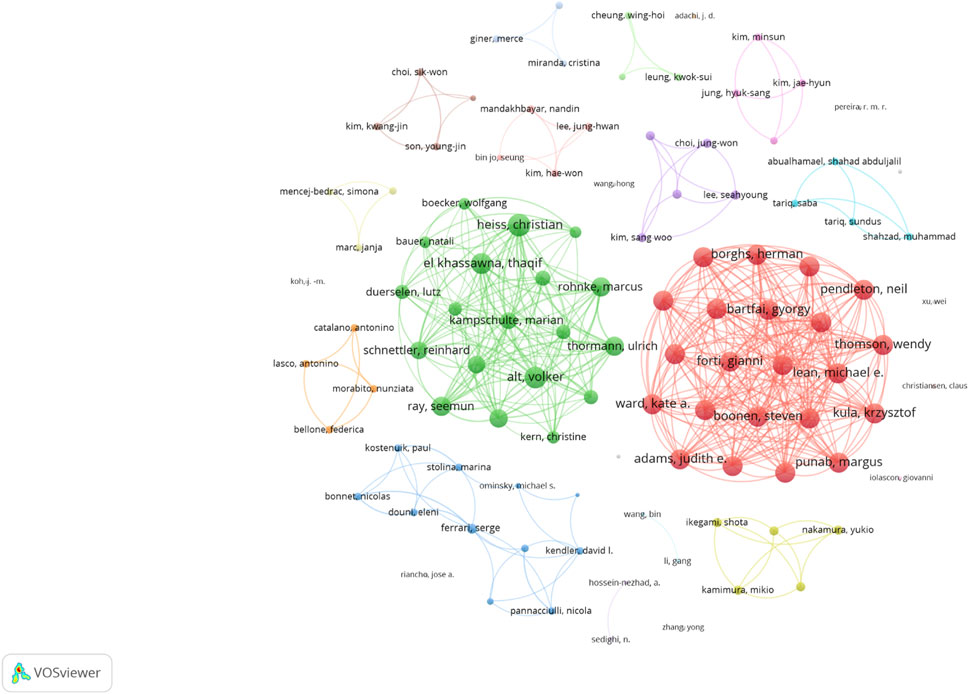

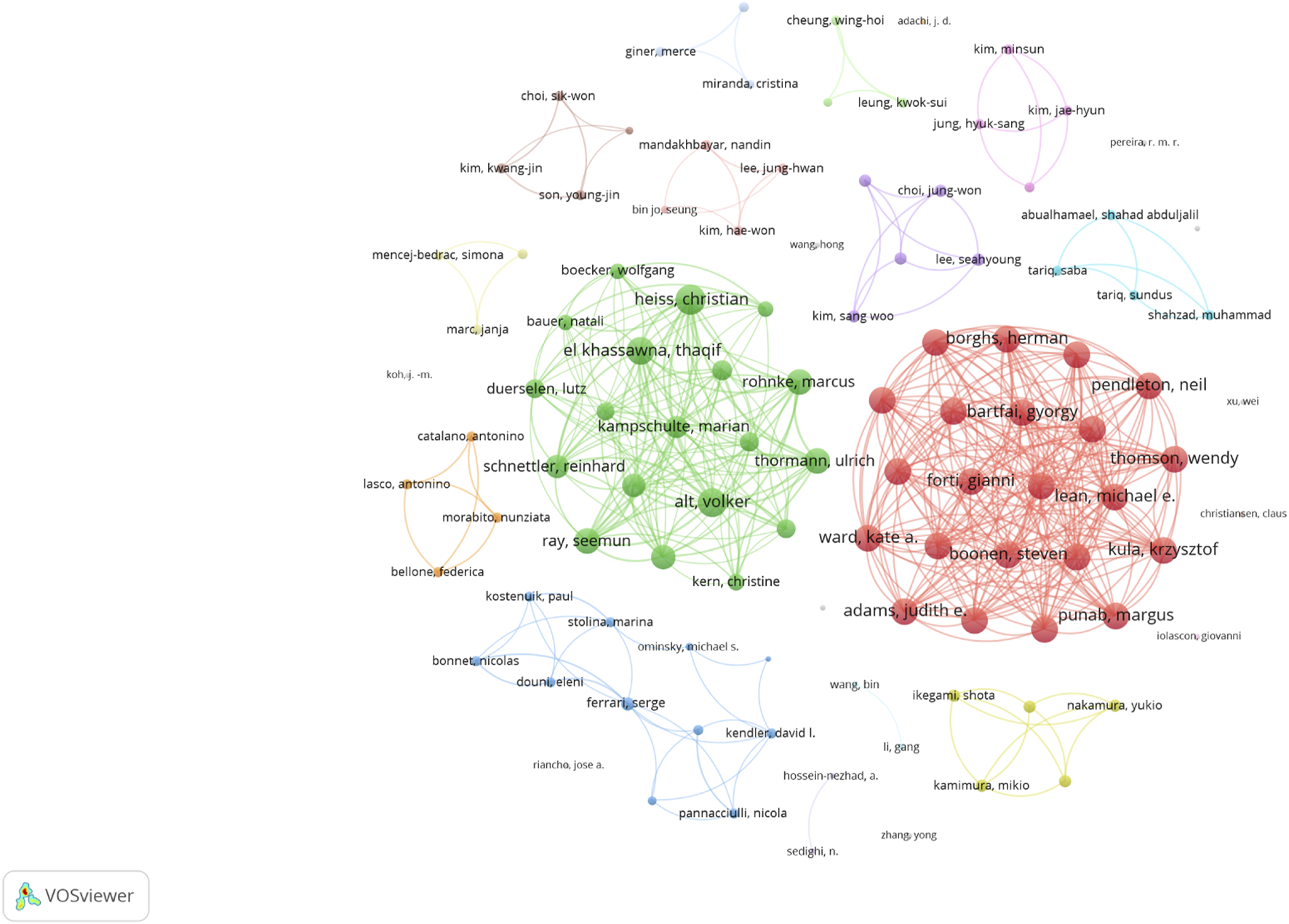

Figure 5. Visualization map depicting the collaboration among different authors.
Institutional contributions and collaborations
A total of 996 institutions contributed to the research output in the dataset. Figure 6A displays the top ten institutions by article count and rank. Harvard University emerged as the most productive institution with 17 publications, followed closely by Dankook University and Justus Liebig University Giessen, both with 15 publications each.
Figure 6
Figure 6. Analysis of institutions. (A) Top ten institutions by article count and rank. (B) Visualization map depicting the collaboration among different institutions.
The collaboration network analysis revealed dense interconnections among institutions, particularly those within the same country (Figure 6B). The institutional collaboration analysis identified 487 institutions with notable international research partnerships. Amgen Inc. emerged as the most strongly connected institution with a link strength of 47, while Columbia University and the University of British Columbia demonstrated significant collaborative ties with link strengths of 34 and 30, respectively. This pattern highlights the important role of both industry and academic institutions in fostering research collaborations.
Most cited articles and their impact
The 50 most highly cited publications on RANKL and osteoporotic fractures are listed in Supplementary Table S4, and all represented important contributions to the field. Out of all articles in the dataset, the most cited article was “Genome-wide meta-analysis identifies 56 bone mineral density loci and reveals 14 loci associated with risk of fracture” by Estrada et al., published in Nature Genetics in 2012 (26). As detailed in Supplementary Table S4, this seminal paper received 905 citations up to the present time, highlighting its significant impact on the field. The complete citation metrics and impact factors for all highly cited papers can be found in Supplementary Table S4, which provides a comprehensive overview of the field’s most influential research contributions. The second most cited article (434 citations), was “Multiple genetic loci for bone mineral density and fractures” by Styrkarsdottir et al., published in The New England Journal of Medicine in 2008 (27). The third most cited article, related to the topical area of interest, is “Receptor activator of NF-kappa B and osteoprotegerin expression by human microvascular endothelial cells, regulation by inflammatory cytokines, and role in human osteoclastogenesis.” Published in The Journal of Biological Chemistry in 2001 (28). Three of the 10 most cited papers investigated genetic factors related to bone mineral density and fracture risk, appearing in leading journals including Nature Genetics and The New England Journal of Medicine. Two of the papers explored the core biology of RANKL signaling, and three were more focused on clinical applications and treatment strategies. The other two papers evaluated the association of RANKL with different metabolic axes.
Keyword analysis and research hotspots
The keyword co-occurrence analysis, based on both author keywords and Keywords Plus, provided valuable insights into the main topics and trends in the field (Figure 7). After removing generic terms (e.g., “osteoporosis”, “RANKL”), we identified several key themes:
Figure 7

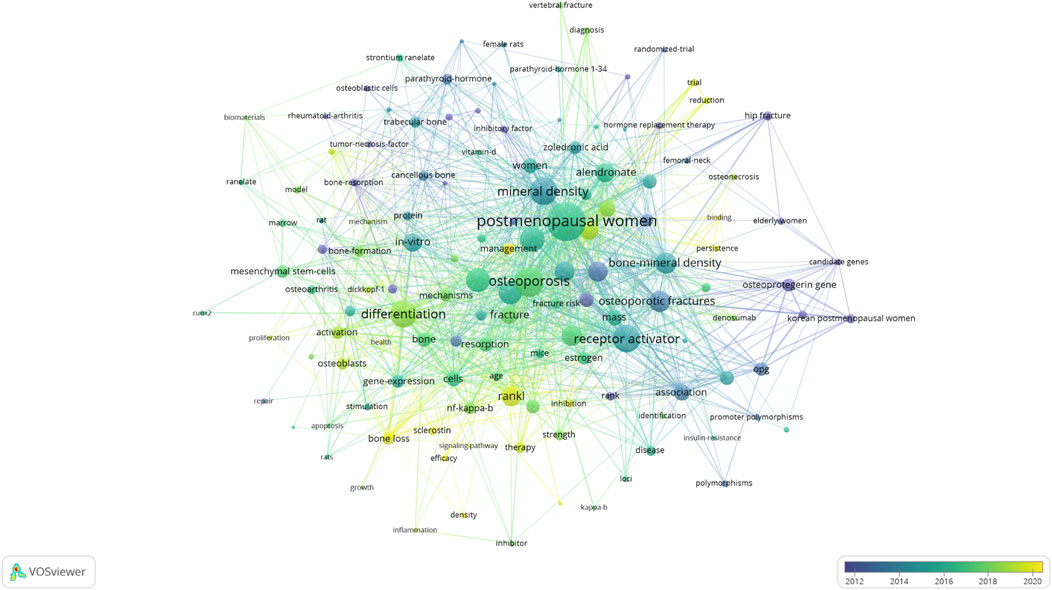

Figure 7. Visual analysis of keyword co-occurrence network analysis.
“Postmenopausal women” was the most common keyword (50 occurrences) and illustrates the commonality of this high-risk population for osteoporosis. Common keywords included many terms closely related to osteoporosis and fracture risk, with “bone mineral density (32 occurrences) and “fracture risk” (26 occurrences) being top mentioned–overall reflecting these concepts as a prominent theme by which to assess osteoporosis and the ability of individual to sustain a fracture. A few of the clusters were distinct based on the keyword co-occurrence network obtained. A cluster focused on clinical and epidemiological terms (e.g., “postmenopausal osteoporosis”, “fracture risk”, “bone mineral density”) about clinical and epidemiological terms, whereas the other was on molecular and cellular mechanisms (e.g., “osteoclast differentiation”, “NF-kappa B”, “signaling pathway”).
The temporal analysis of keywords using overlay visualization in VOSviewer revealed shifts in research focus over time. In the early years (2001–2010), they contained keywords mainly related to field of basic biology and mechanisms (e.g., “osteoclastogenesis”, “cytokines”). The second period (2011–2017) is marked by more clinical and therapeutic keywords (e.g., “denosumab”, “bisphosphonates”), while the last years (2018–2024) are enriched with more genetic and personalized medicine keywords (e.g., “genome-wide association”, “biomarkers”).
The burst detection analysis using CiteSpace identified several keywords with strong citation bursts, indicating topics that have received sudden attention from the research community. Notable bursts included “mineral density” (strength: 4.58, 2014–2017), “alendronate” (strength: 3.95, 2012–2015), and most recently, “RANKL” itself (strength: 5.04, 2021–2024), suggesting a renewed focus on the fundamental biology of RANKL in recent years (Figure 8).
Figure 8

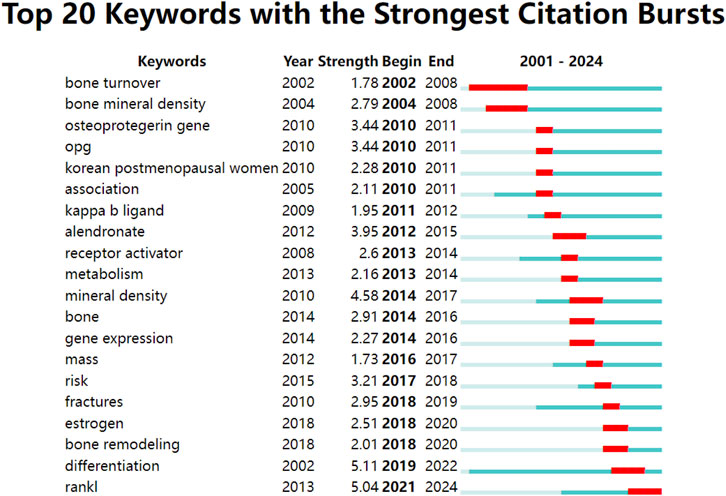

Figure 8. Top 20 keywords with the strongest citation bursts.
Discussion
The bibliometric analysis of RANKL and osteoporotic fracture research from 2001 to 2024 reveals significant growth with a 10.53% annual publication increase, evolving from basic biological processes to clinical applications and recently returning to fundamental RANKL biology. Key journals include Journal of Bone and Mineral Research, Osteoporosis International, and Bone, with high-impact publications also appearing in Bone Research (IF: 14.3) and Biomaterials (IF: 12.8), indicating broader scientific interest beyond osteoporosis.
The United States and China produce the most publications with high citation impact. Denmark and Canada show notable research quality through high average citations. Harvard University and UC San Francisco lead institutional contributions. Amgen’s partnerships demonstrate strong industry-academia collaboration in clinical research. Notable researchers include Christiansen, Claus, with 3 highly cited publications totaling 1,368 citations, and Ferrari, S., who significantly influenced genetic basis research.
The most influential studies range from Estrada et al.'s genome-wide meta-analysis (905 citations) identifying BMD-associated and fracture risk loci, to Styrkarsdottir et al.'s genetic research (434 citations), and Collin-Osdoby et al.'s work (328 citations) on RANKL’s role in microvascular endothelial cells (Estrada et al., 2012; Styrkarsdottir et al., 2008; Collin-Osdoby et al., 2001). The three most highly cited papers have made distinctive contributions to understanding different aspects of osteoporotic fractures and RANKL biology. Estrada et al.'s landmark genome-wide meta-analysis (905 citations) comprehensively identified 56 loci associated with bone mineral density (BMD) and discovered 14 loci specifically linked to fracture risk (Estrada et al., 2012). This study revolutionized the understanding of genetic susceptibility to osteoporosis by providing the first large-scale evidence that BMD-decreasing alleles directly influence fracture risk, establishing a genetic basis for developing targeted therapeutic approaches. Styrkarsdottir et al.'s seminal genetic research (434 citations) identified five regions containing genes that influence BMD and highlighted the ESR1/C6orf97, RANKL, OPG, and ZBTB40 regions as key regulators of bone mass, demonstrating how common genetic variants contribute to the risk of osteoporosis and fractures (Styrkarsdottir et al., 2008). This work was instrumental in establishing the polygenic nature of osteoporosis and identifying novel therapeutic targets. Collin-Osdoby et al.'s foundational study (328 citations) revealed the critical role of microvascular endothelial cells in expressing RANKL and osteoprotegerin, demonstrating how these cells respond to inflammatory cytokines and participate in osteoclastogenesis (Collin-Osdoby et al., 2001). This work provided crucial insights into the vascular-bone axis and how inflammatory conditions might influence bone metabolism through endothelial cell-mediated mechanisms, opening new avenues for therapeutic intervention in bone diseases. Other significant contributions include research on bone homeostasis, RANKL signaling mechanisms, denosumab treatment, and vitamin D regulation in bone metabolism, demonstrating the field’s comprehensive progression through international collaboration and interdisciplinary approaches.
Research hotspots and trends
The keyword burst analysis reveals critical transitions in research focus that parallel major developments in bone biology and therapeutics. During this early time period (2001–2010), the high burst strengths in such keywords as “bone turnover” (burst strength: 1.78, 2002–2008) and “bone mineral density” (burst strength: 2.79, 2004–2008) demonstrate that the focus was on basic bone biology and the development of quantitative measures of bone health. This is consistent with the early seminal description during this time of the RANKL/RANK/OPG pathway and its function in bone turnover (Boyce and Xing, 2007; Hooshiar et al., 2022). These foundational studies were crucial for establishing the basic mechanisms that would later inform therapeutic strategies.
Keywords in the second time period (2011–2017) became more clinical and therapeutic-oriented. For example, the high burst for “alendronate” (burst strength: 3.95, 2012–2015) corresponds to a growing number of studies on bisphosphonates and their use relative to new therapies targeting RANKL (Gennari et al., 2020; Song et al., 2022). This burst coincided with the emergence of RANKL inhibition as a therapeutic strategy, sparking investigations into how these new biologics compared with established treatments (Estell and Rosen, 2021). During this time several landmark clinical trials on denosumab were published including the FREEDOM extension study which highlighted RANKL inhibition as a long-term effective and safe therapy (Bone et al., 2017). This shift from basic science to clinical applications reflects the successful translation of molecular insights into therapeutic interventions.
Continual presence of “mineral density” (burst strength: 4.58) at all years in the study indicates its key importance in osteoporosis diagnosis and management. Nonetheless, the more recent upsurge in “fractures” (burst strength: 2.95, 2018–2019) suggests an increased awareness of the inadequacy of bone mineral density as a uni-dimensional predictor of fracture risk. This evolution reflects growing recognition that fracture prevention requires understanding beyond bone density measurements alone, driving development of more sophisticated risk assessment tools like FRAX (Kanis et al., 2020). This trend suggests future therapeutic approaches may need to address multiple aspects of bone quality beyond density.
The final period (2018–2024) shows diverse research topics. “Differentiation” emerged as a key term (burst strength: 5.11, 2019–2022). This reflects growing interest in cellular mechanisms of bone remodeling. This could indicate an increasing awareness of the importance of osteocytes as potential orchestrators of bone metabolism, as previously reviewed by Bonewald (2011) (Bonewald, 2011). This could lead to development of more sophisticated therapeutic approaches that modulate cell fate decisions rather than simply inhibiting RANKL activity.
Interestingly, the recent top hit for “RANKL” (burst strength: 5.04, 2021–2024) suggests a wave of interest in its transcriptional biology. The comeback may be related to underscored novel roles for RANKL beyond bone metabolism, such as immune regulatory functions and possible pathogenic links to conditions such as cancer and cardiovascular diseases (Infante et al., 2019). The evolution highlighted in the articles, from basic biology to clinical applications and back to fundamental questions with new lenses, is a hallmark of the iterative process that is biomedical research. Moreover, it underscores the enduring relevance of RANKL as both a research subject and substantial topic nearly 20 years after the initial isolation of this protein.
The trends and hotspots identified in this bibliometric analysis of RANKL research in osteoporotic fractures should be considered within the broader context of advances in osteoporosis and bone biology research. While our study focused specifically on the role of RANKL, it is important to recognize that this pathway operates within a complex network of signaling molecules, cell types, and metabolic processes that collectively regulate bone health.
In the field of osteoblast biology, recent research has highlighted the critical role of Wnt signaling in regulating bone formation and osteoblast differentiation (Zhu et al., 2024). Studies have shown that targeting Wnt signaling pathways, such as through the use of sclerostin antibodies, can stimulate bone formation and improve bone mass in animal models and human clinical trials (Marini et al., 2023; Vasiliadis et al., 2022). These findings suggest that therapies aimed at enhancing osteoblast function may complement RANKL-targeted approaches in the prevention and treatment of osteoporosis.
Another important area of research in bone metabolism involves the role of parathyroid hormone (PTH) signaling. PTH plays a key role in regulating calcium homeostasis and has both anabolic and catabolic effects on bone depending on the mode of administration (Rendina-Ruedy and Rosen, 2022). Intermittent PTH therapy has been shown to stimulate bone formation and improve bone mineral density in osteoporotic patients, representing another promising therapeutic approach (Zhang and Song, 2020). Understanding the interplay between PTH and RANKL signaling in bone remodeling may provide new insights into the pathogenesis of osteoporosis and identify novel targets for intervention.
In addition to these specific signaling pathways, there is growing recognition of the importance of cellular senescence and aging in the development of osteoporosis. Studies have shown that senescent cells accumulate in bone with age and contribute to the deterioration of bone microarchitecture and increased fracture risk (Pignolo et al., 2021). Targeting senescent cells through pharmacological or genetic approaches has emerged as a potential strategy for preventing age-related bone loss and osteoporosis (Föger-Samwald et al., 2022). Integrating insights from the biology of aging with our understanding of RANKL signaling may help to develop more comprehensive and effective approaches to osteoporosis prevention and treatment.
Future directions and clinical implications
Our bibliometric analysis reveals several key trends that suggest promising directions for both research and clinical practice in osteoporosis management. In therapeutic development, the recent surge in RANKL-focused research (citation burst: 5.04, 2021–2024) alongside studies of cell differentiation suggests opportunities for next-generation treatments (Huang et al., 2022; Udagawa et al., 2021). Future therapeutic strategies should explore dual-action agents targeting both RANKL and newly identified molecular pathways, as well as tissue-specific RANKL modulators that reduce systemic effects (Patel and Saxena, 2025). Novel delivery systems and combination therapies integrating RANKL inhibition with anabolic agents represent particularly promising avenues for investigation.
The evolution of research focus from broad population studies to more targeted investigations signals an important shift toward personalized treatment approaches (D'Onofrio et al., 2022). This includes the development of genetic and molecular biomarkers for better predicting treatment response and identifying patient subgroups most likely to benefit from specific interventions (Yang et al., 2020; Kim B. J. et al., 2020). The integration of artificial intelligence for risk assessment and treatment optimization may further enhance our ability to customize treatment protocols based on individual patient characteristics (Lis-Studniarska et al., 2023; Wu and Dai, 2024).
Research trends highlight the need for improved clinical strategies in everyday practice. This encompasses the development of more sophisticated fracture risk assessment tools that go beyond bone mineral density measurements, along with standardized protocols for monitoring treatment response (Kim et al., 2019; Lorentzon et al., 2019). The growing understanding of RANKL’s extra-skeletal effects necessitates their integration into treatment decisions, supported by enhanced follow-up strategies for long-term therapy management (El-Gazzar and Högler, 2021).
Economic considerations will play a crucial role in implementing these advances. This requires robust cost-effectiveness studies of new therapeutic strategies and the development of value-based treatment algorithms (Liu and Xiao, 2023). Understanding the long-term economic impacts of various intervention strategies and analyzing healthcare resource utilization patterns will be essential for sustainable implementation.
Strengths and limitations
This analysis presents a comprehensive summary of RANKL and osteoporotic fracture research over the last 24 years and provides insights into overarching long-term trends and changes in research direction. This study offers an in-depth view of the evolution of the field by calculating several bibliometric indicators (publications, citations, and collaborations) and applying sophisticated analyses such as keyword bursts. Nevertheless, a few limitations must be noted when interpreting these results. Firstly, the analysis was restricted to publications included in Web of Science database, which may overlook some relevant research, especially those from non-English languages. This may have led to the exclusion of relevant studies published in other languages, particularly those from non-English-speaking countries with significant research output in the field of osteoporosis and RANKL biology. Secondly, citation-based metrics can provide useful information, but they do not always capture the quality or significance of research. They can be influenced by self-citations, may disproportionately favor older publications that have had more time to accumulate citations, and can be skewed by a small number of highly-cited papers that may not necessarily represent the most important advances in the field. Thirdly, although the keyword burst analysis provided new insights, it may be affected by changes in terminology across time and may therefore fail to reflect the more subtle shifts in research focus.
Conclusion
Over the past 2 decades (2001–2024), research interest in RANKL and osteoporotic fractures has shown consistent growth, with a 10.53% annual publication increase. Understanding the role of RANKL in bone metabolism continues to evolve, with the research focus shifting from basic biological mechanisms through clinical applications to a renewed interest in fundamental RANKL biology with new perspectives. This study comprehensively analyzed global research advancements in RANKL and osteoporotic fractures, and identified future research hotspots, including cell-type specific RANKL functions, the development of predictive biomarkers, and the optimization of combination therapeutic strategies.
The analysis revealed three key research priorities for future investigation. Understanding RANKL’s broader physiological roles emerges as a critical research direction, particularly given the recent surge in cellular differentiation studies. Clinical research priorities should focus on developing better predictive markers for treatment response and optimizing treatment strategies. The emerging focus on personalized medicine approaches suggests a need for studies identifying patient-specific factors that influence RANKL-targeted therapy outcomes.
As the global burden of osteoporosis continues to grow, addressing these research priorities will be crucial for advancing our understanding and treatment of bone disorders. Future studies on RANKL may aim to achieve more targeted therapeutic approaches, thereby reducing systemic effects and improving treatment efficacy. This analysis aims to guide the field toward more precise and personalized treatment approaches, providing scientific evidence and new therapeutic strategies for the treatment of osteoporosis and its related bone disorders. The strong international collaboration networks identified in our analysis provide a foundation for these future research efforts.
Data availability statement
The original contributions presented in the study are included in the article/Supplementary Material, further inquiries can be directed to the corresponding authors.
Author contributions
SL: Data curation, Investigation, Project administration, Resources, Writing–original draft, Writing–review and editing. HuS: Data curation, Investigation, Project administration, Resources, Writing–original draft, Writing–review and editing. ML: Data curation, Investigation, Project administration, Resources, Writing–original draft, Writing–review and editing. YL: Writing–original draft, Writing–review and editing, Data curation, Investigation, Project administration, Resources. HaS: Conceptualization, Methodology, Project administration, Resources, Writing–original draft, Writing–review and editing. XZ: Methodology, Project administration, Resources, Software, Writing–original draft, Writing–review and editing. JC: Data curation, Investigation, Project administration, Resources, Writing–original draft, Writing–review and editing. RB: Data curation, Project administration, Resources, Software, Writing–original draft, Writing–review and editing. PH: Data curation, Investigation, Project administration, Resources, Writing–original draft, Writing–review and editing. YZ: Data curation, Investigation, Project administration, Resources, Visualization, Writing–original draft, Writing–review and editing. XJ: Formal Analysis, Funding acquisition, Investigation, Methodology, Resources, Software, Validation, Writing–original draft, Writing–review and editing.
Funding
The author(s) declare that financial support was received for the research and/or publication of this article. This work was supported by the National Natural Science Foundation of China Youth Fund (82302659); National Key R&D Program of China (024YFC3044700); Beijing Municipal Public Welfare Development and Reform Pilot Project for Medical Research Institutes (JYY2023-8); Beijing Municipal Public Welfare Development and Reform Pilot Project for Medical Research Institutes (JYY2023-11); the Natural Science Foundation of Beijing (7232077).
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Generative AI statement
The author(s) declare that no Generative AI was used in the creation of this manuscript.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Supplementary material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fmolb.2025.1545109/full#supplementary-material
References
Aria, M., and Cuccurullo, C. (2017). bibliometrix: an R-tool for comprehensive science mapping analysis. J. Inf. 11 (4), 959–975. doi:10.1016/j.joi.2017.08.007
Armas, L. A., and Recker, R. R. (2012). Pathophysiology of osteoporosis: new mechanistic insights. Endocrinol. Metabolism Clin. 41 (3), 475–486. doi:10.1016/j.ecl.2012.04.006
Ball, R. (2017). An introduction to bibliometrics: new development and trends. Chandos Publishing. doi:10.1016/C2016-0-03695-1
Bertoli-Barsotti, L., and Lando, T. (2017). A theoretical model of the relationship between the h-index and other simple citation indicators. Scientometrics 111, 1415–1448. doi:10.1007/s11192-017-2351-9
Bone, H. G., Wagman, R. B., Brandi, M. L., Brown, J. P., Chapurlat, R., Cummings, S. R., et al. (2017). 10 years of denosumab treatment in postmenopausal women with osteoporosis: results from the phase 3 randomised FREEDOM trial and open-label extension. lancet Diabetes and Endocrinol. 5 (7), 513–523. doi:10.1016/S2213-8587(17)30138-9
Bonewald, L. F. (2011). The amazing osteocyte. J. bone mineral Res. 26 (2), 229–238. doi:10.1002/jbmr.320
Boyce, B. F., and Xing, L. (2007). Biology of RANK, RANKL, and osteoprotegerin. Arthritis Res. and Ther. 9, 1–7. doi:10.1186/ar2165
Chen, C. (2006). CiteSpace II: detecting and visualizing emerging trends and transient patterns in scientific literature. J. Am. Soc. Inf. Sci. Technol. 57 (3), 359–377. doi:10.1002/asi.20317
Chen, X., Wang, Z., Duan, N., Zhu, G., Schwarz, E. M., and Xie, C. (2018). Osteoblast–osteoclast interactions. Connect. tissue Res. 59 (2), 99–107. doi:10.1080/03008207.2017.1290085
Collin-Osdoby, P., Rothe, L., Anderson, F., Nelson, M., Maloney, W., and Osdoby, P. (2001). Receptor activator of NF-κB and osteoprotegerin expression by human microvascular endothelial cells, regulation by inflammatory cytokines, and role in human osteoclastogenesis. J. Biol. Chem. 276 (23), 20659–20672. doi:10.1074/jbc.M010153200
D'Onofrio, B., di Lernia, M., De Stefano, L., Bugatti, S., Montecucco, C., and Bogliolo, L. (2022). Personalized therapeutic strategies in the management of osteoporosis in patients with autoantibody-positive rheumatoid arthritis. J. Clin. Med. 11 (9), 2341. doi:10.3390/jcm11092341
El-Gazzar, A., and Högler, W. (2021). Mechanisms of bone fragility: from osteogenesis imperfecta to secondary osteoporosis. Int. J. Mol. Sci. 22 (2), 625. doi:10.3390/ijms22020625
Estell, E. G., and Rosen, C. J. (2021). Emerging insights into the comparative effectiveness of anabolic therapies for osteoporosis. Nat. Rev. Endocrinol. 17 (1), 31–46. doi:10.1038/s41574-020-00426-5
Estrada, K., Styrkarsdottir, U., Evangelou, E., Hsu, Y.-H., Duncan, E. L., Ntzani, E. E., et al. (2012). Genome-wide meta-analysis identifies 56 bone mineral density loci and reveals 14 loci associated with risk of fracture. Nat. Genet. 44 (5), 491–501. doi:10.1038/ng.2249
Föger-Samwald, U., Kerschan-Schindl, K., Butylina, M., and Pietschmann, P. (2022). Age related osteoporosis: targeting cellular senescence. Int. J. Mol. Sci. 23 (5), 2701. doi:10.3390/ijms23052701
Gennari, L., Merlotti, D., Falchetti, A., Eller Vainicher, C., Cosso, R., and Chiodini, I. (2020). Emerging therapeutic targets for osteoporosis. Expert Opin. Ther. Targets 24 (2), 115–130. doi:10.1080/14728222.2020.1726889
Hirsch, J. E. (2005). An index to quantify an individual's scientific research output. Proc. Natl. Acad. Sci. 102 (46), 16569–16572. doi:10.1073/pnas.0507655102
Hooshiar, S. H., Tobeiha, M., and Jafarnejad, S. (2022). Soy isoflavones and bone health: focus on the RANKL/RANK/OPG pathway. Biomed. Res. Int. 2022, 8862278. doi:10.1155/2022/8862278
Huang, D., Zhao, C., Li, R., Chen, B., Zhang, Y., Sun, Z., et al. (2022). Identification of a binding site on soluble RANKL that can be targeted to inhibit soluble RANK-RANKL interactions and treat osteoporosis. Nat. Commun. 13 (1), 5338. doi:10.1038/s41467-022-33006-4
Infante, M., Fabi, A., Cognetti, F., Gorini, S., Caprio, M., and Fabbri, A. (2019). RANKL/RANK/OPG system beyond bone remodeling: involvement in breast cancer and clinical perspectives. J. Exp. and Clin. Cancer Res. 38, 12–18. doi:10.1186/s13046-018-1001-2
Kanis, J. A., Harvey, N. C., Johansson, H., Liu, E., Vandenput, L., Lorentzon, M., et al. (2020). A decade of FRAX: how has it changed the management of osteoporosis? Aging Clin. Exp. Res. 32, 187–196. doi:10.1007/s40520-019-01432-y
Khosla, S., and Monroe, D. G. (2018). Regulation of bone metabolism by sex steroids. Cold Spring Harb. Perspect. Med. 8 (1), a031211. doi:10.1101/cshperspect.a031211
Kim, B.-J., Lee, S. H., and Koh, J.-M. (2020a). Potential biomarkers to improve the prediction of osteoporotic fractures. Endocrinol. Metabolism 35 (1), 55–63. doi:10.3803/EnM.2020.35.1.55
Kim, B. J., Lee, S. H., and Koh, J. M. (2020b). Potential biomarkers to improve the prediction of osteoporotic fractures. Endocrinol. Metab. Seoul. 35 (1), 55–63. doi:10.3803/EnM.2020.35.1.55
Kim, B. Y., Kim, H. A., Jung, J. Y., Choi, S. T., Kim, J. M., Kim, S. H., et al. (2019). Clinical impact of the fracture risk assessment tool on the treatment decision for osteoporosis in patients with knee osteoarthritis: a multicenter comparative study of the fracture risk assessment tool and world health organization criteria. J. Clin. Med. 8 (7), 918. doi:10.3390/jcm8070918
Kim, S.-J., and Lee, D.-W. (2024). Publication trends in osteoporosis treatment: a 20-year bibliometric analysis. J. Bone Metabolism 31 (2), 90–100. doi:10.11005/jbm.2024.31.2.90
Kumar, D., Singh, S. K., and Sharma, Y. (2021). Osteoporosis: a current update on globally epidemic asymptomatic disorder. Curr. Res. Trends Med. Sci. Technology2021, 129.
LeBoff, M. S., Greenspan, S., Insogna, K., Lewiecki, E., Saag, K., Singer, A., et al. (2022). The clinician’s guide to prevention and treatment of osteoporosis. Osteoporos. Int. 33 (10), 2049–2102. doi:10.1007/s00198-021-05900-y
Li, D., Ou, J., Zeng, Y., Hou, L., Yuan, Y., and Luo, Z. (2023). Bibliometric study on clinical research of osteoporosis in adolescents. Front. Public Health 11, 1041360. doi:10.3389/fpubh.2023.1041360
Lis-Studniarska, D., Lipnicka, M., Studniarski, M., and Irzmański, R. (2023). Applications of artificial intelligence methods for the prediction of osteoporotic fractures. Life (Basel) 13 (8), 1738. doi:10.3390/life13081738
Liu, Z., and Xiao, L. (2023). Toward a value-based therapy recommendation model. Healthc. (Basel) 11 (16), 2362. doi:10.3390/healthcare11162362
Lorentzon, M., Branco, J., Brandi, M. L., Bruyère, O., Chapurlat, R., Cooper, C., et al. (2019). Algorithm for the use of biochemical markers of bone turnover in the diagnosis, assessment and follow-up of treatment for osteoporosis. Adv. Ther. 36 (10), 2811–2824. doi:10.1007/s12325-019-01063-9
Marini, F., Giusti, F., Palmini, G., and Brandi, M. L. (2023). Role of Wnt signaling and sclerostin in bone and as therapeutic targets in skeletal disorders. Osteoporos. Int. 34 (2), 213–238. doi:10.1007/s00198-022-06523-7
Matsumoto, T., and Endo, I. (2021). RANKL as a target for the treatment of osteoporosis. J. bone mineral metabolism 39, 91–105. doi:10.1007/s00774-020-01153-7
Novak, D., Batko, M., and Zezula, P. (2011). Metric index: an efficient and scalable solution for precise and approximate similarity search. Inf. Syst. 36 (4), 721–733. doi:10.1016/j.is.2010.10.002
Patel, D., and Saxena, B. (2025). Decoding osteoporosis: understanding the disease, exploring current and new therapies and emerging targets. J. Orthop. Rep. 4 (4), 100472. doi:10.1016/j.jorep.2024.100472
Pignolo, R. J., Law, S. F., and Chandra, A. (2021). Bone aging, cellular senescence, and osteoporosis. JBMR Plus 5 (4), e10488. doi:10.1002/jbm4.10488
Rendina-Ruedy, E., and Rosen, C. J. (2022). Parathyroid hormone (PTH) regulation of metabolic homeostasis: an old dog teaches us new tricks. Mol. Metab. 60, 101480. doi:10.1016/j.molmet.2022.101480
Rong, Y. f., Liang, X. Z., Jiang, K., Jia, H. F., Li, H. Z., Lu, B. W., et al. (2024). Global trends in research of programmed cell Death in osteoporosis: a bibliometric and visualized analysis (2000–2023). Orthop. Surg. 16 (8), 1783–1800. doi:10.1111/os.14133
Sakai, T. (2023). Fracture risks and their mechanisms in atopic dermatitis, focusing on receptor activator of nuclear factor kappa-B ligand. Clin. Exp. Dermatology 48 (11), 1209–1213. doi:10.1093/ced/llad220
Salisbury, L. (2020). Scopus citescore and clarivate journal citation reports. Charlest. Advis. 21 (4), 5–15. doi:10.5260/chara.21.4.5
Schreiber, M. (2010). How to modify the g-index for multi-authored manuscripts. J. Inf. 4 (1), 42–54. doi:10.1016/j.joi.2009.06.003
Shen, Y., Huang, X., Wu, J., Lin, X., Zhou, X., Zhu, Z., et al. (2022). The global burden of osteoporosis, low bone mass, and its related fracture in 204 countries and territories, 1990-2019. Front. Endocrinol. 13, 882241. doi:10.3389/fendo.2022.882241
Song, S., Guo, Y., Yang, Y., and Fu, D. (2022). Advances in pathogenesis and therapeutic strategies for osteoporosis. Pharmacol. Ther. 237, 108168. doi:10.1016/j.pharmthera.2022.108168
Styrkarsdottir, U., Halldorsson, B. V., Gretarsdottir, S., Gudbjartsson, D. F., Walters, G. B., Ingvarsson, T., et al. (2008). Multiple genetic loci for bone mineral density and fractures. N. Engl. J. Med. 358 (22), 2355–2365. doi:10.1056/NEJMoa0801197
Udagawa, N., Koide, M., Nakamura, M., Nakamichi, Y., Yamashita, T., Uehara, S., et al. (2021). Osteoclast differentiation by RANKL and OPG signaling pathways. J. Bone Min. Metab. 39 (1), 19–26. doi:10.1007/s00774-020-01162-6
Van Eck, N., and Waltman, L. (2010). Software survey: VOSviewer, a computer program for bibliometric mapping. scientometrics 84 (2), 523–538. doi:10.1007/s11192-009-0146-3
Vasiliadis, E. S., Evangelopoulos, D. S., Kaspiris, A., Benetos, I. S., Vlachos, C., and Pneumaticos, S. G. (2022). The role of sclerostin in bone diseases. J. Clin. Med. 11 (3), 806. doi:10.3390/jcm11030806
Wu, A.-M., Bisignano, C., James, S. L., Abady, G. G., Abedi, A., Abu-Gharbieh, E., et al. (2021). Global, regional, and national burden of bone fractures in 204 countries and territories, 1990–2019: a systematic analysis from the Global Burden of Disease Study 2019. Lancet Healthy Longev. 2 (9), e580–e592. doi:10.1016/S2666-7568(21)00172-0
Wu, Q., and Dai, J. (2024). Enhanced osteoporotic fracture prediction in postmenopausal women using Bayesian optimization of machine learning models with genetic risk score. J. Bone Min. Res. 39 (4), 462–472. doi:10.1093/jbmr/zjae025
Yang, T. L., Shen, H., Liu, A., Dong, S. S., Zhang, L., Deng, F. Y., et al. (2020). A road map for understanding molecular and genetic determinants of osteoporosis. Nat. Rev. Endocrinol. 16 (2), 91–103. doi:10.1038/s41574-019-0282-7
Yao, Z., Getting, S. J., and Locke, I. C. (2021). Regulation of TNF-induced osteoclast differentiation. Cells 11 (1), 132. doi:10.3390/cells11010132
Zhang, C., and Song, C. (2020). Combination therapy of PTH and antiresorptive drugs on osteoporosis: a review of treatment alternatives. Front. Pharmacol. 11, 607017. doi:10.3389/fphar.2020.607017
Zhang, Y., Liang, J., Liu, P., Wang, Q., Liu, L., and Zhao, H. (2022). The RANK/RANKL/OPG system and tumor bone metastasis: potential mechanisms and therapeutic strategies. Front. Endocrinol. 13, 1063815. doi:10.3389/fendo.2022.1063815
Keywords: osteoporotic fractures, RANKL, bone metabolism, osteoclast differentiation, bibliometric analysis
Citation: Lu S, Shen H, Li M, Luo Y, Sun H, Zhao X, Chen J, Bai R, Han P, Zha Y and Jiang X (2025) Global knowledge mapping of receptor activator of nuclear factor kappa-B ligand in osteoporotic fractures: a bibliometric analysis (2001–2024). Front. Mol. Biosci. 12:1545109. doi: 10.3389/fmolb.2025.1545109
Received: 14 December 2024; Accepted: 21 February 2025;
Published: 26 March 2025.
Edited by:
Ponti Donatella, Sapienza University of Rome, ItalyCopyright © 2025 Lu, Shen, Li, Luo, Sun, Zhao, Chen, Bai, Han, Zha and Jiang. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner(s) are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.
*Correspondence: Xieyuan Jiang, anh5dHJhdW1hQDE2My5jb20=; Yejun Zha, enlqdHJhdW1hQDE2My5jb20=
†These authors have contributed equally to this work
