Paul C. McDonald
Shoukat Dedhar- 1Department of Integrative Oncology, BC Cancer Research Institute, Vancouver, BC, Canada
- 2Department of Biochemistry and Molecular Biology, University of British Columbia, Vancouver, BC, Canada
The tumour-associated carbonic anhydrases (CA) IX and XII are upregulated by cancer cells to combat cellular and metabolic stress imparted by hypoxia and acidosis in solid tumours. Owing to its tumour-specific expression and function, CAIX is an attractive therapeutic target and this has driven intense efforts to develop pharmacologic agents to target its activity, including small molecule inhibitors. Many studies in multiple solid tumour models have demonstrated that targeting CAIX activity with the selective CAIX/XII inhibitor, SLC-0111, results in anti-tumour efficacy, particularly when used in combination with chemotherapy or immune checkpoint blockade, and has now advanced to the clinic. However, it has been observed that sustainability and durability of CAIX inhibition, even in combination with chemotherapy agents, is limited by the occurrence of adaptive resistance, resulting in tumour recurrence. Importantly, the data from these models demonstrates that CAIX inhibition may sensitize tumour cells to cytotoxic drugs and evidence now points to ferroptosis, an iron-dependent form of regulated cell death (RCD) that results from accumulation of toxic levels of phospholipid peroxidation as a major mechanism involved in CAIX-mediated sensitization to cancer therapy. In this mini-review, we discuss recent advances demonstrating the mechanistic role CAIX plays in sensitizing cancer cells to ferroptosis.
1 Introduction
Hypoxia is an important feature of the tumour microenvironment (TME) of solid cancers and its presence is associated with poor patient prognosis and resistance to anti-cancer therapies (Nakazawa et al., 2016; Gillies et al., 2018). Hypoxia is also known to provide an environmental niche for cancer stem cells and to promote invasion and metastasis (Jain, 2014). Intratumoural hypoxia promotes hypoxia-inducible factor 1 alpha (HIF-1α)-mediated metabolic reprogramming by tumour cells, resulting in a shift toward increased glycolysis and altered oxidative phosphorylation in a bid to meet energy and biosynthetic demands in a low oxygen environment (Xie and Simon, 2017). These processes lead to the accumulation of acidic metabolites by tumour cells, including lactate, protons (H+) and carbon dioxide (CO2). The aforementioned metabolites contribute to the disruption of intracellular pH (pHi) homeostasis and negatively impact cell viability (Parks et al., 2013; Corbet and Feron, 2017). Cancer cells must, therefore, actively adapt to these challenging environmental conditions in order to survive.
To effectively combat hypoxic and acidic cellular stress, cancer cells activate a network of enzymes and transporters that function to maintain pHi homeostasis (Parks et al., 2013), including the tumour-associated carbonic anhydrases (CA) IX (CAIX) and CAXII (Neri and Supuran, 2011; Corbet and Feron, 2017). CAIX is a cell surface, HIF-1α inducible metalloenzyme that catalyzes the reversible hydration of CO2 to bicarbonate (HCO3−) and H+ (Neri and Supuran, 2011). In hypoxic tumours, CAIX activity contributes to the maintenance of a pHi favorable for cancer cell survival and growth, and simultaneously facilitates acidification of the TME, thereby promoting tumour cell invasion and metastasis, as well as immunosuppression and therapeutic resistance (McDonald et al., 2012; Boyd et al., 2017; Chafe et al., 2019; Pastorekova and Gillies, 2019). Inhibition of CAIX expression disrupts pH regulation, reduces cancer stem cells, inhibits epithelial mesenchymal transition (EMT) and ultimately diminishes tumour growth and metastasis (Chiche et al., 2009; Lou et al., 2011; Lock et al., 2013; McDonald et al., 2019).
CAIX is robustly expressed in across a spectrum of hypoxic solid tumours and correlates both with poor prognosis (Chia et al., 2001; Loncaster et al., 2001; Klatte et al., 2009; Korkeila et al., 2009; Ilie et al., 2010) and with reduced therapeutic response (Koukourakis et al., 2001; Generali et al., 2006; Tan et al., 2009; McIntyre et al., 2012). In contrast, the expression of CAIX in normal human normal tissue is low and is confined to gastric and gall bladder epithelia (Supuran et al., 2018; Pastorekova and Gillies, 2019). These attributes serve to make CAIX an attractive therapeutic target, a position that, in turn, has driven the development of CAIX/CAXII small molecule inhibitors.
The 4-[(4-fluorophenyl) carbamoyl] amino-benzene sulfonamide, designated SLC-0111 (also known as U-104), is a selective small molecule inhibitor of CAIX (Pacchiano et al., 2011). Several preclinical studies have now demonstrated that targeting CAIX activity with SLC-0111 results in anti-tumour efficacy in multiple solid tumour models, including including triple negative breast cancer (Lou et al., 2011; Lock et al., 2013; Chafe et al., 2015; Bozdag et al., 2018; Hedlund et al., 2019), pancreatic cancer (McDonald et al., 2019) and melanoma (Chafe et al., 2019). Furthermore, a growing number of studies support the use of CAIX inhibitors as effective anti-cancer agents in combination with chemotherapy or immune checkpoint blockade. For example, treatment of mutant KRAS-driven PDAC tumours with the combination of gemcitabine and SLC-0111 results in acidosis and cell death, and prolongs survival by tumour-bearing mice (McDonald et al., 2019). Similarly, inhibition of CAIX activity with SLC-0111 potentiates the impact of temozolomide treatment in preclinical models of glioblastoma (Boyd et al., 2017), and combining CAIX inhibition with immune checkpoint blockade enhances anti-tumour efficacy an in vivo model of melanoma (Chafe et al., 2019). Mechanistically, inhibition of CAIX enhances chemo- and immunotherapeutic responses in these tumours through the regulation of pH and acidosis (Boyd et al., 2017; Chafe et al., 2019; McDonald et al., 2019). Evaluation of SLC-0111 in a Phase 1 clinical trial (NCT02215850) of patients with advanced cancer demonstrated good safety and pharmacokinetic profiles, and defined a maximum tolerated dose for Phase 2 trials (McDonald et al., 2020). SLC-0111 is currently being evaluated in combination with gemcitabine in pancreatic cancer patients with CAIX positive tumours (NCT03450018).
Furthermore, in silico and computational approaches may offer complementary strategies for both designing effective CAIX inhibitors and for discerning potentially actionable therapeutic combinations. For example, molecular docking and molecular dynamic simulation analyses have been performed alongside conventional fluorescence binding studies to delineate novel classes of CAIX inhibitors with efficient binding parameters (Kumari et al., 2016). To evaluate co-targeting of CAIX and other pathways relevant to cancer progression, a hybrid computational model that accounts for both tumour-immune interactions and tumour metabolism-mediated acidosis within the TME was recently developed (Grajek et al., 2023). When used to evaluate the role of CAIX expression on the efficacy of immune checkpoint inhibitors (ICI), the model showed that CAIX expression inhibits the immune response and that suppressing CAIX expression improves response to immune checkpoint blockade (Grajek et al., 2023). Computational modeling has also demonstrated that combination therapy using SLC-111 and ICI moves the incomplete response to ICI to tumour eradication (Grajek and Poleszczuk, 2023). These studies highlight the ability of in silico studies to recapitulate experimental findings and suggest that they may offer an additional technological link between pre-clinical studies and clinical applications.
It is clear that extensive pre-clinical and translational work, using genetic, pharmacological and in silico approaches has established CAIX inhibition as a promising cancer therapeutic target, especially for “difficult to treat” solid tumours. However, it has been observed that sustainability and durability of CAIX inhibition, even in combination with chemotherapy agents, is limited by the occurrence of adaptive resistance, resulting in tumour recurrence (Lou et al., 2011; Lock et al., 2013; Boyd et al., 2017; Chafe et al., 2019; McDonald et al., 2019). Importantly, the data from these models demonstrates that CAIX inhibition may sensitize tumour cells to cytotoxic drugs and evidence now points to ferroptosis, an iron-dependent form of regulated cell death (RCD) that results from accumulation of toxic levels of phospholipid peroxidation (Stockwell, 2022), as a major mechanism involved in CAIX-mediated sensitization to cancer therapy. In this mini-review, we discuss recent advances demonstrating the mechanistic role CAIX plays in sensitizing cancer cells to ferroptosis.
2 Co-vulnerability of iron-sulfur cluster—xCT and carbonic anhydrase IX
The acquisition of therapeutic resistance is a major impediment to durable treatment response in patients with cancer (Tyner et al., 2022). One promising therapeutic approach for overcoming treatment resistance is the identification of synthetic lethal interactions (O'Neil et al., 2017). Synthetic lethality refers to the continued survival of cells in response to a single genetic hit, whereas the co-occurrence of multiple genetic events results in cell death (O'Neil et al., 2017). Thus, identification of synthetic lethal interactions reveal co-vulnerabilities in cancer cells that may be targeted pharmacologically to generate novel therapeutic approaches.
Recently, an unbiased, genome-wide synthetic lethal CRISPR screen was performed in breast cancer cells in hypoxia to establish potential vulnerabilities that, together with inhibition of CA9 expression, would enhance cell death and limit therapeutic resistance, offering an avenue toward suppressing tumor resistance and recurrence (Chafe et al., 2021). These analyses uncovered genes associated with redox homeostasis as co-vulnerabilities with CA9, in particular the cysteine desulfurase, NFS1, which functions to catalyze the initial step in the biogenesis of iron-sulfur clusters (Figure 1) (Chafe et al., 2021). These iron-sulfur clusters are essential cofactors for mitochondrial transport chain proteins. NFS1, which has been shown to protect cells from ferroptosis and is required for growth of metastatic breast tumours in the lung (Alvarez et al., 2017), removes a thiol group from cysteine to generate alanine and transfers the sulfur to an ISCU scaffold protein (Rouault and Maio, 2017; Maio and Rouault, 2020).

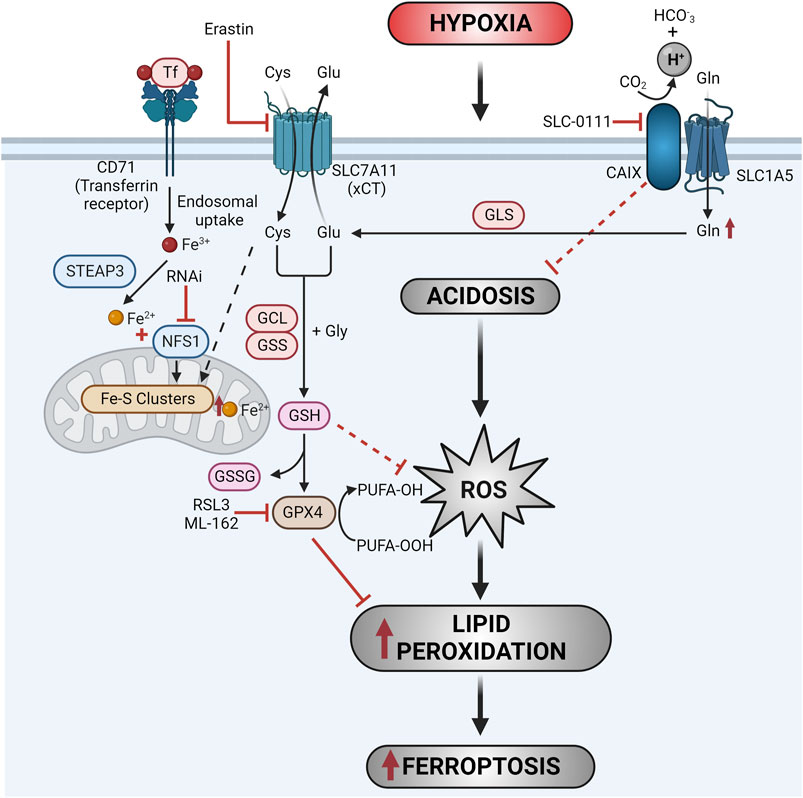

FIGURE 1. CAIX regulates tumour cell vulnerability to ferroptosis. Pharmacologic inhibition of CAIX activity, in combination with inhibition of NFS1 expression, results in intracellular acidosis and impaired iron-sulfur clustering. These events lead to increased ROS and increased labile iron which drives lipid peroxidation and increases ferroptosis. Targeting CAIX activity in combination with erastin-mediated inhibition of xCT provides an effective approach to exploiting the synthetic lethal interaction between CAIX and NFS1 using pharmacologic agents. Additionally, inhibition of CAIX increases glutamine uptake and glutathione (GSH) synthesis as a compensatory reaction to cellular stress. Co-targeting of CAIX and key metabolic nodes in glutamine metabolism and glutathione production enhances tumour cell cytotoxicity through ferroptosis. Combining CAIX/XII inhibitors with ferroptosis inducers targeting GPX4, such as RSL3 and ML-162, exploit this metabolic covulnerability to increase ferroptotic cell death.
Combinatorial genetic depletion of CA9 and NFS1 expression, or pharmacologic inhibition of CAIX/XII in combination with NFS1 depletion, results in increased cellular iron pools, increased lipid peroxidation and increased ferroptosis of tumour cells (Figure 1) (Chafe et al., 2021). Furthermore, co-targeting of NFS1 and CAIX activity in vivo results in enhanced tumour growth control compared to targeting each protein individually (Chafe et al., 2021).
Recognizing the challenges associated with specifically targeting NFS1 for clinical application, further investigations have focused on targeting the NFS1 axis upstream through inhibition of the cell surface cysteine glutamate transporter, xCT, to limit the availability of cellular cysteine, a substrate of NFS1, in combination with inhibition of CAIX (Figure 1). Targeting CAIX activity in combination with erastin-mediated inhibition of xCT enhanced ferroptosis in cancer cells in a pH-dependent manner, providing an effective approach to exploiting the synthetic lethal interaction between CAIX and NFS1 using pharmacologic agents (Chafe et al., 2021). These studies suggest that inhibitors targeting CAIX may provide an effective strategy to enhance the activity of ferroptosis inducing compounds in cancer therapy.
Further studies have strengthened the link between CAIX and ferroptosis. The CA9 gene was among four “hub” ferroptosis-related genes identified using machine learning and bioinformatics approaches to establish key genes and molecular interactions associated with ferroptosis in colorectal cancer (Xue et al., 2023). Interestingly, expression of CA9 was positively correlated with expression of transferrin receptor 2 (TFR2) in colorectal cancer, suggesting an association between CA9 and iron transport, which is a key process associated with ferroptosis (Xue et al., 2023). Hypoxia-mediated upregulation of CA9 expression and increased catalytic iron (Fe2+) has also been observed in malignant mesothelioma (Li et al., 2019). Inhibition of CAIX activity using SLC-0111 decreased viability of malignant mesothelioma cells and induced a gene expression pattern similar to that seen with erastin-induced ferroptosis (Li et al., 2019). Inhibition of CA9 in these cells increased mitochondrial and lysosomal catalytic iron, mitochondrial ROS and lipid peroxidation. The observed cytotoxicity was significantly inhibited by Z-VAD-FMK, deferoxamine, and ferrostatin-1, suggesting that reduced cell viability occurred through a combination of apoptosis and ferroptosis (Li et al., 2019).
Evidence also suggests that combinatorial targeting of CA9 with chemotherapy in chemoresistant tumours may re-sensitize tumour cells to anti-cancer therapy, in part by enhancing ferroptosis. In gastric cancer cells, induction of chemoresistance using standard of care multi-agent perioperative chemotherapy (e.g., FLOT—Leucovorin, 5-Fluorouracil, Docetaxel, Oxaliplatin or FOLFOX—Leucovorin, 5-Fluorouracil, Oxaliplatin) resulted in increased CAIX expression, while combining these chemotherapies with SLC-0111 improved therapeutic efficacy in the drug resistant cells (Andreucci et al., 2023). While this study did not explore the relationship with ferroptosis, studies in gefitinib-resistant lung cancer, in which CAIX is upregulated, have elucidated a role of CAIX in regulating vulnerability to ferroptosis (Zhang et al., 2023). CAIX was found to provide resistance to ferroptosis-inducing drugs such as erastin through inhibition of transferrin endocytosis and stabilization of ferritin, while treatment of gefitinib-resistant lung cancer cells with CAIX inhibitor SLC-0111 (U-104) in combination with cisplatin enhanced ferroptosis in vivo (Zhang et al., 2023).
CAIX may also play a role in sensitizing cells to ferroptosis induced by radiation therapy. Escalating doses of ionizing radiation were observed to induce the expression of ferroptosis markers and lipid peroxidation by glioma cells (Huang et al., 2023). In this context, knockdown of CA9 expression by glioma cells in hypoxia, an environment known to increase radioresistance of glioma cells, altered the expression of proteins involved in iron regulation and enhanced ferroptosis induced by radiation (Huang et al., 2023). Such results suggest that inhibition of CA9 may sensitize radioresistant glioma cells to ferroptosis in hypoxia.
3 Co-vulnerability of carbonic anhydrase IX and glutamine dependency
Metabolic plasticity by cancer cells enables the initiation of compensatory mechanisms to promote adaptation and resistance in response to therapeutic challenge (Shen et al., 2020). The contribution of CAIX to the regulation of pH and redox homeostasis by tumour cells in hypoxia positions it at an intersection with metabolic reprogramming and suggests that targeting CAIX, in combination with key metabolic nodes involved in the generation of anti-oxidants, may disrupt redox balance and sensitize cancer cells to ferroptosis.
Using triple negative breast cancer cells as a model, a recent large-scale, unbiased proteomic screen carried out to identify proteins that interact with CAIX in hypoxic cancer cells revealed that CAIX associates with the glutamine transporter, SLC1A5 (Figure 1) (Swayampakula et al., 2017). Further investigation confirmed that CAIX associates and co-localizes with SLC1A5 in cancer cells, and functions to maintain redox homeostasis through the GSH/GPX4 axis (Figure 1) (Venkateswaran et al., 2023). Inhibition of hypoxia-induced CAIX was found to increase glutamine uptake and glutathione (GSH) synthesis across a spectrum of cancer types. Importantly, co-targeting of CAIX and either Gln transport or Gln metabolism, using inhibitors of SLC1A5 or GLS and GCLC, respectively, enhanced tumour cell cytotoxicity through ferroptosis (Venkateswaran et al., 2023). Similarly, combined inhibition of CAIX and GPX4 using the ferroptosis inducer RSL3 synergistically enhanced ferroptosis and co-targeting of CAIX activity and GSH synthesis in vivo decreased tumour growth and increased survival through a ferrroptosis-mediated mechanism (Venkateswaran et al., 2023).
4 Conclusion
In conclusion, it is becoming increasingly clear that CAIX contributes functionally to the regulation of ferroptosis by cancer cells in hypoxia. While the use of CAIX inhibitors as single agents has met with some success, suppressing CAIX function in the context of large-scale unbiased genomic and proteomic approaches has revealed metabolic co-vulnerabilities that, when targeted in combination with CAIX, synergistically enhance ferroptosis of cancer cells. In the future, co-targeting CAIX/XII activity in combination with ferroptosis inducers, such as inhibitors of GPX4, have the potential to achieve substantial in-roads in treating hypoxic tumours, especially those exhibiting chemo- and radio-resistance.
Author contributions
PM: Conceptualization, Writing–original draft, Writing–review and editing. SD: Conceptualization, Funding acquisition, Supervision, Writing–original draft, Writing–review and editing.
Funding
The author(s) declare financial support was received for the research, authorship, and/or publication of this article. This research was supported by the Canadian Institutes of Health Research (CIHR) grant FDN-143318 awarded to SD.
Conflict of interest
PM and SD are inventors on a patent related to this work filed by SignalChem Lifesciences Corporation, Richmond, BC, Canada, US 9,463,171 B2, filed: 9 January 2013, published: 11 October 2016. PM and SD hold shares in SignalChem Lifesciences Corporation.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
References
Alvarez, S. W., Sviderskiy, V. O., Terzi, E. M., Papagiannakopoulos, T., Moreira, A. L., Adams, S., et al. (2017). NFS1 undergoes positive selection in lung tumours and protects cells from ferroptosis. Nature 551 (7682), 639–643. doi:10.1038/nature24637
Andreucci, E., Biagioni, A., Peri, S., Versienti, G., Cianchi, F., Staderini, F., et al. (2023). The CAIX inhibitor SLC-0111 exerts anti-cancer activity on gastric cancer cell lines and resensitizes resistant cells to 5-Fluorouracil, taxane-derived, and platinum-based drugs. Cancer Lett., 571, 216338. doi:10.1016/j.canlet.2023.216338
Boyd, N. H., Walker, K., Fried, J., Hackney, J. R., McDonald, P. C., Benavides, G. A., et al. (2017). Addition of carbonic anhydrase 9 inhibitor SLC-0111 to temozolomide treatment delays glioblastoma growth in vivo. JCI Insight 2 (24), e92928. doi:10.1172/jci.insight.92928
Bozdag, M., Carta, F., Ceruso, M., Ferraroni, M., McDonald, P. C., Dedhar, S., et al. (2018). Discovery of 4-Hydroxy-3-(3-(phenylureido)benzenesulfonamides as SLC-0111 analogues for the treatment of hypoxic tumors overexpressing carbonic anhydrase IX. J. Med. Chem. 61 (14), 6328–6338. doi:10.1021/acs.jmedchem.8b00770
Chafe, S. C., Lou, Y., Sceneay, J., Vallejo, M., Hamilton, M. J., McDonald, P. C., et al. (2015). Carbonic anhydrase IX promotes myeloid-derived suppressor cell mobilization and establishment of a metastatic niche by stimulating G-CSF production. Cancer Res. 75 (6), 996–1008. doi:10.1158/0008-5472.CAN-14-3000
Chafe, S. C., McDonald, P. C., Saberi, S., Nemirovsky, O., Venkateswaran, G., Burugu, S., et al. (2019). Targeting hypoxia-induced carbonic anhydrase IX enhances immune-checkpoint blockade locally and systemically. Cancer Immunol. Res. 7 (7), 1064–1078. doi:10.1158/2326-6066.CIR-18-0657
Chafe, S. C., Vizeacoumar, F. S., Venkateswaran, G., Nemirovsky, O., Awrey, S., Brown, W. S., et al. (2021). Genome-wide synthetic lethal screen unveils novel CAIX-NFS1/xCT axis as a targetable vulnerability in hypoxic solid tumors. Sci. Adv. 7 (35), eabj0364. doi:10.1126/sciadv.abj0364
Chia, S. K., Wykoff, C. C., Watson, P. H., Han, C., Leek, R. D., Pastorek, J., et al. (2001). Prognostic significance of a novel hypoxia-regulated marker, carbonic anhydrase IX, in invasive breast carcinoma. J. Clin. Oncol. 19 (16), 3660–3668. doi:10.1200/JCO.2001.19.16.3660
Chiche, J., Ilc, K., Laferriere, J., Trottier, E., Dayan, F., Mazure, N. M., et al. (2009). Hypoxia-inducible carbonic anhydrase IX and XII promote tumor cell growth by counteracting acidosis through the regulation of the intracellular pH. Cancer Res. 69 (1), 358–368. doi:10.1158/0008-5472.CAN-08-2470
Corbet, C., and Feron, O. (2017). Tumour acidosis: from the passenger to the driver's seat. Nat. Rev. Cancer 17 (10), 577–593. doi:10.1038/nrc.2017.77
Generali, D., Fox, S. B., Berruti, A., Brizzi, M. P., Campo, L., Bonardi, S., et al. (2006). Role of carbonic anhydrase IX expression in prediction of the efficacy and outcome of primary epirubicin/tamoxifen therapy for breast cancer. Endocr. Relat. Cancer 13 (3), 921–930. doi:10.1677/erc.1.01216
Gillies, R. J., Brown, J. S., Anderson, A. R. A., and Gatenby, R. A. (2018). Eco-evolutionary causes and consequences of temporal changes in intratumoural blood flow. Nat. Rev. Cancer 18 (9), 576–585. doi:10.1038/s41568-018-0030-7
Grajek, J., Kather, J. N., and Poleszczuk, J. (2023). An in silico model to study the impact of carbonic anhydrase IX expression on tumour growth and anti-PD-1 therapy. J. R. Soc. Interface 20 (198), 20220654. doi:10.1098/rsif.2022.0654
Grajek, J., and Poleszczuk, J. (2023). Carbonic anhydrase IX suppression shifts partial response to checkpoint inhibitors into complete tumor eradication: model-based investigation. Int. J. Mol. Sci. (12), 24. doi:10.3390/ijms241210068
Hedlund, E. E., McDonald, P. C., Nemirovsky, O., Awrey, S., Jensen, L. D. E., and Dedhar, S. (2019). Harnessing induced essentiality: targeting carbonic anhydrase IX and angiogenesis reduces lung metastasis of triple negative breast cancer xenografts. Cancers (Basel) 11 (7), 1002. doi:10.3390/cancers11071002
Huang, W., He, Y., Yang, S., Xue, X., Qin, H., Sun, T., et al. (2023). CA9 knockdown enhanced ionizing radiation-induced ferroptosis and radiosensitivity of hypoxic glioma cells. Int. J. Radiat. Biol. 99, 1908–1924. doi:10.1080/09553002.2023.2235433
Ilie, M., Mazure, N. M., Hofman, V., Ammadi, R. E., Ortholan, C., Bonnetaud, C., et al. (2010). High levels of carbonic anhydrase IX in tumour tissue and plasma are biomarkers of poor prognostic in patients with non-small cell lung cancer. Br. J. Cancer 102 (11), 1627–1635. doi:10.1038/sj.bjc.6605690
Jain, R. K. (2014). Antiangiogenesis strategies revisited: from starving tumors to alleviating hypoxia. Cancer Cell 26 (5), 605–622. doi:10.1016/j.ccell.2014.10.006
Klatte, T., Seligson, D. B., Rao, J. Y., Yu, H., de Martino, M., Kawaoka, K., et al. (2009). Carbonic anhydrase IX in bladder cancer: a diagnostic, prognostic, and therapeutic molecular marker. Cancer 115 (7), 1448–1458. doi:10.1002/cncr.24163
Korkeila, E., Talvinen, K., Jaakkola, P. M., Minn, H., Syrjanen, K., Sundstrom, J., et al. (2009). Expression of carbonic anhydrase IX suggests poor outcome in rectal cancer. Br. J. Cancer 100 (6), 874–880. doi:10.1038/sj.bjc.6604949
Koukourakis, M. I., Giatromanolaki, A., Sivridis, E., Simopoulos, K., Pastorek, J., Wykoff, C. C., et al. (2001). Hypoxia-regulated carbonic anhydrase-9 (CA9) relates to poor vascularization and resistance of squamous cell head and neck cancer to chemoradiotherapy. Clin. Cancer Res. 7 (11), 3399–3403.
Kumari, S., Idrees, D., Mishra, C. B., Prakash, A., Hassan, M. I., Ahmad, F., et al. (2016). Design and synthesis of a novel class of carbonic anhydrase-IX inhibitor 1-(3-(phenyl/4-fluorophenyl)-7-imino-3H-[1,2,3]triazolo[4,5d]pyrimidin 6(7H)yl)urea. J. Mol. Graph Model 64, 101–109. doi:10.1016/j.jmgm.2016.01.006
Li, Z., Jiang, L., Chew, S. H., Hirayama, T., Sekido, Y., and Toyokuni, S. (2019). Carbonic anhydrase 9 confers resistance to ferroptosis/apoptosis in malignant mesothelioma under hypoxia. Redox Biol. 26, 101297. doi:10.1016/j.redox.2019.101297
Lock, F. E., McDonald, P. C., Lou, Y., Serrano, I., Chafe, S. C., Ostlund, C., et al. (2013). Targeting carbonic anhydrase IX depletes breast cancer stem cells within the hypoxic niche. Oncogene 32 (44), 5210–5219. doi:10.1038/onc.2012.550
Loncaster, J. A., Harris, A. L., Davidson, S. E., Logue, J. P., Hunter, R. D., Wycoff, C. C., et al. (2001). Carbonic anhydrase (CA IX) expression, a potential new intrinsic marker of hypoxia: correlations with tumor oxygen measurements and prognosis in locally advanced carcinoma of the cervix. Cancer Res. 61 (17), 6394–6399.
Lou, Y., McDonald, P. C., Oloumi, A., Chia, S., Ostlund, C., Ahmadi, A., et al. (2011). Targeting tumor hypoxia: suppression of breast tumor growth and metastasis by novel carbonic anhydrase IX inhibitors. Cancer Res. 71 (9), 3364–3376. doi:10.1158/0008-5472.CAN-10-4261
Maio, N., and Rouault, T. A. (2020). Outlining the complex pathway of mammalian Fe-S cluster biogenesis. Trends Biochem. Sci. 45 (5), 411–426. doi:10.1016/j.tibs.2020.02.001
McDonald, P. C., Chafe, S. C., Brown, W. S., Saberi, S., Swayampakula, M., Venkateswaran, G., et al. (2019). Regulation of pH by carbonic anhydrase 9 mediates survival of pancreatic cancer cells with activated KRAS in response to hypoxia. Gastroenterology 157 (3), 823–837. doi:10.1053/j.gastro.2019.05.004
McDonald, P. C., Chia, S., Bedard, P. L., Chu, Q., Lyle, M., Tang, L., et al. (2020). A Phase 1 study of SLC-0111, a novel inhibitor of carbonic anhydrase IX, in patients with advanced solid tumors. Am. J. Clin. Oncol. 43 (7), 484–490. doi:10.1097/COC.0000000000000691
McDonald, P. C., Winum, J. Y., Supuran, C. T., and Dedhar, S. (2012). Recent developments in targeting carbonic anhydrase IX for cancer therapeutics. Oncotarget 3 (1), 84–97. doi:10.18632/oncotarget.422
McIntyre, A., Patiar, S., Wigfield, S., Li, J. L., Ledaki, I., Turley, H., et al. (2012). Carbonic anhydrase IX promotes tumor growth and necrosis in vivo and inhibition enhances anti-VEGF therapy. Clin. Cancer Res. 18 (11), 3100–3111. doi:10.1158/1078-0432.CCR-11-1877
Nakazawa, M. S., Keith, B., and Simon, M. C. (2016). Oxygen availability and metabolic adaptations. Nat. Rev. Cancer 16 (10), 663–673. doi:10.1038/nrc.2016.84
Neri, D., and Supuran, C. T. (2011). Interfering with pH regulation in tumours as a therapeutic strategy. Nat. Rev. Drug Discov. 10 (10), 767–777. doi:10.1038/nrd3554
O'Neil, N. J., Bailey, M. L, and Hieter, P. (2017). Synthetic lethality and cancer. Nat. Rev. Genet. 18 (10), 613–623. doi:10.1038/nrg.2017.47
Pacchiano, F., Carta, F., McDonald, P. C., Lou, Y., Vullo, D., Scozzafava, A., et al. (2011). Ureido-substituted benzenesulfonamides potently inhibit carbonic anhydrase IX and show antimetastatic activity in a model of breast cancer metastasis. J. Med. Chem. 54 (6), 1896–1902. doi:10.1021/jm101541x
Parks, S. K., Chiche, J., and Pouyssegur, J. (2013). Disrupting proton dynamics and energy metabolism for cancer therapy. Nat. Rev. Cancer 13 (9), 611–623. doi:10.1038/nrc3579
Pastorekova, S., and Gillies, R. J. (2019). The role of carbonic anhydrase IX in cancer development: links to hypoxia, acidosis, and beyond. Cancer Metastasis Rev. 38 (1-2), 65–77. doi:10.1007/s10555-019-09799-0
Rouault, T. A., and Maio, N. (2017). Biogenesis and functions of mammalian iron-sulfur proteins in the regulation of iron homeostasis and pivotal metabolic pathways. J. Biol. Chem. 292 (31), 12744–12753. doi:10.1074/jbc.R117.789537
Shen, S., Vagner, S., and Robert, C. (2020). Persistent cancer cells: the deadly survivors. Cell 183 (4), 860–874. doi:10.1016/j.cell.2020.10.027
Stockwell, B. R. (2022). Ferroptosis turns 10: emerging mechanisms, physiological functions, and therapeutic applications. Cell 185 (14), 2401–2421. doi:10.1016/j.cell.2022.06.003
Supuran, C. T., Alterio, V., Di Fiore, A., D' Ambrosio, K., Carta, F., Monti, S. M., et al. (2018). Inhibition of carbonic anhydrase IX targets primary tumors, metastases, and cancer stem cells: three for the price of one. Med. Res. Rev. 38 (6), 1799–1836. doi:10.1002/med.21497
Swayampakula, M., McDonald, P. C., Vallejo, M., Coyaud, E., Chafe, S. C., Westerback, A., et al. (2017). The interactome of metabolic enzyme carbonic anhydrase IX reveals novel roles in tumor cell migration and invadopodia/MMP14-mediated invasion. Oncogene 36 (45), 6244–6261. doi:10.1038/onc.2017.219
Tan, E. Y., Yan, M., Campo, L., Han, C., Takano, E., Turley, H., et al. (2009). The key hypoxia regulated gene CAIX is upregulated in basal-like breast tumours and is associated with resistance to chemotherapy. Br. J. Cancer 100 (2), 405–411. doi:10.1038/sj.bjc.6604844
Tyner, J. W., Haderk, F., Kumaraswamy, A., Baughn, L. B., Van Ness, B., Liu, S., et al. (2022). Understanding drug sensitivity and tackling resistance in cancer. Cancer Res. 82 (8), 1448–1460. doi:10.1158/0008-5472.CAN-21-3695
Venkateswaran, G., McDonald, P. C., Chafe, S. C., Brown, W. S., Gerbec, Z. J., Awrey, S. J., et al. (2023). A carbonic anhydrase IX/SLC1A5 Axis regulates glutamine metabolism dependent ferroptosis in hypoxic tumor cells. Mol. Cancer Ther. 22 (10), 1228–1242. doi:10.1158/1535-7163.MCT-23-0041
Xie, H., and Simon, M. C. (2017). Oxygen availability and metabolic reprogramming in cancer. J. Biol. Chem. 292 (41), 16825–16832. doi:10.1074/jbc.R117.799973
Xue, F., Jiang, J., and Kou, J. (2023). Screening of key genes related to ferroptosis and a molecular interaction network analysis in colorectal cancer using machine learning and bioinformatics. J. Gastrointest. Oncol. 14 (3), 1346–1359. doi:10.21037/jgo-23-405
Keywords: hypoxia, carbonic anhydrase IX, cytotoxicity, metabolism, ferroptosis, tumour microenvironment
Citation: McDonald PC and Dedhar S (2023) Co-vulnerabilities of inhibiting carbonic anhydrase IX in ferroptosis-mediated tumor cell death. Front. Mol. Biosci. 10:1327310. doi: 10.3389/fmolb.2023.1327310
Received: 24 October 2023; Accepted: 21 November 2023;
Published: 30 November 2023.
Edited by:
Giuseppina De Simone, National Research Council (CNR), ItalyReviewed by:
Christian Jorgensen, Johns Hopkins University, United StatesCopyright © 2023 McDonald and Dedhar. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner(s) are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.
*Correspondence: Shoukat Dedhar, sdedhar@bccrc.ca
