ORIGINAL RESEARCH article

Front. Mol. Biosci., 16 February 2022
Sec. Molecular Diagnostics and Therapeutics
This article is part of the Research Topic Novel Molecular Mechanisms and Innovative Therapeutic Approaches for Age-Associated Diseases View all 29 articles

4-Methoxydalbergione Inhibits Bladder Cancer Cell Growth via Inducing Autophagy and Inhibiting Akt/ERK Signaling Pathway

Haifang Du,&#x;Haifang Du1,2Ting Tao&#x;Ting Tao3Simeng XuSimeng Xu4Changqiong XuChangqiong Xu3Shan LiShan Li3Qiongli SuQiongli Su5Jing YanJing Yan3Bo Liu,
Bo Liu1,2*Ran Li
Ran Li3*
  • 1The Second Clinical Medical College, Guangdong Provincial Key Laboratory of Clinical Research on Traditional Chinese Medicine Syndrome, Guangzhou University of Chinese Medicine, Guangzhou, China
  • 2Guangzhou Key Laboratory of Chirality Research on Active Components of Traditional Chinese Medicine, Guangzhou, China
  • 3Scientific Research Institute, Yueyang Maternal-Child Medicine Health Hospital, Yueyang, China
  • 4Key Laboratory of Study and Discovery of Small Targeted Molecules of Hunan Province, Key Laboratory of Protein Chemistry and Developmental Biology of Fish of Ministry of Education, Department of Pharmacy, School of Medicine, Hunan Normal University, Changsha, China
  • 5Department of Pharmacy, Zhuzhou Central Hospital, Zhuzhou, China

Bladder cancer (BC) ranks the fourth in incidence in cancers of men and is a common malignant tumor in women. 4-Methoxydalbergione (4MOD), which is purified from Dalbergia sissoo Roxb, has been shown to have anticancer capacity for osteosarcoma and astroglioma. The role of 4MOD in bladder cancer has not been investigated. This study aims to evaluate the anticancer effect of 4MOD in BC cells and its possible mechanisms. The two human bladder cancer cell lines J82 and UMUC3 were used to evaluate the proliferation inhibitory effect of 4MOD by CCK8 and clonogenic assays. The migratory and invasive ability of tumor cells was examined by scratch test and transwell assay. Apoptosis was detected by flow cytometry and TUNEL assays. The autophagy-related molecules including Beclin-1 and LC3 were examined by Western blotting analysis. Furthermore, the RT-PCR was used to detect the mRNA expression of LC3. 4MOD repressed cell proliferation, migration, invasion and induced cell apoptosis in a concentration-dependent manner. The IC50 values of J82 and UMUC3 were 8.17 and 14.50 μM respectively. The mRNA and protein expression ratio of light chain 3-II (LC3-II)/LC3-I and the protein expression of Beclin-1 were increased when the BC cells were treated with 4MOD. The treatment of 4MOD attenuated the phosphorylation of Akt and ERK in the BC cells. We revealed that the 4MOD inhibits BC cells growth by inducing autophagy and inhibiting Akt/ERK signaling pathway. Our study provides new insights into the mechanism by which 4MOD weakens the proliferation of BC cells. This study demonstrates that 4MOD provided a lead compound for the development of novel compound with potent anticancer effect on BC cells.

Introduction

Bladder cancer is one of the most common malignancies in the urinary system worldwide (Sanli et al., 2017). There are more than 430,000 confirmed cases of bladder cancer in the world every year (Siegel et al., 2018). Radical cystectomy (RC) combined with lymph node dissection (LND) is recommended as the standard treatment for muscle-invasive bladder cancer (MIBC). Patients with low and intermediate risk of non-muscle-invasive bladder cancer (NMIBC) have a 5-years recurrence-free survival rate of 43 and 33%, respectively (Kohada et al., 2021). However, 50–70% of cases are myometrial invasive bladder cancer (MIBC) and the 5-years overall survival (OS) is only 4.8% due to the devastating metastasis (Bokarica et al., 2017). The incidence and mortality remained low before 45 and 55 years old and reached the peak in the age group of 80 years (Li et al., 2021). Furthermore, radio- resistance and drug-resistance often occur. Hence, development of more practical drug candidates and therapeutic strategy is urgently needed.

4-Methoxydalbergione(4MOD), was isolated and purified from the heartwood of Dalbergia sissoo Roxb. Recent research has shown the anticancer capacity of 4MOD for osteosarcoma (Park et al., 2016) and astroglioma (Li et al., 2020). In addition, 4MOD showed cytoprotective effects on hippocampal BV2 microglia cells in mice and primary microglia in rats (Bokarica et al., 2017). Therefore, as a natural flavonoid, 4MOD has a good prospect of development into an anticancer medication. However, the anticancer effect of 4MOD in bladder cancer cells remains unclear.

Autophagy is a membrane transport and intracellular degradation system which captures abnormal intracellular dysfunctional organelles and deliver them to lysosomes. Autophagy affects cellular homeostasis, aging and diverse diseases (Zhao et al., 2021). Autophagy is a double-edged sword in the development of cancers due to the dual effects of inhibiting and promoting tumorigenesis. Presently, autophagy regulation is used in anti-tumor treatment in different cancer types (Zhao et al., 2021). More than 80 clinical trials based on autophagy are in progress. (https://clinicaltrials.gov/; accessed on april 12, 2021). In recent years, the role of autophagy in bladder cancer has been studied. Riccardo Vanzo group found that autophagy is enhanced in both early and advanced stages of human urinary bladder tumorigenesis (Vanzo et al., 2020). It was shown that treatment with the autophagy inhibitor bafilomycin A1 or knocking down the autophagy-related protein ATG7 or 12 can induce a large number of cell apoptosis and leading to the death of bladder cancer cells (Lin et al., 2016). Furthermore, the knockdown of ATG7 dramatically inhibits human BC cell invasion (Zhu et al., 2019).

Recently, the development of therapeutic drugs for bladder cancer targeting the autophagic pathway has become a hot spot in the field of bladder cancer research. It has been reported that the autophagy-modulating drug arzanol can induce the accumulation of lapidated LC3 and sensitize RT-112 bladder cancer cells to cisplatin (CDDP) treatment (Deitersen et al., 2021). ChlA-F, a novel conformation-derivative of Cheliensisin A, induces autophagy-dependent anticancer effects through specifically promoting SESN2 expression (Hua et al., 2018). SESN2, as a new p53 targeted gene, is involved in the induction of autophagy (Maiuri et al., 2009), and overexpression of SESN2 mediates the anti-cancer activity of Isorhapontigenin in bladder cancer cells (Liang et al., 2016). A large number of studies have shown that autophagy is related to drug resistance in the treatment of bladder cancer with gemcitabine, cisplatin, and epirubicin (Huang et al., 2017; Yin et al., 2017).

Various signaling pathways play important roles in cell proliferation, apoptosis and autophagy on cancer development (Li D. et al., 2018). Akt/ERK signaling pathway stimulates cell proliferation at various stages of the cell cycle. Inhibition of Akt/ERK signaling pathway is a good anti-tumor strategy (Huang et al., 2017; Yin et al., 2017). However, the effect of 4MOD on autophagy and Akt/ERK signaling pathway in the development of bladder cancer cell is elusive.

In this study, we aim to examination the anticancer effects of 4MOD and the underlying mechanism on the development of BC cells. Our results confirm that 4MOD is a new and promising compound, which inhibits the growth and induces apoptosis of BC cells by preventing Akt/ERK signaling pathway from activating autophagy.

Materials and Method

Cell Culture

Human BC cell lines J82 and UMUC3 (provided by Dr. P Guo) were cultured in Dulbecco modified Eagle medium supplemented (Hyclone, Logan, UT) with 10% of BI serum (FBS) (Hyclone, Logan, UT) and 1% of penicillin-streptomycin at 37°C, in humidified air containing 5% of CO2.

Reagents

4MOD (98% purity, MW = 254.28) was isolated and purified from Dalbergia sissoo Roxb. in our preliminary study (Ran et al., 2019). and it prepared as a stock solution of 50 mM in dimethyl sulfoxide (DMSO). SC79, and CQ (Selleck-Biotool, Shanghai, China) were prepared as a stock solution of 50 mM in PBS. They were diluted in dimethyl sulfoxide in a range of concentrations. Antibodies against Akt, ERK, LC3, GAPDH and β-actin were purchased from Cell Signaling Technology (Cell Signaling, Beverly, MA). An Apoptosis Detection kit (FITC Annexin V) was purchased from Beyotime (CS, Hunan, China). The TUNEL Assay Kit was obtained from Elabscience. MA.

Cell Viability

Cell proliferation was determined by using a Cell Counting Kit-8 assay (CCK-8, Meilunbio, Dalian, China). Cells were seeded into a 96-well plate (6 × 103 cells/well) with 100 μL of culture medium. After 24 h, cells were treated with different drugs and incubated for 72 h. 10 μL CCK-8 solution was added to each well and cells were incubated at 37°C for 2 h. Light absorbance was measured at 450 nm using a Dynatech MR5000 plate reader.

Colony Formation Assays

A total of 6×103 cells were seeded into 24-well dishes in 0.5 ml of medium for 24 h. Cells were further treated with different drugs, and then maintained for 6–8 days in a CO2 incubator. Finally, the cells were fixed with 10% formaldehyde solution and then stained with 0.1% crystal violet, each experiment was performed in triplicate. The absorbance was measured using a microplate reader at 550-nm wavelength.

Transwell Assays

Transwell assay was used to analyze the impacts of different concentrations of 4MOD (0 μM, 5.0 μM, 10 μM) on cell migration and invasion of BC cells by applying a Transwell plate (Corning, United States) according to the manufacturer’s guidance. Briefly, the upper chambers were plated with around 1×105 cells. Then the cells were fixed in paraformaldehyde (4%) and dyed using crystal violet. Invaded and migrated cells were recorded and calculated.

Measurement of Cell Migration

A total of 5×103 cells were seeded onto a 12-well plate and allowed to reach full confluence. The monolayer was wounded using a cocktail stick. Cells were incubated with serum-free MEM medium, for the time period as stated. Digital images were taken at times 0, 24 and 48 h. The mean area was calculated using ImageJ software. The experiments were repeated three times.

TUNEL Assays

Apoptosis was analyzed using a TUNEL Apoptosis Detection kit (Elabscience, Institute of Biotechnology) according to the manufacturer’s protocol. The nuclei were counterstained with DAPI for 5 min at room temperature in the dark and the slides were then mounted with anti-fade mounting medium. The levels of apoptosis were estimated as the ratio of the number of TUNEL-positive cells to the total number of DAPI-positive cells using a fluorescence microscope (magnification, ×200; Olympus Corporation).

Annexin V-FITC/PI Cell Apoptosis Analysis

Apoptosis was detected by flow cytometry via the examination of altered plasma membrane phospholipid packing by lipophilic dye Annexin V. Briefly, treated cells were harvested by trypsin, washed twice with PBS, and then resuspended in binding buffer at a concentration of 5.0 × 105 cells/mL according to the manufacturer’s instruction. Thereafter, 5 μL of Annexin V-FITC and 10 μL of propidium iodide were added into 100 μL of cell suspension and incubated for 30 min at room temperature in the dark. After adding 300 μL of binding buffer, labeled cells were counted by flow cytometry within 30 min. All early apoptotic cells (Annexin V-positive and propidium iodide-negative), necrotic/late apoptotic cells (double positive), as well as living cells (double negative) were detected by flow cytometry on a FACS Calibur flow cytometer.

qRT-PCR Analysis

Total RNA was isolated using a Total RNA Extraction kit (GeneCopoeia™, Guangzhou, China). Reverse transcription into cDNA was performed using a SureScript™ First-Stand cDNA Synthesis Kit according to the User Manual (GeneCopoeia™, Guangzhou, China) and the cDNA was amplified using a SYBR® Green qPCR Mix 2.0 (GeneCopoeia™, Guangzhou, China). The 2−ΔΔCt method was used to perform analysis with 18 s RNA as the reference. The primers of LC3 were purchased from GeneCopoeia™. Data analysis was performed with Applied Biosystems Quant Studio 3 Real-time PCR System (Thermo Fisher Scientific, United States).

Western Blot Analysis

Western blot assessment was performed using regular procedures. Primary antibody was added in bovine serum albumin (BSA) and allowed to incubate overnight at 4°C, washed with TBST for six times (10 min per time). The secondary antibodies (CST, United States) were used for hatching the membranes 1 h at room temperature. The Pierce Super Signal chemiluminescent substrate (Rockford, IL, United States) was added followed by the visualization with a Fluorescentand Chemiluminescence Gel Imaging System (Jiapeng, ShangHai, China). Band intensity data were quantified using ImageJ.

Statistical Analysis

Data were expressed as mean ± SD, and the statistical analysis was conducted using GraphPad prism 9. The unpaired Student’s t-test was used to compare two groups, and the one-way ANOVA was used to compare among multiple groups. *p < 0.05, **p < 0.01 was considered as statistically significant.

Results

4MOD Inhibits BC Cell Proliferation and Colony Formation

We used Cell Counting Kit-8 analysis to verify whether 4MOD affects the proliferation of BC cells in vitro. We exposed J82 and UMCU3 cells to various concentrations of 4MOD (0 μM, 2.5 μM, 5.0 μM, 10 μM, 20 μM). It was found that 4MOD inhibited cell proliferation in a dose-dependent manner (Figure 1A; Table 1). The IC50 values of 4MOD induced inhibition at various concentrations were 8.17 μM, 14.5 μM on bladder cancer cells, respectively (Figure 1A; Table 1). Similarly, the colony formation was decreased by treatment with 0–20 μM 4MOD (Figures 1B,C). The J82 is the more sensitive cell line which is consistent with the results of CCK8 assay.

FIGURE 1
www.frontiersin.org

FIGURE 1. 4MOD inhibits the proliferation of BC cells (A) CCK8 assay on the human BC cell lines UMUC3 and J82 treated with 4MOD at concentrations ranging from 0 to 20 μM or DMSO for 72 h. (B) The clonogenic assay assessed after 7-days of 4MOD treatment at various concentrations (0–20 μM) (C) Bar chart shows quantitative data of average of 3 independent experiments (*p < 0.05, **p < 0.01 compared with control). Quantitative data determined by solubilization of crystal violet and spectrophotometric reading at OD 550 nm. Results are presented as mean ± SD of 3 independent experiments (Comparison was drawn by the t-test (two-tailed). Data represent means ± SD; *p < 0.05, **<0.01).

TABLE 1
www.frontiersin.org

TABLE 1. Inhibitory concentration 50% (IC50) of 4MOD.

4MOD Represses BC Cell Invasion and Migration

Cell scratch assay and Transwell assay were used to analyze the effect of 4MOD on the migration and invasion of BC cells. As shown in Figure 2, 4MOD-treated cells were remarkably enhanced the wound healing proportion than that of control in J82 and UMUC3 cells at 24 and 48 h (Figures 2A–D), Similarly, Transwell assays results showed that the invasion was decreased in the cells treated with 0–20 μM 4MOD (Figures 2E,F), suggesting that 4MOD can decrease the migration and invasion of BC cells in vitro.

FIGURE 2
www.frontiersin.org

FIGURE 2. 4MOD represses invasion and migration of BC cells (A–D) Transwell assay on the human BC cell lines UMUC3 and J82 treated with 4MOD (0 μM, 5.0 and 10 μM)) for 48 h (E–F) The migration was measured by wound healing assays in the different group of cells; Data are presented as mean ± SD of 3 independent wound healing assays experiments (*p < 0.05, **p < 0.01 compared with control).

4MOD Promotes Apoptosis of BC Cells

As shown in Figure 3, compared to the control group, the cellular apoptosis was remarkably increased in the cells treated with 20.0 µM 4MOD, as demonstrated by both FITC and PI staining (Figures 3A,B). Consistently, as we can see in Figure 3C under a fluorescence microscope, 4MOD-treated cells significantly increased TUNEL-positive staining (green fluorescence) compared with the control group. These data demonstrated that 4MOD is able to induce apoptosis of BC cells.

FIGURE 3
www.frontiersin.org

FIGURE 3. 4MOD promotes apoptosis of BC cells. The cell apoptosis was measured by flow cytometry analysis (A-B) and TUNEL assays (C) in BC cells of J82 and UMUC3. Data are presented as mean ± SD. Statistic significant differences were indicated: *p < 0.05, **p < 0.01, ***p < 0.001.

4MOD Induces Autophagy of BC Cells

Abnormal autophagy is closely related to the occurrence and development of bladder cancer (Zhu et al., 2019). Salidroside significantly increased the autophagy of T24 cells through the autophagy/PI3K/Akt and MMP-9 signaling induced bladder cancer cells apoptosis (Li T. et al., 2018). Based on this, we explored whether 4MOD affects the progression of bladder cancer cells through autophagy. As shown in Figure 4A, We found that 4MOD significantly enhanced LC3 mRNA expression. LC3, is an autophagic landmark gene, which participates in the formation of the autophagosome (Giménez-Xavier et al., 2009). At the same time, we further identified that 4MOD induced the expression ratio of LC3 (LC3B-II)/LC3B-I and the protein expression of Beclin-1 in J82 and UMUC3 cells in a dose-dependent manner Figure 4B. The statistical analysis of protein quantifications in Figures 4C,D verified it (*p < 0.05). These results suggested that 4MOD induces autophagy of BC cells.

FIGURE 4
www.frontiersin.org

FIGURE 4. 4MOD induces autophagy in BC cells (A) The human BC cell lines UMUC3 and J82 were treated with 4MOD (20 μM) for 12 h. The relative mRNA expression of LC3 was measured by RT-PCR (B) The UMUC3 and J82 cells were treated with an increasing concentration of 4MOD for 72 h. The expression of LC3-II, LC3-I, Beclin-1, and β-actin was measured by Western blot analysis in the cells (C–D) The results of Western blot analysis were quantified by ImageJ software. Data are presented as mean ± SD. Statistic significant differences were indicated: *p < 0.05, **p < 0.01.

Antagonism Action of Combination of 4MOD With CQ on Proliferation and Colony Formation in BC Cells

Chloroquine (CQ) first approved for medical use in 1949, have also been widely reported as potential anticancer agents for it can destroy the function of the lysosome and inhibit autophagy (Ferreira et al., 2021). It is one of the classic experiments for observing autophagy flux that the increase in LC3-II protein before and after CQ treatment reflects the amount of autophagosomes degraded by lysosomes. CCK8 assay was utilized to examine the antagonism effect of combining 4MOD with the CQ. As shown in Figures 5A,B, 20 µM 4MOD alone significantly inhibited the proliferation of J82 and UMUC3 cells, while the anti-proliferative effect of 4MOD could be rescued when combined with 5 µM CQ. We next examined the anti-cloning effect of the combination of 4MOD and CQ. Consistent with CCK8 assay, we observed that CQ significantly antagonized the anti-cloning effect of 4MOD (Figures 5C,D). Taken together, these data recognize that inhibition of autophagy may be an effective strategy to increase the anticancer activity of 4MOD in bladder cancer.

FIGURE 5
www.frontiersin.org

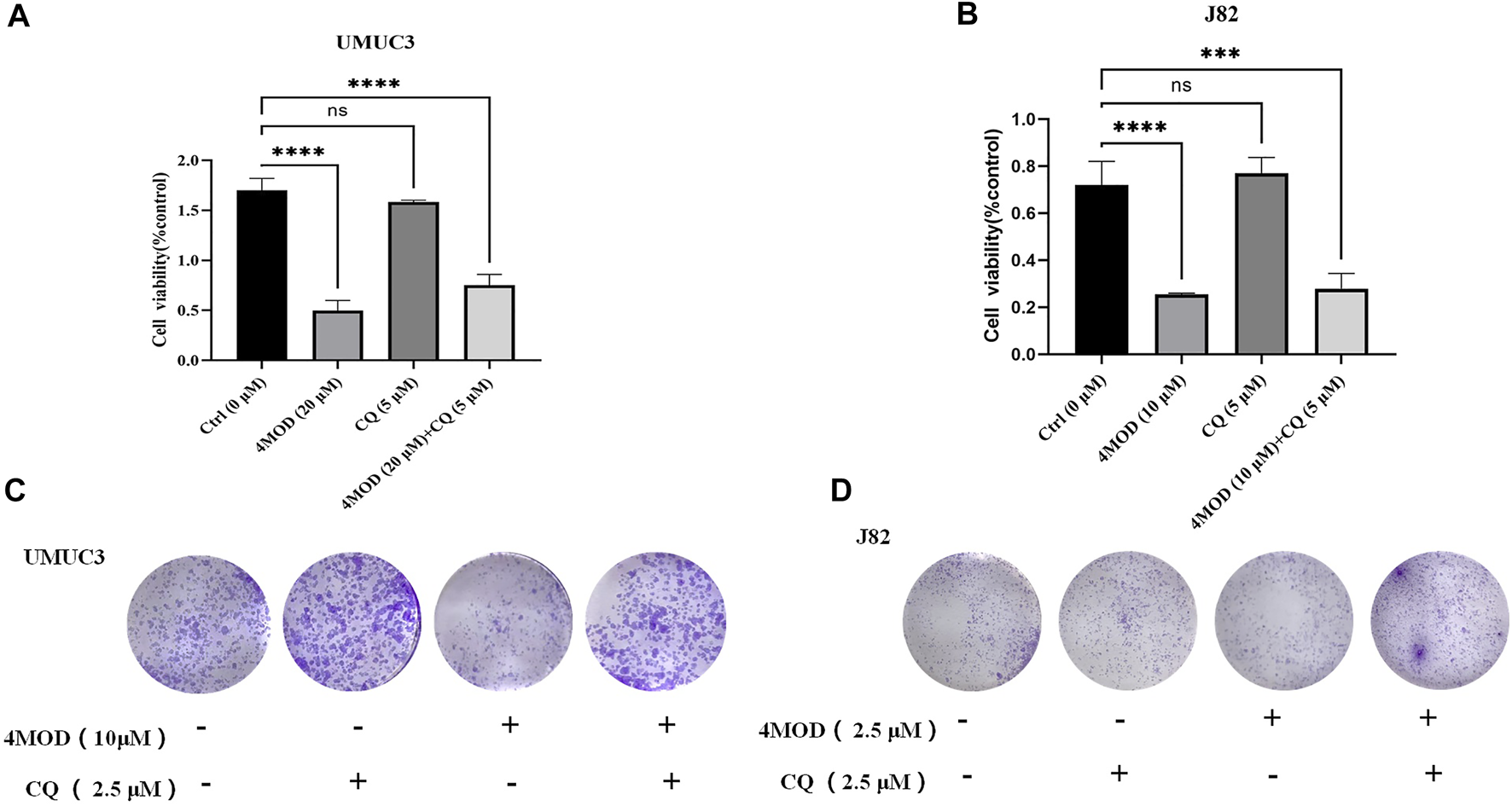

FIGURE 5. Antagonism action of combination of 4MOD with CQ on proliferation and colony formation in BC Cells (A–B) Cell viability was assessed after treatment of 4MOD alone or 4MOD combined with CQ for 72 h (C–D) UMUC3 and J82 cells were treated for 7 days with 4MOD combined with CQ and then stained with crystal violet to allow colony counting.

Akt/ERK Signaling Pathways Participate in the Inhibitory Effect of 4MOD on BC Cells Growth

Given that Akt/ERK signaling pathways, as critical pathways for tumorigenesis, are key intracellular mediators of cell survival and proliferation signals (Cao et al., 2019). Investigative Akt/ERK signaling during 4MOD treatment are meaningful for us to elaborate its anticancer mechanism. Thus, we explored whether 4MOD induced autophagy by regulating Akt/ERK signaling pathways in the BC cells. As shown in Figures 6A–D, 4MOD diminished the phosphorylation of Akt and/or Erk1/2 while the protein levels of total Erk1/2 and Akt had no significant change in the J82 and UMUC3 cells.

FIGURE 6
www.frontiersin.org

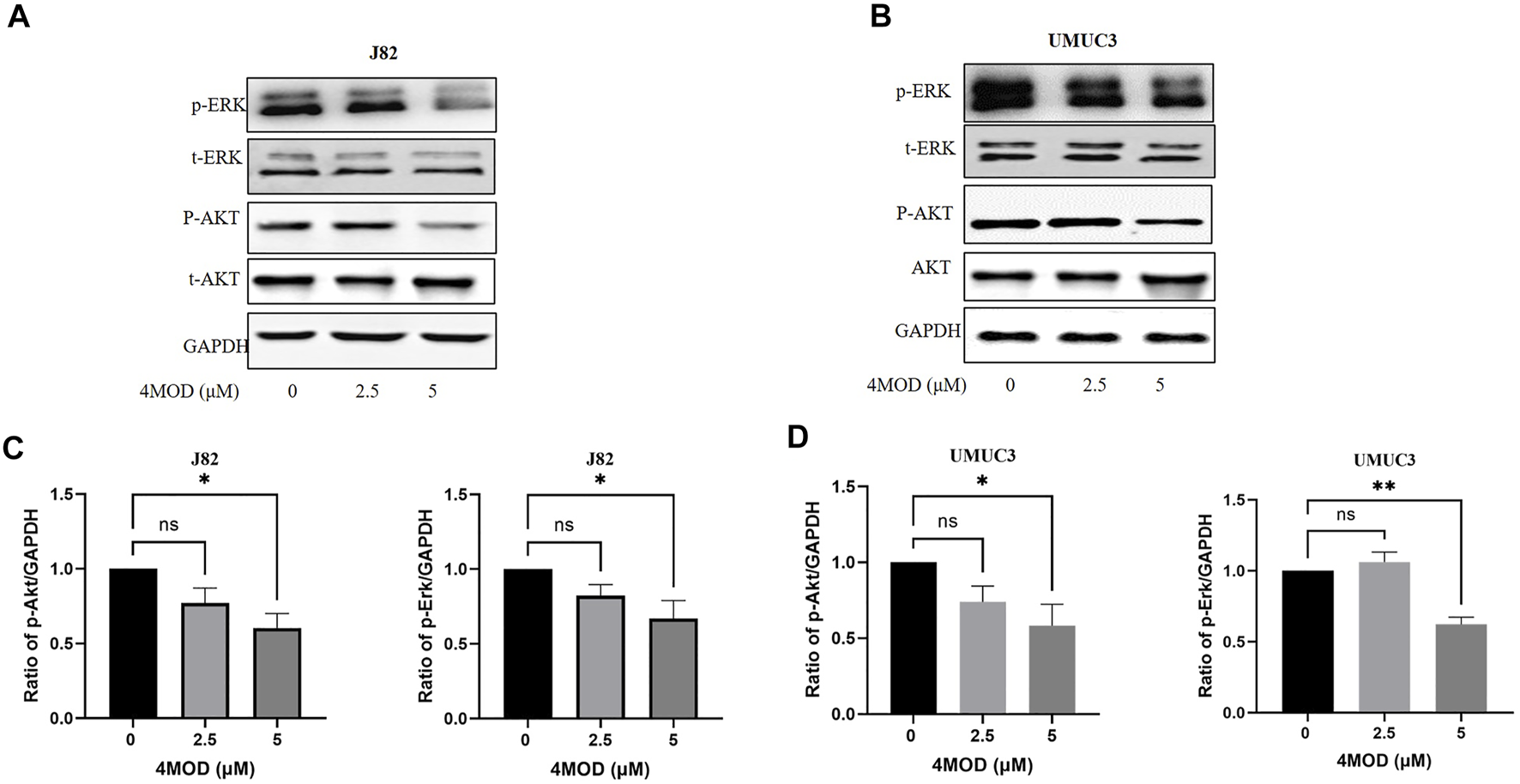

FIGURE 6. 4MOD inhibits Akt/ERK signaling in BC cells (A–B) The UMUC3 andJ82 cells were treated with 0–5.0 μM 4MOD for 72 h 4MOD or DMSO. Western blot analysis was used to examine total (t) and phosphorylated (p) forms of Akt and Erk, GAPDH was included as a loading control (C-D) Relative levels of phosphorylated Akt, Erk are shown as means ± SD, n = 3, **p < 0.01, *p < 0.05.

4MOD Attenuates BC Progression Through Inhibiting AKT/ERK Signaling in vitro

To further determine whether inhibiting Akt/ERK signaling is essential for 4MOD to exert its anti-tumor effect on BC cells, we added Akt specific agonist SC79 in combination with 4MOD in J82 and UMUC3 cells, As shown in Figures 7A,B, 4MOD and SC79 have shown varying degrees of antagonistic effect, the ability of 4MOD to inhibit cancer cell proliferation was reduced after adding SC79. We next observed that when SC79 and 4MOD treated J82 and UMUC3 cells simultaneously, the anti-cloning effect of 4MOD could be reversed (Figures 7C,D). As shown in Figures 7E,F, 4MOD treatment alone inhibited AKT and ERK strongly in both J82 and UMUC3. while SC79 could rescue the 4MOD-inhibited phosphorylation of AKT and ERK when cells were treated with SC79 combination with 4MOD. Meanwhile, the expression ratio of light chain 3-II (LC3-II)/LC3-I were increased in the J82 and UMUC3 cells when the treatment of 4MOD, and SC79 could reverse this phenotype in the UMUC3 while without affecting J82 cells. Figures 7G,H showed the statistical analysis of protein quantifications (*p < 0.05). Together these suggest that 4MOD attenuates BC progression through inhibiting AKT/ERK signaling in vitro.

FIGURE 7
www.frontiersin.org

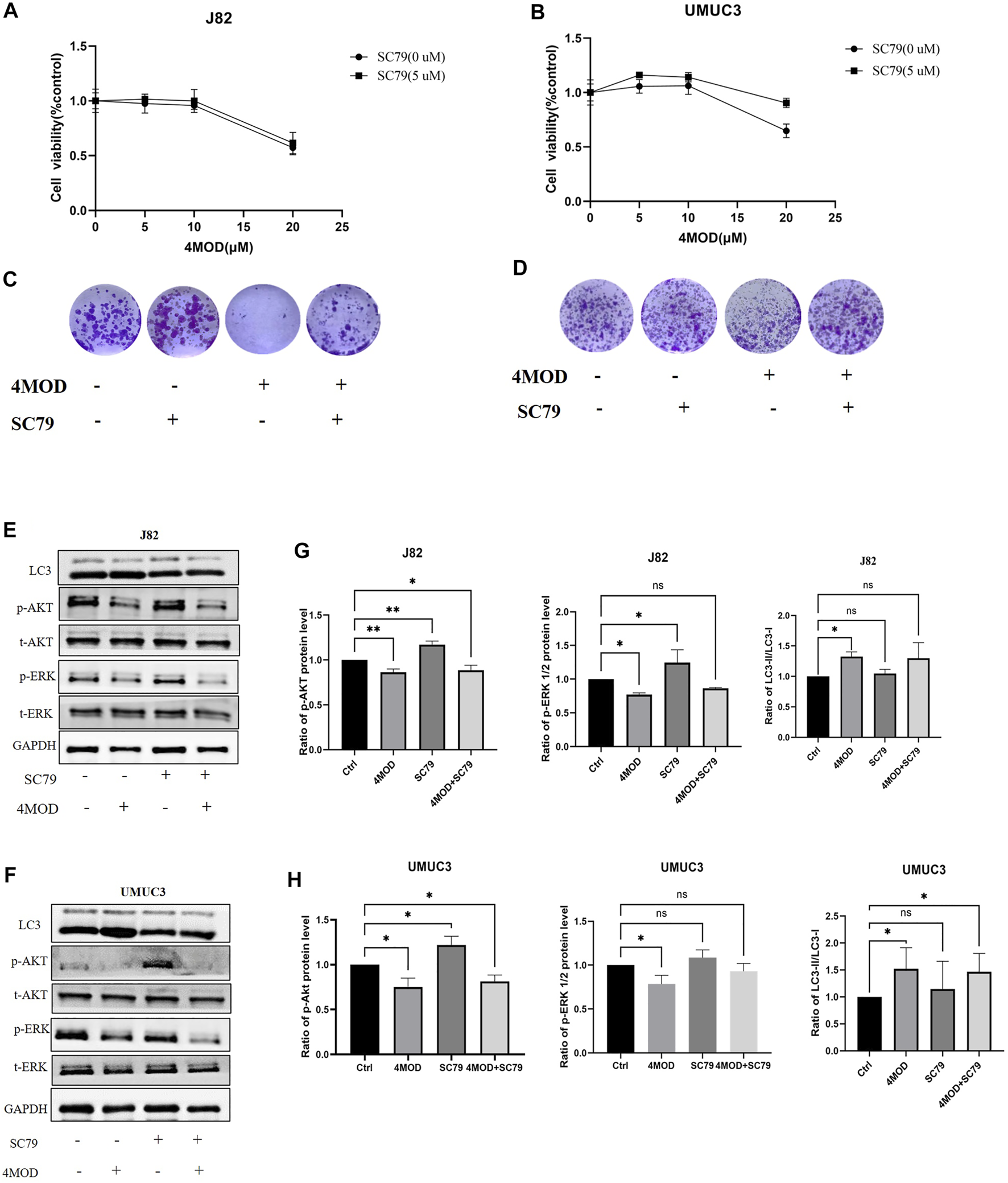

FIGURE 7. 4MOD attenuates BC progression through inhibiting AKT/ERK signaling in vitro (A–B) Cell viability was assessed after treatment of 4MOD alone or 4MOD combined with Akt antagonist SC79 for 72 h (C–D) UMUC3 and J82 cells were treated for 7 days with 4MOD combined with SC79 and then stained with crystal violet to allow colony counting (E–F) UMUC3 and J82 cells were after treatment of 4MOD alone or 4MOD combined with SC79 for 72 h, and the protein levels of pErk, t-Erk, pAkt, t-Akt, and LC3 were detected by Western blot with GAPDH as a control. (G, H) The results of Western blot analysis were quantified by ImageJ software. Data are presented as mean ± SD. Statistic significant differences were indicated: *p < 0.05, **p < 0.01.

Discussion

Bladder cancer is one of the malignancies in the urinary system. The incidence of bladder cancer ranks ninth among global malignant tumors, and second among urinary system tumors (Siegel et al., 2018). 4MOD is a natural flavonoid. Our previous study found that 4MOD can block cell cycle and promote apoptosis in astroglioma cells, thus inhibiting tumor growth (Park et al., 2016). The latest research showed that 4MOD has anti-osteosarcoma effect (Park et al., 2016). Nonetheless, the role and the underlying molecular mechanisms of 4MOD in the development of BC cells is not reported. In this study, we identified the antitumor potential of 4MOD on BC cells.

It was known that tumor cell proliferation and apoptosis are important processes in tumorigenesis and development. Inhibiting the proliferation of tumor cells and inducing their apoptosis is the focus of research on the anti-tumor activity of natural products (Jin and Shi, 2016). Our results show that 4MOD can inhibit BC cells proliferation and induce cell apoptosis in a dose-dependent manner by CCK8 assay, colony formation, TUNEL and flow cytometry detection of apoptosis. Furthermore, 4MOD also represses invasion and migration of BC cells. These results show that 4MOD has research value in BC and can be used as a candidate drug for its clinical treatment.

Autophagy, is a key lysosomal degradation pathway, which involves in BC development and progression (Chen et al., 2018). Ojha (Ojha et al., 2014) et al. found that LC3 was significantly increased in both high-grade and low-grade urothelial cancer specimens, and the increase was more significant in high-grade urothelial cancer specimens. In our assays, we found that the LC3 gene expression level significantly increased after treatment with 4MOD by using the 2−ΔΔCT method and normalization to 18s RNA as a reference. Furthermore, Western blot results showed that the expression of LC3 and Beclin 1 was increased after treatment with 4MOD. We further found that an antagonistic effect exists on proliferation and colony formation when combination of 4MOD with CQ in BC Cells. These data collectively demonstrate that 4MOD can induce autophagy to exert anticancer effect on BC.

In this study, we demonstrated that 4MOD downregulated the phosphorylation of both Akt and Erk1/2. Activation of Akt and ERK is crucial for tumor growth and resistance on anticancer drugs (McCubrey et al., 2007; Wang et al., 2009; Liu et al., 2014). We further found varying degrees of antagonistic effects on the proliferation and colony formation of J82 and UMUC3 cells treated with 4MOD and SC79. These results showed that Akt/ERK signaling pathway is necessary for 4MOD to exert its anti-tumor effect.

Conclusion

In summary, the present study demonstrates the anti-proliferative potential of 4MOD on BC cells by inducing autophagy and inhibiting Akt/ERK signaling pathways. This study is the first to evaluate the antitumor action of 4MOD on BC cells. Our findings suggest that 4MOD could be a new treatment for BC.

Data Availability Statement

The datasets presented in this study can be found in online repositories. The names of the repository/repositories and accession number(s) can be found in the article/Supplementary Material.

Author Contributions

HD, TT, RL and BL conceived the presented research. HD perform the experiments. TT drafted the manuscript. RL and BL provided critical revision of this article. JY, QS, SX, CX and SL supervised the findings of the work, and approved the manuscript for submission. All authors agreed with the final version of this manuscript.

Funding

This work was supported by the Research Foundation of Natural Science Foundation of Hunan province (No. 2021JJ40550); Natural Science Foundation of Hunan province (No. 2020JJ5996); the Clinical Innovation Leading Scientific Research Projects of Hunan Science and Technology Department (No.2020SK52603); the Scientific Research Project of Hunan Provincial Health Commission (No.202103101455); the Hunan Provincial Clinical Medical Technology Demonstration base Project (No.2020SK4025); the Research Foundation of Hunan administration of traditional Chinese medicine (No.2019101); the Research Foundation of Guangdong administration of traditional Chinese medicine (No.20202090); Natural Science Foundation of Hunan province (No. 2021JJ40551); The special foundation of Guangzhou Key Laboratory (No. 202002010004); the Science and Technology Planning Project of Guangdong Province (No. 2017B030314166); and the Specific Research Fund for TCM Science and Technology of Guangdong Provincial Hospital of Chinese Medicine (No. YN2019MJ05). Special Funds for State Key Laboratory of Dampness Syndrome of Chinese Medicine (Nos. SZ2021ZZ33, SZ2021ZZ36, SZ2021ZZ40, and SZ2021ZZ46).

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s Note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Supplementary Material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fmolb.2021.789658/full#supplementary-material

References

Alfred Witjes, J., Lebret, T., Compérat, E. M., Cowan, N. C., De Santis, M., Bruins, H. M., et al. (2017). Updated 2016 EAU Guidelines on Muscle-Invasive and Metastatic Bladder Cancer. Eur. Urol. 71 (3), 462–475. doi:10.1016/j.eururo.2016.06.020

PubMed Abstract | CrossRef Full Text | Google Scholar

Cao, Z., Liao, Q., Su, M., Huang, K., Jin, J., and Cao, D. (2019). AKT and ERK Dual Inhibitors: The Way Forward? Cancer Lett. 459, 30–40. doi:10.1016/j.canlet.2019.05.025

PubMed Abstract | CrossRef Full Text | Google Scholar

Chen, C.-H., Changou, C. A., Hsieh, T.-H., Lee, Y.-C., Chu, C.-Y., Hsu, K.-C., et al. (2018). Dual Inhibition of PIK3C3 and FGFR as a New Therapeutic Approach to Treat Bladder Cancer. Clin. Cancer Res. 24 (5), 1176–1189. doi:10.1158/1078-0432.Ccr-17-2066

PubMed Abstract | CrossRef Full Text | Google Scholar

Deitersen, J., Berning, L., Stuhldreier, F., Ceccacci, S., Schlütermann, D., Friedrich, A., et al. (2021). High-throughput Screening for Natural Compound-Based Autophagy Modulators Reveals Novel Chemotherapeutic Mode of Action for Arzanol. Cell Death Dis 12 (6), 560. doi:10.1038/s41419-021-03830-5

PubMed Abstract | CrossRef Full Text | Google Scholar

Ferreira, P. M. P., Sousa, R. W. R. d., Ferreira, J. R. d. O., Militão, G. C. G., and Bezerra, D. P. (2021). Chloroquine and Hydroxychloroquine in Antitumor Therapies Based on Autophagy-Related Mechanisms. Pharmacol. Res. 168, 105582. doi:10.1016/j.phrs.2021.105582

PubMed Abstract | CrossRef Full Text | Google Scholar

Giménez-Xavier, P., Francisco, R., Santidrián, A. F., Gil, J., and Ambrosio, S. (2009). Effects of Dopamine on LC3-II Activation as a Marker of Autophagy in a Neuroblastoma Cell Model. Neurotoxicology 30 (4), 658–665. doi:10.1016/j.neuro.2009.04.007

PubMed Abstract | CrossRef Full Text | Google Scholar

Hua, X., Xu, J., Deng, X., Xu, J., Li, J., Zhu, D. Q., et al. (2018). New Compound ChlA-F Induces Autophagy-dependent Anti-cancer Effect via Upregulating Sestrin-2 in Human Bladder Cancer. Cancer Lett. 436, 38–51. doi:10.1016/j.canlet.2018.08.013

PubMed Abstract | CrossRef Full Text | Google Scholar

Huang, X.-L., Zhang, H., Yang, X.-Y., Dong, X.-Y., Xie, X.-Y., Yin, H.-B., et al. (2017). Activation of a C-Jun N-Terminal Kinase-Mediated Autophagy Pathway Attenuates the Anticancer Activity of Gemcitabine in Human Bladder Cancer Cells. Anti-cancer drugs 28 (6), 596–602. doi:10.1097/CAD.0000000000000499

PubMed Abstract | CrossRef Full Text | Google Scholar

Jin, X., and Shi, Y. (2016). Isobavachalcone Induces the Apoptosis of Gastric Cancer Cells via Inhibition of the Akt and Erk Pathways. Exp. Ther. Med. 11 (2), 403–408. doi:10.3892/etm.2015.2904

PubMed Abstract | CrossRef Full Text | Google Scholar

Kohada, Y., Hayashi, T., Hsi, R. S., Yukihiro, K., Sentani, K., Goto, K., et al. (2021). Recurrence‐ and Progression‐free Survival in Intermediate‐risk Non‐muscle‐invasive Bladder Cancer: the Impact of Conditional Evaluation and Subclassification. BJU Int. 127 (4), 473–485. doi:10.1111/bju.15209

PubMed Abstract | CrossRef Full Text | Google Scholar

Li, D., Yang, M., Liao, A., Zeng, B., Liu, D., Yao, Y., et al. (2018a). Linc00483 as ceRNA Regulates Proliferation and Apoptosis through Activating MAPKs in Gastric Cancer. J. Cell Mol Med 22, 3875–3886. doi:10.1111/jcmm.13661

CrossRef Full Text | Google Scholar

Li, H. Z., Zheng, R. S., Du, L. B., Zhang, S. W., Zhu, C., Wei, W. W., et al. (2021). Bladder Cancer Incidence, Mortality and Temporal Trends in China. Zhonghua Zhong Liu Za Zhi 23 (3), 43. doi:10.3760/cma.j.cn112152-20200421-00362

CrossRef Full Text | Google Scholar

Li, R., Xu, C.-q., Shen, J.-x., Ren, Q.-y., Chen, D.-l., Lin, M.-j., et al. (2020). 4-Methoxydalbergione Is a Potent Inhibitor of Human Astroglioma U87 Cells In Vitro and In Vivo. Acta Pharmacol. Sin 42, 1507–1515. doi:10.1038/s41401-020-00560-w

PubMed Abstract | CrossRef Full Text | Google Scholar

Li, T., Xu, K., and Liu, Y. (2018b). Anticancer Effect of Salidroside Reduces Viability through autophagy/PI3K/Akt and MMP-9 S-ignaling P-athways in H-uman B-ladder C-ancer C-ells. Oncol. Lett. 16 (3). doi:10.3892/ol.2018.8982

PubMed Abstract | CrossRef Full Text | Google Scholar

Liang, Y., Zhu, J., Huang, H., Xiang, D., Li, Y., Zhang, D., et al. (2016). SESN2/sestrin 2 Induction-Mediated Autophagy and Inhibitory Effect of Isorhapontigenin (ISO) on Human Bladder Cancers. Autophagy 12 (8), 1229–1239. doi:10.1080/15548627.2016.1179403

PubMed Abstract | CrossRef Full Text | Google Scholar

Lin, Y.-C., Lin, J.-F., Wen, S.-I., Yang, S.-C., Tsai, T.-F., Chen, H.-E., et al. (2016). Inhibition of High Basal Level of Autophagy Induces Apoptosis in Human Bladder Cancer Cells. J. Urol. 195, 1126–1135. doi:10.1016/j.juro.2015.10.128

PubMed Abstract | CrossRef Full Text | Google Scholar

Liu, Q., Turner, K. M., Alfred Yung, W. K., Chen, K., and Zhang, W. (2014). Role of AKT Signaling in DNA Repair and Clinical Response to Cancer Therapy. Neuro-Oncology 16 (10), 1313–1323. doi:10.1093/neuonc/nou058

PubMed Abstract | CrossRef Full Text | Google Scholar

Maiuri, M. C., Malik, S. A., Morselli, E., Kepp, O., Criollo, A., Mouchel, P.-L., et al. (2009). Stimulation of Autophagy by the P53 Target Gene Sestrin2. Cell Cycle 8 (10), 1571–1576. doi:10.4161/cc.8.10.8498

PubMed Abstract | CrossRef Full Text | Google Scholar

McCubrey, J. A., Steelman, L. S., Chappell, W. H., Abrams, S. L., Wong, E. W. T., Chang, F., et al. (2007). Roles of the Raf/MEK/ERK Pathway in Cell Growth, Malignant Transformation and Drug Resistance. Biochim. Biophys. Acta (Bba) - Mol. Cell Res. 1773 (8), 1263–1284. doi:10.1016/j.bbamcr.2006.10.001

CrossRef Full Text | Google Scholar

Ojha, R., Singh, S. K., Bhattacharyya, S., Dhanda, R. S., Rakha, A., Mandal, A. K., et al. (2014). Inhibition of Grade Dependent Autophagy in Urothelial Carcinoma Increases Cell Death under Nutritional Limiting Condition and Potentiates the Cytotoxicity of Chemotherapeutic Agent. J. Urol. 191 (6), 1889–1898. doi:10.1016/j.juro.2014.01.006

CrossRef Full Text | Google Scholar

Park, K.-R., Yun, H.-M., Quang, T.-H., Oh, H., Lee, D.-S., Auh, Q.-S., et al. (2016). 4-Methoxydalbergione Suppresses Growth and Induces Apoptosis in Human Osteosarcoma Cells In Vitro and In Vivo Xenograft Model through Down-Regulation of the JAK2/STAT3 Pathway. Oncotarget 7 (6), 6960–6971. doi:10.18632/oncotarget.6873

PubMed Abstract | CrossRef Full Text | Google Scholar

Ran, L. I., Changqiong, X. U., Longkai, Q. I., Jing, L. I., Chunhui, L. I., Cai, C., et al. (2019). Separation and Structure Identification of Chemical Components in Dalbergia Sissoo Roxb. J. Guangdong Pharm. Univ. 35 (5), 9–15. doi:10.16809/j.cnki.2096-3653.2018110601

CrossRef Full Text | Google Scholar

Sanli, O., Dobruch, J., Knowles, M. A., Burger, M., Alemozaffar, M., Nielsen, M. E., et al. (2017). Bladder Cancer. Nat. Rev. Dis. Primers 3, 17022. doi:10.1038/nrdp.2017.22

PubMed Abstract | CrossRef Full Text | Google Scholar

Siegel, R. L., Miller, K. D., and Jemal, A. (2018). Cancer Statistics, 2018. CA: a Cancer J. clinicians 68 (1), 7–30. doi:10.3322/caac.21442

CrossRef Full Text | Google Scholar

Vanzo, R., Bartkova, J., Merchut-Maya, J. M., Hall, A., Bouchal, J., Dyrskjøt, L., et al. (2020). Autophagy Role(s) in Response to Oncogenes and DNA Replication Stress. Cell Death Differ 27 (3), 1134–1153. doi:10.1038/s41418-019-0403-9

PubMed Abstract | CrossRef Full Text | Google Scholar

Wang, W., Chen, P., Li, J. L., Pei, Y. F., Shuang, Q. C., Liu, C. H., et al. (2009). Tumstatin185-191 Increases the Sensitivity to Cisplatin in a Cisplatin-Resistant Human Lung Adenocarcinoma Cell Line. Zhonghua Zhong Liu Za Zhi 31 (8), 577–581. doi:10.1016/j.chb.2008.10.005

PubMed Abstract | CrossRef Full Text | Google Scholar

Yin, H., Yang, X., Gu, W., Liu, Y., Li, X., Huang, X., et al. (2017). HMGB1-mediated Autophagy Attenuates Gemcitabine-Induced Apoptosis in Bladder Cancer Cells Involving JNK and ERK Activation. Oncotarget 8 (42), 71642–71656. doi:10.18632/oncotarget.17796

PubMed Abstract | CrossRef Full Text | Google Scholar

Zhao, Y. G., Codogno, P., and Zhang, H. (2021). Machinery, Regulation and Pathophysiological Implications of Autophagosome Maturation. Nat. Rev. Mol. Cell Biol 22, 733–750. doi:10.1038/s41580-021-00392-4

PubMed Abstract | CrossRef Full Text | Google Scholar

Zhu, J., Tian, Z., Li, Y., Hua, X., Zhang, D., Li, J., et al. (2019). ATG7 Promotes Bladder Cancer Invasion via Autophagy‐Mediated Increased ARHGDIB mRNA Stability. Adv. Sci. 6 (8), 1801927. doi:10.1002/advs.201801927

PubMed Abstract | CrossRef Full Text | Google Scholar

Keywords: 4MOD, bladder cancer cell, apoptosis, autophagy, Akt/Erk signaling

Citation: Du H, Tao T, Xu S, Xu C, Li S, Su Q, Yan J, Liu B and Li R (2022) 4-Methoxydalbergione Inhibits Bladder Cancer Cell Growth via Inducing Autophagy and Inhibiting Akt/ERK Signaling Pathway. Front. Mol. Biosci. 8:789658. doi: 10.3389/fmolb.2021.789658

Received: 05 October 2021; Accepted: 29 December 2021;
Published: 16 February 2022.

Edited by:

Zhe-Sheng Chen, St. John’s University, United States

Reviewed by:

Ming Li, Hunan University of Medicine, China
Zhi Wei Zhang, University of South China, China

Copyright © 2022 Du, Tao, Xu, Xu, Li, Su, Yan, Liu and Li. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner(s) are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.

*Correspondence: Bo Liu, doctliu@263.net; Ran Li, wwwlr@163.com

These authors have contributed equally to this work

Disclaimer: All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article or claim that may be made by its manufacturer is not guaranteed or endorsed by the publisher.
