ORIGINAL RESEARCH article

Front. Mol. Biosci., 22 February 2021
Sec. Molecular Recognition
This article is part of the Research Topic Prokaryotic Communications: From Macromolecular Interdomain to Intercellular Talks (Recognition) and Beyond View all 21 articles

Genome-Wide Analysis of Targets for Post-Transcriptional Regulation by Rsm Proteins in Pseudomonas putida


scar Huertas-RosalesÓscar Huertas-Rosales1Manuel RomeroManuel Romero2Kok-Gan Chan,Kok-Gan Chan3,4Kar-Wai Hong,Kar-Wai Hong3,4Miguel CmaraMiguel Cámara2Stephan HeebStephan Heeb2Laura Barrientos-Moreno,Laura Barrientos-Moreno1,2María Antonia Molina-HenaresMaría Antonia Molina-Henares1María L. TraviesoMaría L. Travieso1María Isabel Ramos-GonzlezMaría Isabel Ramos-González1Manuel Espinosa-Urgel
Manuel Espinosa-Urgel1*
  • 1Department of Environmental Protection, Estación Experimental del Zaidín, CSIC, Granada, Spain
  • 2National Biofilms Innovation Centre, Biodiscovery Institute and School of Life Sciences, University of Nottingham, Nottingham, United Kingdom
  • 3Division of Genetics and Molecular Biology, Institute of Biological Sciences, Faculty of Science, University of Malaya, Kuala Lumpur, Malaysia
  • 4International Genome Centre, Jiangsu University, Zhenjiang, China

Post-transcriptional regulation is an important step in the control of bacterial gene expression in response to environmental and cellular signals. Pseudomonas putida KT2440 harbors three known members of the CsrA/RsmA family of post-transcriptional regulators: RsmA, RsmE and RsmI. We have carried out a global analysis to identify RNA sequences bound in vivo by each of these proteins. Affinity purification and sequencing of RNA molecules associated with Rsm proteins were used to discover direct binding targets, corresponding to 437 unique RNA molecules, 75 of them being common to the three proteins. Relevant targets include genes encoding proteins involved in signal transduction and regulation, metabolism, transport and secretion, stress responses, and the turnover of the intracellular second messenger c-di-GMP. To our knowledge, this is the first combined global analysis in a bacterium harboring three Rsm homologs. It offers a broad overview of the network of processes subjected to this type of regulation and opens the way to define what are the sequence and structure determinants that define common or differential recognition of specific RNA molecules by these proteins.

Introduction

By coordinating the expression of a large number of genes, global regulatory networks allow bacteria to adjust their physiology according to environmental stimuli, changes in their lifestyle, or in nutritional status (Ishihama, 2010; Coggan and Wolfgang, 2012; Shis et al., 2018). Transcriptional regulators and sigma factors influencing the expression of different sets of bacterial genes have been widely studied for decades, starting shortly after the postulates of Jacob and Monod on operons, operators and messenger RNA were put forward (Jacob and Monod, 1961). A second instance of protein expression regulation, namely post-transcriptional modulation affecting mRNA stability, structure or translation, mediated by proteins or small non-coding RNAs, has gained increasing attention in the past 2 decades, but is still less well studied (Romeo et al., 2013; Van Assche et al., 2015; Hör et al., 2018). Among the post-transcriptional regulators identified in prokaryotes, the CsrA/RsmA family of proteins seems to be widely conserved in many bacteria and, in some cases, more than one member of this family are present in a single species (Reimmann et al., 2005; Morris et al., 2013; Huertas-Rosales et al., 2016; Ferreiro et al., 2018). These small RNA-binding proteins generally function as negative effectors of translation by binding to the 5′untranslated region of target mRNAs, close to or overlapping with the ribosome binding site (Baker et al., 2007; Yakhnin et al., 2007), or by causing premature transcription termination through alterations of the RNA structure that lead to the exposure of a Rho binding site (Figueroa-Bossi et al., 2014). However, they can also influence mRNA stability in a positive way, for example, by masking RNase E cleavage sites (Yakhnin et al., 2013). CsrA/RsmA proteins can interact with two RNA motifs, with a strong preference for 5′-RUACARGGAUGU-3′ consensus sequences located in the loops of short RNA hairpins (Dubey et al., 2005; Duss et al., 2014). Small non-coding RNAs (sRNA) containing multiple binding motifs play an opposing regulatory role by sequestering the CsrA/RsmA proteins, thus limiting their access to target mRNAs (Romeo, 1998; Kay et al., 2005; Sonnleitner and Haas, 2011; Janssen et al., 2018). In Pseudomonas, expression of these regulatory RNAs is controlled by the two-component system GacS/GacA (Brencic et al., 2009), in response to as yet not well-defined signal(s).

CsrA/RsmA proteins play a global role in modulating gene expression (Romeo, 1998; Lawhon et al., 2003; Brencic and Lory, 2009; Romeo et al., 2013; Romero et al., 2018). The functions identified as being under this type of regulation in different bacteria include carbohydrate metabolism and storage (Sabnis et al., 1995; Yang et al., 1996; Pannuri et al., 2016), synthesis of flagellar components (Yakhnin et al., 2007, Yakhnin et al., 2013), the production of secondary metabolites (Sonnleitner and Haas, 2011; Morris et al., 2013), quorum sensing signaling (Lenz et al., 2005), or the expression of virulence factors (Heroven et al., 2012; Sterzenbach et al., 2013; Vakulskas et al., 2015; Ferreiro et al., 2018). Global analyses have been done in bacteria harboring one CsrA/RsmA family protein to identify elements in the signaling and regulatory network associated to them (Lawhon et al., 2003; Sowa et al., 2017) or to othologous elements (Romero et al., 2018).

In the plant-root colonizing, beneficial bacterium Pseudomonas putida KT2440, three genes have been identified that encode post-transcriptional regulators belonging to the CsrA/RsmA family. These proteins (RsmA, RsmE and RsmI), have opposing effects on surface motility and biofilm formation; deletion of the three genes abolishes swarming motility and stimulates bacterial attachment and biofilm formation, although the biofilms formed by a triple rsm mutant are more labile and easily dispersed than wild type biofilms (Huertas-Rosales et al., 2016). These alterations are associated with changes in the expression of some components of the extracellular matrix of biofilms (Huertas-Rosales et al., 2016) and with increased levels of the intracellular second messenger cyclic diguanylate (c-di-GMP) (Huertas-Rosales et al., 2017). The three proteins were found to bind specific motifs in the leader sequence and translation initiation region of the mRNA of cfcR (Huertas-Rosales et al., 2017), which encodes a response regulator with diguanylate cyclase activity (Matilla et al., 2011; Ramos-González et al., 2016). Although the binding affinity was different for each Rsm protein, deletion of any single one of the three genes had no significant influence on expression of cfcR (Huertas-Rosales et al., 2017), indicating the existence of some functional redundancy between RsmA, RsmE and RsmI. Based on sequence similarity with related strains, the putative antagonistic sRNAs RsmY and RsmZ could also be identified in KT2440 (Huertas-Rosales et al., 2016). Still, little is known about the binding specificities of these proteins in P. putida.

To further understand the importance of these proteins in signal transduction and regulation of global gene expression in P. putida, we have used a high-throughput approach to identify RNA sequences bound by Rsm proteins. Our data indicate that a significant number of genes are susceptible of being modulated at the post-transcriptional level by these proteins, and support the existence of a certain degree of functional overlap between the three Rsm homologs. This approach has enabled us to gain new insights into the biological function of these post-transcriptional regulators in P. putida, including their role in some metabolic processes and bacterial fitness in the plant root environment.

Materials and Methods

Bacterial Strains, Culture Media and Growth Conditions

The bacterial strains, plasmids and oligonucleotides used in this study are listed in Table 1. Pseudomonas putida KT2440 is a plasmid-free derivative of P. putida mt-2 (Regenhardt et al., 2002). Pseudomonas putida strains were grown at 30°C, in rich LB medium (Lennox, 1955), M9 or M8 defined medium (Sambrook and Russell, 2001) supplemented with 1 mM MgSO4, 6 mg/L ammonium ferric citrate and trace metals as described previously (Yousef-Coronado et al., 2008). Unless otherwise indicated, glucose (20 mM) or sodium citrate (15 mM) were used as carbon sources. Escherichia coli strains were grown at 37°C in LB. When appropriate, antibiotics were added to the medium at the following final concentrations (µg/ml): ampicillin (Ap) 100; kanamycin (Km) 25; streptomycin (Sm) 50 (E. coli) or 100 (P. putida); (Gm) gentamycin 50; tetracycline (Tc) 10 or 20. Cell growth was followed by measuring optical density at 660 nm (OD660).

TABLE 1
www.frontiersin.org

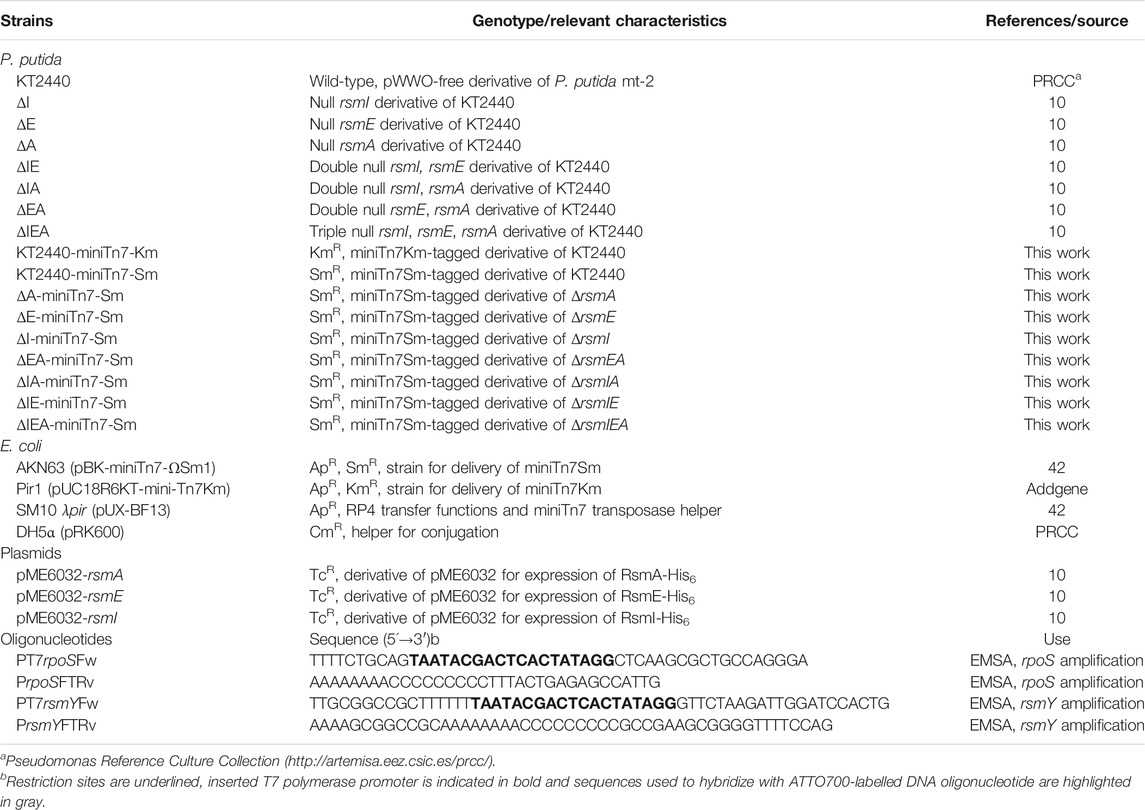

TABLE 1. Bacterial strains, plasmids and oligonucleotides used in this work.

DNA Techniques

Digestion with restriction enzymes, dephosphorylation, ligation and electrophoresis were carried out using standard methods (Ausubel et al., 1987; Sambrook and Russell, 2001) and following manufacturers’ instructions. Plasmid DNA isolation and recovery of DNA fragments from agarose gels were carried out using QIAGEN miniprep and gel extraction kits, respectively. Competent cells were prepared using calcium chloride, and transformations were performed using standard protocols (Sambrook and Russell, 2001). Electrotransformation of freshly plated Pseudomonas cells was performed as previously described (Choi et al., 2006).

Triparental Conjugations

Transfer of plasmids from E. coli to P. putida strains was performed by triparental matings using as a helper for RP4 transfer functions E. coli (pRK600) or SM10 λpir (pUX-BF13), the latter when miniTn7 transposase was required for intergenic site-specific insertion of miniTn7 derivatives near glmS (Koch et al., 2001), used to tag the wild type and each rsm mutant (Table 1) for rhizosphere assays (see below). For each strain, cells were collected from 0.5 ml of overnight LB cultures via centrifugation, then washed and suspended in 50 µL of fresh LB, and finally spotted on nitrocellulose filters (0.22 µm pore diameter) on LB-agar plates. After overnight incubation at 30°C, cells were scraped off from the mating filter and suspended in 2 ml of M9, and serial dilutions were plated on selective medium (M9 with citrate and the appropriate antibiotics) to select exconjugants and counter-select donor, helper, and recipient strains.

Purification of Total RNA and RNA from Rsm-RNA Complexes

Previously constructed derivatives of expression vector pME6032 harboring each rsm gene (Huertas-Rosales et al., 2016) were used to express His-tagged Rsm proteins in P. putida KT2440. Overnight cultures (10 ml) of wild type KT2440 harboring each construct were inoculated in 500 ml of LB medium. Three biological replicates were run in parallel. Cultures were incubated at 30°C under shaking until an OD660 of 0.8 was reached. At that point, expression of each His-tagged-Rsm protein was induced by the addition of IPTG to a final concentration of 0.5 mM. Cultures were allowed to grow for six additional hours. Aliquots of 1.5 ml were then harvested by centrifugation, instantly frozen with liquid nitrogen and stored at −80°C for total RNA purification. Cells from the remaining culture volume were also harvested and pellets were stored at −80°C until use. His-tagged Rsm-RNA complexes were isolated using Ni-NTA Fast Start purification kit (Qiagen). Three replicate extractions were done for each culture replica. Elution aliquots were analyzed by SDS-PAGE.

Total RNA and RNA from Rsm-RNA complex was extracted using RNA isolation kit (Macherey-Nagel) following the manufacturer’s instructions. RNA samples were subsequently treated with RNase-free DNase I (Turbo DNA-free kit, Ambion) to remove DNA traces, as specified by the supplier. Total RNA quality was assessed using Agilent RNA 6000 Nano Kit (Agilent Technologies) in the Agilent 2100 Bioanalyzer. RNA concentration was measured using Qubit RNA BR assay kit (Life Technologies). 1 µg of RNA was used for rRNA depletion using Ribo-Zero rRNA Removal Kit (Illumina). One of the biological replicates of RsmA and one of RsmI did not meet the required quality and quantity standards and were not used in further analysis.

Generation of c-DNA Libraries and Sequencing

The generation of cDNA libraries was carried out using NEBNext Ultra Directional RNA Library Prep kit for Illumina (NEB). Dual Index Primers Set one was used to generate bar-coded multiplex libraries (NEB). Library QC was performed using bioanalyser HS kit (Agilent biotechnologies). cDNA libraries were quantified using qPCR (Kapa Biosystems). Libraries were pooled at the desired concentrations, denatured and loaded for sequencing according to manufacturer’s instructions. Sequencing was performed on the Illumina MiSeq Benchtop Sequencer to generate 2 × 75 bp reads. The number of reads obtained ensured a minimum of 76× coverage of the whole genome for control RNA and a minimum of 60× coverage for Rsm-bound RNA.

Bioinformatic Analysis

Filtered reads were aligned to reference genome P. putida KT2440 (GenBank; RefSeq NC_002947.3) with Bowtie v2 (Langmead et al., 2009). Alignment. sam file was analyzed using MACS v14 to identify and evaluate the significance of reads-enriched regions in the genome, the output being one file containing the peak chromosome coordinates, and one containing the genome coordinates, summit, p-value, fold_enrichment and false discovery rate (FDR) of each peak (Zhang et al., 2008). The average number of tags in the control samples after filtering was approximately 2,220,000 (RsmA), 1,420,000 (RsmE), and 1,654,000 (RsmI); the average number of tags in the Rsm-bound samples after filtering was approximately 1,302,000 (RsmA), 550,000 (RsmE), and 1,054,000 (RsmI). Only those peaks present in the three technical replicates were considered. Identity and annotation of the targets above the cut-off values were further validated by individually inspecting the corresponding chromosomal regions in the Pseudomonas genome database (www.pseudomonas.com; Winsor et al., 2016).

EMSA Analysis of in vitro RNA-Protein Binding

For purification of Rsm proteins, overnight cultures (10 ml) of P. putida KT2440 harboring plasmids pME6032-rsmA, pME6032-rsmE, and pME6032-rsmI (Huertas-Rosales et al., 2016) were used to inoculate 490 ml fresh LB medium supplied with Tc. Cultures were grown at 30°C and 200 rpm until reaching an OD660 of 0.8. At this point, IPTG (0.5 mM) was added to induce the expression of the proteins. After 6 h of further growth, cells were harvested by centrifugation and pellets subsequently stored at −80°C. Protein purification was carried out using QIAexpress Ni-NTA Fast Start Kit (Qiagen), following the manufacturers’ instructions.

Electrophoretic mobility shift assays (EMSA) were carried out following a method described previously (Romero et al., 2018). DNA templates corresponding to the target gene sequences were amplified by PCR using primers that incorporated a T7 promoter at the 5′ end and a 17-nt extension at the 3′ end (Table 1). The purified PCR product was used for RNA synthesis in vitro using the MAXIscript T7 kit (Life Technologies). The RNA obtained was visualized by hybridization of an ATTO700-labeled DNA primer to the 3′ extension of the RNA. Rsm proteins were incubated with target gene RNA (5 or 10 nM) in 1 × binding buffer [25]. Binding in the absence or presence of unlabeled competitor RNA (100-fold excess) was carried out for 30 min at 30°C. Then Bromophenol Blue was added (0.01%, wt/vol) before electrophoresis on 6% (w/v) non-denaturing polyacrylamide TBE gel at 4°C. Imaging was performed using a 9201 Odyssey Imaging System (LI-COR Biosciences).

TABLE 2
www.frontiersin.org

TABLE 2. Summary of the high throughput data analysis of Rsm targets in P. putida KT2440.

Growth with Different Carbon and Nitrogen Sources

BIOLOG plates (Biolog Inc. Hayward, CA, USA) were used for initial assessment of growth of KT2440 and the triple ∆rsmIEA mutant with different nitrogen and carbon sources. Cultures grown overnight at 30°C in M9 minimal medium with glucose as carbon source were used for inoculation in the plates at an initial OD660 of 0.05. Turbidity was measured at different times over 24 h in a Tecan Sunrise microplate reader. Further experiments were done in 96-well plates using M9 or M8 with the indicated carbon or nitrogen sources, at a final concentration of 5 mM. Growth was followed for 24 h at 3°C with continuous shaking in a Bioscreen apparatus C MBR equipped with a wide band filter (420–580 nm).

Competitive Root Colonization Assays

Surface sterilization, germination of corn seeds, and bacterial inoculation of the seedlings were performed as described previously (Ramos-González et al., 2013). Briefly, at least six two-days old seedlings were inoculated with a 1:1 mix (∼5 × 105 CFU/strain) of KT2440Tn7-Km, as the wild type, and the wild type or mutant derivatives tagged with miniTn7Sm by triparental conjugation as described above. Inocula sizes were monitored by plating on LB-agar supplied with kanamycin or streptomycin. After 7 days, bacteria were recovered from the rhizosphere or the root tip as specified (Ramos-González et al., 2013) and the number of cells of each strain in the population was estimated by plating on LB-agar supplied with kanamycin or streptomycin. Data are presented as the index of colonization fitness (Ramos-González et al., 2013). SigmaStat software package (Systat software) was used for statistical analysis. The data were compared using Student’s t-test for independent samples (p < 0.05).

Data-Availability

Raw and processed data files have been deposited in the Gene Expression Omnibus Database (www.ncbi.nlm.nih.gov/geo/) and are available under accession number GSE154204.

Results and Discussion

Identification of RNAs Bound to Rsm Proteins

Affinity purification of RNA-protein complexes followed by sequencing analysis (RAP-Seq), was carried out to identify genes that could potentially be regulated at the post-transcriptional level by RsmA, RsmE or RsmI in P. putida KT2440. The methodology was similar to that previously described for genome-wide mapping of targets for RsmN in Pseudomonas aeruginosa (Romero et al., 2018) and is summarized in Supplementary Figure S1. Each recombinant His-tagged Rsm protein (RsmA-His6, RsmE-His6 and RsmI-His6, previously described; Huertas-Rosales et al., 2016) was over-expressed in KT2440 as described in Materials and Methods. Proteins were purified by affinity chromatography and their associated target RNAs subsequently isolated. As control for transcription levels, total RNA was isolated from each culture in parallel. Total and Rsm-bound RNA were analyzed for purity, quantified and converted to cDNA for Illumina sequencing. One of the three biological replicates of RsmA and one of RsmI were below optimal quality and quantity and were not used in further analysis. Sequence reads from the cDNA libraries were mapped to the genomic sequence of P. putida KT2440 and analyzed to identify the regions corresponding to transcripts that were significantly enriched in the Rsm-bound RNA population with respect to the total RNA controls. Rsm-enriched RNAs that were not represented in the three technical replicates from each culture were not included in further analysis.

A first noticeable result was that the number of sequences corresponding to RsmE-bound transcripts overrepresented with respect to total RNA was much higher than those associated to RsmA or RsmI (Table 2). Data were grouped in intervals and histograms were built to analyze the distribution of fold-enrichment (FE) values and p-value (PV) data–shown as -10×log10(p-value) for ease of representation–in each case (Figure 1). In all cases, the distribution was similar between biological replicates for each Rsm regulator. The distribution of FE values was similar for RsmA and RsmI, with slightly lower values in the former (Table 2). For RsmE, the distribution was different and the average values higher. These different values between Rsm proteins could reflect differences in expression of each construct. In fact, controls for each protein indicate that higher amount of RsmE than of the other two proteins is recovered after purification (Supplementary Figure S2).

TABLE 3
www.frontiersin.org

TABLE 3. Annotation and functional classification of common targets for the three Rsm proteins in P. putida KT2440.

FIGURE 1
www.frontiersin.org

FIGURE 1. Distribution of fold enrichment (left) and −10 × Log10(p-value) scores (right) data of overrepresented RNA sequences associated to each Rsm protein (orange, RsmA; green, RsmE; blue, RsmI) with respect to total RNA. Data were grouped in the value intervals indicated in the X-axis, where the number corresponds to the upper limit of each interval. The histograms (primary Y-axis) show the frequency of targets in each interval. The crimson lines (secondary Y-axis) correspond to the cumulative percent values. The different color intensities in the histograms and lines correspond to the different biological replicates for each protein.

The analysis of distributions and the confidence intervals calculated for each technical replicate were the basis to establish cut-off values for further analysis of Rsm targets (Table 3). Is should be noted that in this analysis we opted for rather strict parameters in order to take into account sequences strongly overrepresented in the Rsm-bound RNA population with respect to the total RNA controls, and also to minimize the number of potential false positives, at the expense of missing some RNA sequences that are actual targets of these proteins. Thus, the following cut-off values were established: PV > 130, FE ≥ 2.15 for RsmA; PV > 170, FE ≥ 4 for RsmE; PV > 145, FE ≥ 2.5 for RsmI. Targets for which either value was below the cut-off in one of the replicates were discarded.

Using these parameters, 241, 261, and 206 RNA sequences were identified as targets for RsmA, RsmE and RsmI, respectively (Supplementary Table S1), corresponding to 437 unique transcripts, with 75 targets being shared by all three Rsm proteins and between 36 and 45 shared by two of them (Figure 2A). Interestingly, around 40% of the RsmE and RsmA targets are exclusive for each protein, while only 22% of the RsmI targets are unique for this paralog. It should be noted that the cDNA libraries generated in this study were not strand-specific and therefore, did not allow distinguishing the DNA strand to which the transcript corresponds. Consequently, in some cases where divergently transcribed genes are adjacent in the genome, it is not straightforward to discern which of them is the actual target, although the length of overlap between the enriched sequences and each gene, and the location of the summit (i.e. the position of maximal overlap of the reads corresponding to one region) can indicate the most likely target. Despite this limitation, the above results indicate that at least 12% of the transcripts in P. putida KT2440 are bound in vivo by Rsm proteins under the conditions tested in this study. The data provide a broad overview of the regulon and potential functions of these riboregulators.

FIGURE 2
www.frontiersin.org

FIGURE 2. (A) Venn diagram summarizing the number of targets identified for the three Rsm proteins in P. putida KT2440, according to the selection parameters detailed in the text. (B) Graphical representation of the different functional categories encompassing the 75 common targets.

Analysis of RsmA, RsmE and RsmI Targets

The 75 targets common to the three Rsm proteins are compiled in Table 3, broadly classified according to their functions. As reflected in Figure 2B, about half of the common targets correspond to two categories: metabolism-related and hypothetical proteins. The fact that functions related to central metabolism and carbon storage are among these common targets is not unexpected, since carbon metabolism was at the origins of the identification of the CsrA/Rsm family of proteins (Sabnis et al., 1995). Other expected elements include RNAs corresponding to Rsm proteins themselves: rsmE is a target for the three proteins, and rsmA is recognized by RsmE, confirming previous expression data that indicated the existence of self- and cross-regulation of these proteins (Huertas-Rosales et al., 2016). Also expected was the small non-coding RNA rsmY, known to bind and titrate Rsm proteins (Sonnleitner and Haas, 2011; Janssen et al., 2018). Binding of rsmY to the three Rsm proteins could be confirmed in vitro by EMSA analysis (Figure 3), serving as positive control that the high throughput methodology used was successful, although the affinity appears to be different in each case, being RsmI the protein that required higher concentrations for binding to be detected. A second small RNA previously identified in P. putida, rsmZ (Huertas-Rosales et al., 2016), involved in titration of Rsm proteins in other bacteria (Janssen et al., 2018), is among the targets common to RsmA and RsmE (Table 4, Supplementary Table S1). Other non-coding RNAs could also be identified as bound to one, two or the three Rsm proteins (Table 2). This might suggest a possible ancillary role in titration of Rsm proteins, which led us to analyze them in some detail. Secondary structure predictions indicate that GGA motifs in short stem-loop structure, typical targets for CsrA/RsmA recognition (Dubey et al., 2005; Duss et al., 2014), are present in at least some of these RNA molecules, namely PP_mr15, PP_mr49 and PP_mr55 (Supplementary Figure S3). However, while rsmY and rsmZ show several of these motifs, only one per molecule was present in the other three. Also, conserved GacA binding sites, involved in transcriptional regulation of Rsm-titrating RNAs in other Pseudomonas species (Brencic et al., 2009) could be identified in the regions upstream rsmY and rsmZ, being only partially conserved in PP_mr55 (Supplementary Figure S4), and absent in the remaining RNAs (not shown). All these data suggest that rsmY and rsmZ are the main, if not the only, true antagonists of Rsm proteins in P. putida. The remaining non-coding RNAs that are targets of these proteins may regulate further downstream elements in the Gac/Rsm cascade.

TABLE 4
www.frontiersin.org

TABLE 4. Non-coding RNAs identified as targets for each Rsm protein.

FIGURE 3
www.frontiersin.org

FIGURE 3. Binding of RsmA-His6(A), RsmE-His6(B) and RsmI-His6(C) to full-length rsmY RNA transcribed in vitro, and of RsmA-His6 to a synthetic RNA fragment comprising the untranslated upstream region of rpoS(D). EMSAs were carried out using fluorescently labeled RNA (5 or 10 nM) and incubated in the absence or presence of increasing concentrations of purified Rsm proteins, as indicate above each lane, or in the presence of 100-fold excess of unlabelled RNA competitor and the indicated concentration of protein (C).

Additionally, several intergenic sequences were found among the targets for the three proteins. These correspond to regions adjacent to the different copies of the ISPpu8 transposase in the genome of P. putida KT2440 or are potential insertion sites (or remnants of previous insertions) of this transposase, based on their sequence identity with ISPpu8 flanking regions. Whether Rsm proteins influence the activity of this mobile genetic element in KT2440 is an interesting issue that deserves further study.

As mentioned above, a significant number of targets seem to be exclusive for one of the three proteins. A few of these correspond to enriched peaks that were below the established cut-off parameters in some samples, and therefore could represent common targets showing different affinities for each protein, with a strong preference for one of them. Such is the case, for example, of PP_0013 (gyrB), which is among the above-cut-off targets for RsmA but slightly below the FE and/or p-value cut-off for the other two proteins. Other targets are only enriched in association with one of the Rsm proteins and are not present in the RNA population associated to either of the other two, indicating they are truly specific for that Rsm homolog, e.g. PP_1656 (relA) for RsmA, PP_0168 (lapA) for RsmE, or PP_1803 (wpbV) for RsmI. Identifying the molecular basis for such specificity will require detailed bioinformatics analysis combined with in vitro and in vivo assays.

Supplementary Figure S5 provides data corresponding to β-galactosidase activity of several translational fusions of identified targets to lacZ in the wild type KT2440 and a triple rsmArsmErsmI deletion mutant, ΔIEA (Huertas-Rosales et al., 2016). In most cases, expression was enhanced in the mutant, indicating that the observed binding to their RNA targets leads to translation repression by these proteins; these results are consistent with previous observations on their influence upon biofilm-related elements (see below). However, the inverse was true for two of the tested fusions, those corresponding to PP_1088 (argG, involved in arginine synthesis; Ramos-González et al., 2016) and PP_4482 (part of the gene cluster encoding the main arginine transporter and its regulator; Barrientos-Moreno et al., 2020). In these cases, expression was approximately halved in the mutant with respect to the wild type.

c-Di-GMP Signaling and Biofilm-Related Targets

As indicated in the Introduction, the three Rsm proteins have been shown to bind a specific site in the mRNA corresponding to the response regulator with diguanylate cyclase activity CfcR, and a triple rsm mutant in KT2440 shows increased levels of c-di-GMP and altered biofilm dynamics (Huertas-Rosales et al., 2016; Huertas-Rosales et al., 2017). Intriguingly, cfcR mRNA was not among the common targets listed in Table 3, being only found as target for RsmE and RsmI. The cfcR transcript is actually among the RsmA-bound RNA sequences overrepresented with respect to the control RNA, but the FE values (1.82 and 1.88 in each replicate, respectively) are below the established cut-off. This could indicate that binding of RsmA to the mRNA of cfcR in vivo is hampered by competition with the other two Rsm proteins, a possibility that has been previously suggested, based on in vivo expression data of cfcR compared to the high affinity observed for the RsmA/cfcR mRNA interaction in vitro (Huertas-Rosales et al., 2017).

Besides cfcR, transcripts from four other genes encoding proteins predicted to participate in c-di-GMP turnover and signaling were identified in this analysis, one of them (encoded by locus PP_0563) as target of the three proteins, and the rest (PP_0386, PP_0914, PP_2505), as targets of RsmE. Of these, the proteins encoded by PP_0563 and PP_2505 present GGDEF domains, characteristic of diguanylate cyclases. The first corresponds to GcbA, a diguanylate cyclase conserved in Pseudomonas, which has been reported to influence initial attachment and swimming motility (Petrova et al., 2014; Xiao et al., 2016). PP_0914 corresponds to the EAL domain-containing phosphodiesterase BifA, described to regulate biofilm development in P. putida (Jiménez-Fernández et al., 2015), and PP_0386 encodes a protein containing both GGDEF and EAL domains. Other relevant biofilm-related transcripts bound by RsmE included: lapA, encoding the main adhesin of P. putida, essential for initial attachment and biofilm formation (Hinsa et al., 2003; Martínez-Gil et al., 2010); the first gene in the cellulose synthesis operon; and genes in the operon encoding the species-specific EPS Pea (Nilsson et al., 2011), which is also a target for RsmA. Neither lapF, encoding the second relevant adhesin present in KT2440 (Martínez-Gil et al., 2010), nor the other two EPS operons described in this strain (Nilsson et al., 2011) were identified in this analysis.

Since altered expression of translational fusions corresponding to some of the genes indicated aboved has been previously observed in a triple rsmAEI mutant (Huertas-Rosales et al., 2016), it is likely that the observed expression changes are due to an indirect effect of Rsm proteins through other regulators. One such regulator is the stationary phase sigma factor RpoS, which controls expression of lapF (Martínez-Gil et al., 2010). RpoS was found to be negatively regulated by RsmA In P. protegens CHA0 (Heeb et al., 2005), and the mRNA corresponding to rpoS (PP_1623) is among the targets for RsmA in KT2440 (Supplementary Table S1). Moreover, binding of RsmA to an in vitro transcribed RNA fragment containing the ribosome binding site and start codon of rpoS was confirmed via EMSA (Figure 3). Given that expression of cfcR is also regulated by RpoS (Matilla et al., 2011), these results support the previously proposed model whereby Rsm proteins exert a dual control, direct and indirect, on cfcR (Huertas-Rosales et al., 2017). Remarkably, the gene cfcA, encoding a sensor histidine kinase essential for activation of CfcR (Ramos-González et al., 2016), is among the targets for the three proteins, indicating that c-di-GMP signaling through CfcR is tightly regulated by the Gac/Rsm network. A schematic view of this signaling cascade connecting external stimuli with biofilm formation through Rsm elements is depicted in Figure 4.

FIGURE 4
www.frontiersin.org

FIGURE 4. Schematic view of the connection between the Gac/Rsm signaling cascade with biofilm formation through c-di-GMP turnover, adhesins and exopolysaccharides. The Rsm proteins exert a complex regulation on the response regulator with DGC activity CfcR, at the transcriptional (via RpoS), translational (via direct binding), and post-translational (via the histidine kinase CfcA, required for phosphorylation of CfcR) levels. Direct influence of Rsm proteins on structural elements of the biofilm matrix, and indirect influence via RpoS and the c-di-GMP associated regulator FleQ are also depicted. Blue arrows indicate positive regulation and red lines negative regulation.

Influence of Rsm Proteins on Nutrient Utilization and Rhizosphere Fitness of P. putida KT2440

Among the shared targets for the three riboregulators, about a third of the transcripts with known or predicted functions correspond to genes with metabolism-related roles in KT2440 (Figure 2B and Table 4). This was expected since previous findings have established direct and indirect connections between the CsrA/Rsm system and metabolism as well as carbon storage functions (Sabnis et al., 1995; Yang et al., 1996; Pannuri et al., 2016; Romero et al., 2018). Furthermore, a significant number of targets identified for one or more of the Rsm proteins included transcripts from genes related to transport of nutrients (Figure 2B and Table 3). All this prompted us to carry out a preliminary high throughput study comparing the growth of KT2440 wild type strain and a triple rsmAEI mutant derivative (ΔIEA; Huertas-Rosales et al., 2016) in BIOLOG plates using 192 and 96 compounds as sole carbon or nitrogen source, respectively. A sample of some of the obtained data is shown in Supplementary Figure S5. Growth differences between the two strains were observed for several compounds, particularly certain amino acids and their derivatives. Further detailed evaluation of growth in some of these compounds confirmed the existence of differences between KT2440 and the triple rsm mutant. In particular, a prolonged lag phase was observed in the mutant with L-lysine as carbon source, and to a lesser extent with L-arginine, although the final turbidity reached by both strains with this last amino acid was similar (Figure 5). In contrast, growth differences were less evident with the other basic amino acid L-histidine (Figure 5).

FIGURE 5
www.frontiersin.org

FIGURE 5. Growth of KT2440 (blue) and the triple rsm mutant (red) in M9 minimal medium with 5 mM L-lysine, L-arginine, L-histidine or glucose as carbon source. Cultures were grown in 96-well plates at 30°C and OD420–580 was read at 1-h intervals in an automated BioScreen equipped with a wide band filter (420–580 nm) to minimize potential alterations due to changes in medium color. Data are averages and standard deviations of experiments done in duplicate, with three technical replicas each.

These results evidenced that the Rsm system may play a regulatory role in metabolism and/or uptake of nutrients, particularly of basic amino acids, in KT2440. Hence, potential Rsm-enriched targets explaining these divergences were explored. A survey of the identified RNA molecules related to these processes indicated that those corresponding to arcD (PP_1002; arginine-ornithine antiporter) and hisP (PP_4483; ATP-binding subunit of a histidine/lysine/arginine/ornithine transporter) are targets for RsmE; artJ (PP_0282; L-arginine ABC transporter substrate-binding subunit) and amaD (PP_3596; D-lysine oxidase) are targets for RsmA, and amaB (PP_5258; L-piperidine-6-carboxylate dehydrogenase) is a target for both RsmE and RsmI (Supplementary Table S1). Based on data from the Kyoto Encyclopedia of Genes and Genomes (www.genome.jp/kegg/), AmaB is involved in catabolic pathways for L-lysine and L-arginine in P. putida, participating in the conversion of aminobutanal, N4-acetyl-aminobutanal, and 4-trimethyl-ammoniobutanal into their corresponding butanoate derivatives.

Besides glucose metabolism, a connection has been established in E. coli between CsrA and the stringent response (Edwards et al., 2011), a regulatory network triggered by amino acid limitation and controlled by the RelA and SpoT proteins. It should be noted that besides the targets indicated above in relation with arginine and lysine utilization, the relA (PP_1656) mRNA is also a target for RsmA (Supplementary Table S1).

Previous reports have established that hisP and genes involved in lysine catabolism are preferentially expressed in KT2440 in the rhizosphere of corn plants (Espinosa-Urgel and Ramos, 2001; Matilla et al., 2007). In addition, a connection beween arginine transport and c-di-GMP signaling in this strain has been recently reported (Barrientos-Moreno et al., 2020). These facts, and the influence of Rsm proteins on biofilm formation and surface motility, along with the identification of c-di-GMP turnover elements and other biofilm-related genes as targets of these proteins, made us analyze if mutants in rsm genes showed altered fitness in the rhizosphere. Competitive root colonization assays were done in corn (Zea mays L.) plants with the wild type and single (ΔI, ΔE, ΔA), double (ΔIE, ΔIA, ΔEA) and the triple (ΔIEA) rsm mutants (Huertas-Rosales et al., 2016). For that purpose, germinated corn seeds were inoculated with miniTn7Km-tagged KT2440 and each mutant tagged with miniTn7Sm, in a 1:1 proportion. Plants were sown in sterile sand and the population of each strain was evaluated in the whole root and in the root tip after 7 days. Results are shown in Figure 6. The mutation in rsmA caused a slight reduction in competitive colonization of the whole root and a much larger effect when root tip colonization was evaluated. This phenotype was not observed in the other single mutants, nor in the ΔIE double mutant. However, while the results with the ΔIA double mutant were similar to those obtained with the ΔA single mutant, a cumulative effect could be observed in the ΔEA strain, which showed a significant decrease in colonization of both the whole root and the root tip. This phenotype was very similar to that observed in the triple mutant. In this set of experiments the Sm resistance marker seemed to confer a slight advantage over the Km resistance marker, according to the results obtained with the wild type derivatives tagged with each mini-Tn7 (Figure 6). This could suggest that the actual influence of the rsm mutations might be larger than observed here.

FIGURE 6
www.frontiersin.org

FIGURE 6. Colonization capacity of mutants in rsm genes in competition with the wild type in the rhizosphere (circles) and the root tip (triangles) of corn plants. KT2440 tagged with miniTn7-Km was co-inoculated in a 1:1 proportion with each of the mutants, which were tagged with miniTn7-Sm. To check the potential effect of the antibiotic resistance markers, a competitive colonization assay co-inoculating KT2440 miniTn7-Km and KT2440 miniTn7-Sm (KT-Sm) was also included as control. The index of colonization fitness was measured as 1/[(percentage of recovered wild type vs. each mutant per plant 7 days post-inoculation)/(percentage wt vs. mutant in the initial inocula)]. A value of 1 (broken line) indicates equal colonization capacity. Data are the averages and standard errors for six plants.

The loss of fitness in the rhizosphere of the ΔEA and ΔIEA mutants may result from the overall influence of Rsm proteins on different metabolic processes, including amino acid transport, while the reduction in root tip colonzation could correlate with the previously observed decrease in swimming motility in the ΔEA and ΔIEA strains and the lack of swarming motility of all the rsm mutants, with the exception of ΔI, which still retained some surface motility (Huertas-Rosales et al., 2016). It will also be of interest to explore whether the type VI secretion system K1, some of whose genes were identified in our study (Table 3), may contribute to the fitness of KT2440 in the rhizosphere. It has been reported that this system can provide a competitive advantage to this strain in the presence of phytopathogenic bacteria (Bernal et al., 2017).

Concluding Remarks

This work represents the first effort to define the global regulatory network commanded by Rsm proteins in P. putida. Besides exposing its complexity and the vast influence that post-transcriptional regulation is bound to have in this bacterium, ranging from amino acid metabolism to potential transposon-mediated DNA rearrangements, the information obtained leads to a relevant question to be analyzed in detail, i.e. the characteristics by which an RNA molecule constitutes a shared target for the three Rsm proteins or is selectively bound by only one or two of them.

Data Availability Statement

The datasets presented in this study can be found in online repositories. The names of the repository/repositories and accession number(s) can be found in the article/Supplementary Material.

Author Contributions

OH-R, MR, K-WH, LB-M, MAM-H, MT performed the experimental work; OH-R, MR, MC, SH, MIR-G, ME-U designed the work; OH-R, MR, K-GC, MC, SH, MIR-G, ME-U analyzed data; MC, SH, K-GC, MIR-G, MEU obtained funding; OH-R, ME-U wrote the paper; All authors have revised the manuscript.

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Acknowledgments

This work was supported by grants BFU2013-43469-P, BFU2016-80122-P and PID2019-109372GB-I00 from the Plan Estatal de I+D+I (Agencia Estatal de Investigación, Spanish Ministry of Science and Innovation and FEDER funds). Funding from the Biotechnology and Biological Sciences Research Council, United Kingdom (BB/R012415/1), and the University of Malaya (FRGS grant FP022-2018A and HIR grant H-50001-00-A000027) are also gratefully acknowledged.

Supplementary Material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fmolb.2021.624061/full#supplementary-material.
