Xueqing Li1†Jiarui Wang2†Hang Shen1Chenxi Xing1Lingxin Kong1Yu Song2Wanpeng Hou3Jie Gao1Yun Jiang2*
Changqing Chen1*- 1College of Plant Protection, Jilin Agricultural University, Changchun, China
- 2College of Life Science, Jilin Agricultural University, Changchun, China
- 3Jilin Shenwang Plant Protection Co., Ltd., Fusong, China
The Bacillus velezensis strain NT35, which has strong biocontrol ability, was isolated from the rhizosphere soil of Panax ginseng. The antifungal effects of the NT35 strain against the mycelium and spore growth of Ilyonectria robusta, which causes ginseng rusty root rot, were determined. The inhibitory rate of I. robusta mycelial growth was 94.12% when the concentration of the NT35 strain was 107 CFU·mL−1, and the inhibitory rates of I. robusta sporulation and spore germination reached 100 and 90.31%, respectively, when the concentration of the NT35 strain was 104 and 108 CFU·mL−1, respectively. Strain NT35 had good prevention effects against ginseng rust rot indoors and in the field with the control effect 51.99%, which was similar to that of commercial chemical and biocontrol agents. The labeled strain NT35-Rif160-Stre400 was obtained and colonized ginseng roots, leaves, stems and rhizosphere soil after 90 days. Bacillus velezensis NT35 can induce a significant increase in the expression of five defensive enzyme-encoding genes and ginsenoside biosynthesis-related genes in ginseng. In the rhizosphere soil, the four soil enzymes and the microbial community improved during different periods of ginseng growth in response to the biocontrol strain NT35. The NT35 strain can recruit several beneficial bacteria, such as Luteimonas, Nocardioides, Sphingomonas, and Gemmatimonas, from the rhizosphere soil and reduce the relative abundance of Ilyonectria, Fusarium, Neonectria and Dactylonectria, which cause root rot and rusty root rot in ginseng plants. The disease indices were significantly negatively correlated with the abundances of Sphingomonas and Trichoderma. Additionally, Sphingomonadales, Sphingomonadaceae and actinomycetes were significantly enriched under the NT35 treatment according to LEfSe analysis. These results lay the foundation for the development of a biological agent based on strain NT35.
Highlights
• The strain NT35 has ability to control rusty root rot and promote growth of ginseng.
• Increasing gene expression of defense enzymes and ginsenoside biosynthesis of ginseng.
• To colonize and significantly improve microbial community in rhizosphere soil of ginseng.
1 Introduction
Panax ginseng, one of the most well-known Chinese herbal medicinal plants, is now grown in the northeastern region of China (You et al., 2022). Rusty root rot disease caused by Ilyonectria robusta is the most common and serious root disease that occurs during P, ginseng cultivation in China (Lee et al., 2015; Farh et al., 2018). At present the general incidence of ginseng rusty root rot in China is 20%–30%, and more seriously, some more than 70%. The quality and yield of ginseng were severely affected, resulting in huge property losses (Wang et al., 2019; Guan et al., 2020). For a long time, this disease has been controlled mainly by chemical fungicides. However, chemical control is not ideal for treating soil-borne diseases in perennial plants. Additionally, prolonged use of chemical fungicides results in pathogen resistance, residue risk, soil microecological imbalance and environmental pollution (Wołejko et al., 2020).
Biocontrol can reduce or prevent the occurrence of plant diseases and has the benefits of being environmentally friendly, safe, and highly efficient (Sharma and Manhas, 2022). For instance, Bacillus amyloliquefaciens was reported to be effective at controlling Phytophthora capsica (Bhusal and Mmbaga, 2020). Fu et al. (2010) reported the biocontrol potential of B. subtilis against banana leaf spot caused by Pseudocercospora musae and postharvest anthracnose caused by Colletotrichum musae. The B. velezensis strain B19 can control Fusarium root rot in Panax notoginseng (Wang C. X. et al., 2023). Thus, biocontrol by beneficial microorganisms may be chosen as an alternative means of reducing ginseng rusty root rot without negatively impacting the environment compared to chemical control with fungicides. Previous studies have shown that the rhizosphere acts as an important bridge between plants and soil for the exchange of substances through plant roots and helps establish mutual relationships (Ahkami et al., 2017). The bacteria in rhizospheric soil are responsible for many important ecological functions, such as disease control (Linden et al., 2022) and resistance induction (Zhang et al., 2022). System induction resistance is an important mechanism for plants to fight pathogens. Bacillus velezensis effective against Botrytis cinerea by inducing systemic resistance in tomato (Stoll et al., 2021). And biocontrol bacteria have been reported to improve rhizosphere soil microecology by recruiting beneficial microorganisms, reducing the abundance of harmful communities, and increasing microbial communities diversity (Zhao et al., 2022). Using rhizospheric soil bacteria has been a good strategy for the efficient biocontrol of soil-borne diseases. The objective of this study was to determine the ability of the B. velezensis strain NT35 to inhibit I. robusta growth and control ginseng rusty root rot via in vitro and field experiments. The expression of defense enzyme-encoding genes in ginseng induced by the biocontrol bacterium was also analyzed. The high-throughput sequence technique was used to study the microbial community structure, which may improve rhizosphere soil microecology through the strain NT35. The results lay a foundation for the development and application of the biocontrol bacterium NT35 on ginseng plants.
2 Materials and methods
2.1 Strains and culture
The B. velezensis strain NT35 was previously isolated from the rhizosphere soil of P. ginseng in Ji’an, Jilin Province, China, and the eight pathogens causing ginseng diseases including I. robusta, Sclerotinia schinseng, Phytophthora cactorum, Rhizoctonia solani, Alternaria panax, Botrytis cinerea, Colletotrichum panacicola, Fusarium solani were obtained was obtained from the Laboratory of Integrated Management of Plant Diseases, Jilin Agricultural University, Changchun, Jilin Province, China, and stored at −80°C. The plant pathogens were incubated on potato dextrose agar (PDA) at 25°C for 5 days. Bacillus velezensis NT35 was cultured on lysogeny broth agar medium (LB) and incubated at 28°C for 2 days in dark.
2.2 Inhibition of Ilyonectria robusta mycelial growth by strain NT35
A dual culture assay was used to evaluate the ability of B. velezensis NT35 against I. robusta CBLJ-3 (Wang J. et al., 2023). The concentrations of B. velezensis NT35 were 109, 108, 107, 106, 105, 104, 103, 102, and 101 CFU·mL−1. In the control, only the I. robusta CBLJ-3 mycelium plug was inoculated, and sterile agar was added to the Petri dishes; three replicates were used for each treatment. Then, the plates were incubated at 25°C for 7 days. Measurements were calculated by the formula I (%) = [(C − T)/C] × 100 (I: percentage of inhibition, C: growth of pathogen in control plate, T: growth of pathogen in treatment plate). Additionally, the antifungal efficacy of the NT35 strain against 14 other plant pathogens was determined by the confrontation culture method.
The effect of B. velezensis NT35 on the mycelial weight of I. robusta was evaluated as described below (Wang C. X. et al., 2023). An 8 mm diameter of the fungal agar plug of I. robusta CBLJ-3 was inoculated into 90 mL of PD fluid in a 250 mL flask and cultured at 150 rpm and 28°C for 2 days, after which 10 mL of 1 × 108 CFU/mL NT35 fermentation broth was added. The mixture was further cultured with shaking at 25°C, and the mycelia of I. robusta were sampled at 1, 2, 3, 4, 5, 6, and 7 dpi after inoculation with B. velezensis NT35. The mycelial samples were filtered and washed three times with sterile water. The mycelial dry weight of each treatment was determined after drying at 80°C for 24 h. Three replicates were performed for each group.
2.3 Inhibition of Ilyonectria robusta spore production and germination by the NT35 strain
The hemocytometer method was used to determine the inhibitory effect of the NT35 strain on the spore production and germination of I. robusta (Wang J. et al., 2023). The strain CBLJ-3 was inoculated on plates mixed with serially diluted fermentation broth as described above and cultured at 25°C. The conidia were flushed with 5 mL of sterile water after the colonies reached more than 60 mm in diameter, and the plates were mixed with sterile water as a control. The conidia yield was determined using a hemocytometer, and the inhibition rate was calculated as follows: inhibition rate (%) = 100 × (control conidia production − treatment conidia production)/control conidia production. When the CBLJ-3 spore germination rate of the control group reached greater than 90%, the germinated conidia were counted using a hemocytometer, and the inhibition rate was calculated as follows: inhibition rate (%) = 100 × (control germination rate − treatment germination rate)/control germination rate. Each treatment was replicated three times.
2.4 In vivo effect of the NT35 strain on inhibiting Ilyonectria robusta growth in ginseng roots
An in vitro inhibition test was also performed in ginseng roots according to Wang C. X. et al. (2023). The three-year-old healthy ginseng roots were disinfected with 2% sodium hypochlorite solution for 90 s, rinsed twice with sterile distilled water and dried at room temperature for 2 h. A total of 10 μL of 1 × 108 CFU·mL−1 NT35 fermentation broth was inoculated at each site, at which three wound sites with a depth of 3 mm were generated on each ginseng root by using a sterile pipette tip with a diameter of 2 mm. The four treatments included the following: (A) water as a negative control; (B) I. robusta as a positive control; (C) Prevention treatment: inoculation with NT35 for 1 day and then with I. robusta; and (D) Therapeutic treatment: inoculation with I. robusta for 1 day and then with NT35. All the inoculated plants were incubated at 25°C.
2.5 Growth-promoting effect of strain NT35 on ginseng plants
The Salkowski method was used to screen for high IAA production by the strain NT35 (Ait Bessai et al., 2022). The phosphate solubilization ability of the strains was determined by cultivation on Pikovskaya’s agar medium and by the Mo-Sb colorimetric method (Liu et al., 2021). Potassium solubilization was tested by using Aleksandrow’s agar medium and a flame atomic absorption spectrometer (Iyer et al., 2017). The nitrogen fixation potency was determined after the strain NT35 was inoculated in ASHBY nitrogen-free agar medium and incubated at 30°C for 24 h (Xu et al., 2001). Siderophore production was determined by the CAS method (Delaporte-Quintana et al., 2020), and ACC deaminase activity was determined by the Honma method (Tiwari et al., 2016).
The NT35 strain was inoculated in LB liquid, cultured at 160 rpm at 28°C for 12 h and subsequently centrifuged at 10,000 × g for 5 min. The collected cells were dissolved in distilled water, and the original cells were diluted to 1 × 108 CFU·mL−1. Ginseng seeds were first sterilized by soaking in 70% ethanol for 5 min and then in 0.5% sodium hypochlorite for 3 min and rinsed three times with distilled water. These disinfected seeds were immersed in the above bacterial suspension of strain NT35 for 4 h. Seeds treated with distilled water served as the control. All the seeds were then transferred to plates containing wetted sand (10 seeds per plate) and incubated at 25°C for 10–15 days (Jiang et al., 2022).
2.6 Colonization ability of strain NT35 in Panax ginseng and rhizosphere soil
Preparation of rifampicin solutions (2 × 104 μg·mL−1) and streptomycin solutions (5 × 104 μg·mL−1), The NT35 strain was activated by LB medium and incubated at 28°C and 160 rpm for 12 h. Rifampicin was uniformly mixed into the LB solid medium to make a plate containing rifampicin at a concentration of 40 μg·mL−1, and 0.1 mL of NT35 bacterial solution was coated on the plate, and the plate was incubated at 28°C for 3–4 days. Single colonies with the same or similar morphology as that of the original NT35 were picked for streaking and incubation. After incubation for 2–3 days, the single colonies were streaked and inoculated onto LB medium containing rifampicin at a concentration of 80 μg·mL−1, and antibiotic-resistant mutant strains with good growth and the same colony morphology as that of the original bacterium were always selected to obtain the mutant NT35-Rif160, which was able to tolerate rifampicin at a concentration of 160 μg·mL−1. The concentration of streptomycin of NT35 was increased step by step according to the same method from 50 μg·mL−1 to 400 μg·mL−1 to obtain the double-resistant strain NT35-Rif160-Stre400, which has the same colony characteristics as the original strain and stable drug resistance (Cohen et al., 1989). Ginseng roots were inoculated with the NT35-Rif160-Stre400 strain at 108 CFU/mL, and 50 mL of liquid was added to each root. The ginseng roots, stems, leaves and rhizosphere soil were sampled after inoculation for 3, 7, 15, 30, 45, 60, or 90 days, and each treatment was repeated three times. The colonization of various parts of ginseng and soil by the NT35-Rif160-Stre400 strain was determined via the plate colony counting method. Each treatment was repeated three times.
2.7 qRT–PCR analysis of defense enzyme-encoding gene expression
After leaf spreading, three-year-old healthy ginseng plants were inoculated with a bacterial suspension of B. velezensis NT35 at a concentration of 1 × 108 CFU·mL−1 in pots in the greenhouse, and water was inoculated as the control. The ginseng roots were sampled at 1, 3, 5, 7, 9 and 11 days after treatment and were soaked in liquid nitrogen. The total RNA of ginseng roots was extracted using the RNAiso Plus method. Reverse transcription was conducted using M-MLV reverse transcriptase (TaKaRa Biotechnology Co., Ltd., Dalian, China). The qRT-PCR assay was performed on a fluorescent quantitative PCR instrument LC96 (Roche) using Fast SYBR Mixture (Company) for qRT-PCR reactions. The 10 μL PCR mixture contained 1 μL of cDNA, 0.2 μL each of 10 μmol/L upstream and downstream primers, 5 μL of 2 × Fast SYBR mixture, 0.2 μL of 50 × Low ROX and 3.4 μL of ddH2O. The qRT–PCR conditions were 95°C predenaturation for 10 min, 95°C denaturation for 10 s, 60°C annealing and extension for 30 s, for a total of 40 cycles. Five genes, phenylalanine ammonia-lyase (PAL), β-1.3 glucanase (β-1,3-GLU), chitinase (CHI), superoxide dismutase (SOD) and peroxidase (POD), of NT35-treated ginseng plants were analyzed by using qRT–PCR (Jiang et al., 2022). Each gene was conducted with three biological and technical replicates. The relative gene expression was analyzed using the 2−△△Ct method (Livak and Schmittgen, 2001; Kim et al., 2019).
2.8 Efficacy of strain NT35 for controlling rusty root rot in ginseng in the field
The field experiment was carried out in 2021 in Choushui township, Fusong county, Jilin Province, China. The control effect of 1 × 108 cfu/g NT35 WP (Jilin Agricultural University) was evaluated in a field where ginseng rusty root rot occurs frequently. The ginseng field was divided into different plots of 1.5 m2 following a completely random design on 25th April. The soil of all plots was treated by mixing 8 g/m2 NT35 WP with commercial agents, including 8 g/m2 3 × 1011 cfu/g YIWEI WP (Shandong Jingqing Agriculture Science and Technology Co., China), 8 g/m2 2 × 1011 cfu/g ZNLK WP (Zhongnong Lvkang Biotechnology Co., China) and 5 g/m2 50% carbendazim WP (Jiangsu Wansheng International Chemical Group, China), with no agent serving as a control. Two-year-old ginseng plants of uniform size were planted at a 7 cm depth in the soil and treated consistently. The row spacing was 20 cm, the plant spacing was 10 cm, and there were approximately 60 plants in each plot and the three random plots were sampled. All ginseng roots were harvested at the maturity stage, and disease severity was investigated (Rahman and Punja, 2005).
2.9 Effect of strain NT35 on soil enzyme activity
After the ginseng roots were inoculated with the NT35 bacterial suspension at a concentration of 1 × 108 CFU·mL−1, rhizosphere soil samples were collected at four different periods of ginseng growth: leaf spread stage (13 June), fruit stage (15 July), root expansion stage (16 August), and mature stage (15 September). The soil urease activity was determined by using the method described by Kandeler and Gerber (1988). The catalase activity was tested according to Lúcia et al. (2016). The alkaline phosphatase activity was determined using the protocol described by Rahul and Anita (2016). The invertase activity was measured using the method described by Sun et al. (2021). Three replicates were carried out for each treatment.
2.10 qRT–PCR analysis of ginsenoside synthesis-related gene expression
Three-year-old healthy ginseng roots were inoculated with an NT35 bacterial suspension at a concentration of 1 × 108 CFU·mL−1, and water was used as a control. Total RNA was extracted from ginseng roots using the RNAiso Plus method. Reverse transcription was conducted using M-MLV reverse transcriptase (TaKaRa Biotechnology Co., Ltd., Dalian, China). The three genes encoding squalene synthase, squalene epoxidase, and dammarediol synthase were analyzed by qRT–PCR as described above, and the β-actin gene was used as the internal reference. The primers used were synthesized by Sangon Biotech (Shanghai) Co., Ltd., in China (Supplementary Table S1). Each gene was conducted with three biological and technical replicates.
2.11 Effects of strain NT35 on the rhizosphere microbial community of ginseng
2.11.1 Soil samples
The rhizosphere soil samples and sampling method for this experiment were consistent with those described in section 2.8 above. The soil microbial community was analyzed during three periods: leaf spreading, fruiting and root expansion. Three samples were taken as one replicate, and a total of 18 soil samples were obtained. Soil samples with no added agent were used as a control group.
2.11.2 DNA extraction, sequencing, and data analysis
The total DNA of the soil samples was extracted by the CTAB method (Niemi et al., 2001). The V3–V4 regions of the bacterial 16S rRNA gene (Zhang et al., 2018) and the fungal ITS2 gene (Huang J. et al., 2022) were amplified. Library construction and sequence analysis were performed on an Illumina NovaSeq 6000 platform by Novogene Co., Ltd. (Beijing, China). Spearman correlation was used to analyze the relationships between soil enzymes, disease indices and the microbial community.
2.11.3 Sequence processing and data analysis
After the chimeric sequences were removed, the operational taxonomic units (OTUs) were clustered at 97% sequence identity using UPARSE (Uparse v7.0.1001, http://www.drive5.com/uparse/; Edgar, 2013). The taxonomic identities of the microbiome were determined using the SSUrRNA database of Silva1381 (Quast et al., 2013). The alpha diversity and abundances of the OTUs were calculated between the different treatments. PCoA dimensionality reduction was performed to analyze the differences in community structure between the groups at different stages. Spearman correlation was used to study the relationships among soil enzymes, disease indices and microbial communities. Pairwise correlation and significance p-values were obtained.
2.12 Statistical analysis
Three replicates were analyzed for each treatment. The significant differences between means were calculated using Tukey’s multiple range test, followed by one-way ANOVA (*p < 0.05, **p < 0.01, ***p < 0.001). For each trial, the results were subjected to analysis of variance (ANOVA), and treatment means were compared by Fisher’s protected least significant difference (LSD) test at 5% probability. Before the ANOVA, the normality of the distribution of residuals and homogeneity of variance were verified. The statistical analyzes were performed with SPSS 26.0 (Ning et al., 2022).
3 Results
3.1 Effects of strain NT35 on the growth of Ilyonectria robusta and other pathogens in Panax ginseng
All nine concentrations of B. velezensis NT35 inhibited the hyphal growth of I. robusta with different efficacies. Among the concentrations, the inhibition rate of the treatment with a concentration greater than 107 CFU·mL−1 was more than 94.12%, which was significantly greater than that of the other treatments, and the highest inhibition rate was observed for the treatment with 109 CFU·mL−1, which reached 99.51% (Supplementary Table S2).
The NT35 strain not only inhibited I. robusta but also had a broad-spectrum inhibitory effect on seven other plant pathogens, including Sclerotinia sclerotiorum, Phytophthora cactorum, Alternaria panax, Rhizoctonia solani, Fusarium solani, Botrytis cinerea, and Colletotrichum panacicola (Figure 1).
Figure 1. Inhibitory effect of NT35 on eight pathogenic fungi of Panax ginseng.
The weight of I. robusta mycelia also decreased 7 days after inoculation with NT35 (Supplementary Figure S1). At 3 dpi and 4 dpi, there were significantly greater inhibition rates against I. robusta than at the other time points, and the highest rate reached 77.21% at 4 dpi. The NT35 strain was found to have a good inhibitory effect on the amount of sporulation of I. robusta (Supplementary Table S3). The inhibition rates exceeded 90% at all concentrations greater than 101 CFU·mL−1. When the concentration of B. velezensis NT35 was greater than 104 CFU·mL−1, the sporulation inhibition rate was 100%. Moreover, when the spore germination rate of the control group reached 91.4%, the spore germination rates of I. robusta treated with different concentrations of NT35 decreased. With increasing concentration, the inhibition rate increased, and the highest inhibition rate reached 93.28% at 109 CFU·mL−1, indicating that B. velezensis NT35 has a good inhibitory effect on I. robusta sporulation and spore germination.
3.2 In vivo effect of the NT35 strain on inhibiting Ilyonectria robusta growth in ginseng roots
The positive control with only pathogen inoculation (Figure 2B) showed typical discolouration around the inoculation site on the fifth day after inoculation with I. robusta. No significant discolouration was observed in the preventive treatment (Figure 2C) or the therapeutic treatment (Figure 2D) with strain NT35. The ginseng in water treatment (Figure 2A) showed only slight oxidation of the wound and its interior after inoculation, with no ginseng rusty root rot symptoms, which proves that the ginseng lesions in this experiment could only be caused by inoculation with CBLJ-3. With increasing days after inoculation, the disease spots in the pathogen-positive control gradually became larger, darker and more decomposed. However, there was no obvious deterioration in the ginseng roots after the NT35 treatment. On the 11th day after inoculation, the ginseng roots were dissected lengthwise, and the extent and area invaded by the pathogen I. robusta inside the roots were significantly lower than those of the control plants. The preventive treatment (Figure 2C) had the greatest effect.
Figure 2. In vivo effect of strain NT35 inhibiting Ilyonectria robusta on ginseng root. LS, Longitudinal section; (A) Water treatment; (B) I. robusta CBLJ-3; (C) Prevention treatment: inoculation with NT35 for 1 day and then with I. robusta; (D) Therapeutic treatment: inoculation with I. robusta for 1 day and then with NT35.
3.3 Growth-promoting effect of strain NT35 on ginseng plants
The four indicators of growth-promoting abilities of strain NT35 were determined in this study (Supplementary Figure S2). The NT35 strain has the potential for nitrogen fixation and siderophore activity, but it cannot solubilize phosphorus or potassium. The levels of IAA and ACC deaminase produced by strain NT35 were 1.392 and 0.0197 μmoL/mg·h, respectively. After 15 days, the average bud length of the ginseng plants soaked in water was 1.56 cm, while that of the plants in the NT35 treatment was 2.25 cm, which was significantly (1.44 times) greater than that of the water control. The results showed that the bacterium NT35 could promote ginseng seed germination (Figure 3).
Figure 3. The promoting effect of strain NT35 on ginseng seed germination. (A) Water control; (B) NT35 treatment; (C) Seed bud length (n = 3 independent replicates). p-values were indicated by * symbol: **p < 0.01; *p < 0.05.
3.4 Colonization of strain NT35 in ginseng and its rhizosphere soil
The labeled strain NT35-Rif160-Stre400 was obtained, and its ability to colonize ginseng roots, leaves, stems and rhizosphere soil was maintained for 90 days (Figure 4). In the ginseng roots and leaves, the trend first increased and then decreased, while it gradually decreased in the rhizosphere soil and stems. The colonization of NT35 in rhizosphere soil was greater than that in the roots, stems and leaves of ginseng. On the 3rd day after inoculation, the colonization level of the NT35-Rif160-Stre400 population was 4.20 × 106 CFU/g in rhizosphere soil, 2.64 × 104 CFU/g in roots, 7.20 × 103 CFU/g in stems, and 1.77 × 103 CFU/g in leaves. At 15 days after inoculation, the colonization population in the ginseng roots and leaves peaked. Up to 90 days after inoculation, the colonization amounts in the rhizosphere soil, roots, stems and leaves were 3.7× 104, 2.46 × 103, 0.67× 102, and 1.29× 103 CFU/g, respectively.

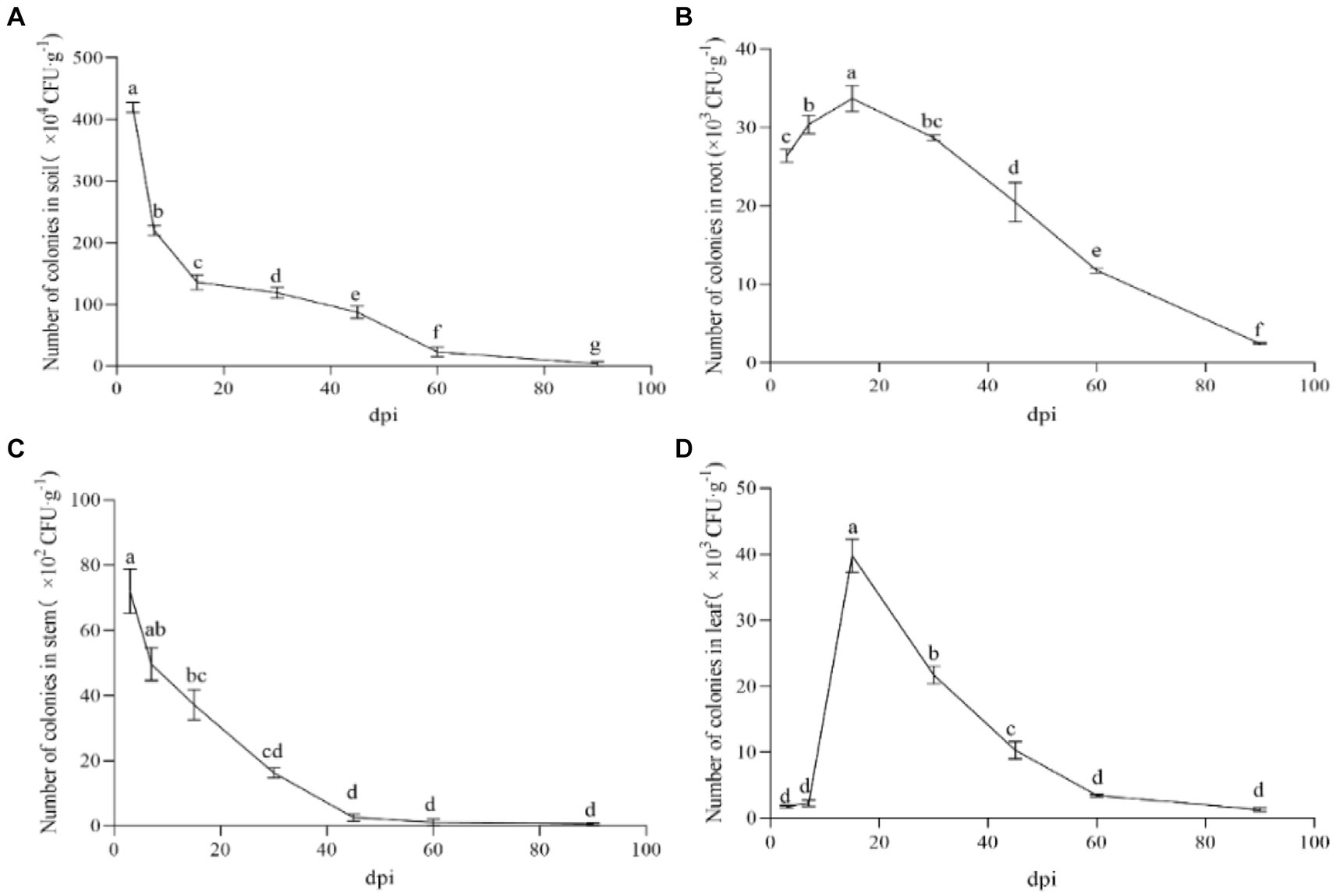

Figure 4. Colonization of strain NT35 in ginseng and rhizosphere soil. (A) rhizosphere soil; (B) ginseng root; (C) ginseng stem; (D) ginseng leave. n = 3; different values (a, b, c, d, e, f, g) between different dpi are significantly different (p < 0.05).
3.5 Expression of the defense enzyme-encoding gene induced by Bacillus velezensis NT35
Similarly, the expression of all five defense genes (β-1.3-GA, CHI, PAL, SOD and CAT) in ginseng roots inoculated with B. velezensis NT35 tended to increase compared to that in the control (Figure 5). The transcript expression of the β-1.3-GA and CAT genes significantly increased in response to treatment with strain NT35 from 1 to 9 dpi and peaked at 3 and 7 dpi, respectively (Figures 5C,D). CHI and SOD were significantly expressed from 3 to 9 dpi, with peaks occurring at 7 and 5 dpi, respectively (Figures 5B,E). The PAL genes were significantly upregulated throughout the sampling period and peaked at 9 dpi (Figure 5A). In addition, the expression of all five genes showed a decreasing trend from 9 to 11 dpi.

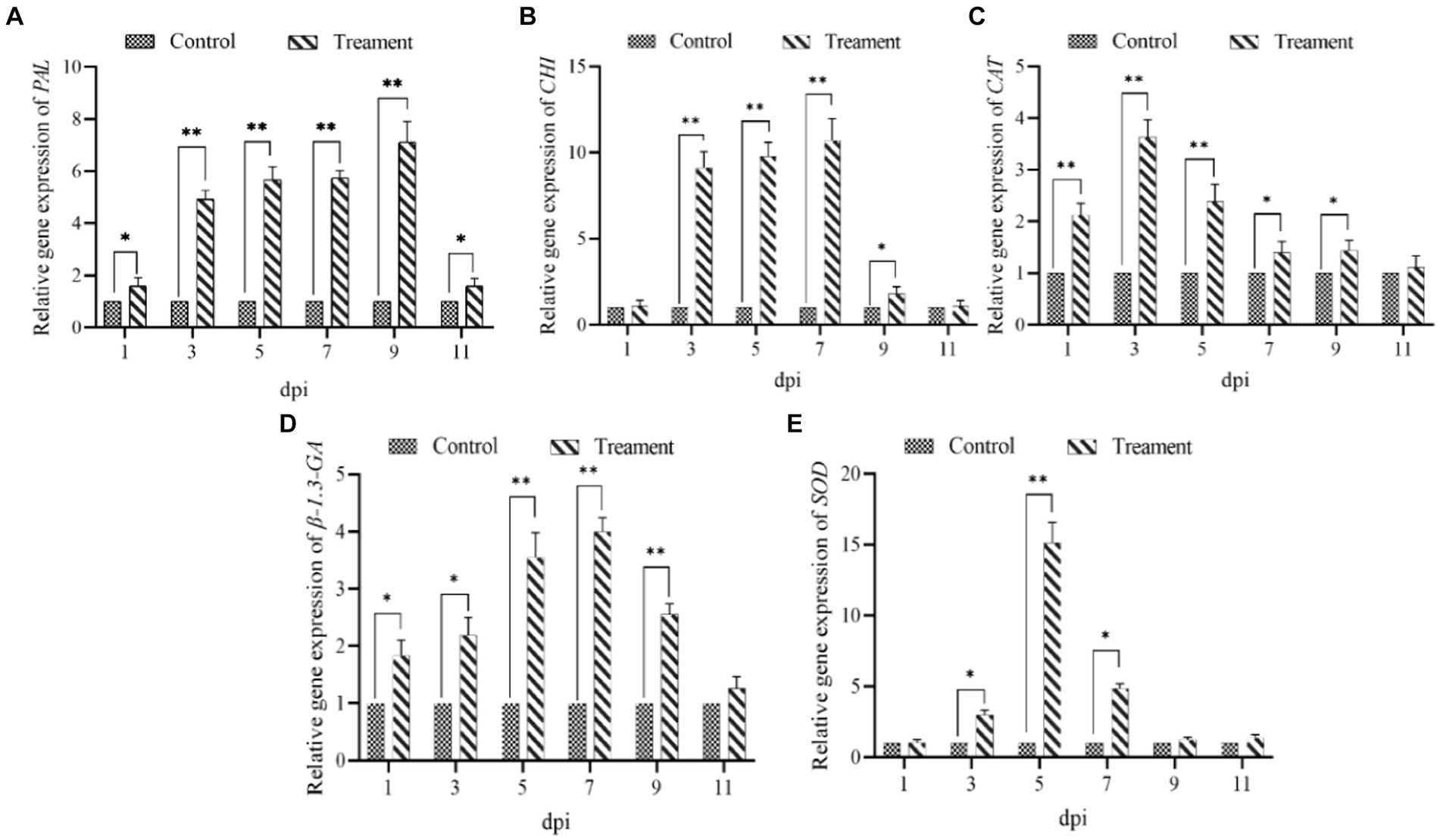

Figure 5. Relative expression levels of five defense genes of ginseng (A) PAL; (B) CHI; (C) CAT; (D) β-1.3-GA; (E) SOD.
3.6 Control effect of strain NT35 on rusty root rot in ginseng in the field
In the field experiment, the disease index of the NT35 WP treatment (2.333) was lower than that of the negative control (4.859), and the control effect reached 51.99% in the NT35 WP treatment, which was not significant different from the control effects of the YIWEI WP and ZNLK biological agents and carbendazim chemical fungicide (Supplementary Figure S3). For yield, the weight of ginseng roots (191.16 g) treated with NT35 WP was significantly greater than that of those treated with the ZNLK agent or water control.
3.7 Effect of strain NT35 on ginseng soil enzyme activity
In general, the soil enzyme activity in ginseng plants treated with strain NT35 increased to some degree during different growth stages compared with that in plants treated with water. However, the change trend of the activity of each enzyme was different. The change in invertase activity showed a trend of increasing first and then decreasing overall, with the maximum value occurring at the fruit stage (Supplementary Figure S4A). The phosphatase activity increased continuously and peaked during the mature period of ginseng. The maximum phosphatase activity after NT35 treatment was 1988.94 μg g−1, which was significantly greater than that in the water control and YIWEI treatment groups (Supplementary Figure S4B). After the NT35 treatment, the soil urease activity first increased and then decreased. During the fruiting period, a maximum value of 572.26 μg/g was reached, which was almost twice as high as that of the Yiwei treatment (Supplementary Figure S4C). The maximum value of catalase activity was reached during the root expansion period and was significantly greater than that in the YIWEI treatment and water control groups (Supplementary Figure S4D).
3.8 Effect of NT35 on the expression of ginsenoside biosynthesis-related genes
After NT35 treatment, the expression of ginsenoside biosynthesis-related genes was upregulated. The relative expression levels of the squalene synthase gene (PgSS), squalene epoxidase gene (PgSE) and dammarenediol synthase gene (PgDDS) in response to treatment with strain NT35 were 25.11, 12.82, and 2.85 times greater than those in response to treatment with water, respectively. The relative expression of PgDDS and PgSS in the NT35 treatment group was extremely significantly greater than that in the water control group, and the relative expression of PgSE was significantly greater than that in the water control group (Figure 6).

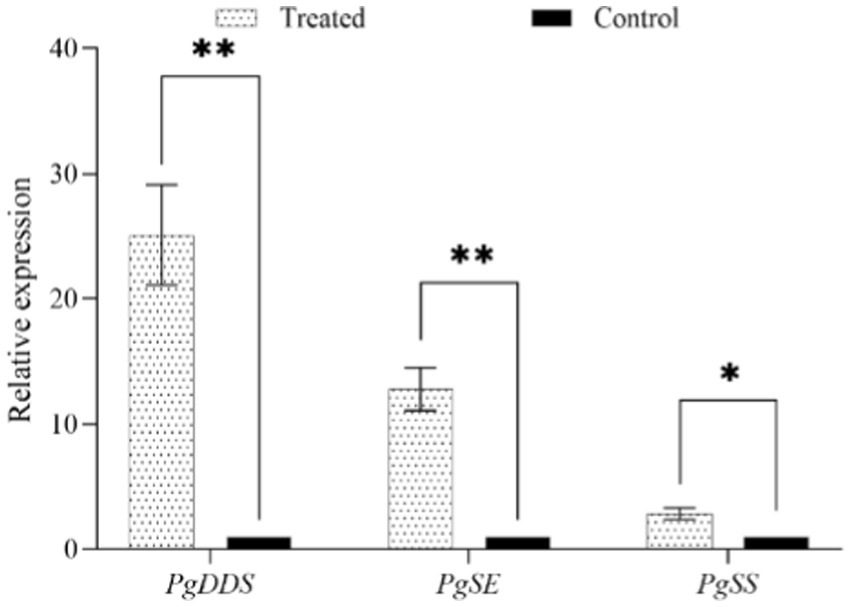

Figure 6. Effect of strain NT35 on relative expression of ginsenoside synthesis genes. Values represent mean ± standard deviation (n = 3), p-values were indicated by * symbol: **p < 0.01; *p < 0.05.
3.9 Effect of strain NT35 on the rhizosphere microbial community of Panax ginseng
3.9.1 Alpha diversity and PCoA analysis
During the four stages of ginseng growth, the Shannon, Simpson, Chao1 and ACE indices of the bacterial and fungal communities changed to different degrees. The Simpson and Shannon indices of the soil bacterial and fungal communities treated with strain NT35 were significantly greater than those of the control at the flowering and root-expanding stages and significantly lower than those of the control at the leaf-spreading stage (Supplementary Figures S5A,B,E,F). The Chao1 and ACE indices of the bacterial and fungal communities were not significantly different among the three stages throughout the growth cycles (Supplementary Figures S5C,D,G,H).
According to the PCoA analysis based on the Bray–Curtis distance, the diversity of the soil microbial communities changed in response to the antagonistic bacteria NT35 treatment, as reflected by the coordinate axes. The bacterial communities produced by the B. velezensis NT35 treatment and the water control treatment were significantly different on the horizontal axis at the fruiting and root expansion stages, and the fungal communities at the fruiting stage were significantly different on both the horizontal and vertical axes (Supplementary Figures S6A,B).
3.9.2 Phylum- and genus-level composition of the microbial community
The dominant bacterial phyla were Myxococcota, Crenarchaeota, Chloroflexi, Actinobacteria, Verrucomicrobiota, and Proteobacteria, and the dominant fungal phyla were Ascomycota, Basidiomycota and Mortierellomycota. During the three stages of ginseng growth, there were differences in the proportions of the dominant microbial groups at the phylum level between the treatment with strain NT35 and the negative control and between the different growth stages under the same treatment (Figure 7).

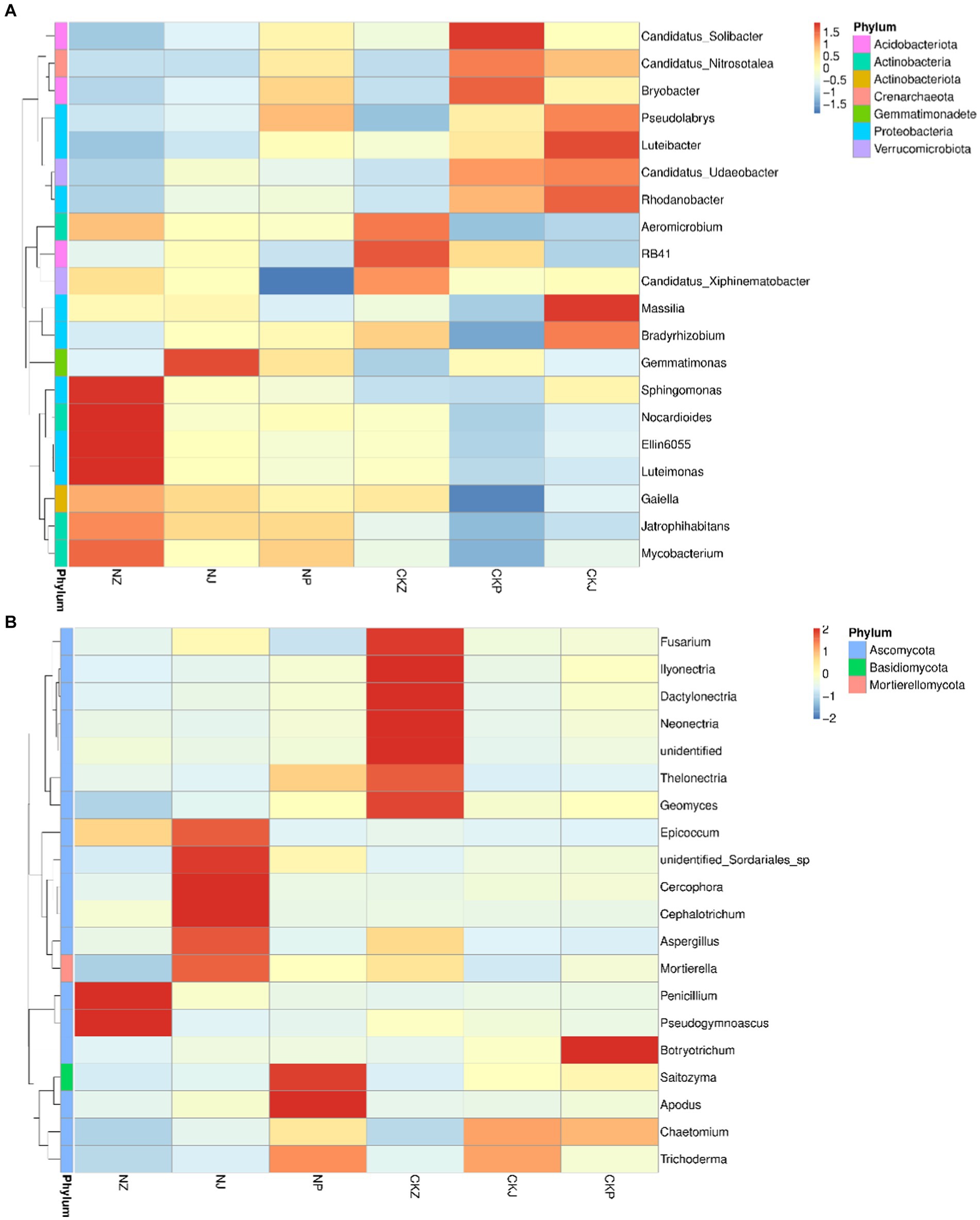

Figure 7. Composition of bacteria and fungi at different ginseng growth stages. (A) Bacterial community composition; (B) Fungal community composition. NZ, leaf spread of NT35 treatment; NJ, Fruit of NT35 treatment; NP, Root expansion of NT35 treatment; CKZ, leaf spread of control; CKJ, Fruit of control; CKP, Root expansion of control.
In terms of the genus-level composition of the bacterial microbial communities (Figure 7A), Mycobacterium, Luteimonas, Ellin6055, Nocardioides, Sphingomonas, Galella and Gemmatimonas were the dominant genera in the rhizosphere soil treated with B. velezensis NT35 during the three stages of ginseng growth. For the control, the dominant genera consisted of Candidatus solibacter, C. xiphinematobacter, C. nitrosotalea, C. udaeobacter, RB41, Aeromicrobium, Bradyrhizobium, Massilia, Rhodanobacter, Luteibacter, Pseudolabrys, Luteibacter and Massillia. However, the abundances of some microorganisms also decreased. Without the NT35 treatment, the abundances of Sphingomonas, Nocardioides, Ellin6055, Luteimonas, Galella, Mycobacterium and Jatrophihabitans were always low. Additionally, the abundances of Candidatus Solibacter, C. xiphinematobacter, C. nitrosotalea, C. udaeobacter, Bradyrhizobium, Pseudolabrys and Rhodanobacter in the rhizosphere soil decreased significantly after treatment with the biocontrol bacterial strain NT35. For the genus composition of the fungal microbial community (Figure 7B), the fungal community treated without NT35 was composed mainly of Fusarium, Neonectria, Thelonectria, Geomyces, Ilyonectria, Dactylonectria, Chaetomiun, Trichoderma, and Botryotrichum. After treatment with B. velezensis NT35, Penicillium, Pseudogymnoascus, Epicoccum, unidentified Sodariales sp., Cercophora, Cephalotrichum, Mortierella, Aspergillus, Apodus, Saitozyma and Trichoderma became the dominant genera.
3.9.3 Correlation analysis between the microbial community, soil enzymes and ginseng growth
The correlation between the bacterial community composition and the four soil enzymes activity was shown in Figure 8A. There was a significant negative correlation between the abundance of the genus Massilia and catalase activity. The alkaline phosphatase activity was significantly negatively related to the abundances of Aeromicrobium, Candidatus_xiphinematobacter and Luteimonas and was significantly positively related to the abundances of Gemmatimonas, C. solibacter, C. nitrosotalea, Bryobacter, and Pseudolabrys. The invertase activity was significantly negatively related to the abundance of RB41 but significantly positively related to the abundances of Gemmatimonas and Sphigomonas.

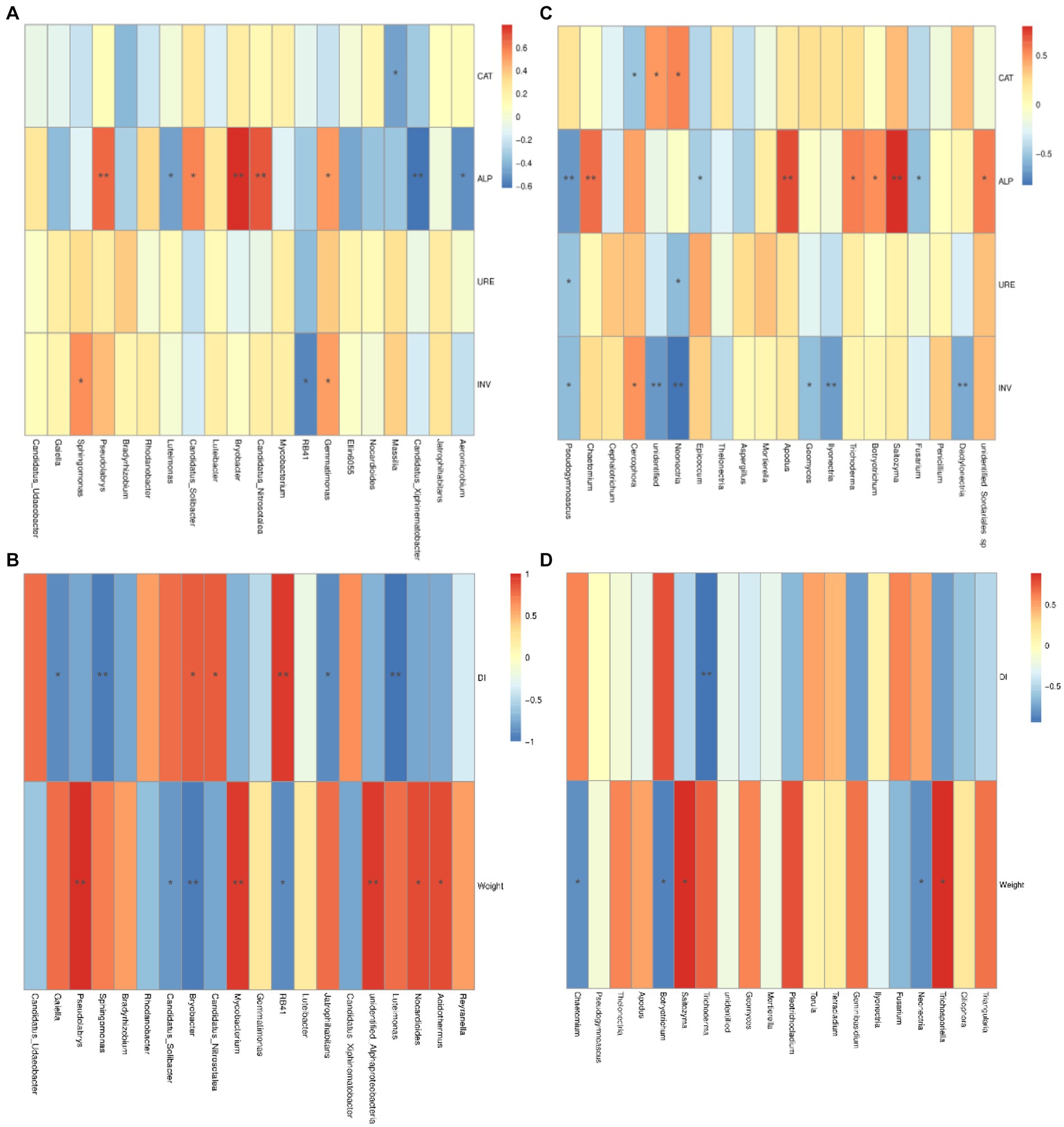

Figure 8. Associations between bacterial and fungal communities and relative factors. Correlation among bacterial microbial community and soil enzyme activity (A), and disease index and root growth of ginseng (B); Correlation among fungal microbial community and soil enzyme activity (C); Disease index and root growth of ginseng (D). CAT, catalase; ALP, alkaline phosphatase; URE, urease; INV, invertase. DI, disease index of ginseng rusty root rot; RL, root length of ginseng; RD, root diameter of ginseng. p-values were indicated by * symbol: **p < 0.01; *p < 0.05.
On the other hand, the correlations between fungal community composition at the genus level and the activities of the four soil enzymes are shown in Figure 8C. The abundance of the genus Cercophora was significantly negatively correlated with catalase activity, and that of Neonectria was significantly positively correlated with catalase activity. Alkaline phosphatase activity was significantly negatively related to the abundances of Fusarium and Epicoccum and significantly positively related to the abundances of Botryotrichia, Trichoderma, Saitozyma, Apodus and Chaetomium. The abundances of Neonectria and Pseudogymnoascus were significantly negatively related to urease activity. Invertase activity was extremely significantly negatively related to the abundances of Dacylonectria, Ilyonectria and Neonectria; significantly negatively related to the abundances of Geomyces and Pseudogymnoascus; and significantly positively related to the abundance of the genus Cercophora.
The correlations between the microbial community at the genus level and the disease indices of rusty root rot and root growth in ginseng and bacterial composition are shown in Figure 8B. The abundances of Acidothermus, Nocardioides, Bradyrhizobium, Sphingominas, and Psedolabrys were significantly negatively related to the disease index of ginseng and were extremely significantly negatively related to Gaiella, Jatrophihabitans and Luteimonas, while the abundances of RB41 and Candidatus udaeobacter were significantly positively related to the disease index of ginseng rusty root rot. In terms of abundance, the length of the roots of the ginseng plants was strongly negatively related to Acidothermus, Mycobacterium and Psedolabrys; significantly negatively related to Jatrophihabitans and Gaiella; and significantly positively related to C. nitrosotalea, Bryobacter and C. xiphinematobacter. For the fungal community (Figures 8C,D), the disease index associated with ginseng rusty root rot was significantly negatively related to the abundance of Geminibasidium and Trichoderma. In terms of abundance, the ginseng root length was strongly negatively related to Trichosporiella and significantly negatively related to Pleotrichocladium but was extremely significantly positively related to Botryotrichum. The ginseng taproot diameter was strongly negatively related to the abundance of Torula and significantly negatively related to the abundances of Tetracladium and Thelonectria.
3.9.4 LEfSe analysis of rhizosphere soil
The analysis of the bacterial community LEfSe in rhizosphere soil showed that Acidobacteriota was enriched in the soil without NT35 treatment, and Alphaproteobacteria, Actinobacteria, Sphingomonadales and Sphingomonadaceae were enriched in the NT35 treatment during the leaf-spreading period (Figure 9A). During the fruiting period, Proteobacteria and Acidobacteria were enriched in the control group, and in the NT35 treatment, Actinobacteriota, Nitrososphaeraceae and Nitrososphaerales were enriched (Figure 9B). During the root expansion stage, Acidobacteria and Acidobacteriota were enriched in the control group, and Actinobacteriota, Actinobacteria and Thermoleophilia were enriched in the NT35 treatment (Figure 9C).

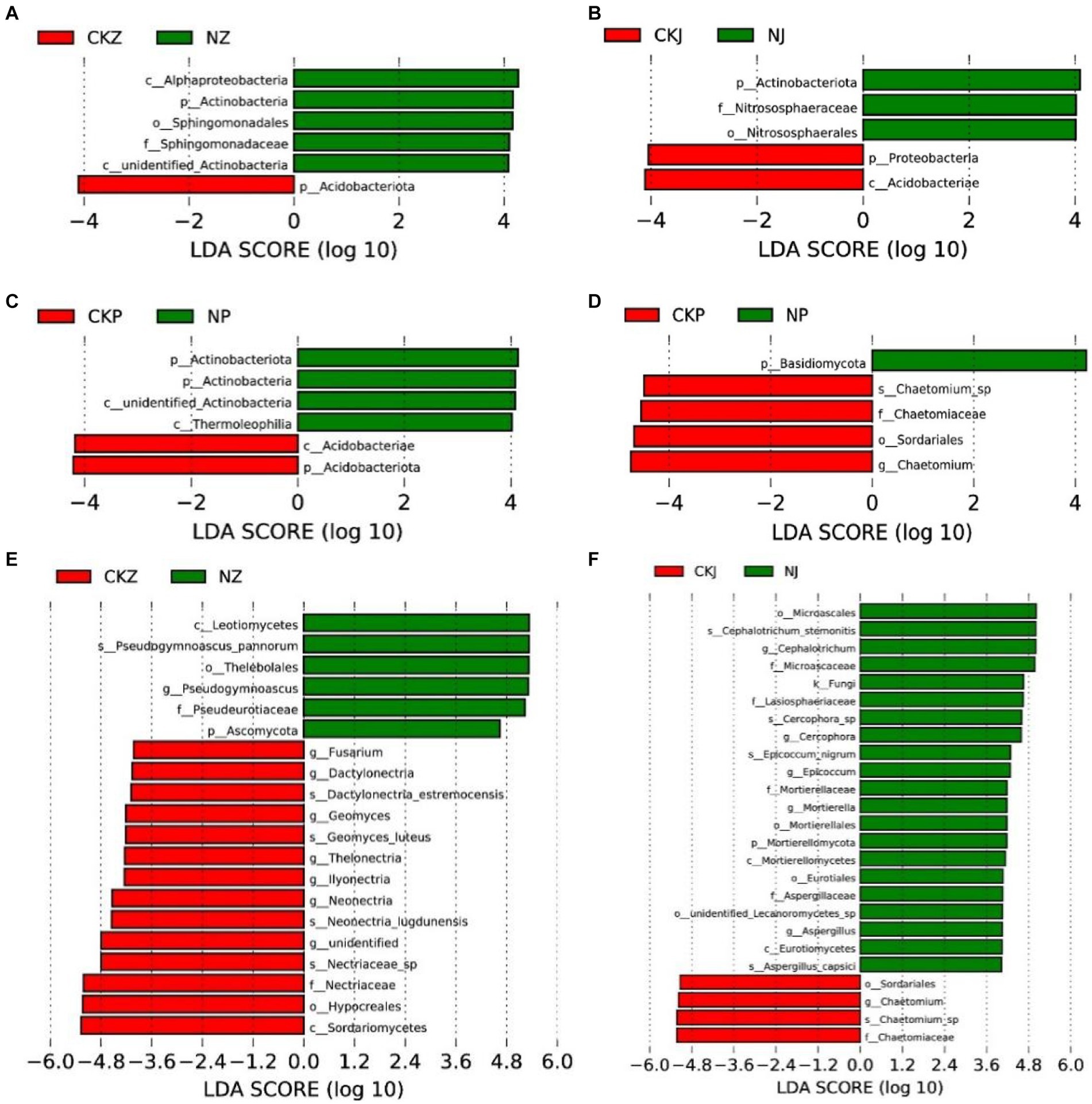

Figure 9. Linear discriminant effect size identified differentially abundant taxa of different periods of NT35 and control treatment (LDA significance threshold of 4.0). Bacterial community at the period of leaf spread (A), fruit (B), and root-expansion (C); Fungal community at the period of leaf spread (E), fruit (F), and root expansion (D). NZ, leaf-spread of NT35 treatment; NJ, fruit of NT35 treatment; NP, root expansion of NT35 treatment; CKZ, leaf-spreading of control; CKJ, fruiting of control; CKP, root expansion of control. The letters of k, p, c, o, f, g, and s were used to represent the kingdom, phylum, class, order, family, genus, and species, respectively.
According to the results of the fungal community LEfSe analysis, the soil not subjected to biocontrol bacterial treatment was enriched in Fusarium, Dactylonectria, Dactylonectria_estremocensis, Geomyces, Geomyces_luteus, Thelonectria, Ilyonectria, Neonectria, Neonectria_lugdunensis, Nectriaceae_sp., Nectriaceae, Hypocreales and Sordariomycetes. However, Leotiomycetes, Pseudogymnoascus_pannorum, Thelebolales, Psedugymnascus, Pseudeurotiaceae and Ascomycota were enriched after the NT35 treatment during the leaf-spreading stage (Figure 9E). There was enrichment of Sordariales, Chaetomium, Chaetomium_sp., and Chaetomiaceae in the control treatment at the fruiting stage, while the fungi Microascales, Cephalotrichum_stemonitis, Cephalotrichum, Microascaceae, Lasiosphaeriaceae, Cercophora, Epicoccum_nigrum, Epicoccum, Mortierellaceae, Mortierella, Mortierellales, Mortierellomycota, Mortierellomycetes, Eurotiales, Aspergillaceae, Aspergillus, Eurotiomycetes and Aspergillus_capsici were enriched in the NT35 treatment (Figure 9F). During the root expansion stage, the control group was enriched in Chaetomium_sp., Chaetomiaceae, Sordariales and Chaetomium, and Basidiomycota was enriched in the NT35 treatment (Figure 9D).
4 Discussion
In nature, Bacillus species exist widely and can be isolated from plant stems, leaves, roots and soil (Dinesh et al., 2015; Ali et al., 2020). Many articles have reported that B. velezensis can inhibit plant pathogens and be used as a biocontrol agent (Peng et al., 2019; Chen et al., 2020; Mta et al., 2020). In the field of biological control, research on screening antagonistic strains and control mechanisms is ongoing (Dimkić et al., 2022). The biocontrol bacterium B. velezensis strain NT35 was isolated from the rhizosphere soil of P. ginseng. In this study, the mechanism by which the B. velezensis strain NT35 controls ginseng rusty root rot was clarified by determining antagonistic effects and improvements in soil enzymes and microbial communities; however, these effects have rarely been described before in the field of controlling ginseng disease. Disease biocontrol mechanisms can be summarized as competition, antagonism and induction of plant resistance (Márquez et al., 2020; Ribeiro et al., 2021). The NT35 strain had a significant antagonistic effect on the mycelial growth, sporulation and spore germination of I. robusta, which causes ginseng rusty root rot.
The defense enzymes can increase plant resistance to biological stress and abiotic stress. PAL can prevent pathogen infection in the cell walls of host plants, and CHI combined with β-1,3-GA can induce a plant defense response to inhibit the growth of filamentous pathogenic fungi. SOD and CAT can eliminate endogenous free radicals to prevent cell death, which results in free radicals maintaining a normal dynamic level in plants to improve plant stress resistance (Manikandan et al., 2021; Wang Q. et al., 2023). For example, B. velezensis YYC induces an increase in the enzyme activity of PAL, POD, and SOD in tomato plants, resulting in resistance to bacterial wilt (Yan et al., 2022). Strawberry and grape plants can also obtain systemic resistance to external pathogens by increasing defense enzyme activity (Apaliya et al., 2017; Tang et al., 2022). Ginseng can also resist the invasion of pathogens by increasing the expression of defense-related enzyme-encoding genes (Em et al., 2020). The NT35 strain could significantly increase the expression of the PAL, β-1,3-GA, CHI, SOD and CAT genes in ginseng roots to increase systemic resistance to ginseng rusty root rot, and the control effect reached 51.99%.
In recent years, research on the rhizospheric soil microbial community structure has become a popular topic in the research of biological control mechanisms. The role of biocontrol bacteria in the early stage of microecology was mainly to cause microbial community changes in plant rhizosphere soil. The B. velezensis strain NT35 can change the alpha and beta diversity of the microbial community in ginseng rhizosphere soil, especially the Shannon and Simpson indices, according to PCoA. Notably, the NT35 strain can recruit several beneficial bacteria, such as Luteimonas, Nocardioides, Sphingomonas, and Gemmatimonas, from the rhizosphere soil. Gemmatimonas contains chlorophyll phototrophic species that can support plant life processes (Chen et al., 2022). Isolates of Luteimonas are associated with plant growth promotion and plant resistance to pathogens and have shown antifungal activity against wheat scab, wood brown rot and ash seedling pathogens (Xiao et al., 2017; Ulrich et al., 2022). Nocardioides can repair pesticides or other chemically contaminated soils (Benedek et al., 2022). Sphingomonas can metabolize prothioconazole and has a soil remediation function (Huang Z. et al., 2022). However, in the soil not treated with strain NT35, the enriched fungal community included Fusarium, Neonectria, Ilyonectria, and Dactylonectria, which cause ginseng root rot and rusty root rot (Farh et al., 2020; Fang et al., 2022; Walsh et al., 2022). Ilyonectria robusta is the main pathogenic fungus of ginseng studied in this paper. The relative abundance of Ilyonectria significantly decreased in the rhizosphere soil after the NT35 treatment. We also found that NT35 not only reduced the abundance of Ilyonectria in ginseng rhizosphere soil but also reduced the abundance of Fusarium, which causes root rot in ginseng plants. These results suggested that the NT35 strain has a strong biocontrol effect on ginseng rusty root rot. There is evidence that the introduction of biocontrol agents can increased soil enzyme activity and improved soil nutrient, provide a suitable environment for microorganisms in soil, generate a signature microbial composition (Tian et al., 2022). In addition, it has been reported that plants alter the rhizosphere microbial composition through root secretions (Lu et al., 2018). Here we also speculate that the strain NT35 improved soil nutritional conditions and might stimulate the formation of a special secretion pattern from ginseng root which recruit the beneficial microbes to affect the composition and structure of the rhizospheric soil microbial community.
The microbial community structure is affected by biological or abiotic factors, such as the seasonal climate, soil physical and chemical properties, microtopography, and plant activities, which affect the production of enzymes and enzyme reaction kinetics in soil (Bell et al., 2014). There was a close relationship between the microbial community and soil enzyme activity and plant roots (Bell et al., 2014). However, there have been few reports about the relationships among the disease indices of ginseng rusty root rot, root growth, soil enzyme activity and the microbial community after treatment with biocontrol agent. Among the four soil enzyme activities in this study, the bacterial community was strongly correlated with ALP activity, and the fungal community was highly correlated with both ALP and INV activity. However, the abundances of Ilyonectria and Fusarium were significantly negatively correlated with INV activity, indicating that INV activity could significantly affect the abundance of pathogenic fungi in ginseng rhizosphere soil (Figure 8C).
The effects on the disease index and root length were influenced mainly by the bacterial community. For example, the disease index was significantly negatively correlated with the abundance of Sphingomonas, which increased after the addition of strain NT35 (Figure 8B). The fungal community represented by Trichoderma was similar to that represented by Sphingomonas (Figure 8D). Therefore, the treatment with the B. velezensis strain NT35 can affect the rhizosphere microbial community, thereby reducing the disease index of ginseng rusty root rot. The effects of the biocontrol agent NT35 on ginseng rhizosphere soil are summarized as follows. First, strain NT35 can recruit beneficial bacteria and fungi, which not only have biocontrol functions but also degrade pesticides or even improve soil. Second, NT35 treatment can directly reduce the relative abundance of target pathogens in soil and control soil-borne diseases. Finally, the NT35 strain increased the correlations among soil enzyme activity, disease indices and microbial communities. LEfSe analysis revealed that the bacteria beneficial to plants, such as Sphingomonadales and Sphingomonadaceae, were enriched in the rhizosphere soil (Levy et al., 2018). Additionally, the NT35 treatment significantly enriched some actinomycetes that can secrete secondary metabolites to inhibit pathogens. The abundance of pathogenic fungi in the treatment inoculated with NT35 was significantly lower than that in the noninoculated NT35 treatment (Figure 9E).
Data availability statement
The original contributions presented in the study are included in the article/Supplementary material, further inquiries can be directed to the corresponding authors.
Author contributions
XL: Writing – original draft, Methodology, Investigation, Formal analysis, Data curation. JW: Writing – original draft, Methodology, Investigation, Formal analysis, Data curation. HS: Writing – original draft, Methodology, Investigation, Data curation. CX: Writing – original draft, Methodology, Data curation. LK: Writing – original draft, Methodology. YS: Writing – original draft, Data curation. WH: Writing – original draft, Resources. JG: Writing – review & editing, Resources, Project administration, Conceptualization. YJ: Writing – review & editing, Resources, Project administration, Funding acquisition, Conceptualization. CC: Writing – review & editing, Writing – original draft, Supervision, Project administration, Funding acquisition, Conceptualization.
Funding
The author(s) declare that financial support was received for the research, authorship, and/or publication of this article. This work was supported by the earmarked fund for China Agriculture Research System (CARS-21), Jilin Science and Technology Development Project (20230204008YY and 20210202075NC), and Jilin Provincial Natural Science Foundation (20240101240JC).
Acknowledgments
Thanks to Jilin Shenwang Plant Protection Co., Ltd., China for its support in field trials and samples of ginseng plant and soil.
Conflict of interest
WH was employed by Jilin Shenwang Plant Protection Co., Ltd.
The remaining authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Supplementary material
The Supplementary material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fmicb.2024.1447488/full#supplementary-material
