ORIGINAL RESEARCH article

Front. Microbiol., 04 August 2023
Sec. Antimicrobials, Resistance and Chemotherapy
This article is part of the Research Topic Biocontrol of phytopathogens-Recent progress for improvement in efficacy and understanding action mechanism View all 8 articles

Enhancing plant defense using rhizobacteria in processing tomatoes: a bioprospecting approach to overcoming Early Blight and Alternaria toxins

  • 1Department for Sustainable Food Process, Università Cattolica del Sacro Cuore, Piacenza, Italy
  • 2Department of Sustainable Crop Production, Università Cattolica del Sacro Cuore, Piacenza, Italy
  • 3Department of Animal Science, Food and Nutrition, Università Cattolica del Sacro Cuore, Piacenza, Italy

Plant growth-promoting rhizobacteria (PGPR) with antagonistic activity toward plant pathogenic fungi are valuable candidates for the development of novel plant protection products based on biocontrol activity. The very first step in the formulation of such products is to screen the potential effectiveness of the selected microorganism(s). In this study, non-pathogenic rhizobacteria were isolated from the rhizosphere of tomato plants and evaluated for their biocontrol activity against three species of mycotoxin-producing Alternaria. The assessment of their biocontrol potential involved investigating both fungal biomass and Alternaria toxin reduction. A ranking system developed allowed for the identification of the 12 best-performing strains among the initial 85 isolates. Several rhizobacteria showed a significant reduction in fungal biomass (up to 76%) and/or mycotoxin production (up to 99.7%). Moreover, the same isolates also demonstrated plant growth-promoting (PGP) traits such as siderophore or IAA production, inorganic phosphate solubilization, and nitrogen fixation, confirming the multifaceted properties of PGPRs. Bacillus species, particularly B. amyloliquefaciens and two strains of B. subtilis, showed the highest efficacy in reducing fungal biomass and were also effective in lowering mycotoxin production. Isolates such as Enterobacter ludwigii, Enterobacter asburiae, Serratia nematodiphila, Pantoea agglomerans, and Kosakonia cowanii showed moderate efficacy. Results suggest that by leveraging the diverse capabilities of different microbial strains, a consortium-based approach would provide a broader spectrum of effectiveness, thereby signaling a more encouraging resolution for sustainable agriculture and addressing the multifaceted nature of crop-related biotic challenges.

1. Introduction

Tomato (Solanum lycopersicum L.) is the second most important plant grown worldwide after potatoes, and in 2020, global production reached approximately 187.5 million tons1, surpassing previous years' productions. Italy is the major EU tomato supplier (Iotti and Bonazzi, 2018).

Because of their soft epidermis and high water content, tomatoes are known to be highly susceptible to fungal colonization (Moss, 1984). One of the most common fungi that infects tomato plants and fruits is Alternaria, with the most frequently reported being A. solani, A. alternata, and A. tenuissima (Garganese et al., 2018; Sanzani et al., 2019). These fungi are considered responsible for the Early Blight (EB) disease and severe damage to tomato plants when environmental conditions are favorable, with symptoms on foliage, stems, and fruits, resulting in yield losses ranging from 35 to 78% (Parvin et al., 2021). In addition, they produce different kinds of mycotoxins generally referred to as Alternaria toxins, of which the most important in terms of human exposure and toxicity are alternariol (AOH), alternariol monomethyl ether (AME), tenuazonic acid (TeA), and tentoxin (TEN) (Aichinger et al., 2021; Lin et al., 2023). As stated by the European Food Safety Authority (EFSA) in the latest scientific opinion on Alternaria toxin, tomato and its derivates largely impact consumer exposure (EFSA et al., 2016). Indeed, on 5 April 2022, the EU emanated the Recommendation (EU) 2022/553 which supplemented the Regulation (EU) 1881/2006 taking Alternaria toxins into consideration and setting limits in foodstuffs of 2 μg/kg for AOH; moreover, in 2022, EFSA prepared some recommendations for Alternaria toxins in all the processed products of tomato (Publications Office of the European Union., 2022).

Currently, no Alternaria-resistant tomato varieties are available (Ray et al., 2015) and, while much progress has been made in the Italian farming system with the adoption of Integrated Pest Management (IPM) practices (Ciampitti and Cavagna, 2014), the use of agrochemicals remains one of the best options to protect tomato production. At the same time, consumer demand for organic products has led to an increase in Italian farms transitioning to organic production systems, which typically allow for the use of copper-based fungicides as the sole means of plant protection. It is well-established that the overuse of chemicals for plant protection can lead to environmental disturbances, bioaccumulation in food, environmental pollution, harm to beneficial non-target organisms, and the development of fungicide-resistant strains of plant pathogens. Although to a much lower extent, the same phenomena have also been observed for copper-based fungicides (Shoaib et al., 2015; Tamm et al., 2022). These downsides highlight the importance of introducing novel and effective broad-spectrum plant protection products to be included in IPM programs, so as to lower the use of fungicides while maximizing sustainability and respecting the environment. Plant growth-promoting rhizobacteria (PGPR) represent a promising alternative for sustainable crop management. Their role in sustainable agriculture is mainly known for establishing plant–microbe interaction belowground, in association with plant roots, where they can boost key physiological plant processes that contribute to setting up plants in a better nutritional state and to better cope with environmental stresses, thus promoting plant growth and development (Glick, 2012). On top of that, many scientific studies demonstrate how PGPR can be effective for the biological control of major fungal pathogens due to the production of antimicrobial compounds, lytic enzymes, and the competition of nutrients and space (Singh et al., 2023). Moreover, PGPR can also enhance plant defense indirectly, through an intricate mechanism known as induced systemic resistance (ISR) (Pieterse et al., 2014), showing PGPR multiple modes of action for the sustainment of plant defense. Studies focusing on the biological control of EB in tomato crops reported evidence that PGPRs can be effectively used to control EB incidence in tomato plant cultivations in both greenhouse (Panebianco et al., 2022) and in field experimentation (Karthika et al., 2020). These studies highlight several characteristics of Bacillus species that make them desirable biocontrol agents: (i) they compete against pathogenic microorganisms for space and nutrients, (ii) produce a wide variety of antimicrobial compounds, (iii) induce ISR, and (iv) show mycoparasitism ability (Legein et al., 2020). Moreover, they can degrade/inhibit the production of toxic compounds as demonstrated by Jia et al. (2023) where B. amyloliquefaciens drastically reduced the production of TeA by A. alternata.

In light of their ability to promote plant growth and suppress pathogenic fungi, PGPRs represent a promising avenue for exploration in the context of IPM, organic, or traditional production. Additionally, their ability to inhibit the production of toxic fungal metabolites that could enter the food chain and pose a risk to consumers further underscores their potential as a viable solution to reducing reliance on traditional pesticides in agriculture.

In this study, we explored the root-associated rhizobacteria of tomato plants that can be cultured and evaluated their ability to control three mycotoxigenic strains of Alternaria. We measured the biocontrol effect by assessing the reduction in fungal growth and inhibition of the production of the main Alternaria toxins. We hypothesized that the interaction between PGPR and pathogenic fungi in vitro could not only limit fungal growth but also modify the production of toxic metabolites such as Alternaria toxins. Additionally, we evaluated the biostimulant activity of the best-performing strains, demonstrating the diverse applications that PGPR can have in sustainable agriculture. To ensure that our study focused on the most promising isolates, a ranking method was developed during the screening process. This method allowed us to select the best-performing isolates from a wide variety of options, which will be considered for future in-planta experiments.

2. Materials and methods

2.1. Isolation of putative growth-promoting rhizospheric and endophytic bacteria

Roots of healthy tomato plants were collected in July 2020 in a commercial field situated in Gabbioneta-Binanuova (45 12′03.0” N 10 12′27.8” E), Cremona, Po Valley (Northern Italy). Tomato plants were carefully uprooted from the soil, packaged in sterile polybags, cooled at 4°C, and immediately shipped to the laboratory for the isolation of both rhizospheric and endophytic bacteria.

The isolation of bacteria from the rhizosphere was performed according to Barillot et al. (2013). Briefly, bulk soil was removed by vigorously shaking plants by hand, paying attention to the roots' integrity as long as the loosely adhering soil was completely removed. Afterward, the root system was washed with sterile 0.9% saline solution and mixed with Tween 80 (0.01% v/v), and the mixture was incubated at 25°C for 90 min with shaking at 180 rpm. The resulting suspensions were serially diluted (10−8), and 0.1 mL aliquots were spread in triplicate on LB (Luria–Bertani) (Oxoid, Basingstoke, UK) for each dilution. To prevent any fungal growth, plates were amended with cycloheximide [0,1%, Sigma-Aldrich, St. Louis (MO), USA] and incubated at 30°C for 24–72 h. Morphologically distinct bacterial colonies of rhizosphere isolates were selected and purified by repeated streaking on LB agar. Isolates were temporarily cryopreserved at −20°C in 20% glycerol for further studies.

For endophytic isolation, the collected roots were thoroughly washed under running tap water to remove rhizosphere soil and then sterilized by sequential immersion in 70% ethanol for 1 min and in household bleach (sodium hypochlorite) diluted in sterilized water (1:1) for 2 min, and finally rinsed five times in sterile distilled water to remove surface sterilization agents. Ten grams of root were transversally cut into small pieces of approximately 0.5 to 1 cm using a sterile single-use scalpel blade, placed in sterile physiological water, and incubated overnight at 25°C with shaking at 180 rpm. Serial dilutions from 10−1 to 10−5 were prepared, and 0.1 mL of aliquots were spread onto LB agar amended with cycloheximide, in triplicates, and the plates were incubated for 24–72 h at 30°C. To verify the efficacy of surface sterilization of the roots, a root segment after the last rinse was placed on the LB medium and incubated (Ambrosini and Passaglia, 2017). Morphologically distinct bacterial colonies were selected, and pure cultures were cryopreserved in a 20 % glycerol solution at −20°C.

2.2. Rep-PCR dereplication of isolates

Genomic DNA from rhizospheric and endophytic isolates was extracted using the MicroLYSIS® Plus Kit (Microzone, Haywards Heath, UK). According to Sadowsky and Hur (1998), the genetic diversity among the isolates obtained was assessed by means of the rep-PCR genotyping technique, using GTG5 (5′-GTGGTGGTGGTGGTG-3′) as a primer. PCR products were checked by electrophoresis in a 2.5% agarose gel, and the profiles were visualized with the software Image Lab (Bio-Rad). The comparative analysis of the resulting fingerprints was performed using the software Geljv.2.0 (Heras et al., 2015).

2.3. Identification of unique isolates through 16S rRNA gene sequencing

PCR amplification of 16S rDNA, from representative strains of each rep-PCR profile, was carried out using the universal primers P1 (5′-GCGGCGTGCCTAATACATGC-3′) and P6 (5′-CTACGGCTACCTTGTTACGA-3′) as described by Di Cello and Fani (1996). The PCR reaction mixture and conditions were the same as described by Guerrieri et al. (2020). Sanger sequencing of PCR products was carried out at GATC Biotech (Ebersberg, Germany). The obtained 16S ribosomal DNA sequences were compared with others in the GenBank database, using RDP (Ribosomal database project) at http://rdp.cme.msu.edu/and confirmed via NCBI-BLAST server, at https://blast.ncbi.nlm.nih.gov/Blast.cgi.

2.4. In vitro screening of rhizospheric and endophytic bacterial isolates for antagonism against Alternaria spp.

Rhizosphere and endosphere bacterial isolates were screened for their antagonism in dual culture assay. One strain of A. alternata (CBS 118814), one strain of A. solani (CBS 109157), and one strain of A. tenuissima (CBS 117.44), obtained from the Westerdijk Fungal Biodiversity Institute (Utrecht, the Netherlands), able to produce mycotoxins (TeA, AOH, AME, and TEN) were used for the dual plate inoculation experiment. The fungal strains were singularly inoculated on Petri dishes (Ø 9 cm) with potato dextrose agar (PDA, BioLife, Milano, Italy) and incubated at 25°C for 7 days (12 h light/12 h dark photoperiod). At the end of incubation, developed fungal colonies were used to in vitro test the antagonistic ability of the different rhizobacteria strains, performing a dual plate confrontation assay. Bacterial isolates were cultured in 10 mL tubes containing 5 mL of LB broth, incubated overnight at 30°C. Cell density was standardized using a McFarland barium sulfate standard 1, corresponding to 3 × 108 CFU/mL, by adding sterile 0.9% saline solution until the appropriate cell density was reached (Zapata and Ramirez-Arcos, 2015). Agar disks were homogeneously cut from the developed fungal colonies using a sterile cork borer (Ø 4 mm) and placed at the center of a Petri dish (Ø 9 cm) containing PDA (BioLife, Milano, Italy). Standardized bacterial suspensions obtained from each isolate were streaked aseptically, parallel to the fungus at 15–20 mm on both sides of the fungal plug (Anith et al., 2021). Petri dishes used for the dual plate assay were incubated at 25°C, and fungal growth was measured (recording the two perpendicular diameters of the fungal colony after 7 and 14 days) and used to calculate the fungal growth reduction in comparison to the growth obtained by each fungal strain cultivated alone. At the end of incubation (14 days), the entire content of the Petri dishes was used for mycotoxin quantification.

2.5. Analysis and determination of Alternaria toxins

Quantification of Alternaria mycotoxins was carried out according to the method reported by Bertuzzi et al. (2021). Briefly, AOH, AME, TeA, and TEN were simultaneously extracted from a 25 g sample with 100 mL of water:acetonitrile 20+80 mixture (v/v), using a rotary-shaking stirrer for 45 min. After filtration, dilution, and purification on an OASIS HLB column (6cc, 500 mg Waters Corporation, Bedford, MA, USA), Alternaria toxins were eluted in a graduated vial using 6 mL of acetonitrile and concentrated to 2 mL under a gentle stream of nitrogen. After dilution (1+2) with the water:acetonitrile 70+30 mixture (v/v), the final extract was injected (20 μl) into the LC-MS/MS system (Thermo Fisher Scientific, San Jose, CA, USA) and a PAL 1.3.1 sampling system (CTC Analytics AG, Zwingen, Switzerland). The Alternaria toxins were separated on a BetaSil RP-18 column (5 μm particle size, 150 × 2.1 mm, Thermo Fisher) by gradient elution with acetonitrile and water (both acidified with 0.2% formic acid) from 35:65 to 75:25 in 5 min, then isocratic for 2 min at a flow rate of 0.2 mL min-1. The ionization was carried out using an ESI interface (Thermo-Fisher) in positive mode as follows: spray capillary voltage 4.5 kV, sheath, and auxiliary gas 35 and 12 psi, respectively, skimmer offset 6 kV, temperature of the heated capillary 350°C. The selected ions were: 128, 185, and 213 m/z (35 V) for AOH, 128, 184 m/z (38 V), and 258 m/z (30 V) for AME, 125, 139, and 153 m/z (16 V) for TeA, and 132 m/z (37 V), 135, and 312 m/z (25 V) for TEN, respectively. Quantitative determination was performed by LC_Quan 2.0 software (Thermo_Fischer). Even for mycotoxins, percentages of reduction for each mycotoxin considered were calculated in comparison with mycotoxin production obtained if the fungus was cultivated alone.

A preliminary screening was carried out on a total of 92 isolates (data not shown), considering single measurements of the abovementioned parameters of mycotoxin and fungal biomass, while replicate measurements (quintuplicates and triplicates for fungal growth and mycotoxin production, respectively) were prepared on the selected set of isolates that showed at least 40% inhibition of at least one parameter in the preliminary test.

2.6. In vitro assessment of PGP traits

Inoculations were made from McFarland 1.0 standardized bacterial cultures as described in the dual culture assay. For a relative estimation of phosphate-solubilizing properties, selected rhizospheric and endophytic isolates were inoculated in NBRIP broth supplemented with 0.025 mg/mL of bromophenol blue (BPB), designated as NBRIP-BPB, and incubated for 7 days at 30°C. Optical density was taken at 600 nm by using a UV/visible spectrophotometer (Mehta and Nautiyal, 2001).

The phytohormone indole acetic acid (IAA) production was estimated using the Salkowski reagent (1 mL of 0.5 M FeCl3 in 50 mL of 35% HClO4) following the protocol proposed by Harikrishnan et al. (2014). Bacterial isolates were inoculated in LB medium supplemented with the precursor L-tryptophan (0.1%) (Sigma-Aldrich, St. Louis, MO, USA) and incubated at 30°C for 7 days. After the incubation, the cultures were centrifuged at 4°C for 10 min (10.000) rpm. The supernatant was mixed with Salkowski (1:2 v:v) and incubated in the dark for 1 h. The development of red color indicated the presence of IAA. The optical density was taken at 540 nm by using a UV/visible spectrophotometer. A standard curve of IAA was used to measure the concentration of IAA produced.

The strains were also quantitatively assessed for siderophores production using the Chrome Azurol Sulphonate (CAS) reagent (Schwyn and Neilands, 1987). According to Dimkpa (2016), isolates were inoculated in a siderophore-inducing medium (SIM) and incubated for 7 days at 30°C. Bacterial cultures were centrifuged at 10.000 rpm for 10 min, and the supernatant was mixed with the CAS solution (1:1 v:v). After 1 h of incubation at room temperature, absorbance was measured to estimate the loss of blue color to orange/yellow.

The nitrogen fixation activity was measured with a slightly modified plate assay method proposed by Tang et al. (2020) by spot inoculation of the strain on N-free malate (Nfb) medium, in quadruplicate, and incubated at 30°C. After 24–48 h of incubation, plates were observed for the development of a blue halo around the colony due to the formation of ammonium (NH4) via nitrogen fixation metabolic activity. The halos were evaluated by assigning levels as follows: isolates without a halo were considered non-nitrogen fixing or level 1 nitrogen fixator, isolates with a halo bigger than 0 cm up to 1.00 cm were considered level 2 nitrogen fixator, isolates with a halo bigger than 1.00 cm up to 2.00 cm were considered level 3 nitrogen fixator, isolates with a halo bigger than 2.00 cm up to 3.00 cm were considered level 4 nitrogen fixator, and isolates with a halo bigger than 3.00 cm were considered level 5 nitrogen fixator.

2.7. Data analysis and ranking system

Dual plate results were expressed as means ± standard deviation. Differences between means were determined by independent sample t-tests, conducted on Rstudio (v 2022.12.0.353).

To facilitate a proper selection for further tests, among the best-performing rhizobacterial isolates, a ranking system was developed to rank strains according to their ability to impact Alternaria spp. growth and Alternaria toxins production. For each isolate, a score was assigned according to its ability to reduce the growth of the three Alternaria species considered and inhibit Alternaria toxin production. The sum of the scores assigned for each of the assayed properties, for each Alternaria species, was considered a global antifungal ability score and was used to rank the isolates from the best performing to the less performing. The ranking values were assigned to each isolate in a range from 0 to 2 depending on the reduction shown in the dual plate assay. On the other hand, a ranking with a value in the range −1 to −3 was assigned to isolates that either resulted unable to reduce fungal growth or, in some cases, increased mycotoxin production. Ranking values assigned according to inhibition are reported in Supplementary Table S1. In the end, each bacterial strain had a rank coming from five different aspects: fungal growth reduction, TeA, AOH, AME, and TEN reductions.

Barplots were created using the barplot() function in RStudio, supplemented with the tidyverse package, including data on the best-performing strains, to visualize differences in fungal growth and mycotoxin production among them. The height of each bar represented the mean of fungal growth (mm) or mycotoxin production (μg) for each strain, and the error bars indicated the standard deviation. P-values lower than 0.05 were considered statistically significant and were indicated on the barplots using asterisks according to the level of significance. Principal component analysis (PCA) was conducted to explore the multivariate relationships among the variables considered in the experiment. The PCA was performed using the pca () function in Rstudio supplemented with the FactoMineR package, and the standardized variables were used as input.

3. Results and discussion

3.1. Isolation of rhizospheric and endophytic bacteria, and molecular characterization

A total of 106 bacteria were successfully collected from the rhizosphere of the tomato plant Solanum lycopersicum L., comprising 85 rhizospheric bacteria and 21 endophytic bacteria. Repetitive-element band pattern analysis using rep-PCR allowed for the identification and exclusion of 14 isolates that showed identical patterns to others (data not shown). Subsequent taxonomic identification using BLASTN analysis of 16S rDNA sequences revealed the full list of isolated unique strains, as reported in Supplementary Table S2.

Taxonomic assignment based on 16S rDNA sequences showed that some species identify as pathogens or opportunistic pathogens. Further tests were not conducted on the following isolates: Rhizobium radiobacter TR73 (formerly known as Agrobacterium tumefaciens), Tsukamurella pulmonis TR78, Xanthomonas axonopodis TR81, Xanthomonas hydrangea TR87, and Kluyvera cryocrescens TE95, and all isolates belonging to the Bacillus cereus s.l. clade TR35, TR37, and TR53 were excluded from in vitro tests. However, some isolates such as Stenotrophomonas maltophilia TR16, TR33, Serratia marcescens TR117, Pseudomonas brassicacearum TR88, and Pantoea agglomerans TE109, TE116, and isolates belonging to the Enterobacter cloacae complex TR61, TE99, TE100, and TE103 were considered for in vitro experimentation. Despite occasional reports of opportunistic pathogenicity, these species are often reported for their plant growth promotion and biocontrol properties.

After molecular typing and exclusion of pathogens, the final number of isolates included for in vitro assays was reduced to 73 rhizospheric isolates and 12 endophytic isolates, totaling 85 rhizobacteria.

3.2. Reduction of Alternaria fungal growth and mycotoxin production

In the preliminary screening (data not shown), 85 rhizobacteria were tested for their antifungal activity against three species of Alternaria recording the fungal growth and changes in the four analyzed Alternaria toxins. More than 50% of the tested strains showed antifungal activity and/or reduced toxin production. Consequently, 45 bacterial strains were selected for a second screening with replicates, and the results are presented in Table 1, while the % difference in growth (mm) and mycotoxin (μg) between each strain and the three Alternaria species is reported in Supplementary Table S3.

TABLE 1
www.frontiersin.org

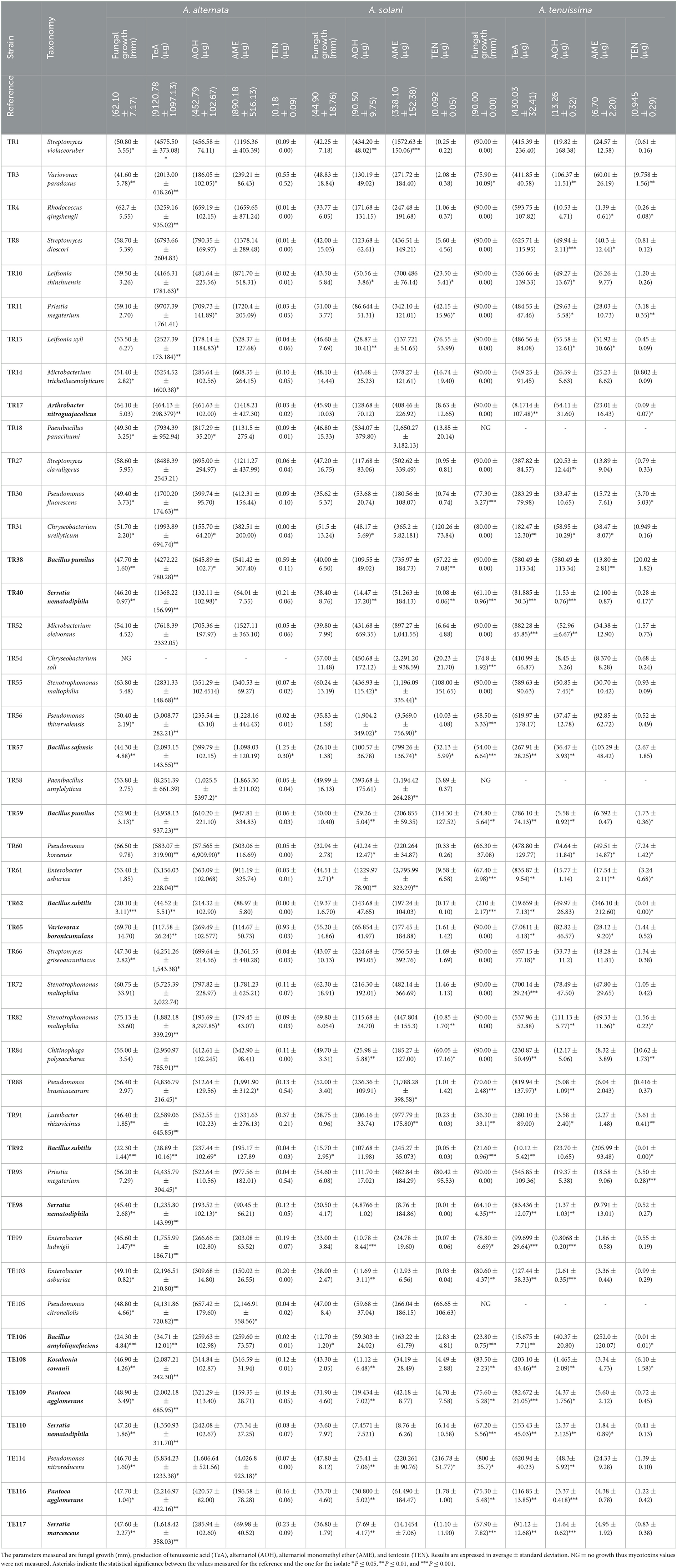

Table 1. Rhizobacteria dual plate assay results vs. A. alternata, A. solani, and A. tenuissima of the selected 45 isolates.

Among the tested strains, Bacillus species, especially B. amyloliquefaciens TE106, B. subtilis TR92, and TR62, were found to be the most effective in reducing the fungal growth of A. alternata by 60–67% (P < 0.001) and A. tenuissima by 73–76% (P < 0.001), and the only isolates able to significantly reduce A. solani by 57–71% (P < 0.05). Other Bacillus isolates, such as B. pumilus TR38 and TR59, B. safensis TR57, showed moderate reductions in fungal biomass of A. alternata, reaching reductions of 44–52% (P < 0.01 for TR38 and TR57 and P < 0.05 for TR59) and reductions of A. tenuissima of 42% (P < 0.001) by TR57 and 17% (P < 0.01) by TR59. Generally, Bacillus species are well-known to be effective biocontrol agents, and research has demonstrated their efficacy several times, performing in vitro and in vivo experiments, where plant defense was enhanced by their biocontrol activity (Yang et al., 2023). Bacillus antagonistic action is often associated with the production of bacteriocins, antimicrobial peptides, and especially cyclic lipopeptides, among which iturin, fengycin, and surfactin are the most effective and most studied (Prakash and Arora, 2021). More recently, the potential of Bacillus VOCs as antimicrobial compounds has been studied (Grahovac et al., 2023). Interestingly, the same metabolites that were found to have biological control effects were also found to trigger ISR in plants (Fira et al., 2018; Yang et al., 2023), extending Bacillus plant defense potential.

Some other interesting results in fungal biomass reduction were obtained for the isolates K. cowanii TE108, S. nematodiphila TR40, TE98, TE110, S. marcescens TE117, and P. agglomerans TE109, TE116. In these cases, reductions varied greatly, according to the Alternaria species considered. These genera are all closely related to the Enterobacter genus. Indeed, they are all part of the same Enterobacterales order or, in the case of the genera Enterobacter and Kosakonia, the same Enterobacteriaceae family (van Belkum, 2006). Although to a lower extent than Bacillus species, these isolates also showed good results in limiting fungal growth, with A. alternata inhibition of 24–26% (P < 0.01) for K. cowanii TE108 and S. marcescens TE117, E. ludwigii TE99, and 21% (P < 0.05) for E. asburiae TE103 (Table 1). A. solani growth was not affected by these isolates, while A. tenuissima was significantly reduced by TE108 (7%, P < 0.01), TE117 (35%, P < 0.01), TE99 (12%, P < 0.05), and TE103 (10%, P < 0.01) (Table 1). Enterobacter sp. is often found in the rhizosphere (Dong et al., 2019); however, few studies focus on the mode of action by which this genus operates to inhibit fungal growth. Only a few research individuated some potential features related to lytic enzymes, chitinase, and lipase (Xue et al., 2009), while Ghosh and Sarkar (2022) reported a biocontrol effect due to the production of zirconium oxide nanoparticles (ZrONPs) or Herbicolin-A for P. agglomerans (Xu et al., 2022). Although promising biocontrol results are obtained by many authors for Enterobacter, Kosakonia, Pantoea, and Serratia (Guo et al., 2020), and are found in this study, their application as either biostimulants or biocontrol agents may be tricky due to their similarity to human pathogenic Enterobacteriaceae from which they most likely inherited some pathogenicity traits. The potential applications of microorganisms should not be disregarded a priori, but further research should be conducted with caution. It is important to consider virulence factors and antimicrobial resistance genes and to follow a thorough risk assessment procedure prior to any applications (PPR-EFSA, 2013).

Additionally, some Pseudomonas species successfully reduced fungal biomass; in particular P. fluorescens TR30, which inhibited fungal growth of A. alternata by 20% (P < 0.05) and 14% A. tenuissima (P < 0.001), P. thivervalensis TR56 19% (P < 0.05) 35% (P < 0.001), and P. brassicacearum TR88 active only on A. tenuissima with reduction of 22% (P < 0.001) (Table 1). The Pseudomonas genus is well-established among the BCAs, and their main effects are imputed to the production of antimicrobial compounds such as 2,4-diacetylphloroglucinol (PHL), which plays a major role in biological control (Rezzonico et al., 2007) but also other secondary metabolites such as pyoluteorin, pyrrolnitrin, and phenazines have been proved to be successful and most of them are also implied in ISR other than being active antibiotic molecules (Haas and Keel, 2003).

Results obtained in mycotoxins reductions were very different, considering both the different bacterial strains and the different Alternaria toxins. Among the mycotoxins measured, TEN had a different behavior in comparison with all the other toxins i.e., only few bacterial strains resulted able to reduce it significantly (Figure 1) while in many cases TEN was greatly increased by the interaction with the rhizobacteria (Table 1, Figures 1, 2). Regarding AOH, if we consider reductions higher than 75% with a p-value of < 0.05, such results were obtained by P. koreensis TR60 (87%) for A. alternata, E. ludwigii TE99, E. asburiae TE103, K. cowanii TE108 (87–88%), P. agglomerans TE109 (78%), S. nematodiphila TE110, and S. marcescens (91–92%) for A. solani. A. tenuissima production of AOH was controlled by S. nematodiphila TR40 and TE98 (88%), by E. ludwigii TE99, E. asburiae TE103, K. cowanii TE108 (94, 80, and 89%, respectively), S. nematodiphila TE110, and S. marcescens TE117 (82–87%, respectively). Overall, the “Enterobacter group” resulted the best in reducing the production of AOH overall, while only TR92 B. subtilis was able to reduce AOH by 46% for A. alternata only (Table 1 and Figure 3). Interestingly, although not significantly, AOH produced by A. tenuissima increased visibly in the assay with the three Bacillus species (TR62, TR92, and TE106) with greater impact on its growth indicating a sort of defense response of A. tenuissma (Figure 4). AME in A. alternata was never reduced significantly due to the high standard deviation measured in the control. The only significant reductions for AME were found for A. tenuissima by the strains Rhodococcus qingshengii TR4 (80%) and S. nematodiphila TE110 (74%) (Figure 4). No significant reductions were obtained for the strains B. subtilis TR92, TR62, Variovorax boronicumulans TR65, E. asburiae TE103, and E. ludwigii TE99 (Supplementary Table S3). TeA was never produced by A. solani during our experiments, although it was produced by A. tenuissima and A. alternata. Many strains were able to significantly reduce TeA levels above 75% (Table 1 and Supplementary Table S3), and in almost all cases, if a strain had a good TeA reduction for one Alternaria species, the other was equally affected. Twenty bacterial strains reduced the production of this mycotoxin for A. alternata by more than 75%, while 12 showed the same result for A. tenuissima (Supplementary Table S3). The best reduction effects (P < 0.01) were measured for A. alternata and A. tenuissima by Arthrobacter nitroguajacolicus TR17 (95–98%), B. subtilis TR62 (99–95%), V. boronicumulans TR65 (99–98%), B. subtilis TR92 (99–98%), and B. amyloliquefaciens TE106 (99–96%) (Table 1).

FIGURE 1
www.frontiersin.org

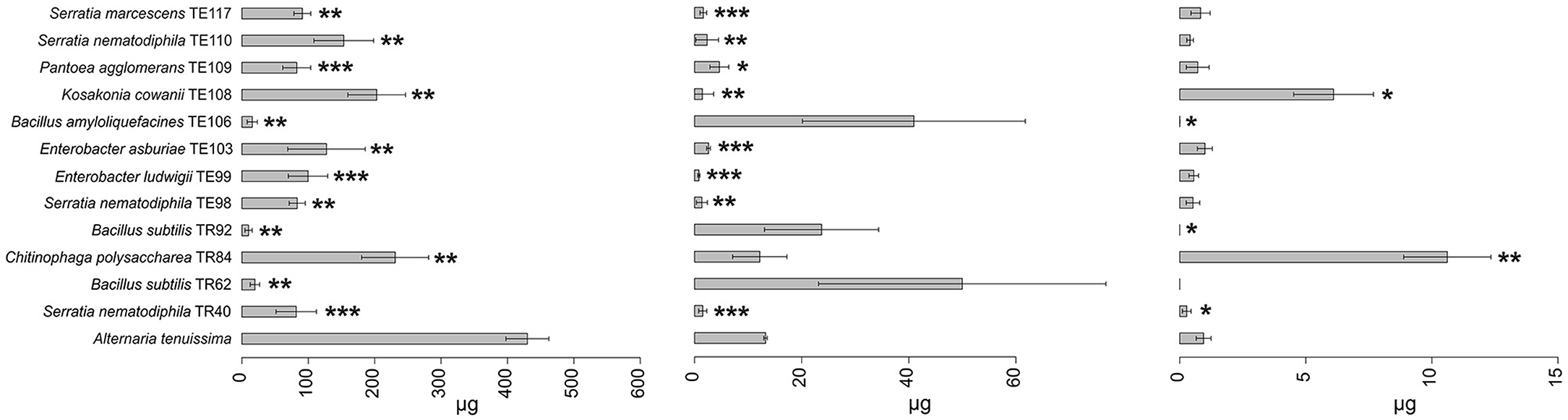

Figure 1. Barplot representing average production (μg ± SD) of tenuazonic acid (TeA), alternariol (AOH), and tentoxin (TEN) mycotoxins by A. tenuissima in the presence of the top 12 strains in the ranking and in the absence of any strain (reference bar at the bottom of the barplot). Asterisks indicate the statistical significance between the values measured for the reference and the one for the isolate *P ≤ 0.05, **P ≤ 0.01, and ***P ≤ 0.001. Alternariol monomethyl ether (AME) results were not shown since no statistically significant results were observed in any of the strains.

FIGURE 2
www.frontiersin.org

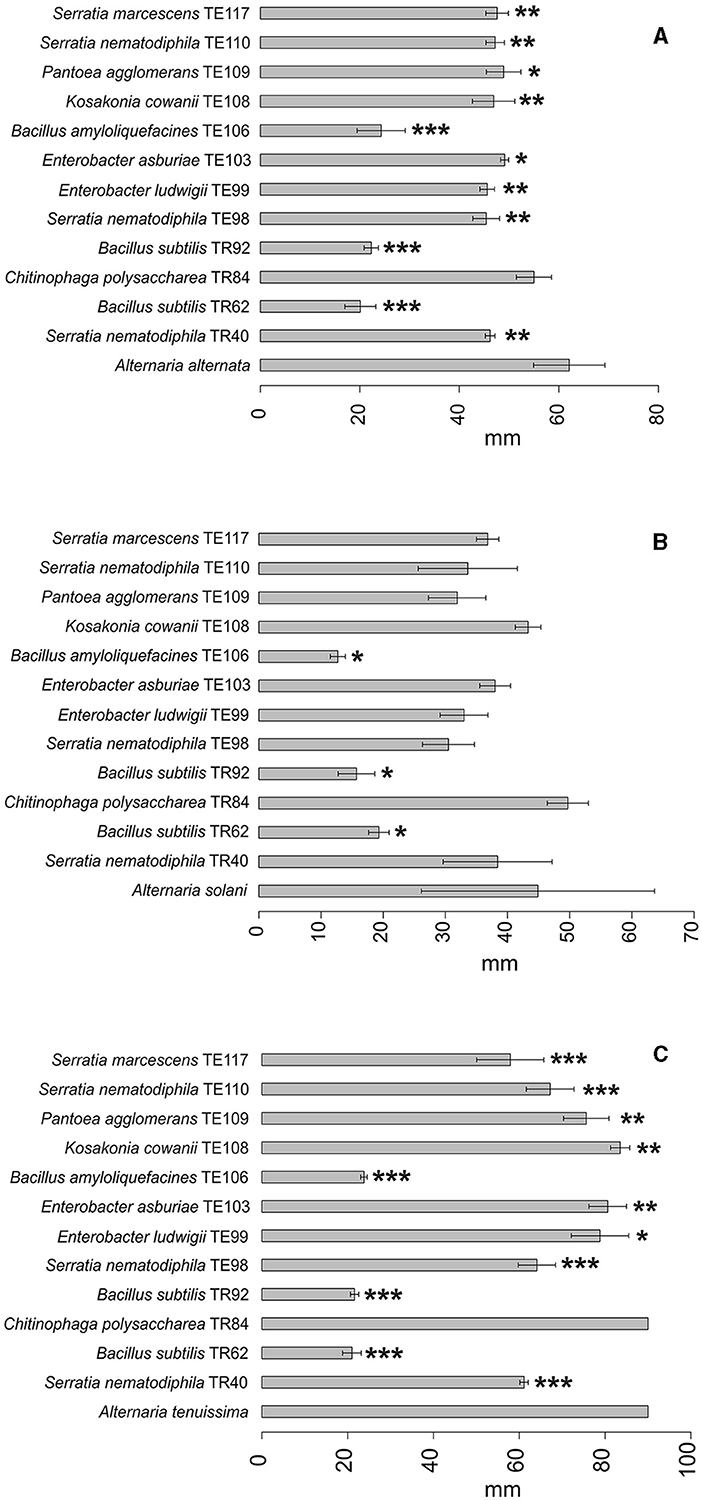

Figure 2. Barplot representing average growth diameter (mm±SD) of A. alternata (A), A. solani (B), and A. tenuissima (C) in the presence of the top 12 strains in the ranking and in the absence of any strain (reference bar at the bottom of the barplot). Asterisks indicate the statistical significance between the values measured for the reference and the one for the isolate *P ≤ 0.05; **P ≤ 0.01; and ***P ≤ 0.001.

FIGURE 3
www.frontiersin.org

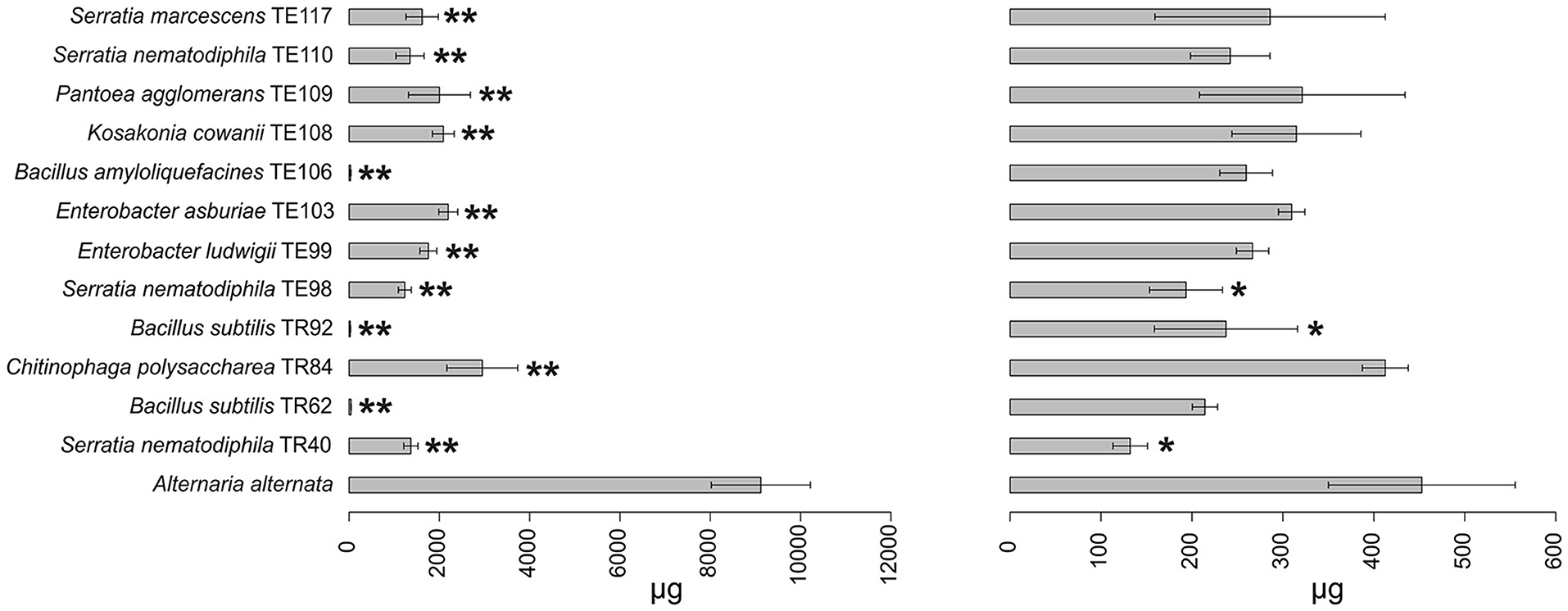

Figure 3. Barplot representing average production (μg ± SD) of tenuazonic acid (T) and alternariol (AOH) mycotoxins by A. alternata in the presence of the top 12 strains in the ranking and in the absence of any strain (reference bar at the bottom of the barplot). Asterisks indicate the statistical significance between the values measured for the reference and the one for the isolate *P ≤ 0.05; **P ≤ 0.01; and ***P ≤ 0.001. Alternariol monomethyl ether (AME) and tentoxin (TEN) were not shown since no statistically significant results were observed in any of the strains.

FIGURE 4
www.frontiersin.org

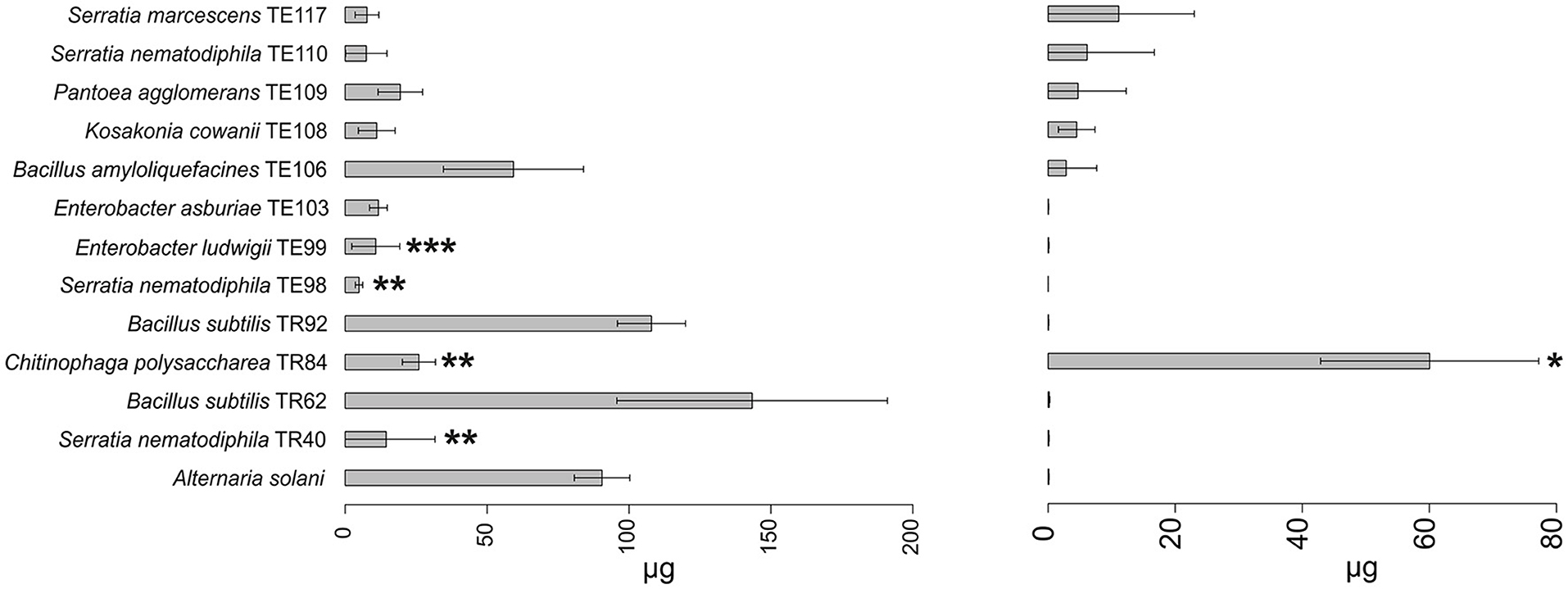

Figure 4. Barplot representing average production (μg ± SD) of alternariol (AOH) and tentoxin (TEN) mycotoxins by A. solani in the presence of the top 12 strains in the ranking and in the absence of any strain (reference bar at the bottom of the barplot). Asterisks indicate the statistical significance between the values measured for the reference and the one for the isolate *P ≤ 0.05; **P ≤ 0.01; and ***P ≤ 0.001. Alternariol monomethyl ether (AME) results were not shown since no statistically significant results were observed in any of the strains. Tenuazonic acid (TeA) was not produced by A. solani.

3.3. Ranking system of PGPR antifungal ability and PCA

Considering the complexity of the results, a ranking approach was developed to sort the bacterial strains according to their overall ability to perform antifungal activity. The ranking system used to evaluate the biocontrol ability of each strain was based on the values reported in Supplementary Table S1. The sum of the scores obtained in the ranking for each Alternaria species is reported in Table 2 and allowed the individuation of 12 rhizobacteria which resulted in an overall positive score in the global ranking. Among the 12 rhizobacteria individuated, three main bacterial genera dominate: Bacillus, Serratia, and Enterobacter. Bacillus isolates B. amyloliquefaciens TE106, B. subtilis TR92, and TR62 were shown to be the most capable of decreasing the fungal growth of all Alternaria species (Figures 2A–C), with total rankings of 8.50, 11.50, and 5.50, respectively (Table 2). Other Bacillus did not rank top in the list due to the limited inhibition of mycotoxin production and poor control of A. solani (Table 1). On the other hand, Serratia species and Enterobacter, as well as K. cowanii TE108 and P. agglomerans TE109, rank among the top isolates as they all inhibit the fungal growth of A. alternata and A. tenuissma and performed overall well in the reduction of Alternaria toxins inhibiting also AOH production in A. solani (Table 1). Finally, Chitinophaga polysaccharea TR84, despite being unable to inhibit fungal development, was particularly good at reducing AOH in all Alternaria species and also affecting other mycotoxins (Table 1). The barplots provide a visual representation of the differences in fungal growth among the best-performing strains individuated by the ranking system (Figures 14).

TABLE 2
www.frontiersin.org

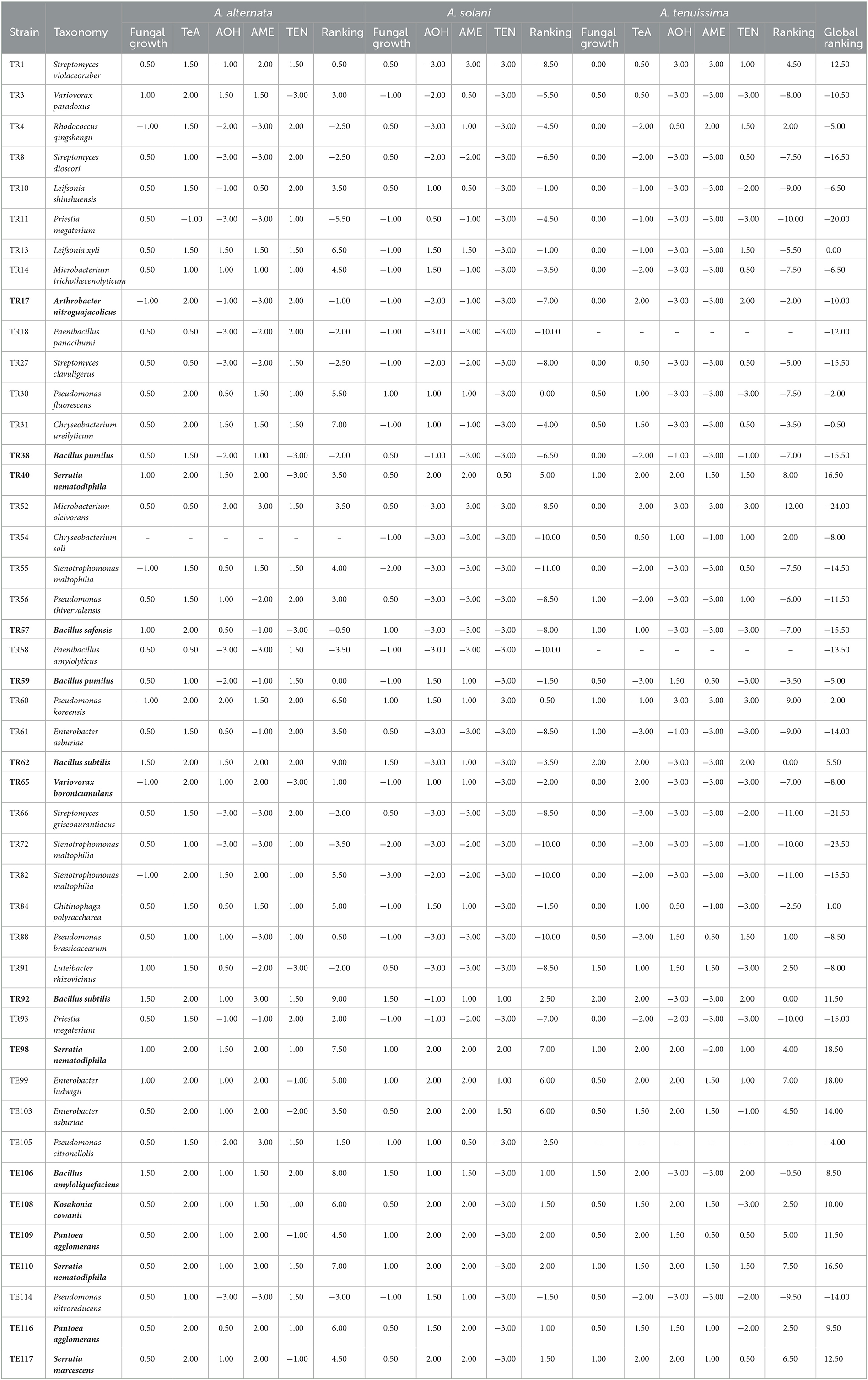

Table 2. Ranking scores assigned to each bacterial strain, based on their ability in reducing Alternaria species (A. solani, A. tenuissima, and A. alternata) growth and their production of mycotoxins: tenuazonic acid (TeA), alternariol (AOH), and alternariol.

Principal Component Analysis (PCA) obtained individually from datasets related to each Alternaria species (Supplementary Figures S1S3) confirms the results obtained from the ranking, since visibly the three Bacillus strains TR62, TR92, and TE106 cluster separately in each of the three plots, thus making the ranking system adopted a reliable method for the screening and selecting useful BCAs. The subsequent PCA model prepared considering all the isolates (only the ones highlighted by the ranking are shown) and divided by each Alternaria species is reported in Figure 5. The two dimensions selected for the model explain 48.3 and 17.1% of the total variance among samples, respectively. The model shows how Alternaria species behaved differently: A. alternata was impacted mainly for its mycotoxin production, while A. tenuissima for fungal growth. Indeed, A. tenuissma growth was altered only by the three Bacillus TR62, TR92, and TE106, confirming what is reported in Table 1 and visible in Figure 2C.

FIGURE 5
www.frontiersin.org

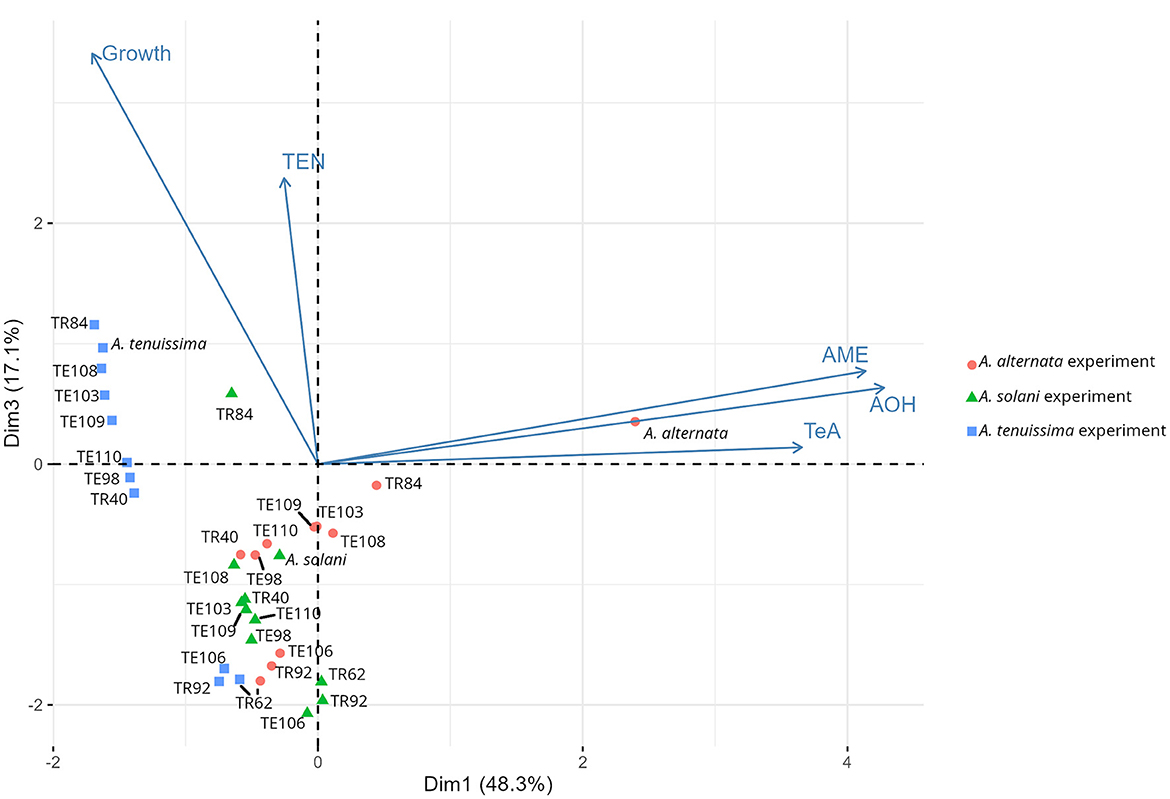

Figure 5. Principal component analysis (PCA) among isolates on the fungal growth diameter (Growth) and on the production of fungal mycotoxins tenuazonic acid (TeA), alternariol (AOH), alternariol monomethyl ether (AME), and tentoxin (TEN). Average points are represented (n = 5 for growth, n = 3 for mycotoxins). Data correspond to those collected in the experiments with A. alternata (red circles), A. solani (green triangles), and A. tenuissima (blue squares).

Considering the variability in the data obtained from the different Alternaria species for each strain tested, and given that several distinct pathogens are expected to co-exist on a single plant, the development of a consortium may lead to better results in regard to plant protection, with a broader spectrum of action and less impacted by environmental variabilities to which a field is normally subjected throughout the crop season (Singh et al., 2023). Although several of the mentioned studies demonstrated some biocontrol activity of PGPR during in vitro tests or in vivo experiments, the mechanisms by which interaction occurs between PGPR and phytopathogenic fungi are not thoroughly addressed. For example, the specific genetic and biochemical pathways involved are not fully understood. Only some studies focused on the mechanisms of action using gene knockouts to report different effectiveness of BCAs (Weng et al., 2013). Knowledge of the mechanisms of action of the microbial control agents is key to guaranteeing their long-term efficacy in the crop environment. In fact, as resistance builds up over time, it is more likely to occur when a single molecule or a single mode of action is applied. Selective pressure hardly operates when multiple mechanisms of biocontrol are ongoing (Cagliari et al., 2019). Furthermore, pot and field studies are necessary to determine the success of potential microbial agents of biocontrol under different environmental conditions, with different plant genotypes, different soil types, and at different times and ratios of application (Collinge et al., 2022; Lahlali et al., 2022).

3.4. Plant growth-promoting traits

The biostimulant ability of the rhizobacteria selected after the preliminary screening was determined by carrying out in vitro phenotypic tests. Results reported in Table 3 indicate that the majority of the rhizobacteria isolated showing biocontrol activity (determined in the first screening) are also equipped with PGP traits. All of them tested positive for at least one of the plant growth-promoting activities (PGPAs) in vitro (Table 3). This confirms the fact that PGPR may harbor both biostimulant and biocontrol activities by suppressing plant pathogens as well as herbivore insects (Pereira et al., 2021) and potentially reducing mycotoxins in the final product. The fact that PGPR can have both biostimulant and biocontrol activities raises questions about how they should be regulated. The potential conflict between these different regulations has led to discussions about the need for a specific regulatory framework that takes into account the dual function of PGPR. However, to date, no such framework exists, and the regulation of PGPR remains subject to the different regulations for biostimulants and biocontrol agents.

TABLE 3
www.frontiersin.org

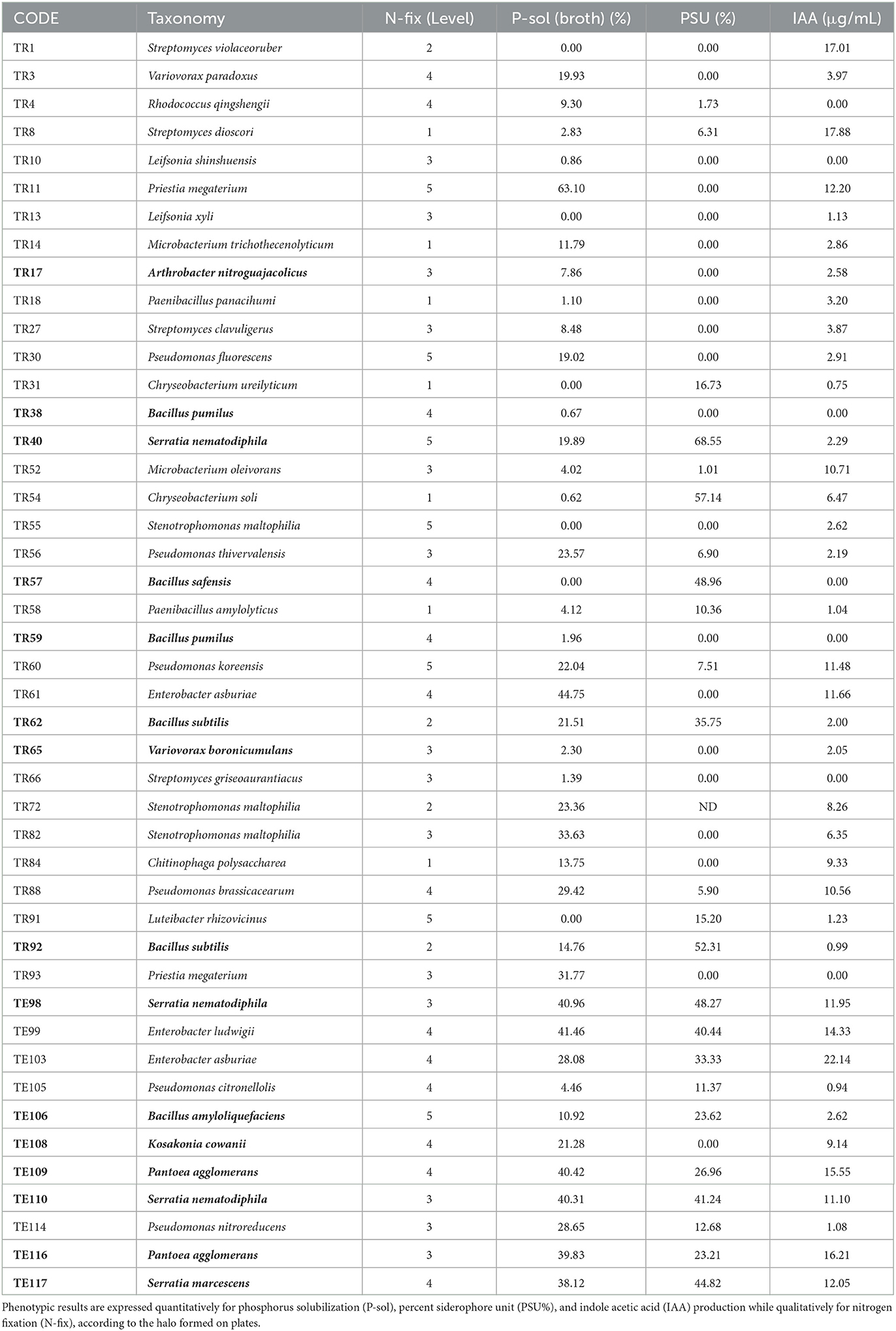

Table 3. Characterization of plant growth-promoting traits of PGPR showing antifungal properties in the preliminary screening.

4. Conclusion

In the development of biocontrol-based plant protection products, PGPR with antagonistic activity toward plant pathogenic fungi are valuable candidates. Among the multitude of isolates studied, many rhizobacteria reduced fungal biomass (−76%) and/or mycotoxins (−99.7%). The ranking system developed highlighted the 12 best-performing among the initial 85 strains. In particular, B. amyloliquefaciens and two strains of B. subtilis showed the highest efficacy in reducing fungal biomass and mycotoxin production, while isolates such as E. ludwigii, E. asburiae, S. nematodiphila, P. agglomerans, and K. cowanii showed moderate efficacy. Although the results of this study provide valuable insight into the antifungal activity of rhizobacteria against Alternaria and their mycotoxin production, further research is necessary to better understand the mechanisms of action and optimize rhizobacteria use for biocontrol. Additionally, the same isolates displayed PGP traits. Bacillus isolates exhibited nitrogen fixation and siderophore production, while other Enterobacteriaceae isolates performed well for nitrogen fixation, phosphate solubilization, and IAA production. These findings support the multifaceted properties of PGPRs beneficial for plant nutrition and defense.

Finally, our results suggest that formulated products containing consortia of rhizobacteria could improve the reliability of biocontrol products. The potential of artificial PGPR consortia can be visualized in the PCA plot, where B. amyloliquefaciens and two B. subtilis strains form a separate cluster, indicating reduced fungal biomass and mycotoxin production. Future research will validate consortium effects using in-planta assays. In conclusion, the ongoing discussion highlights the need for a specific regulatory framework that considers the dual function of PGPR and could facilitate its integration into sustainable agriculture practices.

Data availability statement

The datasets presented in this study can be found in online repositories. The names of the repository/repositories and accession number(s) can be found below: GenBank, OQ990921-OQ991008.

Author contributions

GBe contributed to conceptualization, methodology, investigation, validation, formal analysis, visualization, and writing—original draft. MG contributed to conceptualization, methodology, validation, formal analysis, and writing—original draft. PG contributed to conceptualization, methodology, formal analysis, investigation, and writing—original draft. GBu contributed to conceptualization, formal analysis, and methodology. TB contributed to the conceptualization, formal analysis, writing, reviewing, and editing of the manuscript. MA contributed to data elaboration and visualization. EP contributed to fund acquisition, conceptualization, validation, and editing—original draft. All authors contributed to the manuscript and approved the submitted version.

Funding

The authors would like to acknowledge the financial support provided by project PROBIOPOM (CUP J34I20000790009) funded by the region of Lombardy, Italy.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher's note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Supplementary material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fmicb.2023.1221633/full#supplementary-material

Footnotes

1. ^FAOSTAT (2022). Available online at: https://www.fao.org/faostat/en/#data/QCL/visualize.
