The metabolic versatility of Levilactobacillus brevis, a heterofermentative lactic acid bacterium, could benefit environmentally compatible and low salt cucumber fermentation. The biodiversity of Lvb. brevis autochthonous to cucumber fermentation was studied using genotypic and phenotypic analyses to identify unique adjunct cultures. A group of 131 isolates autochthonous to industrial fermentations was screened using rep-PCR-(GTG)5 and a fermentation ability assay under varied combinations of salt (0 or 6%), initial pH (4.0 or 5.2), and temperature (15 or 30°C). No apparent similarities were observed among the seven and nine clusters in the genotypic and phenotypic dendrograms, respectively. A total of 14 isolates representing the observed biodiversity were subjected to comparative genome analysis. The autochthonous Lvb. brevis clustered apart from allochthonous isolates, as their genomes lack templates for citrate lyase, several putative hypothetical proteins, and some plasmid- and phage-associated proteins. Four and two representative autochthonous and allochthonous Lvb. brevis, respectively, were subjected to phenotype microarray analysis using an Omnilog. Growth of all Lvb. brevis strains was supported to various levels by glucose, fructose, gentiobiose, 1,2-propanediol, and propionic acid, whereas the allochthonous isolate ATCC14890 was unique in utilizing citric acid. All the Lvb. brevis genomes encode for 1,2-propanediol utilization microcompartments. This study identified a unique Lvb. brevis strain, autochthonous to cucumber, as a potential functional adjunct culture for commercial fermentation that is distinct in metabolic activities from allochthonous isolates of the same species.
Highlights
- 131 Lvb. brevis from cucumber generated 7 rep-PCR-(GTG)5 clusters.
- 99 Lvb. brevis from cucumber generated 9 fermentation ability clusters.
- 14 biodiverse species of Lvb. brevis comprise a unique subclade.
- Lvb. brevis from cucumber lacks citrate lyase.
- The species encodes for putative Pdu microcompartments.
1. Introduction
Levilactobacillus brevis, a heterofermentative lactic acid bacterium, co-exists with Lactiplantibacillus pentosus in commercial-scale cucumber fermentations brined with 1.06 M (6%) sodium chloride (NaCl) and is usually detected from days 7 to 14 post-tanking (Pérez-Díaz et al., 2017). Cucumber fermentations that host Lvb. brevis were found to suffer from bloater defect, the formation of hollow cavities inside the fruits, as the result of an increment in internal pressure by carbon dioxide production (CO2) (Etchells et al., 1968; Zhai et al., 2018). The ability of Lvb. brevis to produce carbon dioxide from the heterofermentation of glucose and fructose prompted such an association (Etchells et al., 1968; Zhai et al., 2018). However, more recent studies indicate that bloater defects develop in cucumber fermentation well before Lvb. brevis reaches maximum densities and can occur in its absence (Zhai and Pérez-Díaz, 2020). Understanding that Lvb. brevis is not the primary contributor to the CO2-mediated bloater defect creates opportunities to exploit its metabolic versatility as an adjunct or starter culture for cucumber fermentation given its competitiveness in such a habitat.
The diversion of a portion of the carbon from sugars to acetic acid via heterofermentation instead of solely lactic acid formation from homofermentation may present technological advantages for the retention of cucumber tissue firmness and enhancement of flavor in pickling. For instance, pure cultures of the heterofermentative lactic acid bacteria Lvb. brevis produced less acid and firmer fermented olives (Etchells et al., 1974; Portilha-Cunha et al., 2020). Moreover, desirable flavors form in fermented vegetables from the combination of volatile compounds derived from the vegetable and those that are naturally produced by microbes. To date, more than 200 volatile compounds have been identified in fermenting cucumber or commercial tankyard brines (Zhou and McFeeters, 1998; Marsili and Miller, 2000; Johanningsmeier and McFeeters, 2011), but the relative contributions of fermentation microbiota are not known. Early work showed that cucumber fermented with pure cultures of Lvb. brevis was perceived as more aromatic and less acidic than those fermented with Lpb. plantarum, which were more acidic, less bitter, and had more raw cucumber flavor (Aurand et al., 1965). None of the pure cultures tested could independently reproduce the flavor profile of the indigenous ferments, and there was significant strain variation within each species (Aurand et al., 1965). Considering such findings, it is relevant to investigate the indigenous diversity of heterofermentative lactic acid bacteria such as Lvb. brevis in industrial-scale cucumber fermentation.
Inclusion of Lvb. brevis in starter cultures for vegetable fermentation may also contribute to greater long-term microbial stability. Utilization of a tripartite starter culture of Lpb. pentosus, Lvb. brevis, and Lentilactobacillus buchneri in Cucumber Juice Medium (CJM) resulted in microbial stability at 60 days of storage (Ucar et al., 2020a). Lvb. brevis was found to utilize xylose and trehalose in CJM (Ucar et al., 2020a). Both these sugars are intrinsic to cucumber fermentation (Ucar et al., 2020a) and are depleted during anaerobic spoilage along with other trace mono- and disaccharides (Johanningsmeier and McFeeters, 2015). Lvb. brevis was also found to utilize the cellulose-derived disaccharide gentiobiose in CJM, which may be relevant should this sugar become available in cucumber fermentation (Ucar et al., 2020b). The putative ability of Lvb. brevis to utilize xylose, trehalose, and gentiobiose is hypothesized to aid in precluding spoilage microbes from deriving energy for growth in cucumber fermentation, thus conferring microbial stability.
While Lvb. brevis spontaneously co-dominates in commercial cucumber fermentations brined with 6% sodium chloride (Pérez-Díaz et al., 2017), most members of this species are sensitive to infection by indigenous bacteriophages (Lu et al., 2012). It is presumed that, given the sensitivity to bacteriophages and the fact that Lvb. brevis is a slow grower in cucumber fermentations compared to Lpb. plantarum and Lpb. pentosus, only a fraction of the acetic acid and carbon dioxide formed are contributed by such a bacterium (Pérez-Díaz et al., 2017).
Lack of an understanding of the intrinsic biodiversity of Lvb. brevis in commercial cucumber fermentation impedes the identification of adjunct starter cultures that may aid in enhancing quality, flavor, and microbial stability. Thus, this study was designed to screen the intrinsic biodiversity of Lvb. brevis autochthonous to commercial fermentations to enable the selection of genetically and phenotypically unique strains as adjunct starter culture candidates. A collection of 131 Lvb. brevis isolated from commercial fermentations in the seasons of 2010 in North Carolina and 2012 in Minnesota (Pérez-Díaz et al., 2017) was analyzed to define genetic biodiversity using rep-PCR-(GTG)5. The screening of the ability of 99 isolates from North Carolina to ferment cucumber juice was done under varied conditions of pH, temperature, and salt concentration. The genome sequences of representative Lvb. brevis were subjected to comparative genome analysis to understand putative biodiversity among isolates from a common habitat relative to allochthonous strains. Four out of the fourteen Lvb. brevis isolates selected for comparative genome analysis that represent unique phylogenetic clusters were used for phenotype microarrays using an Omnilog system to study carbohydrate utilization.
2. Materials and methods
2.1. Lvb. brevis collection and culture conditions
The 131 Lvb. brevis included in this study were isolated and identified as described by Pérez-Díaz et al. (2017) from commercial fermentations in North Carolina (99) and Minnesota (32). All 131 Lvb. brevis are maintained in the USDA-ARS Food Science and Market Quality & Handling Research Unit (Raleigh, NC) culture collection as frozen stocks prepared in Lactobacilli MRS broth supplemented with 15% glycerol (Pérez-Díaz et al., 2017). The cultures were transferred from frozen stocks to Lactobacilli MRS broth prior to inoculating the experimental media described below. Cultures were incubated at 21 ± 1°C for 48 h under anaerobic conditions. We have observed that Lvb. brevis, autochthonous to cucumber fermentation, grows faster at ambient temperature (21 ± 1°C) than at 37°C.
2.2. Genotyping of the Lvb. brevis isolates using Rep-PCR-(GTG)5
DNA was extracted from a pure culture of Lvb. brevis using the MasterPure™ DNA purification kit (Cat No.: MCD85201, Epicenter, Madison, WI, USA) according to the manufacturer's instructions. The extracted DNA was stored at −20°C until further use. Rep-PCR-(GTG)5 was performed following the method by Versalovic et al. (1994) with the modifications described by Pérez-Díaz et al. (2021). Amplicons were analyzed as described by Pérez-Díaz et al. (2021) using the Pearson correlation coefficient in Bionumerics version 7.6.3 (Applied Math, Belgium) to build similarity matrices of the densitometric curves and the unweighted pair group method with arithmetic averages (UPGMA) for clustering.
2.3. Phenotyping of the Lvb. brevis isolates using a fermentation ability screening design
Pure cultures were subjected to a CJM fermentation ability screening using a fractional factorial design as described by Pérez-Díaz et al. (2021). Briefly, four treatments were used with variable initial pH, NaCl concentration, and incubation temperature, as follows: treatment 1: initial pH 5.4, 0% NaCl, and incubation at 15°C; treatment 2; initial pH 4.0, 6% NaCl, and incubation at 15°C; treatment 3: initial pH 5.4, 6% NaCl, and incubation at 30°C; and treatment 4: initial pH 4.0, 0% NaCl, and incubation at 30°C. The CJM was prepared as described by Pérez-Díaz et al. (2021). CJM pH was measured after 48 h of fermentation as an indicator of each isolate's ability to rapidly initiate fermentation under a variety of environmental conditions. Two-way hierarchical clustering of the mean fermentation pH values of each isolate under the four fermentation conditions was performed, and a screening analysis was conducted to determine the variables that most impacted the fermentation ability of the Lvb. brevis isolates (JMP version 10.0, SAS Institute, Cary, NC).
2.4. Comparative analysis of fourteen Lvb. brevis genomes
The sequencing, assembly, and annotation of the 14 Lvb. brevis genomic DNA sequences included in this study (30.8.38, 30.2.29, 7.8.43, 7.8.34, 7.8.33, 7.2.13, 7.2.49, 14.2.24, 3.2.41, 3.8.25, 7.2.12, 14.2.10, 7.2.41, and 7.2.40) are described by Page and Pérez-Díaz (2021) and Page et al. (2022). Briefly, PATRIC (Davis et al., 2020) was used for the initial assembly and annotation of the DNA sequences; Unicycler version 0.4.8 (Wick et al., 2017) was used for de novo assemblies; and RASTtk (Brettin et al., 2015) was used for annotation. Genbank accession numbers and SRA locators for the 14 Lvb. brevis genomic DNA sequences are found in Supplementary Table 1. Phylogenetic trees were constructed using PATRIC/BV-VRC version 3.26.4 (Wattam et al., 2017) via the Codon Tree method, which employs RaxML to generate phylogenetic distances between sequences (Stamatakis, 2014). A total of 477 open reading frames were used for the comparison, with Lpb. pentosus strain LA0445 included as an outgroup to root the tree. Tree diagrams were generated with Interactive Tree of Life (iTOL) v. 6.5.7 (Letunic and Bork, 2021). Default parameters were applied when using both bioinformatic tools.
2.5. Comparative analysis of the putative and deduced proteins encoded by the L. brevis genomes and protein family sorting
Of 14, four Lvb. brevis genome sequences representing each of the three branches in the phylogenetic tree for autochthonous isolates were subjected to a comparative analysis of the putative and deduced proteins and a protein family sorting using PATRIC-BV-VRC-version 3.26.4 (Wattam et al., 2017). The comparative analysis was conducted using the bidirectional BLASTP service. The deduced protein sequences from the four autochthonous Lvb. brevis isolates, including 30.2.29, 3.2.41, 7.8.43, and 14.2.10 were compared against Lvb. brevis ATCC14869, the type strain for the species, isolated from human feces. Another three Lvb. brevis genome sequences were added to the comparison, including SA-C12, YSJ3, and NPS-QW-145, which were isolated from food fermentations. GenBank accession numbers for all the genome sequences used are listed in Supplementary Table 1. The tabulated results for the putative and deduced protein profile comparison can be found in Supplementary Table 2. Genes of interest due to their absence or presence in allochthonous or autochthonous isolates were further evaluated using the Compare Region Viewer tool in PATRIC-BV-VRC equipped with cross-genus families (PGfams) comparison. For the protein family sorting, we used Lvb. brevis NPS-QW-145, SA-C12, and YSJ3 as reference strains. The results generated by the protein sorter were clustered by genomes and families.
2.6. Lvb. brevis phenotype microarray analysis
Four autochthonous Lvb. brevis (14.2.10, 30.2.29, 7.8.43, and 3.2.41) and two allochthonous isolates, ATCC14869 (type strain) and ATCC367, were used for phenotype microarray (PM) analysis using the PM01 and PM02 plates of the Omnilog system (Biolog, Hayward, CA) following the manufacturer's instructions. Aliquots of 100 μl of the cell suspensions were added per well and plate. Duplicate PM01 and PM02 plates were inoculated with each isolate. The PM01 and PM02 plates were incubated at 33°C for 48 h in the Omnilog System, as recommended by the manufacturer.
The absorbance as a function of time data from the Omnilog System for each isolate can be found at https://doi.org/10.15482/USDA.ADC/1528683 (Page, 2023) and was used to calculate the growth rate using a Microsoft Excel spreadsheet and the following equation: = [LOG (End of Log Phase Time)-LOG (Start of Log Phase Time)] × 2.303)/(Absorbance at the End of Log Phase—Absorbance at the Start of Log Phase). The start and end of the log phase time and absorbance were adjusted for each PM plate. Averages and standard deviations were calculated for duplicate plates. Growth rate values for a given substrate that were above the standard deviation of the negative control value were considered utilized.
3. Results
3.1. Genotyping of the Lvb. brevis isolates using Rep-PCR-(GTG)5
Figure 1 illustrates the seven genotypic clusters defined by the amplification of (GTG)5 repeats. The Lvb. brevis isolates produced two main bands from rep-PCR-(GTG)5, which are followed by one to two bands of higher or lower molecular weight (Figure 1).

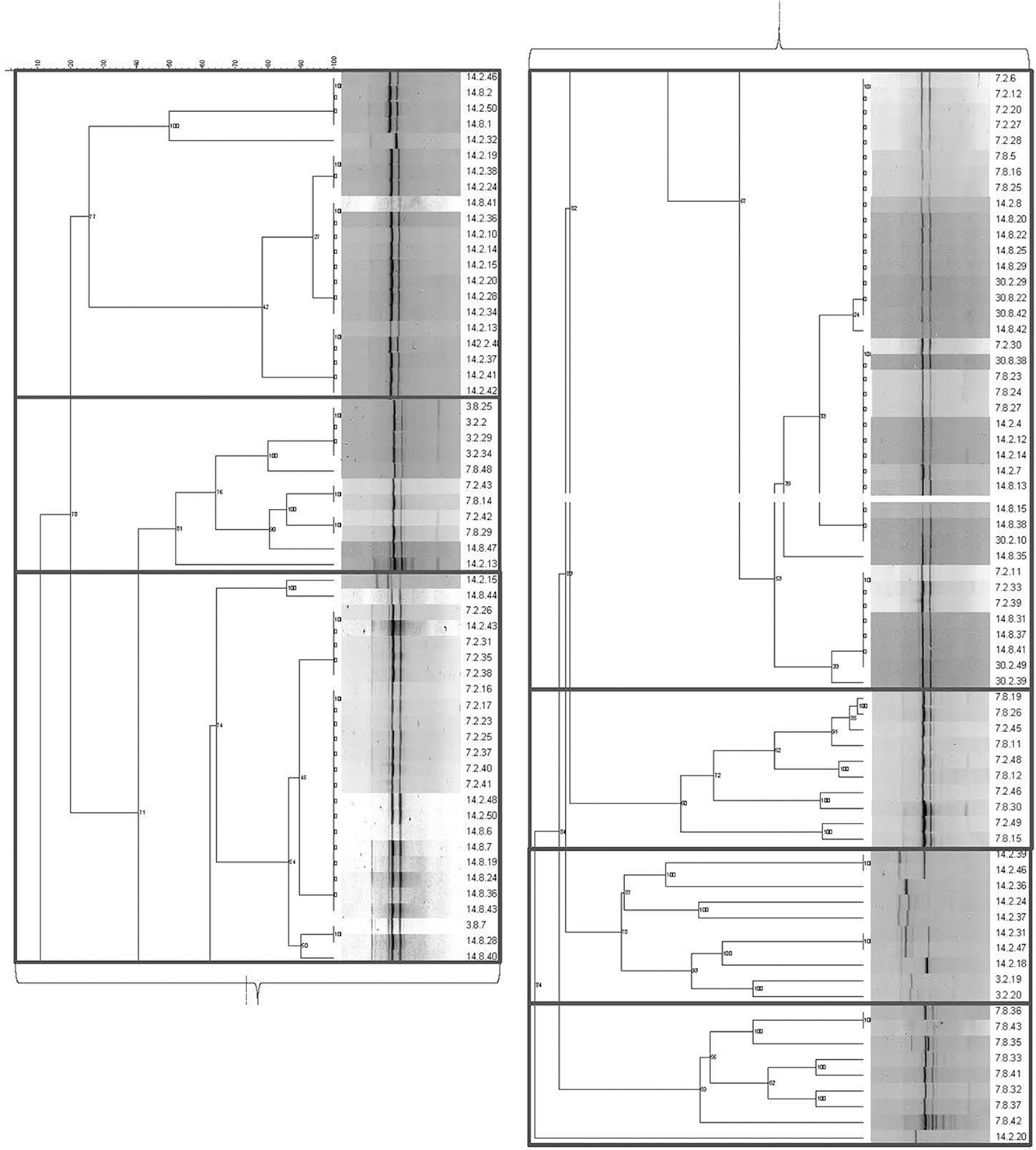

Figure 1. Genotyping dendrogram for autochthonous Lvb. brevis. Phylogenetic dendrogram and rep-PCR-(GTG)5 band pattern for 131 Lvb. brevis isolated from cucumber fermentation.
3.2. Phenotyping of the Lvb. brevis isolates using a fermentation ability screening design
The 99 Carolinian Lvb. brevis isolates acidified the treatment media, CJM, to a mean value of 4.86 ± 0.34 on treatment 1 and 3.96 ± 0.10 on treatment 2, both incubated at 15°C. Incubation at 30°C resulted in pH reductions to 3.77 ± 0.38 and 3.70 ± 0.25 after 2 days for treatments 3 and 4, respectively. Within these general trends, there was a wide range in performance among the isolates, which clustered into nine groups based on their ability to acidify CJM under varying conditions (Figure 2). The initial pH and fermentation temperature impacted the largest number of isolates, and there was no Lvb. brevis solely influenced by NaCl concentration (Figure 3). The 36 Lvb. brevis cultures that were impacted by NaCl concentration were also influenced by initial pH and/or temperature.
Figure 2. Phenotyping dendrogram for autochthonous Lvb. brevis. Hierarchical cluster analysis of Levilactobacillus brevis isolated from a commercial cucumber fermentation. Two-way clustering of cultures based on 48-h fermentation pH under varying conditions of salt, initial pH, and temperature. The plot below the hierarchical cluster analysis dendrogram shows the cumulative distance between clusters with decreasing cluster number, and the black vertical line marks the value for the 9 clusters shown in the dendrogram.

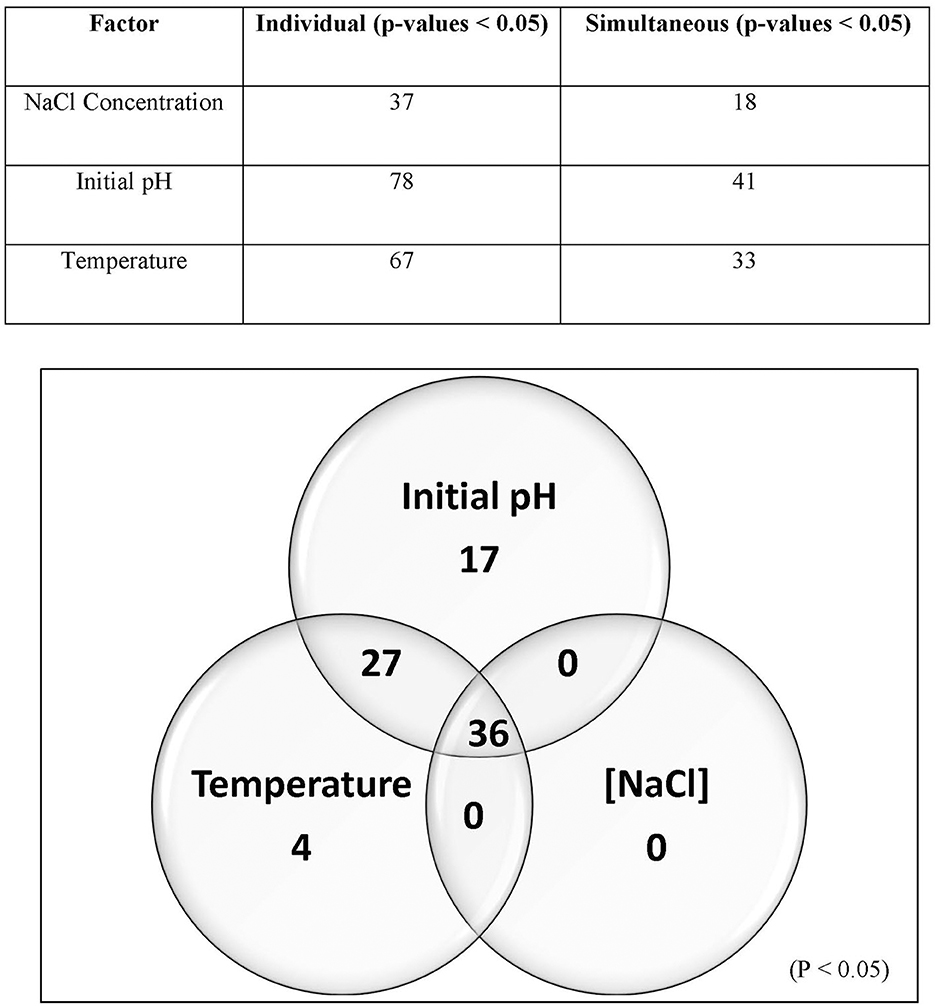

Figure 3. Screening analysis and Venn diagram illustrating the proportion of Lvb. brevis isolates affected by one or more fermentation conditions. Percentage (table) and number (Venn diagram) of isolates significantly affected by one or more fermentation variables (n = 97; p-value = 0.05).
3.3. Comparative analysis of 14 Lvb. brevis genomes
Figure 4 demonstrates that the size, gene count, and GC content of the genome sequences derived from the 14 selected Lvb. brevis are within the expected ranges. Horizontal gene transfer, CRISPR loci, and ribosomal RNA clusters are more frequently detected in the cucumber fermentation autochthonous Lvb. brevis genomes relative to their reference allochthonous counterparts (Figure 4). The phylogenetic tree constructed with 477 open reading frames suggested that the autochthonous Lvb. brevis cluster among themselves and separate from allochthonous strains (Figure 5) isolated from kimchi, silage, wheat beer, and Yeshanjun style-fermented vegetables (Feyereisen et al., 2019). An ANI score matrix suggests that the autochthonous Lvb. brevis 7.8.43 is identical to the allochthonous strains included in the study scoring from 97.84 to 98.02, while the remaining thirteen autochthonous strains clustered apart with scores from 99.61 to 99.85 (Table 1).

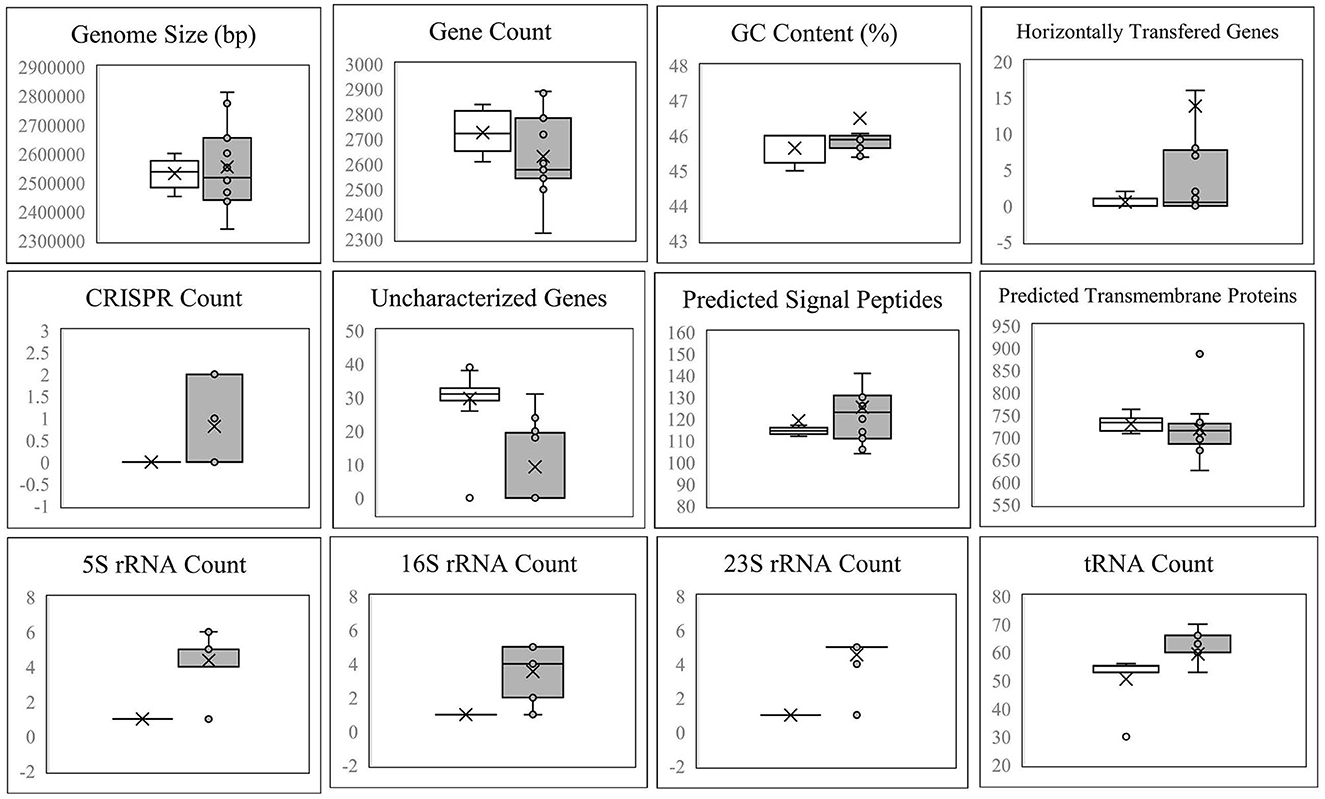

Figure 4. Descriptive data for the Lvb. brevis genome sequences. Box and whisker plot of the statistical data for the genomic DNA sequences derived from Lvb. brevis autochthonous to cucumber fermentation (gray box) relative to Lvb. brevis YSJ3, SA-C12, TMW1.2108, and NPS-QW-145 (white box).

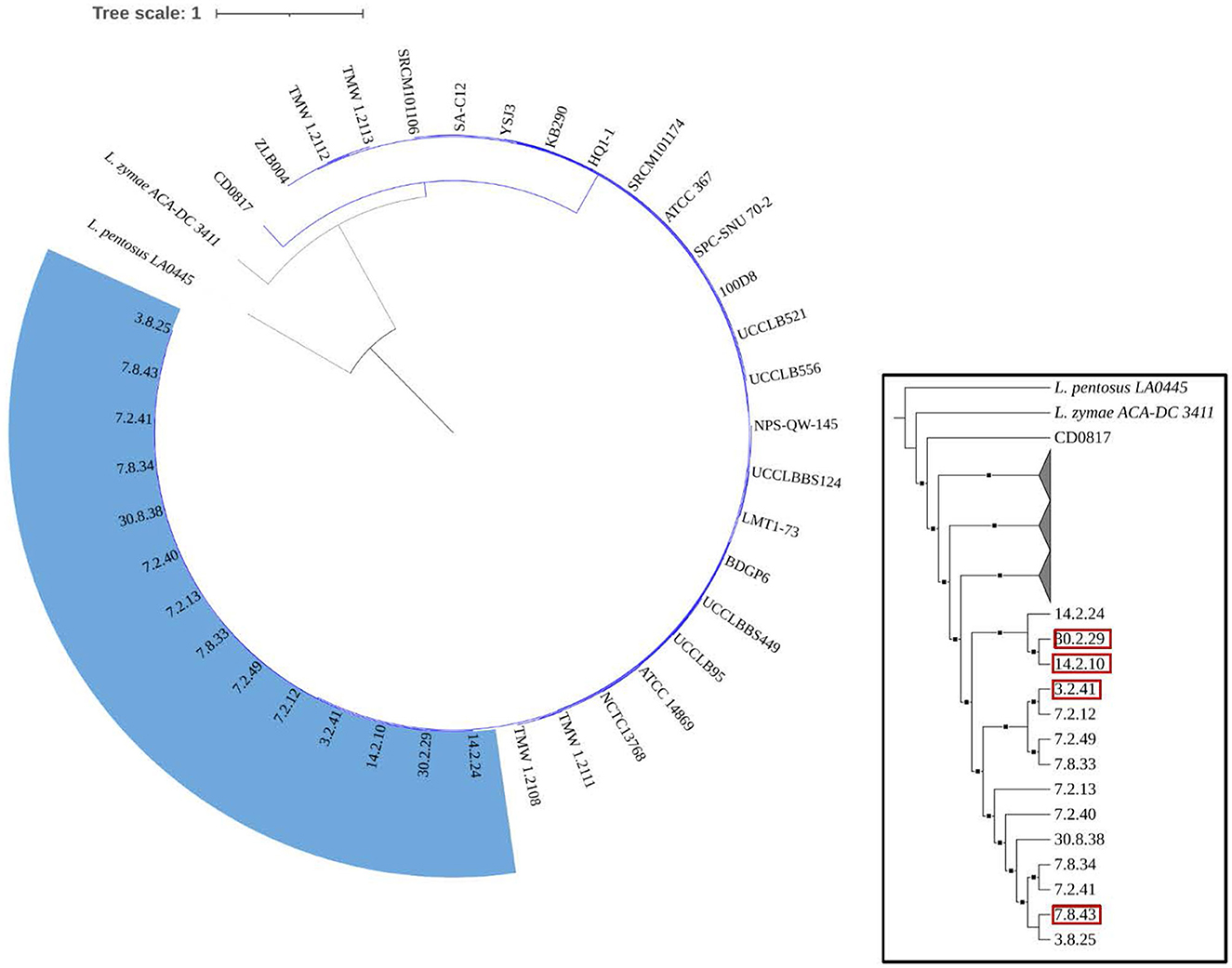

Figure 5. Phylogeny of the Lvb. brevis isolates relative to reference strains. Phylogenetic trees including autochthonous Lvb. brevis isolates sequenced (highlighted in blue) and reference strains constructed by aligning 477 common ORFs using the BVBRC Codon Tree. The trees were rooted with Lpb. pentosus LA0445. Isolate identifiers framed in red represent Lvb. brevis used in subsequent experiments. The inset tree is presented without scale and with clades including reference strains collapsed to better indicate relationships between autochthonous isolates. The branches marked with squares indicate a bootstrap value of 90 or greater.

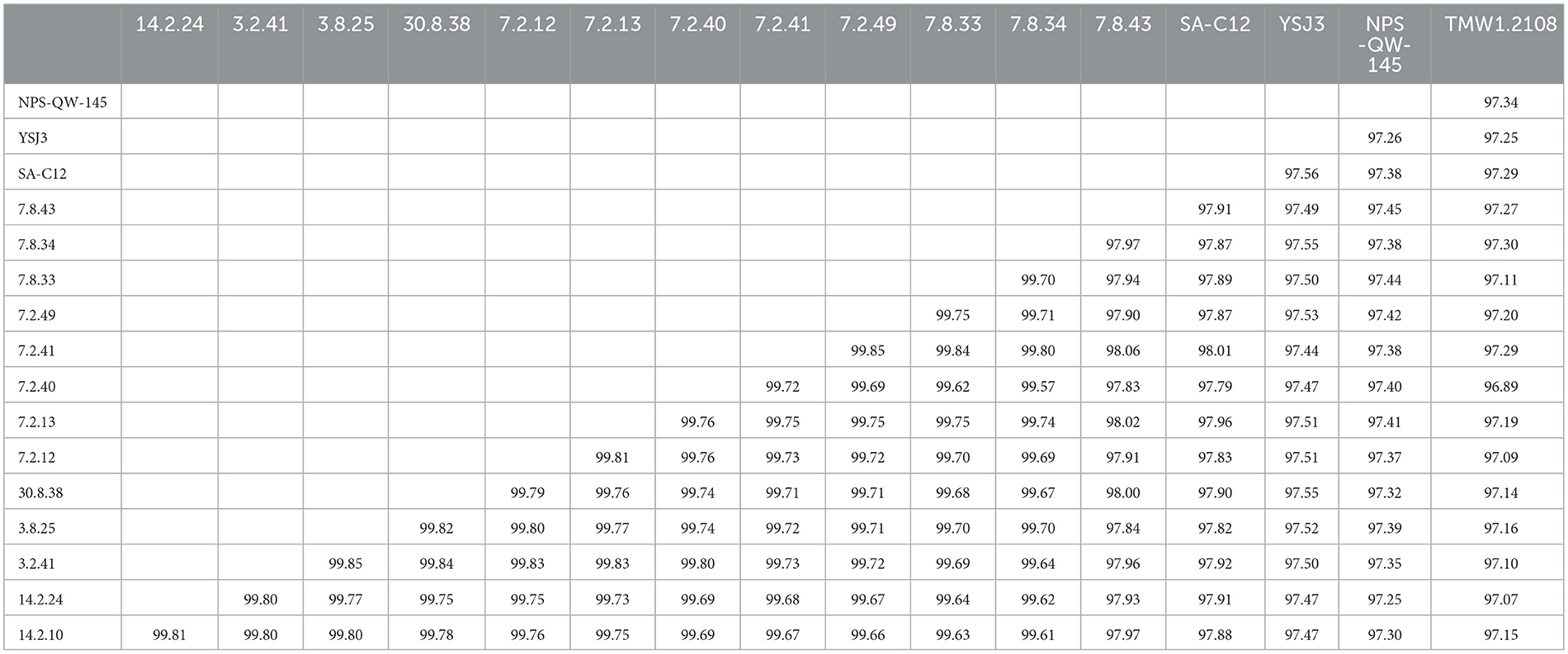

Table 1. ANI score matrix comparing the Lvb. brevis isolates autochthonous to cucumber fermentation and reference strains SA-C12, YSJ3, TMW1.2, and NPS-QW-145.
3.4. Comparative analysis of the putative and deduced protein profiles and protein family sorting
Homogeneity of the putative proteins encoded by the Lvb. brevis genomes was observed regardless of origin (Supplementary Figure 1), with minor differences located at the end of contigs impacting a low molecular weight tyrosine phosphatase and ABC transporter, a permease protein, a transport protein, and several putative hypothetical proteins. However, the autochthonous Lvb. brevis lacks putative citrate lyase genes (Supplementary Table 2). The allochthonous and type strain Lvb. brevis ATCC14869, as well as other allochthonous strains, harbor putative citrate lyase genes in the vicinity of the NADP-dependent malic enzyme (Supplementary Figure 2). We also found that putative genes encoding for the varied elements of the 1,2-propanediol utilization (Pdu) microcompartment are conserved among Lvb. brevis strains and organized in a cluster (Supplementary Table 2).
The protein family sorting identified putative genes coding for malate, arginine, and glutamate utilization and L-/D-lactic acid production in all the genomes studied with a range of copy numbers (Supplementary Figure 3). However, a second copy of D-lactate dehydrogenase was only present in Lvb. brevis 7.8.43 and 3.2.41. Differences were observed in 13% of the putative coding genes, which were associated with mobile elements and hypothetical proteins (Supplementary Figure 3).
3.5. Lvb. brevis phenotype microarray analysis
The four autochthonous isolates, 7.8.43, 14.2.10, 30.2.29, and 3.2.41, utilized D-glucose, D-fructose, fructose-6-phosphate, L-sorbose, gluconic acid, and gentiobiose, among 13 other substrates (Figures 6, 7). While the allochthonous isolates, ATCC14869 and ATCC367, utilized xylose, trehalose, and cellobiose with growth rates ranging between 0.02005 and 0.04648, the autochthonous Lvb. brevis did not (Table 2). However, the autochthonous Lvb. brevis utilized gentiobiose, amygdalin, maltitol, and stachyose.

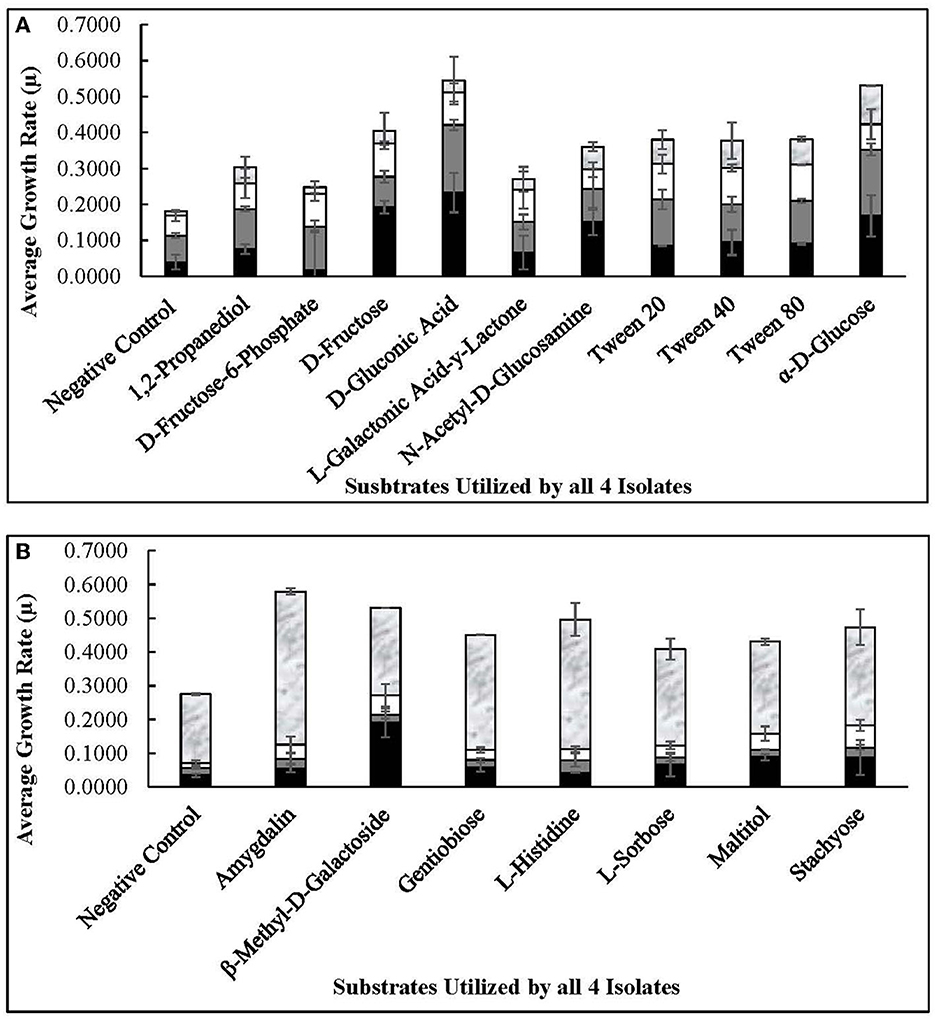

Figure 6. Commonly used substrates by Lvb. brevis isolates. Carbohydrates utilized by all four Levilactobacillus brevis isolates included in the comparative genomic analysis, including 7.8.43 (
), 14.2.10 (
), 30.2.29 (
), and 3.2.41 (
), as determined by the PM01 (A) and PM02 (B) plates of the Omnilog for phenotype microarray.

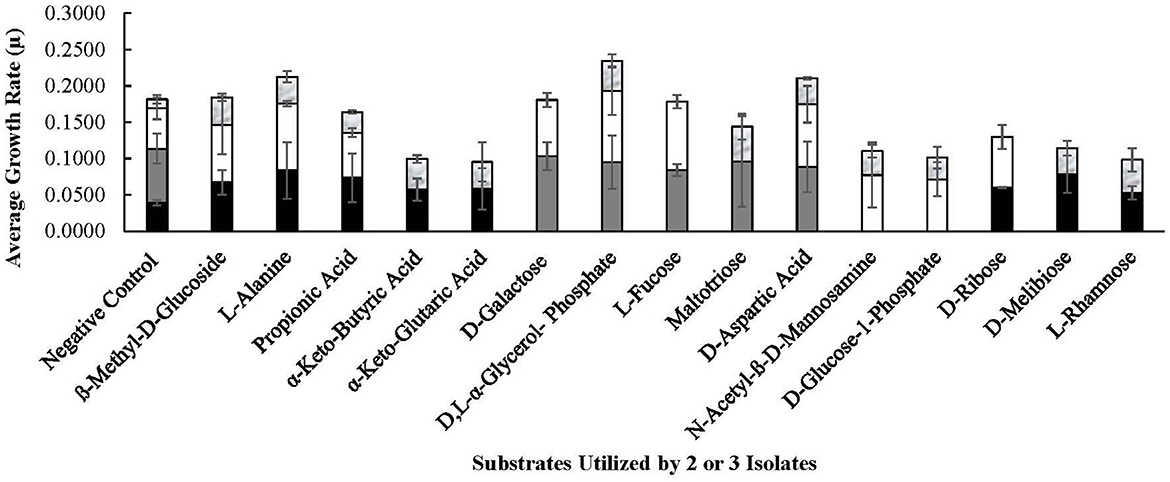

Figure 7. Substrates utilized by selected Lvb. brevis. Carbohydrates utilized by 2 or 3 Levilactobacillus brevis isolates included in the comparative genomic analysis, including 7.8.43 (), 14.2.10 (), 30.2.29 (), and 3.2.41 (), as determined by the PM01 and PM02 plates of the Omnilog for phenotype microarray.

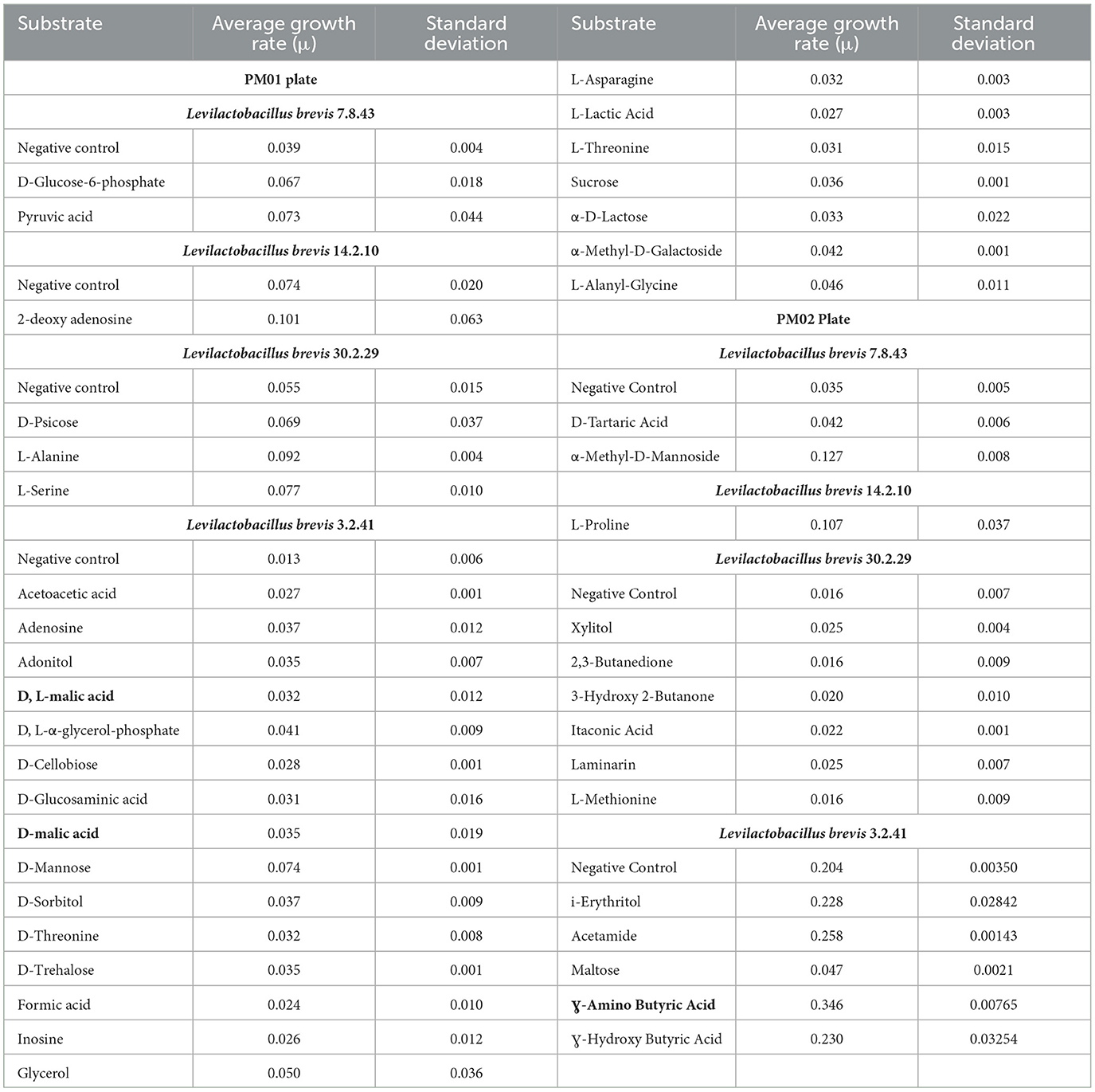

Table 2. Carbon sources utilized by single Levilactobacillus brevis as determined by the PM01 and P02 plates of the Omnilog.
As expected from the comparative analysis of putative proteins, only the allochthonous Lvb. brevis ATCC14869 was able to utilize citric acid in the PM01 plate, presenting a growth rate of 0.04521 ± 0.00828 in the presence of the substrate relative to 0.01617 ± 0.00458 from the negative control (Table 2). The diol, 1,2-propanediol, was utilized by the four autochthonous Lvb. brevis and the two allochthnous strains tested (Figure 6). Similarly, three out of the four autochthonous Lvb. brevis and Lvb. brevis ATCC14869 utilized propionic acid (Figure 7), and Lvb. brevis 30.2.29 and ATCC367 utilized sorbic acid in the PM02 plate with growth rates of 0.04613 ± 0.01385 and 0.02194 ± 0.00195, respectively. The surfactants, polysorbate 20, 40, and 80 were utilized by all autochthonous Lvb. brevis (Figure 6). Figures 6, 7 also show that the autochthonous Lvb. brevis utilizes amino sugars, such as N-acetyl-D-glucosamine and N-acetyl-D-mannosamide, and glucosides, such as β-methyl-D-glucoside and β-methyl-D-galactoside. Table 2 shows that some autochthonous Lvb. brevis utilize an assortment of amino acids, nucleotides, and organic acids. Lvb. brevis 3.2.41 utilizes γ-amino butyric acid.
4. Discussion
Rep-PCR-(GTG)5 is considered the technique with the best discrimination power for intraspecies biodiversity among lactic acid bacteria (Gevers et al., 2001; Kostinek et al., 2005; Anekella and Pérez-Díaz, 2020). Contrary to Lpb. plantarum and Lpb. pentosus, the Lvb. brevis rep-PCR-(GTG)5 patterns suggest limited genetic diversity (Panagou et al., 2008; Pino et al., 2018; Pérez-Díaz et al., 2021), which agrees with reports made by Tamang et al. (2005) for varied lactobacilli. Lpb. plantarum is known for its nomadic lifestyle, and its genome reflects diversity and plasticity resulting from its ability to adapt to various habitats (Martino et al., 2016). Lvb. brevis, however, presents a prolonged doubling time in cucumber fermentation (Pérez-Díaz et al., 2017) and is associated with specific niches, such as the human microbiota and spoilage of fermented foods such as beer (Feyereisen et al., 2019).
Seven and nine clusters were identified in the dendrograms generated with the results of the rep-PCR-(GTG)5 and the fermentation ability assay, respectively, with divergent isolates distribution (Figures 1, 2). The pH data from the fermentation ability assay indicated an enhancement in acid production by Lvb. brevis at the higher temperature (30°C) in CJM. Figure 2 indicates that most of the Lvb. brevis cultures were able to perform well under theoretically optimal conditions of 6% NaCl, initial pH 5.4, and 30°C as evidenced by the primarily green third column from the left in the Hierarchical Cluster Analysis dendrogram. The most robust isolates for adjunct cultures were grouped together in clusters 2 and 4, which were comprised of 36 Lvb. brevis cultures that demonstrated the ability to acidify CJM across all conditions (Figure 2). The fermentation ability data also suggest that potential synergies between the three variables tested were more useful in screening for robust adjunct culture candidates. It is inferred that the lack of performance of selected Lvb. brevis under sub-optimal conditions responds to their inability to adapt to multiple stresses, population densities, and/or growth conditions.
Understanding the divergence in the clustering derived from rep-PCR-(GTG)5 and the fermentation ability assay, we selected fourteen isolates that represent each of the clusters for whole genome sequencing. The availability of such genome sequences in public databases was announced by Page et al. (2022). Differences in the incidence of CRISPR loci and horizontal gene transfer in favor of the Lvb. brevis strains reinforce the concept of microbial adaptation to habitats (Martino et al., 2016). The number of uncharacterized genes is significantly lower in the autochthonous Lvb. brevis genomes as compared to the allochthonous strains (Figure 4), suggesting the need for specialization in cucumber fermentations is relatively lower. ANI scores suggest that differences at the genome level exist among Lvb. brevis isolated from varied fermentation habitats and that one strain prevails in cucumber fermentation.
Contrary to the allochthonous Lvb. brevis ATCC 14869, the autochthonous strain was found to be unable to metabolize citric acid. While citric acid is central to the tricarboxylic acid cycle and aerobic respiration, it is absent in immature cucumbers (McFeeters et al., 1982). Lactic acid bacteria can use it to generate alternative products such as acetate, ethanol, lactate, succinate, and acetoin in exchange for a proton motive force or ATP production by substrate-level phosphorylation (Gänzle, 2015). The allochthonous Lvb. brevis ATCC14869 strain produces the characteristic aroma associated with diacetyl production on the testing medium and CJM (data not shown). Further studies are needed to determine whether the absence of citrate lyase in the autochthonous Lvb. brevis is detrimental to competitive growth as a starter culture.
The autochthonous Lvb. brevis utilized sugars associated with plant systems such as cereals, vegetables, and fruits (Buckenhüskes, 1993, 1997; Jones et al., 1999; Dumville and Fry, 2003; Bolarinwa et al., 2014; Lei et al., 2022) (Figure 6), as well as gentiobiose, a disaccharide intrinsic to cucumber (Ucar et al., 2020a). Fructose, glucose, xylose, and trehalose are present in cucumber fermentation (Ucar et al., 2020a,b), and their concentrations decline prior to or during spoilage led by Lentilactobacillus buchneri (Johanningsmeier and McFeeters, 2015). Fructose and glucose are preferably removed by lactobacilli in cucumber fermentation, including Lvb. brevis. Together, these observations suggest that a mixed culture of autochthonous and allochthonous Lvb. brevis may aid in preventing spoilage by removing not only gentiobiose but also trehalose and xylose post-primary fermentation.
The identification of putative genes coding for the multiple components of Pdu microcompartments in all the Lvb. brevis genomes agrees with the observed ability of the species to utilize the substrates in the phenotyping assay using the Omnilog (Figure 8). 1-2-propanediol and propionic acid are produced in cucumber fermentation spoilage by Le. buchneri (Stefanie et al., 2001; Johanningsmeier and McFeeters, 2013). The diol is converted to propionaldehyde via a coenzyme B12-dependent diol dehydratase in Pdu microcompartments, which in turn is catabolized to 1-propanol and propionic acid (Liu et al., 2007). Such a pathway generates ATP, regenerates NAD + H+, and produces propionyl-CoA for central metabolism (Liu et al., 2007). The observations that all Lvb. brevis tested could metabolize 1,2-propanediol by expressing the putative Pdu microcompartment cluster suggest that such a compound may be key to the ability of the bacterium to colonize. Further studies are needed to define the conditions needed for Lvb. brevis to utilize the diol and to understand the advantages associated with its utilization within the fermentation habitat.

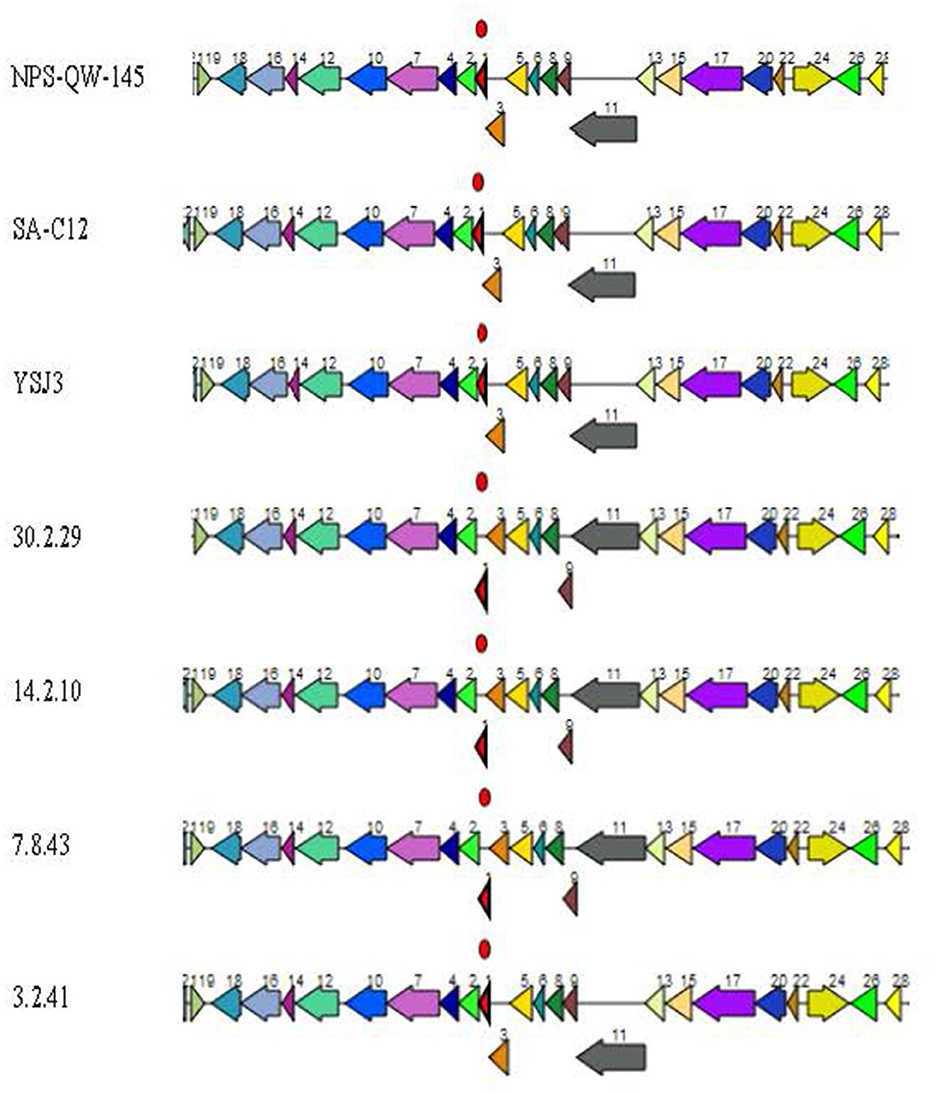

Figure 8. Lvb. brevis 1,2-propanediol utilization putative operon. Putative 1,2-propanediol utilization operon is found in allochthonous and autochthonous Levilactobacillus brevis isolates. Coding genes are (1) pduN polyhedral body protein, (2) pduO ATP:Cob(I)alamin adenosyltransferase, (3) pduM polyhedral body protein, (4) hypothetical protein, (5) pduL phosphate propanoyl transferase, (6) pduJ polyhedral body protein, (7) pduO CoA-acylating propionaldehyde dehydrogenase, (8) pduK polyhedral body protein, (9) pduG propanediol dehydratase reactivation factors small subunit, (10) pduQ propanol dehydrogenase, (11) pduH propanediol dehydratase reactivation factor large subunit, (12) pduW propionate kinase, (13) pduC propanediol dehydratase small subunit, (14) pduU polyhedral body protein, (15) pduD propanediol dehydratase medium subunit, (16) NADH:flavin oxidoreductase, (17) pduE propanediol dehydratase large subunit, (18) hypothetical protein, (19) phage transcriptional repressor, (20) pduB polyhedral body protein, (22) pduA polyhedral body protein, (24) propanediol utilization transcriptional activator, (26) propanediol diffusion facilitator, and (28) pduV propanediol utilization protein.
It is relevant to mention that Lvb. brevis isolates capable of utilizing the antifungal preservative sorbic acid, such as 30.2.29 and ATCC367, have limited application as starter cultures in industrial cucumber fermentation. Sorbic acid has been used for decades in pickling in the United States as a processing aid to control the undesired growth of yeast and molds, particularly on the surface of brines contained in open-top tanks (Etchells et al., 1961). The preservative has been proven useful in enabling industrial cucumber fermentation without sodium chloride (Pérez-Díaz et al., 2022). The effectiveness of the preservative is limited during long-term storage by its removal, presumably by microbial activity. Thus, starter cultures capable of utilizing the preservatives would be detrimental to the long-term stability of cucumber fermentations brined with low salt.
Our data suggest that polysorbates typically added to food products could positively impact the growth of the autochthonous Lvb. brevis (Figure 6). The mechanism by which such an effect is exerted and its relevance to vegetable fermentation need further studies. However, an enhancement of biofilm formation by Lvb. brevis and other lactobacilli in the presence of the surfactants could augment the probiotic content of fermented vegetable products, as in fermented olives (Benítez-Cabello et al., 2020). It is understood that the surfactants and/or deriving degradation products can influence bacterial growth and the ability to form biofilm in various ways (Nielsen et al., 2016).
The ability of Lvb. brevis to utilize amino sugars led us to inquire if Lvb. brevis can degrade amino sugars derived from cucumber tissue during long-term storage of the fermented fruit, as observed for the non-starter lactic acid bacterium, Lactobacillus wasatchensis, in aged Cheddar cheese (Lauret et al., 1996; Oberg et al., 1996; Plumbridge and Vimr, 1999; Uehara and Park, 2004). On the other hand, the polymeric pectin, which is also a component of plant cell walls, was only utilized by Lvb. brevis 14.2.10 in the PM02 plate. Because pectin degradation is associated with fermented cucumber tissue softening (Walter et al., 1985; McFeeters, 1992), this isolate would have limited application as a starter culture for vegetable fermentation.
Interestingly, Lvb. brevis 3.2.41 utilizes gamma-amino butyric acid, which is formed during indigenous cucumber fermentation (Fideler Moore, 2021) and may contribute to its health-promoting properties. Therefore, Lvb. brevis 3.2.41 would need further evaluation prior to use as an adjunct culture.
5. Conclusion
A genetically distinct Lvb. brevis prevails in cucumber fermentation, robustly utilizes glucose and fructose under varied conditions of pH, temperature, and salt, and presents distinct metabolic activities as compared to allochthonous strains. Such an autochthonous Lvb. brevis strain was isolated from two distinct, geographically distant fermentations and is genotypically defined by the absence of genes that encode for citrate lyase. We postulate that mixed cultures of allochthonous and autochthonous Lvb. brevis may outcompete spoilage microbes by utilizing key sugars intrinsic to cucumber. Members of the species encode for a complete and putative Pdu microcompartment cluster that theoretically enables the production of energy in significant ways.
