Shuang Liu
Yuru Gao1- 1Institute of Loess Plateau, Shanxi University, Taiyuan, China
- 2College of Environment and Resources, Shanxi University, Taiyuan, China
Artificial vegetation restoration is an effective method for improving soil quality. In areas experiencing coal mine subsidence, the microbial community is essential for reconstructing the ecological balance of the soil. Studies are needed to examine how soil microbial community structure respond to different artificial forest restoration types and ages, especially over long-term periods. Therefore, in this study, 10, 20, and 30-year trials were chosen with two restoration types: Pinus tabuliformis (PT) and Ulmus pumila (UP). The objective was to determine how various types and ages of forest restoration affect the structure of soil bacterial communities, as well as the soil environmental factors driving these changes. The results showed that artificial 30-year restoration for both PT and UP can improve soil physical and chemical properties more than restoration after 10 and 20 years. The soil bacterial community structure remarkably differed among the different forest types and restoration ages. The bacterial diversity was higher in UP than in PT; the alpha diversity at longer restoration years (30 and 20) was significantly higher than at 10 years for both PT and UP. Moreover, soil nutrients and pH were the primary soil environmental factors driving bacterial community structure in the PT and UP. Finally, the integrated fertility index (IFI) at 30 years of restoration was considerably higher for PT and UP, and thus, is more beneficial to the restoration of soil after coal mining. Our findings are useful for studying improvement in soil quality and the restoration of the ecological environment in mining areas.
Introduction
The loess plateau in China is one of the unique landforms inf the world. In this region, the soil and plant ecosystems are extremely fragile and sensitive, especially after surface coal mining and land reclamation (Bai et al., 2006; Liu et al., 2016; Zhao et al., 2023). With coal open-pit mining, the vegetation is removed from the land surface, which changes the landscape and landforms, alters the soil’s characteristics and structure, and drastically disrupts soil hydrological regimes through soil excavation (Shrestha and Lal, 2011; Zhao et al., 2013; Wang et al., 2014; Ahirwal and Maiti, 2016). Mining also decreases the organic carbon and associated nutrients in the soil (Zhang et al., 2015), making coal mining the most prominent example of ecosystem degradation caused by humans (Zhang et al., 2015; Liu et al., 2016). In China, Shanxi province has abundant mineral resources, but the long-term excessive exploitation of these resources has seriously damaged the ecosystem in coal mining areas, especially in the north Shanxi coal area, which is located in a semiarid ecological zone in the loess hilly area.
The dumps containing mining waste are environmentally devastated areas: these areas constitute the land most damaged by open-pit mining (Chen et al., 2020). Currently, mine dumps are required to be restored following the completion of mining activities, because open-pit coal mining is only a temporary land use (Mukhopadhyay et al., 2017). Therefore, a number of vegetation restoration activities are implemented to restore the environment around coal mine waste dumps, including tree planting, agricultural reclamation, and constructing botanical gardens (Huang and Liu, 2013). Selecting the appropriate vegetation restoration is crucial for maintaining and enhancing the stability of the artificial restoration soil ecosystem in mining areas (Tripathi et al., 2016; Li and Liber, 2018) because the vegetation on mine dumps helps to prevent desertification, reduce water and nutrient runoff, and reduce soil erosion (Mukhopadhyay et al., 2017; Chen et al., 2020). However, the disturbed mining land usually has a compacted structure, a disorganized stratigraphic sequence, complex surface material, and impaired soil qualities, which hinder the ability of natural vegetation to restore the ecosystem (Zhang et al., 2015; Zhou et al., 2017). Additionally, the process of restoring ecosystem functions through natural vegetation regeneration is slow compared with using artificially restored vegetation that planted and managed by human (Li and Liber, 2018). With proper management of vegetation restoration, however, restoring disturbed mined soils is possible (Shrestha and Lal, 2010).
Artificial restoration of vegetation, implemented through human intervention, is the most effective and useful implementation of biological methods to establish appropriate vegetation in mining areas (Josa et al., 2012; Xu, 2012). Different vegetation types and restoration periods can lead to different organic matter and carbon contents, which cause changes in the physical structure, chemical composition, and microbiological characteristics of the soil (Fu et al., 2010; Nawaz et al., 2013; Zhao et al., 2013). For example, the soil bulk density decreases when the soil porosity increases due to root penetration (Yang and Wang, 2013); thus soil infiltration and field capacities (Cejpek et al., 2013) increase. In addition, the soil pH decreases (Zipper et al., 2013) and the soil total nitrogen (TN) and soil organic carbon (SOC) contents increase (Shrestha and Lal, 2010) as the restoration age increases. The microbial community is sensitive to soil conditions and connected to a variety of soil processes, such as nitrogen cycling and the breakdown of organic waste (Kaschuk et al., 2010; Liang et al., 2021). Researchers are increasingly using microbial properties as an ecological indicator of the effects of soil recovery efforts in mining areas (Helingerova et al., 2010; Claassens et al., 2012) because the activity of soil organisms provides useful information when monitoring the quality of the soil produced from intensive coal mining activities (Li et al., 2015; Zhao et al., 2023).
Presently, ecological restoration, vegetation reconstruction, and soil reclamation are still in the initial stages in most coal mining areas in Shanxi (Li and Liber, 2018). As such, how the features of soil microbial communities in open-pit coal mine dumps under loess environments respond to different ages and types of artificial forest restoration remains unknown. In addition, the effect of ecosystem restoration practices after disturbances also requires observation over long time periods. It is especially important to obtain information on the effects of long-term vegetation restoration activities on the establishment of forests and the associated soil development in reclaimed coal mine dumps in Shanxi, China. Therefore, a study about the changes in the soil microbial community observed with different types and ages of artificial forest restoration in waste dumps is especially important for directing future ecological restoration.
The largest open-pit coal mine in China is the Antaibao mine, situated in the Pingshuo mining area of Shanxi, and is a representative mine in the area. The Antaibao mine has three waste dumps (southern, western, and inner open-pit coal mine dumps). Focusing on these mine dumps, this study examined the relationships between soil environmental factors and soil bacterial community characteristics under different forest types and ages. The hypotheses were proposed that the soil microbial community structure of both coniferous and broad-leaf forests would differ after different restoration periods, and the bacterial community structure of broad-leaf forests would differ from those of coniferous forests. The specific objectives of this study were (1) to assess the impact of different forest restoration types and ages on soil physicochemical properties and bacterial communities, and assess their impact factors, and (2) to explore the driving effect of the relationship between soil physicochemical properties and bacterial communities under long-term restoration, and provide a scientific basis for the management of vegetation restoration activities in open-pit coal mine dumps in loess areas in China.
Materials and methods
Study area and sampling processes
The Pingshuo mining region (112°10′–112°30′E, 37°26′–37°36′N) is situated in Shuozhou city, north of Shanxi province in China (Figure 1). The area has a temperate, semiarid continental monsoon climate. The mean annual precipitation is 428.2–449.0 mm, and the mean annual temperature ranges from 4.8°C to 7.8°C. The geomorphic type of the mining area is classified as loess low mountains and hills. Chestnut soil, which is characterized by a low organic matter content and poor structure and is categorized as an chestnut soil that predominates in this area (Zhou et al., 2017). The total area of the Pingshuo mine is approximately 160 km2; the west, south, and inner dumps of the Antaibao open-pit coal mine restoration area were chosen as the study area. The dump location information is provided in Figure 1.
Figure 1. Location of study area and soil sampling sites in the Pingshuo coal mining area of Shanxi province. PT, Pinus tabuliformis; UP, Ulmus pumila.
All the soil samples were collected in the summer of 2020; Figure 1 shows the soil sampling locations at the three dumps for both PT and UP restoration. Soil samples were collected from a soil depth of 0–10 cm, and all the samples were obtained at five random sampling sites with five replicates for each forest type and restoration year. We created one composite sample that comprised all 25 subsamples, which we then placed into polyethylene (PE) bags. One kilogram of soil was divided into two parts: the fresh half was kept in an icebox and transported to the laboratory within 24 h and then kept at −80°C for DNA extraction; the other part was air-dried, crushed, passed through a 2.00 mm sieve for the determination of soil chemical properties.
Measurement of soil properties
Soil water content (SWC) was calculated using the oven-drying method (Evett, 2008). The cutting ring method was used to analyze the soil bulk density (BD) (Zeng et al., 2014; Liu et al., 2022a). A pH meter was used to determine the pH of the soil at a soil-to-water ratio of 1:2.5 (Zhao et al., 2023). Using a vario MACRO cube and a multi N/C 3100 (Analytik Jena GmbH, Jena, Germany), the total carbon (TC) and total nitrogen (TN) contents were calculated. Following digestion, the percentage of soil total phosphorus (TP) was determined using NaOH melting molybdenum antimony colorimetric analysis. After extraction with 0.5 M NaHCO3 at pH 8.5, the available P (AP) was measured using the molybdate–ascorbic acid technique (Zhen et al., 2015). After extraction with 2.0 mol L−1 KCl, the ammonia nitrogen (NH4+-N) and nitrate nitrogen (NO3−-N) contents were quantified using a flow injection auto analyzer (Dechem-Tech.G.mblt, Germany; Wu et al., 2021).
Soil DNA extraction and quantitative PCR analysis
According to the manufacturer’s instructions, 0.5 g of soil material was weighed to extract total DNA from the soil using a TIANnamp Soil DNA Kit (TIANGEN, China). The highly variable V3–V4 region of the bacterial 16S rRNA gene was amplified using primers 338 F (5′-ACTCCTACGGGAGGCAGCAG-3′) and 806 R (5′-GGACTACHVGGGTWTCTAAT-3′; Dennis et al., 2013). Each sample was subjected to the following amplification process: initial denaturation at 95°C for 3 min, followed by 27 rounds of denaturation at 95°C for 30 s, annealing at 55°C for 30 s, extension at 72°C for 45 s, and a final extension at 72°C for 10 min (Yu et al., 2018). The PCR products were purified, and an Illumina MiSeq PE300 was used to conduct high-throughput paired-end sequencing (Allwegene Co., Ltd., Beijing, China).
Processing of sequencing data
The raw data from the Illumina MiSeq sequencing was examined using the QIIME software suite (version 1.9.1). Using Usearch (version 11, available at http://drive5.com/uparse/), the operational taxonomic units (OTUs) were identified at a 97% similarity level (Wang et al., 2022), and an OTU table was generated for each sample for statistical analysis. The Shannon, ACE, and Chao1 diversity indices were calculated using the Mothur program (version 1.30.2; available for download at https://www.mothur.org/wiki/Download_mothur; Schloss et al., 2009). Each representative sequence’s taxonomic designation was established using Silva (version 138, available at https://www.arb-silva.de/). The Ribosomal Database Project (RDP) Classifier (version 2.13, available at http://sourceforge.net/projects/rdpclassifier/) identified the taxonomic identity of the phylotypes with a 70% level of confidence.
Statistical analysis
One-way and two-way analysis of variance (ANOVA) were applied to evaluate the effects of the forest type and restoration age on the soil’s physicochemical properties and alpha diversity of the soil’s bacterial community. The least-significant differences (LSD) test was used for analysis of variance at the 0.05 level (IBM SPSS Statistics 26.0). Gephi 0.92 was applied to display co-occurrence network that using the OTUs after screening with the statistical indicators Pearson’s coefficient r > 0.80 and a p-value of 0.001. Spearman correlation was used to analyzed the relationship between soil’s physicochemical properties and bacterial community. The correlation heat map was analyzed using Wekemo Bioincloud.1 Redundancy analysis (RDA) and Monte Carlo permutation tests was used to analyze soil environmental factors effect on the bacterial community. Variation-partitioning analysis (VPA) and partial Mantel test were used to separately determine the relative contribution of restoration age and soil environmental factors to microbial community variation. RDA, Monte Carlo permutation tests, VPA and Partial Mantel test were all conducted using the “vegan” package in R 4.2.1 (Dixon, 2003). The co-occurrence network analyses were visualized with Gephi 0.9.7.2 IBM SPSS Amos 26.0 was used to establish the structural equation model (SEM). The chi-squared test (p > 0.05), root mean square error of approximation (RMSEA) < 0.05, comparative fit index (CFI) > 0.95, and goodness-of-fit index (GFI) > 0.95 were used to assess model fitness (Chen et al., 2019).
To determine the mine soil integrated fertility index (IFI), we used principal component analysis (PCA) to select the soil physicochemical and microbial characteristics; the soil quality was described by the principal components (PCs) with an eigenvalue ≥1 which explained at least 5% of the variation in the data (Kaiser, 1960; Wander and Bollero, 1999; Mukhopadhyay et al., 2014). The integrated fertility index (IFI) can be calculated as follows:
where W is the ith PC eigenvalue; and S is the contribution rate of the ith indicator for each variable, i = 1, 2, 3…n.
Results
Soil physical and chemical properties
For soil physical properties, the soil water content (SWC) of PT-30 soil was significantly higher than that of PT-20 and PT-10 soils, and the soil bulk density (BD) of PT-30 soil was significantly lower than that of PT-20 and PT-10 soils (p < 0.05). We found no significant difference (p > 0.05) between PT-20 and PT-10 soils. Similar results were observed for UP, e.g., UP-30 had a significantly (p < 0.05) higher SWC and lower soil BD than UP-20 and UP-10 soils; we also observed no significant difference (p > 0.05) between UP-20 and UP-10 soils (Table 1). In terms of soil chemical properties, the soil pHs of PT-30 and UP-30 were both significantly (p < 0.05) lower than those at 20 and 10 years. At 30 years, PT and UP both had the highest soil TC, TN, TP, NO3−-N, and NH4+-N contents compared with those at 20 and 10 years. The AP content also increased as restoration age increased for UP, but decreased as restoration age increased for PT (Table 1).

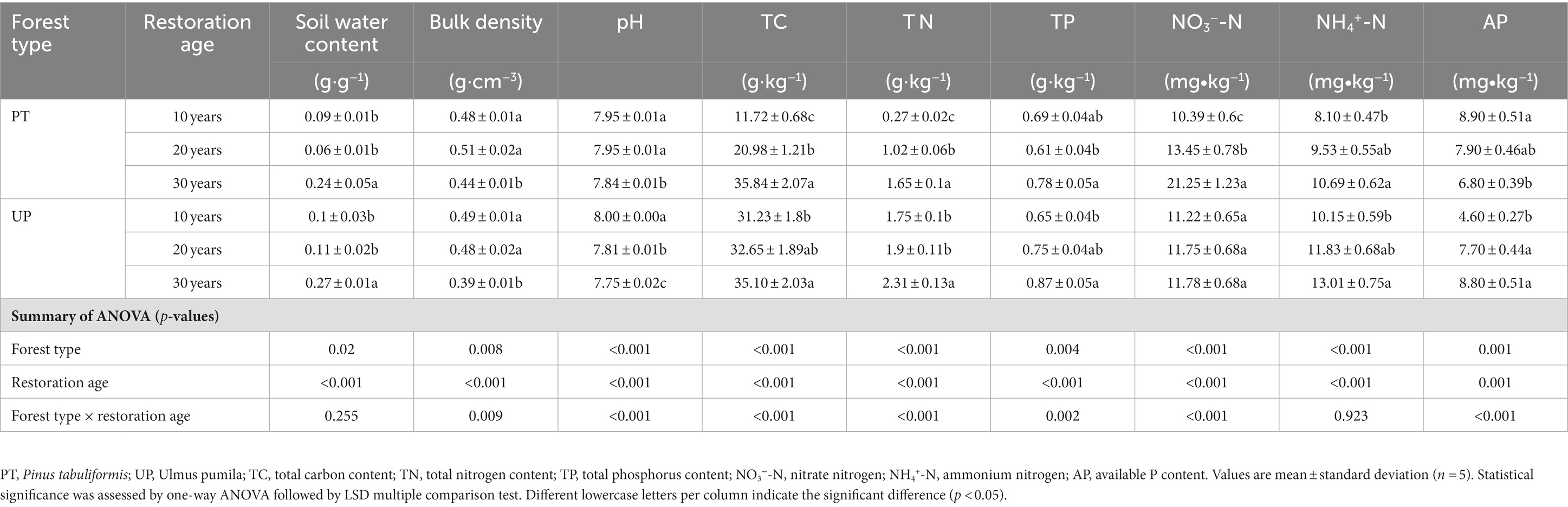

Table 1. Soil physicochemical properties for different restoration ages.
Bacterial community composition and diversity
The bacterial community compositions of the two forest types (PT and UP) at three restoration ages (10, 20, and 30 years) were elucidated by high-throughput sequencing analysis. The dominant bacterial phylum community groups were Proteobacteria (20.52%–42.09%), Actinobacteria (21.63%–41.33%), Acidobacteria (4.72%–23.73%), and Chloroflexi (2.90%–16.27%), whereas Gemmatimonadetes (0.54%–5.72%), Bacteroidetes (2.10–3.65%), Myxococcota (0.81%–2.32%), Patescibacteria (0.48%–1.36%), Verrucomicrobia (0.20%–1.78%), Firmicutes (0.06%–1.64%), and Nitrospirota (0.03%–1.38%) accounted for a small portion of the bacterial composition; the rest were rare community groups (Figure 2). The relative abundances of Proteobacteria in PT and UP both decreased with increasing restoration age, but for Acidobacteria and Chloroflex, a different pattern was observed in which the abundances increased with increasing restoration age. The abundance of Actinobacteria also increased with increasing restoration ages for PT, but we found no significant variations (p > 0.05) for UP among the restoration ages (Figure 2; Supplementary Table S1).
Figure 2. Dominant soil bacterial phyla for PT and UP after 10, 20, and 30 years of restoration. Bacterial phyla with a relative frequency of less than 0.1% are included as “others.”
The bacterial diversity at the OTU (operational taxonomic units) level was higher in UP than in PT at all three restoration ages. For PT restoration, both PT-30 and PT-20 soils had significantly higher Shannon, ACE, and Chao1 diversity indices than PT-10 soil. For UP restoration, significantly higher values of the Shannon, ACE, and Chao1 indices for UP-30 soil were also observed. However, for the Shannon index between UP-30 and UP-20 and between UP-20 and UP-10, no significant differences were found (Table 2). In addition, the dissimilarity analysis showed significant differences in the bacterial community structures among all restoration ages for PT and UP (p < 0.05; Supplementary Table S2).

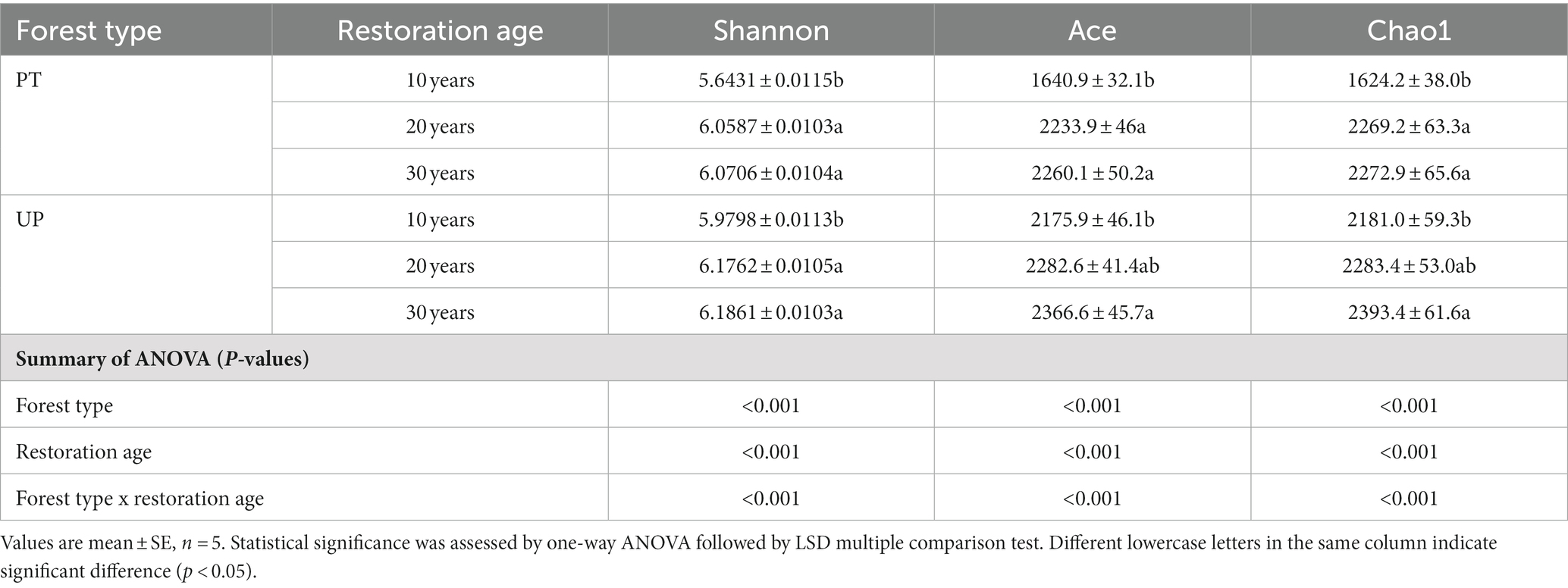

Table 2. Alpha diversity of soil bacterial community for different vegetation restoration types.
A co-occurrence network can be used to decipher the potential interaction patterns among bacterial species (Fan et al., 2011; Bi et al., 2021). Thus, a soil bacterial community co-occurrence network was generated based on the bacterial taxa at the OTU (operational taxonomic units) level for the restoration age of 10 to 30 years for PT and UP (Figure 3). For PT, the formed soil bacterial interaction networks in PT-10, PT-20, and PT-30 soils included 885, 984, and 1,123 edges, respectively. For UP, the formed soil bacterial interaction networks included 506, 647, and 684 edges in UP-10, UP-20, and UP-30 soils, respectively. Additionally, the proportion of positive correlations in the bacterial networks was larger than the proportion of negative correlations for both PT and UP (Figure 3).
Figure 3. Soil bacterial community co-occurrence networks of PT and UP at restoration ages of 10, 20, and 30 years. The nodes are colored by phylum and represent an operational taxonomic unit (97% sequence identify threshold, OTU). The size of each node is proportional to the number of connections (degrees).
Relationships between bacterial community and soil properties
The results of the spearman correlation test revealed that all the physical and chemical soil properties significantly correlated with some of the dominant soil bacterial phyla for both PT and UP (Figure 4). For PT, most soil properties, including SWC (soil water content), TP, NO3−-N, NH4+-N, TN, and TC contents, positively correlated with the four dominant soil bacterial phyla (Gemmatimonadetes, Acidobacteria, Chloroflexi, and Nitrospirota), but negatively correlated with three dominant phyla (Proteobacteria, Firmicutes, and Patescibacteria). Soil BD, pH, and TP showed the opposite correlations (Figure 4A). For UP, the contents of TP, AP, TN, and NH4+-N were significantly negatively correlated with the bacterial phyla Proteobacteria, Bacteroidota, and Myxococcota, but were significantly positively correlated with Acidobacteria. The soil BD and pH showed the opposite correlations (Figure 4B).
Figure 4. Spearman correlation heatmap: correlation between soil’s physicochemical properties and relative abundances of the dominant bacterial community (phylum level) of PT (A) and UP (B). Significant correlations are reported as follows: ***p < 0.001; **p < 0.01; *p < 0.05.
The TC, TN, NH4+-N, NO3−-N, TP, AP, BD, pH, and SWC were the main factors influencing the bacterial community structure for PT, according to the results of the redundancy analysis and Monte Carlo permutation tests (Figure 5A; Supplementary Table S3). The TC, TN, TP, AP, NH4+-N, and pH all significantly affected the bacterial community structure of UP (Figure 5B; Supplementary Table S3). In addition, the soil pH, TC, TN, NH4+-N, and AP significantly (p < 0.05) correlated with the diversity index of the bacterial communities of PT and UP (Supplementary Table S4).
Figure 5. Redundancy analyses (RDA) between soil environmental factors (red arrows) and bacterial community structure at the phylum level (relative abundance > 0.1%, blue arrows) of PT (A) and UP (B). Significant factors were identified by Monte Carlo permutation tests and are labeled as *p < 0.05, **p < 0.01, and ***p < 0.001.
Differentiating bacterial beta diversity determinants
VPA was applied to evaluate the relative contributions of soil and vegetation factors to changes in the soil microbial communities. In both PT and UP, the changes in the bacterial communities were primarily driven by soil factors, according to the results of VPA, which explained 16.1% of the variation for PT (Figure 6A) and 36.5% of the variation for UP (Figure 6B). The variation in bacterial communities could only be partially explained by variations in restoration ages. For instance, only 4.1% of the variation in the bacterial community for PT could be explained by the difference in restoration age, which explained only 0.5% of the variation for UP (Figure 6). Soil factors and vegetation ages jointly explained 71.8% and 38.9% of the variation for PT and UP, respectively (Figure 6).
Figure 6. Variation-partitioning analysis (VPA) illustrates the forest stand age and soil environmental factors on bacterial community for PT (A) and UP (B).
Interactions between soil environmental factors, bacterial community diversity, and bacterial community structure were assessed using structural equation model (SEM). The findings demonstrated that the final SEM successfully fit PT and UP, p ≥ 0.849, root mean square error of approximation (RMSEA) < 0.001, goodness-of-fit index (GFI) ≥ 0.958, and comparative fit index (CFI) = 1.000 (Figure 7). For both PT and UP, the restoration age directly positively impacted the bacterial community diversity and directly negatively impacted the bacterial community structure. Through its effects on soil total nutrient (TC, TN, and TP) and available nutrient (NH4+-N, NO3−-N, and AP) variables, it also indirectly had a positive impact on the diversity and structure of the bacterial communities. The structure of bacterial communities was negatively impacted by soil pH and positively impacted by SWC for both PT and UP (Figure 7). Additionally, the integrated fertility index (IFI) at 30 years of restoration was 2.683 and 2.447 for PT and UP, respectively, which are much higher than those at 10 and 20 years (Table 3).
Figure 7. Structural equation model describing the effects of restoration age, soil physical and chemical properties on bacterial community diversity and structure for PT (A) and UP (B). Solid lines indicate positive effects, and dashed lines indicate negative effects. Numbers on lines are standardized direct path coefficients. The significant paths are reported as follows: *p < 0.05; **p < 0.01; ***p < 0.001.

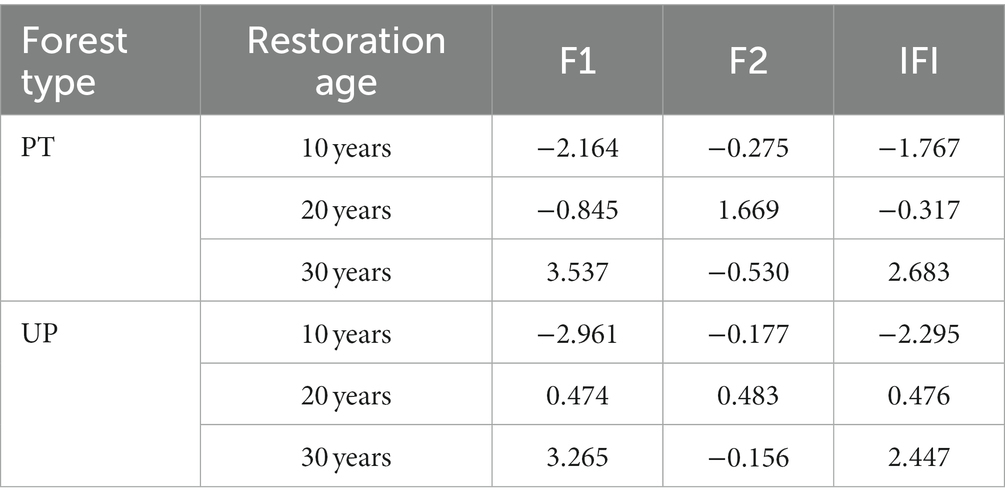

Table 3. Integrated fertility index (IFI) for PT and UP at different restoration ages.
Discussion
Effects of forest restoration type and age on soil physicochemical properties
Different vegetation types and restoration ages can change the physical structure and chemical properties of the soil (Fu et al., 2010; Zhao et al., 2013). In this study, significant differences in soil bulk density were found between the two forest types (p < 0.05) and restoration ages (p < 0.001), i.e., the soil bulk density was significantly lower for both the coniferous forest (Pinus tabuliformis, PT) and broad-leaved forest (Ulmus pumila, UP) after 30 years of restoration than after 10 and 20 years of restoration. These findings are consistent with those of earlier studies, in which the soil bulk density decreased as the restoration age increased (Fu et al., 2010; Yang and Wang, 2013; Liu et al., 2019). As vegetation restoration progresses, more roots penetrate the soil, increasing porosity and lowering soil bulk density (Feng et al., 2019). Moreover, at 30 years, both PT and UP had the highest TC, TN, NH4+-N, NO3−-N, and TP contents, but had lower pH values compared with at 20 and 10 years. These findings, which are consistent with those of earlier studies, demonstrate that restoration activities require long-term periods (>20 years) to considerably increase soil TN and SOC (Shrestha and Lal, 2010). This is primarily because the buildup of litter, leaves, roots, and other above-ground biomass is required to aid in the production of humus (Frouz et al., 2007; Mukhopadhyay et al., 2014). Other researchers have also reported a significant change in soil pH due to restoration activities (Zipper et al., 2013).
Bacterial community impacted by forest type and restoration age
Proteobacteria, Actinobacteria, Acidobacteria, and Chloroflexi were the most prevalent bacterial phyla in our study across the two forest types and three restoration ages. This result is generally consistent with that of an earlier study on the soils of mining areas in northern China (Chen et al., 2020). In forest soils, earlier studies have also found that Proteobacteria are the most abundant phylum (Hui et al., 2014; Miyashita, 2015; Deng et al., 2018). In addition, Proteobacteria were more abundant than Actinobacteria, consistent with the findings of other studies (Qiu et al., 2012; Guo et al., 2019). However, while the bacterial community compositions were similar, the structure significantly changed in both PT and UP in our study; e.g., the Proteobacteria abundances decreased for both PT and UP as the restoration ages increased, but the abundance of Acidobacteria showed the opposite trend and was negatively correlated with soil pH (Chu et al., 2010; Griffiths et al., 2011; Guo et al., 2019).
The bacterial community alpha diversity was changed to some extent by the forest restoration activities; both PT and UP had higher alpha diversity after 30 and 20 years of restoration than at 10 years. This could primarily be attributed to the substantial amount of litter generated by the prolonged establishment of Pinus tabuliformis and Ulmus pumila, which encouraged microbial decomposition (Guo et al., 2019). The soil TN and SOC contents increased (Shrestha and Lal, 2010) with increasing restoration age, which provided sufficient energy and increased microbial activity levels (Jia et al., 2005). The two-way ANOVA results indicated that the bacterial community structure and diversity of UP differed from those of PT, which might be due to the forest types affect leaf litter quality and quantity, which can drastically change the chemical characteristics of the soil and have an impact on the microbiological activities in the soil (Nawaz et al., 2013; Šnajdr et al., 2013; Deng et al., 2018). These results supported our proposed hypothesis.
The complex relationships between microorganisms can be analyzed using co-occurrence network analysis, proving the mathematical validity of microbial community aggregation (Toju et al., 2016; Zhang et al., 2022). For both PT and UP, the microbial networks significantly varied among the different restoration ages in the microcosms, and variations in the PT and UP were noted (Figure 3). A larger number of links indicates a more complex network, and more complex networks are typically more stable (Liu et al., 2022b). According to this study, the number of links in both the PT and UP microbe networks increased with increasing restoration age, which implied that a higher restoration age may be beneficial to the soil microbiota’s complexity. The increase in the percentage of positive links with increasing restoration age was also found in this study. These findings suggest that cooperation may be a key mode of interaction between bacteria in relatively high-quality soil.
Factors driving soil bacterial community
In severely disturbed soils, the physical, chemical, and biological components of the soil are interconnected and play crucial roles in the creation of a functioning soil system (Rowland et al., 2009; Feng et al., 2019). The physicochemical characteristics of the soil are key factors in soil microbial development (Orgiazzi et al., 2012). Microorganisms can also reveal soil quality and are crucial to the functioning of the environment (Damon et al., 2012; Guo et al., 2019). Microorganisms’ diversity and composition typically depend on environmental factors, such as soil nitrogen availability (Jesus et al., 2009). In this study, most of the considered soil environmental factors affected the bacterial community. The diversity and organization of the bacterial communities in both PT and UP were mostly influenced by TC, TN, NH4+-N, TP, AP, and pH. Researchers have also reported that the effects of soil environmental factors on microbial community result from their synergism, rather than being governed by a single component alone (Deng et al., 2018; Guo et al., 2019).
Structural equation model (SEM) was also used to evaluate the interactions among the soil physicochemical factors, bacterial composition and diversity, which demonstrated that, with increasing restoration age, the soil quality improved, as evidenced by the positive effects on nutrients, BD, and SWC and decrease in soil pH. This finding is in line with the findings of earlier studies showing that artificial restoration of vegetation may considerably enhance the soil’s nutritional condition and soil quality in mining areas (Zhao et al., 2023) and that the improvement effect becomes more pronounced over time (Shrestha and Lal, 2010; Wang et al., 2013; Zipper et al., 2013). Moreover, our findings demonstrate that the duration of the restoration activities positively affected the diversity, but negatively affected the composition of bacterial communities for both PT and UP. This might have been due to the different vegetation types and restoration durations resulting in different rates of litter decomposition and nutrient release, which impact microorganism diversity (Vesterdal et al., 2012; Nawaz et al., 2013; Zhao et al., 2013). Jia et al. (2005) reported that the plentiful soil TN which providing enough energy can increase microbial activity levels. Moreover, with the increase in the restoration age, soil carbon contents increase, which also can affect on soil bacteria (Jia et al., 2005; McGeea et al., 2019). In addition, soil pH can be changed after the restoration of vegetation. It was found to be decreased as the restoration ages increasing in this study, which is consistent with previous report in mining area (Zipper et al., 2013). And soil pH then effect on soil bacteria. Studies reported that the abundance of Acidobacteria was negatively correlated with soil pH (Griffiths et al., 2011; Guo et al., 2019). Researchers also found soil pH soil pH may have an impact on amino acid metabolism, which has a strong negative correlation with proteobacteria (Zhao et al., 2023). Studies suggested that differences in soil bacterial communities in various locations were largely caused by differences in soil pH among various vegetation types (Shi et al., 2021).
Conclusion
In this study, bacterial community structure and diversity were sensitive to the forest restoration type and age. Significant differences among the different forest types and restoration ages were found in terms of soil physical, chemical, and microbial properties in the open-pit coal mine dumps. In general, at 30 years, both coniferous forest (PT) and broadleaf forest (UP) had higher TC, TN, NH4+-N, NO3−-N, and TP contents, but had lower pH values than at 10 and 20 years. The soil quality notably improved with increasing restoration age for both PT and UP, as evidenced by the positive effects on nutrients, BD, and SWC and decrease in soil pH. In addition, the soil TC, TN, NH4+-N, TP, AP, and pH were the primary soil environmental factors driving the bacterial community structure of PT and UP. The integrated fertility index (IFI) at 30 years of restoration was much higher for PT and UP than at 10 and 20 years. Overall, this study advances knowledge of how bacterial communities react to various types and ages of forest restoration in open-pit coal mine dumps in semiarid areas.
Data availability statement
The data presented in this study are deposited in the National Center for Biotechnology Information (NCBI) Sequence Read Archive database (SRA) received the sequencing data, accession number PRJNA976285.
Author contributions
At all stages, SL, YG, JC, JL, and HZ provided feedback on the manuscript. SL, JL, and HZ conceived and designed the study. YG contributed materials and analysis tools. SL and JC contributed to paper preparation. All authors contributed to the article and approved the submitted version.
Funding
This study was supported by the National Natural Science Foundation of China (grant numbers U1910207, U22A20557, and 41401618).
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Supplementary material
The Supplementary material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fmicb.2023.1198313/full#supplementary-material
Footnotes
References
Ahirwal, J., and Maiti, S. K. (2016). Assessment of soil properties of different land uses generated due to surface coal mining activities in tropical Sal (Shorearobusta) forest, India. Catena 140, 155–163. doi: 10.1016/j.catena.2016.01.028
Bai, Z. K., Fu, M. C., and Zhao, Z. Q. (2006). On soil environmental problems in mining area. Ecol. Environ. 15, 1122–1125.
Bi, B. Y., Zhang, H., Yuan, Y., Wu, Z. H., Wang, Y., Han, F. P., et al. (2021). Dynamic changes of soil microbial community in Pinus sylvestris var. mongolica plantations in the Mu Us Sandy Land. J. Environ. Manage. 287:12306. doi: 10.1016/j.jenvman.2021.112306
Cejpek, J., Kuraz, V., and Frouz, J. (2013). Hydrological properties of soils in reclaimed and unreclaimed sites after brown-coal mining. Pol. J. Environ. Stud. 22, 645–652.
Chen, L., Jiang, Y., Liang, C., Luo, Y., Xu, Q., Han, C., et al. (2019). Competitive interaction with keystone taxa induced negative priming under biochar amendments. Microbiome 7:77. doi: 10.1186/s40168-019-0693-7
Chen, J., Mo, L., Zhang, Z. C., Nan, J., Xu, D. L., Chao, L. M., et al. (2020). Evaluation of the ecological restoration of a coal mine dump by exploring the characteristics of microbial communities. Appl. Soil Ecol. 147:103430. doi: 10.1016/j.apsoil.2019.103430
Chu, H. Y., Fierer, N., Lauber, C. L., Caporaso, J. G., Knight, R., and Grogan, P. (2010). Soil bacterial diversity in the arctic is not fundamentally different from that found in other biomes. Environ. Microbiol. 12, 2998–3006. doi: 10.1111/j.1462-2920.2010.02277.x
Claassens, S., van Rensburg, P. J., Liebenberg, D., and van Rensburg, L. (2012). A comparison of microbial community function and structure in rehabilitated asbestos and coal discard sites. Water Air Soil Pollut. 223, 1091–1100. doi: 10.1007/s11270-011-0927-1
Damon, C., Lehembre, F., Ogerdesfeux, C., Luis, P., Ranger, J., Fraissinettachet, L., et al. (2012). Metatranscriptomics reveals the diversity of genes expressed by eukaryotes in forest soils. PLoS One 7:e28967. doi: 10.1371/journal.pone.0028967
Deng, J. J., Yin, Y., Zhu, W. X., and Zhou, Y. B. (2018). Variations in soil bacterial community diversity and structures among different revegetation types in the baishilazi nature teserve. Front. Microbiol. 9:2874. doi: 10.3389/fmicb.2018.02874
Dennis, K. L., Wang, Y. W., Blatner, N. R., Wang, S. Y., Saadalla, A., Trudeau, E., et al. (2013). Adenomatous polyps are driven by microbe-instigated focal inflammation and are controlled by IL-10-producing T cells. Cancer Res. 73, 5905–5913. doi: 10.1158/0008-5472.CAN-13-1511
Dixon, P. (2003). VEGAN, a package of R functions for community ecology. J. Veg. Sci. 14, 927–930. doi: 10.1111/j.1654-1103.2003.tb02228.x
Evett, S. R. (2008). “Gravimetric and volumetric direct measurements of soil water content” in Field estimation of soil water content: A practical guide to methods, instrumentation, and sensor technology. IAEA-TCS-30. International Atomic Energy Agency. eds. S. R. Evett, L. K. Heng, P. Moutonnet, and M. L. Nguyen (Vienna, Austria: International Atomic Energy Agency), 23–24.
Fan, W., Bai, Z., Li, H., Qiao, J., and Xu, J. (2011). Effects of different vegetation restoration patterns and reclamation years on microbes in reclaimed soil. Trans. Chin. Soc. Agric. Eng. 27, 330–336.
Feng, Y., Wang, J. M., Bai, Z. K., and Reading, L. (2019). Effects of surface coal mining and land reclamation on soil properties: a review. Earth Sci. Rev. 191, 12–25. doi: 10.1016/j.earscirev.2019.02.015
Frouz, J., Elhottová, D., Pižl, V., Tajovský, K., Šourková, M., Picek, T., et al. (2007). The effect of litter quality and soil faunal composition on organic matter dynamics in postmining soil: a laboratory study. Appl. Soil Ecol. 37, 72–80. doi: 10.1016/j.apsoil.2007.04.001
Fu, Y., Lin, C. C., Ma, J. J., and Zhu, T. C. (2010). Effects of plant types on physico-chemical properties of reclaimed mining soil in Inner Mongolia, China. Chin. Geogr. Sci. 20, 309–317. doi: 10.1007/s11769-010-0403-7
Griffiths, R. I., Thomson, B. C., James, P., Bell, T., Bailey, M., and Whiteley, A. S. (2011). The bacterial biogeography of British soils. Environ. Microbiol. 13, 1642–1654. doi: 10.1111/j.1462-2920.2011.02480.x
Guo, A. N., Zhao, Z. Q., Zhang, P. F., Yang, Q., Li, Y. F., and Wang, G. Y. (2019). Linkage between soil nutrient and microbial characteristic in an opencast mine, China. Sci. Total Environ. 671, 905–913. doi: 10.1016/j.scitotenv.2019.03.065
Helingerova, M., Frouz, J., and Santruckova, H. (2010). Microbial activity in reclaimed and unreclaimed post-mining sites near Sokolov (Czech Republic). Ecol. Eng. 36, 768–776. doi: 10.1016/j.ecoleng.2010.01.007
Huang, D., and Liu, Q. S. (2013). Remote sensing monitoring and effect evaluation on ecological restoration of heidaigou coal mining area. In: International Conference on Remote Sensing, Environment and Transportation Engineering, RSETE 2013.
Hui, L., Ye, D. D., Wang, X. G., Settles, M. L., Wang, J., Hao, Z. Q., et al. (2014). Soil bacterial communities of different natural forest types in Northeast China. Plant and Soil 383, 203–216. doi: 10.1007/s11104-014-2165-y
Jesus, E. D. C., Marsh, T. L., Tiedje, J. M., and Moreira, F. M. D. S. (2009). Changes in land use alter the structure of bacterial communities in Western Amazon soils. ISME J. 3, 1004–1011. doi: 10.1038/ismej.2009.47
Jia, G. M., Cao, J., Wang, C., and Wang, G. (2005). Microbial biomass and nutrients in soil at the different stages of secondary forest succession in Ziwulin, Northwest China. For. Ecol. Manag. 217, 117–125. doi: 10.1016/j.foreco.2005.05.055
Josa, R., Jorba, M., and Vallejo, V. R. (2012). Opencast mine restoration in a Mediterranean semiarid environment: failure of some common practices. Ecol. Eng. 42, 183–191. doi: 10.1016/j.ecoleng.2012.02.020
Kaiser, H. F. (1960). The application of electronic computers to factor analysis. Educ. Psychol. Meas. 20, 141–151. doi: 10.1177/001316446002000116
Kaschuk, G., Alberton, O., and Hungria, M. (2010). Three decades of soil microbial biomass studies in Brazilian ecosystems: lessons learned about soil quality and indications for improving sustainability. Soil Biol. Biochem. 42, 1–13. doi: 10.1016/j.soilbio.2009.08.020
Li, S. Q., and Liber, K. (2018). Influence of different revegetation choices on plant community and soil development nine years after initial planting on a reclaimed coal gob pile in the Shanxi mining area, China. Sci. Total Environ. 618, 1314–1323. doi: 10.1016/j.scitotenv.2017.09.252
Li, J. J., Zhou, X. M., Yan, J. X., Li, H. J., and He, J. Z. (2015). Effects of regenerating vegetation on soil enzyme activity and microbial structure in reclaimed soils on a surface coal mine site. Appl. Soil Ecol. 87, 56–62. doi: 10.1016/j.apsoil.2014.11.010
Liang, W. J., Dong, Y. H., Li, Y. B., Zhang, X. K., Li, Q., and Wu, Z. J. (2021). Biological characterization and regulation of soil health. J. Appl. Ecol. 32, 719–728. doi: 10.13287/j.1001-9332.202102.041
Liu, X. Y., Bai, Z. K., Zhou, W., Cao, Y. G., and Zhang, G. J. (2019). Changes in soil properties in the soil profile after mining and reclamation in an opencast coal mine on the loess plateau, China. Ecol. Eng. 98, 228–239. doi: 10.1016/j.ecoleng.2016.10.078
Liu, S., Gao, Y. Y., Lang, H. L., Liu, Y., and Zhang, H. (2022a). Effects of conventional tillage and no-tillage systems on maize (Zea mays L.) growth and yield, soil structure, and water in loess plateau of China: field experiment and modeling studies. Land 11:1881. doi: 10.3390/land11111881
Liu, S., Yu, H., Yu, Y. H., Huang, J., Zhou, Z. Y., Zeng, J. X., et al. (2022b). Ecological stability of microbial communities in lake donghu regulated by keystone taxa. Ecol. Indic. 136:108695. doi: 10.1016/j.ecolind.2022.108695
Liu, X. Y., Zhou, W., and Bai, Z. K. (2016). Vegetation coverage change and stability in large open-pit coal mine dumps in China during 1990–2015. Ecol. Eng. 95, 447–451. doi: 10.1016/j.ecoleng.2016.06.051
McGeea, K. M., Eatonb, W. D., Portera, T. M., Shokralla, S., and Hajibabaei, M. (2019). Soil microbiomes associated with two dominant costa Rican tree species, and implications for remediation: a case study from a costa Rican conservation area. Appl. Soil Ecol. 137, 139–153. doi: 10.1016/j.apsoil.2019.02.007
Miyashita, N. T. (2015). Contrasting soil bacterial community structure between the phyla Acidobacteria and proteobacteria in tropical southeast asian and temperate japanese forests. Genes Genet. Syst. 90, 61–77. doi: 10.1266/ggs.90.61
Mukhopadhyay, S., George, J., and Masto, R. E. (2017). Changes in polycyclic aromatic hydrocarbons (PAHs) and soil biological parameters in a revegetated coal mine spoil. Land Degrad. Dev. 28, 1047–1055. doi: 10.1002/ldr.2593
Mukhopadhyay, S., Maiti, S. K., and Masto, R. E. (2014). Development of mine soil quality index (MSQI) for evaluation of reclamation success: a chronosequence study. Ecol. Eng. 71, 10–20. doi: 10.1016/j.ecoleng.2014.07.001
Nawaz, M. F., Bourrie, G., and Trolard, F. (2013). Soil compaction impact and modelling. A review. Agron. Sustain. Dev. 33, 291–309. doi: 10.1007/s13593-011-0071-8
Orgiazzi, A., Lumini, E., Nilsson, R. H., Girlanda, M., Vizzini, A., Bonfante, P., et al. (2012). Unravelling soil fungal communities from different Mediterranean land-use backgrounds. PLoS One 7:e34847. doi: 10.1371/journal.pone.0034847
Qiu, M. H., Zhang, R. F., Xue, C., Zhang, S. S., Li, S. Q., Zhang, N., et al. (2012). Application of bioorganic fertilizer can control fusarium wilt of cucumber plants by regulating microbial community of rhizosphere soil. Biol. Fertil. Soils 48, 807–816. doi: 10.1007/s00374-012-0675-4
Rowland, S. M., Prescott, C. E., Grayston, S. J., Quideau, S. A., and Bradfield, G. E. (2009). Recreating a functioning forest soil in reclaimed oil sands in northern Alberta: an approach for measuring success in ecological restoration. J. Environ. Qual. 38, 1580–1590. doi: 10.2134/jeq2008.0317
Schloss, P. D., Westcott, S. L., Ryabin, T., Hall, J. R., Hartmann, M., Hollister, E. B., et al. (2009). Introducing mothur: open-source, platform-independent, community-supported software for describing and comparing microbial communities. Appl. Environ. Microbiol. 75, 7537–7541. doi: 10.1128/AEM.01541-09
Shi, Y., Li, Y. T., Yang, T., and Chu, H. Y. (2021). Threshold effects of soil pH on microbial co-occurrence structure in acidic and alkaline arable lands. Sci. Total Environ. 800:149592. doi: 10.1016/j.scitotenv.2021.149592
Shrestha, R. K., and Lal, R. (2010). Carbon and nitrogen pools in reclaimed land under forest and pastureecosystems in Ohio, USA. Geoderma 157, 196–205. doi: 10.2134/jeq2007.0071
Shrestha, R. K., and Lal, R. (2011). Changes in physical and chemical properties of soil after surface mining and reclamation. Geoderma 161, 168–176. doi: 10.1016/j.geoderma.2010.12.015
Šnajdr, J., Dobiášová, P., Urbanová, M., Petránková, M., Cajthaml, T., Frouz, J., et al. (2013). Dominant trees affect microbial community composition and activity in post-mining afforested soils. Soil Biol. Biochem. 56, 105–115. doi: 10.1016/j.soilbio.2012.05.004
Toju, H., Kishida, O., Katayama, N., and Takagi, K. (2016). Networks depicting the fine-scale co-occurrences of fungi in soil horizons. PloS One 11:e0165987. doi: 10.1371/journal.pone.0165987
Tripathi, N., Singh, R. S., and Hills, C. D. (2016). Soil carbon development in rejuvenated Indian coal mine spoil. Ecol. Eng. 90, 482–490. doi: 10.1016/j.ecoleng.2016.01.019
Vesterdal, L., Elberling, B., Christiansen, J. R., Callesen, I., and Schmidt, I. K. (2012). Soil respiration and rates of soil carbon turnover differ among six common European tree species. Forest Ecol. Manag. 264, 185–196. doi: 10.1016/j.foreco.2011.10.009
Wander, M. M., and Bollero, G. A. (1999). Soil quality assessment of tillage impacts in illinois. Soil Sci. Soc. Am. J. 63, 61–971. doi: 10.2136/sssaj1999.634961x
Wang, J. M., Jiao, Z. Z., and Bai, Z. K. (2014). Changes in carbon sink value based on RS and GIS in the Heidaigou opencast coal mine. Environ. Earth Sci. 71, 863–871. doi: 10.1007/s12665-013-2488-7
Wang, Y. Z., Jiao, P. Y., Guo, W., Du, D. J., Hu, Y. L., Tan, X., et al. (2022). Changes in bulk and rhizosphere soil microbial diversity and composition along an age gradient of chinese fir (cunninghamia lanceolate) plantations in subtropical China. Front. Microbiol. 12:777862. doi: 10.3389/fmicb.2021.777862
Wang, X., Li, J. C., Yue, J. Y., Zhou, X. M., Guo, C. Y., Lu, N., et al. (2013). Comparison of soil fertility among open-pit mine reclaimed lands in Antaibao regenerated with different vegetation types. Environ. Sci. 34, 3601–3606.
Wu, L. P., Wang, Y. D., Zhang, S. R., Wei, W. L., Kuzyakov, Y., and Ding, X. D. (2021). Fertilization effects on microbial community composition and aggregate formation in saline‐alkaline soil. Plant Soil 463, 523–535. doi: 10.1007/s11104-021-04909-w
Xu, Y. W. (2012). Slope protection with vegetation for waste dump at Guangyue road in Shanghai. Adv. Ind. Civ. Eng. 594-597, 465–471. doi: 10.4028/www.scientific.net/AMR.594-597.465
Yang, R. X., and Wang, J. M. (2013). The change law of RMSs characteristics in grassland opencast coal mine dump of China. Adv Environ Technol 726-731, 4831–4837. doi: 10.4028/www.scientific.net/AMR.726-731.4831
Yu, Z. H., Liu, J. J., Li, Y. S., Jin, J., Liu, X. B., and Wang, G. H. (2018). Impact of land use, fertilization and seasonal variation on the abundance and diversity of nirS-type denitrifying bacterial communities in a Mollisol in Northeast China. Eur. J. Soil Biol. 85, 4–11. doi: 10.1016/j.ejsobi.2017.12.001
Zeng, X. H., Zhang, W. J., Cao, J. S., Liu, X. P., Shen, H. T., Zhao, X., et al. (2014). Changes in soil organic carbon, nitrogen, phosphorus, and bulk density after afforestation of the Beijing–Tianjin Sandstorm Source Control program in China. Catena 118, 186–194. doi: 10.1016/j.catena.2014.01.005
Zhang, L., Wang, J., Bai, Z., and Lv, C. (2015). Effects of vegetation on runoff and soil erosion on reclaimed land in an opencast coal-mine dump in a loess area. Catena 128, 44–53. doi: 10.1016/j.catena.2015.01.016
Zhang, Z. Y., Zhang, Q., Lu, T., Zhang, J. Y., Sun, L. W., Hu, B. L., et al. (2022). Residual chlorine disrupts the microbial communities and spreads antibiotic resistance in freshwater. J. Hazard. Mater. 423:127152. doi: 10.1016/j.jhazmat.2021.127152
Zhao, D., Hou, H. P., Liu, H. Y., Wang, C., Ding, Z. Y., and Xiong, J. T. (2023). Microbial community structure and predictive functional analysis in reclaimed soil with different vegetation types: the example of the Xiaoyi mine waste dump in Shanxi. Land 12:456. doi: 10.3390/land12020456
Zhao, Z., Shahrour, I., Bai, Z., Fan, W., Feng, L., and Li, H. (2013). Soils development in opencast coal mine spoils reclaimed for 1–13 years in the west-northern loess plateau of China. Eur. J. Soil Biol. 55, 40–46. doi: 10.1016/j.ejsobi.2012.08.006
Zhen, Q., Ma, W. M., Li, M. M., He, H. H., Zhang, X. C., Wang, Y., et al. (2015). Effects of vegetation and physicochemical properties on solute transport in reclaimed soil at an opencast coal mine site on the Loess Plateau, China. Catena 133, 403–411. doi: 10.1016/J.CATENA.2015.06.009
Zhou, W., Yang, K., Bai, Z. K., Cheng, H. X., and Liu, F. (2017). The development of topsoil properties under different reclaimed land uses in the Pingshuo opencast coalmine of loess plateau of China. Ecol. Eng. 100, 237–245. doi: 10.1016/j.ecoleng.2016.12.028
