Nine new species of black lichenicolous fungi from the genus Cladophialophora (Chaetothyriales) from two different climatic zones of China

Lichenicolous fungi are parasites of lichens. Many of these fungi are referred to as “black fungi”. A diversity of these black fungi include species that are pathogenic to humans and plants. A majority of black fungi reside in the phylum Ascomycota within the sub-classes Chaetothyriomycetidae and Dothideomycetidae. To explore the diversity of lichenicolous “black fungi” associated with lichens in China, we conducted several field surveys in the Inner Mongolia Autonomous Region and Yunnan Province between 2019 and 2020. We recovered 1,587 fungal isolates from the lichens collected during these surveys. During the preliminary identification of these isolates using the complete internal transcribed spacer (ITS), partial large subunit of nuclear ribosomal RNA gene (LSU), and small subunit of nuclear ribosomal RNA gene (SSU), we identified 15 fungal isolates from the genus Cladophialophora. However, these isolates had low sequence similarities with all known species from the genus. Therefore, we amplified additional gene regions, such as, translation elongation factor (TEF) and partial β-tubulin gene (TUB), and constructed a multi-gene phylogeny using maximum likelihood, maximum parsimony, and Bayesian inference. In our datasets, we included type sequences where available for all Cladophialophora species. Phylogenetic analyses revealed that none of the 15 isolates belonged to any of the previously described species in the genus. Therefore, using both morphological and molecular data, we classified these 15 isolates as nine new species within the genus Cladophialophora: C. flavoparmeliae, C. guttulate, C. heterodermiae, C. holosericea, C. lichenis, C. moniliformis, C. mongoliae, C. olivacea, and C. yunnanensis. The outcome from this study shows that lichens are an important refugia for black lichenicolous fungi, such as those from Chaetothyriales.

1. Introduction

“Black fungi” are characterized by dark-colored mycelia due to the buildup of melanin in their cell walls (Ametrano et al., 2019). This melanization of the cell wall allows them to colonize extreme habitats, such as rock surfaces and lichen thalli (Gostinčar et al., 2012). These groups of fungi can also have an assortment of thallus morphologies, such as yeast, pseudo-filamentous, and filamentous (Gostinčar et al., 2012). When co-cultured with compatible algae, several black fungi show an earlier stage of lichenization, such as the formation of lichen-like fungal plectenchyme (Brunauer et al., 2007; Muggia and Grube, 2018). A majority of black fungi reside in the phylum Ascomycota within the sub-classes Chaetothyriomycetidae and Dothideomycetidae (Harutyunyan et al., 2008). One such genus is Cladophialophora, from the order Chaetothyriales.

Cladophialophora is a genus of asexual dematiaceous (darkly pigmented) fungi. This genus of fungi is distinguished by branched or unbranched chains of conidia with hyaline conidial scars produced through blastic conidiogenesis (Sutton et al., 2009; Obase et al., 2016; Khan and Sohnle, 2019). Currently, Cladophialophora includes about 45 accepted species with diverse ecological habitats. Species of Cladophialophora has been isolated from an assortment of substrates, such as plants, soil, sports drinks, human, and lichens (Obase et al., 2016; Usui et al., 2016; Tang et al., 2017). At least 11 of them are human pathogens, with three being plant pathogens (Obase et al., 2016). Several species, including C. megalosporae, C. normandinae and C. parmeliae, were isolated from different lichen species, and were considered lichenicolous fungi (Harutyunyan et al., 2008; Diederich, 2010; Diederich et al., 2013, 2018).

Lichenicolous fungi usually reside within lichens as parasites, and many are broad-spectrum pathogens, saprotrophs, or commensals (Lawrey and Diederich, 2003; Diederich et al., 2018). So far, approximately 2000 obligatory lichenicolous species and over 60 facultative lichenicolous species have been identified (Diederich et al., 2018). These species are categorized into 10 classes, 55 orders, 115 families, and 397 genera (Diederich et al., 2018). Around 50 lichenicolous fungi have been reported from China. It is estimated that the number of lichenicolous fungal species can exceed over 425 in China (Hawksworth and Mariette, 2003; Kondratyuk et al., 2013, 2016a,b, 2017, 2020).

To explore the fungal diversity associated with lichens, we conducted several field surveys in two climatic zones of China, the Inner Mongolia Autonomous Region and Yunnan Province, between 2019 and 2020. During these surveys, we collected various species of lichens from these regions. We isolated an assortment of fungi from the medullary tissues of these lichens. Preliminary morphological and molecular identification of these fungi using the ITS gene region, we identified 15 isolates of black fungi. Further molecular and phylogenetic analyses revealed that these isolates belonged to the genus Cladophialophora, but did not represent any of the previously described species. Therefore, we classified these 15 isolates as nine new species within the genus Cladophialophora.

2. Materials and methods

2.1. Collections of lichens and isolations of fungi

A total of 128 lichen samples from nine species (Flavoparmelia caperata, Flavopunctelia flaventior, Heterodermia pseudospeciosa, Hypotrachyna sinuosa, Hypotrachyna vexans, Parmelia sp., Parmotrema reticulatu, Punctelia borreri, and Xanthoparmelia tinatina) were collected from Inner Mongolia Autonomous Region (44°14′2.86″ N, 118°41′35.92″ E) and Yunnan Province (25°43′18.44” N, 101°19′27.84″ E) of China from 2019 to 2020. Each lichen thallus was individually stored in paper bags at 4°C inside a cooler box and brought back to the laboratory for fungal isolations.

All lichen thalli were repeatedly rinsed with sterile denoised water and surface sterilized for 10 min under UV lamp. Using a Leica Zoom 2000 stereo microscope, the upper cortex of the thallus was scraped off and pieces of medullary tissues were rinsed in sterile deionized water. These tissue pieces were placed on potato dextrose agar (PDA, Qingdao Hope Bio-Technology Co., Ltd., China) amended with 0.05% streptomycin (Sangon Biotech (Shanghai) Co., Ltd., China).

All Petri plates were incubated at 25°C for 10 days in darkness. Mycelia emerging from medullary tissue pieces were sub-cultured onto fresh PDA plates. After that, pure cultures were obtained using single hyphal tip technique. All the ex-holotype cultures of new fungal species described in this study were deposited in the China General Microbiological Culture Collection Center (CGMCC), Beijing, China. The holotype specimens were deposited in the Institute of Microbiology (HMAS), Beijing, China (Accession numbers are listed in Table 1). The lichen thalli were deposited in the Collection of Shandong Normal University (SD).

TABLE 1

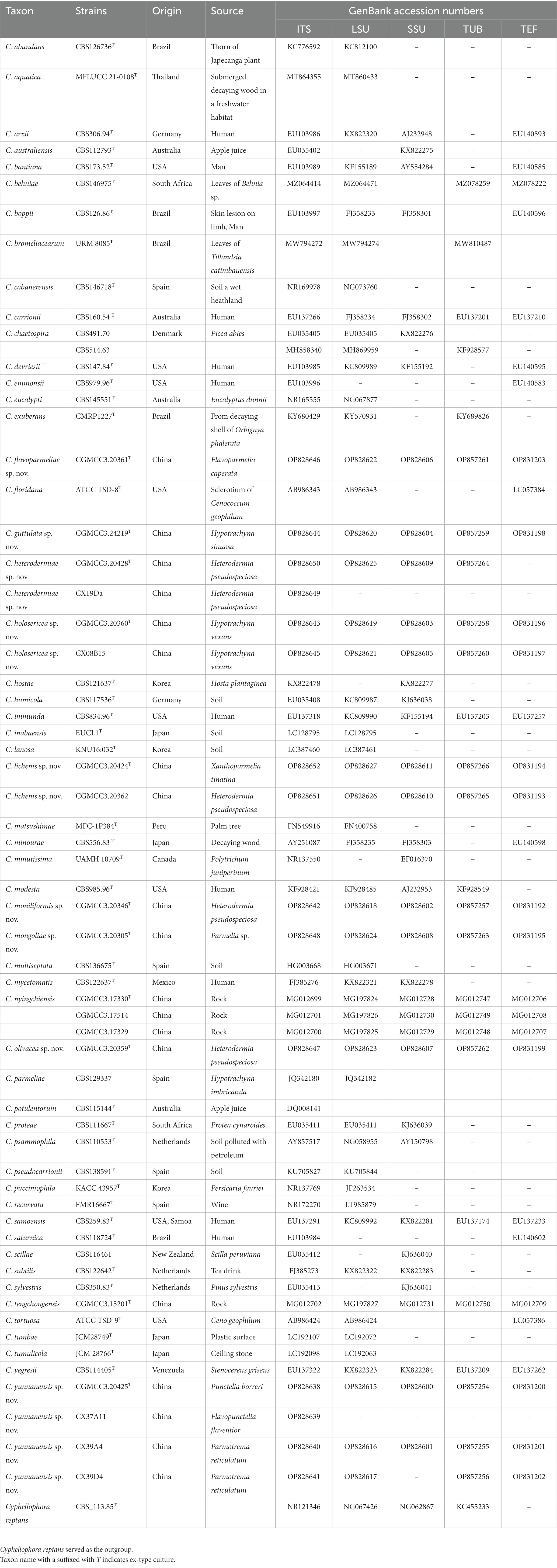

Table 1. List of Cladophialophora species used for phylogenetic study.

2.2. DNA extraction, PCR amplification, and sequencing

Genomic DNA from all fungal isolates were extracted using PrepMan Ultra Sample Preparation Reagent (Applied Biosystems, California, United States) or CTAB protocol (Zhang et al., 2010). The complete internal transcribed spacer (ITS), partial large subunit of nuclear ribosomal RNA gene (LSU), small subunit of nuclear ribosomal RNA gene (SSU), and translation elongation factor (TEF), and partial β-tubulin gene (TUB) were amplified using primers ITS1/ITS4 (White et al., 1990), LROR/LR5 (Vilgalys and Hester, 1990; White et al., 1990), NS1/NS4 (White et al., 1990; Zoller et al., 1999), EF-728F/EF-986R (Carbone and Kohn, 1999) or EF1-2218R (Groenewald et al., 2013), and T1/T2 (O'donnell and Cigelnik, 1997), respectively. Protein-coding genes were only amplified for fungal isolates representing potentially new species identified during the preliminary identification.

Each 25 μL PCR reaction included 1.0 μL DNA template, 1.0 μL each of forward and reverse primers, 12.5 μL of 2 × Taq polymerase mixture which included buffer, dNTPs, and DNA polymerase (Vazyme Biotech Co., Ltd., China), and 9.5 μL of PCR grade H₂O. The thermal cycler protocol was denaturation at 95°C for 5 min, followed by 30 cycles of 95°C for 30 s, annealing temperatures of 54°C (ITS), 54°C (LSU), 56°C (SSU), 56°C (TEF), 56°C (TUB) for 60 s, and 72°C for 90 s; final extension at 72°C for 10 min. All PCR amplification was conducted using a Bio-Rad T100™ Thermal Cycler. PCR products were visualized using agarose gel electrophoresis.

All PCR products were sequenced by the Sangon Bioengineering (Shanghai) Co., Ltd. The resulting sequences were assembled using Geneious v.10.2.2 (Biomatters, Auckland, New Zealand). Preliminary identification of the isolates was done using BLAST (Altschul et al., 1990). All sequences of novel fungal species obtained in this study were deposited in the NCBI Gene Bank (Table 1).

2.3. Phylogenetic analyses

For phylogenetic analyses, ex-type sequences of ITS, LSU, SSU, TUB, and TEF for all Cladophialophora species were retrieved from the NCBI GenBank if available. The final datasets included sequences generated in this study and those retrieved from GenBank. All the datasets were individually aligned using MAFFT v. 7 (Katoh and Standley, 2013) and manually adjusted using MEGA v. 10.2.0 (Kumar et al., 2018). Individual gene regions were phylogenetically analyzed using the method described below, followed by the compilation and analysis of a concatenated dataset.

Phylogenetic analyses of single gene and concatenated datasets were done using three approaches. These were maximum likelihood (ML), maximum parsimony (MP), and Bayesian inference (BI). Software for ML and BI analyses were accessed through the CIPRES Science Gateway v. 3.3¹ (Miller et al., 2011). The best evolution models of each dataset were estimated using jModelTest2 (Darriba et al., 2012). ML analyses were conducted using RAxML-HPC2 with GTR + GAMMA as the substitution model and 1,000 bootstrap replications (Stamatakis, 2014). MrBayes v. 3.2.7 (Ronquist et al., 2012) was used for the BI analyses with the best substitution model TIM1 + I + G for SSU, TIM2ef + I + G for ITS, TrN + I + G for LSU, TPM2uf + I + G for TUB, TrNef+G for TEF, and SYM + I + G for concatenated data set. Four MCMC chains were run from a random starting tree. Twenty million generations were run with trees sampled at every 100 generations, resulting in 200,000 trees. Tracer v. 1.7² was used to determine the chain convergence and the effective sample size values. We discarded a quarter of sampled trees (50,000) during burn-in. Posterior probabilities were calculated from the remaining trees. MEGA v. 10.2.0 (Kumar et al., 2018) was used to for the MP analyses with 1,000 bootstrap replicates, gaps were treated as a fifth state character. FigTree v. 1.4.3 was used to visualize and edit trees. All the datasets and trees were submitted to the TreeBase (Study ID 29976).

2.4. Morphology and culture characteristics

For morphological studies, all isolates of the new fungal species identified in this study were used. Colony morphologies of potentially new fungal species were described from 21-day-old cultures growing at 25°C on PDA. Micro-morphological structures of the isolates were visualized and photographed using a Leica DFC95 camera attached to a Leica DM6 microscope. ImageJ v. 1.53u³ was used for measuring taxonomically relevant features. At least 40 measurements were recorded for each morphological feature, and the statistics were presented as (minimum –) mean – standard deviation – mean + standard deviation (−maximum).

Twenty-one-day-old fungal isolates grown on PDA at 25°C were utilized for the growth study. Agar plugs measuring 5 mm in diameter were obtained from the culture and placed in 90 mm Petri dishes containing PDA. Three replicate plates were prepared for each fungal isolate, spanning temperatures from 5 to 35°C at 5°C intervals (± 0.5°C). Following a 28-day period, the colony diameters of each isolate were measured.

3. Results

3.1. Collections of lichens and isolations of fungi

A preliminary identification of 1,587 fungal isolates using ITS, LSU, and SSU sequences revealed that 15 isolates recovered from lichens were Cladophialophora species. Among these, five fungal isolates were recovered from Inner Mongolia Autonomous Region whereas ten from the Yunnan Province (Table 1). For a majority of the isolates, the ITS sequence had a similarity lower than 98% with all previously described Cladophialophora species. This suggested that among those isolates were some potentially unknown species.

3.2. Phylogenetic analyses

The topologies of the trees derived from the phylogenetic analyses of single gene and concatenated datasets were not identical due to unequal taxon sampling (Figure 1, Supplementary Figures S1−S5). Henceforth, we used the ML tree emerging from the analyses of concatenated dataset for delineation of Cladophialophora species recovered in this study (Figure 1). This concatenated data included 63 taxa (Table 1) and 3,199 characters, SSU 1–913, ITS 914–1,651, LSU 1652–2,487, TUB 2488–2,955, and TEF 2956–3,199. Bootstrap values ≥75% and posterior probability ≥0.90 were considered reliable (Figure 1, Supplementary Figures S1−S5).

FIGURE 1

Figure 1. Maximum likelihood tree of Cladophialophora species constructed using the concatenated dataset (ITS+LSU + SSU + TUB+TEF). Bootstrap support values ≥75% and posterior probabilities ≥0.90 are indicated above the nodes as ML/MP/PP, respectively. Isolates obtained in this study are in bold font. T = ex-type isolates.

In the concatenated tree, Cladophialophora isolates CGMCC3.20360, CX08B15, CGMCC3.20359, and CGMCC3.24219 formed a monophyletic lineage that emerged as the sister to a clade that included Cladophialophora tengchongensis and Taxon 4 (see below). Among these four isolates, the monophyly of CGMCC3.20360 and CX08B15 (Taxon 1) received significant statistical support (ML/MP/BI: 97/99/0.99; Figure 1). Isolate CGMCC3.20359 (Taxon 2) emerged as the sister taxon to Taxon 1 (Figure 1). CGMCC3.24219 (Taxon 3) was sister to the clade that included Taxon 1 and Taxon 2 (Figure 1). Even though the monophyly of these four isolates obtained considerable branch support in the concatenated tree, there was still a significant difference in the gene regions between the taxa (Figure 2).

FIGURE 2

Figure 2. The sequence variability between Cladophialophora holosericea, Cladophialophora olivacea and Cladophialophora guttulata.

Isolates CX19Da and CGMCC3.20428 (Taxon 4) emerged as the sister taxa to C. tengchongensis in concatenated tree (Figure 1). However, this relationship varied between the single gene trees (Supplementary Figures S1−S5). We were unable to amplify the TEF of the isolate CGMCC3.20428, as well as the SSU, LSU, TUB, and TEF of CX19Da. In ITS sequences, there were three base pairs differences between isolates of Taxon 4.

In the concatenated tree, four isolates of Taxon 5 (CGMCC3.20425, CX37A11, CX39A4, and CX39D4) emerged as a monophyletic lineage with significant branch support (ML/MP/BI: 100/100/1) and sister to a clade that included Taxon 1, 2, 3, 4, and C. tengchongensis (Figure 1). However, the latter relationship did not receive significant branch support. Hence, it varied between the single gene trees (Supplementary Figures S1, S2, S4). Additionally, between the isolates of Taxon 5, we detected some polymorphisms. There were a 16-bp differences in TUB between the pairs CX39A4/CGMCC3.20425 and CX39D4/CGMCC3.20425.

In the concatenated, ITS, and TEF trees, isolate CGMCC3.20305 (Taxon 6) emerged as sister to C. nyingchiensis (Figure 1, Supplementary Figures S1, S5). This relationship was statistically significant (ML/MP/BI: 91/−/0.97).

In the concatenated tree, isolates CGMCC3.20424 and CGMCC3.20362 (Taxon 7) formed a monophyletic clade with high statistical support values (ML/MP/BI: 100/100/1) and emerged as the sister to C. multiseptata with moderate statistical support (ML/MP/BI: 75/−/1; Figure 1). However, this relationship was inconsistent across the single gene trees (Supplementary Figures S1−S5). We also identified some polymorphism between the isolates CGMCC3.20424 and CGMCC3.20362 (ITS 6, SSU 1, TEF 3, TUB 1).

In the concatenated tree, CGMCC3.20361 (Taxon 8) did not group with any known species of Cladophialophora (Figure 1). This relationship was echoed in the LSU, SSU, and TEF trees (Supplementary Figures S2, S3, S5), but in the ITS and TUB trees, Taxon 8 formed a monophyletic clade with C. bromeliacearum (Supplementary Figures S1, S4). None of these relationships received significant branch support.

CGMCC3.20346 (Taxon 9) emerged as a sister taxon to C. potulentorum and C. australiensis in concatenated tree (Figure 1). However, this relationship was inconsistent across the single gene trees (Supplementary Figures S1−S5).

3.3. Taxonomy

Taxon 1

Cladophialophora holosericea H.L. Si, R.L. Chang, T. Bose and X.X. Zheng, sp. nov.

Figures 3A−D.

FIGURE 3

Figure 3. Morphology of Cladophialophora holosericea sp. nov. (HMAS 350277) (A) 21-day-old culture on a PDA; (B) straight and curved hyphae; (C,D) lateral conidial chains emerging from hyphae; Cladophialophora olivacea sp. nov. (HMAS 350273) (E) 21-day-old culture on a PDA; (F) bi-guttulate hyphae; (G) lateral conidial initial on hyphae; (H) chain of terminal conidia; Cladophialophora guttulata sp. nov. (HMAS 352295) (I) 21-day-old culture on a PDA; (J) branched multi-guttulate hyphae; (K) lateral conidia; (L) conidial chains; Cladophialophora heterodermiae sp. nov. (HMAS 350278) (M) 21-day-old culture on a PDA; (N) hyphae; (O,P) conidial chain; Cladophialophora yunnanensis sp. nov. (HMAS 350288) (Q) 21-day-old culture on a PDA; (R) hyphae; (S) conidial chains; (T) germinating conidia. Scale bars = 10 μm.

MycoBank no.: MB 846410.

Etymology: The name refers to the velutinous colony morphology of this fungus on PDA medium.

Diagnosis: Circinate hyphae and the smallest conidial dimension distinguish C. holosericea from the closely related species.

Type: China: Yunnan Province, Chuxiong Yi Autonomous Prefecture, Chuxiong city, Dayao county (26°32′71.54” N, 100°57′3.6″ E), isolated from the medullary tissue of the lichen Hypotrachyna vexans (SDCX08), 13 Nov. 2020, H. L. Si, CX08B1 = CGMCC3.20360 (The ex-holotype culture), dried culture HMAS 350277 (holotype specimen), GenBank Accession Numbers: ITS OP828643; LSU OP828619; SSU OP828603; TUB OP857258; and TEF OP831196.

Description: Hyphae gray, smooth, straight, circinate at the tip, branched, septate, constricted at the septa, compartments cylindrical, usually 2–4 guttulate, measuring 1.1–3.1 μm in diam (Figure 3B). Conidiogenous cell compartments cylindrical, usually 2–4 guttulate, measuring (2.9 −)5.3–8.6(− 9.4) × (1.1 −)1.5–2.2(− 3.1) μm. Conidia hyaline, surface smooth, lateral in position, usually oval to oblong in shape, sometimes spherical, in short chains of 2–9, measuring (2.3 −)3.0–5.1(− 6.5) × (1.3 −)1.5–3.3(− 3.5) μm (Figures 3C,D). Chlamydospores absent. Yeast-like cells absent. Sexual morph unknown.

Culture characteristics: The colony morphology on the PDA after 21 days was compact, dark gray in the center with a dark olivaceous gray margin, surface velutinous, convex, and margin entire (Figure 3A). The colony grows slowly on PDA medium, reaching 17 mm in diameter after 4 weeks at 25°C. The optimal growth temperature is 25°C. No growth was observed at 5, 30, and 35°C.

Habitat: Each isolate of this fungus was recovered from two separate thalli of the lichen H. vexans collected in Yunnan Province of China.

Note: Cladophialophora holosericea is phylogenetically close to C. olivacea and C. guttulata. However, these three species have substantial differences in their colony, hyphal and conidial morphologies (Table 2). For example, compared to C. olivacea and C. guttulata, C. holosericea has circinate hyphae and smallest conidial dimension (Table 2). Additionally, there is a significant variation in the SSU, ITS, LSU, TUB, and TEF gene sequences between these three species. There was a total of 24 bps differences between C. holosericea and C. olivacea, 40 bps between C. holosericea and C. guttulata, and 53 bps between C. olivacea and C. guttulata (Figure 2).

TABLE 2

Table 2. Comparison of biological characteristics between five species of Cladophialophora recovered from the present study and Cladophialophora tengchongensis.

Additional specimen examined: China: Yunnan Province, Chuxiong Yi Autonomous Prefecture, Chuxiong city, Dayao county (26°32′71.54” N, 100°57′3.6″ E), isolated from the medullary tissue of the lichen Hypotrachyna vexans (SDCX08), 13 Nov. 2020, H. L. Si, CX08B15.

Taxon 2

Cladophialophora olivacea H.L. Si, R.L. Chang, T. Bose and X.X. Zheng, sp. nov.

Figures 3E–H.

MycoBank no.: MB 846411.

Etymology: The name refers to the olive-green colony color of this fungus on PDA medium.

Diagnosis: Cladophialophora olivacea can be distinguished from other closely related species by its colony color and conidial dimensions.

Type: China: Yunnan Province, Chuxiong Yi Autonomous Prefecture, Chuxiong city, Dayao county (26°32′71.54” N, 100°57′3.6″ E), isolated from the medullary tissue of the lichen Heterodermia pseudospeciosa (SDCX19), 20 Nov. 2020, H. L. Si, CX19Dc = CGMCC3.20359 (The ex-holotype culture), dried culture HMAS 350273 (holotype specimen). GenBank Accession Numbers: ITS OP828647; LSU OP828623; SSU OP828607; TUB OP857262; and TEF OP831199.

Description: Hyphae hyaline, smooth, branched, septate, often constricted at the septa, compartments cylindrical, usually bi-guttulate, measuring 1.0–4.5 μm in diam (Figure 3F). Conidiogenous cell compartments cylindrical, usually bi-guttulate, measuring (2.8 −)4.7–9.0(− 10.5) × (1.0 −)1.4–1.8(− 2.1) μm. Conidia terminal or lateral in position, hyaline, surface smooth, one-celled, oblong in shape, moniliform, measuring (2.6 −)3.9–6.4(− 8.5) × (0.9 −)1.2–2.0(− 2.1) μm (Figures 3G,H). Chlamydospores absent. Yeast-like cells absent. Sexual morph unknown.

Culture characteristics: The colony morphology on the PDA after 21 days was compact, dark olive green in color, convex, surface villose, and margin entire (Figure 3E). The colony grows slowly on PDA medium, reaching 15 mm in diameter after four weeks at 25°C. The optimal growth temperature is 25°C. No growth was observed at 5, 30, and 35°C.

Habitat: A single isolate of this fungus was recovered from Heterodermia pseudospeciosa collected in Yunnan Province of China.

Note: Cladophialophora olivacea has several morphological and genetic differences with C. holosericea and C. guttulata (Table 2; Figure 2). This species has a distinct, dark olive-green colony, and the conidial size is larger than that of C. holosericea but smaller than that of C. guttulata (Table 2).

Taxon 3

Cladophialophora guttulata H.L. Si, T. Bose and R.L Chang, sp. nov.

Figures 3I–L.

MycoBank no.: MB 846412.

Etymology: The name refers to the abundance of guttulae in each hyphal compartment.

Diagnosis: The abundance of oil bodies (guttules) in the hyphal compartment of C. guttulata distinguishes it from other closely related species.

Type: China: Yunnan Province, Chuxiong Yi Autonomous Prefecture, Chuxiong city, Dayao county (26°32′71.54” N, 100°57′3.6″ E), isolated from Hypotrachyna sinuosa (SDCX104), 13 Nov. 2020, H. L. Si, CX104B2 = CGMCC3.24219 (The ex-holotype culture), dried culture HMAS 352295 (holotype specimen), GenBank Accession Numbers: ITS OP828644; LSU OP828620; SSU OP828604; TUB OP857259; and TEF OP831198.

Description: Hyphae light brown, smooth, septate, branched, compartments cylindrical, slightly doliform, 3–9 guttulate, measuring 1.6–3.7 μm in diam, (Figure 3J). Conidiogenous cell compartments cylindrical, 3–9 guttulate, measuring (2.3 −)6.5–12.6(− 13.6) × (1.6 −)2.0–2.8(− 2.8) μm. Conidia one-celled, or forming short chains of 2–4 cells, hyaline, surface smooth, shape oblong, clavate to oval in shape, usually 3–6 guttulate, measuring (3.3 −)5.5–8.9(− 10.6) × (2.0 −)2.4–2.9(− 3.1) μm (Figures 3K,L). Chlamydospores absent. Yeast-like cells absent. Sexual morph unknown.

Culture characteristics: The colony morphology on the PDA after 21 days was compact, off-white in color, with thin dark entire margin, convex, surface villose, dark striation extending from the colony margin toward the center (Figure 3I). The colony grows slowly on PDA, reaching 11 mm in diam after 4 weeks at 25°C. The optimal growth temperature is 25°C. No growth was observed at 5, 30, and 35°C.

Habitat: The isolates of this fungus was recovered from Hypotrachyna sinuosa collected in Yunnan Province of China.

Note: Cladophialophora guttulata is distinguished from C. holosericea and C. olivacea by its distinctive colony morphology and abundance of oil bodies (guttules) in hyphal compartments and conidia (Table 2, Figure 2).

Taxon 4

Cladophialophora heterodermiae H.L. Si, R.L. Chang, T. Bose and X.X. Zheng, sp. nov.

Figures 3M–P.

MycoBank no.: MB 846413.

Etymology: The name refers to its lichen host Heterodermia pseudospeciosa from which a single isolate of this fungus was recovered.

Diagnosis: Cladophialophora heterodermiae differs from its closely related species, C. tengchongensis, in regards to growth rates and colony morphology.

Type: China: Yunnan Province, Chuxiong Yi Autonomous Prefecture, Chuxiong city, Dayao county (26°32′71.54” N, 100°57′3.6″ E), isolated from the medullary tissue of Heterodermia pseudospeciosa (SDCX19), 20 Nov. 2020, H. L. Si, CX19Dd = CGMCC3.20428 (ex-holotype culture), dried culture HMAS 350278 (holotype specimen). GenBank Accession Numbers: ITS OP828650; LSU OP828625; SSU OP828609; and TUB OP857264.

Description: Hyphae septate, smooth, brown to hyaline in color, branched, compartments cylindrical, 2–4 guttulate, slightly constricted at the septa, measuring 0.8–2.2 μm in diam (Figure 3N). Conidiogenous cell compartments cylindrical, 2–4 guttulate, measuring (3.4 −)3.9–6.4(− 7.4) × (1.2 −)1.4–1.8(− 1.9) μm. Conidia are apical or lateral in position, surface smooth, oval to slightly curved in shape, hyaline or brown in color, forming short (2–3 cells) to long (5–8 celled) chain, occasionally branched chains, measuring (2.0 −)3.0–5.7(− 8.1) × (1.1 −)1.2–3.5(− 4.2) μm (Figures 3O,P). Chlamydospores absent. Yeast-like cells absent. Sexual morph unknown.

Culture characteristics: The colony morphology on the PDA after 21 days was compact, smoky gray in color, with a dark-gray wide entire margin, surface villose, with distinct striation, light brown diffusible pigment around the colony (Figure 3M). Colony grows slowly on PDA, reaching 9 mm in diam after four weeks at 25°C. The optimal growth temperature is 25°C. No growth was observed at 5, 30, and 35°C.

Habitat: The isolate of this fungus was recovered from Heterodermia pseudospeciosa collected in Yunnan Province of China.

Note: Cladophialophora heterodermiae is phylogenetically close to C. tengchongensis. However, these two species have substantial differences in growth rate and colony morphology, septal diameter, conidial morphology, and dimensions (Sun et al., 2020). These two species also have some differences between the ITS, LSU, and TUB gene regions: 36–40 bps in ITS, 10 bps in LSU, and 63 bps in TUB.

Additional specimen examined: China: Yunnan Province, Chuxiong Yi Autonomous Prefecture, Chuxiong city, Dayao county (26°32′71.54” N, 100°57′3.6″ E), isolated from Heterodermia pseudospeciosa (SDCX08), 05 Dec. 2020, H. L. Si, CX19Da.

Taxon 5

Cladophialophora yunnanensis H.L. Si, R.L. Chang, T. Bose and X.X. Zheng, sp. nov.

Figures 3Q–T.

MycoBank no.: MB 846414.

Etymology: The name of this fungus refers to Yunnan Province of China.

Diagnosis: Cladophialophora yunnanensis differs from closely related species in terms of colony morphology, hyphal morphology, and conidial shape and size.

Type: China: Yunnan Province, Chuxiong Yi Autonomous Prefecture, Chuxiong city, Dayao county (26°32′71.54” N, 100°57′3.6″ E), isolated from the medullary tissue of the lichen Punctelia borreri (SDCX37), 05 Dec. 2020, H. L. Si, CX37A10 = CGMCC3.20425 (The ex-holotype culture), dried culture HMAS 350288 (holotype specimen). GenBank Accession Numbers: ITS OP828638; LSU OP828615; SSU OP828600; TUB OP857254; and TEF OP831200.

Description: Hyphae branched, septate, light brown, composed by cylindrical to elongate cells, 2–4 guttulate, constricted at the septa, measuring 1.0–2.3 μm in diam (Figure 3R). Conidiogenous cell cylindrical, 2–4 guttulate, measuring (5.0 −)5.3–9.1(− 12.7) × (1.6 −)1.8–2.4(− 2.8) μm. Conidia one-celled or in short chain of 2–3 cells, lateral or terminal in position, ellipsoid to round in shape, usually 2–3 guttulate, surface smooth, aseptate, measuring (2.4 –)3.4–6.6(− 9.6) × (0.9 −)1.1–3.5(− 4.1) μm (Figures 3S,T). Chlamydospores absent. Yeast-like cells absent. Sexual morph unknown.

Culture characteristics: The colony morphology on the PDA after 21 days was compact, dark gray in color, margin entire, slightly raised in the center, and surface smooth (Figure 3Q). The colony grows slowly on PDA, reaching 10 mm in diam after four weeks at 25°C. The optimal growth temperature is 25°C. No growth was observed at 5, 30, and 35°C.

Habitat: Associated with three species of lichen, Flavopunctelia flaventior, Punctelia borreri, and Parmotrema reticulatum, in the Yunnan Province of China.

Note: Cladophialophora yunnanensisis sister to the clade that includes C. holosericea, C. olivacea, C. guttulata, C. heterodermiae, and C. tengchongensis. The colony morphology, hyphal morphology, and conidial shape and size of this species are distinct from those of its sister species (Table 2).

Additional specimens examined: China: Yunnan Province, Chuxiong Yi Autonomous Prefecture, Chuxiong city, Dayao county (26°32′71.54” N, 100°57′3.6″ E), isolated from Flavopunctelia flaventior (SDCX371), 05 Dec. 2020, H. L. Si, CX37A11; China: Yunnan Province, Chuxiong Yi Autonomous Prefecture, Chuxiong city, Dayao county (26°32′71.54” N, 100°57′3.6″ E), isolated from Parmotrema reticulatum (SDCX39), 05 Dec. 2020, H. L. Si, CX39A4; China: Yunnan Province, Chuxiong Yi Autonomous Prefecture, Chuxiong city, Dayao county (26°32′71.54” N, 100°57′3.6″ E), isolated from Parmotrema reticulatum (SDCX39), 05 Dec. 2020, H. L. Si, CX39D4.

Taxon 6

Cladophialophora mongoliae H.L. Si, T. Bose and R.L. Chang, sp. nov.

Figures 4A–D.

FIGURE 4

Figure 4. Morphology of Cladophialophora mongoliae sp. nov. (HMAS 350287) (A) 21-day-old culture on a PDA; (B), branched hyphae, (C) lateral conidial initial on hyphae; (D) conidial chains; Cladophialophora lichenis sp. nov. (HMAS 350280) (E) 21-day-old culture on a PDA; (F) branched hyphae; (G) lateral chain of conidia; (H) apical conidial chains; Cladophialophora flavoparmeliae sp. nov. (HMAS 350291) (J) branched hyphae; (K,L) apical and lateral chain of conidia; Cladophialophora moniliformis (HMAS 350276) (M) 21-day-old culture on a PDA; (N) branched hyphae; (O) moniliform branched conidia chains; (P) lateral chain of conidia emerging from hyphae. Scale bars = 10 μm.

MycoBank no.: MB 846415.

Etymology: The name refers to the Inner Mongolia Autonomous Region of China, where the fungus was isolated.

Diagnosis: Cladophialophora mongoliae differs from C. nyingchiensis morphologically by having smaller conidia.

Type: China: Inner Mongolia Autonomous Region, Chifeng city, Balin Right Banner, Mt. Qingyangcheng (44°14′2.86″ N, 118°41′35.92″ E), isolated from the medullary tissue of Parmelia sp. (SDNM423), 7 Jul. 2019, H. L. Si, 423c = CGMCC3.20305 (The ex-holotype culture), dried culture HMAS 350287 (holotype specimen). GenBank Accession Numbers: ITS OP828648; LSU OP828624; SSU OP828608; TUB OP857263; and TEF OP831195.

Description: Hyphae brown, smooth, straight or minutely curved, branched, septate, constricted at the septa, compartments cylindrical, usually 2–4 guttulate, measuring 1.1–1.9 μm in diam (Figures 4B,C). Conidiogenous cell compartments cylindrical, 2–4 guttulate, measuring (4.8 −)5.3–8.6(− 9.5) × (1.1 −)1.5–1.6(− 1.9) μm. Conidia hyaline, surface smooth, lateral in position emerging from undifferentiated hyphae, usually oval to elliptic to cylindrical in shape, usually 2–3 guttulate, one-celled or in short chains of 2–4 cells, measuring (3.9 −)4.8–6.4(− 6.8) × (1.2 −)1.3–1.7(− 2.0) μm (Figures 4C,D). Chlamydospores absent. Yeast-like cells absent. Sexual morph unknown.

Culture characteristics: The colony morphology on the PDA after 21 days was compact, gray to dark gray in color with distinct black entire margin center convex (Figure 4A). The colony grows slowly on PDA medium, reaching 15 mm in diam after four weeks at 25°C. The optimal growth temperature is 25°C. No growth was observed at 5 and 35°C.

Habitat: Medullary tissue of the lichen of Parmelia sp. collected from Inner Mongolia Autonomous Region.

Note: In our phylogenetic analyses, C. mongoliae emerged as the sister species to C. nyingchiensis (Figure 1). This relationship was supported by a significant statistical value. Simultaneously, C. mongoliae also has a substantial morphological difference with C. nyingchiensis. For example, the average dimension of the conidium, C. mongoliae (4.8–6.4 × 1.3–1.7 μm), C. nyingchiensis (6.5–22.1 × 1.3–3.2 μm) (Sun et al., 2020).

Taxon 7

Cladophialophora lichenis H.L. Si, R.L. Chang, T. Bose and X.X. Zheng, sp. nov.

Figures 4E–H.

MycoBank no.: MB 846416.

Etymology: The name refers to lichen, from which this fungus was isolated.

Diagnosis: Cladophialophora lichenis can be distinguished from its closely related species, C. multiseptata, by the presence of aseptate conidia.

Type: China: Inner Mongolia Autonomous Region, Chifeng city, Balin Right Banner, Mt. Qingyangcheng (44°14′2.86″ N, 118°41′35.92″ E), isolated from the medullary tissue of Xanthoparmelia tinatina (SDNM420), 7 Jul. 2019, H. L. Si, 420 = CGMCC3.20424 (The ex-holotype culture), dried culture HMAS 350280 (holotype specimen). GenBank Accession Numbers: ITS OP828652; LSU OP828627; SSU OP828611; TUB OP857266; and TEF OP831194.

Description: Hyphae hyaline to brown in color, smooth, straight or minutely curved, branched, septate, constricted at the septa, compartments cylindrical, usually 2–6 guttulate (if more usually guttules smaller in size), measuring 0.9–2.7 μm in diam (Figure 4F). Conidiogenous cell compartments cylindrical, 2–6 guttulate, measuring (6.5 −)6.8–11.0(− 13.2) × (1.5 −)1.8–2.5(− 2.7) μm. Conidia brown in color, surface smooth, lateral in position emerging from undifferentiated hyphae, usually oval to spherical in shape, guttulate, one-celled or in short chains of 2–4 cells, branched, measuring (1.4 −)2.1–6.7(− 9.4) × (2.3 −)2.6–4.4(− 6.2) μm (Figures 4G,H). Chlamydospores absent. Yeast-like cells absent. Sexual morph unknown.

Culture characteristics: The colony morphology on the PDA after 21 days was compact, dark pinkish brown in color with a prominent brown irregular margin, surface villose with distinct protuberances in the center (Figure 4E). The colony grows slowly on PDA medium, reaching 16 mm in diam after four weeks at 25°C. The optimal growth temperature is 25°C. No growth was observed at 5 and 35°C.

Habitat: Medullary tissue of the lichens Xanthoparmelia tinatina and Heterodermia pseudospeciosa collected from Inner Mongolia Autonomous Region of China.

Note: In our phylogenetic analyses, C. lichenis emerged as the sister species to C. multiseptata (Figure 1). However, this relationship did not receive significant statistical support. Besides this, C. lichenis and C. multiseptata have substantial morphological differences. The conidia of C. lichenis are aseptate, whereas those of C. multiseptata are asepate or uniseptate (Crous et al., 2013). The average conidial size of C. lichenis (2.1–6.7 × 2.6–4.4 μm) is smaller than that of C. multiseptata (4.5–18 × 3–5 μm) (Crous et al., 2013).

Additional specimen examined: China: Inner Mongolia Autonomous Region, Chifeng city, Balin Right Banner, Mt. Qingyangcheng (44°14′2.86″ N, 118°41′35.92″ E), isolated from Heterodermia pseudospeciosa (SDNM418), 7 Jul. 2019, H. L. Si, 418Z = CGMCC3.20362 (The ex-paratype culture), dried culture HMAS 350274 (paratype specimen).

Taxon 8

Cladophialophora flavoparmeliae H.L. Si, R.L. Chang, T. Bose and X.X. Zheng, sp. nov.

Figures 4I–L.

MycoBank no.: MB 846417.

Etymology: The name refers to the host lichen species, Flavoparmelia caperata, from which a single isolate of this fungus was isolated.

Diagnosis: Cladophialophora flavoparmeliae has a slow growth rate on PDA, and the colony is dark gray in color.

Type: China: Inner Mongolia Autonomous Region, Chifeng city, Balin Right Banner, Mt. Qingyangcheng (44°14′2.86″ N, 118°41′35.92″ E), isolated from medullary tissue of Flavoparmelia caperata (SDNM51), 7 Jul. 2019, H. L. Si, y0051 = CGMCC3.20361 (The ex-holotype culture), dried culture HMAS 350291 (holotype specimen). GenBank Accession Numbers: ITS OP828646; LSU OP828622; SSU OP828606; TUB OP857261; and TEF OP831203.

Description: Hyphae light gray, smooth, straight or slightly curved, branched, septate, constricted at the septa, compartments cylindrical, usually 1–7 guttulate, measuring 1.1–3.1 μm in diam (Figure 4J). Conidiogenous cell compartments cylindrical, 1–7 guttulate, measuring (2.8 −)3.9–8.3(− 9.2) × (1.1 −)1.7–2.0(− 3.1) μm. Conidia hyaline, surface smooth, terminal or lateral in position, usually oval to spherical in shape, one-celled or in short chains of 2–9 cells, often branched, measuring (1.3−)1.6–2.7(− 3.1) × (2.5 −)2.5–4.8(− 6.2) μm (Figures 4K,L). Chlamydospores absent. Yeast-like cells absent. Sexual morph unknown.

Culture characteristics: The colony morphology on the PDA after 21 days was compact, dark gray in color, lobbed, with dark gray margin, striation emerging from the fissures extending to the center of the colony, surface villose, flat (Figure 4I). The colony grows slowly on PDA medium, reaching 15.5 mm in diam after four weeks at 25°C. The optimal growth temperature is 25°C. No growth was observed at 5, 30, and 35°C.

Habitat: A single isolate of this fungus was recovered from the medullary tissue of Flavoparmelia caperata collected in the Inner Mongolia Autonomous Region of China.

Note: Cladophialophora flavoparmeliae emerged as the basal diverging species of a clade that includes Taxon 1–7 described in this study along with many previously described species.

Taxon 9

Cladophialophora moniliformis H.L. Si, R.L. Chang, T. Bose and X.X. Zheng sp. nov.

Figures 4M–P.

MycoBank no.: MB 846418.

Etymology: The name refers to the hyphae of this species that looks like a string of beads.

Diagnosis: Cladophialophora moniliformis is distinguished from closely related species by the production of ovate to spherical conidia.

Type: China: Inner Mongolia Autonomous Region, Chifeng city, Balin Right Banner, Mt. Qingyangcheng (44°14′2.86″ N, 118°41′35.92″ E), isolated from the medullary tissue of Heterodermia pseudospeciosa (SDNM418), 7 Jul. 2019, H. L. Si, 4181C = CGMCC3.20346 (The ex-holotype culture), dried culture HMAS 350276 (holotype specimen). GenBank Accession Numbers: ITS OP828642; LSU OP828618; SSU OP828602; TUB OP857257; and TEF OP831192.

Description: Hyphae hyaline to pale brown, smooth, straight, branched, septate, slightly constricted at the septa, compartments cylindrical, usually 0–2 guttulate, measuring 1.2–3.9 μm in diam (Figure 4N). Conidiogenous cell compartments cylindrical, 0–2 guttulate, measuring (2.5 −)2.9–8.5(− 12.4) × (1.2 −)2.0–2.2(− 2.5) μm. Conidia hyaline to light brown in color, smooth, thin-walled, lateral in position, usually globose to elliptic in shape, sometimes spherical, solitary or in short chains of 2–5 cells, branched, measuring (3.3 −)4.8–7.8(− 8.6) × (3.2 −)4.1–6.8(− 8.9) μm (Figures 4O,P). Chlamydospores absent. Yeast-like cells absent. Sexual morph unknown.

Culture characteristics: The colony morphology on the PDA after 21 days was compact, smoky gray in color with a diffusing dark gray margin, glossy around the margin, surface velutinous, flat, and margin entire with faint striations (Figure 4M). The colony grows slowly on PDA medium, reaching 27.5 mm in diam after four weeks at 25°C. The optimal growth temperature is 25°C. No growth was observed at 5, and 35°C.

Habitat: A isolate of this fungus was recovered from the medullary tissue of Heterodermia pseudospeciosa collected in the Inner Mongolia Autonomous Region of China.

Note: Cladophialophora moniliformis emerged as the sister taxon to a clade that includes C. potulentorum and C. australiensis with insignificant statistical support. Cladophialophora moniliformis also has substantial morphological differences with these two species. For example, the conidia of C. moniliformis are ovate to spherical in shape, whereas those of C. potulentorum and C. australiensis are ellipsoid (Crous et al., 2007). The conidia size of C. moniliformis is smaller than those of C. potulentorum and C. australiensis which is (6 −)8–10(− 13) × 2–3 μm and (7 −)8–12(− 15) × 3–4 μm, respectively.

4. Discussion

In this study, 15 Cladophialophora isolates were recovered from nine lichen species collected from Yunnan Province and the Inner Mongolia Autonomous Region of China. Analyses of morphological characteristics and molecular data using phylogenetic approaches revealed that these 15 isolates belonged to nine novel species from the genus. Consequently, these species were classified as C. flavoparmeliae, C. guttulate, C. heterodermiae, C. holosericea, C. lichenis, C. moniliformis, C. mongoliae, C. olivacea, and C. yunnanensis.

The phylogenetic analyses in this study were carried out using five gene regions, namely ITS, SSU, LSU, TUB, and TEF. For the majority of previously identified Cladophialophora species, only sequences for ITS and LSU are available. Sequences of SSU, TUB, and TEF were available for 23, 8, and 15 species, respectively. This is why the tree topologies of the single-gene and the concatenated datasets differed substantially. During the phylogenetic analyses, we also realized that ITS and LSU were sufficient for discriminating a majority of Cladophialophora species. This is most likely why several newly described species, such as C. aquatica (Boonmee et al., 2021), C. cabanerensis (Crous et al., 2020), and C. tumbae (Kiyuna et al., 2018), were based on these two gene regions. However, it was challenging for us to discriminate closely related species, such as C. holosericea, C. olivacea, and C. guttulate, without using sequences from protein-coding gene regions. For example, the ITS sequence was insufficient for distinguishing C. olivacea from C. holosericea. Similarly, LSU alone was unable to differentiate between C. olivacea and C. guttulate. TEF, on the other hand, was able to differentiate all three species. In the future, considering to amplify protein-coding gene regions, such as TEF and TUB, in addition to ITS and LSU would positively influence the taxonomy of Cladophialophora.

In the phylogeny, 46 species of Cladophialophora with available DNA sequences in GenBank were included. However, in the MycoBank, there are currently 54 species listed under this genus. Among the species excluded from this study, C. brevicatenata [MB 412793], C. hachijoensis [MB 412796], and C. kellermaniana [MB 412797], have been reclassified as Tyrannosorus hanlinianus (Shen et al., 2020), Pseudocladosporium hachijoense (Braun, 1998), and Alternaria malorum (Braun et al., 2003), respectively. We compared the micro-morphological characteristics of C. cladoniae [MB 800397], C. hawksworthii [MB 800398], C. megalosporae [MB 800399], and C. normandinae [MB 800400] with those of our nine species. These four Cladophialophora species have conidiomata (Diederich et al., 2013), a characteristic that was absent from our species. However, we were unable to compare the morphology of C. bennettii [MB 491905] to our species due to the unavailability of publication information for this species in any of the recognized databases, such as MycoBank and Index Fungorum. This evidence shows that all nine new species identified in this study were previously undocumented.

The species of Cladophialophora formed three distinct clades in the phylogenetic tree constructed using the concatenated dataset. Among these, C. hostae, C. scillae, and C. behniae formed the basal clade. Based on some previous studies, the phylogenetic position of this clade within Cladophialophora is controversial because these species might represent a new family (Gueidan et al., 2014; Quan et al., 2020). Similarly, the clade that included C. proteae, C. eucalypti, C. pucciniophila, C. modesta, C. sylvestris, C. humicola, and C. minutissima might not also include fungi from Cladophialophora. In a recent study, fungi from this clade grouped into various other families within Chaetothyriales (Quan et al., 2020). We opted to include these species in our phylogenetic studies because they are still classified as Cladophialophora. However, based on the data from this study and previous research, we propose a full taxonomic revision of the genus Cladophialophora.

A majority of Cladophialophora species, including those described in this study, emerged as a monophyletic clade with significant branch support values. This clade also included the type species, C. carrionii. Previously, based on SSU, LSU, and RPB1 sequence data, this clade included two phylogenetic groups: the Carrionii-clade and the Bantiana-clade (Badali et al., 2008; de Hoog et al., 2011). However, in a recent phylogeny of Chaetothyriales using ITS and LSU data, the existence of these clades was disputed (Quan et al., 2020). In this study, a phylogenetic tree constructed using a concatenated dataset showed the existence of the Carrionii-clade and the Bantiana-clade, but without significant branch support. Aside from that, the species composition of these clades did not completely overlap with that of Badali et al. (2008). This suggests that Carrionii-clade and Bantiana-clade are not well defined and should be used with caution.

Among the isolates of the species identified in this study, polymorphism was detected between sequences for the same gene region, for example, C. lichenis and C. yunnanensis. Sun et al. (2020) and Badali et al. (2009) while describing C. nyingchiensis and C. carrionii, respectively, also reported this trend. There are two possible explanations for this phenomenon. These fungi have multiple copies of the ITS and TUB genes, as do many other fungi (Fourie et al., 2014; Zhao et al., 2014). Alternatively, these sequence differences between the isolates might also be the product of cryptic species. This is because multiple copies of TEF in fungi have yet to be reported. However, TEF sequences varied by 20 bp among C. nyingchiensis isolates (Sun et al., 2020). This dilemma may be resolved in the future by species discovery and the recovery of additional isolates of identified species.

Lichenicolous fungi can exclusively parasitize the mycobiont (mycoparasites), the photobiont (phycoparasites), or sometimes both by forming haustoria (Lawrey and Diederich, 2003; Diederich et al., 2018). Irrespective of their host choice, lichenicolous fungi can be further classified into two types. These are slow-growing species that cause no or minor symptoms in their hosts, and fast-growing ones that are highly pathogenic to lichens (Harutyunyan et al., 2008). Based on these facts, we hypothesize that all nine Cladophialophora species described in this study were of the former type. The relationship between these nine species and their lichen host is either biotrophic or commensal (Lawrey and Diederich, 2003). This explains why we saw no symptoms on the lichen from which we isolated these fungi. However, infection trials are necessary to confirm their interaction with their hosts.

Results of this study indicated that Cladophialophora is an important lineage of lichenicolous fungi. However, a majority of lichen-associated species are yet to be discovered. We still do not know the precise role of these fungi and black fungi as a whole in lichen thallus. The lack of symptoms in the lichen thalli where these fungi were isolated suggests that these fungi can also be saprophytes or stress-associated latent pathogens that only exhibit symptoms when the host lichen is subjected to stress (Lücking et al., 2021). In addition, a large number of guttles in the hyphae of all Cladophialophora species identified in this study, especially C. guttulate. Therefore, there is scope for evaluating the potential to use these fungi in the production of microbial oil.

Data availability statement

The datasets presented in this study can be found in online repositories. The names of the repository/repositories and accession number(s) can be found in the article/Supplementary material.

Author contributions

RC and HS contributed to the conceptualization. YCW, XZ, and GZ performed the methodology and conducted the formal analysis. RC and TB was written the original draft preparation. YCW, YRW, YL, and SZ was performed the experiment. SL and MD carried out the resources. RC, HS, and TB wrote, reviewed, and edited the manuscript and directed the data. RC and GZ were responsible for project management and funding access. All authors contributed to the article and approved the submitted version.

Funding

This study was supported by the Qingchuang Talents Induction Program of Shandong Higher Education Institution in 2021, Open Fund for Instruments and Equipment of Shandong Normal University, the “Startup Fund” awarded to Runlei Chang by the Shandong Normal University and National College Students Innovative Entrepreneurship Training Programs [202210445022].

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Supplementary material

The Supplementary material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fmicb.2023.1191818/full#supplementary-material

Footnotes

1. ^https://www.phylo.org

2. ^http://tree.bio.ed.ac.uk/software/tracer

3. ^https://imagej.nih.gov/ij/

References

Altschul, S. F., Gish, W., Miller, W., Myers, E. W., and Lipman, D. J. (1990). Basic local alignment search tool. J. Mol. Biol. 215, 403–410. doi: 10.1016/s0022-2836(05)80360-2

CrossRef Full Text | Google Scholar

Ametrano, C. G., Muggia, L., and Grube, M. (2019). “Extremotolerant black Fungi from rocks and lichens” in Fungi in extreme environments: Ecological role and biotechnological significance. eds. S. M. Tiquia-Arashiro and M. Grube (Cham: Springer International Publishing)

Google Scholar

Badali, H., Carvalho, V. O., Vicente, V., Attili-Angelis, D., Kwiatkowski, I. B., Van Den Ende, A. H. G. G., et al. (2009). Cladophialophora saturnica sp. nov., a new opportunistic species of Chaetothyriales revealed using molecular data. Med. Mycol. 47, 51–62. doi: 10.1080/13693780802291452

PubMed Abstract | CrossRef Full Text | Google Scholar

Badali, H., Gueidan, C., Najafzadeh, M., Bonifaz, A., Van Den Ende, A. G., and De Hoog, G. (2008). Biodiversity of the genus Cladophialophora. Stud. Mycol. 61, 175–191. doi: 10.3114/sim.2008.61.18

PubMed Abstract | CrossRef Full Text | Google Scholar

Boonmee, S., Wanasinghe, D. N., Calabon, M. S., Huanraluek, N., Chandrasiri, S. K. U., et al. (2021). Fungal diversity notes 1387–1511: taxonomic and phylogenetic contributions on genera and species of fungal taxa. Fung. Div. 111, 1–335. doi: 10.1007/s13225-021-00489-3

PubMed Abstract | CrossRef Full Text | Google Scholar

Braun, U. (1998). A monograph of Cercosporella, Ramularia and allied genera (phytopathogenic hyphomycetes). Additions to host range and distribution. Eching: IHW-Verlag Eching.

Google Scholar

Braun, U., Crous, P., Dugan, F., Groenewald, J. Z., and Hoog, S. (2003). Phylogeny and taxonomy of Cladosporium-like hyphomycetes, including Davidiella gen. Nov., the teleomorph of Cladosporium s. Mycol. Prog. 2, 3–18. doi: 10.1007/s11557-006-0039-2

CrossRef Full Text | Google Scholar

Brunauer, G., Blaha, J., Hager, A., Turk, R., Stocker-Worgotter, E., and Grube, M. (2007). An isolated lichenicolous fungus forms lichenoid structures when co-cultured with various coccoid algae. Symbiosis 44, 127–136.

Google Scholar

Carbone, I., and Kohn, L. M. (1999). A method for designing primer sets for speciation studies in filamentous ascomycetes. Mycologia 91, 553–556. doi: 10.1080/00275514.1999.12061051

CrossRef Full Text | Google Scholar

Crous, P. W., Schubert, K., Braun, U., De Hoog, G. S., Hocking, A. D., Shin, H. D., et al. (2007). Opportunistic, human-pathogenic species in the Herpotrichiellaceae are phenotypically similar to saprobic or phytopathogenic species in the Venturiaceae. Stud. Mycol. 58, 185–217. doi: 10.3114/sim.2007.58.07

CrossRef Full Text | Google Scholar

Crous, P. W., Wingfield, M. J., Chooi, Y. H., Gilchrist, C. L. M., Lacey, E., Pitt, J. I., et al. (2020). Fungal planet description sheets: 1042-1111. Persoonia 44, 301–459. doi: 10.3767/persoonia.2020.44.11

PubMed Abstract | CrossRef Full Text | Google Scholar

Crous, P. W., Wingfield, M. J., Guarro, J., Cheewangkoon, R., Van Der Bank, M., Swart, W. J., et al. (2013). Fungal planet description sheets: 154-213. Persoonia 31, 188–296. doi: 10.3767/003158513X675925

PubMed Abstract | CrossRef Full Text | Google Scholar

Darriba, D., Taboada, G. L., Doallo, R., and Posada, D. (2012). jModelTest 2: more models, new heuristics and parallel computing. Nat. Methods 9:772. doi: 10.1038/nmeth.2109

PubMed Abstract | CrossRef Full Text | Google Scholar

De Hoog, G. S., Vicente, V. A., Najafzadeh, M. J., Harrak, M. J., Badali, H., and Seyedmousavi, S. (2011). Waterborne Exophiala species causing disease in cold-blooded animals. Persoonia 27, 46–72. doi: 10.3767/003158511X614258

PubMed Abstract | CrossRef Full Text | Google Scholar

Diederich, P. (2010). Sclerococcum cladoniae, a new lichenicolous hyphomycete on Cladonia from Luxembourg. Bull. Soc. Nat. Luxemb. 20, 57–59. doi: 10.1002/chin.198925079

CrossRef Full Text | Google Scholar

Diederich, P., Ertz, D., Lawrey, J. D., Sikaroodi, M., and Untereiner, W. A. (2013). Molecular data place the hyphomycetous lichenicolous genus Sclerococcum close to Dactylospora (Eurotiomycetes) and S. parmeliae in Cladophialophora (Chaetothyriales). Fungal Divers. 58, 61–72. doi: 10.1007/s13225-012-0179-4

CrossRef Full Text | Google Scholar

Diederich, P., Lawrey, J. D., and Ertz, D. (2018). The 2018 classification and checklist of lichenicolous fungi, with 2000 non-lichenized, obligately lichenicolous taxa. Bryologist 121:386. doi: 10.1639/0007-2745-121.3.340

CrossRef Full Text | Google Scholar

Fourie, A., Wingfield, M. J., Wingfield, B. D., and Barnes, I. (2014). Molecular markers delimit cryptic species in Ceratocystis sensu stricto. Mycol. Prog. 14:1020. doi: 10.1007/s11557-014-1020-0

CrossRef Full Text | Google Scholar

Gostinčar, C., Muggia, L., and Grube, M. (2012). Polyextremotolerant black fungi: oligotrophism, adaptive potential, and a link to lichen symbioses. Front. Microbiol. 3:e000390. doi: 10.3389/fmicb.2012.00390

PubMed Abstract | CrossRef Full Text | Google Scholar

Groenewald, J. Z., Nakashima, C., Nishikawa, J., Shin, H. D., Park, J. H., Jama, A. N., et al. (2013). Species concepts in Cercospora: spotting the weeds among the roses. Stud. Mycol. 75, 115–170. doi: 10.3114/sim0012

PubMed Abstract | CrossRef Full Text | Google Scholar

Gueidan, C., Aptroot, A., Da Silva Cáceres, M. E., Badali, H., and Stenroos, S. (2014). A reappraisal of orders and families within the subclass Chaetothyriomycetidae (Eurotiomycetes, Ascomycota). Mycol. Prog. 13:990. doi: 10.1007/s11557-014-0990-2

CrossRef Full Text | Google Scholar

Harutyunyan, S., Muggia, L., and Grube, M. (2008). Black fungi in lichens from seasonally arid habitats. Stud. Mycol. 61, 83–90. doi: 10.3114/sim.2008.61.08

PubMed Abstract | CrossRef Full Text | Google Scholar

Hawksworth, D. L., and Mariette, S. C. (2003). A first checklist of lichenicolous fungi from China. Jun Wu Xi Tong 22, 359–363.

Google Scholar

Katoh, K., and Standley, D. M. (2013). MAFFT multiple sequence alignment software version 7: improvements in performance and usability. Mol. Biol. Evol. 30, 772–780. doi: 10.1093/molbev/mst010

PubMed Abstract | CrossRef Full Text | Google Scholar

Khan, E., and Sohnle, P. G. (2019). “Cutaneous fungal infections☆” in Encyclopedia of microbiology. ed. T. M. Schmidt (Oxford: Academic Press), 793–798.

Google Scholar

Kiyuna, T., An, K.-D., Kigawa, R., Sano, C., and Sugiyama, J. (2018). Two new Cladophialophora species, C. tumbae sp. nov. and C. tumulicola sp. nov., and chaetothyrialean fungi from biodeteriorated samples in the Takamatsuzuka and Kitora tumuli. Mycoscience 59, 75–84. doi: 10.1016/j.myc.2017.08.008

CrossRef Full Text | Google Scholar

Kondratyuk, S. Y., Lőkös, L., Halda, J. P., Haji Moniri, M., Farkas, E., Park, J. S., et al. (2016a). New and noteworthy lichen-forming and lichenicolous fungi 4. Acta Bot. Hung 58, 75–136. doi: 10.1556/034.58.2016.1-2.4

CrossRef Full Text | Google Scholar

Kondratyuk, S. Y., Lőkös, L., Halda, J. P., Roux, C., Upreti, D. K., Schumm, F., et al. (2017). New and noteworthy lichen-forming and lichenicolous fungi 6. Acta Bot. Hung 59, 137–260. doi: 10.1556/034.59.2017.1-2.7

CrossRef Full Text | Google Scholar

Kondratyuk, S. Y., Lőkös, L., Halda, J. P., Upreti, D. K., Mishra, G. K., Haji Moniri, M., et al. (2016b). New and noteworthy lichen-forming and lichenicolous fungi 5*. Acta Bot. Hung 58, 319–396. doi: 10.1556/abot.58.2016.3-4.7

CrossRef Full Text | Google Scholar

Kondratyuk, S., Lőkös, L., Tschabanenko, S., Haji Moniri, M., Farkas, E., Wang, X., et al. (2013). New and noteworthy lichen-forming and lichenicolous fungi. Acta Bot. Hung 55, 275–349. doi: 10.1556/abot.55.2013.3-4.9

CrossRef Full Text | Google Scholar

Kondratyuk, S. Y., Upreti, D. K., Mishra, G. K., Nayaka, S., Ingle, K. K., Orlov, O. O., et al. (2020). New and noteworthy lichen-forming and lichenicolous fungi 10. Acta Bot. Hung 62, 69–108. doi: 10.1556/034.62.2020.1-2.6

CrossRef Full Text | Google Scholar

Kumar, S., Stecher, G., Li, M., Knyaz, C., and Tamura, K. (2018). MEGA X: molecular evolutionary genetics analysis across computing platforms. Mol. Biol. Evol. 35, 1547–1549. doi: 10.1093/molbev/msy096

PubMed Abstract | CrossRef Full Text | Google Scholar

Lawrey, J. D., and Diederich, P. (2003). Lichenicolous Fungi: interactions, evolution, and biodiversity. Bryologist 106, 80–120. doi: 10.1639/0007-2745(2003)106[0080:LFIEAB]2.0.CO;2

CrossRef Full Text | Google Scholar

Lücking, R., Leavitt, S. D., and Hawksworth, D. L. (2021). Species in lichen-forming fungi: balancing between conceptual and practical considerations, and between phenotype and phylogenomics. Fungal Divers. 109, 99–154. doi: 10.1007/s13225-021-00477-7

CrossRef Full Text | Google Scholar

Miller, M.A., Pfeiffer, W., and Schwartz, T. (2011). The CIPRES science gateway: a community resource for phylogenetic analyses, in: Proceedings of the 2011 TeraGrid conference: extreme digital discovery, 1–8. doi: 10.1145/2016741.2016785

CrossRef Full Text | Google Scholar

Muggia, L., and Grube, M. (2018). Fungal diversity in lichens: from extremotolerance to interactions with algae. Life 8:15. doi: 10.3390/life8020015

PubMed Abstract | CrossRef Full Text | Google Scholar

Obase, K., Douhan, G. W., Matsuda, Y., and Smith, M. E. (2016). Cladophialophora floridana and Cladophialophora tortuosa, new species isolated from sclerotia of Cenococcum geophilum in forest soils of Florida, USA. Mycoscience 57, 26–34. doi: 10.1016/j.myc.2015.07.005

CrossRef Full Text | Google Scholar

O'donnell, K., and Cigelnik, E. (1997). Two divergent intragenomic rDNA ITS2 types within a monophyletic lineage of the fungus Fusarium are nonorthologous. Mol. Phylogenet. Evol. 7, 103–116. doi: 10.1006/mpev.1996.0376

PubMed Abstract | CrossRef Full Text | Google Scholar

Quan, Y., Muggia, L., Moreno, L. F., Wang, M., Al-Hatmi, A. M. S., Da Silva Menezes, N., et al. (2020). A re-evaluation of the Chaetothyriales using criteria of comparative biology. Fungal Divers. 103, 47–85. doi: 10.1007/s13225-020-00452-8

CrossRef Full Text | Google Scholar

Ronquist, F., Teslenko, M., Van Der Mark, P., Ayres, D. L., Darling, A., Höhna, S., et al. (2012). MrBayes 3.2: efficient Bayesian phylogenetic inference and model choice across a large model space. Syst. Biol. 61, 539–542. doi: 10.1093/sysbio/sys029

PubMed Abstract | CrossRef Full Text | Google Scholar

Shen, M., Zhang, J. Q., Zhao, L. L., Groenewald, J. Z., Crous, P. W., and Zhang, Y. (2020). Venturiales. Stud. Mycol. 96, 185–308. doi: 10.1016/j.simyco.2020.03.001

PubMed Abstract | CrossRef Full Text | Google Scholar

Stamatakis, A. (2014). RAxML version 8: a tool for phylogenetic analysis and post-analysis of large phylogenies. Bioinformatics 30, 1312–1313. doi: 10.1093/bioinformatics/btu033

PubMed Abstract | CrossRef Full Text | Google Scholar

Sun, W., Su, L., Yang, S., Sun, J., Liu, B., Fu, R., et al. (2020). Unveiling the hidden diversity of rock-inhabiting fungi: Chaetothyriales from China. J Fungi 6:187. doi: 10.3390/jof6040187

PubMed Abstract | CrossRef Full Text | Google Scholar

Sutton, D. A., Rinaldi, M. G., and Sanche, S. E. (2009). “Dematiaceous fungi” in Clinical mycology. eds. E. J. Anaissie, M. R. Mcginnis, and M. A. Pfaller. 2nd ed (Edinburgh: Churchill Livingstone)

Google Scholar

Tang, J., Zhuang, K., Ran, X., Dai, Y., and Ran, Y. (2017). Chromoblastomycosis caused by Cladophialophora carrionii. Indian J. Dermatol. Venereol. Leprol. 93, 495–506. doi: 10.1590/abd1806-4841.20187321

PubMed Abstract | CrossRef Full Text | Google Scholar

Usui, E., Takashima, Y., and Narisawa, K. (2016). Cladophialophora inabaensis sp. nov., a new species among the dark septate endophytes from a secondary forest in Tottori Japan. Microbes Environ. 31, 357–360. doi: 10.1264/jsme2.ME16016

PubMed Abstract | CrossRef Full Text | Google Scholar

Vilgalys, R., and Hester, M. (1990). Rapid genetic identification and mapping of enzymatically amplified ribosomal DNA from several Cryptococcus species. J. Bacteriol. 172, 4238–4246. doi: 10.1128/jb.172.8.4238-4246.1990

PubMed Abstract | CrossRef Full Text | Google Scholar

White, T. J., Bruns, T., Lee, S., and Taylor, J. W. (1990). “Amplification and direct sequencing of fungal ribosomal RNA genes for phylogenetics” in PCR protocols: a guide to methods and applications. eds. M. A. Innis, D. H. Gelfand, J. J. Sninsky, and T. J. White (San Diego (California): Academic Press), 315–322.

Google Scholar

Zhang, Y.-J., Zhang, S., Liu, X., Wen, H. A., and Wang, M. (2010). A simple method of genomic DNA extraction suitable for analysis of bulk fungal strains. Lett. Appl. Microbiol. 51, 114–118. doi: 10.1111/j.1472-765X.2010.02867.x

PubMed Abstract | CrossRef Full Text | Google Scholar

Zhao, Z., Liu, H., Luo, Y., Zhou, S., An, L., Wang, C., et al. (2014). Molecular evolution and functional divergence of tubulin superfamily in the fungal tree of life. Sci. Rep. 4:6746. doi: 10.1038/srep06746

PubMed Abstract | CrossRef Full Text | Google Scholar

Zoller, S., Scheidegger, C., and Sperisen, C. (1999). PCR primers for the amplification of mitochondrial small subunit ribosomal DNA of lichen-forming ascomycetes. Lichenologist 31, 511–516. doi: 10.1006/lich.1999.0220

CrossRef Full Text | Google Scholar
