Gang Zhao
Doukun Lu
Min Li1,2*
Yujiong Wang- 1Key Laboratory of Ministry of Education for Conservation and Utilization of Special Biological Resources in the Western China, Yinchuan, China
- 2School of Life Sciences, Ningxia University, Yinchuan, China
- 3National Key Laboratory of Agricultural Microbiology, Huazhong Agricultural University, Wuhan, China
Mycoplasmas are successful pathogens that cause debilitating diseases in humans and various animal hosts. Despite the exceptionally streamlined genomes, mycoplasmas have evolved specific mechanisms to access essential nutrients from host cells. The paucity of genetic tools to manipulate mycoplasma genomes has impeded studies of the virulence factors of pathogenic species and mechanisms to access nutrients. This review summarizes several strategies for editing of mycoplasma genomes, including homologous recombination, transposons, clustered regularly interspaced short palindromic repeats (CRISPR)/Cas system, and synthetic biology. In addition, the mechanisms and features of different tools are discussed to provide references and future directions for efficient manipulation of mycoplasma genomes.
1. Introduction
Mollicutes (“mycoplasmas”) are host-restricted prokaryotes and the simplest self-replicating organisms evolved from Gram-positive ancestors, which are characterized by a low GC content, small genomes (0.6–1.35 Mb), no cell wall, reduced coding capacity, and limited metabolic capacities (Sirand-Pugnet et al., 2007). Despite undergoing reductive evolution, mycoplasmas primarily colonize the mucosa of the respiratory and urogenital tracts, as well as the joints of vertebrate hosts, including multiple livestock, wild animal species, and humans. Some mycoplasmas are successful pathogens capable of establishing infection, which can result in significant socioeconomic consequences (Razin et al., 1998; Rosengarten et al., 2001; Citti and Blanchard, 2013; Arfi et al., 2021). Intrinsic antibiotic resistance, rapid tolerance to chemotherapeutic agents, and co-infection with other pathogenic species are causing growing concerns of mycoplasmas in both the medical and veterinary fields (Gautier-Bouchardon, 2018; Chen et al., 2023).
The growing body of sequence data has improved understanding of the structure and dynamics of mycoplasmas. However, genomic studies have revealed that mycoplasmas lack the classical repertoire of virulence genes common to pathogenic species. The molecular mechanisms underlying the pathogenesis of mycoplasmas in host calls include adhesion to the host respiratory epithelium, cell damage caused by cytotoxic metabolic compounds and the releasome, and modulation of the host microbicidal response. Experimentally confirmed virulence factors of mycoplasmas include the community-acquired respiratory distress syndrome toxin, hydrogen peroxide, and hydrogen sulfide (Burki et al., 2015; Benedetti et al., 2020; Leal Zimmer et al., 2020; Gaurivaud and Tardy, 2022). Limited information about the classical repertoire of virulence genes has impeded identification of the virulence genes and elucidation of the pathogenesis of mycoplasmas. In addition, the lack of appropriate genetic tools for genome manipulation has limited research on the virulence factors of mycoplasmas. Transposon-based vectors have been successfully applied for random insertion and inactivation of target genes of the mycoplasma genome (Dybvig et al., 2000; Kenri et al., 2004; Baranowski et al., 2010; Rideau et al., 2019). Over the past decade, synthetic biology has been successfully applied to several phylogenetically related species, but yet limited with other species (Gibson et al., 2008a; Schieck et al., 2016). Recently, the clustered regularly interspaced short palindromic repeats (CRISPR)/CRISPR-associated protein 9 (Cas9) system has been successfully applied to silence target genes in the mycoplasma genome (Mariscal et al., 2018; Evsyutina et al., 2022). However, a more accurate, stable, and efficient genetic editing tool is urgently needed.
Natural plasmids of mycoplasmas are transmitted between species sharing a common host (Breton et al., 2012). OriC plasmids were developed to examine gene function in mycoplasmas, mesoplasmas, and spiroplasmas (Halbedel and Stulke, 2007; Maglennon et al., 2013; Renaudin et al., 2015; Matteau et al., 2017). In addition to these plasmids, this review summarizes current genetic tools to manipulate the mycoplasma genome. Current applications are classified as homologous recombination (HR), transposons, CRISPR/Cas systems, and synthetic biology. In addition, the development and optimization of CRISPR/Cas systems as novel genome editing tools for mycoplasmas are discussed.
2. HR
HR is essential to access redundant genetic information encoded by sister chromatids or homologous chromosomes when both strands of the DNA double helix are compromised to support DNA replication and repair double-strand breaks (DSBs) (Wright et al., 2018). The mechanism of HR to repair DSBs has been widely applied for editing of bacterial genomes, but relatively few studies have investigated HR in mycoplasmas. Nonetheless, HR has been successfully used to edit the genomes of various Mycoplasma species, including M. gallisepticum (Cao et al., 1994; Lee et al., 2008), M. genitalium (Dhandayuthapani et al., 1999, 2001), M. capricolum subsp. capricolum (M. capricolum) (Janis et al., 2005), M. pneumoniae (Krishnakumar et al., 2010), and M. hyopneumoniae (Clampitt et al., 2021). HR was also used to integrate homologous DNA through a plasmid into the mycoplasma genome. However, success of this process was very low because of the lack of an efficient recombinase and transformation procedures. Therefore, an exogenous recombinase was applied to edit the genome of Mycoplasma gallisepticum to overcome the low efficiency of HR. The recE and recT genes of Bacillus subtilis were cloned into transposon-based vectors and integrated into the genome after transformation. The recombination templates in oriC plasmids were transformed into M. gallisepticum strains expressing RecE and RecT to generate a RecET-like system for precise recombination events leading to short deletions, the addition of resistance genes, and replacement of short genome regions (Ipoutcha et al., 2022). An oligonucleotide “recombineering” method for M. pneumoniae was also developed with the GP35 recombinase of B. subtilis to generate point mutations or deletion of larger fragments. Then, the CRISPR/Cas9 system was used to counter-select non-edited cells (Pinero-Lambea et al., 2020). In addition, the recombinase RecA of Escherichia coli was shown to enhance targeted HR in Mycoplasma mycoides subsp. capri and M. hyorhinis (Allam et al., 2010; Ishag et al., 2017).
3. Transposons
Transposons are mobile genetic elements that evolved to execute highly efficient integration of genes into the host genome. As the most prominent mechanism, a transposase mediates excision of an element from the donor location and facilitates integration into a different locus of the genome (Sandoval-Villegas et al., 2021). Transposons are also widely used to integrate genes into the host genome. The transposons Tn916 and Tn4001, in addition to related derivatives, have been successfully used in Mollicutes (Halbedel and Stulke, 2007). Transposon Tn916, which was originally isolated from Enterococcus faecalis, is a conjugative 18-kb transposable element containing the xis-Tn/int-Tn genes for excision/integration, the tetM tetracycline resistance genes, a set of genes for intercellular transfer, and two imperfect inverted repeat sequence (20–60 bp) at both ends (Franke and Clewell, 1981; Clewell et al., 1988, 1995). Transposon Tn4001, originally isolated from Staphylococcus aureus, is a 4.5-kb composite containing an IS256 sequence at both ends of the aac-aphD gene, which confers resistance to gentamicin, kanamycin, and tobramycin (Lyon et al., 1984).
Integration of a transposon into the mycoplasma and acholeplasma genomes was first reported in Mycoplasma pulmonis and Acholeplasma laidlawii, respectively (Dybvig and Cassell, 1987). However, integration of Tn916 occurs at preferred hot spots and, thus, is less suitable for saturating transposon mutagenesis (Nelson et al., 1997). In 1989, Tn4001 was first integrated into the M. pulmonis genome, although the transposase was deleted to prevent reintegration and loss of the transposon by re-excision. The derivative Tn4001 is also called mini-Tn4001 (Zimmerman and Herrmann, 2005). To date, transposons have been widely used to construct mutant libraries of several mycoplasmas. For instance, Tn4001 and mini-Tn4001 were used to construct mutant libraries of M. pneumoniae to screen for essential genes and those associated with gliding motility (Hasselbring et al., 2006; Lluch-Senar et al., 2015). Tn916 and Tn4001 were also used to construct two mutant libraries of M. gallisepticum to screen for genes that regulate biofilm formation (Whetzel et al., 2003; Wang et al., 2017). In addition, mini-Tn4001 was applied to construct mutant libraries of M. agalactiae and M. bovis to identify genes that regulate nutrient acquisition from cells, genes that affect colonization and diffusion in the host cell, as well as other essential genes, such as those that code for adhesin proteins (Baranowski et al., 2010, 2014; Hegde et al., 2016; Josi et al., 2019; Zhu et al., 2020). Furthermore, mini-Tn4001, Tn4001, and Tn916 were successfully used to construct mutant libraries to identify the essential genes of various species of mycoplasmas, including M. genitalium, M. bovis, M. pulmonis, M. hyopneumoniae, M. mycoides, M. hominis, and M. hyorhinis, in addition to Ureaplasma parvum (Hutchison et al., 1999; Glass et al., 2006; French et al., 2008; Maglennon et al., 2013; Aboklaish et al., 2014; Sharma et al., 2014; Hutchison et al., 2016; Rideau et al., 2019; Trueeb et al., 2019). Also, mini-Tn4001 was used to express mCherry, Mko2, and mNeonGreen in M. bovis and M. mycoides subsp. mycoides to investigate host-pathogen interactions (Bonnefois et al., 2016). Tn4001 was also applied to examine the localization of green fluorescent protein (GFP)-tagged proteins of M. pneumoniae in mycoplasma cells (Kenri et al., 2004).
The transformation efficiency of Tn4001 is reported to significantly vary among different species, resulting in differences in transposition efficiency. The EF-Tu regulatory region of mycoplasma species was cloned into a transposon-based vector to regulate transposase expression and the antibiotic resistance marker to overcome this disadvantage. This derivative transposon, named SynMyco, was shown to increase transformation efficiency in M. gallisepticum, M. feriruminatoris, and M. agalactiae, but not M. pneumoniae (Montero-Blay et al., 2019). Recently, a LoxTnSeq system was developed to delete a large random genome fragment. Sequences of loxP were inserted into the genome of M. pneumoniae combined with expression of the exogenous recombinase Cre, while the large DNA fragment with a loxP sequence at both ends was deleted (Shaw et al., 2020). In addition, Tn5 was applied to generate mutant libraries of M. mycoides, Spiroplasma citri, and Mesoplasma florum (Mutaqin et al., 2011; Hutchison et al., 2016; Baby et al., 2018).
4. CRISPR/Cas system
CRISPR-based genetic tools have revolutionized the field of genome engineering in eukaryotes and prokaryotes since first introduced in 2012. The classical CRISPR/Cas9 system uses a single-guide RNA (sgRNA) to target Cas9 nuclease to the desired DNA locus and create a site-specific DSB to the DNA. Genome editing is dependent on the repair machinery of the cell, including non-homologous end joining and homology-directed repair of DSBs (Jinek et al., 2012). Both endogenous and exogenous CRISPR/Cas systems have been applied to edit mycoplasma genomes (Table 1). In addition, the exogenous CRISPR/Cas system has been used to kill mycoplasma. Due to the lack of efficient non-homologous end joining and homology-directed repair pathways to repair DSBs, the CRISPR/Cas9 system was applied to break the genome of M. pneumoniae and limit growth (Broto et al., 2022). This system was also used to counter-select non-edited mycoplasma cells and to recover edited mycoplasma clones with limited screening of surviving cells (Pinero-Lambea et al., 2020). Moreover, an endogenous CRISPR/Cas system was used to edit the ksgA and munA genes of M. gallisepticum. The endogenous Cas protein of M. gallisepticum, which is reported to cut DNA, shares 26% amino acid sequence similarity with the type II-A Cas9 of S. aureus (Mahdizadeh et al., 2020; Klose et al., 2022). Bioinformatics revealed that the genome carried a gene with significant homology with the Ku and LigD genes of B. subtilis, which are the key elements of the non-homologous end joining repair system. These findings demonstrate that DNA repair systems differ among mycoplasma species. Further studies of DNA repair systems will contribute to further applications of the CRISPR/Cas system for genome editing of mycoplasmas.

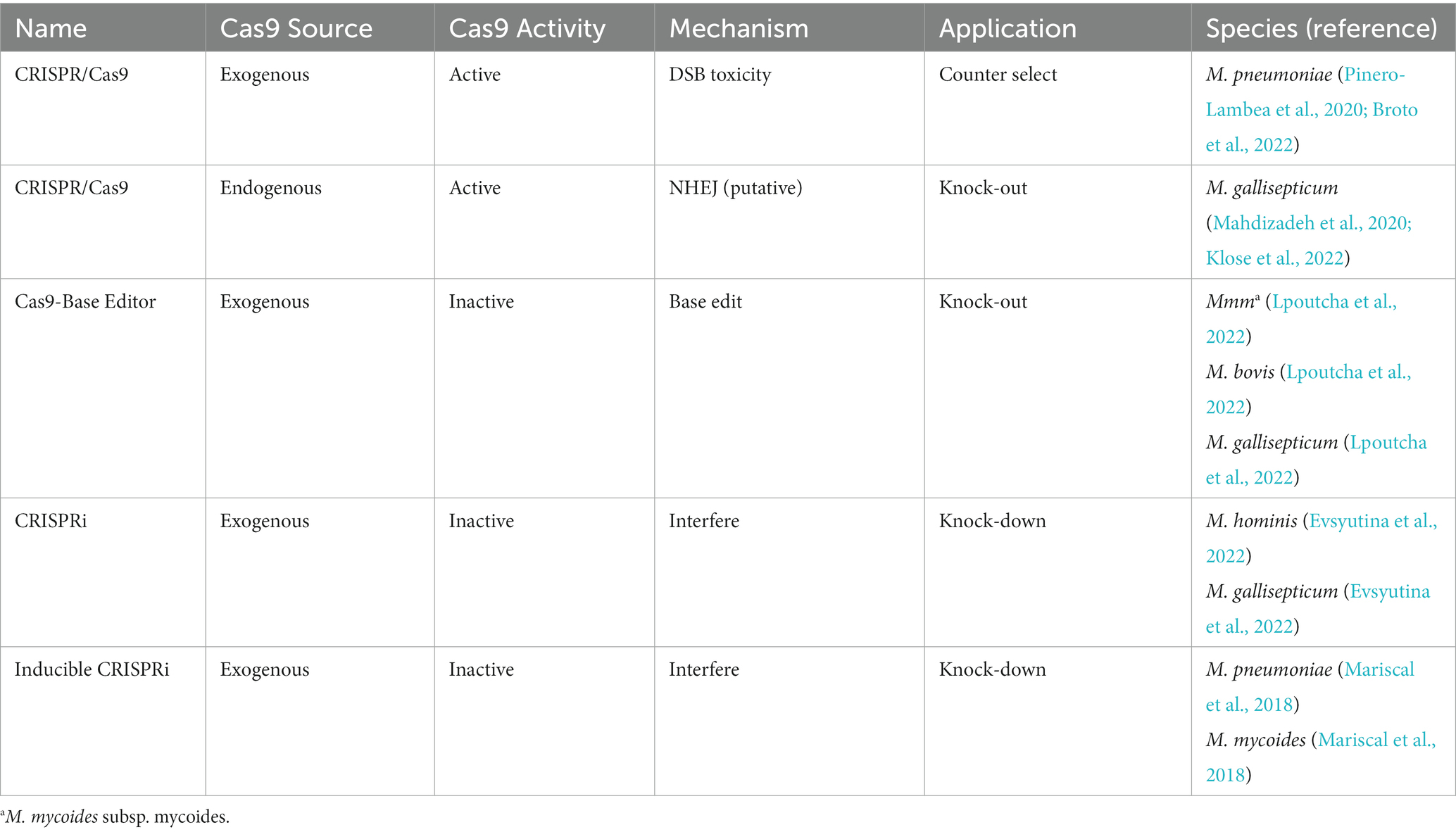

Table 1. Applications of CRISPR/Cas system in mycoplasma.
Considering the low efficiency of repairing DSBs, endonuclease-deficient Cas9 (dCas9)-based gene editing tools, including CRISPR interference (CRISPRi), DNA base editing, and inducible CRISPRi, were applied to edit the genomes of mycoplasmas. Cas9 base-editing systems have been constructed to multiply the genome without inducing DSBs. DNA base editing systems combine a catalytically inactive form of Cas9 fused with a cytosine deaminase (CBE). This Cas9/CBE fusion protein is guided to specific loci by sgRNAs, where CBE catalyzes deamination of cytosine into uracil, which is recognized as thymine after replication. The C:G to A:T transition allows for insertion of a stop codon into the genome of M. bovis, M. mycoides subsp. mycoides, and M. gallisepticum. In addition, whole-genome sequencing revealed that this genome editing system is efficient with limited induction of off-target mutations (Lpoutcha et al., 2022). For the CRISPRi system, the dCas9 is guided to the loci by sgRNA and inhibits expression of the target gene by interfering with transcriptional elongation by binding of RNA polymerase or associated transcription factors (Qi et al., 2013). A single-plasmid transposon-based CRISPRi system was applied for genome editing of M. gallisepticum and M. hominis (Evsyutina et al., 2022). In this paper, the inactive Cas9 of Streptococcus pyogenes was cloned into the transposon-based vector pRLM5L2 and expressed in mycoplasma cells. However, expression of dCas9 had no significant effect on the growth rate of mycoplasma cells (Evsyutina et al., 2022). Moreover, an inducible CRISPRi system was also developed for M. pneumoniae and M. mycoides. With this system, the tetracycline operator regulates expression of the exogenous inactive form of Cas9, whereas tetracycline is used to induce expression of dCas9 and inhibit expression of the target gene (Mariscal et al., 2018). However, the effect of exogenous Cas9/dCas9 on the growth of mycoplasma when used to edit the genome remains unclear.
5. Synthetic biology strategies
Synthetic biology strategies, which use yeast cells to engineer and transfer a bacterial genome into a recipient cell, have been applied to edit the genomes of M. genitalium, M. mycoides subsp. capri, and M. mycoides (Table 2), although gene editing is dependent on genome synthesis (Gibson et al., 2008a,b; Lartigue et al., 2009; Gibson et al., 2010). As compared to a synthetic genome, the genomes of M. genitalium, M. pneumoniae, M. mycoides subsp. capri, M. hominis, Mesoplasma florum, and A. laidlawii were cloned into yeast cells as circular centromeric plasmids (Karas et al., 2012; Rideau et al., 2017; Baby et al., 2018). Then, the restriction endonuclease AscI was used to create DSBs in the circular plasmids and a DNA fragment was inserted using HR in yeast cells. The mycoplasma genome appeared stable in yeast cells and provided a platform to engineer the mycoplasma genome in vivo (Benders et al., 2010). Besides cloning of the mycoplasma genome in yeast cells, the whole genome integrated with a yeast vector was transformed (Lartigue et al., 2009). Based on this platform, TREC (tandem repeat coupled with endonuclease cleavage), RMCE (Cre/loxP-based recombinase-mediated cassette exchange), TREC-IN (TREC-assisted gene knock-in), CreasPy-Cloning, Marker-less/driven, and meiotic recombination methods were developed to edit the genome of mycoplasmas in yeast cells. The TREC method uses a DNA cassette containing a knock-out CORE consisting of an 18-bp I-SceI recognition site, the SCEI gene under the control of the GAL1 promoter, and the URA3 marker. A DNA fragment homologous to the sequence upstream of the target site was used to insert into the genome of M. genitalium by HR in yeast cells, which generated tandem repeat sequences flanking the knock-out CORE. The inducible expression of I-SceI generated DSBs and promoted intra-molecular HR between the repeat sequences for excision of the CORE (Noskov et al., 2010; Schieck et al., 2016). The RMCE method uses a DNA cassette containing the cre gene under the control of the GAL1 promoter and URA3 marker flanked by the loxP sequence, where inducible expression of the Cre recombinase was used to insert DNA fragments into the mycoplasma genome (Noskov et al., 2010, 2015). The TREC-IN method was developed based on the TREC method and used to insert the target gene into the mycoplasma genome, where the gene was located at the 3′ end of the knock-out CORE and remained in the genome after excision of the CORE (Chandran et al., 2014; Lartigue et al., 2019). The CreasPy-Cloning method is a recently developed approach for simultaneous cloning and engineering of mycoplasma genomes in yeast cells. This method combines the abilities of Cas9 to cleave DNA at a specific locus and the efficient HR of yeast cells to edit the mycoplasma genome, which was transformed into yeast cells in whole (Kannan et al., 2016; Tsarmpopoulos et al., 2016; Rideau et al., 2017; Ruiz et al., 2019; Talenton et al., 2022). The Marker-less/driven method with EZ-Tn5™ transposase was used to successfully insert DNA fragments into the genome of M. mycoides in vitro and then the edited genome was transformed into the mycoplasma (Karas et al., 2014). The meiotic recombination method replaces the individual gene with the GFP marker in the mycoplasma genome by HR in yeast cells. Then, the yeast cells with GFP markers at different loci are mixed and the progressively clustering genomic segments are deleted by meiotic recombination between the mycoplasma genomes harbored in yeast cells (Sugiyama et al., 2005; Suzuki et al., 2011, 2015).

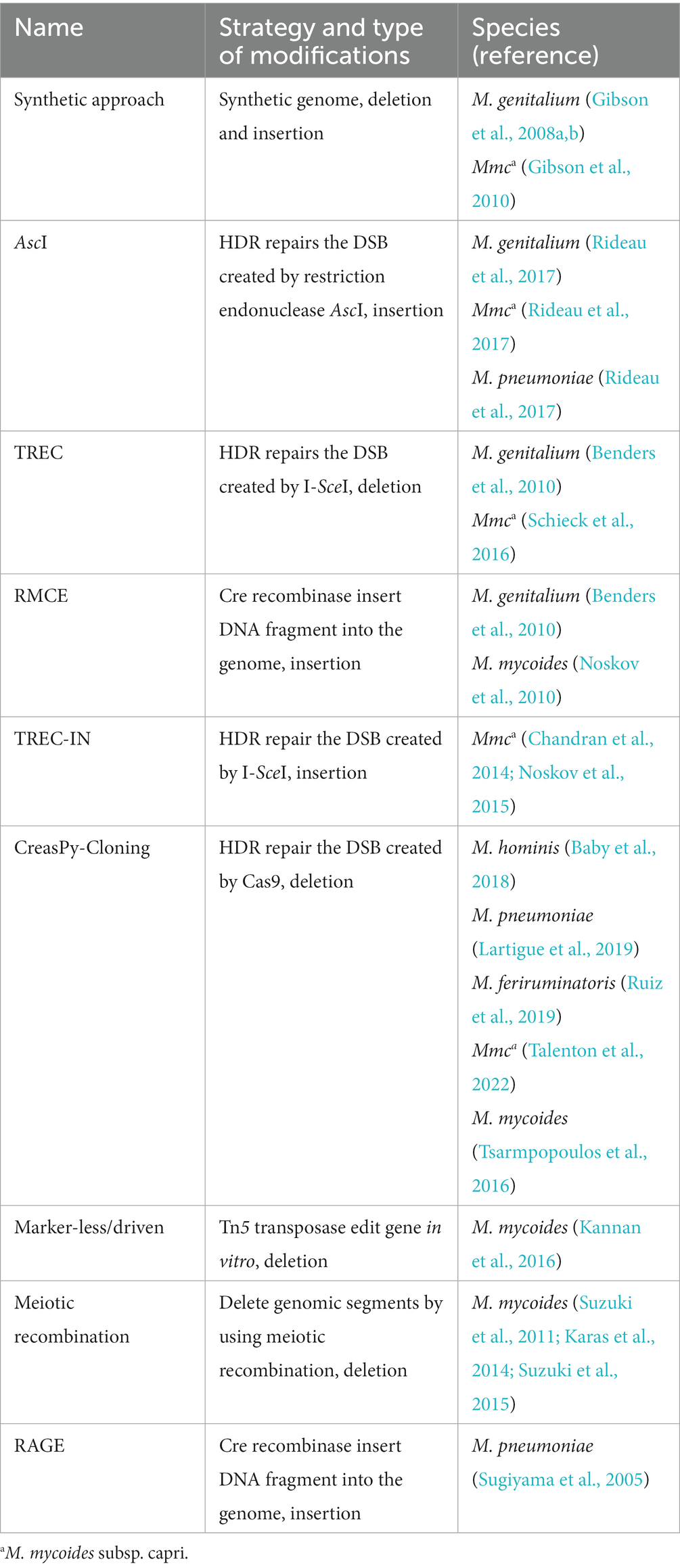

Table 2. Application of synthetic biology in mycoplasma.
Each of the above methods requires transfer of the edited genome into the recipient cell to generate mutants. Such transfer is possible for several species related to the M. mycoides cluster, but not members of other phylogenetic groups. The recombinase-assisted genomic engineering (RAGE) method was developed to overcome this disadvantage with genome editing of M. pneumoniae. This method uses the transformation-associated recombination mechanism, where a DNA fragment of the mycoplasma genome, the cre gene, the selection marker aac-aph, and a linearized bacterial artificial chromosome-yeast artificial chromosome shuttle vector are assembled in a recombinant plasmid in yeast cells. Then, the plasmid is extracted and transformed into E. coli cells for amplification. Thereafter, M. pneumoniae cells are transformed with numerous plasmids and the genome is edited by RMCE. Based on this new strategy, the TREC, Cre/loxP, TREC-IN, and CreasPy-Cloning methods could be used to edit fragments of mycoplasma genomes in yeast cells (Garcia-Morales et al., 2020).
Lastly, the “targeting-induced local lesions in genomes” method is a reverse-genetic method to edit the M. hominis genome, which combines point mutations (C-G to T-A) induced by ethyl methane sulfonate with a DNA screening technique to generate a library of M. hominis mutants (Pereyre et al., 2018).
6. Current thoughts of improvement of existing tools
Due to the lack of efficient genetic tools, it is challenging to elucidate the functional genomics of mycoplasmas. Although several methods have been developed to knock-out or knock-down target genes in the genome (Figure 1; Table 3), stable, efficient, and universal genetic tools have not yet been established for mycoplasmas.
Figure 1. Schematics of the genetic tools based on HR, transposons, the CRISPR/Cas9 system, and synthetic biology. HR: the heterologous recombinase (HeRec) and homologous recombinase (HoRec) were applied to edit the mycoplasma genome. Transposon: Tn4001, mini-Tn4001, Tn5, and Tn916 were used to insert transposons into the genome for gene knock-out. CRISPR/Cas9: the endogenous CRISPR/Cas system of M. gallisepticum and exogenous CRISPR/Cas9 system were used to edit the mycoplasma genome. The exogenous CRISPR/Cas9 system includes: (i) inactivated Cas9 fused with a CBE to induce C:G to T:A for insertion of a stop codon into the target gene; (ii) inactivated Cas9 for interfering with expression of the target gene; and (iii) activated Cas9 for knock-out of the target gene. Synthetic biology: the genome was edited by the TREC, CreasPy-Cloning, and RMEC methods in yeast cells and then transferred into recipient mycoplasma cells; the genome fragments of M. pneumoniae were edited by RAGE in E. coli cells and then transferred into M. pneumoniae recipient cells.

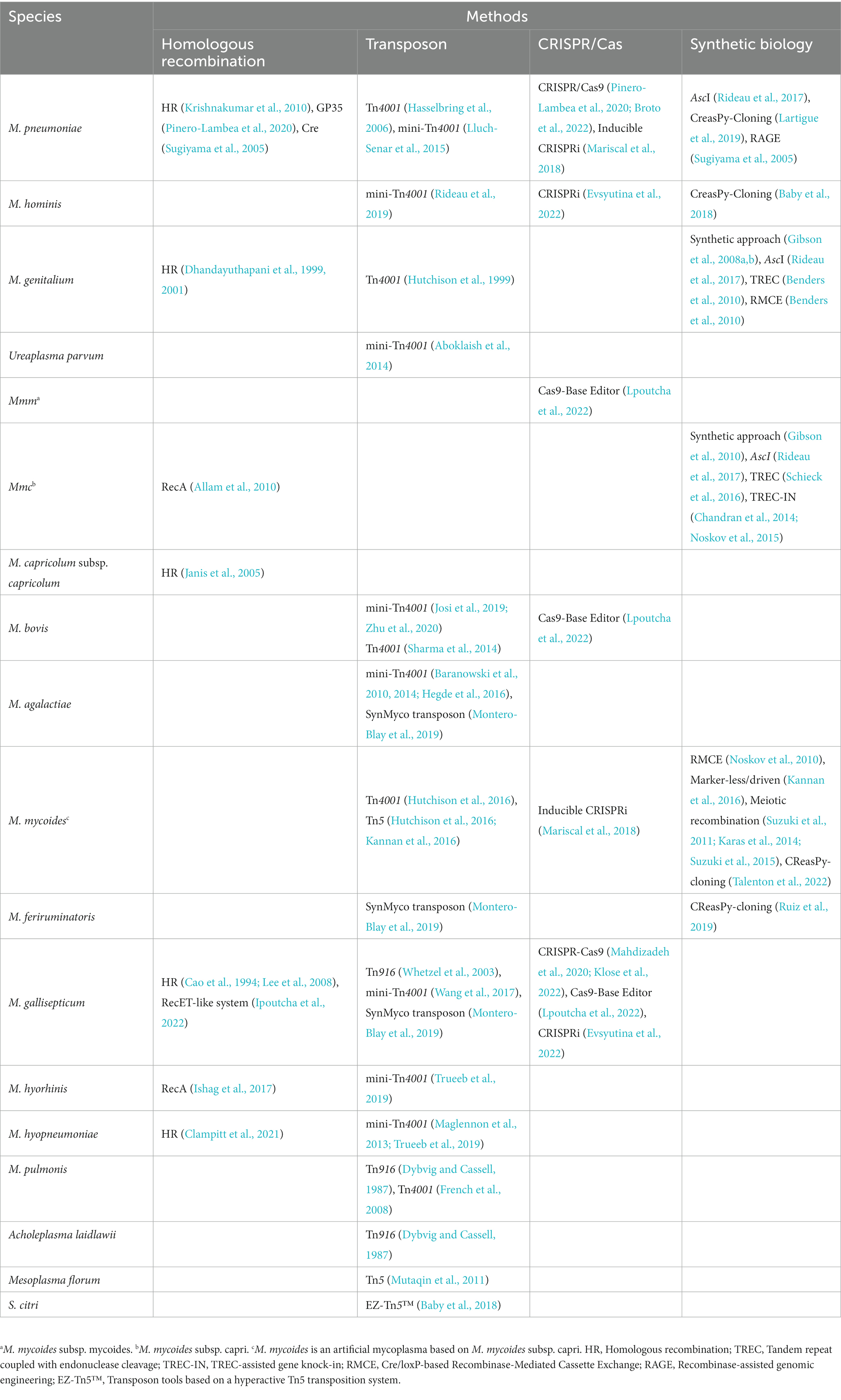

Table 3. The list of validated method for genetic editing in mycoplasma.
6.1. Development of efficient genetic tools for knock-out of target genes in mycoplasmas
Transposons are widely used to generate mutant libraries of mycoplasmas and combined with high-throughput sequencing to identify the inserted loci. However, transposon mutagenesis is inefficient for some mycoplasma species due to integration site preferences, effects on the expression of neighboring genes through homology-based silencing or read-through activity of regulatory elements, and truncation of the target gene (Rebollo et al., 2012). In addition, the resistance marker of the transposon, the restriction-modification system of the mycoplasma, and the expression of transposase and resistance marker could influence the success of transposon mutagenesis (Dybvig et al., 2000; Calcutt and Foecking, 2015; Montero-Blay et al., 2019; Rideau et al., 2019). Therefore, sensitive antibiotic markers and suitable promoters should be selected to induce expression of the transposon and antibiotic marker, and methylate the transposon-based vectors by methyltransferase when transposons are used to generate a mutant library of a new mycoplasma species (Figure 2).
Figure 2. The ideas on improving the efficient of existing tools for editing of mycoplasma genomes. RM, restriction-modification; crRNA, CRISPR RNA.
A synthetic biology strategy was developed for site-directed mutagenesis in mycoplasmas. This method allows efficient editing of the mycoplasma genome in yeast cells. Several studies revealed that deletion of the glycerol uptake facilitator protein gene (glpF) and direct cell-to-cell transfer of the mycoplasma genome to a yeast cell could promote the genome transfer process (Karas et al., 2014, 2019). However, genome transplantation limits the popularization and application of this method, which has only been successful with M. capricolum subsp. capricolum as the recipient cell (Labroussaa et al., 2016). Transfer of the M. florum genome indicates that this method has potential for other organisms besides mycoplasma species related to the M. mycoides cluster. Nonetheless, some strategies have been developed to increase the efficiency of genome transfer, which include genome methylation, deletion of restriction systems, and using mycoplasma as donor for transformation (Karas et al., 2013, 2014, 2019). Therefore, the RAGE method uses M. pneumoniae as recipient cells (Garcia-Morales et al., 2020).
Besides the synthetic biology strategy, the CRISPR/Cas system was developed to induce site-directed mutagenesis and was recently applied in various mollicutes, including the main pathogens of humans, ruminants, and plants (Ipoutcha et al., 2019). However, successful editing of the mycoplasma genome was limited to the endogenous CRISPR/Cas system of M. gallisepticum (Klose et al., 2022). Notably, the unclear characterization of the endogenous CRISPR/Cas9 systems and the requirement of a protospacer adjacent motif resulted in unpredictable results and impeded further modification of the system. Several studies have reported that the exogenous Cas9 of S. pyogenes was able to generate DSBs in the mycoplasma genome. Due to the lack of an efficient system to repair DSBs, the exogenous CRISPR/Cas9 system was used to inhibit mycoplasma growth or counter-select non-edited mycoplasmas to recover edited mycoplasma clones with limited screening of surviving cells.
Bioinformatics revealed that some mycoplasma genomes carry homologs of genes responsible for DNA repair in other bacteria, including those for the SOS stress response, recombinational repair, base excision repair, and nucleotide excision repair. However, there is limited experimental evidence of these DNA repair-associated genes in mycoplasmas (Carvalho et al., 2005; Burgos et al., 2012). As the exogenous recE/recT recombinase and GP35 recombinase of B. subtilis were found to function in mycoplasmas, future studies are warranted to investigate the combination of the exogenous CRISPR/Cas system and an exogenous recombinase to edit genes of mycoplasmas. The efficient dCas9-Base editor system was recently applied to induce mutations without generating DSBs. Although the exogenous CRISPR/Cas9 system can knock-out genes, various factors should be considered, including (i) the effect of exogenous Cas9/dCas9 proteotoxicity on mycoplasma growth; (ii) regulation of gene expression by exogenous Cas9/dCas9; (iii) identification of a suitable inducible promoter for Cas9/dCas9; and (iv) the development of a marker-less genetic editing system (Figure 2). Five inducible systems have been successfully applied in mycoplasmas, which include the riboswitch, the TetR transcription regulator of B. subtilis, the lac operon of E. coli, the CI protein of bacteriophage lambda, and the AraR transcription regulator of B. subtilis (Mariscal et al., 2018; Broto et al., 2022).
6.2. Development of efficient genetic tools for knock-down of target genes in mycoplasmas
The evolution of mycoplasmas involved a degenerative process where the genomes have high proportions of nonredundant genes essential for cell growth and proliferation. About 81, 64, and 52% of the genes of M. genitalium, M. pneumoniae, and M. mycoides, respectively, are considered essential (Glass et al., 2006, 2017), as compared to only 7% of the genes of E. coli, as determined in a targeted knock-out study (Baba et al., 2006). These data demonstrate that a large number of genes are not suitable for knock-out. The CRISPRi and inducible CRISPRi systems were recently developed for knock-down of target genes. Due to the complicated transcriptome of mycoplasmas (e.g., 40.7% of operons are polycistronic) (Guell et al., 2009), the major disadvantage of the CRISPRi system is the polar effects on genes upstream and downstream from the target in an operon (Peters et al., 2016). The diverse orthologues of Cas9 exhibit different knock-down efficiencies and proteotoxicities in mycobacteria (Rock et al., 2017). Atypical CRISPR RNA (crRNA) are more efficient than typical crRNA (Petassi et al., 2020) and continuous expression of Cas9 by integration into the genome increased the knock-down efficiency (Peters et al., 2019). In consideration of the effect of these factors on the efficiency of the CRISPRi system in other organisms, an efficient CRISPRi system for mycoplasma could be achieved by selecting highly efficient Cas9 with low proteotoxicity and a suitable inducible promoter, while optimizing the structure of the crRNA, as well as the induction conditions, and construction of a stable plasmid carrying Cas9 or integrating Cas9 into the genome (Figure 2).
7. Conclusion
Transposons are conventionally used to generate mutant libraries, which can be combined with smart screening systems to identify genes that regulate nutrient acquisition from host cells, affect colonization and diffusion in the host cell, as well as other essential genes, such as those that code for adhesin proteins. However, the lack of genetic tools for site-directed mutagenesis in many mycoplasma species has impeded further clarification of the interactions between mycoplasmas and host cells. The CRISPR/Cas system and synthetic biology were recently applied to knock-out target genes. These studies provide new insights into the genetic manipulation of mycoplasmas. Notably, the CRISPRi system is more appropriate than knock-down/out methods to analyze the functions of essential genes. In addition, gene function can be confirmed by trans-complementation of mutants based on oriC plasmids. This review summarizes the results of recent studies and discusses strategies for the development of accurate and efficient tools for editing of mycoplasma genomes.
Author contributions
GZ and DL write original manuscript. ML and YW designed and revised the article. All authors contributed to the article and approved the submitted version.
Funding
This work was supported by the Youth Program of National Natural Science Foundation of China (#32102672), National Natural Science Foundation of China Joint Fund Project (U22A20505).
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
References
Aboklaish, A. F., Dordet-Frisoni, E., Citti, C., Toleman, M. A., Glass, J. I., and Spiller, O. B. (2014). Random insertion and gene disruption via transposon mutagenesis of Ureaplasma parvum using a mini-transposon plasmid. Int. J. Med. Microbiol. 304, 1218–1225. doi: 10.1016/j.ijmm.2014.09.003
Allam, A. B., Reyes, L., Assad-Garcia, N., Glass, J. I., and Brown, M. B. (2010). Enhancement of targeted homologous recombination in Mycoplasma mycoides subsp. capri by inclusion of heterologous recA. Appl. Environ. Microbiol. 76, 6951–6954. doi: 10.1128/AEM.00056-10
Arfi, Y., Lartigue, C., Sirand-Pugnet, P., and Blanchard, A. (2021). Beware of Mycoplasma anti-immunoglobulin strategies. MBio 12:e0197421. doi: 10.1128/mBio.01974-21
Baba, T., Ara, T., Hasegawa, M., Takai, Y., Okumura, Y., Baba, M., et al. (2006). Construction of Escherichia coli K-12 in-frame, single-gene knockout mutants: the Keio collection. Mol. Syst. Biol. 2:2006.0008. doi: 10.1038/msb4100050
Baby, V., Labroussaa, F., Brodeur, J., Matteau, D., Gourgues, G., Lartigue, C., et al. (2018). Cloning and transplantation of the Mesoplasma florum genome. ACS Synth. Biol. 7, 209–217. doi: 10.1021/acssynbio.7b00279
Baby, V., Lachance, J. C., Gagnon, J., Lucier, J. F., Matteau, D., Knight, T., et al. (2018). Inferring the minimal genome of Mesoplasma florum by comparative genomics and transposon mutagenesis. mSystems 3:e00198-17. doi: 10.1128/mSystems.00198-17
Baranowski, E., Bergonier, D., Sagné, E., Hygonenq, M. C., Ronsin, P., Berthelot, X., et al. (2014). Experimental infections with Mycoplasma agalactiae identify key factors involved in host-colonization. PLoS One 9:e93970. doi: 10.1371/journal.pone.0093970
Baranowski, E., Guiral, S., Sagné, E., Skapski, A., and Citti, C. (2010). Critical role of dispensable genes in Mycoplasma agalactiae interaction with mammalian cells. Infect. Immun. 78, 1542–1551. doi: 10.1128/iai.01195-09
Benders, G. A., Noskov, V. N., Denisova, E. A., Lartigue, C., Gibson, D. G., Assad-Garcia, N., et al. (2010). Cloning whole bacterial genomes in yeast. Nucleic Acids Res. 38, 2558–2569. doi: 10.1093/nar/gkq119
Benedetti, F., Curreli, S., and Zella, D. (2020). Mycoplasmas-host interaction: mechanisms of inflammation and association with cellular transformation. Microorganisms 8:1351. doi: 10.3390/microorganisms8091351
Bonnefois, T., Vernerey, M. S., Rodrigues, V., Totté, P., Puech, C., Ripoll, C., et al. (2016). Development of fluorescence expression tools to study host-mycoplasma interactions and validation in two distant mycoplasma clades. J. Biotechnol. 236, 35–44. doi: 10.1016/j.jbiotec.2016.08.006
Breton, M., Tardy, F., Dordet-Frisoni, E., Sagne, E., Mick, V., Renaudin, J., et al. (2012). Distribution and diversity of mycoplasma plasmids: lessons from cryptic genetic elements. BMC Microbiol. 12:257. doi: 10.1186/1471-2180-12-257
Broto, A., Gaspari, E., Miravet-Verde, S., Dos Santos, V., and Isalan, M. (2022). A genetic toolkit and gene switches to limit Mycoplasma growth for biosafety applications. Nat. Commun. 13:1910. doi: 10.1038/s41467-022-29574-0
Burgos, R., Wood, G. E., Young, L., Glass, J. I., and Totten, P. A. (2012). RecA mediates MgpB and MgpC phase and antigenic variation in Mycoplasma genitalium, but plays a minor role in DNA repair. Mol. Microbiol. 85, 669–683. doi: 10.1111/j.1365-2958.2012.08130.x
Burki, S., Frey, J., and Pilo, P. (2015). Virulence, persistence and dissemination of Mycoplasma bovis. Vet. Microbiol. 179, 15–22. doi: 10.1016/j.vetmic.2015.02.024
Calcutt, M. J., and Foecking, M. F. (2015). An excision-competent and exogenous mosaic transposon harbors the tetM gene in multiple Mycoplasma hominis lineages. Antimicrob. Agents Chemother. 59, 6665–6666. doi: 10.1128/aac.01382-15
Cao, J., Kapke, P. A., and Minion, F. C. (1994). Transformation of Mycoplasma gallisepticum with Tn916, Tn 4001, and integrative plasmid vectors. J. Bacteriol. 176, 4459–4462. doi: 10.1128/jb.176.14.4459-4462.1994
Carvalho, F. M., Fonseca, M. M., Batistuzzo De Medeiros, S., Scortecci, K. C., Blaha, C. A., and Agnez-Lima, L. F. (2005). DNA repair in reduced genome: the Mycoplasma model. Gene 360, 111–119. doi: 10.1016/j.gene.2005.06.012
Chandran, S., Noskov, V. N., Segall-Shapiro, T. H., Ma, L., Whiteis, C., Lartigue, C., et al. (2014). TREC-IN: gene knock-in genetic tool for genomes cloned in yeast. BMC Genomics 15:1180. doi: 10.1186/1471-2164-15-1180
Chen, Y., Li, L., Wang, C., Zhang, Y., and Zhou, Y. (2023). Necrotizing pneumonia in children: early recognition and management. J. Clin. Med. 12:2256. doi: 10.3390/jcm12062256
Citti, C., and Blanchard, A. (2013). Mycoplasmas and their host: emerging and re-emerging minimal pathogens. Trends Microbiol. 21, 196–203. doi: 10.1016/j.tim.2013.01.003
Clampitt, J. M., Madsen, M. L., and Minion, F. C. (2021). Construction of Mycoplasma hyopneumoniae P97 null mutants. Front. Microbiol. 12:518791. doi: 10.3389/fmicb.2021.518791
Clewell, D. B., Flannagan, S. E., Ike, Y., Jones, J. M., and Gawron-Burke, C. (1988). Sequence analysis of termini of conjugative transposon Tn916. J. Bacteriol. 170, 3046–3052. doi: 10.1128/jb.170.7.3046-3052.1988
Clewell, D. B., Flannagan, S. E., and Jaworski, D. D. (1995). Unconstrained bacterial promiscuity: the Tn916-Tn1545 family of conjugative transposons. Trends Microbiol. 3, 229–236. doi: 10.1016/s0966-842x(00)88930-1
Dhandayuthapani, S., Blaylock, M. W., Bebear, C. M., Rasmussen, W. G., and Baseman, J. B. (2001). Peptide methionine sulfoxide reductase (MsrA) is a virulence determinant in Mycoplasma genitalium. J. Bacteriol. 183, 5645–5650. doi: 10.1128/jb.183.19.5645-5650.2001
Dhandayuthapani, S., Rasmussen, W. G., and Baseman, J. B. (1999). Disruption of gene mg218 of Mycoplasma genitalium through homologous recombination leads to an adherence-deficient phenotype. Proc. Natl. Acad. Sci. U. S. A. 96, 5227–5232. doi: 10.1073/pnas.96.9.5227
Dybvig, K., and Cassell, G. H. (1987). Transposition of gram-positive transposon Tn916 in Acholeplasma laidlawii and Mycoplasma pulmonis. Science 235, 1392–1394. doi: 10.1126/science.3029869
Dybvig, K., French, C. T., and Voelker, L. L. (2000). Construction and use of derivatives of transposon Tn4001 that function in Mycoplasma pulmonis and Mycoplasma arthritidis. J. Bacteriol. 182, 4343–4347. doi: 10.1128/jb.182.15.4343-4347.2000
Evsyutina, D. V., Fisunov, G. Y., Pobeguts, O. V., Kovalchuk, S. I., and Govorun, V. M. (2022). Gene silencing through CRISPR interference in mycoplasmas. Microorganisms 10:1159. doi: 10.3390/microorganisms10061159
Franke, A. E., and Clewell, D. B. (1981). Evidence for a chromosome-borne resistance transposon (Tn916) in Streptococcus faecalis that is capable of "conjugal" transfer in the absence of a conjugative plasmid. J. Bacteriol. 145, 494–502. doi: 10.1128/jb.145.1.494-502.1981
French, C. T., Lao, P., Loraine, A. E., Matthews, B. T., Yu, H., and Dybvig, K. (2008). Large-scale transposon mutagenesis of Mycoplasma pulmonis. Mol. Microbiol. 69, 67–76. doi: 10.1111/j.1365-2958.2008.06262.x
Garcia-Morales, L., Ruiz, E., Gourgues, G., Rideau, F., Pinero-Lambea, C., Lluch-Senar, M., et al. (2020). A RAGE based strategy for the genome engineering of the human respiratory pathogen Mycoplasma pneumoniae. ACS Synth. Biol. 9, 2737–2748. doi: 10.1021/acssynbio.0c00263
Gaurivaud, P., and Tardy, F. (2022). The Mycoplasma spp. releasome: A new concept for a long-known phenomenon. Front. Microbiol. 13:853440. doi: 10.3389/fmicb.2022.853440
Gautier-Bouchardon, A. V. (2018). Antimicrobial Resistance in Mycoplasma spp. Microbiol Spectr 6:6. doi: 10.1128/microbiolspec.ARBA-0030-2018
Gibson, D. G., Benders, G. A., Andrews-Pfannkoch, C., Denisova, E. A., Baden-Tillson, H., Zaveri, J., et al. (2008b). Complete chemical synthesis, assembly, and cloning of a Mycoplasma genitalium genome. Science 319, 1215–1220. doi: 10.1126/science.1151721
Gibson, D. G., Benders, G. A., Axelrod, K. C., Zaveri, J., Algire, M. A., Moodie, M., et al. (2008a). One-step assembly in yeast of 25 overlapping DNA fragments to form a complete synthetic Mycoplasma genitalium genome. Proc. Natl. Acad. Sci. U. S. A. 105, 20404–20409. doi: 10.1073/pnas.0811011106
Gibson, D. G., Glass, J. I., Lartigue, C., Noskov, V. N., Chuang, R. Y., Algire, M. A., et al. (2010). Creation of a bacterial cell controlled by a chemically synthesized genome. Science 329, 52–56. doi: 10.1126/science.1190719
Glass, J. I., Assad-Garcia, N., Alperovich, N., Yooseph, S., Lewis, M. R., Maruf, M., et al. (2006). Essential genes of a minimal bacterium. Proc. Natl. Acad. Sci. U. S. A. 103, 425–430. doi: 10.1073/pnas.0510013103
Glass, J. I., Merryman, C., Wise, K. S., Hutchison, C. A. 3rd, and Smith, H. O. (2017). Minimal cells-real and imagined. Cold Spring Harb. Perspect. Biol. 9:a023861. doi: 10.1101/cshperspect.a023861
Guell, M., van Noort, V., Yus, E., Chen, W. H., Leigh-Bell, J., Michalodimitrakis, K., et al. (2009). Transcriptome complexity in a genome-reduced bacterium. Science 326, 1268–1271. doi: 10.1126/science.1176951
Halbedel, S., and Stulke, J. (2007). Tools for the genetic analysis of Mycoplasma. Int. J. Med. Microbiol. 297, 37–44. doi: 10.1016/j.ijmm.2006.11.001
Hasselbring, B. M., Page, C. A., Sheppard, E. S., and Krause, D. C. (2006). Transposon mutagenesis identifies genes associated with Mycoplasma pneumoniae gliding motility. J. Bacteriol. 188, 6335–6345. doi: 10.1128/jb.00698-06
Hegde, S., Zimmermann, M., Flöck, M., Brunthaler, R., Spergser, J., Rosengarten, R., et al. (2016). Genetic loci of Mycoplasma agalactiae involved in systemic spreading during experimental intramammary infection of sheep. Vet. Res. 47:106. doi: 10.1186/s13567-016-0387-0
Hutchison, C. A. 3rd, Chuang, R. Y., Noskov, V. N., Assad-Garcia, N., Deerinck, T. J., Ellisman, M. H., et al. (2016). Design and synthesis of a minimal bacterial genome. Science 351:aad6253. doi: 10.1126/science.aad6253
Hutchison, C. A., Peterson, S. N., Gill, S. R., Cline, R. T., White, O., Fraser, C. M., et al. (1999). Global transposon mutagenesis and a minimal Mycoplasma genome. Science 286, 2165–2169. doi: 10.1126/science.286.5447.2165
Ipoutcha, T., Gourgues, G., Lartigue, C., Blanchard, A., and Sirand-Pugnet, P. (2022). Genome engineering in Mycoplasma gallisepticum using exogenous recombination systems. ACS Synth. Biol. 11, 1060–1067. doi: 10.1021/acssynbio.1c00541
Ipoutcha, T., Tsarmpopoulos, I., Talenton, V., Gaspin, C., Moisan, A., Walker, C. A., et al. (2019). Multiple origins and specific evolution of CRISPR/Cas9 Systems in Minimal Bacteria (Mollicutes). Fron Microbiol 10:2701. doi: 10.3389/fmicb.2019.02701
Ishag, H. Z. A., Xiong, Q., Liu, M., Feng, Z., and Shao, G. E. (2017). Coli recA gene improves gene targeted homologous recombination in Mycoplasma hyorhinis. J. Microbiol. Methods 136, 49–56. doi: 10.1016/j.mimet.2017.03.004
Janis, C., Lartigue, C., Frey, J., Wróblewski, H., Thiaucourt, F., Blanchard, A., et al. (2005). Versatile use of oriC plasmids for functional genomics of Mycoplasma capricolum subsp. capricolum. Appl. Environ. Microbiol. 71, 2888–2893. doi: 10.1128/aem.71.6.2888-2893.2005
Jinek, M., Chylinski, K., Fonfara, I., Hauer, M., Doudna, J. A., and Charpentier, E. (2012). A programmable dual-RNA-guided DNA endonuclease in adaptive bacterial immunity. Science 337, 816–821. doi: 10.1126/science.1225829
Josi, C., Bürki, S., Vidal, S., Dordet-Frisoni, E., Citti, C., Falquet, L., et al. (2019). Large-scale analysis of the Mycoplasma bovis genome identified non-essential, Adhesion-and Virulence-Related Genes. Front. Microbiol. 10:2085. doi: 10.3389/fmicb.2019.02085
Kannan, K., Tsvetanova, B., Chuang, R. Y., Noskov, V. N., Assad-Garcia, N., Ma, L., et al. (2016). One step engineering of the small-subunit ribosomal RNA using CRISPR/Cas9. Sci. Rep. 6:30714. doi: 10.1038/srep30714
Karas, B. J., Jablanovic, J., Irvine, E., Sun, L., Ma, L., Weyman, P. D., et al. (2014). Transferring whole genomes from bacteria to yeast spheroplasts using entire bacterial cells to reduce DNA shearing. Nat. Protoc. 9, 743–750. doi: 10.1038/nprot.2014.045
Karas, B. J., Jablanovic, J., Sun, L., Ma, L., Goldgof, G. M., Stam, J., et al. (2013). Direct transfer of whole genomes from bacteria to yeast. Nat. Methods 10, 410–412. doi: 10.1038/nmeth.2433
Karas, B. J., Moreau, N. G., Deerinck, T. J., Gibson, D. G., Venter, J. C., Smith, H. O., et al. (2019). Direct transfer of a Mycoplasma mycoides genome to yeast is enhanced by removal of the Mycoides glycerol uptake factor gene glpF. ACS Synth. Biol. 8, 239–244. doi: 10.1021/acssynbio.8b00449
Karas, B. J., Tagwerker, C., Yonemoto, I. T., Hutchison, C. A. 3rd, and Smith, H. O. (2012). Cloning the Acholeplasma laidlawii PG-8A genome in Saccharomyces cerevisiae as a yeast centromeric plasmid. ACS Synth. Biol. 1, 22–28. doi: 10.1021/sb200013j
Karas, B. J., Wise, K. S., Sun, L., Venter, J. C., Glass, J. I., Hutchison, C. A., et al. (2014). Rescue of mutant fitness defects using in vitro reconstituted designer transposons in Mycoplasma mycoides. Front. Microbiol. 5:369. doi: 10.3389/fmicb.2014.00369
Kenri, T., Seto, S., Horino, A., Sasaki, Y., Sasaki, T., and Miyata, M. (2004). Use of fluorescent-protein tagging to determine the subcellular localization of Mycoplasma pneumoniae proteins encoded by the cytadherence regulatory locus. J. Bacteriol. 186, 6944–6955. doi: 10.1128/JB.186.20.6944-6955.2004
Klose, S. M., Wawegama, N., Sansom, F. M., Marenda, M. S., and Browning, G. F. (2022). Efficient disruption of the function of the mnuA nuclease gene using the endogenous CRISPR/Cas system in Mycoplasma gallisepticum. Vet. Microbiol. 269:109436. doi: 10.1016/j.vetmic.2022.109436
Krishnakumar, R., Assad-Garcia, N., Benders, G. A., Phan, Q., Montague, M. G., and Glass, J. I. (2010). Targeted chromosomal knockouts in Mycoplasma pneumoniae. Appl. Environ. Microbiol. 76, 5297–5299. doi: 10.1128/aem.00024-10
Labroussaa, F., Lebaudy, A., Baby, V., Gourgues, G., Matteau, D., Vashee, S., et al. (2016). Impact of donor-recipient phylogenetic distance on bacterial genome transplantation. Nucleic Acids Res. 44, 8501–8511. doi: 10.1093/nar/gkw688
Lartigue, C., Valverde Timana, Y., Labroussaa, F., Schieck, E., Liljander, A., Sacchini, F., et al. (2019). Attenuation of a pathogenic Mycoplasma strain by modification of the obg gene by using synthetic biology approaches. mSphere 4, e00030–e00019. doi: 10.1128/mSphere.00030-19
Lartigue, C., Vashee, S., Algire, M. A., Chuang, R. Y., Benders, G. A., Ma, L., et al. (2009). Creating bacterial strains from genomes that have been cloned and engineered in yeast. Science 325, 1693–1696. doi: 10.1126/science.1173759
Leal Zimmer, F. M. A., Paes, J. A., Zaha, A., and Ferreira, H. B. (2020). Pathogenicity & virulence of Mycoplasma hyopneumoniae. Virulence 11, 1600–1622. doi: 10.1080/21505594.2020.1842659
Lee, S. W., Browning, G. F., and Markham, P. F. (2008). Development of a replicable oriC plasmid for Mycoplasma gallisepticum and Mycoplasma imitans, and gene disruption through homologous recombination in M. gallisepticum. Microbiology (Reading) 154, 2571–2580. doi: 10.1099/mic.0.2008/019208-0
Lluch-Senar, M., Delgado, J., Chen, W. H., Lloréns-Rico, V., O'Reilly, F. J., Wodke, J. A., et al. (2015). Defining a minimal cell: essentiality of small ORFs and ncRNAs in a genome-reduced bacterium. Mol. Syst. Biol. 11:780. doi: 10.15252/msb.20145558
Lpoutcha, T., Ribien, F., Gourgues, G., Arfi, Y., Lartigue, C., Blanchard, A., et al. (2022). Genome editing of veterinary relevant mycoplasmas using a CRISPR-Cas Base editor system. Appl. Environ. Microbiol. 88:e0099622. doi: 10.1128/aem.00996-22
Lyon, B. R., May, J. W., and Skurray, R. A. (1984). Tn4001: a gentamicin and kanamycin resistance transposon in Staphylococcus aureus. Mol. Gen. Genet. 193, 554–556. doi: 10.1007/bf00382099
Maglennon, G. A., Cook, B. S., Deeney, A. S., Bossé, J. T., Peters, S. E., Langford, P. R., et al. (2013). Transposon mutagenesis in Mycoplasma hyopneumoniae using a novel mariner-based system for generating random mutations. Vet. Res. 44:124. doi: 10.1186/1297-9716-44-124
Maglennon, G. A., Cook, B. S., Matthews, D., Deeney, A. S., Bossé, J. T., Langford, P. R., et al. (2013). Development of a self-replicating plasmid system for Mycoplasma hyopneumoniae. Vet. Res. 44:63. doi: 10.1186/1297-9716-44-63
Mahdizadeh, S., Sansom, F. M., Lee, S. W., Browning, G. F., and Marenda, M. S. (2020). Targeted mutagenesis of Mycoplasma gallisepticum using its endogenous CRISPR/Cas system. Vet. Microbiol. 250:108868. doi: 10.1016/j.vetmic.2020.108868
Mariscal, A. M., Kakizawa, S., Hsu, J. Y., Tanaka, K., Gonzalez-Gonzalez, L., Broto, A., et al. (2018). Tuning gene activity by inducible and targeted regulation of gene expression in minimal bacterial cells. ACS Synth. Biol. 7, 1538–1552. doi: 10.1021/acssynbio.8b00028
Matteau, D., Pepin, M. E., Baby, V., Gauthier, S., Arango Giraldo, M., Knight, T. F., et al. (2017). Development of oriC-based plasmids for Mesoplasma florum. Appl. Environ. Microbiol. 83, e03374–e03316. doi: 10.1128/AEM.03374-16
Montero-Blay, A., Miravet-Verde, S., Lluch-Senar, M., Piñero-Lambea, C., and Serrano, L. (2019). SynMyco transposon: engineering transposon vectors for efficient transformation of minimal genomes. DNA Res. 26, 327–339. doi: 10.1093/dnares/dsz012
Mutaqin, K., Comer, J. L., Wayadande, A. C., Melcher, U., and Fletcher, J. (2011). Selection and characterization of Spiroplasma citri mutants by random transposome mutagenesis. Can. J. Microbiol. 57, 525–532. doi: 10.1139/w11-026
Nelson, K. E., Richardson, D. L., and Dougherty, B. A. (1997). Tn916 transposition in Haemophilus influenzae Rd: preferential insertion into noncoding DNA. Microb. Comp. Genomics 2, 313–321. doi: 10.1089/omi.1.1997.2.313
Noskov, V. N., Ma, L., Chen, S., and Chuang, R. Y. (2015). Recombinase-mediated cassette exchange (RMCE) system for functional genomics studies in Mycoplasma mycoides. Biol Proced Online 17:6. doi: 10.1186/s12575-015-0016-8
Noskov, V. N., Segall-Shapiro, T. H., and Chuang, R. Y. (2010). Tandem repeat coupled with endonuclease cleavage (TREC): a seamless modification tool for genome engineering in yeast. Nucleic Acids Res. 38, 2570–2576. doi: 10.1093/nar/gkq099
Pereyre, S., Bénard, C., Brès, C., Le Roy, C., Mauxion, J. P., Rideau, F., et al. (2018). Generation of Mycoplasma hominis gene-targeted mutants by targeting-induced local lesions in genomes (TILLING). BMC Genomics 19:525. doi: 10.1186/s12864-018-4917-1
Petassi, M. T., Hsieh, S. C., and Peters, J. E. (2020). Guide RNA categorization enables target site choice in Tn7-CRISPR-Cas transposons. Cells 183, 1757–1771.e18. doi: 10.1016/j.cell.2020.11.005
Peters, J. M., Colavin, A., Shi, H., Czarny, T. L., Larson, M. H., Wong, S., et al. (2016). A comprehensive, CRISPR-based functional analysis of essential genes in Bacteria. Cells 165, 1493–1506. doi: 10.1016/j.cell.2016.05.003
Peters, J. M., Koo, B. M., Patino, R., Heussler, G. E., Hearne, C. C., Qu, J., et al. (2019). Enabling genetic analysis of diverse bacteria with Mobile-CRISPRi. Nat. Microbiol. 4, 244–250. doi: 10.1038/s41564-018-0327-z
Pinero-Lambea, C., Garcia-Ramallo, E., Martinez, S., Delgado, J., Serrano, L., and Lluch-Senar, M. (2020). Mycoplasma pneumoniae genome editing based on oligo Recombineering and Cas9-mediated Counterselection. ACS Synth. Biol. 9, 1693–1704. doi: 10.1021/acssynbio.0c00022
Qi, L. S., Larson, M. H., Gilbert, L. A., Doudna, J. A., Weissman, J. S., Arkin, A. P., et al. (2013). Repurposing CRISPR as an RNA-guided platform for sequence-specific control of gene expression. Cells 152, 1173–1183. doi: 10.1016/j.cell.2013.02.022
Razin, S., Yogev, D., and Naot, Y. (1998). Molecular biology and pathogenicity of mycoplasmas. Microbiol. Mol. Biol. Rev. 62, 1094–1156. doi: 10.1128/mmbr.62.4.1094-1156.1998
Rebollo, R., Romanish, M. T., and Mager, D. L. (2012). Transposable elements: an abundant and natural source of regulatory sequences for host genes. Annu. Rev. Genet. 46, 21–42. doi: 10.1146/annurev-genet-110711-155621
Renaudin, J., Béven, L., Batailler, B., Duret, S., Desqué, D., Arricau-Bouvery, N., et al. (2015). Heterologous expression and processing of the flavescence dorée phytoplasma variable membrane protein Vmp A in Spiroplasma citri. BMC Microbiol. 15:82. doi: 10.1186/s12866-015-0417-5
Rideau, F., Le Roy, C., Descamps, E. C. T., Renaudin, H., Lartigue, C., and Bébéar, C. (2017). Cloning stability, and modification of Mycoplasma hominis genome in yeast. ACS Synth. Biol. 6, 891–901. doi: 10.1021/acssynbio.6b00379
Rideau, F., Le Roy, C., Sagné, E., Renaudin, H., Pereyre, S., Henrich, B., et al. (2019). Random transposon insertion in the Mycoplasma hominis minimal genome. Sci. Rep. 9:13554. doi: 10.1038/s41598-019-49919-y
Rock, J. M., Hopkins, F. F., Chavez, A., Diallo, M., Chase, M. R., Gerrick, E. R., et al. (2017). Programmable transcriptional repression in mycobacteria using an orthogonal CRISPR interference platform. Nat. Microbiol. 2:16274. doi: 10.1038/nmicrobiol.2016.274
Rosengarten, R., Citti, C., Much, P., Spergser, J., Droesse, M., and Hewicker-Trautwein, M. (2001). The changing image of mycoplasmas: from innocent bystanders to emerging and reemerging pathogens in human and animal diseases. Contrib. Microbiol. 8, 166–185. doi: 10.1159/000060409
Ruiz, E., Talenton, V., Dubrana, M.-P., Guesdon, G., Lluch-Senar, M., Salin, F., et al. (2019). CReasPy-cloning: A method for simultaneous cloning and engineering of Megabase-sized genomes in yeast using the CRISPR-Cas9 system. ACS Synth. Biol. 8, 2547–2557. doi: 10.1021/acssynbio.9b00224
Sandoval-Villegas, N., Nurieva, W., Amberger, M., and Ivics, Z. (2021). Contemporary transposon tools: A review and guide through mechanisms and applications of sleeping beauty, piggyBac and Tol2 for genome engineering. Int. J. Mol. Sci. 22:5084. doi: 10.3390/ijms22105084
Schieck, E., Lartigue, C., Frey, J., Vozza, N., Hegermann, J., Miller, R. A., et al. (2016). Galactofuranose in Mycoplasma mycoides is important for membrane integrity and conceals adhesins but does not contribute to serum resistance. Mol. Microbiol. 99, 55–70. doi: 10.1111/mmi.13213
Sharma, S., Markham, P. F., and Browning, G. F. (2014). Genes found essential in other mycoplasmas are dispensable in Mycoplasma bovis. PLoS One 9:e97100. doi: 10.1371/journal.pone.0097100
Shaw, D., Miravet-Verde, S., Piñero-Lambea, C., Serrano, L., and Lluch-Senar, M. (2020). LoxTnSeq: random transposon insertions combined with cre/lox recombination and counterselection to generate large random genome reductions. Microb. Biotechnol. 14, 2403–2419. doi: 10.1111/1751-7915.13714
Sirand-Pugnet, P., Citti, C., Barre, A., and Blanchard, A. (2007). Evolution of mollicutes: down a bumpy road with twists and turns. Res. Microbiol. 158, 754–766. doi: 10.1016/j.resmic.2007.09.007
Sugiyama, M., Ikushima, S., Nakazawa, T., Kaneko, Y., and Harashima, S. (2005). PCR-mediated repeated chromosome splitting in Saccharomyces cerevisiae. BioTechniques 38, 909–914. doi: 10.2144/05386rr01
Suzuki, Y., Assad-Garcia, N., Kostylev, M., Noskov, V. N., Wise, K. S., Karas, B. J., et al. (2015). Bacterial genome reduction using the progressive clustering of deletions via yeast sexual cycling. Genome Res. 25, 435–444. doi: 10.1101/gr.182477.114
Suzuki, Y., St Onge, R. P., Mani, R., King, O. D., Heilbut, A., Labunskyy, V. M., et al. (2011). Knocking out multigene redundancies via cycles of sexual assortment and fluorescence selection. Nat. Methods 8, 159–164. doi: 10.1038/nmeth.1550
Talenton, V., Baby, V., Gourgues, G., Mouden, C., Claverol, S., Vashee, S., et al. (2022). Genome engineering of the fast-growing Mycoplasma feriruminatoris toward a live vaccine chassis. ACS Synth. Biol. 11, 1919–1930. doi: 10.1021/acssynbio.2c00062
Trueeb, B. S., Gerber, S., Maes, D., Gharib, W. H., and Kuhnert, P. (2019). Tn-sequencing of Mycoplasma hyopneumoniae and Mycoplasma hyorhinis mutant libraries reveals non-essential genes of porcine mycoplasmas differing in pathogenicity. Vet. Res. 50:55. doi: 10.1186/s13567-019-0674-7
Tsarmpopoulos, I., Gourgues, G., Blanchard, A., Vashee, S., Jores, J., Lartigue, C., et al. (2016). In-yeast engineering of a bacterial genome using CRISPR/Cas9. ACS Synth. Biol. 5, 104–109. doi: 10.1021/acssynbio.5b00196
Wang, Y., Yi, L., Zhang, F., Qiu, X., Tan, L., Yu, S., et al. (2017). Identification of genes involved in Mycoplasma gallisepticum biofilm formation using mini-Tn4001-SGM transposon mutagenesis. Vet. Microbiol. 198, 17–22. doi: 10.1016/j.vetmic.2016.11.021
Whetzel, P. L., Hnatow, L. L., Keeler, C. L. Jr., and Dohms, J. E. (2003). Transposon mutagenesis of Mycoplasma gallisepticum. Plasmid 49, 34–43. doi: 10.1016/s0147-619x(02)00114-2
Wright, W. D., Shah, S. S., and Heyer, W. D. (2018). Homologous recombination and the repair of DNA double-strand breaks. J. Biol. Chem. 293, 10524–10535. doi: 10.1074/jbc.TM118.000372
Zhu, X., Baranowski, E., Dong, Y., Li, X., Hao, Z., Zhao, G., et al. (2020). An emerging role for cyclic dinucleotide phosphodiesterase and nanoRNase activities in Mycoplasma bovis: securing survival in cell culture. PLoS Pathog. 16:e1008661. doi: 10.1371/journal.ppat.1008661
Keywords: mycoplasma, genome engineering, transposon, clustered regularly interspaced short palindromic repeats/Cas9 system, synthetic biology
Citation: Zhao G, Lu D, Li M and Wang Y (2023) Gene editing tools for mycoplasmas: references and future directions for efficient genome manipulation. Front. Microbiol. 14:1191812. doi: 10.3389/fmicb.2023.1191812
