Eyal Geisler
Anne Bogler1
Edo Bar-Zeev
Eyal Rahav- 1The Zuckerberg Institute for Water Research (ZIWR), The Jacob Blaustein Institutes for Desert Research (BIDR), Ben-Gurion University of the Negev, Beer-Sheva, Israel
- 2Israel Oceanographic and Limnological Research, National Institute of Oceanography, Haifa, Israel
Planktonic heterotrophic diazotrophs (N2-fixers) are widely distributed in marine and freshwater systems, yet limited information is available on their activity, especially in environments with adverse conditions for diazotrophy (e.g., N-rich and oxygenated). Here, we followed the localization and activity of heterotrophic diazotrophs in the hyper-eutrophic N-rich Qishon River—an environment previously considered to be unfavorable for diazotrophy. Our results indicate high heterotrophic N2 fixation rates (up to 6.9 nmol N L–1 d–1), which were approximately three fold higher at an upstream location (freshwater) compared to an estuary (brackish) site. Further, active heterotrophic diazotrophs were capture associated with free-floating aggregates by a newly developed immunolocalization approach. These findings provide new insights on the activity of heterotrophic diazotrophs on aggregates in environments previously considered with adverse conditions for diazotrophy. Moreover, these new insights may be applicable to other aquatic regimes worldwide with similar N-rich/oxygenated conditions that should potentially inhibit N2 fixation.
Introduction
Dissolved inorganic nitrogen (DIN) often controls primary and bacterial production in aquatic systems (Gruber and Galloway, 2008; Moore et al., 2013; Rahav et al., 2018b). While atmospheric dinitrogen (N2) is highly abundant, it is unavailable for most microorganisms, except N2-fixers that can reduce the N2 molecule to ammonium using the nitrogenase enzyme complex (Zehr et al., 2000; Gruber and Galloway, 2008; Sohm et al., 2011). N2-fixers, also known as diazotrophs, are a specific group of prokaryotic microorganisms. They are routinely found in a wide range of marine and freshwater environments (Sohm et al., 2011; Zehr, 2011; Luo et al., 2012) and include both autotrophic (Capone et al., 2005; Bergman et al., 2013) and heterotrophic (Riemann et al., 2010; Rahav et al., 2013; Bombar et al., 2016) prokaryotic representatives.
It is generally accepted that N2 fixation occurs by cyanobacterial diazotrophs in N-poor, sunlit environments, and that high levels of DIN can inhibit this process (Karl et al., 2002; Gruber, 2008; Knapp, 2012). However, several studies reported unexpectedly high N2-fixation rates in N-rich environments such as aphotic waters (Hamersley et al., 2011; Rahav et al., 2013; Benavides et al., 2015), estuaries (Subramaniam et al., 2008; Bentzon-Tilia et al., 2014; Bombar et al., 2016; Pedersen et al., 2018), nutrient-rich coastal waters (Mulholland et al., 2019), and in laboratory settings using N-amended cultures of diazotrophic cyanobacteria (Fu and Bell, 2003; Knapp, 2012). In many of these environments, a high diversity of heterotrophic diazotrophs, rather than phototropic cyanobacterial N2-fixers, is often found (Riemann et al., 2010), suggesting other controls and possibly mechanisms that enable N2 fixation by these heterotrophic microorganisms. While numerous studies have investigated the limiting factors for cyanobacterial diazotrophs (reviewed in Moore et al., 2013), much less is known about the nutrient controls of aquatic heterotrophic diazotrophs. One of the ways heterotrophic diazotrophs could flourish in the abovementioned aquatic environments is by adopting a particle-associated lifestyle rather than being free-living (Rahav et al., 2013; Bombar et al., 2016; Farnelid et al., 2019).
To date, several studies suggested that free-floating aggregates may be favorable loci for heterotrophic N2 fixation due to its unique physicochemical characteristics (Paerl and Carlton, 1988; Rahav et al., 2013, 2016; Pedersen et al., 2018 and see more details below). Free-floating aggregates often referred to as marine, lake, or river snow (Grossart et al., 1997; Simon et al., 2002; Lundgreen et al., 2019) are ubiquitous throughout the aquatic environment and play a central role in marine and freshwater food webs as micro-islands with intense microbial activity (Azam and Malfatti, 2007; Bar-Zeev and Rahav, 2015; Arnosti et al., 2016). In comparison to the surrounding waters, these aggregates usually contain high levels of organic and inorganic compounds, trace elements, as well as detrital matter and fecal pellets held together by a sticky scaffold comprised of proteins and polysaccharides such as transparent exopolymer particles (TEP) (Ploug and Grossart, 2000; Passow, 2002). These aggregates usually have a high C:N ratio compared to the typical ∼6.6:1 Redfield ratio, thereby inducing N-limiting conditions for different microbes, including heterotrophic diazotrophs. Indeed, once formed, aggregates are often heavily colonized by various microorganisms (del Giorgio and Cole, 1998; Simon et al., 2002; Bar-Zeev et al., 2012), including heterotrophic diazotrophic representatives affiliated with nifH Cluster III (e.g., Desulfovibrio putealis) and Cluster 1 (e.g., Azoarcus sp., Dechloromonas aromatic, and Rhodobacterales) (Pedersen et al., 2018; Farnelid et al., 2019). Bacterial abundances associated with aggregates are several orders of magnitudes higher compared to the surrounding water (Grossart and Simon, 1993; Turley and Mackie, 1994; Kiørboe et al., 2002). Bacteria/archaea associated with aggregates solubilize and re-mineralize organic matter at higher rates compared to free-living bacteria (Grossart and Simon, 1998), resulting in “hotspots” of intense microbial activity (Long and Azam, 2001; Bar-Zeev and Rahav, 2015; Arnosti et al., 2016), potentially also to heterotrophic diazotrophs (Rahav et al., 2013; Bombar et al., 2016; Farnelid et al., 2019). Further, the high aerobic respiration by bacteria colonizing aggregates (including heterotrophic diazotrophs), combined with slow diffusion rates, may lead to reduced oxygen levels toward the aggregate’s center of ≤80% air saturation and occasionally even to anoxia conditions (Paerl and Prufert, 1987; Klawonn et al., 2015). Such oxygen-reduced micro-zones may greatly benefit diazotrophs since the nitrogenase enzyme may be irreversibly damaged by O2 (Gruber, 2008). Moreover, O2-protective mechanisms used by different diazotrophs have been shown to consume much of the energy required for N2 fixation (Großkopf and LaRoche, 2012). Currently, it is unknown how the nitrogenase in heterotrophic diazotrophs is protected from O2, and it is possible that aggregates/fecal pellets provide low O2 micro-environment that “enable” N2 fixation. There is currently limited information on the activity of planktonic heterotrophic diazotrophs and their association with aggregates in eutrophic freshwater environments.
In this study, we measured heterotrophic N2 fixation in a DIN-rich aquatic environment and established a direct association between active heterotrophic diazotrophs (that synthesized nitrogenase) and polysaccharide aggregates. To this end, we sampled the eutrophic Qishon River (SE Mediterranean Sea) at two sites with different C:N and N:P ratios that may affect heterotrophic diazotrophy. Specifically, heterotrophic N2 fixation, bacterial abundance, bacterial activity, and TEP concentrations were measured along with a suite of different physicochemical variables during summer and winter. Since the focus of this study was to examine heterotrophic N2 fixation, water collected was incubated in the dark and with the addition of a photosynthetic inhibitor. Further, we used an immunolabeling approach to specifically localize diazotrophs actively expressing nitrogenase on aggregates comprising polysaccharides. Our results suggest that particles could be loci for N2 fixation by heterotrophic bacteria in eutrophic environments traditionally considered to be unfavorable for diazotrophy.
Materials and Methods
Study Sites and Sampling Strategy
Surface water (∼0.3 m) was collected from the Qishon River at two sites; one located downstream at the entrance of the estuary to the coast (hereafter referred to as “estuary,” Lat: 32°48′44.42”N, Lon. 35°02′00.6′′E), and one upstream (hereafter referred to as “stream,” Lat: 32°43′34.5′′N, Lon. 35°05′53.2′′E) (Figure 1). The estuary station was sampled in November 2013 (late summer/autumn), August 2014, September 2017 (summer), and January 2018 (winter). Stream water was sampled in September 2017 (summer) and January 2018 (winter) (Supplementary Table S1). The collected water was divided into four pre-cleaned (10% HCl and autoclaved) 1-L Nalgene bottles and amended with artificial estuary water enriched in ultra-pure 15N2 (Mohr et al., 2010). Specific focus on the activity of heterotrophic diazotrophs (rather than cyanobacterial diazotrophs) was achieved by incubating the samples for 48 h in the dark with 3-(3,4-dichlorophenyl)-1,1-dimethylurea (DCMU, 50 μM final concentration, Sigma-Aldrich D2425) to impair phototrophic activity (Clavier and Boucher, 1992). An additional bottle was collected and filtered immediately to measure the natural abundance of dissolved 15N2 (no tracer addition) (Montoya et al., 1996). Previous studies showed that prolonged dark incubation (48 h) and addition of DCMU can halt autotrophic diazotrophy, thereby providing valuable information specifically on heterotrophic N2 fixation (Rahav et al., 2015, 2016; Benavides et al., 2018).

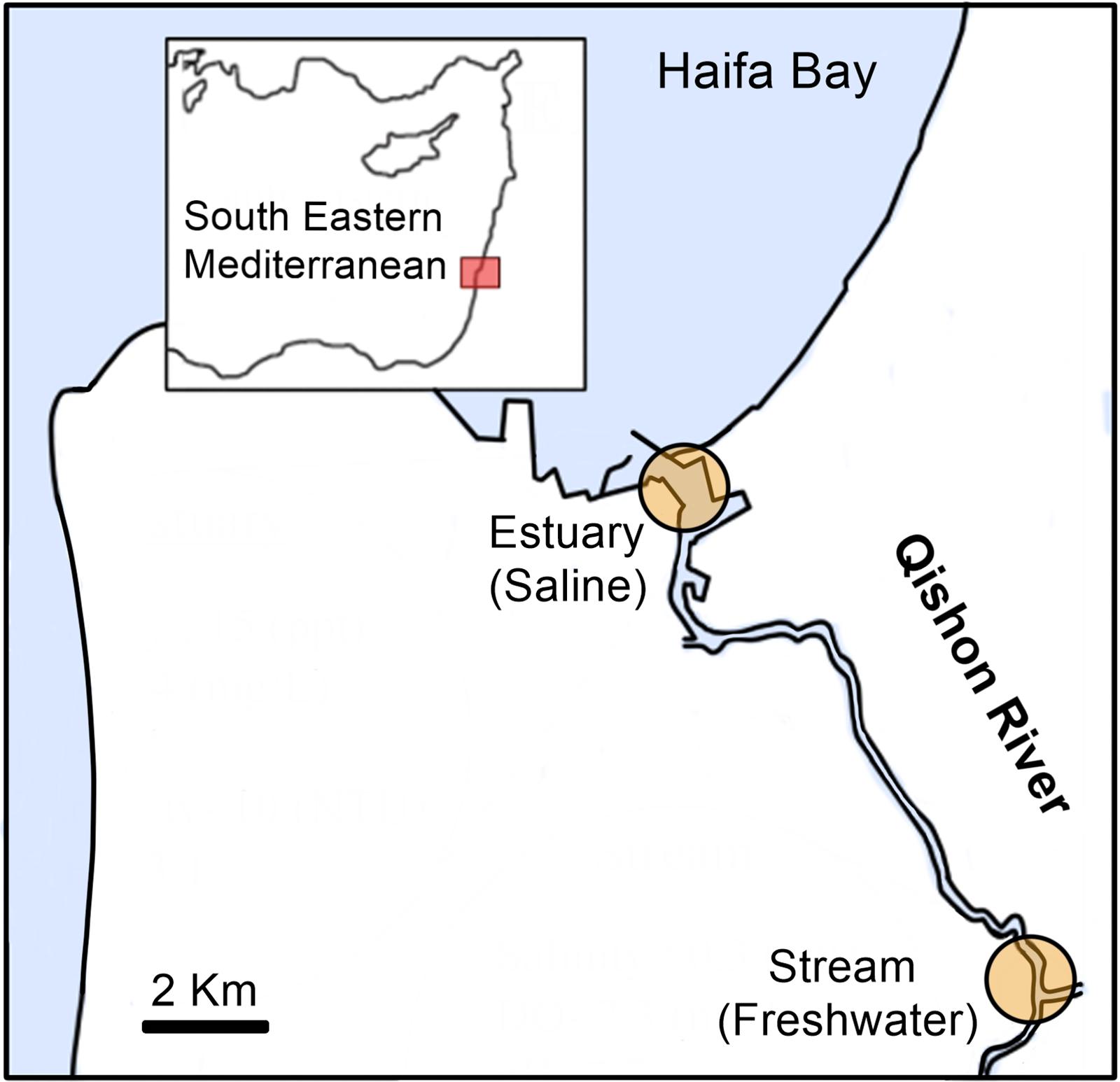

Figure 1. Map of the estuary and stream sampling sites in the Qishon River. Estuary water was sampled twice in the summer (August 2014, September 2017) and twice in winter (November 2013, January 2018), whereas the stream was sampled once in the winter (January 2018) and once in the summer (September 2017). Additional information on the water phytochemical characteristics is provided in Table 1.

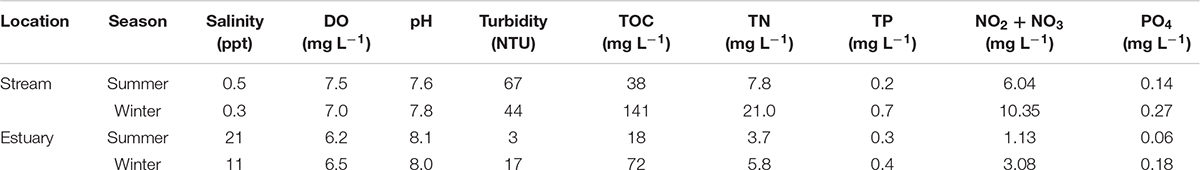

Table 1. Summary of the physicochemical characteristics of the Qishon River during the summer (September 2017) and winter (January 2018) samplings.
In addition, the association between aggregates and diazotrophs was visualized using a recently developed confocal microscopy approach at the conclusion of the incubations (under dark+DCMU conditions as well as under ambient light as controls). Natural aggregates collected from the stream and estuary are shown in Geisler et al. (2019).
Physicochemical Characteristics
Light penetration through the water column was measured using a Secchi disk (Holmes, 1970). Salinity was measured using an electrical conductivity meter (EC-30 cond, Phoenix Instruments), dissolved oxygen (DO) using an oxygen meter (ProODO, YSI), pH using a pH meter (Cybercan pH 11, Eutech), and turbidity using a turbidity meter (Tu-2016, Lutron). All sensors were calibrated based on the manufacturer’s instructions. Total phosphorus (TP), orthophosphate (PO4), and nitrate+nitrite (NO3+NO2) were measured using a segmented flow Technicon Auto-Analyzer II (AA-II) system. The detection limit for P was 2.5 × 10–4 mg L–1, while for N it was 5.6 × 10–4 mg L–1 (Sisma-Ventura and Rahav, 2019). Total organic carbon (TOC) and total nitrogen (TN) were analyzed with a TOC analyzer (Multi N/C, Analytik-Jena, Germany, detection limit; 0.3 mg L–1) and calibrated using a five-point calibration procedure (Kowalski et al., 2009). These physicochemical measurements were carried out to characterize the initial environmental characteristics of the water at both sites and were measured during September 2017 and January 2018 (same as the visualization approach described below).
Transparent Exopolymer Particles (TEP) Concentration
Subsamples (<100 mL) were filtered through a 0.4-μm polycarbonate filter (GE Water & Process Technologies) using low pressure (<150 mbar) to avoid breakdown of the aggregates at the end of the incubation (T48). Filters were stained with a 0.2% Alcian blue solution and washed three times with deionized water. TEP was extracted using sulfuric acid (80%) for 2 h. The supernatant (1 ml) absorbance was measured using a spectrophotometer at 787 nm wavelength (Thermo GENESYTM). Alcian-blue dye was calibrated against known concentrations of the purified polysaccharide gum-xanthan (GX) (Passow and Alldredge, 1995).
Bacterial Abundance (BA)
Water samples (1.7 mL) were fixed with glutaraldehyde (final concentration 0.02%, Sigma-Aldrich G7651) at T48, flash frozen in liquid nitrogen, and stored at −80°C until analyses within a few days. Prior to analyses, the samples were thawed at room temperature, sonicated for 30 s (Qsonica, Q55 Sonicator), and EDTA (2.5 μM) was added to release the cells associated/attached to the aggregates to the water media and stained with 0.5 nM SYBR Green for 10 min in the dark. Subsamples were analyzed with an Attune NEXT flow cytometer (Applied Biosystems) using a blue laser signal. Samples were run at a constant flow rate of 25 μL min–1 and cells were differentiated using green fluorescence and side scatter (Vaulot and Marie, 1999). Cell size range in an Attune NEXT system is ∼0.5–70 μm. Beads (0.93 μm, Polysciences) were run in parallel as a size standard. Blank samples of stained sterile river water (0.2 μm) and deionized water were also run and their reads were removed from the total bacterial counts.
Bacterial Production (BP)
Triplicate samples (1.7 mL) were spiked at T48 with 2 nM of 3H-leucine (123 Ci mmol–1, Perkin Elmer) and incubated for 3–4 h under ambient temperature in the dark. Incubations were terminated by adding 100% trichloroacetic acid, followed by applying the micro-centrifugation technique (Simon and Azam, 1989; Smith et al., 1992). Disintegration per minute (DPM) was measured using a Tri-CARB 4810 TR (Packard) liquid scintillation counter. Incorporation of leucine was converted to carbon by a conservative factor of 3.1 kg C mol–1 with an isotope dilution factor of 2.0.
Heterotrophic Dinitrogen (N2) Fixation
Measurements were taken by adopting the 15N2-enriched water method (Mohr et al., 2010), without degassing pre-step. The enriched medium was prepared before each sampling event (summer or winter) by injecting 15N2 gas (99%, Cambridge Isotopes, lot # NLM-363-PK) into pre-filtered (0.2 μm) artificial estuary water at a 1:100 (v:v) ratio (i.e., 1 cc of 15N2 gas per 100 ml of artificial water). The enriched stock was vigorously shaken to completely dissolve the 15N2 gas bubble. The same 15N2 tank was used to prepare the enriched water for both the summer and winter sampling campaigns. We used the atom % value provided previously using similar methodology and recipe for preparing the enriched seawater (Wilson et al., 2012) as no membrane-introduction mass spectrometry (MIMS) measurements were available. The percent enrichment can vary between batches when preparing 15N2-enriched water. However, since we used the same 15N2-enriched water in each sampling event, a comparison between the estuary and stream sites at the Qishon River reflects the measured differences between the sites.15N2 stock was added to the 1 L experimental bottles (5% of total sample volume, Rahav et al., 2015) and incubated for 48 h in the dark with DCMU to impair phototrophic diazotrophy (Rahav et al., 2015; Benavides et al., 2018) and focus specifically on heterotrophic diazotrophs. Preliminary experiment from the Northern Red Sea (and not the Qishon River) showed that N2 fixation rates were insignificantly different following dark alone or dark+DCMU incubations, thereby refuting any concern that the addition of DCMU may result in dissolved organic matter supply derived from autotrophs death/lysing which may favors heterotrophic microbial activity (including diazotrophy) (Supplementary Figures S1, S2). The samples were filtered through pre-combusted (450°C, 4.5 h) glass fiber filters and dried overnight at 60°C. A minimum of 10 μg particulate N (PN) per filter ensured adequate sample mass to resolve small differences in N isotope ratios (White et al., 2020). The samples were analyzed on a CE Instruments NC2500 elemental analyzer interfaced to a Thermo-Finnigan Delta Plus XP isotope ratio mass spectrometer (IRMS). Heterotrophic N2 fixation was calculated according to Mulholland et al. (2006) using N solubility factors described by Weiss (1970). One bottle without 15N enrichment was used for natural abundance of N2 at each station. Standard curves were processed with each sample run to determine N for isotope ratio mass spectrometry. Samples were run only when standard curves had R2 > 0.99. At masses >4.7 μg N, precision for the atom percent 15N measurement was ±0.0001% based on daily calibrations made in association with sample runs and calibrations averaged over runs made over several years. Based on natural abundance, N mass on the filters, incubation times, and the precision of mass spectrometer, the detection limit for 15N uptake was ∼0.02 nmol N L–1 d–1. This detection limit was lower by ∼70–95% of the heterotrophic N2 fixation rates measured in this study, thus providing credibility to the results.
Visualization of Active Diazotrophs on Polysaccharide-Based Aggregates
The staining protocol is described in detail in Geisler et al. (2019). Briefly, sub-samples (∼20 mL) were collected from the microcosm bottles at the end of incubations (T48) during the September 2017 and January 2018 sampling campaigns (Supplementary Table S1), gently filtered (>150 mbar) on a 0.4 μm filter and stained for the following: (i) diazotrophs were tagged with an anti-nitrogenase (Agrisera Antibodies AS01 021A) solution (6 μg mL–1) followed by an anti-chicken antigen conjugated to a FITC fluorophore (Thermo Fisher Scientific A-11039) for 45 min, (ii) Total bacteria were stained with DAPI for 45 min, (iii) The polysaccharide matrix of the aggregates was stained with the fluorescent lectin concanavalin A (ConA, 200 μg mL–1, Ex. 630 nm, Em. 647 nm, Thermo Fisher Scientific C11252) for 40 min, and (iv) Heterotrophic bacteria were distinguished from phototrophic cyanobacteria by subtracting the auto-fluorescence of phycoerythrin (Ex. 490 nm and Em. 580 nm). Although indicative to most cyanobacteria (not necessarily diazotrophs), phycoerythrin is not found in all strains, and thus, it is possible that some phototrophic diazotrophs were not identified. The stained samples were imaged with a Zeiss confocal laser scanning microscope (CLSM 510 Meta) equipped with 405 nm diode, 488 nm Aragon, and 633 nm helium-neon lasers. Captured CLSM images were processed using ZEN (blue edition). We surmised that most of the bacteria that have translated the nitrogenase enzyme would actively fix N2, resulting in a positive FITC fluorophore staining (Geisler et al., 2019). Additional controls for the visualization approach are provided in Supplementary Figures S2–S4 and include (i) testing if the addition of DCMU introduced carbon-rich substrates stimulated heterotrophic N2 fixation (Supplementary Figure S2); (ii) incubations under ambient light that capture the activity of both autotrophic and heterotrophic diazotrophic activity (Supplementary Figure S3); and (iii) testing unspecific staining of the secondary antibody (Supplementary Figure S4).
Statistical Analyses
The statistical significance between the values of heterotrophic N2 fixation, bacterial production (BP), bacterial abundance (BA) and TEP at the “estuary” or “stream” stations was determined using a student’s t-test using XLSTAT 2016 (Microsoft, New York, United States) with a confidence level of 95% (α = 0.05).
Results and Discussion
The Qishon River is a eutrophic system with water outflow into the Haifa Bay, SE Mediterranean Sea (Kress and Herut, 1998). Water in the Qishon River flows through several industrial facilities located upstream (e.g., fertilizer plants, an oil refinery, and a sewage treatment plant) that discharge high amounts of nutrients (105 ton N y–1 and 2.5 ton P y–1, N:P = 42:1)1, usually resulting in a steep eutrophic to oligotrophic gradient (Eliani-Russak et al., 2013; Vachtman et al., 2013; Bar-Zeev and Rahav, 2015). During both seasons, the stream water exhibited low salinity (0.3–0.5 ppt) and high turbidity (44–67 Nephelometric Turbidity Units, NTU), whereas the estuary water was saltier (11–21 ppt) and less turbid (3–17 NTU) (Table 1). Light penetration was limited to <30 cm, and the water was oxygenated (>6 mg L–1) in all samplings and locations (Table 1 and Figure 1). Total organic carbon (TOC, 18–141 mg L–1), total nitrogen (TN, 3.7–21.0 mg L–1), and total phosphorus (TP, 0.2–0.4 mg L–1) measurements were high and considered as hyper-eutrophic based on the NOAA reference values for rivers and estuaries (National Oceanic and Atmospheric Administration (NOAA), 1996). Similarly, DIN (NO2+NO3, 1.13–10.35 mg L–1) and orthophosphate (PO4, 0.06–0.27 mg L–1) were high, resulting in DIN:PO4 of 17–40:1 (Table 1). Previous studies reported that DIN concentrations higher than 1 μM (≈0.01 mg L–1), C:N ratio lower than ∼6.6:1, and DIN:PO4 >16:1 should significantly impair cyanobacterial N2 fixation rates (Gruber and Galloway, 2008; Knapp, 2012) and likely also heterotrophic diazotrophy (Rahav et al., 2016; Geisler et al., 2019).
Despite the unfavorable chemical conditions that prevailed along the river, heterotrophic N2 fixation rates (up to 6.9 nmol N L–1 d–1, Figure 2A) were several folds higher than the typical values reported in the nearby oligotrophic southeastern Mediterranean Sea (usually <0.05 nmol N L–1 d–1, Raveh et al., 2015; Rahav et al., 2016, 2018a; Rahav and Bar-Zeev, 2017). Corresponding heterotrophic N2 fixation rates were seven fold higher at the hyper-eutrophic stream (median ∼3.30 nmol N L–1 d–1) compared to the estuary (median ∼0.45 nmol N L–1 d–1) (t-test, P = 0.01, Figure 2A). Nonetheless, these rates were comparable to studies from other eutrophic estuaries and fjords (range values reported ∼2 to ∼80 nmol N L–1 d–1) (Subramaniam et al., 2008; Bentzon-Tilia et al., 2014; Pedersen et al., 2018), suggesting that such environments should be included in calculations of addition of N through N2 fixation in future global aquatic N balance. Concurrently, BP (12.5–155.5 μg C L–1 d–1), BA (0.03–12.5 × 1010 cells L–1), and TEP (0.04–13.5 mg xanthan-gum L–1) were also higher at the stream compared to the estuary sites by two to three fold (Figures 2B–D).
Figure 2. Heterotrophic N2-fixation rates (A), BP rates (B), BA (C), and TEP concentrations (D) in the Qishon stream and estuary systems. The data shown were compiled from the summer and the winter sampling campaigns (Supplementary Table S1). Whiskers indicate the interquartile range (25th to 75th percentile) of the dataset. The mean values are shown as a solid line. Asterisks indicate the statistical significant differences between the Qishon stream and the estuary stations (t-test) where *P < 0.05; **P < 0.01. The averaged value in each sampling campaign and location is shown in Supplementary Table S2, and the actual measured values used to generate the box-plots are shown in gray.
The identification of active diazotrophs in association with aggregates comprising polysaccharides such as TEP in the Qishon River was visualized using a recently developed immunolabeling approach (Geisler et al., 2019). This approach enabled direct visualization of active diazotrophs that synthesized the nitrogenase enzyme on aggregates comprising a polysaccharides matrix, along with cyanobacteria and other (not necessarily diazotrophs) prokaryotic/eukaryotic microorganisms (Figure 3 and Supplementary Figure S2). Using this direct visualization approach, we demonstrated that polysaccharide-based aggregates collected from the Qishon River (estuary and stream) were colonized by dense communities of active heterotrophic diazotrophs (Figure 3 and Supplementary Figure S5). Additional microscopic analyses taken after 48 h incubation at ambient light conditions clearly show that cyanobacteria colonized most of the aggregates area but only few were also diazotrophs (Supplementary Figure S3). Additionally, incubation for 48 h under dark+DCMU conditions of the same water indicated that only few unicellular cyanobacteria have synthesized the nitrogenase enzyme (i.e., were “active”). We cannot rule out that some of the colonizing phototrophic (cyanobacteria) diazotrophs were mixotrophs, namely bacteria that can “switch” between heterotrophic metabolism to carbon fixation via photosynthesis, rather than obligatory phototrophs. Recent studies demonstrated that the cyanobacterium Trichodesmium, previously characterized as phototrophs, may, in fact, use mixotrophic metabolism (Benavides et al., 2017, 2020). Similarly, the unicellular cyanobacterial diazotroph Cyanothece have been shown to take up carbohydrates and amino acids (Feng et al., 2010). Thus, it is possible that under dark+DCMU conditions, mixotrophic diazotrophs could also be captured, hence the phycoerythrin signal on our aggregates.
Figure 3. Visualization of the natural microbial population in the stream (A–E) and estuary (F–M) captured by a confocal laser scanning microscope during September 2017 and January 2018 (Supplementary Table S1) at T48. (A,F) active diazotrophs tagged by immunolabeling (green); (B,G) cyanobacteria phycoerythrin autofluorescence (orange); (C,H), total bacteria stained with DAPI (dark blue); and (D,I) polysaccharides stained with ConA (light blue). (E,M) The 3D images show the superimposed signals of the different stains. (J–L) 3D images show the zoom in of the aggregates in different locations. The axes of the superimposed images are reported in micrometers. For additional magnified confocal images see Supplementary Figure S5.
Our immunolocalization images from the Qishon River (Figure 3 and Supplementary Figure S5) suggest that these microenvironments are active hubs for heterotrophic diazotrophs. These images therefore support previous reports that correlated between aggregates such as TEP and heterotrophic N2 fixation (Rahav et al., 2013, 2016 and abovementioned references). It also supports reports of 16S rRNA and nifH gene amplicon sequencing showing that particle samples are colonized by N2-fixing microbes of both autotrophic (e.g., Trichodesmium, Crocosphaera, Nodularia spumigena, symbionts of diatoms, and UCYN-A) and heterotrophic (e.g., Desulfovibrio putealis, γ24774A11, Azoarcus sp., Rhodobacterales, and Dechloromonas aromatic) representatives (Klawonn et al., 2015; Pedersen et al., 2018; Farnelid et al., 2019).
Colonization of aggregates by diazotrophs, especially in N-rich ecosystems, may provide microenvironments favoring heterotrophic N2 fixation due to the following reasons: (i) The polysaccharide matrix of the aggregate can be degraded by the inhabiting microbes, thus providing additional energy sources to heterotrophic diazotrophs in the form of labile carbon (Bar-Zeev and Rahav, 2015), (ii) Aggregates comprising a polysaccharides matrix such as TEP would often exhibit high C:N ratio (∼20:1) compared to the Redfield ratio (∼6.6:1) in the surrounding water (Passow, 2002; Engel et al., 2004), thereby “inducing” N-limiting conditions that favor diazotrophs (Gruber, 2008), (iii) The aggregate matrix may provide microenvironments with reduced O2 concentration as it is respired toward the center of the aggregate (Paerl and Prufert, 1987; Klawonn et al., 2015; Bombar et al., 2016), thus minimizing oxidative damages to the nitrogenase enzyme (Milligan et al., 2007). This may reduce the cellular energetic cost tunneled to segregate the nitrogenase from O2 in oxygenated environments (Großkopf and LaRoche, 2012), and (iv) Aggregates often comprise high levels of trace metals such as Fe and Mo that are adsorbed to the particles from the environment (Vicente et al., 2009) and are essential to the nitrogenase function (Berman-Frank et al., 2001).
Conclusion
The chemical conditions that prevailed at the eutrophic Qishon River should potentially inhibit heterotrophic N2 fixation, especially given the high concentrations of DIN and the high N:P ratio. Nonetheless, we measured high rates of heterotrophic N2 fixation, which were several folds higher compared to rates reported from many oligotrophic marine environments, including the neighboring eastern Mediterranean Sea. Generally, the highest heterotrophic N2 fixation rates were measured in the Qishon stream, where lower C:N and higher N:P ratios were measured compared to the estuary sampling site. These results are in agreement with the few studies that report on unexpectedly high diazotrophic activity in N-rich aquatic environments. We also show evidence of dense colonies of active heterotrophic diazotrophs associated with polysaccharides-based aggregates in N-rich environments. We suggest that heterotrophic diazotrophs are supported by aggregates and may gain different biochemical advantages compared to planktonic diazotrophs in environments with unfavorable conditions for diazotrophy such as the eutrophic Qishon River. It is likely that the close physical proximity of diazotrophs (as well as other bacteria) to each other on aggregates (including TEP) may enhance the hydrolysis efficiency of carbohydrates and uptake of low-molecular weight organic compounds. In turn, energy gained through this C-rich hydrolysis can be tunneled to nitrogenase synthesis and heterotrophic N2 fixation. We stress that future studies should use methods that couple visualization of individual cells and heterotrophic N2-fixation rates supported by aggregates such as TEP (e.g., immunolocalization and NanoSIMS). These studies should also investigate the diversity, activity, and biomass of particle-associated diazotrophs as a function of the environmental and particle’s characteristics. Finally, the contribution of cyanobacterial and heterotrophic diazotrophy by aggregate associated cells to the bulk N2 fixation should be quantified via dedicated studies in different marine and freshwater environments. These will enable a better understanding of the role of aggregate-associated diazotrophy throughout the marine and freshwater environments, which can later be implemented in N budget studies and models.
Data Availability Statement
All datasets generated for this study are included in the article/Supplementary Material.
Author Contributions
EG, ER, and EB-Z conceived and designed the experiments, performed the samplings, and wrote the manuscript. EG, AB, ER, and EB-Z analyzed the data. ER and EB-Z contributed reagents, materials, and analysis tools. All authors contributed to the article and approved the submitted version.
Funding
This study was partly supported by the Israeli Monitoring Program (Ministry of Environmental Protection and Ministry of Energy), the Roy J. Zuckerberg Foundation, and the Israel Science Foundation (grant #1211/17).
Conflict of Interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Acknowledgments
We would like to thank the Qishon Water Authority for providing nutrient load values. We would also like to express our gratitude to the Yohai Ben-Nun and the Negev scholarships to EG. This article is in partial fulfillment of the Ph.D. thesis by EG at Ben-Gurion University of the Negev.
Supplementary Material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fmicb.2020.01370/full#supplementary-material
