Ohad Shifman1
Ida Steinberger-Levy1
Ronit Aloni-Grinstein1
David Gur1
Moshe Aftalion1
Izhar Ron2
Emanuelle Mamroud1
Raphael Ber1*Shahar Rotem1- 1Department of Biochemistry and Molecular Genetics, Israel Institute for Biological Research, Ness Ziona, Israel
- 2Department of Physical Chemistry, Israel Institute for Biological Research, Ness Ziona, Israel
Great efforts are being made to develop new rapid antibiotic susceptibility tests to meet the demand for clinical relevance versus disease progression. This is important especially in diseases caused by bacteria such as Yersinia pestis, the causative agent of plague, which grows rapidly in vivo but relatively slow in vitro. This compromises the ability to use standard growth-based susceptibility tests to obtain rapid and proper antibiotic treatment guidance. Using our previously described platform of quantifying antibiotic-specific transcriptional changes, we developed a molecular test based on changes in expression levels of doxycycline response-dependent marker genes that we identified by transcriptomic analysis. This enabled us to determine the minimal inhibitory concentration of doxycycline within 7 h compared to the 24 h required by the standard CLSI test. This assay was validated with various Y. pestis strains. Moreover, we demonstrated the applicability of the molecular test, combined with a new rapid bacterial isolation step from blood cultures, and show its relevance as a rapid test in clinical settings.
Introduction
The development of rapid antimicrobial susceptibility tests (ASTs) is a major challenge in light of the worldwide escalation in antibiotic resistance. Antibiotic-resistant pathogens, either naturally occurring or intentionally developed as bioterror agents, are of growing concern to public health. Hence, prompt and accurate medical care should rely on rapid methods to identify the bacteria and to determine their susceptibility to the antibiotic treatment of choice. Bacterial susceptibility is determined by standard ASTs, guided by the Clinical and Laboratory Standards Institute (CLSI) guidelines or the European Committee on Antimicrobial Susceptibility Testing (EUCAST) (Matuschek et al., 2014; Clinical and Laboratory Standards Institute [CLSI], 2015, 2018). As these tests are growth dependent, they are time consuming and may delay proper treatment, especially upon infection with a pathogenic bacteria that grows rapidly in vivo but slowly in vitro. An example of such a bacterium is Yersinia pestis (Y. pestis), the causative agent of plague, which is classified by the Centers for Disease Control and Prevention (CDC), based on its rapid disease progression, severity, and person-to-person transmission (Inglesby et al., 2000), as a Tier 1 select agent1. To date, the standard AST for Y. pestis uses the microdilution technique that requires 24 h of incubation (Clinical and Laboratory Standards Institute [CLSI], 2015), not including the time for prior bacterial isolation that requires an additional 2 days. Bearing in mind that high mortality rates are observed if antibiotic treatment is not initiated within 18 to 24 h following the onset of symptoms (Inglesby et al., 2000), rapid and reliable ASTs are needed during plague outbreaks, such as the one reported recently on the island of Madagascar2.
Great efforts have been made by us and others to develop new rapid bacterial isolation methods and AST approaches (Steinberger-Levy et al., 2007, 2016; Zahavy et al., 2012, 2018; Aloni-Grinstein et al., 2015, 2017; Meka-Mechenko et al., 2017; Huang et al., 2018). For a recent review, see Maugeri et al. (2018). These include improved recording of bacterial growth in the presence of the tested antibiotic, as in agar-diffusion tests such as the Etest® (Jacobs et al., 1992; Walsh et al., 2002; Yusof et al., 2008), plate reader (Reller et al., 2009), digital time-lapse microscopy (Fredborg et al., 2015), and microscopic observation of colony formation (Price et al., 2014). Moreover, novel approaches to monitoring rapid biological changes during the exposure of bacterial culture to antibiotic treatment rather than the final output of death versus survival have also been developed. These include the measurement of membrane potential (Nuding and Zabel, 2013; Zahavy et al., 2018), label-free cytometry (Huang et al., 2018) Raman spectroscopy for biomarkers (Liu et al., 2016), and the measurement of transcriptome output (Steinberger-Levy et al., 2016; Khazaei et al., 2018). Molecular-based methods, such as resistance genes identification (Anjum et al., 2017; Fleece et al., 2018) or clonotyping (Tchesnokova et al., 2017), may also assist in antibiotic selection; however, these methods are limited in their ability to precisely identify MICs and may require prior knowledge of the clones’ sensitivity profile. Recent whole-genome sequencing technologies have also been applied for the rapid prediction of antibiotic resistance. However, a comprehensive analysis of those efforts by EUACST concluded that those approaches are still not well-developed enough to assist in clinical decision making (Ellington et al., 2017).
We have previously reported a proof of concept for a rapid molecular AST for determining Y. pestis susceptibility to ciprofloxacin, one of the CDC-recommended antibiotics for Y. pestis treatment3. The molecular assay is based on quantification of the alterations in the expression levels of ciprofloxacin-specific early-response Y. pestis genes, identified by a transcriptomic screen (Steinberger-Levy et al., 2016). To extend the applicability of our molecular approach, we established a rapid molecular AST for the determination of Y. pestis susceptibility to doxycycline, an additional antibiotic recommended by the CDC for post-exposure prophylaxis3. As different antibiotics inhibit bacterial growth through different biological mechanisms, it is expected that the bacterial transcriptome will be antibiotic dependent, although some overlap may occur. Thus, doxycycline transcriptome profiling was performed to identify potential marker genes suitable for rapid doxycycline AST. Furthermore, we challenged our molecular susceptibility assay using a modeled clinical setting of Y. pestis-spiked blood cultures. For this purpose, we employed an SST isolation procedure (Steinberger-Levy et al., 2007; Aloni-Grinstein et al., 2017) followed by a new rapid filtration step to separate the bacteria from the blood culture within 30 min, compared to the 48 h required for colony isolation by agar culturing. Determination of the doxycycline MIC by our molecular assay was achieved in 7 h compared to the 24 h required by the standard CLSI method. The overall time (including the bacterial isolation steps) required for MIC determination by our newly described procedure was 7.5 h versus the 72 h required by the standard CLSI test, suggesting the applicability of our test in clinical settings.
Materials and Methods
Bacterial Strains and Growth Conditions
The Y. pestis strains Kimberley53 (Kim53), EV76, A1122, and Kim53pPCP1−pCD1− were previously reported (Ben-Gurion and Hertman, 1958; Flashner et al., 2004). The KIM D27 strain (Garcia et al., 1999) was kindly supplied by Prof. Mikael Skurnik, University of Helsinki, Finland. Non-virulent plasmid-cured Kim53pPCP1−pCD1− isolates with reduced susceptibility to doxycycline were generated by spontaneous mutant selection according to previously described methods (Lindler et al., 2001; Udani and Levy, 2006; Louie et al., 2007a,b, 2011a,b). The isolation was performed in compliance with the Israeli law for working with selected agents and was approved by the institutional review board. Experiments conducted using virulent strains were performed using BSL-3 containment procedures. Experiments using non-virulent strains were performed using BSL-2 containment procedures.
Bacteria were routinely grown at 28°C on DifcoTM brain heart infusion agar (BHIA, BD Cat# 241830) or on BIN (Ber et al., 2003). For the broth-microdilution tests (see section “Standard Doxycycline Susceptibility Test”) and the molecular AST (see section “Molecular Doxycycline Susceptibility Tests”), cation-adjusted BBLTM Mueller-Hinton II Broth (MHB, BD Cat# 212322) was used. For the blood culture experiments, bacteria (103 CFU) were spiked in 10 ml of human blood, obtained from the National Blood Services, MDA, Israel, under MDA research permit 08-0122. The spiked blood was transferred into BACTECTM Plus Aerobic/F Culture vials (BD, Cat# 442192). The vials were agitated at 180 rpm and 37°C for 48 h. Doxycycline was purchased from Sigma-Aldrich (D9891) as a powder, and stock solutions of 16 mg/ml in distilled water were prepared and stored at −70°C until use. Each experiment included a standard microdilution AST on Y. pestis to verify doxycycline concentrations and activity following dilutions to assay concentrations.
Isolation of Y. pestis From Blood Cultures
For bacterial isolation from blood-culture vials, 8 ml of the culture was transferred to a serum-separator tube (SST, Vacuette Cat# 455071), and the tube was centrifuged at 1700 × g for 15 min at 20°C to separate the red blood cells. At the end of the centrifugation, the supernatant was carefully discarded, and the bacteria, lying on the gel matrix, were suspended by gentle vortexing in 4 ml of MHB and were then transferred to a sterile 50-ml tube. The gel was washed with additional 4 ml of MHB. The resulting 8-ml suspension was filtered through a Minisart® NML syringe filter with a 5-μm pore size (Sartorius, Cat# 17594-K) pre-equilibrated with MHB, to remove white blood cell remnants.
Standard Doxycycline Susceptibility Test
Antimicrobial susceptibility tests were conducted by broth-microdilution tests according to the CLSI guidelines (Clinical and Laboratory Standards Institute [CLSI], 2015). An inoculum of 5 × 105−1 × 106 CFU/ml suspended in MHB was added at a 1:1 volume to a 96-well plate (TPP, Cat# 92696) containing duplicates of twofold serial dilutions of doxycycline in MHB at a final volume of 0.1 ml. Bacteria grown in MHB without the addition of doxycycline served as a growth control in each assay. The 96-well plate was incubated at 28°C for 24 h in an Infinite 200 plate reader (TECAN), and growth was monitored by measuring the optical density at 630 nm (OD630) at 1-h intervals. A 28°C incubation temperature was used because it better supported bacterial growth without affecting the MIC (Frean et al., 2003; Hernandez et al., 2003; Heine et al., 2015), which led to shorter AST durations and easier MIC determination. The MIC values were defined as the lowest doxycycline concentration that reduced growth to less than 10% of the OD630 measured for the growth control. No growth was verified by visual inspection. Each assay was performed in at least three independent experiments.
Transcriptomic Screen for Doxycycline-Responsive Genes
The transcriptomic screen for doxycycline-responsive genes was conducted essentially as previously described for ciprofloxacin (Steinberger-Levy et al., 2016). BHIA-plated Y. pestis Kim53 bacteria were suspended in MHB to OD660 = 0.33 (∼1 × 108 CFU/ml) as measured by a Novaspec Plus spectrophotometer (Amersham). The culture was then diluted 1:200 in MHB to obtain the standard CLSI-recommended concentration of 5 × 105 to 1 × 106 CFU/ml and incubated at 150 rpm and 28°C for 2 h for the adjustment of the culture to MHB. Aliquots of 100 ml of culture were added to 0.5-L Erlenmeyer flasks containing 1 ml of 100× doxycycline stock solution for a final concentration of 8 to 0.125 μg/ml at a twofold serial dilution. An untreated culture served as a control. The bacteria were then incubated with continuous shaking at 150 rpm and 28°C for 2 or 3 h. Following incubation, duplicates of 48 ml from each bacterial culture were centrifuged at 3200 × g for 15 min at 4°C. The supernatants were discarded, and the bacterial pellets were frozen in liquid nitrogen and stored at −70°C until RNA purification (see section “RNA Purification and Quantitative RT-PCR Assays”).
The RNA was used for DNA microarray transcriptomic analysis as previously described for identifying ciprofloxacin-responsive genes (Steinberger-Levy et al., 2016). DNA microarray analysis was performed using our custom Agilent 8 × 15K slide containing probes representing the Y. pestis CO92 genome. Each sample was labeled with Cy3-CTP or Cy5-CTP, while the untreated control was inversely labeled. Statistical analysis was performed using the Limma (Linear Models for Microarray Data) package from the Bioconductor project using the “read.maimages” functions. Background subtraction and LOWESS normalization were performed for each array. The Benjamini-Hochberg false discovery rate was used to correct for multiple comparisons. The transcriptomic-derived fold change (FC) was calculated for each gene as the median FC value calculated for the 3 to 5 probes representing the gene.
Molecular Doxycycline Susceptibility Tests
Molecular doxycycline susceptibility tests were conducted on bacterial suspensions originating from agar plates or blood culture vials. For bacteria grown on agar plates, the bacteria were suspended in MHB to OD660 = 0.33 (∼1 × 108 CFU/ml). Bacteria isolated from blood cultures (see section “Isolation of Y. pestis From Blood Cultures”) were quantified by a Petroff-Hausser counting chamber under a light microscope. The bacteria were then brought to the standard CLSI-recommended inoculum concentration of 5 × 105 CFU/ml in MHB to serve as the inoculum for the molecular ASTs.
The inoculum was incubated with continuous shaking at 200 rpm and 28°C for 2 h to reset the bacterial transcriptome. Aliquots were then added (1:1 in volume) to serial twofold dilutions of doxycycline in a total volume of 0.5 ml in a 24-well plate (Costar, Cat# 3524). The 24-well plate was incubated for 2 h at 28°C. The entire-well volumes were transferred to 2-ml tubes (Sarstedt, Cat# 72.693.005) and centrifuged at 5000 × g for 5 min at 4°C. At the end of the centrifugation, the supernatants were discarded, and RNA was extracted and purified from the bacterial pellets, as described in Section “RNA Purification and Quantitative RT-PCR Assays”. Quantitative reverse-transcriptase PCR (qRT-PCR) for the mgtB and bioD markers (see section “RNA Purification and Quantitative RT-PCR Assays”) was conducted on the purified RNA. Normalized FCs were calculated for each doxycycline-treated sample, as described in Section “Fold Change Calculations”. The molecular MIC (mMIC) was defined as the doxycycline concentration exhibiting the maximal normalized FC.
RNA Purification and Quantitative RT-PCR Assays
Bacterial pellets were suspended in 80 μl of lysozyme solution (0.4 mg/ml in TE, Sigma-Aldrich Cat# L6876 and T9285 for the lysozyme powder and the 100× TE buffer solution, respectively) and incubated for 5 min at room temperature. The RNA was then purified using the RNeasy RNA mini kit (QIAGEN, Cat# 74104) according to the manufacturer’s instructions but using 270 μl of the RLT buffer. Residual DNA was removed by 15 min on-column digestion using RNase-free DNase (QIAGEN, Cat# 79254).
The qRT-PCRs were conducted as 25-μl single-tube reactions. Each reaction contained 0.5 M KCl, 0.1 M Tris-HCl, pH 8.8, 1 μM SuperROX® (Biosearch Technologies, Cat# SR-1000-10), 3 mM MgCl2, 0.2 mM dNTPs, 0.6 μM from each primer, 0.3 μM TaqMan® probe, 0.25 μl of Sensiscript® RT (QIAGEN, Cat# 205213), 1 U of MyTaqTM HS DNA polymerase (Bioline, Cat# BIO-21111) and 5 μl of the purified RNA. Primers and probes were ordered from Integrated DNA Technologies, Inc. qRT-PCRs were performed in an Applied Biosystems 7500 real-time PCR system under the following conditions: 50°C for 30 min, 95°C for 3 min, 40 cycles of 94°C for 15 s and 60°C for 35 s. Cycle threshold (Ct) values were extracted using the 7500 real-time PCR system Sequence Detection Software (version 1.4).
Fold Change Calculations
The FC in expression levels of a marker gene in a doxycycline-exposed sample compared to its expression levels in an unexposed control was calculated from the marker’s Ct of the exposed culture (Ctexposed) and the Ct of the unexposed culture (Ctunexposed) using the equation FC = 2−ΔCt, where ΔCt is Ctexposed-Ctunexposed.
The FC ratio between the two marker genes, mgtB (FCmgtB) and bioD (FCbioD), termed mgtB/bioD FC, was calculated for each doxycycline concentration (DC) using the equation mgtB/bioD FCDC = FCmgtB/FCbioD.
The normalized FC for each DC, defined as the difference in the mgtB/bioD FC values between twofold-increased adjacent concentrations (DC and 2 × DC) and normalized by DC, was calculated as: normalized FC = (mgtB/bioD FC2 × DC-mgtB/bioD FCDC)/DC.
Results
Previously (Steinberger-Levy et al., 2016), we described a rapid molecular AST based on the qRT-PCR quantitation of the changes in the expression of mRNA markers upon a short 2-h exposure of Y. pestis to ciprofloxacin and showed that this test can predict the standard MIC. In the present study, we extend the applicability of our molecular AST approach by searching for doxycycline-responsive mRNA markers that can rapidly determine Y. pestis susceptibility to doxycycline.
Identification of Y. pestis Doxycycline-Responsive mRNA Markers
To search for mRNA transcripts that may be suitable as markers for the rapid detection of Y. pestis susceptibility to doxycycline, we conducted a transcriptomic analysis with the fully virulent Y. pestis Kim53 strain in response to a short exposure (2 or 3 h) to doxycycline under CLSI-standard conditions. The chosen doxycycline concentration range included a subinhibitory concentration (0.125 μg/ml), the standard MIC range of Y. pestis (0.25 to 1 μg/ml) and higher concentrations up to the susceptibility breakpoint concentrations (2 to 8 μg/ml). The changes in the gene expression levels in the exposed bacteria were compared to their basal levels in an unexposed control bacterial culture. Transcriptomic analysis was conducted with the Agilent custom-tailored DNA microarray that was used and verified in our previous study (Steinberger-Levy et al., 2016). This DNA microarray was designed to contain Y. pestis CO92 chromosomal and plasmidial genes based on its published and annotated full genome (Parkhill et al., 2001). Both Kim53 and CO92 belong to the biovar Orientalis and exhibit high sequence similarity (Tidhar et al., 2009). The transcriptomic analysis of the 2-h doxycycline-exposed bacteria revealed that the numbers of genes that were upregulated (Figure 1A, blue circle) or downregulated (orange square) were dose-dependent, involving up to several hundred genes at higher doxycycline concentrations. Furthermore, a substantial number of genes (94 and 58 up- and downregulated genes, respectively) changed more than threefold at a 1× MIC concentration (0.25 μg/ml, as determined in a parallel standard microdilution assay). Likewise, the maximal FC in expression levels obtained for any of the upregulated or downregulated genes increased in a dose-dependent manner (Figure 1B), reaching 50- and 60-fold at the highest doxycycline concentrations. To further refine our search and retrieve the most suitable mRNA markers, we looked for candidate genes that, in addition to a substantial change in their expression levels compared to an unexposed control culture (of at least 3 FC), possessed a substantial change in expression levels (of at least 2.5 FC) over bacterial culture exposed to sub-MIC concentrations of 0.5× MIC (0.125 μg/ml, column 1× MIC/0.5× MIC in Table 1). In addition, to avoid a “bell-shaped” response, wherein high doxycycline concentrations result in reduced gene expression, we searched for genes that retained high response levels (above 5 FC) at the highest tested doxycycline concentrations (column 32× MIC/0.5× MIC in Table 1). Applying these criteria of 3 FC above unexposed culture, 2.5 FC above 0.5× MIC and 5 FC at 32× MIC above 0.5× MIC resulted in 15 candidate genes (Table 1), of which 4 were upregulated and 11 were downregulated. Applying the same criteria to the transcriptomic analysis of bacteria exposed to doxycycline for 3 h revealed similar results (Supplementary Table S1). We observed more genes (9 upregulated and 18 downregulated), but most of the genes from the 2-h screen were also present in the analysis of the 3-h exposure. Thus, the 2-h exposure time was chosen for the development of the rapid molecular AST.
Figure 1. Dose-dependent expression of Yersinia pestis genes upon exposure to doxycycline. Y. pestis Kim53 bacteria were exposed for 2 h to the indicated concentrations of doxycycline. After 2 h, the bacteria were harvested and subjected to transcriptomic analysis using a custom Agilent DNA microarray. (A) The number of genes that were upregulated (blue circle) or downregulated (orange square) by at least threefold upon exposure to doxycycline. (B) The maximal change in expression levels that was observed at each doxycycline concentration in the upregulated (blue circle) or downregulated genes (orange square).
Table 1. The change in the candidate gene expression after 2 h of exposure to doxycycline: transcriptomic results.
Notably, most of the candidate genes belong to common biological pathways (Table 2), underscoring the significance of the transcriptomic screen. These biological pathways are different from the biological pathways that we observed in the search for the ciprofloxacin-responsive genes. Interestingly, while most of the doxycycline-responsive pathways were involved in nutrient synthesis and transport, suggesting a nutrient-deprivation stress, ciprofloxacin treatment induced mainly DNA repair and SOS response pathways (Steinberger-Levy et al., 2016), probably due to the difference in the mode of actions of these two antibiotics.

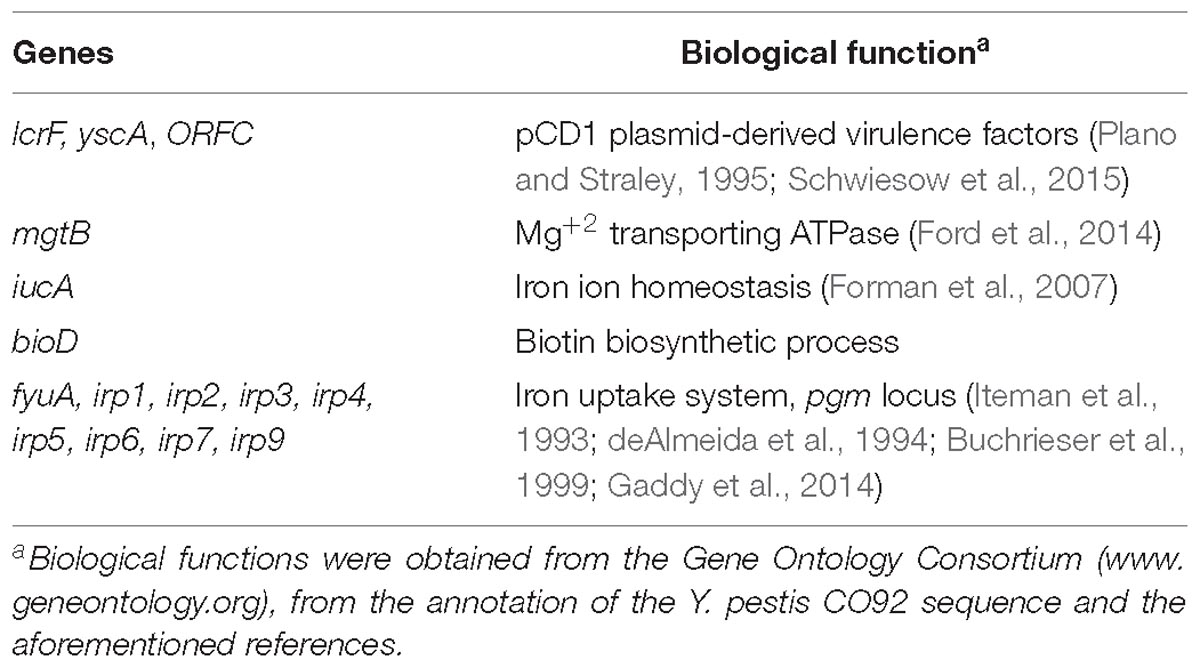

Table 2. Biological functions of the candidate genes.
qRT-PCR Quantification of the Doxycycline-Responsive mRNA Markers
To verify our transcriptomic results and to establish an RT-PCR assay for the quantification of the marker genes, we developed TaqMan-based qRT-PCR assays for two upregulated (mgtB and lcrF) and three downregulated (irp7, bioD, and iucA) genes (see Supplementary Table S2 for the primer and probe sequences). The genes were selected according to the following criteria: representation of different biological pathways (Table 2), the ratio of FC at 1× MIC over 0.5× MIC (Table 1) and the ability to find an efficient qRT-PCR assay for the genes. The qRT-PCR analysis was performed using similar settings as in the transcriptomic screen but at smaller volumes, and it confirmed that mgtB and lcrF are upregulated in response to doxycycline treatment while irp7, bioD, and iucA are downregulated, all in a dose-dependent manner (Figure 2).
Figure 2. Expression pattern of the doxycycline-responsive genes. Y. pestis Kim53 bacteria were exposed for 2 h to the indicated concentrations of doxycycline. The bacterial cultures were then harvested, RNA was extracted and the FCs in the expression levels of the indicated genes, compared to their levels in an unexposed bacterial culture, were determined by qRT-PCR. mgtB and lcrF are upregulated genes, while irp7, bioD, and iucA are downregulated.
The FC in the expression levels of the marker genes are usually normalized using housekeeping genes by the ΔΔCt approach (Livak and Schmittgen, 2001). We instead opt to use the downregulated genes. This enabled us to achieve higher FCs by taking into account the cumulative change in expression of both genes in response to doxycycline exposure, while each gene serves as an internal normalization control for RNA integrity. Preliminary results showed that this approach is valid and that the FC ratio of mgtB to bioD (mgtB/bioD FC) had the best predictive power for the molecular assay and was therefore chosen for the mMIC determination.
Determination of the Molecular MIC
To determine the mMIC, Y. pestis cultures were exposed for 2 h to a wide range of doxycycline concentrations. qRT-PCR assays for the mgtB and bioD genes were conducted on the RNA extracts, and the mgtB/bioD FC value for each doxycycline concentration was determined as described in Section “Fold Change Calculations”. As shown in Figure 3A, exposure of Y. pestis Kim53 to increasing doxycycline concentrations resulted in an increase in the mgtB/bioD FC values while maintaining a high FC at higher doxycycline concentrations. This doxycycline-mediated response was also observed in additional Y. pestis strains EV76 and A1122, which belong to the biovar Orientalis, and KIM D27, which belongs to the biovar Mediaevalis (Supplementary Figure S1). We found that the highest mgtB/bioD FC increment, when normalized to the corresponding doxycycline concentration (normalized FC, see section “Fold Change Calculations” for mathematical calculation), coincided with the standard MIC. Hence, we applied this formula to determine the mMIC. Figure 3B depicts the normalized FC values obtained for the Kim53 strain. The maximal normalized FC value was obtained at 0.5 μg/ml, which is within the range of the MIC values (0.25–1 μg/ml) found for this strain by the standard CLSI AST. Likewise, similar analyses conducted on the other Y. pestis strains (Table 3) showed that in all cases, the mMIC values were within the standard MIC range obtained for these strains.
Figure 3. mgtB/bioD FC and normalized FC values as a function of doxycycline concentration. Y. pestis Kim53 culture was exposed to the indicated concentrations of doxycycline. After 2 h, the bacterial cultures were harvested, RNA was extracted and the expression levels of mgtB and bioD (by means of Ct values) were determined using qRT-PCR. (A) mgtB/bioD FC values were calculated for each doxycycline concentration from the Ct values. Bars and error bars are averages and their standard deviations from three independent experiments. (B) The normalized FCs are presented for each doxycycline concentration. The mMIC was determined as the doxycycline concentration with the maximal normalized FC (0.5 μg/ml). The standard MIC of the bacteria is 0.25–1 μg/ml.

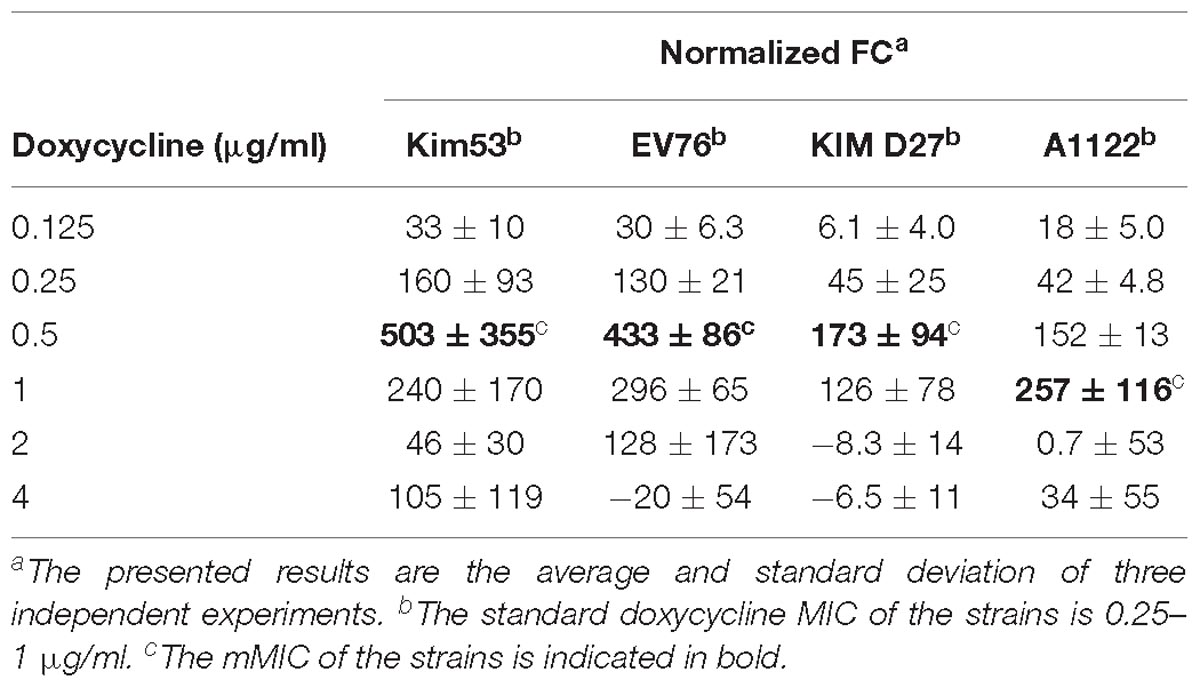

Table 3. Molecular MIC analysis of Y. pestis strains.
These results indicate that the mMIC assay can be used to predict the MIC values of a wide range of Y. pestis strains. Notably, the mMIC results were obtained after a significantly shorter exposure (2 h) to the antibiotics than the standard AST incubation time (24 h).
Determination of the mMIC of Y. pestis Derivatives With Reduced Susceptibility to Doxycycline
Next, we challenged our molecular AST using strains with reduced susceptibility to doxycycline. To that end, we isolated bacteria with reduced doxycycline susceptibility from the non-virulent strain Kim53pPCP1−pCD1−, which lacks the pPCP1 and the pCD1 plasmids, which are important for the manifestation of virulence (Flashner et al., 2004; Perry and Bearden, 2008) but do not affect the MIC value compared to the virulent strain Kim53 (Table 4). The isolates with reduced susceptibility were generated through the selection of spontaneous mutants by consecutive rounds of plating on increasing amounts of doxycycline. This selection process resulted in isolates with increased MIC values (Table 4) compared to the standard MIC of the parental strain (0.25–1 μg/ml). Notably, the strains represented the three susceptibility categories – susceptible (S), intermediate (I), and resistant (R).
Table 4. Standard MIC values of the avirulent Y. pestis Kim53pCD1−pPCP1− isolates with reduced doxycycline susceptibility.
These isolates were tested with our molecular AST, and the mMIC obtained was similar to the standard MIC as determined for each isolate, i.e., identical or within one twofold dilution (Table 5).
Table 5. Molecular MIC analysis of avirulent Y. pestis Kim53pCD1−pPCP1− isolates with reduced doxycycline susceptibility.
These results demonstrate that our rapid test has the potential to accurately predict the MIC values of both wild-type doxycycline-sensitive Y. pestis strains as well as strains with reduced susceptibility to doxycycline. This observation is of great importance in light of naturally occurring (Welch et al., 2007; Cabanel et al., 2018) and potential willfully generated resistant Y. pestis isolates.
Application of the Rapid Molecular AST for MIC Determination of Y. pestis Grown in Blood Cultures
Blood cultures are a major enrichment source for clinical bacterial isolation. Thus, we applied our molecular AST to blood culture samples. To that end, we spiked blood samples with Y. pestis EV76 to an initial concentration of 102 CFU/ml. The spiked blood was transferred into BACTECTM Plus Aerobic/F Culture vials and incubated at 37°C to allow for bacterial growth. These conditions were chosen to simulate the setup used in the clinics for bacterial enrichment from blood samples. After 48 h, the bacterial culture was harvested, and the sample was subjected to a rapid (30-min) isolation step. We first used an SST-based fractionation step (Steinberger-Levy et al., 2007; Aloni-Grinstein et al., 2017), as described in Section “Isolation of Y. pestis From Blood Cultures,” to separate the bacteria from the red blood cells. Next, the bacteria suspended in MHB were filtered through a 5-μm syringe filter to remove the white blood cells and cell debris. We then quantified the bacteria in the filtrate using a Petroff-Hausser counting chamber under a light microscope and subjected the bacteria to a 2-h recovery period at 28°C with agitation at 200 rpm prior to performing the molecular AST. This recovery step was added to allow the bacterial transcriptome to adjust from the blood culture conditions (e.g., 37°C, blood culture media) to the conditions used for the mAST (e.g., 28°C, MHB). The bacterial culture was then exposed for 2 h to a wide range of doxycycline concentrations and subjected to the molecular AST. As shown in Table 6, the mMIC was 0.5 μg/ml, which was in agreement with the standard CLSI MIC. Notably, the overall time required for MIC determination by our newly described procedure was 7.5 h versus the 72 h required by the standard CLSI test (Figure 4).
Figure 4. Schematic presentation of the standard and molecular ASTs for the determination of Y. pestis susceptibility to doxycycline. The scheme presents the steps of the standard CLSI-based and the molecular susceptibility tests for the determination of the doxycycline susceptibility of Y. pestis originating from blood cultures. The duration of each step is indicated, as well as the overall test duration.

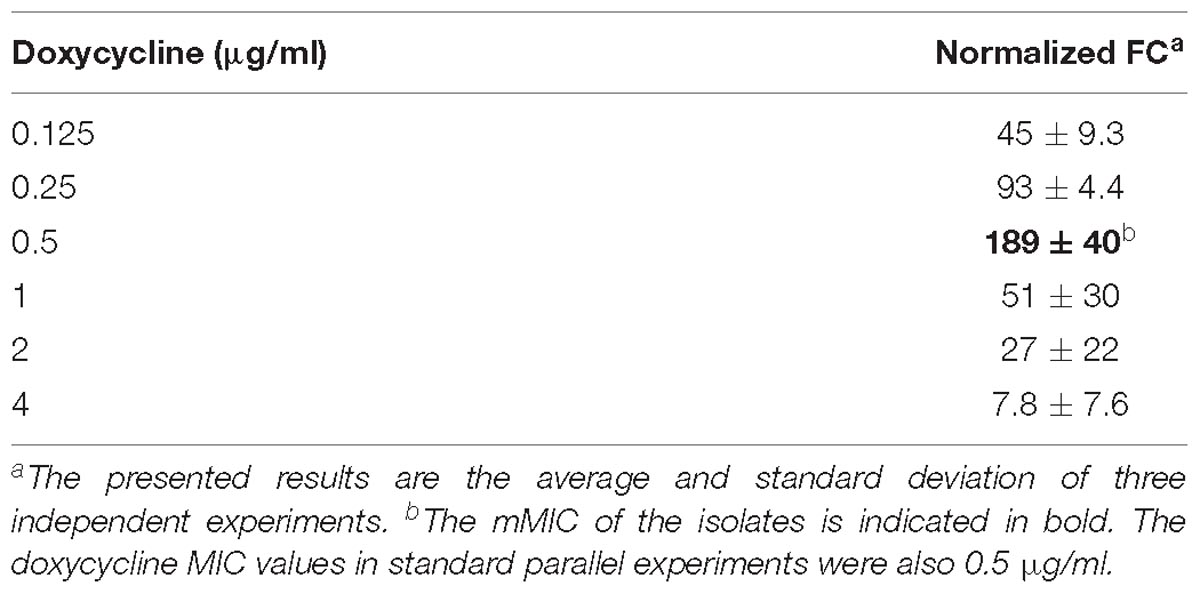

Table 6. Molecular MIC analysis of Y. pestis EV76 isolated from blood cultures.
These results demonstrate the great potential of our molecular AST, in combination with rapid bacterial isolation steps, to be used as a tool for the rapid determination of antibiotic susceptibility of bacteria that are slow-growing in clinical settings.
Discussion
The development of rapid ASTs is of great importance, especially for prompt medical care of patients with rapidly progressing life-threatening bacterial disease. The classic ASTs are based on the comparative growth of isolated bacteria in the presence of the tested antibiotic. However, some of these bacteria grow slowly under in vitro conditions. The discrepancy between their rapid in vivo replication and their slow in vitro multiplication rate may render AST results clinically irrelevant. Y. pestis, the causative agent of plague, belongs to this category of pathogenic bacteria. In recent decades, we and others (Lindler et al., 2001; Ber et al., 2003; Steinberger-Levy et al., 2007, 2016; Bugrysheva et al., 2016; Aloni-Grinstein et al., 2017; Meka-Mechenko et al., 2017; Zahavy et al., 2018) have developed strategies to overcome this obstacle for Y. pestis by addressing the time-consuming isolation step and by developing short alternative AST approaches, such as a rapid molecular AST for the determination of Y. pestis susceptibility to ciprofloxacin (Steinberger-Levy et al., 2016). This molecular AST is based on monitoring the expression levels of specific mRNA markers, which are rapidly altered in response to ciprofloxacin exposure at levels to which the tested isolate is susceptible, thus allowing for the determination of the MIC of isolated bacterial colonies within 7 h rather than the 24 h required for the standard CLSI microdilution assay. In this study, we used a similar approach to establish a rapid molecular-based AST for the determination of Y. pestis susceptibility to doxycycline. We identified several candidate mRNA markers that were substantially altered in response to a short exposure (2 h) to doxycycline. As expected, the genes that responded to doxycycline exposure were different from those found in the ciprofloxacin screen, which highlights the specificity of the selected mRNA markers in the molecular AST based on the tested antibiotic for a defined bacterium. Although ciprofloxacin-responsive genes are mainly involved in stress-response pathways (Steinberger-Levy et al., 2016), most doxycycline-responsive genes are related to nutrient deprivation responses. This difference in gene response likely reflects the difference in the mechanisms of action of the two antibiotics. Doxycycline is a bacteriostatic protein synthesis inhibitor that may stimulate nutrient deprivation signals, while ciprofloxacin is bactericidal inhibiting DNA helicase, leading to double-strand DNA breaks and the stalling of replication, thus inducing DNA repair and SOS response genes. Investigating the expression of the doxycycline- and ciprofloxacin-responsive genes in Y. pestis under exposure to additional antibiotics and their expression in additional pathogens might help elucidate both distinctive and general physiological pathways and mechanisms involved in these responses. Advances in transcriptome analysis, such as RNA-seq, and the uncovering of mutual marker genes, both to different pathogens or various antibiotics, may contribute to a broader application of our mAST.
Validation of the doxycycline-responsive genes using qRT-PCR confirmed that the genes found are indeed up- or downregulated and enabled us to quantify the change in their expression levels in an accurate and rapid manner. Applying sophisticated quantification and normalization methods, where the change in the gene expression of the upregulated gene, mgtB, was determined in comparison to the change in the downregulated gene, bioD, resulted in both an increase in the FC obtained for the individual genes and served as internal normalization gene instead of a housekeeping gene, reducing sample-to-sample variation due to the difference in RNA extraction yields. We confirmed that the mgtB/bioD FC is universally induced in a dose-dependent manner in the various Y. pestis strains tested in this study, as well as in Y. pestis isolates with reduced susceptibility to doxycycline. In our previous study, we used a global threshold to determine the mMIC value. The limitation of this approach is the requirement of extensive validation to set the threshold value. In this study, we employed intrinsic criteria based on the finding that the mgtB/bioD FC change per doxycycline concentration (normalized FC) is bell shaped with a maxima at the MIC concentration. The bell-shaped curves observed for the normalized FC results from the expression profile of the selected marker genes, which present the highest change in response to doxycycline at the MIC concentration. This phenomenon might suggest that approaching the MIC concentration, the bacteria rapidly respond to the stress induced by the antibiotics, thus resulting in enhanced and repressed transcription of these genes. At higher concentrations, although gene expression still remains high, the change in expression levels is reduced (Figure 3A), resulting in the reduction of the normalized FC values, which takes into account the doxycycline concentration.
Overall, using this assay, 96% of the molecular doxycycline ASTs we conducted (n = 27) were within one twofold dilution of the standard MIC, fulfilling the requirement for a newly developed AST of >95% agreement within one double dilution of the standard MIC (Jorgensen and Ferraro, 2009) and FDA documentation4.
Because of the great potential of our molecular AST with respect to the time course in clinical settings, we examined its applicability to clinically relevant samples, namely, blood cultures. The protocol included a simple and rapid bacterial isolation step requiring 30 min followed by the described molecular AST, yielding an MIC determination within 7.5 h, compared to the 3 days required for isolation and susceptibility testing by the standard CLSI method. This can allow faster accurate medical treatment, reducing morbidity and mortality rates.
Author Contributions
OS, IS-L, RA-G, DG, EM, RB, and SR contributed to the design of the study and data interpretation. OS, IS-L, RA-G, DG, MA, and RB contributed to the experiments and data acquisition. OS, IR, and SR contributed to mathematical and statistical analyses. OS, IS-L, RA-G, EM, RB, and SR contributed to the writing of the manuscript.
Funding
This study was supported by the Israel Institute for Biological Research, Ness Ziona, Israel.
Conflict of Interest Statement
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Acknowledgments
We thank Dr. Vered Caspi (Ben-Gurion University) for assisting with the bioinformatics and statistical analyses of the Agilent DNA microarray results.
Supplementary Material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fmicb.2019.00754/full#supplementary-material
Footnotes
- ^ https://www.selectagents.gov/selectagentsandtoxinslist.html
- ^ https://afro.who.int/health-topics/plague/plague-outbreak-situation-reports
- ^ https://www.cdc.gov/plague/healthcare/clinicians.html
- ^ https://www.fda.gov/MedicalDevices/DeviceRegulationandGuidance/GuidanceDocuments/ucm080564.htm
References
Aloni-Grinstein, R., Schuster, O., Yitzhaki, S., Aftalion, M., Maoz, S., Steinberger-Levy, I., et al. (2017). Isolation of Francisella tularensis and Yersinia pestis from blood cultures by plasma purification and immunomagnetic separation accelerates antibiotic susceptibility determination. Front. Microbiol. 8:312. doi: 10.3389/fmicb.2017.00312
Aloni-Grinstein, R., Shifman, O., Lazar, S., Steinberger-Levy, I., Maoz, S., and Ber, R. (2015). A rapid real-time quantitative PCR assay to determine the minimal inhibitory extracellular concentration of antibiotics against an intracellular Francisella tularensis live vaccine strain. Front. Microbiol. 6:1213. doi: 10.3389/fmicb.2015.01213
Anjum, M. F., Zankari, E., and Hasman, H. (2017). Molecular methods for detection of antimicrobial resistance. Microbiol. Spectr. 5:ARBA-0011-2017. doi: 10.1128/microbiolspec.ARBA-0011-2017
Ben-Gurion, R., and Hertman, I. (1958). Bacteriocin-like material produced by Pasteurella pestis. J. Gen. Microbiol. 19, 289–297. doi: 10.1099/00221287-19-2-289
Ber, R., Mamroud, E., Aftalion, M., Tidhar, A., Gur, D., Flashner, Y., et al. (2003). Development of an improved selective agar medium for isolation of Yersinia pestis. Appl. Environ. Microbiol. 69, 5787–5792. doi: 10.1128/AEM.69.10.5787-5792.2003
Buchrieser, C., Rusniok, C., Frangeul, L., Couve, E., Billault, A., Kunst, F., et al. (1999). The 102-kilobase pgm locus of Yersinia pestis: sequence analysis and comparison of selected regions among different Yersinia pestis and Yersinia pseudotuberculosis strains. Infect. Immun. 67, 4851–4861.
Bugrysheva, J. V., Lascols, C., Sue, D., and Weigel, L. M. (2016). Rapid antimicrobial susceptibility testing of Bacillus anthracis, Yersinia pestis, and Burkholderia pseudomallei by use of laser light scattering technology. J. Clin. Microbiol. 54, 1462–1471. doi: 10.1128/JCM.03251-15
Cabanel, N., Bouchier, C., Rajerison, M., and Carniel, E. (2018). Plasmid-mediated doxycycline resistance in a Yersinia pestis strain isolated from a rat. Int. J. Antimicrob. Agents 51, 249–254. doi: 10.1016/j.ijantimicag.2017.09.015
Clinical and Laboratory Standards Institute [CLSI] (2015). Methods for Antimicrobial Dilution and Disk Susceptibility Testing of Infrequently Isolated or Fastidious Bacteria. CLSI Standard M45, 3rd Edn. Wayne, PA: Clinical and Laboratories Standard Institute.
Clinical and Laboratory Standards Institute [CLSI] (2018). Methods for Dilution Antimicrobial Susceptibility Tests for Bacteria That Grow Aerobically. CLSI Standard M07, 11th Edn. Wayne, PA: Clinical and Laboratories Standard Institute.
deAlmeida, A. M., Guiyoule, A., Leal, N. C., and Carniel, E. (1994). Survey of the irp2 gene among Yersinia pestis strains isolated during several plague outbreaks in northeast Brazil. Mem. Inst. Oswaldo Cruz. 89, 87–92. doi: 10.1590/S0074-02761994000100015
Ellington, M. J., Ekelund, O., Aarestrup, F. M., Canton, R., Doumith, M., Giske, C., et al. (2017). The role of whole genome sequencing in antimicrobial susceptibility testing of bacteria: report from the EUCAST Subcommittee. Clin. Microbiol. Infect. 23, 2–22. doi: 10.1016/j.cmi.2016.11.012
Flashner, Y., Mamroud, E., Tidhar, A., Ber, R., Aftalion, M., Gur, D., et al. (2004). Generation of Yersinia pestis attenuated strains by signature-tagged mutagenesis in search of novel vaccine candidates. Infect. Immun. 72, 908–915. doi: 10.1128/IAI.72.2.908-915.2004
Fleece, M. E., Pholwat, S., Mathers, A. J., and Houpt, E. R. (2018). Molecular diagnosis of antimicrobial resistance in Escherichia coli. Expert Rev. Mol. Diagn. 18, 207–217. doi: 10.1080/14737159.2018.1439381
Ford, D. C., Joshua, G. W., Wren, B. W., and Oyston, P. C. (2014). The importance of the magnesium transporter MgtB for virulence of Yersinia pseudotuberculosis and Yersinia pestis. Microbiology 160(Pt 12), 2710–2717. doi: 10.1099/mic.0.080556-0
Forman, S., Nagiec, M. J., Abney, J., Perry, R. D., and Fetherston, J. D. (2007). Analysis of the aerobactin and ferric hydroxamate uptake systems of Yersinia pestis. Microbiology 153(Pt 7), 2332–2341. doi: 10.1099/mic.0.2006/004275-0
Frean, J., Klugman, K. P., Arntzen, L., and Bukofzer, S. (2003). Susceptibility of Yersinia pestis to novel and conventional antimicrobial agents. J. Antimicrob. Chemother. 52, 294–296. doi: 10.1093/jac/dkg363
Fredborg, M., Rosenvinge, F. S., Spillum, E., Kroghsbo, S., Wang, M., and Sondergaard, T. E. (2015). Rapid antimicrobial susceptibility testing of clinical isolates by digital time-lapse microscopy. Eur. J. Clin. Microbiol. Infect. Dis. 34, 2385–2394. doi: 10.1007/s10096-015-2492-9
Gaddy, C. E., Cuevas, P. F., Hartman, L. J., Howe, G. B., Worsham, P. L., and Minogue, T. D. (2014). Development of real-time PCR assays for specific detection of hmsH, hmsF, hmsR, and irp2 located within the 102-kb pgm locus of Yersinia pestis. Mol. Cell Probes 28, 288–295. doi: 10.1016/j.mcp.2014.08.004
Garcia, E., Nedialkov, Y. A., Elliott, J., Motin, V. L., and Brubaker, R. R. (1999). Molecular characterization of KatY (antigen 5), a thermoregulated chromosomally encoded catalase-peroxidase of Yersinia pestis. J. Bacteriol. 181, 3114–3122.
Heine, H. S., Hershfield, J., Marchand, C., Miller, L., Halasohoris, S., Purcell, B. K., et al. (2015). In vitro antibiotic susceptibilities of Yersinia pestis determined by broth microdilution following CLSI methods. Antimicrob. Agents Chemother. 59, 1919–1921. doi: 10.1128/AAC.04548-14
Hernandez, E., Girardet, M., Ramisse, F., Vidal, D., and Cavallo, J. D. (2003). Antibiotic susceptibilities of 94 isolates of Yersinia pestis to 24 antimicrobial agents. J. Antimicrob. Chemother. 52, 1029–1031. doi: 10.1093/jac/dkg484
Huang, T.-H., Tzeng, Y.-L., and Dickson, R. M. (2018). FAST: rapid determinations of antibiotic susceptibility phenotypes using label-free cytometry. Cytometry Part A 96, 639–648. doi: 10.1002/cyto.a.23370
Inglesby, T. V., Dennis, D. T., Henderson, D. A., Bartlett, J. G., Ascher, M. S., Eitzen, E., et al. (2000). Plague as a biological weapon: medical and public health management. working group on civilian biodefense. JAMA 283, 2281–2290. doi: 10.1001/jama.283.17.2281
Iteman, I., Guiyoule, A., de Almeida, A. M., Guilvout, I., Baranton, G., and Carniel, E. (1993). Relationship between loss of pigmentation and deletion of the chromosomal iron-regulated irp2 gene in Yersinia pestis: evidence for separate but related events. Infect. Immun. 61, 2717–2722.
Jacobs, M. R., Bajaksouzian, S., Appelbaum, P. C., and Bolmstrom, A. (1992). Evaluation of the E-Test for susceptibility testing of pneumococci. Diagn. Microbiol. Infect. Dis. 15, 473–478. doi: 10.1016/0732-8893(92)90093-9
Jorgensen, J. H., and Ferraro, M. J. (2009). Antimicrobial susceptibility testing: a review of general principles and contemporary practices. Clin. Infect. Dis. 49, 1749–1755. doi: 10.1086/647952
Khazaei, T., Barlow, J. T., Schoepp, N. G., and Ismagilov, R. F. (2018). RNA markers enable phenotypic test of antibiotic susceptibility in Neisseria gonorrhoeae after 10 minutes of ciprofloxacin exposure. Sci. Rep. 8:11606. doi: 10.1038/s41598-018-29707-w
Lindler, L. E., Fan, W., and Jahan, N. (2001). Detection of ciprofloxacin-resistant Yersinia pestis by fluorogenic PCR using the LightCycler. J. Clin. Microbiol. 39, 3649–3655. doi: 10.1128/JCM.39.10.3649-3655.2001
Liu, C. Y., Han, Y. Y., Shih, P. H., Lian, W. N., Wang, H. H., Lin, C. H., et al. (2016). Rapid bacterial antibiotic susceptibility test based on simple surface-enhanced Raman spectroscopic biomarkers. Sci. Rep. 6:23375. doi: 10.1038/srep23375
Livak, K. J., and Schmittgen, T. D. (2001). Analysis of relative gene expression data using real-time quantitative PCR and the 2(-Delta Delta C(T)) method. Methods 25, 402–408. doi: 10.1006/meth.2001.1262
Louie, A., Brown, D. L., Liu, W., Kulawy, R. W., Deziel, M. R., and Drusano, G. L. (2007a). In vitro infection model characterizing the effect of efflux pump inhibition on prevention of resistance to levofloxacin and ciprofloxacin in Streptococcus pneumoniae. Antimicrob. Agents Chemother. 51, 3988–4000.
Louie, A., Deziel, M. R., Liu, W., and Drusano, G. L. (2007b). Impact of resistance selection and mutant growth fitness on the relative efficacies of streptomycin and levofloxacin for plague therapy. Antimicrob. Agents Chemother. 51, 2661–2667.
Louie, A., Heine, H. S., VanScoy, B., Eichas, A., Files, K., Fikes, S., et al. (2011a). Use of an in vitro pharmacodynamic model to derive a moxifloxacin regimen that optimizes kill of Yersinia pestis and prevents emergence of resistance. Antimicrob. Agents Chemother. 55, 822–830. doi: 10.1128/AAC.00818-10
Louie, A., Vanscoy, B., Liu, W., Kulawy, R., Brown, D., Heine, H. S., et al. (2011b). Comparative efficacies of candidate antibiotics against Yersinia pestis in an in vitro pharmacodynamic model. Antimicrob. Agents Chemother. 55, 2623–2628. doi: 10.1128/AAC.01374-10
Matuschek, E., Brown, D. F., and Kahlmeter, G. (2014). Development of the EUCAST disk diffusion antimicrobial susceptibility testing method and its implementation in routine microbiology laboratories. Clin. Microbiol. Infect. 20, O255–O266. doi: 10.1111/1469-0691.12373
Maugeri, G., Lychko, I., Sobral, R., and Roque, A. C. A. (2018). Identification and antibiotic-susceptibility profiling of infectious bacterial agents: a review of current and future trends. Biotechnol. J. 14:e1700750. doi: 10.1002/biot.201700750
Meka-Mechenko, T. V., Sagiyev, Z. A., Begimbayeva, E. Z., Nekrassova, L. E., Kovaleva, G. G., Izbanova, U. A., et al. (2017). Rapid antimicrobial susceptibility testing of Yersinia Pestis strains from kazakhstan plague foci. Ekoloji 26:e102002.
Nuding, S., and Zabel, L. T. (2013). Detection, identification, and susceptibility testing of bacteria by flow cytometry. J. Bacteriol. Parasitol. S5–005. doi: 10.4172/2155-9597.S5-005
Parkhill, J., Wren, B. W., Thomson, N. R., Titball, R. W., Holden, M. T., Prentice, M. B., et al. (2001). Genome sequence of Yersinia pestis, the causative agent of plague. Nature 413, 523–527. doi: 10.1038/35097083
Perry, R. D., and Bearden, S. W. (2008). Isolation and confirmation of Yersinia pestis mutants exempt from select agent regulations. Curr. Protoc. Microbiol. 11, 5B.2.1–5B.2.12. doi: 10.1002/9780471729259.mc05b02s11
Plano, G. V., and Straley, S. C. (1995). Mutations in yscC, yscD, and yscG prevent high-level expression and secretion of V antigen and Yops in Yersinia pestis. J. Bacteriol. 177, 3843–3854. doi: 10.1128/jb.177.13.3843-3854.1995
Price, C. S., Kon, S. E., and Metzger, S. (2014). Rapid antibiotic susceptibility phenotypic characterization of Staphylococcus aureus using automated microscopy of small numbers of cells. J. Microbiol. Methods 98, 50–58. doi: 10.1016/j.mimet.2013.12.021
Reller, L. B., Weinstein, M., Jorgensen, J. H., and Ferraro, M. J. (2009). Antimicrobial susceptibility testing: a review of general principles and contemporary practices. Clin. Infect. Dis. 49, 1749–1755. doi: 10.1086/647952
Schwiesow, L., Lam, H., Dersch, P., and Auerbuch, V. (2015). Yersinia type III secretion system master regulator LcrF. J. Bacteriol. 198, 604–614. doi: 10.1128/JB.00686-15
Steinberger-Levy, I., Shifman, O., Zvi, A., Ariel, N., Beth-Din, A., Israeli, O., et al. (2016). A rapid molecular test for determining Yersinia pestis susceptibility to ciprofloxacin by the quantification of differentially expressed marker genes. Front. Microbiol. 7:763. doi: 10.3389/fmicb.2016.00763
Steinberger-Levy, I., Zahavy, E., Cohen, S., Flashner, Y., Mamroud, E., Aftalion, M., et al. (2007). Enrichment of Yersinia pestis from blood cultures enables rapid antimicrobial susceptibility determination by flow cytometry. Adv. Exp. Med. Biol. 603, 339–350. doi: 10.1007/978-0-387-72124-8_31
Tchesnokova, V., Avagyan, H., Rechkina, E., Chan, D., Muradova, M., Haile, H. G., et al. (2017). Bacterial clonal diagnostics as a tool for evidence-based empiric antibiotic selection. PLoS One 12:e0174132. doi: 10.1371/journal.pone.0174132
Tidhar, A., Flashner, Y., Cohen, S., Levi, Y., Zauberman, A., Gur, D., et al. (2009). The NlpD lipoprotein is a novel Yersinia pestis virulence factor essential for the development of plague. PLoS One 4:e7023. doi: 10.1371/journal.pone.0007023
Udani, R. A., and Levy, S. B. (2006). MarA-like regulator of multidrug resistance in Yersinia pestis. Antimicrob. Agents Chemother. 50, 2971–2975. doi: 10.1128/AAC.00015-06
Walsh, T. R., Bolmstrom, A., Qwarnstrom, A., and Gales, A. (2002). Evaluation of a new Etest for detecting metallo-beta-lactamases in routine clinical testing. J. Clin. Microbiol. 40, 2755–2759. doi: 10.1128/JCM.40.8.2755-2759.2002
Welch, T. J., Fricke, W. F., McDermott, P. F., White, D. G., Rosso, M. L., Rasko, D. A., et al. (2007). Multiple antimicrobial resistance in plague: an emerging public health risk. PLoS One 2:e309. doi: 10.1371/journal.pone.0000309
Yusof, A., Engelhardt, A., Karlsson, A., Bylund, L., Vidh, P., Mills, K., et al. (2008). Evaluation of a new Etest vancomycin-teicoplanin strip for detection of glycopeptide-intermediate Staphylococcus aureus (GISA), in particular, heterogeneous GISA. J. Clin. Microbiol. 46, 3042–3047. doi: 10.1128/JCM.00265-08
Zahavy, E., Ber, R., Gur, D., Abramovich, H., Freeman, E., Maoz, S., et al. (2012). “Application of nanoparticles for the detection and sorting of pahogenic bacteria by flow cytometry,” in Nano-Biotechnology for Biomedical and Diagnostic Research, eds E. Zahavy, A. Ordentlich, S. Yitzhaki, and A. Shafferman (Amsterdam: Springer), 23–36.
