Impervious Surfaces Alter Soil Bacterial Communities in Urban Areas: A Case Study in Beijing, China

The rapid expansion of urbanization has caused land cover change, especially the increasing area of impervious surfaces. Such alterations have significant effects on the soil ecosystem by impeding the exchange of gasses, water, and materials between soil and the atmosphere. It is unclear whether impervious surfaces have any effects on soil bacterial diversity and community composition. In the present study, we conducted an investigation of bacterial communities across five typical land cover types, including impervious surfaces (concrete), permeable pavement (bricks with round holes), shrub coverage (Buxus megistophylla Levl.), lawns (Festuca elata Keng ex E. Alexeev), and roadside trees (Sophora japonica Linn.) in Beijing, to explore the response of bacteria to impervious surfaces. The soil bacterial communities were addressed by high-throughput sequencing of the bacterial 16S rRNA gene. We found that Proteobacteria, Actinobacteria, Acidobacteria, Bacteroidetes, Chloroflexi, and Firmicutes were the predominant phyla in urban soils. Soil from impervious surfaces presented a lower bacterial diversity, and differed greatly from other types of land cover. Soil bacterial diversity was predominantly affected by Zn, dissolved organic carbon (DOC), and soil moisture content (SMC). The composition of the bacterial community was similar under shrub coverage, roadside trees, and lawns, but different from beneath impervious surfaces and permeable pavement. Variance partitioning analysis showed that edaphic properties contributed to 12% of the bacterial community variation, heavy metal pollution explained 3.6% of the variation, and interaction between the two explained 33% of the variance. Together, our data indicate that impervious surfaces induced changes in bacterial community composition and decrease of bacterial diversity. Interactions between edaphic properties and heavy metals were here found to change the composition of the bacterial community and diversity across areas with different types of land cover, and soil properties play a more important role than heavy metals.

Introduction

Urban populations and land areas have been increasing for decades, and land expansion rates are higher than or equal to population growth rates in many countries (Seto et al., 2011; Ezeh et al., 2012). Accompanying land urbanization, natural vegetation has been replaced with impervious surfaces, lawns, and greening trees, which have become the typical land cover types in urban areas (Deng and Wu, 2013; Wolch et al., 2014). It is estimated that nearly 580,000 km² of the earth is covered by impervious surfaces, and this number is continuing to increase (Elvidge et al., 2007). China has more total area of impervious surfaces than any other country, with an increase of 53.3% from 2000 to 2008 (Kuang et al., 2013). Impervious surfaces impair urban ecosystem services by causing landscape fragmentation, habitat loss, and soil degradation (Van de Voorde et al., 2011; Seto et al., 2012). Previous studies have reported that impervious surfaces has significant effects on plants (Chen Y. et al., 2016; Chen et al., 2017), but the response of microorganisms to it remains unclear.

Soils are compacted when covered by impervious surfaces (Scalenghe and Marsan, 2009), and this compaction can alter bacterial communities for years afterward (Hartmann et al., 2012). Many studies have shown that installation of impervious surfaces decreased the microbial biomass, enzymatic activity, and functional diversity by impeding the exchange of gasses, water, and materials between soil and the atmosphere (Zhao et al., 2012; Wei et al., 2013; Piotrowska-Długosz and Charzyński, 2015). However, no studies have investigated soil microbial species diversity and community composition beneath impervious surfaces. With the recent development of high-throughput sequencing, Xu et al. (2014) found that urbanization did have an effect on the bacterial community by investigating urban park soils from cities with different levels of urbanization in China. In addition, Yan et al. (2016) investigated the soils of urban green space from different ring roads and found that urban development alters bacterial diversity and community composition. However, these studies overlooked impervious surfaces, even though they are the most common representatives of urbanization. Consequently, to fully understand the response of microbes to urbanization, it is necessary to learn about the effects of impervious surfaces on microbes through high-throughput sequencing. In view of the negative effects of impervious surfaces on the environment, ecologists have advocated using permeable pavement as an alternative to traditional impervious pavement (Brattebo and Booth, 2003; Scholz and Grabowiecki, 2007). Although many studies confirmed that permeable pavement systems could mitigate urban runoff (Fassman and Blackbourn, 2010; Kamali et al., 2017), the bacterial community activities under permeable pavement remain unclear.

Understanding the environmental factors influencing the microbial community is a fundamental goal in microbial ecology (Shen et al., 2015). Various studies have generally considered soil moisture to be the major factor influencing microbial community structure and enzyme activities (Brockett et al., 2012). Moreover, bacterial diversity and structure have been shown to be constrained by soil carbon and nitrogen (Chen C. et al., 2016; Francioli et al., 2016; Li et al., 2017). Soil carbon and nitrogen pools are depleted beneath impervious surfaces (Raciti et al., 2012; Yan et al., 2015). These altered the soil nitrogen transformation process and soil microbial activities in the study of Zhao et al. (2012). Heavy metals are one of the most widespread types of pollutant in urban areas (Wang et al., 2012). Zhao et al. (2013) reported that heavy metal content was the main factor influencing microbial biomass and microbial community functional diversity across land cover types in urban areas. In addition, plant species and temperature can influence bacterial communities (Jassey et al., 2013; Kai et al., 2016; Ridl et al., 2016). Ecologists can usually identify the controlling factor influencing the microbial community in forests (Shen et al., 2013), grasslands (Hu et al., 2014b; Kaiser et al., 2016) and farmlands (Zeng et al., 2016). Nevertheless, urban soils have been seriously affected by anthropogenic activity, and alteration of the bacterial community in urban areas is caused by many factors, and so cannot be easily predicted using common factors (Xu et al., 2014).

As described above, a better understanding of the effects of impervious surfaces on soil bacteria is essential to sustainable urban planning and improvement of ecological services of urban soil. Therefore, in this study, we quantified the soil bacterial relative abundance, diversity, and community composition across five typical land cover types, including impervious surfaces (concrete), permeable pavement (bricks with round holes), shrub coverage (Buxus megistophylla Levl.), lawns (Festuca elata Keng ex E. Alexeev), and roadside trees (Sophora japonica Linn.) in urban areas. Soil bacterial communities in different land cover types were investigated by high-throughput sequencing of the 16S rRNA gene. Specifically, we tested the hypotheses that soil bacterial community will be changed by land cover type, and that impervious surfaces will exert effects on bacterial communities. In order to test this hypothesis, we addressed the following questions. (1) How does impervious surfaces affect bacterial communities? (2) What are the primary factors influencing bacterial diversity and community composition across land cover types? and (3) Can permeable pavement improve microbial diversity and community composition?

Materials and Methods

Study Site and Soil Sampling

We selected the metropolitan city of Beijing, which is the capital of China with a population of over 20 million, as the study area (39°54′N, 116°24′E). This area has a temperate climate with a mean annual precipitation of 640 mm, a temperature of 12°C, and a predominant soil type of sandy loam based on the USDA texture classification system (United States Department of Agriculture, 2014). We collected samples from Beijing Olympic Park because it includes a variety of land cover types with a similar construction history (Supplementary Figure S1). The park was built for the 2008 Beijing Olympics. The previous land surface was 0.3–5.5 m deep backfilled layer, mainly composed of clayey silt, sandy silt and artificial deposits such as construction debris and waste products (Chen, 2013; Zhang et al., 2013, 2015). Soil used for backfilling was sourced from the nearby lake and foundation excavations (Zhang et al., 2015). Since the Beijing Olympic Games, the park has become an important tourist attraction as landmark of sports culture in China. We selected five typical land cover types (impervious surfaces, permeable pavement, shrub coverage, lawns, and roadside trees) to explore the response of bacteria to the impervious surfaces (Supplementary Figure S1). Soils under impervious surfaces came from roads that were about 2.5 m wide. Soils from permeable pavement were covered by bricks with round holes in the middle and on the edges, and covering about 100 square centimeters per brick. The shrub coverage sites and lawns sites were covered by Buxus megistophylla Levl. and Festuca elata Keng ex E. Alexeev, respectively. The roadside trees (Sophora japonica Linn.) were planted in a pit of approximately 1 square meters which was surrounded by impervious surfaces. Park rangers applied compound fertilizer and pesticides approximately one to three times per year to grasses, shrubs, and roadside trees.

Samples were collected in June 2016. The experimental design was a randomized complete block design with three randomly selected sites that were approximately 2 km apart. Each site was approximately 75 ha (500 m × 1500 m), including the five land cover types. At each site, three replicate plots (4 m × 4 m) were selected for each land cover type. In each subplot, six random soil samples (0–15 cm) were collected using a soil corer (2.5 cm diameter), then mixed thoroughly and pooled into one composite sample. Each sample was placed in a sterile plastic bag, sealed, and transported to the laboratory on ice. After removing the litter layer, roots, and stones, all samples were passed through a 2 mm sieve and then separated into three parts. One subsample was air-dried for analysis of physicochemical properties, one was stored at 4°C for microbial biomass determination, and the remainder was stored at -80°C for DNA extraction.

Soil Geochemical Characteristics Analyses

Soil pH was determined with a soil to water ratio of 1:2.5 (w/v) using a pH meter (FE20-FiveEasy^TM pH, Mettler Toledo, Germany). The SMC was determined based on the weight of soils before and after being oven-dried for 48 h at 105°C. Soil total carbon (TC) and total nitrogen (TN) were determined using the Dumas method by an Element Analyser (Vario EL III, Elementar, Hanau, Germany). Soil organic carbon (SOC) content was determined by the dry combustion method with an Element Analyser (Vario EL III, Elementar, Hanau, Germany), using soil pretreated with HCl, and the soil organic matter content was 1.724 × SOC. The DOC was determined by UV adsorption at 254 nm (Brandstetter et al., 1996). Nitrate and ammonium were extracted with 2 mol l^-1 KCl and quantified using a Continuous Flow Analyser (SAN++, Skalar, and Holand). Available potassium (AK) was extracted with NH₄OAc and determined using ICP-OES (Bao, 2000). For soil heavy metal content analysis, samples were first digested using a four acid mixture containing 10 ml HCl, 5 ml HNO₃, 5 ml HF, and 3 ml HClO₄. The digested extracts were then diluted by ultrapure water to 50 ml for ICP-OES analysis of Cu and Zn, and for ICP-MS analysis of Cd, Cr, and Pb.

DNA Extraction, Amplification, and High-Throughput Sequencing

Soil DNA was extracted from 0.5 g soil from each sample using the FastDNA^® SPIN kit for soil (MP Biomedicals, Santa Ana, CA, United States) according to the manufacturer’s instructions. The concentration and quality of the extracted DNA were assessed using a Nanodrop ND-1000 spectrophotometer (NanoDrop Technologies, Wilmington, DE, United States). The final soil DNA extracts were stored at -80°C until further analyzed. The V3–V4 regions of the 16S rRNA gene were subjected to high-throughput sequencing using the Illumina Miseq PE300 sequencing platform (Illumina, Inc., San Diego, CA, United States). The V3–V4 regions of bacterial 16S rRNA genes were sequenced and PCR amplified using the universal primers 336F (5′-GTACTCCTACGGGAGGCA GC A-3′) and 806R (5′-GTGGACTACHVGGGT WTCTAAT-3′) with incorporated sample barcode sequences. The PCR program was as follows: 95°C for 5 min, 25 cycles at 95°C for 30 s, 56°C for 30 s, and 72°C for 40 s with a final extension of 72°C for 10 min. The PCR products were separated by 1% agarose gel electrophoresis and the approximately 460 bp band was purified by using the Agencourt AMPure XP kit (Beckman Coulter, Inc., Brea, CA, United States). Sequencing was performed using the Illumina Miseq PE300 sequencing platform (Illumina, Inc., San Diego, CA, United States) according to the manufacturer’s recommendations. All sequences in this study are available in Sequence Read Achieve (SRA) database of NCBI under accession number SRP127237.

Sequence Analysis

The extraction of high-quality sequences was performed with the Quantitative Insights into Microbial Ecology (QIIME) software package (version 1.4.0) (Caporaso et al., 2010). Reads not matching the primers or having read lengths below 300 were discarded. The quality-filtered reads were merged based on the overlap of the paired end read with the use of fastq-joint (Aronesty, 2011). The unique sequence set was clustered into operational taxonomic units (OTUs) (Blaxter et al., 2005) under the threshold of 97% identity using UCLUST. Chimeric sequences were identified and removed using USEARCH v.8 (Edgar, 2010). The taxonomy a representative sequence from each OTU was analyzed by UCLUST against the SILVA v. 119 16S rRNA database using a confidence threshold of 90%. After obtaining draft OTUs, singletons were removed to obtain the final quality results.

Statistical Analysis

SPSS software v.18.0 (SPSS Inc., Chicago, IL, United States) and the vegan package of R v.3.1.1 (R Development Core Team, 2013) were used for statistical analysis. Conducted principal co-ordinates analysis (PCoA) on the basis of Bray-Curtis similarity distances was used to test the differences in microbial community composition across samples from different land cover types. Canonical correspondence analysis (CCA) was performed to show a visual relationship between environmental factors and bacterial distributions. CCA analysis was done with cca in R with a stepwise model from the vegan package. Mantel tests based on Bray–Curtis similarity distance was conducted to further identify the environmental factors that were significantly correlated to the community. The resulting clustering trees were paired with a heatmap of abundance data created with ‘heatmap.2’ from the ‘gplots’ package. Analysis of similarities (ANOSIM) was used to examine differences in bacterial community composition across land cover types. Furthermore, diversity (Chao 1 and Shannon index) was calculated in mothur (Schloss et al., 2009). In addition, analysis of variance (ANOVAs) were used for examining the differences in soil physicochemical properties, relative abundance of the main bacterial phyla, and diversity across land cover types (LSD; P = 0.05). The analysis of stepwise regression was used to verify relationships between bacterial diversity and environmental factors.

Results

Soil Characteristics

As shown in Table 1, there were significant differences in soil geochemical characteristics between impervious surfaces and other land cover types. All soil samples were alkaline, with pH values ranging from 8.3 ± 0.1 to 8.6 ± 0.2. The highest values were observed for impervious surfaces, and the lowest values were observed for roadside trees. The SMC of lawns (15.9%) was nearly 3.5 times that in permeable pavement (4.7%) and impervious surfaces (4.6%). The contents of TC, TN, SOC, DOC, NH₄⁺-N, and AK under impervious surfaces were lower than that of other land cover types, but C:N ratio and NO₃^--N showed the opposite trend. The heavy metal contents in different land cover types differed, but were all higher than the background content. The Pb, Cr, Cu, Zn, and Cd concentrations ranged from 31.0 ± 3.5 to 41.2 ± 4.4, 49.3 ± 4.7 to 68.2 ± 5.7, 40.6 ± 4.8 to 86.7 ± 7.9, 72.7 ± 8.3 to 140.5 ± 11.4, and 0.1 ± 0.0 to 0.4 ± 0.1 mg kg^-1, respectively. The highest concentrations of Pb, Cr, Cu, and Zn were found in impervious surfaces, but the highest Cd was observed in permeable pavement. All metal concentrations were relatively low in roadside tree and shrub coverage areas.

TABLE 1

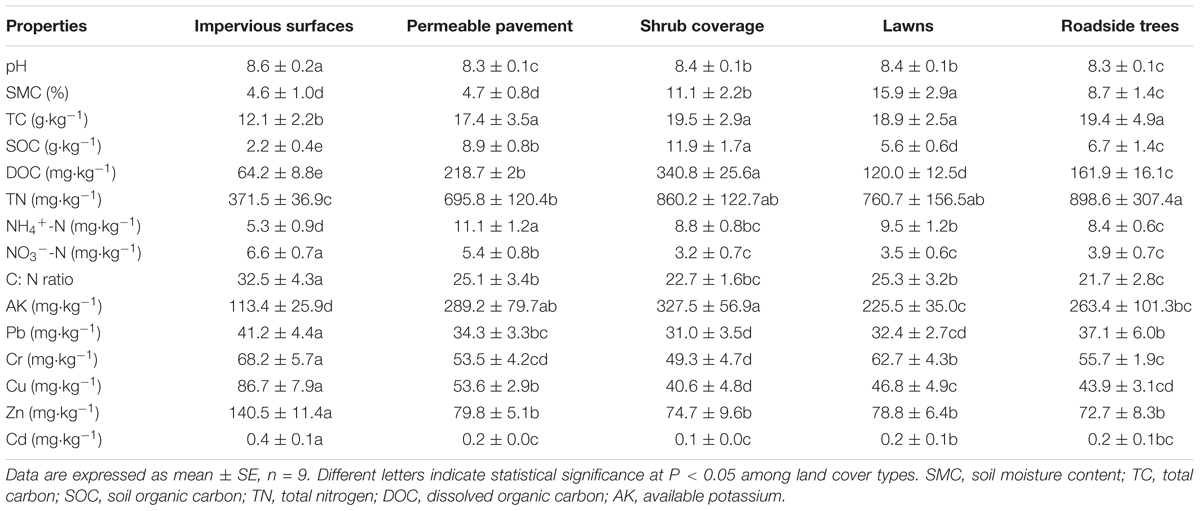

TABLE 1. Soil geochemical characteristics across land cover types in Beijing, China.

Taxonomic Distributions of Dominant Bacteria in Different Land Cover Types

To analyze the taxonomic compositions of the microbial community, a total of 1,987,125 16S rRNA V3-V4 sequences were generated from all 45 samples in this study, which varied from 23,065 to 62,506 sequences among samples (mean = 44,158) (Supplementary Table S1). High quality sequences were clustered into OTUs at the ≥ 97% similarity level, a process in which 9,172 unique OTUs were identified and individual samples contained 1,840–3,829 OTUs. All of the bacterial OTUs were classified into 42 different phyla, 104 classes, 249 orders, 493 families, and 975 genera.

The predominant phyla (relative abundance > 5%) included Proteobacteria, Actinobacteria, Acidobacteria, Chloroflexi, Bacteroidetes, and Firmicutes, together accounted for 82–89% of the total sequence data (Figure 1). Proteobacteria, Actinobacteria, Acidobacteria, and Chloroflexi were the predominant phyla in all soil samples. In particular, Firmicutes were the major phylum under impervious surfaces, while Bacteroidetes were the dominant phylum under shrub coverage and lawns. All of the major abundant phyla showed significant differences in relative abundance between the impervious surfaces and other land cover types (Supplementary Table S2). The highest level of Proteobacteria (40.9%), Actinobacteria (23.9%), Acidobacteria (16.5%), and Bacteroidetes (7.7%) appeared in shrub coverage, permeable pavement, roadside trees and lawns, respectively. Chloroflexi (14.4%) and Firmicutes (5.4%) were most prevalent beneath impervious surfaces.

FIGURE 1

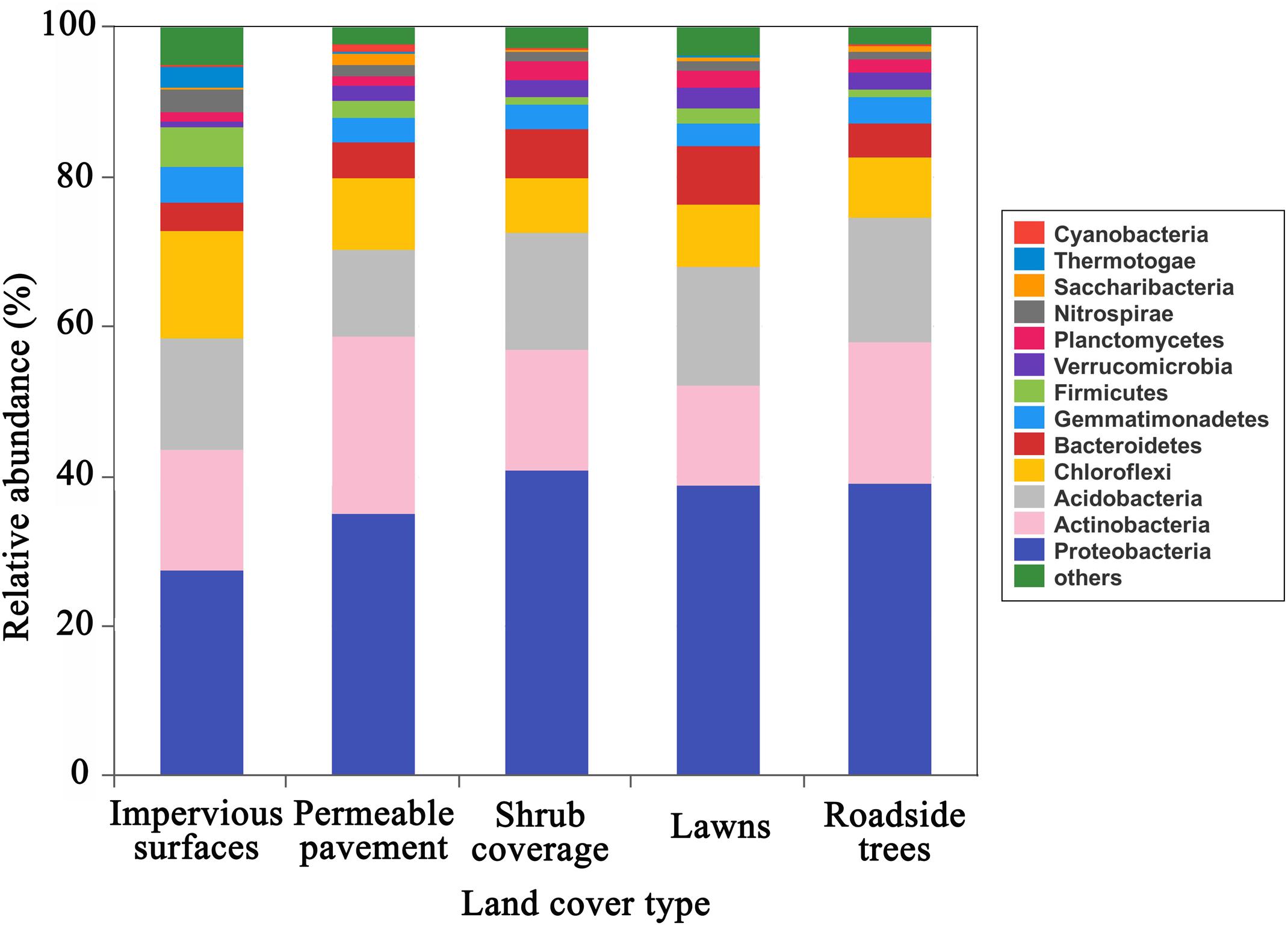

FIGURE 1. Relative abundance of the dominant bacterial community at the phylum level in samples separated by land cover type category. Relative abundances were found to depend on the average relative number of the bacterial sequences of nine samples from land cover type. Here “others” is given with respect to the taxa with a maximum abundance of < 0.5% in any sample.

As shown in Supplementary Table S3, there are 35 classes, 34 orders, 58 families, 35 genera, and 74 OTUs identified as dominant (relative abundance ≥ 0.5% in at least one sample), respectively. The most dominant classes in different land cover types were Proteobacteria, Acidobacteria, Actinobacteria, Betaproteobacteria, Gammaproteobacteria, Deltaproteobacteria, Thermoleophilia, and Gemmatimonadetes. The most dominant orders were Rhizobiales, Subgroup_6, and Rhodospirillales, which accounted for 13.7–24.3% of total bacteria in different land cover types. The most dominant families were Nitrosomonadaceae, Anaerolineaceae, and Gemmatimonadaceae, and their relative abundance was higher under impervious surfaces than beneath other types of land cover. At the genus level, the most abundant genera mainly included Arthrobacter, Chryseolinea, Gaiella, Skermanella, Steroidobacter, Streptomyces, and Sphingomonas. At the OTU level, the most abundant 74 OTUs accounted for 27.4% (impervious surfaces), 29.0% (lawns), 32.1% (permeable pavement), 34.2% (roadside trees), and 29.3% (shrub coverage) of total reads on average in different land cover types, respectively. These OTUs mainly belonged to the same abundant genera mentioned above.

Bacterial Community Composition and Diversity

To assess the microbial community structure of all samples, we conducted principal co-ordinates analysis (PCoA) on the basis of Bray–Curtis similarity distance at OTU level. As shown in Supplementary Figure S2, bacterial structures tended to be relatively similar among samples within the same land cover type and to differ distinctly across different types of land cover. The ANOSIM analysis revealed that the soil bacterial community differed significantly across land cover types at the OTU level (R = 0.49, P = 0.001). Three land cover types (shrub coverage, roadside trees and lawns) formed a cohesive group that was well separated from the other land cover types. Most of the impervious samples formed a cluster. While there were two impervious samples got together with permeable samples, but another two permeable samples were clustered with impervious samples. The analysis of microbial community heatmap and a multiple sample similarity tree were used to identify the similarity and differences of the four bacterial community structures. The bacterial communities of the 45 soil samples were roughly clustered into three groups (Figure 2). Group I consisted of six impervious samples, one permeable sample, and one lawn sample. Group II consisted of seven permeable samples, two roadside samples, two impervious samples, and two shrub samples. Group III contained samples from shrub coverage, lawns, and roadside trees. The relative abundance of GAL15, Bacillus, and Gaiella was higher in the most of the samples from impervious surfaces than in those of other land cover types, while the abundance of Arthrobacter, Sphingomonas, and Chryseolinea presented the opposite trend.

FIGURE 2

FIGURE 2. Heatmap of dominant genera of soil bacteria and cluster analysis of bacterial community composition across land cover types. The heatmap and clustering were computed from OTUs. The blue denotes low relative abundance across a bacterial taxon, and the red denotes high relative abundance.

We conducted ANOSIM analysis to further assess the difference in bacterial community structure between impervious land cover and other types of land cover. There are more significant differences in bacterial community structure between impervious surfaces and shrub coverage (R = 0.46, P = 0.002), roadside trees (R = 0.45, P = 0.002), and lawns (R = 0.38, P = 0.005) than among communities associated with permeable pavement (R = 0.27, P = 0.03).

Rarefaction was performed to show the diversity of the samples. Both the Chao 1 index and Shannon index were used to compare the levels of bacterial diversity (Table 2 and Supplementary Figure S3). Soil bacterial diversity was similar under shrub coverage, lawns, roadside trees, and permeable pavement. However, soils from impervious surfaces presented a lower bacterial diversity, and differed greatly from other land cover types. To verify the environmental factors that affected the bacterial diversity, correlation analysis between the environmental factors and Chao 1 and Shannon index was conducted through stepwise regression (Table 3). Correlation analysis showed that soil bacteria diversity was significantly correlated with Zn, DOC, and SMC.

TABLE 2

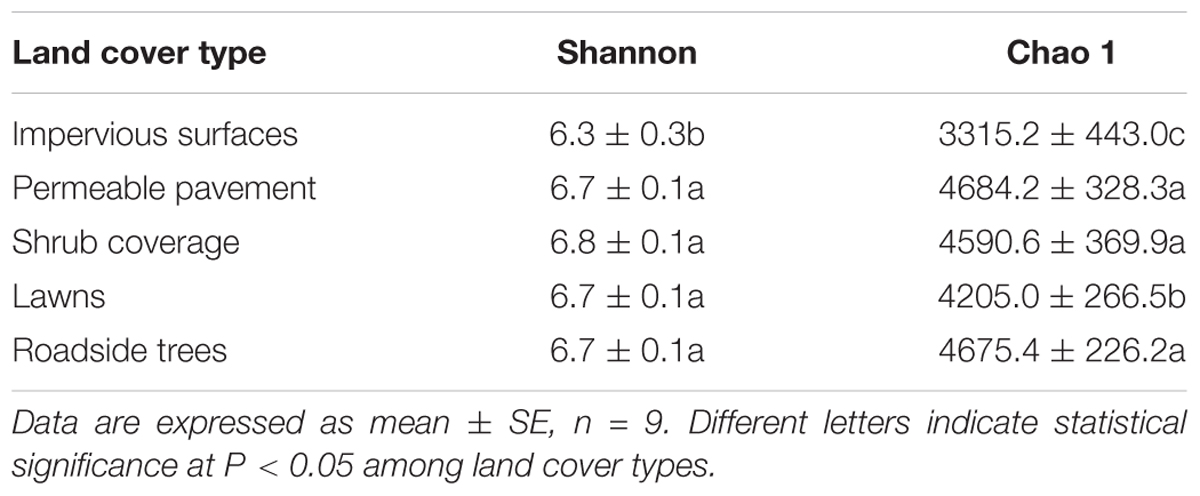

TABLE 2. The alpha diversity of bacterial communities in different land cover types.

TABLE 3

TABLE 3. Results of stepwise regression for the effects of soil properties on the alpha diversity of bacterial communities.

Relationships between Environmental Parameters and Bacterial Community Composition

Canonical correspondence analysis (CCA) was conducted to identify the environmental factors that could influence bacterial community variation among land cover types (Figure 3). The sixteen parameters (land cover type, pH, SMC, TC, TN, C:N ratio, SOC, DOC, NH₄⁺-N, NO₃^--N, AK, Pb, Cr, Cu, Zn, and Cd) were selected for analysis by CCA. The results indicated that Zn, NH₄⁺-N, and land cover type could be the main drivers (longer arrow) influencing the bacterial community composition. Other factors such as Cu, C:N ratio, and NO₃^--N also showed a high correlation with bacterial community composition based on a Mantel test (Table 4). Environmental variables that could influence bacterial community variation were different for different types of land cove (Supplementary Figure S4). The pH, Zn, and SMC could be the main drivers influencing the bacterial community composition beneath impervious surfaces, permeable pavement, and lawns, respectively. TC was the main factor shaping the composition of the bacterial community under shrub coverage and roadside trees.

FIGURE 3

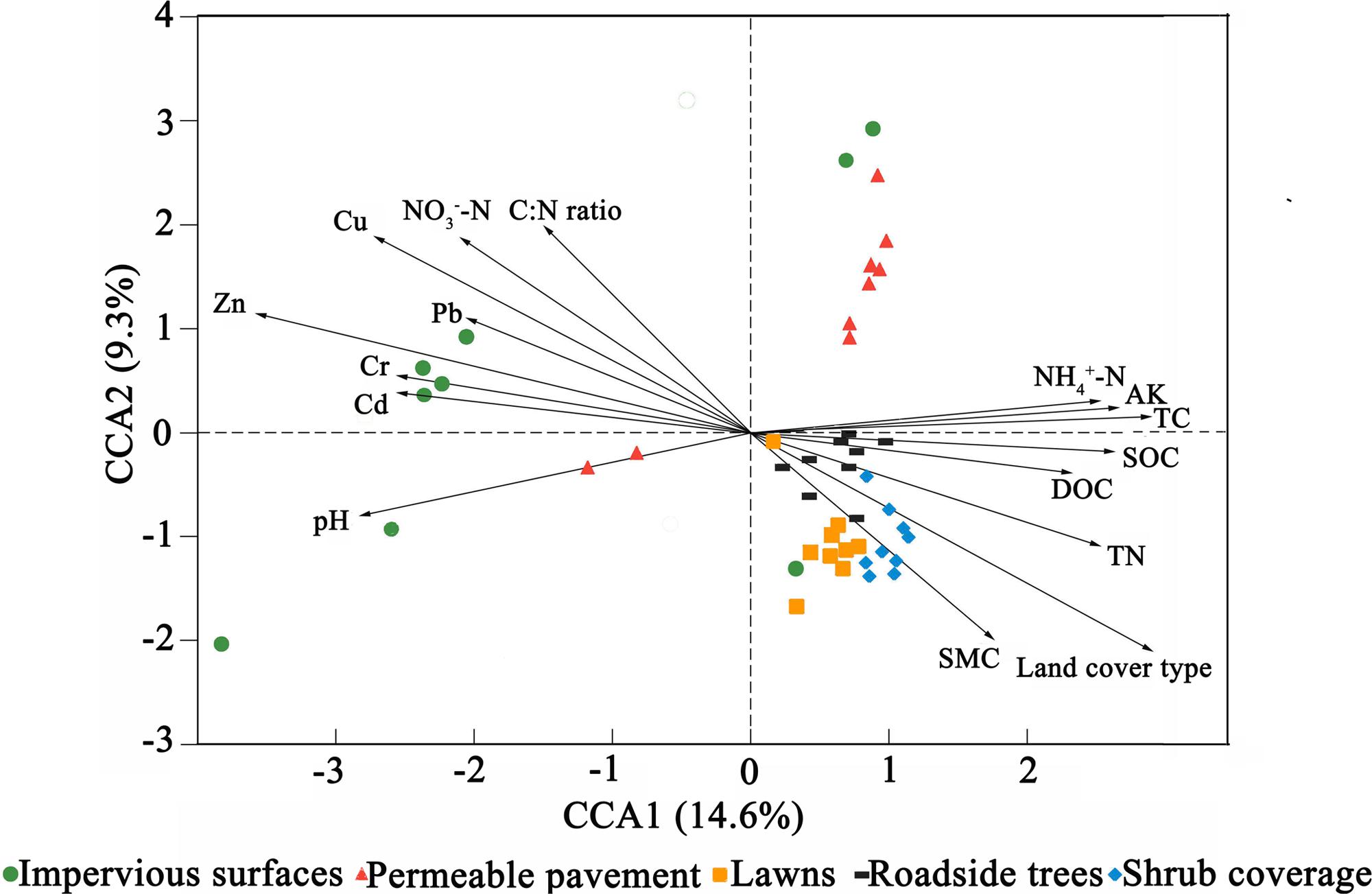

FIGURE 3. Canonical correspondence analysis (CCA) of the bacterial communities with symbols coded by land cover type.

TABLE 4

TABLE 4. Mantel test results for the correlation between community composition and environmental variables for bacteria across land cover types.

These results showed that both soil properties (NH₄⁺-N, NO₃^--N, TC, and C:N ratio) and pollutants (Cu and Zn) had effects on bacterial community composition. We divided those factors into two sections, including soil properties (pH, SMC, TC, TN, C:N ratio, SOC, DOC, NH₄⁺-N, NO₃^--N, AK) and heavy metals (Pb, Cr, Cu, Zn, and Cd) to calculate their relative contributions to the variance in the bacterial community. The relative contributions were assessed using variance partitioning analyses. As shown in Figure 4, 48.6% of the variance could be explained by these two groups of factors. Soil properties and heavy metals independently explain 12 and 3.6% of the total bacterial community variance, respectively. Interaction between edaphic properties and heavy metals explained 33% of the variance.

FIGURE 4

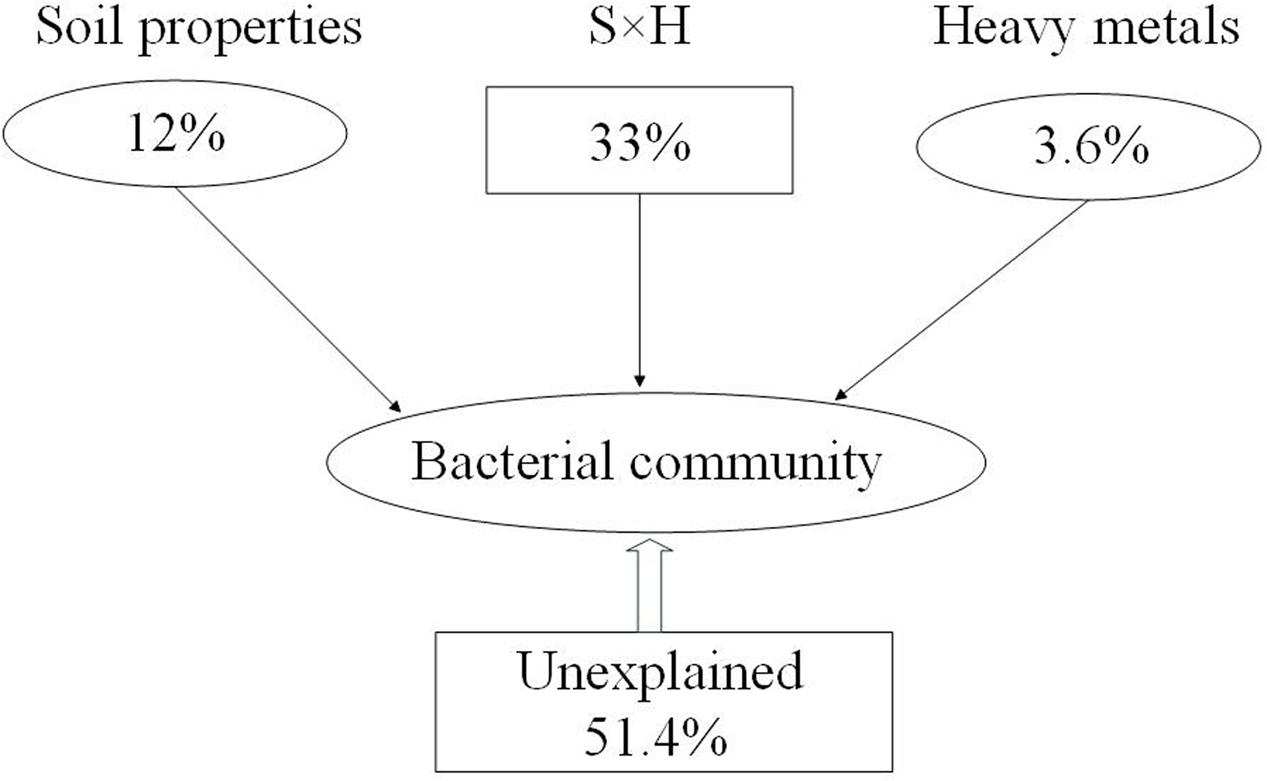

FIGURE 4. Variation partitioning analysis (VPA) of the effects of soil properties (S), heavy metals (H), and interactions between them on the bacterial community structure. Circles show the percentage of variation explained by each factor alone. The percentage of variation explained by interactions between the two factors is shown as squares. The unexplained variation is depicted in square on the bottom.

Discussion

Modifications associated with urban land cover and its landscape pattern directly impact soil properties (Scharenbroch et al., 2005; Hu et al., 2007; Park et al., 2010). In most Chinese cities, the concentrations of heavy metals are higher than their background (Wei and Yang, 2010; Liu et al., 2016). In this work all soil samples were characterized as polluted in terms of Cd, Cu, Cr, Pb, and Zn accumulation (Table 1). This is closely related to the fact that the soil that was used for backfilling was composed of construction debris and waste products. Soils from construction wastes posed a risk in terms of Zn, Cu, Pb, Cr, Cd, and Ni contents (Ljung et al., 2006; Hu et al., 2014a; Gao et al., 2015). Moreover, the study area is located at the North 5th Ring Road of Beijing a road with heavy traffic load (≈300 000 vehicles day^-1) (Qiao et al., 2011). Coal combustion and vehicle exhaust are important anthropogenic sources of heavy metals (Li et al., 2001; Xi et al., 2010; Luo et al., 2015). The heavy metal concentrations may also be affected by fertilizers and pesticides (Atafar et al., 2010; Alloway, 2013), and the use of compound fertilizer and pesticides may increase the level of soil heavy metals beneath lawns, shrubs, and roadside trees. Together these factors result in high accumulation levels of heavy metals across land cover types in urban areas. It is noteworthy that the soil from impervious surfaces suffered from the most severe contamination of heavy metals, particularly Zn and Cu, more than areas with other types of land cover. Soils containing construction waste show clearly higher concentrations of heavy metals than natural soil material (Abel et al., 2014). However, it is difficult to determine the contribution of each process (including soil backfill, construction processes, coal combustion and vehicle exhaust) to the concentrations of heavy metal. Many studies (Bieby et al., 2011; Ali et al., 2013) show that phytoremediation is an effective and affordable biological solution. It is used to extract or remove inactive metals and metal pollutants from contaminated soil. In the present study, the concentrations of heavy metals were relatively low under lawns, shrubs, and roadside trees, which indicates that the heavy metals may be continually removed by aboveground vegetation. In contrast, soil sealed by concrete could not release heavy metals to the rest of the world. Furthermore, soils carbon, nitrogen, and water were depleted beneath impervious surfaces because they are completely separated from the atmosphere (Lorenz and Lal, 2009). The magnitude of the loss of soil carbon and nitrogen beneath impervious surfaces is unknown, but likely possibilities include loss to the atmosphere as CO₂, N₂O, and N₂; or aqueous losses as dissolved organic and inorganic carbon and nitrogen (Raciti et al., 2012).

Our results demonstrated that different types of land cover altered the bacterial community composition (Supplementary Figure S2). We found that Proteobacteria, Actinobacteria, Acidobacteria, Chloroflexi, Bacteroidetes, and Firmicutes were the most abundant phyla and were ubiquitous in urban soils. The predominance of the phyla Proteobacteria, Firmicutes, and Chloroflexi under in soil of impervious surfaces differed significantly with other types of land cover (Supplementary Table S2). Proteobacteria has been reported to be positively related to soil nutrient availability (e.g., TC and TN) (Koyama et al., 2014; Delgado-Baquerizo et al., 2016), and they less abundant under impervious surfaces than other types of land cover. While higher amounts of Firmicutes and Chloroflexi in soil of impervious surfaces indicated that Firmicutes and Chloroflexi were favored under impervious conditions. This may be because they were resistant to drought and extreme environmental changes (Battistuzzi and Hedges, 2009; Mendes et al., 2015). Soil bacterial community composition beneath impervious surfaces differed across the remaining types of land cover (PCoA, CCA, ANOSIM, and heatmap analyses). The difference in soil bacterial community composition between impervious surfaces and permeable pavement was small compared with other land cover types (R = 0.27, P = 0.03).

Soil microbial diversity was found to be sensitive to perturbations because of anthropogenic activities and pollution (Torsvik et al., 1998; Moffett et al., 2003; Fei et al., 2010). Xu et al. (2014) suggested that soil bacterial diversity did not differ in green spaces among cities in China, but Yan et al. (2016) reported it differed significantly across urban ring road areas. In the present work, soil bacterial diversity under impervious surfaces was low and differed dramatically from other land cover types, but there were no differences among the remaining four types of land cover, indicating that impervious surfaces decreased soil bacterial diversity (Table 2). In contrast, permeable pavement maintained a similar level of soil bacterial diversity with shrub coverage, roadside trees, and lawns. These results were similar to those of a previous study that showed that semi-impervious surfaces systems could reduce the negative effects of impervious surfaces in urban paved areas (Piotrowska-Długosz and Charzyński, 2015). It should be noted that this study examined only one type of permeable pavements; therefore, more types should be considered in future studies. Furthermore, soils show clear spatial heterogeneity in urban areas, and multiple factors affect soil microbial diversity. For example, water stress modifies the microbial community structure (Hueso et al., 2012), and changes in availability of substrates may result in predictable shifts in soil bacterial diversity (Goldfarb et al., 2011). Heavy metal pollution decreases microbial diversity and activity (Chen et al., 2014; Xie et al., 2016). Here, we found that bacterial diversity was mainly correlated with Zn, DOC, and SMC across land cover types (Table 3). These findings indicate that these three factors had important effects on affecting bacterial distribution patterns in different land cover types.

Environmental variables interact, change, and play key roles in shaping bacterial community composition in many ecosystems (Drenovsky et al., 2004; Fierer and Jackson, 2006; Berg and Smalla, 2009). In the present study, stepwise regression (Table 3) and Mantel test (Table 4) showed that Zn was closely correlated with bacterial diversity and community composition across land cover types. While different environmental factors influenced the variation in bacterial communities in different land cover types (Supplementary Figure S4). Zn was the main factor shaping the bacterial community composition under permeable pavement. Soil properties, such as pH, SMC, and TC, were the chief factors in the remaining types of land cover. Although, some studies have demonstrated that Zn is often correlated with bacterial community composition (Wang et al., 2007; Gołȩbiewski et al., 2014; Xu et al., 2017), we did not ensure Zn to be the most predominant factor affecting bacterial communities across land cover types. Because urban soils have been seriously affected by anthropogenic activities (Chen et al., 2005; Karim et al., 2014), and alterations in the bacterial community in urban areas are caused by many factors, community structure cannot be easily predicted by one factor (Xu et al., 2014). The causal connection between them needs more experiments to confirm. Besides Zn, Cu, NH₄⁺-N, NO₃^--N, and C:N ratio also correlated with bacterial community composition (Figure 3 and Table 4). Zhao et al. (2013) had reported that nutrient availability and heavy metals content were the key factors influencing microbial biomass and functional diversity in urban soils. Here, we divided the environmental factors into two groups based on soil properties and pollution factors to determine which are more important in shaping the composition of the bacterial community. Based on VPA results (Figure 4), 48.6% of the bacterial community variance could be explained by these two groups. It is reasonable to expect that some additional factors, such as soil temperature, soil texture, water-retention capacity, and other chemicals, play key roles in shaping bacterial community composition in urban soil. Interactions between edaphic properties and heavy metals contributed to 33% of the community variance. This meant soil bacterial community variance is caused by changes in soil properties and heavy metal content. Soil properties were here found to be more important than heavy metals in determining the distribution of bacterial communities across land cover types.

Conclusion

In summary, the present study showed that the major bacterial phyla across land cover types were Proteobacteria, Actinobacteria, Acidobacteria, Bacteroidetes, Chloroflexi, Gemmatimonadetes, and Firmicutes in urban areas. Impervious surfaces altered bacterial community composition, and decreased bacterial diversity. Soil bacterial diversity was mainly correlated with Zn, DOC, and SMC. Interaction between edaphic properties and heavy metals changed bacterial community composition across land cover types. Soil properties, such as NH₄⁺-N, NO₃^--N, C:N ratio, and TC, played a more important role than heavy metal pollution in shaping urban soil bacterial community composition. Although permeable pavement is beneficial to the overall diversity of bacterial communities compared to impervious surfaces, we examined only a single type of permeable pavement. More types of permeable pavement should be considered in the future to study their effects on microbial communities. Moreover, we focused only on bacteria, and were not concerned with fungi and other microorganisms. For a better understanding of the biogeochemical cycling of soil carbon and nitrogen beneath impervious surfaces and to provide a reference for urban land planning, further studies on microbial ecology in urban areas should focus on fungus and functional microbes. Such information will be helpful for ecological restoration and management of soil in urban environments.

Author Contributions

FL designed the study. YH designed the study, determined the soil physicochemical properties, analyzed the sequencing data, and wrote the manuscript. JL collected soil samples and determined the soil physicochemical properties. XD helped revise the manuscript.

Funding

This paper was funded by the National Natural Science Foundation of China (No. 71273254) and the National Key Research and Development Program (Grant No. 2016YFC0502804).

Conflict of Interest Statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Acknowledgments

We thank Wang Qing and Li Yuanzheng for their contributions on the data analysis.

Supplementary Material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fmicb.2018.00226/full#supplementary-material

FIGURE S1 | Sampling sites in the urban area of Beijing (created using ArcGIS 10.1), and the pictures of different land cover types.

FIGURE S2 | Principal coordinates analysis (PCoA) of Bray–Curtis similarity distance of the bacterial communities comparing all 45 samples from the five land cover types. Sites have been color-coded according to land cover type.

FIGURE S3 | Rarefaction curves for Chao 1 index (A) and Shannon index (B) at the level of 97% 16S rRNA gene similarity across land cover types.

FIGURE S4 | Canonical correspondence analysis (CCA) of the bacterial communities of each land cover type.

TABLE S1 | Number of sequence reads [before (BF) and after (AF) quality filtering using the Quantitative Insights into Microbial Ecology (QIIME) software package] and OTUs classified from after quality filtering sequences. Different letters indicate different land cover types. I, Impervious surfaces; L, Lawns; P, Permeable pavement; R, Roadside trees; S, Shrub coverage.

TABLE S2 | Relative abundance of the main bacterial phyla classified with RDP taxonomy in five land cover types (values represent % of total non-redundant sequences). Different letters indicate statistical significance at P < 0.05 among land cover types.

TABLE S3 | Relative abundances of the dominant bacterial classes (a), orders (b), families (c), genera (d) and OTUs (e) across land cover types, and only those with relative abundance ≥0.5% at least at one sampling time were shown.
