Yaqi Feng
Wenjiang Zhao2
Yawen Feng
Wenli Dai- 1Department of Nuclear Medicine, the First College of Clinical Medical Science, China Three Gorges University, Yichang, Hubei, China
- 2Department of Interventional Radiology, the First College of Clinical Medical Science, China Three Gorges University, Yichang, Hubei, China
Background: Renal arteriovenous malformations (rAVMs) are congenital abnormal pathways between renal arteries and veins that are rare in the general population. It is often misdiagnosed as malignant renal tumors with abundant blood supply, and the definitive diagnosis primarily relies on angiography. Multimodality imaging, including contrast-enhanced computed tomography (CT), magnetic resonance imaging (MRI), and positron emission tomography (PET)/CT plays an important role in the differential diagnosis of renal space-occupying lesions.
Case presentation: A 56-year-old man presented with abdominal distension, loss of appetite, and back pain without obvious cause 2 years ago, without nausea vomiting, or frequent urination. Gastroscopy and colonoscopy showed multiple polyps in the duodenum and colon. Abdomen contrast-enhanced CT revealed a mass of 1.6 × 1.4 cm in the left kidney, which was considered to be a malignant tumor. PET/CT was performed for further diagnosis; the 18F-fluorodesoxyglucose (18F-FDG) PET/CT scan showed mild uptake in the left renal mass, while no uptake of 18F- prostate-specific membrane antigen (PSMA) was observed. Following a multidisciplinary discussion, the possibility of renal AVMs was considered and subsequently confirmed by renal angiography as the diagnosis. Then, selective segmental renal artery embolization was performed for treatment.
Conclusion: Renal AVMs are extremely rare in clinical practice. Due to limited research on the application of 18F-FDG and 18F-PSMA PET/CT to renal AVMs, its role remains largely unexplored. With the increasing popularity of PET/CT imaging, comprehensive imaging of the disease has become indispensable. We report the first case of PSMA PET/CT imaging in renal AVMs, and when PSMA expression is absent in a renal mass, the possibility of renal AVMs should be considered.
Introduction
Renal AVMs are congenital abnormal pathways between renal arteries and veins. They are rare diseases with a morbidity of less than 0.04% in the general population (1). The typical presentation of patients is the presence of hematuria or incidental detection during diagnostic imaging. It can be divided into congenital and acquired types (2). Congenital renal AVM can be divided into 3 categories: cirsoid, angiomatous, and aneurysmal (3). The acquired causes mainly include trauma, surgery, percutaneous renal biopsy, vasculitis, and renal malignant tumors (4). The main purpose of imaging is to establish a definitive diagnosis of the target lesion and differentiate renal AVM from other renal lesions. Imaging such as ultrasound, computed tomography angiography (CTA), magnetic resonance angiography (MRA), and renal arteriography can differentiate types of vascular malformations based on the predominant vessel type, anatomy, and flow patterns. However, current imaging modalities fail to assess the biological activity of the vascular malformation. 18F-FDG-PET/CT is a functional imaging modality that plays a considerable role in the diagnosis of malignancies while also serving as a surrogate marker for angiogenesis through increased FDG uptake, thereby aiding in the localization of lesions (5). PSMA is expressed in neovascularization, including tumor angiogenesis and nonmalignant situations (6); However, its application in renal AVMs has not been reported yet.
Therefore, we reported the diagnosis and treatment of a patient with renal AVM and demonstrated the unique features of 18F-PSMA-1007 and 18F-FDG uptake in renal AVMs.
Case description
A 56-year-old male presented with unexplained abdominal distension 2 years ago, accompanied by easy satiety, a loss of appetite, and back pain. Physical examination showed no abnormalities. Laboratory tests for liver and kidney function as well as tumor markers were normal. Gastroscopy revealed the presence of duodenal polyps, while colonoscopy showed multiple polyps in the colon and rectum. After the polypectomy, pathology showed duodenal bulb and sigmoid colon polyps and a rectal tubular adenoma. The patient had a previous history of tonsillitis resection.
The patient underwent a CT examination of the abdomen, revealing a 2.5 × 1.9 cm low-density lesion with unclear boundaries in the right lobe of the liver. Contrast-enhanced CT was recommended. During contrast-enhanced CT scanning of the abdomen, the lesion in the right lobe of the liver showed no obvious enhancement, which suggested a complicated cyst. Additionally, a soft tissue density nodule measuring 1.6 × 1.4 cm with a CT value of 33HU was found in the renal sinus in the lower pole of the left kidney. This nodule showed significant enhancement during the arterial phase (CT value: about 202HU) and conspicuously decreased during the venous phase (CT value: about 160HU), raising the possibility of clear cell renal cell carcinoma (ccRCC; Figure 1). MRI scan showed a 1.6 cm diameter nodule in the left renal sinus, which was isointensity on T1 weighted image and hypointensity on T2 weighted image and significantly enhanced in the arterial phase.

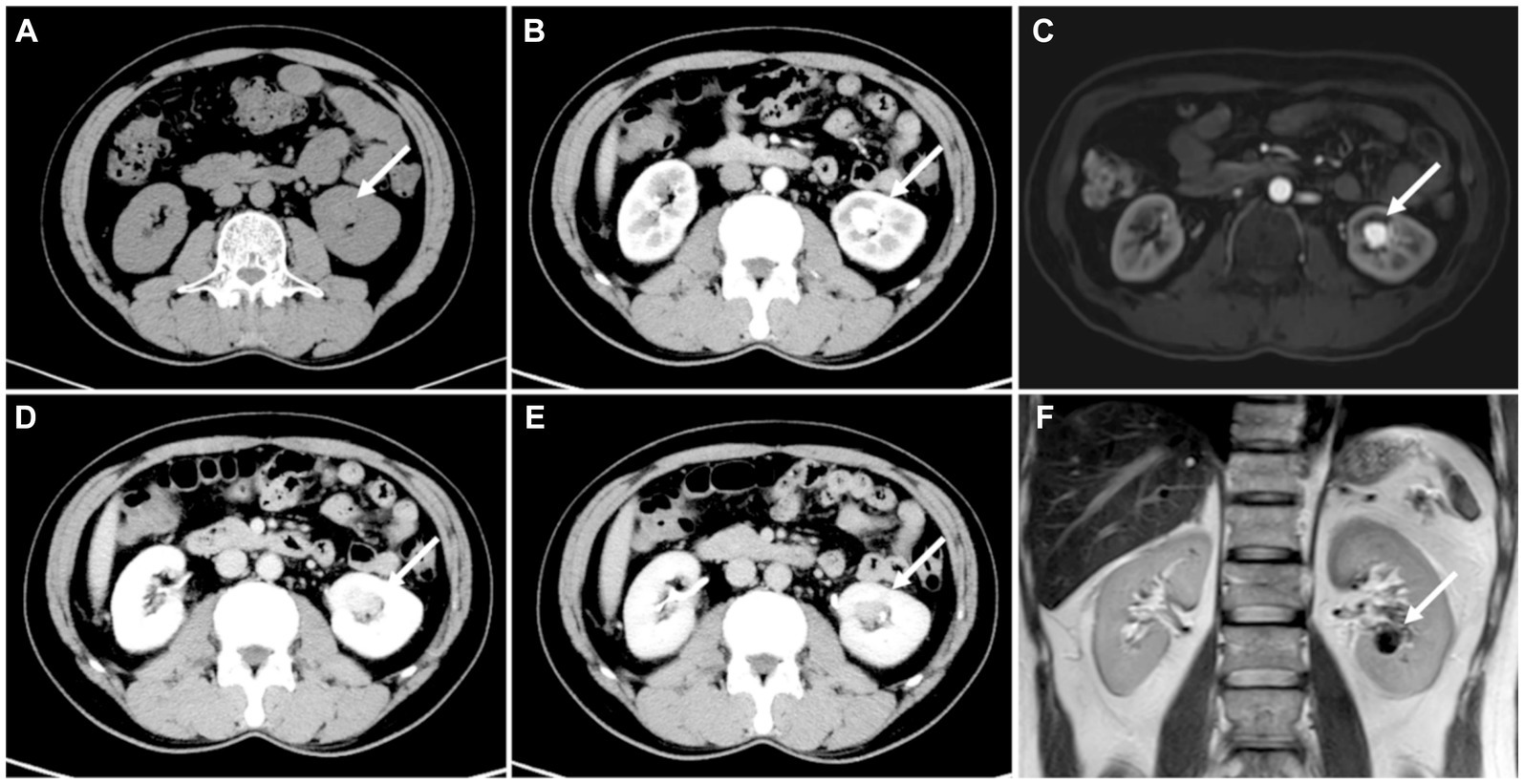

Figure 1. (A) CT showed a 1.6 cm × 1.4 cm nodule in the left kidney proximal to the renal hilum (white arrow). (B) The arterial phase of the nodule showed marked enhancement (mean 202HU), conspicuously decreased during the (D) venous phase (mean 160HU) and (E) delayed phase (mean 123HU). (C) Enhanced MRI showed significant enhancement of the nidus. (F) T2 displayed the flowing void effect of the nidus.
Subsequently, an 18F-FDG PET/CT was done to help determine the exact nature of the lesion in the left kidney. The lesion demonstrated mild FDG uptake with a maximum standard uptake value (SUVmax) of 4.5 (Figure 2). According to the low to moderate uptake of 18F-FDG, the following day, 18F-PSMA-1007 was carried out to evaluate tumor neovascularization. 18F-PSMA-1007 PET/CT scan showed no uptake in the left renal lesion (Figure 2). The absence of 18F-PSMA-1007 uptake in a renal mass made ccRCC less likely.

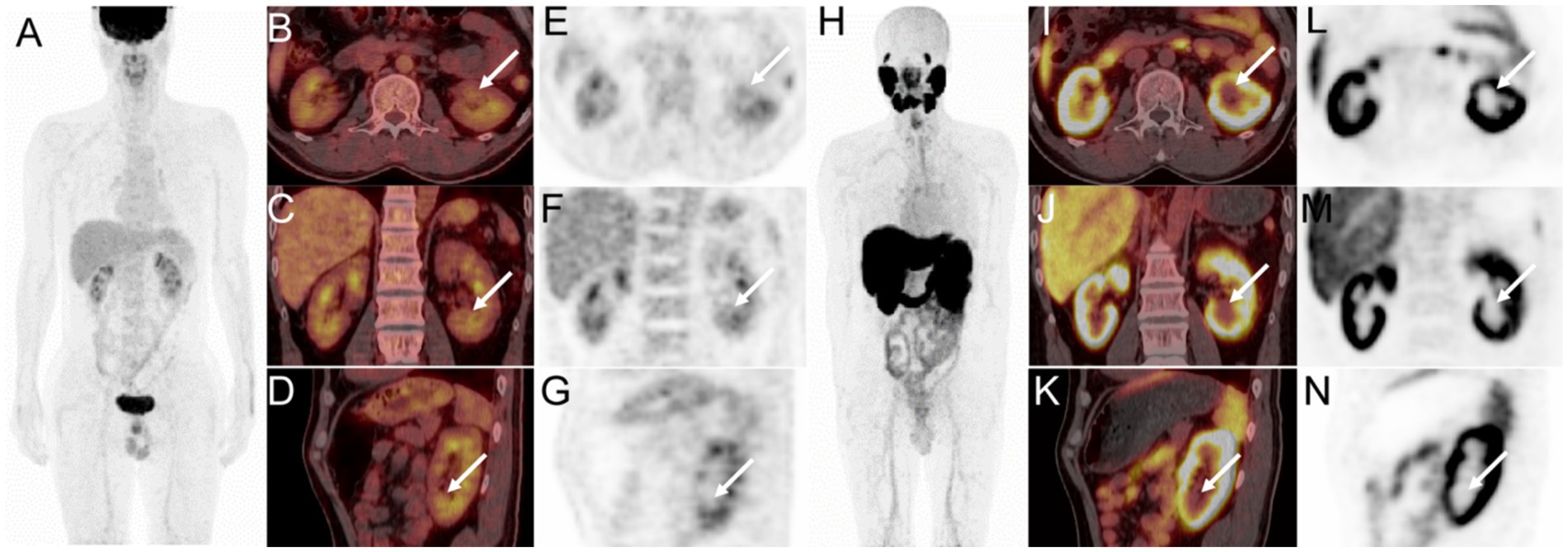

Figure 2. 18F-FDG PET/CT images (A, MIP; B, axial fusion PET/CT; C, coronal fusion PET/CT; D, sagittal fusion PET/CT; E, axial PET; F, coronal PET; G, sagittal PET) showed mild FDG uptake in the renal mass (white arrow, SUVmax 4.5). 18F-PSMA-1007 PET/CT images (H, MIP; I–K, axial, coronal, and sagittal fusion PET/CT; L–N, axial, coronal, and sagittal PET) showed no tracer concentration in the left renal lesion (white arrow).
After that, a multidisciplinary discussion between the department of radiology, nuclear medicine, and urology was carried out. Through analysis, it was found that the left renal lesion was significantly enhanced in the arterial phase and decreased significantly in the venous phase, and the degree of enhancement was always consistent with the abdominal aorta, considering the possibility of vascular malformation. By contrast enhanced CT reconstruction, maximum intensity projection (MIP), and volume rendering (VR) showed feeding arteries and thickened draining veins (Figure 3). Combined with PET/CT, there was no PSMA uptake and near mild FDG uptake, ccRCC can be excluded. Therefore, digital subtraction angiography (DSA) was recommended for further examination. Left renal angiography demonstrated a renal aneurysmal sac, and early drainage of contrast from the left renal vein was also remarkable. After coil post-embolization, the aneurysmal sac vanished without the renal vein filling up (Figure 3). The patient was cured and discharged after treatment.

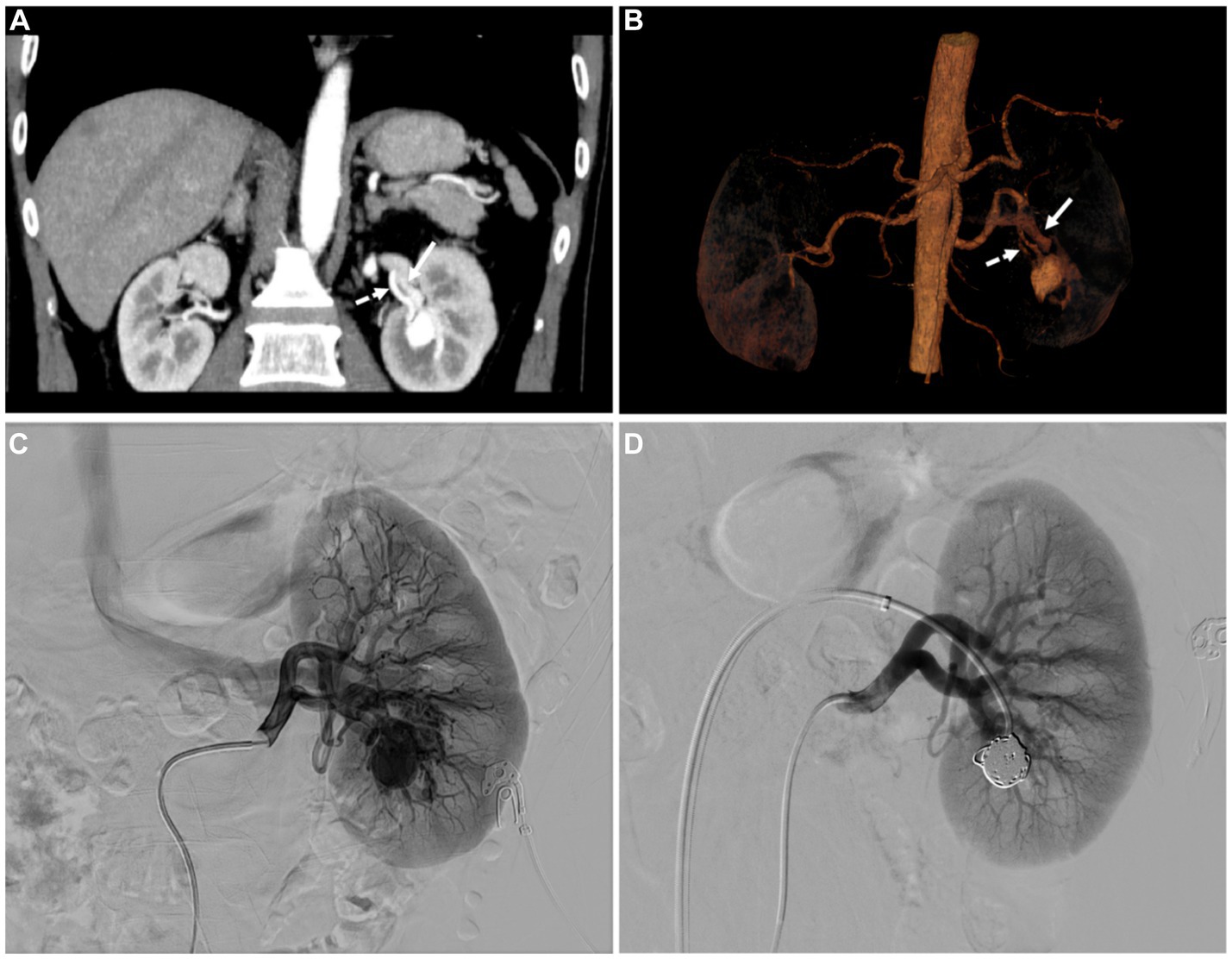

Figure 3. (A) The coronal MIP and (B) volume rending (VR) image displayed the left renal feeding artery (dashed arrows) and thickened draining vein (white arrows). (C) Renal angiography shows the renal aneurysmal sac located in the lower pole of the left renal, which is supplied by a branch of the left renal artery. Early drainage of contrast from the left renal vein is also remarkable. (D) After coil post-embolization, the aneurysmal sac vanished without the renal vein filling up.
Discussion
Renal AVMs can be classified into congenital or acquired. In the congenital category, renal AVMs can be divided into three morphological classes: cirsoid, angiomatous, and aneurysmal. Our case is the cirsoid type. The cirsoid type is more common, the anomalous blood vessels of the cirsoid type are typically situated within the submucosal lamina propria of the collecting system, exhibiting aberrant connections between segmental or interlobar arteries and veins. The abnormally dilated blood vessels manifest as clumps, plexiform, or beaded formations. The angiomatous type is distinguished by a single big artery feeding many linked distal branches and draining veins. Aneurysmal type has one or more big aberrant blood vessels that are directly connected between the intrarenal artery and vein (7). Renal AVMs are rare causes of hematuria, and other symptoms include backache, renovascular hypertension, and high-output cardiac failure. Most patients do not have symptoms until the age of 35, with the majority of cases occurring in the elderly, which may be related to the fact that the walls of the blood vessels become weaker (8).
There are a variety of imaging methods that can be used to diagnose and evaluate AVMs. Ultrasound can be used as the first choice for the AVMs, and preliminary screening can be done, but the resolution is low, and not easy to show blood tubes, resulting in low accuracy. Contrast-enhanced CT can provide rich information for the diagnosis of AVMs, which can better display the location of the lesion, blood flow status, and adjacent tissue involvement. In addition, CT image post-processing techniques such as MIP, multi-planar reformation (MPR), and VR techniques allowed for a more intuitive visualization of vascular malformations and drainage vessels from multiple perspectives. AVMs lesions can show abnormal mixed signals on MRI and there is an obvious flow void effect. Renal arteriography is considered the gold standard for diagnosing renal AVMs (2). This examination provides direct visualization of the precise location, blood supply, and hemodynamic alterations associated with AVMs, including even minute lesions. Additionally, it enables simultaneous treatment alongside accurate diagnosis.
Initially, the renal mass was suspected to be ccRCC due to its abundant blood supply. PET/CT can be used for the differential diagnosis of benign and malignant renal tumors. To confirm the diagnosis, PET/CT is recommended. FDG can reflect the level of glucose metabolism and can be used for the differential diagnosis of malignant tumors. Among the blood-rich renal masses, ccRCC and lipid-poor angiomyolipoma are the most common and require differential diagnosis. Zhao et al. showed that the median SUVmax of ccRCC was 4.1 (2.7–9.5), and the SUVmax of high-grade ccRCC was significantly different from that of low-grade (median SUVmax 3.1 vs. 7.3, p < 0.001) (9). Lin et al. investigated 21 patients with renal angiomyolipoma who underwent FDG PET/CT and discovered that renal angiomyolipoma had low uptake on FDG PET/CT (SUVmax 0.81–1.98) (10). Sometimes there is an overlap in FDG uptake between ccRCC and renal angiomyolipoma, which is somewhat difficult to distinguish. Unlike most malignant tumors, the use of FDG in RCC is of limited value for several reasons: (1) FDG is excreted by the kidney, which leads to a low tumor background ratio; (2) downregulation of glucose transporter 1 (GLUT1) expression leads to low FDG-avidity; (3) Different RCC subtypes have different FDG-avidity. Nevertheless, FDG has a high accuracy in the diagnosis of RCC metastasis and can be used to detect RCC metastases and to assess treatment response (11). For vascular malformations, Angiogenesis is present in both tumor growth and the creation of nidus. Increased FDG uptake in tumor angiogenesis has been verified by studies (12). A case report demonstrated that high-flow AVMs can exhibit a high FDG uptake (5). In our case, the FDG metabolism of the nidus was not high, which may be related to the low blood flow of the AVMs in our case.
PSMA, a type II transmembrane glycoprotein, is overexpressed in prostate cancer epithelial cells and is also expressed in neovascular endothelial cells in other solid tumors, including RCC (13, 14). In normal renal parenchyma, PSMA is mainly expressed in proximal tubular epithelial cells. a meta-analysis showed that the pooled sensitivity and specificity of PSMA PET/CT for detection of RCC local lesions were 87.2%, 100% and metastatic disease were 92%, 96.9% (15). Some reports have demonstrated the usefulness of 18F-PSMA-1007 PET/CT in the diagnosis and initial staging of RCC. In these cases, the primary renal tumor had a significant tracer concentration (16, 17). In our case, the absence of PSMA expression in a renal mass would reduce the likelihood of ccRCC.
PSMA can be expressed on the endothelial cell membrane of neovascularization, so some benign lesions can also show PSMA uptake (18, 19). Some hemangiomas such as splenic hemangioma (20, 21), hepatic hemangioma (22), subcutaneous lobular capillary hemangioma (23), and vertebral hemangioma (24), have been shown to have a significant PSMA uptake in some published cases. However, PSMA uptake in renal AVMs has not been reported. We report for the first time the imaging of PSMA PET/CT in renal AVMs, and our imaging shows that PSMA may not be expressed in renal AVMs. The possible reason for the lack of PSMA uptake in renal AVMs in our case is that the renal AVM is congenital in formation, and there is no neovascularization, so it does not express PSMA. The underlying cause for the absence of PSMA uptake in renal AVMs remains uncertain and requires further investigation.
It is important to distinguish renal AVMs from renal carcinoma, Lipid-poor angiomyolipoma, renal artery aneurysms, and so on. ccRCC occurs in the renal parenchyma, the enhancement is obvious in the arterial phase, but the degree of enhancement is less than that of blood vessels. The lesions decrease significantly in the venous phase, and secretory phase and there are no malformation of vascular mass and thickening of feeding arteries and draining veins. In our case, the lesion was located in the renal sinus and was markedly enhanced in the arterial phase; the degree of enhancement was consistent with that of the abdominal aorta. Moreover, there was no significant uptake of FDG and PSMA, so it can be distinguished from renal carcinoma. Lipid-poor angiomyolipoma can exhibit a “fast in and fast out” or gradual enhancing pattern, depending on the level of vascular growth. The enhancing pattern of lipid-poor angiomyolipoma overlaps with ccRCC, and their FDG metabolism also overlaps, making it difficult to identify. Renal artery aneurysms most commonly occur at the bifurcation of the renal artery, and the aneurysm is enhanced, without malformed vascular masses and draining veins (25).
The key to the treatment of renal AVMs is to relieve venous hypertension. The treatment methods include interventional embolization, surgery, and so on. Surgical treatment is invasive and is recommended only for patients with anatomical abnormalities or hemodynamic instability, with the risk of loss of renal function (8). Interventional therapy has the advantages of minimal trauma, good curative effect, and maximum preservation of normal renal tissue (26). The main purpose of interventional treatment of renal AVMs is to eliminate the “nest” and re-drain blood flow to normal vessels. In our case, the patient ultimately accepted coil embolization therapy. After the operation, the aneurysmal sac completely vanished without any filling of the renal vein. One year after discharge, the patient provided feedback indicating that he had no discomfort such as lumbago and back pain, and CTA suggested occlusion of the renal AVM.
Conclusion
We report a case of a patient with renal AVMs which are rare disease and their imaging features are similar to that of renal tumors, so an accurate diagnosis is essential. PET/CT can be used for the differential diagnosis of renal masses. In this case, the absence of PSMA expression in a renal mass would reduce the likelihood of RCC. We report the first case of PSMA PET/CT in renal AVMs, the mechanism by which renal AVMs do not express PSMA requires further investigation. Our case highlights the possible uses of PSMA PET/CT for the assessment of renal masses and the possibility of renal AVMs being considered when PSMA uptake is absent. Renal angiography is the gold standard for the diagnosis of renal AVMs, and interventional therapy is the first choice for the treatment. Further prospective study is recommended.
Data availability statement
The raw data supporting the conclusions of this article will be made available by the authors, without undue reservation.
Ethics statement
The studies involving humans were approved by Ethics Committee of Yichang Central People’s Hospital. The studies were conducted in accordance with the local legislation and institutional requirements. The participants provided their written informed consent to participate in this study. Written informed consent was obtained from the patient for the publication of any potentially identifiable images or data included in this article.
Author contributions
YqF: Writing – original draft, Writing – review & editing. WZ: Methodology, Writing – review & editing. YwF: Data curation, Writing – review & editing. WD: Writing – review & editing.
Funding
The author(s) declare that no financial support was received for the research, authorship, and/or publication of this article.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
References
1. Chen, S, Li, G, Zhou, H, Liang, G, Luo, X, and Zhao, Z. Endovascular treatment failure of renal arteriovenous malformation due to an Extrarenal feeding artery: a case report. Urol Int. (2023) 107:214–8. doi: 10.1159/000521991
2. Sk, C, Ge, M, and Dg, L. Congenital renal arteriovenous malformation: Diagnostic clues and methods. Medicina (Kaunas) (2021). 57:1304. doi: 10.3390/medicina57121304
3. Isom, N, Masoomi, R, Alli, A, and Gupta, K. Congenital renal arteriovenous malformation: a rare but treatable cause of hypertension. Am J Case Rep. (2019) 20:314–7. doi: 10.12659/Ajcr.912727
4. Wajid, H, and Br, H. Renal arteriovenous malformation. J Urol. (2014) 191:1128–9. doi: 10.1016/J.Juro.2014.01.003
5. Quddus, A, Karia, P, Khurram, R, Parthipun, A, and Brookes, J. Illuminating the nidus: the role of Fdg pet/Ct in high flow arteriovenous vascular malformations. Radiol Case Rep. (2021) 16:1374–7. doi: 10.1016/J.Radcr.2021.03.034
6. Hoberück, S, Driesnack, S, Seppelt, D, Michler, E, Hölscher, T, and Kotzerke, J. Hepatic vascular malformation mimics Psma-positive prostate Cancer metastasis. Clin Nucl Med. (2020) 45:e283–4. doi: 10.1097/Rlu.0000000000003032
7. Cura, M, Elmerhi, F, Suri, R, Bugnone, A, and Dalsaso, T. Vascular malformations and arteriovenous fistulas of the kidney. Acta Radiol. (2010) 51:144–9. doi: 10.3109/02841850903463646
8. Cai, J, Ding, L, Xie, Y, and Wang, Y. Congenital renal arteriovenous malformation with Cirsoid and Cavernosal-type characteristics: a case report. J Int Med Res. (2021) 49:3000605211016381. doi: 10.1177/03000605211016381
9. Zhao, Y, Wu, C, Li, W, Chen, X, Li, Z, Liao, X, et al. 2-[(18)F]Fdg pet/Ct parameters associated with who/Isup grade in clear cell renal cell carcinoma. Eur J Nucl Med Mol Imaging. (2021) 48:570–9. doi: 10.1007/S00259-020-04996-4
10. Cy, L, Hy, C, Hj, D, Ky, Y, and Kao, C. Fdg pet or pet/Ct in evaluation of renal Angiomyolipoma. Korean J Radiol. (2013) 14:337–42. doi: 10.3348/Kjr.2013.14.2.337
11. Jd, O, Ja, S, Hoffman-Censits, J, Wk, R, Mi, M, Lb, S, et al. Pet/computed tomography transformation of oncology: kidney and urinary tract cancers. Pet Clin. (2024). 19:197–206. doi: 10.1016/J.Cpet.2023.12.006
12. Niccoli Asabella, A, Di Palo, A, Altini, C, Ferrari, C, and Rubini, G. Multimodality imaging in tumor angiogenesis: present status and perspectives. Int J Mol Sci. (2017) 18:18. doi: 10.3390/Ijms18091864
13. Uijen, M, Derks, Y, Merkx, R, Schilham, M, Roosen, J, Bm, P, et al. Psma Radioligand therapy for solid tumors other than prostate Cancer: background, opportunities, challenges, and first clinical reports. Eur J Nucl Med Mol Imaging. (2021) 48:4350–68. doi: 10.1007/S00259-021-05433-W
14. Van De Wiele, C, Sathekge, M, De Spiegeleer, B, Pj, DJ, Pr, D, Borms, M, et al. Psma expression on Neovasculature of solid tumors. Histol Histopathol. (2020) 35:919–27. doi: 10.14670/Hh-18-215
15. Singhal, T, Singh, P, Gk, P, and Agrawal, K. Role of Psma-targeted pet-Ct in renal cell carcinoma: a systematic review and Meta-analysis. Ann Nucl Med. (2024) 38:176–87. doi: 10.1007/S12149-024-01904-W
16. Marafi, F, Sasikumar, A, Al-Terki, A, and Alfeeli, M. 18f-Psma 1007 in suspected renal cell carcinoma. Clin Nucl Med. (2020) 45:377–8. doi: 10.1097/Rlu.0000000000003002
17. Marafi, F, Sasikumar, A, Aldaas, M, and Esmail, A. 18f-Psma-1007 pet/Ct for initial staging of renal cell carcinoma in an end-stage renal disease patient. Clin Nucl Med. (2021) 46:E65–65e67. doi: 10.1097/Rlu.0000000000003354
18. De Galiza Barbosa, F, Ma, Q, Nunes, RF, Costa, LB, Zaniboni, EC, Marin, J, et al. Nonprostatic diseases on Psma pet imaging: a Spectrum of benign and malignant findings. Cancer Imaging. (2020) 20:23. doi: 10.1186/S40644-020-00300-7
19. Malik, D, Sood, A, Mittal, BR, Singh, H, Shukla, J, et al. Nonspecific uptake of (68)Ga-prostate-specific membrane antigen in diseases other than prostate malignancy on positron emission tomography/computed tomography imaging: a pictorial assay and review of literature. Indian J Nucl Med. (2018) 33:317–25. doi: 10.4103/Ijnm.Ijnm_81_18
20. Jia, G, Dong, A, Cheng, C, and Zuo, C. Intense 18f-Psma-1007 uptake of splenic hemangioma. Clin Nucl Med. (2023) 49:e90–2. doi: 10.1097/Rlu.0000000000004995
21. Panagiotidis, E, Paschali, A, Xourgia, X, and Chatzipavlidou, V. False-positive 18f-Psma-1007 and true-negative 18f-Fluorocholine pet/Ct splenic hemangioma. Clin Nucl Med. (2020) 45:960–1. doi: 10.1097/Rlu.0000000000003310
22. Bhardwaj, H, Stephens, M, Bhatt, M, and Thomas, PA. Prostate-specific membrane antigen pet/Ct findings for hepatic hemangioma. Clin Nucl Med. (2016) 41:968–9. doi: 10.1097/Rlu.0000000000001384
23. Mr, J, Vendelbo, M, Høyer, S, and Bouchelouche, K. Subcutaneous lobular capillary hemangioma on 68ga-Psma pet/Ct. Clin Nucl Med. (2017) 42:e214–5. doi: 10.1097/Rlu.0000000000001542
24. Gossili, F, Cg, L, Løgager, V, and Hd, Z. Intense Psma uptake in a vertebral hemangioma mimicking a solitary bone metastasis in the primary staging of prostate Cancer via (68)Ga-Psma pet/Ct. Diagnostics (Basel). (2023) 13:1730. doi: 10.3390/Diagnostics13101730
25. Lu, T, Lin, B, Yp, Z, Jh, Z, Jw, L, Tang, Y, et al. Eighteen cases of renal aneurysms: clinical retrospective analysis and experience of endovascular interventional treatment. Front Surg. (2023) 10:1106682. doi: 10.3389/Fsurg.2023.1106682
