Corrigendum: Virtual reality in managing dental pain and anxiety: a comprehensive review
- 1Department of Anesthesiology, Stomatological Hospital of Chongqing Medical University, Chongqing, China
- 2Chongqing Key Laboratory of Oral Diseases and Biomedical Sciences, Chongqing, China
- 3Chongqing Municipal Key Laboratory of Oral Biomedical Engineering of Higher Education, Chongqing, China
Objectives: This study aimed to identify, analyze, and summarize the clinical efficacy of virtual reality (VR) distraction therapy for oral treatment in different hospital settings in contrast to medical interventions that induce anxiety and pain. Furthermore, this review aimed to determine the implications for research and clinical practice of VR distraction therapy.
Data: This review investigated the clinical efficacy of VR in the oral treatment of procedural pain or anxiety. Quality assessment of the included studies was conducted. A narrative synthesis of the collected data was performed.
Sources: Literature studies from six electronic databases were searched for a comprehensive review, namely, the Cochrane Oral Health’s Trials Register, Cochrane Central Register of Controlled Trials (Central), MEDLINE (PubMed), EMBASE, Scopus, and Web of Science.
Study selection: One thousand five hundred twenty-two patients aged between 0 and 60 years who used VR during dental treatment were included in this review. Among these studies, 8 and 14 studies comprised adult and pediatric patients.
Conclusion: Overall, the reviewed studies underscore the efficacy of VR to mitigate pain and anxiety in the context of dental treatment. VR is an innovative pain and anxiety management approach that facilitates dental treatment patients to immerse themselves in a virtual world while using distractions to reduce pain and anxiety.
Clinical significance: VR is an effective and novel non-pharmacological method of behavioral management that contributes to improving medication safety for dental patients. VR as a distractive approach can reduce the fear associated with medical interventions and prevent severe pain sensitivity, anxiety, and medical avoidance among adults and children.
1 Introduction
Patients visiting dental treatment clinics often experience pain or anxiety before or during treatment. Fear-related behaviors, which can disrupt good dental procedures, have been considered the most challenging aspect of treatment avoidance among patients (1). Many patients with such fear visit the dentist only when they are in pain, increasing the likelihood of experiencing further pain (2). This, in turn, can increase pain sensitivity and heighten fear, anxiety, and medical avoidance among patients (3). A study found that dental anxiety ranked fifth among the most common fearful conditions, although its prevalence decreased with increasing age (4). Consequently, pain associated with medical practice remains a frequent problem for pediatric patients (5). Clinical pain and anxiety relief vary in terms of the level of interaction and engagement, ranging from passive to active distraction patterns, with active distraction consuming more attentional resources (2).
Currently, oral health practitioners have numerous approaches for reducing patient anxiety and pain caused by oral treatment. Dental anxiety has been a common challenge among dental care providers who use traditional behavioral management techniques to reduce dental anxiety, including narration, desensitization, voice control or hypnosis, applied behavior analysis, positive reinforcement, distraction, and parental presence or absence (6, 7). Studies have shown that patients with high levels of trait anxiety typically report higher levels of anxiety and pain during dental procedures (8). In addition to cognitive behavioral management, doctors often use drug management methods. Following the treatment gradient, preoperative anti-anxiety drugs, treatment process sedation (laughing gas and conscious sedation), and general anesthesia are administered (9–11).
Another non-pharmaceutical technology that is gaining the attention of dental practitioners is virtual reality (VR). VR technology creates a highly realistic three-dimensional (3D) virtual environment to help patients escape the real world through a variety of sensory stimuli, such as visual, auditory, tactile, and olfactory stimuli (12). By stimulating visual, auditory, and proprioceptive senses, VR can act as a distraction that interferes with the processing of noxious stimuli in patients (13). Virtual reality technology has been applied in a wide range of fields; in medicine, it is being applied in the fields of rehabilitation and clinical medicine (14). In obstetric labor pain, considered to be the limit of human pain, studies have shown that chewing gum and virtual reality are easy to use and effective during labor as painless anti-anxiety methods (15). Several studies have suggested that immersive VR may serve as a viable non-pharmacological analgesia (16–18), while another reported that VR, as a non-pharmacological option, may be more effective than traditional analgesia (19). Moreover, VR may influence the extent of opioid abuse, serving as an advantage for opioid-dependent patients (20). Patients preferred VR distraction methods during treatment, in contrast to groups without VR condition and movie viewing (21). Owing to its inherent immersive, imaginative, and interactive nature, VR is suitable for non-pharmacological behavioral management during dental treatment.
VR distraction techniques have been used to reduce pain during burn wound care (2). Furthermore, it has been hypothesized that VR experiences can overcome pain by consuming an individual’s limited cognitive attentional resources. Thus, the pain experienced is reduced by shifting patients from painful stimuli to a pleasant virtual world (22). These findings present the first evidence for VR efficacy, which has driven many subsequent studies. Meanwhile, more attention should be paid to adverse reactions when patients use VR. A few patients have reported adverse reactions, such as nausea and headache, after using VR (19, 21). Exposure to the VR environment may cause cybersickness, with symptoms including nausea, dizziness, headache, blurred vision, and a feeling of moving through space. Currently, we summarize and compare the findings of using VR to mitigate pain and anxiety and its possible adverse reactions in dental treatment healthcare settings.
1.1 Objectives
This review study aimed to systematically review, evaluate, and summarize the results of studies investigating the impact of pain and anxiety among patients undergoing different surgical modalities using VR distractions throughout the perioperative period of dental treatment in medical settings. Furthermore, the implications of VR for research and clinical practice are considered.
2 Materials and methods
2.1 Study design
Following the Preferred Reporting Items for Systematic Evaluation and Meta-Analysis (PRISMA) guidelines and checklist (23), a comprehensive evaluation design was prepared to systematically review, assess, extract, and summarize the available data on the clinical efficacy of VR distractions for procedural pain and anxiety. The methodological rigor of the evaluation is similar to that of a systematic review; however, the former enables the inclusion of quantitative, qualitative, mixed-methods studies, and case reports (24).
2.2 Information sources and search strategies
Research articles published between 2000 and 2023 were searched using the following six electronic databases: Cochrane Oral Health’s Trials Register, Cochrane Central Register of Controlled Trials (Central), MEDLINE (PubMed), EMBASE, Scopus, and Web of Science. The search terms included virtual reality, dental treatment, dental surgery, procedural pain, procedural anxiety, pain control, anxiety control, dental anxiety, and related keywords. The search was limited to studies published in English and with samples comprising adults and children (aged 0–60 years). No attempts were made to locate or contact researchers for unpublished studies.
2.3 Study selection
Study titles and abstracts were screened for inclusion by a reviewer. In cases of uncertainty, reviewers consulted with members of the research team, who discussed collaboratively until a consensus was reached.
2.4 Eligibility criteria
2.4.1 Participant characteristics
Studies with samples that included patients aged 0–60 years who underwent dental treatment involving VR distraction were considered in this review.
2.4.2 Types of outcome measures
Studies designed to investigate the use of VR distraction in the management of procedural pain or anxiety during the perioperative period of dental treatment were included.
2.4.3 Types of research
Quantitative, qualitative, and mixed-methods studies as well as case reports were reviewed. There was no minimum threshold imposed for the quality assessment scores.
2.4.4 Review methodology
The reviewers screened the titles and abstracts for eligibility. Full-text articles of the selected titles and abstracts were sought. Thereafter, the full-text articles were read by one reviewer to determine their eligibility for inclusion. The references of the selected full-text articles were scanned to identify additional relevant studies, and reviewers sought assistance from the research team when they were uncertain of an article’s eligibility for inclusion.
2.5 Data extraction
The studies considered for review were first categorized according to the type of medical procedure stipulated in the end notes. Thereafter, data were extracted and inserted into a table using Microsoft Word. Separate tables were created for each medical procedure group. One reviewer performed data extraction, while another validated the extracted data for each study based on the authors, study design, procedures, sample characteristics, and pain and anxiety outcomes.
2.6 Quality assessment
A reviewer assessed the studies using the Mixed Methods Appraisal Tool (MMAT) (25) and Joanna Briggs Institute (JBI) Critical Appraisal Checklist (26). The MMAT was designed for the quality assessment phase of a systematic review of mixed-methods studies, including qualitative studies, randomized and non-randomized controlled trials, quantitative descriptions, and mixed-methods studies. Each study was assessed using five criteria, with scores ranging from 0% (criteria not met) to 100% (all criteria met). The JBI Critical Appraisal Checklist is a peer-reviewed assessment tool used for case reports in a comprehensive evaluation. Each case report was assessed based on eight questions, with scores ranging from 0% (questions not answered) to 100% (all questions answered). Despite the quality assessment scores, all studies and case reports were retained for analysis.
2.7 Data analysis
A descriptive analysis of the sample and study characteristics was performed on the data extracted into tables to generate the MMAT and JBI quality scores using the constant comparison method described by Whittemore and Knafl (24). For ease of analysis, the data were first categorized into medical procedure subgroups and further divided into VR interventions and devices, then pain and anxiety outcome subgroups. The data were organized in tables and graphs that highlight the similarities and differences identified through an iterative process. Finally, after comparing the findings and considering confounding variables, generalized conclusions were drawn and presented as themes.
3 Results
3.1 Search results

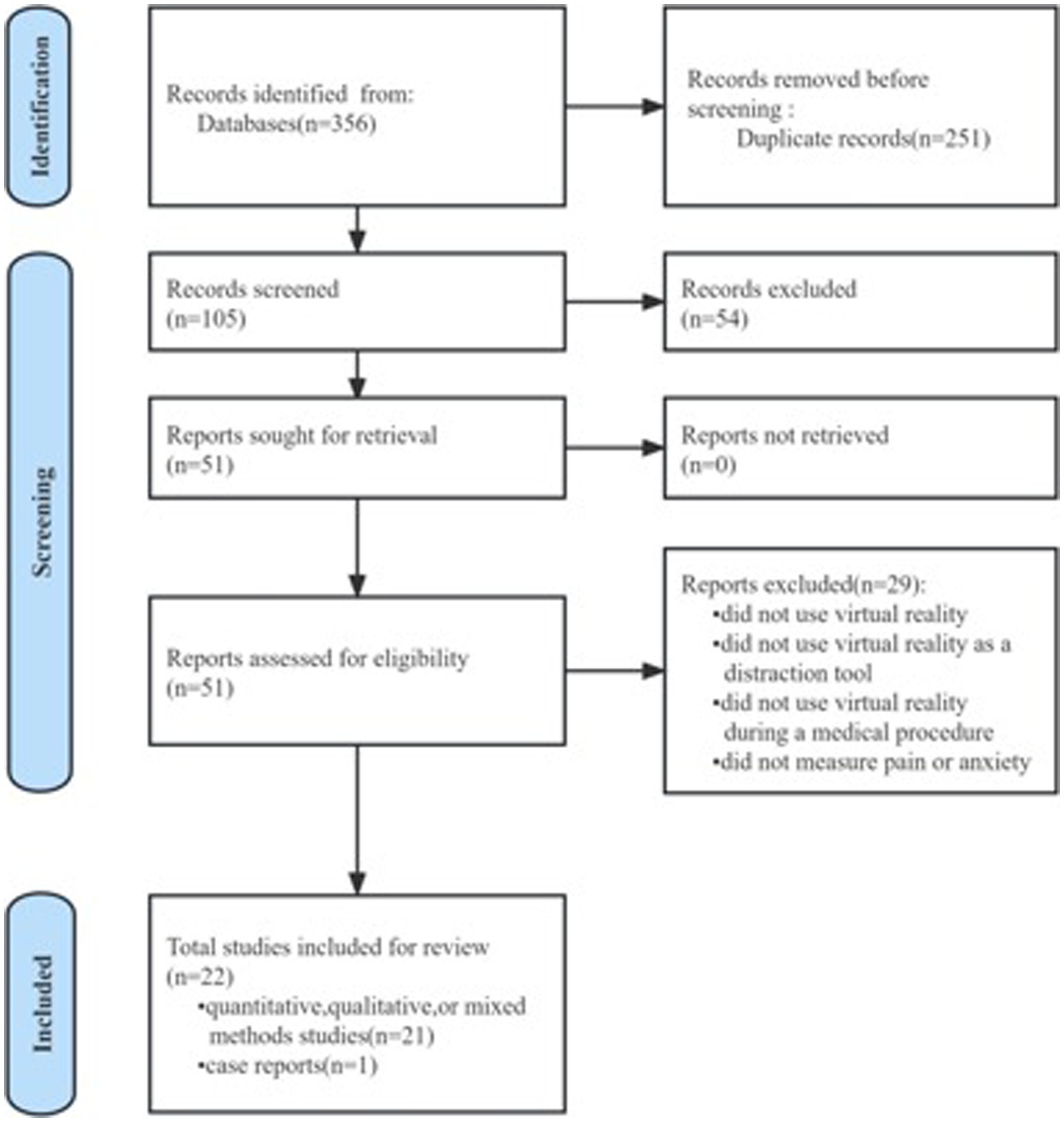

Overall, 356 articles were related to dentistry, VR, pain, and anxiety. After removing duplicates, 102 titles and abstracts and 51 full-text articles were screened for eligibility. Following the screening, 22 studies (2, 4, 19, 21, 27–44) were included in the final review (Figure 1).
3.2 Study and sample characteristics
A total of 22 eligible studies were published between 2000 and 2023. These studies varied in design and comprised intra-subject randomized controlled trials (n = 6) (28, 29, 31, 36, 40, 41), inter-subject randomized controlled trials (n = 13) (2, 4, 19, 21, 27, 32–35, 38, 42–44), randomized single-blind controlled crossover modalities (n = 2) (30, 37), and mixed-methods randomized controlled trials (n = 1) (39). Notably, 1,522 dental treatment patients aged 0–60 years underwent VR interventions with the following procedures: periodontal scaling and root planning (n = 2) (19, 21), periodontal treatment (n = 1) (2), local anesthetic procedures (n = 3) (4, 28, 32), mandibular blocked third molar extraction (n = 2) (36, 41), dental surgery (n = 6) (19, 27, 30, 31, 39, 40), dental treatment (n = 2) (33, 43), preoperative intervention (n = 1) (35), endodontic treatment (n = 2) (37, 38), and deciduous tooth extraction (n = 3) (34, 42, 44).
3.2.1 Virtual reality software used

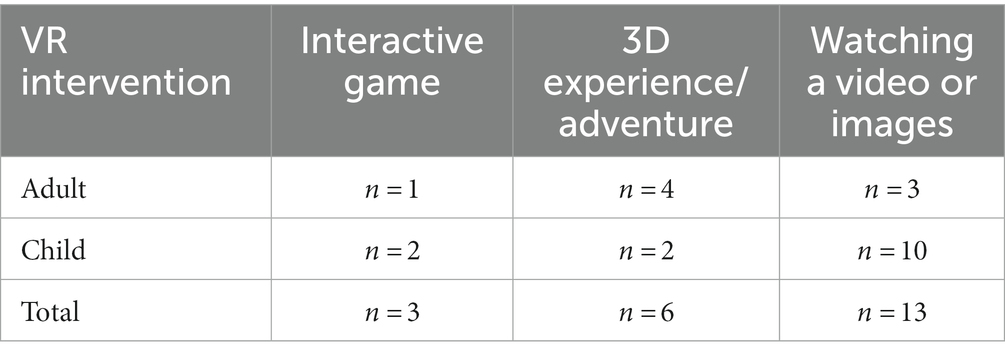

Various VR interventions were delivered, including in the degree of interaction (Table 1). Some studies used a VR interactive game, such as SnowWorld or Undersea Landscape (n = 3). In other studies, patients experienced an adventure during their dental treatment (n = 6). The majority of studies used VR watching a video or images (n = 13).
3.2.2 Virtual reality in adult dental surgery

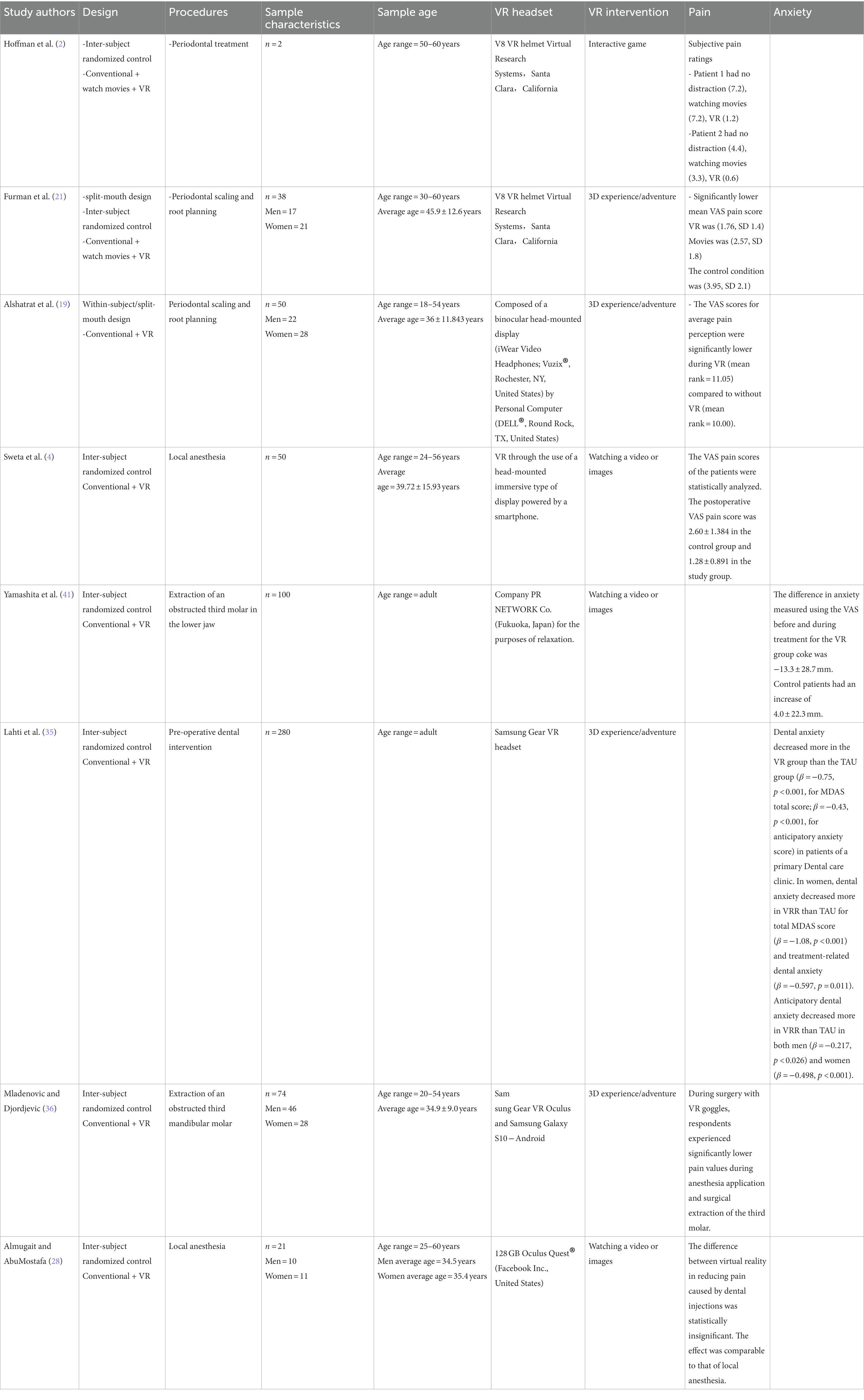

Table 2 presents eight of the 22 studies that investigated the use of VR distraction in dental treatment among 615 adult patients.
3.2.3 Virtual reality in pediatric dental surgery
Table 3 presents 14 of the 22 studies that investigated the use of VR distraction in dental treatment among 907 pediatric patients.
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/1285142/fmed-10-1285142-HTML-r1/image_m/fmed-10-1285142-t003.jpg)

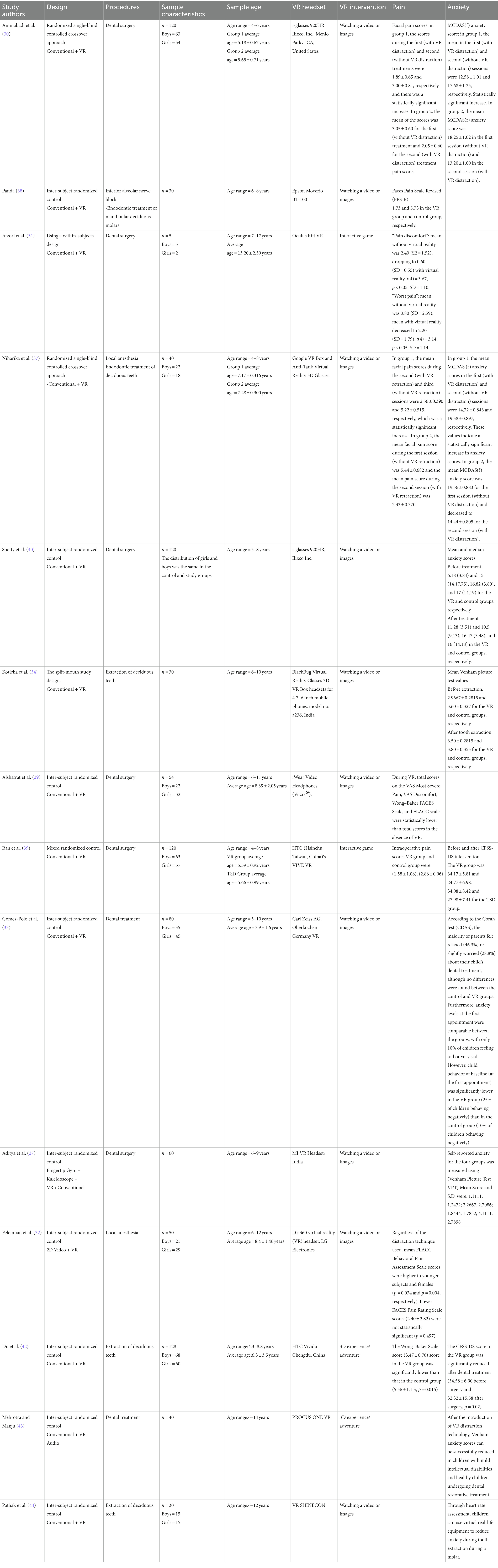

Table 3. Studies on the use of virtual reality in oral therapy in children: characteristics and findings.
3.2.4 Virtual reality to alleviate pain associated with dental treatment
Fourteen studies (six and eight adult and pediatric studies, respectively) examined the effects of VR distraction on pain perception. These studies found that VR distraction significantly reduced pain perception in contrast to standard care (4, 19, 36, 38, 39, 42). Two studies (2, 21) also reported that VR distractions significantly reduced pain in contrast to standard care and movie viewing. Similarly, significant reductions in “worst pain” and “pain discomfort” were reported (31) during VR distraction, in contrast to using standard analgesia exclusively. Furthermore, a significant reduction in “worst pain” and “pain discomfort” was reported (29) among children undergoing dental surgery requiring local anesthesia (30, 31). Moreover, studies using a randomized single-blind controlled crossover approach, applying within-group comparisons, found that pain scores were controlled and decreased when VR distraction was used.
Three studies (4, 37, 38) showed that VR distraction during local anesthesia was effective in reducing pain scores. In contrast, another study (32) showed an increased likelihood of higher pain scores during local anesthetic administration among female participants and younger groups, regardless of the distraction used. Another study (28) showed that the effect of VR on pain reduction caused by dental injections was statistically significant, similar to that of local anesthesia.
3.2.5 Virtual reality reduces anxiety associated with dental treatment
Eight studies found that VR significantly reduced state anxiety (34, 35, 39–44). Two studies (30, 37) measured anxiety scores with and without VR distraction and found that VR distraction was effective in reducing the state of anxiety among the study group.
3.2.6 Virtual reality improves other markers related to dental treatment
Several studies have underscored the impact of VR distraction on other markers in addition to pain and anxiety. One study (21) reported that in both VR and movie distraction conditions, patients demonstrated significantly lower vital signs during treatment as opposed to controls, as well as during VR in contrast to watching movies. However, a different study (34) found that VR significantly reduced physiological parameters associated with anxiety (pulse and oxygen saturation) despite contradictory self-reports from children. Another study (19) showed that participants had significantly lower systolic blood pressure after treatment with VR, whereas no differences were observed in diastolic blood pressure and pulse rate. Moreover, VR was found to have a significant reduction effect on physiological parameters (4). Similarly, a study (36) reported that when VR was used, participants demonstrated significantly lower heart rate values before and during the procedure. In contrast, a different study (32) found that the mean heart rate in the VR group was significantly higher than that in the control group (i.e., the audio-visual (AV)-viewing group) when compared with all time-points, excluding the baseline. Parasympathetic activity was shown to be slightly dominant in another study (41), whereas both sympathetic and parasympathetic activities were in equilibrium among patients during VR, indicating a shift toward a stable mental state. A significant decrease in salivary cortisol levels during short-term invasive dental treatment in children was reported using VR distractions (40). Finally, the use of VR distraction was shown (39) to shorten the duration of dental procedures and improve compliance among children undergoing short-term dental procedures.
3.2.7 Adverse reactions during virtual reality use
The use of VR distraction in dental treatment for procedural pain and anxiety management has been widely acknowledged, despite reports of adverse effects. Five out of 38 study participants reportedly experienced mild nausea in the VR condition, but not while watching a movie (21). Hoffman et al. showed that 94% of participants did not feel nauseated when experiencing the virtual world (18). Aditya et al. (27) showed that more than 90% of respondents did not experience any VR-related discomfort during the procedure, while the remainder felt partial discomfort. Atzori et al. (31) showed that only two children were observed to be uncomfortable with VR distraction, requiring the removal of the device, and were excluded from the study.
4 Discussion
This comprehensive review systematically evaluated, extracted, and summarized the data from 22 studies that explored the use of VR distraction in the management of procedural pain and anxiety during dental treatment. VR has been tested and contrasted with the group without VR condition and movie viewing, demonstrating the effectiveness of its use as an innovative intervention to alleviate procedural pain and anxiety among dental treatment patients. This comprehensive review summarizes the available evidence on the use of VR during dental treatment, describes the clinical efficacy outcomes, and subsequently considers the implications for research and clinical practice.
4.1 Virtual reality and procedural medical practices resulting in pain
The studies included in this review support the analgesic effects of VR in oral treatment procedures. Among the factors hypothesized to contribute to VR’s analgesic effects include the degree of immersion and level of interaction (2, 14). Several studies have shown that a high-quality VR headset can block visual and auditory pain cues present in the clinical setting, thus contributing to pain relief and enhancing the sense of presence in the virtual world (4, 19, 22, 38, 39, 45). One study (4) showed that distraction interventions and hypnosis techniques can be used to treat pain. These distraction interventions are preferred by patients because they are non-invasive and non-pharmacological. The immersive nature of VR has been shown to distract children’s attention, thus manipulating pain perception and reducing the intensity of pain (30, 46). Furthermore, a significant 42% reduction in “worst pain score” and a 75% reduction in “pain discomfort” scores were reported among patients during VR (31). The greatest total analgesic effect may be achieved by combining immersive interactive VR with traditional pain medications (46). A review study (22) revealed that VR for pain management is effective in reducing pain during dental treatment in both children and adults; however, it has a greater potential for children.
4.1.1 Virtual reality and anxiety arising in medical practice
Previous literature supports the use of distraction to manage procedural anxiety (22, 47), which is consistent with the findings of this review. This review finds that VR is an effective method for anxiety relief (30, 34, 35, 37, 39–41, 48). Among these, only two studies (35, 41) have underscored the efficacy of VR distraction among adults. One study (30) reported that the positive effects of VR distraction on pain and anxiety in children were attributed to the complete blockage of the child’s visual field as well as to successful distraction techniques. These benefits may be related to the increasingly immersive images that result from the combination of audio, visual, and kinesthetic sensory modalities in VR. Furthermore, VR distraction is a pleasant experience that can reduce negative emotions, such as anxiety, by removing the user from medical situations that would trigger anxiety (49). A study (37) reported that people with higher trait anxiety felt increased threat and responded poorly to distraction techniques compared to people with lower trait anxiety. However, VR distraction has greater potential to alleviate the pain and anxiety associated with various dental procedures. It is a safe, non-invasive technique that does not require prior education or training and has long-term effects in terms of creating more positive memories during treatment, thus increasing the willingness of patients to return for treatment.
4.1.2 Virtual reality and adverse reactions in medical practice
In their review, Wismeijer et al. described “simulator sickness” as the result of proximity and lower quality images projected through the VR device. This was expected to cause nausea in sensitive individuals (50). Hoffman et al. suggested that longer exposure durations to VR are more likely to be a problem (2). Meanwhile, another study indicated that the incidence of cybersickness in the virtual environment varies depending not only on the length of exposure but also on the type of simulation and complexity of the devices (51). In their research, Weech et al. described that when the patient’s gaze follows the text or images moving rapidly on the screen, it results in headaches, nausea, and insecurity (52, 53). We summarized the suggestions for reducing VR-related adverse reactions as follows. Keep patients’ heads during exposure to VR. VR hardware and software should be designed to minimize simulator sickness, and individuals with high susceptibility to cybersickness likely should not be administered VR.
4.2 Study significance
VR distraction can be used as a successful behavioral modification method for children aged 5–8 years undergoing short-term invasive dental treatment (2). The benefits of VR include ease of use, improved treatment control, and safety for most patients. Instruction is not needed for either the patients or treatment staff. Moreover, the frequent use of the technology does not diminish its positive effects (54); thus, it can be used on children with minor adjustments to size. The most significant advantage of this behavior management technique is that it is equally acceptable for parents and children (50). Some studies have suggested that anxiety is related to several factors, including age, gender, type of dental treatment, parental anxiety, and socioeconomic status. These factors may influence the efficacy of VR and thus should be evaluated (55). Regarding current data, limited studies include reports of vital signs during VR distraction, and the effects were mixed. Therefore, further validation is required to obtain more objective data. Owing to the lack of objective quantifiers of pain and anxiety levels for VR distraction interventions, further in-depth studies are required to provide more accurate quantifiers for future preuse assessments.
4.3 Relevance to clinical practice
Overall, 22 studies demonstrated that VR use is effective in reducing pain and anxiety during the perioperative period of dental treatment. Thus, VR is effective in mitigating dental fear among patients. Furthermore, VR interventions for children at an early stage provide a good basis for future visits to promote psychological wellbeing. Patients and families are more willing to accept non-pharmacological interventions, reflecting increased patient satisfaction. Moreover, various studies have shown that VR distraction is associated with reduced stress levels in many participants (50). Using VR exclusively, or as a supplement to pharmacological analgesia, can reduce the additional costs and physical side effects associated with medication. VR distraction uses a non-invasive approach, thus mitigating concerns among parents or caregivers that general anesthesia may affect intelligence and learning ability (39). Studies have shown that the use of VR distraction for children during treatment reduces treatment duration and further validates increased compliance with medical care.
4.4 Outlook
With the widespread use of VR technology during dental treatment, its therapeutic effect in reducing pain and anxiety during the perioperative period has been confirmed. In future, VR technology could be integrated into dental applications, where a special assessment of the oral treatment procedure is performed, including the duration of treatment, whether anesthetic drugs should be used in combination, and patient factors, such as gender, age, level of pain or anxiety, and viewing and music preferences. These results can be used to develop personalized VR scenarios for optimal distraction. In the context of a fervently developing future metaverse, content creation of VR scenarios can be supported by the growing number of targeted VR scenarios emerging, and these continued improvements will aid in meeting dental patients’ specific needs. The accompanying disadvantage of motion sickness will undoubtedly continue to improve through more stationary scenes to keep patients from unnecessary movements during oral treatment, and they can be in a quiet state with their mouths open. In such settings, patients are in the supine position for the majority of use time, which differs from the viewing styles of patients undergoing other treatments. The viewing angle is also an important consideration, and the development of special scenes suitable for viewing during oral treatment can reduce the occurrence of motion sickness. Finally, this series of research and development can form a set of intelligent biofeedback mechanisms that will enable intelligent closed-loop anxiety and pain control throughout the perioperative period of oral treatment, thereby achieving optimal intervention effects.
Current research focuses on preoperative and intraoperative interventions, while research on postoperative anxiety and pain management is lacking. Further research is required to determine whether the use of VR applications during dental surgery can achieve full coverage in the perioperative period. Studies on VR with local anesthetics have provided better results, but those on VR in combination with opioids or light sedative medications have not yet been conducted. Future research could focus on combining the advantages of both non-pharmacological and pharmacological approaches in anticipation of using minimal drug dosages and simplifying routine protocols to achieve higher levels of comfort and satisfaction for patients undergoing oral treatment. More optimized, intelligent, and innovative solutions for perioperative behavioral management of pain and anxiety in dental treatment patients should be provided. Further research on virtual training and telemedicine assistance in dental treatment should also be considered, breaking through geographical and time limitations and integrating into the future metaverse to establish a new model of safe, comfortable, efficient, and intelligent dental treatment.
5 Conclusion
VR technology demonstrates enhanced efficacy in mitigating dental fear, thus contributing to improved medical safety in dental patients. Moreover, VR provides an innovative approach to non-pharmacological behavior management for doctors and nurses. Future in-depth studies can demonstrate the effectiveness of VR technology in reducing pain and anxiety during the perioperative treatment period. It is highly recommended that dental practices be targeted and personalized for VR, based on the different patient characteristics, to achieve optimal patient outcomes. Therefore, the correct implementation of measures and strategies to control anxiety in dental treatment for patients with dental anxiety disorder are as follows. 1. VR-assisted treatment is convenient and safe in all dental settings. 2. VR technology may cause certain adverse reactions, and it is recommended to evaluate and personalize its application before the dental procedure screening. 3. The application of dental sedation and anesthesia techniques is a very good complement, especially for preschool children (3–6 years), or special-needs adults who may require general anesthesia because of anxiety, fear, or physical avoidance and their inability to cooperate with treatment.
Author contributions
NZ: Conceptualization, Writing – review & editing. LF: Formal analysis, Writing – original draft. JZ: Data curation, Visualization, Writing – review & editing. LR: Methodology, Writing – original draft. CZ: Investigation, Project administration, Software, Writing – original draft. JW: Methodology, Validation, Writing – original draft. CY: Writing – original draft.
Funding
The author(s) declare that no financial support was received for the research, authorship, and/or publication of this article.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Abbreviations
VR, virtual reality; 3D, three-dimensional; MMAT, Mixed Methods Appraisal Tool; JBI, Joanna Briggs Institute.
References
1. McNeil, DW, Au, AR, Zvolensky, MJ, McKee, DR, Klineberg, IJ, and Ho, CC. Fear of pain in orofacial pain patients. Pain. (2001) 89:245–52. doi: 10.1016/S0304-3959(00)00368-7
2. Hoffman, HG, Garcia-Palacios, A, Patterson, DR, Jensen, M, Furness, T III, and Ammons, WF Jr. The effectiveness of virtual reality for dental pain control: a case study. Cyberpsychol Behav. (2001) 4:527–35. doi: 10.1089/109493101750527088
3. Cimpean, A, and David, D. The mechanisms of pain tolerance and pain-related anxiety in acute pain. Health Psychol Open. (2019) 6:2055102919865161. doi: 10.1177/2055102919865161
4. Sweta, V, Abhinav, R, and Ramesh, A. Role of virtual reality in pain perception of patients following the administration of local anesthesia. Ann Maxillof Surg. (2019) 9:110–3. doi: 10.4103/ams.ams_263_18
5. Stinson, J, Yamada, J, Dickson, A, Lamba, J, and Stevens, B. Review of systematic reviews on acute procedural pain in children in the hospital setting. Pain Res Manag. (2008) 13:51–7. doi: 10.1155/2008/465891
6. Evans, C, and Moonesinghe, R. Virtual reality in pediatric anesthesia: a toy or a tool. Paediatr Anaesth. (2020) 30:386–7. doi: 10.1111/pan.13842
7. Dahlan, M, Alsaywed, R, Alamoudi, R, Batarfi, AA, Basodan, OY, Gazzaz, Y, et al. Assessment of different distraction behavioral methods in pediatric dental clinic: a systematic review. Cureus. (2023) 15:e42366. doi: 10.7759/cureus.42366
8. Akarslan, Z, Erten, H, Uzun, O, Iseri, E, and Topuz, O. Relationship between trait anxiety, dental anxiety and DMFT indexes of Turkish patients attending a dental school clinic. EMHJ. (2010) 16:558–62. doi: 10.26719/2010.16.5.558
9. Subcomittee AAoPDCAC--BM, Affairs AAoPDCoC. Guideline on behavior guidance for the pediatric dental patient. Pediatr Dent. (2005) 27:92–100.
10. Zhao, N, Zeng, J, Fan, L, Zhang, C, Wu, Y, Wang, X, et al. The effect of alfentanil on emergence delirium following general anesthesia in children: a randomized clinical trial. Pediatr Drugs. (2022) 24:413–21. doi: 10.1007/s40272-022-00510-5
11. Zhao, N, Zeng, J, Fan, L, Wang, J, Zhang, C, Zou, S, et al. Moderate sedation by total intravenous remimazolam-alfentanil vs. propofol-alfentanil for third molar extraction: a prospective randomized controlled trial. Front Med. (2022) 9:9. doi: 10.3389/fmed.2022.950564
12. Fortier, MA, Del Rosario, AM, Martin, SR, and Kain, ZN. Perioperative anxiety in children. Paediatr Anaesth. (2010) 20:318–22. doi: 10.1111/j.1460-9592.2010.03263.x
13. Li, A, Montaño, Z, Chen, VJ, and Gold, JI. Virtual reality and pain management: current trends and future directions. Pain Manag. (2011) 1:147–57. doi: 10.2217/pmt.10.15
14. Gold, JI, and Mahrer, NE. Is virtual reality ready for prime time in the medical space? A randomized control trial of pediatric virtual reality for acute procedural pain management. J Pediatr Psychol. (2018) 43:266–75. doi: 10.1093/jpepsy/jsx129
15. Ebrahimian, A, Bilandi, RR, Bilandī, MRR, and Sabzeh, Z. Comparison of the effectiveness of virtual reality and chewing mint gum on labor pain and anxiety: a randomized controlled trial. BMC Pregnancy Childbirth. (2022) 22:1–8. doi: 10.1186/s12884-021-04359-3
16. Hoffman, HG, Patterson, DR, and Carrougher, GJ. Use of virtual reality for adjunctive treatment of adult burn pain during physical therapy: a controlled study. Clin J Pain. (2000) 16:244–50. doi: 10.1097/00002508-200009000-00010
17. Hoffman, HG, Garcia-Palacios, A, Kapa, V, Beecher, J, and Sharar, SR. Immersive virtual reality for reducing experimental ischemic pain. Int J Hum Comput Interact. (2003) 15:469–86. doi: 10.1207/S15327590IJHC1503_10
18. Hoffman, HG, Richards, TL, Coda, B, Bills, AR, Blough, D, Richards, AL, et al. Modulation of thermal pain-related brain activity with virtual reality: evidence from fMRI. Neuroreport. (2004) 15:1245–8. doi: 10.1097/01.wnr.0000127826.73576.91
19. Alshatrat, SM, Alotaibi, R, Sirois, M, and Malkawi, Z. The use of immersive virtual reality for pain control during periodontal scaling and root planing procedures in dental hygiene clinic. Int J Dent Hyg. (2019) 17:71–6. doi: 10.1111/idh.12366
20. Gupta, A, Scott, K, and Dukewich, M. Innovative technology using virtual reality in the treatment of pain: does it reduce pain via distraction, or is there more to it? Pain Med. (2018) 19:151–9. doi: 10.1093/pm/pnx109
21. Furman, E, Jasinevicius, TR, Bissada, NF, Victoroff, KZ, Skillicorn, R, and Buchner, M. Virtual reality distraction for pain control during periodontal scaling and root planning procedures. J Am Dent Assoc. (2009) 140:1508–16. doi: 10.14219/jada.archive.2009.0102
22. Addab, S, Hamdy, R, Thorstad, K, Le May, S, and Tsimicalis, A. Use of virtual reality in managing paediatric procedural pain and anxiety: an integrative literature review. J Clin Nurs. (2022) 31:3032–59. doi: 10.1111/jocn.16217
23. Page, MJ, McKenzie, JE, Bossuyt, PM, Boutron, I, Hoffmann, TC, Mulrow, CD, et al. The PRISMA 2020 statement: an updated guideline for reporting systematic reviews. Int J Surg. (2021) 88:105906. doi: 10.1016/j.ijsu.2021.105906
24. Whittemore, R, and Knafl, K. The integrative review: updated methodology. J Adv Nurs. (2005) 52:546–53. doi: 10.1111/j.1365-2648.2005.03621.x
25. Hong, Q, Pluye, P, Fàbregues, S, Bartlett, G, Boardman, F, and Cargo, M. Mixed methods appraisal tool (MMAT), version 2018. Canada: Canadian Intellectual Property Office, Industry (2018).
26. Moola, S, Munn, Z, Tufanaru, C, Aromataris, E, Sears, K, Sfetcu, R, et al. “Chapter 7: Systematic reviews of etiology and risk,” in JBI Manual for Evidence Synthesis. eds. E Aromataris and Z Munn. JBI. (2017).
27. Aditya, P, Prasad, MG, Nagaradhakrishna, A, Raju, NS, and Babu, DN. Comparison of effectiveness of three distraction techniques to allay dental anxiety during inferior alveolar nerve block in children: a randomized controlled clinical trial. Heliyon. (2021) 7:e08092. doi: 10.1016/j.heliyon.2021.e08092
28. Almugait, M, and AbuMostafa, A. Comparison between the analgesic effectiveness and patients’ preference for virtual reality vs. topical anesthesia gel during the administration of local anesthesia in adult dental patients: a randomized clinical study. Sci Rep. (2021) 11:23608. doi: 10.1038/s41598-021-03093-2
29. Alshatrat, SM, Sabarini, JM, Hammouri, HM, Al-Bakri, IA, and Al-Omari, WM. Effect of immersive virtual reality on pain in different dental procedures in children: a pilot study. Int J Paediatr Dent. (2022) 32:264–72. doi: 10.1111/ipd.12851
30. Aminabadi, NA, Erfanparast, L, Sohrabi, A, Oskouei, SG, and Naghili, A. The impact of virtual reality distraction on pain and anxiety during dental treatment in 4-6 year-old children: a randomized controlled clinical trial. J Dent Res Dent Clin Dent Prosp. (2012) 6:117. doi: 10.5681/joddd.2012.025
31. Atzori, B, Lauro Grotto, R, Giugni, A, Calabrò, M, Alhalabi, W, and Hoffman, HG. Virtual reality analgesia for pediatric dental patients. Front Psychol. (2018) 9:2265. doi: 10.3389/fpsyg.2018.02265
32. Felemban, OM, Alshamrani, RM, Aljeddawi, DH, and Bagher, SM. Effect of virtual reality distraction on pain and anxiety during infiltration anesthesia in pediatric patients: a randomized clinical trial. BMC Oral Health. (2021) 21:1–10. doi: 10.1186/s12903-021-01678-x
33. Gómez-Polo, C, Vilches, A-A, Ribas, D, Castaño-Séiquer, A, and Montero, J. Behaviour and anxiety management of paediatric dental patients through virtual reality: a randomised clinical trial. J Clin Med. (2021) 10:3019. doi: 10.3390/jcm10143019
34. Koticha, P, Katge, F, Shetty, S, and Patil, DP. Effectiveness of virtual reality eyeglasses as a distraction aid to reduce anxiety among 6–10-year-old children undergoing dental extraction procedure. Int J Clin Pediatr Dent. (2019) 12:297–302. doi: 10.5005/jp-journals-10005-1640
35. Lahti, S, Suominen, A, Freeman, R, Lähteenoja, T, and Humphris, G. Virtual reality relaxation to decrease dental anxiety: immediate effect randomized clinical trial. JDR Clin Transl Res. (2020) 5:312–8. doi: 10.1177/2380084420901679
36. Mladenovic, R, and Djordjevic, F. Effectiveness of virtual reality as a distraction on anxiety and pain during impacted mandibular third molar surgery under local anesthesia. J Stomatolo Oral Maxillof Surg. (2021) 122:e15–20. doi: 10.1016/j.jormas.2021.03.009
37. Niharika, P, Reddy, NV, Srujana, P, Srikanth, K, Daneswari, V, and Geetha, KS. Effects of distraction using virtual reality technology on pain perception and anxiety levels in children during pulp therapy of primary molars. J Indian Soc Pedodont Prevent Dent. (2018) 36:364–9. doi: 10.4103/JISPPD.JISPPD_1158_17
38. Panda, A. Effect of virtual reality distraction on pain perception during dental treatment in children. Int J Oral Res. (2017) 5:278–81. doi: 10.5005/jp-journals-10051-0115
39. Ran, L, Zhao, N, Fan, L, Zhou, P, Zhang, C, and Yu, C. Application of virtual reality on non-drug behavioral management of short-term dental procedure in children. Trials. (2021) 22:1–9. doi: 10.1186/s13063-021-05540-x
40. Shetty, V, Suresh, LR, and Hegde, AM. Effect of virtual reality distraction on pain and anxiety during dental treatment in 5 to 8 year old children. J Clin Pediatr Dent. (2019) 43:97–102. doi: 10.17796/1053-4625-43.2.5
41. Yamashita, Y, Shimohira, D, Aijima, R, Mori, K, and Danjo, A. Clinical effect of virtual reality to relieve anxiety during impacted mandibular third molar extraction under local anesthesia. J Oral Maxillofac Surg. (2020) 78:545.e1. e6–6. doi: 10.1016/j.joms.2019.11.016
42. Du, Q, Ma, X, Wang, S, Zhou, S, Luo, C, Tian, K, et al. A digital intervention using virtual reality helmets to reduce dental anxiety of children under local anesthesia and primary teeth extraction: a randomized clinical trial. Brain Behav. (2022) 12:e2600. doi: 10.1002/brb3.2600
43. Mehrotra, D, and Manju, R. Comparative evaluation of the effect of audio and virtual reality distraction on the dental anxiety of healthy and mild intellectually disabled children. J Indian Soc Pedodont Prevent Dent. (2023) 41:43–50. doi: 10.4103/jisppd.jisppd_45_23
44. Pathak, PD, Lakade, LS, Patil, KV, Shah, PP, Patel, AR, and Davalbhakta, RN. Clinical evaluation of feasibility and effectiveness using a virtual reality device during local anesthesia and extractions in pediatric patients. Eur Arch Paediatr Dent. (2023) 24:379–86. doi: 10.1007/s40368-023-00801-6
45. Cummings, JJ, and Bailenson, JN. How immersive is enough? A meta-analysis of the effect of immersive technology on user presence. Media Psychol. (2016) 19:272–309. doi: 10.1080/15213269.2015.1015740
46. Sharar, SR, Carrougher, GJ, Nakamura, D, Hoffman, HG, Blough, DK, and Patterson, DR. Factors influencing the efficacy of virtual reality distraction analgesia during postburn physical therapy: preliminary results from 3 ongoing studies. Arch Phys Med Rehabil. (2007) 88:S43–9. doi: 10.1016/j.apmr.2007.09.004
47. Cunningham, A, McPolin, O, Fallis, R, Coyle, C, Best, P, and McKenna, G. A systematic review of the use of virtual reality or dental smartphone applications as interventions for management of paediatric dental anxiety. BMC Oral Health. (2021) 21:1–11. doi: 10.1186/s12903-021-01602-3
48. Yan, X, Yan, Y, Cao, M, Xie, W, O'connor, S, Lee, JJ, et al. Effectiveness of virtual reality distraction interventions to reduce dental anxiety in paediatric patients: a systematic review and meta-analysis. J Dent. (2023) 132:104455. doi: 10.1016/j.jdent.2023.104455
49. Benito, KG, and Walther, M. Therapeutic process during exposure: habituation model. J Obsessive Compuls Relat Disord. (2015) 6:147–57. doi: 10.1016/j.jocrd.2015.01.006
50. Wismeijer, AA, and Vingerhoets, AJ. The use of virtual reality and audiovisual eyeglass systems as adjunct analgesic techniques: a review of the literature. Ann Behav Med. (2005) 30:268–78. doi: 10.1207/s15324796abm3003_11
51. LaViola, JJJ. A discussion of cybersickness in virtual environments. ACM SIGCHI Bull. (2000) 32:47–56. doi: 10.1145/333329.333344
52. Weech, S, Varghese, JP, and Barnett-Cowan, M. Estimating the sensorimotor components of cybersickness. J Neurophysiol. (2018) 120:2201–17. doi: 10.1152/jn.00477.2018
53. Mazloumi Gavgani, A, Hodgson, DM, and Nalivaiko, E. Effects of visual flow direction on signs and symptoms of cybersickness. PLoS One. (2017) 12:e0182790. doi: 10.1371/journal.pone.0182790
54. Hicks, CL, von Baeyer, CL, Spafford, PA, van Korlaar, I, and Goodenough, B. The Faces pain scale–revised: toward a common metric in pediatric pain measurement. Pain. (2001) 93:173–83. doi: 10.1016/S0304-3959(01)00314-1
55. Barreiros, D, de Oliveira, DSB, de Queiroz, AM, da Silva, RAB, de Paula-Silva, FWG, and Küchler, EC. Audiovisual distraction methods for anxiety in children during dental treatment: a systematic review and meta-analysis. J Indian Soc Pedodont Prevent Dent. (2018) 36:2–8. doi: 10.4103/JISPPD.JISPPD_188_16
