CASE REPORT article

Front. Med., 20 October 2023
Sec. Nephrology

Case report: JC polyomavirus nephropathy in simultaneous heart–kidney transplantation: the role of viral-specific in situ hybridization staining

  • 1Division of Nephrology, Mayo Clinic Arizona, Phoenix, AZ, United States
  • 2Division of Anatomic Pathology, Mayo Clinic Arizona, Phoenix, AZ, United States
  • 3Department of Pharmacy, Mayo Clinic Arizona, Phoenix, AZ, United States
  • 4Division of Cardiovascular Diseases, Mayo Clinic Arizona, Phoenix, AZ, United States

Introduction: JC polyomavirus (JCPyV) is a ubiquitous virus that can be latent in the brain and the kidney. It is the etiologic agent responsible for progressive multifocal leukoencephalopathy, a fatal, demyelinating disease of the central nervous system, and rarely causes polyomavirus nephropathy in immunocompromised kidney transplant recipients.

Case description: We present the first case of JCPyV nephropathy in a simultaneous heart–kidney transplant patient, where viral-specific in situ hybridization staining of the kidney tissue was utilized to confirm the diagnosis. The patient was diagnosed 6 years after simultaneous heart–kidney transplantation and was treated with immunosuppression reduction and intravenous immunoglobulin.

Discussion: JCPyV nephropathy should be considered in the differential diagnosis of kidney allograft injury, particularly, with suggestive light microscopy histologic features in the absence of BK polyomavirus viremia and/or viruria. In addition to obtaining JCPyV PCR in the blood, in situ hybridization staining may have a utility in confirming the diagnosis. To date, we lack effective JCPyV-specific therapies, and prompt initiation of immunosuppression reduction remains the mainstay of treatment.

Introduction

Polyomavirus nephropathy occurs in up to 10% of kidney transplant recipients (KTRs) within the first year after transplantation and is often secondary to BK polyomavirus (BKPyV) (1, 2). BKPyV viremia and viruria occur in 20 and 50% of KTR, respectively, and are usually asymptomatic (3). Polyomavirus nephropathy is associated with worse graft outcomes, and to date remains elusive to any effective therapy. Immunosuppression is a major contributor to its pathogenesis. This explains the higher incidence in recent years with the widespread use of the more potent mycophenolate/tacrolimus regimen as the backbone of modern maintenance immunosuppression (3). JC polyomavirus (JCPyV) is another ubiquitous virus that can be latent in the brain and the kidneys (4). It is the etiologic agent responsible for progressive multifocal leukoencephalopathy (PML), a fatal, demyelinating disease of the central nervous system that occurs in immunocompromised hosts (5). JCPyV has been known to also cause nephropathy; however, to a much lesser extent than BKPyV (6, 7). Although there are multiple reports of JCPyV nephropathy (JCPyV-N) in KTR, there is only one previous case in the literature describing it in simultaneous heart–kidney (SHK) transplantation (8). Herein, we present a second case of JCPyV-N in a SHK transplant recipient, but the first to report JCPyV DNA-specific in situ hybridization (ISH) staining in kidney allograft tissue. The patient we described provided written informed consent to this report.

Case description

Our patient is a 58-year-old African American man with a history of SHK transplant for a previously failed cardiac allograft and end-stage kidney disease attributed to calcineurin inhibitor toxicity based on clinical grounds. Twenty-four years before his dual-organ transplant, the patient had received an orthotopic heart transplant for non-ischemic cardiomyopathy, which subsequently failed due to graft coronary artery disease. His allograft was a Kidney Disease Profile Index of 45% deceased donor kidney with a cold ischemia time of 22 h and 30 min. The calculated panel reactive antibody was 65% and no donor-specific antibodies were present. The patient received anti-thymocyte globulin induction and mycophenolate/tacrolimus/prednisone maintenance immunosuppression per institutional protocol. This was subsequently changed to a sirolimus/lower dose tacrolimus/prednisone regimen 18 months post-transplant for concerns of calcineurin inhibitor toxicity. The patient’s infectious complications include late-onset CMV viremia 23 years after his first transplant, which was treated successfully; COVID-19 pneumonia, which required a 16 days hospitalization and was managed with supportive measures, convalescent plasma, and tocilizumab, a humanized monoclonal antibody that inhibits interleukin-6 receptor. The patient had a 2 years kidney allograft protocol biopsy that was unremarkable with no evidence of rejection, inflammation, or chronic changes, and his baseline serum creatinine (SCr) had been around 2 mg/dL. He presented 5 years and 11 months after his SHK transplant with a subacute rise in his SCr from his baseline to 2.6 mg/dL. This triggered a for-cause kidney allograft biopsy, which showed polyomavirus nephropathy with abundant SV40 immunostaining, minimal scar tissue inflammation (ti1, i0), and mild interstitial fibrosis and tubular atrophy (ci1, ct1). BKPyV DNA was undetected in both blood and urine. JCPyV DNA PCR in blood was positive at 6,052 IU/mL. Due to positive SV40 staining in the setting of JCPyV viremia and the absence of BKPyV viremia, JCPyV DNA-specific ISH staining in paraffin-embedded kidney tissue was performed and showed positive staining in the nuclei of multiple tubular epithelial cells, supporting the diagnosis of JCPyV-N (Figure 1).

FIGURE 1
www.frontiersin.org

Figure 1. JCPyV-N: (A) Renal cortex with a minimal infiltrate, minimal interstitial fibrosis and tubular atrophy, and tubular epithelial cells with viral cytopathic effect (arrow) (H&E, 100X). (B) JCPyV cytopathic effect including glassy nuclear inclusions with chromatin margination (arrow) (H&E, 600X). (C) SV40 immunohistochemical stain of cytoplasmic inclusions (100X). (D) JCPyV ISH stain of cytoplasmic inclusions (100X).

The patient had been maintained on a tacrolimus (target trough 6–8 ng/mL)/sirolimus (target trough 3–8 ng/mL)/prednisone 5 mg daily regimen at the time of presentation. In response to his JCPyV infection, his target tacrolimus trough was reduced to 4–6 ng/mL while maintaining the sirolimus trough goal at 3–8 ng/mL. The plan was to monitor JCPyV PCR serially and titrate immunosuppression further as needed based on viral load and kidney function. One week later, the patient was admitted for an incidental finding of severe aortic insufficiency in the setting of a type-A complex dissecting aortic aneurysm involving the aortic root from the level of the sinuses of Valsalva to the mid-ascending aorta. The cardiovascular surgery team determined that the patient would require a third sternotomy for aortic root replacement with coronary artery reimplantation or bypass grafting. In anticipation of the cardiac surgery, the patient was taken off sirolimus and initiated on mycophenolate sodium 360 mg p.o. twice daily. Intravenous immunoglobulins (IVIg) 2 g/kg was administered in four divided doses for his JCPyV infection. We continued to monitor serial JCPyV PCR every 2 weeks. He underwent cardiac surgery after which he sustained acute on chronic kidney allograft insufficiency with SCr and estimated glomerular filtration rate of 3.3 mg/dL and 20 mL/min/1.73m2, respectively, at the time of finalizing this report. The timeline of events, immunosuppression, kidney function, and JCPyV titer trends are illustrated in Figure 2.

FIGURE 2
www.frontiersin.org

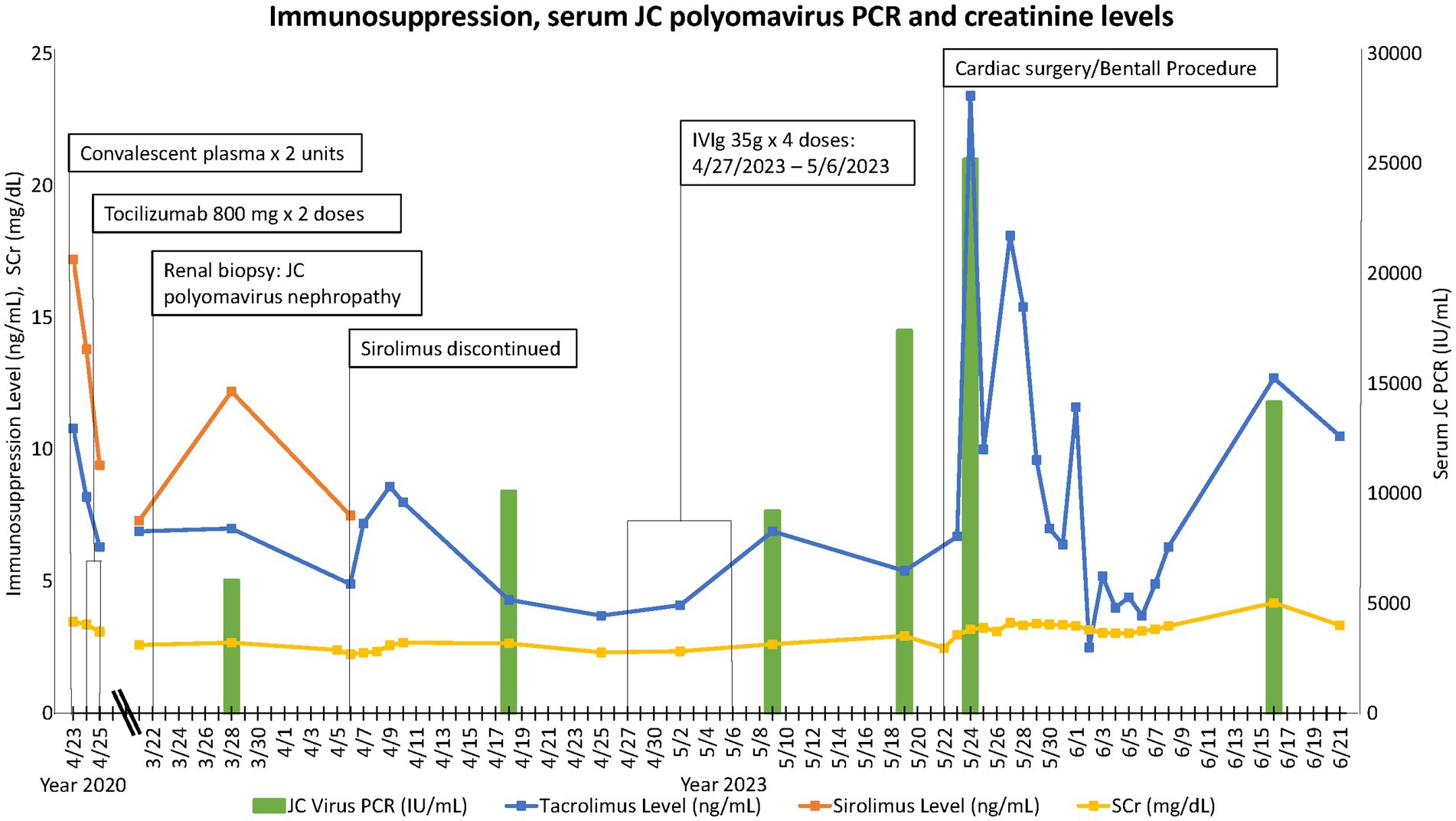

Figure 2. Timeline of clinical events, immunosuppression, JCPyV titer, and SCr trends.

Discussion

Polyomavirus infection of the genitourinary system is asymptomatic except for hemorrhagic cystitis cases that are often encountered in hematopoietic cell transplantation patients (9). Owing to this, most kidney transplant programs screen for BKPyV-N by routinely checking BKPyV PCR in the blood and/or urine every 1 to 3 months during the first 2 years post-transplantation (10). Although screening for BKPyV viremia is a common practice, screening for JCPyV is uncommon. This could be attributed to its incidence of less than 3% of all polyomavirus-associated nephropathy cases, as well as the lack of specific antiviral therapies (2). The prevalence of JCPyV seropositivity is 90%, yet the incidence of reactivation of latent infection is low. In one study, the JCPyV viremia rate was 7.6 and 6.7% in kidney and orthotopic heart transplant recipients, respectively, with about two-thirds of the cases being subclinical (11, 12). In this report, we present a case of JCPyV-N in a SHK transplant recipient. To the best of our knowledge, this is the second case report in the literature of an SHK transplant recipient and the first where JCPyV-specific ISH staining was obtained to complement SV40 staining (8).

The immunomodulatory monoclonal antibodies rituximab, natalizumab, and efalizumab, approved for the treatment of hematologic malignancies and autoimmune disorders, have been associated with PML (13). Interestingly, our patient received convalescent plasma and tocilizumab for a COVID-19 episode earlier during the pandemic. Although this exposure was 3 years before JCPyV-N diagnosis, it is plausible that COVID-19 infection itself, as well as its treatment, could have modulated his immune system and predisposed him to JCPyV-N. Moreover, maintenance immunosuppression was a more intense triple-drug regimen which is a well-known risk factor for polyomavirus infection (3). In the previous case report describing an SHK transplant recipient, the patient presented with progressive kidney dysfunction and was diagnosed with JCPyV-N 7 years post-transplant (8). Moreover, in a case series of seven KTR, JCPyV-N had an insidious presentation, and four of the subjects were diagnosed more than 6 years post-transplant (14). This is comparable to our patient, who presented 6 years post-transplant and contrasts with BKPyV-N, which is usually diagnosed within 2 years from transplantation (13, 1517). The late presentation of JCPyV-N relative to BKPyV-N could be due to infectious reasons inherent to the virus itself or the delayed diagnosis given the absence of BKPyV viremia and/or viruria and thus the lack of suspicion of polyomavirus infection. Due to its delayed presentation, it may not be practical to screen for JCPyV viremia. This is because patients who are farther out from transplant surgery are usually not following closely with their transplant centers, and lab work is performed less frequently.

The negative predictive value of BKPyV viremia and, to a lesser extent, viruria in diagnosing BKPyV-N approaches 100% (8, 18). Therefore, the presence of SV40 staining and suggestive cytopathic light microscopy findings in the absence of BKPyV viremia and/or viruria should raise suspicion of JCPyV-N. JCPyV PCR in plasma should be obtained, and specific ISH staining of kidney tissue should be considered. It is possible for tissue JCPyV ISH to cross-react with BKPyV since the two viruses have 72% nucleotide homology, but it may still be beneficial to pursue if available (19). Histological changes such as tubular epithelial cell cytopathic changes, tubulointerstitial inflammation, and positive immunohistochemical staining for SV40 are common to both polyomaviruses and have no utility in distinguishing between them, albeit most published JCPyV-N cases show minimal inflammation (15). In our patient, a JCPyV-specific ISH stain was requested, which helped confirm the diagnosis of JCPyV-N (Figure 1).

Our patient was diagnosed with JCPyV-N while being evaluated for an aortopathy with type-A dissection. This required a Bentall procedure for aortic root repair, valve replacement, and coronary artery bypass grafting. Aortic tissue pathology revealed lymphoplasmacytic inflammation, the phenotype commonly seen in polyomavirus nephropathies. We therefore performed SV40 immunohistochemical staining, which was negative. This is in keeping with the lack of any existing reports of latent JCPyV infection reactivation in the form of large vessel vasculitis.

The only proven effective intervention for polyomavirus nephropathy remains to be immunosuppression reduction (1). Multiple other therapies have been proposed including cidofovir, leflunomide, quinolones, and IVIg (3, 20, 21). The inconsistent response to these various strategies has been confounded by concomitant reduction in immunosuppression. IVIg is perhaps the most commonly used second-line treatment based on some data of favorable outcomes and anecdotal evidence (21, 22). Switching patients from tacrolimus to a cyclosporine or sirolimus-based regimen has also been shown in some reports to be effective in polyomavirus nephropathy (3, 2325). It is not certain, however, whether this is secondary to a direct antiviral activity or reduced net immunosuppression. Viral-specific cellular therapies are currently under investigation, but their use remains very limited (26). Consistent with previous reports of JCPyV-N in kidney transplant-alone recipients, we extrapolated from the BKPyV-N literature and treated our patient with immunosuppression reduction and IVIg (2). Until the time this report was finalized, we had neither seen a resolution of JCPyV viremia nor a significant improvement in kidney function (Figure 2). This could be accounted for by the inability to reduce immunosuppression further given the heart transplant status and by cardiac surgery, a major risk factor for acute kidney injury (27).

Although rare, JCPyV-N should be considered in the differential diagnosis of kidney failure in immunocompromised kidney and dual-organ transplant recipients. This is particularly important in patients with light microscopy polyomavirus nephropathy features in the absence of BKPyV viremia and viruria. Sending a plasma sample for a quantitative JCPyV PCR could be diagnostic. Confirmatory SV40 staining as well as viral-specific ISH staining of kidney tissue should be considered. If confirmed, immunosuppression reduction should be initiated promptly and followed by IVIg in refractory cases.

Data availability statement

The original contributions presented in the study are included in the article/supplementary material, further inquiries can be directed to the corresponding author.

Ethics statement

Written informed consent was obtained from the individual(s) for the publication of any potentially identifiable images or data included in this article.

Author contributions

BA: Conceptualization, Supervision, Writing – original draft, Writing – review & editing. MS: Conceptualization, Writing – review & editing. MH: Conceptualization, Visualization, Writing – review & editing. GM: Conceptualization, Writing – review & editing. PB: Conceptualization, Visualization, Writing – review & editing. JR: Conceptualization, Visualization, Writing – review & editing.

Funding

The author(s) declare that no financial support was received for the research, authorship, and/or publication of this article.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

References

1. Brennan, DC, Agha, I, Bohl, DL, Schnitzler, MA, Hardinger, KL, Lockwood, M, et al. Incidence of BK with tacrolimus versus cyclosporine and impact of preemptive immunosuppression reduction. Am J Transplant. (2005) 5:582–94. doi: 10.1111/j.1600-6143.2005.00742.x

CrossRef Full Text | Google Scholar

2. Yang, D, Keys, B, Conti, DJ, Foulke, L, Stellrecht, K, Cook, L, et al. JC polyomavirus nephropathy, a rare cause of transplant dysfunction: case report and review of literature. Transpl Infect Dis. (2017) 19:e12654. doi: 10.1111/tid.12654

PubMed Abstract | CrossRef Full Text | Google Scholar

3. Dall, A, and Hariharan, S. BK virus nephritis after renal transplantation. Clin J Am Soc Nephrol. (2008) 3:S68–75. doi: 10.2215/CJN.02770707

CrossRef Full Text | Google Scholar

4. Tan, CS, Ellis, LC, Wüthrich, C, Ngo, L, Broge, TA Jr, Saint-Aubyn, J, et al. JC virus latency in the brain and extraneural organs of patients with and without progressive multifocal leukoencephalopathy. J Virol. (2010) 84:9200–9. doi: 10.1128/JVI.00609-10

PubMed Abstract | CrossRef Full Text | Google Scholar

5. Tan, CS, and Koralnik, IJ. Progressive multifocal leukoencephalopathy and other disorders caused by JC virus: clinical features and pathogenesis. Lancet Neurol. (2010) 9:425–37. doi: 10.1016/S1474-4422(10)70040-5

PubMed Abstract | CrossRef Full Text | Google Scholar

6. Wen, MC, Wang, CL, Wang, M, Cheng, CH, Wu, MJ, Chen, CH, et al. Association of JC virus with tubulointerstitial nephritis in a renal allograft recipient. J Med Virol. (2004) 72:675–8. doi: 10.1002/jmv.20037

PubMed Abstract | CrossRef Full Text | Google Scholar

7. Costa, C, and Cavallo, R. Polyomavirus-associated nephropathy. World J Transplant. (2012) 2:84–94. doi: 10.5500/wjt.v2.i6.84

PubMed Abstract | CrossRef Full Text | Google Scholar

8. Aguilar, J, Chang, DH, Lin, M, Hou, J, Huang, E, Kittleson, M, et al. JC virus-associated nephropathy in a post-heart and -kidney transplantation patient. Transpl Infect Dis. (2020) 22:e13288. doi: 10.1111/tid.13288

PubMed Abstract | CrossRef Full Text | Google Scholar

9. Mert, D, Batgi, H, Merdin, A, Çeken, S, Dal, MS, Tekgündüz, E, et al. BK virus-associated hemorrhagic cystitis in patients with allogeneic hematopoietic cell transplantation: report of three cases. Hematol Rep. (2017) 9:7205. doi: 10.4081/hr.2017.7205

PubMed Abstract | CrossRef Full Text | Google Scholar

10. Hirsch, HH, and Randhawa, PS. BK polyomavirus in solid organ transplantation-guidelines from the American Society of Transplantation infectious diseases Community of Practice. Clin Transpl. (2019) 33:e13528. doi: 10.1111/ctr.13528

PubMed Abstract | CrossRef Full Text | Google Scholar

11. Razonable, RR, Brown, RA, Humar, A, Covington, E, Alecock, E, and Paya, CV. A longitudinal molecular surveillance study of human polyomavirus viremia in heart, kidney, liver, and pancreas transplant patients. J Infect Dis. (2005) 192:1349–54. doi: 10.1086/466532

PubMed Abstract | CrossRef Full Text | Google Scholar

12. Kijpittayarit, S, and Razonable, RR. JC virus infection after transplantation: beyond the classic progressive multifocal leukoencephalopathy? Gastroenterol Hepatol (N Y). (2007) 3:74–6.

PubMed Abstract | Google Scholar

13. Carson, KR, Focosi, D, Major, EO, Petrini, M, Richey, EA, West, DP, et al. Monoclonal antibody-associated progressive multifocal leucoencephalopathy in patients treated with rituximab, natalizumab, and efalizumab: a review from the research on adverse drug events and reports (RADAR) project. Lancet Oncol. (2009) 10:816–24. doi: 10.1016/S1470-2045(09)70161-5

PubMed Abstract | CrossRef Full Text | Google Scholar

14. Wiegley, N, Walavalkar, V, Aujla, H, Chen, LX, Huang, Y, Lee, BK, et al. Clinicopathologic characteristics of JC virus nephropathy in kidney transplant recipients. Transplantation. (2021) 105:1069–76. doi: 10.1097/TP.0000000000003363

CrossRef Full Text | Google Scholar

15. Drachenberg, CB, Hirsch, HH, Papadimitriou, JC, Gosert, R, Wali, RK, Munivenkatappa, R, et al. Polyomavirus BK versus JC replication and nephropathy in renal transplant recipients: a prospective evaluation. Transplantation. (2007) 84:323–30. doi: 10.1097/01.tp.0000269706.59977.a5

PubMed Abstract | CrossRef Full Text | Google Scholar

16. Kazory, A, Ducloux, D, Chalopin, JM, Angonin, R, Fontanière, B, and Moret, H. The first case of JC virus allograft nephropathy. Transplantation. (2003) 76:1653–5. doi: 10.1097/01.TP.0000090749.42791.14

PubMed Abstract | CrossRef Full Text | Google Scholar

17. Höcker, B, Tabatabai, J, Schneble, L, Oh, J, Thiel, F, Pape, L, et al. JC polyomavirus replication and associated disease in pediatric renal transplantation: an international CERTAIN registry study. Pediatr Nephrol. (2018) 33:2343–52. doi: 10.1007/s00467-018-4029-9

PubMed Abstract | CrossRef Full Text | Google Scholar

18. Laskin, BL, and Goebel, J. Cost-efficient screening for BK virus in pediatric kidney transplantation: a single-center experience and review of the literature. Pediatr Transplant. (2010) 14:589–95. doi: 10.1111/j.1399-3046.2010.01318.x

CrossRef Full Text | Google Scholar

19. Lamarche, C, Orio, J, Collette, S, Senécal, L, Hébert, MJ, Renoult, É, et al. BK polyomavirus and the transplanted kidney: immunopathology and therapeutic approaches. Transplantation. (2016) 100:2276–87. doi: 10.1097/TP.0000000000001333

PubMed Abstract | CrossRef Full Text | Google Scholar

20. Wojciechowski, D, Chanda, R, Chandran, S, Lee, B, Webber, A, Macaraig, M, et al. Ciprofloxacin prophylaxis in kidney transplant recipients reduces BK virus infection at 3 months but not at 1 year. Transplantation. (2012) 94:1117–23. doi: 10.1097/TP.0b013e31826ec74e

PubMed Abstract | CrossRef Full Text | Google Scholar

21. Vu, D, Shah, T, Ansari, J, Naraghi, R, and Min, D. Efficacy of intravenous immunoglobulin in the treatment of persistent BK viremia and BK virus nephropathy in renal transplant recipients. Transplant Proc. (2015) 47:394–8. doi: 10.1016/j.transproceed.2015.01.012

PubMed Abstract | CrossRef Full Text | Google Scholar

22. Sener, A, House, AA, Jevnikar, AM, Boudville, N, McAlister, VC, Muirhead, N, et al. Intravenous immunoglobulin as a treatment for BK virus associated nephropathy: one-year follow-up of renal allograft recipients. Transplantation. (2006) 81:117–20. doi: 10.1097/01.tp.0000181096.14257.c2

PubMed Abstract | CrossRef Full Text | Google Scholar

23. Wadei, HM, Rule, AD, Lewin, M, Mahale, AS, Khamash, HA, Schwab, TR, et al. Kidney transplant function and histological clearance of virus following diagnosis of polyomavirus-associated nephropathy (PVAN). Am J Transplant. (2006) 6:1025–32. doi: 10.1111/j.1600-6143.2006.01296.x

PubMed Abstract | CrossRef Full Text | Google Scholar

24. Chen, XT, Li, J, Deng, RH, Yang, SC, Chen, YY, Chen, PS, et al. The therapeutic effect of switching from tacrolimus to low-dose cyclosporine a in renal transplant recipients with BK virus nephropathy. Biosci Rep. (2019) 39:BSR20182058. doi: 10.1042/BSR20182058

CrossRef Full Text | Google Scholar

25. Berger, SP, Sommerer, C, Witzke, O, Tedesco, H, Chadban, S, Mulgaonkar, S, et al. Two-year outcomes in de novo renal transplant recipients receiving everolimus-facilitated calcineurin inhibitor reduction regimen from the TRANSFORM study. Am J Transplant. (2019) 19:3018–34. doi: 10.1111/ajt.15480

PubMed Abstract | CrossRef Full Text | Google Scholar

26. Motta, CM, Keller, MD, and Bollard, CM. Applications of virus-specific T cell therapies post-BMT. Semin Hematol. (2023) 60:10–9. doi: 10.1053/j.seminhematol.2022.12.002

CrossRef Full Text | Google Scholar

27. Thakar, CV, Arrigain, S, Worley, S, Yared, JP, and Paganini, EP. A clinical score to predict acute renal failure after cardiac surgery. J Am Soc Nephrol. (2005) 16:162–8. doi: 10.1681/ASN.2004040331

CrossRef Full Text | Google Scholar

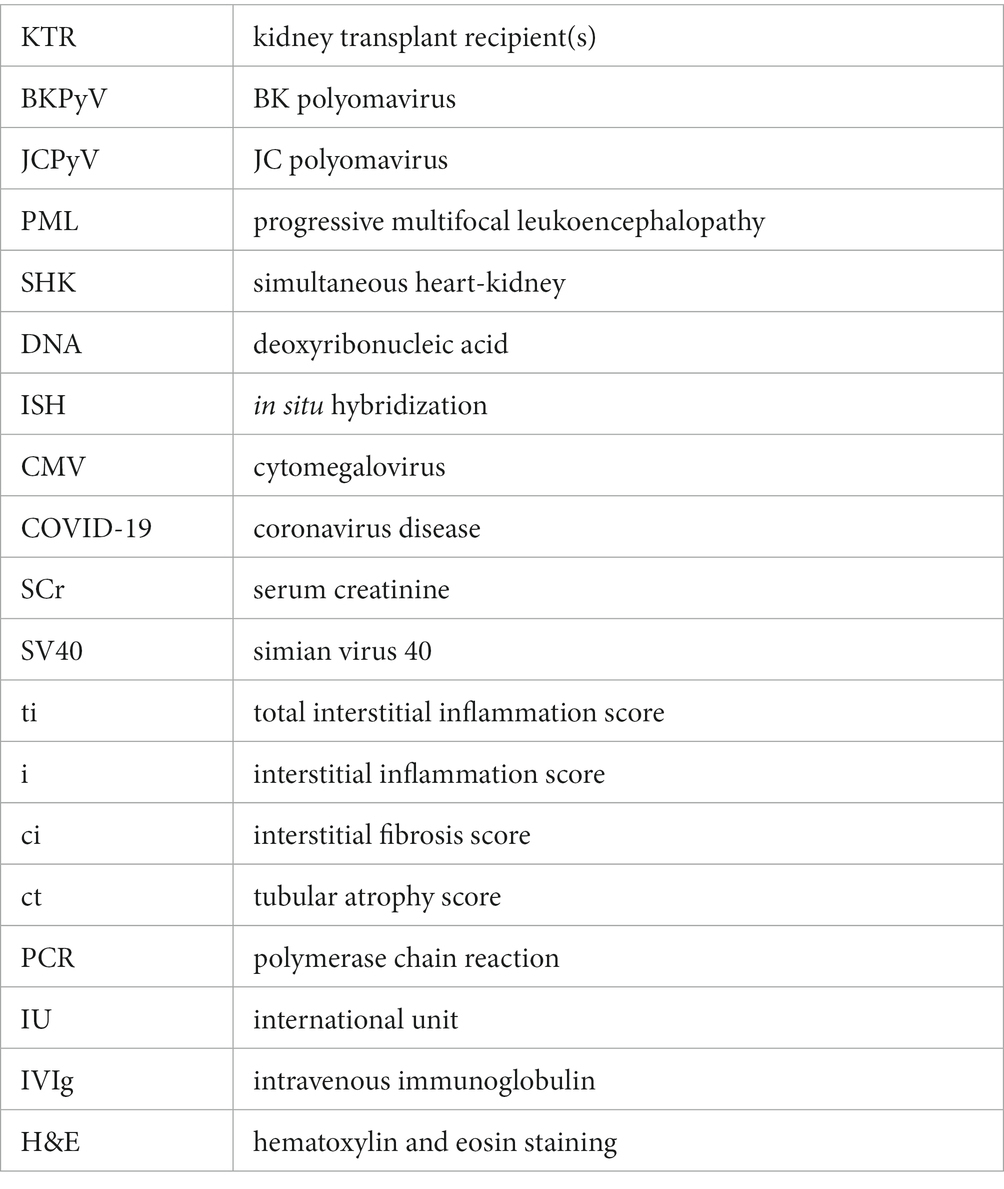

Glossary

Keywords: polyomavirus, JC virus, immunosuppression, IVIg, in situ hybridization
