Ya Bin Zhou
Yuan Yuan Xiao†
Lin Ma- Department of Dermatology, Beijing Children's Hospital, Capital Medical University, National Center for Children's Health, Beijing, China
The checkerboard broth method based on the Clinical and Laboratory Standards Institute M38-A3 document was used in this study to evaluate the in vitro activity of allicin alone and in combination with the antifungal drugs (griseofulvin, fluconazole, itraconazole and terbinafine) against Microsporum canis isolated from patients with tinea capitis. When allicin was used alone, only weak anti-M. canis effects were found. The MIC50, MIC90 and geometric mean (GM) of terbinafine were the lowest among the compounds tested. Synergism was observed for the combinations of allicin with itraconazole and terbinafine. Only indifference was observed for the combinations of allicin with griseofulvin and fluconazole. Our study illustrated the synergism of allicin in combination with itraconazole and terbinafine, which could be a reference for the treatment of tinea capitis due to M. canis.
Introduction
Tinea capitis is a common dermatophytosis of the scalp and hair follicles. A previous study on the epidemiology of tinea capitis in children suggested that Microsporum canis is the most prevalent pathogen in most areas of China (1).
Griseofulvin, terbinafine, fluconazole and itraconazole are most common used antifungal drugs for tinea capitis. However, resistance to antifungal drugs is emerging in M. canis (2). A strain of griseofulvin resistant M. canis with a high minimum inhibitory concentration (MIC) was isolated from recalcitrant tinea capitis which had treatment with griseofulvin (3). Recently, a strain of terbinafine resistant M. canis was isolated from a cat which failed to topical terbinafine treatment (4). High in vitro MICs of azoles were also been noted in M. canis (5). To cope with drug-resistant mycoses, a combination of traditional antifungal drugs with non-antifungal agents has been proposed as a promising treatment strategy (6).
Allicin, a sulfur compound from garlic, has been demonstrated to have activity against Candida, Cryptococcus, Trichophyton, Epidermophyton, and Microsporum (7). Although allicin and fluconazole are synergistic in vitro against Candida albicans (8), no studies have been conducted on the in vitro activity of allicin in combination with antifungal drugs against M. canis.
In the present study, the in vitro antifungal activity of allicin alone or in combination were assessed against 30 clinical M. canis strains. The results will help us evaluate the therapeutic potential of allicin in combination with antifungal drugs against tinea capitis.
Materials and Methods
Microorganisms
A total of 30 M. canis strains were tested. They were all recovered from the hair of patients with tinea capitis at the Outpatient Clinic of Dermatology (Beijing Children's Hospital, Capital Medical University). Each isolate was stored in 10% glycerol at −80°C. Candida parapsilosis (ATCC 22019) and Trichophyton interdigitale (ATCC MYA 4439) were chosen as quality controls.
All strains were identified microscopically and with molecular sequencing of the internal transcribed spacer (ITS) region. Genomic DNA of each strain was extracted by using a Biospin Fungus Genomic DNA Extraction kit (Bioer Technology Ltd; Hubei, China) in accordance with the manufacturer's instructions. The extracted DNA was eluted with 100 μl of distilled water, and 1 μl of the extracted DNA was used for polymerase chain reaction (PCR). The ITS region was amplified using the primers ITS1 (5′-TCCGTAGGTGAACCTGCGG-3′) and ITS4 (5′-GGTCCGTGTTTCAAGACGG-3′). Each PCR mixture contained 1 μl of extracted fungal DNA, 0.08 μM each of the primers, and 12.5 μl of 2 × Taq PCR MasterMix (Tiangen Biotech Ltd; Beijing, China) in 25 μl of reaction volume. The PCR cycling comprised an initial denaturation at 95°C for 5 min, followed by 35 cycles of 95°C for 30 s, 58°C for 30 s, and 72°C for 1 min, followed by a final extension at 72°C for 10 min and cooling to 4°C. The amplicon products were then sequenced by Tian Yi Hui Yuan Company (Beijing, China). The sequences obtained were compared with those in the GenBank DNA database (https://blast.ncbi.nlm.nih.gov/). The sequences obtained had been deposited in GenBank with the following accession numbers: MT163398-MT163427.
Chemicals
All drugs were acquired from Harvey Biotech Ltd., (Beijing, China) and dissolved in dimethyl sulfoxide (DMSO). The stock solution concentrations were as follows: 12.8 mg/mL for allicin; 6.4 mg/mL for fluconazole; 1.6 mg/mL for itraconazole, griseofulvin and terbinafine. The drugs were analyzed in the following final concentration ranges: 2–128 μg/mL for allicin; 0.015–8 μg/mL for itraconazole and griseofulvin; 0.125–64 μg/mL for fluconazole; and 0.001–0.5 μg/mL for terbinafine. The final concentration of DMSO did not exceed 1% in test wells.
Checkerboard Microdilution Assay
Assays were performed according to the checkerboard broth microdilution method based on the Clinical and Laboratory Standards Institute M38-A3 document (9, 10). Briefly, all strains enrolled in our study grew for 14 days on potato dextrose agar at 28°C, and conidial suspensions were prepared by gently scraping the surfaces of the fungal colonies into sterile physiological saline. Heavy hyphae fragments were settled for 5 min at room temperature and the upper, conidial suspensions were used as an inoculum. Susceptibility tests were then performed in RPMI 1,640 medium (Gibco, USA) supplemented with 0.3 g/l L-glutamine but without sodium bicarbonate and buffered to pH 7.0 with 0.165 M 4-morpholinopropanesulfonic acid (Amresco, USA). The final concentration of the suspension diffused in the wells was adjusted to ~1–3 × 103 CFU/mL, as determined with a hemocytometer. Serial 2-fold dilutions of 50 μl of each drugs A (allicin) and B (fluconazole, itraconazole, griseofulvin or terbinafine) were dispensed along the vertical and horizontal directions to yield 100 μl per well in a 96-well microtiter plate. One hundred microliters of the diluted inoculum suspension was dispensed into each well. The plates were incubated at 35°C for 4–5 days. The MICs were determined as the lowest concentration producing a 100% reduction in turbidity by visual observation with a concave mirror when compared with the drug-free control. All experiments were conducted in replicate on different days.
Drug Interaction Analysis
The drug combination interaction was evaluated on the basis of the fractional inhibitory concentration index (FICI), which is the sum of the MIC of each drug in combination divided by the MIC of the drug used alone. The drug interaction was defined as follows: FICI ≤0.5, synergism; FICI >0.5 and ≤4.0, indifference; and FICI >4.0, antagonism (9).
Results
The results of the in vitro susceptibility tests of M. canis strains to the antifungal drugs alone are listed in Tables 1, 2. When allicin was used alone, only weak anti-M. canis effects were found (MICs, 16–128; GM, 46.313 μg/ml). We also found that the MIC50, MIC90 and geometric mean (GM) of terbinafine were the lowest. Among the tested azoles, fluconazole had a higher MIC50, MIC90 and GM than itraconazole.

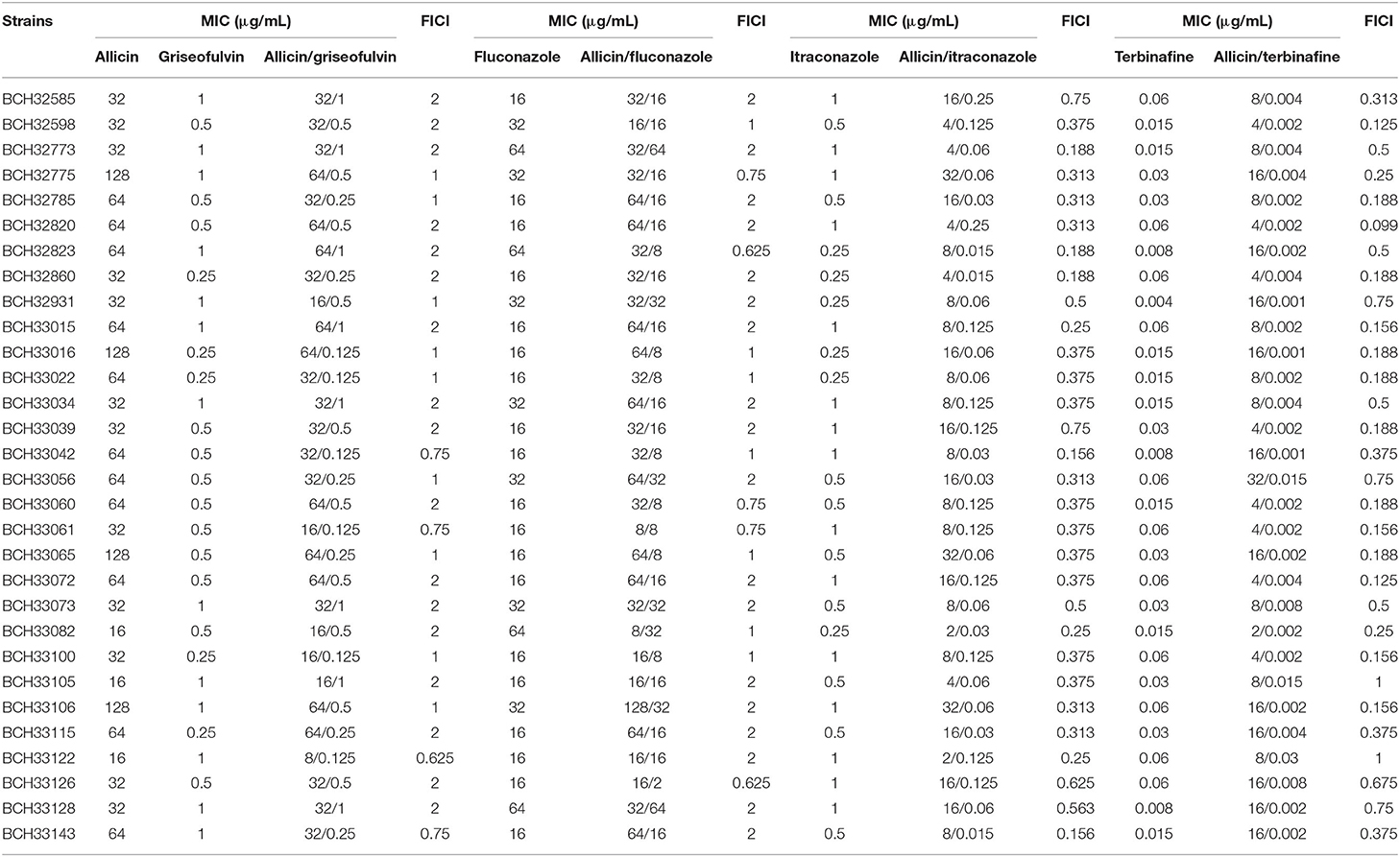

Table 1. In vitro interactions of allicin with griseofulvin, fluconazole, itraconazole, and terbinafine against M. canis strains.

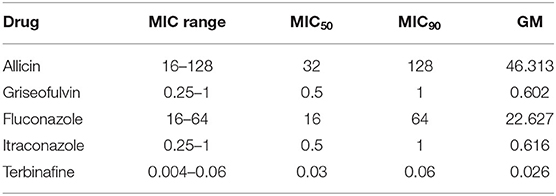

Table 2. MICs of allicin and antifungal drugs tested alone against M. canis strains (μg/mL).
The results for each drug combination are listed in Tables 1, 3. Synergism was observed in the following combinations: allicin + itraconazole (86.7%) and allicin + terbinafine (80%) (Tables 1, 3). When synergism was observed, the median reduction in itraconazole was 8-fold (range 4- to 32-fold), while the median reduction in terbinafine was 16-fold (range 4- to 32-fold) (Table 1). Only indifference was observed in the following combinations: allicin + griseofulvin and allicin + fluconazole (Tables 1, 3).

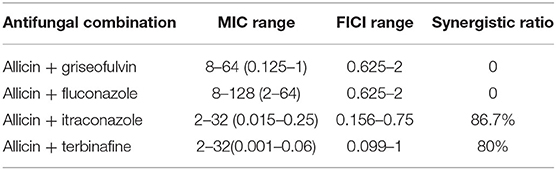

Table 3. MIC ranges of drug combinations, FICI ranges and synergistic ratios of tested M. canis strains (μg/mL).
Discussion
Although many synthetic antifungal drugs are available for dermatophytosis, the occurrence of resistance or toxic side-effects may lead to the treatment failure. Thus, new therapeutic strategies are necessary. Improvements in the efficacy of synthetic antifungal drugs and reductions in toxicity may be achieved using combination therapy with natural antifungal drugs. Previously studies have demonstrated the effects of herbal essential oils and their synergism with ketoconazole against Trichophyton spp (11). In this study, we investigated the in vitro antifungal activity of allicin alone and in combination with four antifungal agents (griseofulvin, fluconazole, itraconazole and terbinafine) against clinical isolates of M. canis.
Griseofulvin is the first systemic antifungal that was introduced for dermatophytosis. However, its use has been superseded by itraconazole and terbinafine in other types of dermatophytosis (12). Griseofulvin works by disrupting the mitotic spindle structure and inhibiting nucleic acid synthesis (13). Although griseofulvin-resistant M. canis strains has been documented in different studies (3, 5), no griseofulvin-resistant strains were detected in our study. In this study, the MIC50 and MIC90 of griseofulvin were 0.5 and 1 μg/mL, which were consistent with a previous study from Iran (5). Although antagonism was not observed for the combination of allicin and griseofulvin, synergism was not observed either. Their combination in the clinic may not be suitable.
Azoles act on ergosterol biosynthesis by inhibiting 14α-demethylation of lanosterol, leading to altered permeability of the fungal membrane and defective fungal cell wall synthesis (2). In our study, fluconazole had a higher MIC50, MIC90 and GM than itraconazole, indicating that the latter might be superior for the treatment of tinea capitis. This result was consistent with a previous study from Iran (5). In vitro synergistic effects of allicin and fluconazole have been observed against C. albicans (8). Interestingly, this combination is indifferent against M. canis, which may be due to species differences. In addition, a previous study from Malaysia also demonstrated that allicin in combination with fluconazole showed indifferent interaction against M. canis (14). Allicin indeed exhibited synergistic effects in combination with itraconazole against M. canis (86.7%).
Terbinafine inhibits the enzyme squalene epoxidase, blocking the synthesis of 2,3-oxidosqualene and thus leading to the accumulation of squalene and the depletion of ergosterol (2). Terbinafine had the lowest MIC50 (0.03 μg/mL), MIC90 (0.06 μg/mL) and GM (0.026 μg/mL) among the tested drugs against M. canis in our study. A previous study from Iran also demonstrated the high in vitro antifungal activity of terbinafine against M. canis (5). However, it is less useful in the treatment of tinea capitis due to M. canis. The MICs of terbinafine against M. canis could be higher than the maximum concentration reported in hair, accounting for treatment failure (15). The MICs of terbinafine in combination with allicin significantly declined compared with terbinafine alone, indicating that their combination might enhance the treatment of terbinafine in tinea capitis due to M. canis.
The actual antifungal mechanism of allicin is not yet fully understood. It can cause oxidation of glutathione that results in a shift of the cellular redox potential, inducing apoptosis of fungal cells (16). Another transcriptome study revealed that allicin impaired the expression of genes coding for enzymes of amino acid metabolism, iron uptake, the respiratory chain, thiamine metabolism and proteasomal protein degradation of fungal cells (17). The MIC50 and MIC90 of allicin were 32 and 128 μg/mL in this study. However, a previous study showed a MIC50 of 0.098 μg/mL and MIC90 of 0.195 μg/mL, which were obviously lower (14). Yamada and Azuma found MICs of Trichophyton, Epidermophyton, and Microsporum were as low as 0.78–6.2 μg/mL (7). Another previous study reported higher MICs (16–32 μg/mL) of Trichophyton to allicin (18), which were consistent with our study. Similar discrepancy had also observed in C. albicans. A previous study showed that the MIC range of allicin to tested C. albicans strains was 0.025–12.5 μg/mL (19). However, another study showed a very higher MIC range (64–512 μg/mL) of allicin to C. albicans strains (8). The discrepancy may be due to the difference of drug resource, tested strains and antifungal susceptibility testing assay. Allicin alone does not have strong antifungal activity, while synergistic antifungal activity of allicin withitraconazole and terbinafine. Allicin may be an adjuvant therapy to traditional itraconazole and terbinafine therapy in tinea capitis caused by M. canis to reduce the course of treatment or drug dosage.
In conclusion, we described the antifungal susceptibility of M. canis to allicin, fluconazole, itraconazole, terbinafine and griseofulvin and investigated the combined antifungal activity of allicin with antifungal drugs. A major limitation of this work is that resistant strains were not tested. Our study revealed that the combination of allicin with itraconazole and terbinafine may represent an attractive perspective for the development of new management strategies for tinea capitis due to M. canis. Further in vivo studies are needed to validate our findings.
Data Availability Statement
The datasets presented in this study can be found in online repositories. The names of the repository/repositories and accession number(s) can be found in the article/supplementary material.
Author Contributions
YZ and YX contributed to conception and design of the study. YZ and JC recruited patients and collected data. YZ wrote the first draft of the manuscript. All authors contributed to the article and approved the submitted version.
Conflict of Interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher's Note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
References
1. Zhan P, Li D, Wang C, Sun J, Geng C, Xiong Z, et al. Epidemiological changes in tinea capitis over the sixty years of economic growth in China. Med Mycol. (2015) 53:691–8. doi: 10.1093/mmy/myv057
2. Khurana A, Sardana K, Chowdhary A. Antifungal resistance in dermatophytes: recent trends and therapeutic implications. Fungal Genet Biol. (2019) 132:103255. doi: 10.1016/j.fgb.2019.103255
3. Chadeganipour M, Nilipour S, Havaei A. In vitro evaluation of griseofulvin against clinical isolates of dermatophytes from Isfahan. Mycoses. (2004) 47:503–7. doi: 10.1111/j.1439-0507.2004.01050.x
4. Hsiao YH, Chen C, Han HS, Kano R. The first report of terbinafine resistance Microsporum canis from a cat. J Vet Med Sci. (2018) 80:898–900. doi: 10.1292/jvms.17-0680
5. Abastabar M, Jedi A, Guillot J, Ilkit M, Eidi S, Hedayati MT, et al. In vitro activities of 15 antifungal drugs against a large collection of clinical isolates of Microsporum canis. Mycoses. (2019) 62:1069–78. doi: 10.1111/myc.12986
6. Liu S, Hou Y, Chen X, Gao Y, Li H, Sun S. Combination of fluconazole with non-antifungal agents: a promising approach to cope with resistant Candida albicans infections and insight into new antifungal agent discovery. Int J Antimicrob Agents. (2014) 43:395–402. doi: 10.1016/j.ijantimicag.2013.12.009
7. Yamada Y, Azuma K. Evaluation of the in vitro antifungal activity of allicin. Antimicrob Agents Chemother. (1977) 11:743–9. doi: 10.1128/AAC.11.4.743
8. Guo N, Wu X, Yu L, Liu J, Meng R, Jin J, et al. In vitro and in vivo interactions between fluconazole and allicin against clinical isolates of fluconazole-resistant Candida albicans determined by alternative methods. FEMS Immunol Med Microbiol. (2010) 58:193–201. doi: 10.1111/j.1574-695X.2009.00620.x
9. Vitale RG, Afeltra J, Dannaoui E. Antifungal combinations. Methods Mol Med. (2005) 118:143–52. doi: 10.1385/1-59259-943-5:143
10. Clinical and Laboratory Standards Institute. Reference Method for Broth Dilution Antifungal Susceptibility Testing of Filamentous Fungi. 3rd ed. Wayne, PA: Clinical and Laboratory Standards Institute (2017).
11. Shin S, Lim S. Antifungal effects of herbal essential oils alone and in combination with ketoconazole against Trichophyton spp. J Appl Microbiol. (2004) 97:1289–96. doi: 10.1111/j.1365-2672.2004.02417.x
12. Gupta AK, Cooper EA. Update in antifungal therapy of dermatophytosis. Mycopathologia. (2008) 166:353–67. doi: 10.1007/s11046-008-9109-0
13. Finkelstein E, Amichai B, Grunwald MH. Griseofulvin and its uses. Int J Antimicrob Agents. (1996) 6:189–94. doi: 10.1016/0924-8579(95)00037-2
14. Aala F, Yusuf UK, Khodavandi A, Jamal F. In vitro antifungal activity of allicin alone and in combination with two medications against six dermatophytic fungi. Afr J Microbiol Res. (2010) 4:380–5. doi: 10.5897/AJMR.9000386
15. Arabatzis M, Kyprianou M, Velegraki A, Makri A, Voyatzi A. Microsporum canis antifungal susceptibilities: concerns regarding their clinical predictability. Int J Antimicrob Agents. (2010) 36:385–6. doi: 10.1016/j.ijantimicag.2010.06.032
16. Gruhlke MC, Portz D, Stitz M, Anwar A, Schneider T, Jacob C, et al. Allicin disrupts the cell's electrochemical potential and induces apoptosis in yeast. Free Radic Biol Med. (2010) 49:1916–24. doi: 10.1016/j.freeradbiomed.2010.09.019
17. Yu L, Guo N, Meng R, Liu B, Tang X, Jin J, et al. Allicin-induced global gene expression profile of Saccharomyces cerevisiae. Appl Microbiol Biotechnol. (2010) 88:219–29. doi: 10.1007/s00253-010-2709-x
18. Pyun MS, Shin S. Antifungal effects of the volatile oils from Allium plants against Trichophyton species and synergism of the oils with ketoconazole. Phytomedicine. (2006) 13:394–400. doi: 10.1016/j.phymed.2005.03.011
