Production of Sm-153 With Very High Specific Activity for Targeted Radionuclide Therapy

Samarium-153 (¹⁵³Sm) is a highly interesting radionuclide within the field of targeted radionuclide therapy because of its favorable decay characteristics. ¹⁵³Sm has a half-life of 1.93 d and decays into a stable daughter nuclide (¹⁵³Eu) whereupon β⁻ particles [E = 705 keV (30%), 635 keV (50%)] are emitted which are suitable for therapy. ¹⁵³Sm also emits γ photons [103 keV (28%)] allowing for SPECT imaging, which is of value in theranostics. However, the full potential of ¹⁵³Sm in nuclear medicine is currently not being exploited because of the radionuclide's limited specific activity due to its carrier added production route. In this work a new production method was developed to produce ¹⁵³Sm with higher specific activity, allowing for its potential use in targeted radionuclide therapy. ¹⁵³Sm was efficiently produced via neutron irradiation of a highly enriched ¹⁵²Sm target (98.7% enriched, σ_th = 206 b) in the BR2 reactor at SCK CEN. Irradiated target materials were shipped to CERN-MEDICIS, where ¹⁵³Sm was isolated from the ¹⁵²Sm target via mass separation (MS) in combination with laser resonance enhanced ionization to drastically increase the specific activity. The specific activity obtained was 1.87 TBq/mg (≈ 265 times higher after the end of irradiation in BR2 + cooling). An overall mass separation efficiency of 4.5% was reached on average for all mass separations. Further radiochemical purification steps were developed at SCK CEN to recover the ¹⁵³Sm from the MS target to yield a solution ready for radiolabeling. Each step of the radiochemical process was fully analyzed and characterized for further optimization resulting in a high efficiency (overall recovery: 84%). The obtained high specific activity (HSA) ¹⁵³Sm was then used in radiolabeling experiments with different concentrations of 4-isothiocyanatobenzyl-1,4,7,10-tetraazacyclododecane tetraacetic acid (p-SCN-Bn-DOTA). Even at low concentrations of p-SCN-Bn-DOTA, radiolabeling of 0.5 MBq of HSA ¹⁵³Sm was found to be efficient. In this proof-of-concept study, we demonstrated the potential to combine neutron irradiation with mass separation to supply high specific activity ¹⁵³Sm. Using this process, ¹⁵³SmCl₃ suitable for radiolabeling, was produced with a very high specific activity allowing application of ¹⁵³Sm in targeted radionuclide therapy. Further studies to incorporate ¹⁵³Sm in radiopharmaceuticals for targeted radionuclide therapy are ongoing.

Introduction

Targeted radionuclide therapy (TRNT) has proven to be successful in oncology over the last decade (1–5). In TRNT a radionuclide is linked to a molecule that selectively binds to over-expressed receptors of cancer cells, allowing for a targeted approach in cancer therapy. Accumulation of the radiopharmaceutical in tumor tissue delivers toxic levels of radiation directly to the malicious tumor cells minimizing dose given to healthy tissue.

The use of rare earth elements (REEs) in TRNT have been especially investigated intensively because of their favorable decay characteristics for nuclear medicine applications (6–14). The application of several drugs, containing REE radionuclides (⁹⁰Y, ¹⁵³Sm and ¹⁷⁷Lu), have been approved in nuclear medicine, while the use of others are being studied (^{149, 152, 155, 161}Tb, ¹⁶⁶Ho, ¹⁶⁹Er, ¹⁶⁷Tm, and ¹⁷⁵Yb). Fortunately many of the therapeutic REE radionuclides can be easily produced in a nuclear research reactor with high yields and high specific activities.

¹⁵³Sm has a half-life of 1.93 d and decays into a stable daughter nuclide (¹⁵³Eu). Upon decay β⁻ particles (E_max = 705 keV, 635 keV) and γ photons (103 keV) are emitted which are suitable for therapy and SPECT imaging, respectively. Therefore, ¹⁵³Sm is a very interesting radioistope in theranostic clinical applications of nuclear medicine. ¹⁵²Sm has a high thermal neutron cross section (σ_th = 206 barn), which allows for efficient neutron activation of ¹⁵²Sm via an n,γ reaction to produce ¹⁵³Sm [¹⁵²Sm (n,γ) ¹⁵³Sm] in a nuclear research reactor with a high thermal neutron flux using highly enriched ¹⁵²Sm target material. Despite its highly interesting decay characteristics for nuclear medicine, the use of ¹⁵³SmCl₃ (as Quadramet) is currently restricted to bone pain palliation, for patients suffering bone metastases originating from various types of cancer. This is a consequence of the direct carrier added production route. Considering a 2 ×10¹⁴ neutrons/cm²/s thermal neutron flux, at the end of irradiation (EOI) a maximum specific activity of ≈135 GBq/mg can be reached after 13 days of irradiation. Neglecting the high burn-up of the target, this corresponds to a ratio of 120:1 between ¹⁵²Sm and ¹⁵³Sm nuclides. The specific activity drops exponentially as a function of time after EOI as a result of the fast nuclear decay of ¹⁵³Sm, drastically increasing the ¹⁵²Sm-to-¹⁵³Sm ratio. Chemical isolation of ¹⁵³Sm from its ¹⁵²Sm target matrix is impossible. Therefore, the achievable specific activity of c.a. ¹⁵³Sm remains too low to be used in TRNT. The high content of stable ¹⁵²Sm would make chelation at the needed low ligand concentrations inefficient. Moreover, the excessive amount of ¹⁵²Sm-complex would saturate the receptor sites at the targeted cancer cells with inactive material, leading to a low therapeutic efficiency thus making carrier added ¹⁵³Sm ineffective in TRNT.

¹⁵²Sm targets are typically irradiated for several days to reach high production yields for ¹⁵³Sm. As a consequence of the relatively short half-life of ¹⁵³Sm, trace amounts of the long-lived ¹⁵⁴Eu (t_1/2 = 8.6 y) are co-produced by neutron irradiation of the stable ¹⁵³Eu (σ_th = 300 b) daughter nuclide. The presence of these long-lived impurities limits the shelf-life of the radiopharmaceutical significantly as they might deliver unacceptable dose to the patient on the long term. Therefore, the ¹⁵⁴Eu content allowed in radiopharmaceuticals, such as Quadramet, is strictly regulated by international agencies (15, 16).

The use of mass separation on irradiated ¹⁵²Sm targets allows for reaching much higher levels of specific activity of ¹⁵³Sm, i.e. pure non-carrier-added ¹⁵³Sm corresponds to a theoretical specific activity of 16.4 TBq/mg. Moreover, any long-lived ¹⁵²Eu and ¹⁵⁴Eu impurities are removed from ¹⁵³Sm simultaneously by applying mass separation. The possibility to produce high specific activity (HSA) ¹⁵³Sm will make this radionuclide and its beneficial β⁻ and γ emissions eligible for receptor-targeted β⁻ therapy, leading to the development of various novel radiopharmaceuticals.

In this study, we demonstrated the possibility to perform neutron activation of 98.7% highly enriched ¹⁵²Sm as Sm (NO₃)₃ targets using thermal neutron fluxes of 2.0–2.5 ×10¹⁴ neutrons/cm²/s in the BR2 reactor, and to isolate ¹⁵³Sm from its neutron activated ¹⁵²Sm target matrix by means of mass separation at the CERN-MEDICIS facility (17). Mass separation, both on-line and off-line, have proven to be of added value to produce non-conventional radionuclides for medical research (18). Examples include the production of ¹⁴⁹Tb, ¹⁵²Tb, ¹⁵⁵Tb, ¹⁶⁹Er, ¹⁶⁷Tm, and ¹⁷⁵Yb (19–21). The MS collection foil was processed in the NURA radiochemistry labs at SCK CEN to obtain ¹⁵³SmCl₃ with high specific activity (1.87 TBq/mg) and high radionuclidic and chemical purity suitable for TRNT. Radiolabeling experiments using the HSA ¹⁵³Sm demonstrated high radiolabeling yields. This proof-of-concept study confirms the ability to produce ¹⁵³Sm with very high specific activity suitable for radiolabeling and opens perspectives for future large supply.

Materials and Methods

Neutron Activation of ¹⁵²Sm

Highly enriched ¹⁵²Sm₂O₃ (98.7% ± 0.1, Neonest AB) target material was converted to ¹⁵²Sm (NO₃)₃ prior to neutron activation to facilitate target handling after irradiation. ¹⁵²Sm₂O₃ was dissolved in 4 mol/L HNO₃ solution (trace metal grade, VWR). Afterwards, the solution was evaporated to dryness using a rotavapor (Büchi) and a vacuum oven (Thermo Fisher). The obtained ¹⁵²Sm (NO₃)₃ was dissolved in a known volume of trace metal grade H₂O (VWR), and dispensed in high-purity quartz glass ampoules (Heraeus). A target mass of 150 μg ¹⁵²Sm was used in the first series of irradiations. After optimization of the processing protocols, the target mass was increased to 350 μg ¹⁵²Sm to allow for gradual up-scaling of the ¹⁵³Sm production, while following the ALARA principle. The target solution inside the quartz ampoules was evaporated to dryness inside a vacuum oven (80 °C, 300 mbar). The quartz ampoules were sealed under vacuum using a custom-made sealing station and a propane/oxygen torch. An example of a vacuum-sealed ampoule with the target material deposited at the bottom is presented in Figure 1. The outer surface of the ampoules underwent thorough cleaning to avoid the undesired activation of any contaminants.

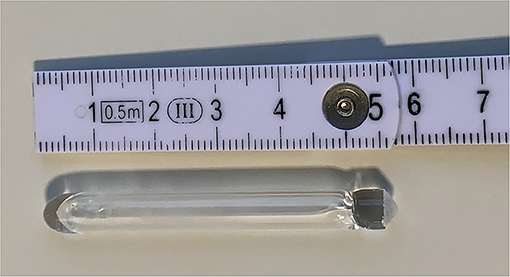

FIGURE 1

Figure 1. Typical example of a vacuum-sealed quartz ampoule ready for irradiation. The target material is deposited at the bottom of the ampoule (left side here).

The quartz ampoules were irradiated in the BR2 reactor at SCK CEN following the routine production procedure (22). They were loaded into standard cold-welded “CFS” irradiation capsules containing an aluminum insert and helium gas. The capsules were irradiated in thimble (DG – “Doigt de Gant”) irradiation devices during 2 or 3 days in thermal neutron fluxes of 2.0 to 2.5 ×10¹⁴ neutrons/cm²/s and cooled for 5 days to allow the decay of short-lived radionuclides. The irradiation capsules were sent to the BR2 Hot-Cells for decanning to recover the quartz ampoules, which were then shipped to the radiochemical labs at SCK CEN for opening and target processing. The irradiated target material was dissolved in trace metal grade water and transferred into a tantalum sample boat lined with a rhenium foil provided by CERN. A small aliquot of the solution was taken for analysis by gamma spectrometry. The target material was evaporated to dryness, by using a 350 W infra-red lamp, resulting in the deposition of the irradiated target on the rhenium foil before being shipped to CERN-MEDICIS for mass separation. So far, eight batches underwent mass separation. The activity of the shipped batches increased stepwise over time, ranging from 1.9 to 14.8 GBq of ¹⁵³Sm, to allow safe optimization of the different process steps involved.

Off-Line Mass Separation of ¹⁵³Sm

After each reception, the sample holder containing the radioactive samarium source was loaded into the empty oven of a standard ISOLDE target and ion source unit (23) at CERN-MEDICIS. The target's oven is made of tantalum and is connected to a rhenium surface ion source via a hot transfer line. Dedicated sample holders have been designed and produced by CERN in order to efficiently and safely load the irradiated target material inside the target container. In addition, the sample holder has been designed to ensure the safe transportation of the irradiated materials from the external institutes to CERN. Once the radioactive material is loaded into the target container, the target unit is coupled to the MEDICIS target station in preparation for the collection. The target station includes a coupling flange held at a potential ranging from 30 to 60kV and an extraction electrode placed after an acceleration gap, at a distance ranging from 55 to 80mm, for a surface ion source, from the ion source's exit. An Einzel lens is used to shape the ion beam downstream of the extraction electrode. Two electrostatic XY deflector stages at 5 kV are located between the Einzel lens and the extraction electrode. The targets are heated to very high temperatures, typically up to 2,300 °C depending on the target material and radionuclide considered, to allow for the diffusion and effusion of the isotopes of interest out of the target to the ion source for subsequent ionization. The ions are then accelerated and sent through a mass separator which is a dipole magnet (24). The dipole magnet has been modified to allow its use with the MEDICIS Laser Ion Source for Separator Assembly (MELISSA) laser laboratory (25), resembling the Ti:sapphire laser setup of the ISOLDE Resonance Ionization Laser Ion Source (RILIS) (26). MELISSA has been in service since April and helps to increase the separation efficiency and the selectivity at CERN-MEDICIS. ¹⁵³Sm and its isobaric daughter ¹⁵³Eu were implanted into a metallic zinc layer that was deposited on a gold foil. These implantation foils were prepared by a 99.995% pure metallic zinc granulate being thermally heated in a molybdenum boat under high vacuum and evaporated onto gold substrates. A zinc layer thickness of 500 nm in this Physical Vapor Deposition (PVD) process was attained and confirmed by the use of a build-in INFICON thickness sensor. The surface of the gold substrates underwent crucial surface roughening and ultrasonic cleaning steps prior to the zinc deposition to allow for proper zinc adherence and layer uniformity.

Radiochemical Processing of the Mass Separation Target

The implanted ¹⁵³Sm and its daughter ¹⁵³Eu were recovered from the gold foil by dissolving the metallic zinc implantation layer. The metallic zinc layer was readily dissolved in a 4 mol/L HNO₃ solution (trace metal grade, VWR). The gold foil was rinsed twice with 4 mol/L HNO₃. The activity of the gold foil was measured in a dose calibrator (Veenstra) before and after the dissolution of the metallic zinc layer to estimate the efficiency of activity removal from the gold foil. The collected fractions were loaded onto a PEEK column (ø: 2.1mm, l: 30mm, Bio-Safe, TrisKem International) packed with DGA extraction chromatography resin (branched, 50–100 μm, TrisKem International) using a peristaltic pump (ISMATEC IPC-8) peristaltic pump. Before being used, the DGA column was conditioned with 10 mL of 4 mol/L HNO₃. ¹⁵³Sm and its ¹⁵³Eu daughter are retained on the DGA resin in acidic conditions, whereas Zn²⁺ is not. The loaded DGA column was washed excessively with 20 mL of 4 mol/L HNO₃ to rinse the large amount of Zn²⁺ from the column. The wash solutions were checked for activity in the dose calibrator to ensure no ¹⁵³Sm or ¹⁵³Eu were co-eluted during the washing of the loaded DGA column. ¹⁵³Sm and ¹⁵³Eu were readily eluted off the DGA column using water. The eluted activity was monitored by means of a dose calibrator.

Taking logistics and the relatively short half-life of ¹⁵³Sm into account, the ¹⁵³Sm eluent still contains a high amount of the stable ¹⁵³Eu daughter isotope. This lowers the radiochemical purity drastically. Therefore, ¹⁵³Sm and ¹⁵³Eu are separated using a high-pressure ion chromatography system (HPIC, Shimadzu) equipped with a strong cation exchange column (ø: 6mm, l: 50mm, Shodex IC R-621). To ensure retention on the strong cation exchange column, the pH of the ¹⁵³Sm eluent from the DGA column was adjusted with a 1 mol/L NH₄OH (trace metal grade, VWR) solution to reach a pH range of 2.5–4.5. After injection on the HPIC system, ¹⁵³Sm was separated from ¹⁵³Eu using a 180 mmol/L 2-hydroxyisobutyric acid (α-HIBA) solution, which was adjusted with NH₄OH (trace metal grade) to pH 4.6. The HPIC system was equipped with a radio-detector (Elysia-Raytest, operated via GINA Star V4.8) to allow on-line monitoring of the activity eluting off the strong cation exchange column.

The collected ¹⁵³Sm fractions were combined and loaded onto a PEEK column (ø: 2.1mm, l: 30mm, Bio-Safe, TrisKem International) packed with LN3 extraction chromatography resin (50–100 μm, TrisKem International) to remove α-HIBA from the purified ¹⁵³Sm. The LN3 column was conditioned with a 1 mol/L HNO₃ (trace metal grade, VWR) solution and washed with copious amounts of water prior to loading of the ¹⁵³Sm (α-HIBA)₃ solution. After loading, α-HIBA was washed from the column with water while ¹⁵³Sm was retained on the column. ¹⁵³Sm was eluted from the LN3 column in a concentrated fraction using a 50mmol/L HCl solution (trace metal grade, VWR), obtaining a ¹⁵³SmCl₃ solution ready for radiolabeling. A small aliquot was taken for gamma spectrometry analysis to determine the specific activity, via co-analysis with ICP-MS, and radionuclidic purity of the produced HSA ¹⁵³SmCl₃. Chemical purity was determined via ICP-MS. Radiochemical purity was determined via radio-TLC, using a 0.1 mol/L sodium citrate solution (pH 5). In total, four of the retrieved mass separation targets were fully dedicated for analysis and evaluation for optimization of the entire radiochemical purification process, collecting valuable data after each process step.

Radiolabeling of High Specific Activity ¹⁵³Sm

The suitability of the obtained HSA ¹⁵³SmCl₃ for radiolabeling was demonstrated with various concentrations of 4-isothiocyanatobenzyl-1,4,7,10-tetraazacyclododecane tetraacetic acid (p-SCN-Bn-DOTA, Macrocyclics). 0.5 MBq of HSA ¹⁵³SmCl₃ was added to different concentrations of p-SCN-Bn-DOTA (1, 5 and 10 nmol/L) in 0.1 mol/L NaOAc buffer (pH 4.7) with a total reaction volume of 1 mL. The reactions were incubated in a thermomixer (Eppendorf) for 60 min while maintaining a constant temperature of 30, 60 or 90°C. To obtain robust results, test reactions were performed in triplicate for each reaction condition. After incubation, the radiolabeling yield was evaluated using thin-layer chromatography. 5 μL of each reaction was spotted on a glass microfiber chromatography paper strip impregnated with silica gel (iTLC-SG, Agilent Technologies) and set in an acetonitrile: water mixture (70/30) to allow migration of the ¹⁵³Sm-p-SCN-Bn-DOTA complex. The TLC papers were cut in half and the activity of the bottom and top parts of the TLC paper were counted for 2 min each using a gamma counter (Perkin Elmer).

Results and Discussion

Off-Line Mass Separation of ¹⁵³Sm

Prior to the reception of radioactive samarium, tests with natural stable samarium sources had been performed with an evaporated sample of Sm₂O₃ (in 5% HNO₃) in order to define the laser excitation scheme for the MELISSA ion source and the optimal temperature window for samarium release. These tests allowed the facility to operate with a reproducible extraction and collection protocol, and to reach 8% of separation efficiency already at the first collection of ¹⁵³Sm, exceeding the best operation performances achieved so far (18).

The separator parameters were set with a beam extraction voltage of 60 kV and an acceleration gap of 60mm from the ion source's exit. The target container oven was heated at 1,130 °C by ohmic heating and the ion source line at 2,100 °C for preliminary optimization steps with stable ¹⁵²Sm. Most of the ¹⁵³Sm activity was extracted between 1,640 and 1,900 °C (corresponding to a current of 500–580 A). Figure 2 shows the ion beam profile during implantation for A = 153. Samarium was ionized by resonantly exciting the electronic shell from the low-lying E = 292.6 cm⁻¹ state (17% thermal population at 2,100 °C) via two subsequent λ_vac = 435.706 nm transitions into an auto-ionizing state (Figure 3) (27). In the exceptional case that only one laser is required for both transitions enabled alternating pulsing of the two available pump lasers This doubles the standard repetition rate to 20 kHz and increased the laser ionization rate by 30%, compared to synchronous operation at 10 kHz. The ¹⁵³Sm implantation rate in MBq/h was monitored by a compact room temperature gamma-spectrometer (Kromek® GR-1) which was positioned in front of the collection chamber window. The identification and quantification of the implanted ions were based on the observation of the 103.2 keV gamma-line. The average ¹⁵³Sm collection time for the 8 collections performed in 2020 was 36 h with an average efficiency of 4.5% and a maximum separation efficiency of 12.7%. This efficiency was calculated based on the activity measured on the collection foil at the end of the collection as a ratio to the ¹⁵³Sm activity in the target at start of the collection. In 2020, 330 h of MEDICIS operation were devoted to the collection of ¹⁵³Sm. Each collection foil was shipped back to SCK CEN for further radiochemical processing.

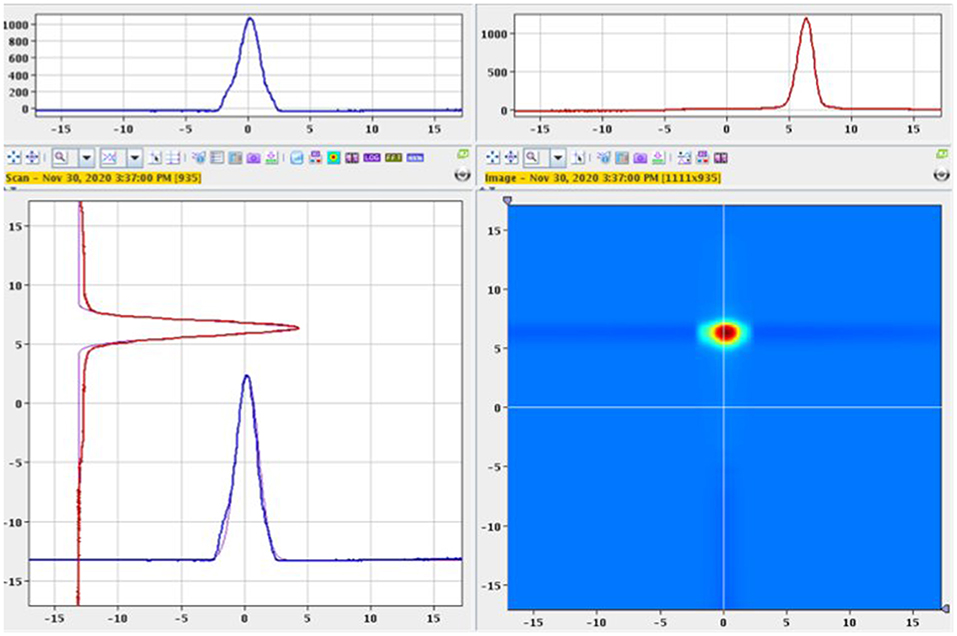

FIGURE 2

Figure 2. ¹⁵³Sm beam profile with σ_horizontal = 0.88mm and σ_vertical = 0.62mm.

FIGURE 3

Figure 3. Resonant laser ionization from the low-lying E = 292.6 cm⁻¹ state of samarium via two subsequent λ_vac = 435.706 nm transitions into an auto-ionizing state (RILIS database).

Radiochemical Processing of the Mass Separation Target

The metallic zinc layer, into which the mass-separated ¹⁵³Sm was implanted, was readily dissolved using a mineral acid, oxidizing Zn⁰ to Zn²⁺. By measuring the radioactivity of the gold foil before and after dissolution of the metallic zinc implantation layer, a ¹⁵³Sm recovery of 85–92% was achieved. Activity remaining on the gold foil after the acid washes originates from ¹⁵³Sm that penetrated the metallic zinc layerand got implanted into the gold foil as a result of the high ion beam intensity. This activity could not be removed by the chemical conditions used and was considered a total loss in the production process. No additional efforts were undertaken to dissolve the gold foil, as more aggressive media (e.g., aqua regia), would be required.

An extraction chromatography column packed with branched DGA resin (N,N,N′,N′-tetrakis-2-ethylhexyldiglycolamide) was used to remove the large excess of Zn²⁺ from ¹⁵³Sm in highly acidic conditions. DGA resins are known to have large affinities, i.e., large k′ values, for trivalent lanthanides in concentrated HNO₃ and HCl media (28), following the extraction mechanism Ln³⁺ + 3X⁻ + 3 $\overline{\text{DGA}}$ ⇌ $\overline{\text{Ln}{\text{X}}_3{(DGA)}_3}$, with X being NO${}_3^{-}$ or Cl⁻. The high affinity of Sm³⁺ for DGA resin allows efficient retention of ¹⁵³Sm on the column. Zn²⁺ ions have much lower affinity for DGA, i.e., a very low k′ value, and are easily eluted off the column. Excessive washing of the loaded DGA column with concentrated HNO₃ allows for efficient removal of the Zn²⁺ impurities from ¹⁵³Sm. Sm³⁺ can be easily stripped from the DGA column by reducing the nitrate concentration in the mobile phase, i.e., reversing the above extraction mechanism. Quantitative ¹⁵³Sm elution was obtained using water as an eluent. Despite the elution of ¹⁵³Sm from the DGA column in water, the obtained solution remained too acidic for direct loading onto the strong cation exchange column used in the next process step (vide infra). The pH of the ¹⁵³Sm fraction was adjusted to 2.5–4.5 using a dilute NH₄OH solution. Activity measurements of the wash solutions and the collected ¹⁵³Sm fraction resulted in a process efficiency of >99.9%. Chemical purity of the ¹⁵³Sm fraction was found to be highly dependent on the volume wash solution used. 5 mL of 4 mol/L HNO₃ proved to be insufficient as 60 ppb Zn was still present in solution. Also, some traces of iron (17 ppb), copper (5 ppb) and lead (126 ppb) were found. Therefore, the volume wash solution was increased to 20 mL to further decrease the zinc and lead impurities in the ¹⁵³Sm fraction (Zn <20 ppb, Pb <9 ppb). Small amounts of zinc impurities in the ¹⁵³Sm fraction are, however, not problematic at this stage as they will be further removed in the following process steps. Radionuclidic analysis of this ¹⁵³Sm fraction confirmed that the amount of ¹⁵²Eu, ¹⁵⁴Eu, and ¹⁵⁵Eu was below the minimum detectable activity (MDA) limit of the gamma spectrometer. Gamma spectrometry of a non-purified ¹⁵²Sm target irradiated in BR2 at 2 ×10¹⁴ neutrons/cm²/s contained 26 Bq/GBq ¹⁵²Eu, 29 Bq/GBq ¹⁵⁴Eu and 4 Bq/GBq ¹⁵⁵Eu at EOI. The absence of these long-lived europium isotopes proves the high separation efficiency and selectivity of the mass separator at CERN-MEDICIS.

The majority of the ions in the ¹⁵³Sm fraction consists of the inactive ¹⁵³Eu daughter isotope. Because samarium and europium possess very similar chemical properties, high amounts of inactive ¹⁵³Eu would significantly decrease the radiolabeling efficiency of ¹⁵³Sm, as well as its use in TRNT. The isobaric ¹⁵³Eu cannot be physically separated from ¹⁵³Sm in a mass separator, and therefore requires a chemical separation step. The use of a resonant laser for selective ionization of Sm prior to mass separation favored collection of ¹⁵³Sm over ¹⁵³Eu but remains less efficient than chemical separation. Moreover, the mass separated ¹⁵³Sm sample had to be transported from Switzerland to Belgium by road. Given the relatively short half-life of ¹⁵³Sm, a significant amount of ¹⁵³Sm decayed into ¹⁵³Eu during transport. Therefore, ¹⁵³Sm was separated from ¹⁵³Eu on a radio-HPIC system using a strong cation exchange column and an aqueous mobile phase comprising the weak acid α-HIBA. The pH of the mobile phase was 4.6, i.e., above the pKa of α-HIBA (4.01). This pH enables the weak acid as well as the functional groups of the stationary phase to interact with the lanthanides. To date, this method proved to be the most efficient in separation of micro amounts of non-carrier-added produced radiolanthanides from macro amounts of redundant target material, being a neighboring lanthanide (13, 29, 30). Sm³⁺/Eu³⁺ separation is a result of the small differences in complex formation between α-HIBA and the lanthanide, and is based on their small difference in ionic radius and charge density as a result of a phenomenon known as lanthanide contraction. A slightly more stable complex is formed between Eu³⁺ and α-HIBA because of its higher charge density. Careful selection of the α-HIBA concentration results in separation of Sm³⁺ and Eu³⁺, with the Eu³⁺ fraction eluting prior to the Sm³⁺ fraction. In the method applied, Sm³⁺/Eu³⁺ separation was achieved using an α-HIBA concentration of 0.180 mmol/L at a flow rate of 1 mL/min, with Eu³⁺ eluting from the column after 30 min (Figure 4). The α-HIBA concentration was gradually increased to 0.200 mmol/L after elution of the Eu³⁺ fraction to accelerate the elution of the Sm³⁺ fraction. The Sm³⁺ fraction eluted after 42 min. During method development, a ¹⁵²Eu tracer was added to the feed solution to enable on-line detection of the Eu³⁺ fraction with the radio-detector of the HPIC system. A baseline separation with a resolution of 5.22 was observed for Sm³⁺/Eu³⁺. The recovery rate for ¹⁵³Sm after HPIC was determined to be 98–99%.

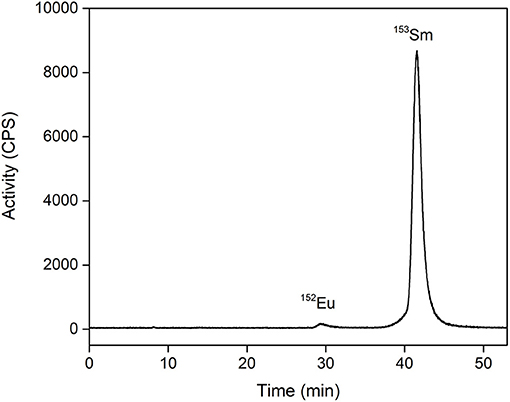

FIGURE 4

Figure 4. Radio-chromatogram of ¹⁵³Eu/¹⁵³Sm separation on a strong cation exchange column using α-HIBA. Flow rate: 1 mL/min. The feed solution was spiked with ¹⁵²Eu tracers to enable detection of the Eu³⁺ fraction.

The ¹⁵³Sm fraction collected after HPIC purification was further processed to remove the α-HIBA, and for up-concentration. This was done by loading the ¹⁵³Sm fraction onto a column packed with LN3 extraction chromatography resin. LN3 resin comprises the organophosphorus extractant di-(2,4,4-trimethylpentyl) phosphinic acid [H (TMPeP)] which is impregnated on an inert polymer support (31, 32). In neutral conditions H (TMPeP) coordinates stronger to trivalent lanthanides than α-HIBA, efficiently extracting the ¹⁵³Sm into the thin organic layer of the LN3 resin via the extraction mechanism: Ln³⁺ + 3 $\overline{\text{H}\left[\text{TMPeP}\right]}$ ⇌ $\overline{\text{Ln}{(\text{TMPeP})}_3}$ + 3H⁺. α-HIBA is not retained by the LN3 resin and is washed from the column with water. Because of the high k′ value of Sm³⁺ for LN3, ¹⁵³Sm was well-retained on the column in neutral conditions. Sm³⁺ could be efficiently (recovery rate >99.9%) back-extracted to the aqueous mobile phase using a dilute acid solution, i.e., 50mmol/L HCl, as the addition of protons reverses the above extraction mechanism. In the best instance a ¹⁵³SmCl₃ solution of 67 MBq/mL suitable for radiolabeling was obtained. Analysis of the solution resulted in a specific activity of 1.87 TBq/mg at the time of MS collection, i.e., achieving a ¹⁵²Sm-to-¹⁵³Sm ratio of 8:1. No other radionuclides could be identified above the detection limit of the gamma spectrometer in both the active and decayed sample, resulting in a very high radionuclidic purity. Radiochemical purity of this HSA ¹⁵³SmCl₃ batch was 98.9 ± 0.24%.

The entire radiochemical process was found to be highly efficient, reaching an average overall recovery rate of 84%. Most of the ¹⁵³Sm is lost at the front-end of the process, as not all activity could be recovered from the MS collection foil. ¹⁵³Sm implanted into the gold foil could not be leached out in the conditions used. The amount of ¹⁵³Sm ending up in the gold foil varied over the different batches, which may indicate a difference in thickness of the metallic zinc layer on the gold foils used.

With the different process steps optimized, longer irradiation times and larger target masses will be used for neutron activation. Higher levels of radioactivity at the front-end of the cycle will automatically result in higher amounts of HSA ¹⁵³Sm that can be used for further pre-clinical evaluation. Higher throughput of radioactivity at the mass separation step will be evaluated, while the collection efficiency will be continuously increased. Manipulations during radiochemical processing will be reduced by fully automating the procedure. Automation of the full radiochemical process will increase time-efficiency, hence leading to less decay of the HSA ¹⁵³Sm, and will enhance process safety.

Radiolabeling of High Specific Activity ¹⁵³Sm

Radiolabeling experiments were performed to investigate applicability of the produced HSA ¹⁵³Sm for TRNT. Radiolabeling was performed in the presence of different concentrations of p-SCN-Bn-DOTA. Radiolabeling reactions containing 0.5, 0.1 and 0.05 MBq/nmol were used to evaluate the radiolabeling of the produced HSA ¹⁵³Sm, i.e., having a 5,000, 25,000, and 50,000 stoichiometric excess, respectively, of ligand with respect to ¹⁵³Sm. p-SCN-Bn-DOTA was selected as chelator in this study because it is a well-established chelator that is commonly used in TRNT applications with multiple radiolanthanides (33, 34). Radiolabeling was performed at different temperatures and different ligand concentrations (Figure 5). Incubating the reactions at 30 °C was found to be insufficient to form a radiocomplex at low concentrations (radiochemical yield 23.1 ± 13.9% at 1 μmol/L p-SCN-Bn-DOTA). This could be expected considering the rigid structure of DOTA which generally requires energy for the radionuclide to be incorporated into the chelator (35). When using high ligand concentrations, higher radiolabeling yields were observed, however the yields were not as high as the yields at elevated temperatures (75.2 ± 12.6% at 30 °C, 5 μmol/L; 86.7 ± 3.9% at 30 °C, 10 μmol/L). Radiolabeling of p-SCN-Bn-DOTA at 60 and 90 °C resulted in much higher radiochemical yields in all investigated ligand concentrations. Even when using low concentrations of p-SCN-Bn-DOTA, radiolabeling yields were almost quantitative (91.4 ± 3.2% at 60 °C and 89.8 ± 4.9% at 90 °C using 1 μmol/L DOTA). These results clearly demonstrate the applicability of the produced HSA ¹⁵³SmCl₃. Radiolabeling conditions still require further optimization to achieve maximal molar activity and radiolabeling yields. However, we already demonstrated the ability to achieve radiolabeling yields which are acceptable for radiopharmaceutical production in TRNT. Further optimization and application of ¹⁵³Sm radiolabeled radiopharmaceuticals in preclinical tests are currently ongoing.

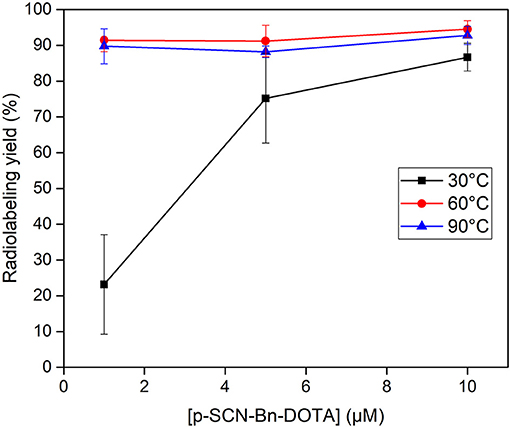

FIGURE 5

Figure 5. Radiolabeling of ¹⁵³Sm with various concentrations of p-SCN-Bn-DOTA at 30 (), 60 () and 90°C () in a 0.1 mol/L NaOAc buffered solution (pH 4.7).

Conclusions

¹⁵³Sm has highly interesting decay characteristics to be used as a theranostic radionuclide. However, its application in TRNT is hampered by its low specific activity as a result of the carrier-added production route for ¹⁵³Sm. In this work we demonstrated the proof-of-concept to produce ¹⁵³Sm with high specific activity by combining neutron activation in a high-flux nuclear research reactor with off-line mass separation. Ionization of samarium for mass separation was enhanced by resonant laser ionization, taking advantage of the exceptional case that only one laser is required for both transitions. The ionization rate could be increased by 30% by doubling the standard repetition rate to 20 kHz. Over the different collections, an average mass separation efficiency of 4.5% could be reached, with a maximum of 12.7%. ¹⁵³Sm could be recovered from the MS collection foil by applying a variety of radiochemical processing steps, obtaining a ¹⁵³SmCl₃ solution suitable for radiolabeling. The specific activity of 1.87 TBq/mg at the time of MS collection was achieved, i.e., a ¹⁵²Sm-to-¹⁵³Sm ratio of 8:1. Near-quantitative radiolabeling yields of HSA ¹⁵³Sm with various concentrations of p-SCN-Bn-DOTA were obtained at 60 and 90 °C, demonstrating the applicability of the produced HSA ¹⁵³SmCl₃ for radiolabeling.

Data Availability Statement

The original contributions presented in the study are included in the article/Supplementary Material, further inquiries can be directed to the corresponding authors.

Author Contributions

BP: neutron activation. MV and AB: radiochemical processing. RH: laser ionization. LL, EC, MVS, and TSc: mass separation. MV, MO, and AB: radiolabeling. MV and CD: project coordination. MV, TEC, MO, TC, TSt, and AB: conceptualization. MV, CD, and RH: initial draft manuscript. All authors contributed to the article and approved the submitted version.

Funding

This work was performed as part of the NURA research program of SCK CEN. This work was supported by Research Foundation Flanders FWO (Belgium) via the FWO IRI CERN ISOLDE I002619N and FWO SBO Tb-IRMA-V S005019N funding awarded to KU Leuven.

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Acknowledgments

The authors would like to thank the CERN HSE-RP team and Frank Vanderlinden (SCK CEN) for establishing a smooth coordination of the nuclear transports between CERN and SCK CEN, as well as reception of the radioactive targets. MV, MO, and AB would like to thank Guiseppe Modolo and Dimitri Schneider (Forschungszentrum Jülich GmbH) for their help with the hot ICP-MS analyses in this work. The Radiochemical Analyses group at SCK CEN is acknowledged for their help with gamma spectrometry and ICP-OES analyses.

Supplementary Material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fmed.2021.675221/full#supplementary-material
