Development of PET Radioligands Targeting COX-2 for Colorectal Cancer Staging, a Review of in vitro and Preclinical Imaging Studies

\nCaroline Dagallier,Caroline Dagallier1,2Franois AvryFrançois Avry2Yann Touchefeu,Yann Touchefeu3,4Frdric BuronFrédéric Buron5Sylvain RoutierSylvain Routier5Michel ChrelMichel Chérel3Nicolas Arlicot,,
Nicolas Arlicot1,2,6*
  • 1Unité de Radiopharmacie, CHRU de Tours, Tours, France
  • 2Inserm UMR1253, iBrain, Université de Tours, Tours, France
  • 3CRCINA, INSERM, CNRS, Nantes University, Nantes, France
  • 4Institut des Maladies de l'Appareil Digestif, University Hospital, Nantes, France
  • 5ICOA, Université d'Orléans, UMR CNRS 7311, Orléans, France
  • 6INSERM CIC 1415, CHRU de Tours, Tours, France

Colorectal cancer (CRC) is the second most common cause of cancer death, making early diagnosis a major public health challenge. The role of inflammation in tumorigenesis has been extensively explored, and among the identified markers of inflammation, cyclooxygenase-2 (COX-2) expression seems to be linked to lesions with a poor prognosis. Until now, COX-2 expression could only be accessed by invasive methods, mainly by biopsy. Imaging techniques such as functional Positron Emission Tomography (PET) could give access to in vivo COX-2 expression. This could make the staging of the disease more accurate and would be of particular interest in the exploration of the first metastatic stages. In this paper, we review recent progress in the development of COX-2 specific PET tracers by comparing the radioligands' characteristics and highlighting the obstacles that remain to be overcome in order to achieve the clinical development of such a radiotracer, and its evaluation in the management of CRC.

Introduction

Colorectal cancer (CRC) is one of the most frequent types of cancer, ranking second in most developed countries, and has the second highest mortality rate (1, 2). This rate is especially high for late diagnosis and advanced stage disease. Thanks to an increase in CRC screening, the incidence rate has been decreasing for the last two decades (2). However, this high mortality rate draws early detection of CRC and prediction of recurrences and metastases as two major public health challenges, in order to initiate the appropriate treatment as early as possible.

Inflammation seems to play a key role in CRC physiopathology. Among the many known markers of inflammation, cyclooxygenase-2 (COX-2) was identified as having a crucial role from the first stages of tumorigenesis (3, 4). Reviews of over 30 epidemiologic studies showed that regular consumption of non-steroidal anti-inflammatory drugs (NSAID) was associated with a 30–50% reduced incidence of several cancer types, including CRC (5, 6). Interestingly, patients with familial adenomatous polyposis receiving COX-2 inhibitors as a preventive treatment developed fewer adenomas than patients receiving a placebo (7).

COX-2 is an enzyme that intervenes in the first steps of prostaglandin E2 synthesis from arachidonic acid and can be induced by various pro-inflammatory signals. COX-2 overexpression has been identified in different malignant neoplastic tissues, especially in up to 85% of adenocarcinomas (810) and is also associated with the potential for progression and recurrences of colorectal tumors. Molecular biology studies on CRC tissue samples concluded that COX-2 expression is significantly correlated with invasive (11) and metastatic phenotypes (12, 13). Moreover, high COX-2 expression in patients treated with radical surgery is a prognostic factor for recurrences, mainly because of undetected metastasis (13, 14). The COX-2 expression level is high in CRC cells. On the contrary, COX-2 has a low basal expression in healthy colon epithelial cells (15), making COX-2 a relevant biomarker for molecular imaging, especially for Positron Emission Tomography (PET).

The correlation of elevated COX-2 expression with the first stages of tumorigenesis and cancer progression suggests that COX-2 could be a target for the early imaging of pre-cancerous colorectal lesions. Since inflammation seems to be a hallmark of malignant CRC, PET imaging could allow the early detection of CRC dissemination and thus spot metastasis. In addition, in other cancerous pathologies (breast, prostate), COX-2 expression increases with the stage of the disease (16, 17). PET-scanning could therefore be a tool for CRC staging. Furthermore, positive therapeutic results in cohorts of patients with different types of solid tumors receiving COX-2 inhibitors in addition to their respective standard chemotherapy (1820) suggest that COX-2 molecular imaging could provide stratification of the patients, enabling individualized treatment approaches. Notably, it could help to decide whether neoadjuvant chemotherapy is needed or determine whether patients would respond to COX-2 inhibitors therapy.

Up to now, numerous radioligands targeting COX-2 have been developed for SPECT or PET applications. Reviews by Laube et al., de Vries et al., and Pacelli et al., summarized their structures and synthesis methods and highlighted the challenges encountered in the development of COX-2 radiotracers (2123). In the present review, we explore the recent progress of COX-2 molecular imaging in CRC, by comparing the radioligands' characteristics and highlighting the obstacles that remain to be overcome in order to achieve the clinical development of such a radiotracer.

The PubMed database was screened using pre-defined search dates (January 1995–January 2021). The search terms used were as follows: “colorectal cancer” and “COX-2” or “cyclooxygenase 2” and “PET.” It yielded 78 results. We screened preclinical results performed only on colorectal cancer cell lines. Title-, abstract- or full text-reading led to the exclusion of 70 papers because they did not focus on CRC or did not include in vivo PET radioligand evaluation or did not target COX-2. Eight original papers fulfilled these criteria and were thus included in the scope of the present review. Chemical structures of the PET radioligands are presented. The main conditions and results of these PET imaging preclinical studies assessing COX-2 radiotracers in CRC xenograft models are summarized in Table 1.

TABLE 1
www.frontiersin.org

Table 1. Summary of characterization studies assessing COX-2 PET radiotracers in CRC xenograft models.

Coxib Family Derivatives

Celecoxib 1 (Figure 1) is a well-known COX-2 specific inhibitor used as an anti-inflammatory drug. Its specificity and selectivity for COX-2 over COX-1 makes it a natural candidate for PET applications. In 2005, Prabhakaran et al. synthesized 11C-Celecoxib 2 (Figure 1) in 8 efficient steps including a palladium catalyzed radiomethylation (32), but this radioligand has not yet been tested in a CRC preclinical model. A biodistribution study in baboons showed unsatisfactory pharmacokinetic properties. 11C-2 underwent a fast metabolism (80% after 30 min in plasma samples) and was quickly cleared out of the organism by urinary excretion (33). Therefore, several series of celecoxib derivatives were proposed to work around the limitations of celecoxib. In 2011, Uddin et al. developed a series of celecoxib [18F]-fluorine derivatives (24). Synthesis in 7 steps involving an aliphatic nucleophilic substitution led to the best candidate. Diethylaminosulfurtrifluoride (DAST) mediated fluoration of its alcohol precursor gave the fluoromethyl derivative 18F-3 (Figure 2). In inhibition assays using purified COX-2, 18F-3 exhibited an IC50 of 160 vs. 30 nM for 1. In vivo evaluation was conducted in a Nu-fox1nu mice model bearing human head and neck squamous cell carcinoma cells HNSCC 1483 (COX-2+) or human colorectal carcinoma cells HCT-116 (COX-2–). A biodistribution study gave promising results, with an uptake ratio in COX-2 positive/COX-2 negative tumors of 3, similar to the COX-2+ tumor to muscle ratio (T/M). Blocking experiments with cold celecoxib produced a clear decrease of the radiotracer uptake in the COX-2+ tumor (T/M = 1). However, only the COX-2 negative tumors were CRC cells (HCT-116); the COX-2 positive model was a xenograft of human head and neck squamous cell carcinoma.

FIGURE 1
www.frontiersin.org

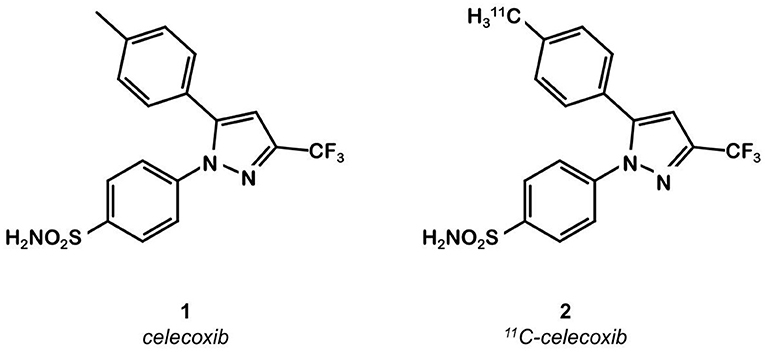

Figure 1. Celecoxib and 11C-celecoxib structures.

FIGURE 2
www.frontiersin.org

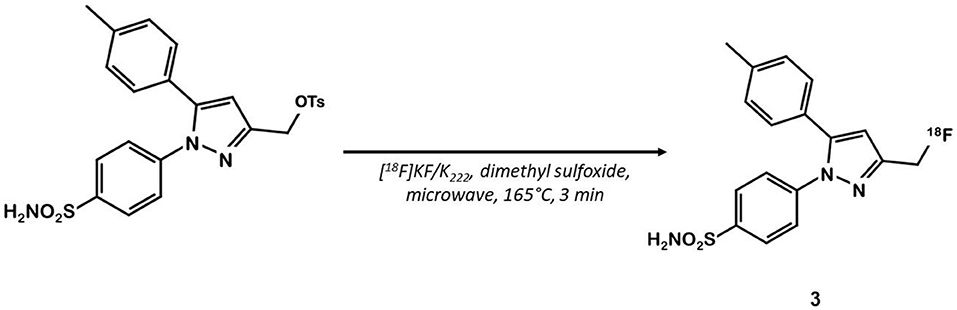

Figure 2. Radiosynthesis of pyrazole derivative 18F-3.

In 2015, Kaur et al. synthesized a radiolabeled derivative 18F-4 from a key sulfonylchorine and its amination by the prosthetic 4-[18F]fluorobenzylamine scaffold (25) (Figure 3). Derivative 4 exhibited interesting in vitro properties on human recombinant COX-2 (log P = 3.18; IC50 = 360 vs. 40 nM for 1) but suffered from a lack of specificity. Indeed, cellular uptake experiments in human CRC cells expressing COX-2 (HCA-7) showed an accumulation of the radioligand that could not be inhibited by a celecoxib or rofecoxib pre-treatment. In vivo, NIH-III mice xenografted with HCA-7 cells exhibited a maximum tumor to muscle ratio 10 min post injection (p.i.) of 1.4, slowly decreasing over time. Dynamic acquisitions showed a rapid elimination of the radioactivity through the intestinal tract. In vitro results were not convincing, and specificity was not investigated in vivo.

FIGURE 3
www.frontiersin.org

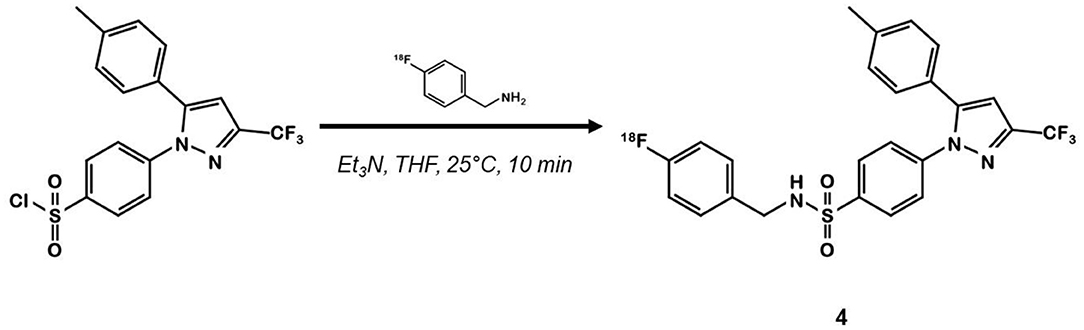

Figure 3. Radiosynthesis of pyrazole derivative 18F-4.

Other teams focused on different coxib-like derivatives. Derivative 5 was first studied by Li et al. and exhibited a very promising COX-2 affinity, with an IC50 in the range of the nanomolar concentration (IC50 = 5 nM) and a high in vitro selectivity for COX-2 over COX-1 (COX-1/COX-2 = 2,000) (34). Wuest et al. synthetized the [11C]methoxy-1,2-diarylcyclopentene 11C-5 in 4 steps from 2-dibromocyclopentene using a double Suzuki cross coupling and as final step a Williamson type O-methylation with [11C]CH3I (26) (Figure 4). The authors confirmed the specificity of compound 5 for COX-2 with cellular uptake studies (especially in the COX-2+ human colorectal adenocarcinoma cell line HT-29 vs. COX-2- RAW264.7). Its lipophilicity of 4.2 enabled it to cross the cell membranes but might be responsible for a lack of specificity in vivo. In fact, in vivo assays on a preclinical rodent xenograft model of human CRC cells (HT-29 cells, COX-2+) exhibited an accumulation of the tracer in the tumor, that could not be inhibited in blocking experiments with an excess of non-radioactive competitor. Moreover, this radiotracer was quickly metabolized, with only 17% remaining intact in plasma samples 10 min p.i.

FIGURE 4
www.frontiersin.org

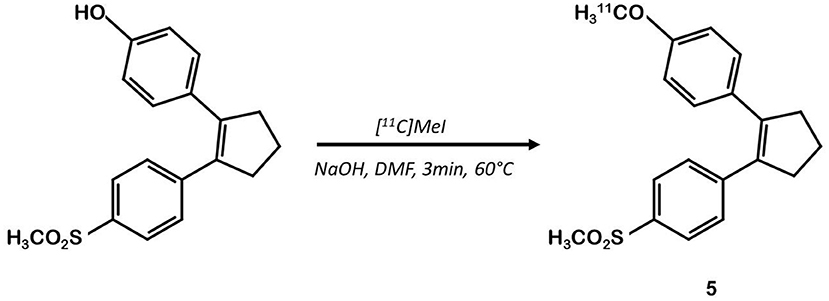

Figure 4. Radiosynthesis of [11C]diarylcyclopentene 5.

In 2013, Tietz et al. developed 18F-Pyricoxib 6, designed by replacing the celecoxib pyrazole ring by a pyrazine isoster (35). In 2016, Tietz et al. proved that derivative 6 showed better in vitro affinity and specificity than its parent Celecoxib 1 (IC50 = 7 vs. 40 nM for 1) (27). In vitro blocking experiments in HCA-7 and HCT-116 cells were promising. Radiotracer uptake in COX-2 positive cells (HCA-7) was significantly higher than in COX-2 negative cells (HCT-116), and pre-treatment with diverse non-radiolabeled COX-2 inhibitors led to a maximum uptake reduction of 65%. In vivo experiments were then conducted on NIH-III mice xenografted with either HCA-7 or HCT-116 cells, showing a satisfactory uptake in HCA-7 tumors (T/M ratio of 2.25 after 4 h p.i.). Pre-treatment with 2 mg of Celecoxib 1 (intraperitoneal administration, i.p.) led to a marked decrease in radiotracer uptake in the tumors. Biodistribution results showed a %ID/g of 2.12% in HCA-7 tumors, scaled down to 1.04% after a celecoxib pretreatment. However, radiotracer uptake was similar in HCA-7 and HCT-116 tumors. Expression of COX-2 in HCT-116 tumors was confirmed by immunohistochemistry, highlighting a cell line drift and questioning the relevance of the HCT-116 cell line as a COX-2 negative model. They concluded that 18F-pyricoxib 6 was a very promising candidate for a “first in human” study (27). In 2018, Tietz et al. deepened their understanding of this chemical entity by performing pharmacomodulation experiments (28). For the O-analog 18F-7 the radiolabeling was carried out on a preoxidized iodyl precursor. The authors started from 4-chloro-2-(methylsulphonyl)-6-(trifluoromethyl)pyrimidine after 5 steps including radiolabeling with 4-[18F]fluorobenzylamine. 18F-8 radiosynthesis was similar to that of 18F-pyricoxib 6, using sulfonyl precursors and a 4-[18F]fluorobenzylamine (FBA) as building block (Figure 5). The three tested probes 18F-6-8 exhibited similar in vitro properties (lipophilicity, affinity, specificity for COX-2). However, even slight modifications of the structure led to radically different pharmacokinetic, biodistribution and uptake profiles (Table 1). One of the radiotracers was slightly metabolized and excreted via the urinary tract but did not accumulate in the tumors, while the other was rapidly eliminated but had a better T/M ratio.

FIGURE 5
www.frontiersin.org

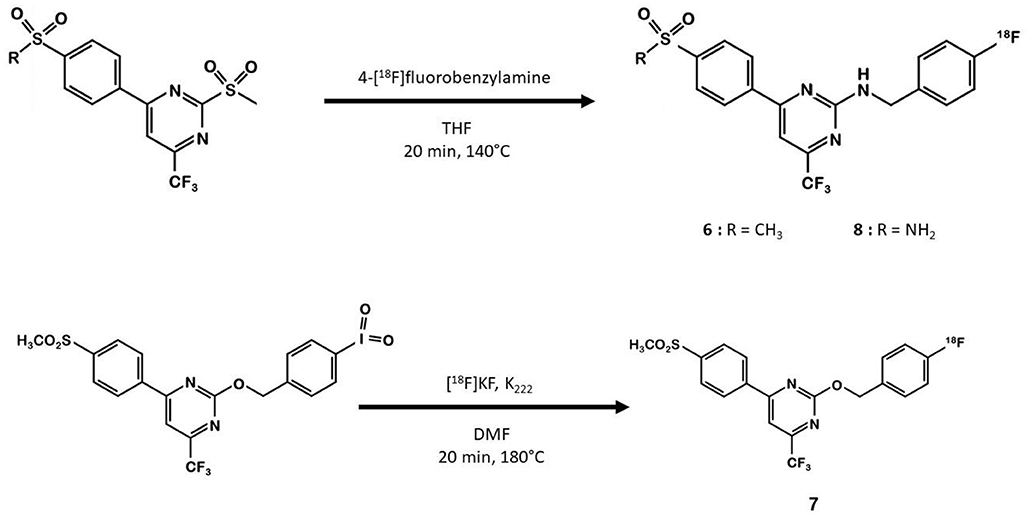

Figure 5. Radiosynthesis of 18F-6-8 probes.

The same team developed a pyricoxib derivative to reduce this unspecific binding previously observed with 18F-pyricoxib 6 (29). They designed 18F-triacoxib 9 which was obtained from the Celecoxib 1 structure by replacing the CF3 by a CH3 group and the acidic sulfonylamide by a simple methylsulfonyl. Nevertheless, the best innovation in this series consisted in the insertion of a triazole between the pyrazole and the phenyl ring, which required building an azidopyrazole as key intermediate. Noteworthy, 18F-fluorination was achieved using a pinacol boronic ester (in the presence of a copper catalyst [Cu(OTf)2(py)4]) as leaving group (Figure 6). Compound 9 displayed a satisfactory in vitro affinity and selectivity for COX-2 (IC50 = 90 vs. 70 nM for 1; IC50 COX-1 > 100 μM for both compounds, HCA-7 cells). In vitro binding experiments with increasing doses of non-radiolabeled compounds (celecoxib or triacoxib) resulted in an inhibition of the radiotracer uptake by 47 to 63%. In vivo experiments on BALB/c mice bearing HCA-7 xenografts suggested an improved stability of 18F-triacoxib 9 compared to 18F-pyricoxib 6 (respectively, 90 vs. 75% intact radiotracer in plasma samples 60 min p.i.). PET acquisitions confirmed a higher uptake in the tumors than in the muscle, within a similar range as 18F-pyricoxib 6 (tumor-to-muscle ratio of 1.49 vs. 1.47, respectively, 60 min p.i.). In Celecoxib 1 pretreated mice, a partial inhibition of 18F-triacoxib 9 uptake was observed (20%). Unspecific binding was also observed in lipid rich tissues. 18F-triacoxib 9 did not seem to be a better candidate than 18F-pyricoxib 6 as a diagnostic tool for CRC.

FIGURE 6
www.frontiersin.org

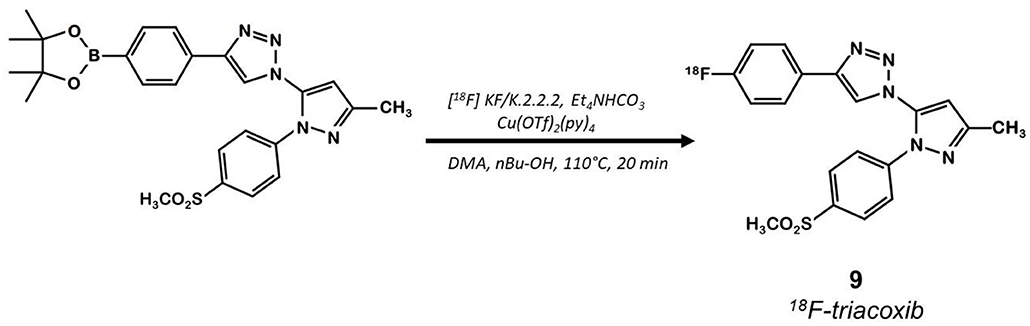

Figure 6. Radiosynthesis of 18F-Triacoxib 9.

2,3-Diaryl Indoles

In 2003, Hu et al. synthesized a large series of original 2,3-diaryl indoles (36). Structure-Activity Relationships (SAR) were established from about thirty derivatives obtained from anthranilic acids in 5 or 6 steps including indole formation by McMurry cyclization (Figure 7). Derivative 10 exhibited high affinity and selectivity for COX-2 (IC50 = 20 vs. 520 nM for 1) over COX-1 (IC50 >10 μM for both compounds), and better anti-inflammatory properties than celecoxib in a rat carrageenan-induced foot pad edema assay. In 2012, Kniess et al. radiolabeled this promising compound using the nucleophilic substitution of a trimethylammonium salt by 18F-fluorine (30). They investigated the determination of PGE2 levels in cell culture supernatants, which is therefore a direct measure of the COX activity. The cellular inhibition assay results demonstrated 10 to be a potent cyclooxygenase inhibitor with only low COX-1/COX-2 selectivity. The authors evaluated the selectivity of 10 using an enzymatic competitive inhibition assay with celecoxib as reference. IC50 = 6.6 μM for COX-1 and 1.2 μM for COX-2 were determined (IC50 COX-1 = 115 and 0.06 μM for 1). Pre-incubation of HT-29 cells with cold compound reduced the cellular uptake by almost 80% compared to incubation with the radioactive compound alone. In vivo PET imaging of HT-29 xenografted mice showed no accumulation of the tracer in the tumor. Despite a low lipophilicity (log D = 1.2), the tracer was rapidly eliminated through the intestinal tract (half-life: 8 min).

FIGURE 7
www.frontiersin.org

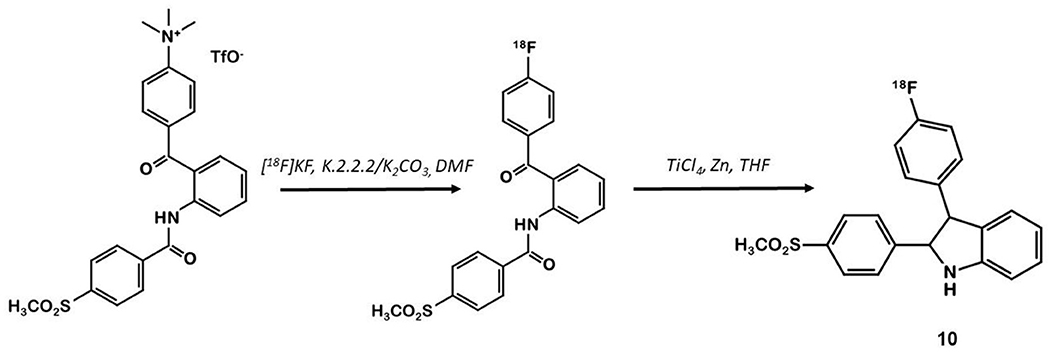

Figure 7. Radiosynthesis of 18F-10 via McMurry cyclisation.

Indomethacin Derivatives

Indomethacin 11 (Figure 8) is a COX ligand that binds to both COX-1 and COX-2. Kalgutar et al. modified its chemical structure by adding an amide group (37). After SAR analysis and the building of nearly twenty analogs, they clearly improved the selectivity of the derivatives for COX-2, which was inhibited in the nanomolar range. Following this work, Morgenroth et al. synthetized radio iodinated analogs from stannyl precursors (31). Derivative 125I-12 (Figure 9) was found to be the most suitable tracer. In vitro studies on CRC cell cultures HT-29 and HCT-116 showed a significantly higher concentration of 12 in COX-2 positive (HT-29) cells (COX-2+/COX-2– ratio of 2.5 and 7.6 for the two tested radiotracers). Blocking experiments were performed on human embryonic kidney (HEK) and human umbilical vein endothelial cell (HUVEC) cell lines, showing a partial decrease of the uptake in cells pre-treated with celecoxib 1. These affinities and selectivities were confirmed using both in vivo microPET and bio-distribution studies. The compound with the highest uptake was radiolabeled with 124I and used for PET imaging of HT-29 and HCT-116 xenografted mice. Due to the lipophilicity of this compound (log D = 4.41), the radioactivity was mainly localized in the liver and the gastrointestinal tract. No tracer uptake was observed in HCT-116 tumors whereas HT-29 tumors displayed a significant uptake. Measurement of the remaining activity in each organ with a gamma counter confirmed a COX-2+/COX-2– ratio of 5. The T/M ratio was over 50 times higher in HT-29 tumors than in HCT-116 tumors.

FIGURE 8
www.frontiersin.org

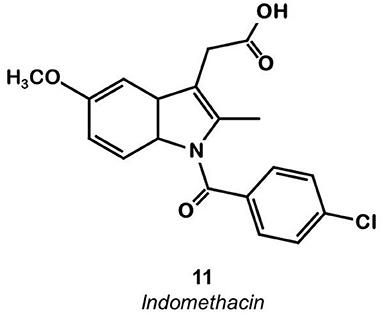

Figure 8. Indomethacin.

FIGURE 9
www.frontiersin.org

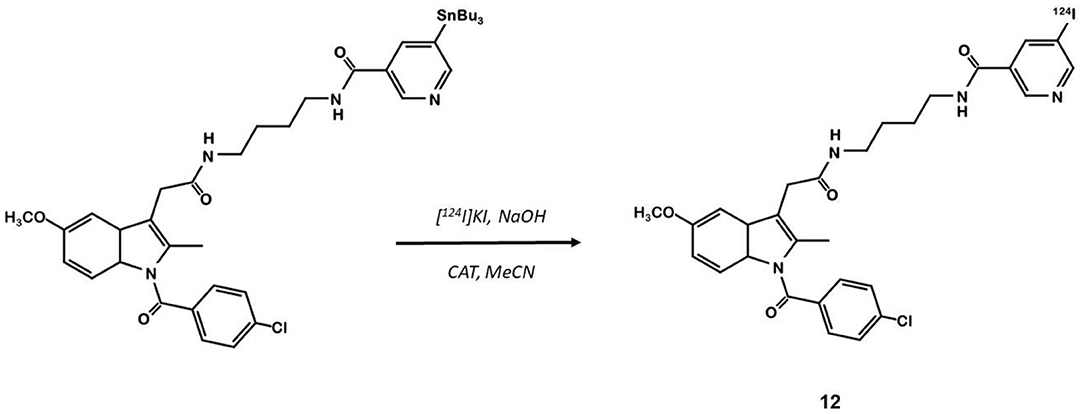

Figure 9. Radiosynthesis of indomethacin derivative 124I-12.

In 2011, Uddin et al. also synthesized a series of fluorine-containing indomethacin derivatives. These probes were satisfactory COX-2 inhibitors with an IC50 in the range of the nanomolar both in inhibition assays using purified COX-2 and intact cells. However, they could not be successfully radiolabeled due to a lack of stability in the severe reaction conditions required (24).

Discussion

This review focuses on COX-2 radiotracers tested in CRC models. Other COX-2 radiotracers have also been developed for other oncologic indications as well as applications in the field of neuroinflammation (22).

These eight studies on CRC xenografts display heterogeneous results. Kaur et al. (25), Wuest et al. (26), and Kniess et al. (30) concluded that their radiotracer was not appropriate for further clinical investigation, whereas Uddin et al. (24), Tietz et al. (27, 28), Litchfield et al. (29), and Morgenroth et al. (31) judged their radiotracer to be promising for clinical applications (satisfactory T/M ratio). However, for all the tested compounds, most of the radioactivity uptake was located in the digestive tract. The T/M ratios were deemed satisfactory, ranging from 1.4 to 5.0, but the tumor-to-intestine ratio was not always mentioned in these studies, and, when available, was well above the T/M ratio. The tumors were detectable as xenografts in mice flanks, but these T/M ratios would probably not be sufficient to detect in situ CRC tumors (Figure 10). Thus, the challenge to develop the ideal COX-2 radiotracer for CRC staging remains to date. Two areas of work can be explored to achieve this radiotracer development for CRC imaging.

FIGURE 10
www.frontiersin.org

Figure 10. microPET images of mice xenografted with human colorectal cancer cell lines after injection of a COX-2 specific radiotracer. (A) Kniess et al., 2012 (30): Maximum intensity projection (MIP) images at 1, 5, and 60 min p.i. after a single IV injection of 18F-3 into HT-29 tumor-bearing (right flank) NMRI nu/nu mice. Authors concluded that 18F-3 was not promising. Reprinted from Bioorg Med Chem. 2012 Jun 1;20(11):3410–21, Radiosynthesis of a 18F-labeled 2,3-diarylsubstituted indole via McMurry coupling for functional characterization of cyclooxygenase-2 (COX-2) in vitro and in vivo. Kniess T, Laube M, Bergmann R, Sehn F, Graf F, Steinbach J, et al. Copyright (2012), with permission from Elsevier, license number 5067540791584. (B) Litchfield et al. (29): Maximum intensity projection (MIP) images at 60 min p.i. of 18F-9 into HCA-7 tumor-bearing (left flank) BALB/c mice. Authors concluded that 18F-9 was promising. (C) Morgenroth et al. (31): μPET/CT molecular imaging of COX-2 with 124I-12 in HT29 (left panel) and HCT-116 (right panel) xenografted SCID mice at 4 h p.i. Arrows indicate tumor. Authors concluded that 124I-12 was promising.

Radiotracer-Linked Properties

All the tested compounds display a high lipophilicity (log P or log D ϵ [1.7–4.4]), required to reach their intracellular target COX-2, but also responsible for hepatobiliary excretion that could mask CRC tumors. This assumption questions the relevance of COX-2 as a CRC imaging target and could be tested using in situ CRC preclinical models. 11C-celecoxib was deemed unfit for clinical applications but benefited from a renal excretion that would be a serious advantage in CRC imaging. To increase the affinity for COX-2, pharmacomodulations on this parent compound led to more lipophilic molecules. There is still a need to balance affinity and lipophilicity with ideal pharmacokinetic properties. The use of innovative vectors could prove to be the solution to selectively deliver radiolabeled coxib derivatives into cancerous cells. In particular, the use of the RGD sequence (a tripeptide composed of arginine, glycine and aspartic acid) (38), dendrimers (39) or dehydropeptides (40) proved their potential to carry COX inhibitors into inflammatory or cancerous cells. Other pharmacokinetic properties should be taken into account, especially the metabolization rate and the radiotracer half-life. To be used routinely, the ideal radiotracer should be more than 50% intact 1 h p.i. and the half-life of the vector should not be shorter than 30 min. Other well-known PET tracers, such as 18F-FDG or 18F-FDOPA comply with these requirements (respective renal excretion of 20% 2 h p.i.1 and 50% 45 min p.i.2).

The second parameter to consider is the radioisotope. Due to its 110 min half-life, the use of 18F is widespread in PET imaging, and most of the COX-2 binders were labeled with 18F. Morgenroth et al. obtained the maximum T/M with a radio-iodinate derivative (31). However, due to both the higher energy of emitted beta particles and the longer half-life of 124I (4.2 days), radio-iodinate derivatives exhibit a poorer dosimetry profile compared to 18F-compounds. On the contrary, the shorter half-life of 11C makes it less accessible for routine use (on-site cyclotron required) but would endow it with a better dosimetry profile.

Finally, pharmacomodulations were performed to increase the specificity for COX-2 compared to COX-1, but other targets are known for coxibs. For instance, celecoxib or valdecoxib bind significantly (IC50 in the order of nM) to carbonic anhydrase isoenzymes (CA) (41). In addition, celecoxib is able to bind to PDK1 (42, 43), a cell survival regulation enzyme via the Akt/PKB pathway, with an IC50 in the range of μM (44). Likewise, coxibs bind to the transmembrane protein SERCA (4547), a pump that can induce cellular apoptosis by increasing the intracellular calcium concentration. These different pro-apoptotic and anti-oncogenic targets have been confirmed by an increasing number of reports indicating that celecoxib does not require the presence of COX-2 to exert its anti-tumoral activity (44, 48, 49). Even more striking, it has been shown that structural analogs close to celecoxib, devoid of any COX-2 inhibitory activity, were able to mimic the anti-tumor properties of celecoxib studied so far, not only in vitro but also in various in vivo xenograft models (43, 50, 51). These data question the relevance of radiolabeled coxibs as specific COX-2 binders.

In vivo Xenograft Models

Xenografts are known to lead to derangement of the normal tumor architecture and nearby healthy tissues and vasculature, and cause altered drug-sensitivity (52, 53). To address these possible biases, the use of orthotopic xenograft or genetically engineered mice expressing human colorectal cancer genes would mimic in situ CRC more accurately (54), easing the evaluation of the impact of unspecific intestinal uptake. Imaging the xenografts with 18F-FDG prior to the radiolabeled COX-2 inhibitor would also inform about the accessibility of tumors for PET radioligands, notably regarding their perfusion.

Conclusion

Ultimately, most of these radioligands exhibit promising affinity and specificity in vitro but fail to prove their efficiency in vivo on xenograft models. Chemical screening and pharmacomodulations have yet to work out the ideal COX-2 radiotracer. The use of innovative vectors should be considered to selectively deliver radiotracers in the tumors. Given the hepatobiliary excretion of most of the known coxib derivatives, in situ CRC models should be considered for future explorations. In vivo preclinical studies on in situ CRC models would be decisive to conclude whether COX-2 is a relevant target in CRC imaging. More conclusive in vivo results are required before conducting a “first-in-human” study.

Author Contributions

CD wrote the present paper and contributed to the design of the review. FA contributed to the redaction of the manuscript and to the prior bibliographic study. YT contributed to the clinical rational of the work. FB and SR wrote chemical sections of the manuscript. MC contributed to manuscript revision and improvement. NA designed the objectives of the review and supervised its preparation and redaction. All authors have substantially contributed to this work. The manuscript has been re-read and approved by all authors, and they have all contributed to its scientific improvement.

Funding

This work was supported by the French National Agency for Research (Investissements d'Avenir No. ANR-11-LABX-0018-01), IRON, by the Site de Recherche Intégrée sur le Cancer Imaging and Longitudinal Investigations to Ameliorate Decision-making SIRIC-ILIAD, and by the Région Centre Val de Loire RTR Motivhealth.

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
