ORIGINAL RESEARCH article

Front. Med., 30 October 2020
Sec. Dermatology

Clinical Evaluation of Sequential Transdermal Delivery of Vitamin B6, Compound Glycyrrhizin, Metronidazole, and Hyaluronic Acid Using Needle-Free Liquid Jet in Facial Seborrheic Dermatitis

\nXiaomin Zhang,&#x;Xiaomin Zhang1,2Bizhu Luo,&#x;Bizhu Luo1,2Huihui Mo,Huihui Mo1,2Lexi Liao,Lexi Liao1,2Shuai Wang,Shuai Wang1,2Juan Du,Juan Du1,2Qiuting LiuQiuting Liu1Yanhua Liang,
Yanhua Liang1,2*
  • 1Department of Dermatology, Cosmetology and Venereology, Shenzhen Hospital, Southern Medical University, Shenzhen, China
  • 2The Third School of Clinical Medicine, Southern Medical University, Shenzhen, China

Facial seborrheic dermatitis (FSD) is a common facial inflammatory dermatitis. Needle-free transdermal jet injection (NTJI) is a non-invasive injection of drug solution by using a high-pressure liquid injection instrument. To explore a safer, more tolerable, and convenient medical way using NTJI in the treatment of FSD, the patients were treated with vitamin B6, glycyrrhizin compound, metronidazole, and hyaluronic acid sequentially using NTJI every 2 weeks, and only those treated for more than three times were included. A VISIA facial imaging system for the evaluation of erythema, superficial lipid level, and roughness of skin surface and a CK analyzer for biophysical parameters, including the stratum corneum hydration, facial surface lipid, and trans-epidermal water loss, were applied. Erythema was significantly reduced after every treatment (weeks 2, 4, and 6; P < 0.05), whereas superficial lipid level was not improved significantly until week 6 (P < 0.05), and roughness of the skin surface was not improved significantly during the whole treatment. The stratum corneum hydration of lesional skin was significantly increased after three times of treatment (P < 0.05). No observable adverse effect, such as marked erythema, blistering, or atrophy, was observed. Sequential transdermal delivery of small molecular weight drugs (vitamin B6, glycyrrhizin compound, metronidazole, and hyaluronic acid) using NTJI is a safe, low-toxicity, and take-home drug-free therapy for the treatment of FSD.

Introduction

Facial seborrheic dermatitis (FSD), characterized by variable erythematous plaques with oily-yellow desquamation, is a common chronic inflammatory skin condition of the face with a high incidence and prevalence (1–3% in the general population, 3–5% in young adults, and 40–80% in HIV-positive individuals) (1). The exact cause of this disease has not been clearly identified; however, multiple factors such as lipids, immunological, hormones, nutritional, microbial factors (especially Malassezia furfur), and lifestyle factors may be associated with the development of FSD. Topical corticosteroids or other anti-inflammatory ointments have been the mainstay of treatment, but their use has been limited by potential adverse effects such as irritation, telangiectasia, skin atrophy, and rebound after discontinuation (1). An alternative treatment that is more effective and less stimulus is therefore imminently needed.

Epidermal barrier dysfunction is an important mechanism of FSD, and much current treatment for FSD (e.g., topical corticosteroids) may further disrupt the epidermal barrier function. Therefore, a comprehensive approach for FSD should include not only cause-relative but also epidermal barrier repairing. Thus, a typical formulary in the treatment of FSD should include antipruritics, anti-inflammatories, and skin barrier repairing. A combination of different therapies to treat FSD may be more effective and could be related to fewer adverse reactions as compared with monotherapy (2).

Vitamin B6 has a role in assuring normal structure and function of the skin and has been used clinically in the treatment of SD for several decades (3, 4). Glycyrrhetinic acid was also recommended in the treatment of SD, and its main active metabolite is glycyrrhizin; both of them have a wide range of pharmacological actions, including anti-inflammatory, anti-allergic, antiviral, anticarcinogenic, antithrombin, and anti-immune-mediated cytotoxicity (5, 6). It has been reported that glycyrrhizin can relieve immunoglobulin E-induced allergic diseases such as dermatitis (7). Compound glycyrrhizin has been used in the clinic, reduced the activity of the T-lymphocyte subset, helped recover lymphocytes, and had satisfactory efficacy and high safety in the treatment of psoriasis vulgaris, which is also chronic skin inflammation. In addition, the clinical features of facial skin lesions in psoriasis are similar to FSD (8). Metronidazole is anti-inflammatory via inhibition of free radical species (9, 10). Hyaluronic acid is a naturally occurring, highly conserved polysaccharide (11); it can trigger built-in immune defense mechanisms and promote cytokine production. Biological interactions of hyaluronic acid include effects on cell proliferation, recognition, and locomotion, along with angiogenesis and inflammatory cell activity (12).

Transdermal delivery of drugs has many advantages over other routes of administration, including the accessibility of the skin and the large surface area available for delivery. Hypodermic needles are the most commonly used instruments for the delivery because of the skin barrier by the stratum corneum. Issues such as pain, needle-stick injuries, patient compliance, needle phobia, and contamination associated with the reuse of needles have spurred the development of new drug delivery systems. Needle-free transdermal jet injection (NTJI) is a novel liquid drug delivery technology, which uses an inert gas, such as carbon dioxide, nitrogen, or helium, as a power source for drug delivery (13). The inert gas and liquid drugs are mixed and atomized to create small droplets with enough power to deliver the drugs through the skin. The jet injection technology improves drug concentration and transdermal rate and has the advantages of no pain, no needle, and no cross-infection. It can also avoid many issues associated with oral drug delivery, such as first-pass hepatic metabolism, enzymatic digestion attack, drug hydrolysis, and degradation in acidic media, drug fluctuations, and gastrointestinal irritation (14, 15).

In this study, we retrospectively analyzed patients in whom FSD had been diagnosed and treated with NTJI by sequential delivery of a formula including vitamin B6, compound glycyrrhizin, metronidazole, and hyaluronic acid.

Materials and Methods

Patients

This study has obtained clearance from the ethics committee of Shenzhen Hospital, Southern Medical University. We retrospectively analyzed 374 patients in whom “FSD” had been diagnosed and treated with NTJI from May 2017 to December 2019. All patients had continuous symptoms of FSD, which had persisted for more than 1 month. Subjects included in the analysis were those who had undergone at least three NTJI treatments. Neither systematic medication nor other facial topical intervention during the course of the study was concurrently applied. The exclusion criteria were as follows: (1) medication of oral or topical corticosteroids, retinoids, calcineurin inhibitors, or antifungals within 2 weeks before enrollment; (2) the interval between treatments was not 2 weeks; (3) allergic to components of any drugs in this study; (4) complicated with other dermatoses in the facial area; (5) did not continue the same drug formulas; (6) with systemic disease such as diabetes, hypertension, HIV infection, and malignant tumor; (7) failure to continue follow-up; (8) having a neurological disorder or mental disorder; (9) pregnant or lactating women. The study flow is shown in Figure 1.

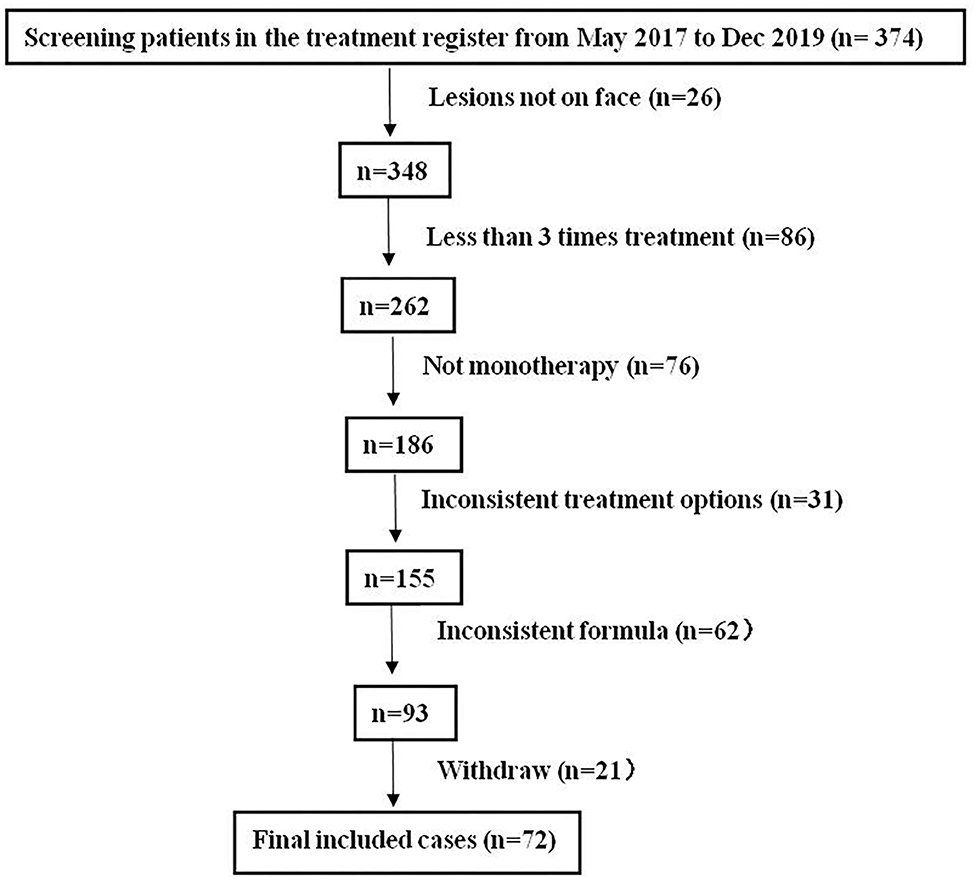

FIGURE 1
www.frontiersin.org

Figure 1. Study flow.

Treatment Protocols

For patients with FSD, we sequentially delivered the therapeutic solutions, as 4 ml of vitamin B6, 20 ml of compound glycyrrhizin, 8 ml of metronidazole, and 6 ml of hyaluronic acid equally to the forehead, chin, and cheeks. After the whole procedure of NTJI (about 50 min), the face gets more hydration than before, making them feel more smooth and soft of their skin surface. The treatment was conducted once every 2 weeks for a total of three times. Patients were advised to avoid sun exposure during the treatment and follow-up. Compound glycyrrhizin injection (Japan Minophagen Pharmaceutical Co. Ltd., 20 ml) consists of 40-mg glycyrrhizin, 400-mg aminoacetic acid, and 20-mg cysteine hydrochloride. Vitamin B6 injection (Guangzhou Baiyunshan Tianxin Pharmaceutical Co. Ltd.) contained 50 mg/ml. Metronidazole injection (Shijiazhuang No. 4 Pharmaceutical Co. Ltd.) contained 500 mg per 100 ml. Hyaluronic acid (Wuhan Qizhi Laser Technology Co. Ltd., 20 ml) was at a concentration of 0.05% w/w. A needle-free transdermal jet injector was obtained from QIZHI Inc. (Wuhan, China). The handheld drug delivery device is powered by pressurized carbon dioxide gas. Both VISIA skin analysis imaging system (ICES-003, Canfield Scientific co, Fairfield, NJ) and CK analyzer with three detection probes (TM300, SM 815, and CM 825, Courage-Khazaka, Cologne, Germany) were applied to evaluate the efficacy.

Assessment

Objective Evaluation by Both VISIA and CK Analyzer

Clinical photographs were taken on pretreatment and 2 weeks after each treatment. The effectiveness evaluation was performed by using the VISIA skin analysis imaging system. All measurements were done in the same area and location by the same physician assistant. The mean values were then calculated from these readings. The absolute scores, red area present for the extent of the erythema, porphyrins for superficial lipid level, and pores for the roughness of skin surface, which were generated by the analyzer system automatically, were used as the objective quantitative standard. The absolute score is proportional to the skin characteristics, that is, the higher the absolute score is, the more serious the symptom is. The biophysical parameters were obtained by using the CK analyzer, including facial surface lipid, trans-epidermal water loss (TEWL), and stratum corneum hydration.

Subjective Evaluation by Investigator Global Assessment and Patient's Self-Assessment

Investigator Global Assessment (IGA) score (11) and the patient's self-assessment were considered subjective assessments. The IGA score evaluated scale/flaking, erythema, the grade of seborrhea, and pruritus. The outcome of the treatments was evaluated by two blinded dermatologists (unaware of the times of treatment) according to patients' images. The severity of the itch was based on the description of the medical records. For each item, a 4-grade scale was used (0 = absent, 1 = mild, 2 = moderate, 3 = severe) (11).

Patients' satisfaction with the results was collected at the last follow-up. Improvement of erythematous plaques and seborrhea was scored as follows: 0, worsen; 1, no change; 2, mild (lesion clearance < 25%); 3, moderate improvement (lesion clearance 25–50%); 4, good (lesion clearance 50–75%); and 5, significant (lesion clearance > 75%) (16).

Recurrence and Safety Evaluation

Either worsening of the erythema, scale/flaking, or enlargement of the lesion was considered a recurrence. The total recurrence rate was determined as the percentage of recurrence patients with any symptoms mentioned earlier. Adverse effects such as hypopigmentation, desquamation, edema, and erythema were recorded throughout the entire study.

Statistical Analysis

The results were denoted by mean ± SD. SPSS 23.0 (SPSS Inc., Chicago, IL, USA) and GraphPad 7.0 were used for the statistical and graphing analysis. A coupled t-test was used to compare the results before and after treatments (baseline; weeks 2, 4, and 6). Chi-square was performed to evaluate patients' subjective satisfaction, and a non-parametric Wilcoxon test was used to analyze the IGA score. All P-values were bilateral, and a P < 0.05 or < 0.001 was defined as statistical significance.

Results

Baseline Data

After layers of screening per the inclusion and exclusion criteria, 72 subjects (54 females, 18 males) of age 26.84 ± 8.27 years with disease duration of 7.12 ± 2.55 months were included in the study after three times treatment of NTJI. The youngest patient in the study was 16 years of age, and the oldest was 48.

Rapid and Continuous Improvements of Detective Index Evaluated by VISIA and CK

In comparison with baseline data obtained before the first treatment (week 0), erythema was decreased significantly after every treatment (weeks 2, 4, and 6; P < 0.001), whereas the superficial lipid level was improved significantly in week 6 (P < 0.05) (Figures 2, 3), revealing that this treatment provided significant effect on improving the symptoms of erythema and skin sebum of FSD. However, there was no significant difference in the roughness of the skin surface in weeks 2, 4, and 6.

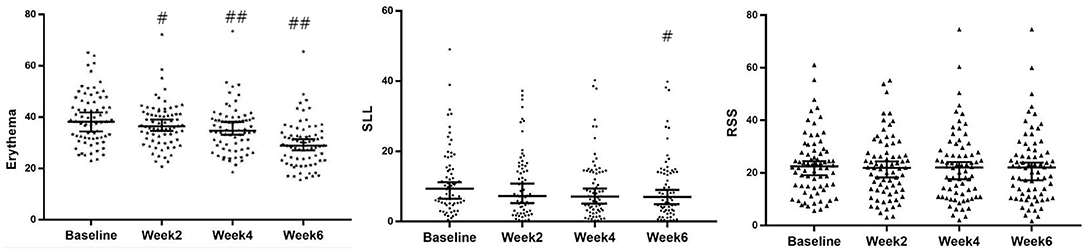

FIGURE 2
www.frontiersin.org

Figure 2. Evolution of erythema, SLL, and RSS of VISIA at baseline and 2, 4 and 6 weeks after treatment (median with 95%CI). #P < 0.05; ##P < 0.001. SLL, superficial lipid level surface; RSS, roughness of skin.

FIGURE 3
www.frontiersin.org

Figure 3. At baseline and weeks 2, 4, and 6 of treatment, representative clinical photographs of FSD patients with normal (A), erythema (B), lipid levels (C), and skin roughness (D) patterns by VISIA.

The mean change values of the biophysical parameter from week 0 to weeks 2, 4, and 6 are shown in Table 1. The mean of stratum corneum hydration of lesional skin in FSD patients was significantly higher after three treatments (P < 0.05). The facial surface lipid and TEWL scores were also comparable after three treatments, and they were improved gradually from baseline to week 6. However, the difference was not statistically significant.

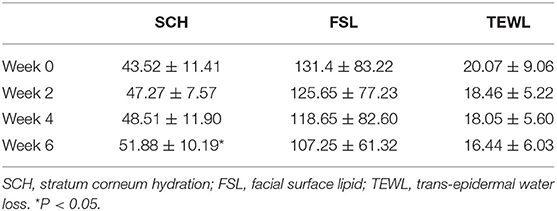

TABLE 1
www.frontiersin.org

Table 1. Biophysical parameter from baseline and after 2, 4, and 6 weeks of treatment (mean ± SD).

Double Confirmed Therapeutic Efficacy by Investigator Global Assessment and Patients' Self-Assessment

At week 0, the mean score of IGA was 6.79 ± 1.20. The treatment of NTJI reduced IGA scores significantly to 6.28 ± 0.98 at week 4 and 5.58 ± 0.93 at week 6 (P < 0.05). In patients' self-evaluations, 22 (31%) patients assessed the result as remarkable, 31 (43%) rated their improvement as good, 12 (17%) rated their improvement as moderate, and 7 (9%) reported poor improvement (Figure 4).

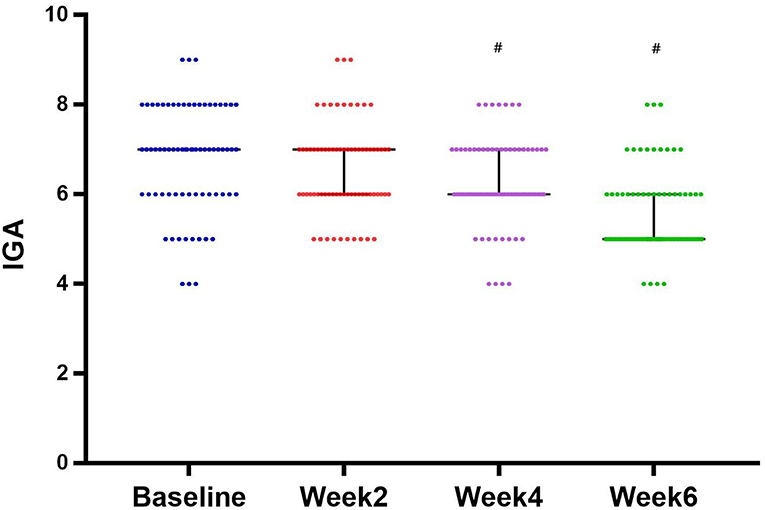

FIGURE 4
www.frontiersin.org

Figure 4. Evolution of IGA score from baseline and after 2, 4, and 6 weeks of treatment (median with 95% CI). #P < 0.05.

Partial Mild Recurrence and Bit Uncomfortable Effects

At the 4-week follow-up visit, 40 patients had a recurrence of facial surface lipid, with a partial recurrence rate of 56%. No worsening of erythema or scale/flaking or itch was observed compared with that before treatment.

Adverse events were minimal in our study. Only eight patients complained of increased itching during the process of injection, and it was relieved within 3–5 min after being cold spraying with normal saline for 15 min. All patients tolerated the treatment well. No serious adverse effects such as atrophy, blistering, or obvious erythema, nor systemic symptoms were observed.

Discussion

The diagnosis of FSD is usually made on the basis of its clinical features. The etiology remains unknown. However, M. furfur, Staphylococcus aureus, skin sebum levels, epidermal barrier disturbances, depression, autonomic dysfunction, and immunologic mechanisms have been described as contributing factors (5). Thus, a typically recommended prescription is a combination that should include antifungals, keratolytics, antipruritics, and anti-inflammatories (2). In general, it is complicated to decide which of these medicines should be included, and none of these four was targeting on improving skin barrier function or restoring the skin's surface lipid composite. An alternative treatment that is effective and tolerable is therefore imminently needed. NTJI technology is a user-friendly delivery method that can increase compliance in patients with FSD.

Basing on the clinical observation that patients with FSD present with excessive lipid secretion, erythema itching, and skin barrier disturbances, we sequentially delivered vitamin B6, compound glycyrrhizin, metronidazole, and hyaluronic acid to the whole face every 2 weeks for three times. Vitamin B6 is a water-soluble vitamin, which is the biologically active form and has been used clinically in the treatment of FSD for several decades. It is known that M. furfur plays an important role in the cause of FSD. Malassezia yeasts degrade sebum, releasing irritating unsaturated fatty acids and the resultant inflammation (17), whereas the latter could cause a tissue-specific depletion of vitamin B6 (18). In addition, vitamin B6 has a crucial role in the metabolism of fatty acids, lipid metabolism, and lipid peroxidation; it can reduce lipid accumulation (19). During the last 10 years, there were increasing reports implicating vitamin B6 in inflammation and inflammation-related chronic illnesses (20); it was recognized as an antioxidant and anti-inflammatory (21). Therefore, in addition to repairing the function of damaged skin, topical delivery of vitamin B6 can inhibit lipid accumulation of FSD patients.

It was found that hyaluronic acid can prevent TEWL (22), thereby improving the moisture of the skin. Draelos (23) demonstrated that a prescription hyaluronic acid-based foam device offers an aesthetic formulation with excellent efficacy in patients requiring an environment for barrier repair with mild to moderate atopic dermatitis. Both the glycyrrhizin compound and metronidazole have an anti-inflammatory effect. Due to the similar pharmacological efficacy to corticosteroids but with milder adverse effects (24), compound glycyrrhizin has been widely utilized in several dermatologic disorders for many years (6, 8). Metronidazole is an antiprotozoal and imidazole-derived antibacterial agent; it also has immunomodulatory effects on leukocyte chemotaxis and suppresses cell-mediated immunity (25), which makes metronidazole an effective therapy option for FSD.

Due to the barrier properties of the skin, transport is limited to small molecules, and it is difficult to deliver larger molecules (>500 Da) via passive transport caused by diffusion alone. In contrast, NTJI is an active transdermaldelivery that can improve the delivery of drugs of differing lipophilicity and molecular weight, including proteins, peptides, and oligonucleotides (26). NTJI is a pressure- and dose-controlled system, which functions by a compressed gas-powered device that forces liquid drug to pass at high speed through the small orifice that is close to the skin. An ultrafine, high-pressure fluid is produced that resembled the wide-fire pattern of a shotgun, so it can quickly distribute the materials and spread throughout the tissues. Therefore, it can speed up the absorption rate of the drugs and cause the drug to take effect within a shorter time (13). It was proved that although the NTJI used only lightweight atomized molecules to deliver the drug, it still provided enough power to penetrate deep into the skin layers (≈136.44 ± 10.90 μm) (13). The system has previously been used to deliver the active ingredient into a full-thickness excision wound in a diabetic mouse (27). The results show that the medication delivered by the system did not aggravate the severity of the open wound surface but increased the penetration depth and absorption of the active ingredients on the wound surface, which was conducive to wound healing. This may indicate that the micropores or microchannels produced by the system are minimal (13).

It was reported that seborrheic dermatitis is often caused by mental stress. Stress often indicates a poor prognosis, and depression is more common in patients with facial involvement. Anxiety is an aggravating factor, too (28). NTJI has the role of sedation when the cool and atomized small droplets spray on the face; patients feel calm and peaceful. Transient pruritus is the most common adverse event, and adverse events are rare and never result in systemic toxicity. Therefore, NTJI is a relatively simple procedure that is cost-effective and well-tolerated and offers both therapeutic and cosmetic benefits.

This was a retrospective study where all subjects were placed in a single cohort following the same fixed treatment strategy. The result of this study showed that delivering the comprehensive treatment package using NTJI once every 2 weeks at a total of three times could help improve the erythema and surface lipid of FSD. The one index that showed continued improvement was erythema, which is the worst facial lesion on the face impacting the patient's cosmetic appearance and confidence. The IGA and patient's satisfaction were remarkable, too.

Nevertheless, this was a retrospective study; the selection of individuals is not random, which may cause selection bias. Also, constrained by the scope of application of intervention measures, the research objects selected in this paper may not be representative of the experimental results. However, both subjective and objective assessments were used to evaluate the therapeutic effect to reduce bias. A randomized, double-blind clinical trial is needed to warrant the result of this study.

Overall, sequential transdermal delivery of vitamin B6, compound glycyrrhizin, metronidazole, and hyaluronic acid by NTJI is a rapid, effective, convenient, and safe option for the treatment of FSD. Its compliance and tolerance were excellent.

Limitations

This was a retrospective study. A prospective study with control groups is needed to warrant the result of this study.

Data Availability Statement

All datasets generated for this study are included in the article/supplementary material.

Ethics Statement

The studies involving human participants were reviewed and approved by the ethics committee of Shenzhen Hospital, Southern Medical University. Written informed consent to participate in this study was provided by the participants' legal guardian/next of kin. Written informed consent was obtained from the individual(s), and minor(s)' legal guardian/next of kin, for the publication of any potentially identifiable images or data included in this article.

Author Contributions

XZ was responsible for part of data analysis and article writing. BL was responsible for data collection. HM and LL were responsible for literature search. JD, SW, and QL were responsible for data acquisition and statistical analysis. YL was responsible for design and review of the study. All authors contributed to the article and approved the submitted version.

Funding

The research was supported by a grant from the Seedling Program of Shenzhen Hospital of Southern Medical University (2016MM01).

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

References

1. Piquero-Casals J, Hexsel D, Mir-Bonafé JF, Rozas-Muñoz E. Topical non-pharmacological treatment for facial seborrheic dermatitis. Dermatol Ther. (2019) 9:469–77. doi: 10.1007/s13555-019-00319-0

PubMed Abstract | CrossRef Full Text | Google Scholar

2. Tucker D, Masood S. Seborrheic dermatitis. StatPearls. Treasure Island, FL: StatPearls Publishing LLC. (2020).

PubMed Abstract

3. Ossipovski B. Sulfacetamide B 6: new treatment of the seborrheic dermatoses. Gaz Med Fr. (1965) 72:3742–3. doi: 10.1016/S0040-4020(01)96994-7

PubMed Abstract | CrossRef Full Text | Google Scholar

4. IIa S, Potekaev NS. Vitamin B6 in therapy of certain dermatoses. Vestn Dermatol Venerol. (1958) 32:27–9.

PubMed Abstract | Google Scholar

5. Wang H, Fang ZZ, Meng R, Cao YF, Tanaka N, Krausz KW, et al. Glycyrrhizin and glycyrrhetinic acid inhibits alpha-naphthyl isothiocyanate-induced liver injury and bile acid cycle disruption. Toxicology. (2017) 386 133–42. doi: 10.1016/j.tox.2017.05.012

PubMed Abstract | CrossRef Full Text | Google Scholar

6. Mou KH, Han D, Liu WL, Li P. Combination therapy of orally administered glycyrrhizin and UVB improved active-stage generalized vitiligo. Braz J Med Biol Res. (2016) 49:e5354. doi: 10.1590/1414-431x20165354

PubMed Abstract | CrossRef Full Text | Google Scholar

7. Shin YW, Bae EA, Lee B, Lee SH, Kim JA, Kim YS, et al. In vitro and in vivo antiallergic effects of glycyrrhiza glabra and its components. Planta Med. (2007) 73:257–61. doi: 10.1055/s-2007-967126

PubMed Abstract | CrossRef Full Text | Google Scholar

8. Yu JJ, Zhang CS, Coyle ME, Du Y, Zhang AL, Guo X, et al. Compound glycyrrhizin plus conventional therapy for psoriasis vulgaris: a systematic review and meta-analysis of randomized controlled trials. Curr Med Res Opin. (2017) 33:279–87. doi: 10.1080/03007995.2016.1254605

PubMed Abstract | CrossRef Full Text | Google Scholar

9. Parsad D, Pandhi R, Negi KS, Kumar B. Topical metronidazole in seborrheic dermatitis–a double-blind study. Dermatology. (2001) 202:35–7. doi: 10.1159/000051582

PubMed Abstract | CrossRef Full Text | Google Scholar

10. Borda LJ, Perper M, Keri JE. Treatment of seborrheic dermatitis: a comprehensive review. J Dermatolog Treat. (2019) 30:158–69. doi: 10.1080/09546634.2018.1473554

PubMed Abstract | CrossRef Full Text | Google Scholar

11. Puviani M, Campione E, Offidani AM, De Grandi R, Bianchi L, Bobyr I, et al. Effects of a cream containing 5% hyaluronic acid mixed with a bacterial-wall-derived glycoprotein, glycyrretinic acid, piroctone olamine and climbazole on signs, symptoms and skin bacterial microbiota in subjects with seborrheic dermatitis of the face. Clin Cosmetic Invest Dermatol. (2019) 12:285–93. doi: 10.2147/CCID.S205904

PubMed Abstract | CrossRef Full Text | Google Scholar

12. Schlesinger T, Rowland Powell C. Efficacy and safety of a low molecular weight hyaluronic Acid topical gel in the treatment of facial seborrheic dermatitis final report. J Clin Aesth Dermatol. (2014) 7:15–8.

PubMed Abstract | Google Scholar

13. Huang YH, Hu CS, Ke YJ, Chiang CH, Hong PD, Yeh MK. Evaluating the effectiveness of a novel atomized liquid needle-free transdermal delivery system. Drug Deliv Transl Res. (2017) 7:609–16. doi: 10.1007/s13346-017-0382-7

PubMed Abstract | CrossRef Full Text | Google Scholar

14. Prausnitz MR, Mitragotri S, Langer R. Current status and future potential of transdermal drug delivery. Nat Rev Drug Disc. (2004) 3:115–24. doi: 10.1038/nrd1304

PubMed Abstract | CrossRef Full Text | Google Scholar

15. Hogan NC, Taberner AJ, Jones LA, Hunter IW. Needle-free delivery of macromolecules through the skin using controllable jet injectors. Expert Opin Drug Deliv. (2015) 12:1637–48. doi: 10.1517/17425247.2015.1049531

PubMed Abstract | CrossRef Full Text | Google Scholar

16. Yue B, Yang Q, Xu J, Lu Z. Efficacy and safety of fractional Q-switched 1064-nm neodymium-doped yttrium aluminum garnet laser in the treatment of melasma in Chinese patients. Lasers Med Sci. (2016) 31:1657–63. doi: 10.1007/s10103-016-2034-4

PubMed Abstract | CrossRef Full Text | Google Scholar

17. Ro BI, Dawson TL. The role of sebaceous gland activity and scalp microfloral metabolism in the etiology of seborrheic dermatitis and dandruff. J Investig Dermatol Symp Proc. (2005) 10:194–7. doi: 10.1111/j.1087-0024.2005.10104.x

PubMed Abstract | CrossRef Full Text | Google Scholar

18. Chiang EP, Smith DE, Selhub J, Dallal G, Wang YC, Roubenoff R. Inflammation causes tissue-specific depletion of vitamin B6. Arthritis Res Ther. (2005) 7:R1254–62. doi: 10.1186/ar1821

PubMed Abstract | CrossRef Full Text | Google Scholar

19. Kitagawa E, Yamamoto T, Yamamoto K, Nakagawa T, Hayakawa T. Accumulation of lipid in rat liver was induced by vitamin B6 deficiency and was ameliorated by supplemental phosphatidylcholine in the diet. Biosci Biotechnol Biochem. (2015) 79:1320–6. doi: 10.1080/09168451.2015.1020755

PubMed Abstract | CrossRef Full Text | Google Scholar

20. Bird RP. The emerging role of vitamin b6 in inflammation and carcinogenesis. Adv Food Nutr Res. (2018) 83:151–94. doi: 10.1016/bs.afnr.2017.11.004

PubMed Abstract | CrossRef Full Text | Google Scholar

21. Ueland PM, McCann A, Midttun O, Ulvik A. Inflammation, vitamin B6 and related pathways. Mol Aspects Med. (2017) 53:10–27. doi: 10.1016/j.mam.2016.08.001

PubMed Abstract | CrossRef Full Text | Google Scholar

22. Polaskova J, Pavlackova J, Egner P. Effect of vehicle on the performance of active moisturizing substances. Skin Res Technol. (2015) 21:403–12. doi: 10.1111/srt.12206

PubMed Abstract | CrossRef Full Text | Google Scholar

23. Draelos ZD. A clinical evaluation of the comparable efficacy of hyaluronic acid-based foam and ceramide-containing emulsion cream in the treatment of mild-to-moderate atopic dermatitis. J Cosmet Dermatol. (2011) 10:185–8. doi: 10.1111/j.1473-2165.2011.00568.x

PubMed Abstract | CrossRef Full Text | Google Scholar

24. Xu Z, Xing X, Zhang C, Chen L, Flora XL. A pilot study of oral tranexamic acid and Glycyrrhizin compound in the treatment of recalcitrant Riehl's melanosis. J Cosmetic Dermatol. (2019) 18:286–92. doi: 10.1111/jocd.12797

PubMed Abstract | CrossRef Full Text | Google Scholar

25. Goldust M, Rezaee E, Raghifar R. A double blind study of the effectiveness of sertaconazole 2% cream vs. metronidazole 1% gel in the treatment of seborrheic dermatitis. Ann Parasitol. (2013) 59:173–7.

PubMed Abstract | Google Scholar

26. Brown MB, Traynor MJ, Martin GP, Akomeah FK. Transdermal drug delivery systems: skin perturbation devices. Methods Mol Biol. (2008) 437:119–39. doi: 10.1007/978-1-59745-210-6_5

PubMed Abstract | CrossRef Full Text | Google Scholar

27. Huang YH, Chen CY, Chen PJ, Tan SW, Chen CN, Chen HM. Gas-injection of gold nanoparticles and anti-oxidants promotes diabetic wound healing. RSC Adv. (2014) 4:4656–62. doi: 10.1039/C3RA44359K

CrossRef Full Text | Google Scholar

28. Misery L, Touboul S, Vincot C, Dutray S, Rolland-Jacob G, Consoli SG, et al. Stress and seborrheic dermatitis. Ann Dermatol Venereol. (2007) 134:833–7. doi: 10.1016/S0151-9638(07)92826-4

PubMed Abstract | CrossRef Full Text | Google Scholar
