Neodymium-140 DOTA-LM3: Evaluation of an In Vivo Generator for PET with a Non-Internalizing Vector

¹⁴⁰Nd (t_1/2 = 3.4 days), owing to its short-lived positron emitting daughter ¹⁴⁰Pr (t_1/2 = 3.4 min), has promise as an in vivo generator for positron emission tomography (PET). However, the electron capture decay of ¹⁴⁰Nd is chemically disruptive to macrocycle-based radiolabeling, meaning that an in vivo redistribution of the daughter ¹⁴⁰Pr is expected before positron emission. The purpose of this study was to determine how the delayed positron from the de-labeled ¹⁴⁰Pr affects preclinical imaging with ¹⁴⁰Nd. To explore the effect, ¹⁴⁰Nd was produced at CERN-ISOLDE, reacted with the somatostatin analogue, DOTA-LM3 (1,4,7,10- tetraazacyclododecane, 1,4,7- tri acetic acid, 10- acetamide N - p-Cl-Phecyclo(d-Cys-Tyr-d-4-amino-Phe(carbamoyl)-Lys-Thr-Cys)d-Tyr-NH2) and injected into H727 xenograft bearing mice. Comparative pre- and post-mortem PET imaging at 16 h postinjection was used to quantify the in vivo redistribution of ¹⁴⁰Pr following ¹⁴⁰Nd decay. The somatostatin receptor-positive pancreas exhibited the highest tissue accumulation of ¹⁴⁰Nd-DOTA-LM3 (13% ID/g at 16 h) coupled with the largest observed redistribution rate, where 56 ± 7% (n = 4, mean ± SD) of the in situ produced ¹⁴⁰Pr washed out of the pancreas before decay. Contrastingly, the liver, spleen, and lungs acted as strong sink organs for free ¹⁴⁰Pr³⁺. Based upon these results, we conclude that ¹⁴⁰Nd imaging with a non-internalizing vector convolutes the biodistribution of the tracer with the accumulation pattern of free ¹⁴⁰Pr. This redistribution phenomenon may show promise as a probe of the cellular interaction with the vector, such as in determining tissue dependent internalization behavior.

Introduction

The demand for long-lived positron emitting radiolanthanides is growing due to the success of targeted internal radiotherapy with ¹⁷⁷Lu, and the promise of other therapeutic lanthanides such as Auger electron emitters ¹⁶⁵Er, and ¹³⁵La or combined beta-/Auger electron emitters such as ¹⁶¹Tb (1–5). Neodymium-140 (¹⁴⁰Nd, t_1/2 = 3.4 days) decays to praseodymium-140 (¹⁴⁰Pr, t_1/2 = 3.4 min) by electron capture with no emission of gamma photons (Figure 1) (6). Because ¹⁴⁰Pr has a 51% positron branch (E_mean = 1.07 MeV) and a short half-life, the pair has potential for long-lived positron emission tomography (PET) tracing of pharmaceuticals. Together as a so-called in vivo generator (7, 8), they provide a high positron yield with lanthanide labeling chemistry and a parent half-life that is suitable for monoclonal antibody, nanoparticle, and peptide imaging (9, 10). In this light, it is interesting to pursue development of ¹⁴⁰Nd to investigate how the delayed positron emission from ¹⁴⁰Pr affects medical imaging, and how it can be exploited.

FIGURE 1

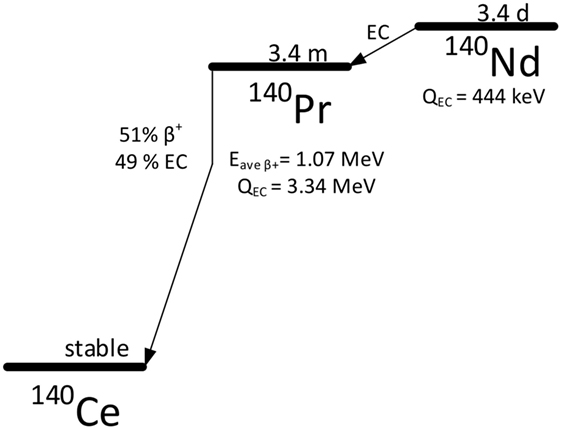

Figure 1. The decay scheme of ¹⁴⁰Nd and its daughter ¹⁴⁰Pr.

The radionuclide ¹⁴⁰Nd is non-standard in radiopharmacy, but can be produced in a variety of methods: via (p,2n) reactions on naturally monoisotopic praseodymium-141 (11), ³He bombardment of natural cerium (11–13), or by spallation processes on tantalum (14). Due to the relatively lower volatilization temperature of the rare earths (compared to tantalum), it is possible to extract the spallation-induced radiolanthanides by thermal diffusion and separate them by mass, e.g., at the on-line separator ISOLDE at CERN (15, 16). In principle, this leads to the highest possible specific activity for radiochemistry and has been successfully employed in previous experiments with radiolanthanides (3, 17, 18). The (p,2n) production method is attractive for future developments because it is a reaction that is reachable by biomedical and hospital cyclotrons. However, it requires very high purity praseodymium starting material (without neodymium contamination), and a robust lanthanide separation technique in order to achieve radiolabeling with high specific activity.

When considering ¹⁴⁰Nd for PET, its value for direct imaging hinges upon the chemical and kinetic profile of the positron producing daughter nuclide ¹⁴⁰Pr. Previous reports show that the EC decay of DOTA-bound ¹⁴⁰Nd is highly efficient at releasing the daughter ¹⁴⁰Pr from the chelate, making it available for further interactions as a Pr³⁺ cation (13). Praseodymium and neodymium have remarkably similar chemistry, and under the right conditions Pr³⁺ could be predicted to re-bind a free chelator after being released. However, an activation barrier to stable binding between lanthanide ions and DOTA precludes room temperature chelation of the Pr³⁺ daughter. Other chelators such as DTPA are not inhibited by an activation barrier and may fare better at retaining the daughter praseodymium. The mobility of the daughter praseodymium determines how different the distribution of the tracer-bound parent is from the distribution of the unbound daughter, the evaluation of which will determine the value of ¹⁴⁰Nd/¹⁴⁰Pr with functionalized DOTA in vivo. The current set of experiments serves as a preliminary investigation into the ¹⁴⁰Nd/¹⁴⁰Pr in vivo PET generator.

In order to create the appropriate scenario to test ¹⁴⁰Nd/¹⁴⁰Pr, the somatostatin receptor was selected as the target. The reason for this is threefold. First, somatostatin analogs are already employed clinically with the therapeutic radionuclide ¹⁷⁷Lu (19) and the diagnostic radionuclides ⁶⁴Cu (20) and ⁶⁸Ga, where a long-lived positron emitting lanthanide could prove useful in dose determinations. Second, the depth of research into somatostatin receptors has led to the development of well-established internalizing vectors (21), such as DOTATATE, and non-internalizing vectors (22) such as DOTA-LM3 (23, 24). And third, the receptor is expressed in the pancreas, but not in many other tissues: thereby providing a test-tissue with more realistic perfusion than xenograft tumors. In the present study, testing was performed with DOTA-LM3 anticipating that the redistribution of praseodymium would be most evident with a targeting vector that remained located on the surface of the targeted cells.

Herein, we present the results from ¹⁴⁰Nd-DOTA-LM3 PET quantifications in H727 xenograft tumor-bearing mice before and after euthanasia. The pre- and post-mortem images represent the daughter and parent radionuclide distributions, respectively. As positrons are only emitted by the daughter, PET scanning only reveals the parent distribution in the absence of biological processes that differentiate the vector bound parent from the daughter. We also show verification of the dislocation (also referred to as de-labeling) of ¹⁴⁰Pr from DOTA-LM3 by radio-HPLC. Furthermore, ex vivo biodistributions from ¹⁴⁰Nd-DOTA-LM3 and ¹⁴⁰Nd as the free ion are used to show the source and sink organs for the free praseodymium daughter.

Materials and Methods

General

All water was 18 MΩ-cm MilliQ purified and was used to produce all aqueous solutions. Hydrochloric acid solutions were prepared from concentrated HCl (TraceSelect, Sigma).

Production of ¹⁴⁰Nd

A 55 g/cm² tantalum foil target was irradiated by a 1.4 GeV proton beam, creating a multitude of radioactive and stable spallation products. The product nuclei, lanthanides in particular, diffused from the ≈2,000°C target to a ≈2,000°C tungsten surface ionizer. The ions were extracted at 30 kV and mass-separated with a 70° sector magnet (1.5 m mean bending radius). The A = 140 beam was implanted into two Zn-coated gold foils. The zinc, totaling 2–3 mg had been electrodeposited onto the gold foils over approximately 0.5 cm². The entire procedure is nearly identical to the methodology recently described for projects collecting Tb isotopes at ISOLDE (3, 17).

Radiochemistry

The following methodology was carried out two times with small variations between each run.

The zinc layer containing ¹⁴⁰Nd was etched briefly with aq. HCl (200 µL, 2 M), and the resulting solution was diluted to 2.2 mL with aq. HCl (2 M). This was heated to 98°C, cooled, and passed over AG1x8 anion exchange resin (300 mg, Biorad, 200–400 mesh, initially formate-form) packed in a 4 mm internal diameter (ID), fritted polypropylene column (Supelco) that had been prepped by three times sequential washing with water (3× bed volume), 2 M HCl (3× bed volume), and 6 M HCl (3× bed volume), finishing with equilibration in 2 M HCl. The resin has a high affinity for [ZnCl₄]²⁻ ions in 2 M HCl (25) and was intended to remove any zinc impurity from the ¹⁴⁰Nd. An additional 0.5 mL of 2 M HCl was used to rinse residual ¹⁴⁰Nd from the column, and the entire effluent was collected and adjusted to pH 5–6 with aq. ammonium acetate (1 M, pH 7) and aq. ammonium hydroxide (28%, TraceSelect, Sigma) to a final acetate concentration of roughly 200 mM. This solution was passed over a hydroxamate functionalized Waters CM resin bed (26) (100 mg, 4 mm ID) to trap the ¹⁴⁰Nd and was washed with water (7 mL), then eluted with aq. HCl (600 µL, 0.1 M). The eluent was kept as the stock ¹⁴⁰Nd solution for further radiolabeling and formulation.

For the DOTA-LM3 preparation, 220 µL of the ¹⁴⁰Nd stock solution was added to aq. ammonium acetate (780 µL, 300 mM). Two productions were made, the first with 9 µg DOTA-LM3 (added from a stock solution of 1 mg/mL in water) and the second with 18 µg DOTA-LM3. The solution was heated in a sealed container to 95°C and incubated for 25 min. After cooling to room temperature, the labeling reaction was quenched with aq. DTPA (12 µL, 0.5 mM, pH 7) and let stand for 5 min. The solution was passed over a Waters C18 light sep-pak (prepped with 10 mL ethanol and 10 mL water) to trap the labeled product, rinsed with 1 mL water, and then eluted with 2 mL ethanol. The ethanol solution was taken almost to dryness (residual volume was approximately 50 µL) with the residual being diluted with 900 µL HEPES buffered isotonic saline (10 mM HEPES, 150 mM NaCl, pH 7.4) and was used directly for injections.

The neodymium “chloride” injections were prepared by diluting 100 µL of ¹⁴⁰Nd stock (in 0.1 M HCl) with 390 µL HEPES buffered isotonic saline (10 mM HEPES), and neutralizing with 10 µL 1 M Na-HEPES.

HPLC Verification of De-Labeling and RadioTLC for Determination of Radiochemical Purity

Samples of ¹⁴⁰Nd-DOTA-LM3 were injected onto a reverse-phase C-18 (Luna 3uC18(2)(n) 100 A 100 × 2 mm 3 μm, Phenomenex) column at a flow rate of 0.5 mL/min starting from 0% acetonitrile in water, and reaching 100% over a 15 min gradient. Elution was monitored with a radio detector. The entire effluent was collected in 1 min intervals (500 µL each) and quantified 4 days after collection by liquid scintillation counting on a HIDEX 300 SL spectrometer.

RadioTLC was performed by spotting 1 µL of the DOTA-LM3 solutions (before and after C-18 purification) onto aluminum-backed silica TLC sheets. The sheets were eluted in 10% (w/v) aq. CH₃COONa:CH₃OH (1:1). Unreacted ¹⁴⁰Nd remained at the origin, and ¹⁴⁰Nd-DOTA-LM3 moved to R_f ~0.5.

PET Imaging and Ex Vivo Biodistributions

NCI-H727 lung carcinoid cancer cells (ATCC CRL-5815, LGC Standards) were cultured in RPMI-1640 media supplemented with 10% fetal bovine serum and 1% penicillin-streptomycin (Invitrogen) at 37° C and 5% CO₂. Cells in their exponential growth phase and at 80–90% confluence were harvested by trypsinization and resuspended in 1:1 media and matrigel (BD Biosciences) at 5 × 10⁷ cells/mL. Subcutaneous tumors were established in female NMRI nude mice (Taconic, Denmark) by inoculation of 5 × 10⁶ cells in 100 µL on each flank above the hind limbs in the subcutaneous space. All animal experiments were performed under a protocol approved by the National Animal Experiments Inspectorate of Denmark.

Longitudinal small animal PET/CT imaging (Inveon Multimodality PET/CT scanner, Siemens) was performed with NCI-H727 tumor bearing mice injected intravenously with 3.3–4.3 MBq ¹⁴⁰Nd-DOTA-LM3 (n = 8) or 2.7–3.1 MBq ¹⁴⁰Nd-chloride (n = 3) in 150 µL. Mice were anesthetized with sevoflurane (Abbott Laboratories) during injection and PET/CT imaging. PET data was acquired for 600 s in list mode at 1, 3, and 16 h after injection. The mice were sacrificed after the 16 h time-point and a PET acquisition was performed 2 h post-mortem. Images were reconstructed using a 3D maximum a posteriori algorithm with CT based attenuation correction. CT images were acquired with the following settings: 300 projections, 65 kV, 500 µA, and 400 ms exposure, and reconstructed with an isotropic voxel size of 105 µm. Image analysis was performed using the Inveon Software (Siemens). Region of interests (ROIs) were drawn manually over the tumor regions and other organs based on the CT images and the uptake of ¹⁴⁰Nd-DOTA-LM3 or ¹⁴⁰Nd-chloride quantified as % injected dose per gram tissue (%ID/g).

Conventional ex vivo biodistribution was performed after the post-mortem scan. Tumors and organs were resected, weighted and the radioactivity was counted in a gamma counter (Wizard², PerkinElmer).

Results and Discussion

Isolation of ¹⁴⁰Nd at ISOLDE, Radiochemical Purification, and Radiolabeling of ¹⁴⁰Nd-DOTA-LM3

¹⁴⁰Nd was produced by 1.4 GeV proton induced spallation of tantalum at ISOLDE. The process for vaporization and ionization of lanthanides at the ISOLDE facility is well described (15), and proceeded without complication. The electromagnetic separation of proton rich A = 140 spallation products led to a total of about 530 MBq (in two productions) of >99% radionuclidic purity ¹⁴⁰Nd in two Zn-coated gold foils. The ¹⁴⁰Nd implanted foils were briefly etched (without fully dissolving the entire Zn layer) with aq. hydrochloric acid (HCl, 2 M) and the carrier Zn (approximately 1 mg Zn²⁺ in 2 mL 2 M HCl) was removed by passage over AG1x8 anion exchange resin. ICP-OES measurement showed that Zn was completely adsorbed onto the resin, with <30 ng Zn remaining in the purified ¹⁴⁰Nd stock solution (~60 MBq). ¹⁴⁰Nd was concentrated by trap-and-release on a small mixed-bed hydroxamate/carboxylate-functionalized resin. Trapping was only efficient after heating the solution for several minutes at 95°C, indicating that the ¹⁴⁰Nd may not have been completely dissolved during the initial Zn etching. When the 2 M HCl etch solutions containing the Zn were heated prior to purification, the trapping on the hydroxamate/carboxylate resin exceeded 99% efficiency. The release of ¹⁴⁰Nd from the resin was accomplished by elution with aq. HCl (600 µL, 0.1 M) at 98% efficiency.

The eluted ¹⁴⁰Nd was reacted with DOTA-LM3 in ammonium acetate buffer (300 mM, pH 4.8), and after 30–60 min at 95°C radioTLC indicated that ¹⁴⁰Nd-DOTA-LM3 had formed in a 75% radiochemical yield. Quenching with DTPA and C-18 sep-pak purification led to an ultimate combined radiochemical yield and recovery of 60% in HEPES-buffered saline (pH 7.4). RadioTLC after C-18 purification indicated >95% radiochemical purity of ¹⁴⁰Nd-DOTA-LM3. The production, purification, and labeling procedure was performed twice, where the amount of peptide relative to radioactivity was selected based upon titration. Although it would have been ideal to have all samples at identical specific activity, it was not possible, and in this case, the final radiolabeled specific activities for ¹⁴⁰Nd-DOTA-LM3 were 5.0 and 2.5 MBq/nmol, each with sufficient activity for injection of four mice (see below).

¹⁴⁰Nd in an unchelated form was prepared for injection by pH adjustment of the eluted ¹⁴⁰Nd stock solution with sodium HEPES and diluted to a final formulation in pH 7.4, 150 mM NaCl, and 10 mM HEPES. Characterization of the ¹⁴⁰Nd chemical species was not performed, and it is herein referred to as “¹⁴⁰Nd-chloride” for convenience.

HPLC-Traces of ¹⁴⁰Nd DOTA-LM3

Purified ¹⁴⁰Nd-DOTA-LM3 was analyzed on reverse-phase HPLC to highlight the parent-daughter dechelation effect. The relative quantifications of the HPLC effluent are shown overlaid in Figure 2. The product ¹⁴⁰Nd-DOTA-LM3 eluted at 7.9 min, which agreed with the equilibrated liquid scintillation counter (LSC) trace, confirming >95% radiochemical purity of the ¹⁴⁰Nd-DOTA-LM3. It should be noted that parent-daughter transient equilibrium was reached before the LSC samples were counted, meaning that the LSC signal was representative of the parent ¹⁴⁰Nd elution profile. In contrast, the online radio-detector trace demonstrated the daughter ¹⁴⁰Pr behavior. This is because the detector was more sensitive to gamma radiation arising from positron annihilation after ¹⁴⁰Pr decay, and because of the relatively low abundance of penetrating radiation arising from ¹⁴⁰Nd decay. Here, ¹⁴⁰Pr was shown to elute with the solvent front with an elevated baseline between the solvent peak and elution of the parent ¹⁴⁰Nd-DOTA-LM3. Since the ¹⁴⁰Pr³⁺ eluted faster than the radiolabeled peptide, the solvent front peak was evidence of the formation of ¹⁴⁰Pr³⁺ in the injected solution, and the elevated baseline showed the in situ formation and washout of ¹⁴⁰Pr³⁺ from ¹⁴⁰Nd decaying on the column. From the trace, it was evident that the release of ¹⁴⁰Pr from DOTA-LM3 after ¹⁴⁰Nd decay is >95% efficient, matching the observations of Zhernosekov and co-workers (13). Furthermore, the column behavior illustrated the expected in vivo behavior: a rapid redistribution of the positron-emitting daughter after the decay of the parent.

FIGURE 2

Figure 2. Effluent analysis of ¹⁴⁰Nd-DOTA-LM3 in equilibrium with the daughter, ¹⁴⁰Pr, from reverse-phase HPLC. The black line depicts the immediate radiotrace, showing the distribution of the daughter, ¹⁴⁰Pr. The red bars give the LSC signal from collected fractions, 1 min each, analyzed >4 days after elution, illustrating the parent, ¹⁴⁰Nd, distribution. Detector response is relative and scaled to the maximum for each trace.

Ex Vivo Biodistributions of ¹⁴⁰Nd-DOTA-LM3 and ¹⁴⁰Nd-Chloride

Eight mice bearing dual-flank NCI-H727 lung carcinoid tumors were injected with 3–4 MBq ¹⁴⁰Nd-DOTA-LM3: four at a specific activity of 5 MBq/nmol and four at 2.5 MBq/nmol. A further three tumor-bearing mice were injected with 3 MBq ¹⁴⁰Nd-chloride. PET quantifications were obtained at 1, 3, and 16 h postinjection. After the last scan the animals were euthanized, and following equilibration of the daughter, the mice were rescanned. Finally, the animals were dissected, and tissue samples were weighed and counted.

For the unbound ¹⁴⁰Nd-chloride injections, the ex vivo biodistribution (16 h) showed high levels of accumulation in the lungs, spleen and liver, and to a lesser extent bone and tumor (Figure 3). This is a typical biodistribution for free +3 oxidation state radiolanthanides [for femur and liver vs. tumor, see, Ref. (27)] and for other hard radiometals [e.g., see, Ref. (24)]. The tissues with high accumulation of ¹⁴⁰Nd were also expected to accumulate released ¹⁴⁰Pr, owing to the chemical similarities between praseodymium and neodymium. Thus, this biodistribution serves as a descriptor of which tissues we expect to exhibit “sink” behavior in the pre-mortem PET scans.

FIGURE 3

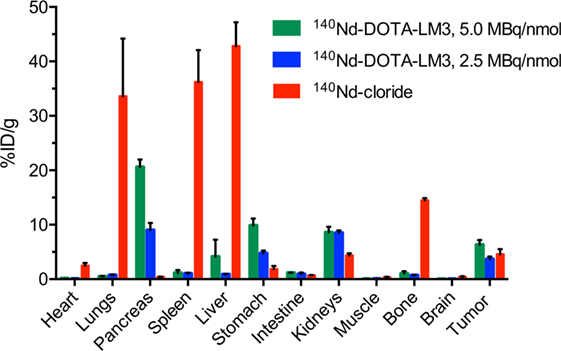

Figure 3. Ex vivo biodistribution of ¹⁴⁰Nd-DOTA-LM3 and ¹⁴⁰Nd-chloride. Animals were euthanized 16 h after injection of 3.3–4.3 MBq ¹⁴⁰Nd-DOTA-LM3 (5.0 MBq/nmol, 0.5 nmol injected, n = 4), ¹⁴⁰Nd-DOTA-LM3 (2.5 MBq/nmol, 1 nmol injected, n = 4) and 2.7–3.1 MBq ¹⁴⁰Nd-chloride (n = 3). Organ counting commenced after parent/daughter equilibrium was achieved (2 h after euthanasia). ¹⁴⁰Nd-DOTA-LM3 quantifications give the “source” distribution for ¹⁴⁰Pr in the 16 h positron emission tomography studies, and ¹⁴⁰Nd-chloride qualitatively describes the “sink” behavior. Data are depicted as mean ± SEM.

The ex vivo biodistribution of ¹⁴⁰Nd-DOTA-LM3 was very distinct from that of ¹⁴⁰Nd-chloride with the pancreas, a known somatostatin receptor positive organ, being particularly interesting (21). The pancreas was found to take up ¹⁴⁰Nd-DOTA-LM3 without accumulating the free radiometal (13% ID/g with high specific activity ¹⁴⁰Nd-DOTA-LM3, compared to 0.1% ID/g with the free ¹⁴⁰Nd³⁺). Therefore, in the PET study, the pancreas was expected to have a lower signal in the pre-mortem ¹⁴⁰Nd-DOTA-LM3 scans compared to the post-mortem scans. The liver, spleen, and lungs had the opposite behavior, accumulating the free radiometal but not the peptide, and were expected to have a higher signal in the pre-mortem scans than in the post-mortem.

Fani et al. showed that in comparing the biodistribution of ⁶⁸Ga-NODAGA-LM3, ⁶⁸Ga-DOTA-LM3, ⁶⁴Cu-NODAGA-LM3, and ⁶⁴Cu-CBTE2A-LM3, tumor uptake relative to the pancreas, stomach, and kidney is highly variable depending on the metal and chelator used (23, 28). In the current work, we injected 300 pmol (5 MBq/nmol) or 600 pmol (2.5 MBq/nmol) in order to get enough signal for the PET scans. For the biodistributions from Fani et al., 10 pmol was injected, and blocking was performed with 200 nmol of excess DOTA-LM3. The overall effect of the blocking was to reduce the uptake in sst2 expressing tissues, which is exactly what was observed between the higher and lower specific activity injections of the current study: a modest reduction in the uptake in sst2 expressing tissues relative to the kidney, and overall faster excretion.

Based upon the ex vivo biodistribution, the tumors had an intermediate behavior, weakly concentrating both the free ¹⁴⁰Nd and the labeled peptide, meaning that the PET signal was expected to change little between the pre- and post-mortem scans (i.e., washout of ¹⁴⁰Pr from the tumor volume could be compensated by uptake of ¹⁴⁰Pr from the bloodstream). This behavior is in many ways an undesirable outcome, because signals arising from the tumors can be attributable to both the free metal ions and the targeted peptide. Future work with a different vector/target system could give a result with a simpler interpretation. Nevertheless, the pancreas remains an interesting tissue within the present set of experiments.

PET Studies Show Tissue Dependent Redistribution of ¹⁴⁰Pr after ¹⁴⁰Nd Decay

Positron emission tomography data were analyzed to quantify the ¹⁴⁰Pr signal from the tumors, pancreas, kidney, lung, and liver (Table 1). The PET signals for the tumors are given as the percent of the injected signal per gram (%IS/g) (Figure 4). This unit is non-standard and is described further in the Supplementary Material. %IS/g was chosen for two reasons: first because the PET scans quantify the redistributed daughter ¹⁴⁰Pr, not the ¹⁴⁰Nd-tracer, and second because the data were not corrected for point spreading due to extensive positron range. This means that there is a substantial partial volume distortion when converting from annihilation signal (%IS/g) to tracer concentration (%ID/g), and that the well-counter based ex vivo biodistribution is not directly comparable to the post mortem PET results. A discussion of the partial volume effect due to the high energy positrons from ¹⁴⁰Pr is included in the Supplementary Material. The tumor time-activity curve shows that in this model (as expected from the ex vivo biodistribution) very little redistribution is observed. For the present case, the tumor was known to accumulate the trivalent lanthanide to some small degree (from the Nd-chloride injection data above), meaning that ¹⁴⁰Pr³⁺ produced by decay in the tumor region had some tendency to remain. In other organs, however, due to the dechelation effect, there was a dramatic change in the PET signal in the pre- and post-mortem imaging quantifications. The redistribution effects are displayed in Figure 5 as the ratio of the mean organ signal between the post-mortem, and pre-mortem (16 h) images. This effect is most evident in the pancreas and liver for the high specific activity injections, where the decrease in liver signal is matched by an increase in the pancreas signal, confirming the behaviors of the peptide and free metal observed in the ex vivo biodistribution.

TABLE 1

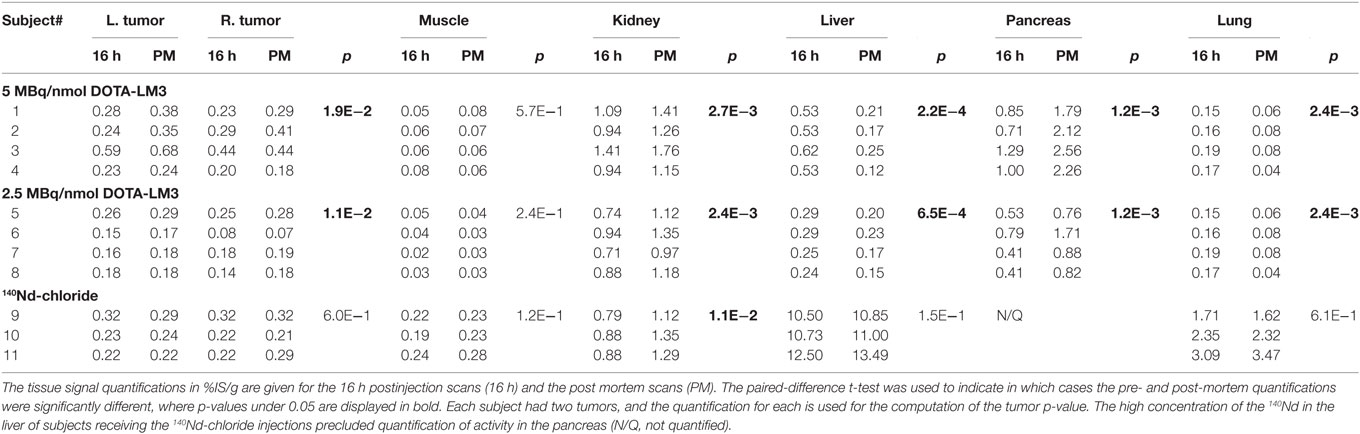

Table 1. Positron emission tomography tissue quantifications and paired-difference two-tailed t-test p-values.

FIGURE 4

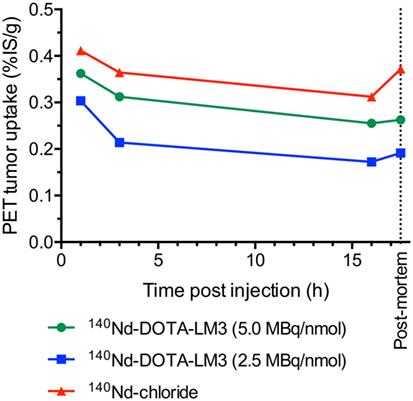

Figure 4. Positron emission tomography (PET) signal in tumors as a function of time after injection with 3.3–4.3 MBq of ¹⁴⁰Nd-DOTA-LM3 or 2.7–3.1 MBq of ¹⁴⁰Nd-chloride. Values are presented as %ID/g and depicted as mean ± SEM (¹⁴⁰Nd-DOTA-LM3, n = 8 each and ¹⁴⁰Nd-cloride, n = 6). Animals were anesthetized with sevoflurane during the 600 s PET acquisitions.

FIGURE 5

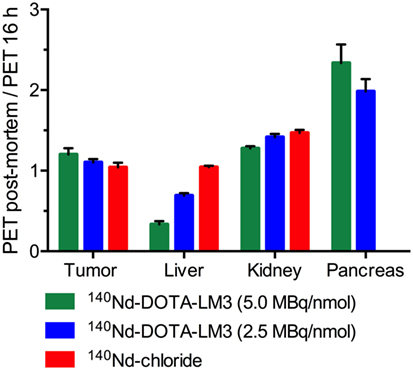

Figure 5. Ratio of the post-mortem positron emission tomography (PET) signal to the pre-mortem (16 h) PET signal for each tissue. Tissues with ratios greater than unity release ¹⁴⁰Pr into circulation faster than they absorb it. ¹⁴⁰Pr is trafficked away from the site of ¹⁴⁰Nd decay. The pancreatic signal from the ¹⁴⁰Nd-chloride images was masked by the high liver signal, prohibiting reliable quantification.

It should be noted that the injected mass of the tracer had a large effect upon the PET quantifications and ex vivo biodistribution (Figures 4 and 5). This indicates that the receptor-specific accumulation was becoming saturated as the injected mass increased from 0.5 nmol (5.0 MBq/nmol) to 1 nmol (2.5 MBq/nmol). This saturation behavior is non-desirable for probing the internalization behavior of the peptide as non-specific interactions begin to dominate the tracer distribution.

Figure 6 shows an example PET/CT reconstruction, qualitatively illustrating the redistribution effect. The most striking differences in the images between the daughter distribution (16 h, left panels) and the parent distribution (post-mortem, right panels) are seen in the liver, lungs, and pancreas. As expected, the 16 h pre-mortem PET images more closely reflected the biodistribution observed for the free ¹⁴⁰Nd-chloride injections, while the post-mortem images showed the biodistribution for the intact ¹⁴⁰Nd-DOTA-LM3 tracer.

FIGURE 6

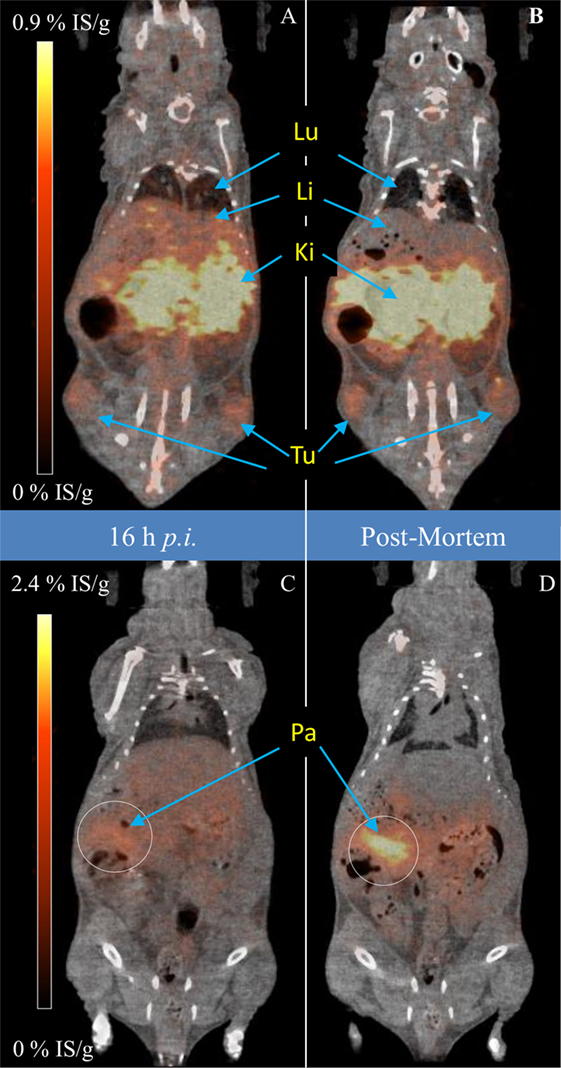

Figure 6. Pre-mortem [left (A,C)] and post-mortem [right (B,D)] positron emission tomography/CT scan of a mouse 16 h after injection with 2.9 MBq ¹⁴⁰Nd-DOTA-LM3 (5.0 MBq/nmol). The upper frames are shown with a different scale in order to allow visualization of the sink behavior of the liver and lungs. In the lower frames, a white circle is drawn over the pancreas (somatostatin receptor expressing) where the difference in the pre- and post-mortem pancreatic signal is due to rapid diffusion of ¹⁴⁰Pr from the highly perfused pancreas into the blood stream. Data were acquired over 600 s. Pre-mortem anesthesia was sevoflurane (Lu, lungs; Li, liver; Ki, kidney; Tu, tumor; Pa, pancreas).

The most important result from the PET imaging was the pancreatic signal. In this case, in the pre-mortem image, it was difficult to delineate the pancreas due to the elevated-background in the liver. This is despite the fact that the ex vivo biodistribution revealed that the pancreas contained 13%ID/g of the tracer: which should be easily distinguishable from the 3%ID/g of the liver. The discrepancy is resolved in the post-mortem imaging, where the accumulation of the tracer in the pancreas, and not in the liver, is apparent. The effects observed are consistent with a hypothesis that ¹⁴⁰Nd-DOTA-LM3 localized on the surface of pancreatic cells (via non-internalizing interactions with the somatostatin receptor) releases ¹⁴⁰Pr³⁺ into the blood stream, where it is quickly redistributed to the liver, spleen and lungs. In fact, results from the higher specific activity ¹⁴⁰Nd-DOTA-LM3 studies show that 56 ± 7% (n = 4, mean ± SD) of the in situ produced ¹⁴⁰Pr washed out of the pancreas before decay.

For statistical analysis the pre- and post-mortem PET quantifications were compared with a paired-difference two-tailed t-test. The tabulated data are presented in Table 1, along with the p values. In this case, the t-test was used to determine the significance of the absolute difference between the pre- and post-mortem signals in %IS/g. Admittedly, there are many ways to analyze these data, and in this case, the paired-difference test was selected because it adds to the statistical power by comparing the tissues in a single subject to themselves after intervention. Clearly from the p values in Table 1, the use of DOTA-LM3 as a tracer led to significant changes from the pre- to post-mortem images, while the non-targeted ¹⁴⁰Nd-chloride remained largely unaltered. Of note in the free ion ¹⁴⁰Nd-chloride injections, is that the only tissue with a statistically significant difference between the pre- and post-mortem quantification is the kidney, whereas in the targeted DOTA-LM3 images the only tissue lacking a significant difference was the muscle. The kidney is interesting because in all cases the post-mortem signal was higher, by 25–50% than the pre-mortem value. While it could be suggested that this is due to rapid excretion of ¹⁴⁰Pr³⁺ from the kidney to the bladder in vivo, the fact that this is also observed with the ¹⁴⁰Nd-chloride injections indicates that within the kidney the chemical form of the neodymium is not necessarily as a free cationic lanthanide. However, in all other tissues, the distribution of ¹⁴⁰Nd from the ¹⁴⁰Nd-chloride injections strongly resembles that of redistributed ¹⁴⁰Pr.

The pancreatic washout reveals a potential benefit derived from the ¹⁴⁰Pr’s delayed positron. Specifically, the degree of redistribution of ¹⁴⁰Pr³⁺ may be affected by its location and access to blood flow. This means that the PET signal observed with ¹⁴⁰Nd labeled vectors might be highly dependent on their cellular internalization status, as ¹⁴⁰Pr³⁺ cations originating from decays occurring on the surface of the cell or in circulation may be transported away by the blood flow, whereas¹⁴⁰ Pr³⁺ cations released from ¹⁴⁰Nd decay inside of a cell have an additional diffusion barrier. A conceptual graphic demonstrating the idea is depicted in Figure 7. As many promising new classes of pharmaceuticals, in particular nanoparticle drug formulations, gene therapy and targeted Auger emitting radionuclides, are expected to be most effective when internalized, a PET radiolabel for determining internalization would be a valuable tool for drug development.

FIGURE 7

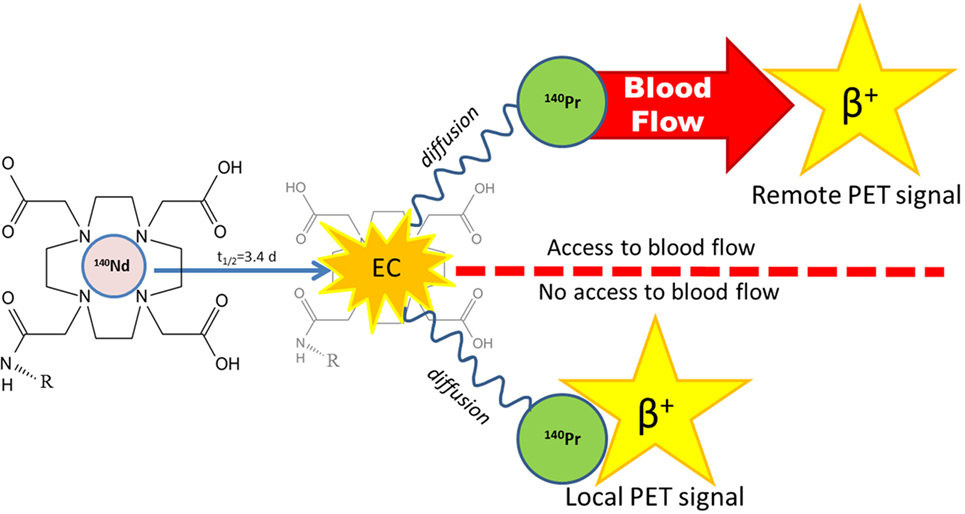

Figure 7. A conceptual drawing of the experimental hypothesis. A tracer (R), is labeled by DOTA-bound ¹⁴⁰Nd which decays by electron capture (EC) to ¹⁴⁰Pr. The resulting atomic rearrangement releases the daughter ¹⁴⁰Pr from DOTA as a free ion. If ¹⁴⁰Pr diffuses into the blood stream before decaying (upper path), it will be carried away and give a remote positron emission tomography (PET) signal. However, if there is a diffusion barrier such as a cell membrane or a lack of blood flow (lower path), the PET signal will remain localized to the tracer accumulation site.

General Discussion

When searching for long-lived PET radionuclides, the utility of ¹⁴⁰Nd is immediately evident in its half-life and lack of concurrent gamma emissions. However, due to the nature of the delayed positron from the short-lived daughter, it is important to understand how imaging may be affected by dechelation. The redistribution of ¹⁴⁰Pr in the present case was clearly visible in the pre- and post-mortem PET images. While the tumor signal was significantly changed, the magnitude of change was small which may preclude application. However, this behavior might be model dependent, and not general for all tumor types or locations. Nevertheless, the signals from the other tissues show the potential for using the daughter-delay to determine the in vivo internalization status of new probes, as highlighted by the pancreatic signal. These data support a hypothesis that in certain cases, PET imaging with ¹⁴⁰Nd provides a localized signal only if a vector is internalized. This capability may prove useful in future drug development where in vivo internalization is critical for drug action.

Overall, the statistical analysis proves that the images generated using a DOTA-based ¹⁴⁰Nd/¹⁴⁰Pr in vivo generator are significantly altered from the true distribution of the tracer. With more development, it may be possible to use this technique to determine specific details of the interaction between the tracer and its molecular target. While the p-values are often less than the nominal 0.05 designation for statistical significance, practical significance is weakened by a large inter-subject variability. This means that further development in the ¹⁴⁰Nd in vivo generator system will, for the time-being, remain an invasive procedure relegated to pre-clinical drug development.

Conclusion

In this study, we showed that the non-internalizing tracer ¹⁴⁰Nd-DOTA-LM3 accumulates in the pancreas and releases ¹⁴⁰Pr³⁺ into the blood stream where it quickly redistributes to the liver and lungs. We hope that further work will lead to the development of internalization sensitive PET probes using ¹⁴⁰Nd as the radiolabel. The experimental set up described here with pre- and post-mortem imaging should facilitate that development as it allows direct quantification of the parent (¹⁴⁰Nd, post-mortem) and daughter (¹⁴⁰Pr, pre-mortem) in the same subject. The ability to determine the tissue-dependent internalization of pharmaceuticals using PET would aid greatly in drug delivery designs where cellular internalization is crucial to drug action.

Ethics Statement

All animal experiments were performed under a protocol approved by the National Animal Experiments Inspectorate of Denmark.

Author Contributions

GS, LK, CN, KMJ, and UK initiated the project and conceived the experiments. UK and KJ coordinated and performed production and collections of ¹⁴⁰Nd from ISOLDE-CERN. GS, JF, AJ, and AF prepared and performed the radiochemistry and quality control. LK and CN performed the in vivo and ex vivo work. GS, LK, CN, AJ, JF, HM, DJ, AK, KMJ, and KJ contributed in the interpretation of results and final design of experiments. All authors provided critical input into the final work and approve of its publication.

Conflict of Interest Statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Acknowledgments

The authors would like to thank Dr. Etienne Vermeulen from the Paul Scherrer Institute for depositing the zinc layer onto the gold foils, and for shift operations at ISOLDE alongside Matthias Mikkelsen and Lars Emil Gutt from the Niels Bohr institute. Additionally, we would like to thank CERN/ISOLDE for making beam time available. Financial support was provided by the ENSAR (EU FP7 framework, contract 262010) and MATHIAS (EU FP7 framework) grants, the John and Birthe Meyer Foundation, Novo Nordisk Foundation, Lundbeck Foundation, AP Møller Foundation, Svend Andersen Foundation, the Arvid Nilsson Foundation, Research Council for Independent Research, Research Council of Rigshospitalet, and Research Foundation of the Capital Region of Denmark.

Supplementary Material

The Supplementary Material for this article can be found online at http://journal.frontiersin.org/article/10.3389/fmed.2017.00098/full#supplementary-material.
