Analysis of the thickness of layered armor to provide protection against 7.62 mm ball projectiles using experimental and numerical methods

The layered configuration of different material plates is one of the ways of achieving protection against different kinds of kinetic energy ammunitions. The thickness of each plate is one of the most important influencing parameters to prevent the penetration of the projectile. In the present study, a layered configuration of the Al₂O₃ and Al 7075-T651 is analysed, to prevent the perforation of 7.62 mm Lead core projectile, under normal impact conditions, by using LS-DYNA numerical simulations. Experiments were conducted on Al 7075-T651 plate and Numerical model was validated with experiment results. To achieve the objective, the validated numerical model was used to investigate influence on various Al₂O₃ and Al 7075-T651 combinations. Three factors led to the selection of Al 7075-T561 and Al₂O₃ as the target materials. First, the literature review revealed that these materials have already been employed in the construction of armour. Second, Al₂O₃ is a brittle material whereas Al 7075-T651 is ductile. Consequently, when combined in a layered arrangement, these materials offer the ideal destroyer-absorber arrangement. Thirdly, these materials have lower densities than steel. As a result, these materials offer a lightweight alternative for lead core 7.62 mm bullet defense. From the analysis, it is observed that two layered configurations were found to be effective in the prevention of bullet perforation: a front plate of Al₂O₃ that was 10 mm thick and had a rear plate of Al 7075-T651 that was 06 mm thick, and a front plate of Al₂O₃ that was 04 mm thick and had a 12 mm thick layer of Al 7075-T651.

1 Introduction

Various materials are being developed and researched for the application of ballistic protection against different attacks. Some of the ways of protection against kinetic energy ammunition is to use high-strength materials, configuration of different materials in layered formats such as double layered, triple layered configurations, spaced armour, etc. The design of armouring is generally based on the type of threat. Various research has been conducted on different parameters related to impact studies. J. Venkatesan et al. (Venkatesan et al., 2017) evaluated ballistic performance of layered armor made of SiC and aluminum against layered armor made of Al₂O₃ and aluminum against ogive nose projectiles. Results showed that performance of SiC-Al armour is better and it causes more damage of the bullet. Turhan et al. (2008) studied layered configuration of Al 2024-T351 and Al₂O₃ against 7.62 mm AP bullet. In this study, new material constants were obtained that better described the deformation of steel core and aluminium. Mazaheri et al. (2017) investigated the influence of wrapping aluminium foil on the impact face of Al₂O₃ tile on energy absorption as well as ballistic limit velocity using numerical and experimental methods. According to the results, there was an increase in energy absorption and ballistic limit velocity due to the fracture conoid angle, which delayed the crack’s propagation to the backplate. The ballistic limit velocity of laminated panels made of high-strength steel and Al 7075-T6 was investigated by Rahman et al. (2016) against 7.62 mm AP bullets at 900–950 m/s. The triple-layered mixture proved to be a good alternative for losing weight without compromising effectiveness, according to the results. Flores-Johnson et al. (2011) examined the ballistic performance of monolithic, double, and triple layer aluminum and steel plates against 7.62-mm APM2. Results predicted that improved ballistic performance and weight reduction can be achieved by layered configurations having different metals. Morghode et al. (Morghode and Thakur, 2023; Morghode et al., 2024) found that the layered arrangement of an Al₂O₃ front plate that was 18 mm thick and Al 7075-T651 back plate that was 10 mm thick, could stop 7.62 mm APM2 bullet with maximum impact velocity of 830 m/s from penetrating. Najihah Abdul Rahman et al. (2018) studied high speed impact on layered Al 7075-T651 and steel panel by 7.62 mm lead core bullet. Results showed that laminated panel with Al 7075-T651 back plate can be considered for designing protective structures for vehicle while maintaining performance and achieving weight reduction. Impact of material’s primary properties on modified Johnson-Cook material model was examined by Zuzov and Shash (2016).7.62 × 63 mm NATO Ball as well as 7.62 × 63 mm APM2 ammo were employed in this investigation along with an AA7075-T651 plate. Praveen et al. (2022) investigated influence of solution treatment and thickness of target on ballistic performance of Al 7075 T651 against 7.62 × 51 mm ball ammunition. Results showed that Al 7075-T651 experienced brittle fracture with splinter formation, whereas solution-treated plates experienced petaling. Vignjevic et al. (2012) conducted study on the modelling of dynamic failure in Al alloys. De Vuyst et al. (2017) studied orientation for cubical fragments. Using ANSYS Explicit dynamics/Autodyn software, Naik et al. (2024) conducted study on 3D printed Aluminium alloy for ballistic applications, Gálvez et al. (2005), V. Pranay (Pranay V. and Panigrahi S. K., 2022; Pranay V. and Panigrahi, S. 2022; Pranay and Panigrahi, 2022c; Pranay and Panigrahi, 2023; Pranay and Panigrahi, 2024) tried an effective penetration of the target and carried out numerical research for the creation of projectiles. Numerical finite element analysis is an effective method for solving problems of engineering field. It is very beneficial for problems where analytical solutions cannot be obtained. This approach is very useful when design geometry is complex and the accuracy requirement is high. FE analysis is recommended for problems involving understanding strength of materials under pressure loading (Pany, 2022a), structural design and testing (Vamsi et al., 2021), to predict the performance and behavior of the design (Pany, 2021b), to calculate the safety margin and to identify the weakness of the design accurately (Pany, 2021a) and to identify the optimal design (Pany and Rao, 2004; Pany, 2022b; Pany and Li, 2023). Lead-cored 7.62 mm ball bullet is a widely used ammunition that has resulted in numerous civilian casualties worldwide. Hence, there is an unavoidable need for security forces to protect from 7.62 mm ball bullets. Commercial vehicles used by the security forces are not capable of providing protection against 7.62 mm ball ammunition. Thus, fixing of add on armour on such vehicles is the most economical and effective method. However, adding more armor adds weight, which could reduce the vehicle’s efficiency. As per the literature of Morghode et al. (2024), the layered configuration of Al₂O₃ front plate and Al 7075-T651 back plate is studied against 7.62 mm APM2 projectile, which is made of hard steel core. In the present study, the same combination of materials, with different thicknesses, is used to study impact against 7.62 mm ball ammunition, which is made of lead core. The aim of this study is to minimise the penetration of 7.62 mm lead cored bullets with impact velocity of 720 m/s by carefully choosing and optimising the thickness of the materials that can be utilized as armour. As a result, the criteria to maximize the strength to weight ratio and provide defence against 7.62 mm ball rounds were met at the same time. Experiments were conducted on Al 7075-T651 plate and Numerical model is validated with experiment results. To achieve the objective, the validated numerical model is used to investigate influence on various Al₂O₃ and Al 7075-T651 combinations. Three factors led to the selection of Al 7075-T561 and Al₂O₃ as the target materials. First, the literature review revealed that these materials have already been employed in the construction of armour. Second, Al₂O₃ is a brittle material whereas Al 7075-T651 is ductile. Consequently, when combined in a layered arrangement, these materials offer the ideal destroyer-absorber arrangement. Thirdly, these materials have lower densities than steel. As a result, these materials offer a lightweight alternative for lead core 7.62 mm bullet defense. The Research methodology used for the study is explained in depth in the sections that follow.

2 Methodology

Initially, an experiment is conducted on an Al 7075-T651 plate of 15 mm thickness, impacted by 7.62 mm Lead core ammunition, at normal impact conditions. A numerical model is developed using LSDYNA finite element analysis. The model is validated using the experiment results. The validated model conditions are used for the analysis of layered configuration. A detailed research methodology flow chart is shown in Figure 1.

Figure 1

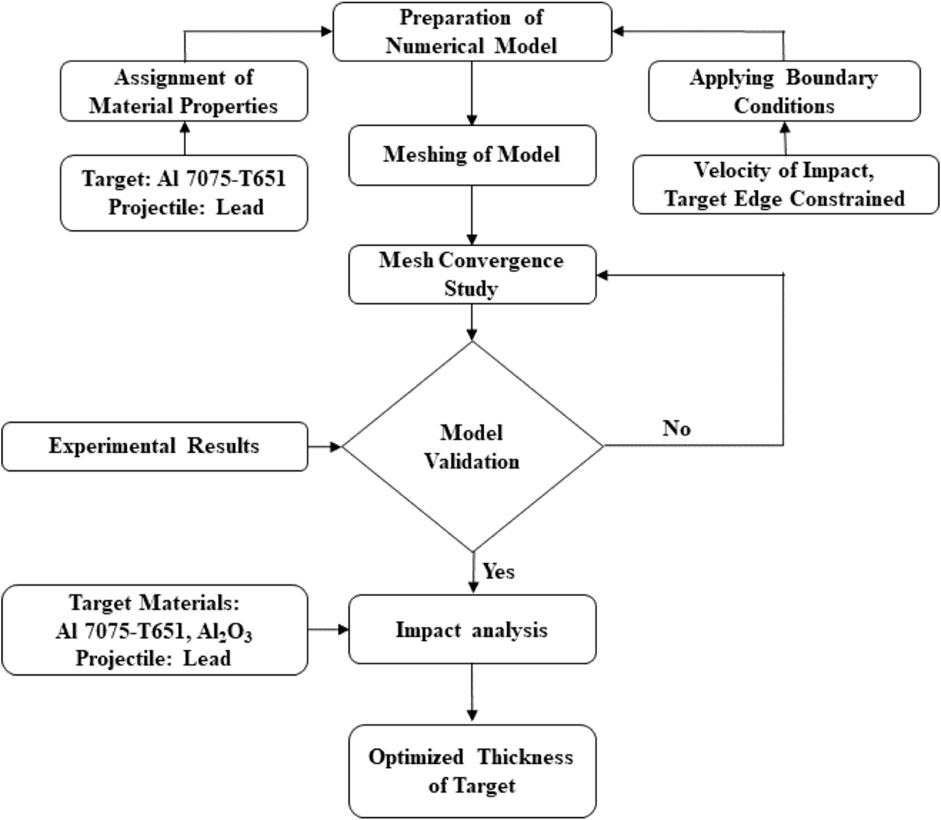

Figure 1. Research methodology.

2.1 Experimental study on Al 7075-T651 target

Ballistic impact experiments on Al 7075-T651 plate were impacted by 7.62 mm lead core bullet. These bullets have an outer jacket for protection and an inside lead core. This jacket, which is often composed of brass, is intended to interact with barrel’s lands to give the bullet spin as it passes through the barrel. The target used for the experiment is Al 7075-T651 bar having diameter of 130 mm of 100 mm thickness. Target holders held the target plates in place, while the weapon was secured to the universal Ballistic Test Equipment. The schematic of the experiment setup is shown in Figure 2. The target was maintained 10 m away from the rifle’s barrel. A Doppler Velocity Measurement System is used to record the muzzle velocity and impact velocities. Doppler velocity analysis of impact of bullets is shown in Figure 3. This is a velocity versus time graph that represents velocity variation of the projectile with time, after it leaves the barrel of the weapon. In Figure 3, V₀ represents the muzzle velocity and V_x1 represents the impact velocity of the projectile. The impact surface of Al 7075-T651 post impact of bullets is shown in Figure 4. Table 1 represents the muzzle velocities, impact velocities and depth of penetrations measured post impact experiments using two bullets.

Figure 2

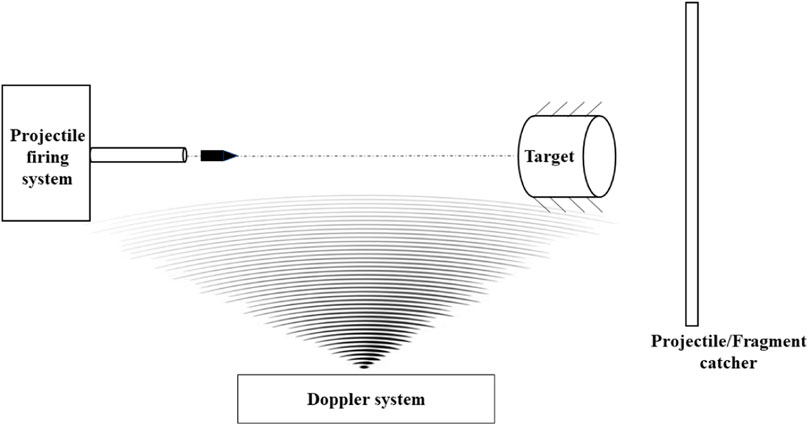

Figure 2. Schematic of experimental setup.

Figure 3

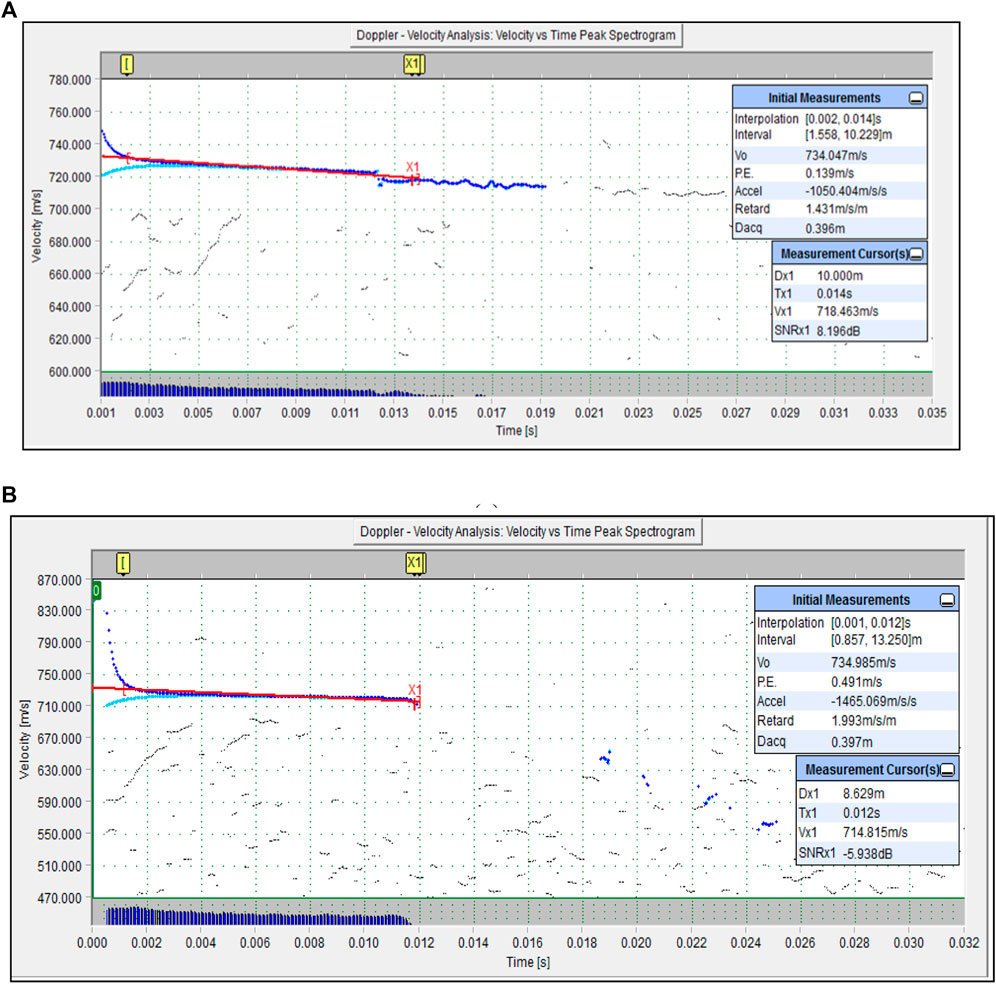

Figure 3. Doppler system results for impact of (A) Bullet-1 (B) Bullet-2.

Figure 4

Figure 4. Al 7075-T651 target post impact.

Table 1

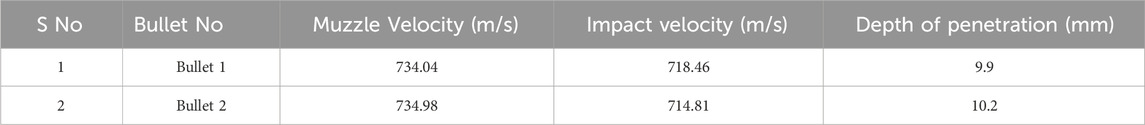

Table 1. Muzzle and impact velocities and depth of penetrations.

2.2 Finite element model

2.2.1 Geometry modelling

2.2.1.1 Projectile

In this study, impact analyses are performed using 7.62 mm lead cored bullets. The bullet’s contact with the target substance is unaffected by the brass jacket. In order to shorten computing time needed for simulations, jacket is not taken into account. The bullet was designed in Solid Works and then imported into LS DYNA for simulations. The schematic of projectile with dimensions is shown in Figure 5.

Figure 5

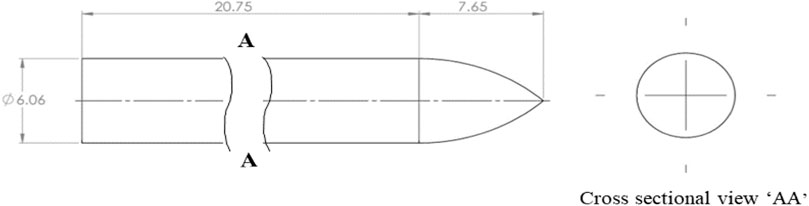

Figure 5. 7.62 mm lead core projectile (in mm).

2.2.1.2 Target

The target model was created using the LS-DYNA program. The target was intended to be a 152 mm-diameter circular plate. Three sections were further divided into this circular plate. The impact area at circular target’s centre was created as square with 10 mm edge. The circular-shaped second and third regions were intended to have respective diameters of 30 and 50 mm. The circular target’s dimensions are shown in Figure 6.

Figure 6

Figure 6. Target discretization.

2.2.2 Meshing

Hexahedron elements are used for meshing in order to cover maximal volume as well as curvature of bullet and the target (Pranay V. and Panigrahi S., 2022). LS DYNA (LS-DYNA, 2018) was used for target plate meshing, while ABAQUS was used for bullet meshing. A thorough analysis of mesh convergence was carried out in order to save computing time and choose ideal element size for projectile and target. The outcomes of trials were compared with those obtained by varying size of elements. The size of elements in square area at the target plate’s center was determined to be 0.25 mm. In a similar vein, the parts in the circular portion with the 50 mm and 30 mm diameters will have 1 mm and 0.5 mm in diameter, respectively. The element size will be 2 mm after reaching a diameter of 50 mm. The detailed mesh convergence study is presented in the literature (Morghode et al., 2024). The meshed models of the projectile and the target are shown in Figure 7.

Figure 7

Figure 7. Meshing model of: (A) Projectile and (B) Target.

2.2.3 Material characteristics

Lead is considered for projectile, and Al 7075-T651 and Al₂O₃ are considered for target. The Johnson-Cook (JC) Strength and Failure Model (Johnson and Cook, 1983; Johnson and Cook, 1985) are used to define material for Lead (Seidl et al., 2018) and Aluminum 7075-T651 (Jørgensen and Swan, 2014) and the material properties are given in Table 2. Johnson Holmquist model (Johnson and Holmquist, 1994) is used to define the Al₂O₃ (Zochowski et al., 2021) and properties are given Table 3.

Table 2

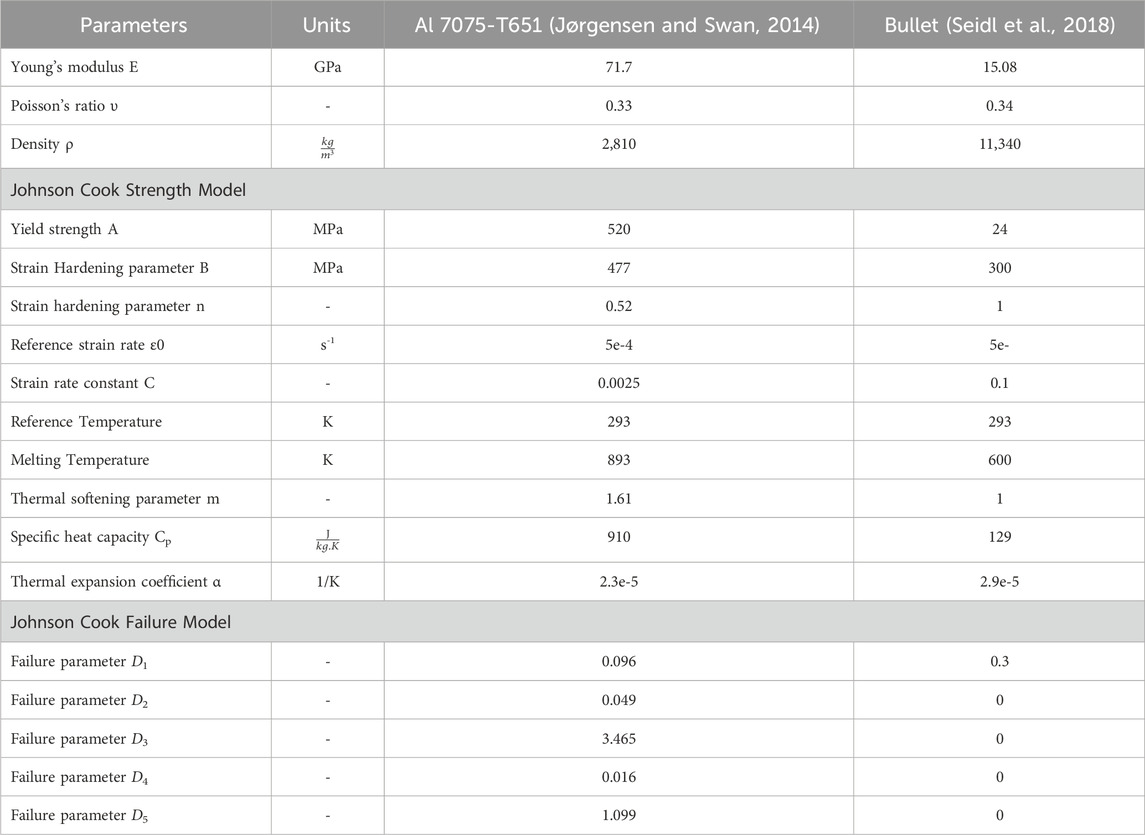

Table 2. Material characteristics of bullet (Seidl et al., 2018) and Al 7075-T651 (Jørgensen and Swan, 2014).

Table 3

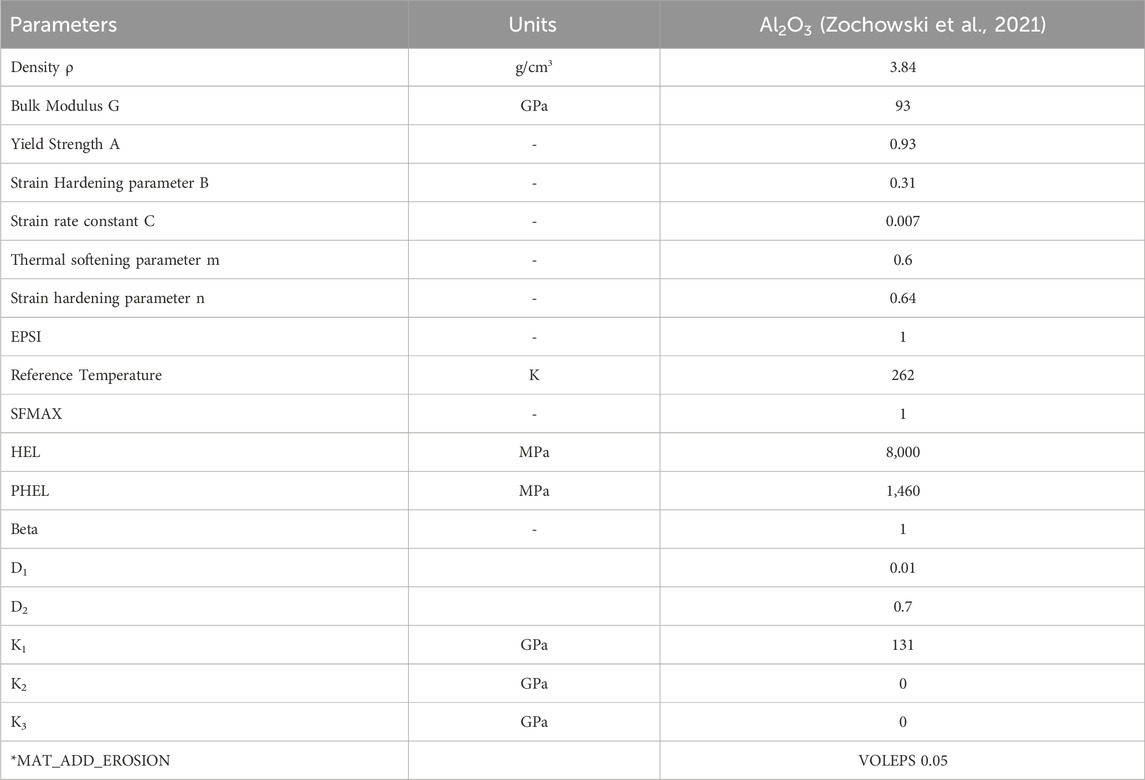

Table 3. Material properties for Al₂O₃ (Zochowski et al., 2021).

2.3 Model validation

Since LS-DYNA is one of the best programs for conducting high-velocity impact simulations, it was utilized in this investigation. Prior to conducting layered configuration analysis, projectile and target model created for this study had to be validated. Therefore, the current model was validated using experimental results listed in Table 1. Rotational and translational degrees of freedom along the boundary of the target were constrained so that there was no motion. Figure 8 depicts the assembly of different parts and boundary conditions. The adhesive bond between the Al₂O₃ plate and the Al 7075-T651 plate was modeled by defining a contact model ‘Tie-Break Surface to Surface Contact’ that will break when the stress limits are exceeded. After standardizing the experimental data, it was discovered that the depth of penetration attained was 10.33 mm at impact velocity of 720 m/s. Depth of penetration obtained from numerical simulation was 11.05 mm (simulation is shown in Figure 9). On comparing both the results, it is observed that the present model resulted in 6.97% error in over estimation. It was fair to believe that model was validated and that it could be further expanded to examine layered setup because the error was extremely small and in the overestimation range.

Figure 8

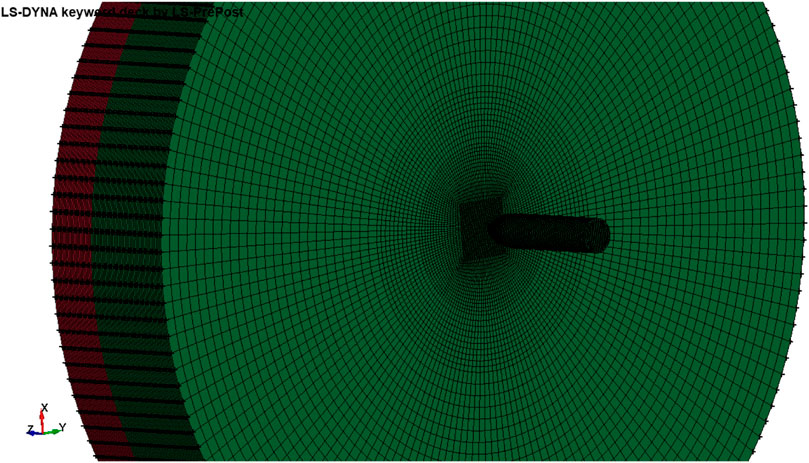

Figure 8. Boundary conditions of FE model.

Figure 9

Figure 9. Influence models on Al 7075-T651 plate.

3 Numerical analysis

For additional investigation, the verified model conditions were employed. The target materials for the monolithic plates were initially Al 7075-T651 and Al₂O₃. The majority of studies employ Al₂O₃ materials in layer configurations, meaning that Al₂O₃ layer is used to absorb impact and the other ductile layer is used to absorb leftover energy. This study examines both monolithic and layered armor systems to optimize weight without compromising functionality.

3.1 Analysis of monolithic plates

3.1.1 Study on monolithic Al 7075-T651 target material

Initially, 7.62 mm lead core projectile having velocity 720 m/s, was impacted on 15 mm thick plate of Al 7075-T651. Bullet was successfully stopped by the plate, and measurement of depth of penetration revealed that it was 11.03 mm. The target underwent elastic deformation, and the rear face of the target seemed undamaged. Figure 9 displays impact simulations on independent monolithic Al 7075-T651 plate.

3.1.2 Study on Al₂O₃ target material

Furthermore, a 15 mm thick Al₂O₃ target was struck by a 7.62 mm lead cored bullet at the same velocity, i.e. 720 m/s. It was observed that Al₂O₃ plate was unable to restrict the bullet completely. Target had experienced failure having brittle fracture and the plate was completely damaged. Figure 10 displays impact simulations on an independent Al₂O₃ plate.

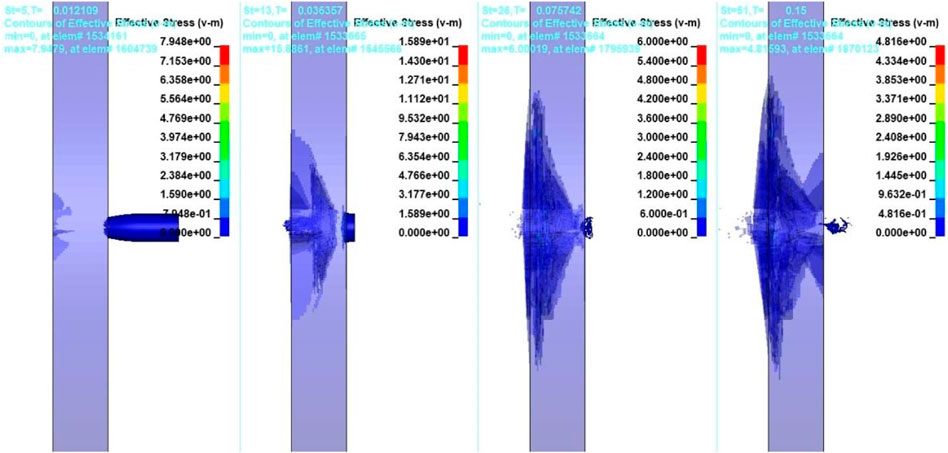

Figure 10

Figure 10. Influence models on Al₂O₃ plate.

3.2 Layered configuration analysis

Al 7075-T651 and Al₂O₃ were combined and applied in layers to provide improved defense against 7.62 mm lead cored rounds. Al 7075-T651 was thought to be the back plate and Al₂O₃ to be the front plate.

3.2.1 10 mm Al₂O₃ and 10 mm Al 7075-T651

First, the impact simulation was carried out and each plate in the stacked combination was taken to be 10 mm thick. It was noted that stacked plates effectively stopped the projectile, while the Al 7075-T651 plate only suffered minor pressures. The projectile had undergone significant distortion as well. Figure 11 shows some simulation images.

Figure 11

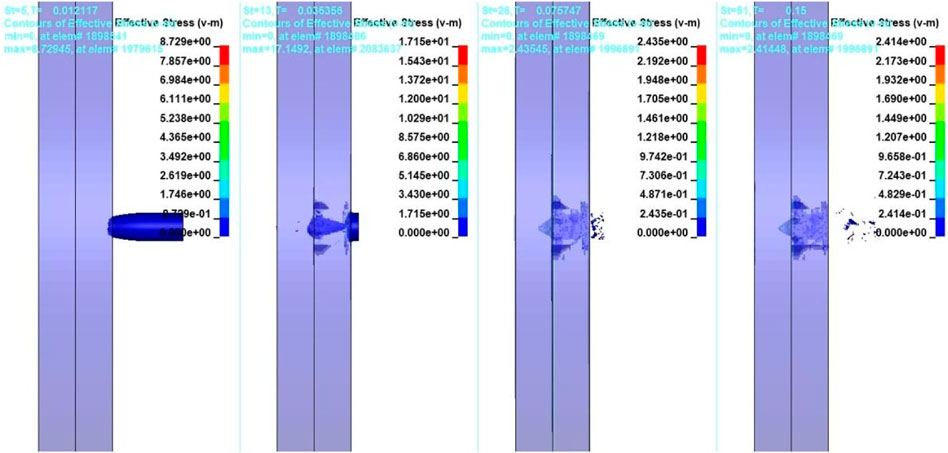

Figure 11. Effect on the Layered arrangement of 10 mm Al 7075-T651 rear plate and 10 mm Al₂O₃ front plate.

In order to optimize the weight of target further, different layered configurations were required to be tested. Therefore, an impact analysis was carried out and thickness of the Al 7075-T651 rear plate was lowered in stages of 2 mm during the first phase. It is discussed in earlier section that the projectile shatters the Al₂O₃ front plate. Therefore, the thickness of the Al 7075-T651 back plate is gradually decreased to ensure that protection against projectiles is maintained and that there is no plastic deformation at back plate’s rear surface. Then in second phase, thickness of Al₂O₃ front plate was reduced, in steps of 2 mm and the impact analysis was conducted to achieve optimum protection against the projectile. The impact analysis of various layered configurations is shown in succeeding sections.

3.2.2 10 mm Al₂O₃ and 08 mm Al 7075-T651

The 7.62 mm Lead core bullet had an impact on the layered configuration of 10 mm thick front plate of Al₂O₃ and 08 mm thick back plate of Al 7075-T651. It was observed that this combination was able to arrest bullet but damage on front plate increased. The projectile was completely damaged. Simulation images are shown in Figure 12. Subsequently, the Al 7075-T651 back plate’s thickness was further decreased by 2 mm.

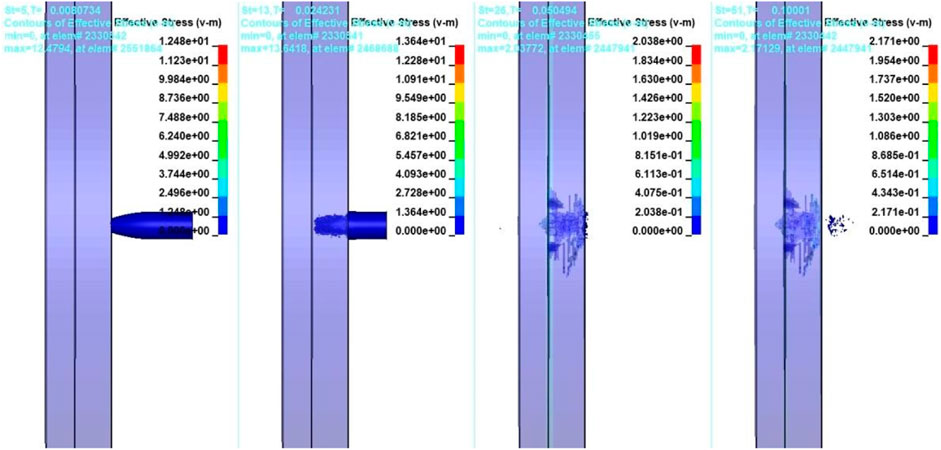

Figure 12

Figure 12. Effect on the Layered arrangement of 08 mm Al 7075-T651 rear plate and 10 mm Al2O3 front plate.

3.2.3 10 mm Al₂O₃ and 06 mm Al 7075-T651

The 7.62 mm Lead core bullet had an impact on the layered configuration of 10 mm thick front plate of Al₂O₃ and 06 mm thick back plate of Al 7075-T651. It was observed that this combination was able to arrest bullet but excessive damage was observed on the front plate. The projectile was completely damaged. Deformation was also observed in Al 7075-T651 back plate but it was within elastic limit. No plastic deformation was observed in back plate. Simulation images is given in Figure 13. Subsequently, the Al 7075-T651 back plate’s thickness was further decreased by 2 mm.

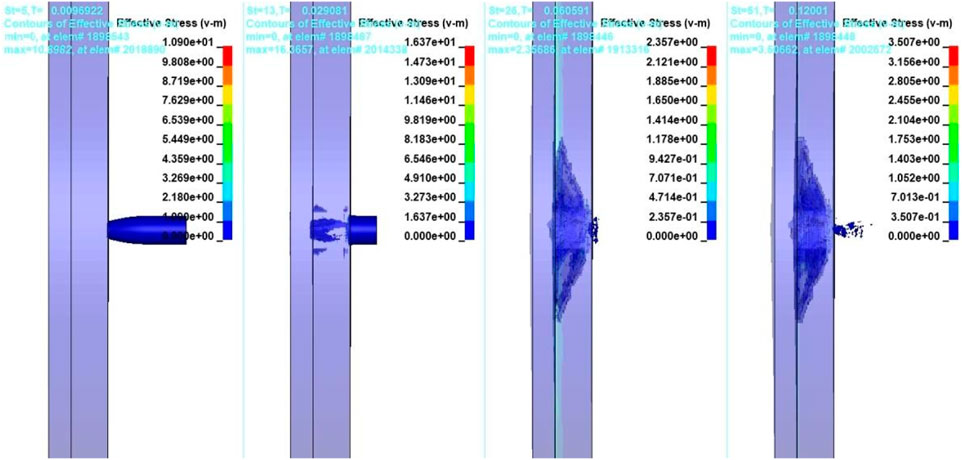

Figure 13

Figure 13. Effect on the Layered arrangement of 06 mm Al 7075-T651 rear plate and 10 mm Al2O3 front plate.

3.2.4 10 mm Al₂O₃ and 04 mm Al 7075-T651

The 7.62 mm Lead core bullet had an impact on the layered configuration of 10 mm thick front plate of Al₂O₃ and 04 mm thick back plate of Al 7075-T651. It was observed that this combination was able to arrest bullet but excessive damage was observed on the front plate. The projectile was completely damaged. Plastic deformation was observed in the Al 7075-T651 back plate, which is not desirable. Figure 14 shows some simulation images.

Figure 14

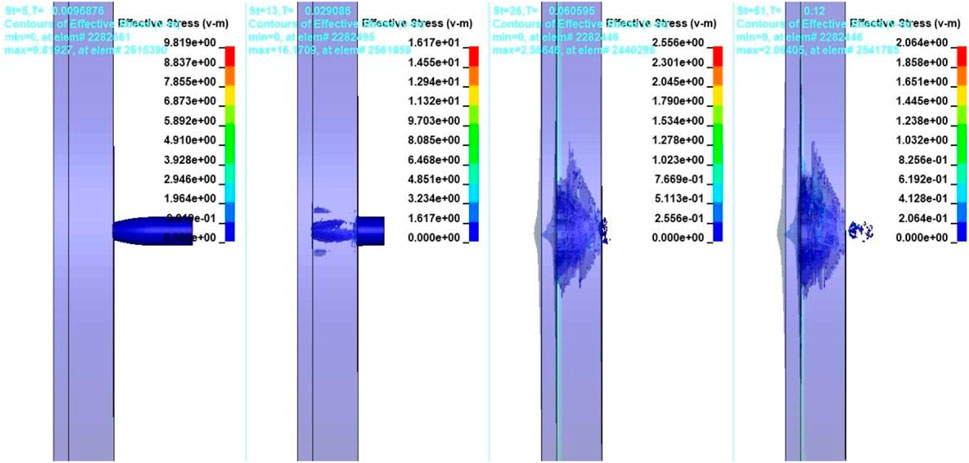

Figure 14. Effect on the Layered arrangement of 04 mm Al 7075-T651 rear plate and 10 mm Al2O3 front plate.

It was found that while projectile penetration was limited as rear plate thickness decreased, cone fracture formation boosted front plate damage on Al₂O₃. The intensification of the reflected stress waves was the cause of this. Following this simulation, it was determined that the best configuration for stopping the bullet without causing plastic deformation to the backplate was a layered arrangement with a 10 mm thick Al₂O₃ front plate and a 06 mm thick Al 7075-T651 rear plate. Al₂O₃ is known to have higher density than Al 7075-T651. Therefore, lowering Al₂O₃’s thickness will lower the configuration’s total weight. Hence, in order to achieve optimized weight, the Al₂O₃ front plate thickness was reduced in steps of 2 mm and thickness of Al 7075-T651 back plate was kept constant as 10 mm. The impact analysis of various layered configurations, while reducing the thickness of Al₂O₃ front plate, is shown in succeeding sections.

3.2.5 08 mm Al₂O₃ and 10 mm Al 7075-T651

The 7.62 mm Lead core bullet had an impact on layered configuration of 08 mm thick front plate of Al2O3 and the 10 mm thick back plate of Al 7075-T651. It was observed that this combination was able to arrest bullet but excessive damage was observed on the front plate. The projectile was completely damaged. Deformation in the Al 7075-T651 back plate was very less and within plastic limit. Figure 15 shows some simulation images.

Figure 15

Figure 15. Effect on the Layered arrangement of 10 mm Al 7075-T651 rear plate and 06 mm Al2O3 front plate.

3.2.6 06 mm Al₂O₃ and 10 mm Al 7075-T651

The 7.62 mm Lead core bullet had an impact on layered configuration of 06 mm thick front plate of Al₂O₃ and the 10 mm thick back plate of Al 7075-T651. Front plate was totally broken, yet it was noted that this combination was able to stop bullet. Projectile was completely damaged. Deformation in Al 7075-T651 back plate was less and within elastic limit. Figure 16 shows some simulation images.

Figure 16

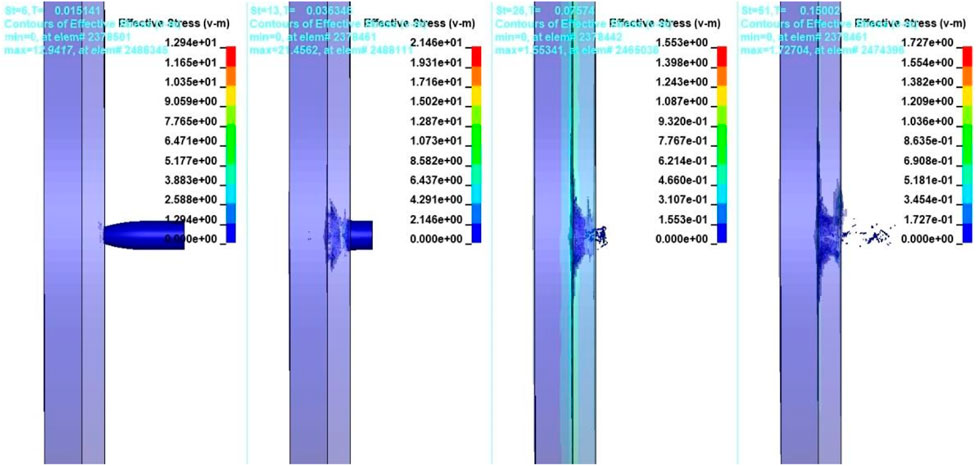

Figure 16. Effect on the Layered arrangement of 10 mm Al 7075-T651 rear plate and 04 mm Al2O3 front plate.

3.2.7 04 mm Al₂O₃ and 10 mm Al 7075-T651

The 7.62 mm Lead core bullet had an impact on layered configuration of 04 mm thick front plate of Al₂O₃ and the 10 mm thick back plate of Al 7075-T651. Front plate was totally broken, yet it was noted that this combination was able to stop bullet. Projectile was completely damaged. Deformation in Al 7075-T651 back plate increased but was within elastic limit. Figure 17 shows some simulation images.

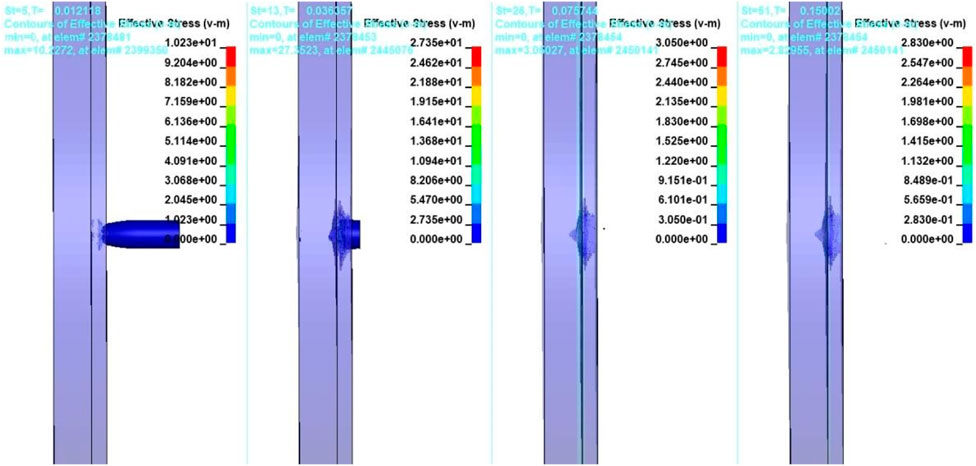

Figure 17

Figure 17. Effect on the Layered arrangement of 10 mm Al 7075-T651 rear plate and 02 mm Al2O3 front plate.

3.2.8 02 mm Al₂O₃ and 10 mm Al 7075-T651

The 7.62 mm Lead core bullet had an impact on layered configuration of 02 mm thick front plate of Al₂O₃ and the 10 mm thick back plate of Al 7075-T651. Front plate was totally broken, yet it was noted that this combination was able to stop bullet. Projectile was completely damaged. Deformation in Al 7075-T651 back plate increased significantly. Plastic deformation was observed in the back plate which was not desirable. Figure 18 shows some simulation images.

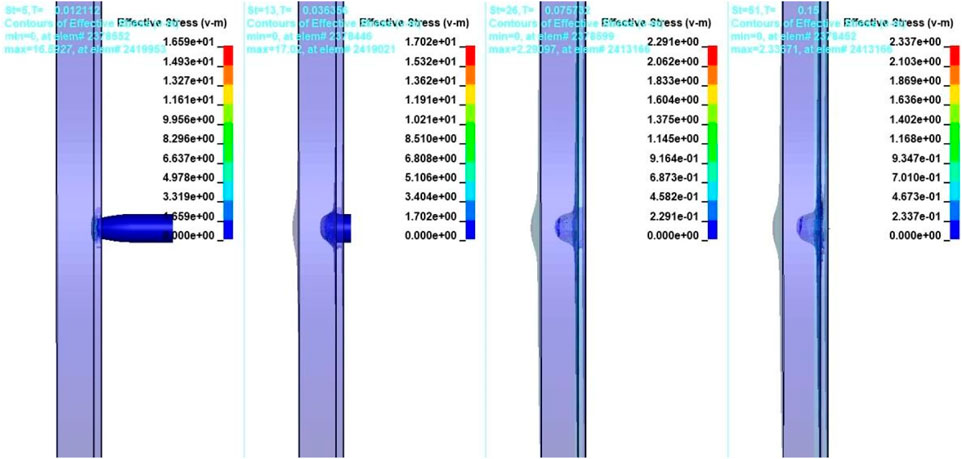

Figure 18

Figure 18. Effect on the Layered arrangement of 10 mm Al 7075-T651 rear plate and 02 mm Al2O3 front plate.

From this simulation it was observed that even 02 mm thick Al₂O₃ front plate can stop perforation of the bullet. But, plastic deformation in the Al 7075-T651 back plate is required to be controlled. Furthermore, as was already established, Al₂O₃ is denser than Al 7075-T651. Thus, the configuration’s total weight can be decreased by maintaining a thinner Al₂O₃ front plate. Therefore, it was decided that thickness of Al 7075-T651 back plate will be increased to 12 mm and impact analysis will be carried out by varying the thickness of Al₂O₃ front plate. The impact analysis of various layered configurations, while varying the thickness of Al₂O₃ front plate, is shown in succeeding sections.

3.2.9 02 mm Al₂O₃ and 12 mm Al 7075-T651

The 7.62 mm Lead core bullet had an impact on layered configuration of 02 mm thick front plate of Al₂O₃ and the 12 mm thick back plate of Al 7075-T651. Front plate was totally broken, yet it was noted that this combination was able to stop bullet. Projectile was completely damaged. Deformation in Al 7075-T651 back plate was less as compared to 10 mm back plate. But plastic deformation was observed in the back plate which was not desirable. Figure 19 shows some simulation images.

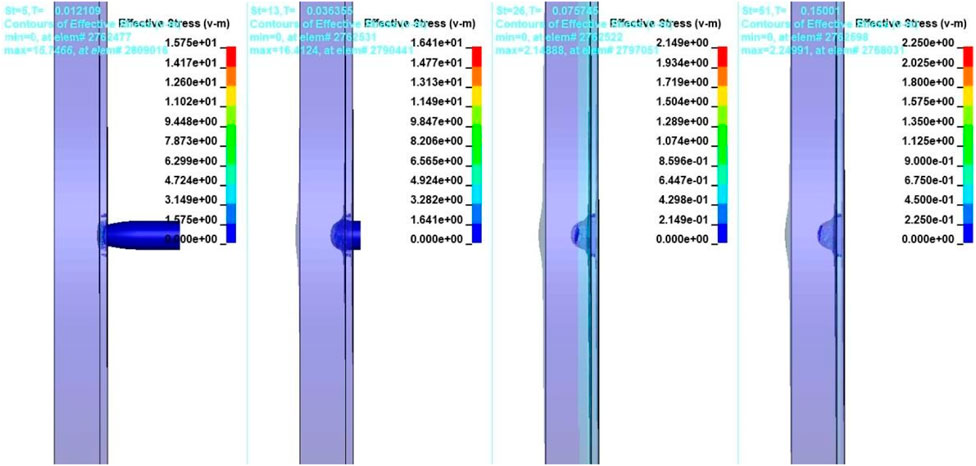

Figure 19

Figure 19. Effect on the Layered arrangement of 12 mm Al 7075-T651 rear plate.

3.2.10 04 mm Al₂O₃ and 12 mm Al 7075-T651

The 7.62 mm Lead core bullet had an impact on layered configuration of 04 mm thick front plate of Al₂O₃ and the 12 mm thick back plate of Al 7075-T651. Front plate was totally broken, yet it was noted that this combination was able to stop bullet. Projectile was completely damaged. Deformation in Al 7075-T651 back plate was reduced. No plastic deformation was observed in back plate. Figure 20 shows some simulation images.

Figure 20

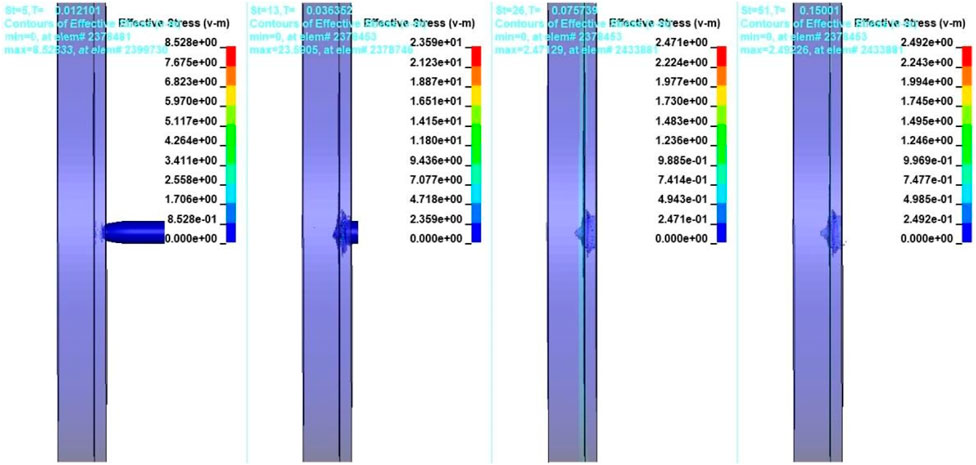

Figure 20. Effect on the Layered arrangement of 12 mm Al 7075-T651 rear plate.

Following this simulation, it was determined that the optimal configuration for stopping bullets without causing plastic deformation to the rear plate was a layered configuration with an Al₂O₃ front plate that was 4 mm thick and Al 7075-T651 back plate that was 12 mm thick.

4 Results and discussions

4.1 Analysis of monolithic plates

A projectile with impact velocity of 720 m/s was used in impact analysis on a target plate of Al 7075-T651, which was 15 mm thick. The bullet was observed to have penetrated target to depth of 11.05 mm. Ductile Hole Enlargement was Al 7075-T651 plate’s mode of failure. Tensile stresses in bullet travel direction causes delamination in rolling plane, because of layered and inhomogeneous micro structure of material. Delamination is also due to intergranular and intra granular disintegration caused by the tensile stresses. Additionally, it is discovered that due of significant mesh distortion, Lagrangian formulation in LS-DYNA was unable to adequately handle problem of ball bullet impacting on stiff plate. Bullet behaves like fluid during such strikes, and momentum becomes more important than strength. Severely distorted parts degraded continually even if the lead core’s adaptive refinement time interval was set extremely low. Additionally, during simulations, it is seen that instead of pushing target material out laterally during ductile hole expansion, the bullet erodes as it travels through the material during perforation. Monolithic Al₂O₃ was examined at 720 m/s with target thickness of 15 mm. When the projectile impacted Al₂O₃, primary resistance to penetration is due to compressive strength of Al₂O₃. As compressive strength is high, the projectile is deformed and eroded. The projectile’s low aspect ratio causes it to be defeated since Al₂O₃’s strength is greater than the projectile’s. Al₂O₃ will be ground up in a tiny area directly in front of the projectile’s leading edge by the stresses the projectile will be subjected to. Al₂O₃ has a tiny specific fracture surface energy when under tension, but a significant amount of energy may be needed to produce small fracture surface area when compressive and dynamic shear pressures are high. Therefore, the amount of energy required to create powdered surface area could be much greater. Damage cone that forms at penetrator’s leading edge is another important component that provides resistance to Al₂O₃ penetration. Cone formation is indicative of quasi-static indentation in Al₂O₃, following direction of the material’s highest tensile stress. Because of interaction between stress waves and reflections from the free surface, cone broadens at its base. Cone formation distributes the projectile’s load over a wide surface area. Consequently, the projectile’s kinetic energy density is decreased. Simulations revealed that the projectile underwent substantial deformation. Beyond the cone forms, radial fissures have formed in the Al2O3 plate. High-velocity fragments that develop within cone at free surface break material completely and may cause damage behind the Al2O3 target’s free surface. To retain the cone and bullet fragments, a stronger and more flexible layer is needed behind the Al2O3. Additionally, monolithic targets require greater thickness in order to stop perforation, which results in a noticeable increase in target weight. To achieve the best strength to weight ratio and maximum protection against 7.62 mm lead core ball bullet, a layered combination of front plate made of Al2O3 and back plate made of Al 7075-T651 was therefore taken into consideration.

4.2 Layer layout of Al₂O₃ and Al 7075-T651

First, a front plate of Al₂O₃ with a thickness of 10 mm and a back plate of Al 7075-T651 with thickness of 10 mm are taken into consideration. During initial stage of penetration, projectile tip is damaged and Al 7075-T651 yields at Al₂O₃ interface. The crack began at the Al₂O₃ rear surface and is oriented to follow motion of rear plate. Impact grows in both direction and magnitude. Fracture cone then expands in the direction of the penetrator’s movement from contact between projectile and target. Projectile erosion occurs similarly as in Krishnan et al. and Venkatesan et al. (Krishnan et al., 2010; Venkatesan et al., 2017), while Al₂O₃ fractures, consolidating, and intersecting to form debris. Yielding and plastic flow in the direction of the projectile’s normal path cause projectile erosion. When a projectile experience forces greater than its strength, erosion results. Rear plate absorbs any remaining energy in the projectile target system when projectile erosion stops. The similar results were seen in Morka et al. (Morka et al., 2009) in which the ceramic front plate was fractured post impact and the residual velocity of the bullet was absorbed by the Al 7,017 back plate. Only when target material is pushed forward or towards sides, can the projectile advance. Crushed Al₂O₃ cannot be pushed ahead due to rear confinement. One of the most important characteristics of the back plate is ductility, which enables the material to absorb stress waves created by impact on Al₂O₃ material. Stress waves are absorbed by the ductile material, which reduces the intensity of stress waves that Al₂O₃ reflects. This reduces damage to Al₂O₃ and increases the effectiveness of the armour. It was noted that the pieces had been effectively contained, and the back plate’s rear surface was undamaged. In addition, due to Al 7075-T651 target, Al₂O₃ target experience less damage than the monolithic plate. A multilayer structure effectively restricts the plate perforation.

5 Conclusion

From present study, following deductions are drawn:

• It is observed that for Al 7075-T651 monolithic plate, depth of penetration of projectile was

• 11.5 mm and ductile hole growth was observed. Al₂O₃ can deform the projectile, but it experienced brittle fracture in the form of a cone. Fragments are formed due to the shattering of Al₂O₃ plate.

• First, the layered arrangement of an Al2O3 front plate that is 10 mm thick and a back plate made of Al 7075-T651 that is 10 mm thick is examined. The perforation is successfully restricted with a layered configuration. The weight of armour has been increased significantly and areal density increased to 66.65 kg/m².

• Various thicknesses of Al2O3 and Al 7075-T651 plates were examined for additional weight optimization. Two layered configurations— 10 mm thick front plate of Al2O3 and 06 mm thick rear plate of Al 7075-T651 and a 04 mm thick front plate of Al2O3 and 12 mm thick back plate of Al 7075-T651—were shown to be effective in preventing bullet perforation. However, when comparing the weight of these two arrangements, it was found that the configuration with a front plate of Al2O3 with a thickness of 04 mm and a back plate of Al 7075-T651 with thickness of 12 mm is the most optimal configuration for effectively limiting bullet perforation. The areal density of this configuration is 48.26 kg/m². But these results are required to be validated with the experimental results. The experimental tests will be carried out in future study to validate the results obtained from the present study.
