Surrogate-based worst-case analysis of a knee joint model using Genetic Algorithm

Verification, validation, and uncertainty quantification is generally recognized as a standard for assessing the credibility of mechanical models. This is especially evident in biomechanics, with intricate models, such as knee joint models, and highly subjective acquisition of parameters. Propagation of uncertainty is numerically expensive but required to evaluate the model reliability. An alternative to this is to analyze the worst-case models obtained within the specific bounds set on the parameters. The main idea of the paper is to search for two models with the greatest different response in terms of displacement-load curve. Real-Coded Genetic Algorithm is employed to effectively explore the high-dimensional space of uncertain parameters of a 2D dynamic knee model, while Radial Basis Function surrogates reduce the computation by orders of magnitude to near real-time, with negligible impact on the quality. It is expected that the studied knee joint model is very sensitive to uncertainty in the geometrical parameters. The obtained worst-case knee models showcase unrealistic behavior with one of them unable to fully extend, and the other largely overextending. Their relative difference in extension is up to 35% under ±1 mm bound set on the geometry. This unrealistic behavior of knee joint model is confirmed by the large standard deviation obtained from a classical sampling-based sensitivity analysis. The results confirm the viability of the method in assessing the reliability of biomechanical models. The proposed approach is general and could be applied to other mechanical systems as well.

1 Introduction

Verification, validation, and uncertainty quantification has become a standard for assessing the credibility of complex models (Anderson et al., 2007). In biomechanics of the musculoskeletal system, one of the most complex models have been developed for the knee joint (Viceconti et al., 2006; Leardini et al., 2017; Roupa et al., 2022). Analytical, multibody and more recently finite element models have been reported, e.g., (Wismans et al., 1980; Yamaguchi and Zajac, 1989; Bei and Fregly, 2004; Parenti-Castelli et al., 2004; Erdemir, 2016). These models involved a large number of uncertain parameters. Whatever the formulation, in either 2 or 3 dimensions, all the knee joint models involve parameters defining the geometry–the articular surfaces and the ligament lines of actions. In case of deformable knee joint models, additional uncertain parameters define the materials–the contact and ligament stiffness. These parameters are influencing the joint kinematics, statics, or dynamics (El Habachi et al., 2015; Lenhart et al., 2015; Valente et al., 2015; Rooks et al., 2022). Subject-specific geometric parameters are typically derived from medical images. Studies show that their accuracy can vary up to ±2.5 mm (Gomes et al., 2013). In contrast, for material parameters, it is common to source the available experimental results, which also exhibit large variation between studies. This is then reflected in modeling studies, for instance there can be a difference of up to 19 MPa in Young’s modulus of articular contact based on (Machado et al., 2010; Machado et al., 2011).

Propagation of uncertainty is a process, in which the uncertain values of input parameters are transferred through the model to its outputs. In other words, both the inputs and the outputs of the model are treated as random variables. This operation is typically performed with multiple iterations using random sampling and is crucial to evaluate the model reliability. Nevertheless, it can be very costly, therefore changing parameters one-at-a-time is still a popular option in biomechanics (El Habachi et al., 2015; Lenhart et al., 2015; Valente et al., 2015; Rooks et al., 2022). An alternative to both of these methods might be to employ heuristic optimization and redefine the task as a search for the worst-case models, typical in electrical circuit analysis (Femia and Spagnuolo, 2000). In this study, this problem is posed as an optimization-based search for two models with the greatest different response rather than sampling the whole response space as done in a classical sensitivity analysis, making it more efficient numerically.

The objective of the present study was to fully develop and exploit this worst-case analysis to evaluate the reliability of a dynamic, deformable multibody model of the knee joint in the sagittal plane. It is expected this model is very sensitive to uncertainty in the geometrical parameters. The search for the two worst-case models was performed with Genetic Algorithm augmented with surrogate modeling and custom objective, tailored for finding representative responses in joint biomechanics.

2 Materials and methods

2.1 Assumed knee joint model

As mentioned before, the worst-case analysis was performed on a deformable multibody model of the knee joint assumed after (Machado et al., 2010). The model featured two rigid bodies representing the main bones. The tibia and the femur could articulate through deformable contact pairs representing the cartilage layer and modeled with the Hertz’s contact theory. The rigid segments were connected with four nonlinear cables, substituting the main ligaments in the joint–Anterior Cruciate (ACL), Posterior Cruciate (PCL), Medial Collateral (MCL) and Lateral Collateral (LCL). Each cable was defined by two attachment vectors, with two coordinates each. These links were assumed to have a quadratic load response defined by one stiffness coefficient. Their resting lengths were computed based on the strain-free location of the model. The material and inertial parameters were assumed after (Machado et al., 2010), while the geometry was recreated from original drawings, presenting the model. Articular contact was substituted with a sphere-to-plane contact pairs in sagittal plane defined by circle center position and line position and slope along with Young’s Modulus and Poisson’s coefficient. The values of the geometric and material parameters are provided in Supplementary Material.

The model was formulated using Newton-Euler equations and solved in dynamics using Semi-Implicit Euler (SIE) method with a time step of 0.004 s. The simulations were initiated from a load-free configuration, which corresponded to about 55 deg of flexion. The model was subjected to external moment loads in two simulations. For extension, the moment load was applied as a step function with the following values: (0.1, 0.2, 0.4, 0.8, 2., 5.) Nm for the corresponding timestamps: (0, 7, 11, 14, 17, 20) s. Flexion was solved similarly, only with the moment sign reversed. Additionally, high level of damping was applied to both the linear and angular motion with the following equations:

${\mathbf{F}}_{\mathit{d}}=–\mathbf{v},$

$M_d=–1.5\omega$

where: F_d/M_d - the damping force/moment, v/ω - linear/angular velocity.

These damping values were selected manually so that model was able to achieve the equilibrium for every moment value without significant oscillations during the transient dynamics.

2.2 Worst-case analysis

The main task of the worst-case analysis is to find a set of parameters, for which the model exhibits the most atypical, i.e., worst, behavior in terms of the selected objective. In this study, it is formed by optimizing two models concurrently with the objective being the difference in their responses, which is to be maximized within selected bounds. If the model represents the knee joint and its response is the function of knee angle for different external moment loads, it can be defined as follows:

$f\left(\mathit{x}\right)={\displaystyle \sum _{i=0}^n}\left|{\theta }_1\left(M_{ext,i}\right)–{\theta }_2\left(M_{ext,i}\right)\right|$

where: x–the vector of decision variables, θ₁/θ₂—the angular displacement of model 1/2, M_ext,i–the external moment i acting on the tibia, n–the number of considered load/displacement values (see section 2.2). The decision variable vector x contains parameters of two distinct knee joint models, which are optimized concurrently. If both the geometry and material parameters are optimized, then x contains 2 * 28 parameters, i.e. 56 coordinates. The first 28 coordinates of x define the first worst-case model, while the remaining 28 refer to the second worst-case model. The final result of the procedure represents the two most-different models in terms of the angular displacement. The optimization is carried out with Genetic Algorithm entirely in the surrogate space (see section 2.3 for details). Once the search is finished, the best solution is recomputed in the real-model space.

2.3 Approximation and optimization with a surrogate

Metahueristic optimization methods, such as Genetic Algorithm, rely on a large number of model evaluations during search, often in thousands. To lower the cost of the worst-case analysis, surrogate modeling was employed. In surrogate modeling, an expensive model is substituted with a simplified statistic model, called surrogate. In order to train and test the surrogate, the original model is sampled and solved several times. The surrogate typically offers lower quality results but at a significantly lower numerical cost. The field of surrogate modeling offers multiple methods for constructing the substitute model. In this study, Radial Basis Function (RBF) (Fasshauer, 2007) using Scipy’s implementation with thin plane spline kernel (van der Walt et al., 2011) was selected due to its low numerical complexity with small training datasets. In order to obtain an RBF knee surrogate, the baseline model (section 2.1) was sampled 50 times with brute force Monte Carlo and bounds set to ±1 mm and ±10% for geometric and material parameters, respectively. Resting lengths were not included in the uncertain parameters. To further lower the numerical cost, RBF was trained on the displacement-load curve obtained by including only points after the transient dynamics, rather than the raw model response.

For the optimization, Real-Coded Genetic Algorithm was employed with roulette-wheel selection, blx-α crossover (α = 0.5) and non-uniform mutation along with rank-based fitness scaling, more details can be found in (Herrera et al., 1998). In this implementation, 70% of solutions were created using crossover, 20% underwent mutation and 10% were transferred through elitism. The search was performed with population size of 200 and generation number set to 800. Furthermore, four additional runs were performed at 100 generations at 100 population size in both surrogate space and model space in order to further validate surrogate’s performance.

2.4 Reference method for comparison

The worst-case models were compared in terms of the geometry and material parameters, and their outputs in the form of the ligament forces and anterior-posterior tibio-femoral displacement during flexion.

For the angular displacement outputs, sampling-based sensitivity analysis was performed to provide a reference. The model was sampled 10,000 times with brute force Monte Carlo in the real-model space and using the same bounds as in the worst-case analysis. Then, the mean value and the standard deviation were computed. These values were used to obtain the 99.7% bounds on the outputs.

3 Results

The proposed approach was tested on the 2D deformable multibody model of the knee in three separate cases: both geometry and material, geometry-only, material-only. The details regarding the geometry and material case were summarized below. Other results can be found in the Supplementary Material.

3.1 Worst-case models

As seen in Figure 1, even with the low bounds set on the geometry and material parameters, the two worst-case models differed significantly in terms of the angular displacement. The relative difference was up to 35% in extension. In practical terms, this meant that, within the selected bounds for parameters, a model, which cannot fully extend and a model which significantly overextends could both be achieved with only small modifications with respect to the baseline model. Additionally, the worst-case models lie outside of the 99.7% bounds of the sampling-based sensitivity analysis.

Figure 1

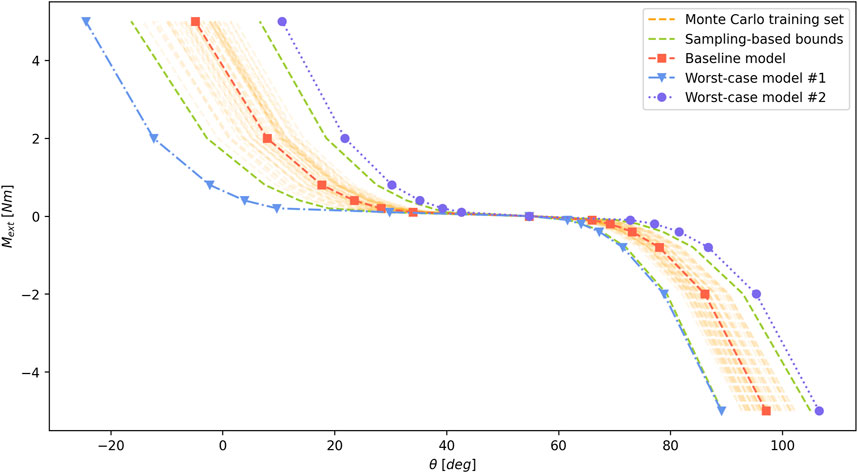

Figure 1. External moment M_ext with regards to the knee joint angle θ: the baseline model from (Machado et al., 2010), and the two worst-case models with uncertain parameters being both geometric and material parameters. The orange lines represent the fifty models generated to train the surrogate of the objective function. The yellow-green lines represent the 99.7% bounds on the outputs computed with sampling-based sensitivity.

It is important to note that the obtained displacement-load curves represented actual models and not an aggregate of multiple runs. Therefore, these models could be analyzed in terms of their parameters. As seen in Figure 2, in the worst cases, the MCL moved in the opposite direction to the contact sphere center along the contact plane. Similar relationship could be seen for the ACL, in which the pattern occurred perpendicularly to the contact plane. PCL and ACL showed minimal change in their angles with respect to the baseline configuration. On the other hand, for LCL and MCL, a change of angle was observed. Finally, between the two worst cases, the contact plane angle differed in a symmetrical way. In terms of the stiffness, both ACL and PCL became more compliant in both worst-case models. On the other hand, MCL became stiffer, while LCL varied in stiffness between the obtained worst-cases.

Figure 2

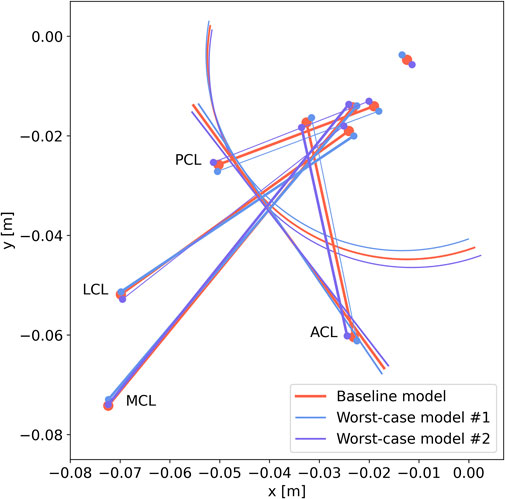

Figure 2. Worst-case models for the knee joint with uncertain being both geometric and material parameters. The model is at about 55 deg of flexion (load-free configuration for the baseline model (Machado et al., 2010)).

The forces generated by the ligaments were also highly affected by the small changes of parameters in the worst cases, as seen in Figure 3. The worst-case model #1 exhibited very small ligament forces up to 10 deg of overextension, whereas #2 was reaching concerning levels of force in PCL, even before full extension. On the contrary, this relationship was reversed for flexion.

Figure 3

Figure 3. Ligament forces F_i with regards to the knee joint angle θ in the worst-case models with uncertain parameters being both geometric and material parameters.

Finally, significant difference in knee kinematics was noted in the form of anterior-posterior tibio-femoral displacement for the obtained models, see Figure 4. The ranges of displacement and angle are modified but the rolling-sliding mechanism remained unchained. Indeed, there was always a change of slope (with more rolling) after 55 deg of flexion.

Figure 4

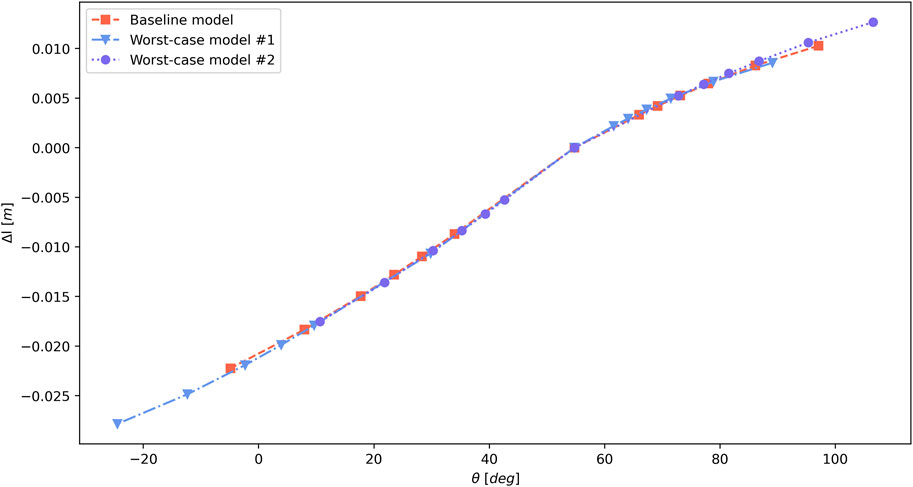

Figure 4. Anterior-posterior tibio-femoral displacement with regards to the knee joint angle θ, in the worst-case models with uncertain parameters being both geometric and material parameters.

As mentioned before, similar tests were performed altering only geometry and only material. The results obtained for the geometry-only worst-case analysis were largely similar to that of the geometry-and-material with only visible difference being in the position of LCL (see Supplementary Material). The material-only worst-case analysis resulted in only a small change in the angular displacements between the worst-case models.

3.2 Computational efficiency

The search with a population size of 200 and generation number set to 800 finished in 4.10 s using 15 threads of Ryzen 6800H. Furthermore, the final result in the real-model space differed by only 4% in f(x) compared to surrogate space. Moreover, after the four additional runs with 100 generations and population size of 100, the surrogate search averaged at 94% of the model search, while being over 7,572 times faster. Search in the surrogate space finished in 0.35 s on average, while real model search took 2,633 s to optimize the 2 * 28 parameters. Additionally, Monte Carlo sampling, for sensitivity of the 28 parameters with 10,000 samples, took 1,246 s.

4 Discussion

4.1 Worst-cases search using Genetic Algorithm and surrogate model

Applying Genetic Algorithm to find the worst-case models is an established method in electrical circuit analysis (Skelboe, 1979; Femia and Spagnuolo, 2000). Nonetheless, its use in mechanics or biomechanics is rather limited (Ciszkiewicz, 2020). The method offers unique advantages when compared to more common Monte Carlo sensitivity. Namely, the worst-case analysis returns actual models, not bounds on output. Bounds might be misleading, as for instance no one knee model within the bounds can overextend and overflex at the same–worst-case analysis covers this with the two most different models. Interestingly, even if the worst-case models are treated as bounds, these bounds match Monte Carlo sampling only in the flexion phase of the motion (θ > ∼55 deg), whereas in extension (θ < ∼55 deg) they are significantly more extensive, see Figure 1. This suggests asymmetry in load distribution in the two phases of knee motion and should be studied more in the future. The results show that both approaches to sensitivity are different, but complement each other to provide a balanced overview of model’s reliability.

Defining the objective of the worst-case analysis is a difficult task, compounded by the intricate nature of the studied model. In this study, the objective is based on the angular displacement of the joint. With regards to the formulation of the objective, maximizing the difference between two models is general and encompasses different other possible objectives, providing an elegant and easy way to analyze outputs. The decision variable vector is however doubled in dimensionality, which makes the problem more complex, which was a limiting factor in a preliminary study on a static model of the ankle joint (Ciszkiewicz, 2020).

The use of the surrogate simplifies the optimization problem but causes a difference of 4% in the objective function. When combined with the substantial time-gain under surrogates, this drop in quality can be considered a worthwhile trade-off, allowing for much more extensive optimization in feasible time (seconds, as seen in the results, compared to hours or days in real-model space). As seen in the results, even when performing only 100 generations at 100 population size, the computation already takes 46 min in real-model space. This computation time for the optimization of the 2 * 28 parameters in real-model space matches the computation time of the Monte Carlo sampling for sensitivity with 10,000 samples of the 28 parameters (i.e. 46 vs 21 min). The optimization finishes in 0.35 s in the surrogate space. This means that it is viable to run very large numbers of generations and populations in the surrogate space–for instance, 800 generations with population size of 200, as seen in the main search–allowing for better solutions than real-model space could ever achieve (assuming reasonable computation time) and partially alleviating the problem with the stochastic nature of metaheuristic optimization as used in the worst-case analysis. RBF was selected, due to its low numerical complexity with a moderate number of training models, namely, fifty Monte Carlo simulations in the present study. This choice was deliberate and at approximately double of the assumed model’s number of parameters. Due to RBF’s nature, increasing it significantly affected the time needed for optimization, which should be taken into account for models with very large parameter counts. Note that, in the worst-case analysis, only preserving the shape of the objective function is important. RBF surrogates do not need to directly match the knee model outputs, which may require more training.

4.2 Knee joint model reliability

It is known that knee joint models are generally sensitive to ligament geometry and materials (Farshidfar et al., 2022). It was also expected that the model was more sensitive to geometry than material parameters, as in (Beynnon et al., 1996). However, the worst-cases revealed two unrealistic knee models with one of them unable to fully extend, and the other largely overextending, all this with only ±1 mm bounds set on the geometry. This unrealistic behavior of knee joint model could be also intuited by the large standard deviation of the sampling-based sensitivity analysis. ACL and PCL forces, reaching 300N, appeared somewhat overestimated for passive knee flexion (Kia et al., 2016; Farshidfar et al., 2022). Despite large changes in the ligament forces, the worst-case models did not reveal major differences in the anterior-posterior tibio-femoral displacement, with a change of slope at the load-free configuration. It seems that the quadratic load response of the ligaments in this model (Machado et al., 2010) creates a very peculiar behavior. The bounds set on the geometry and material parameters, ±1.0 mm and 10%, were in the lower range of the literature (Farshidfar et al., 2022) and the ligament resting lengths were not included in the uncertain parameters not to produce too unrealistic outputs. This knee joint model, not being fully reliable, was therefore illustrative of the relevance of the method.

Searching for the worst-case could be particularly advantageous in orthopedic applications of models, as the worst-case explicitly provides the parameters of the model, which could be taken into account in surgical planning. For the knee joint, this can be applied to ligament balancing in total knee arthroplasty (Smith et al., 2016; Montgomery et al., 2024) or ACL or anterolateral ligament fixation in ligament repair (Thaunat et al., 2020).

4.3 Limitations

The assumed knee model is a high-dimensional representation of the joint. Its complexity (dynamic computation, deformable contact and nonlinear ligaments) was considered appropriate to benchmark the proposed worst-case analysis. Nevertheless, the study has some limitations. Firstly, the biomechanical interpretation of the 2D knee joint model is limited, especially in terms of its contact formulation, and its reliability was found questionable (see section 4.1). Only passive knee flexion-extension was studied with ligament resting lengths not included. Second, contrary to a global sensitivity analysis, the proposed worst-case analysis cannot directly identify the most influential parameters. It can be an alternative or a complement only to propagation of uncertainty.

5 Conclusion

A computationally-efficient method for computing worst-cases in knee joint models was proposed and evaluated in this study to evaluate the reliability of a deformable multibody knee joint model. The approach was based on Genetic Algorithm, which explored the solution space of surrogate knee models with a general objective of finding two, most-different structures within the selected parameter bounds. A very high difference in the displacement-load curve was observed in the obtained models, with one of them unable to fully extend, while the other easily reaching unrealistic levels of overextension. All of this achieved with very moderate bounds set on parameters. These results showcased both the sensitivity of the model, especially to the origins and insertions of ligaments, as well as the need for efficient methods to analyze it in the context of model credibility. The general nature of the worst-case analysis makes it applicable in a variety of mechanical problems. The method complements more standard approaches to sensitivity.

Data availability statement

The original contributions presented in the study are included in the article/Supplementary Material, further inquiries can be directed to the corresponding author.

Author contributions

AC: Conceptualization, Formal Analysis, Methodology, Software, Writing–original draft. RD: Conceptualization, Formal Analysis, Validation, Writing–review and editing.

Funding

The author(s) declare that financial support was received for the research, authorship, and/or publication of this article. This research was partly supported by a French Government Scholarship (Bourse du Gouvernement Français “Séjour Scientifique de Haut Niveau”).

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Supplementary material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fmech.2024.1392616/full#supplementary-material
