Front. Mech. Eng., 28 April 2021
Sec. Tribology

XANES Study of Tribofilm Formation With Low Phosphorus Additive Mixtures of Phosphonium Ionic Liquid and Borate Ester

\nKimaya VyavhareKimaya Vyavhare1Vibhu SharmaVibhu Sharma1Vinay SharmaVinay Sharma1Ali ErdemirAli Erdemir2Pranesh B. Aswath
Pranesh B. Aswath1*
  • 1Materials Science and Engineering, University of Texas at Arlington, Arlington, TX, United States
  • 2Department of Mechanical Engineering, Texas A&M University, College Station, TX, United States

The development of low phosphorus engine oils is important to minimize phosphorus-induced exhaust catalyst poisoning and resulting in harmful emissions. In this study, low phosphorus oil formulations were prepared by using an ashless additive mixture of borate ester (SB) with ionic liquid composed of a phosphonium cation and phosphate anion (P_DEHP) at 350 and 700 ppm phosphorus. Tribological properties of this binary additive system were evaluated using a reciprocating cylinder on a flat test configuration. Favorable interaction between P_DEHP and SB resulted in a significant reduction in friction coefficient and wear volume, in particular for P_DEHP(700P) + SB oil blend. Time-scale analysis of tribofilm formation was determined by running the tribological experiments for 5, 15, and 60 min duration. Electrical contact resistance (ECR) results revealed that the addition of P_DEHP at 350 ppm of phosphorus to SB at 500 ppm of boron can reduce the incubation time from 300 to 100 s for stable tribofilm formation. X-ray absorption near-edge spectroscopy (XANES) analysis of tribofilms indicates that the tribofilm mechanism for additive mixtures of P_DEHP and SB initially involves the formation of boron oxide-based films, which later interact with phosphorus to form boron phosphates in addition to iron phosphates. Incorporation of the high amount of boron phosphates in addition to boron oxide/acid and iron phosphates in the tribofilms contributed to the improved tribological performance of P_DEHP(700P) + SB oil. XANES results reveal that tribofilms formed due to the interaction of SB and P_DEHP evolve to a cross-linked structure, wherein the chain length of polyphosphates is increased with the increase in rubbing time.

Introduction

The poisoning of automobile catalytic converters by volatile phosphorus species in the engine oil has fueled the research to develop low phosphorus engine oils by reducing or replacing the current phosphorus-containing additives (Williamson et al., 1985; Rokosz et al., 2001; Kröger et al., 2006; Zhang et al., 2017; Khare et al., 2018; Sharma et al., 2019b; Vyavhare et al., 2021b). Since 1988, the amount of phosphorus in engine oil is on a downward trajectory (Spikes, 2004), and recently the international lubricant standardization and approval committee (ILSAC) has introduced the GF-6 performance standards which limits the phosphorus concentration in engine oils to 800 ppm maximum (Anand et al., 2015). The conventional lubricant anti-wear and antioxidant additive, zinc dialkyl dithiophosphate (ZDDP) is the main source of phosphorus in the engine oils and is known to contaminate catalytic converters, reducing its performance and service life, and increasing automotive emissions at the tailpipe (Williamson et al., 1985; Angelidis and Sklavounos, 1995; Forzatti and Lietti, 1999; Angove and Cant, 2000; Rokosz et al., 2001; Spikes, 2004; Kröger et al., 2006; Buwono et al., 2015). Additionally, ZDDP provides sulfur and zinc in the engine oil contributing to elevated levels of ash deposits and sludge formation. Considering the undesirable side-effects of existing additive chemistries and current regulations on chemical limits of phosphorus coupled with the overall objective to enhance engine efficiency and fuel economy, significant research work has been devoted to the development of novel environment-friendly (no P, S, or Zn) high-performance additives. In recent years, metal-free ashless additives, such as ionic liquids and boron-based compounds have emerged as promising candidates to partially or totally replace ZDDP without reducing the performance of conventional engine oils (Deshmukh et al., 2005; Erdemir, 2008; Lovell et al., 2010; Greco et al., 2011; Reeves et al., 2013; Shah et al., 2013; Baş and Karabacak, 2014; García et al., 2014; Qu et al., 2015; Sharma et al., 2015, 2016a,b, 2019a; González et al., 2016; Bagi et al., 2018; Vyavhare and Aswath, 2019).

The use of ionic liquids (ILs) in the field of tribology was first reported in 2001 (Ye et al., 2001) and since then an active line of research has been focused on exploiting the potential of ILs as the next generation green lubricants. ILs are synthetic molten salts formed due to weak coordinating bonds between anion and cation (Blanco et al., 2017). The unique properties of ILs like high thermal stability, non-flammability, and low volatility make them suitable for tribological applications involving severe working conditions like higher speeds, higher working temperatures, and higher mechanical stresses. Till date, ILs have been used as the base lubricants (Lu et al., 2004; Mu et al., 2005, 2008; Jiménez et al., 2006; Xia et al., 2006; Jiménez and Bermúdez, 2007; Weng et al., 2007; Kondo et al., 2012) or lubricant additives (Phillips and Zabinski, 2004; Jiménez et al., 2006; Weng et al., 2007; Jiménez and Bermúdez, 2008; González et al., 2016; Sharma et al., 2016a, 2019a; Vyavhare and Aswath, 2019). However, the practical tribological application of ILs is hindered due to problems of corrosion and limited solubility in non-polar hydrocarbon oils. In recent years, a new class of phosphonium based ILs was discovered to overcome these disadvantages. Extensive studies by Qu et al. (2012, 2014) and Yu et al. (2012) demonstrated that phosphonium–phosphinate, and phosphonium–phosphate ILs are non-corrosive, thermally stable, and oil miscible, and, more importantly, possess excellent anti-wear and anti-friction capability when used as lubricant additive in mineral base oils and fully-formulated oils. They have also shown comparable or even superior anti-wear and anti-scuffing properties of phosphonium ILs in comparison with ZDDP in PAO base oils at 1 wt.% concentration under room and elevated temperatures. Anand et al. (2015) studied the tribological performance of phosphonium ILs in engine aged fully formulated oils and proposed that addition of ILs substantially improve the service life of used oils by forming boundary films in the presence of existing additives (like ZDDP) in the engine oil. Many studies have attributed excellent tribological properties of ILs to their tribofilm formation at the interacting metal surfaces.

Another class of environment-friendly additive is of boron based materials wherein compounds like hexagonal boron nitride (Watanabe et al., 1991; Martin et al., 1992; Mosuang and Lowther, 2002; Koskilinna et al., 2006), organic borates (Zheng et al., 1998; Philippon et al., 2011; Miller et al., 2012; Sharma et al., 2016b, 2019a), and boric acid (Erdemir et al., 1990, 1991; Erdemir, 1991; Liang and Jahanmir, 1995) are already used in lubricants as friction modifiers, corrosion inhibitors, anti-oxidants, and anti-wear additives. The excellent tribological behavior of boron compounds could be due to their strong affinities for interacting with different reactive elements. For example, boron interacts with oxygen to form B2O3 which is highly lubricious and provides low friction (Shah et al., 2013). In addition, boron can react with interacting metal surfaces to form hard metal borides which are known to minimize wear (Shah et al., 2013). Other interesting alternative approaches to developing high-performance green lubrication is to use additive mixtures like ionic liquids with ashless dithiophosphates (Aswath et al., 2017), ionic liquids with ZDDP (Qu et al., 2012, 2014, 2015; Anand et al., 2015; Monge et al., 2015; Huang et al., 2017) or ionic liquids with nanomaterials (Li et al., 2018; Sharma et al., 2018; Vyavhare and Aswath, 2019). Considering the potential of such additive mixtures to improve friction and wear behavior of oil formulations, in this context, we have developed low phosphorus oil blends using an additive mixture of phosphonium IL and borate esters.

The present study is a significant extension of previously reported work on anti-wear properties of the binary ashless blend of phosphonium ILs and borate esters in group I mineral base oil (Sharma et al., 2016b). In the prior study, it was clearly demonstrated that oil formulations (with 1,000 ppm of P) containing oil-miscible phosphonium ILs and borate esters provided synergistic interaction when studied under boundary lubrication conditions. Remarkable reductions in wear volume values were observed as compared to oil containing ZDDP (Sharma et al., 2016b). In the current study, a time-scale approach is employed to understand the incubation time and mechanism of tribofilm formation for low phosphorus oils (350 and 700 ppm of P) containing phosphonium IL with borate ester. Studying the evolvement of the chemistry of tribofilms with the increase in sliding time would help to elucidate the wear mechanism of anti-wear additives. For this purpose, tribofilm samples were procured from the interaction of phosphonium IL and borate ester for 5, 15, and 60 min rubbing time and characterized through electrical contact resistance (ECR) and X-ray absorption near edge spectroscopy (XANES) techniques.

Experimental Details

Chemistry of Anti-wear Additives and Test Oil Formulations

Table 1 details the chemistry of all the anti-wear additives used in this study. Low phosphorus test oils were formulated by mixing trihexyltetradecylphosphonium bis(2-ethylhexyl)phosphate (P_DEHP) IL with trimethoxyboroxine borate ester (SB) in group I base oil. P_DEHP ionic liquid was purchased from IOLITEC Ionic Liquids Technologies Inc., details of which are available in Sharma et al. (2016a,b); Sharma et al. (2019a). SB borate ester was provided from Argonne National Laboratory. Group I base oil was purchased from a commercial vendor and was a mixture of 60 wt.% solvent neutral 150 W and 40 wt.% bright stock 90 W. The kinematic viscosity of the base oil was 10.1 mm2/s at 100°C. The phosphorus concentration in the test oils was kept at 700 and 350 ppm, while boron concentration was maintained at 500 ppm boron treat rate. Details regarding the oil formulations used in this study are shown in Table 2.

TABLE 1
www.frontiersin.org

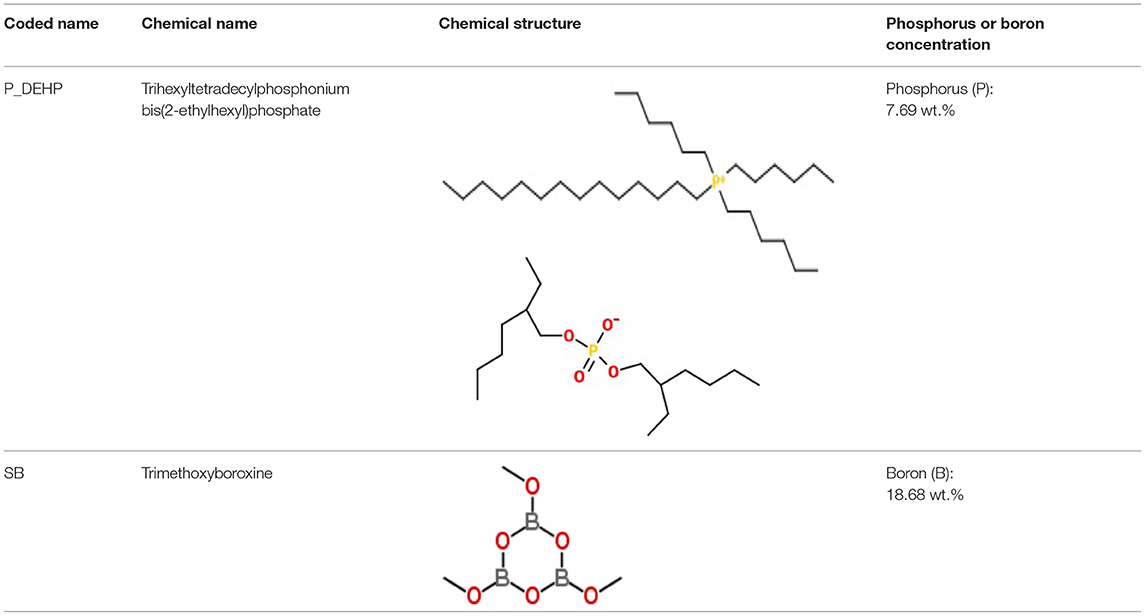

Table 1. Molecular structure of anti-wear additives.

TABLE 2
www.frontiersin.org

Table 2. Overview of low phosphorus test oil formulations prepared using P_DEHP and SB anti-wear additives.

Tribological Test Procedure and Characterization of Tribofilms

A High-frequency reciprocating cylinder on a flat surface test setup was used to evaluate the tribological performance of the different oils prepared in this study. The tribological testing machine was built in-house at Argonne National Lab. The 52100 hardened steel flat (14 mm × 14 mm; HRc 60–61; Sa 8 nm) and cylinder (4 mm × 6 mm; HRc 60–61) were used in this study. The load was applied using a pneumatic pressure unit to exert initial Hertzian contact pressure of 500 MPa. Experiments were performed at 0.06 m/s reciprocation speed at 100°C. The stroke length was 6 mm. To better understand tribofilm forming time and mechanism due to interaction of ionic liquid and borate ester at the interface, tribological tests were performed at different durations of 5, 10, and 60 min. Experiments were repeated twice to ensure repeatability and consistency in the results. Tribometer was also equipped with electric contact resistance (ECR) measurement circuit, wherein the potential of 100 mV was applied between counter steel surfaces of the cylinder and flat. The voltage drop across the counter surfaces was collected in-situ during the test to gain insight into the incubation time for tribofilm formation at the tribological interfaces. All test specimens were cleaned before the test using Stoddard solution followed by isopropanol and acetone to completely remove any oil and dust present on the surfaces. Tests were conducted by using 15 μl of prepared oil formulations to lubricate the interface between flat and cylinder test specimens. After the completion of the test, specimens were cleaned with heptane and isopropanol and then saved for characterization by submerging in additive-free polyalphaolefin (PAO) oil.

Friction forces were recorded in-situ through strain gauge load cell and coefficient of friction data was acquired using the DasyLab software. To conduct wear performance assessment, wear surfaces developed on the cylinders were examined under an optical microscope and a 3D optical interferometer. An optical image of the cylindrical test specimen was used to measure wear scar width at nine locations and an average of nine wear width measurements was used to calculate the wear volume of each cylinder. Wear surface (center/edge region) developed on flat steel specimen was characterized using the surface-sensitive technique, XANES spectroscopy to understand the chemical nature of tribofilms formed in-situ at the sliding surfaces. XANES spectra were obtained at the Canadian Light Source synchrotron facility in Saskatoon Canada. The phosphorus L-edge (P L-edge) and Boron K edge (B K-edge) spectra were collected at VLS-PGM (variable line spacing plane grating monochromator) beam station that operates at the energy range of 5.5–250 eV with a photon resolution of more than 10,000 E/ΔE. All the spectra were collected using a 100 μm × 100 μm photon beam spot size.

Results and Discussion

Evaluation of Coefficient of Friction and Wear Volume

The coefficient of friction (CoF) obtained for different oil blends at 5 min (black line), 15 min (red line), and 60 min (blue line) tests are plotted in Figure 1. All three oil formulations show overall stable frictional behavior. A small variance is observed in the CoF value for 5 min tests compared to 60 min tests for all oil formulations. This could be attributed to the original surface roughness of the test specimen. In the initial stages of the test, the frictional resistance between the counter surfaces is dominated by the original surface roughness which could vary a little while preparing the sample. Once the initial surface asperities are removed and stable tribofilms form on the counter surface, a stable friction response is observed. Additionally, CoF values for initial 5 min of 15 and 60 min tests appear to be similar suggesting the consistency in the additive performance. A careful comparison of 60 min COF profiles hints at almost similar steady-state friction values for all three formulations. An average coefficient of friction was calculated for 60 min tests and is plotted in Figure 2. Oil formulation containing only SB exhibits the highest CoF value while binary additive blends containing P_DEHP and SB results in lower CoF. In addition, P_DEHP(700P)+SB exhibits lower CoF compared to P_DEHP(350P)+SB.

FIGURE 1
www.frontiersin.org

Figure 1. Coefficient of friction obtained for oil blends containing only SB, P_DEHP(350P)+SB and P_DEHP(700P)+SB. Showing the friction response of each oil blend for 5, 15, and 60 min test.

FIGURE 2
www.frontiersin.org

Figure 2. A plot of average CoF for the 60 min test of oils containing additives, SB, P_DEHP(350P)+SB, and P_DEHP(700P)+SB.

Optical images of the wear scar developed on cylinders and flat after 1-h tribological tests are shown in Figure 3. Wear characteristics on both cylinder and flat lubricated with P_DEHP(700P)+SB appears to be better than SB and P_DEHP(350P)+SB oils. Worn surface lubricated with SB exhibits deeper scratches in the direction of sliding and regions of abrasive wear with high surface roughness covered with small patches of tribofilms. The optical image obtained for P_DEHP(350P)+SB lubricated wear surface shows signs of mild polishing wear with several scratches aligned in the sliding direction over the smooth surface and few regions covered with small patches of protective tribofilms. The wear scar generated on a flat specimen lubricated with P_DEHP(700P)+SB appears to be smooth and exhibits the presence of patchy protective tribofilms over the worn surface with mild scratching. Importantly, the optical image of P_DEHP(700P)+SB wear scar exhibits better tribofilm coverage with patch sizes that are larger and continuous than what is seen in SB and P_DEHP(350P)+SB. This indicates that P_DEHP(700P)+SB lubricant provided better wear protection than SB and P_DEHP(350P)+SB through the formation of protective tribofilms at the tribological interface.

FIGURE 3
www.frontiersin.org

Figure 3. Optical micrographs of wear surfaces on the cylinder (left) and flat (right) test specimens from 1 h tribological tests with (A) SB, (B) P_DEHP(350P)+SB, and (C) P_DEHP(700P)+SB oils.

Wear volume calculated for all oil formulations after 60 min is presented in Figure 4. Wear scar width for 5 and 15 min test was very low and precise measurements could not be made, hence are not presented here. Error bars in Figure 4 represent the standard deviation between wear volume measured for two repeat tests. Borate ester when used by itself exhibits higher wear volume compared to formulations containing additive mixtures of P_DEHP and SB. Moreover, the effect of phosphorus content in the oil blend can also be seen in Figure 4. The binary mixtures of P_DEHP+SB exhibited improvement in the wear protection when the phosphorus treat rate was increased from 350 to 700 ppm. The addition of phosphorus from P_DEHP to the SB at 350P ppm shows improvement in the wear protection which is further increased by adding P_DEHP at 700P ppm to SB. Figure 5 shows optical profilometry 2D images of the wear scar profile at the center of the cylinders and 3D images of the area of contact on the cylinders after tribological tests. The cylinder surface for SB reveals severe wear as the 2D profile is virtually flat at the center. The improved wear protection with the additive mixture of borate ester, SB, and P_DEHP ionic liquid at 700 ppm of P is visually evident in the 3D profilometry images.

FIGURE 4
www.frontiersin.org

Figure 4. Wear volume obtained for oil formulations containing only SB, P_DEHP(350P)+SB and P_DEHP(700P)+SB for a 60 min test.

FIGURE 5
www.frontiersin.org

Figure 5. Optical profilometry images of the cylinders represented in 2D (left) at the center region of the cylinder and the 3D representation of the wear scar developed after 1 h (A) SB, (B) P_DEHP(350P)+SB, (C) P_DEHP(700P)+SB tribological tests.

Analysis of Tribofilms Formation Using ECR

ECR data acquired for all oil formulations during the 5 min (black), 15 min (red), and 60 min (blue) test is shown in Figure 6. Graphs in Figure 6 represent voltage drop values measured as a function of test time. Non-zero voltage drop value is indicative of the formation of non-conductive glassy tribofilms and voltage drop close to zero mV suggests no film formation between the counter surfaces. Five minutes test with a formulation containing only SB does not show potential build-up except the first point which could originate due to separation of counter surfaces from oil. Once the test started voltage drop value becomes near zero suggesting no tribofilms were formed within 5 min. Both 15 and 60 min test shows the potential build-up to 100 mV at ~300 s after the start of the test. These results indicate that the incubation time for tribofilm formation for borate ester (SB) additive is ~300 s. After ~300 s, both 15 and 60 min test show voltage drop value which periodically vary between 0 and 100 mV until ~900 s test time. This corresponds to the film formation which is sacrificial in nature. In this test duration (~300 to ~900 s), the film formation rate is similar to the film removal rate under constant shearing forces. After ~900 s, a more stable voltage drop is observed, and the voltage drop value varies between ~50 and 100 mV till ~2,700 s test time. In this test duration, most voltage drop values remained close to 100 mV indicating stable and effective film formation. After ~2,700 s voltage drop value starts to decrease till the end of the test i.e., 3,600 s. ECR data acquired for the test run under P_DEHP(350P)+SB lubrication shows a relatively small incubation time for tribofilm formation. Voltage drop starts to form as early as ~100 s from the beginning of the 5, 15, and 60 min tests. After ~100 s, voltage drop values vary between 50 and 100 mV. These results indicate that the addition of phosphorus from P_DEHP at 350P ppm to SB promotes tribofilm formation in a very short time and once the films are formed film formation rate is higher than film removal under shearing, thus the voltage drop does not go back to 0 mV and stays between 50 and 100 mV. In the case of P_DEHP(700P)+SB, voltage drop starts to build up as early as the test starts however, till ~300 s of the test, the film removal rate is higher than film formation hence the voltage drop varies between 0 and 50 mV. After ~300 s, voltage drop value reached 100 mV indicative of stable film formation. The voltage drop value remains close to 100 mV for the rest of the test duration except at few points where voltage drop falls to 50 mV. These observations suggest that the interaction of phosphonium ionic liquid (P_DEHP) with borate ester (SB) reduces the incubation time for tribofilm formation as well as results in more stable and effective film formation. The amount of phosphorus also determines the effectiveness of the tribofilms. The addition of P_DEHP at 700P ppm to SB results in more effective tribofilm formation than P_DEHP(350P)+SB.

FIGURE 6
www.frontiersin.org

Figure 6. ECR data acquired for SB, P_DEHP(350P)+SB and P_DEHP(700P)+SB for 5 min (black), 15 min (red), and 60 min (blue) tests.

Chemical Properties of Tribofilms Using XANES

Phosphorus Characterization (P L2,3-Edge)

Phosphorus L-edge TEY and FY spectra of wear samples derived from 5, 15, and 60 min tests with low phosphorus oil blends containing P_DEHP at 350P ppm/700P ppm and SB at 500B ppm is illustrated in Figures 7, 8, respectively. Phosphorus L-edge spectra are plotted in black lines and are compared with model compounds plotted in green lines. Figure 7 shows the P L-edge TEY spectra which offers chemical information of local coordination of phosphorus from near-surface region i.e., ~5–10 nm (Suominen Fuller et al., 2000). The absorption peak observed on P L-edge TEY spectra is labeled as peak a, b, c, and d. Peak d is a characteristic shape resonance peak owing to 2p to 3d transitions (Li et al., 1994) and represents phosphate coordination irrespective of the cation associated with it. The presence of peak d in tribofilms spectra indicates that phosphorus is primarily present as phosphate species in the tribofilms. In addition, the photon energy of pre-edge shoulders peaks a and b and a main absorption edge peak c from the tribofilms spectra closely matches with FePO4 model compound spectra.

FIGURE 7
www.frontiersin.org

Figure 7. Phosphorus L-edge TEY spectra of tribofilms (black lines) derived at 5, 15, and 60 min test for P_DEHP(350P)+SB and P_DEHP(700P)+SB lubrication along with model compounds (green lines).

FIGURE 8
www.frontiersin.org

Figure 8. Phosphorus L-edge FY spectra of tribofilms (black lines) derived at 5, 15, and 60 min test for P_DEHP(350P)+SB and P_DEHP(700P)+SB lubrication along with model compounds (green lines).

Similarly, the tribofilms P L-edge FY spectra (shown in Figure 8) offer chemical information from the bulk of the sample up to 50–60 nm (Suominen Fuller et al., 2000; Nicholls et al., 2007) also exhibited spectral features matching with the FePO4 model compound. This confirms that tribofilms derived from P_DEHP (350P/700P)+SB lubrication are primarily composed of FePO4 chemistry. The main absorption edge from the P L-edge spectra of the BPO4 model compound was not clearly resolved in the P L-edge spectra of tribofilms. Here, we can speculate that since the availability of Fe cation (from the substrate) is much higher than B (added at 500 ppm) at the tribological contacts, the likelihood for FePO4 formation is much higher than BPO4 in the tribofilms. Hence when probing the P L-edge, the tribofilms spectra get influenced by the more dominantly present species i.e., FePO4 chemistry which might result in the suppression of spectral features of BPO4 chemistry. To effectively detect the BPO4 chemistry in the tribofilms, B K-edge spectra were acquired and discussed in the next section [Boron Characterization (B K-Edge)].

In order to gain insight into the effect of rubbing time and phosphorus concentration on the formation and composition of tribofilms, the extent of phosphate film polymerization was analyzed using the peak a to peak c ratio from P L-edge TEY and FY spectra of tribofilms. Previous studies have suggested that a/c ratio below 0.3 corresponds to short-chain phosphate polymerization and a/c ratio above 0.6 indicate long-chain phosphate formations (Yin et al., 1995; Li et al., 2007; Kim et al., 2011; Vyavhare et al., 2019; Cebe et al., 2020). The a/c ratio of tribofilms formed at 5, 15, and 60 min test for oils containing P_DEHP(350P)+SB and P_DEHP(700P)+SB is measured and plotted in Figure 9. P L-edge TEY a/c ratio is presented as a green bar and P L-edge FY a/c ratio in blue bars. The a/c ratio acquired from TEY spectra exhibits a higher value in comparison with FY for each test suggesting that at the near-surface region, a higher degree of polymerization had occurred than in the bulk of the tribofilms in all cases. In all cases, short-chain phosphate film formation has been observed since the maximum a/c ratio measured is 0.3 [P_DEHP(350P)+SB 60 min test and P_DEHP(700P)+SB 60 min test]. The a/c ratio is found to be increasing with increasing rubbing time/ test time. In the case of P_DEHP(350P)+SB TEY/FY, the a/c ratio increases from 0.2/0.09 to 0.25/0.14 and 0.3/0.19 for 5, 15, and 60 min test, respectively. Similarly, P_DEHP(700P)+SB TEY/FY also shows an increase in the a/c ratio with rubbing time both at near-surface (TEY) and in the bulk (FY). These results indicate that the tribofilms derived from P_DEHP(350P/700P)+SB results in layered phosphate films where the surface (TEY) of the films is composed of relatively longer chain phosphate films than the bulk (FY) of the tribofilms.

FIGURE 9
www.frontiersin.org

Figure 9. P L-edge a/c ratio measured for tribofilms formed using P_DEHP(350P)+SB and P_DEHP(700P)+SB at 5, 15, and 60 min test.

Boron Characterization (B K-Edge)

B K-edge TEY and FY spectra of tribofilms derived from SB, P_DEHP(350P)+SB, and P_DEHP(700P)+SB for 5, 15, and 60 min test are plotted in Figures 10, 11, respectively. The local coordination of boron in the tribofilms is identified by comparing the acquired B K-edge spectra with model compounds, trigonal boron (B2O3) and tetrahedral boron (BPO4). In Figures 10, 11, the trigonal boron peak for B2O3 is labeled as peak a (194.1 eV) and the tetrahedral boron peak for BPO4 is identified as peak b (198.4 eV). Zhang et al. (2004) reported that peak a originates from the p2s from phosphate structure. B K-edge TEY and FY spectra of SB-derived tribofilms for 5, 15, and 60 min tests exhibit peak an indicating that boron is primarily present as trigonal boron as B2O3. Detection of an unresolved peak at a photon energy of 199 eV (close to peak b) in both TEY and FY spectra indicates that under the thermo-mechanical shearing partial transformation of trigonal boron to tetrahedral boron may have occurred. In an earlier study, Zhang et al. (2004) also reported transformation of trigonal coordination to tetrahedral coordination in boron in the tribofilms upon rubbing.

FIGURE 10
www.frontiersin.org

Figure 10. Boron K-edge TEY spectra of tribofilms (black lines) derived at 5, 15, and 60 min test for SB, P_DEHP(350P)+SB, and P_DEHP(700P)+SB lubrication along with model compounds (green lines).

FIGURE 11
www.frontiersin.org

Figure 11. Boron K-edge FY spectra of tribofilms (black lines) derived at 5, 15, and 60 min test for SB, P_DEHP(350P)+SB, and P_DEHP(700P)+SB lubrication along with model compounds (green lines).

B K-edge TEY and FY spectra for P_DEHP(350P)+SB derived tribofilms exhibit two absorption edges labeled as peak a and peak b. Comparing with the model compound spectra, the presence of peak a at a photon energy of 194.1 eV suggests that boron in these tribofilms is trigonal boron species i.e., B2O3. In addition, the presence of much-resolved peak b at 198.4 eV aligned with peak b of the BPO4 model compound suggests that to some extent boron is also present as boron phosphate. Peak a at the photon energy of 195.78 eV is present in the TEY spectra and not in the FY spectra. Here, peak a is attributed to the presence of FePO4 films on the surface (TEY), which were also identified through P L-edge results (in an earlier section). It is important to note that in TEY spectra intensity of peak a decreases while the intensity of peak b increases with the increase in rubbing time. This observation hints at the interaction of boron species with already formed FePO4 films and/ or ionic liquid to form more boron phosphate on the surface with the increase in rubbing time. Similarly, in the case of P_DEHP(700P)+SB, for 5 and 15 min rubbing time the boron is mostly present as trigonal boron (B2O3) and to less extent as tetrahedral boron. However, with the increase in rubbing time to 60 min dominant boron chemistry in the surface (TEY) appears to be associated with tetrahedral boron, primarily as boron phosphate (exact aligned peak b at 198.4 eV) and to small proportion as trigonal boron (B2O3). Both FY spectra of P_DEHP(350P)+SB and P_DEHP(700P)+SB indicate that boron is present as trigonal boron (B2O3) and tetrahedral boron (BPO4) in the bulk of these tribofilms. However, in this case, P_DEHP(350P)+SB blend with 60 min rubbing time exhibits the strong intensity of peak an as opposed to peak b, while P_DEHP(700P)+SB blend 60 min test shows the higher intensity of peak b than peak a. These results suggest that high concentration of P_DEHP (700 ppm of P) in the lubrication largely interacted with SB to form BPO4 films in both bulk and surface of the tribofilms formed during 60 min of rubbing time.

Moreover, we can see the change in the ratio of boron phosphate to boron oxide with the rubbing in Figure 12. The peak intensity of peak b increases from 5 to 60 min rubbing time. The ratio of BPO4 to B2O3 is higher in TEY compared to FY, suggesting the boron in the bulk of the tribofilms is dominantly present as B2O3 while BPO4 contribution increases at near-surface region. B K-edge TEY and FY spectra of P_DEHP (700P)+SB for 60 min test exhibit the highest ratio of BPO4 to B2O3. We can hypothesize that during the rubbing test boron from borate ester first arrive at counter surfaces and forms B2O3 tribofilms which later interact with phosphorus from P_DEHP ionic liquid and/ FePO4 films and form BPO4 which enhances the crosslinking between phosphate film networks.

FIGURE 12
www.frontiersin.org

Figure 12. BPO4/B2O3 ratio measured for tribofilms formed using P_DEHP(350P)+SB and P_DEHP(700P)+SB at 5, 15, and 60 min test.

Tribofilm Formation and Anti-wear Mechanism

Interfacial tribofilms primarily control the wear characteristics of the sliding surfaces operating under mixed to boundary lubrication regime. Extensive surface characterization techniques have been used to study physical and chemical properties of tribofilms formed from phosphorus-containing anti-wear additives like ZDDP and IL. For example, Ramoun et al. and Bohoon et al. used scanning electron microscopy (SEM) with focused ion beam (FIB), Auger electron spectroscopy, XANES, and nano-indentation techniques to evaluate chemical and physical properties of ZDDP derived tribofilms (Mourhatch, 2009; Kim et al., 2010, 2011, 2017; Mourhatch and Aswath, 2011). They reported that 100–200 nm thick tribofilms are grown from bottom to top on steel substrate in chemically varying layered structures, wherein the top layer is enriched with zinc and iron phosphates. Qu et al. and Zhou et al. using transmission electron microscopy (TEM) and scanning tunneling electron microscopy (STEM) studied nanostructure and compositional characteristics of IL tribofilms and proposed that ILs form 120–180 nm thick amorphous tribofilms via multi-step tribofilm forming mechanism including thermally activated chemical reactions at sheared metallic contacts (Qu et al., 2012; Zhou et al., 2017). In this context, our previous study (Sharma et al., 2016b, 2019a) with Group I mineral oil and fully formulated oil containing phosphonium IL (P-DEHP) examined morphological and topographical characteristics of tribofilms using scanning probe microscopy (SPM) and SEM. 3D images of the wear scar recorded using SPM revealed presence of ~80 nm thick tribofilms with patchy morphology.

This study using ECR and XANES confirms the ability of borate esters to interact chemically with phosphonium IL to form thick tribofilms and improve anti-wear performance under boundary lubrication conditions. Here, ECR results exhibited that the SB by itself forms tribofilms at a slower rate, however, the addition of P_DEHP to SB accelerated the formation of their tribofilms. It can be proposed that the additional phosphorus chemistry provided through P_DEHP promoted the stable formation of protective tribofilms at a relatively faster rate than SB. Furthermore, the presence of phosphorus and boron chemistry in the case of P_DEHP(700P)+SB boosted the thickness of tribofilm patches as illustrated in Figure 3. Formation of stable and thick tribofilms at the early-stage of sliding (~100 s) could have aided to distribute applied contact pressure and sacrificially cushion shear stresses at the tribological interface to effectively prevent wear.

XANES results confirmed that the interaction between P_DEHP and SB additives resulted in the formation of FePO4, B2O3, and BPO4 tribochemical films on the rubbed surfaces. The P L-edge spectra primarily exhibited FePO4 formation suggesting that P_DEHP IL reacts with the nascent Fe surface to form FePO4. B K-edge spectra identified the association of boron with trigonal coordination as B2O3 and with tetrahedral coordination as BPO4. The authors hypothesize that under the thermo-mechanical shearing, borate esters (SB) form decomposition by-products of B2O3 on the counter surfaces during the initial stage of the test. However, since the tribological experiments were run in ambient air (relative humidity ≈50%), B2O3 can also hydrolyze to form boric acid (H3BO3). Erdemir et al. (1990) studied the lubrication mechanism of boron chemistry and reported that B2O3 transforms into H3BO3 at the tribological contacts following the reaction (1).

12B2O3+32H2O   H3B O3 ΔH298= - 45.1 kJmol-1    (1)

Additionally, B K-edge spectra of tribofilms do not show a characteristic peak of FeB at a photon energy of around 191.5 eV (Sharma et al., 2016b) and thus, confirm no interaction of boron chemistry with the nascent Fe surface.

On the other hand, the tribochemical reaction of ionic liquids and/or their decomposition products with the nascent Fe surfaces and/or wear debris at the interface has resulted in the formation of protective FePO4 films. The primary source of phosphorus for physiochemical reaction can be from the phosphate anion as it is easier for the phosphate anion to lose alkyls and react with the nascent metal surface (Somers et al., 2013; Qu et al., 2014; Zhou et al., 2014) to form iron phosphates in opposed to the phosphonium cation. However, the contribution from the phosphonium cation can't be completely ruled out. Our previous work on oil miscible phosphonium cation and non-phosphorus anion-based ionic liquid has shown the formation of iron phosphate films due to complex decomposition and/or oxidation of phosphonium cations and reaction of these decomposition products with the underlying nascent Fe substrate (Sharma et al., 2016a). Besides these compounds, the B K-edge spectra of the binary additive mixture P_DEHP+SB also exhibited the formation of the BPO4 compound. From Figure 10, it was also noticed that with rubbing time, BPO4 formation increases in the tribofilms relative to B2O3. Thus, it can be postulated that under the thermo-mechanical shearing, BPO4 forms at the expense of B2O3 due to the availability of phosphorus either from the original P_DEHP IL or from FePO4 films.

XANES P L-edge indicated that the tribofilms formed with P_DEHP(350P/700P)+SB contains relatively longer chain-length phosphates in the near-surface region than the bulk of the tribofilms. Earlier studies have shown that longer chain phosphates yield better tribological properties and are generally considered to be more beneficial (Bancroft et al., 1997; Mosey et al., 2006; Sharma et al., 2015; Vyavhare et al., 2021a,b,c, Vyavhare et al., 2021). Additionally, XANES results indicated that the chain length of phosphates increases with the rubbing time. It can be proposed that the high pressure and temperature experienced due to extended rubbing time from 5 to 60 min could have induced cross-linking of loosely interacting iron phosphates molecules into a chemically connected network. Additionally, as discussed earlier with increased rubbing, the concentration of BPO4 has also increased in the tribofilm. Boron exhibits variable co-ordination number, which allows it to act as both glass former and cross-linking agent (Mosey et al., 2006), and therefore, here increase in the formation of BPO4 might have contributed to the increase in the overall chain length of phosphates in the tribofilms. Overall, it is evident from this study that the tribo-chemical reaction of SB and P_DEHP reduces the incubation time to form protective tribofilms and promotes the formation of cross-linked glassy phosphates with the increased sliding time that lead to a corresponding improvement in anti-wear properties.

Conclusions

Oils with additive mixtures of borate esters with phosphonium IL at a phosphorus treat rate of 350 and 700 ppm were developed. Antiwear properties measured for these oil formulations on a cylinder-on-flat contact under pure sliding revealed noticeable improvement in wear protection for binary additive mixtures of SB with P_DEHP compared to SB alone. Phosphorus treat rate can also be combined with the wear outcomes since P_DEHP(700P)+SB resulted in the lowest wear volume compared to P_DEHP(350P)+SB, while oil blend SB with no P exhibited the highest wear volume.

ECR data indicated that a shorter incubation time for tribofilm formation is achieved from the beneficial interaction of SB with P_DEHP. The mechanism of tribofilm formation was examined by running tribotests for 5, 15, and 60 min followed by chemical analysis of tribofilms. XANES analysis using P L-edge revealed that phosphorus is primarily present as FePO4 and phosphate chain polymerization increases with rubbing time (increase in P L-edge a/c ratio from 5 to 60 min test time). B K-edge spectra revealed the formation of BPO4 enhanced B2O3 tribofilms for P_DEHP+SB blends while SB alone forms B2O3 chemistry-based tribofilms. Additionally, B K-edge spectra exhibited that BPO4 to B2O3 ratio increase with rubbing time suggesting that during the thermo-mechanical shearing action, initial B2O3 tribofilms formed from SB chemically interact with P_DEHP IL to form BPO4 in addition to FePO4.

Data Availability Statement

The raw data supporting the conclusions of this article will be made available by the authors, without undue reservation.

Author Contributions

KV, VibS, and VinS designed this research work, conducted the experiments, and wrote the manuscript. AE supported and guided tribological tests and data analysis. PA supervised all aspects of this research work and reviewed the paper. All authors contributed to the article and approved the submitted version.

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Acknowledgments

Tribological tests were conducted at Argonne National Laboratory. XANES experiments were conducted at the Canadian Light Source, Saskatoon, Saskatchewan, Canada that was supported by NSERC, NRC, CIHR, and the University of Saskatchewan.
