Mini-Review: Heat Transfer Mechanisms in MILD Combustion Systems

MILD combustion has a wide potential in enhancing thermal efficiency with nearly zero emissions. It has no visible flame since the radiation from the reacting zones is attenuated due to both the intermediate species at reduced temperatures, induced by intensely burned gas recirculation, and the absence of particulate emitters. Beyond these main features, there are other characteristics such as temperature uniformity and distributed ignition that have to be addressed and analyzed looking at the peculiar role of the heat transfer for such reactors. First, the category of combustion systems object of the study is described. Afterwards an analysis on the heat transfer mechanisms under MILD combustion of gaseous fuels is carried out. Therefore, in this Mini-Review, several literature findings highlighting the role of the heat transfer on the combustion peculiarities of MILD reactors (i.e., temperature uniformity, distributed ignition, low pollutant emissions) are reported and discussed. Heat exchange modes, in fact, contribute to providing MILD macroscopic characteristics by means of the strong interplay between wall and gas heat transfer, instead of the reactive structure. In particular, the thermal behavior of these systems is analyzed in order to stress the distinctive role of the heat loss and the relative contributions of the convective and radiative terms. Heat transfer mechanisms between gas and walls and their interactions, in fact, favor the wide temperature distribution within the chamber. In order to better understand the different effects of the heat transfer under MILD regime, the mechanisms regarding walls and recirculating gas are separately investigated.

Introductive Concepts: Mild Combustion Reactor Features

Moderate or Intense Low-oxygen Dilution (MILD) Combustion (Cavaliere and de Joannon, 2004) is characterized by low-oxygen concentrations and high inlet temperatures. Important characteristics of this oxidation process are homogeneous temperatures, distributed ignition (Khalil and Gupta, 2017), absence of visible flames (Karyeyen et al., 2019) and low CO, NO_x and soot emissions (de Joannon et al., 2012). It is a very good candidate for low-calorific-value (Huang et al., 2014; Sabia et al., 2019), hydrogen, nitrogen-based (Sabia et al., 2019) fuels and industrial ones (Parente et al., 2008). The process occurs under conditions different from conventional ones because of the strong interplay between mixing, chemistry and heat transfer (Lamouroux et al., 2014; Chen et al., 2018).

Several facilities such as the Jet-in-Hot-Coflows (Medwell et al., 2008; Oldenhof et al., 2010), and the Cabra flame (Cabra et al., 2005), are used to reproduce highly diluted and preheated conditions, on the basis of kinetic time-scales modifications. In all these cases the combustion process is unconfined and occurs far from the walls, under adiabatic conditions (Kim et al., 2005; De and Dongre, 2015).

MILD is realized by using exhaust gas recirculation (Cavigiolo et al., 2003; Minamoto et al., 2013). The internal EGR is obtained through proper chamber designs (Veríssimo et al., 2013), by realizing long residence times (Li et al., 2014) due to convoluted and confined flow-fields (Sorrentino et al., 2018). Gas entrainment (de Joannon et al., 2017) lead to chemical time-scales comparable to mixing ones (Özdemir and Peters, 2001) and reflect the importance of impinging wall-jets (de Joannon et al., 2017) or cavity flows (Chinnici et al., 2017).

These systems, identified hereafter as “MILD reactors,” are classified with respect to nominal MILD requisites. Specifically, the inlet-feeding temperature (T_in), should be higher than the spontaneous-ignition one (T_ign), and the differential temperature increase between products and reactants (ΔT_product), should be lower than T_ign. In the current literature, three main configurations of MILD reactors can be identified with respect to the strategy they use to fulfill the above-mentioned conditions (Perpignan et al., 2018). In the following, a review of these configurations is given.

The first configuration regards reactors where T_in >T_ign and ΔT_product <T_ign are satisfied through external feeding. This is the case of post-combustion systems. Fuel-rich (Giménez-López et al., 2011) or fuel-lean re-burning processes (Miller et al., 1998; Kim et al., 2012) are examples of in-furnace and/or post-furnace NO_x abatement systems. Fuel is injected in exhaust/oxygen mixtures for jet-engine systems (Fureby, 2000) or waste incineration (Parr et al., 1996).

Another group of MILD reactors refers to the case T_in >T_ign, obtained by external feeding while ΔT_product <T_ign, through intra-reactor phenomena. Such a condition is typically obtained in recuperative/regenerative furnace systems (Wünning and Wünning, 1997; Katsuki and Hasegawa, 1998; Özdemir and Peters, 2001; Rafidi and Blasiak, 2006; Li et al., 2014) in which part of the combustion heat is subtracted by walls through exhausts reverse flow (Nemitallah et al., 2018).

The third MILD reactors category involves those systems where both requirements are fulfilled by internal recirculation and heat exchange strategies. Also, in this case, many different fluid-dynamic arrangements can be used. In particular, parallel jets (Abtahizadeh et al., 2012; Huang et al., 2014; Cheong et al., 2019) and cyclonic flow configurations (de Joannon et al., 2017). The former has also been used for burners in regenerative conditions (Wünning and Wünning, 1997; Katsuki and Hasegawa, 1998; Rafidi and Blasiak, 2006; Li et al., 2014). Regarding the cyclonic systems, LUCY burner (Sorrentino et al., 2016) is a valuable example of MILD reactor with a tailored flow-field (Sorrentino et al., 2017).

In the second and third categories, the condition ΔT_product <T_ign, is influenced by heat exchange at walls, and the residence time poses severe design restrictions (Kruse et al., 2015). Indeed, heat loss plays a key role in reducing the reacting mixture temperature (Szegö et al., 2009). On the other hand, a sufficiently high temperature must be guaranteed inside the reactor itself. In other words, the walls are responsible for both the heat loss by products and the heat gain by reactants (Danon et al., 2011).

Energy equation includes contributions of the three heat transfer modes: conduction, convection and thermal radiation, where the latter is included through the radiative flux divergence (Özışık, 1973; Viskanta, 2005; Dombrovsky and Baillis, 2010; Modest, 2013). In the following sections, the contributions of each heat transfer mechanism under MILD conditions are analyzed and discussed.

The overall heat transfer is conceptually divided into three phenomena: gas-to-gas, gas-to-wall and wall-to-wall.

Gas to Gas Heat Transfer

EGR is essential in MILD to mix fresh reactants with exhausts in order to lower the reaction-rate and sustain the oxidation for diluted conditions (Tu et al., 2015). Thus, the reactor design (Liu et al., 2015) must ensure the required convection and radiation levels. High concentrations of absorbing and emitting H₂O/CO₂ mixtures inside the combustion chamber (Dorigon et al., 2013) lead to enhanced radiative re-absorptions. This effect is not negligible and contributes to the system thermal homogeneity, as highlighted in several literature papers (Zhang et al., 2019; Ceriello et al., 2020).

The specific aerodynamic requirements of MILD Combustion (enhanced jet mixing through high inlet jets momentum and large scale recirculation of flue gases) influence the contribution of convective heat transfer mode. In particular the share of convective heat transfer in the MILD mode is enhanced by the higher velocity and momentum of air at the inlet when compared to the conventional combustion mode (Riahi et al., 2013). On the other hand the increased internal recirculation enhances the convective heat transfer process and this effect is more marked in MILD oxyfuel combustion processes (Chen et al., 2012).

In Figure 1, emissivity of CO₂ and H₂O as functions of the temperature at different products between total pressure and length of the enclosure (Hottel and Cohen, 1958), and modified by Alberti et al. (2015), are reported. Those trends show that, for both species, when the temperature of the mixture gets lower, the emissivity increases. For MILD systems, operating in the range 1,000< T <1,400 K, the standard gas emissivity of burned products results higher with respect to conventional combustion (where T >1,800 K). This is due to both the effect of lower system temperatures and CO₂/H₂O higher partial pressures. Therefore, the effect of the re-absorption is noticeable in MILD, even for a small-scale apparatus (Sorrentino et al., 2018; Zhang et al., 2019).

FIGURE 1

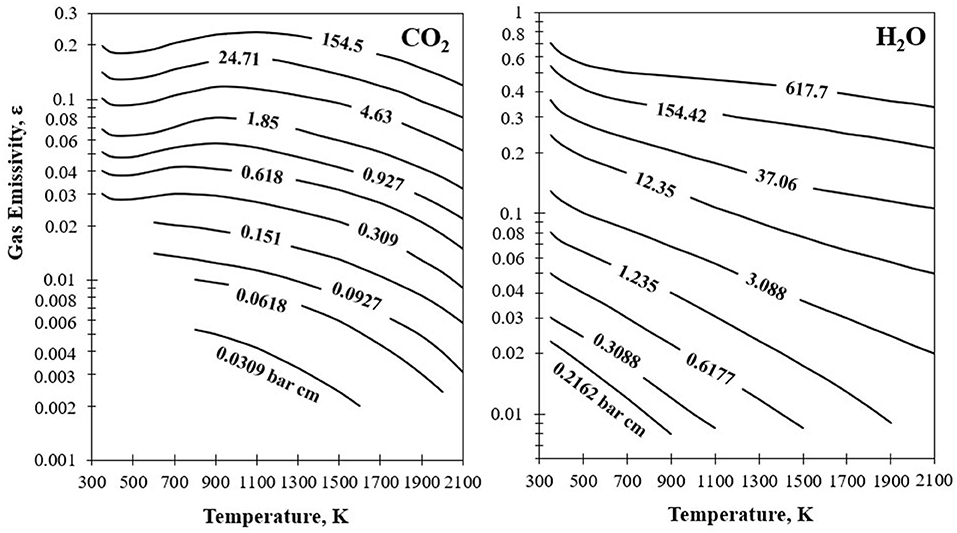

Figure 1. Total emissivity of pure carbon dioxide (left) and pure water vapor (right) as a function of temperature (Hottel and Cohen, 1958) and modified by Alberti et al. (2015).

To model radiative re-absorption, the spectral dependence of the radiative properties of the exhausts must be known. The most accurate method to calculate the radiative properties of the combustion products is the line-by-line integration (Chu et al., 2011; Zeng et al., 2020) which uses spectroscopic databases (Rothman et al., 2010; Gordon et al., 2017; Pannier and Laux, 2019). However, LBL calculation is not feasible for the CFD of complex combustion systems. Very few works showed LBL with Monte Carlo methods coupled to CFD for combustion applications (Zhao et al., 2013; Ren et al., 2018).

Intermediate between LBL and global models, narrow band models such as the correlated-k approach has also been retained in some works by solving the radiative transfer equation in the CFD using a Monte-Carlo based on the emission-reciprocity method (ERM) (Koren et al., 2018; Rodrigues et al., 2019).

Global models such as the full spectrum correlated-K method (FSK) and the spectral line based weighted sum of gray gas method (SLW) have received a lot of attention because of their accuracy and low computational costs. Despite that, their implementation is not straightforward since the correlation of FSK and SLW are usually offered for single gas species.

A simple solution that is commonly used in commercial CFD codes, due to its computational efficiency, relies on the resolution of only one radiative transfer equation to obtain the total radiation intensity field by replacing the spectral absorption coefficient with the mean gray absorption coefficient (Galletti et al., 2007; Pallarés et al., 2007; Yang et al., 2007). In such cases simplified radiation models optimized for combustion systems can be developed by using the detailed information given by the spectral databases (Paul et al., 2019).

Usually, in numerical modeling of MILD/Flameless systems the Weighted-Sum-of-Gray-Gases Model, WSGGM (Modest, 1991), is adopted to model the spectrally dependent properties of the combustion gases, making use of updated spectral databases. A possible choice is to use the coefficient proposed by Smith et al. (1982). Modified WSGG (Bordbar et al., 2014; Cassol et al., 2014) were recently developed. In particular, the coefficients proposed in this models were used to account for various temperature and different concentrations of H₂O/CO₂ in each computational cell. According to this radiative database, both the absorption coefficients and the black body weights of the gray gases depend on molar ratio, while only the weights depend on temperature. Modified WSGG models were applied for simulating MILD condition in several works (Galletti et al., 2007; Sorrentino et al., 2018).

An interesting modification of the WSGG model is represented by the SLW (Webb et al., 2018) where detailed gas spectroscopic data are captured by a designed distribution function (Denison and Webb, 1993). It gives some improvements with respect to WSGG (Krishnamoorthy et al., 2010; Webb et al., 2018). However, since the MILD does not have strong gradients of temperature and concentration, the improvements of SLW with respect to WSGG do not justify the increase of computational costs. Therefore, the flameless nature of the MILD process supports the use of a modified WSGG to obtain reliable results for such systems.

Regarding the solution method of the radiative-transfer-equation (RTE), considering the intermediate optical thickness of MILD, the Discrete Ordinate (DO) radiation model (Chui and Raithby, 1993) seems an appropriate choice. DO approximation converts the RTE into a series of differential equations along directions (Modest, 2013).

On the other hand, some studies showed that P1 model gave worse prediction than DO for MILD (Frassoldati et al., 2010). Moreover very few works used Monte Carlo methods in MILD burners and results differed by <5% with respect to DO, but the latter model was preferred because of its lower computational cost (Galletti et al., 2007).

Gas to Wall Heat Transfer

Some literature works reported the relative importance of convective and radiative modes in MILD combustion. In particular, heat transfer characteristics from the furnace walls for H₂O/CO₂ mixtures (Zhang et al., 2019) were analyzed and they showed that the H₂O increase enhanced the share of heat radiation. When H₂O is substitute for CO₂, the influence of heat capacity progressively declines and the effect of heat capacity on strengthening convective heat transfer or weakening radiative heat transfer gradually decreases. Moreover, thermal performance analysis of hybrid solar receiver MILD combustor showed that the ratio of radiative to convective heat transfer rate is found to be dependent on the fuel type (Chinnici et al., 2019).

In this context, engineering global assessments on the importance of radiative heat transfer with respect to convective one can be obtained for MILD systems without solving RTE if average values of fluid and wall temperatures are available and by adopting several approximations.

In a combustion system, the overall heat transfer flux between gas and walls, Q, in W/m², can be expressed as the sum of a convective, Q_c, and a radiative term, Q_r (Baukal, 2000), as follows:

$\begin{array}{ll}\text{Q}={\text{Q}}_{\text{c}}+{\text{Q}}_{\text{r}},& (1)\end{array}$

with

$\begin{array}{ll}{\text{Q}}_{\text{c}}={\overline{\text{h}}}_{\text{c}}({\text{T}}_{\text{f}}-{\text{T}}_{\text{w}})& (2)\end{array}$

$\begin{array}{ll}{\text{Q}}_{\text{r}}={\epsilon }_{\text{g}}\sigma \left({\text{T}}_{\text{g}}^4-{\text{T}}_{\text{w}}^4\right)& (3)\end{array}$

In such relations, ${\overline{h}}_c$ is the average convection heat transfer coefficient over the heat transfer area, in W/m² K, T_w the wall surface temperature, T_f the fluid temperature, T_g and ε_g are the exhaust (H₂O/CO₂ mixture) mean temperature and emissivity, respectively (Kreith et al., 2011). In the expression of the radiative heat flux, Q_r, the view factors are considered to have value 1. This assumption for the flux leaving gas and reaching walls is supported by the black body cavity behavior of MILD systems. Moreover, since the combustion process extends to the whole volume under MILD conditions, the view factor can be assumed to be 1 as well.

In the expression of Equation (3), both the black walls and gas are assumed to emits and absorbs heat at all wavelengths. A more accurate expression can be found in the book by Lefebvre and Ballal (2010) where the gas emits only a few narrow bands of wavelengths and absorbs only those wavelengths included in its emission bands.

For a MILD reactor, as reported in several works (Chinnici et al., 2017; Sorrentino et al., 2018; Zhang et al., 2019), the fluid temperature, T_f, can be approximated to the mean gas temperature inside the combustion chamber, T_g, because of the absence of steep gradients and peaks:

$\begin{array}{ll}{\text{T}}_{\text{f}}={\text{T}}_{\text{g}}& (4)\end{array}$

This approximation is commonly adopted for industrial furnaces and denoted as Well-Stirred model (Hewitt et al., 1994). Therefore, the ratio between radiative and convective term reads

$\begin{array}{ll}\frac{{\text{Q}}_{\text{r}}}{{\text{Q}}_{\text{c}}}=\frac{{\epsilon }_{\text{g}}\sigma {\text{T}}_{\text{w}}^3}{{\overline{\text{h}}}_{\text{c}}}\left({\left(\frac{{\text{T}}_{\text{g}}}{{\text{T}}_{\text{w}}}\right)}^2+1\right)\left(\frac{{\text{T}}_{\text{g}}}{{\text{T}}_{\text{w}}}+1\right)& (5)\end{array}$

In Figure 2 this dimensionless parameter is showed for both CO₂ and H₂O as a function of the gas temperature, T_g, at different wall temperatures, T_w (solid black lines). The values of the gas emissivity as a function of their temperature, ε_g(T_g), were read from Hottel's diagrams (Figure 1).

FIGURE 2

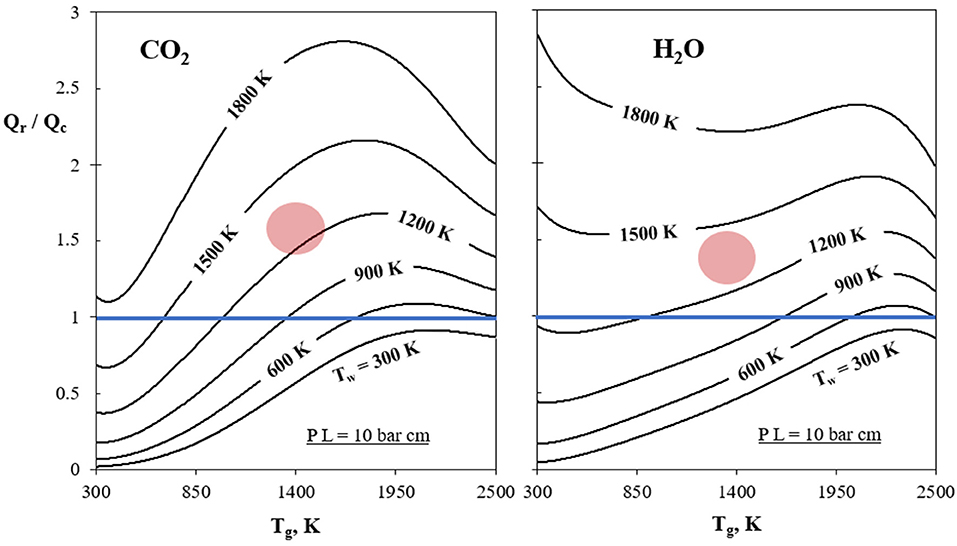

Figure 2. Trends of the ratio between radiation and convection for CO₂ (left) and H₂O (right) as a function of the mean gas temperature and at different wall temperatures, for a small-scale cyclonic reactor (Sorrentino et al., 2018).

In order to approximate the MILD operating conditions of the cyclonic burner LUCY, reported in Sorrentino et al. (2018), the product of pressure and length and the convective coefficient h_f were set to 10 bar cm and 35 $\frac{W}{m^2}K$, respectively.

According to Sorrentino et al. (2018), MILD conditions are located in the red regions, where the radiative heat transfer between gases and walls is around 1.5 times the convective one, for both the gases (Figure 2). This outcome supports one of the main results of the referred work: radiative heat transfer modeling is essential in a cyclonic MILD burner for computations (Sorrentino et al., 2018).

The heat transfer analysis was here reported for a specific configuration (cyclonic burner with h_f = 35 W/m²/K) for illustrative purposes. In such a case both the presence of cavity flows in the chamber and wall jets near the inlet region influenced the wall convective heat transfer. Clearly, such analysis can be replicated for different MILD/Flameless systems on the basis of the aerodynamics characteristics of the system. It is here worthwhile to note that the design choices for MILD systems related to flow pattern features and/or inlet jets configurations strongly influence the convective heat transfer rate.

Moreover, in Figure 2, the role of the temperature of the walls appears to be fundamental to move from a convective-based to a radiative-based heat transfer mode. The latter favors the stabilization of MILD conditions, as well proved by Chinnici et al. (2017) though a proper control of the heat flux distribution at walls.

The analysis carried out for the cyclonic burner in Figure 2 could be easily replicated for different MILD/Flameless systems with a large amount of internally recirculating combustion products (Rafidi and Blasiak, 2006; Noor et al., 2013; Huang et al., 2017; Zhang et al., 2019).

Wall to Wall Heat Transfer

In black enclosures, radiative transfer depends on view factors and surface temperatures. For diffuse-gray enclosures, thermal radiation is also a function of the surface's emissivity (Modest, 2013). Considering gray and nearly opaque surfaces, part of the “gas-to-walls” radiative heat transfer can be seen as a “gas-to wall-to gas” contribution, which means that a portion of the radiation emitted by the mixture to the walls is reflected and absorbed from the gas itself, result in making the thermal field more uniform. This effect is enhanced by the “wall-to-wall” contribution of the apparatus and, therefore, by the tendency of the system to behave as a blackbody cavity.

In order to express this characteristic, the Gebhart factor (Gebhart, 1961) can be used. In fact, the radiative heat exchanged in an enclosure composed of surfaces with piecewise constant temperature and emissivity can be calculated in terms of Gebhart factors (Gebhart, 1961; Dahlquist and Björck, 2008), G_ij, which are defined as a fraction of energy leaving surface i which reaches surface j and is absorbed. The Gebhart factors G_ij equals the view factors, F_ij, for black surface. The net radiative heat exchange $Q_k^{rad}$ between any surface k and all the others N surfaces of the enclosure can be expressed in terms of the Gebhart factors as

$\begin{array}{ll}{\text{Q}}_{\text{k}}^{\text{r}a\text{d}}={\text{A}}_{\text{k}}{\epsilon }_{\text{k}}\sigma {\theta }_{\text{k}}^4-{\displaystyle \sum _{\text{j}=1}^{\text{N}}}{\text{A}}_{\text{j}}{\epsilon }_{\text{j}}\sigma {\text{G}}_{\text{i}\text{j}}{\theta }_{\text{j}}^4& (6)\end{array}$

where A_j, ε_j, θ_j, A_k, ε_k and θ_k are area, emissivity, and temperature of surface j and area, emissivity, and temperature of surface k, respectively (Atherton et al., 1987). The proposed wall-to-wall heat transfer treatment is based on the assumption of temperature uniformity at the walls and transparent medium between the walls. This peculiar feature is well-reported for MILD reactors (Chinnici et al., 2017; Sorrentino et al., 2018) and it is emphasized for high values of the Surface/Volume ratio where the participating medium is distributed to the whole reactor volume.

MILD reactors with confinement, exhibit Gebhart factors (related to the outlet section) that are usually lower than 0.1 (Chinnici et al., 2017; Sorrentino et al., 2018; Zhang et al., 2019), when evaluated on the basis of reactor information.

MILD combustion is usually employed in furnaces or boilers where inner walls are built with refractory materials with emissivity that is usually higher than 0.7.

Therefore, these systems tend to behave as a cavity maximizing the “gas-to-wall-to-gas re-absorption.” This mechanism ensures uniform walls temperature inside the chamber. On the other hand, the radiation that cannot leave the system contributes to wall temperatures homogeneity with higher radiation-to-convection ratio, as reported in Figure 2.

Concluding Remarks

The mini-review highlighted the role of the heat transfer for systems where MILD combustion is achieved by means of EGR. The investigation of the different transport mechanisms pointed out the key role of heat exchange mechanisms in realizing the performances and features of the MILD regime.

The “gas to gas” heat transfer mechanism is crucial both for convection and radiation. The convective term is due to the high velocities, required to ensure elevated EGR, and the confinement of the flows by the walls. Moreover, the recirculating combustion products (H₂O/CO₂ mixture) are involved in the radiative re-absorption.

Appropriate models are needed for gases radiative properties. Among them, WSGG model based on radiative databases created ad-hoc for mixtures of combustion products at high temperatures is a reasoning solution.

Regarding the “gas to wall” interaction, a quantitative analysis on a MILD reactor (Sorrentino et al., 2018) was carried out and it was demonstrated that the radiation is the dominant heat transfer mechanism between reactive mixture and walls. Such a result is known for traditional large-scale furnaces, but it represents an interesting finding for a small-scale Flameless system.

Finally, the “wall to wall” heat exchange was analyzed, pointing out that MILD systems behave as black body cavity due to their confined enclosures. Therefore, the walls at high temperature strongly exchange heat by irradiation contributing to the system homogeneity.

Convective and radiative heat transfer modes have remarkable effects also on design and simulation of MILD systems, especially concerning the temperature uniformity.

Author Contributions

GS and GC were involved in the bibliographic research to include in the manuscript the most important literature contributions on the effect of heat transfer on MILD systems. They have also strongly contributed in writing several parts of the article. AC and MdJ gave their support in the theoretical background regarding identification and classification of MILD Combustion processes. RR gave important insights and hints in the physical description of convective and radiative heat transfer phenomena involved in combustion technologies. He also strongly revised the English language in the manuscript. All authors contributed to the article and approved the submitted version.

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
