ORIGINAL RESEARCH article

Front. Mater.
Sec. Energy Materials
Volume 11 - 2024 | doi: 10.3389/fmats.2024.1500015
This article is part of the Research Topic Structural and Functional Polymer Materials in New Energy Applications View all articles

Preparation of polymer hollow microsphere filled epoxy resin-based syntactic foam material and its performance analysis

Provisionally accepted
Wei Xue Wei Xue 1Yi Feng Yi Feng 1Jian Wang Jian Wang 1Zumin Fang Zumin Fang 1Jiawen Shen Jiawen Shen 1Yunfan Ma Yunfan Ma 1Yueru Wang Yueru Wang 2*Hechen Liu Hechen Liu 2Le Li Le Li 2
  • 1 State Network Zhejiang Electric Power Co., Ltd. Integrated Services Branch, Hangzhou, China
  • 2 North China Electric Power University, Beijing, Beijing Municipality, China

The final, formatted version of the article will be published soon.

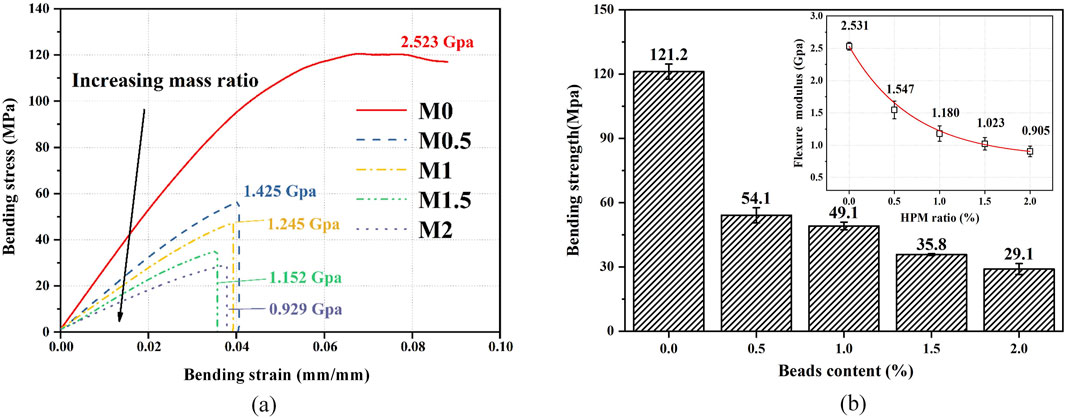

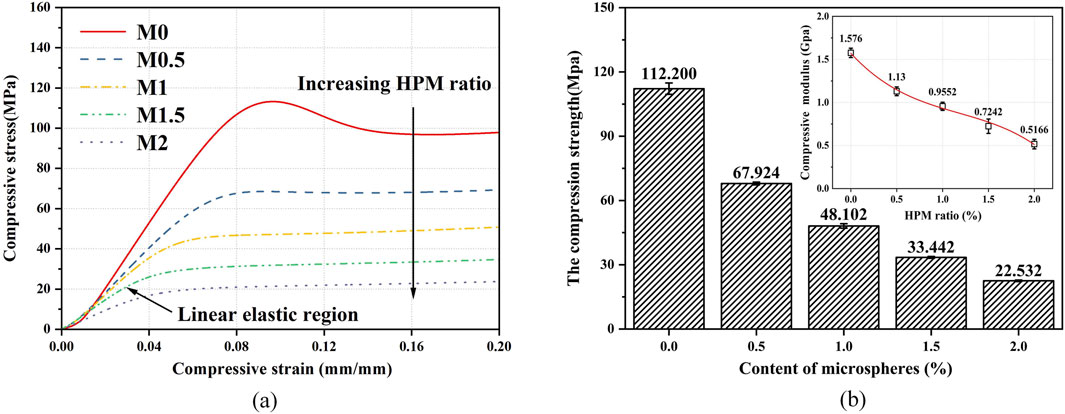

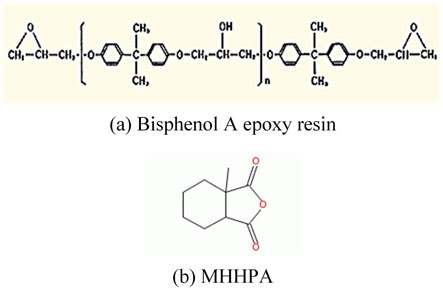

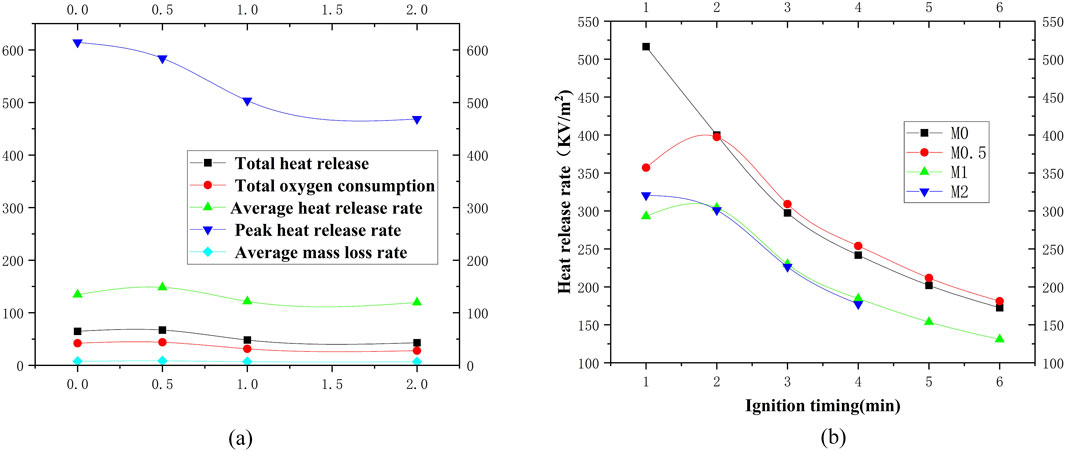

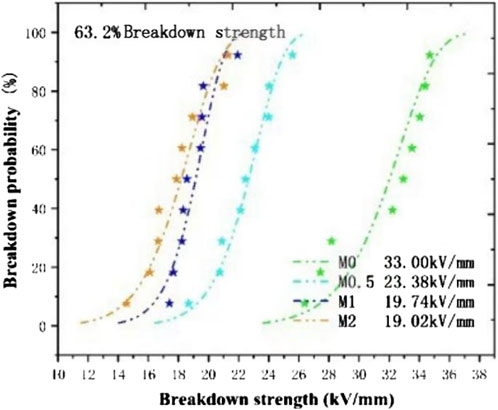

    To explore sound-absorbing and flame-retardant materials that meet the requirements for double-shielded and double-insulated Faraday cages, polymethyl methacrylate (PMMA) microspheres were incorporated into epoxy resin-based syntactic foam materials for testing and analysis. The addition of PMMA microspheres was found to enhance the electrical, mechanical, sound-absorbing, and flame-retardant properties of the syntactic foam, providing a potential reference for applications in high-voltage hall shielding and sound absorption. Syntactic foams with four concentrations of PMMA microspheres (0%, 0.5%, 1%, and 2%) were prepared. High-voltage breakdown testing, impedance tube testing for sound absorption coefficient, cone calorimetry for flameretardant performance, and tensile and bending tests were conducted. Results showed that as the concentration of PMMA microspheres increased, improvements were observed in the tensile, bending, flame-retardant, and sound absorption properties of the syntactic foams, while breakdown strength decreased. These findings provide valuable insights into the application of syntactic foam materials in double-insulation, double-shielded Faraday cages.

    Keywords: PMMA beads, Epoxy Resin, Sound absorption coefficient, Breakdown voltage, flame-retardant coefficient

    Received: 22 Sep 2024; Accepted: 20 Nov 2024.
