Skip to main content

ORIGINAL RESEARCH article

Front. Mater.
Sec. Ceramics and Glass
Volume 11 - 2024 | doi: 10.3389/fmats.2024.1496749

Impact of various surface treatments on the shear bond strength between lithium disilicate ceramics and resin cement

Provisionally accepted
Ghada Alrabeah Ghada Alrabeah Reem F Alhamid Reem F Alhamid Buthainah A Alamer Buthainah A Alamer Farah N Alrajhi Farah N Alrajhi Abdulaziz Binrayes Abdulaziz Binrayes Syed Rashid Habib Syed Rashid Habib *
  • College of Dentistry, King Saud University, Riyadh, Saudi Arabia

The final, formatted version of the article will be published soon.

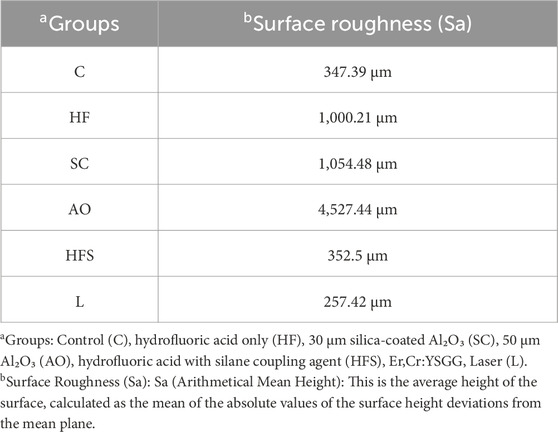

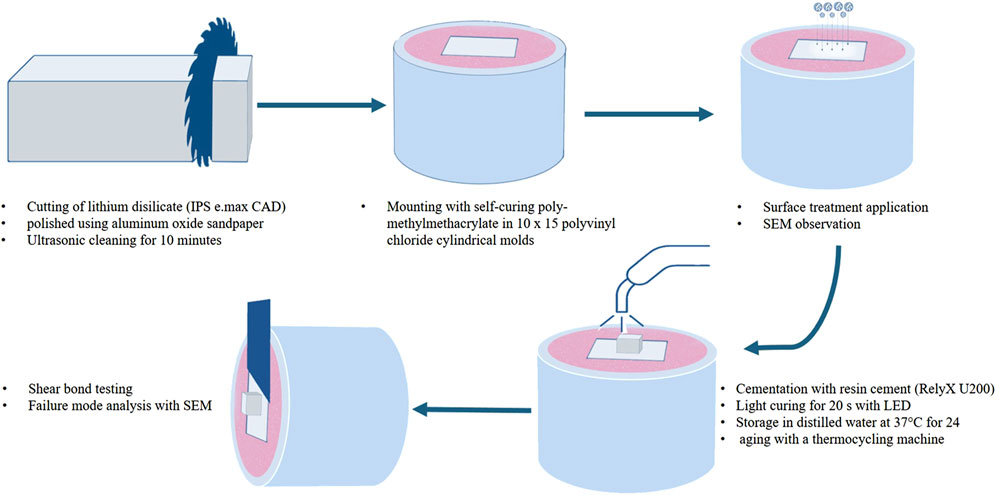

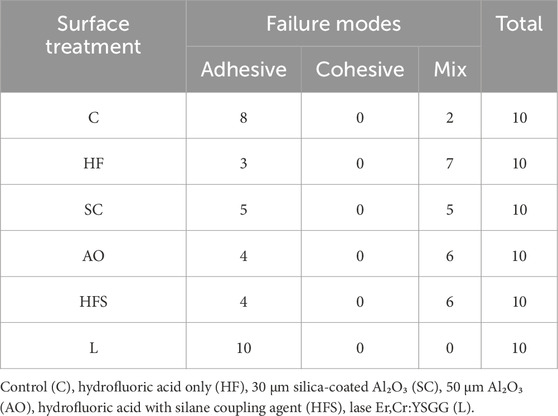

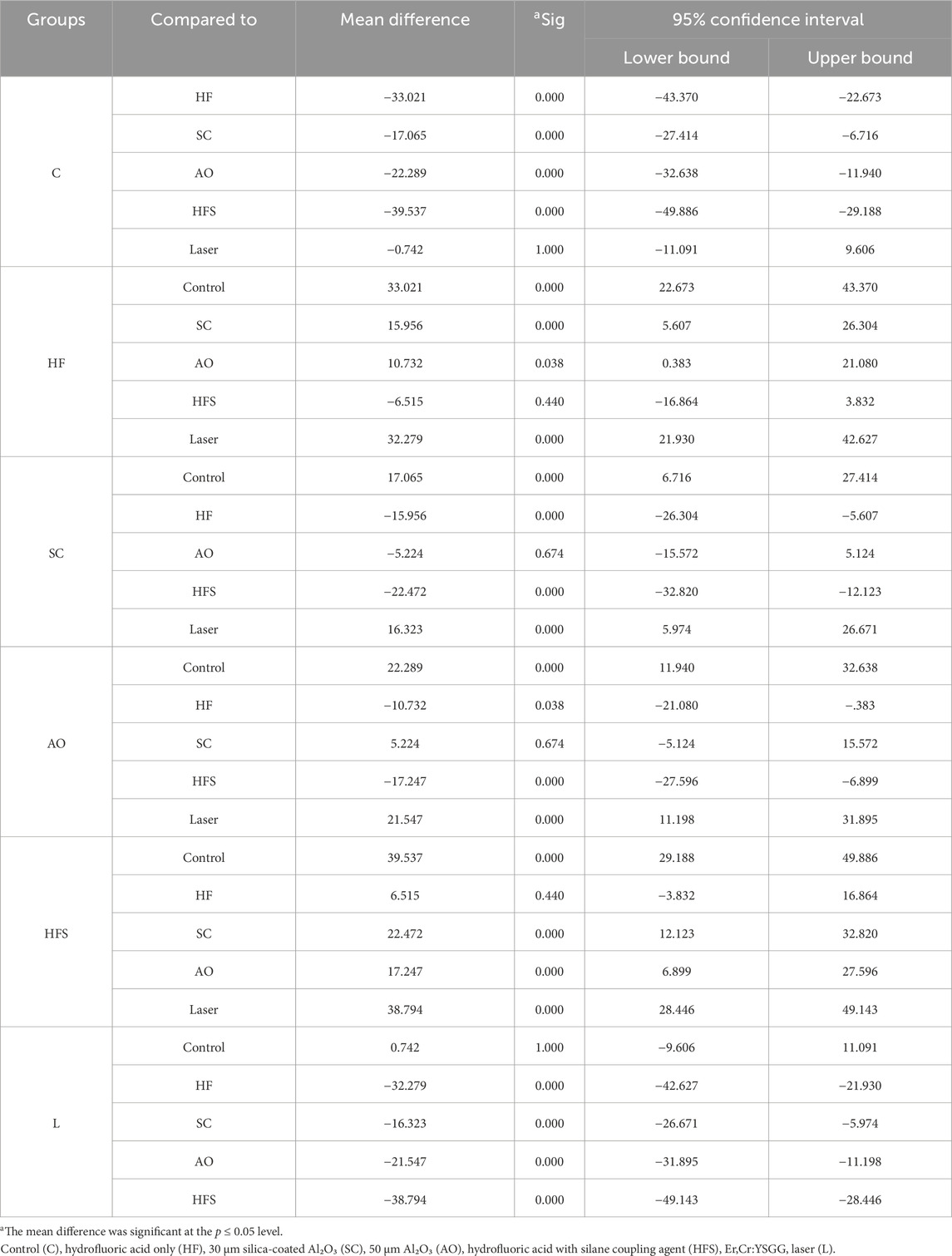

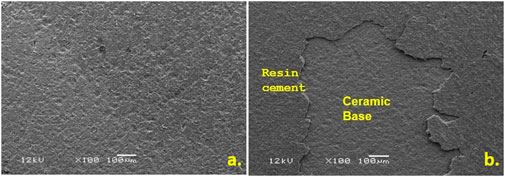

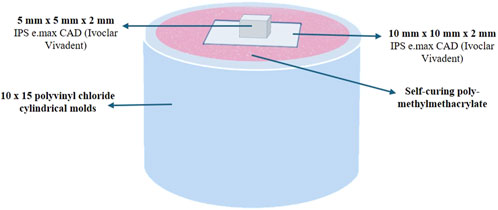

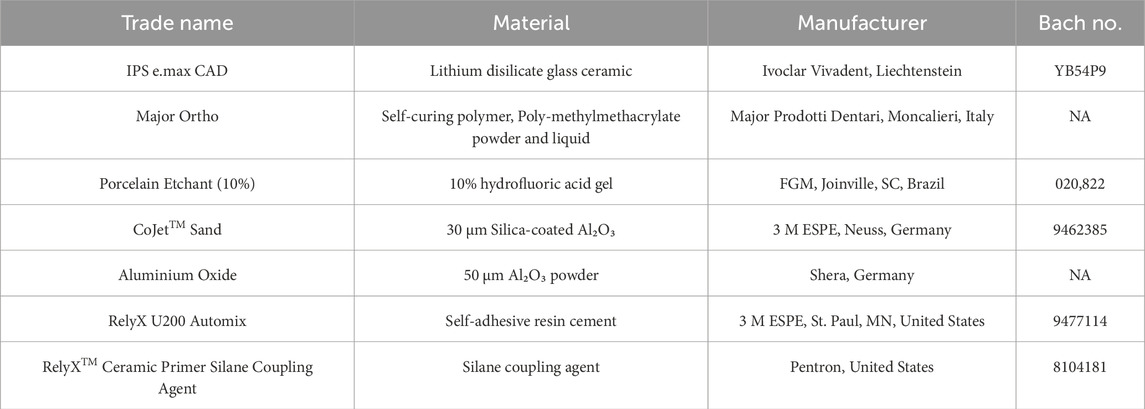

    Pre-etching ceramic restorations in dental laboratories is preferred by numerous dentists due to the potential health concerns associated with handling hydrofluoric acid (HF) if not managed correctly. This study aimed to evaluate the effect of different surface treatments on the shear bond strength (SBS) between lithium disilicate ceramics and self-adhesive resin cement. For this study, a total of 60 IPS e.max CAD (Ivoclar Vivadent) lithium disilicate specimens were prepared. Specimens were randomly divided into six groups, with 10 specimens per each. Different surface treatments were applied (1: Control group no surface treatment (C); 2: 10% hydrofluoric with silane coupling agent (HFS); 3: 10% hydrofluoric acid only (HF); 4: Sandblasting with 50 μm aluminum-oxide powder (AO); 5: Sandblasting with 30 μm silica-coated aluminum-oxide powder (SC), and 6: Er,Cr:YSGG laser (L). SBS tests were performed, and data analyzed using one-way ANOVA and Tukey's multiple comparisons. The difference between the mean average of SBS was statistically significant among all different surface treatments (P≤0.05) except for the L group with a (p=1.00). The highest mean value was observed in the HFS followed by the HF group. Whereas the L group showed no statistical significance in comparison with the C group (P>0.05). Hydrofluoric acid etching in combination with a silane coupling agent was the most effective surface treatment for bonding lithium disilicate ceramics with resin cement. In contrast, laser irradiation was the least effective among all other groups.

    Keywords: Dental Ceramics, Lithium disilicate, Laser treatment, Airborne particle abrasion, silica coating, cement bonding

    Received: 15 Sep 2024; Accepted: 15 Nov 2024.

    Copyright: © 2024 Alrabeah, Alhamid, Alamer, Alrajhi, Binrayes and Habib. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) or licensor are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.

    * Correspondence: Syed Rashid Habib, College of Dentistry, King Saud University, Riyadh, Saudi Arabia

    Disclaimer: All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article or claim that may be made by its manufacturer is not guaranteed or endorsed by the publisher.
