This study explores the synthesis and characterization of photochromic Polyvinylidenefluoride/Polyvinylpyrrolidone (PVDF/PVP)-based membranes, prepared through an in situ thiol-ene click reaction by incorporating viologen derivatives with different counter ions. Viologens are well-known for their light-sensitive properties and ability to change color, making them useful in various optoelectronic applications. The membranes developed in this study exhibit significant improvements in their interactions with light as a result of improved morphology and enhanced ionic conductivity (≈4 × 10−4 S cm–1) with higher porosity (Ra: 11.26–33.76 nm) compared to conventionally prepared membranes. These membranes show the ability to block almost all ultraviolet (UV) and a 90% of visible light after irradiation. Thanks to these properties, the membranes undergo visible color changes when exposed to sunlight, making them suitable for photochromic and thermochromic applications. The findings of this study could contribute to the development of innovative coating materials that enhance energy efficiency, potentially being applied to buildings, automotive windows, and other surfaces.
1 Introduction
Photochromic materials, which undergo reversible photoisomerization from a colorless to a colorful state in the presence of ultraviolet (UV) or visible light spectrum, have the unusual capacity to revert to their initial state in the absence of light via visible (Vis) light or thermal relaxation (Tian and Zhang, 2016). These materials are widely used in aesthetical decorations, photography, memory, switches, display, photo mechanics, protection as camouflage, and photometry fields and these applications received high interest due to their actual or future use potential (Wang et al., 2010; Zhang et al., 2013; Shi et al., 2019; Ru et al., 2021). This inherent reversibility highlights their prospective uses in photoelectric disciplines, specifically in the creation of smart materials such as energy-saving membranes. Photochromic materials have been extensively studied and can be split into two major groups: organic materials (e.g., diarylethene, azobenzene, and spiropyran) (Javed et al., 2016; Tsuruoka et al., 2016; Kaiser et al., 2017; Wu et al., 2017) and inorganic (e.g., rare earth complex-es, metal halides, and transition metal oxides) (Duncan et al., 1970; Ju et al., 2013; Chen et al., 2015a; Chen et al., 2015b; Du et al., 2024). In general, inorganic compounds offer great thermal stability, high strength, and diverse coordination chemistry, whereas organic compounds are diverse and simple to adjust or process (Tang et al., 2022). On the other hand, viologens represent an important class of photochromic materials (Kan et al., 2017). Due to its electron-accepting characteristics, viologen has been extensively studied in also electrochromics (Pathak and Moon, 2022), photovoltaics (Sharma et al., 2003), battery (Sen et al., 2013) and supercapacitor (Ambrose et al., 2023) applications since Michaelis discovered it in 1932 (Michaelis, 1935). One of the most remarkable aspects of viologen is its photoinduced color modification, which occurs when electrons from the counter anion are transferred to the viologen dication via a photoinduced effect (Xu et al., 2007).
Polyvinylidene fluoride (PVDF) stands as a semi-crystalline polymer distinguished by its semi-fluorinated nature, comprising CH2 and CF2 bonds (Dallaev et al., 2022). Notably, PVDF exhibits superior mechanical strength when compared to polytetrafluoroethylene (Teflon) (Rajeevan et al., 2021). PVDF membrane has been intensively researched as a viable candidate to use in membrane contactors and membrane distillation due to its great mechanical strength, outstanding thermal stability, and excellent chemical resistance (Liu et al., 2011). The polymer boasts commendable thermal stability, chemical resistance to ultraviolet and higher energy radiation, and resistance to a wide spectrum of chemicals and solvents, as documented by Lee et al. (2019). Subsequently, the purpose of using PVDF in this research is to subject PVDF-doped membranes to high-energy radiation under UV light for enhanced analysis. Besides, Polyvinylpyrrolidone (PVP) is also explored in photochromic applications due to their ability to form stable polymer matrices that can host photoactive compounds (Kozlov et al., 2019). In such systems, PVP’s hydrophilic nature aids in the uniform dispersion of photochromic molecules, enabling efficient light-induced color changes. This makes PVP membranes suitable for use in smart coatings, optical devices, and UV-sensitive materials, where their transparency and flexibility further enhance performance (Li C. et al., 2020; Li Z. et al., 2020; Kayani et al., 2021).
The thiol-ene click reaction is characterized by the specific and efficient interaction between a compound containing a thiol group and another containing an alkene group. This reaction proceeds through a radical-mediated mechanism, which is initiated by light or radiation (Hoyle and Bowman, 2010). Due to these characteristics, thiol-ene systems hold significant value in polymer science. Notably, their ability to react effectively at low temperatures and across a broad range of solubilities makes them particularly suitable for life sciences and biomedical applications (Davis and Carter, 2015). In polymerization processes, the thiol-ene click reaction facilitates the synthesis of high molecular weight polymers whose adaptable structures permit the incorporation of various functional groups into the polymer chain (Davis and Carter, 2014). Additionally, this method is crucial for creating cross-linked network structures, which enhance the mechanical and chemical properties of the polymers. Ultimately, these cross-linked polymers are employed in membrane technologies, notably in applications such as water purification and gas separation (Martin et al., 2016). Thiol-ene-based membranes are distinguished by their high selectivity and permeability, as well as their chemical stability and mechanical robustness, thereby contributing to sustainable environmental solutions (Davis et al., 2011). Therefore, the thiol-ene click reaction, known for its high efficiency and selectivity under UV radiation, is employed to functionalize PVDF-doped membranes. This combination allows for the precise modification of PVDF surfaces, enhancing their performance in targeted applications.
Herein, this study is to demonstrate the photochromic properties of PVDF/PVP-based membranes prepared by doping with cross-linkable viologens containing different counter anions (–BF4–, –ClO4– or –PF6–) to adjust the ionic conductivity of the membranes (Figure 1). The research aims to refine ion exchange properties and morphological characteristics of the membrane through fundamental characterization measurements. Additionally, examining the absorbance/transmittance changes under 366 nm and solar light revealed that the membrane almost completely blocked all UV and visible regions after light irradiation. Color changes under sunlight indicate a great potential of M-ALV-X membranes for use as energy-saving coating materials. This study provides essential results to guide future research in developing cost-effective, high-performance alternative membranes, thereby supporting the advancement of materials science and enhancing smart energy-saving technologies.
2 Results and discussion

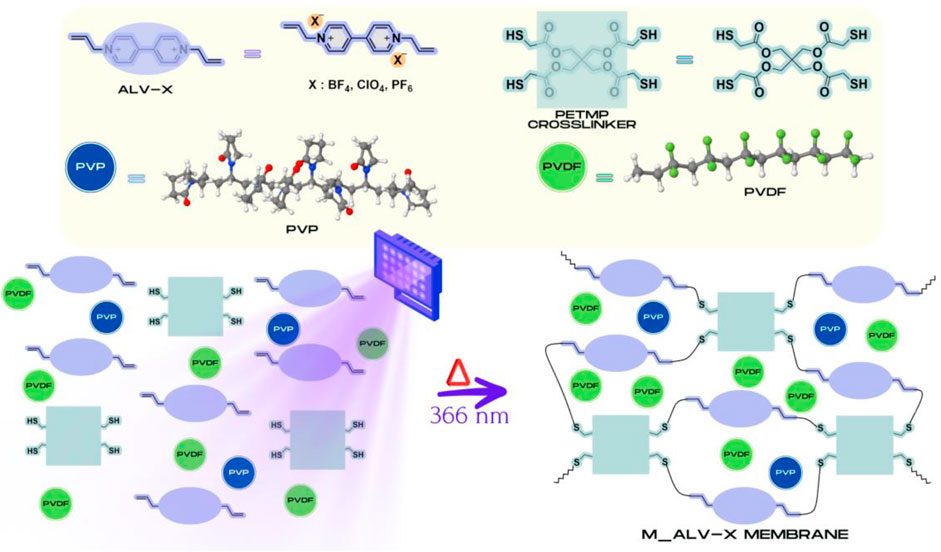

First, 1,1′-diallyl-4,4′-bipyridinium bromide (ALV-Br) was prepared from previously published procedures (Koyuncu and Ayaşlıgil, 2023). Afterward, ALV-X molecules were prepared using different salts using the ion exchange method (See Supplementary Scheme S1). ALV-X structures were characterized by FT-IR, 1H-NMR, and XRD analysis (See Supplementary Figures S1–S5) The structural characterization of M_ALV-X-based membranes, which were prepared with a thickness of approximately 120 μm, was performed using the FT-IR technique (Figure 2A). The presence of the PVP polymer in the membranes enhances their hydrophilicity, notably reflected in the O-H peak observed at about 3,300 cm–1 in the pure membrane. When ALV-X was added to the membrane, the water retention capacity of the membranes decreased due to more effective cross-linking under UV light and a reduction in the O-H bond transition at 3,300 cm–1. A symmetric C-H vibration peak is observed around 2,900 cm–1. The absorption peak at 1,410 cm–1 is attributed to −CH2 vibrations, with its intensity diminishing due to the influence of viologen. At 1,185 cm–1, the C-C bond in PVDF is detected. The peaks at 878 and 840 cm–1 are associated with the asymmetric C-C-C stretching and C-F stretching vibrations of PVDF, respectively. Besides, compared to the pristine PVDF/PVP membrane, peaks corresponding to the C=O bonds of the PETMP cross-linker at 1,780 cm–1 and C-S bonds at 960 cm–1 are observed. Additionally, peaks associated with the viologen moieties incorporated into the structure are noted around 1,620 cm–1 and 1,170 cm–1. These observed specific peaks indicate that the ALV-X photoactive structures have been successfully incorporated into the PVDF membrane structure. The crystallinity of the membranes was investigated by XRD measurements. Figure 2B shows the XRD patterns obtained for PVDF-PVP membranes containing different viologens. The general features of the observed patterns prove the existence of a semi-crystalline structure. The XRD pattern of PVDF-PVP membranes showed the amorphous nature of the sample with a peak around 2θ = 20.41. The crystal intensity increased with the addition of different viologen salts in the XRD pattern of the PVDF-PVP membranes (Bhatti et al., 2013). The relatively more crystalline behavior of the M_ALV-X polymeric membrane can be attributed to the crystalline properties of the pristine ALV-X additive (See Supplementary Figure S5).

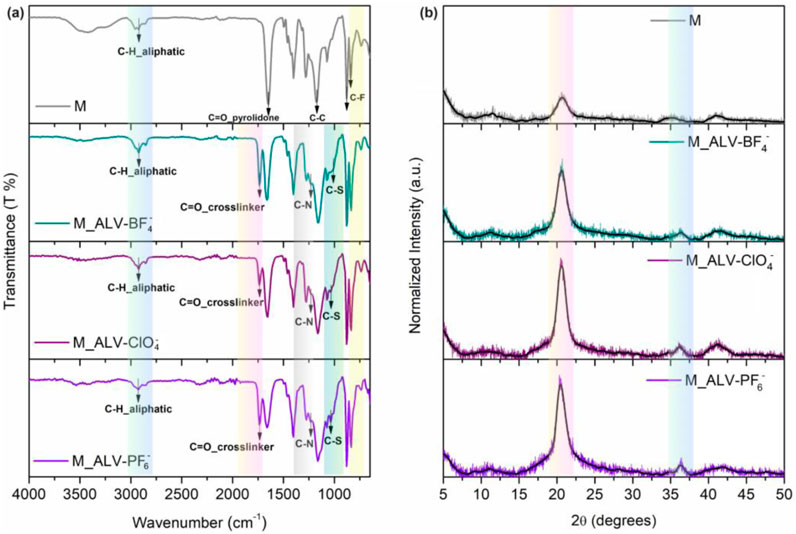

Figure 2. FTIR analysis of pristine PVDF/PVP membrane (M) and viologen doped PVDF/PVP (M-ALV-X) (A) and XRD pat-tern of pristine PVDF/PVP membrane (M) and viologen doped PVDF/PVP (M-ALV-X) (B).
The AFM image of the pristine PVDF/PVP membrane shows a very smooth surface (Ra: 4.32 nm). After the in situ cross-linking reaction of ALV-X molecules within the membrane, an increase in surface roughness and the formation of pinholes are observed (Figure 3). Notably, the M_ALV-BF4– membrane exhibits a more uniformly distributed hollow surface compared to the other membranes. This uniformity can positively influence the photochromic performance by enhancing ionic mobility under light exposure. Conversely, due to the larger diameter of the PF6− counterion, the roughness value (Ra) of the M_ALV-PF6– membrane, measured at 33.76 nm, is higher than that of the other membranes (11.26 nm for M_ALV-BF4– and 14.35 nm for M_ALV-ClO4–). SEM-EDX measurements were performed on the membranes prepared to support AFM measurements, determining both the chemical composition and surface properties. Upon examining the SEM images, it was observed that the addition of viologen derivatives to the PVDF/PVP membrane resulted in the formation of rougher surfaces, consistent with the AFM images. Additionally, SEM images revealed some cracks and de-formations on the PVDF/PVP membrane surface, which were attributed to the crystalline structure of the material. Furthermore, while a more uniform porous structure distribution was observed in the M_ALV-BF4– and M_ALV-PF6– membranes, it was noted that the pore diameters increased up to 400–500 nm due to the larger ion diameter of M_ALV-PF6–. This porous structure enhances the surface area, providing an advantage for various applications (Sun et al., 2016). On the other hand, because of the EDX spectra of all membranes, sulfur atoms, especially in the PETMP cross-linker, were observed in all membranes by surface analysis. In addition, specific atoms of other counter ions such as B, P, and Cl were also detected in the membrane surface scan (See Supplementary Figure S6).

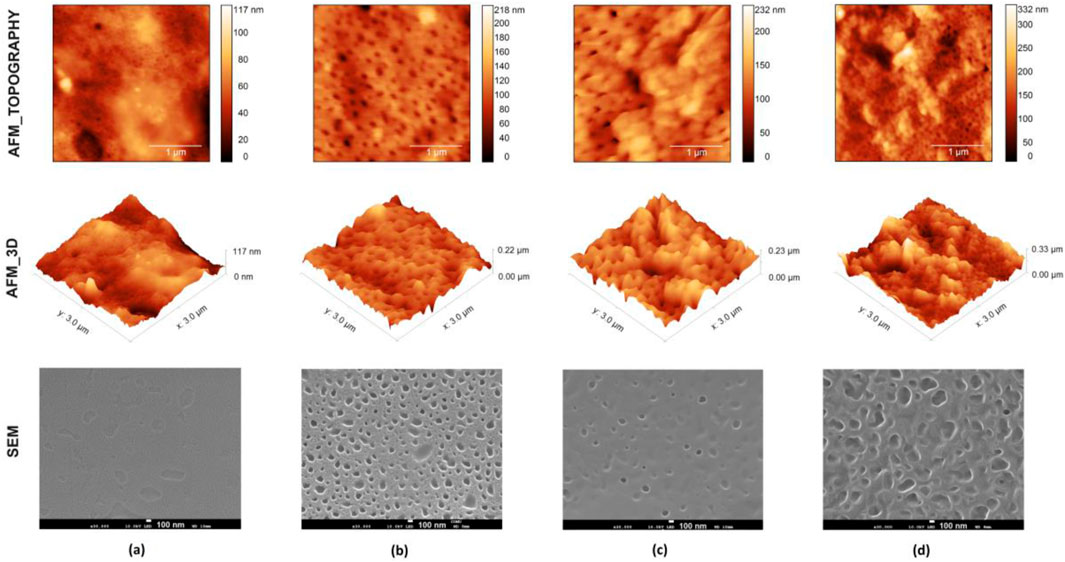

Figure 3. AFM and SEM images of pristine PVDF/PVP-M (A) and M_ALV-BF4– (B), M_ALV-ClO4– (C), M_ALV-PF6– (D) membranes.

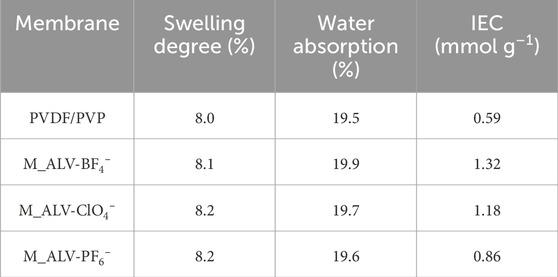

Furthermore, Table 1 presents the comparative swelling, water retention, and ion conductivity of pristine PVDF/PVP (M) and M_ALV-X-based membranes. Water absorption and swelling are different outcomes. Since water absorption in the membranes enhances ion transfer, it is a desirable property. As shown in Table 1, the addition of ALV-X-based materials increased both the water absorption rate and swelling values. Unlike water absorption, maintaining low values is crucial, as excessive swelling disrupts the membrane’s bond structure, leading to mechanical instability. The PVDF membrane, known for its high chemical resistance, showed swelling rates similar to the Nafion membrane, even with the addition of ALV-X. The quantity of ion groups within a material is indicated by its ion exchange capacity (IEC), which is a critical factor of conductivity and, consequently, the transport properties of the membranes (Berezina et al., 2008). IEC of the membranes increased significantly with the addition of ALV-X. While the IEC of the pure PVDF membrane was 0.59 mmol g–1, this value increased more than threefold to 0.86 mmol g–1 at M_ALV-PF6–. With the addition of ALV-ClO4–, the IEC value reached 1.18 mmol g–1. The proportional increase in water absorption supports the relationship between water absorption and ion (OH–) transfer. The highest value was obtained with M-ALV-BF4–, resulting in an IEC of 1.32 mmol g–1. Thus, all M-ALV-X-based membranes displayed higher IEC values compared to Nafion 117 tested under similar conditions, while the swelling and water retention values remained within acceptable limits (Sharma et al., 2021).

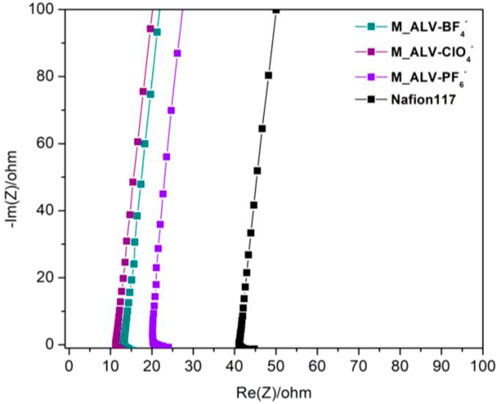

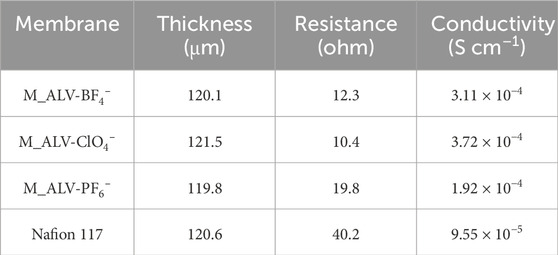

Besides, electrochemical impedance spectroscopy (EIS) revealed the charge transfer behavior between the components of ALV-X membranes due to counterion exchange (Figure 4). Since the photochromic behavior of ALV-X depends on the mobility of counterions, high ionic conductivity is desired to achieve an excellent photochromic effect. The highest conductivity values, resulting from low resistance, were observed in M_ALV-ClO4– and ALV-BF4–, respectively. M_ALV-PF6– exhibited lower mobility due to its relatively larger ionic radius and showed higher resistance according to impedance measurements. Compared to the conventional Nafion 117 membrane (Neves et al., 2010), all viologen-based ALV-X membranes were exhibited high ionic conductivity (Table 2).
The photochromic effect of the membranes was achieved by applying a 366 nm UV lamp (30 W) to the surface and scanning the UV-Vis transmittance spectrum between 300 and 1,100 nm in 10-second intervals. Before the light exposure, it was determined that all membranes were more than 50% transmissive in the visible region, despite their light brown color. It was observed that the color of the membranes changed from light brown to dark green as the transmissive in the visible region decreased due to the bands centered at 610 nm and the shoulder bands at 575 nm, 670 nm, and 740 nm, which formed over time with the exposure of 366 nm. Additionally, according to the kinetic measurements taken at 610 nm under 366 nm, the transmittance of M_ALV-BF4– decreased from 49.6% to 4.8% in approximately 380 s. For M_ALV-ClO4–, the 610 nm transmittance decreased from 44.6% to 6.7% in 1,000 s. In the case of M_ALV-PF6–, this change occurred from 60% to 22.4% in approximately 1,800 s. The faster transmittance changes and also color turning response times in M_ALV-BF4– and M_ALV-ClO4– compared to M_ALV-PF6– may be attributed to the better ion mobility of BF4− and ClO4− as counterions compared to the larger ion

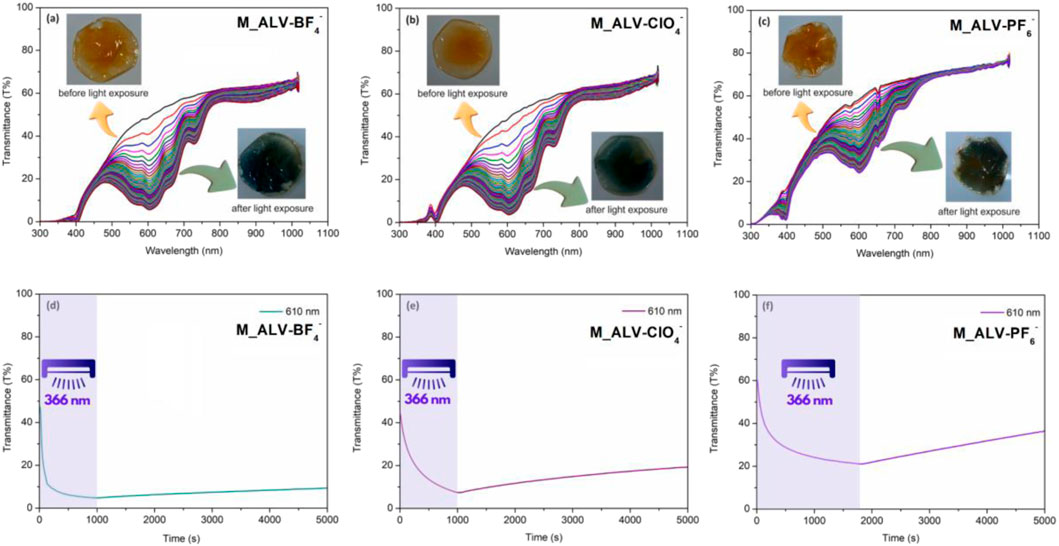

Figure 5. UV-Vis transmittance changes of M_ALV-BF4– (A), M_ALV-ClO4– (B), M_ALV-PF6– (C) and color changes kinetics of M_ALV-BF4– (D), M_ALV-ClO4– (E), M_ALV-PF6– (F) with and without light exposure.
Figure 6 shows the color change of M_ALV-X membranes due to the transmittance change observed over 10 min under natural sunlight. Consistent with laboratory measurements conducted under 366 nm light, M_ALV-BF4– and M_ALV-ClO4– exhibited a more intense color change in the UV and visible regions compared to M_ALV-PF6–.

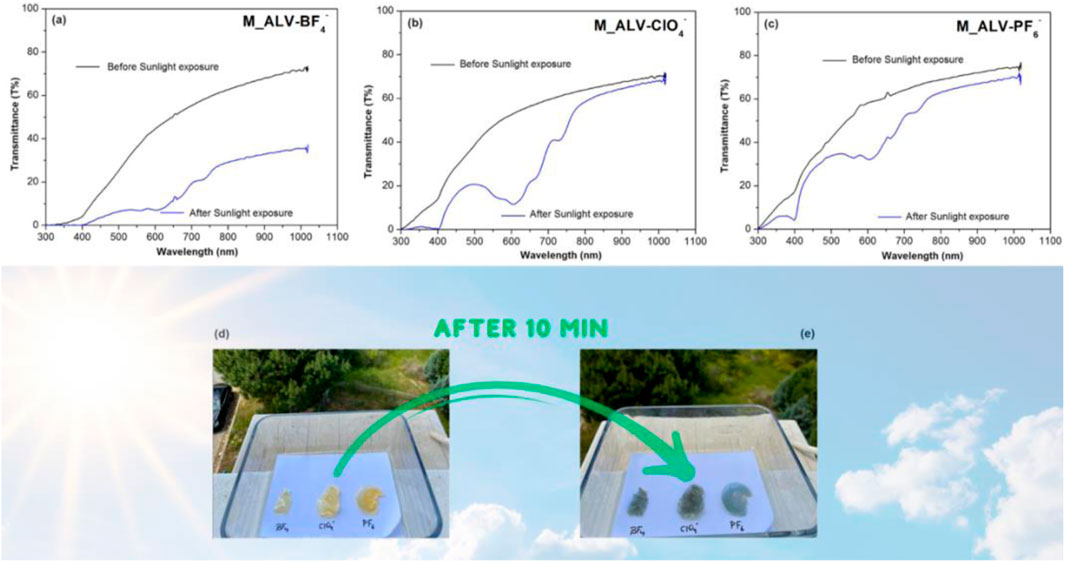

Figure 6. UV-Vis transmittance changes of M_ALV-BF4– (A), M_ALV-ClO4– (B), M_ALV-PF6– (C), and color changes after 10 min under natural sunlight (D,E).

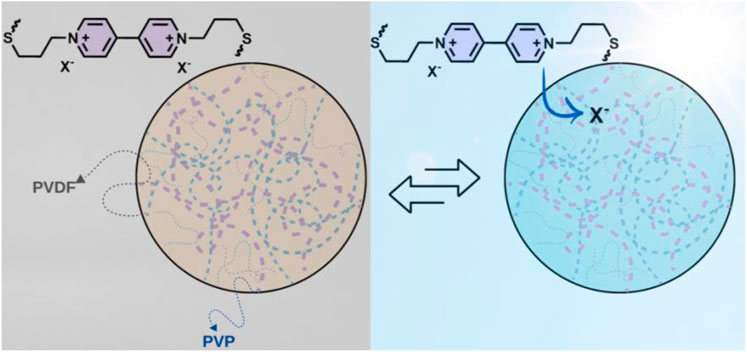

The chromic mechanism of viologens is based on a redox reaction that causes a color change when exposed to energy (i.e., voltage or light, etc.,) (Li et al., 2024; Wu et al., 2024). Viologens, typically 1,1′-disubstituted-4,4′-bipyridinium salts, have initially no absoption band at the visible range thus they are colorless (Monk et al., 2013). Upon light exposure, they undergo reduction, where they accept an electron and form a radical cation, which is colored. This process can occur due to the electron gaining energy from UV or visible light. The resulting radical cation should be stable in membrane and exhibits a distinct color change due to altered electron transitions (Striepe and Baumgartner, 2017). When the light source is removed, the viologen radical cation is oxidized back to its original colorless form, completing the reversible redox cycle. As a result, ALV-X based membranes exhibit photochromic effects as a result of the movements of counter ions with an external light source (Figure 7).
3 Conclusion
This study effectively demonstrates the photochromic properties of PVDF/PVP-based membranes doped with cross-linkable viologens with various counter anions (–BF4–, –ClO4–, or –PF6–). The membranes exhibit enhanced morphology and ion exchange ability. The porous structure increases the surface area, advantageous for multiple applications. They nearly completely block UV and visible light post-irradiation and show color changes under natural sunlight, consistent with lab observations. M-ALV-BF4– and M-ALV-ClO4– displayed faster and more intense color changes than M-ALV-PF6–, attributed to better ion mobility. These findings highlight the potential of M_ALV-X membranes as energy-saving coatings. This research provides valuable insights for developing high-performance, cost-effective alternative membranes, advancing materials science, and smart energy-saving technologies.
