Expansive soils, known for their significant volume change with variations in moisture content, are widely distributed around the globe. Due to their swelling properties, expansive soils pose significant engineering challenges, especially in rapidly developing countries like China. This study aims to investigate the swelling mechanisms of expansive soils, focusing on the influence of crack characteristics on swelling behavior. The research methodology includes field investigations, laboratory experiments, and theoretical modeling. By comprehensively considering crack rate, dry density, initial moisture content, and overburden load, a nonlinear regression swelling model is proposed in this research. The degree of crack development in expansive soils is quantitatively characterized by the content of filling materials, leading to the establishment of a crack rate model for expansive soils. Swelling tests on expansive soils with different crack contents were conducted. The results show that the swelling rate is negatively correlated with the initial moisture content and positively correlated with dry density and crack rate. Additionally, the larger the crack rate, the more significant the change in the swelling rate. Furthermore, model validation confirms that this nonlinear regression model accurately describes the relationship between swelling rate and influencing factors. It offers a more precise prediction tool for infrastructure design and maintenance in expansive soil areas, advancing geotechnical engineering practices.
1 Introduction
Expansive soils, also known as swelling clays, are a type of soil that undergo significant volume changes with variations in moisture content (Dai et al., 2024a). These soils are primarily composed of hydrophilic clay minerals, such as montmorillonite, and are characterized by their unique swelling-shrinkage properties, crack features, and overconsolidation, which have garnered extensive attention in geotechnical engineering (Uppal and Chadda, 1967; Rui et al., 2017; Leng et al., 2018; Dai et al., 2020). The swelling and shrinkage properties of expansive soils pose severe challenges to infrastructure, such as buildings, roads, and foundations (Mokhtari and Dehghani, 2012). With the rapid expansion of infrastructure, including highways and railways, driven by China’s economic growth and the Yangtze River Economic Belt development plan (Chen et al., 2019), construction in expansive soil areas is inevitable (Shang et al., 2020). Consequently, the stability and deformation issues associated with expansive soils have become significant challenges in engineering practice (Su et al., 2020; Huang et al., 2023a). Understanding and accurately predicting the swelling behavior of expansive soils is crucial for designing safe and durable infrastructure (Dai et al., 2021; Huang et al., 2024).
The swelling mechanism of expansive soils is complex and influenced by multiple coupled factors (Robert, 1999). These factors include soil properties, environmental conditions (Bai et al., 2020), and soil stress states (Dai et al., 2024c). For example, once expansive soils reach certain engineering properties, their swelling potential is significantly affected by moisture content, dry density, and external loads (Rahimi and Baroothoob, 2002; Dai et al., 2023). When compacted at higher density or lower moisture content, expansive soils may generate higher swelling pressures, exhibiting notable swelling behavior; however, swelling deformation decreases under higher vertical pressures (Ömür et al., 2012). Current mature theories divide the swelling process into two stages: crystal layer swelling and double-layer swelling. The former is primarily controlled by the crystal layer swelling of clay minerals such as montmorillonite and illite (Jia, 2010). As moisture increases, the bonding forces between crystal layers weaken, and swelling behavior transitions to being controlled by the double layer, particularly changes in the thickness of the diffuse layer (Chijioke and Donald, 2019; Bai et al., 2023).
In recent decades, studies on expansive soils have involved extensive modeling work. Early models mainly relied on empirical correlations, using parameters such as initial moisture content, dry density, and overburden pressure to predict swelling potential. Among these, the loaded swelling model, widely applied in oedometers, considers the soil mass as a semi-infinite body, with no lateral deformation and only vertical one-dimensional swelling deformation. Although simple and easy to operate with a wide range of applications, this model exhibits certain discrepancies between fitting forms and experimental data (Huang et al., 2014; Liu et al., 2016).
As early as the 1970s, Huder-Amberg et al. conducted uniaxial swelling strain tests on marl using conventional oedometers, proposing an empirical formula for swelling models under confined conditions, indicating that axial swelling strain of soil samples is linearly related to the logarithm of pressure (Einstein, 1989). Weston (1980) proposed an exponential relationship linking linear swelling with initial moisture content and overburden pressure. Miao et al. (1999) obtained similar results when studying unsaturated expansive soils using a lightweight oedometer, suggesting a linear relationship between swelling rate and these factors. Xu and Lei (2003) studied the loaded swelling deformation test of weak expansive soils, proposing empirical relationships between swelling rate and the initial physical state and mechanical factors of the soil mass. Miao et al. (2008) further revealed that the swelling rate of expansive soils is linearly negatively correlated with initial moisture content and overburden pressure, and positively correlated with initial dry density. Zhang et al. (2010) proposed the concept of a normalization coefficient through loaded swelling tests to describe the relationship between sample compaction and loaded swelling rate, establishing empirical formulas. Huang et al. (2011) conducted loaded swelling rate tests on different types of expansive soils, finding a linear relationship between swelling rate and the logarithm of load. Shen et al. (2015) believed that compaction degree had little effect on swelling rate. Although these models are applicable under certain conditions, they often fail to comprehensively explain the complex interactions between different soil properties and environmental factors. In recent years, with the application of unsaturated soil mechanics and microstructure analysis techniques, researchers are adopting more sophisticated methods to deeply understand swelling mechanisms.
A crucial aspect of expansive soils is the presence of micropores and cracks, which have increasingly gained attention (Huang et al., 2023b). Although existing studies have revealed the deformation laws of expansive soils to some extent, most models have not fully considered the characteristics of cracks in expansive soils. The presence of cracks significantly impacts the moisture absorption and retention characteristics of the soil mass, thereby altering its swelling behavior (Dai et al., 2024b). Therefore, developing swelling models that accurately capture the influence of cracks is essential for improving prediction accuracy and reliability in engineering design.
This study proposes an improved nonlinear regression swelling model, predicting the swelling rate of expansive soils by comprehensively considering crack rate, dry density, initial moisture content, and overburden load. By incorporating crack characteristics, the model aims to enhance understanding of how crack networks interact with the soil matrix and affect overall swelling behavior. Compared to existing models, the proposed model offers the following advantages: it provides a more accurate representation of soil microstructure by considering crack effects, thereby improving the predictive capability of swelling models; it captures the nonlinear characteristics of swelling behavior, which traditional linear models struggle to represent; and it has been validated by experimental data, demonstrating its applicability and reliability under a wide range of expansive soil conditions. This research contributes to the design and maintenance of infrastructure in expansive soil regions by providing a more accurate prediction tool, advancing related geotechnical engineering practices.
2 Engineering geological characteristics of cracked expansive soils

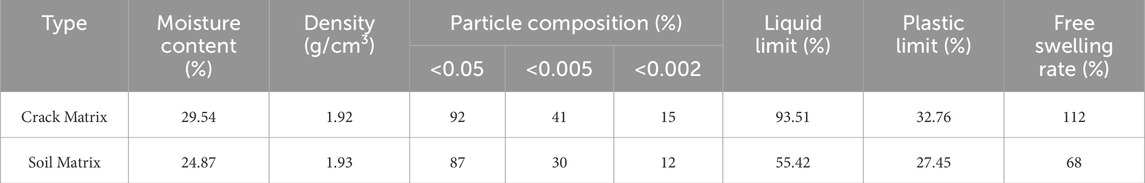

The expansive soil samples used in this study were collected from the Nanyang Basin area in Henan Province, China (Figure 1). According to the Chinese standard (2013) GB 50112-2013 for the classification of expansive soil subgrade swelling-shrinkage grade, geological surveys indicate that the expansive soil in this region is characterized by strong expansive soil (90 ≤ δef). The expansive soil has a moisture content of 27.5%, a density of 1.94 g/cm³, a liquid limit of 89%, and a plastic limit of 29%. The mineral content includes 8.5% montmorillonite and 12.8% illite-smectite mixed-layer. One of the most notable macroscopic features of these soils is the extensive development of cracks filled with various materials. These strong expansive soils, with their pronounced cracking, pose significant challenges for engineering design and construction.
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/1467134/fmats-11-1467134-HTML/image_m/fmats-11-1467134-g001.jpg)

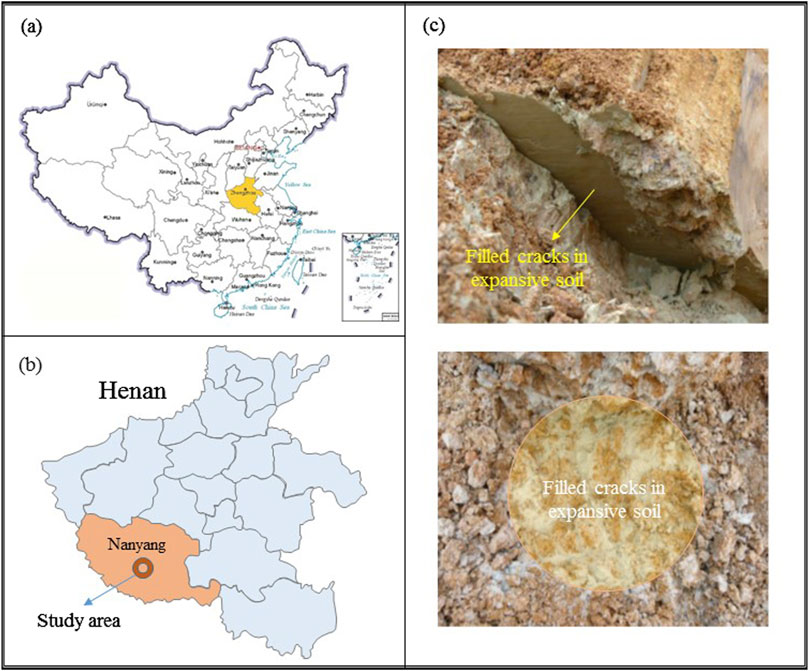

Figure 1. Study area and expansive soil filled cracks: (A) Geographical location, (B) Study area, (C) Expansive soil filled cracks.
Cracks in strong expansive soils are widespread. Based on their origin and morphological characteristics, cracks can be categorized into primary and secondary cracks. Primary cracks are inherent structural features formed due to uneven shrinkage stress within the soil mass. The magnitude of shrinkage stress is proportional to the degree of moisture loss, decreasing from the surface downwards, causing primary cracks to be wider at the top and narrower at the bottom, often filled with secondary clay. Secondary cracks, formed due to tensile or shear stresses, are more pervasive and denser. These cracks are typically smooth and filled with highly expansive gray-green or gray-white clay, which has poorer engineering properties than the primary clay (Figure 1C).
The cracks in strong expansive soils are primarily filled cracks. Even at depths exceeding 15 m in some excavation slopes, these cracks are fully developed and filled with gray-white or gray-green clay, rich in hydrophilic minerals and colloidal particles. These filling materials form through ion exchange or mineral deposition as groundwater moves through the cracks, interacting with clay minerals like montmorillonite and illite. The filling material often forms irregular, net-like patterns within the soil, with thicknesses typically ranging from 5 to 10 mm, though some can be as thin as 2 mm or exceed 10 mm in localized areas. The clay filling is extremely fine and has a high natural moisture content.
To analyze the swelling characteristics of expansive soils with numerous cracks, tests were conducted on both the soil matrix and the crack-filling materials. The filling material is usually gray-white clay, while the soil matrix is generally yellow-brown expansive soil. The physical properties of these materials are shown in Table 1. Groundwater activity is frequent in the Nanyang expansive soil area, significantly influencing the composition of the crack-filling materials, which are predominantly gray-green clay. Other filling materials include calcareous and iron-manganese compounds, with a minimal presence of unfilled cracks. Gray-green clay-filled cracks constitute 64.3%–83.9% of the total cracks in weak expansive soils. In moderately expansive soils, these cracks display vertical zoning characteristics, with about 80% occurring within a depth of 6 m. In strong expansive soils, which are found at greater depths, gray-green filled cracks are even more prominent, accounting for over 90% of the total cracks.
Considering the typical clay-filled cracks in strong expansive soils, this study proposes using the content of filling materials to assess the degree of crack development. Based on statistical results, we assume that cracks in strong expansive soils are completely filled with gray-green clay. The crack rate, Kr, defined as the volume of cracks to the volume of soil outside the cracks, can be indirectly described by the ratio of the content of gray-white clay filling to the yellow-brown matrix clay. This allows for the establishment of a quantitative indicator of crack content in strong expansive soils.
3 Swelling test of cracked expansive soil and influencing factors
Using the quantified indicator of crack rate as a key factor, the study incorporates crackiness into the deformation model of expansive soil due to moisture absorption. Indoor experiments were conducted using remolded expansive soil samples with varying proportions of gray-white and yellow-brown clays to simulate crack rates of 35%, 50%, and 65%. In this study, the crack rates were chosen based on typical field observations and empirical evidence from previous studies. This approach was chosen due to the practical difficulties associated with directly creating and controlling specific crack rates in soil samples. By using this rate, we can indirectly reflect the crack characteristics within the soil, allowing for a consistent and controlled examination of their effects on swelling behavior. This method provides an effective and accurate means of simulating and studying the impact of cracks on expansive soils. These samples were prepared with gray-white clay contents of 35%, 50%, and 65%, respectively. The study aimed to investigate the swelling deformation of expansive soils under different crack rates through moisture absorption tests under both unloaded and loaded conditions.

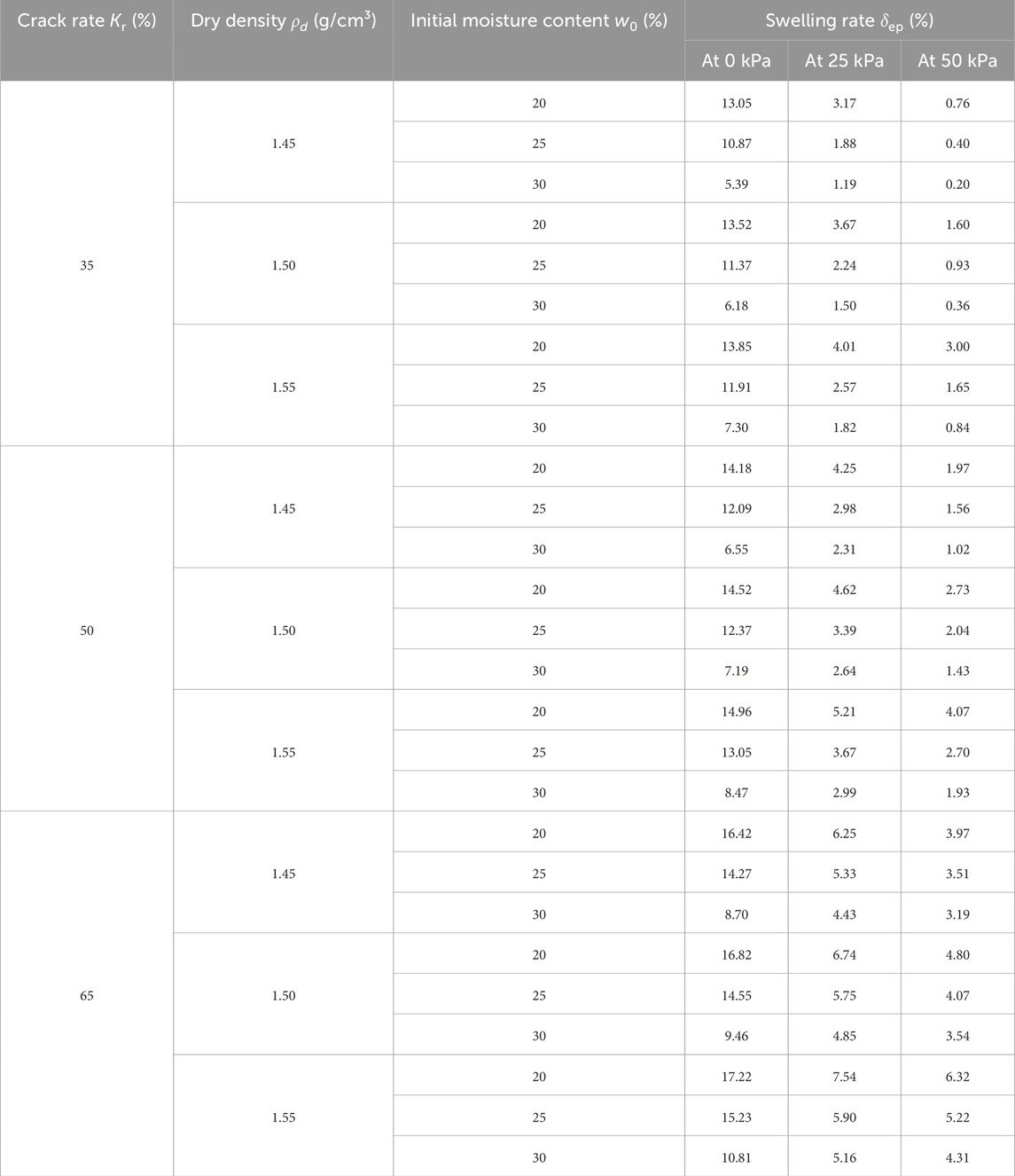

Three levels of dry density (1.45 g/cm³, 1.50 g/cm³, 1.55 g/cm³), three levels of initial moisture content (20%, 25%, 30%), and three levels of load (0 kPa, 25 kPa, 50 kPa) were applied to each crack rate sample. This experimental design allowed for the analysis of the swelling behavior and influencing factors of strong expansive soils under varying conditions. Results are shown in Table 2.
Numerous studies have demonstrated a logarithmic-linear relationship between swelling rate and overburden load. Here, the study specifically analyzes the correlation between swelling rate of strong expansive soils and crack rate, dry density, and initial moisture content.
3.1 Relationship between swelling rate and crack rate
The relationship between swelling rate and crack rate under varying loads, dry densities, and initial moisture contents is shown in Figure 2.
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/1467134/fmats-11-1467134-HTML/image_m/fmats-11-1467134-g002.jpg)

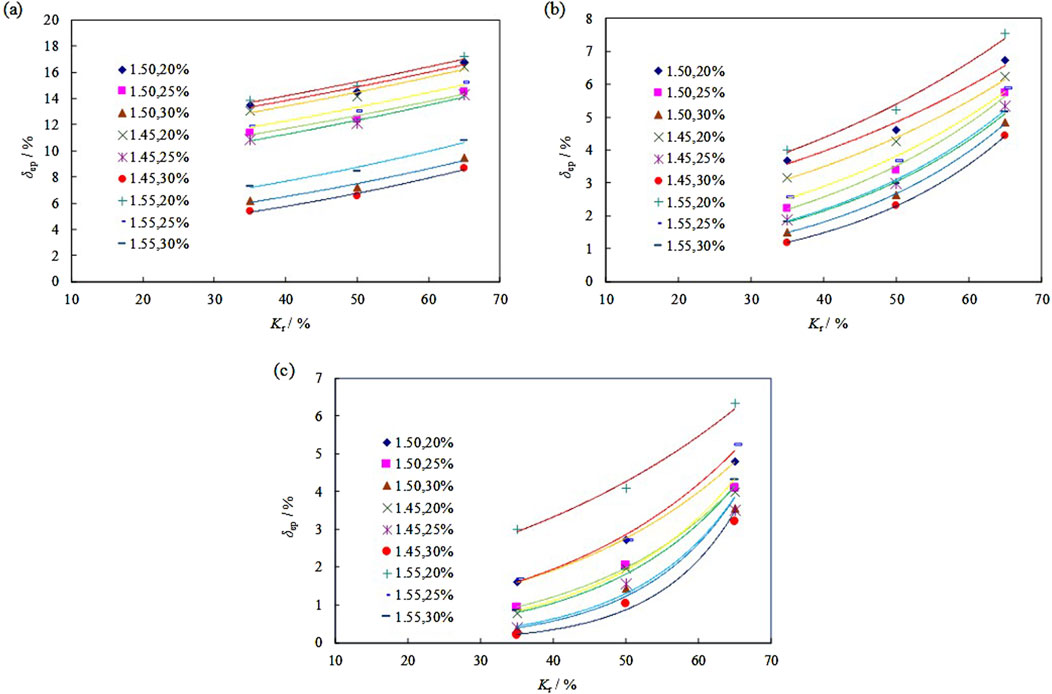

Figure 2. Correlation between swelling rate and crack rate (Legend “1.50,20%” stands for “dry density, initial moisture content”): (A) σ = 0 kPa, (B) σ = 25 kPa, (C) σ = 50 kPa.
Across different levels of initial moisture content, dry density, and load, the relationship between swelling rate and crack rate exhibits a consistent exponential trend, as depicted in the figure. Higher crack rates correspond to stronger crack development in expansive soils, characterized by higher proportions of crack fillings. Consequently, higher crack fillings lead to increased swelling rates, with greater variability in swelling rates observed as the number of filled cracks increases.
3.2 Relationship between swelling rate and dry density
The relationship between swelling rate and dry density under varying loads, crack rates, and initial moisture contents is shown in Figure 3.
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/1467134/fmats-11-1467134-HTML/image_m/fmats-11-1467134-g003.jpg)

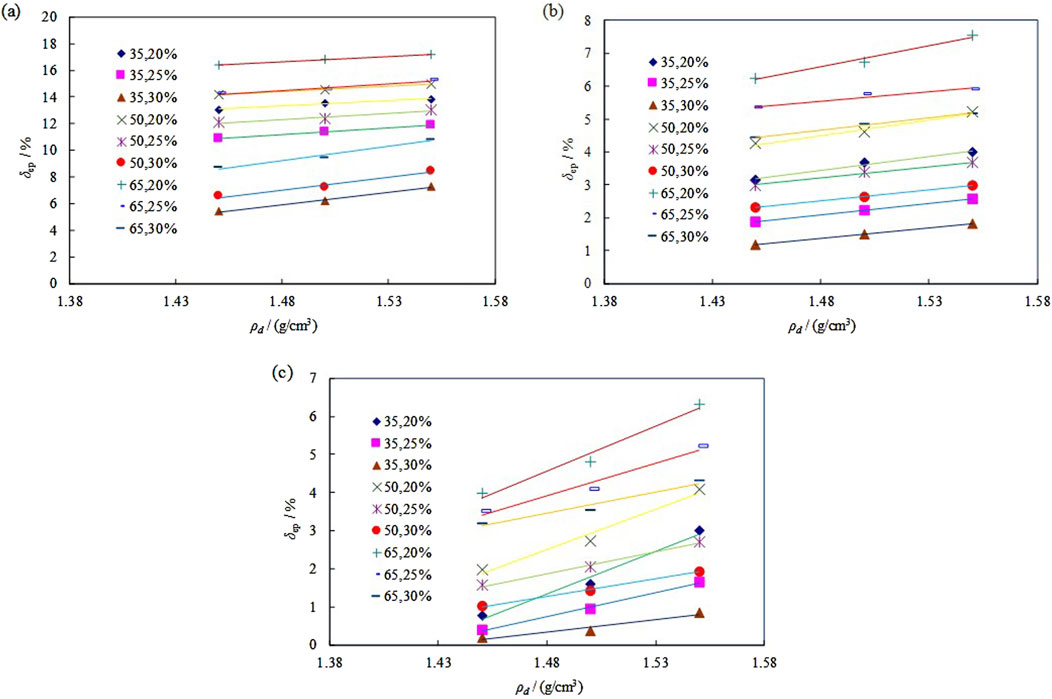

Figure 3. Correlation between swelling rate and dry density (Legend “35,20%” stands for “crack rate, initial moisture content”): (A) σ = 0 kPa, (B) σ = 25 kPa, (C) σ = 50 kPa.
Across different levels of initial moisture content, crack rate, and load, the relationship between swelling rate and dry density generally shows a linear correlation, as illustrated in Figure 3. Particularly at lower initial moisture contents, swelling rate is significantly influenced by dry density, showing faster growth with increasing dry density.
3.3 Relationship between swelling rate and initial moisture content
The relationship between swelling rate and initial moisture content under different loads, crack rates, and dry densities is shown in Figure 4.
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/1467134/fmats-11-1467134-HTML/image_m/fmats-11-1467134-g004.jpg)

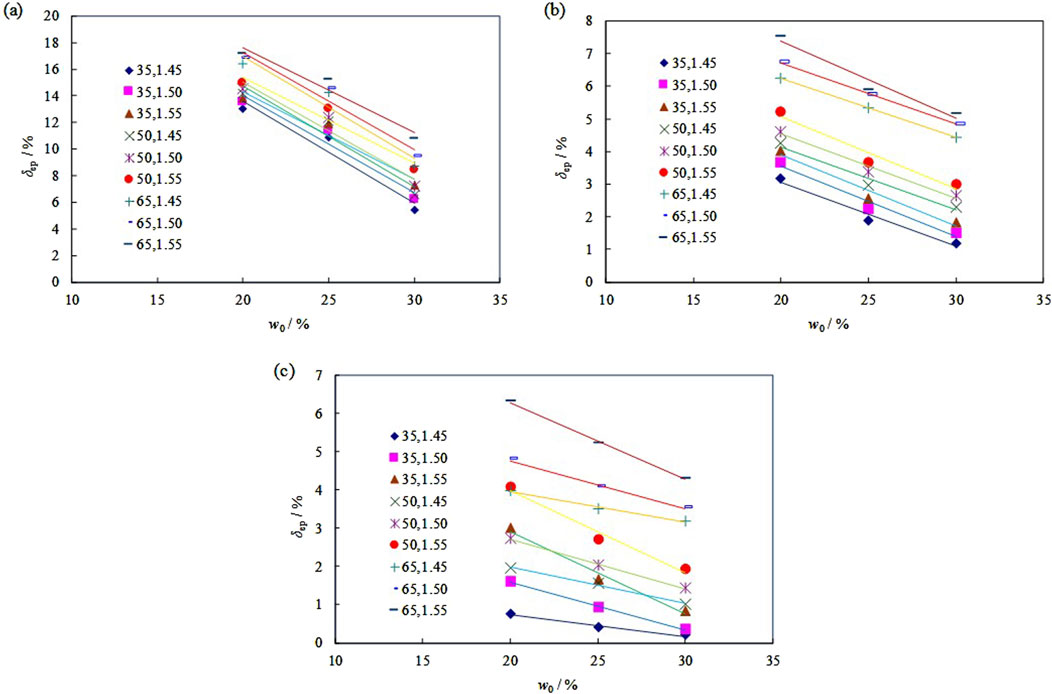

Figure 4. Correlation between swelling rate and initial moisture content (Legend “35,1.45”stands for “crack rate, dry density”): (A) σ = 0 kPa, (B) σ = 25 kPa, (C) σ = 50 kPa.
Across varying dry densities, crack rates, and loads, swelling rate exhibits a basic negative linear correlation with initial moisture content. When other conditions are constant and dry density is high, initial moisture content has a significant impact on swelling rate, decreasing noticeably as initial moisture content increases.
4 Swelling models and sensitivity analysis of different crack rate expansive soils
Based on the swelling test results, the swelling rate of expansive soils is jointly influenced by initial moisture content w0, dry density ρd, load σ, and crack rate Kr. These factors exhibit linear relationships with swelling rate, where w0, ρd, ln(1+σ) show linear relationships, while Kr demonstrates an exponential relationship. Statistical analysis using SPSS software was employed to conduct regression analysis on the swelling rate of strong expansive soils, establishing sensitivity analysis indices for each influencing factor, and subsequently developing multivariate linear and nonlinear swelling models.
Under constant crack rate Kr, the relationship between swelling rate and influencing factors w0, ρd, ln(1+σ) is linear. Different multivariate linear regression models were considered for various crack rates Kr. Regression analysis methods in SPSS include forced entry, elimination, forward selection, backward elimination, and stepwise entry. In this analysis, swelling rate was taken as the dependent variable, with w0, ρd, and ln(1+σ) as independent variables. The relationships and significant impacts of each independent variable on the dependent variable were theoretically analyzed. To ensure model integrity and comprehensiveness, forced entry was used for variable selection, where all selected independent variables were included in the regression model.
Significance testing of the multiple regression equation and regression coefficients is essential. The significance of the regression equation is typically assessed using goodness of fit and analysis of variance, considering the overall linear correlation between the dependent and independent variables. Goodness of fit tests were conducted using multiple correlation coefficients
Using the F-test for verification (Equation 2):
From the regression analysis, the obtained p-value is judged. If p < 0.05, the null hypothesis in the analysis of variance holds true, indicating the regression equation is significant. If p ≥ 0.05, the regression equation is not significant.
The significance testing of regression coefficients assesses the significance of each independent variable’s impact on the dependent variable. Initially, the null hypothesis is set for each independent variable Xj (Equation 3):
Subsequently, the T-test is used for verification (Equation 4), with the test statistic:
Similarly, if the null hypothesis holds true, the regression coefficient is significant; otherwise, it is not significant.
Regression analysis is conducted accordingly. Firstly, for different crack rates Kr, multivariate linear regression analysis of swelling rate with initial moisture content w0, dry density ρd, and load condition ln(1+σ) is performed.

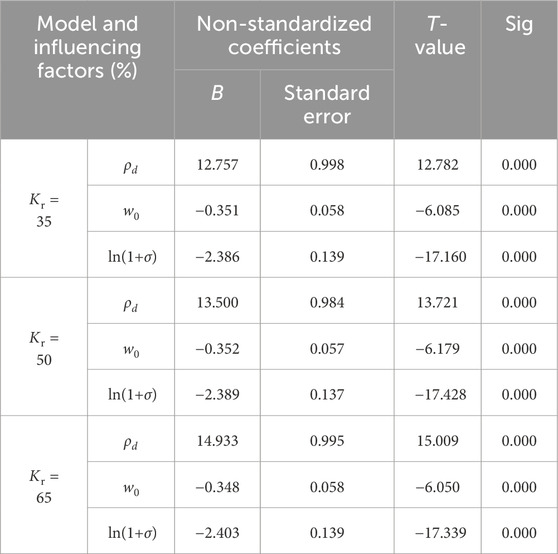

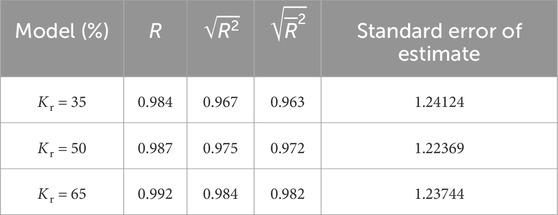

The results of the regression analysis are shown in Tables 3–5.
When Kr = 35%, the model’s coefficient of determination is the square root of 0.984, R2 = 0.967, the adjusted R2 is 0.963, and the standard error is 1.24. These values indicate a high covariance ratio between the independent variables w0, ρd, ln(1+σ), and the dependent variable δep, suggesting a good fit between the model and the data. The analysis of variance (ANOVA) table includes sources of variation, degrees of freedom, mean squares, F-values, and significance tests for F. With Sig. < 0.05, the regression equation is effective and highly significant.
The regression coefficients table presents the values of the regression coefficients, with significance levels for w0, ρd, ln(1+σ) all at Sig. = 0.000, indicating significance levels below 0.05. This implies that w0, ρd, ln(1+σ) each have a significant impact on δep.
Thus, for Kr = 35%, the regression Equation 5 of swelling rate δep on initial moisture content w0, dry density ρd, and load condition ln(1+σ) is:
This indicates that dry density has the most significant impact on swelling rate, followed by load condition, with initial moisture content having the least influence.
When Kr = 50%, the model’s coefficient of determination is the square root of 0.987, R2 = 0.975, the adjusted R2 is 0.972, and the standard error is 1.22. With a high R value, the model exhibits a strong fit. The significance level of the regression equation, Sig.<0.05, indicates that the regression equation is effective. Additionally, the coefficients w0, ρd, ln(1+σ) all have significance levels Sig. = 0.000, which are below 0.05, implying that w0, ρd, ln(1+σ) each have a significant impact on δep.
Therefore, for Kr = 50%, the regression Equation 6 of swelling rate δep on initial moisture content w0, dry density ρd, and load condition ln(1+σ) is:
This indicates that dry density has the highest impact on swelling rate, followed by load condition, with initial moisture content having the least influence.
When Kr = 65%, similar to the cases of Kr = 35% and Kr = 50%, the regression equation shows a high R value, indicating a strong fit. The regression equation’s significance level with respect to the variables Sig.<0.05 confirms the effectiveness of the regression equation and the significant impact of the parameters.
For Kr = 65%, the sensitivity coefficients of swelling rate δep to dry density ρd, initial moisture content w0, and load condition ln(1+σ) are 14.933, −0.348, and −2.403 respectively. The regression Equation 7 is:
Thus, the regression equation for swelling rate δep with respect to dry density ρd, initial moisture content w0, and load condition ln(1+σ) can be uniformly expressed as Equation 8:

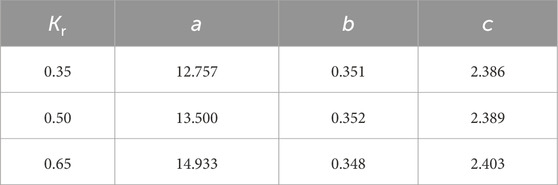

where a, b, and c are empirical parameters. The values of a, b, and c for different Kr are listed in Table 6, and their fitting is shown in Figure 5 using an exponential curve fitting approach.

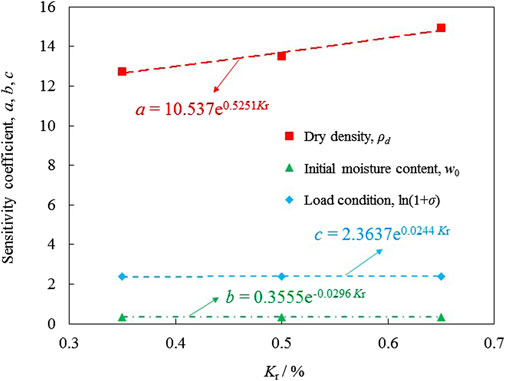

The relationship between the parameters a, b, c and the crack rate Kr is given by Equations 9, 10 and 11:
Therefore, the swelling rate model for cracked expansive soil based on crack rate Kr can be expressed as Equation 12:
This model describes how the swelling rate varies with dry density, initial moisture content, and load condition as functions of the crack rate Kr.
5 Nonlinear regression swelling model for cracked expansive soil
Due to the linear relationship between swelling rate in cracked expansive soil with initial moisture content, dry density, and load, and the exponential relationship with crack rate Kr, further coupling Kr directly into the model is conducted for nonlinear regression analysis of swelling rate with Kr, w0, ρd, and ln(1+σ). The regression Equation 13 used is as follows:

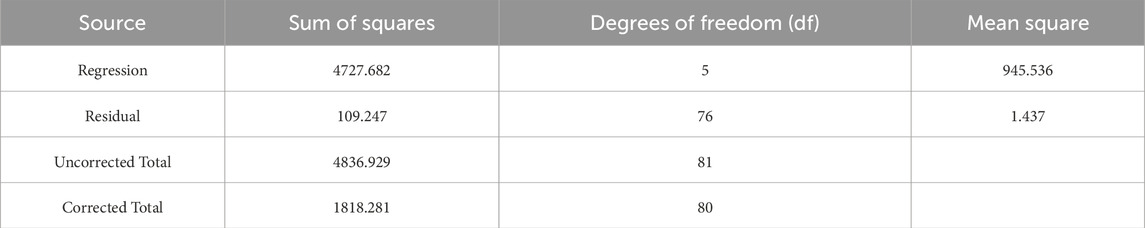

Regression analysis results are shown in Tables 7–9.
The residual sum of squares (RSS) for the regression model is 109.247, and the total sum of squares (TSS) for the dependent variable is calculated as 1818.281. Therefore, the coefficient of determination R2 for the nonlinear regression model is computed as R2 = 1−RSS/TSS = 0.9399, indicating a high correlation. This high R2 suggests a good fit of the regression equation to the data.

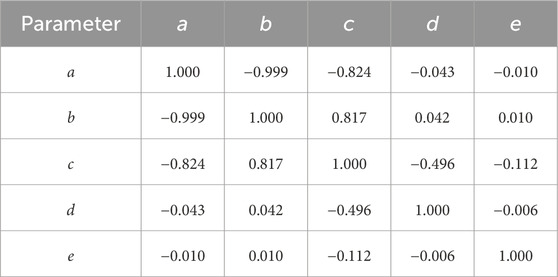

In terms of parameter correlations, a, b, and c show strong correlations, indicating that a change in any one of these parameters significantly affects the others. a has negative correlations with the other parameters, meaning an increase in a leads to decreases in the others, while b correlates positively with the other parameters. d, e, and c exhibit low correlations with each other and with b, indicating their effects are relatively independent.
Based on the parameter values, the nonlinear regression Equation 14 for swelling rate in relation to Kr, w0, ρd, and ln(1+σ) is given by:
The typical regression surface derived from the nonlinear swelling model for cracked expansive soil is shown in Figure 6.
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/1467134/fmats-11-1467134-HTML/image_m/fmats-11-1467134-g006.jpg)

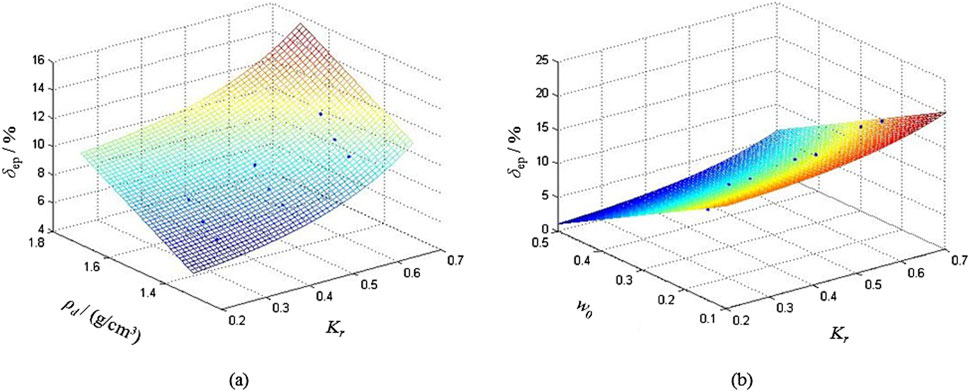

Figure 6. Typical regression surfaces of nonlinear expansion model: (A) w0 = 30%, σ = 0 kPa, (B) ρd = 1.5 g/cm³, σ = 0 kPa.
A total of 81 samples were utilized for predicting the swelling rate of cracked expansive soils. The crack rates for these samples ranged from 10% to 65%, covering a broader range than that in this study. This extensive range allows for a more comprehensive evaluation of the swelling characteristics and enhances the robustness of the predictive model. The predictions of the swelling rate δep1 for cracked expansive soil based on measured crack rate Kr, initial moisture content w0, dry density ρd, and load ln(1+σ) were made. These predictions were compared with actual measurements δep2 and shown in Figure 7. The results show a high degree of agreement between predicted and actual values, displaying a nearly linear relationship with a slope k approximating 1. Therefore, this nonlinear regression model effectively describes the relationship between swelling rate and crack rate, initial moisture content, dry density, and load. It serves well as a predictive model for the swelling characteristics of cracked expansive soils.
6 Conclusions
This study proposes a nonlinear regression swelling model that predicts the swelling rate of expansive soils by considering crack rate, dry density, initial moisture content, and overburden load comprehensively. By incorporating crack characteristics, the model aims to enhance understanding of how crack networks interact with soil matrix, thereby influencing overall swelling behavior. The conclusions of the paper are as follows.
(1) A crack rate model for expansive soils was established based on the ratio of gray-white filling clay to yellow-brown matrix clay content, serving as a quantitative indicator to determine the degree of crack development.
(2) The swelling rate decreases linearly with increasing initial moisture content, showing a negative correlation. Conversely, swelling rate significantly increases with increasing dry density, exhibiting a positive correlation. The relationship between swelling rate and crack rate is exponential: higher crack rates correspond to higher swelling rates, and greater variability in swelling rate is observed with more filled cracks.
(3) A nonlinear regression model for swelling rate was established based on crack rate, dry density, initial moisture content, and load. This nonlinear model effectively describes the relationship between swelling rate and crack rate, initial moisture content, dry density, and load, serving as a predictive model for the swelling characteristics of cracked expansive soils.
