Transition metal oxides (TMOs) have emerged as promising candidates for spintronic applications due to their unique electronic properties and novel quantum states. The intricate interplay between strong spin-orbit coupling and electronic correlations in TMOs gives rise to distinct spin and orbital textures, leading to enhanced spin-momentum locking and efficient charge-spin interconversion. Remarkably, recent researches have unveiled the significant and highly tunable nature of charge-spin interconversion efficiency in TMOs, which can be manipulated through strategies such as electric field gating, epitaxial strain, and heterostructure engineering. This review provides a comprehensive overview of the recent advances in understanding the electronic band structures of TMOs and their correlation with charge-spin interconversion mechanisms. We summarize the tunability of these properties through various experimental approaches and discuss the potential implications for spintronic device applications. The insights gained from this review can guide future research efforts towards the development of high-performance, energy-efficient spintronic devices based on TMOs.
1 Introduction
The rapid development of the information technologies, such as artificial intelligence, the Internet of Things, and big data, has led to an exponential growth in data generation and processing requirements. This unprecedented growth has created an urgent need for the development of novel materials and devices capable of efficient and reliable information storage and processing. While the current mainstream information storage (SRAM, DRAM, etc.) and processing (CPU, GPU, etc.) devices is based on transistor CMOS technology, which manipulates the charge properties of electrons, they face significant challenges in meeting the ever-increasing performance demands of the information technology era. In the past decades, CMOS devices have achieved remarkable improvements in performance, with transistor density doubling every 18 months, following Moore’s Law. This has been accomplished by miniaturizing transistor feature sizes to increase the number of transistors per unit area. However, as transistor dimensions approach the nanometer scale, further miniaturization poses unprecedented challenges related to device performance and reliability. First, the quantum tunneling effect becomes prominent, leading to a weakening of the channel’s ability to control charge flow and an increase in leakage current; second, while increasing current density can enhance charge control, it also leads to a significant rise in Joule heating, which can compromise device durability and energy efficiency. To address these challenges and enable sustainable growth in device performance, various solutions have been proposed, spanning from fundamental scientific research to technological innovations (Agarwal et al., 2021). Among these, spintronics has emerged as a promising alternative to conventional charge-based electronics.
Spintronics exploits the spin property of electrons, alongside their charge, to achieve high-performance information storage and processing, has become a widely focused topic (Manipatruni et al., 2018; Dieny et al., 2020). A key focus in the field of spintronics is the efficient conversion between charge and spin current, which is essential for the generation, manipulation, and detection of spin-based information. The charge-spin interconversion is mediated by the spin-orbit coupling (SOC) effect, which couples the motion of electrons (charge) with their spin angular momentum. The efficiency and mechanisms of charge-spin interconversion are strongly dependent on the electronic band structure of materials with strong SOC and crucial for developing efficient spin-based devices.
In this context, transition metal oxides have garnered significant attention as promising candidates for spintronic applications. These materials exhibit a rich variety of physical properties arising from the complex interplay between charge, spin, orbital, and lattice degrees of freedom (Ramesh and Schlom, 2019). This coupling gives rise to diverse phenomena such as magnetism, ferroelectricity, superconductivity, and colossal magnetoresistance, which are closely related to electron correlation effects (Schilling et al., 1993; Tomioka et al., 1995; Li et al., 2004; Vrejoiu et al., 2006). Moreover, recent studies have revealed that the electronic structures of transition metal oxides can host various novel quantum states, such as topological insulators, Dirac and Weyl semimetals, and quantum anomalous Hall insulators, which are intimately connected to SOC and highly sensitive to external perturbations. These exotic electronic structures are expected to significantly influence the spin transport properties and charge-spin interconversion efficiency of transition metal oxides, offering new opportunities for the development of advanced spintronic devices (Chen and Yi, 2021; Trier et al., 2021).
In this review, we present a comprehensive overview of the recent progress in exploration of novel quantum states and charge-spin interconversion in transition metal oxides. We begin by introducing the fundamental concepts and mechanisms underlying the emergence of novel electronic states in these materials and their impact on spin-dependent transport properties. We then discuss the experimental and theoretical advances in understanding and harnessing charge-spin interconversion in representative transition metal oxide systems, focusing on perovskite oxides with 3
2 Mechanisms of electronic structure and charge-spin interconversion
2.1 Generation of novel electronic structures
In transition metal oxides, due to the intricate coupling between spin, orbital, charge, and lattice degrees of freedom gives rise to a plethora of quantum states that have not been anticipated in other material systems, such as Mott insulators, topological insulators, topological semimetals, and axion insulators (Witczak-Krempa et al., 2014). These unique electronic structures form the foundation for the emergence of novel physical properties and functionalities in transition metal oxides. Moreover, at the oxide heterojunction/surface, the breaking of spatial inversion symmetry introduces additional influences, leading to the formation of surface states differ from the bulk electronic structure. Among these electronic states, non-trivial topological band structures and Rashba surface states are of particular interest due to their ability to strongly influence the spin orientation and momentum of electrons. This spin-momentum locking effect endows the related oxide materials with the property of charge-spin interconversion, enabling the efficient manipulation of spin current through other means.
2.1.1 Non-trivial band structures
The generation of non-trivial band structures is usually based on the occurrence of band inversion, that is, the originally separated conduction and valence bands change their energy or width under the action of SOC, structural changes, and other factors, resulting in mutual crossing (Figure 1). When SOC is present in the system, it further opens up an energy gap at the crossing points. Depending on the extent of the gap opening, various topological states can emerge. If the energy gap is fully opened, topological insulators may be produced. If the energy gap is not fully opened, leaving some contact points, linear dispersion Dirac points or Weyl points will be produced. If some contact lines are left, Dirac nodal lines will be produced. The generation of Dirac and Weyl states has different symmetry requirements: Dirac points require the material to simultaneously satisfy spatial inversion symmetry and time-reversal symmetry, while Weyl points require the breaking of spatial inversion symmetry or time-reversal symmetry. In other words, a Dirac point can be transformed into two Weyl points by breaking the symmetries (Yan and Felser, 2017; Armitage et al., 2018). Thus, by tuning the SOC strength and symmetry, one can control the electronic structure and realize the generation and transformation of novel quantum states.
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/1444769/fmats-11-1444769-HTML-r1/image_m/fmats-11-1444769-g001.jpg)
Figure 1. Transition metal oxides: Exploring novel electronic structures, charge-spin interconversion mechanisms, manipulation strategies, and their potential for advanced spintronic devices.
These topological band structures can produce large Berry curvature, which determines the intrinsic spin Hall effect (Xiao et al., 2010; Sinova et al., 2015). Therefore, when the Fermi surface is located near these topological band structures, it will significantly affect the material’s charge-spin interconversion properties. Although non-trivial band structures also exist in other material systems, the complex interplay of multiple degrees of freedom in transition metal oxides makes their electronic structure highly sensitive and tunable. Consequently, topological properties in these materials can be generated, changed, and enhanced through flexible regulation methods.
2.1.2 Surface states
Due to the inability of the non-trivial topological electronic structure to undergo continuous transformation at the vacuum or heterogeneous material interface, the naturally existing spatial inversion symmetry broken at the interface/surface will lead to surface states different from the bulk electronic structure. In topological materials with time-reversal symmetry, the energy
2.2 Mechanisms of charge-spin interconversion
2.2.1 Spin Hall effect
When a charge current passes through a material with strong SOC, electrons with different spin orientations will deflect in opposite directions, producing a spin current. This phenomenon is called the spin Hall effect (Figure 1). In the spin Hall effect, the charge current direction, spin current direction, and spin direction satisfy a mutually perpendicular relationship. The generated spin current enters the neighboring magnetic layer and exchanges angular momentum with the magnetic moments, producing a spin-orbit torque. The physical origins of the spin Hall effect include three mechanisms: skew scattering, side jump, and Berry curvature in the band (Sinova et al., 2015). Skew scattering and side jump are extrinsic contributions caused by impurity scattering, while Berry curvature is an intrinsic property determined by the band structure (Figure 1).
In the process of impurity scattering, SOC leads to an asymmetry in the scattering probabilities,
The total spin Hall conductivity
Studies have shown that transition metal oxides, especially 4
2.2.2 Rashba-Edelstein effect
In topological surface states and Rashba surface states, the spin-momentum locking property causes electronic states with opposite momenta to have opposite spin orientations at the Fermi surface. When a charge current passes through these surface states, the number of electrons with momenta in the same direction as the charge current increases, leading to an imbalance in the originally dynamically balanced spin electron numbers, resulting in spin accumulation (Figure 1). This phenomenon is called the Rashba-Edelstein effect (Manchon et al., 2015). The resulting spin accumulation can diffuse into the neighboring magnetic layer and interact with the magnetic moments to produce a spin-orbit torque.
Conversely, if a perpendicular spin current is injected into the surface states, spin accumulation will occur at the surface. Due to spin-momentum locking, the spin accumulation will cause asymmetric scattering between electrons with opposite momenta and spins, resulting in a greater number of electrons with momenta locked to the direction of spin accumulation, thus leading to a conversion from spin to charge. This process is called the inverse Rashba-Edelstein effect or spin galvanic effect and can be used to detect spin current at interfaces/surfaces.
The Rashba-Edelstein effect and its inverse process provide a mechanism for efficient interconversion between charge and spin currents in materials with strong spin-orbit coupling and broken inversion symmetry. The spin-momentum locking property of topological and Rashba surface states plays a crucial role in enabling this interconversion, making these states promising candidates for spintronic applications.
2.2.3 Nonlinear effects
The mechanisms described above reflect the charge-spin interconversion that is generated from the electronic structure of the material and exhibits a linear response relationship with the charge current (or electric field
3 Transition metal oxide material systems
When a charge current enters the spin source material, a portion of the charge current is converted into a spin current under the action of the charge-spin interconversion mechanism. The spin current passes through the interface into the neighboring magnetic material and exchanges angular momentum with the magnetic moments, producing a spin-orbit torque (SOT), including the damping-like torque ∼
Recent discoveries of novel quantum states in TMOs have opened up exciting possibilities for their use as high-performance spin source materials. These quantum states exhibit a strong correlation with charge-spin interconversion and offer a high degree of tunability. To unlock the full potential of TMOs as high-performance spin source materials, researchers are exploring two key strategies: the application of external electric fields and structural engineering techniques. External electric fields can be used to modulate the spin-orbit torque and control the efficiency and direction of charge-spin conversion in TMOs by influencing factors such as charge density, surface states, and SOC (Lesne et al., 2016; Ben Shalom et al., 2010; Caviglia et al., 2010; Vaz et al., 2019; Kaneta-Takada et al., 2022; Noël et al., 2020; Grezes et al., 2023; Gallego et al., 2024). In addition to external electric fields, structural engineering provides another powerful tool for enhancing charge-spin conversion efficiency in TMOs. Structural engineering techniques, including the control of oxygen octahedral rotations, strain engineering, crystal orientation selection, interface engineering, and thickness control, can be employed to precisely design the microscopic structure of TMOs and optimize their charge-spin conversion efficiency (Everhardt et al., 2019; Liu et al., 2019; Nan et al., 2019; Ou et al., 2019; Wang et al., 2019; Huang et al., 2021; Wei et al., 2021; Zhou et al., 2021; Lao et al., 2022; Liu et al., 2022; Zhang et al., 2022; Li et al., 2023; Zhang et al., 2023; Zhang et al., 2024; Zhao et al., 2024).
Spintronic devices based on charge-spin interconversion offer several compelling advantages for information storage, transmission, and processing, including non-volatility, high storage density, low power consumption, and fast response time. Researchers are exploring the use of spin-transfer torque (STT) and SOT to drive magnetization switching and achieve high-performance spintronic devices. Current-induced SOT has emerged as a promising, energy-efficient approach for next-generation spintronic devices (Figure 1). TMOs have garnered significant attention as spin source materials due to their remarkable and highly tunable charge-spin conversion efficiency, making them an ideal platform for spintronic applications. While TMOs have demonstrated efficient control of magnetic materials through SOT, achieving deterministic switching at room temperature without external magnetic fields remains a challenge. Recent breakthroughs in TMO-based SOT devices have shown promising results, but further research is needed to investigate and optimize field-free switching for practical spintronic applications (Liu et al., 2019; Liu et al., 2022; Li et al., 2023; Zhao et al., 2024; Tang et al., 2022).
In the following section, we will introduce promising spin source materials from the perovskite family, including 3
3.1 3d transition metal oxides: strontium titanate
3
The electronic structure of bulk insulating SrTiO3 undergoes changes at the surface/interface due to the influence of energy discontinuity and changes in the valence state, leading to the emergence of novel electronic properties that are distinct from those of the bulk material. The originally unoccupied
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/1444769/fmats-11-1444769-HTML-r1/image_m/fmats-11-1444769-g002.jpg)

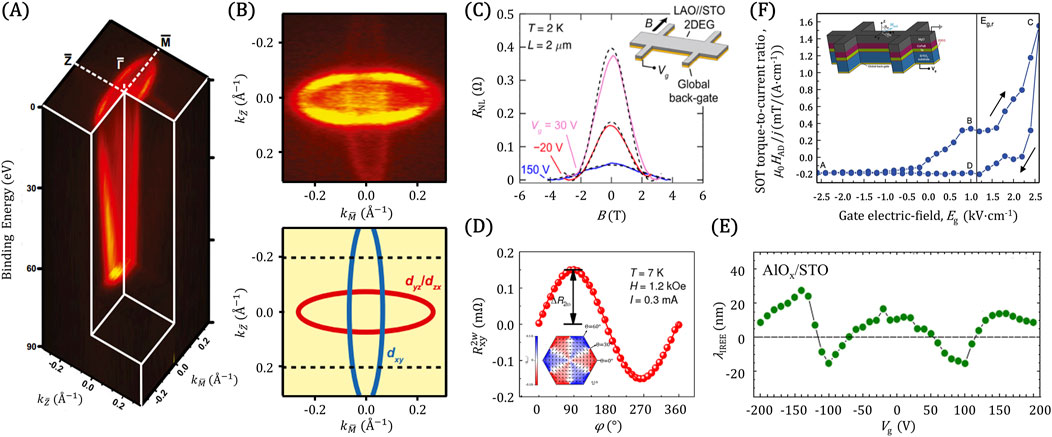

Figure 2. Electronic structure and charge-spin interconversion in the 2DEG at the surface/interface of SrTiO3: (A) Full photoemission mapping and (B) constant energy cuts and schematic constant-energy surfaces of the SrTiO3 2DEG measured by ARPES (Adapted with permission from Ref (Wang et al., 2014).); (C) Measurement of the spin Hall effect and inverse spin Hall effect in the 2DEG through nonlocal transport, and the voltage-controlled Hanle effect can be observed by applying an external magnetic field (Reproduced with permission from Ref (Trier et al., 2020).); (D) Angular dependence of the second harmonic planar Hall resistance
In view of the novel spin configurations exhibited by the SrTiO3 2DEG, its charge-spin interconversion properties have attracted great interest. Lesne et al. (2016) observed the inverse Rashba-Edelstein effect in the SrTiO3/LaAlO3 interface 2DEG by SP-FMR method at room temperature, quantifying the two-dimensional charge-spin conversion efficiency of the interface as
Building upon these findings. Lesne et al. (2016) not only measured a large charge-spin interconversion efficiency at the SrTiO3/LaAlO3 interface but also demonstrated the ability to tune the conversion efficiency at the interface using gate voltage. This voltage-driven tunability was previously observed by Ben Shalom et al. (2010) and Caviglia et al. (2010), who found that applying an external voltage enables effective modulation of the charge-spin interconversion. These discoveries underscore the potential for highly efficient and flexibly tunable performance in spintronic devices based on the SrTiO3 surface 2DEG. Vaz et al. (2019) observed the corresponding change of
The aforementioned research results confirm that the SrTiO3 interface 2DEG possesses significant and highly tunable charge-spin interconversion, which can be closely related to its novel electronic structure. In particular, the huge conversion efficiency recently observed at the SrTiO3/LaTiO3+δ interface indicates that the SOT properties of the 2DEG system still have great room for enhancement. In view of the intricate physical mechanisms involved, how to profoundly understand the influence of non-trivial electronic structures on charge-spin interconversion, and how to induce, characterize, and utilize novel topological states in a targeted manner to improve conversion efficiency are important research directions. It is noteworthy that current work primarily focuses on characterizing the charge-spin conversion efficiency. Given the enormous application potential of the SrTiO3 system, future research should place more emphasis on SOT manipulation of magnetization switching and developing functional spintronic devices.
3.2 4d transition metal oxides: Strontium ruthenate
4
Theoretical calculations predict that the band structure of SrRuO3 has multiple linear dispersive band crossing points near the Fermi surface, as shown in Figure 3A. These configurations, composed of
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/1444769/fmats-11-1444769-HTML-r1/image_m/fmats-11-1444769-g003.jpg)

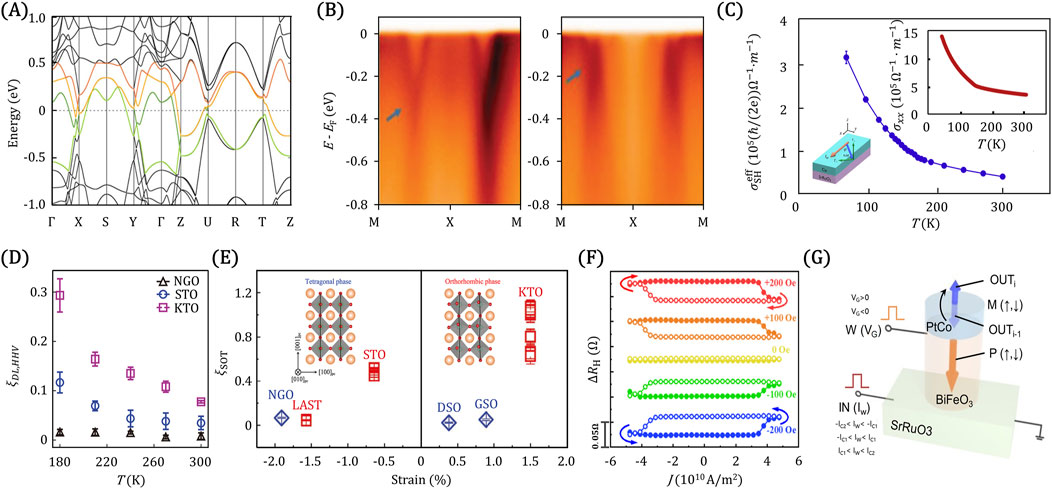

Figure 3. Electronic structures, spin transport properties and SOT associated characterization results of SrRuO3: (A) Band structure of SrRuO3 based on GGA calculations, considering the effects of magnetism, SOC and Coulomb interaction (Reproduced with permission from Ref (Takiguchi et al., 2020).); (B) Energy momentum mappings for SrRuO3(001) measured by ARPES. The Wely point are indicated with arrows (Reproduced with permission from Ref (Lin et al., 2021).); (C) Spin Hall conductivity of SrRuO3 as a function of temperature ranging from 300 to 60 K (inset: the corresponding electrical conductivity in the same temperature range) (Adapted with permission from Ref (Ou et al., 2019).); (D) Charge-spin conversion efficiency of SrRuO3 grown on various substrates as a function of temperature (Reproduced with permission from Ref (Zhou et al., 2021).); (E) Comparison of charge-spin conversion efficiency between orthorhombic (red square) and tetragonal (blue diamond) SrRuO3 grown on various substrates (Adapted with permission from Ref (Wei et al., 2021).); (F) Magnetization switching driven by pulse current under different external magnetic fields
The Berry curvature in the electronic bands of SrRuO3 not only contributes to the intrinsic anomalous Hall effect, but can also produce the spin Hall effect, thus bringing significant charge-spin interconversion. Haidar et al. (2015) measured the voltage signal generated by SrTiO3(001)/La0.67Sr0.33MnO3(LSMO)/SrRuO3 at room temperature by the spin pumping-ferromagnetic resonance (SP-FMR) method. They found a component that has a
The above studies demonstrate well the picture that the novel electronic structure of SrRuO3 is the source of its spin transport properties. However, compared to the large Berry curvature reflected by the anomalous Hall effect, the Berry curvature reflected by the inverse spin Hall effect is not significant. This contradiction is most likely due to the inevitable parasitic rectification effect in the SP-FMR experiment leading to an underestimation of the inverse spin Hall voltage (Mosendz et al., 2010). Therefore, recent related work has focused on characterizing the SOT generated by the spin Hall effect of SrRuO3 to more accurately and deeply investigate its charge-spin interconversion. Ou et al. (2019) systematically characterized the spin Hall conductivity in Si/SrTiO3/SrRuO3/Co by the spin torque-ferromagnetic resonance (ST-FMR) method. As shown in Figure 3C, the spin Hall conductivity shows a monotonic increase in the temperature range from 300 K to 60 K, up to 3 × 105
In addition to discussing the charge-spin conversion. Ou et al. (2019) also observed a vertical spin polarization component below the Curie temperature and pointed out that it may be related to the strong anisotropic magnetoresistance of SrRuO3. Moreover, combined with the characterization results of the crystal structure, they found that the spin Hall effect strength of SrRuO3 is closely related to the degree of rotation of the RuO6 oxygen octahedra, suggesting that enhanced conversion efficiency could be achieved through structural regulation. Recently. Zhou et al. (2021) and Wei et al. (2021) systematically studied the evolution of the SOT-related properties of SrRuO3 under different strain and crystal structures by regulating the crystal structure of SrRuO3 through epitaxial strain. They found that by applying −1.9% to +1.5% epitaxial strain to SrRuO3 through varying a series of substrates, its crystal structure undergoes changes in the tetragonal and orthorhombic phases, greatly affecting its charge-spin conversion efficiency. In the work of Zhou et al. (2021), as shown in Figure 3D, under different strain states, the conversion efficiency of SrRuO3 increases monotonically with decreasing temperature, indicating that the intrinsic spin Hall effect is the main contribution source, combined with the measurement of the change in conductivity. When the SrRuO3 thin films are grown on NdGaO3 substrates, the RuO6 octahedra only rotate out-of-plane, resulting in a tetragonal crystal structure with a conversion efficiency of
SrRuO3 exhibits significant and highly tunable charge-spin conversion efficiency, and further utilizing the generated SOT to drive magnetization switching is a key step for spin-based data storage and logic. Tang et al. (2022) designed an SrRuO3/FeGd heterostructure and achieved SOT-driven magnetization switching at room temperature with a low threshold current density of 4.5×106
Furthermore, Chai et al., (2023) designed a magnon-mediated spin torque (MST) device by constructing an SrRuO3/BiFeO3/CoPt multilayer heterostructure, demonstrating effective spin transmission and magnetization switching. By applying current pulses to the SrRuO3 layer, spin accumulation is generated at the interface, exciting magneton modes in BiFeO3. When the magnons transmit to the CoPt layer, the magnetization direction is controlled through magnon-mediated spin torque (MST), realizing parallel non-volatile writing of multiple storage units. As shown in Figure 3G, by applying different VG and
The above SOT results confirm that SrRuO3 possesses significant Berry curvature and strong spin Hall effect, and can achieve efficient charge-spin interconversion. Further regulating the electronic structure of SrRuO3 through strain engineering greatly enhances its charge-spin conversion efficiency, surpassing traditional heavy metals. In addition, considering that SrRuO3 also possesses excellent thermal stability, chemical stability, and high conductivity, as well as good compatibility with magnetic metals and oxides, it is a very promising spin source material. However, regarding the efficiency of SrRuO3’s charge-spin interconversion and its evolution with temperature, there are still some divergences at present. First, by comparing the results of Wahler et al. (2016) and Ou et al. (2019), it can be seen that in the non-magnetic temperature range, the spin Hall effect-related parameters of SrRuO3 increase with decreasing temperature, showing a consistent trend. However, below the Curie temperature (160 K), Wahler et al. observed a sharp decrease in the inverse spin Hall voltage, while Ou et al. found a continued increase in the spin Hall conductivity. This contradictory result concerns the influence of SrRuO3’s magnetism on its charge-spin interconversion capability, and needs to be further confirmed, with its underlying physical mechanism clarified. Second, although it is currently widely accepted that the source of SrRuO3’s efficient charge-spin interconversion is the significant Berry curvature brought about by its electronic band structure, there are still large discrepancies in the specific charge-spin conversion efficiency values. As shown in Table 1, in the same SrTiO3(001)/SrRuO3/Py structure, although there are some slight differences in the thickness of each layer, the conversion efficiency
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/1444769/fmats-11-1444769-HTML-r1/image_m/fmats-11-1444769-t001.jpg)

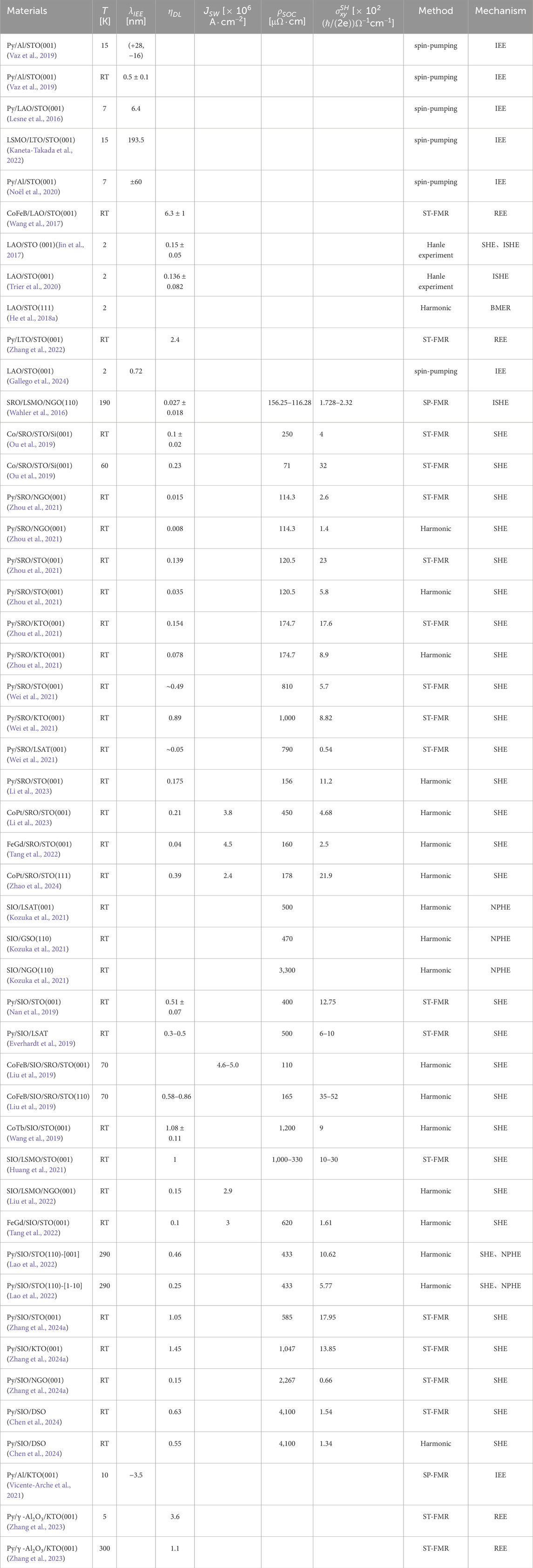

Table 1. Comparison of the SOT-efficiencies and spin Hall conductivity in transition metal oxide systems.
3.3 5d transition metal oxides
3.3.1 Strontium iridate
5
Theoretical studies predict the existence of a variety of correlated topological quantum states in perovskite-structured SrIrO3 thin films and heterostructures. Carter et al. (2012) employed tight-binding Hamiltonian model calculations to predict the existence of a three-dimensional topological nodal semimetal state in bulk perovskite-structured SrIrO3, which is protected by spin-orbit coupling and lattice symmetry. Kim et al. (2015) predicted the existence of a Dirac fermion state on the SrIrO3 (001) surface, with a non-trivial topological
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/1444769/fmats-11-1444769-HTML-r1/image_m/fmats-11-1444769-g004.jpg)
Figure 4. Electronic structures, spin transport properties and SOT associated characterization results of SrIrO3: (A) The electronic structure map near the Fermi surface measured by ARPES. left: the hole like bands near the Fermi surface. right: the linearly dispersive electron band near the Fermi surface (Reproduced with permission from Ref (Nie et al., 2015).); (B) Spin Hall conductivities for current
Regarding spin transport properties, Patri et al. (2018) conducted theoretical calculations on the spin Hall effect of bulk SrIrO3 and found that the combination of strong SOC and the Dirac nodal line band structure give rise to a huge Berry curvature, endowing SrIrO3 with significant intrinsic spin Hall conductivity, which can reach values on the order of 104
Beyond the aforementioned studies on linear charge-spin interconversion, Kozuka et al. (2021) observed a nonlinear planar Hall effect in SrIrO3, as shown in Figures 4C, D. The second harmonic Hall resistance
Given the high tunability of SrIrO3’s topological properties under the coupling of multiple degrees of freedom, it is evident that these properties can be effectively modulated through various means, such as epitaxial strain, elemental doping, and external field stimulus. This, in turn, allows for the regulation and enhancement of the charge-spin interconversion in the system, paving the way for the realization of high-performance SOT devices. As observed in the work of Nan et al. (2019), Liu et al. (2019), Lao et al. (2022), the conversion efficiency exhibits a strong dependence on the crystal orientation, with
In terms of spintronic applications, SrIrO3 has been proven to be capable of efficiently manipulating magnetic materials and achieving deterministic switching between different magnetization states. Liu et al. (2019) used the SOT generated by SrIrO3 to manipulate the magnetization state of SrRuO3 with perpendicular magnetic anisotropy at 70 K, and achieved deterministic switching without an external field by fine-tuning the easy axis angle of SrRuO3 through crystal structure engineering; Additionally, Liu et al. (2022) successfully switched the magnetic oxide LSMO with extremely low damping coefficient at room temperature through SrIrO3. The aforementioned SOT devices based on SrIrO3 only require a threshold current of 3-5 × 106
The above results confirm that SrIrO3 exhibits highly efficient and tunable charge-spin interconversion, holding promise for the realization of multifunctional spintronic devices. However, there are still some deficiencies in understanding the contribution of each mechanism to the charge-spin conversion efficiency. Firstly, it is currently widely believed that the damping-like efficiency of SrIrO3 originates from the spin Hall conductivity. However, based on the measurement results of SrIrO3/LSMO (Huang et al., 2021) and other topological materials (Mellnik et al., 2014; Li et al., 2018), as well as theoretical calculations (Amin and Stiles, 2016), spin-momentum locking also contributes to the damping-like efficiency, necessitating the clarification of the specific physical mechanisms. Secondly, although spin-momentum locking can contribute to the field-like efficiency, there is a large discrepancy in the actual
3.3.2 Potassium tantalate
Potassium tantalate (KTaO3) is a perovskite-structured insulating material with tantalum ions in its oxygen octahedra exhibiting a
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/1444769/fmats-11-1444769-HTML-r1/image_m/fmats-11-1444769-g005.jpg)

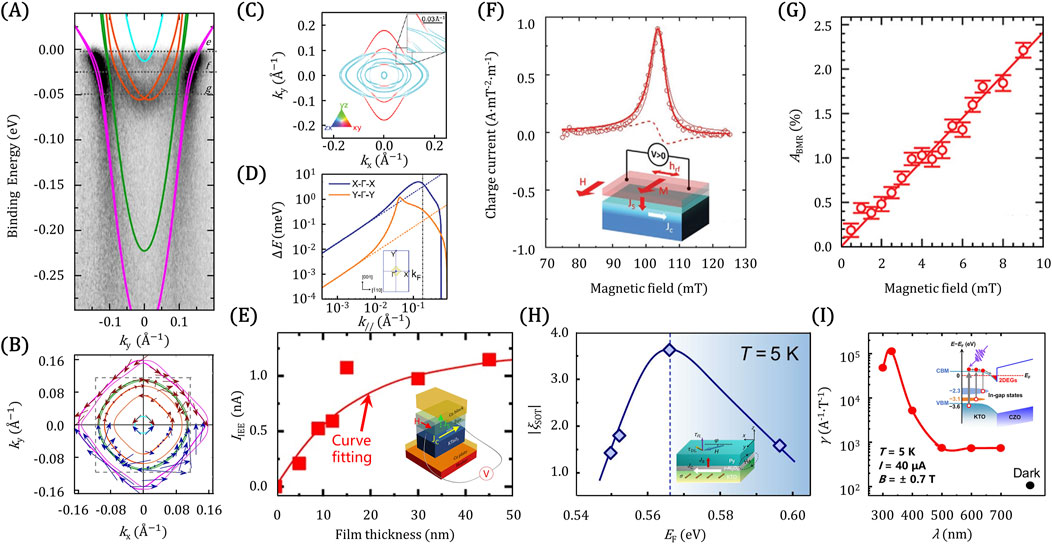

Figure 5. Electronic structures, spin transport properties and SOT-related characterization results of KTaO3: (A) ARPES results of surface 2DEG in KTaO3(001). The measured band structure is represented by colored lines: pink and green correspond to
Beyond the (001) orientation, Bruno et al. (2019) also observed similar electronic structure characteristics of 2DEG in KTaO3(111). However, due to the contribution of all
The strong spin-orbit coupling and unique electronic band structure of the KTaO3 interface 2DEG have sparked significant interest in exploring its charge-spin interconversion properties. Zhang et al. (2019b) successfully generated a 1
The significant SOC and complex carrier transport properties at the interface of KTaO3 make its electronic structure and charge-spin interconversion properties more sensitive and tunable. Zhang et al. (2023) not only obtained a large charge-spin conversion efficiency at the KTaO3(001)/γ-Al2O3 interface but also observed a strong dependence of the conversion efficiency on the band filling state at low temperatures (5 K) (Figure 5H). They controlled the Fermi level filling state by adjusting the thickness of γ-Al2O3. At low Fermi energies, only one type of carrier exists in the 2DEG, occupying the lower energy
Although the current research on the charge-spin interconversion of KTaO3 is still in its infancy, its excellent performance comparable to SrTiO3, indicates its enormous potential as a spin source material. Moreover, its rich and tunable electronic structure and charge-spin interconversion properties suggest that KTaO3 is an outstanding material for exploring novel quantum states and related new spintronic devices.
4 Outlook
Compared to the heavy metal systems, which have been extensively studied as spin source materials in early SOT devices, transition metal oxides have rapidly gained significant attention in this field. The 3
Since recent research has focused on only a few materials, there are still many systems with great potential in the vast transition metal oxide family that await further exploration. By designing oxide heterostructures and exploiting the ability of interfaces to control crystal structure, magnetoelectric properties, and electronic structure, researchers expect to significantly influence and enhance charge-spin interconversion (Ramesh and Schlom, 2019; Hwang et al., 2012). This can be achieved, for example, by inducing spin transport properties that cannot be present in a single bulk phase through the use of multi-component superlattices, or by maintaining high conversion efficiency up to room temperature in 2DEG systems via interface design. Moreover, by engineering the symmetry of complex oxide systems, the spin orientation of the generated spin current can be effectively manipulated, enabling achieve all-electric switching of the magnetization state, which is a crucial step toward practical applications. In heavy metals and two-dimensional materials, constructing symmetry-broken structures, such as creating vertical or lateral material composition gradients, incorporating antiferromagnets, or using ferroelectric materials (Yu et al., 2014; Oh et al., 2016; Zheng et al., 2021), can generate spin currents with out-of-plane spin polarization. This allows for deterministic switching of perpendicular moments without the need of an external magnetic field, which is essential for the realization of low-power, high-density SOT devices. In transition metal oxides, the spin-momentum locking in the surface state of SrTiO3(111) 2DEG has an out-of-plane spin polarization component (He et al., 2018a), making it promising system for realizing deterministic switching of perpendicular moments without an external field. Although there are no relevant reports in other oxides yet, it is feasible to influence the symmetry by fine-tuning the material composition and crystal structure during the growth process, and related research should also be carried out systematically in the future. Furthermore, substituting the
In addition to expanding the range of materials, researchers anticipate achieving precise control over SOT strength in transition metal oxide thin films and heterostructures by leveraging the characteristics of multi degrees of freedom coupling. The aforementioned spin Hall effect and surface states contribute differently to the damping-like torque and field-like torque of spin-orbit torque, and the ratio of these two components can significantly affect the energy consumption and response time of the magnetization switching process, domain wall motion velocity, and other dynamic processes (Katine et al., 2000; Legrand et al., 2015; Yoon et al., 2017; Liu et al., 2021; Taniguchi et al., 2015; Gomonay et al., 2016; Zhu and Zhao, 2020). Therefore, by influencing the electronic structure through multiple degrees of freedom, precise control of the strength and direction of the damping-like torque and field-like torque, respectively, is an important research direction for realizing high-performance SOT devices.
Finally, establishing the correlation between the electronic structure of oxides and charge-spin interconversion is crucial for understanding and controlling device performance. Currently, in the 2DEG of the 3
