Mesoscopic numerical simulation of chloride diffusion behavior in cracked recycled aggregate concrete

  • 1Guangxi Key Laboratory of Green Building Materials and Construction Industrialization, Guilin University of Technology, Guilin, China
  • 2Guangxi Key of Geomechanics and Geotechnical Engineering, Guilin University of Technology, Guilin, China

The cracking of recycled aggregate concrete (RAC) is well known to promotes the chloride diffusion, accelerates the corrosion of reinforcement embedded in RAC. To reveal the mechanism of chloride diffusion in RAC under cracking, a multiphase mesoscopic model for chloride diffusion in RAC was proposed. It should be noted that RAC is regarded as eight-phase composite materials consisting of coarse aggregate, reinforcement, new and old mortar, new and old interface transition zones (ITZ), cracks, and damage zones. The effects of the width and depth of cracks and damage zones on chloride diffusion behavior in RAC after cracking were further investigated. The numerical simulation results show that the damage zones accelerate the chloride diffusion and exacerbates the accumulation effect of chloride at the crack tip. Compared to the crack depth, the crack width of RAC has a small effect on chloride diffusion behavior, especially, the crack width is less than 50 µm. More importantly, the chloride diffusion streamline generated by numerical simulation reveals the mechanism of cracks promoting chloride diffusion. The research in this paper provides new insights into the durability design of RAC by revealing the diffusion behavior of chloride ions in RAC.

1 Introduction

Concrete is the most widely used building material, and Portland Cement is one of the important cementitious materials for preparing concrete. It is estimated that CO2 emissions from the manufacture of Portland Cement for 8%–10% of CO2 emissions worldwide (Krausmann et al., 2018; Xiao et al., 2021). Therefore, low-carbon and sustainable development are urgent issues to be addressed in the production process of concrete. Currently, the preparation of recycled aggregate concrete (RAC) by replacing natural aggregate (NA) with recycled coarse aggregate (RA) is one of the important methods to achieve carbon neutrality and sustainable development strategies (Reddy and Lahoti, 2023). However, compared to natural aggregate concrete (NAC), the weak old mortar and multiple interface transition zones (ITZ) caused by the replacement of RA are the main reasons for the deterioration of mechanical and durability properties of RAC (Silva et al., 2014; Algourdin et al., 2022; Liu et al., 2023; Wu et al., 2024). Hence, in recent decades, a large number of research reports (Algourdin et al., 2022; Kim, 2022; Lu et al., 2022; Liu et al., 2023; Ouyang et al., 2023; Rezaei et al., 2023; Wu et al., 2024) have been accumulated on the physical, chemical, mechanical, durability and improvement of RAC. Relevant research shows that adding various admixtures, RCA shaping, reducing the water cement ratio, and two-stage mixing can effectively improve the performance of RAC (Algourdin et al., 2022; Kim, 2022; Lu et al., 2022; Liu et al., 2023; Ouyang et al., 2023; Rezaei et al., 2023; Wu et al., 2024). In short, RAC as a sustainable green building material still has a good application prospect.

However, in marine or saline soils environments, various aggressive substances, including chloride ions, enter the concrete in various ways, which can damage the passivation film of the reinforcement steel in the concrete, reduce its protective effect on the reinforcement steel, and cause corrosion of the reinforcement steel in the presence of sufficient water and oxygen (Yi et al., 2020; Ye et al., 2023). Due to the expansion of corrosion products from corroded steel bars, the protective layer of the steel bars may crack, and then reduce the bearing capacity and service life of the structure (Yi et al., 2020; Ye et al., 2023). Thereby, a large number of researchers have conducted extensive research on improving the impermeability of concrete and the corrosion protection and repair techniques induced by chloride ions (Miranda et al., 2006; Ann et al., 2008; Ogunsanya et al., 2020; Yi et al., 2020; Shang et al., 2021; Ahmad et al., 2022; Algourdin et al., 2022; Lu et al., 2022; Liu et al., 2023; Rezaei et al., 2023; Ye et al., 2023; Wu et al., 2024). For example, extensive research work has shown that partial replacement of silicate cement by major auxiliary cementitious materials (e.g., fly ash, silica fume, slag, and a variety of other pozzolanic materials) improves the resistance of concrete to chloride-ion penetration (Ann et al., 2008; Yi et al., 2020; Ahmad et al., 2022; Algourdin et al., 2022; Lu et al., 2022; Liu et al., 2023; Rezaei et al., 2023; Ye et al., 2023; Wu et al., 2024). Similarly, in recent years, many scholars have proposed various methods for preventing and repairing steel corrosion in concrete, such as steel reinforcement coating, special replacement steel, corrosion inhibitors, concrete surface coating, electrochemical repair, etc. (Miranda et al., 2006; Ogunsanya et al., 2020; Shang et al., 2021; Ye et al., 2023).

Meanwhile, in the past few decades, many researchers have conducted extensive experimental and numerical studies on the mechanical properties and ion transport behavior of RAC (Xiao et al., 2014; Li et al., 2016; Nisreen et al., 2018; Bai et al., 2020; Bao et al., 2020; Sun et al., 2020; Rezaei et al., 2023), and important research results have been achieved. For instance, As the replacement rate of RAC increases, the mechanical properties and permeability of RAC are weaker. The effect of aggregate substitution rate on chloride transport in RAC has been revealed by Xiao et al. (2014) and Bao et al. (2020). Besides, related studies have revealed that ITZ (e.g., OITZ, NITZ) has a skeleton structure with higher porosity (Xue et al., 2019; Sun et al., 2020). Thus, the ITZ provides a fast channel for chloride ion transport and crack sprouting often sprouts here, deteriorating the mechanical properties and durability of concrete (Xue et al., 2019; Zhang et al., 2019). As is well known, RAC is a multiphase composite material at the meso-structure, and the comprehensive influence of each component on chloride diffusion forms the macroscopic physical phenomenon studied in the above experiments. Thus, it is particularly important to study the effects of each component on the chloride diffusion performance at a meso-structure level. However, it is difficult to ensure that each phase has a single and stable variable in the experiment (such as the depth and width of the damage zone, the thickness of the attached old mortar layer, etc.), making it difficult to accurately predict the chloride ion migration behavior in RAC. Numerical research can make up for the shortcomings in experimental research. For instance, Yu and Lin (2020) studied the effects of coarse aggregate shape, position, old mortar adhesion rate, and ITZ on chloride permeability behavior in RAC based on a micro finite element model, and established expressions for chloride diffusion coefficient and related factors. Xiao et al. (2012) and Hu et al. (2018) proposed a five-phase mesoscale numerical model and conducted parametric analysis. Numerical simulations by Wu and Xiao (2018) indicate that the randomness of microcracks may have an undeniable effect on the chloride ion diffusion rate. It should be noted that in the previous numerical studies, the randomness of the ITZ and the thickness of the attached old mortar layer is often overlooked in order to simplify the numerical model, and cannot truly reflect the microstructure of RAC. Hence, this paper constructs the adhesive old mortar layer and ITZ with random thickness by Monte Carlo metho at each aggregate boundary. In addition, due to the physical and chemical shrinkage, corrosive environment, and load effects, concrete inevitably works with cracks. Cracks can significantly increase the corrosion rate of chloride ions in RAC, accelerate the corrosion of reinforcement, and reduce the durability of RAC structures. Therefore, the study of chloride diffusion behavior in RAC under cracking has very important engineering value. However, previous research on the effect of cracking has mainly focused on NAC, while there have been few reports on RAC, and the time of cracking is often set at the time of concrete service, while the time of cracking occurrence is ignored. Many studies (Tuutti, 1979; Reale and O’Connor, 2012; Xu et al., 2019; CCES, 2004; Lu et al., 2011) have found that the cracking of concrete cover caused by chloride ion ingress in reinforced concrete structure (RC) is divided into two stages, namely the stage of corrosion initiation and the stage of crack initiation. a) The stage of corrosion initiation: During this stage, chloride ions enter the RAC by various means and accumulate on the surface of the reinforcement until reaching a critical concentration for corrosion of the reinforcement (Xu et al., 2019; CCES, 2004; Lu et al., 2011), destroying the passivation film around the reinforcement and causing corrosion in the presence of sufficient oxygen and water. b) The stage of crack initiation: during this stage, Corrosion products grow as the reinforcement rusts. Due to the volumetric expansion of the corrosion products, tensile stresses are generated in the concrete around the steel reinforcement. As the tensile stress reaches the tensile strength of the concrete cover, the concrete cover will crack (Bazant, 1979; Liu and Weyers, 1998; El Maaddawy and Soudki, 2007). However, relevant studies (Reale and O’Connor, 2012; Xu et al., 2019) have shown that the crack initiation accounts for a very small proportion of the total periods by comparing with the corrosion initiation period. Therefore, in order to simplify and ensure safety reserves, this paper ignores the crack initiation period and assumes that the criterion for cracking of the concrete cover is when the concentration of chloride ions on the surface of the reinforcement in the concrete reaches a critical value (CCES, 2004; Lu et al., 2011).

So, the purpose of this article is to establish a multiphase numerical model for the transport of chloride in RAC to reveal the transport mechanism of chloride in different components. Furthermore, the effects of factors such as crack width and depth, as well as the depth and width of the damage zone, on the transport of chloride in RAC were analyzed. In addition, the diffusion trajectory of chloride in RAC is depicted by diffusion streamlines.

2 Multiphase mesoscopic numerical model for cracked RAC

2.1 Meso-structure of cracked RAC

To accurately reflect the meso-structure of RAC, a multiphase meso-structure model containing random old mortar and transition zones between new and old interfaces is developed, which based on the two-dimensional (2D) random aggregate model of concrete proposed by Gao and Liu (2003). The size of the RAC is 100 mm × 100 mm, the coarse aggregate adopts a continuous grading of 5–20 mm. The detailed process is as follows: 1) Firstly, use Fuller’s grading theory and Walraven’s plane transformation formula to obtain the content of recycled coarse aggregates at all levels (Walraven and Reinhardt, 1981). 2) According to the coarse aggregate placement method proposed by Gao and Liu (2003), polygonal recycled coarse aggregates without ITZ are randomly generated. 3) Then each vertex of the boundary of recycled coarse aggregate shrinks a certain distance along the radial direction, and connects each new vertex in turn to form the boundary of natural coarse aggregate. The closed area between the boundary of recycled coarse aggregate and the boundary of natural coarse aggregate forms the attached old mortar layer, which obeys the normal distribution. Please refer to reference (Liu et al., 2022) for the detailed process. 4) Similar to the previous method, the boundary of recycled coarse aggregate and natural aggregate are randomly extended outward by a certain distance, forming a transition zone between the new and old interfaces.

Furthermore, an eight-phase meso-structure model was further established, including coarse aggregate, reinforcement, new and old mortar, old ITZ, new ITZ, cracks, and damage zones. Figure 1 shows schematic diagram of numerical model for cracked recycled aggregate concrete, in which the crack phase is modeled as an equilateral triangle within the damage zone (DZ) as shown by the red color, and the DZ is modeled as a rectangle shape as shown by the yellow color. It should be noted that the true shape of cracks and damage zones is influenced by the distribution of aggregates and cannot be an ideal triangle or rectangle. However, relevant studies have found that when the crack is short, the curvature of the crack has little effect on the diffusion behavior of chloride ions (Peng et al., 2019). Hence, the crack phase in the present study has been simplified, and it is assumed to be located in the middle of the DZ. In Figure 1, WCr and WDZ are the width of the crack and the DZ, respectively, and, HCr and HDZ are the depth of the crack and the DZ, respectively. The cracked RAC finite element division is demonstrated in Figure 2.

Figure 1
www.frontiersin.org

Figure 1. Schematic diagram of numerical model for cracked recycled aggregate concrete.

Figure 2
www.frontiersin.org

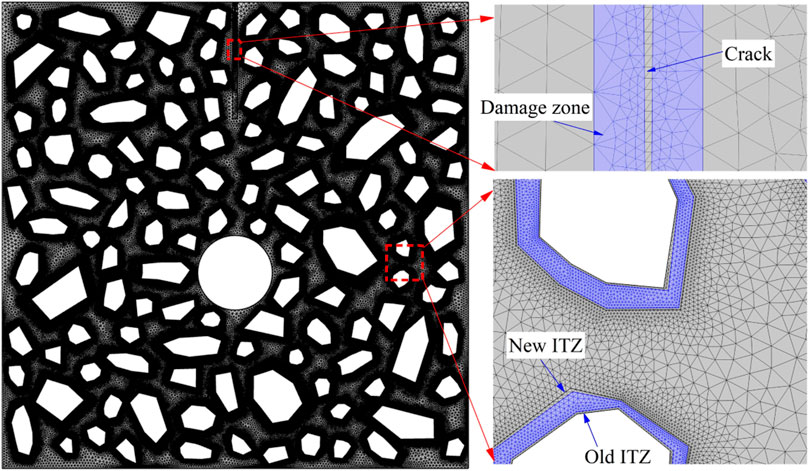

Figure 2. Finite element mesh.

2.2 Numerical model for chloride diffusion in the multiphase RAC

In the marine environment, under the driving forces of concentration difference and convection, chloride continue to migrate into the interior of concrete through the pore structure of concrete. In this study, it is assumed that recycled concrete is in a saturated state, and the chloride transport behavior is only driven by concentration differences. In addition, the chlorides that diffuse into the concrete have both free and bound components (Tuutti, 1979; Reale and O’Connor, 2012; Xu et al., 2019; CCES, 2004; Lu et al., 2011; Bazant, 1979; Liu and Wayers, 1998; El Maaddawy and Soudki, 2007; Gao and Liu, 2003; Walraven and Reinhardt, 1981; Liu et al., 2022; Peng et al., 2019; Martin-Pe et al., 2001). The bound component is present in the pore walls as chloroaluminate and adsorbed phases, which prevent it from being freely transported. Hence, the diffusion behavior of chloride in concrete can be expressed as in Eqs 1, 2 (Martın-Pe et al., 2001; Ishida et al., 2008; Ishida et al., 2009),

Cft+CbtDi2Cfx2Di2Cfy2=0(1)
Cb=αbCf1+βCf(2)

where Cf is the free chloride concentration (% by mass of concrete); t is the erosion time s); x, y is coordinate information, as shown in Figure 1; Di is the chloride diffusion coefficient in phase i (m2/s); subscript i represents different phase in the RAC; Cb is the bound chloride concentration (% by mass of concrete). Cb can be calculated by using Langmuir isotherm (Martın-Pe et al., 2001; Ishida et al., 2008; Ishida et al., 2009), as shown in Eq. 2, where the values of the parameters αb and β in Eq. 2 can be obtained from the relevant literatures (Ishida et al., 2008; Ishida et al., 2009). The initial condition and the boundary condition are usually specified as:

Cf0,x,y=0,Cb0,x,y=0,Cft,x,0=CS(3)

where CS is the chloride concentration at the surface (% by mass of concrete), as shown in Figure 1.

2.3 Chloride diffusion coefficient

2.3.1 Diffusion in the reinforcement, natural coarse aggregate, new mortar

RAC is regarded as eight-phase composite materials consisting of natural coarse aggregate, reinforcement, new and old mortar, new and old ITZ, cracks, and DZ. Each phase has an independent diffusivity property related to its microstructure. Due to the dense microstructure and poor pore connectivity of natural coarse aggregate, hence, natural aggregates are considered impermeable and chloride are not transported within the natural aggregates. Similarly, the reinforcement phase is also considered as impermeable. Several researchers (Jain and Gencturk, 2021; Zhang et al., 2021; Słomka-Słupik and Labus, 2022) have conducted extensive experimental studies on the diffusion coefficient of chloride in the transition zone between mortar and interface. And new cement mortar can be regarded as a composite material composed of pore structure and various cement hydration products, and its effective chloride diffusion coefficient can be expressed as a function of pore structure (Oh and Jang, 2004).

DMD0=ϕcap+ϕgelδτ2(4)

where DM, D0 (2.03 × 10−9 m2/s) are the diffusion coefficients of chloride in new cement mortar and water, respectively (Xie et al., 2022); ϕcap is the porosity of capillary pores, ϕgel is the porosity of gel pores, τ is pore tortuosity, which is shown in Eqs 57. δ is the blocking rate, assumed 0.01. According to Powers (1962) and Nakarai et al. (2006), ϕcap , ϕgel and τ can be expressed respectively as

ϕcap=0.19αw/c+0.32(5)
ϕgel=w/c0.36αw/c+0.32(6)
τ=1.5tanh8.0ϕcap+ϕgel0.25+2.5(7)

As the age of concrete increases, cement hydration becomes more complete, and the porosity of concrete decreases. Then, the age of concrete is negatively correlated with the diffusion coefficient (Mangat and Molloy, 1994; Boddy et al., 1999), which can be expressed as

DM=D0ϕcap+ϕgelδτ2treftm(8)

where tref is the reference exposure time, usually taken as 28 days; m is the time decay index (Mangat and Molloy, 1994; Boddy et al., 1999).

2.3.2 Diffusion in the old mortar, old and new ITZ

Several researchers (Jain and Gencturk, 2021; Zhang et al., 2021; Słomka-Słupik and Labus, 2022) have conducted extensive experimental studies on the diffusion coefficient of chloride in mortar and ITZ. However, there is little research on the diffusion performance of hardened old mortar (DOM). According to existing literature (Sun et al., 2011), it can be seen that the ratio of chloride ion diffusion coefficients between new and old mortar is between 0.2 and 5. Hence, the DOM in this paper takes twice the value of DM. In addition, research by relevant scholars (Hu et al., 2018; Peng et al., 2019; Liu et al., 2022) has shown that the diffusion coefficients of the transition zone between the new and old interfaces are (DNITZ and DOITZ) are 10 times that of the new and old cement mortar (DM and DOM), respectively.

2.3.3 Diffusion in the cracks, damage zone (DZ)

Furthermore, relevant experimental research (Djerbi et al., 2008; Du et al., 2015) shows that the diffusion performance of cracks is highly correlated with the crack width. On the basis of experimental data, the relationship equation between crack chloride ion diffusion coefficient and crack width was established, as shown in Eq. 9

Dcr=2×1011wcr4×101030μmwcr80μm1.4×109wcr>80μm(9)

where, Dcr is the chloride ion diffusion coefficient of the crack phase (m2/s), wcr is the width of the crack (μm).

Peng et al. (2019) showed that the influence of damage zone on the diffusion behavior of chloride ions in concrete cannot be ignored. And existing literature (Peng et al., 2019) has shown that when the chloride ion diffusion coefficient in the damaged zoon is taken as 20 times of the new mortar, the numerical simulation results are in good agreement with the experimental results. Hence, in this paper, the chloride diffusion coefficient in the damaged zoon (DDZ) is simplified to 20 times that of the new mortar (DM).

3 Result and discussion

3.1 Validation

To verify the reliability of chloride diffusion model in RAC proposed in this paper, experimental data from Algourdin et al. (2022) were selected for comparative analysis with the numerical simulation results in this paper. On the diffusion boundary of the numerical model, it was supposed that the top surface chloride concentration (Cs) was 0.46% (Algourdin et al., 2022), and the chloride concentration was taken to be zero at the left and right surfaces and at the bottom surface, as shown in Figure 1. Other parameters of the numerical model are shown in Table 1. Due to the consideration of the randomness of the microstructure of recycled concrete, three data lines were selected as references. It can be seen from Figure 3 that the distribution curve of chloride concentration with depth in the numerical simulation is in good agreement with the experimental curve. Therefore, the mesoscopic chloride diffusion model proposed in this paper for RAC has high reliability.

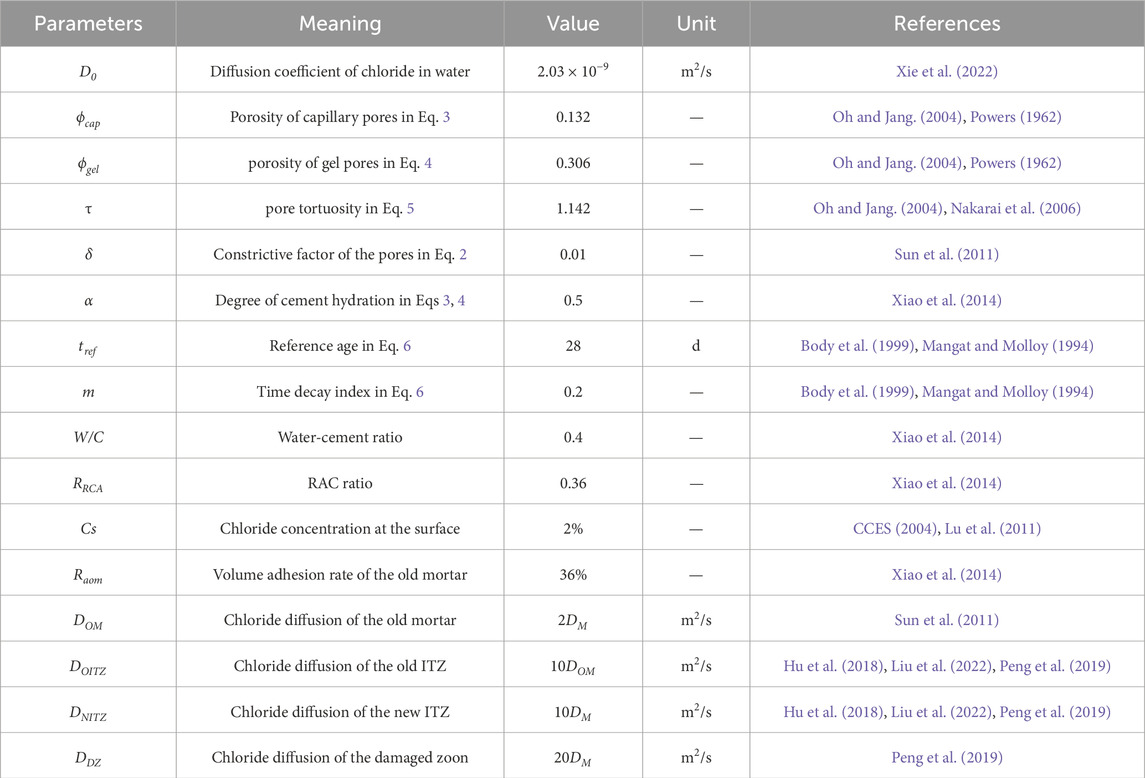

Table 1
www.frontiersin.org

Table 1. Main parameters used in the proposed model.

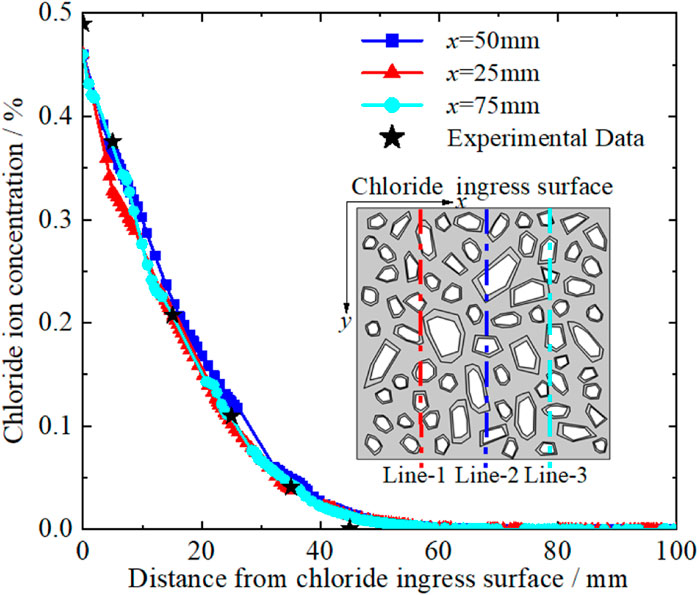

Figure 3
www.frontiersin.org

Figure 3. Distribution curve of chloride ion concentration.

3.2 Chloride diffusion mechanism in cracked RAC

To study the diffusion mechanism of chloride ions in RAC after cracking, two numerical samples are selected for a comparative analysis, namely cracked and uncracked RAC. In the analysis the crack and damage zone width and length are respectively fixed as 0.01, 15, 1, and 25 mm. To consider the time of concrete crack cracking, this paper simplifies the cracking time and assumes that the judgment standard for cracking RAC is when the chloride ion concentration on the surface of the steel bar reaches the critical value of corrosion (i.e., 0.8% by mass of cementitious material) (CCES, 2004; Lu et al., 2011).

From Figure 4, it can be seen that at the same depth, the chloride concentration in the cracking mode is higher than that of the uncracked mode. Moreover, as the erosion depth increases, the concentration difference between the two mode increases first and then decreases. Among them, the turning point is the depth of the damage zone (i.e., 25 mm). This is mainly due to the significant difference in chloride ion diffusion rate between the damage zone and the surrounding area, a chloride ion aggregation effect is formed, resulting in the maximum increase in chloride ion concentration here.

Figure 4
www.frontiersin.org

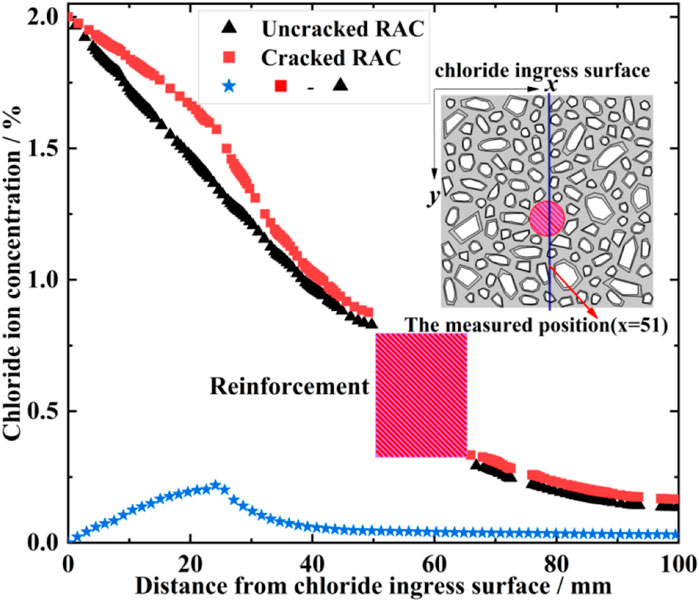

Figure 4. Curve of chloride concentration variation with ingress depth.

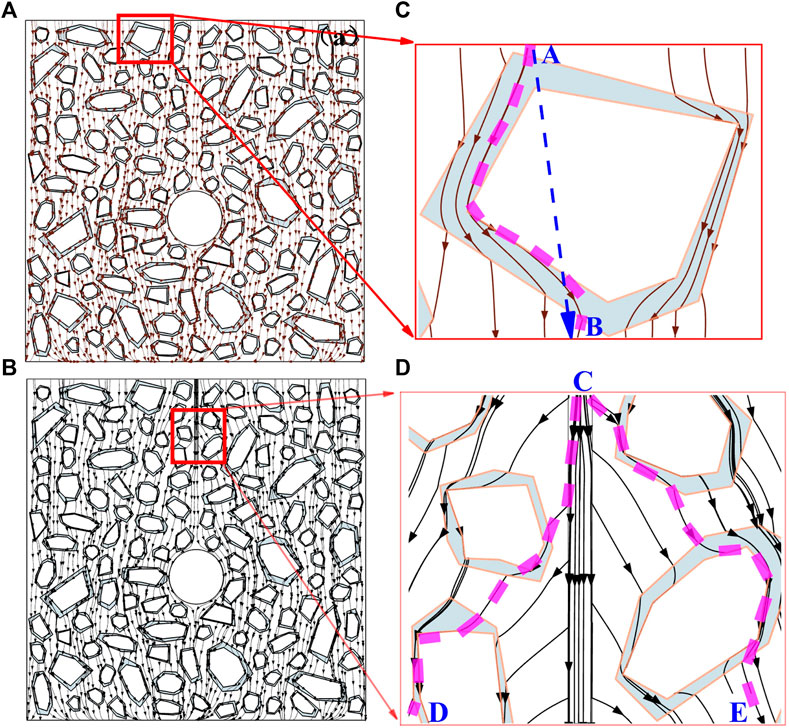

From the diffusion trajectory of chloride in RAC as shown in Figure 5, it can be seen that the coarse aggregate increases the diffusion path of chloride, which has a certain hindrance effect. For example, A diffuses to B. In the cracking mode, higher concentrations of chloride ions accumulate in the damaged area, which diffuse around the coarse aggregate to the surrounding low concentration areas through ITZ, such as C diffusing to D and E. It is worth noting that the diffusion from C to D and E is not a straight line, but a curve, further confirming that ITZ is a fast channel for chloride ion diffusion (Yu and Lin, 2020). In summary, the cracking of RAC has a significant effect on the diffusion behavior of chloride ions, so it is necessary to further explore the effects of cracks and damage zones.

Figure 5
www.frontiersin.org

Figure 5. The diffusion trajectory line and partial enlarged view, (A) RAC without crack and, (B) RAC with crack, (C) Local amplification of Figure 5A, (D) Local amplification of Figure 5B.

3.3 The influence of damage zone

3.3.1 The influence of damage zone width

To investigate the effect of damage zone width on chloride diffusion behavior, five numerical samples with different damage zone widths were designed, with a damage zone width range of 0–2 mm and a value taken at 0.5 mm intervals.

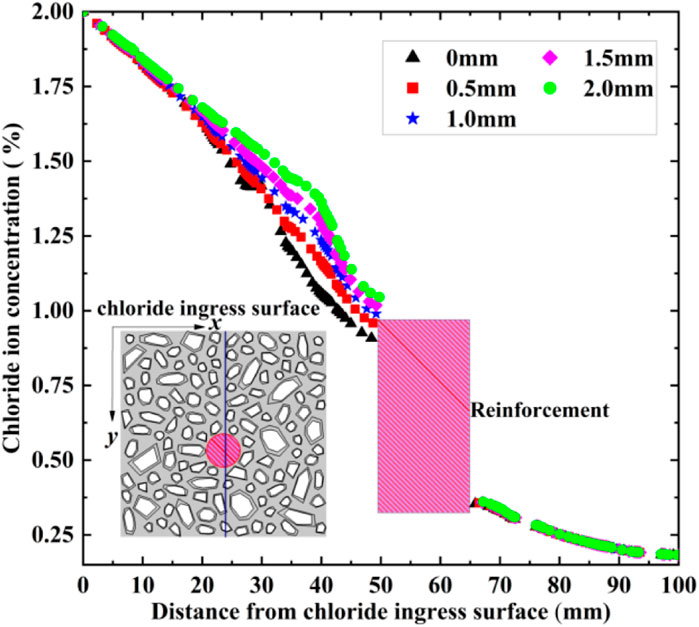

After 1 year of cracking of the RAC protective layer, the concentration curves and cloud charts of chloride ions along the depth direction under different damage zone widths were obtained as shown in Figures 6, 7. It is evident that as the width of the damage zone increases, the chloride concentration also gradually increases, as shown in Figures 6, 7. Moreover, at the tip of the damage, there is a turning point in the chloride concentration curve, mainly due to the significant difference in the chloride diffusion coefficient between the damaged zone and the mortar zone. Furthermore, as the width of the damaged zone increases, the range of influence of the damage on the distribution of chloride concentration also increases, as shown in Figure 7.

Figure 6
www.frontiersin.org

Figure 6. Chloride concentration distribution profile for different damage zone widths.

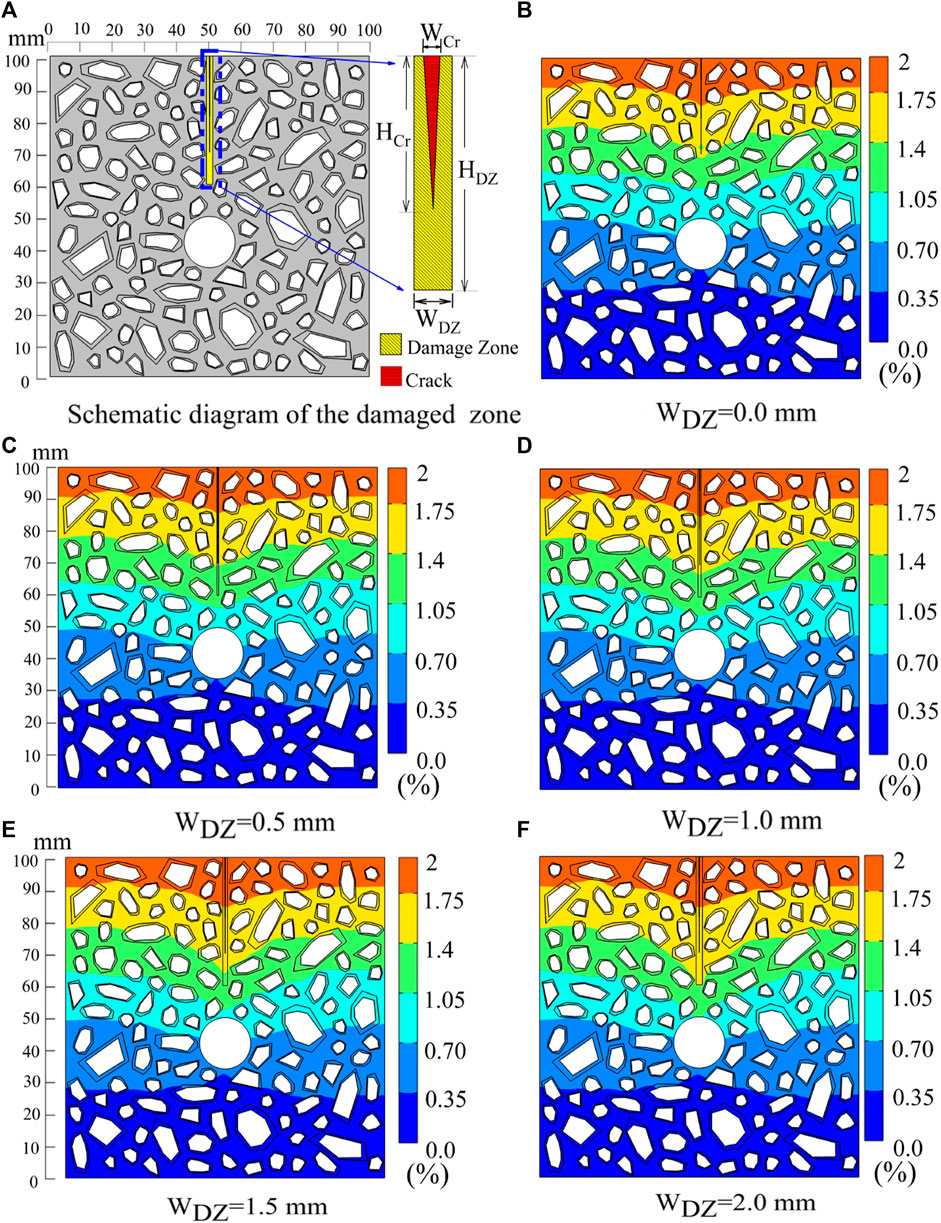

Figure 7
www.frontiersin.org

Figure 7. Spatial distribution of chloride concentration in RAC for different damage zone widths (WDZ). (A) Schematic diagram of the damages zone. (B) WDZ = 0.0 mm. (C) WDZ = 0.5 mm. (D) WDZ = 1.0 mm. (E) WDZ = 1.5 mm. (F) WDZ = 2.0 mm.

3.3.2 The influence of damage zone depth

From the previous section, it can be seen that the presence of damage zones has an undeniable effect on chloride ion diffusion. Therefore, this section further studies the influence of damage zone depth on chloride ion diffusion performance, and designs eight numerical samples with different damage zone depths, namely damage zone depths of 0, 15, 20, 25, 30, 35, 40, and 45 mm.

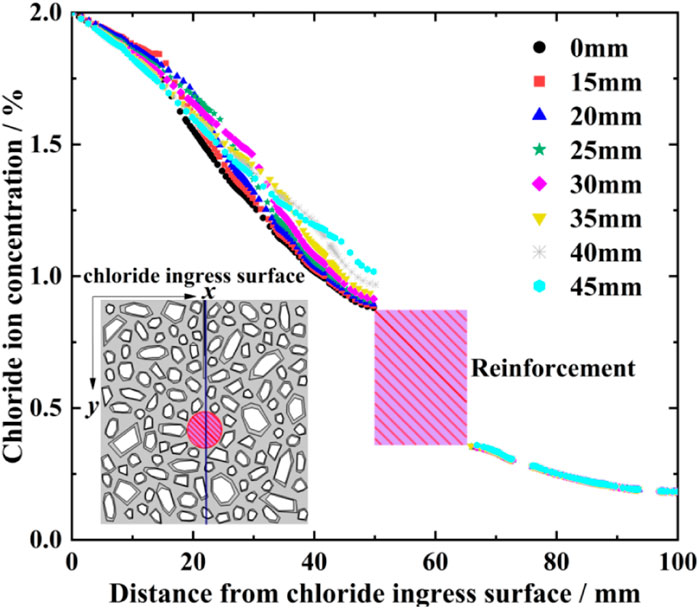

It can be seen from Figure 8 that at the depth of the damage zone, all chloride ion distribution curves correspond to protruding positions, which is related to the accumulation effect at the end of the damage mentioned in the previous section. In addition, at different depths of the damage zone, there is a significant intersection of the chloride ion concentration curve along the depth direction. When the erosion depth is less than the intersection depth, the chloride ion concentration is negatively correlated with the depth of the damage zone. On the contrary, when the erosion depth exceeds the intersection depth, the chloride ion concentration is positively correlated with the depth of the damage zone. The main reason is that the length of the damage zone has a significant effect on the chloride ion diffusion rate. Moreover, It can be seen from Figure 9 that, as the depth of damage increases, the chloride concentration on the surface of the reinforcement increases nonlinearly, and the amplitude is increasing.

Figure 8
www.frontiersin.org

Figure 8. Chloride concentration distribution profile for different damage depths.

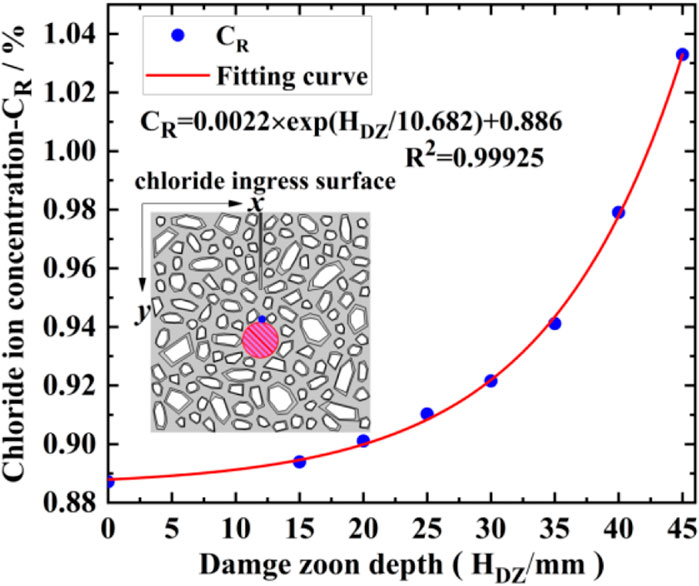

Figure 9
www.frontiersin.org

Figure 9. Chloride concentration on the surface of reinforcement for different damage zone depths.

3.4 The influence of crack

3.4.1 The influence of crack depth

To investigate the effect of crack depth on the chloride concentration on the surface of reinforcement and compensate for the defects of large and dispersed experimental values, eight samples with different crack depths were designed, with a crack depth range of 0–35 mm and a value taken every 5 mm interval. It can be seen from Figure 10, that under the same exposure time, the chloride concentration on the surface of the reinforcement has significantly increased compared to the uncracked samples, indicating that cracks significantly accelerate the diffusion rate of chloride ions in RAC. After the thickness of the RAC protective layer cracks, as the crack depth increases, the chloride ion concentration on the surface of the steel bar first slowly increases, and then increases. The boundary point is HCr = 20 mm, which can also be confirmed from the concentration cloud map.

Figure 10
www.frontiersin.org

Figure 10. The chloride concentration (% by mass of cementitious material)in RAC for different crack depths (HCr = 0–30 mm). (A) Schematic diagram of the damages zone. (B) HCr = 0.0 mm. (C) HCr = 5 mm. (D) HCr = 10 mm. (E) HCr = 15 mm. (F) HCr = 20 mm. (G) HCr = 25 mm. (H) HCr = 30 mm.

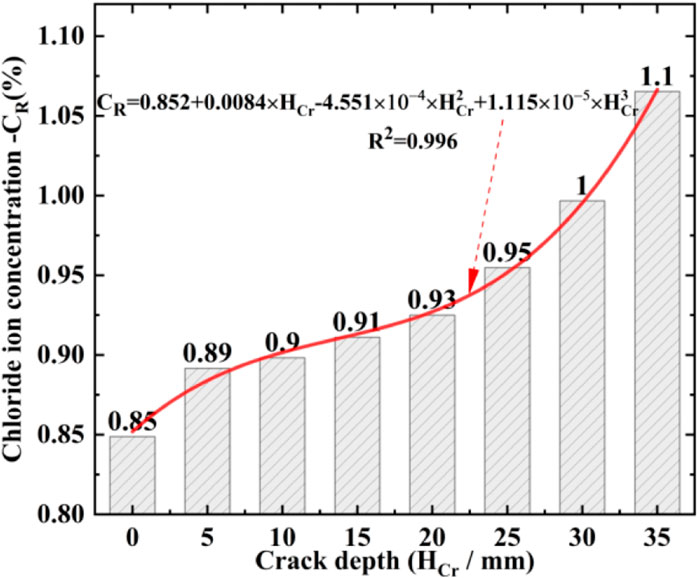

As shown in Figure 11, the chlorine contour near the top of the crack and damage zone is significantly protruding downwards, indicating deeper diffusion in this area. The crack and damage zone provide a fast transport channel for chloride. As the depth of the crack increases, the closer it is to the upper surface of the steel bar, the greater the concentration of chloride ions on the upper surface of the steel bar. Therefore, the depth of cracks has a significant effect on chloride ion ingress of reinforcement. How to improve the crack resistance of concrete is of great significance in preventing steel corrosion and improving the durability of recycled concrete.

Figure 11
www.frontiersin.org

Figure 11. Chloride concentration on the upper surface of reinforcement for different crack depths.

3.4.2 The influence of crack width

To investigate the effect of crack width on the chloride ion concentration on the surface of reinforcement, 10 samples with different crack widths were designed (e.g., 0–400 µm). The depth of the crack and the width and depth of the damage zone remain unchanged, at 30, 1, and 40 mm respectively. The distribution curve of chloride concentration in RAC under different crack widths after 1 year of cracking is obtained as shown in Figure 12. It can be seen that when the crack width is not greater than 50 μm, the difference of chloride concentration curve from uncracked is very small, mainly due to the relatively narrow cracks. When the crack width increases from 50 to 100 μm, there is a significant increase in chloride ion concentration. Afterwards, as the crack width increases, the concentration of chloride increases slightly and uniformly. Therefore, controlling the crack width below 50 µm could improve the chloride corrosion resistance of reinforcement in RAC.

Figure 12
www.frontiersin.org

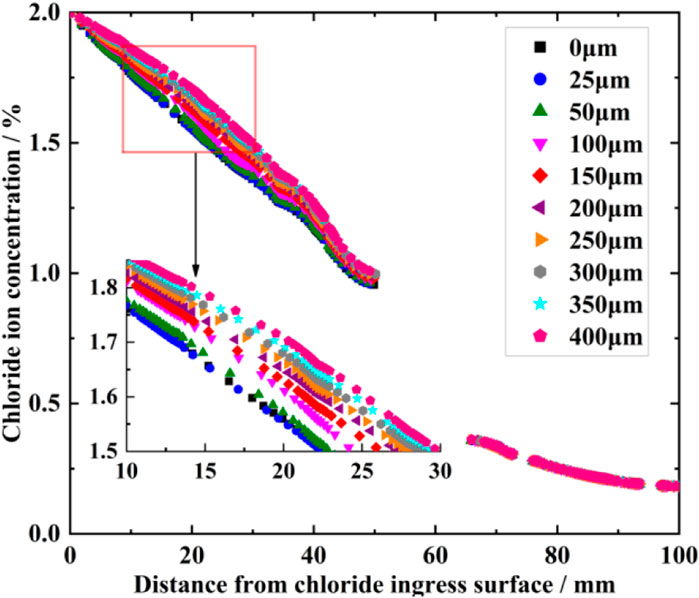

Figure 12. Profile of chloride concentration distribution in RAC for different crack widths.

4 Conclusion

By constructing a multiphase meso-structure model of RAC, including natural aggregates, recycled aggregates, new and old mortars, new and old ITZ, cracking and damage zones, a meso-structure numerical model for chloride transport in RAC was established. The influence of meso-structure characteristics and cracks induced by reinforcement corrosion on chloride transport behavior was analyzed. Moreover, the transport mechanism of chloride in RAC multi-components is revealed. The following conclusions can be drawn.

(a) Through the analysis of chloride diffusion flow lines, cracks and ITZ provide fast channels for chloride ion diffusion, revealing the mechanism of RAC promoting chloride transport.

(b) The presence of damaged zone accelerates the diffusion of chloride, especially the phenomenon of chloride aggregation at the end of the damaged zone. Consequently, the damage zone is a crucial factor that cannot be ignored. How to define the scope of damage zone in cracked RAC is a very meaningful work.

(c) As the depth of the crack increases, the concentration of chloride ions on the surface of the reinforcement increases sharply, and there is a non-linear relationship with the depth of the crack. Then, in practical engineering, attention should be paid to the repair of surface cracks and ITZ microcracks in RAC to suppress the diffusion of chloride in RAC and improve its durability.

(d) Compared to the depth of cracking, the crack width of recycled concrete has a relatively small effect on the chloride ion concentration on the surface of reinforcement, especially when the crack width is less than 50 µ m. Therefore, it is recommended to allow a crack width of less than 50 µ m in the design of recycled concrete structural components.
