ORIGINAL RESEARCH article

Front. Mater.
Sec. Structural Materials
Volume 11 - 2024 | doi: 10.3389/fmats.2024.1416246
This article is part of the Research Topic Asphalt Pavement Performance under Complex Service Conditions View all 8 articles

Rheological properties and 3D printability of SBS/CR modified asphalt binder with C9 petroleum resin for crack filling

Provisionally accepted
Yanhui Niu Yanhui Niu 1*Xinyu Wang Xinyu Wang 1Igor Burmistrov Igor Burmistrov 2Dongyu Niu Dongyu Niu 1
  • 1 Chang’an University, Xi'an, China
  • 2 Plekhanov Russian University of Economics, Moscow, Moscow Oblast, Russia

The final, formatted version of the article will be published soon.

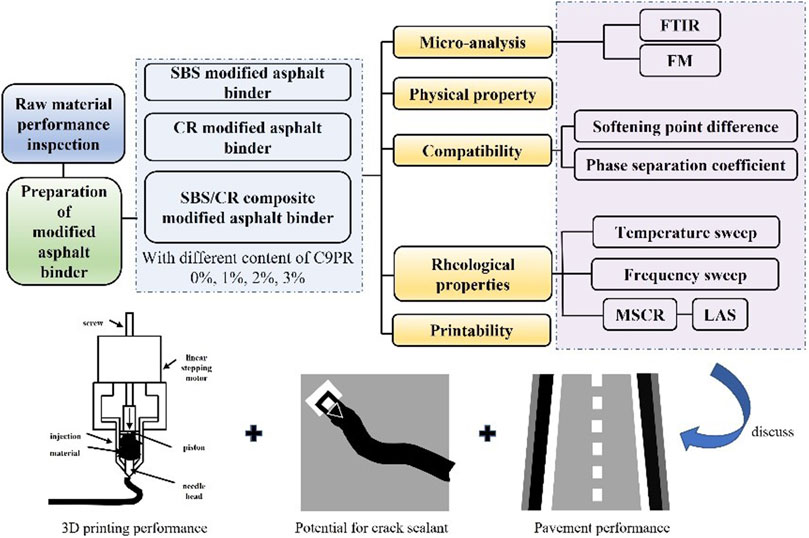

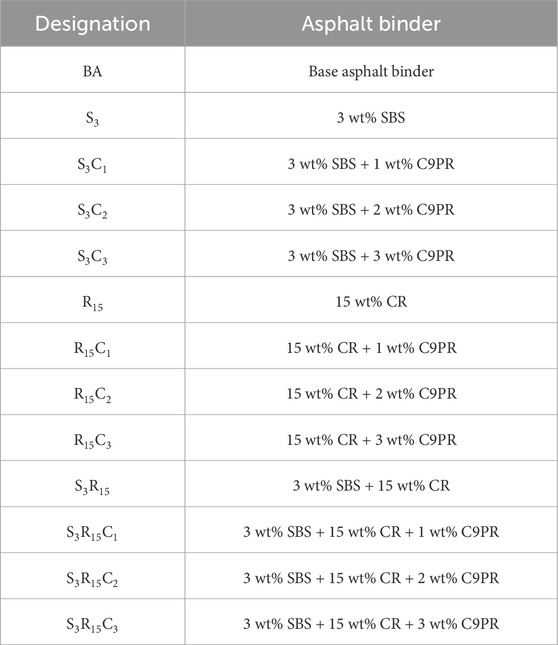

    This study investigates rheological behavior and 3D printability of SBS-, CR-, SBS/CR-modified asphalt binder with C9 petroleum resin (C9PR) for crack filling. Thirteen types of modified asphalt binders with respective C9PR of 0 wt %, 1 wt %, 2 wt %, 3 wt % were prepared and evaluated for their microstructure, physical properties, compatibility, rheological properties, and 3D printability. The results show that SBS, CR, and C9PR influenced significantly on rheological properties and 3D printability of modified asphalt binders. Physical blending and improved storage stability of modified asphalt binders were observed with the addition of C9PR. In addition, the combination of SBS and CR showed enhanced viscoelastic behavior and temperature sensitivity compared to the base asphalt binder due to the increased swelling behavior of SBS and CR in asphalt binders by C9PR. Furthermore, asphalt binder with 3 wt % SBS, 15 wt % CR, and 1 wt % C9PR showed improved viscosity, elasticity, compatibility, high-temperature rutting resistance, and fatigue resistance. Additionally, C9PR expanded 3D printable temperature range of modified asphalt binder, leading to its potential use as an additive in 3D printed asphalt binders.

    Keywords: SBS1, Cr2, C9PR3, Rheological properties4, Compatibility5, 3D Printability6, 3D printed asphalt binder7

    Received: 12 Apr 2024; Accepted: 08 Oct 2024.

    Copyright: © 2024 Niu, Wang, Burmistrov and Niu. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) or licensor are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.

    * Correspondence: Yanhui Niu, Chang’an University, Xi'an, China
