Rock-like material under large diameter SHPB dynamic splitting tension: meso-damage mechanical behavior and stress wave propagation model

The mechanical behavior of splitting tensile damage and the law of stress wave propagation of rock-like materials (RLM) are of great significance to further reveal the dynamic disaster mechanism of the deep rock mass. The meso-damage mechanical behavior and stress wave propagation characteristics of RLM disks under impact splitting were studied by using a large diameter split Hopkinson pressure bar (SHPB). In terms of dynamic damage, the splitting tensile stress-compression strain curves of RLM disks obviously showed three stages of mechanical behavior evolution: initial elastic-plastic deformation, pre-peak plastic damage, and post-peak brittle fracture failure. The macro-damage of RLM disks increased with the increase of strain rate. The meso-tensile fracture was the result of both the initial meso-damage and the impact splitting meso-damage. The dynamic splitting damage variable defined based on the damage fracture energy can accurately describe the damage evolution characteristics of impact splitting on RLM disks. In the aspect of stress wave propagation, the peak value of transmission stress showed an advanced effect with the increase of incident stress wave. In the early stage (0–50 μs), the transmission stress wave ratio (${{\sigma }_T/\sigma }_I$) increased with the increase of strain rate, while in the later stage (82–200 μs), the transmission stress wave ratio (${{\sigma }_T/\sigma }_I$) decreased with the increase of strain rate. The stress wave propagation law in the process of impact splitting on RLM disks was clearly revealed based on the stress wave propagation model established by the one-dimensional elastic stress wave theory. Finally, the dynamic mechanical mechanism of splitting damage and fracture of RLM disks under different strain rates was discussed deeply.

1 Introduction

With the increasing buried depth of energy development and engineering construction, the geological environment becomes more complex, so the phenomenon of dynamic disasters becomes more prominent, which has become a major problem hindering deep energy development and engineering construction (Fairhurst, 2017; Chen et al., 2019; Li et al., 2020). To solve this problem fundamentally, it is necessary to truly reflect the actual state of deep-buried rock mass through a series of scientific model tests, to get more practical results (Gao et al., 2018; Xie et al., 2022; Zhu et al., 2022). Therefore, in addition to numerical simulation analysis (Guo et al., 2022; Yang et al., 2022) and on-site dynamic monitoring (Ma et al., 2015; Xue et al., 2021), the indoor physical model test is also a very important way to study the stability of deep surrounding rock (Zuo et al., 2011; Li et al., 2016; Liu et al., 2021). However, considering that it is difficult to obtain deep-buried big bulk intact rock mass and difficult to process complex rock mass model, many scholars often use “cement mortar materials” which are similar to real rock materials as “rock similar materials (RLM)” to carry out a series of scientific experiments (Zhang et al., 2017; Zheng et al., 2021; Li P. et al., 2023). Therefore, “cement mortar type RLM” plays an important role in the scientific research on the mechanism and prevention of deep rock dynamic disasters.

The rock with frequent dynamic disasters is generally quasi-elastic-brittle material. Because the tensile strength of rock is significantly lower than its compressive strength, rock is more prone to tensile failure under dynamic loads such as blasting and excavation (Xue et al., 2013). Therefore, the tensile mechanical properties of rock become one of the main mechanical factors that determine the failure of rock. Even in the process of compression, the failure form of rock is often the overall failure caused by the tensile failure of its internal micro-cracks, which inevitably contains a profound tensile fracture mechanics mechanism (Guo and Man, 2022). Many engineering phenomena and scientific studies (Deng et al., 2019; Zhai et al., 2020; Hu et al., 2021; Zhang et al., 2021; Wang J. et al., 2022) have shown that dynamic splitting tensile failure is an important form of damage and fracture of deep surrounding rock (such as zonal fracture of surrounding rock (Zuo et al., 2011). As shown in Figure 1 (Wang Z. et al., 2022), usually, before excavation, the rock mass element is in a three-dimensional initial stress state (${\sigma }_1$, ${\sigma }_2$, ${\sigma }_3$). In the process of excavation, the stress redistribution occurs in the stress state of the rock mass element, which leads to the increase of ${\sigma }_1$ and the decrease of ${\sigma }_3$. The stress state of the rock mass element gradually changes from the three-dimensional stress state (${\sigma }_3$ > 0) to the two-dimensional stress state (${\sigma }_3$ = 0). The damage state of the rock mass element changes from the intact state to the splitting plate state. If the stress ${\sigma }_1$ exceeds the uniaxial compressive strength (The red dot in Figure 1 is the uniaxial compressive strength of the rock.) of the rock and stores a large amount of elastic strain energy in the rock mass element, the elastic strain energy will be released in a very short time, and the rock mass element will show nonlinear dynamic characteristics, that is, the surrounding rock of the deep roadway is more prone to buckling rockburst due to splitting damage. Therefore, dynamic splitting tensile failure is a direct factor leading to further buckling dynamic instability of surrounding rock. To prevent catastrophic accidents caused by rock failure and instability in geotechnical engineering, it is necessary to study the dynamic tensile mechanical properties of rock and its inherent mechanism (Xue et al., 2013). Therefore, the accurate acquisition of rock dynamic tensile mechanical properties and the profound revelation of fracture mechanism are very important to scientifically and reasonably use rock dynamic parameters and mechanical mechanisms to analyze geotechnical engineering and effectively solve practical engineering problems. What needs to be paid more attention to is that to accurately verify and further improve the coincidence degree of physical and mechanical properties and damage mechanism between RLM and real rock material, when using RLM instead of real rock material as the research object, it is equally important to accurately obtain the dynamic tensile mechanical properties of RLM and reveal its fracture mechanism.

Figure 1

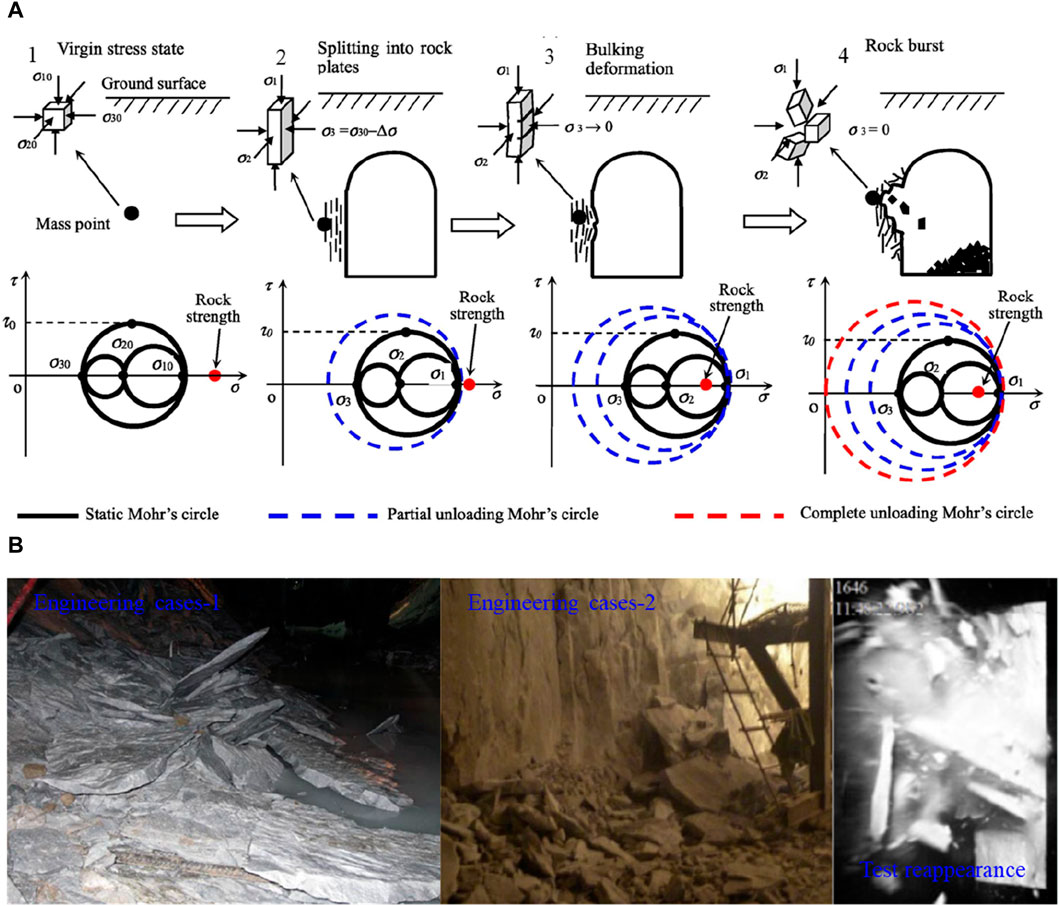

Figure 1. (A) Theoretical analysis and (B) engineering cases and test reappearance of buckling and instability of surrounding rock caused by splitting tension failure (Zhai et al., 2020; Wang J. et al., 2022).

Split Hopkinson pressure bar (SHPB) is a widely used and reliable scientific test system for studying the dynamic characteristics of rock materials (Wang et al., 2009; Xia and Yao, 2015; Han et al., 2022). According to the dynamic tensile strength test method recommended by the International Society for Rock Mechanics (ISRM), the dynamic splitting tensile test of rock Brazilian disk is carried out by using the SHPB dynamic loading system, which has become an efficient and simple scientific test method to study the dynamic tensile properties of rock (Wang et al., 2009; Xia and Yao, 2015; Han et al., 2022). The related literature (Xia and Yao, 2015; Xia et al., 2019; Xia et al., 2021) systematically summarized the latest research results of rock dynamics, with emphasis on the testing equipment, testing principle, test methods, and test results of rock under dynamic tension. The variation law, mutual feedback mechanism, and damage mechanism of dynamic tensile mechanical characteristics for deep rocks were further studied and discussed (Guo and Man, 2022). However, the mechanical behavior and stress wave propagation characteristics of large diameter SHPB impact splitting tensile damage for RLM disk specimens have not been fully and deeply studied, and the effects of stress wave propagation on the dynamic tensile mechanical properties and dynamic mechanical damage mechanism of RLM should also be fully considered.

In view of the shortcomings of the above research, and based on the previous research work (Yang et al., 2023), aiming at a kind of cement mortar type RLM of sandstone, the meso-damage mechanical behavior and one-dimensional elastic stress wave propagation characteristics of RLM disk specimens under large diameter SHPB impact splitting test were studied, and the dynamic mechanical mechanism of splitting damage and fracture of RLM disks under different strain rates was further discussed. The research results can provide some reference for further promoting the effective application of RLM in the scientific research of dynamic disaster mechanisms and prevention and control of deep rock mechanics.

2 Materials and methodology

2.1 Preparation method of RLM disk specimen

According to the research of related literature (Le et al., 2019; Yang et al., 2023), aiming at the physical and mechanical characteristics of fine sandstone, the RLM used in the test was cement mortar material. The mixed water was laboratory tap water, the cementitious material was 42.5-grade ordinary Portland cement, and the fine aggregate was natural fine river sand. The large diameter RLM disk specimens with the size of Φ 70 mm × h 35 mm were prepared by pouring, and the impact splitting test was carried out after the standard curing was completed. The specific preparation and test process of the RLM disk specimens is shown in Figure 2.

Figure 2

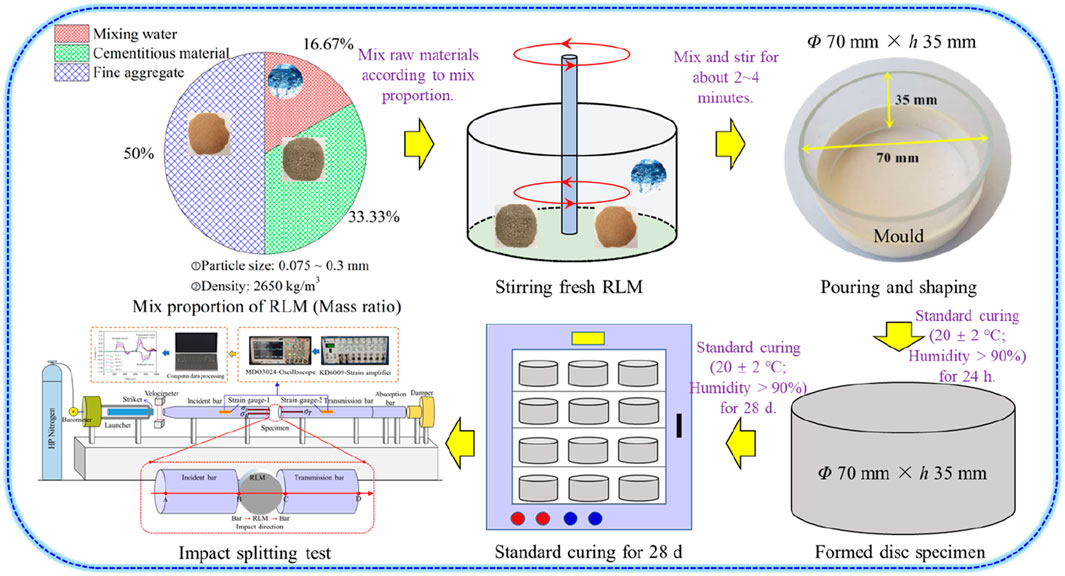

Figure 2. Preparation process and impact splitting tests of RLM disk specimens.

2.2 Test equipment and mechanical calculation method

2.2.1 Static splitting test

Based on the Brazilian splitting principle, the static splitting test of RLM disk specimens was carried out by using the YAW-300 static load test system. The test was carried out by controlling the displacement. The schematic diagram of the static load test system and the test results are shown in Figure 3. It can be seen from Figure 3 that the splitting tensile stress-compression strain curve of RLM disk under static load mainly showed two evolution stages: pre-peak elastic-plastic deformation and post-peak brittle fracture failure. Accordingly, the input energy-compression strain curve mainly showed two evolution stages: pre-peak nonlinear growth and post-peak linear growth.

Figure 3

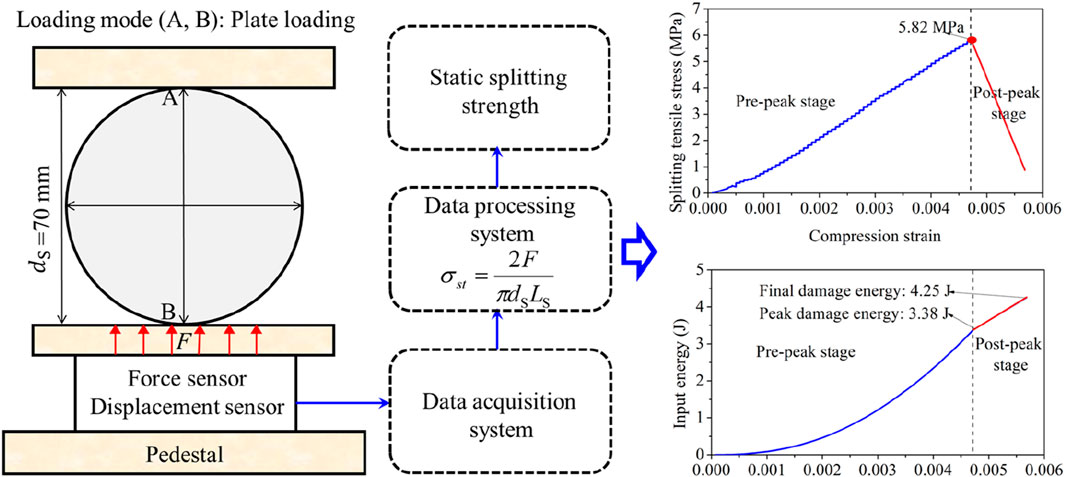

Figure 3. Schematic diagram of static load test system and test results.

2.2.2 Dynamic splitting test

Based on the Brazilian splitting principle, the impact splitting test of RLM disk specimens was carried out by using variable cross-section large diameter SHPB test system with Φ 74 mm. The schematic diagram of the SHPB test system is shown in Figure 4A. The density ($\rho$) of bars in the SHPB test system is 7.8 g/cm³.

Figure 4

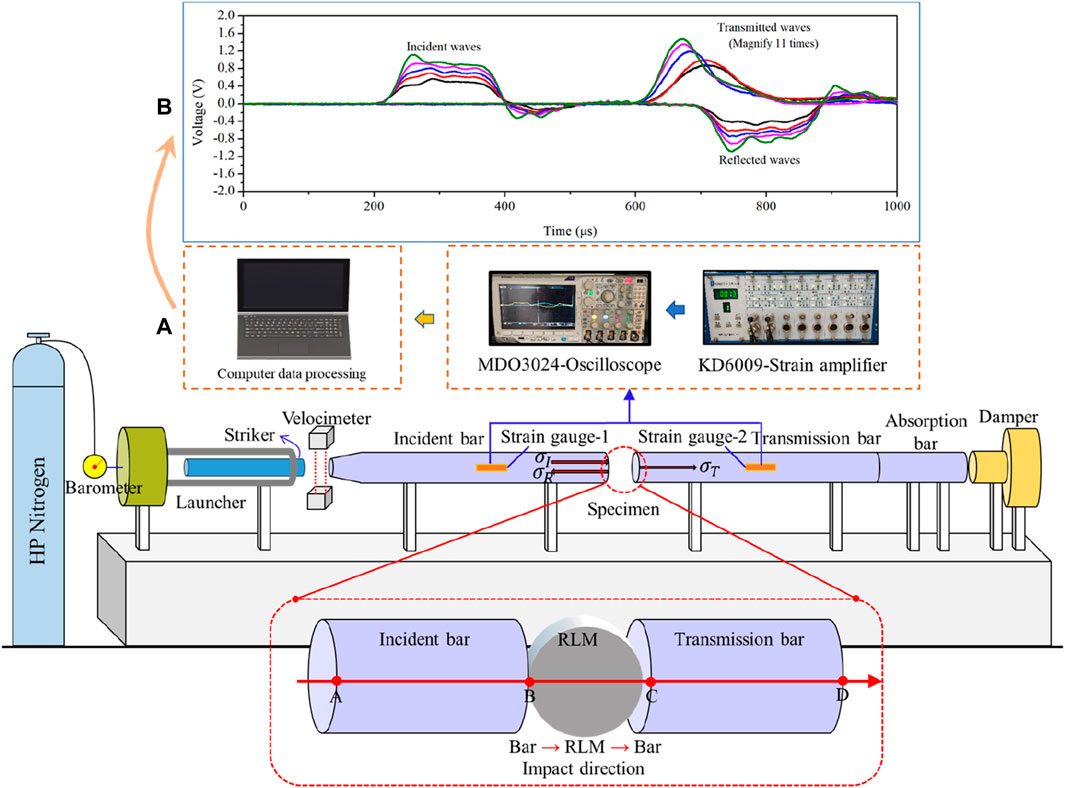

Figure 4. Dynamic load test system and data acquisition: (A) SHPB test system and (B) typical SHPB three-wave graph.

The compression strain rate ($\dot{\epsilon }$), compression strain ($\epsilon$), and splitting tensile stress (${\sigma }_{st}$) of RLM disk specimens under SHPB test can be calculated by two-wave method Eq. 1 (Ai et al., 2019; Li X. et al., 2023).

$\left\{\begin{array}{l}\dot{\epsilon }\left(t\right)=\frac{2C}{E{d}_{\mathrm{S}}}\left[{\sigma }_I\left(t\right)-{\sigma }_T\left(t\right)\right]\\ \epsilon \left(t\right)=\frac{2C}{E{d}_{\mathrm{S}}}{\int }_0^t\left[{\sigma }_I\left(t\right)-{\sigma }_T\left(t\right)\right]\mathrm{d}t\\ {\sigma }_{st}\left(t\right)=\frac{2A}{\pi d_{\mathrm{S}}{L}_{\mathrm{S}}}{\sigma }_T\left(t\right)\end{array}\right.(1)$

where: $E$ is the elastic modulus of the compression bars (210 GPa); $A$ is the cross-sectional area of the compression bars; $C$ is the wave velocity of the compression bars (5190 m/s); $L_{\mathrm{S}}$ is the initial length of the specimen; $d_{\mathrm{S}}$ is the initial diameter of the specimen; ${\sigma }_I$ is the incident stress wave in the compression bar; ${\sigma }_T$ is the transmitted stress wave in the compression bar. The typical SHPB three-wave graph collected in the experiment is shown in Figure 4B.

3 Results and analysis

3.1 Stress-strain curves and meso-damage fracture characteristics

The stress-strain curves and meso-damage fracture characteristics of RLM disks under impact splitting are shown in Figure 5. As can be seen in Figure 5A, the splitting tensile stress-compression strain curves (hereinafter referred to as stress-strain curves) of RLM disks obviously showed three stages of mechanical behavior evolution: initial elastic-plastic deformation, pre-peak plastic damage and post-peak brittle fracture failure. With the increase of strain rate, the deformation modulus, peak stress, and ultimate strain of RLM disks increased continuously, showing an obvious strain rate effect (Yang et al., 2023). The increase of strain rate also led to the increase of macro-damage of RLM disks. Compared with the previous research work (Yang et al., 2023), the large diameter RLM disk specimens do not show obvious post-peak stress residual phenomenon. According to meso-damage mechanics, under external load, the damage of the material starts from the initial meso-damage, which determines the meso-mechanical properties of the material and ultimately affects the macroscopic mechanical properties of the material. This means that rock damage is the result of the synergistic action of multi-scale structures (Toi and Kiyosue, 1995; Yuan et al., 2013; Ren et al., 2023). As can be seen in Figure 5B, there were many pores and other initial meso-damage on the meso-tensile fracture surfaces of RLM disks, which was similar to the initial pore structure of natural rock materials (Yang et al., 2023). The above further indicated that the tensile fracture of RLM disks at the meso-level is the result of both the initial meso-damage and the impact splitting meso-damage.

Figure 5

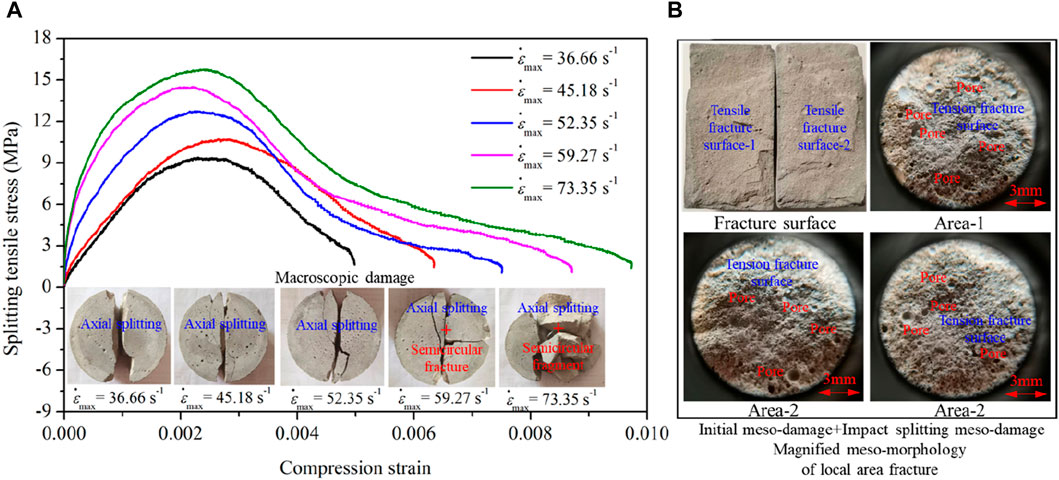

Figure 5. Stress-strain curves and meso-damage fracture characteristics: (A) Stress-strain curves and damage-fracture modes and (B) magnified meso-morphology of local area fracture.

3.2 Energy damage and strength performance

Combined with the two-wave method Eq. 1, the incident energy ($W_I$), reflection energy ($W_R$), transmission energy ($W_T$), and damage energy ($W_D$) in SHPB test can be calculated by Eq. 2 (Wu et al., 2019; Chen et al., 2022).

$\left\{\begin{array}{l}{W}_I\left(t\right)=\frac{AC}{E}{\int }_0^t{\sigma }_I^2\left(t\right)\mathrm{d}t\\ W_R\left(t\right)=\frac{AC}{E}{\int }_0^t{\left[{\sigma }_I\left(t\right)-{\sigma }_T\left(t\right)\right]}^2\mathrm{d}t\\ W_T\left(t\right)=\frac{AC}{E}{\int }_0^t{\sigma }_T^2\left(t\right)\mathrm{d}t\\ W_D\left(t\right)=W_I\left(t\right)-W_R\left(t\right)-W_T\left(t\right)\end{array}\right.(2)$

According to the energy driving theory, energy is the essential driving force to drive the damage of materials (Wang et al., 2023). Therefore, the damage fracture energy can well reflect the damage evolution state of materials.

According to the two-wave method energy calculation Eq. 2, based on the damage fracture energy, the two-wave method calculation Eq. 3 of dynamic damage variable can be further obtained (Yang et al., 2023):

$D\left(t\right)=\frac{2AC{\int }_0^t\left[{\sigma }_I\left(t\right){\sigma }_T\left(t\right)-{\sigma }_T^2\left(t\right)\right]\mathrm{d}t}{E{W}_{D,\max }}(3)$

where: $D$ is the dynamic splitting damage variable of RLM disks under impact splitting; $W_{D,\max }$ is the maximum damage fracture energy of RLM disks under impact splitting in this test.

According to Eq. 3, the dynamic splitting damage evolution curves of RLM disks under impact splitting can be obtained (Figure 6A). As can be seen in Figure 6, the dynamic splitting damage variables of RLM disks increased with the increase of strain, and the maximum dynamic splitting damage variables and peak stress increased linearly with the increase of strain rate, which showed that the dynamic splitting strength of RLM under impact splitting depended on the degree of dynamic splitting damage.

Figure 6

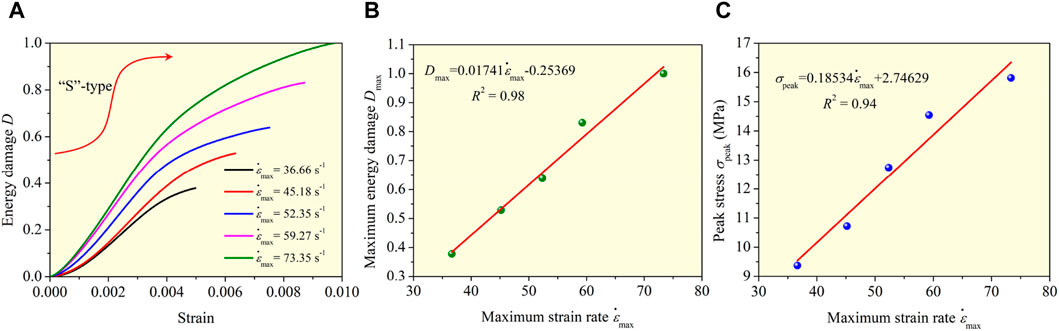

Figure 6. Energy damage and strength performance: (A) Energy damage-strain curves; (B) energy damage-strain rate fitting curve; and (C) peak stress-strain rate fitting curve.

3.3 Stress-strain curves and energy damage-strain curves

The comparative analysis of the evolution characteristics between the stress-strain curves and the energy damage-strain curves of RLM disks under impact splitting is shown in Figure 7. As can be seen in Figure 7, the time for the curves to reach the pre-peak key point b and the peak stress point c decreased with the increase of strain rate, showing the advance effect of stress key points and damage key points.

(1) In the initial elastic-plastic deformation stage (ab): The energy damage value is at a very low level, and the impact driving energy input into the RLM disk is mainly transformed into elastic strain energy. The slight damage at the loading end occurs mainly due to the stress concentration at the loading end, and there is no substantial structural damage, and the stress increases obviously.

(2) In the pre-peak plastic damage stage (bc): The energy damage value is at a high level, and the impact driving energy input into the RLM disk is mainly transformed into elastic strain energy and plastic strain energy. The RLM disk mainly occurs the initial crack damage at the center and further increases the damage at the loading end, which leads to substantial structural damage and weakening stress growth capacity.

(3) In the post-peak fracture failure stage (cf): The energy damage value is at a very high level, and the impact driving energy input into the RLM disk is mainly transformed into plastic strain energy. The RLM disk mainly occurs splitting tensile fracture caused by the axial expansion of the central initiation damage, and the loading end damage further increases, even semicircle bending fracture occurs, which leads to serious structural damage and reduced stress.

Figure 7

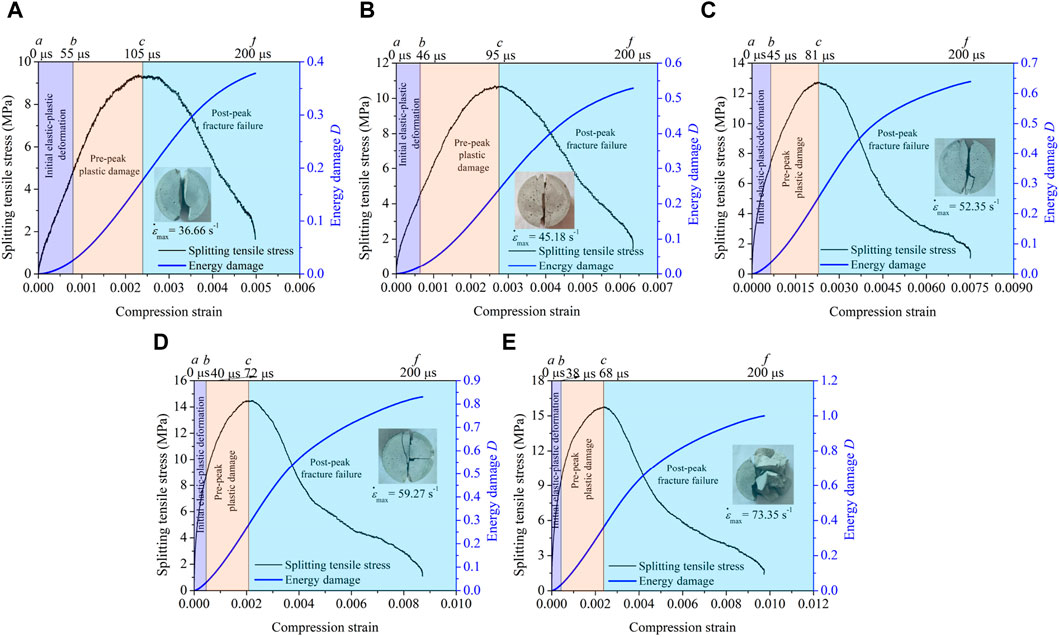

Figure 7. Comparative analysis of stress-strain curves and energy damage-strain curves: (A) ${\dot{\epsilon }}_{\max }$ = 36.66 s^-1; (B) ${\dot{\epsilon }}_{\max }$ = 45.18 s^-1; (C) ${\dot{\epsilon }}_{\max }$ = 52.35 s^-1; (D) ${\dot{\epsilon }}_{\max }$ = 59.27 s^-1; and (E) ${\dot{\epsilon }}_{\max }$ = 73.35 s^-1.

3.4 Stress rate-time curves and energy damage rate-time curves

The comparative analysis of the evolution characteristics of stress rate-time curves and energy damage rate-time curves of RLM disks under impact splitting is shown in Figure 8. As can be seen in Figure 8, the stress rate-time curves were approximately centrally symmetrical at the peak stress point c, and the time for the curves to reach the post-peak key points d and e decreased with the increase of strain rate, which also showed the advance effect of stress rate key points and damage rate key points.

(1) In the initial elastic-plastic deformation stage (ab): The stress rate and energy damage rate increased synchronously with time, but the difference was that the stress rate increased approximately with a “positive linear” trend, while the energy damage rate mainly showed an increasing trend of “slow first and then fast”. The stress rate was greater than zero and reached its maximum at point b. The above results showed that the stress enhancement mechanism and energy damage mechanism are enhanced simultaneously, but the stress enhancement mechanism is larger than the energy damage mechanism, which makes the stress enhancement mechanism play a dominant role.

(2) In the pre-peak plastic damage stage (bc): The stress rate began to decrease with time, and approximately decreased with a “negative linear” trend, while the energy damage rate increased with a “positive linear” trend, and reached the maximum value near the left side of the peak stress point c. The stress rate was greater than zero and reached zero at the peak stress point c. The above results showed that the stress enhancement mechanism is weakened and the energy damage mechanism is enhanced, but the stress enhancement mechanism is still larger than the energy damage mechanism, so that the stress enhancement mechanism still plays a dominant role.

(3) In the post-peak fracture failure stage (cd): The stress rate and energy damage rate decreased synchronously with time in a “negative linear” trend. The stress rate was less than zero and reached a minimum at point d. The above results showed that the stress enhancement mechanism and energy damage mechanism are weakened simultaneously, but the stress enhancement mechanism is smaller than the energy damage mechanism, which makes the energy damage mechanism play a dominant role.

(4) In the post-peak fracture failure stage (de): The stress rate increased with time with a “positive linear” trend, and the energy damage rate decreased with time with a negative linear trend. The above results showed that the stress enhancement mechanism is enhanced and the energy damage mechanism is weakened, but the stress enhancement mechanism is still smaller than the energy damage mechanism, so the energy damage mechanism still plays a dominant role.

(5) In the post-peak fracture failure stage (ef): The stress rate showed a “horizontal fluctuation” phenomenon with time, and the energy damage rate decreased with a “negative linear” trend with time. The above results showed that the stress enhancement mechanism is in a stable state, and the energy damage mechanism continues to weaken, but the stress enhancement mechanism is still smaller than the energy damage mechanism, which makes the energy damage mechanism still play a dominant role.

Figure 8

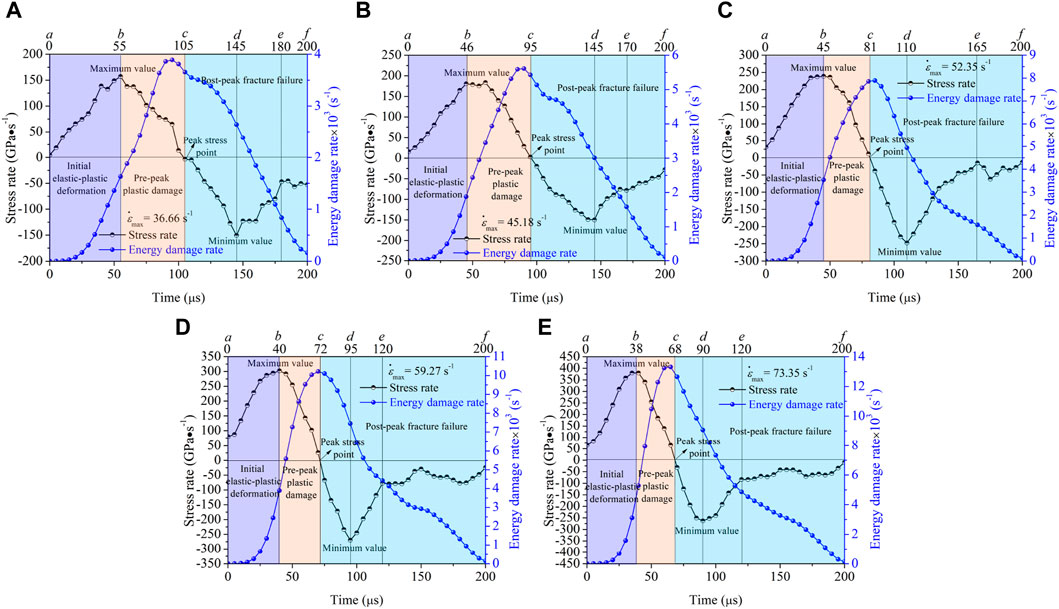

Figure 8. Comparative analysis of stress rate-time curves and energy damage rate-time curves: (A) ${\dot{\epsilon }}_{\max }$ = 36.66 s^-1; (B) ${\dot{\epsilon }}_{\max }$ = 45.18 s^-1; (C) ${\dot{\epsilon }}_{\max }$ = 52.35 s^-1; (D) ${\dot{\epsilon }}_{\max }$ = 59.27 s^-1; and (E) ${\dot{\epsilon }}_{\max }$ = 73.35 s^-1.

3.5 Evolution characteristics of dynamic energy ratio-time curves

The evolution characteristics of the dynamic energy ratio-time curves of RLM disks under impact splitting are shown in Figure 9. As can be seen from Figure 9, the dynamic energy ratio-time curves of RLM disks under impact splitting mainly showed two different evolution stages, namely, the early stage and the later stage, with the curve intersection area at 110 μsas the boundary point. In general, the reflected energy ratio mainly showed a trend of “rapid growth first, then fluctuation and stability”, and the transmitted energy ratio and damage energy ratio mainly showed a trend of “rapid decrease first, then fluctuation and stability”. Locally, in the early stage (0–110 μs), the reflected energy ratio decreased with the increase of strain rate, while the transmitted energy ratio and damage energy ratio increased with the increase of strain rate, which indicated that the increase of strain rate can promote the transmission of stress waves in the early stage. In the later stage (110–200 μs), the reflected energy ratio increased with the increase of strain rate, while the transmitted energy ratio and damage energy ratio decreased with the increase of strain rate, which indicated that the increase of strain rate can promote the reflection of stress waves in the later stage. The above phenomena and results can reflect that the impact damage degree of the RLM disks in the early stage is less than that in the later stage.

Figure 9

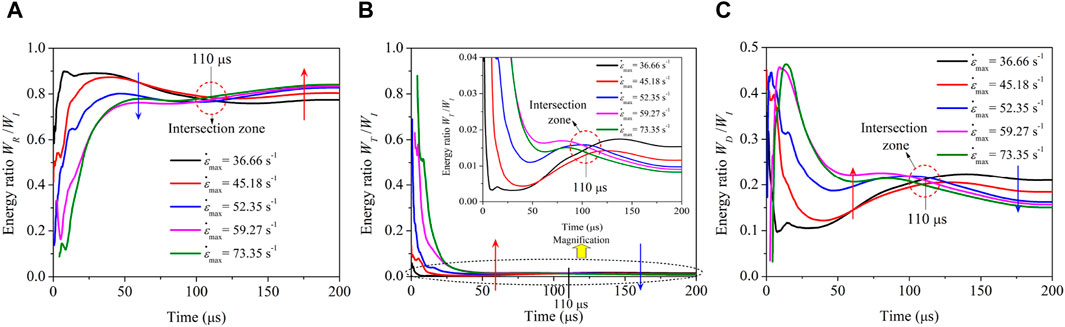

Figure 9. Evolution characteristics of dynamic energy ratio-time curves: (A) Reflected energy ratio-time curves; (B) transmitted energy ratio-time curves; and (C) damage energy ratio-time curves.

4 Stress wave propagation model

The stress wave propagation characteristics of RLM disks under impact splitting are shown in Figure 10. As shown in Figure 10A, both the reflected stress wave (${\sigma }_R$) and the transmitted stress wave (${\sigma }_T$) increased with the increase of the incident stress wave (${\sigma }_I$), and the time for the transmitted stress wave to reach the peak value decreased with the increase of the incident stress wave, showing the advance effect of the transmitted stress peak value. As shown in Figure 10B, in the early stage (slight structural damage, 0–50 μs), the transmitted stress wave ratio (${{\sigma }_T/\sigma }_I$) increased with the increase of strain rate, while in the later stage (large structural damage, 82–200 μs), the transmitted stress wave ratio (${{\sigma }_T/\sigma }_I$) decreased with the increase of strain rate, which further indicated that the dynamic damage degree of RLM disks in the process of impact splitting affects the dynamic propagation coefficient of stress wave.

Figure 10

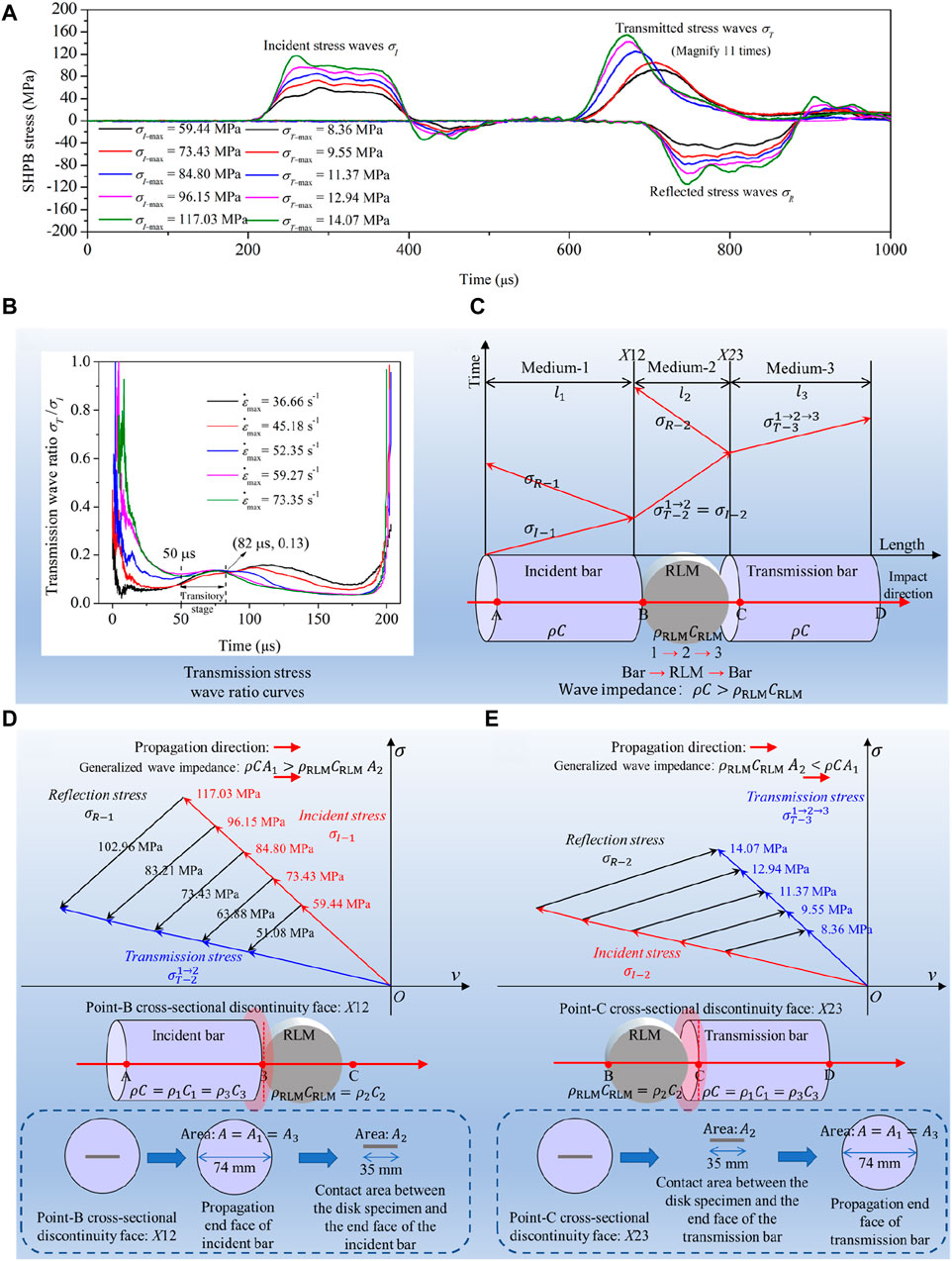

Figure 10. Stress wave propagation characteristics: (A) Typical SHPB three-stress wave-time curves; (B) stress wave propagation model; (C) transmission wave ratio-time curves; (D) reflection unloading; and (E) reflection loading.

Based on the one-dimensional elastic stress wave propagation theory (Wang, 2007a; Wang, 2007b), the one-dimensional elastic stress wave propagation model of RLM disk under SHPB impact splitting can be further established (Figures 10C–E). It can be seen from Figures 10C–E that without considering the stress wave attenuation in the process of stress wave propagation, the one-dimensional elastic stress wave propagation characteristics of the RLM disk in the SHPB impact splitting process are mainly determined by the wave impedance (product of density and wave velocity) ratio and cross-sectional area ratio between different materials. As a result, the transmission stress $\left({\sigma }_{T-2}^{1\to 2}\right)$ and reflection stress $\left({\sigma }_{R-1}\right)$ on the cross section-X12 at point B during the propagation of the one-dimensional elastic incident stress wave $\left({\sigma }_{I-1}\right)$ from the incident bar to the RLM disk under SHPB impact splitting can be further deduced (Eqs 4, 5):

${\sigma }_{T-2}^{1\to 2}=\frac{2\frac{A_1}{A_2}}{1+\frac{{\rho }_1{C}_1{A}_1}{{\rho }_2{C}_2{A}_2}}{\sigma }_{I-1}(4)$

${\sigma }_{R-1}=\frac{1-\frac{{\rho }_1{C}_1{A}_1}{{\rho }_2{C}_2{A}_2}}{1+\frac{{\rho }_1{C}_1{A}_1}{{\rho }_2{C}_2{A}_2}}{\sigma }_{I-1}(5)$

Similarly, the transmission stress $\left({\sigma }_{T-3}^{2\to 3}\right)$ and reflection stress $\left({\sigma }_{R-2}\right)$ on the cross section-X23 at point C during the propagation of the one-dimensional elastic stress wave $\left({\sigma }_{I-2}={\sigma }_{T-2}^{1\to 2}\right)$ from the SHPB impact split RLM disk to the transmission bar can be further deduced (Eqs 6, 7):

${\sigma }_{T-3}^{2\to 3}=\frac{2\frac{A_2}{A_3}}{1+\frac{{\rho }_2{C}_2{A}_2}{{\rho }_3{C}_3{A}_3}}{\sigma }_{I-2}(6)$

${\sigma }_{R-2}=\frac{1-\frac{{\rho }_2{C}_2{A}_2}{{\rho }_3{C}_3{A}_3}}{1+\frac{{\rho }_2{C}_2{A}_2}{{\rho }_3{C}_3{A}_3}}{\sigma }_{I-2}(7)$

According to Eq. 4 and Eqs 6, 7, the transmission stress $\left({\sigma }_{T-3}^{1\to 2\to 3}\right)$ and reflection stress $\left({\sigma }_{R-2}\right)$ on the cross section-X23 at point C during the propagation of the one-dimensional elastic incident stress wave $\left({\sigma }_{I-1}\right)$ from the incident bar to the transmission bar under SHPB impact splitting can be further deduced (Eqs 8, 9):

${\sigma }_{T-3}^{1\to 2\to 3}=\frac{2\frac{A_1}{A_2}\times 2\frac{A_2}{A_3}}{\left(1+\frac{{\rho }_1{C}_1{A}_1}{{\rho }_2{C}_2{A}_2}\right)\left(1+\frac{{\rho }_2{C}_2{A}_2}{{\rho }_3{C}_3{A}_3}\right)}{\sigma }_{I-1}(8)$

${\sigma }_{R-2}=\frac{2\frac{A_1}{A_2}\times \left(1-\frac{{\rho }_2{C}_2{A}_2}{{\rho }_3{C}_3{A}_3}\right)}{\left(1+\frac{{\rho }_1{C}_1{A}_1}{{\rho }_2{C}_2{A}_2}\right)\left(1+\frac{{\rho }_2{C}_2{A}_2}{{\rho }_3{C}_3{A}_3}\right)}{\sigma }_{I-1}(9)$

where: $A_1$ and $A_2$ are the cross sectional areas of the incident bar (medium-1) and the transmission bar (medium-3); $A_3$ is the contact area between the rock sample (medium-2) and the incident bar and the transmission bar; ${\rho }_1$, ${\rho }_2$, and ${\rho }_3$ are the densities of medium-1, medium-2, and medium-3, respectively, $C_1$, $C_2$, and $C_3$ are the longitudinal wave velocities of medium-1, medium-2, and medium-3, respectively.

5 Discussion

The damage and failure characteristics of rock specimens under external load are the final form of the evolution of internal micro-cracks, which makes the failure characteristics of rock specimens contain key information such as deformation law, stress distribution, and crack propagation (Wen et al., 2022). Therefore, the analysis of the dynamic failure characteristics of rock specimens is of great significance to reveal the dynamic failure mechanism of rock mass. In terms of failure characteristics, typical related studies are as follows: based on the SHPB dynamic splitting test of granite, Zhou et al. (2014) divided the splitting failure modes of granite disk specimens into three types: “axial splitting under central initiation (type-I)”, “end wedge-shaped failure + axial splitting under central initiation (type-II)” and “end wedge-shaped failure + middle axial fracture zone under end initiation (type-III)”, as shown in Figure 11. In terms of failure mechanism, for the reason that there is a great difference between the type-III fracture mode and the standard Brazilian splitting failure mode, Zhou et al. (2014) thought that the impact velocity of the incident bar increases the friction between the bar and the specimen, and the local friction affects the stress distribution of the specimen, which leads to premature damage of the bar-specimen contact area (the loading end of the specimen), which further affects the stress distribution and deformation ability of the specimen. Xue et al. (2013) thought that it may be because there is damage or the structural weak surface at the loading end of the specimen before loading, which leads to the damage first when it is subjected to dynamic loading, so the dynamic Brazilian splitting does not necessarily start from the center, and the location of the crack is closely related to the structural state of the specimen itself.

Figure 11

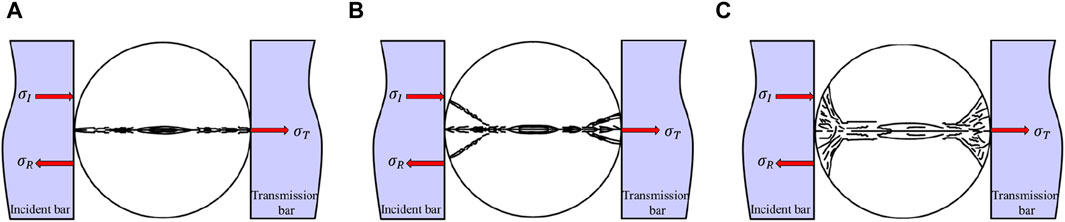

Figure 11. Typical failure modes of rock disk specimens under SHPB dynamic splitting: (A) Type-I; (B) Type-II; and (C) Type-III (Zhou et al., 2014; Wen et al., 2022).

In addition, in terms of failure characteristics, Yang et al. (2023) through the SHPB dynamic splitting test and numerical simulation of sandstone and RLM found that semicircle bending fracture failure occurred in sandstone and RLM specimens under large impact load. Su et al. (2023) also found the phenomenon of semicircle bending fracture failure through SHPB dynamic splitting test and numerical simulation of frozen sandstone, and divided the failure modes into two types: “end triangular shear failure + middle axial tensile failure (type-I)” and end triangular shear failure + middle axial tensile failure + semicircle bending fracture (type-II), as shown in Figure 12. Wang et al. (2020) also found the phenomenon of semicircle bending fracture through the SHPB dynamic splitting test of heat-treated sandstone. In terms of failure mechanism, Yang et al. (2023, 2021) considered that after the splitting tensile fracture of the disk specimen was completed, the damage at the loading end of the specimen further increased with the continued action of a larger external force, and bending cracks were formed at the upper or lower end of the semicircle specimen due to stress concentration in about the vertical loading direction, and finally formed a semicircle bending fracture. However, the above research does not deeply reveal the damage mechanism of rock disk specimens under SHPB impact splitting.

Figure 12

Figure 12. Typical failure modes of rock disk specimens under SHPB dynamic splitting: (A) Type-I; and (B) Type-II (Yang et al., 2021; Su et al., 2023).

To sum up, compared with the static Brazil splitting test, the SHPB dynamic Brazil splitting test is likely to show a more complex damage mode which is different from the static Brazil splitting test due to many factors such as strain rate effect and stress wave propagation. For this test, from the damage modes of RLM disks under SHPB impact splitting, RLM disks actually contain the damage and fracture mechanics mechanism that needs to be further revealed under SHPB impact splitting. According to the actual damage characteristics of RLM disks under SHPB impact splitting, the clearer damage mode diagrams can be obtained (Figure 13). As can be seen from Figure 13, with the increase of strain rate, the macro-damage failure modes of RLM disks mainly developed in the direction of “end compression-shear failure + middle axial splitting” → “end compression-shear failure + middle axial splitting + semicircle shear-tension fracture” → “end compression-shear failure + middle axial splitting + semicircle shear-tension fracture + semicircle bending fracture”.

Figure 13

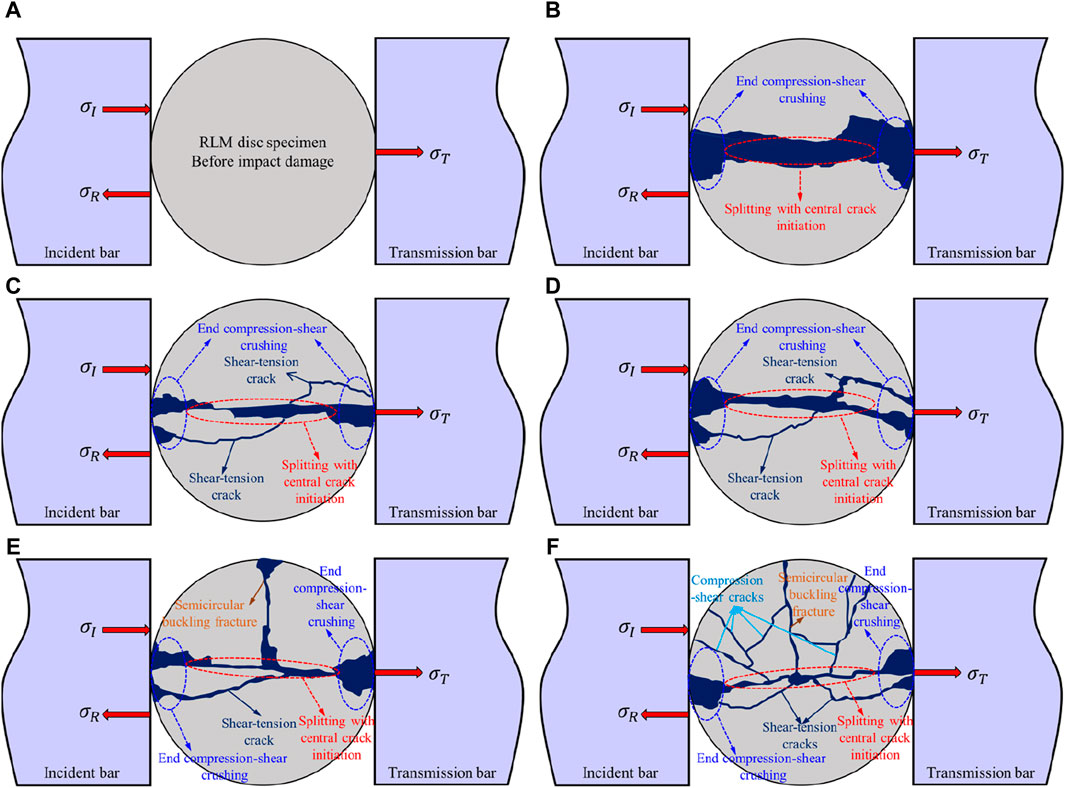

Figure 13. Mechanical mechanism of splitting damage and fracture of RLM disk under different strain rates: (A) before impact damage; (B) ${\dot{\epsilon }}_{\max }$ = 36.66 s^-1; (C) ${\dot{\epsilon }}_{\max }$ = 45.18 s^-1; (D) ${\dot{\epsilon }}_{\max }$ = 52.35 s^-1; (E) ${\dot{\epsilon }}_{\max }$ = 59.27 s^-1; and (F) ${\dot{\epsilon }}_{\max }$ = 73.35 s^-1.

The damage and failure mode of rock material is the external reflection of its internal damage and failure mechanism (Wang J. et al., 2022). To deeply reveal the damage and failure mechanism contained in the damage and failure modes of RLM disks under SHPB impact splitting, the damage and failure mechanisms of the following two aspects were analyzed from the point of view with mechanics.

(1) End compression-shear fracture mechanism

In the process of dynamic loading, the center of the disk specimen is in a state of tensile stress concentration, which causes the tensile crack to first occur from the center of the specimen (central crack initiation) and rapidly expand along the axial loading direction to the two loading ends of the specimen, and finally form a tensile fracture, and the specimen is split into two-halves (Yang et al., 2020). In this process, the two loading ends of the specimen are also in a state of compression stress concentration due to mutual extrusion with the bars, resulting in compression damage at the two loading ends of the specimen. However, with the continuous action of impact load, the loading ends of the specimen change from compression stress concentration to compression-shear stress concentration, and then form a wedge-shaped compression-shear fracture zone at the two loading ends.

(2) Shear-tension crack formation mechanism and semicircle bending fracture mechanism

In the process of the disk specimen splitting to form two semicircles, because the tensile strain of the disk specimen decreases from the center to both ends along the loading direction, the specimen is subjected to bending and shear under the extrusion of the bars (Yang et al., 2020). After the tensile failure of the specimen, the bending and shear of the two semicircle specimens are more obvious with the continued action of the impact load. According to the stability theory of compression bars, the two semicircle specimens are essentially in a state of stress concentration in shear-tension at the end and buckling in the middle. Therefore, under the continuous action of a larger impact load, the shear-tension cracks will occur at the end of the two semicircle specimens along the loading direction. Further, the semicircle bending fracture of the two semicircle specimens will also occur in the vertical loading direction. It is worth noting that the upper semicircle is more prone to buckling fracture than the lower semicircle, which may be due to the fact that it is relatively difficult for the upper semicircle to escape from the continued action of SHPB under the action of dead weight.

6 Conclusion

In this work, the meso-damage mechanical behavior and stress wave propagation characteristics of RLM disks under impact splitting were studied by using large-diameter SHPB, and the dynamic mechanical mechanism of splitting damage and fracture of RLM disks under different strain rates is discussed deeply. The following conclusions were drawn.

(1) The splitting tensile stress-compression strain curves of RLM disks obviously showed three stages of mechanical behavior evolution: initial elastic-plastic deformation, pre-peak plastic damage and post-peak brittle fracture failure. The tensile fracture of RLM disks at meso-level was the result of both initial meso-damage and impact splitting meso-damage.

(2) The dynamic splitting damage variable defined based on the damage fracture energy accurately described the evolution characteristics of impact splitting damage of RLM disks, and the impact splitting strength depended on the degree of dynamic splitting damage.

(3) The time for the transmission stress wave to reach the peak value decreased with the increase of the incident stress wave, which showed the advance effect of the transmission stress peak value, and the dynamic damage degree in the impact splitting process affected the dynamic propagation coefficient of the stress wave.

(4) The propagation characteristics of one-dimensional elastic stress waves in the process of impact splitting are mainly determined by the wave impedance ratio and cross-sectional area ratio of different materials. The stress wave propagation model based on one-dimensional elastic stress wave theory clearly revealed the stress wave propagation law in the process of impact splitting of RLM disks.

(5) With the increase of strain rate, the damage modes of RLM disks mainly developed in the direction of “end compression-shear failure + middle axial splitting” → “end compression-shear failure + middle axial splitting + semicircle shear-tension fracture” → “end compression-shear failure + middle axial splitting + semicircle shear-tension fracture + semicircle bending fracture”, and the upper semicircle was more prone to buckling fracture than the lower semicircle.
