This mini-review provides an in-depth analysis of the formation and post-processing of nanoporous graphene materials via methane chemical vapor deposition (CH4-CVD) using nanostructured metal oxide templates, including Al2O3, MgO, and SiO2. Initially, the formation of graphene sheets is discussed in terms of the role of CH4-CVD, the influence of templates, and the underlying mechanism for tailoring the structures of the graphene-based materials. Following this, the discussion extends to the post-graphene formation process. We focus on key steps, including template removal and graphene repair via zipping reactions at high temperatures. Additionally, we evaluate the conditions to prevent undesired structural transformations. The correlation between the structural features and transformations occurring during post-processing is also examined. The materials fabricated through these methods exhibit impressive properties of high porosity, minimal edge sites, superior oxidation resistance, and elasticity, positioning them as promising materials in various applications.
1 Graphene-based nanoporous materials
Graphene, an allotrope of carbon, appears as a monolayer consisting of sp2 hybridized carbon atoms arranged in a hexagonal lattice configuration. Due to its monolayer structure, it presents an extraordinarily high theoretical specific surface area of approximately 2,627 m2 g–1 (Siqueira and Oliveira, 2017; Nishihara and Kyotani, 2018). The extensive π-conjugation that arises from orbital hybridization imparts extraordinary electron mobility (Morozov et al., 2008), remarkable thermal conductivity (Balandin et al., 2008), robust chemical stability (Jiang et al., 2007), and outstanding elasticity (Lee et al., 2008) to graphene materials. These fascinating attributes have captivated researchers across various fields, exploring its diverse potential applications, such as separators (Dasgupta et al., 2018; Park et al., 2018), material additives (Pantea et al., 2003; Casanova et al., 2020), catalyst supports (Yoshii et al., 2020), electrochemical devices (Lu et al., 2020; Atwa et al., 2021), and heat pumps (Nomura et al., 2019b). Despite its unique properties, the intrinsic two-dimensional (2D) nature of graphene sheets renders them prone to stacking interactions, altering their distinctive properties, particularly the reduction in exposed surface area and electron mobility (Liu et al., 2010; Fan et al., 2016; Ito et al., 2018; Sun et al., 2020). Consequently, the presence of this stacking structure poses a formidable hurdle for graphene to attain its theoretical performance, especially in electrochemical devices. The constrained surface area impedes the full accessibility of active sites and the diffusion of ions and electrons, thereby undermining the performance in electrochemical applications. To overcome the issue, transforming 2D graphene layers into well-organized and interconnected nanoporous frameworks has emerged as an effective approach.
The concept of fabricating graphene into a nanoporous framework has been proposed as a strategy to prevent restacking and preserve the intrinsic characteristics of graphene. The development of porosity also enhances the mass transfer efficiency within the graphene framework (Tang et al., 2019a; Anil Kumar et al., 2023). Thus, nanoporous graphene-based materials are highly promising for a range of electrochemical applications, such as fuel cells (Ohma et al., 2021), supercapacitors (Nomura et al., 2019a), lithium-sulfur batteries (Lu et al., 2020), and lithium-oxygen batteries (Yu et al., 2023a; Yu et al., 2023b; Shen et al., 2023). Considering the importance of distinctive properties for different applications, it becomes crucial to accurately optimize both the porosity and surface chemistry of graphene. This optimization is essential in order to maximize performance in specific applications. Regarding this, the traditional activation procedure falls short of delivering precise control of nanostructures. More advanced methods, such as template-assisted GO assembly (Huang et al., 2012; Zhang et al., 2014; Rodríguez-Mata et al., 2019) and template carbonization of impregnated organic substrates (Fan et al., 2012; Peng et al., 2014), offer better structural controllability. However, both approaches face challenges in achieving exact control over the graphene formation process. They often result in graphene materials that display characteristics such as stacked arrangements, heteroatomic defects, or amorphous graphene walls (Vix-Guterl et al., 2002; Ham et al., 2014; Nishihara and Kyotani, 2018). The first nanoporous material composed of single-layer graphene frameworks is zeolite-templated carbons (ZTCs) synthesized by a hard template method in 2000 (Ma et al., 2000; Nishihara et al., 2009; 2018). Although ZTCs possess an extremely high specific surface area of up to 4,000 m2 g–1 and ordered micropores with a uniform pore size of 1.2 nm, their frameworks are defective and have a great number of edge sites, making them chemically and electrochemically not highly durable (Nishihara and Kyotani, 2018). On the other hand, the chemical vapor deposition (CVD) process on inorganic substrates or nanoparticles has been unequivocally proven as the most feasible way for the large-scale production of graphene-based materials possessing a high crystallinity and large specific surface area (Shi et al., 2015; Shu et al., 2015; Lin et al., 2018).
2 Graphene formation via the CVD process
CVD is a highly efficient technique to deposit graphene layers onto solid surfaces through the heterogeneous decomposition of carbon precursor gas. Using three-dimensional (3D) substrates as templates of CVD allows the fabrication of composites comprising templates coated with defective graphene. These composites can be subsequently subjected to template removal processes to obtain nanoporous graphene-based material. The CVD approach typically involves four elementary steps: i) introduction of a gaseous precursor into the template surface; ii) decomposition of the precursor to form active carbon species; iii) formation of graphene nuclei from the active carbon species; iv) epitaxial growth and coalescence of the graphene nuclei (Lin et al., 2018; Sun et al., 2020). It is vital to understand and eventually control these stepwise reactions to tailor the final product to meet the design specifications (Lin et al., 2018). To date, extensive studies have been conducted to unravel the intricate relation between the distinctive characteristics of the product and the influential factors that govern the graphene growth mechanism during CVD. In particular, aspects such as the role of hydrogen (Vlassiouk et al., 2011), the rate-limiting step (Bhaviripudi et al., 2010), the decomposition of various precursor gases (Chen et al., 2017), operating temperature and/or pressure (Hwang et al., 2013). Moreover, the integration of in situ analyses [such as Raman spectroscopy (Al-Hazmi et al., 2016; Tsakonas et al., 2021) and spectroscopic ellipsometry (Losurdo et al., 2011)], combined with theoretical calculations, has been recently adopted to acquire explicit insights into the underlying reaction kinetics during CVD growth (Wang et al., 2022). Most studies consistently converge on a similar conclusion, emphasizing the catalytic ability of the template for the initial decomposition reactions of the precursor gas as a pivotal factor determining the growth mechanism and quality of the resultant graphene. For instance, the lack of catalytic activity in templates or the utilization of unsaturated hydrocarbons with low dissociation energies in CVD often leads to defective graphene and amorphous carbon formation due to competing or dominating homogeneous gas-phase reactions (Abdullah et al., 2017; Lin et al., 2018; Chen et al., 2019). Notably, metallic templates such as Cu and Ni have demonstrated remarkable catalytic ability in promoting graphene growth with excellent crystallinity through the dissociation of thermally stable precursor gas of CH4 (Reina et al., 2009; Li et al., 2011). However, the growth mechanisms of graphene on Ni typically lead to the formation of nonuniform multilayer graphene. This is because the dissociated carbon can continuously dissolve into the bulk of Ni due to its high solubility at CVD operating temperatures. Subsequently, the carbon solubility in Ni decreases at a lower temperature during the cooling step, supersaturating the carbon concentration and participating in the undesired graphene formation (Figure 1A) (Edwards and Coleman, 2013). On the other hand, this graphene segregation does not occur on Cu due to its low solubility for carbon. In addition, the graphene growth on Cu surface is found to be kinetically fast while self-limiting in forming bi- and multilayer configurations. This endows the Cu surface with superior controllability and uniformity towards the monolayer graphene (Figure 1B) (Li et al., 2009). Nevertheless, the fabrication of nanoporous graphene-based materials with regulated nanoporosity via CVD requires the usage of 3D substrates with sufficient thermal stability, which poses intrinsic challenges for metal species as they are easily sintered at the reaction temperatures of CVD (Ito et al., 2014; Zhang et al., 2015; DeArmond et al., 2020). In this regard, the use of metal oxides such as MgO (Sunahiro et al., 2021), Al2O3 (Nishihara et al., 2016), and SiO2 (Pirabul et al., 2023), which exhibit high thermal resilience, is of interest for controlling the nanoporosity (<20 nm) of the resulting materials.
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/1345592/fmats-10-1345592-HTML/image_m/fmats-10-1345592-g001.jpg)
FIGURE 1. Schematic illustrations for the reaction mechanisms of CH4-CVD on (A) Ni, (B) Cu, (C) Al2O3 or MgO, (D) SiO2, and (E) TMS-SiO2 surfaces.
Applying 3D metal oxides as templates for CVD has several advantages, such as precise pore structure control, low cost, and being free from metal contamination in isolated graphene frameworks. However, a comprehensive understanding of the underlying mechanisms in graphene formation on these templates had not been clearly established, due to the inherent complexity (Lin et al., 2018). This hindered the optimization of the CVD process to realize the graphene sheets with high crystallinity and uniformity. Indeed, it has been widely recognized that the crucial steps dictating the graphene growth on non-metallic surfaces are tangling between thermal cracking of precursor gases, interactions between templates and carbon sources, and formation of nucleation sites (Sun et al., 2020). Recently, notable progress on the limiting step in transition metal-free CVD reactions at moderate temperatures below 1,000°C has been reported through the systematic study of comprehensive in situ CVD-thermogravimetric analysis (CVD-TG), CVD-gas chromatography (CVD-GC), and DFT calculations (Sunahiro et al., 2021).
Interestingly, Al2O3 and MgO, while having different catalytic properties as a solid acid and base, respectively, share a similar reaction mechanism. The surface of these templates is initially activated by the reaction between surface oxygen with CH4, producing CO. This results in the creation of oxygen-vacancy sites that catalyze CH4 dissociation and facilitate graphene nucleation (Figure 1C) with significantly lower apparent activation energies (ca. 130 kJ mol–1) than on the carbon surface (205–236 kJ mol–1) (Sunahiro et al., 2021). Additionally, the reaction rate for the first graphene layer is approximately three times faster than that for subsequent layers, enabling a preferential coating of the Al2O3 or MgO surface with predominantly single-layer graphene walls. SiO2 is another intriguing template, owing to its diverse morphology and controllable nanostructure. However, its siloxane-based surface exhibits high inertness towards CH4 dissociations (Figure 1D) (Chen et al., 2019). Therefore, carbon deposition had been possible only via non-catalytic thermal decomposition of CH4 on SiO2, leading to the formation of graphene sheets with relatively lower quality (Chen et al., 2019). Various approaches have been devised to overcome the problem, including the manipulation of CVD conditions (Su et al., 2011; Kim et al., 2013) and the implementation of surface silylation modifications (Hoshikawa et al., 2014). Among those techniques, trimethylsilyl (TMS) surface modification has attracted considerable interests, given its promising applicability in industrialization. During the heating step, TMS groups encountered thermal decomposition, leading to the formation of polycyclic aromatic compounds and Si radicals (Figure 1E) (Pirabul et al., 2023). These Si radicals subsequently function as reactive center sites that initiate graphene growth with an apparent activation energy of 130 kJ mol–1. This observed value is significantly lower than the value of 360 kJ mol–1 examined on the siloxane-based surfaces, comparable to the activation energies associated with the CH4 decomposition without a catalyst (370–433 kJ mol–1). The shift from the non-catalytic decomposition of CH4 using a pristine SiO2 template to the catalytic decomposition of CH4 on the surface of TMS-SiO2 brings favorable reaction kinetics. Using a thermodynamically stable carbon precursor gas such as CH4 lowers the likelihood of undesired side reactions, thereby facilitating the formation of graphene structures that are less defective and more crystalline. The resulting graphene-coated SiO2 composite from CH4-CVD exhibits an electrical conductivity approximately 650 times higher than that of the counterpart material obtained through C2H2-CVD (Pirabul et al., 2023). These characteristics have allowed a unique role of the composite in biosensor applications (Fujii et al., 2023).
3 Post-graphene formation process
The controlled CVD process applied to nanostructured metal oxides forms the graphene frameworks with designed porosity. The subsequent template removal allows the isolation of the templated carbons (TCs). Further, high-temperature (HT) annealing (>1,000°C) is effective in removing edge sites via graphene-zipping reactions (Xia et al., 2023). However, undesired structural transformations can often occur during these processes depending on the properties of the TCs (Bi et al., 2015; Shi et al., 2015; Kamiyama et al., 2020). Hence, a comprehensive understanding of the interplays between carbon features and structural changes becomes essential to realize nanoporous graphene materials with precisely designed structures. The conventional method for removing metal oxides involves a wet-chemical process where the template is dissolved using acid or base solutions. However, the nanoporous framework consisting of single- or few-layer graphene sheets presents inherent flexibility (Nishihara et al., 2018), rendering it susceptible to structural contraction during the subsequent drying step due to the influence of capillary force. Consequently, additional localized contacts between the graphene walls are formed, reducing the specific surface area of obtained TCs (Figure 2A). It should be noted that the mobility of graphene sheets within a well-interconnected nanoporous framework is limited, thereby the capillary shrinkage-driven stacking is not expected to be a firm/seamless arrangement but rather denoted as loose stacking (Figure 2A) (Pirabul et al., 2023). In contrast, multi-layered graphene configurations that form during the bottom-up CVD process are relatively well-arranged and can be denoted as tight stacking (Figure 2A). A novel method for quantifying the formation of loosely stacked structures has been established, employing high-sensitivity vacuum temperature-programmed desorption (TPD) (Ishii et al., 2014). This sensible measurement allows the precise extraction of the specific surface area of the basal plane (Sbasal) from the total specific surface area determined by the N2 adsorption technique. Sbasal is closely related to the arrangement of graphene layers, providing the evaluation of an average number of total stacking layers (Ntotal) and loose stacking layers (Nloose), according to the following Eqs 1, 2 (Pirabul et al., 2023).
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/1345592/fmats-10-1345592-HTML/image_m/fmats-10-1345592-g002.jpg)

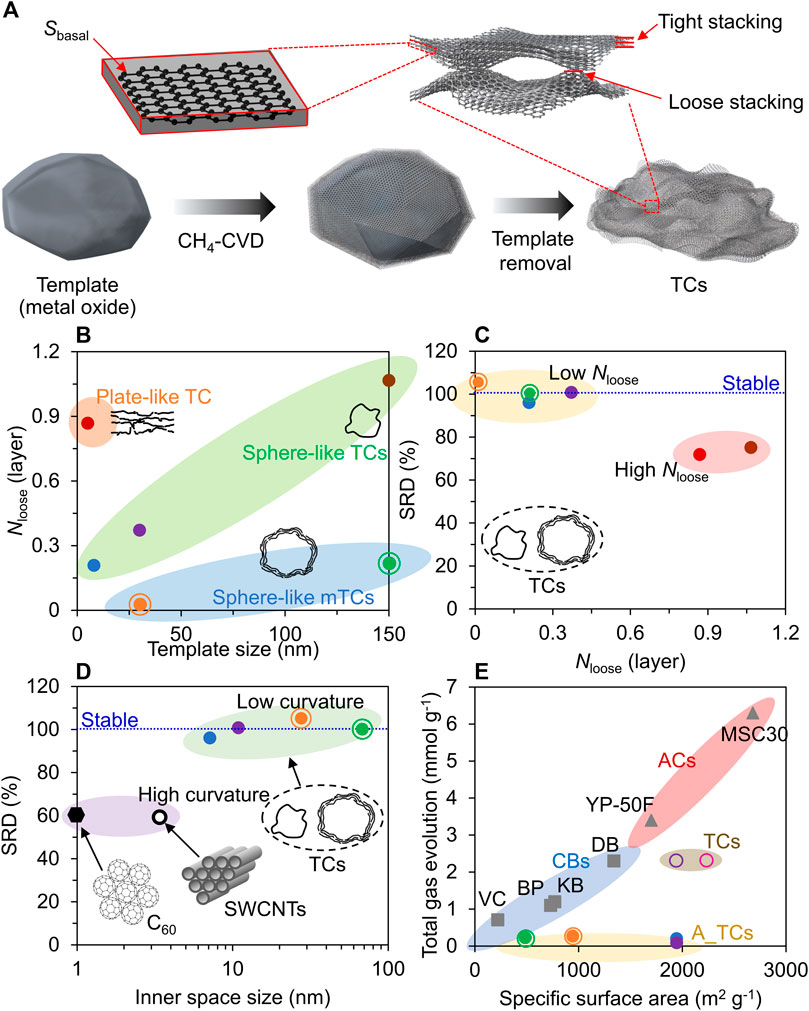

FIGURE 2. (A) Illustration for the synthesis procedure of TCs. (B) Correlation between Nloose of TCs with respect to its parental template size (referring to the average diameter for spherical templates and the thickness for the plate template). mTC refers to the TCs with an average number of tight stacking higher than 1.0. (C, D) The relationship of the SRD with (C) Nloose and (D) the inner space size. (E) Total gas evolution against the specific surface area for A_TCs, CBs (VC, BP, KB, and DB), and ACs (YP-50F; and MSC30). The CBs include VC (VULCAN XC72) from Cabot Co., DB (Denka acetylene black) from Denka Co., Ltd., KB (Ketjenblack EC300J) from Lion Specialty Chemicals Co., Ltd., and BP (BLACK PEARLS 2000) from Cabot Co. The ACs include YP-50F from Kuraray Chemical Co., Ltd. and MSC30 from Kansai Coke and Chemicals Co., Ltd. Reproduced from Pirabul et al. (2023), Copyright (2023), with permission from The Chemical Society of Japan. The data of TCs shown in (E) was taken from Sunahiro et al. (2021).
Here, Sgraphene is the geometrical specific surface area of single-layer graphene (2,627 m2 g–1), and Ntight is the average number of tight stacking layers determined using the amount of deposited carbon onto the unit weight of templates (wc_gravimetric [g g–1]), as shown in Eq. 3 (Pirabul et al., 2023).
SBET(template) and Wgraphene are the specific surface area of a parental template [m2 g−1] and the areal weight of a single graphene layer (7.164 × 10−4 g m–2), respectively.
It was revealed that the prevalence of loose stacking becomes more pronounced with the enlargement of pore size inherited from its parental template size (referring to the average diameter for spherical templates and the thickness for the plate template), as shown in Figure 2B (Pirabul et al., 2023). This observation can be described as the poor mechanical strength of large pores made of single-layer graphene. Furthermore, the morphology of the pores inherited from a template also impacts the degree of shrinkage. Specifically, slit-shaped pores show a higher tendency for contraction than spherical-shaped pores. A higher prevalence of loosely stacked structures is associated with increased contraction. This can lead to deviations from the intended porosity. Capillary shrinkage can be effectively suppressed by achieving tight stacking during the CVD process. This structure can improve the mechanical strength of the resulting nanoporous graphene. Hence, optimizing the CVD conditions to control the average number of tightly stacked graphene layers is a pivotal strategy to retain the replicated porosity upon the subsequent removal of the template. Additionally, the shrinkage can be alleviated by replacing residual water from chemical etching with a solvent that has lower surface tension, such as acetone, to mitigate capillary forces during drying. This strategy enhances the production of TCs with varied structures, boasting mean pore sizes between 5 and 70 nm (Nishihara et al., 2016; Sunahiro et al., 2021; Pirabul et al., 2023). These mesoporous graphene materials have an expansive specific surface area, reaching up to 2,277 m2 g–1, nearing the geometrical surface areas of single-layer graphene (Nishihara et al., 2016; Sunahiro et al., 2021; Pirabul et al., 2023).
TCs, synthesized via CVD, normally demonstrate a distinctive evolution of gases (H2, H2O, CO, and CO2) under high-temperature conditions, attributing to the H-terminated edge sites and oxygen functional groups (Ishii et al., 2014). To date, TCs are often subjected to HT annealing to eliminate heteroatomic defects and merge graphene boundaries concurrently (Banhart et al., 2011; Yang et al., 2018). This refinement bestows the annealed TCs with improved durability and electron mobility, which are valuable for chemical or electrochemical applications. However, the structure of the graphene framework may be distorted at high temperatures, adversely affecting the porosity and overall performance. Recently, we introduced a new parameter, the structural retention degree (SRD), which is a quantitative measure for structural change during HT annealing at 1800°C. This parameter is defined by Eq. 4 (Pirabul et al., 2023).
Here, Sbasal(HT_annealed) and Sbasal are the basal plane specific surface areas of the annealed TC and the pristine TC, respectively. It is found that loosely stacked graphene configurations are responsible for the structural alterations upon HT annealing (Figure 2C) (Pirabul et al., 2023). This phenomenon leads to the elongation of the stacked carbonaceous structures, consequently leading to a decrease in the specific surface area associated with the basal plane. The extension of the stacking configuration aligns well with the crystallographic changes observed through X-ray diffraction and Raman spectroscopy measurements (Pirabul et al., 2023). Furthermore, the high curvature surface of graphene sheets, characterized by small inner space sizes (referring to the inter π-electron cloud diameter for C60 and the pore sizes for SWCNTs and TCs), represents another structure vulnerable to thermally induced alternations. In essence, this surface tends to accumulate diminished strain energy, leading to the breaking of C-C bonds and prompting structural transformations upon HT annealing. Recent research has revealed that the critical threshold for inner space sizes, particularly in the 4–7 nm range, correlates with compromised thermal stability (Figure 2D) (Pirabul et al., 2023).
4 Resultant graphene materials
The aforementioned review underscores significant advancements in understanding the mechanisms behind graphene formation via CH4-CVD using metal oxides (Al2O3, MgO, and SiO2) as templates. It also sheds light on the structural transformations that take place during the post-graphene formation. These findings offer critical insights into the engineering of nanoporous graphene-based materials, especially focusing on the control of their porosity and surface chemical properties. Controlling carbon edge sites, which are recognized as initiators of corrosion reactions, is crucial for electrochemical device applications (Tang et al., 2019b). Concurrently, it is essential to optimize the porosity of nanoporous graphene materials. A valuable approach to quantifying the carbon edge sites in these carbon materials involves analyzing the comprehensive gas emission, including H2, H2O, CO, and CO2, at 1800°C. This analysis can be conducted using a high-sensitivity vacuum TPD technique, offering insights into the microstructural properties of the templated carbons (Ishii et al., 2014). Conventional nanoporous carbons, including activated carbons (ACs) and carbon blacks (CBs), show a positive correlation between specific surface area and the number of carbon edge sites, as illustrated in Figure 2E. For instance, YP-50F, a commonly used AC in commercial electric double-layer capacitors, possesses a large specific surface area of 1,700 m2 g–1 with a massive total gas evolution of 3.4 mmol g–1. Thus, it has been challenging to achieve a high specific surface area and a minimal number of carbon edge sites (a small amount of total gas emission in TPD). By sharp contrast, the TCs subjected to post-annealing treatment at 1,800°C (denoted A_TCs) exhibit a negligible amount of edge sites (with gas evolution ranging from 0.09 to 0.27 μmol g−1) along with a satisfied specific surface area (up to 1,946 m2 g−1) and varying pore sizes inherited from their parent templates (Figure 2E). As a result, A_TCs reveal a higher oxidation resistance than YP-50F despite variations in their porosity characteristics (Pirabul et al., 2023). The concomitant realization of developed porosity and superior durability enables A_TCs to serve in various electrochemical devices, such as fuel cells, supercapacitors, and rechargeable batteries.
5 Conclusion and future perspective
The mechanisms driving the graphene formation process via CH4-CVD on various 3D non-metallic templates have been illustrated in this mini-review. The achievement signifies a notable advancement in crafting uniformly coated 3D templates that consist of graphene sheets with high crystallinity. These composites are versatile platforms that can be applied effortlessly or further extracted into high-quality nanoporous graphene materials. The correlation between structural features and their transformations during template removal and HT annealing processes has also been revealed. These have paved the way for developing novel methodologies to prepare nanoporous graphene materials with minimally stacked graphene walls, designed mesoporosity, excellent crystallinity, and high oxidation resistance. The unique characteristics exhibited by these materials render them up-and-coming materials in a wide range of applications such as material additives, catalyst supports, and electrochemical devices. Furthermore, the insights gained from these studies provide a solid foundation for further explorations. For instance, a promising opportunity exists to delve into the unique characteristics exhibited by the recently classified structure referred to as loose stacking. Additionally, there is a prospect to enhance the accessibility of hierarchical structures within the graphene framework. Such explorations could lead to the discovery of even more versatile and advanced graphene-based materials with tailored properties for specific applications.
