Post-consolidation process for modifying microscale and mesoscale parameters of 3D printed composite materials

Advancements in additive manufacturing technology (3D printing) have enabled us to fabricate reasonably good parts using continuous fiber-reinforced matrix composites. Unfortunately, most of these 3D-printed composite parts inherently possess a large number of voids originating from the trapped air within and between molten composite beads during the deposition stage. Removing the voids has thus become a key challenge in attempts to apply 3D printed composite parts for fabricating stiff/strong load-bearing structures. Here, we employed a classical process, viz. compression molding, to post-consolidate 3D-printed continuous carbon fiber-reinforced polyamide (CFPA), and to investigate the implications in terms of microscale parameters (void content) and mesoscale parameters (mechanical properties, plasticity, damage) using matrix-dominated lay-up of [±45]_2s. We found that the proposed post-consolidation process could reduce the void of 3D-printed CFPA from 12.2% to 1.8%, enhancing the shear modulus and shear strength by 135% and 116%, respectively. The mesoscale analysis shows that, albeit with less ductility, the post-consolidated CFPA laminate was more resistant to damage than the 3D-printed CFPA. Classical compression molding is thus a promising technique for improving the physical and mechanical performances of 3D-printed composites by reducing inherent void built-ups.

1 Introduction

Composite materials have been used to manufacture aerospace structures (Soutis, 2005), cars (Sarfraz et al., 2021), and wind turbine blades (Thomas and Ramachandra, 2018) due to their high strength or stiffness-to-weight, corrosion resistance, and excellent fatigue performance. The manufacturing processes for creating composite materials include hand (or wet) lay-up, filament winding, thermoforming, automated fiber placement, pultrusion, resin transfer molding (RTM), compression molding, and autoclave molding (Elkington et al., 2015; McIlhagger et al., 2020). While these processes are satisfactorily effective for manufacturing various parts, the demand for high-volume composite products has been steadily increasing in recent years.

The Fourth Industrial Revolution (Industry 4.0) addresses this demand by conceptualizing a rapid change in the manufacturing processes by means of interconnectivity and smart automation through the development of additive manufacturing, for example, 3D printing technology. For the past decade, the 3D printing of materials (adding raw materials to gradually build a desired shape) (Dilberoglu et al., 2017) has been very popular due to its automated and rapid processing, better control in realizing a complex part, software-oriented manufacturing, the cost-effectiveness of producing small and medium products, its minimal waste, and tool-less production (Brenken et al., 2018; Mei et al., 2019; Polyzos et al., 2021). 3D printing technology is now able to print different types of materials: polymeric materials (polyamide, acrylonitrile butadiene styrene, polylactic acid, polyurethane) (Harris et al., 2019), metals (Duda and Raghavan, 2016; Panwisawas et al., 2020), and composites (carbon, glass) (Lee et al., 2023). However, 3D printed parts, particularly the ones made of composites, have an inherent drawback, i.e., low fiber volume fraction ($<$ 30%) (Parker et al., 2022) and high porosity/void content (Tao et al., 2021). The typical void content in 3D printed composites is approximately 12%, which is reasonably high in comparison to RTM-made or autoclave-made composites (1%–5%) (He et al., 2020). The void fraction in 3D-printed short-fiber composites may also range higher, between 13.5%–17.2% (Sayah and Smith, 2022). The voids in 3D printed composites are formed due to multiple factors, including the low viscosity of molten beads (Sayah and Smith, 2022), a relatively large difference of thermal expansion coefficient between fiber and the surrounding matrix, and low fiber-matrix interfacial adhesion (Zhang et al., 2019).

As voids could trigger early failure in 3D printed composites (Mohammadizadeh et al., 2019), it is thus desirable to reduce voids, preferably without the need to invent a new process. One way is to perform a post-consolidation process via classical techniques, such as compression molding, on the 3D-printed composites. Previous research has found that 3D-printed carbon/polyamide molded using metallic mold was able to reduce the void content from 12.5% to 5.9%, thus improving longitudinal, transverse, bending strength, and Mode I fracture toughness (He et al., 2020). Despite these findings, the use of compression molding to further reduce the void content (i.e., microscale metric) so that it is comparable with that made using other classical techniques (RTM or autoclave) has not been performed to date. Moreover, the effect of compression molding on the mesoscale degradation parameters (damage and plasticity) of 3D printed composites has not been discussed, while these parameters are very important in material design, constitutive modeling, and structural analysis. These mesoscale degradation parameters have only been characterized for 3D-printed composites without the post-consolidation process (Ichihara et al., 2020; Todoroki et al., 2020).

This paper introduces a two-step manufacturing method to modify microscale and mesoscale parameters. The first step employed a commonly used 3D printer, based on fused filament fabrication (FFF) i.e., Markforged Mark Two (Mei et al., 2019), to manufacture the carbon/polyamide laminate. The subsequent step employed a classical manufacturing method (compression molding under static press) to perform a post-consolidation of 3D printed laminate. The effects of the post-consolidation process on microscale and mesoscale parameters were evaluated, including 1) the identification of fiber arrangement using an optical microscope and volume fraction measurement of constituents (void, matrix, fiber) (microscale) and 2) the mechanical properties and degradation parameters of a laminate (mesoscale) (Ladeveze and Dantec, 1992) were measured. Based on the deduction that the post-consolidation could have a more profound effect on the matrix, the present study focused on the matrix-dominated lay-up by performing an in-plane shear test of [±45]_2s orientation (Wafai et al., 2016), which could be useful for the modeling of 3D-printed composites.

2 Materials and methods

2.1 Materials and manufacturing processes

Continuous carbon fiber-reinforced polyamide (CFPA) was used to manufacture the laminates. The fiber was a carbon of unspecified variant (Ichihara et al., 2020; Todoroki et al., 2020) (flexural strength of 540 MPa), while the matrix was carbon fiber-filled polyamide called Onyx™ (failure strain of 60%, flexural strength of 71 MPa) (Maassarani et al., 2023). As mentioned, a two-step manufacturing method was proposed. The first step used a Mark Two™ 3D printer from Markforged (Figure 1A) to fabricate CFPA laminate. The 3D printing adopted three phases: design, reinforce, and print. In the design phase, a 3D model of laminate (developed in SolidWorks) was exported to Eiger (Markforged) where we prescribed the types of fiber and matrix. In the reinforce phase, the 3D model was sliced into eight layers with 125 μm thickness per ply, where six layers were reinforced using carbon fibers in an isoparametric pattern, while two other layers (top and bottom) were made of matrix (Onyx) only. In the print phase, the designed CFPA laminate was then printed using a metallic nozzle at the temperature range of 275°C–280°C. The nozzle of Markforged Mark Two was able to print with the highest, so-called, z-layer resolution of 100 μm. The stacking sequence of the laminate was [±45]_2s with eight plies and a dimension of 250 × 110 × 1.25 mm³. The second step, i.e., the post-consolidation process, was performed using a classical compression molding, which has been employed in our previous studies (Wafai et al., 2016). In this step, the edges of 3D-printed CFPA laminates were bounded using polyimide tape (Kapton^TM) to avoid matrix leakage during the post-consolidation process. An aluminum mold was then prepared, as part of which the internal surface of the mold was coated using a release agent (TP 920 Multi-pole). The bounded CFPA laminates were then inserted into the mold. We applied a 5 bar pressure on the mold using a static press (Pinette Emidecau Industries, PEI 15T, shown in Figure 1B). The temperature was raised from 25°C to 280°C with a heating rate of 10°C/min. The dwelling time was 20 min at 280°C. Once this step was completed, the temperature was reduced to 25°C at a cooling rate of 40°C/min. Such a moderate cooling rate was needed to retain the ductility of polyamide by reducing the crystallization kinetics.

FIGURE 1

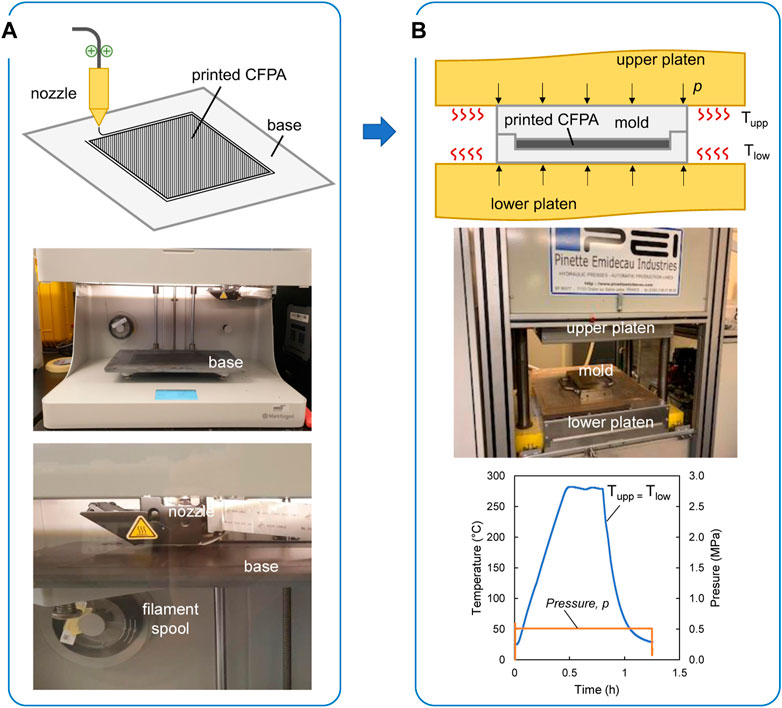

FIGURE 1. (A) 3D printing process of CFPA using fused filament fabrication (FFF) technique; MarkTwo printer (Markforged) and the essential parts (base, nozzle, and filamant spool), (B) post-consolidation process using compression molding technique; the metallic mold used to store the 3D printed laminates is placed between upper and lower platens; temperature and pressure cycles during compression molding process are shown here.

The effectiveness of our proposed method could be affected by the treatment/environment and time gap during the transition period between 3D printing and post-consolidation processes. The polyamide phase in the CFPA is a semicrystalline polymer, which is sensitive to high humidity and time. The polyamide may degrade over time due to moisture via molecular disentanglement mechanism (causing a reduced glass transition temperature (Banjo et al., 2022)), and due to thermal effect (causing volumetric changes (Boisot et al., 2011) or discoloration (Yudhanto et al., 2020)). In our experiments, once the printing process of CFPA laminate was completed, we kept the material in a zipped bag within an acrylic enclosure to provide extra protection from hygrothermal effects. The time gap between the printing and post-consolidation processes was kept minimum, ranging between 30 and 60 min. This time gap was needed to seal the edges of 3D-printed CFPA for leakage mitigation. As we stored the laminate in a controlled environment, the degradation of the mechanical properties of CFPA over time could be minimized.

2.2 Characterization of microscale parameters

The characterization of microscale parameters was performed to identify the physical appearance and volume fractions of filament (before being used for printing), CFPA laminate after printing, and CFPA laminate after the post-consolidation process. The physical appearance was identified by firstly cutting the samples, immersing the samples in the epoxy (EpoFix), and drying the epoxy at room temperature for 24 h. The sample’s cross-section was polished sequentially using sandpaper (TegraPol, Struers) with grit numbers of 500, 1,000, 2,400, and 4,000, and observed using a Leica microscope. The volume fraction of 3D printing filament was calculated based on the optical microscopy images. The volume fraction of fiber, matrix, and void of 3D-printed and post-consolidated CFPA was measured by performing a burn-off test (ASTM D3171-15). The specimen size for burn-off tests was 25 mm × 25 mm × 1.25 mm. The sample density ρ_s was calculated as ρ_s = ($m_s^d$/ρ_w)/($m_s^d$ - $m_s^w$) where $m_s^d$ and $m_s^w$ are sample weight in dry (exposed to air) and wet (exposed to deionized water), ρ_w is water density (ASTM Standard D792-13). The specimen was then wrapped using aluminum foil to make sure that the fibers were intact during the burning process. The wrapped specimen was inserted into a ceramic crucible, and stored in a muffle furnace at 565°C for 6 h. After the burning process, fiber weight (m_f) was measured, and matrix density (ρ_m) and fiber density (ρ_f) were assumed to be 1.1 g/cm³ and 1.176 g/cm³, respectively. The volume fraction of fiber (V_f), matrix (V_m), and void (V_v) can be calculated as follows:

$V_f=\frac{{\rho }_m{m}_f}{{\rho }_f{m}_m+{\rho }_m{m}_f}(1)$

$V_m=\frac{v_m}{v_s}=\frac{m_m/{\rho }_m}{m_s/{\rho }_s}(2)$

$V_v=1-\left(V_f+V_m\right)(3)$

2.3 Characterization of mesoscale parameters

The characterization of mesoscale parameters was performed to identify the mechanical properties of matrix-dominated CFPA laminate after printing and after post-consolidation processes. We performed an in-plane shear test on [±45]_2s CFPA specimens with dimensions of 125 mm length, 9 mm width, and 1.25 mm thickness. A universal testing machine Instron 5,944 (2 kN load cell) was used to obtain the force and displacement. Shear stress was calculated by dividing the force with 2 × of cross-sectional area (width × thickness). The strain field in x- and y-directions on the specimen surface was measured by digital image correlation (DIC) technique where a bi-telecentric camera (Correlated Solutions) and VIC 2D software were used. A monotonic test was first performed to obtain in-plane shear properties (shear strength τ_ult, failure strain ${\gamma }_{xy}^f$, shear modulus $G_{xy}^0$) where the specimen was loaded at 5 mm/min until failure. $G_{xy}^0$ was calculated as a slope in the linear region of the stress-strain curve, i.e., between γ_xy = 0.1 and γ_xy = 0.3%. The cyclic test was then performed to calculate mesoscale degradation parameters, i.e., damage and plasticity Ladeveze and Dantec (1992); Yudhanto et al. (2016), where the specimen was loaded at 2 mm/min with incremental displacement cycles of up to 8 cycles. The damage is represented by the relationship between stiffness loss d and damage force $\sqrt{Y_d}$. The stiffness loss can be calculated as follows

$d=1-\frac{G_{xy}^i}{G_{xy}^0}(4)$

where $G_{xy}^i$ is the shear modulus in the i-th cycle, and $G_{xy}^0$ is the shear modulus of the first cycle (undamaged). The damage force Y_d is the derivative of strain energy with respect to d, which is given below:

$\sqrt{Y_d}=\frac{{\tau }_{\mathit{max}}^i}{\sqrt{2G_{xy}^0}\left(1-d\right)}(5)$

where τ_max,i is the maximum shear stress of an i-th cycle. The plasticity is represented by the relationship between plasticity threshold R + R₀ and accumulated plastic strain p. The plasticity threshold can be calculated as follows:

$R+R_0=\frac{{\tau }_{\mathit{max}}^i}{\left(1-d\right)}(6)$

where R₀ is the yield stress or transition point from linear to non-linear curve in the stress-strain curve. The accumulated strain p is calculated as follows:

$p={\int }_0^{{\epsilon }_p}2\left(1-d\right)d{\epsilon }_p(7)$

where ɛ_p is the plastic strain.

3 Results and discussion

3.1 Physical features of 3D printing materials

Before the printing process, the physical features of a single filament containing continuous fibers and carbon-filled polyamide matrix (Onyx) were examined using an optical microscope. Figure 2A shows the typical cross-section of a filament where clusters of fibers within the matrix are identified. Six CFPA filaments were analyzed using ImageJ software (Ferreira and Rasband, 2012). The average fiber volume fraction of six filaments was around 18%, which was similar to that reported in another study (Blok et al., 2018) of 20%. However, in terms of filament diameter, our measurement showed that the average diameter was 198 μm, while the average diameter reported in (Blok et al., 2018) was 400 μm. Even though they used the same material, various factors may influence the geometrical differences between our evaluation and those outlined by (Blok et al., 2018), namely, different filament spool specifications, measurement locations, statistical variation, and the number of samples during the measurement. Nonetheless, after the printing process, these differences may diminish as the matrix would likely be melted within the heated nozzle before finally being injected via the fused filament fabrication (FFF). The physical appearance of CFPA laminate is shown in Figure 2B, displaying a neat and smooth printed product. The dimension of this printed CFPA laminate was 250 mm in length and 110 mm in width, which was intentionally made to match the exact size of the post-consolidation mold.

FIGURE 2

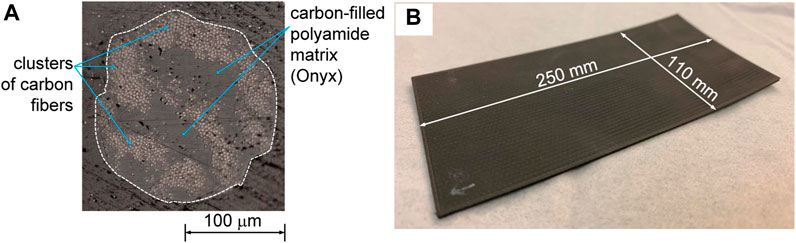

FIGURE 2. (A) Cross-sectional view of a single carbon/Onyx filament (CFPA), (B) 3D printed CFPA laminate made with the exact size for post-consolidation using a metallic mold.

The physical features of 3D printed CFPA might also be affected by the parameters defined during the post-consolidation compression molding process, namely, temperature and time during dwelling, and the cooling rate. At present, the temperature at the dwelling phase was set at a constant temperature of 280°C, making sure that the 3D-printed CFPA was entirely melted. The dwelling time was set at 20 min. Based on our experience in processing semi-crystalline polymers, such as polyamide (Yudhanto et al., 2020) and polypropylene (Wafai et al., 2016; Yudhanto et al., 2016), a 20-min period was deemed sufficient for ensuring a complete melt of 250 mm × 110 mm specimen. The cooling rate that could be achieved by our static press (PEI 15T) was limited to 40°C/min. Indeed, a faster cooling rate utilizing an add-on cooling system would be beneficial to achieve a higher ductility of CFPA.

3.2 Effect of post-consolidation on microscale parameters

The cross-sectional view of 3D-printed and post-consolidated CFPA laminates is shown in Figure 3A. The analysis of the volume fraction of constituents based on the burn-off test is shown in Figure 3B. Here, the fiber volume fraction (V_f) and matrix volume fraction (V_m) of 3D-printed and post-consolidated CFPA laminates are 28.8% and 59.0%, respectively. Our fiber volume fraction measurement was consistent with the one reported in Ref. (Blok et al., 2018), which is 27%. Figure 3A also shows that 3D-printed CFPA laminate exhibited numerous voids that may fall into the category of intra-bead and partial neck growth voids (Tao et al., 2021). The measurement of V_v in the 3D printed CFPA was 12.2%, which was within the range outlined in two other previous studies, 7%–10% in Ref (Blok et al., 2018). and 16.8%–30.8% in Ref. (Lawrence et al., 2022). The voids 3D printed CFPA were believed to be influenced by the deposition angle between two adjacent beads (upper and lower ones). An angle difference of 90° could lead to a lower void content (i.e., better bonding between beads), while the angle difference of 45° could lead to a higher void content (i.e., poorer bonding between beads) (Lawrence et al., 2022). In our experiments, the angle difference in the stacking sequence of [+45/-45]_2s was 90°, suggesting that other stacking sequences with lower angle difference, such as [+45/0]_s or [+45/90]_s, may result in a poorer inter-bead bonding. Figure 3B shows that the proposed post-consolidation process was able to reduce V_v of 3D printed CFPA from 12.2% to 1.8%. Consequently, V_m of the post-consolidated CFPA was increased to 68.0%. On the other hand, the fiber volume fraction remains unaffected by the post-consolidation process due to the better integrity of continuous carbon fibers during the melting process. It is thus evident that our post-consolidation process was beneficial in the reduction of voids, enabling better microstructural quality.

FIGURE 3

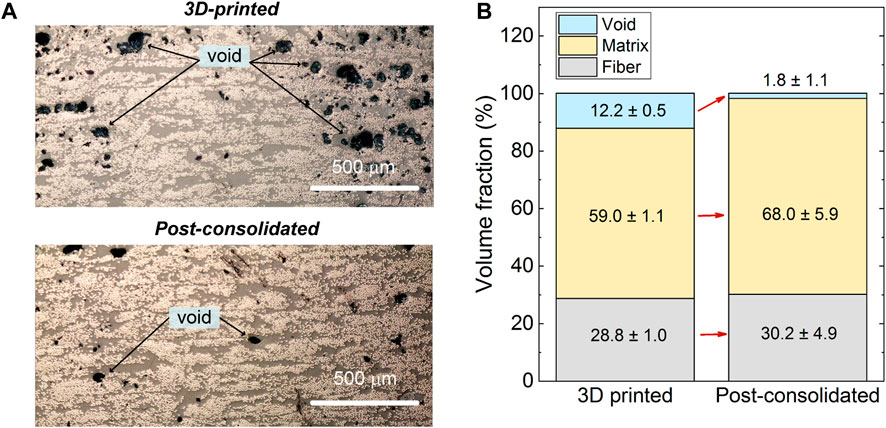

FIGURE 3. (A) Cross-sectional view of microstructure of 3D printed and post-consolidated CFPA; (B) volume fraction of fiber, matrix, and void of CFPA after 3D printing and post-consolidation processes.

3.3 Effect of post-consolidation on the mesoscale parameters

At the mesoscale level, the post-consolidation process modified the in-plane shear properties of [±45]_2s (matrix-dominated lay-up). Figure 4 shows that the stress-strain (τ_xy-γ_xy) curves of 3D-printed and post-consolidation CFPA. Table 1 summarizes the in-plane shear properties derived from the stress-strain curves. Here, the post-consolidation process was able to improve $G_{xy}^0$ and τ_ult by 135% and 116%, respectively. However, the ductility of post-consolidated CFPA, as indicated by ${\gamma }_{xy}^f$, was reduced by 95% as compared to the 3D-printed CFPA. Post-consolidation transformed CFPA into a more brittle laminate plausibly due to the moderate cooling rate (40°C/min) that may increase the degree of crystallinity in the polyamide phase of CFPA (Pourali and Peterson, 2022). It is thus important to increase the cooling rate in the post-consolidation process, adding to the void reduction. The effect of post-consolidation on the mesoscale degradation parameters, i.e., the damage and plasticity, of CFPA laminates was studied based on the cyclic load/unload tests. Figures 5A, B shows the cyclic responses of 3D-printed and post-consolidated laminates, respectively. Based on these curves, damage and plasticity master curves were derived. Figure 5C shows the damage master curve, where the relationship between thermodynamic force $\sqrt{Y_d}$ and shear damage d was established. Here, the damage onset in post-consolidated CFPA is lower than that in 3D-printed CFPA, indicating that the damage may start slightly earlier in the former. Despite this, the post-consolidation process introduced much lower shear damage (of around 0.1) in CFPA than the 3D printing process. In terms of plasticity, the relationship between accumulated plastic strain with strain hardening displayed in Figure 5D shows that the post-consolidation process reduced the strain hardening, i.e., decreased plasticity. The implication of having decreased plasticity is that CFPA laminates became stiffer, making them feasible for building parts, or even structures, where a stiffness-based design approach is employed.

FIGURE 4

FIGURE 4. Shear stress and shear strain of CFPA laminates obtained from monotonic tensile test of [±45]_2s lay-up. The slope made on the linear dashed line corresponds to the shear modulus $G_{xy}^0$. The “knee” point represents the scissoring effect between two angled-plies.

TABLE 1

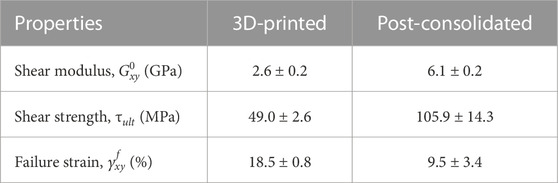

TABLE 1. Elastic properties of CFPA laminates measured from monotonic in-plane shear test.

FIGURE 5

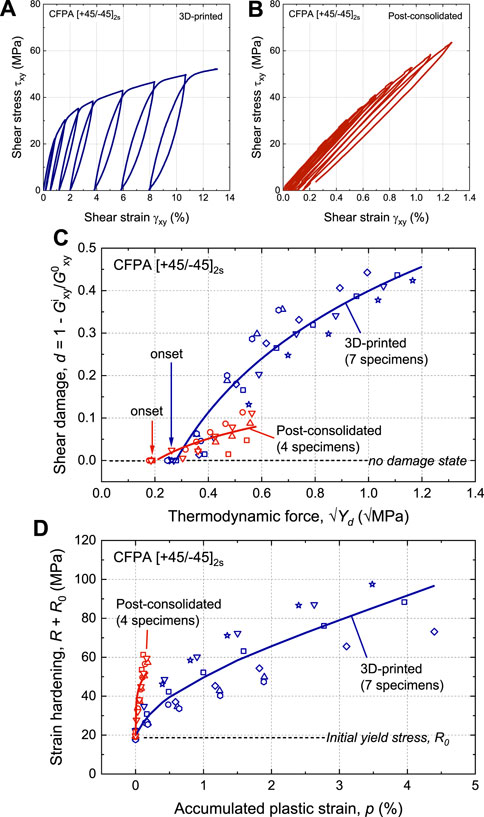

FIGURE 5. Cyclic in-plane shear test results: stress-strain curves of (A) 3D printed CFPA, (B) post-consolidated CFPA; (C) damage master curve; (D) plasticity master curve.

4 Conclusion

The present study investigated effect of the post-consolidation process using classical compression molding on the microscale and mesoscale parameters of 3D-printed continuous carbon fiber-reinforced polyamide (CFPA). We found that the proposed post-consolidation step was able to reduce the microscale parameter, namely, void content, of the 3D-printed CFPA, achieving a value of below 2%. The effect of the post-consolidation process on the mesoscale parameters was investigated by performing mechanical tests on matrix-dominated lay-up. Here, the shear modulus and shear strength of 3D-printed CFPA laminate were improved by 100%–140%. In addition, the mesoscale damage analysis shows that the post-consolidated CFPA exhibited reduced strain hardening, and better damage resistance, improving the potential for load-bearing structures.
