Simulation, synthesis, and analysis of strontium-doped ZnO nanostructures for optoelectronics and energy-harvesting devices

The demand for clean and sustainable alternative energy resources is linearly increasing day by day due to the prevailing electricity crisis. Small-scale energy harvesting is considered a sustainable way to generate clean energy. Advanced energy solar cells, mainly dye-sensitized solar cells use solar energy and convert it into electrical energy. Similarly, MEMS-based piezoelectric materials are used to convert mechanical energy into electrical energy. For these applications, zinc oxide is considered one of the most suitable materials with high conductive, tunable band gap, and piezoelectric properties. However, altering these properties can be carried out by the addition of metal and other materials. Various research work has been carried out to study the addition of conductive metal as a dopant to alter the properties of zinc oxide. In this study, Strontium has been doped in ZnO to form a nanostructure for application in DSSC and microelectromechanical systems (MEMS) energy harvesters. Analysis has been conducted using the simulation and fabrication method. The results show that the doping and the pore size of the substrate (Anodic Aluminum oxide membrane) largely affect the output voltage and current. The difference between the simulated and experimental results was less than 1%, which shows the accuracy of the simulation. Tuning of the band gap can be observed by the addition of Sr in the ZnO nanostructure. For microelectromechanical systems energy harvesters, Sr-doped ZnO nanostructures deposited on anodic aluminum oxide show 7.10 mV of voltage and 1.11 uA of current output. The addition of Sr doping in ZnO shows the improvement in the generated current and voltage for the energy harvester and the improvement in overall power conversion efficiency for dye-sensitized solar cells. MEMS-based energy harvesting devices and low-cost advanced solar cells are promising to improve the efficiency of energy generation at a small scale.

1 Introduction

The intensifying energy crisis and increasing electricity costs and their hazardous impact on the environment have attained a substantial amount of attention in research and development due to the requirement for more efficient and viable alternative energy resources (Chakraborty et al., 2021). This makes renewable and energy harvesting systems a necessity for addressing the energy crisis around the globe. Energy harvesting can be performed from various techniques and sources, depending on the type of technology used to generate the clean energy, and includes thermoelectric energy harvesting, photovoltaic energy harvesting, piezoelectric energy harvesting, pyroelectric energy harvesting, electromagnetic energy harvesting, wind energy harvesting, and vibration energy harvesting (Davidson and Mo, 2014; Akinaga, 2020; Zhou et al., 2021). Solar energy generation has gained momentum in the last few decades due to its higher efficiency and high availability. However, the associated cost of solar panels makes it a less cost-effective energy generation method (Pastuszak and Węgierek, 2022). This opens up an opportunity for low-cost advanced-generation solar cells, which are currently being synthesized in laboratories and are considered to be the future of low-cost and efficient solar energy generation. Organic solar cells, perovskite solar cells, and dye-sensitized solar cells (DSSCs) are considered the future of the solar cell industry. However, the high cost of perovskite materials, stability issues, and low lifetime of organic and perovskite solar cells are considered the biggest drawbacks of these solar cells. Among these solar cells are dye-sensitized solar cells, which are easy to fabricate, low-cost flexible, lightweight, and reliable solar cells. DSSCs are gaining momentum due to their capability of efficiency improvement by modification of their cell layers (Alizadeh et al., 2022). Currently, the highest reported efficiency of DSSCs is 14.1% but researchers are working towards improving the efficiency with easy fabrication techniques and low cost of cell preparation (Singh and Shougaijam, 2022). The efficiency of energy conversion in a dye-sensitized solar cell is determined by the semiconductor, sensitizer, electrolyte, and counter electrode. The efficiency of DSSCs can be improved by carefully determining the optimal importance of several manufacturing process factors (Castán et al., 2022; Richhariya et al., 2022; Ari et al., 2023). ZnO-based semiconductor photo anode has been used in DSSCs under different morphologies including nanoparticles, nanorods, and nanowires. Chung et al. reported that an improvement in the fill factor of the DSSC is observed when annealed nanorods are used as photoanodes due to better crystallinity (Chung et al., 2010). Similarly, a power conversion efficiency of 2.35% has been reported using hedgehog-like ZnO-nanorods on the ZnO nanoparticle seed layer (Yuliasari et al., 2022). Moreover, several doped ZnO nanostructures are reported in the literature as photoanodes for DSSCs with improved photovoltaic efficiencies. For example, Cd-doped ZnO nanostructures show a power conversion efficiency of 0.5%, Cu-doped ZnO nanostructures show a power conversion efficiency of 2.03%, and Pd-doped ZnO nanostructures show a power conversion efficiency of 11.92% (Esgin et al., 2022; Esakki et al., 2023; Mujahid and Al-Hartomy, 2023). However, the study of the second group of highly conductive metals and their doping with ZnO has not been reported in the literature. Since the second group elements are extremely stable and conductive, they are considered an excellent additive in ZnO nanocrystals for the improvement of the efficiency of solar cells.

On the other hand, microelectromechanical systems (MEMS)-based energy harvesters have been used due to their small size and complete package on a single chip (Fang et al., 2006; Zorlu et al., 2013; Sun et al., 2018; Toshiyoshi et al., 2019). MEMS-based energy harvesters have advantages over the conventionally used systems, including low cost, easy maintenance, relatively easier operation, higher efficiency, low environmental impacts, easier synthesis and fabrication, and wireless systems for better usage (Liu et al., 2012; Bounouh and Bélières, 2014). These devices use ambient mechanical energy, converting it into useful electrical energy. Among different types of MEMS-based energy harvesting, piezoelectric energy harvesters utilize mechanical energy in the form of stress and pressure and convert it into electrical energy. The mechanical energy applied can be in the form of stress including vibrational stress, noise, strain, sonic waves, applied temperature gradient, energy generated due to gas and liquid flow as well as other physical motions (Rajeev et al., 2021). Different MEMS-based energy harvesters, including triboelectric nanogenerators and piezoelectric nanogenerators, have gained popularity in terms of generating clean energy (Maamer et al., 2019; Anand et al., 2021; Zhang et al., 2021). Among these devices, piezoelectric nanogenerators use piezoelectric materials that are capable of converting mechanical energy (vibration and stress) into useful electrical energy. Some useful and commonly used piezoelectric materials include zinc oxide (ZnO), lead zirconate titanate, barium titanate, lead titanate, and lithium tantalite (Bestley Joe and Shaby, 2021; Iqbal et al., 2021; Poon et al., 2021; Tiwari et al., 2021; Debnath and Kumar, 2022). ZnO has been considered as the most suitable material piezoelectric energy harvester (Karumuthil et al., 2019; Rajeev et al., 2020). ZnO exhibits excellent band gap tenability and piezoelectric properties owing to its structural properties of transparency, n-type dipole structure for cutting-edge piezoelectric properties, its ability to alter nanostructural properties, and its chemical stability as well as no lead-based toxic impurity, which damages energy harvesters (Gullapalli et al., 2010; Vaseem et al., 2010; Cherumannil Karumuthil et al., 2017). With these excellent properties, ZnO has been extensively used as a piezoelectric MEMS energy harvester. Tao reported the use of ZnO as a 2DOF MEMS energy harvester with a reported voltage output of 10 and 15 mV (Tao et al., 2019). Similarly, Wang reported the use of dual ZnO thin film with a highly improved voltage output of 1.77 V. The research was performed with ANSYS simulation and the accuracy of the simulation still needs to be checked (Wang and Du, 2015a). Doped ZnO nanostructures for application in MEMS energy harvesters still require further research to study their impact on the current density and voltage output.

Owing to the superior properties of ZnO, the structural and optical properties of ZnO can be altered by doping it with other materials. The group II elements, including calcium, magnesium, strontium, and barium, are considered the most conductive materials that can be easily incorporated into the atomic structure of ZnO, resulting in altered structural and optical properties, including the grain size and band-gap, of ZnO structures produced as a result of doping (Sheikh et al., 2013; Afzal et al., 2020; Baig et al., 2020; Sarwar et al., 2021). Adding second group element doping in ZnO nanostructures results in the alternation of the band gap as well as the structural morphology of ZnO nanostructures (Mahdhi et al., 2018; Sarwar and Ashraf, 2020; Tayyaba et al., 2020). Various ways can be used to prepare the ZnO nanostructures including chemical and physical methods (Dobrzański and Pakuła, 2005; An et al., 2020; Boing et al., 2020). The chemical techniques are considered low-cost techniques; however, their reproducibility is relatively lower as compared to physical techniques. Among different chemical techniques, chemical bath deposition is considered one of the most efficient methods to generate ZnO thin film with different types of nanostructures (Wu and Liu, 2002; Hodes, 2007; Mugle and Jadhav, 2016; Wasim et al., 2020).

There is a research gap that lies within the study of the small-scale energy harvesting methods (DSSCs and MEMs energy harvesters) fabricated using second group element doped ZnO. Among second group elements, including Mg, Ca, Be, and Sr, Strontium has a similar ionic radius to zinc, which minimizes lattice distortion and defect formation, leading to enhanced electrical properties in ZnO. As the ionic radius of strontium is large as compared to the other elements of group II, it is expected to alter the properties of ZnO more as compared to other group elements including Mg and Ca. Whereas Mg, Ca, and Be doping can introduce more significant lattice disruptions and defects due to differences in ionic radii. In this study, simulation and experimental work related to strontium-doped ZnO has been conducted for use in a dye-sensitized solar cell and MEMS energy harvester. The study included the fabrication of an anodic aluminum oxide (AAO) template, which was used as a substrate. The optical, structural, photovoltaic, and piezoelectric properties of Sr-doped ZnO nanostructures were analyzed. We have conducted a comparative study between solar cell and MEMS energy harvesting by developing complete solar cell and MEMS-based energy harvesters based on Sr-doped ZnO nanostructures and predicting the voltage and current of the energy harvesters.

2 Fuzzy analysis

A fuzzy rule-based system was used to predict the voltage and current output of the ZnO used as an anode of solar cells and the piezoelectric material in energy harvesters. Anodic aluminum oxide was used as a template, and Sr-doped zinc oxide nanostructures were deposited on the substrate to study energy generation properties. Figure 1 shows the fuzzy logic interface for the simulation. The input used includes anodic aluminum oxide pore size, Sr doping concentration in zinc oxide, and the process temperature for the deposition of the Sr-doped ZnO nanostructures. The band gap of the prepared film, current, and voltage for the energy harvesters were taken as output.

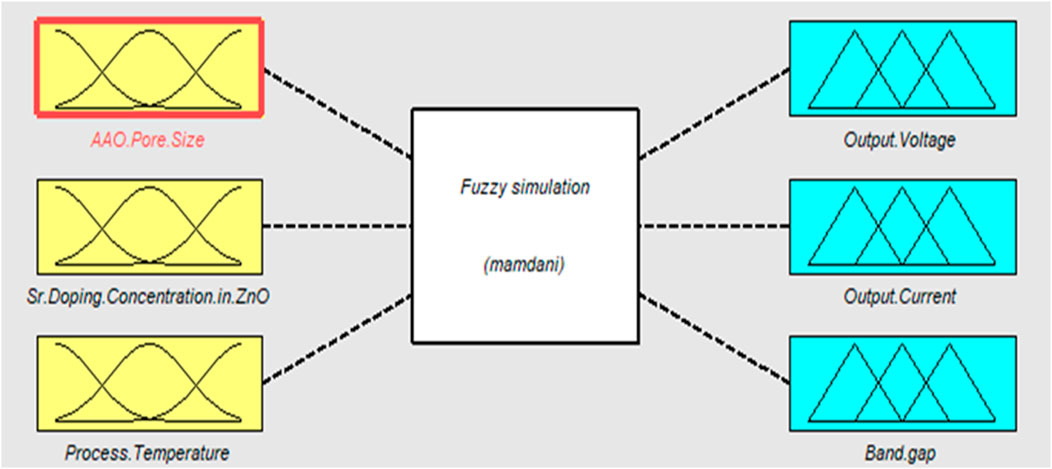

FIGURE 1

FIGURE 1. FIS model for simulation.

Based on the literature, the ranges of the input and output parameters were selected in order to predict the possible solution for the output of the energy harvesters. The input pore size of the AAO membrane varied from 1 to 1,000 nm, the Sr-doping concentration in ZnO ranged from 2% to 8%, and the process temperature for the process varied from 10 to 95°C. The output parameters were assigned the ranges of 2–8 mV for output voltage, 0.3–1.8 uA for output current, and 3.1–3.4 eV for band gap value. The rules were then selected based on real life scenarios and the literature. A total of 27 rules were selected and based on these rules, a rule viewer graph was studied and analyzed with the variation of inputs. The rule viewer result was then compared with the Mamdani model. Calculated values were compared for error between the simulated and calculated values.

Figure 2 shows the rule viewer of the inputs and outputs based on the rules selected. It was observed that at an AAO membrane with a pore size of 300 nm, with 4% doping of Sr in ZnO nanostructures, and at 90°C process temperature, generated an output voltage of 7.08 mV, an output current of 1.12 uA, and a band gap of 3.25 eV, as shown in Figure 2.

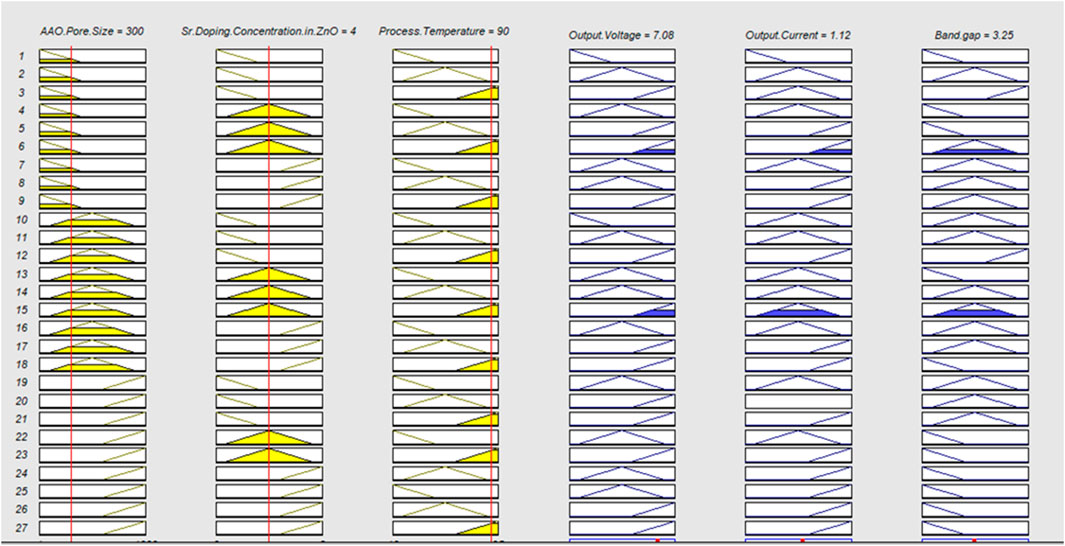

FIGURE 2

FIGURE 2. Rule viewer of the Fuzzy simulation.

Based on the simulated values from the rule viewer, the values were compared with the Mamdani calculated values using the Mamdani model formula as shown below in Equation 1.

$P=\left[\frac{\sum \left(RixSi\right)}{\sum Ri}\right](1)$

where Ri is equal to the minimum membership function value and Si is known as the singleton value.

The differences between the simulated and calculated values along with the differences between the values are shown in Table 1. The values show that the simulated and calculated values had a very small error that led to the accuracy of the designed system.

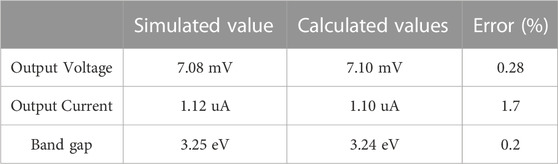

TABLE 1

TABLE 1. Differences between the simulated and calculated values for the fuzzy simulations.

3 Materials and methods

All materials were analytically cleaned. The synthesis of Sr-doped ZnO nanostructure with 4% doping was performed on the anodic aluminum oxide substrate. The porous anodic aluminum oxide substrate was fabricated via an anodization process that is similar to an electrochemical system. The Sr-doped ZnO nanorods were then deposited on the porous AAO substrate. Then, contacts were sputtered on the designed MEMS energy harvester to analyze the current and voltage of the energy harvester. The Pt counter electrode, dye, and electrolyte were used for solar cells, and a solar simulator was used for the complete solar cell analysis.

3.1 Fabrication of the AAO template

An aluminum substrate with a 4 cm × 4 cm dimension was initially cleaned and pretreated using acetone and isopropyl alcohol to remove impurities. After cleaning, the substrate was subjected to electropolishing for the smoothing of the substrate’s surface. After electropolishing, the substrate was again cleaned and sonicated to prepare it for anodization. Anodization of the aluminum was carried out in two different steps, namely, mild and hard anodization. In both steps, the anode was the aluminum substrate with the lead rod as the cathode and 0.5 M oxalic acid as the electrolyte. Hard and mild anodization steps were different in the following ways,

1) Initially, the mild anodization was carried out at 45 V for 30 min. After 30 min the voltage was increased to 130 V in small intervals and sustained at 130 V for 10 min followed by etching of the sample with chromic acid at a temperature less than the boiling point of water.

2) In the hard anodization step, the same process of mild anodization was carried out at 120 V for 4 h. The barrier layer created was removed by changing the electrolyte to potassium chloride (KCL) solution with opposite anode and cathode polarity for 6 min followed by etching in order to remove any impurities.

The prepared anodic aluminum oxide membrane was then characterized using a scanning electron microscope and used as a template for the growth of Sr-doped ZnO nanostructures.

3.2 Fabrication of Sr-doped ZnO nanostructures

For the growth of Sr-doped ZnO nanostructures on the AAO template, zinc acetate di-hydrate and strontium acetate were used as the precursor. Then, 4% strontium acetate was added to the 20 mM solution of zinc acetate di-hydrate, and a hexa-amine solution was prepared in distilled water to make the solution for the chemical bath deposition. The prepared AAO template was then subjected to the process of chemical bath deposition, in which the template was vertically immersed into the prepared solution for 6 h at 90°C (process temperature selected in the fuzzy rule-based system). The solution was changed after every 3 h. The prepared film was then washed with distilled water and subjected to annealing at 400°C to prepare aligned nanorods of Sr-doped ZnO. The electrodes were then sputtered off the film to further test it for the voltage and current.

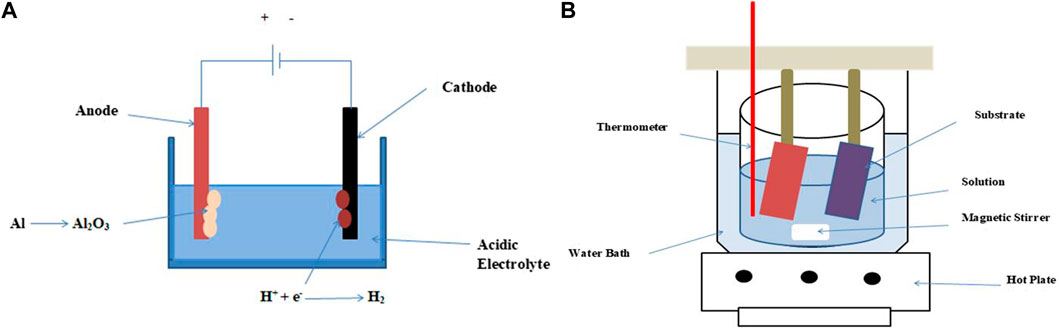

The process of anodization and chemical bath deposition is shown in Figure 3.

FIGURE 3

FIGURE 3. Process of (A) Anodization (B) Chemical bath deposition.

3.3 Characterization

The prepared samples were characterized in order to check structural and optical properties along with their energy harvesting properties. The structure of the prepared AAO template and the Sr-doped ZnO was characterized using a scanning electron microscope, the phase identification was carried out using x-ray diffraction. The optical properties were studied using UV-VIS spectrometry and the band gap was calculated.

3.4 Designing a dye-sensitized solar cell

For the device fabrication, the prepared anode on the AAO membrane was dipped into an N3 dye solution for 20 h to improve dye absorption. As a counter electrode, ITO glass with a thin coating of gold was utilized. The photo-anode containing dye was clipped with the gold counter electrode. Using capillary action, a redox electrolyte (I-/I-3) solution was introduced into the gap between the electrodes. To test the repeatability of the produced Sr-doped ZnO on the AAO membrane, three sets of cells were made. A potentiostat system (Biological VSP) with a working distance of 8 cm and light intensity similar to that of the Sun was used for IV measurements.

3.5 MEMS piezoelectric energy harvester

The voltage and current of the MEMS energy harvester were analyzed by using a cam follower system and the SIGLENT SDS 1052DL oscilloscope. Three sets of samples were prepared. The sample, along with the electrodes, were placed in a plastic casing in between two stages of the cam follower. The frequency of the cam follower system could be controlled with frequency derived that was connected to a rotating system. The device was placed in between a fixed and movable stage. The movable stage moved with respect to the selected frequency. With every rotation, pressure was applied to the film, resulting in the generation of voltage and current, which was monitored by using the SIGLENT SDS 1052DL oscilloscope, and it was connected to the computer to analyze the current and voltage curves. An impedance matching circuit was added in between the energy harvester output and the measuring device in order to generate optimum output with load matching to achieve maximum power. The block diagram and the designed setup to study the piezoelectric energy harvesting output current and voltage are shown in Figure 4.

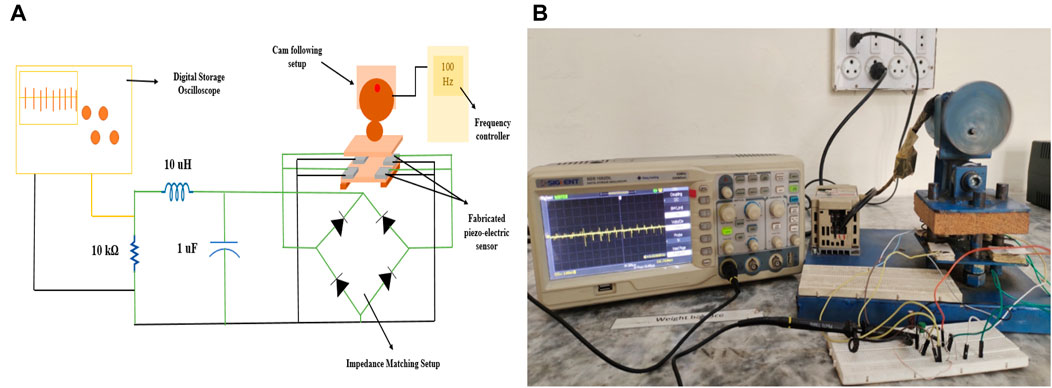

FIGURE 4

FIGURE 4. The output setup to monitor the voltage and current output (A) Block diagram (B) Implemented circuit.

4 Results and discussion

4.1 Structural analysis

The structural properties of the AAO membrane were analyzed using the scanning electron microscope. Figure 5 shows the scanning electron microscope images. It was observed that nanopores were uniformly distributed throughout the template with hexagonal geometry. Due to the high voltage and large time of the anodization process, smoother and more uniform nano-porous geometry was observed (Michalska-Domańska et al., 2013). The pore size of the hexagonal porous in the range of 302–311 nm was observed.

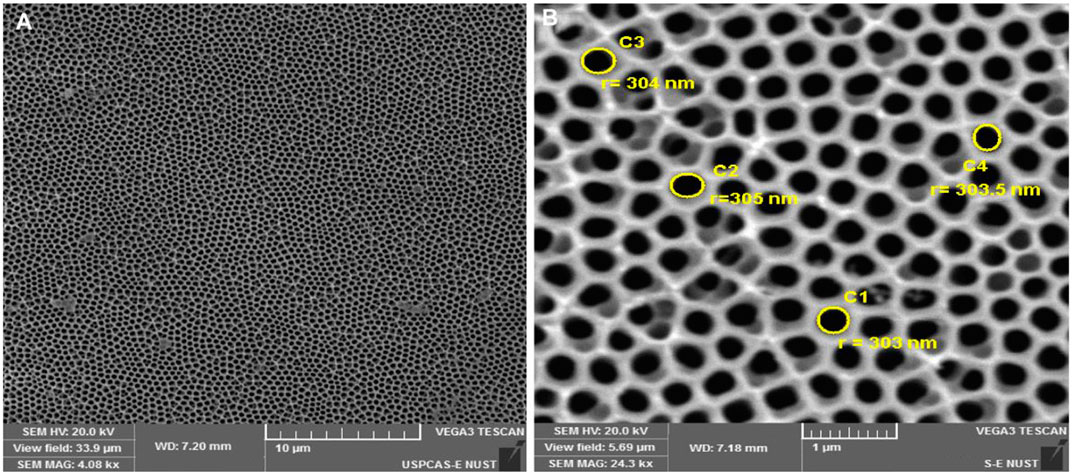

FIGURE 5

FIGURE 5. SEM results of the porous anodic aluminum oxide membrane (A) 10 μm (B) 1 μm.

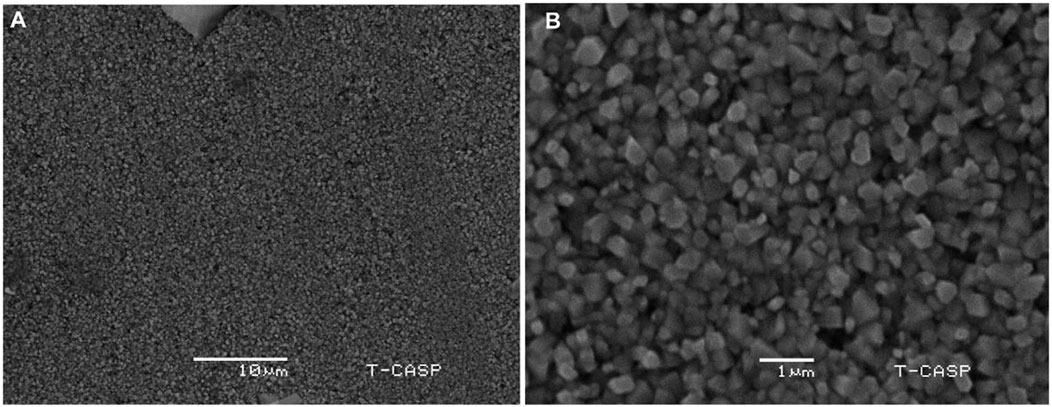

Figure 6 shows the scanning electron microscope results of Sr-doped ZnO nanorods prepared by using the chemical bath deposition method. The prepared films were magnified and studied at two different magnifications, 1 and 10 um. The SEM micrographs clearly showed the growth of dense vertically aligned nanorods of Sr-doped ZnO nanostructures. The diameters of the prepared nanorods ranged from 300 to 350 nm. Since the nanorods grew on the highly porous AAO structure, the root cause of aggregation of the ZnO nanorods was reduced, and the prepared nanorods grew vertically with hexagonal morphology (Choi et al., 2015).

FIGURE 6

FIGURE 6. SEM results of the Sr doped ZnO nano-structures (A) 10 μm (B) 1 μm.

The rod diameter and the pore size of the AAO membrane were almost similar, providing a suitable substrate for the growth of properly aligned Sr-doped nanorods.

4.2 Phase analysis

The X-ray diffraction result for the prepared Sr-doped ZnO nanostructure of the AAO template is shown in Figure 7. The graphs clearly show the formation of hexagonal wurtzite ZnO structures as per the JCPDS card number 89–1,397, along with a few major peaks at (100), (002), (101), (102), (110), and (103). The presence of the broader peaks of (002) and (101) clearly depicts the vertical c-axis direction of the nanostructure formed. However, based on the incorporation of Sr doping in the ZnO nanocrystal, no significant peak was observed in the spectra, and no change in the structural morphology was observed except for a small shift in the (002) peak. The shift towards the positive and higher values of the 2ϴ was mainly due to the instability of its intensity and based on the up and down behavior of the change of the crystallinity of ZnO due to the addition of Sr in the ZnO nanostructure. The prepared Sr-doped ZnO nanorods, however, are immune to a reduction in oxygen vacancies, lattice distortion, and density defects as compared to conventionally used ZnO nanorods (Vijayan et al., 2008; Yarahmadi et al., 2021).

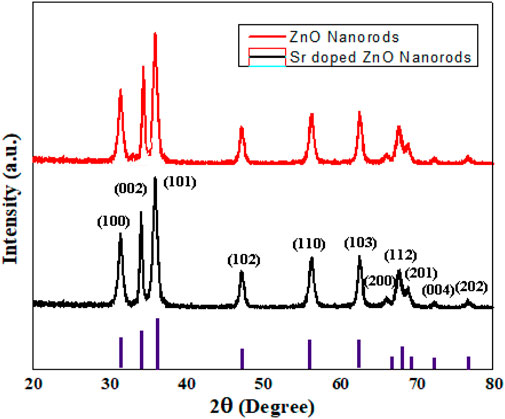

FIGURE 7

FIGURE 7. X-ray diffraction of the prepared Sr-doped ZnO nanorods on the AAO template.

4.3 Optical analysis

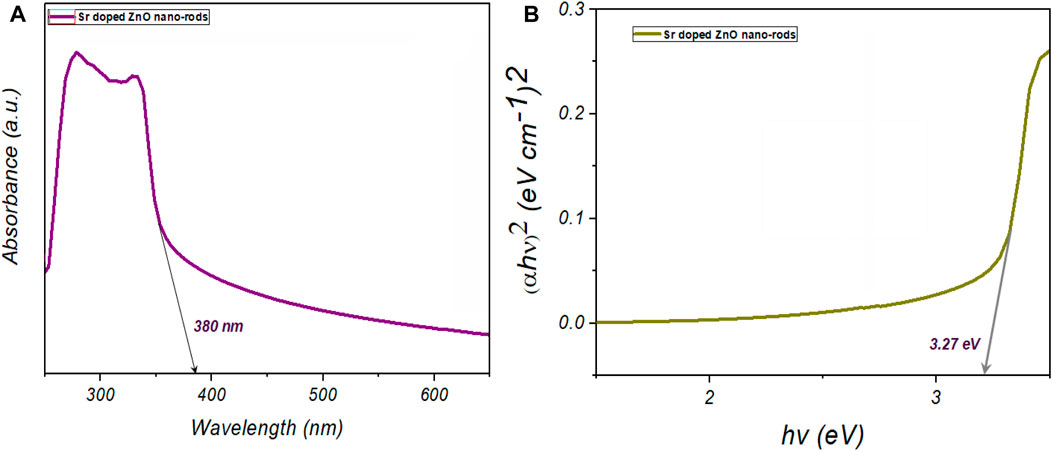

The optical properties of the prepared ZnO nanostructures were observed using the UV-vis spectrophotometer. Figure 8A shows the absorbance spectra of the prepared Sr-doped ZnO nano-structure in the wavelength range of 250–650 nm. With the addition of almost similar ionic radii elements to the crystal structure of ZnO, a slight blue shift was observed as compared to the conventional system. The approximated band gap of the prepared sample was calculated by drawing a tangential line, as shown in Figure 8A. For the estimation of the band gap, we plotted a Tauc plot, as shown in Figure 8B. A change in the band gap was observed from the pure ZnO nanostructure due to the blue shift observed in the absorbance graph. The band gap was decreased due to the addition of a high atomic size element (Sr) into the ZnO nanostructures. The Fermi level rose into the conduction band with the addition of a dopant. Conduction band filling causes absorption transitions to occur between the valance band and Fermi level rather than the valance band and the bottom of the conduction band. This shift in the absorption energy levels causes the energy band to widen (Eg) and the absorption edge to move to higher energies (Vijayan et al., 2008). The calculated band gap of the Sr-doped ZnO nanostructure was calculated to be 3.27 eV as compared to 3.25 eV of pure ZnO nano-structures, which is in accordance with the fuzzy logic rule-based system.

FIGURE 8

FIGURE 8. UV-vis study of the prepared Sr-doped ZnO nanostructures (A) absorption spectra (B) band gap Tauc plot.

4.4 Photovoltaic analysis of dye-sensitized solar cell

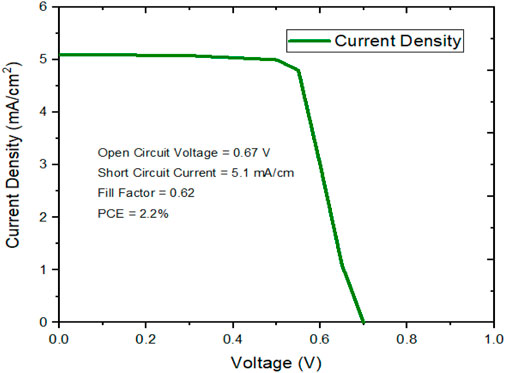

The influence of Sr-doped ZnO on the AAO membrane on DSSC photovoltaic performance was investigated. The V_oc and J_sc were used to compute the fill factor and efficiency of the prepared cell. The overall IV properties of the Sr-doped ZnO on the AAO template as a working electrode demonstrated superior charge transfer and transfer for electron transport across the circuit, as illustrated in Figure 9. The device’s performance was measured at 2.2% conversion efficiency, 0.67 V open circuit voltage, 5.1 mA/cm² short circuit current density, and 0.62 fill factor. Due to differences in the substrate for both the anode and cathode in the DSSC device, an uncomfortable sealing method may induce short-circuit effects between the anode and cathode. Furthermore, the device’s performance was characterized by a decrease in open circuit voltage fill factor and short current density. The overall fabricated solar cell and its band diagram are shown in Figures 10A, B.

FIGURE 9

FIGURE 9. IV characteristic for the Sr-doped ZnO nanorods on the AAO substrate as anode.

FIGURE 10

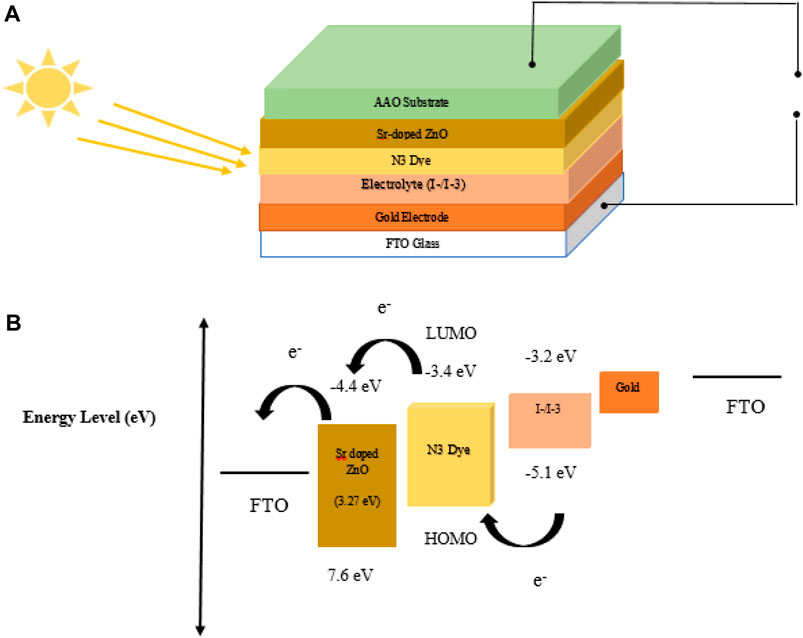

FIGURE 10. (A) Proposed dye-sensitized solar cell using Sr-doped ZnO photoanode (B) Energy band diagram of dye-sensitized solar cell using Sr-doped ZnO photoanode.

4.5 MEMS piezoelectric energy harvester analysis

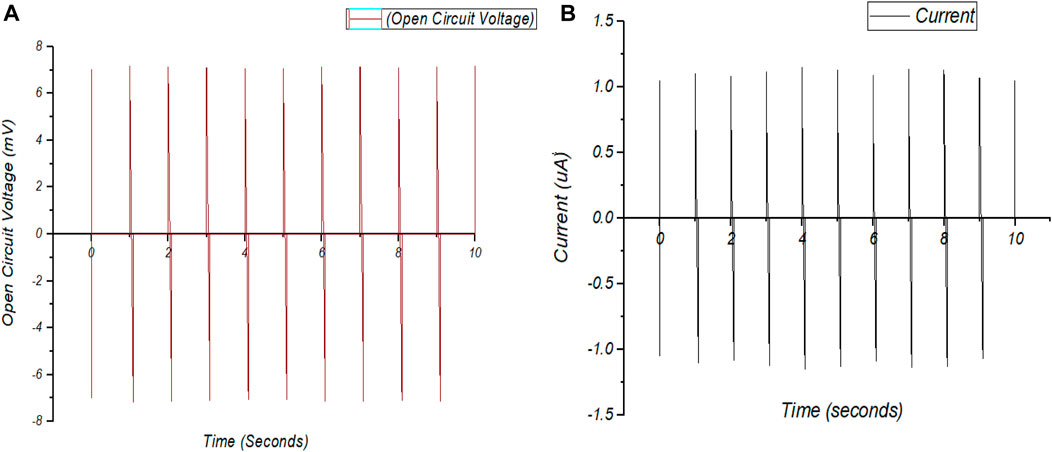

The voltage and current generated by the energy harvesting system were analyzed using the cam follower system and the SIGLENT SDS 1052DL oscilloscope. The open circuit voltage and short circuit current, as shown in Figure 11, were measured under both the polarities when the pressure was applied as well as when the pressure was removed. The measured open circuit voltage fell in the range of 7.0–7.2 mV and the short circuit current fell in the range of 1.05–1.15 uA in terms of both polarities. The results of the voltage and current were also in accordance with the fuzzy rule-based system. It was observed that the results of open circuit voltage improved for the energy harvester as compared to ZnO energy harvesting systems. The voltage and current also depended on the growth of the vertically aligned Sr-doped ZnO nanostructures. The highly vertically aligned nanorods result in a higher generation of energy (Ali et al., 2019).

FIGURE 11

FIGURE 11. The IV characteristic curves of the energy harvester (A) open circuit voltage (B) short circuit current.

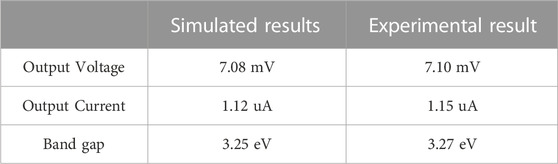

Table 2 shows the comparison between the simulated results from the fuzzy rule-based system and the experimentally calculated output. The simulated and experimental results were in close agreement with each other with a very small error.

TABLE 2

TABLE 2. Comparison of simulated and experimental results.

The reported study with Sr-doped ZnO nanorods on an AAO template showed an improvement in the overall power conversion efficiency of the dye-sensitized solar cell as compared to the conventionally used solar cell with ZnO nanorods. The comparative study of the ZnO nanorods and doped ZnO nanorods is shown in Table 3. Sr-doped ZnO showed power conversion efficiency improvement as compared to conventional ZnO nanorods because of the increase in the band gap of the material, which resulted in easy transport of electrons generated in the dye to the external circuit. Similarly, the porous structure of the AAO template facilitated the movement of electrons. Table 3 shows that as compared to other metal-doped ZnO, the overall increase in power conversion efficiency was due to better ionic radii and more crystalline structure of Sr-doped ZnO. The improvement in the band gap was also attributed to the improvement in the power conversion efficiency of the solar cell.

TABLE 3

TABLE 3. Benchmark of the dye-sensitized solar cells.

Sr-doped ZnO nanorods on AAO template as the piezoelectric material for energy harvester show an open circuit voltage of 3–6.4 mV and short circuit current of 0.45–1.5 uA. The addition of Sr in ZnO nanostructures increased the band gap, resulting in an improvement in the voltage and current output of the designed system. Table 4 shows the benchmark comparison of the study with previous research based on ZnO nanostructure for MEMS energy harvesting. The table shows an improved open circuit voltage as compared to other ZnO nanostructures and doped nanostructures. Since the method of fabrication of the substrate and thin film is low, it is more suitable for the generation of mV of energy for small-scale applications.

TABLE 4

TABLE 4. Benchmark table for MEMS energy harvesters.

5 Conclusion

This study presents an investigation into Sr-doped ZnO nanorods utilized as an AAO template for dye-sensitized solar cells and MEMS energy harvesters. Notably, the calculated band gap was found to increase from 3.25 eV in pristine ZnO to 3.27 eV in Sr-doped ZnO, a phenomenon attributed to the incorporation of strontium ions affecting the electronic band structure. The utilization of a porous AAO template facilitated the fabrication of smoother nanorods, owing to the templating effect provided by the uniform pores. These controlled growth conditions resulted in more ordered and uniform nanorod surfaces, enhancing the overall performance of the nanostructures. The subsequent evaluation of the solar cell’s efficiency yielded promising results, including a 2.2% conversion efficiency, 0.67 V open circuit voltage, 5.1 mA/cm² short circuit current density, and a 0.62 fill factor. When compared to conventional ZnO nanorods, the Sr-doped ZnO nanorods on the AAO template demonstrated significant improvements in power conversion efficiency, primarily due to the reduced band gap, which facilitates efficient electron transport from the dye to the external circuit. Additionally, the porous nature of the AAO template enhanced electron mobility. Furthermore, the MEMS energy harvester exhibited enhanced performance, with open circuit voltages ranging from 7.0 to 7.2 mV and short circuit currents ranging between 1.05 and 1.15 uA for both polarities. These findings underscore the potential of the fabricated film for applications in both solar energy conversion and piezoelectric energy harvesting.

Data availability statement

The raw data supporting the conclusions of this article will be made available by the authors, without undue reservation.

Author contributions

MSA: Conceptualization, Methodology, Software, Validation, Writing–original draft. MWA: Conceptualization, Software, Validation, Writing–review and editing, Supervision, Project administration. ST: Data curation, Software, Writing–review and editing. MI: Supervision, Validation, Writing–review and editing.

Funding

The authors declare that no financial support was received for the research, authorship, and/or publication of this article.

Acknowledgments

The authors would like to acknowledge the nanoelectronics lab, Department of Electronics, GC University Lahore for providing the facility to carry out the research and experimental work.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
