ORIGINAL RESEARCH article

Front. Mater., 15 September 2022
Sec. Polymeric and Composite Materials
This article is part of the Research Topic Development of High-Performance Resin Matrix Composites View all 8 articles

Study of performance of aerostat envelope materials on the coast

\r\n\r\nJing Lv\r\n
&#x;Jing Lv 1* \r\nYan Zhou\r\n\r\n&#x;Yan Zhou 2 Yuanping ZhangYuanping Zhang1Ying NieYing Nie1Qian Wang\r\nQian Wang1
  • 1 Aerospace Information Research Institute, Chinese Academy of Sciences, Beijing, China
  • 2 Changchun Institute of Applied Chemistry, Chinese Academy of Sciences, Changchun, China

In this article, the performance of several naturally aged envelope materials in Hainan, China, was studied. The results show that the outer layer contributes to the properties of the envelope materials, where PVF and PVDF are better candidates for a weathering layer than TPU and aluminum. Due to the superior water and mildew resistance of PVF and PVDF, the loss of tensile strength for 3216LV and FV1175 was slight, whose value reduced from 101.43 ± 5.45 Kgf/cm and 76.15 ± 3.81 Kgf/cm to 79.73 ± 6.40 Kgf/cm and 70.20 ± 6.57 Kgf/cm, respectively, when aging for 24 months with the helium permeability reduction from 0.8818 L/m2•day•atm and 0.6360 L/m2•day•atm to 0.2047 L/m2•day•atm and 0.2169 L/m2•day•atm aging for 18 months, in the case of FV1175 showed leakage after aging for 24 months due to delamination. However, the tensile strength of HV150 dropped from 82.13 ± 3.61 Kgf/cm to 15.22 ± 2.16 Kgf/cm at 24 months with helium leakage, owing to heavy mildew and degradation. Meanwhile, ETAV150 also exhibited a decreased tensile strength of 57.92 ± 1.32 Kgf/cm after 6 months aging, 32.8% lower than that of the original sample, and showed leakage when aging for 12 months. This research provides a theoretical guidance for the structural design and screen of envelope materials for aerostat used along the coast.

Introduction

Lighter than air aerostats, including tethered balloons and stratospheric airships (Tang et al., 2021; Tang et al., 2019), serve as strategic equipment for reconnaissance, ocean observations, meteorological research, geological mapping, environmental protection, and so on (Schäfer et al., 2002; Liao and Pasternak, 2009). These numerous merits include a high-flying altitude, long stay in the air, strong survivability, wide coverage, and low cost of manufacture, operation, and maintenance, which render it an alternative and a complement to orbiting satellites (Shah et al., 2018). The envelope materials for aerostat must have low density, high strength, excellent weathering, low helium permeability, good stitching process, and easy repair, among other features (Schäfer et al., 2002; Kang et al., 2006; Komatsu et al., 2003), which are of vital significance due to their complex, changeable, and even harsh working conditions (Cicerone, 1987; Caldwell and Flint, 1994; Wrobel et al., 2011). In addition to the application efficiency of the aerostat containing floating height and continuous flight time, the payload and the lifetime directly depend on the properties of the envelope materials (Meng et al., 2016; Meng et al., 2017).

To satisfy the these requirements, envelope materials for aerostat are laminates designed, typically including heat-sealing layer, load-carrying layer made of fabric, gas-barrier layer, weathering layer, and adhesive layers (Schäfer et al., 2002; Meng et al., 2017; Vallabh et al., 2021), as shown in Figure 1. The functional load-carrying layer, usually woven from aromatic polyamide (Vectran), polyester, polyethylene, and poly-p-phenylenebenzobisthiazole fiber, provides the strength of the whole envelope materials to bear the load, as well as the pressure difference between the inside and outside of aerostat (Komatsu et al., 2003; Zhai and Euler, 2005; Nakadate et al., 2009). The most critical part is the gas-barrier layer upon the load-carrying layer, which matters for the helium loss, cost, and hence the operation time of the aerostat. Typically used materials mainly include polyester (PET), ethylene vinyl alcohol copolymer, and polyvinylidene chloride (Gao et al., 2016). In addition, these layers cannot function for a long time without the protection of the weathering layer, which possesses extraordinary UV-blocking properties, serving as the outermost part of the aerostat envelope material. The weathering layer usually contains polyvinyl fluoride (PVF), polyvinylidene fluoride (PVDF), and polyurethane (TPU), with nanoparticles or an aluminized layer, which could prevent the inner layers from solar irradiation as well as other harms and hence guarantee the service life of the envelope materials as a whole (Razak et al., 2004). Adhesive layers are included to solve the poor interaction and low compatibility between functional layers (Baldan, 2004).

FIGURE 1
www.frontiersin.org

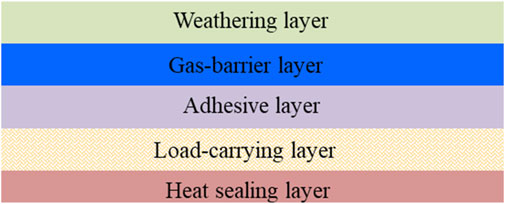

FIGURE 1. Typical laminated structure of envelope material for aerostat.

The dwell time for an aerostat is up to the performance of envelope materials, which is influenced by many factors, including the characteristics of the components of each layer, the laminated structure, and the working environment. Many experimental tests and theoretical simulations have been conducted to better understand the influence mechanism of these factors on the properties of envelope materials (Garg et al., 2011; Qu et al., 2019; Shi et al., 2018; Wang et al., 2017). Garg et al. (2011) found that helium permeation limits the endurance by affecting the ability of the airship against the impact of gushes and by increasing the total weight of the airship. Meng et al. (2016; 2017) and Qu et al. (2019) investigated the microscopic tear propagation and fatigue damage mechanism of envelope materials and established related test criteria in combination with analytical models. Kang et al. (2006) developed a CAD model and characterized the static properties of envelope materials consisting of helium barrier, load-carrier, and thermal bonding layer, finding that the high stiffness and strength of Vectran-based envelope materials possess wide-ranging temperature applicability, from –75 to 65°C. Vallabh et al. (2021) proposed a novel design concept using fiber-reinforced non-woven fabrics as load-bearing layer with EVOH and a vacuum-deposited aluminum-coated corrosion resistance layer for the envelope of high-altitude airships.

In addition, working or storage conditions, which receive little attention, also play critical roles in the service of envelope materials for airships (Lv et al., 2020). In our previous study, it was found that the hot-pressing temperature and flexing during processing as well as storing and utilization conditions contribute to mechanical properties and helium permeability (Lv et al., 2020). Among other factors, samples recovered from an actual flight on a stratospheric airship showed significantly reduced mechanical properties and even helium leakage due to excess solar irradiation, ozone concentration, and interaction of energetic particles. Thus, the working conditions are of vital significance. Predicting the properties of envelope materials in the working environment can provide guidance for choosing and designing materials to meet requirements. However, it is costly, time-consuming, and laborious to assess the performance for envelope materials through assembling envelope materials into airships and flying into the stratosphere. Therefore, outdoor aging experiments are more favorable.

Ocean area accounts for 71% of the earth’s surface. Much work should be performed on the sea, such as meteorological monitoring and military cruises, that can be conducted by the aerostat. Hence, the performance of envelope stored or working along or on the sea due to its high salt and moisture, making it distinct from working on land, matters greatly (Conrads, et al., 2010). In this article, four types of envelope materials for aerostat aged in Hainan, China, a coastal city, and properties were tested. The results show that envelope materials with an aluminizing and TPU weathering protection layer is not applicable in Hainan with its high moisture content. Thus, there is better performance for envelope materials with PVF and PVDF as a weathering layer. These results have significance for selecting or designing envelope materials for aerostats utilized along coast or on the sea.

Experiments

Materials

Four types of envelope materials for aerostat, namely, 3216LV, purchased from Uretek, and FV1175, HV150, and ETAV150 provided by Changchun Institute of Applied Chemistry, were aged and analyzed in Hainan, China. The structures of these materials are shown in Figure 2: 3216LV, FV1175, HV150, and ETAV150 are composed of PVF/PET/adhesive layer/Vectran/TPU, PVDF/TPU/PET/TPU/Vectran/TPU, TPU/PET/TPU/Vectran/TPU, and PET-aluminum/TPU/Vectran/TPU, respectively. PET acts as a gas-barrier for 3216LV, FV1175, and HV150, where PVF, PVDF, and TPU with TiO2 form the weathering layers, respectively. PET-aluminum worked as both weathering and gas-barrier layer in ETAV150.

FIGURE 2
www.frontiersin.org

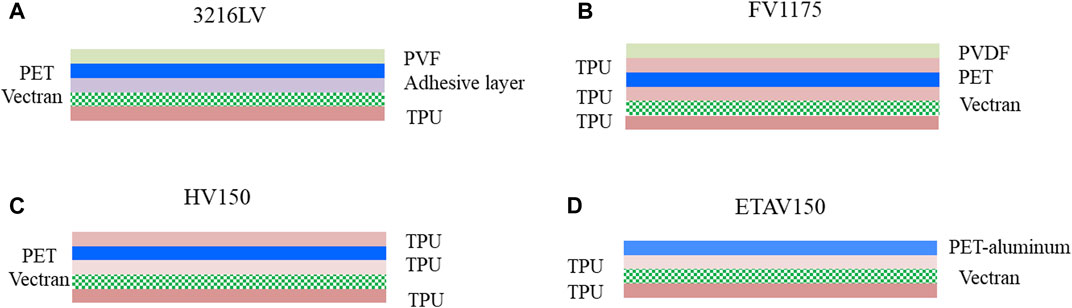

FIGURE 2. Structure of envelope materials. (A) 3216LV, (B) FV1175, (C) HV150, and (D) ETAV150.

Aging experiment

Natural aging tests were performed on the roof of a building with a height of 12 m in the open air, following ASTM G7-2013, in Danzhou, Hainan. As shown in Figure 3, pieces of envelope materials were placed on the natural aging frame outdoors at an angle of 45° for 24 months (July 20, 2018, to July 21, 2020, in Danzhou), with an average temperature, RH, daily accumulated irradiation, and annual cumulative rainfall above 20°C, 80%, and 840 mm, respectively. Concentrated high temperature, high humidity, and heavy rainfall occur during June to August with average temperature, RH, and annual cumulative rainfall of 28°C, 95%, and 1180 mm, respectively. The representative data are listed in Table 1. The samples were tested after aging for 6, 12, 18, and 24 months. The natural aging test was stopped after 12 months for ETAV150 because of helium leakage.

FIGURE 3
www.frontiersin.org

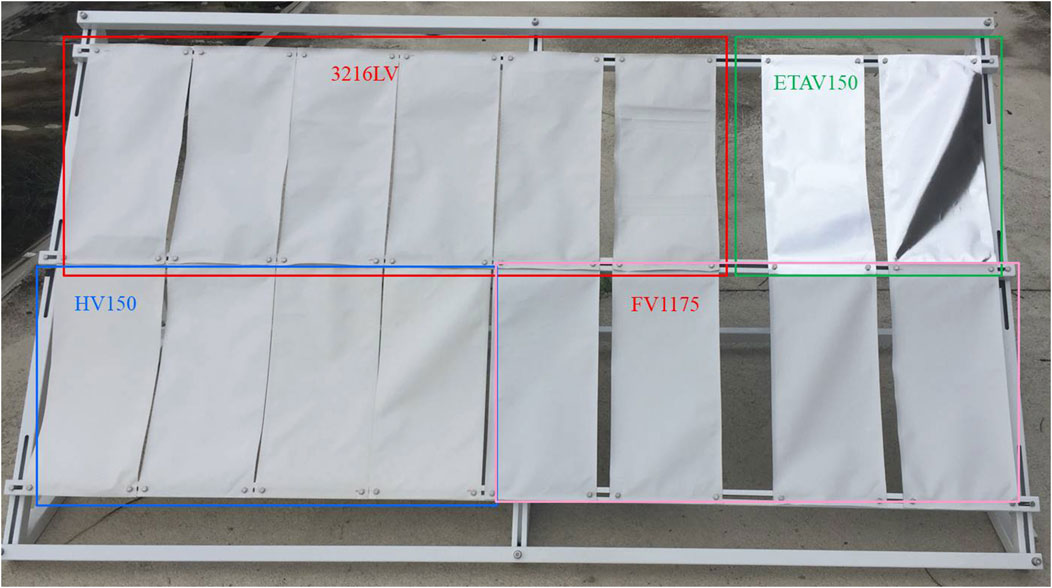

FIGURE 3. Natural aging tests of envelope materials.

TABLE 1
www.frontiersin.org

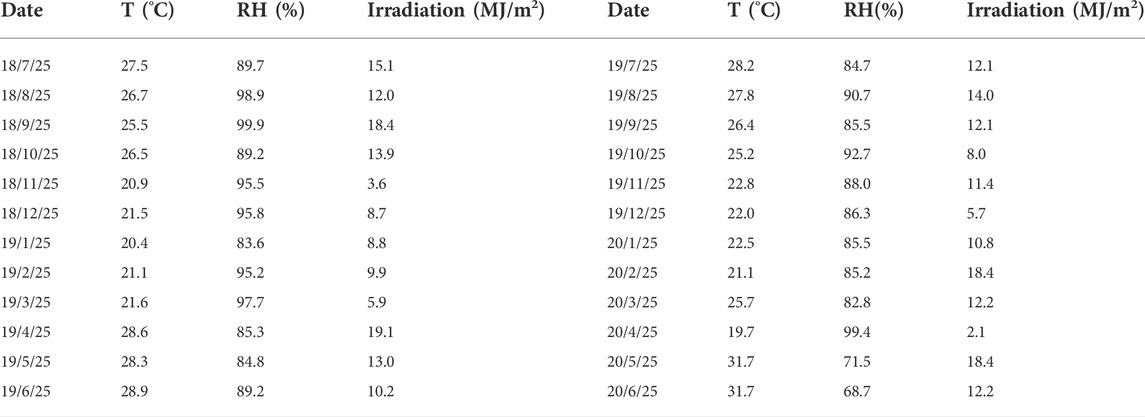

TABLE 1. Representative meteorological data.

Characterizations

The chemical structure of the outer layer for the envelope materials was characterized by VERTEX 70 Fourier Transform-Infra Red Spectroscopy (FT-IR, Bruker, Germany). An Instron 5969 universal testing machine was used to evaluate the mechanical properties at room temperature with a tensile rate of 305 mm/min in a uniaxial test mode according, following the standard Chinese method (GB/T 1040.3-2006). The samples were cut into 25 × 152 mm strips, as shown in Figure 4. At least five specimens of each sample were tested, and the average value was calculated. Tensile strength was defined by ultimate stress at break. The morphology of the samples was obtained by a XL-30 field emission scanning electron microscopy (SEM) under an acceleration voltage of 15 KV with samples gold sprayed before testing. The helium permeability of samples at Φ97 mm was tested at room temperature, using a VAC-V2 gas permeameter (Languang, Jinan) according to Chinese standard method (GB/T 1038-2000). At least three specimens were tested for each sample, and the average value was obtained.

FIGURE 4
www.frontiersin.org

FIGURE 4. Tensile specimen and its schematic illustration.

Results and discussions

Morphology of envelope materials

Figure 5 displayed the images of tested envelope materials before and after natural aging. As can be seen, 3216LV showed little change during natural aging, even after being outdoors for 24 months (Figures 5A1–4). Mildew spots appeared in the surface of FV1175 and the size was enlarged with the prolongation of aging time (Figures 5B1–4). The mildew was the most serious, and the surface of HV150 changed from white to gray (Figures 5C1–4) due to the high moisture along the coast and poor water resistance. After aging for 2 years, the surface was all damaged, as shown in Figure 5C4. There were groove marks on the surface of ETAV150, and the marks were more obvious after aging for 12 months (Figures 5D1–3). In particular, the outer layer peeled off at several sites, and the inner layer was exposed, which occupied about one-tenth of the whole surface, as shown in Figure 5D4.

FIGURE 5
www.frontiersin.org

FIGURE 5. Images of envelope materials. (A1–A4) 3216LV, (B1–B4) FV1175, (C1–C4) HV150 aging for 0, 12, and 24 months, and number 4 is a local amplification of aging 24 months, and (D1–D4) ETAV150 aging for 0, 6, and 12 months, and number 4 is a local amplification of aging 12 months.

The micro-morphology of samples is given in Figure 6. The original surfaces of 3216LV, FV1175, and ETAV150 were relatively smooth, with few defects (Figures 6A2,B2,D2). Impurities appeared on the surface with the prolongation of aging time, which may be the adherence of dust. In addition, cracks occurred and were extended for ETAV150 after aging for 6 and 12 months (Figures 6D3–4), which indicated breakage of the outer PET-aluminum. The morphology of HV150 clearly changed during natural aging, as shown in Figures 6C1–4. Rough gullies arose with the increase of aging time and the Vectran fabric was exposed after aging for 24 months due to high moisture and severe UV-light irradiation (Duan and Jiang, 2022; Liu et al., 2014). Hence, as can be seen in Figure 6, 3216LV and FV1175 possessed better aging resistance, and ETAV150 and HV150 endured greater damage. For ETAV150, the aluminum was easily corroded in the moist and salty environment (Ul-Hamid, et al., 2017). The outer layer of HV150 was TPU, is was more vulnerable to mildew and was degraded when placed in the environment with such high moisture and irradiation (Duan and Jiang, 2022; Liu et al., 2014) relative to 3216LV and FV1175, whose outer layers were PVF and PVDF film, respectively.

FIGURE 6
www.frontiersin.org

FIGURE 6. SEM images of (A1–A4) 3216LV, (B1–B4) FV1175, (C1–C4) HV150 (numbers 1 and 2 show the section and surface morphology of original sample, numbers 3 and 4 show the sample aging for 12 and 24 months), and (D1–D4) ETAV150 (numbers 1 and 2 show the section and surface morphology of original sample, numbers 3 and 4 show the sample aging for 6 and 12 months).

To further estimate the stability of these tested materials, an immersion test was conducted, as follows. Sample pieces were immersed into deionized water and kept for 30 min, and weight before and after immersion was obtained after drying. As can be seen in Figure 7, the water after 3216LV and FV1175 aging for 24 months was as clear as before, and no powder was dissolved. For ETAV150 aging for 12 months, the water was limpid, and some twinkle powders precipitated in the bottom of bottle circled with a red line, which corresponds to the falling off of aluminum. Hence, it could be concluded that the combination of PET-aluminum with other layers was too weak to fall off when rainy. Worse, the water immersing HV150 for 24 months turned muddy, and gray powder sediment appeared, implying poor water-resistance and heavy degradation. The weight change in the envelope materials is listed in Table 2. There was little variation in 3216LV and FV1175, with a 0.01 and 0.11% weight decrease, respectively. However, a 1.96 and 1.36% weight decrease were seen for HV150 and ETAV150, respectively, implying poor water-resistance.

FIGURE 7
www.frontiersin.org

FIGURE 7. Images of aged 3216LV, FV1175, HV150, and ETAV150 soaked in deionized water (ETAV150 was aged for 12 months, and the others were aged for 24 months).

TABLE 2
www.frontiersin.org

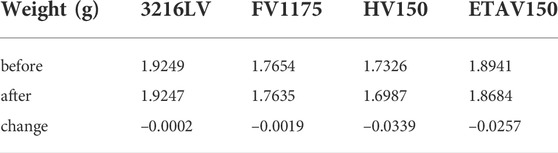

TABLE 2. Weight changes of envelope materials before and after immersing in deionized water.

Chemical structure of envelope materials

As shown in Figure 8, the chemical structure of the outer layer for 3216LV and FV1175 showed no change, which implies that the outer layer was relatively stable during natural aging. For HV150, the intensity for -NHCOO- group at 1724 cm−1, the -NHCONH- group at 1680 cm−1, and the C=O group at 1224 cm−1 decreased with the increase in natural aging time. This result indicated that the outer layer of HV150 was broken during aging, which is consistent with the results shown in Figures 57. For ETAV150, the chemical structure showed no change after aging because the tested material chosen was relatively complete without any PET-aluminum fall off.

FIGURE 8
www.frontiersin.org

FIGURE 8. FT-IR spectra of (A) 3216LV, (B) FV1175, (C) HV150, and (D) ETAV150 before and after natural aging.

Helium permeability and mechanical properties of envelope materials

The gas-barrier and mechanical properties of the envelope materials are of vital importance for actual applications. A stratospheric airship would fail if any of these properties did not satisfy application requirements (Liao and Pasternak, 2009). The helium permeability of the samples before and after natural aging was accessed using a differential-pressure method, and the results are listed in Table 3. The helium permeability of the 3216LV declined with the prolongation of aging time from 0.8818 L/m2•day•atm to 0.2047 L/m2•day•atm. The helium permeability of the FV1175 increased from 0.6360 L/m2•day•atm to 0.9554 L/m2•day•atm when aged for 12 months and decreased to 0.2169 L/m2•day•atm after aging for 18 months. However, the samples that were aged for 24 months showed leakage due to their stripped-off layers. For HV150 and ETAV150, helium permeability after aging for 6 months jumped from 0.3658 L/m2•day•atm and 0.0400 L/m2•day•atm to 13.2301 L/m2•day•atm and 9.0181 L/m2•day•atm, which were 36.2 and 225.5 times of the original values, respectively. Later, the samples exhibited leakage.

TABLE 3
www.frontiersin.org

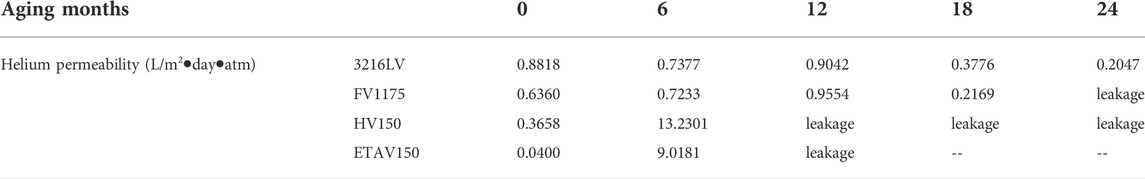

TABLE 3. Helium permeability of envelope materials.

Thus, the outer layers of HV150 and ETAV150 were broken during natural aging in Hainan. Hence, a surge in helium permeability was seen in ETAV150 due to the corrosion of the PET-aluminum layer when exposed to environment with high moisture and salty, frequent rainfalls (Ul-Hamid, et al., 2017). The aluminum layer was even absent in some areas with obvious cracks in the surface, as shown in Figures 57, which provided the decreased gas paths, resulting a failure of gas-barrier layer (Figure 9D). In addition, the degree of damage to HV150 was grave too and exhibited leakage after aging for 12 months. As displayed in Figures 57, the mildew spots and area on HV150 were the most apparently and micro-gullies shown on the surface and even Vectran fabrics was exposed, which was harmful to the performance of HV150. The outer TPU layer was destroyed due to poor water and mildew resistance, leading to the degradation and failure of the weatherability layer. Furthermore, the PET layer suffered solar irradiation and mold erosion, which led to the failure of gas-barrier properties. Finally, the gas path was shortened sharply and showed helium leakage, as shown in Figure 9C. Interestingly, the helium permeability of 3216LV and FV1175 aged for 24 and 18 months, respectively, decreased to a certain extent, which may be ascribed to the crosslinking of the PET part under the comprehensive action of irradiation of ultraviolet light, moisture, and temperature alternation, which could enhance the crystallization degree (Ji-Hyun and Hee, 2018; Shih, et al., 2021; Xu, et al., 2015) and block the diffusion of helium (Figures 9A,B). Meanwhile, the better water and mildew resistance of PVDF and PVF enabled them to have efficient protection of the inner layers, which kept the PET layer working. However, the samples of FV1175 aged for 24 months showed delamination leakage among the layers. It probably was the poor waterability of TPU, which served as the adhesive layer, that led to the delamination, and thus shortening the gas paths, as shown in Figure 9B.

FIGURE 9
www.frontiersin.org

FIGURE 9. Simplified schematic illustration of natural aging mechanism of (A) 3216LV, (B) FV1175, (C) HV150 and (D) ETAV150 in Hainan.

The mechanical properties were tested, and the results are shown in Figure 10 with detailed data listed in Table 4. In 6 months, the tensile strength of 3216LV remained unchanged in both the longitudinal and transverse direction at about 101.43 ± 5.45 Kgf/cm and a strain at break of 6.1 ± 0.22%. With increased of aging time, the strength of 3216LV decreased to 79.73 ± 6.40 Kgf/cm and the strain at break became to 5.4 ± 0.24%, or about a 21.4% and 11.5% decrease, respectively. For FV1175, there was little variation in tensile strength and or strain at break in 18 months. Even after aging for 24 months, the strength and strain decreased form 76.15 ± 3.81 Kgf/cm and 6.8 ± 0.3% to 70.20 ± 6.57 Kgf/cm and 6.4 ± 0.57% in the longitudinal direction. These values remained unchanged in the transverse direction. By contrast, the strength of HV150 and ETAV150 dropped sharply, even after aging for only 6 months. The tensile strength reached 79.29 ± 1.99 Kgf/cm at 6 months and 15.22 ± 2.16 Kgf/cm at 24 months from 82.13 ± 3.61 Kgf/cm, which decreased 3.5 and 81.5%, respectively. The strain at break decreased from 6.0 ± 0.04% to 5.3 ± 0.19% at 6 months and 2.0 ± 0.2% at 24 months, which declined 11.7 and 66.7%, respectively. Meanwhile, ETAV150 also exhibited decreased tensile strength with no sacrifice of strain, with a tensile strength that was maintained 57.92 ± 1.32 Kgf/cm after 6 months aging, 32.8% lower than that of original sample.

FIGURE 10
www.frontiersin.org

FIGURE 10. Stress-strain curves, bar charts of stress, strain at break and stress-strain curves for (A1-A4) 3216LV, (B1-B4) FV1175, (C1-C4) HV150, and (D1-D4) ETAV150.

TABLE 4
www.frontiersin.org

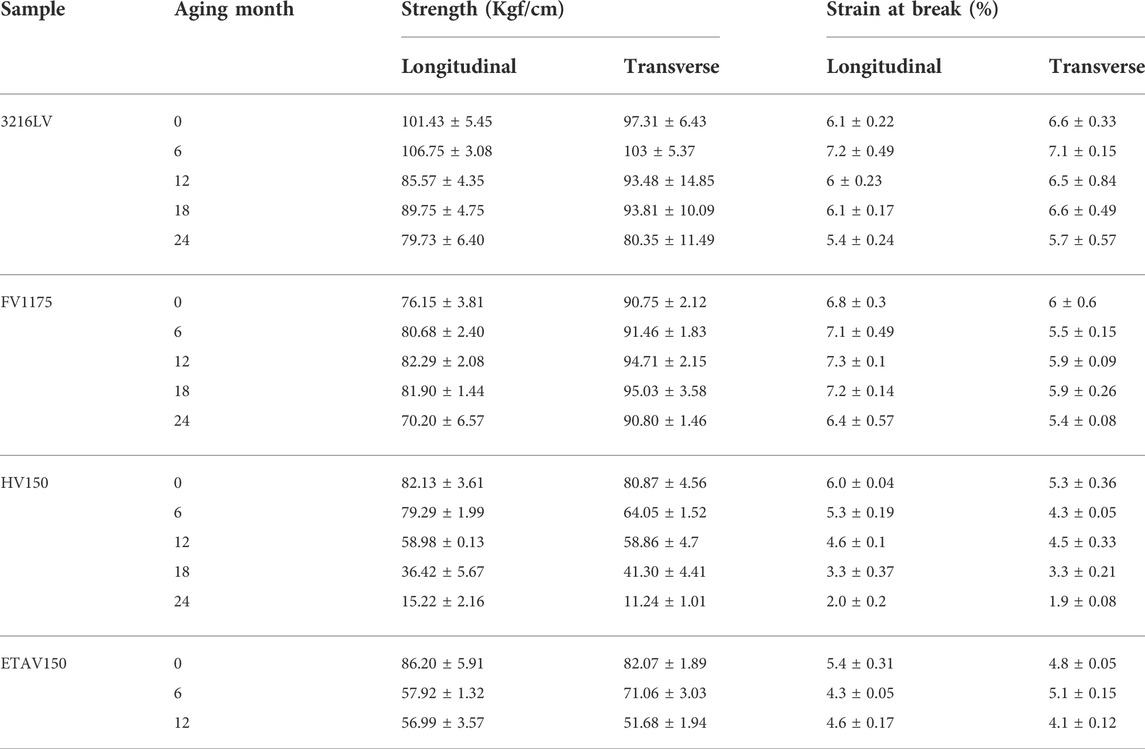

TABLE 4. Mechanical properties and helium permeability of envelopes aged for different times.

Solar irradiation and rainfall affected the performances of these tested materials the most, as illustrated in Figure 8. During natural aging, envelope materials suffered sun irradiation and rainfall with high salt for months and even years. For 3216LV and FV1175, the outer layers were PVF and PVDF with TiO2, which possess excellent weather resistance and hydrolysis resistance. Hence, the outer layer was stable and protected the inner layers from being broken under solar irradiation and rainfall through reflecting the solar light away and keeping the rainfall out (Figure 9A). As a result, 3216LV and FV1175 remained complete and without defects, contributing to the excellent mechanical properties. For HV150, the hydrolysis and mildew of TPU rendered the degradation of TPU and could not prevent the inner layers from solar light and mildew (Figure 9C). Under these dual actions, the degradation occurred on the Vectran fabrics (Beers and Ramirez, 1990; Said et al., 2006), resulting in a sharp decrease in tensile strength. Similarly, the corrosion of PET-aluminum increased weathering. As a result, solar light could penetrate through the cracks into the inner layer and harm the Vectran, which led to a drop in mechanical properties.

Conclusion

In this work, the properties of several envelope materials for aerostat natural aged in Hainan were investigated. The characteristics of the outer layer were of great importance. The results show that envelope materials employing PVF and PVDF as the weathering layer possessed better aging resistance than TPU and aluminum. The tensile strength of 3216LV using PVF as the outer layer decreased from 101.43 ± 5.45 Kgf/cm to 79.73 ± 6.40 Kgf/cm, even after aging for 24 months, with decreased helium permeability from 0.8818 L/m2•day•atm to 0.2047 L/m2•day•atm. The helium permeability of FV1175 decreased from 0.6360 L/m2•day•atm to 0.2169 L/m2•day•atm after aging for 18 months, and the mechanical strength was reduced from 76.15 ± 3.81 Kgf/cm to 70.20 ± 6.57 Kgf/cm when aging for 24 months. However, HV150 and ETAV using TPU and PET-aluminum as the outer layer, respectively. showed leakage after aging for 12 months with a sharp drop in mechanical performance. As result, aerostats using 3216LV and FV1175 are more suitable for flying in Hainan.
