Tunable Topological Phase Transition in Two-Dimensional Ternary Transition Metal Halides TiXI (X = P and As)

With first-principles calculations we predict tunable topological phase transition in two-dimensional (2D) ternary transition metal halides α-TiXI (X = P and As) via strain engineering. Besides, changing the number of stacking layers or van der Waals interlayer spacing can also result in topological phase transition in few-layer TiXI. The on-site Coulomb U of Ti atoms is neither tunable nor empirical in this work. Instead, it is evaluated by the density functional perturbation theory and hence the results are more accurate. The tunable topological phase of 2D α-TiXI via strain engineering makes them promising in spintronics devices that exploit quantum spin Hall effect. Furthermore, the topological edge states of the single-layer TiAsI exhibit interesting feature. They do not cross at the time-reversal invariant momenta (TRIM) where the band inversion occurs. Instead, they extend over the whole one-dimensional Brillouin zone and cross at the other TRIM. While all requirements of Z₂ topological phase are fulfilled, it is rare especially for those with direct gap. The linear bulk bands around and at Γ point may be the reason for the unusual crossing.

Introduction

The search for new functional materials has been one of the main research fields in materials science. Among various types of materials, two-dimensional (2D) materials have attracted much attention and been successfully applied to various fields of application such as electronics, opto-electronics, spintronics, etc. One of the intriguing parts of 2D materials is that some unusual physical properties may occur when the dimension is reduced. In addition, tunable properties of 2D materials are also essential for the applications. For example, the physical properties of 2D materials can be tuned via strain engineering or by changing the number of stacking layers, and/or van der Waals interlayer spacing (for multi-layers). Many 2D materials, such as graphene (Geim and Novoselov, 2007; Castro Neto et al., 2009; Allen et al., 2010), transition metal dichalcogenides (Mak et al., 2010; Radisavljevic et al., 2011; Gutiéerrez et al., 2012; Wang et al., 2012), metal-organic frameworks (Janiak, 2003; Férey, 2008; Long and Yaghi, 2009; Zhou and Kitagawa, 2014; Mezenov et al., 2019) etc., have been widely used in device applications. Therefore, it is of great importance and interest to continue the search for new functional 2D materials in both fundamental science and applications.

In recent years, ternary transition metal halides have been intensively studied for their interesting semiconducting properties (Yun and Lee, 2017; Liang et al., 2018; Liu et al., 2020; Shi et al., 2022). More importantly, ternary transition metal halides can be easily exfoliated into single or few layers due to the van der Waals stacking. Therefore, ternary transition metal halides are regarded to be promising in device applications owing to their potential for next-generation semiconductors. Besides, some metallic ternary transition metal halides are found to be superconductors (Yamanaka, 2010; Schurz et al., 2011). Among various interesting physical properties that ternary transition metal halides may exhibit, attention has recently been paid to the topological phases. Topological phases have been intensively studied in the past decade for their exotic features and potential for applications such as spintronics. The topological insulators (TIs) (Murakami et al., 2004; Kane and Mele, 2005; Bernevig et al., 2006; Fu et al., 2007; König et al., 2007), characterized by Z₂ invariant, are the one that has been studied extensively and intensively among all topological phases. It requires strong spin-orbit coupling (SOC) to induce the band inversion, so materials with heavier atoms are more likely to exhibit nontrivial Z₂ invariant. For nontrivial TIs, there exist topological edge states (the so-called bulk-edge correspondence) that are robust against perturbations preserving the protecting time-reversal symmetry. Recently, it has been predicted that single-layer α-TiNI is a 2D topological insulator (Wang et al., 2016), while α-TiNBr and α-TiNCl are topologically trivial due to the weaker SOC strength. The proposed topological phase is claimed to be robust against external strain and persists up to the room temperature due to the relatively large band gap ( ∼ 50 meV).

In this work, we demonstrate by first-principles calculations that 2D α-TiXI (X = P and As) undergoes topological phase transition by applying external strain, changing the van der Waals (vdW) interlayer spacing, or increasing the number of stacking layers. Despite that the strain-free single-layer α-TiXI (α will be omitted in the following for brevity) is topologically trivial, it is easy to drive the topological phase transition via strain engineering. It is thus more promising because the tunable topological phase may serve as a switch in devices to turn on and off the topological edge currents. Unusual topological edge states, which will be discussed later, are also found in single-layer TiAsI, making them an interesting family of materials.

Computational Methods

The ab initio density functional theory (DFT) calculations of electronic structures, phonons, and molecular dynamics (MD) are performed using Quantum Espresso (QE) code (Baroni et al., 2001; Giannozze et al., 2009). Ultrasoft PBE functionals (Perdew et al., 1996) are used to deal with the exchange-correlation effects. Energy cut-off for plane-wave expansion is chosen to be 60 Ry and a 16 × 16×1 k-mesh and a 6 × 6×1 q-mesh are used to sample the Brillouin zone in electronic and phonon calculations, respectively. Since both TiPI and TiAsI are predicted to be metallic using PBE functionals, HSE functionals (Heyd et al., 2003; Heyd et al., 2004) may not be the most adequate method for band correction (Heyd, 2004; Krukau et al., 2006; Paier et al., 2006). As a result, the DFT + U method is adopted here to improve the computed band structure. The on-site Coulomb repulsion U = 4.3 eV of Ti atoms in both TiPI and TiAsI is obtained via the density functional perturbation theory (Timrov et al., 2018; Ricca et al., 2019; Ricca et al., 2020) implemented in QE and is used in all calculations in this work. For MD simulations, the Verlet algorithm is adopted for the ion dynamics and the time step is 3 femto-seconds. Velocity rescaling is used to control the ionic temperature at 300 K. The Grimme-D2 method (Grimme, 2004) is adopted to correct the vdW interactions in few-layer and bulk TiXI. The SOC is considered in all calculations, except the phonon calculations. Vacuum space larger than 15 Å is used in all calculations to avoid artificial interactions along the c-direction between TiXI layers. Semi-infinite slab model based on Green’s functions (Sancho et al., 1984; Sancho et al., 1985) is used to calculate the edge band structures. The inter- and intra-layer couplings are computed using Wannier orbitals obtained from Wannier90 code (Mostofi et al., 2014).

Results and Discussion

The crystal structure of the single-layer TiXI is shown in Figure 1. The relaxed structural parameters of TiPI are a = 3.79 Å and b = 5.02 Å. The Ti-P and Ti-I bond lengths are 2.53 Å and 2.87 Å, respectively. Ti-P-Ti bond angle (along b-axis) is 166.9^◦, indicating slight buckling of the Ti-P plane. For TiAsI, the relaxed structural parameters are a = 3.87 Å and b = 5.24 Å. The Ti-As and Ti-I bond lengths are 2.64 Å and 2.87 Å, respectively. Ti-As-Ti bond angle (along b-axis) is 165.9^◦. The dynamical and thermal stability is confirmed by the phonon spectra and MD simulations shown in Figure 2 for both TiPI and TiAsI. For multi-layer TiXI, the relaxed vdW interlayer spacing of TiPI and TiAsI are about 2.65 Å and 2.55 Å, respectively. We note that the b-axis of both TiPI and TiAsI is much longer than that of TiNI whose b = 3.97 Å. In addition to the larger atomic radius of P and As, it is speculated that the contributing orbitals of the occupied states near Fermi level play an essential role. In TiNI, the occupied states near Fermi level are mainly comprised of I-p_x orbital. On the contrary, in both TiPI and TiAsI the P-p_y orbital is pushed up to be the highest valence band and thus affects the structure along b-axis.

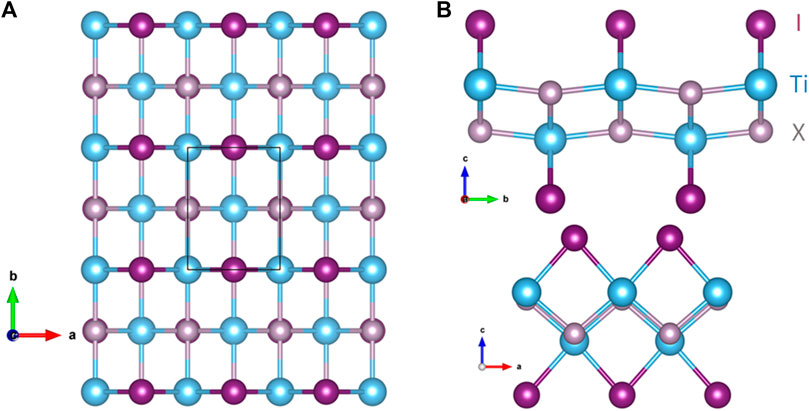

FIGURE 1

FIGURE 1. The (A) top view, (B) side view of the crystal structure of single-layer TiXI. The black box in (A) denotes the unit cell. The upper and lower panels in (B) represent the view along the short axis (a-axis) and the long axis (b-axis), respectively. The blue, grey, and purple spheres denote the Ti, X, and I atoms, respectively.

FIGURE 2

FIGURE 2. (A,B) The phonon spectra of strain-free single-layer TiPI and TiAsI. The absence of imaginary phonons indicates the dynamical stability of both TiPI and TiAsI. (C,D) The MD simulations of TiPI and TiAsI at 300 K supporting the thermal stability of both TiPI and TiAsI. The average potential energy is chosen to be zero.

For TiPI, the band structure, as is shown in Figure 3A, reveals that strain-free single-layer TiPI is a small-gap semiconductor with a direct band gap ∼ 0.21 eV at Γ. The valence band maximum (VBM) and conduction band minimum (CBM) are mainly comprised of P-p_y and Ti-$d_{z^2}$ orbitals, respectively. (Please note that the ordering of the atomic orbitals in energy space is affected by the value of U and we will demonstrate the properness of using the DFPT-obtained U in the end of the discussion.) Also, band inversion is absent, indicating a topologically trivial state. Nevertheless, the small direct gap implies the possibility of topological phase transition via fine tuning such as external strain. Indeed, it is found that single-layer TiPI becomes topological when applying ∼ 5.5% uniaxial tensile strain along y-direction (the long axis). As Figure 3B reveals for the case of 6% strain, band inversion occurs at Γ which indicates the nontrivial topology. However, the topological phase is intact under uniaxial strain along x-direction (the short axis). This can be understood from the fact that the main components of VBM are P-p_y orbitals. Thus, the band structure around VBM is more sensitive to the strain along y-direction. Hereafter, the stain is tensile along y-direction unless otherwise mentioned.

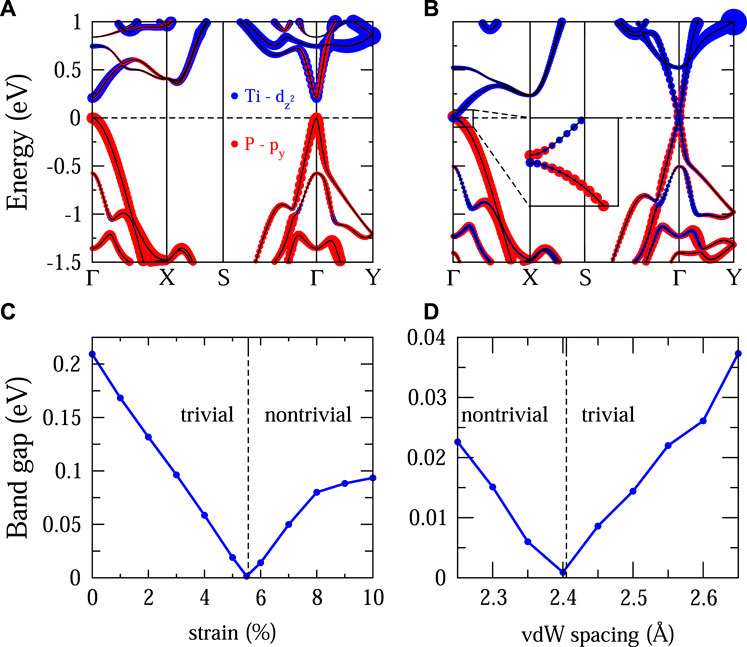

FIGURE 3

FIGURE 3. (A,B) The band structure of strain-free single-layer TiPI and 6% uniaxial strained single-layer TiPI, respectively. The inset in (B) shows the band inversion around Γ. The color representation is shown in (A) for both cases. (C) The magnitude of band gap of single-layer TiPI versus strain. (D) The magnitude of band gap of bilayer TiPI versus the vdW spacing.

In a similar fashion, topological phase transition may also occur when the Ti-$d_{z^2}$ orbitals of the CBM is affected. Therefore, we also study how the number of stacking layers and interlayer distance change the topological phase of TiPI. As shown in Table 1, trilayer TiPI is on the verge of the critical point, i.e. the gap closing point, and is on the nontrivial side. A small strain that increases the band gap can make the topological feature more pronounced in trilayer TiPI. For 4-layer or thicker TiPI, it is a topological insulator (TI) with band gap ≥ 30 meV without strain. In Table 1, we list the topological phase of TiPI under strain. In addition to the thickness, the interlayer vdW spacing also acts as a tuning parameter to achieve topological phase transition in few-layer TiPI. Taking bilayer as an example, the strain-free TiPI becomes topologically nontrivial when the vdW spacing is reduced to 2.4 Å.

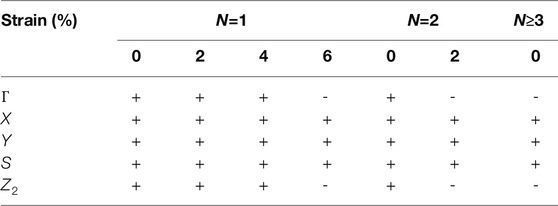

TABLE 1

TABLE 1. The computed parities of N-layer TiPI at TRIM under strain. The more precise critical strain can be found in the main text. The relaxed vdW interlayer spacing is adopted in this table. Bulk (N → ∞) is also considered.

For single-layer TiAsI, the direct band gap is even smaller (∼0.07 eV) as displayed in Figure 4A. Despite the trivial phase, it is close to the topological phase transition point. As shown in Figure 4B, only 2% strain can induce band inversion and make TiAsI topological. For bilayer and thicker TiAsI, they are Z₂ nontrivial without strain. The reason why it is easier to tune TiAsI into topological phase is because of the heavier As atoms as compared with the P atoms. The stronger SOC of heavy atoms is beneficial for the Z₂ topological phase. However, substituting the heavier Sb for As incurs dynamical instability (imaginary phonon modes) in single-layer TiSbI. Therefore, only TiPI and TiAsI are discussed in this work.

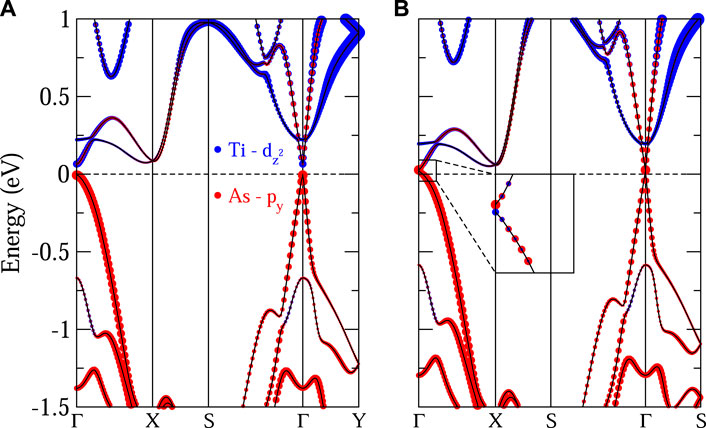

FIGURE 4

FIGURE 4. The band structure of single-layer TiAsI: (A) strain-free and (B) 2% strain. The color representation of the orbital decomposition is remarked in (A) for both cases. The inset in (B) shows the band inversion of the nontrivial phase.

Because of the presence of inversion symmetry in TiXI, the Z₂ topological invariants can be computed from the parities at the time-reversal invariant momenta (TRIM). As inferred from the band structures shown in Figures 3, 4, the parity change, resulted from the band inversion, only takes place at the Γ point. The topological phase of TiXI is confirmed by the Z₂ invariant listed in Table 1. The gap closing and re-opening shown in Figures 3C,D also indicates the occurrence of topological phase transition under uniaxial strain and compression of the vdW interlayer spacing (for bilayer TiPI).

The topological feature of the nontrivial phase, i.e., the topological edge states, is revealed in Figure 5. It can be seen that the in-gap topological edge states exist and cross at the TRIM. Interestingly, the topological edge states of the single-layer TiAsI do not cross at Γ where the band inversion occurs. Rather, they extend over the Brillouin zone and cross at the other TRIM, the Y point (0.0, π/b, 0.0). While all requirements of the Z₂ topological phase are fulfilled, it is rare in TIs with direct gap: most of the Z₂ topological edge or surface states exist around the band inversion region in reciprocal space and cross at the TRIM where the band inversion occurs. Some exceptions can be found in Z₂ topological metals such as PbTaSe₂ (Chen et al., 2016; Guan et al., 2016) where the band inversion results from the SOC-induced gap opening when two bands cross at the low-symmetry points without symmetry protection. It is speculated that the band dispersion aournd Γ may be the reason for the unusual crossing. By comparing Figures 5A,B, it can be found that the band dispersion around Γ in TiPI is flattened, yielding a region for the band crossing. For TiAsI, however, the two bulk bands where the topological edge states come from remain (nearly) linear even at Γ. Because the topological edge states tend to come out of the bulk bands along the tangential direction, the linearity of the bulk bands to Γ makes the topological edge states difficult to cross here. As a result, they find an alternative way to fulfill the topological requirement that two topological edge states have to cross at the TRIM.

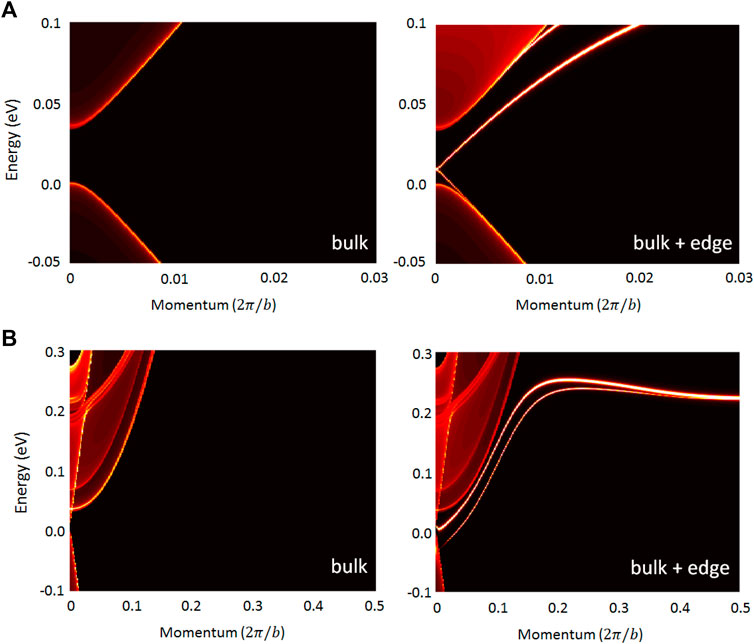

FIGURE 5

FIGURE 5. The edge band structures along y-direction of single-layer (A) TiPI with 7% strain and (B) TiAsI with 2% strain. The left (right) panel displays the bulk (bulk plus edge) components of the band structure. The topological edge states of TiPI cross at Γ while those of TiAsI cross at Y.

Before closing, we would like to discuss the accuracy of using the DFPT-obtained value of U in determining the band gap of TiXI, which is essential for the study of Z₂ topological phase. By comparing our results of monolayer TiNI whose U is also determined to be $\sim 4.3$ eV. The band gap obtained with this value of U is 0.76 eV without band inversion, which agrees very well with the G0W0 results reported in Ref. (Marrazzo et al., 2019). that monolayer TiNI is a band insulator with band gap $\sim 0.7$ eV. This indicates that the accuracy of using the DFPT-obtained U is comparable with the higher-level calculations such as G0W0.

Summary

Using first-principles calculations, the electronic and topological properties of TiPI and TiAsI are investigated. The on-site Couloumb U of Ti atoms is computed via the density functional perturbation theory, rather than determined by empirical choice or by fitting of a given physical property such as band gap. Few-layer strain-free TiPI (trilayer or thicker) and TiAsI are found to be topological nontrivial. For strain-free single-layer TiXI and bilayer TiPI, on the other hand, they are trivial band insulators. However, topological phase transition can take place via strain engineering. The vdW interlayer spacing of the bilayer TiPI can also be tuned to reach the topologically nontrivial phase. The tunable topological phase transition raises the applicability of TiXI because of the potential for acting as a switch to turn on and off the topologically protected edge currents. Our work demonstrates that the ternary transition metal halides are a promising family of materials due to their possible applications.

Data Availability Statement

The raw data supporting the conclusions of this article will be made available by the authors, without undue reservation.

Author Contributions

P-JC conceived the project, did the calculations, analyzed the data, and wrote the manuscript.

Conflict of Interest

The author declares that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

The reviewer CK declared a shared affiliation, with no collaboration, with one of the authors, PC, to the handling editor at the time of the review.

Publisher’s Note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
